Page 1
Mountain Lodge Playhouse
Copyright © 2015 PlayNation Play Systems, Inc.
Model: 02-3016
(BOXES: 1 pallet)
All Rights Reserved
190 Etowah Industrial Court
Canton, GA 30114
www.playnation.com
Page 2
Please inspect and inventory all parts immediately upon accepting delivery. Use the
inventory pages in the manual to make sure you have received all necessary parts.
The quickest method to get any parts that are missing or damaged is use our “Quick
Response Center” located at:
www.playnation.com/support
DO NOT RETURN THIS PRODUCT TO THE RETAILER OR CONTACT THE RETAILER DIRECTLY.
THE RETAILER DOES NOT STOCK COMPONENTS.
PLEASE RETAIN ALL INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE
PLACE WHERE YOU CAN REFER TO THEM AS NEEDED. CHECK FOR REVISED INSTRUCTIONS AT:
http://www.playnation.com/manuals.html
Page 3
PLAYNATION WARRANTY 2015
MANUFACTURER'S LIMITED LIFETIME WARRANTY
PlayNation Play Systems, Inc. warrants its Lifetime™ series of swing sets to be free from defects in
workmanship and materials, under normal use and conditions, for the lifetime of the product for above
ground structural wood components and for two years for all other components (e.g., swings, hardware,
plastics, tarps, rope ladder, etc.) except PlayNation's Super Scoop Slides™ and Super Tube Spiral Slides™.
PlayNation warrants its Super Scoop Slides™ and Super Tube Spiral Slides™ to be free from defects in
workmanship and materials, under normal use and conditions, for the lifetime of the product.
PlayNation warrants its Regal™, Imperial™, and Empire™ series swing sets to be free from defects in
workmanship and materials, under normal use and conditions, for a period of 15 years for above ground
structural wood components and for two years for all other components (e.g., swings, hardware,
plastics, tarps, rope ladder, etc.).
PlayNation warrants all remaining products, including but not limited to its Free Standing Swing Set, Free
Standing Tire Swing, See-Saw, Children's Picnic Table with Umbrella, Play-Zee-Bo™ and spring riders to
be free from defects in workmanship and materials, under normal use and conditions, for a period of 1
year. All accessories purchased separate from those included with one of our swing set packages have a
one year limited warranty.
Cosmetic imperfections and natural tendencies of wood such as peeling, splintering, warping,
seasonal checking or cracking, knots or knot holes, etc. are normal characteristics of all outdoor
wooden play equipment and are not covered by this warranty. Checks or cracks in wood components
that do not affect the intended function of the part, piece or overall swing set are not covered under
this warranty.
Wood rot or decay that develops because the product was installed in an area with poor drainage is not
covered under this warranty. Lumber that has been damaged by wood boring bees, or conditions that
develop as a result of faulty or improper installation of the product, are not covered by this warranty.
Fading of stain, discoloration or mold on any wood part or accessory is not covered by this warranty.
Cracks in plastic components, surface rust on hardware and chips on powder coated materials are not
considered defects in material as long as they do not affect the functionality or structural integrity of the
part or component.
It is the owner's responsibility to maintain the swing set. This includes but is not limited to staining and
sealing the lumber as needed and regular inspection to be sure all hardware is tight. Instructions for
proper maintenance can be found on PlayNation's website. Imperfections or conditions that develop
because of a failure to properly maintain the swing set are not covered by this warranty.
Page 4
PLAYNATION WARRANTY 2015
PlayNation will, at its discretion, replace any above ground part within the stated warranty period that is
defective in workmanship or materials. This decision is subject to verification of the defect, which, at
PlayNation's discretion, may be accomplished by submitting photographs or by delivery of the defective
part to PlayNation. PlayNation Play Systems, Inc. • 190 Etowah Industrial Ct. • Canton, GA 30114 •
770-704-9300 Monday to Friday 9AM-5PM EST. Any warranty claim must include proof of purchase,
including the date of purchase. In addition, within the first 30 days from the date of purchase,
PlayNation will replace any parts discovered to be missing from or damaged in the original packaging.
This warranty is valid only if the product is used for the purpose for which it was designed and installed
at a residential, single-family dwelling. This warranty is void if the product is used in a commercial,
institutional or multi-family setting. This warranty does not cover normal wear and tear or (a) products
that have been damaged by acts of God and/or nature, negligence, misuse or accident; (b) products
that have been modified or repaired by unauthorized persons; (c) the cost of labor; or (d) the cost of
shipping any replacement product or part.
PLAYNATION DISCLAIMS ALL OTHER REPRESENTATIONS AND WARRANTIES OF ANY KIND, EXPRESSED,
IMPLIED, STATUTORY OR OTHERWISE, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. PLAYNATION WILL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES. This warranty is non-transferable and does not extend to the owners of the
product subsequent to the original purchaser. Some states do not allow limitations on implied
warranties or exclusion of incidental or consequential damages, so these restrictions may not be
applicable to you. This warranty gives you specific legal rights. You may also have other rights which vary
from state to state.
Page 5
IMPORTANT SAFETY GUIDELINES
This product is recommended for use by children ages 3-11. This product is intended for residential
use only and not intended for use in any public setting. A safety surface such as mulch or recycled
tire should be used under the play set to prevent injury from falls. Also a 6 foot safety zone should be
used around the entire play set.
As with any home project, good judgment and respect for power tools will greatly reduce the risk
of injury. PlayNation recommends you follow all tool manufacturers’ safety guidelines. Always wear
eye protection and safety gloves to prevent injury. In several phases of construction two people may
be required for lifting and securing of lumber. While the play set is being constructed, please keep
children off the equipment until the project is complete. Bolts and screw heads should be checked
regularly for tightness. The ground ladder, rope ladder, slide, swings and other areas where children
spend a majority of their playtime should be checked more frequently.
PlayNation shall not be liable for incidental, indirect or consequential damages or injuries that result
from the building and/or playing on our play sets. Adult supervision is recommended anytime a play
set is being used.
WEIGHT LIMITS FOR PLAYNATION PLAYSETS
• FORT PLATFORMS: 800 LBS. TOTAL WEIGHT
• SWING BELT: 225 LBS.
• GLIDER SWINGS: 70 LBS. PER CHILD. UP TO 140 LBS TOTAL WEIGHT.
• TRAPEZE: 125 LBS.
• FULL BUCKET SWING/ HALF BUCKET SWING: 50 LBS.
• HEAVY DUTY TODDLER BUCKET SWING: 85 LBS.
• INFANT SWING: 35 LBS.
• TIRE SWING: 125 LBS. TOTAL WEIGHT
• ROPE LADDER: 75 LBS.
• ROCK WALL: 150 LBS.
• CLIMBING RAMP: 150 LBS.
• MONKEY BARS: 175 LBS.
• ALL SLIDES: 150 LBS.
PlayNation recommends that the weight limits for all components must not be exceeded. Failure to
adhere to these and other safety guidelines could result in damage to the play set and injury to the
users.
Page 6
THIS PAGE INTENTIONALLY LEFT BLANK
Page 7
WARRANTY REGISTRATION
- MOUNTAIN LODGE PLAYHOUSE -
PlayNaon manufactures the
nest quality products that
are designed for outstanding
strength and durability. We
back our products with an
unparalleled warranty. In the
unlikely event that you will need
to contact us about covered
repairs, we must have a valid
Warranty Registraon on le.
Where did you buy this product?:
Store Store City Store StateDate of
Purchase
OPTION 1
OPTION 2
OPTION 3
3 EASY WAYS TO REGISTER
Fax this completed form to:
(800) 880-3300
Complete the online registraon form at:
hp://www.playnaon.com/register
Scan this QR Code
with your smart
phone to complete
the form using your
OR
phone
Mail this completed form to:
PlayNaon Playsets
190 Etowah Industrial Court
Canton, GA 30114
Your registraon informaon:
Name: Email:
Address:
Street City State Zip
Please select
your age?
18-30
31-40
41-50
51+
How would
you rate the
quality of
this product?
How old are
your children?
2-3
4-5
6-7
8+
Would you recommend this product to friends & family?
Comments:
Excellent
Above Average
Average
Below Average
Poor
Yes No
Page 8
THIS PAGE INTENTIONALLY LEFT BLANK
Page 9
IMPORTANT – PLEASE READ
Congratulations! You have just purchase one of the finest residential wooden swing sets available today. As
with any wooden product that spends its entire life outside, in varying elements, it is important to know what to
expect with your new swing set so that your family can enjoy it for many years.
As your swing set acclimates to its new environment, natural characteristics of the wood can show in the form
of checks, or “cracks” in the lumber. In almost all cases this is normal and it will not affect the structural
integrity of your play set and is not covered under warranty.
KEEPING YOUR PLAYSET LIKE NEW
MUST DO’s
The following owner responsibilities are crucial to the safety, integrity and aesthetic appeal of your
swing set and may affect the warranty if not adhered to.
WITHIN 60 DAYS
Check and tighten Hex Bolts/T-nuts, Carriage Bolts/Lock-nuts, and Lag Screws within the first 60 days and
•
then twice annually – once before each season and then once during the season.
WITHIN 90 DAYS
• Apply a sealant or semi-transparent stain with sealant within the first 90 days of owning the swing set. If
applicable state laws allow, an oil based product will penetrate and protect the lumber better than a water
based product. Because climate conditions can vary drastically from region to region, we suggest asking the
product covering specialists at any number of specialty paint stores or home improvement centers for a
product that would work best for your local environment. ** TIP – while the set is new, take a small board from
your swing set to the store with you so they can color match the tint of the stain or sealant. Be sure to replace
the board when you get home.
SEASONAL REMINDERS
If your area experiences regular snowfall, remove your fabric tarp/canopy to avoid stretching, sagging or
•
tearing of the material. Store it inside, folded up, and it will be as good as new when winter is over.
If your area experiences extremely cold temperatures, remove swing belts and other pliable features to
•
prolong the lifespan of these play activities.
OTHER TIPS
Spray swing hangers with Pam, Mazola or olive oil to stop squeaking; do not use petroleum based products
•
such as WD-40 or motor oil.
To repel yellow jackets and wasps, use a cotton ball and dab interior wooden corners underneath the play set
•
deck with a liquid dish soap. Avoid using insecticides.
To speed up the slide wipe the center of slide with wax paper every 2 - 3 weeks.
•
For additional safety and maintenance guidelines, please visit our website.
Page 10
IMPORTANT DOCUMENTS
CUSTOMER MUST READ AND RETAIN
Please go to the following links and read important SAFETY information prior
to using your new play structure.
http://www.playnation.com/safety-and-maintenance.html
http://www.playnation.com/manuals.html (Click on your specific model)
http://www.playnation.com/warranty.html
NOTE: Your children’s safety is our #1 concern. Observing the following statements
and warnings reduces the likelihood of serious injury. Please review these safety rules
regularly with your children.
WARNING:
Children must NOT use this play set until it has been
completely assembled and inspected by an adult to
ensure it has been properly installed.
PlayNation Play Systems, Inc.
190 Etowah Industrial Court
Canton, GA. 30114
Page 11
Model: 02-3016
(BOXES: 1 Pallet)
REV: 4.23.2015
Page 12
TABLE OF CONTENTS
2
Safety Guidelines……………………………………….......……...........................Pages 3-6

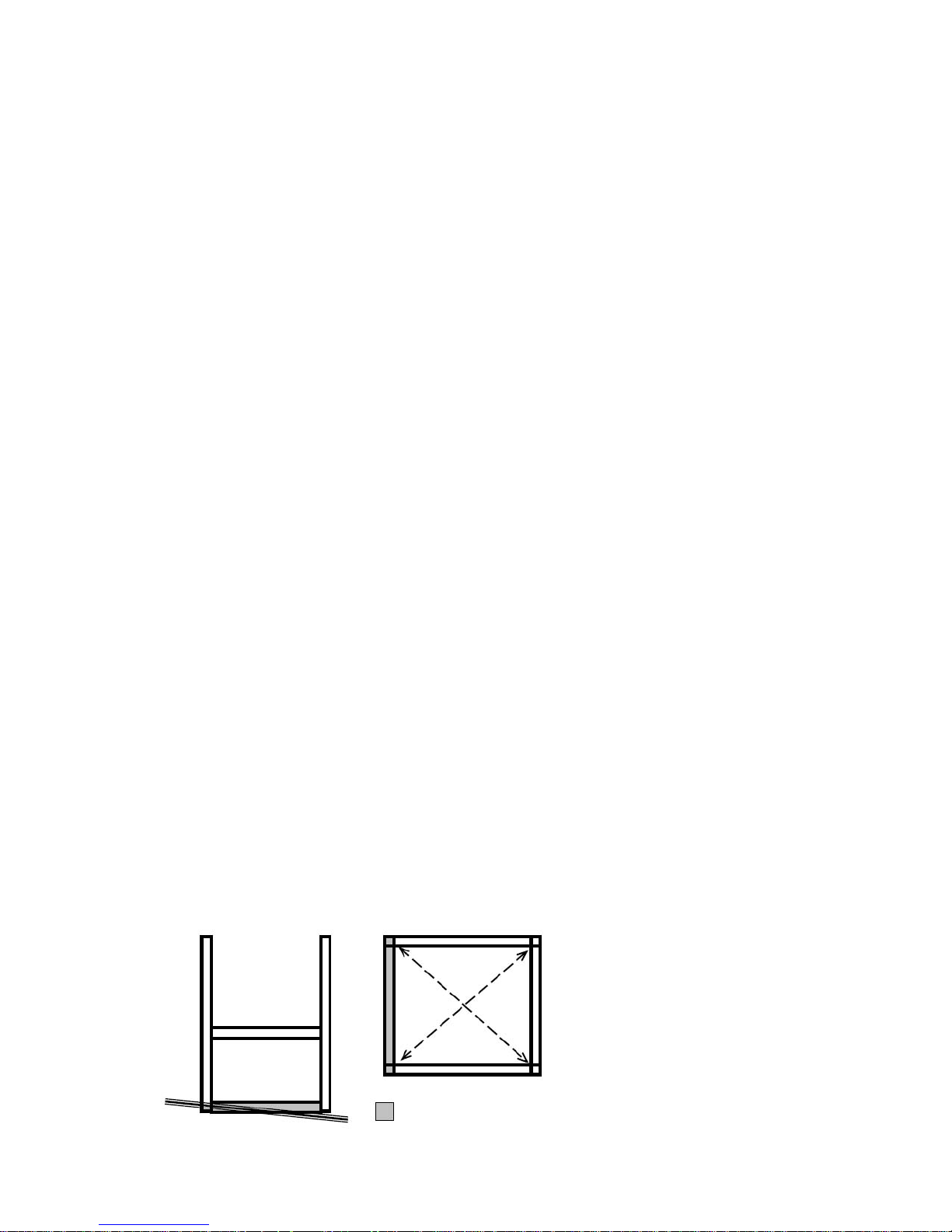

Leveling Fort, General Information and Denitions……………………...............Pages 6-8

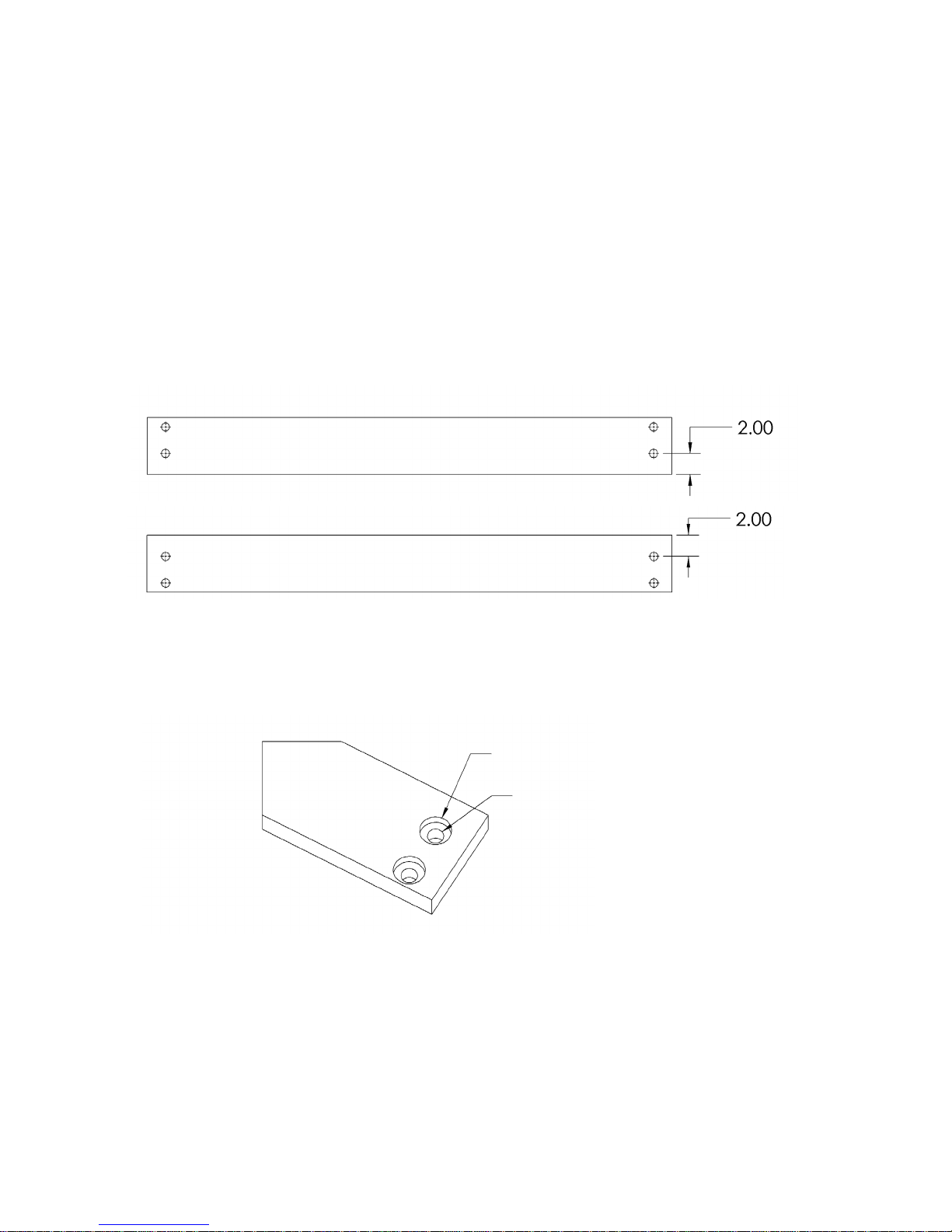

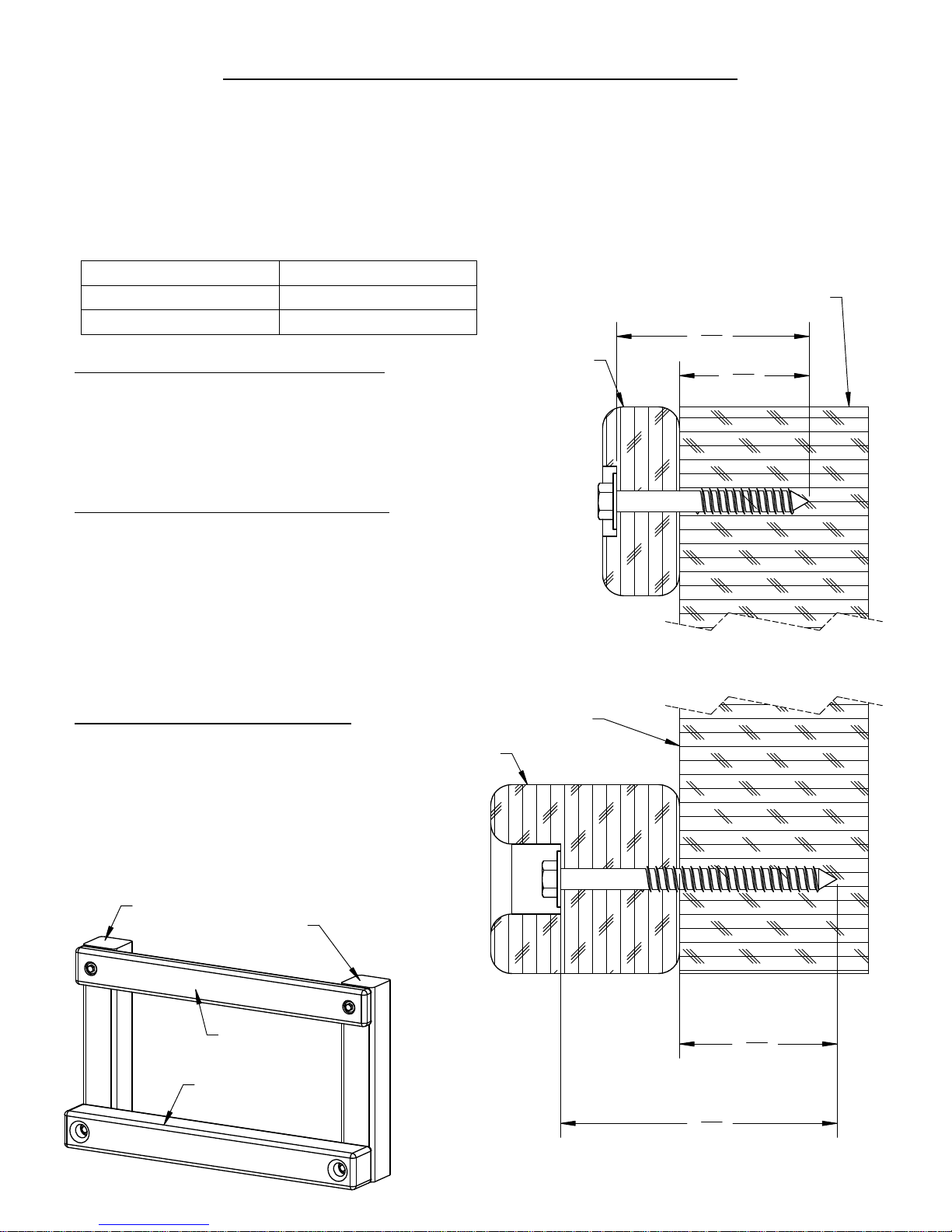

Predrill Lag Screw Directions..................................................................................Page 9

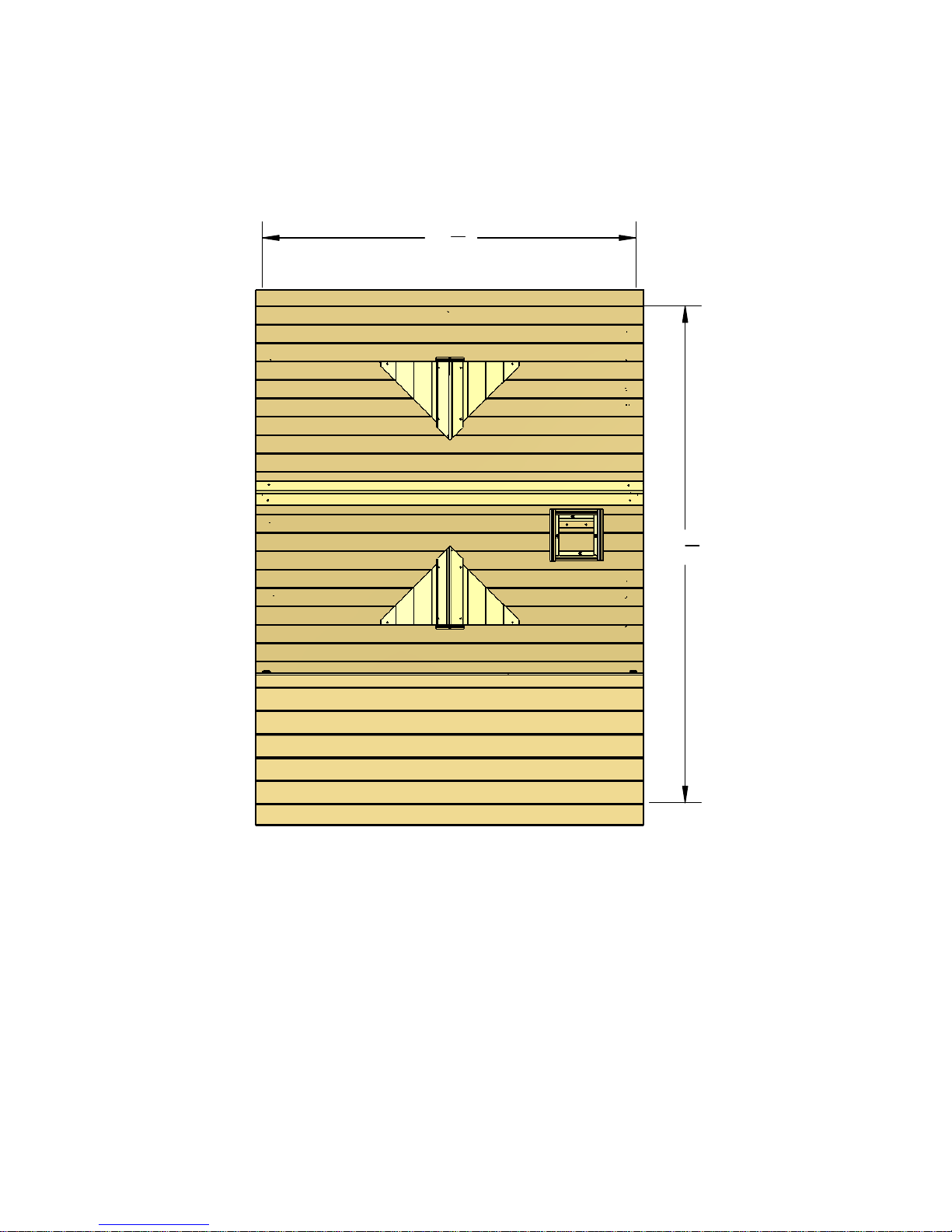

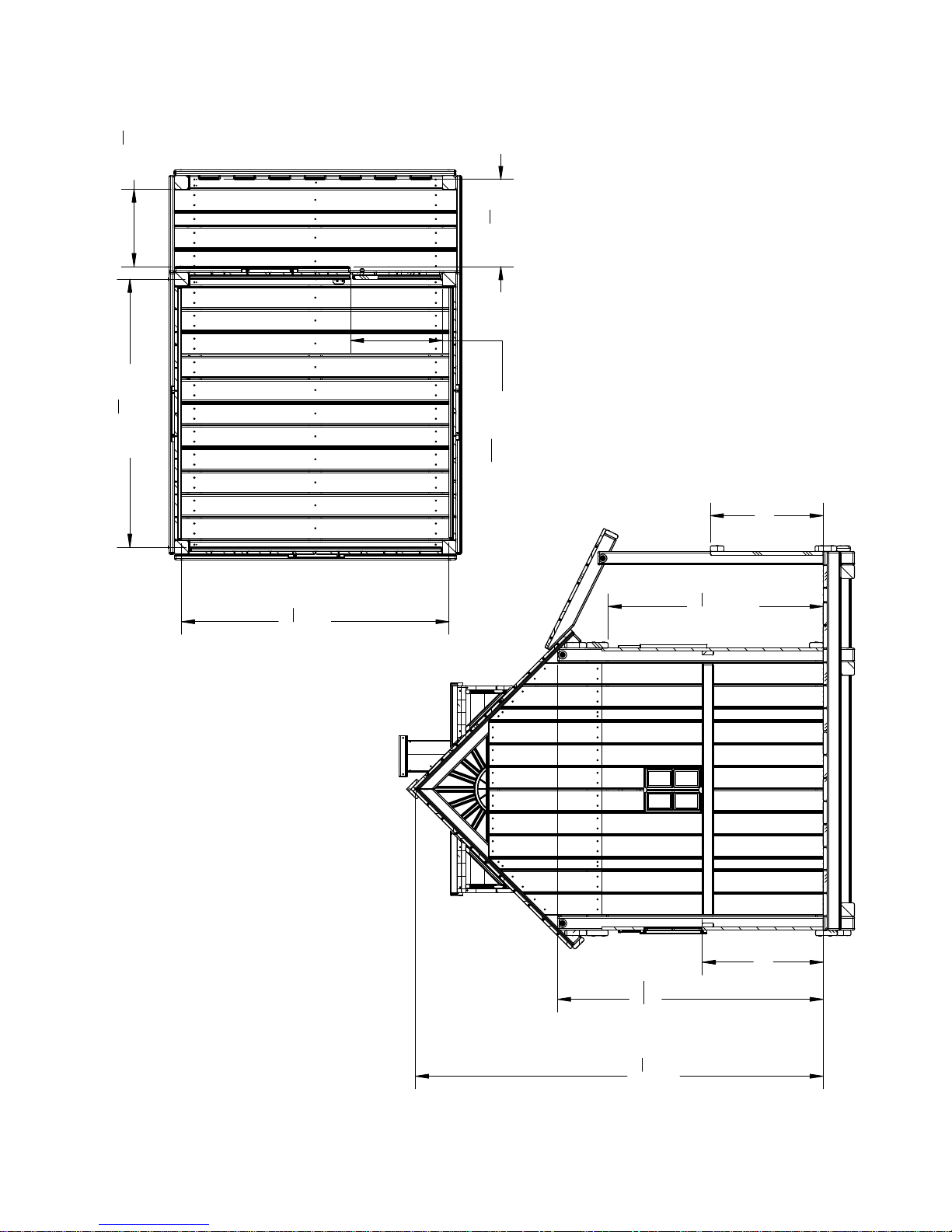

Inside Dimensions and Details, Site Plan.....................................................Pages 10-11
Required Tool List and Kit Contents......................................................................Page 12

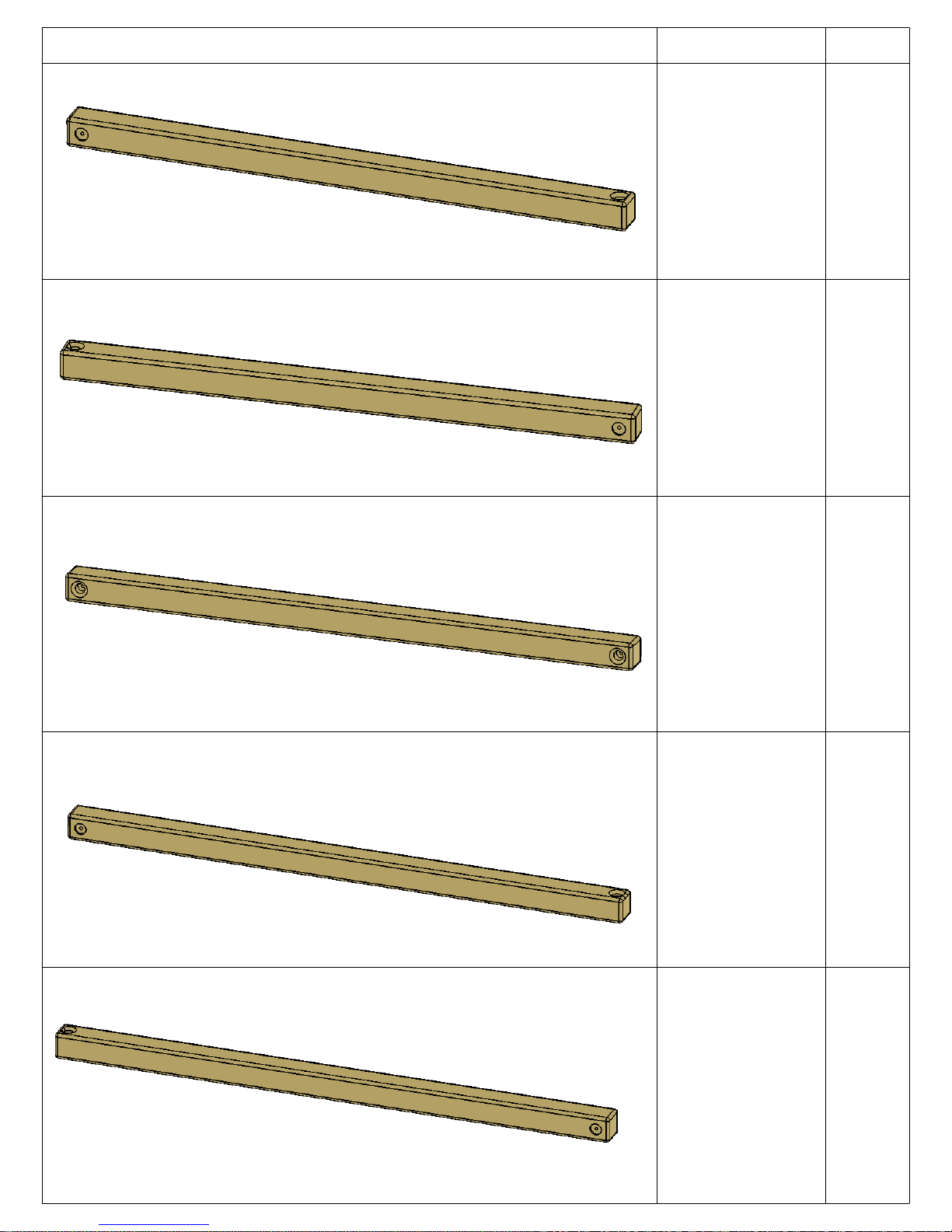

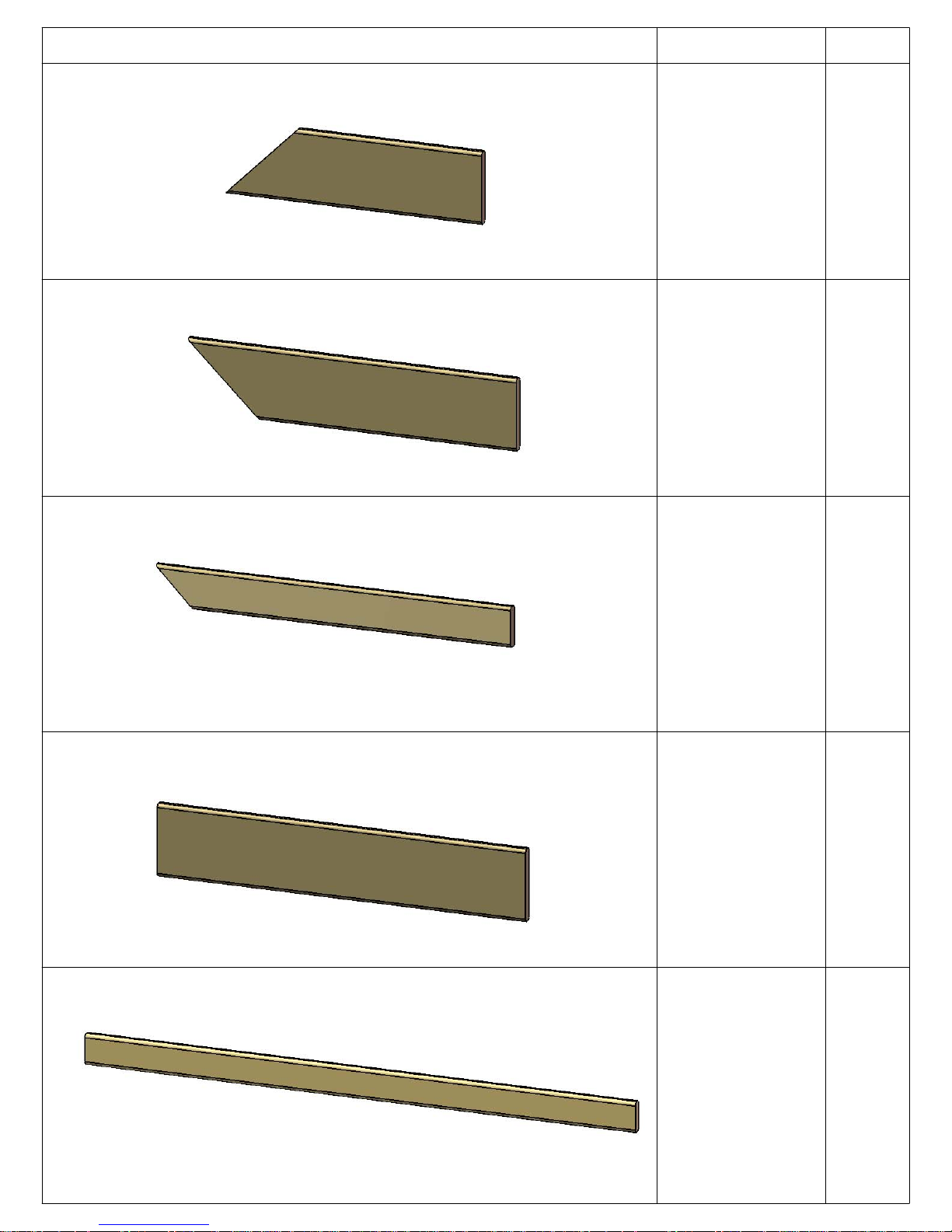

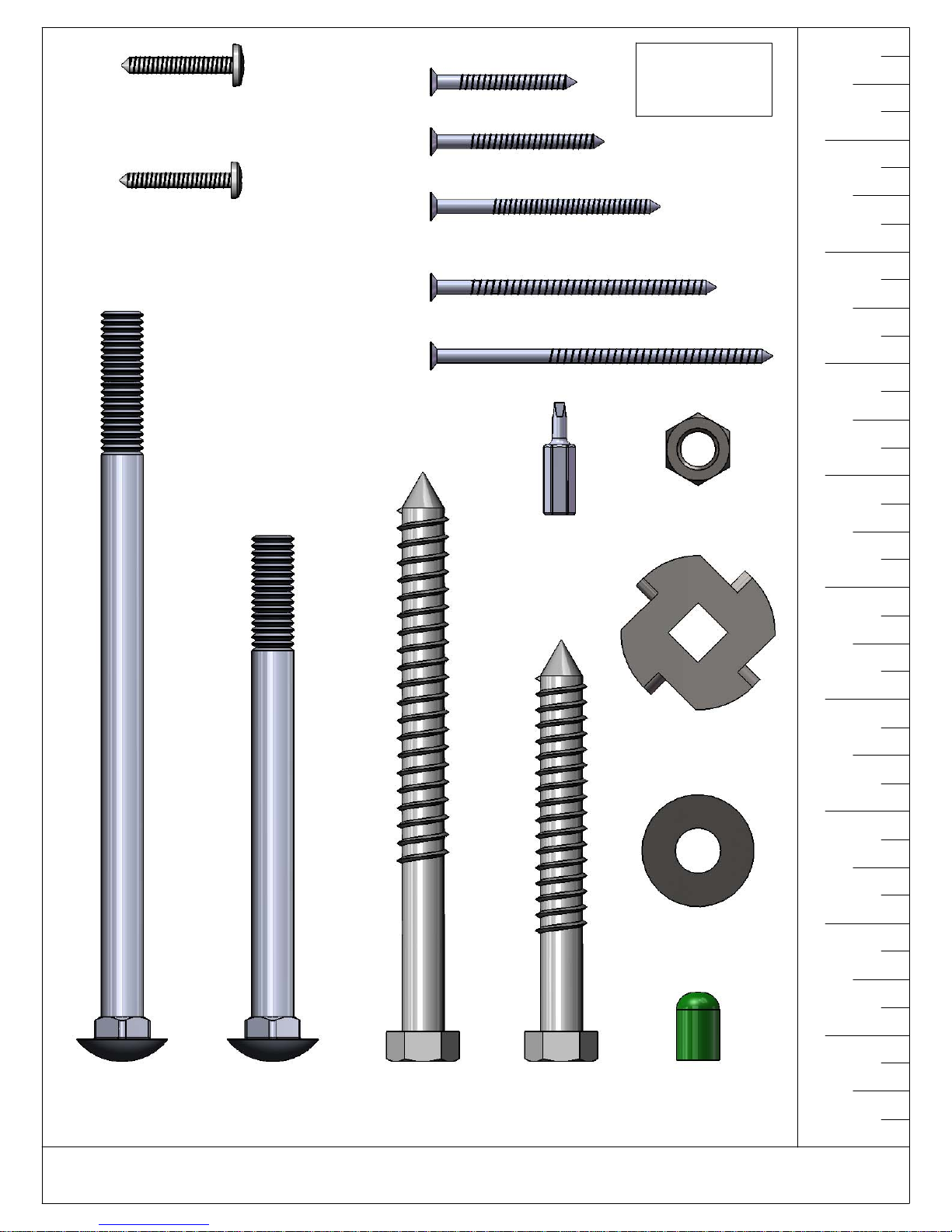

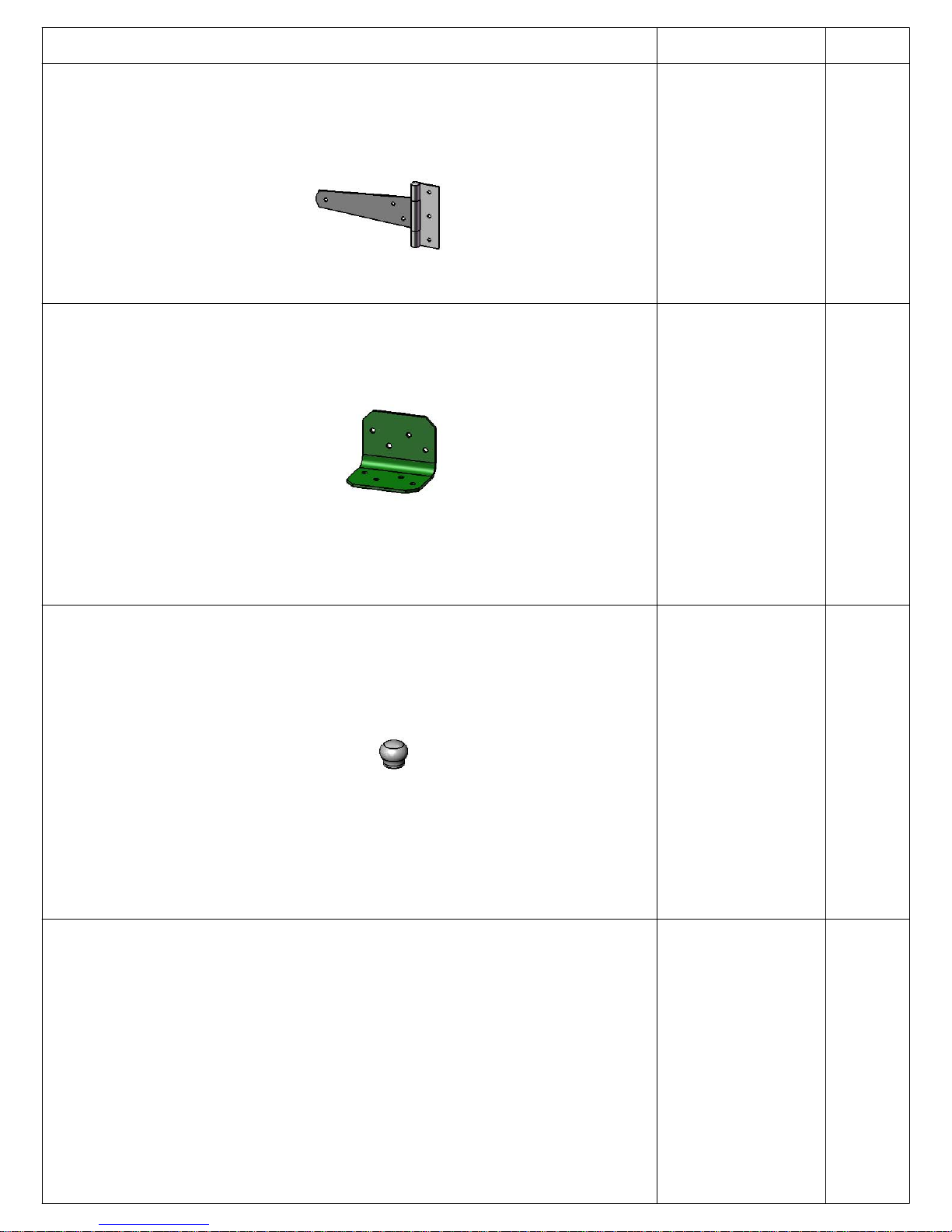

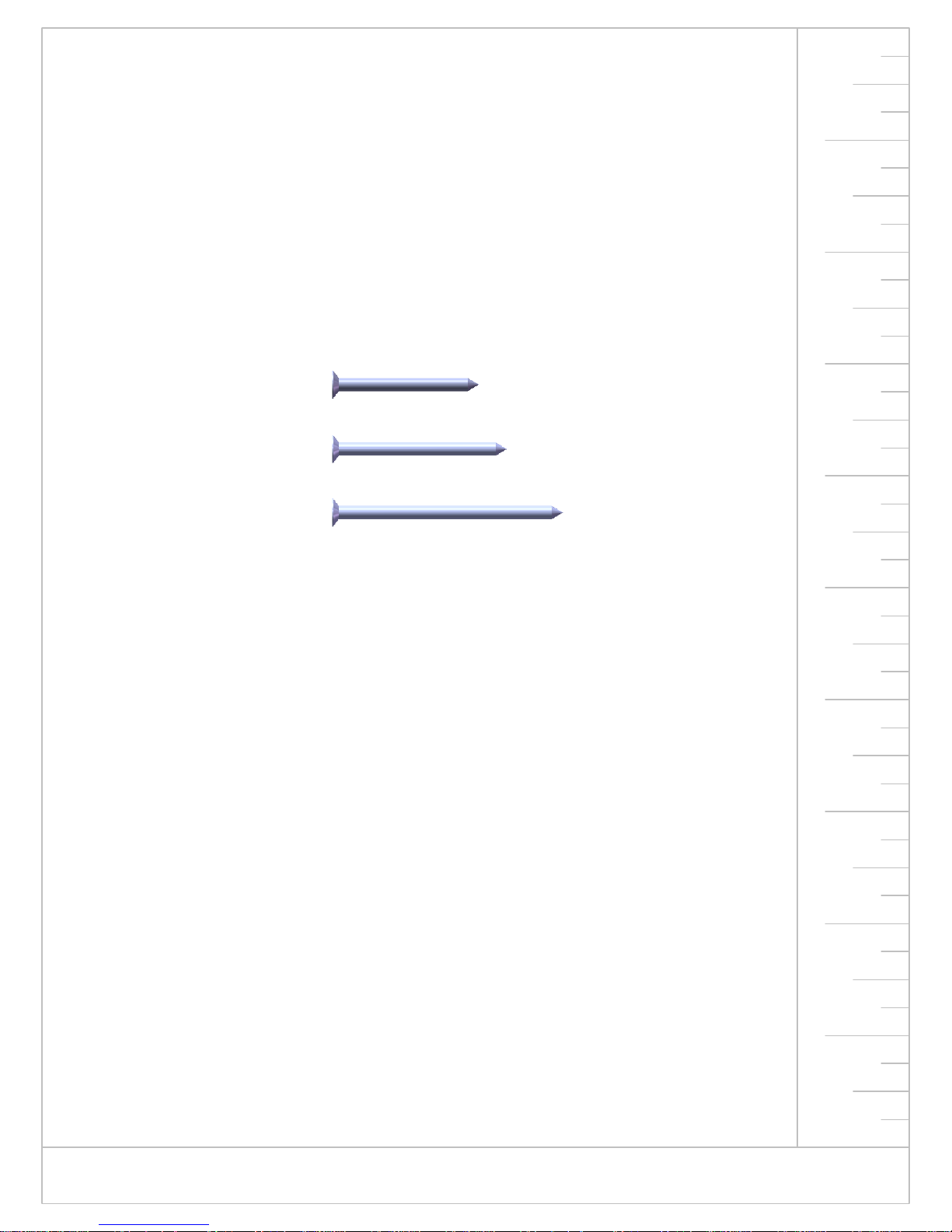

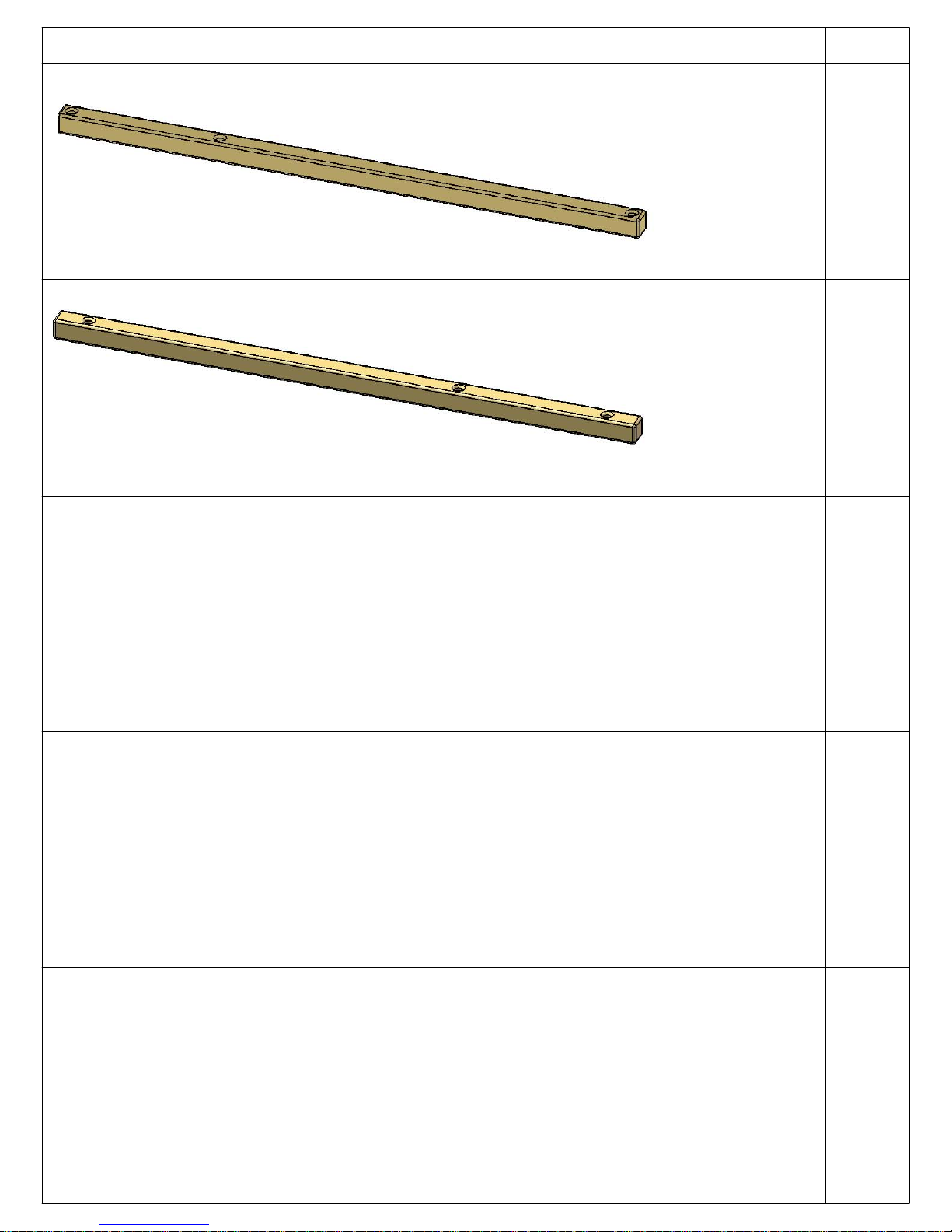

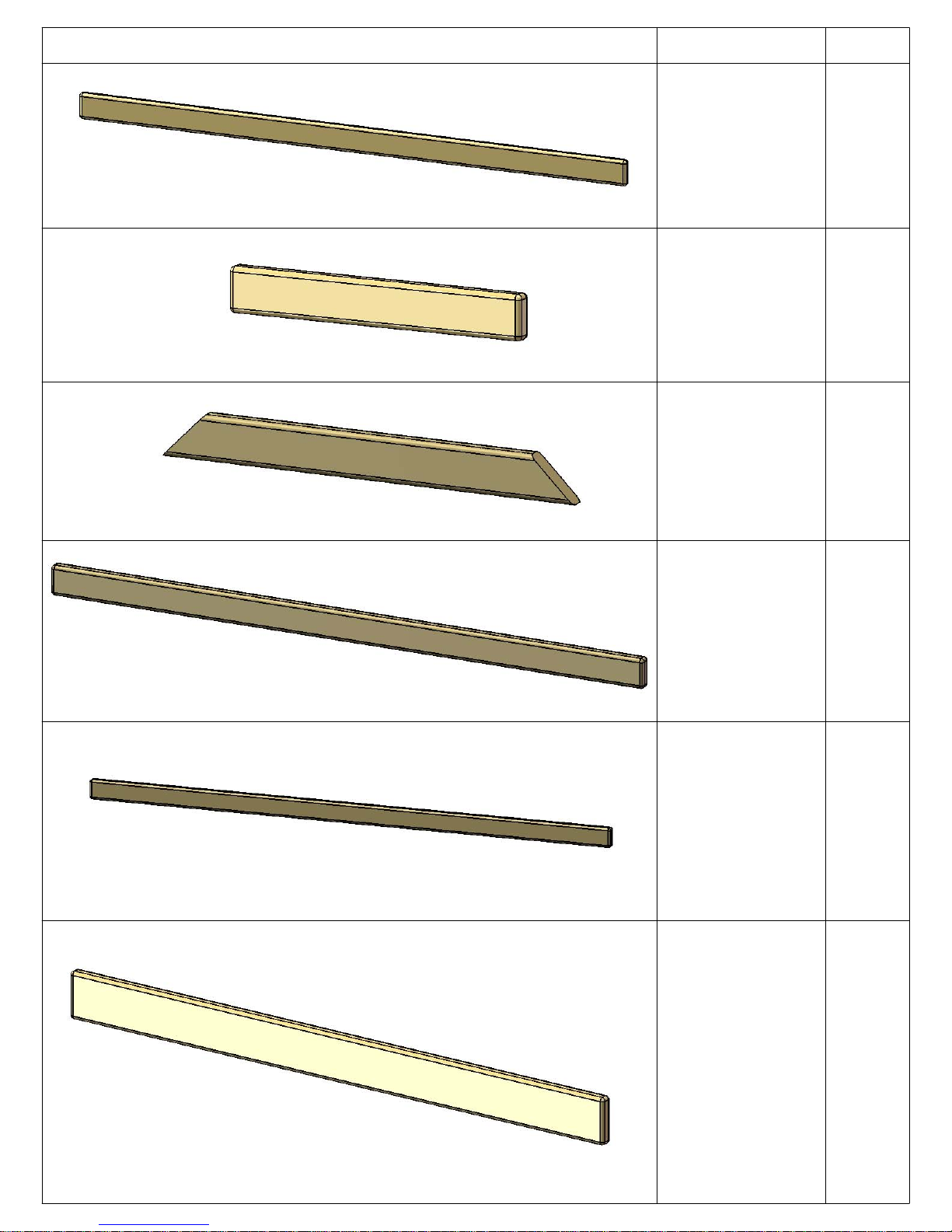

Hardware, Lumber and Accessory Checklists………………………................Pages 13-22

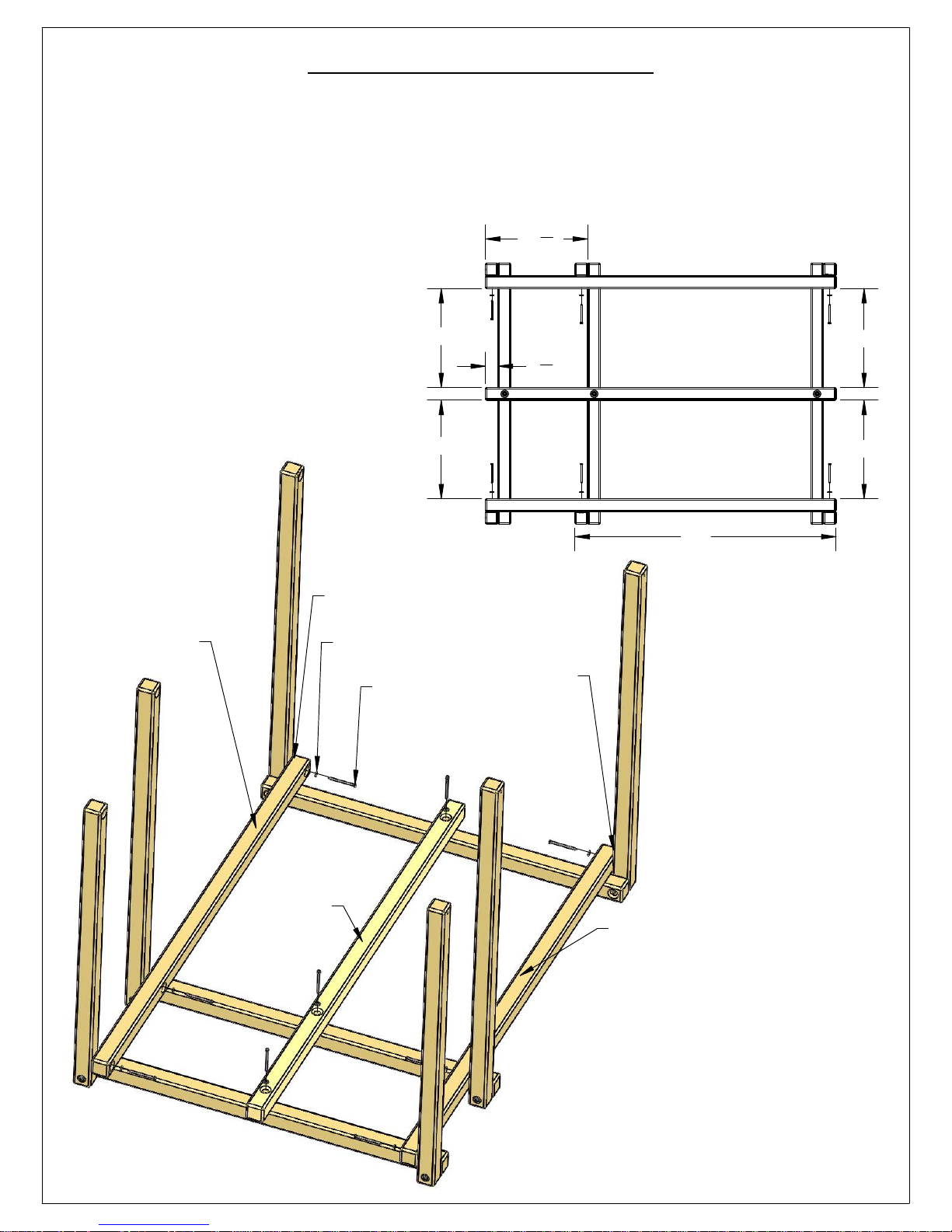

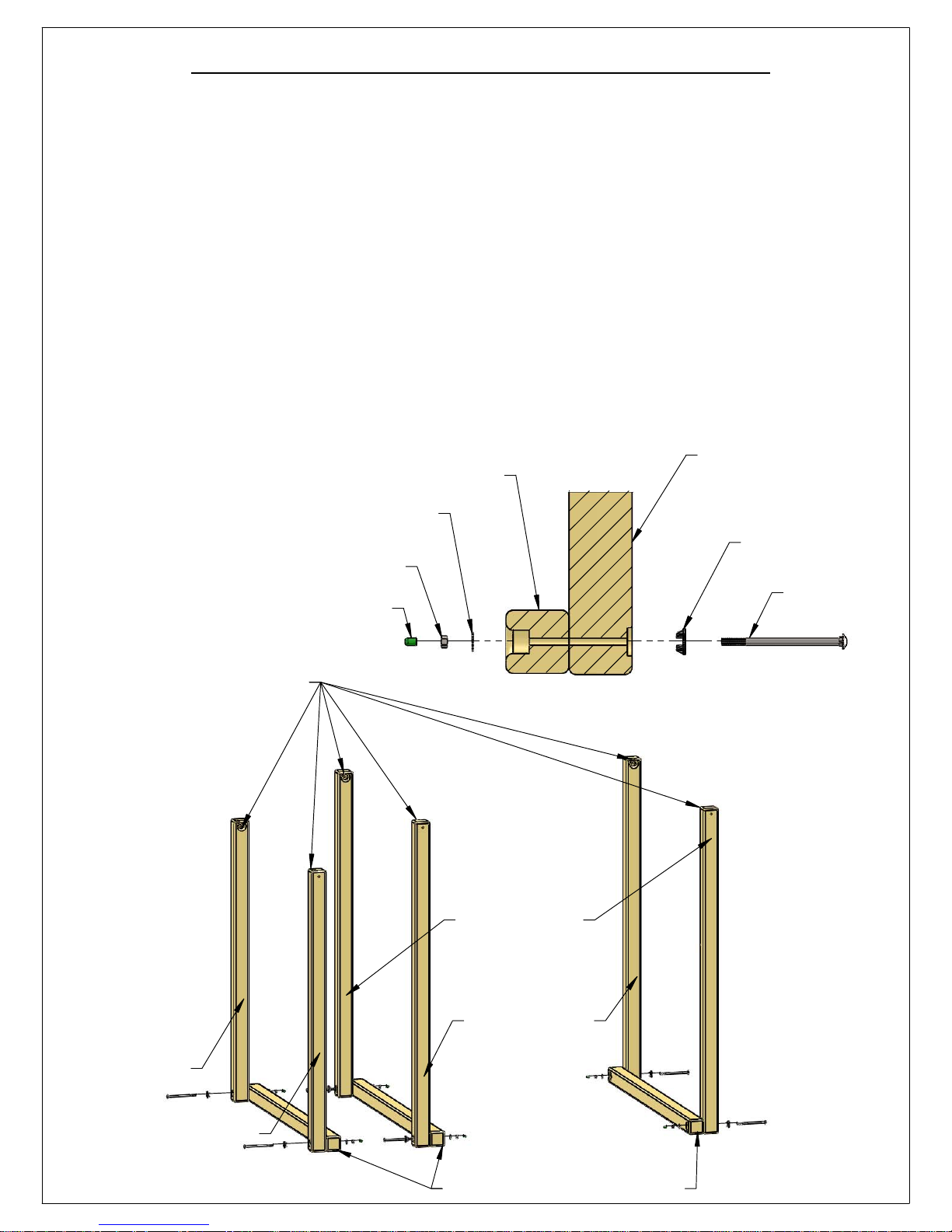

Posts & Fort Block Supports…………………………………..………...…................. Step 1

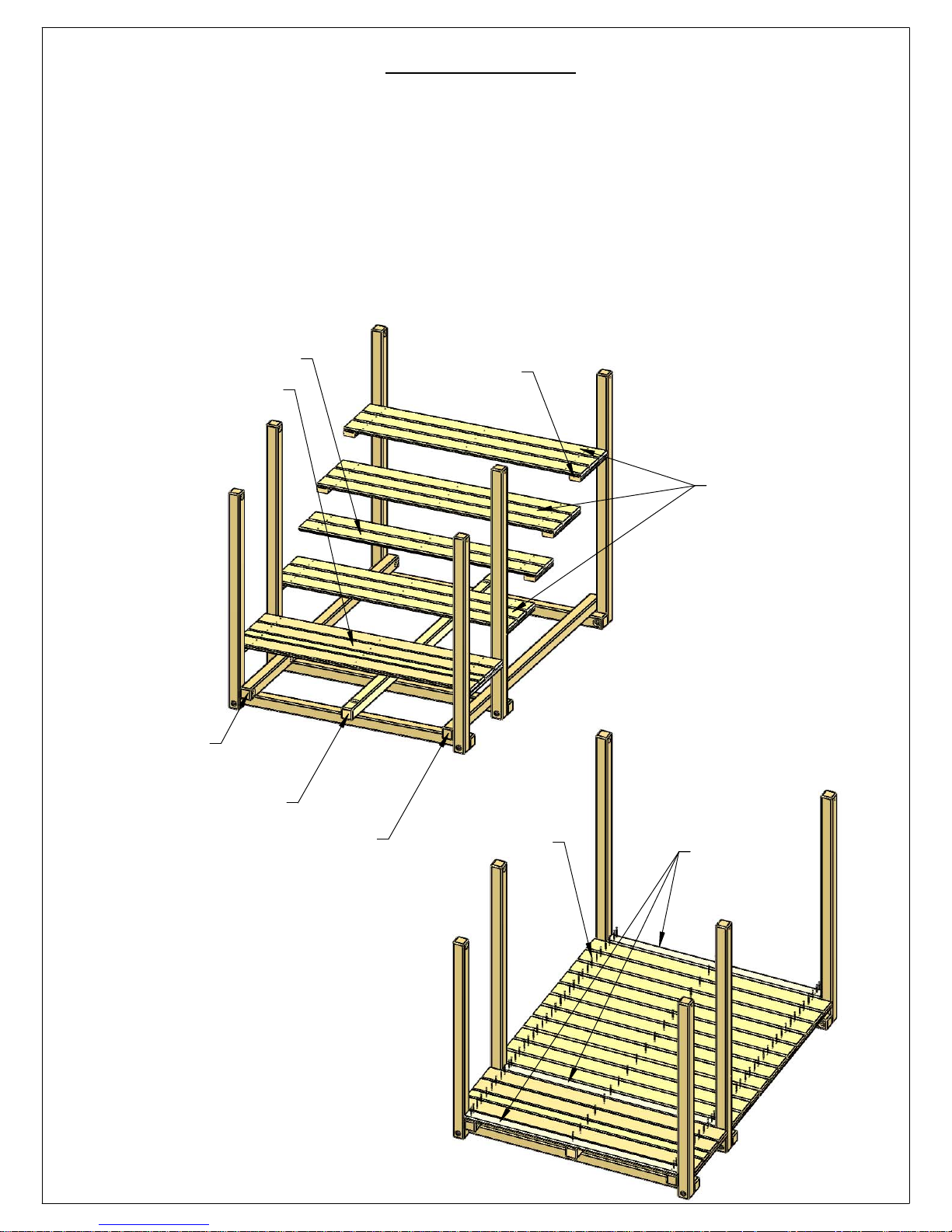

Deck Supports……………………………..…………………………..….............…..... Step 2
Deck………………………....……………….…………...…........................................ Step 3

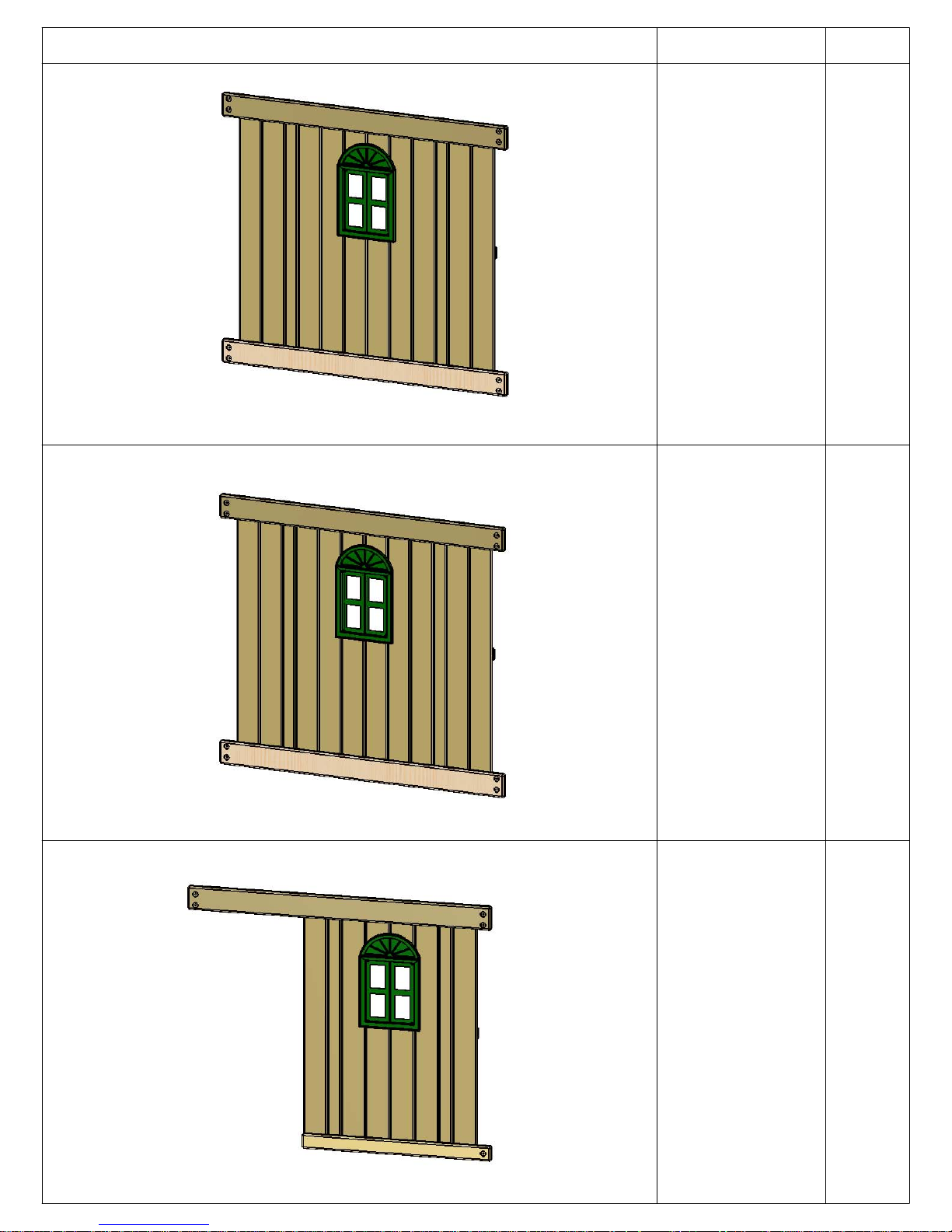

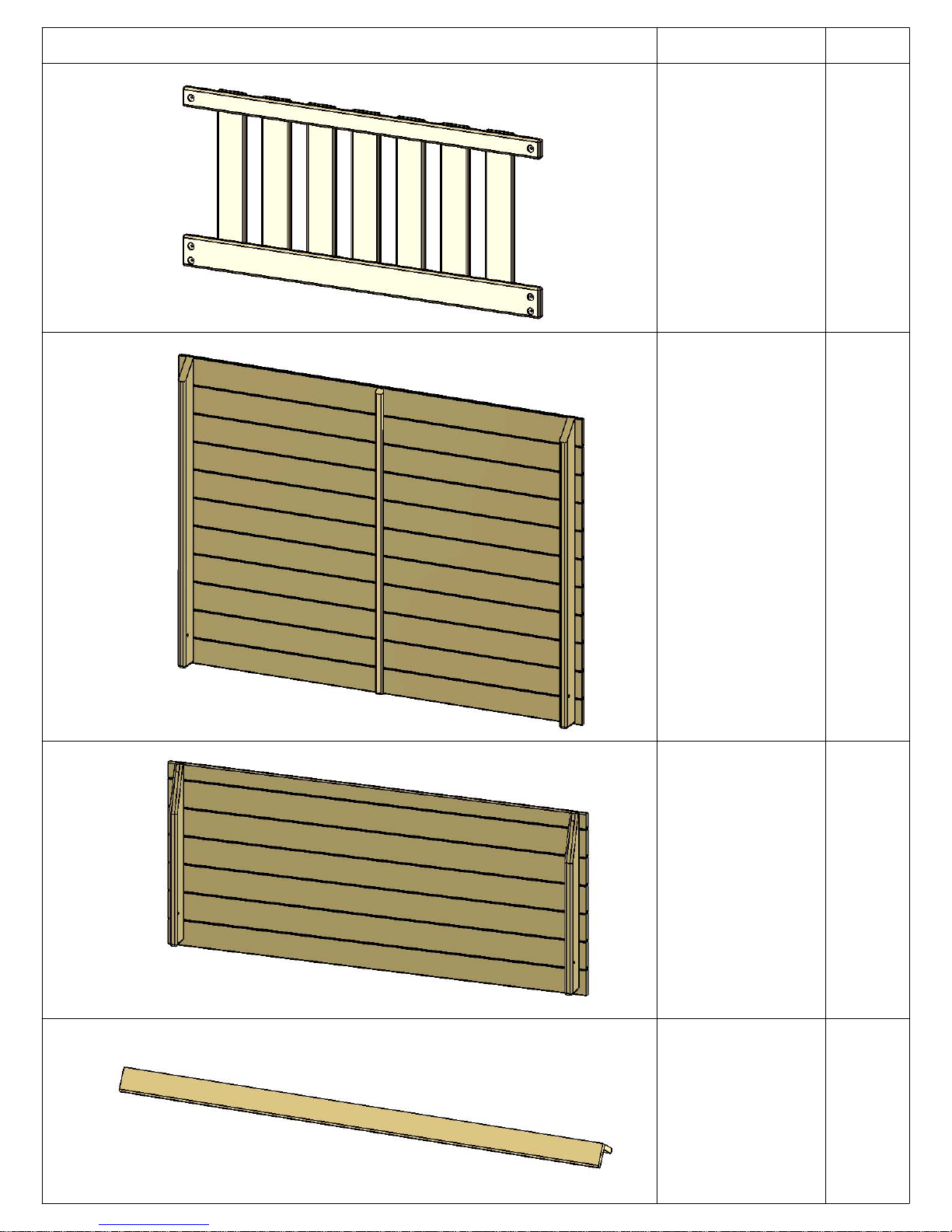

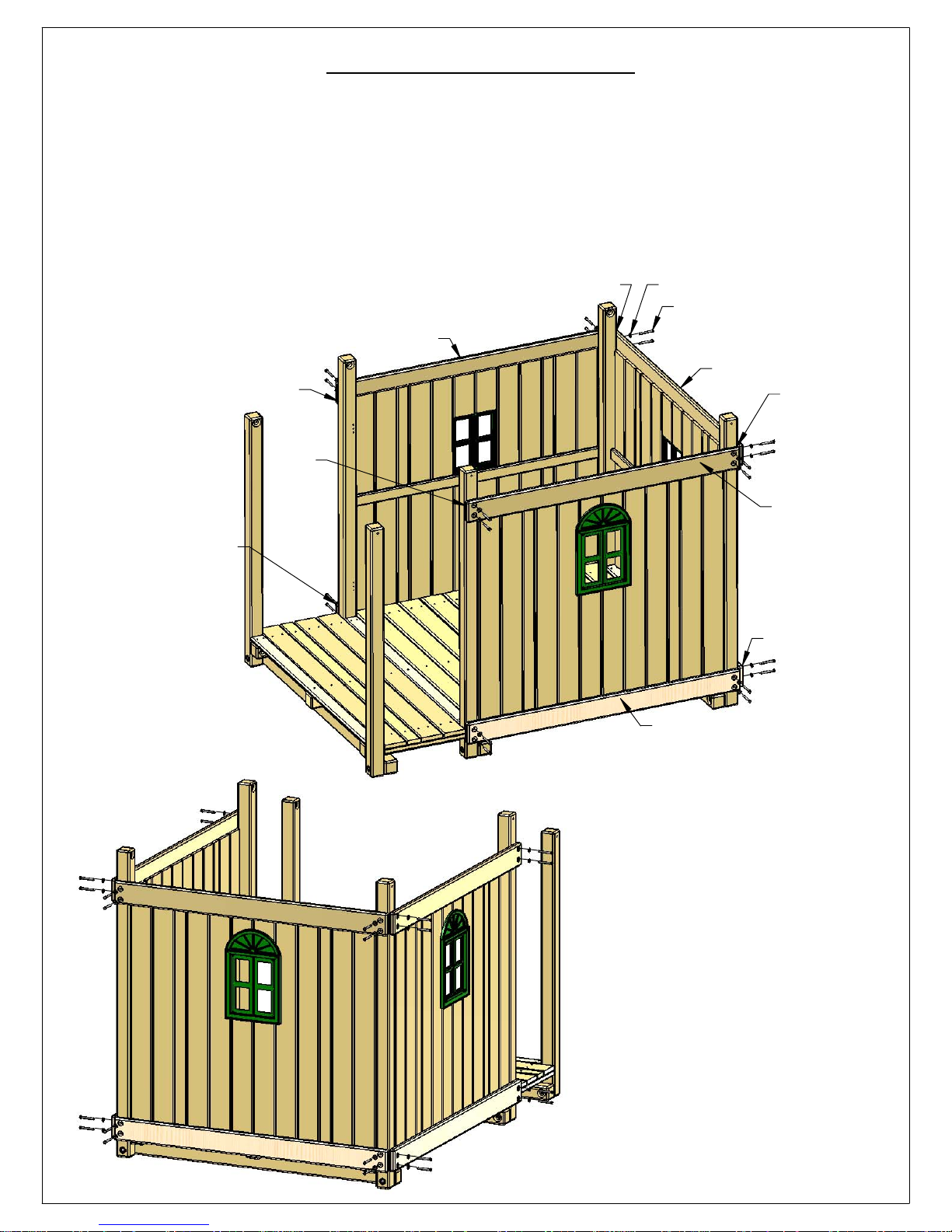

Wall Panels……………………...…..……..……...….……......................................... Step 4

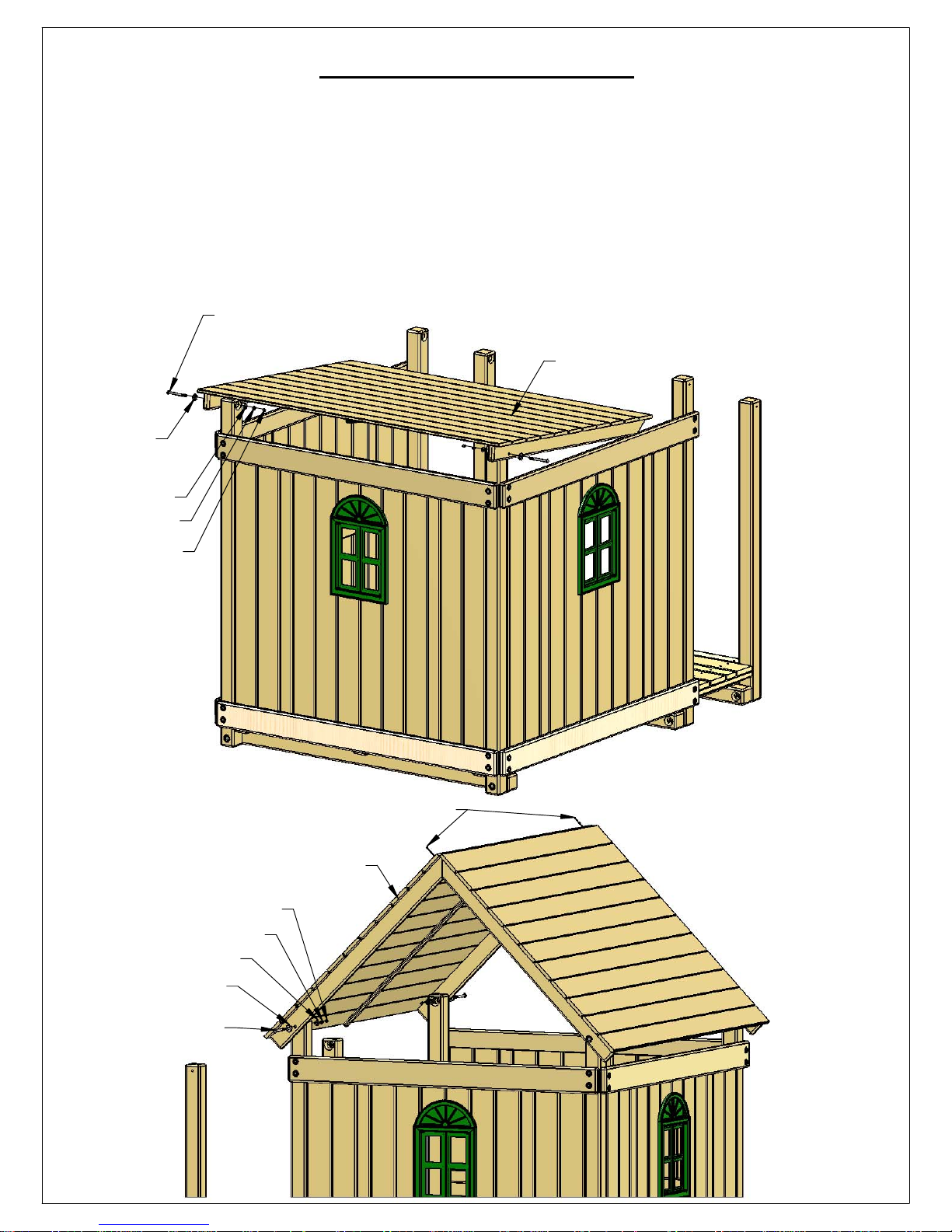

Roof Panels…………………..……........................................................................... Step 5

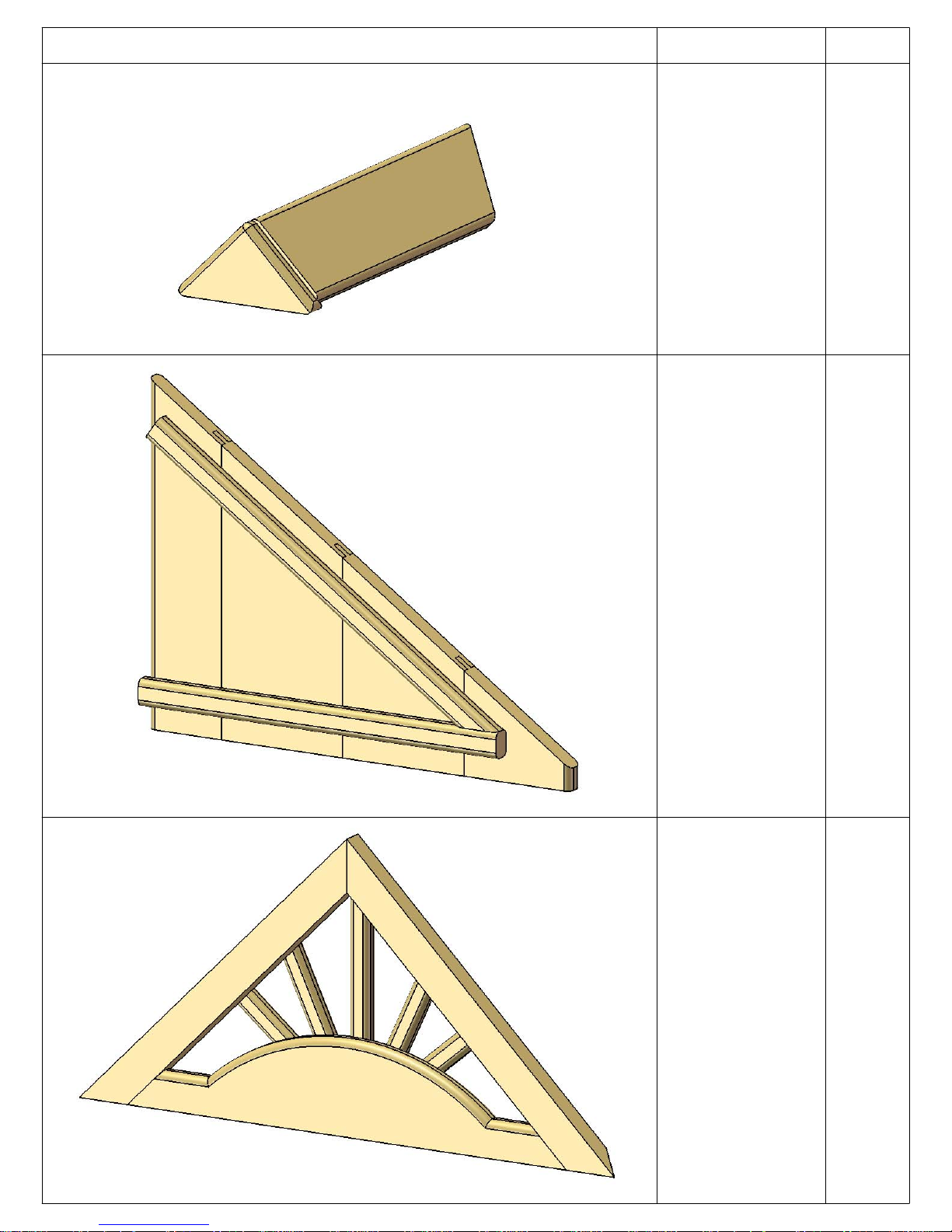

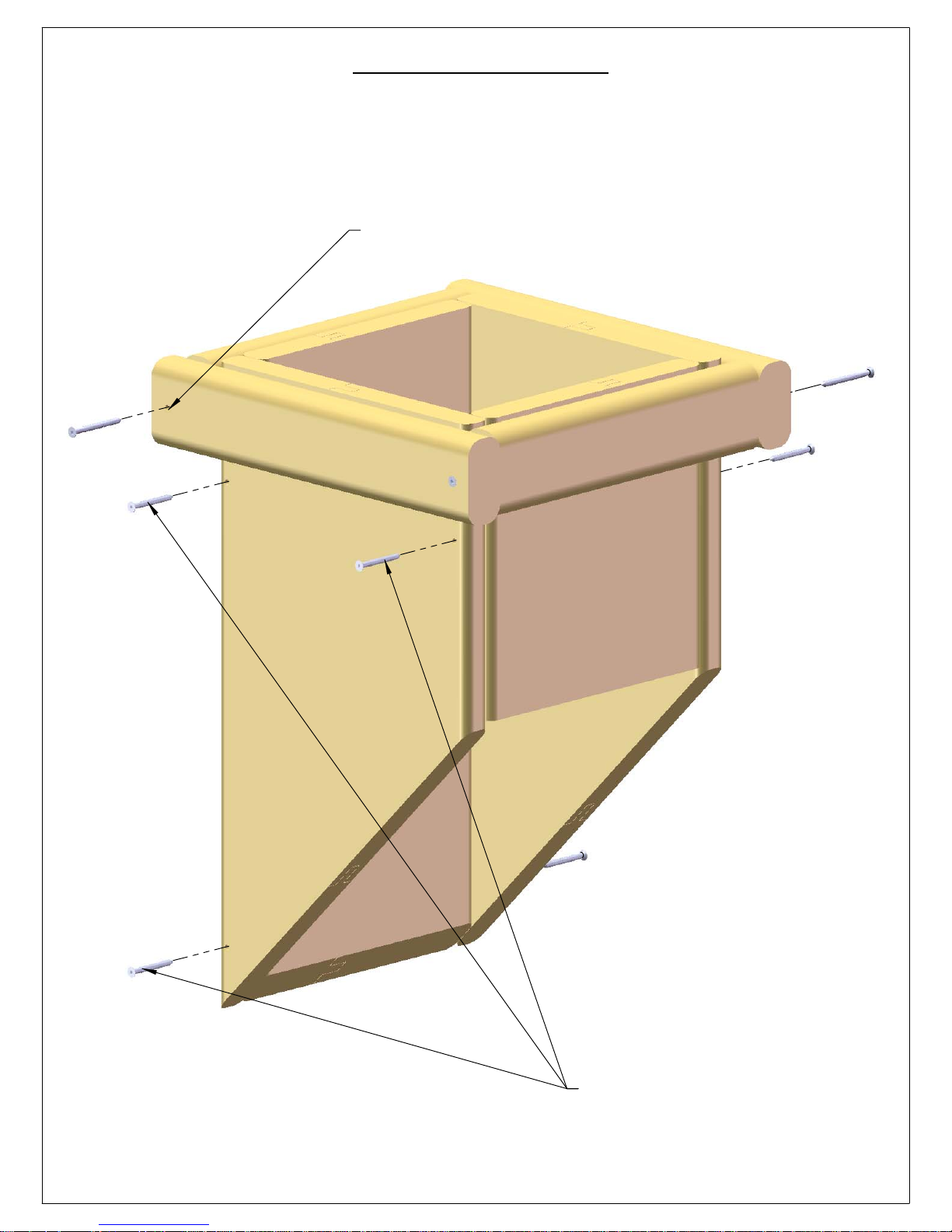

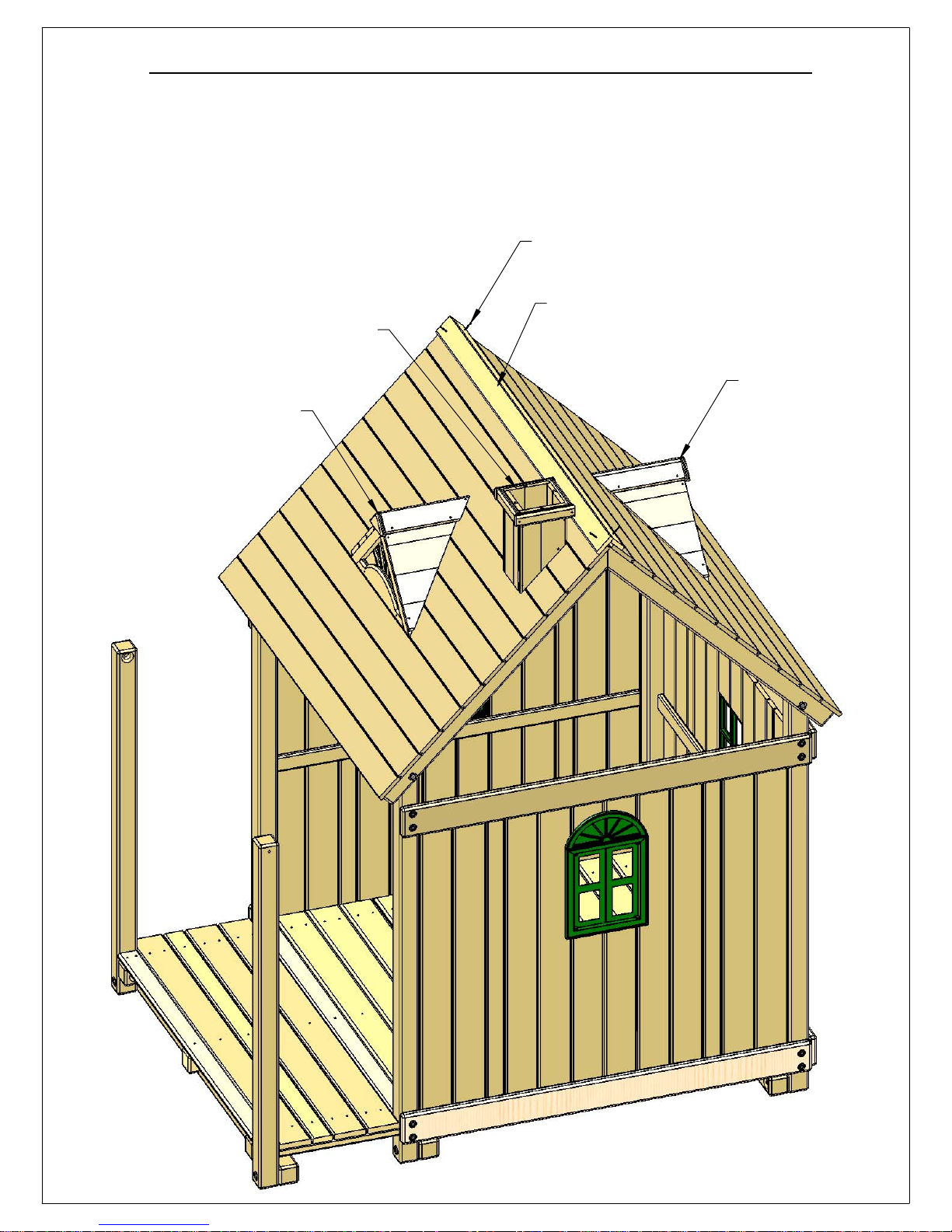

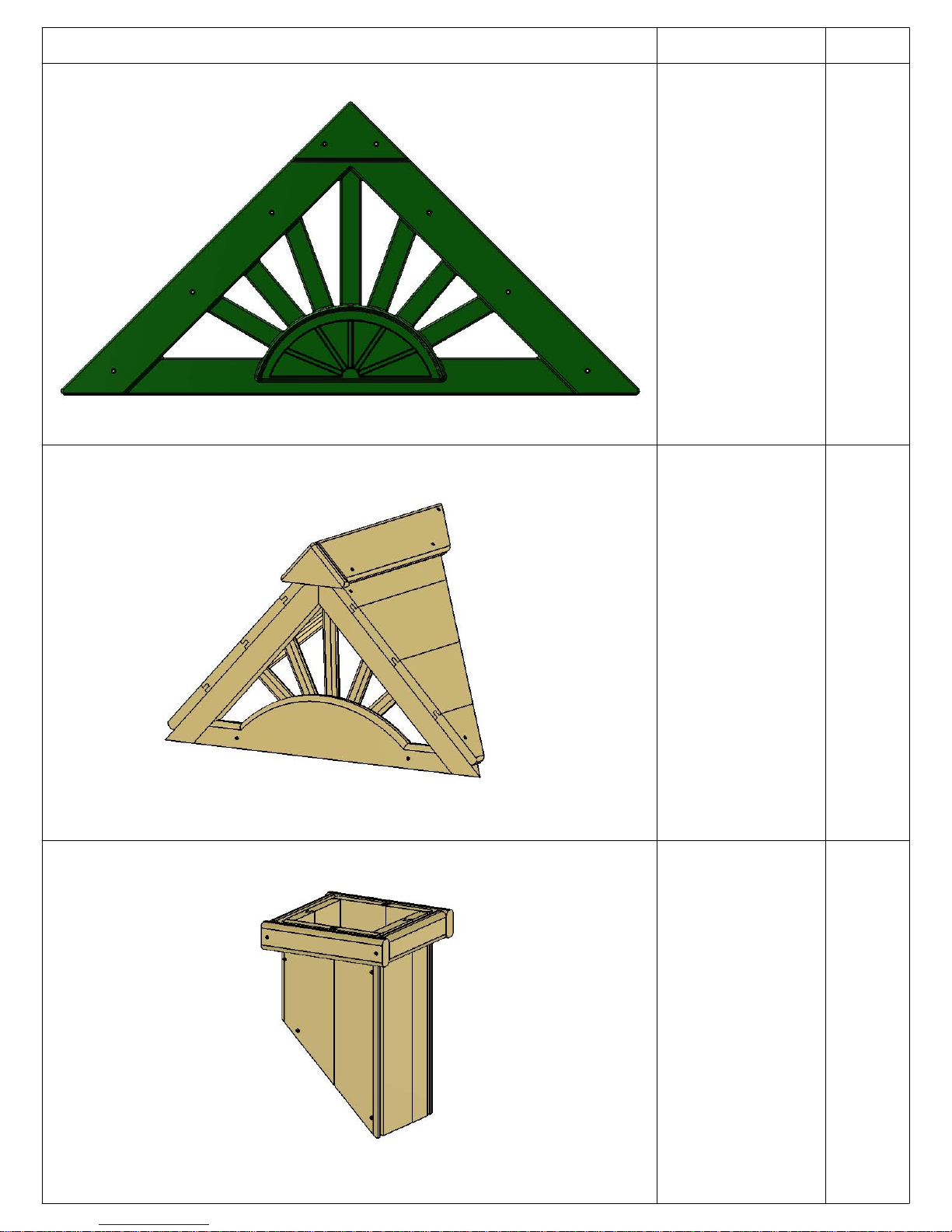

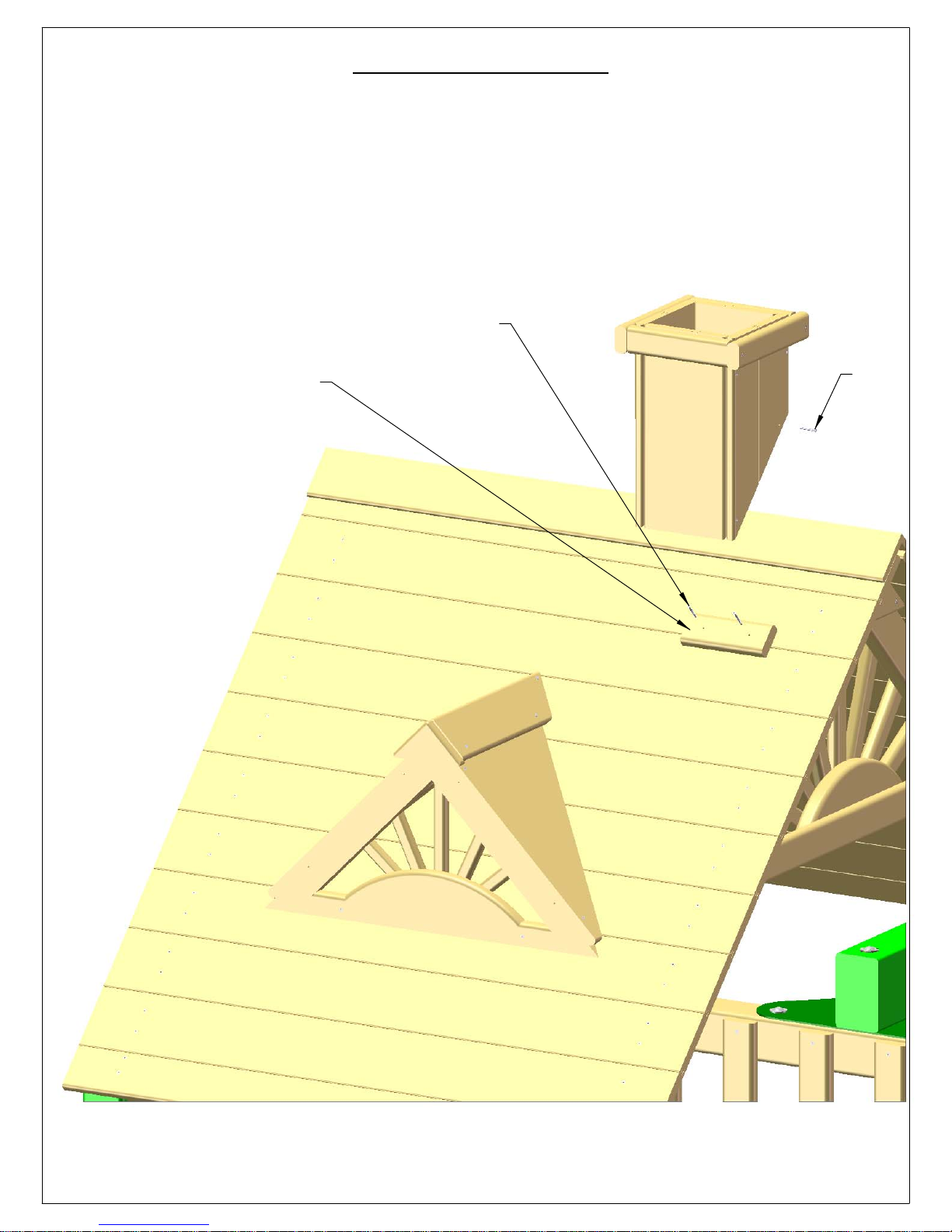

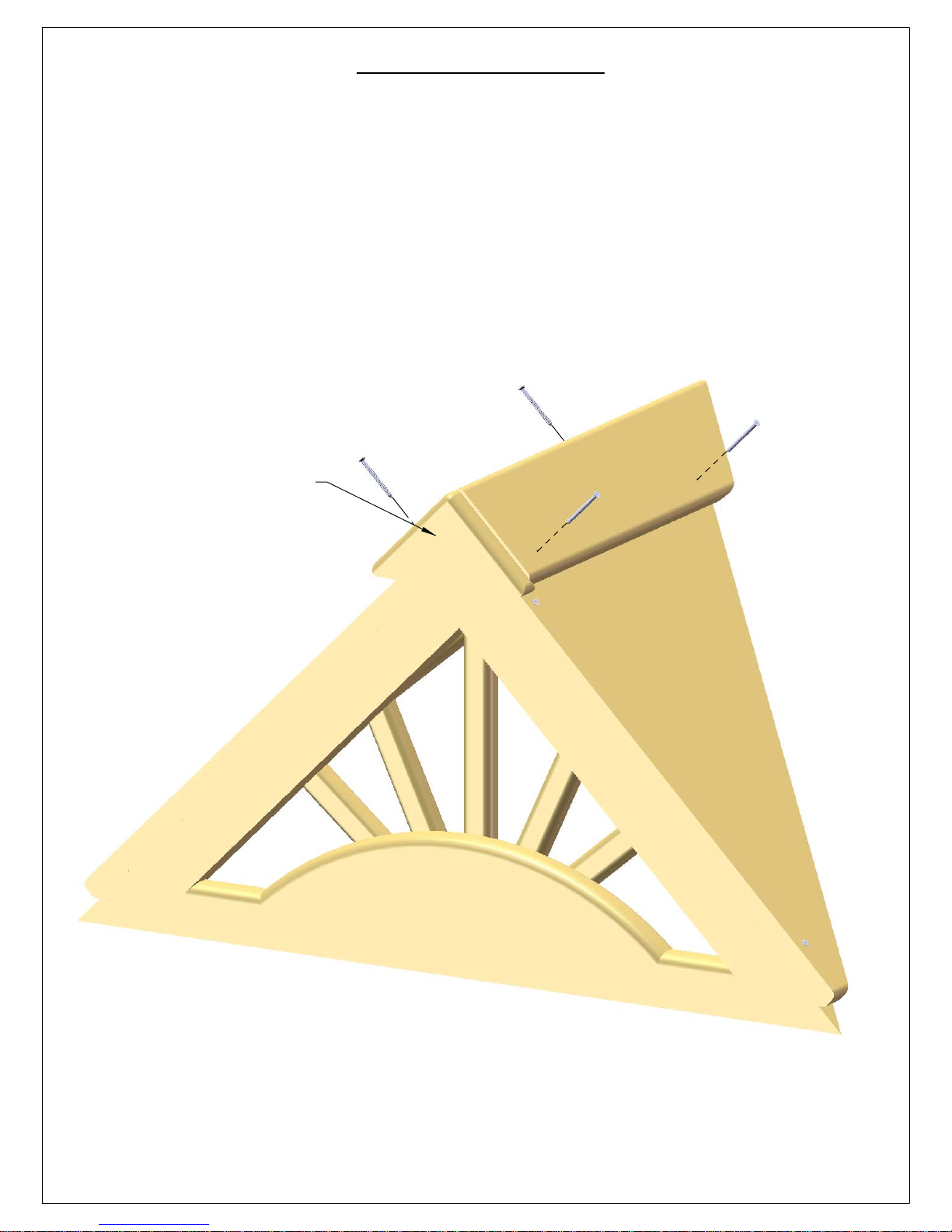

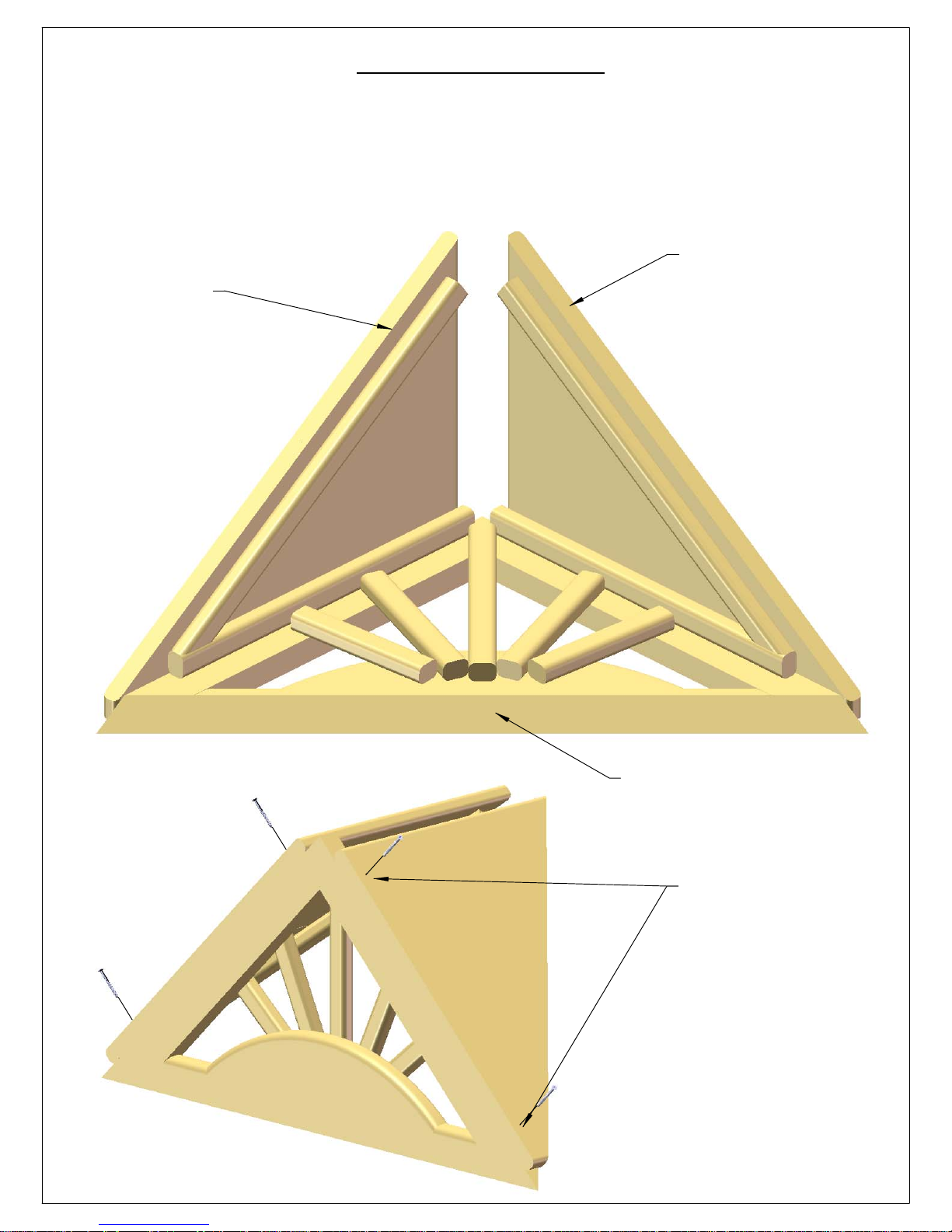

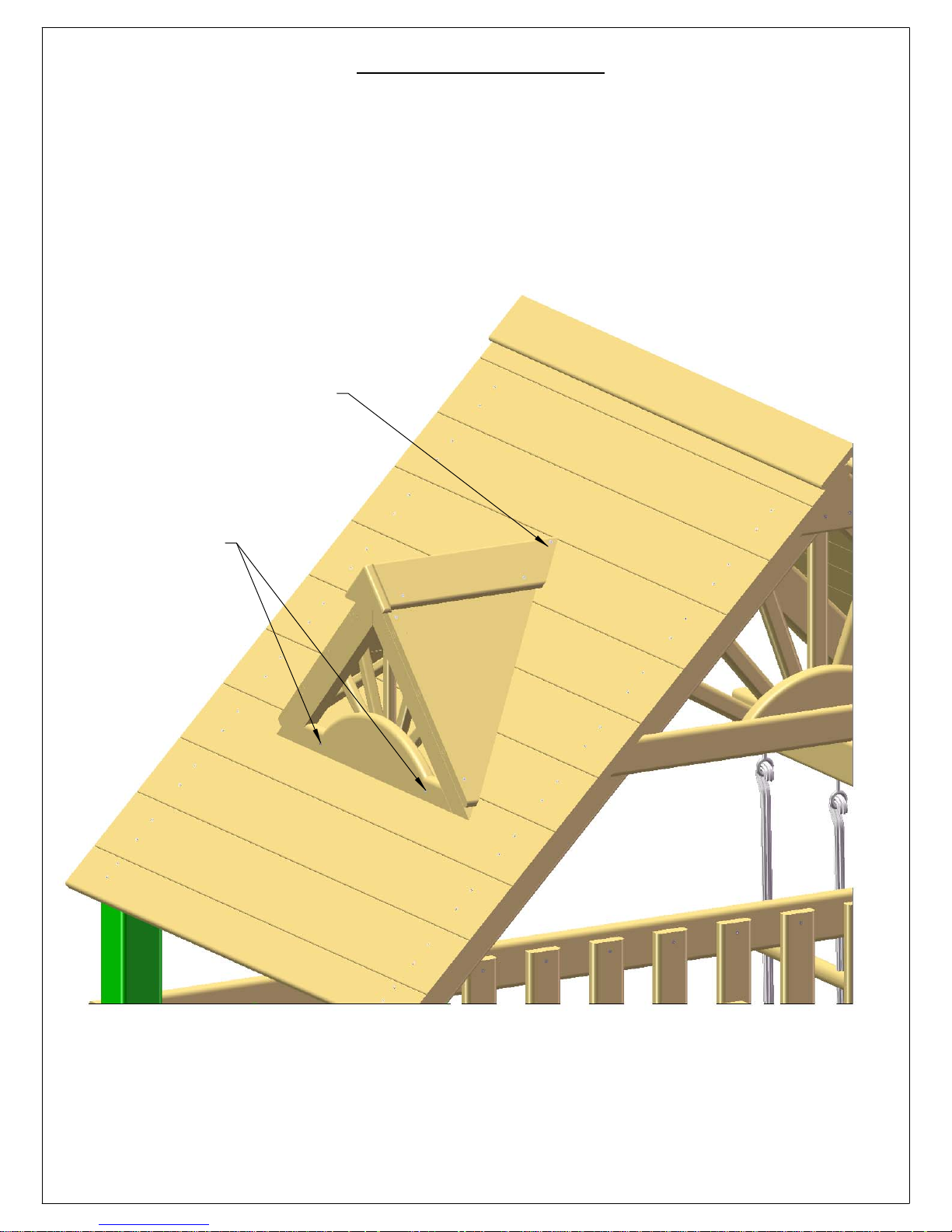

Roof Cap, Chimney and Dormers…….……………………..……..........................… Step 6

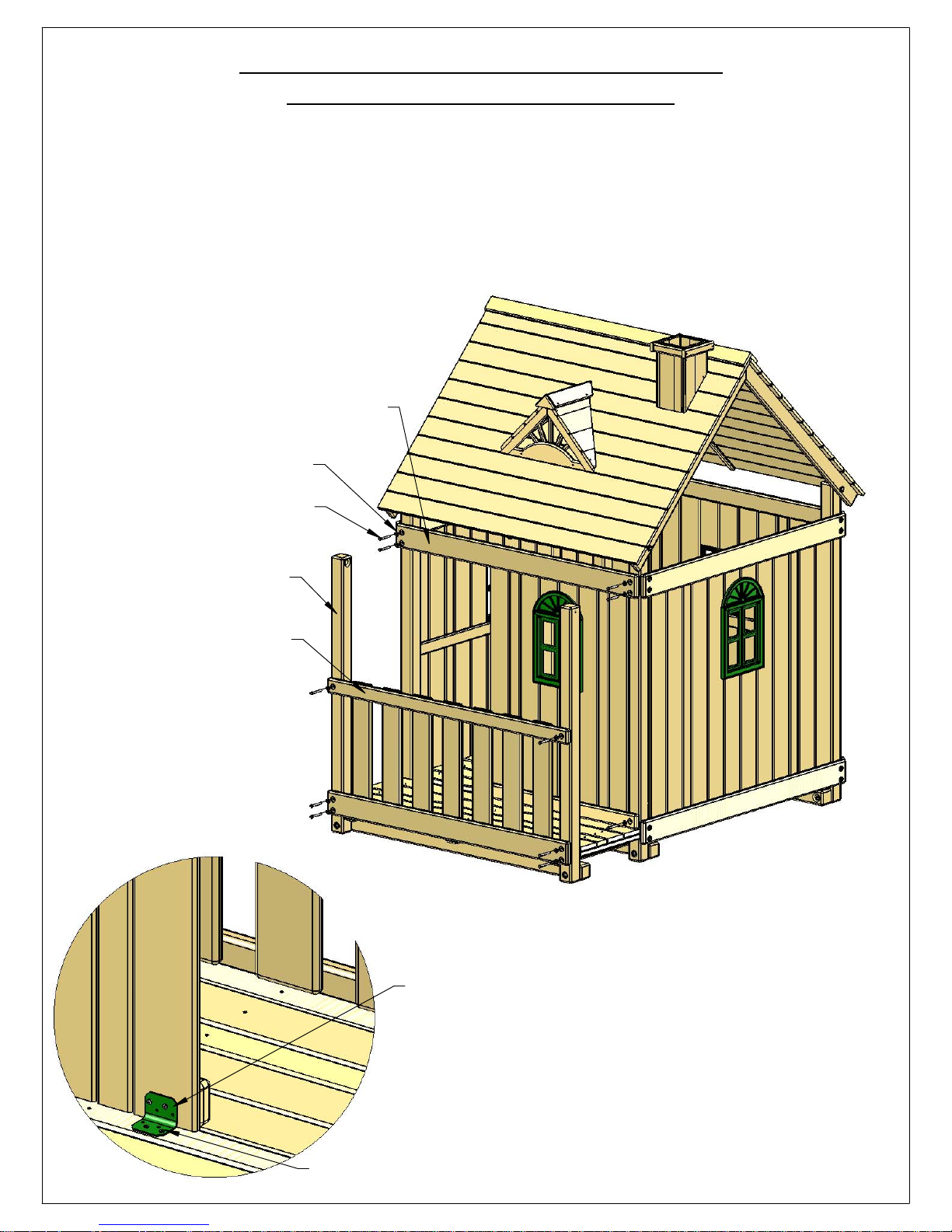

Door Wall Panel and Porch Half Wall Panel………………….………....................... Step 7

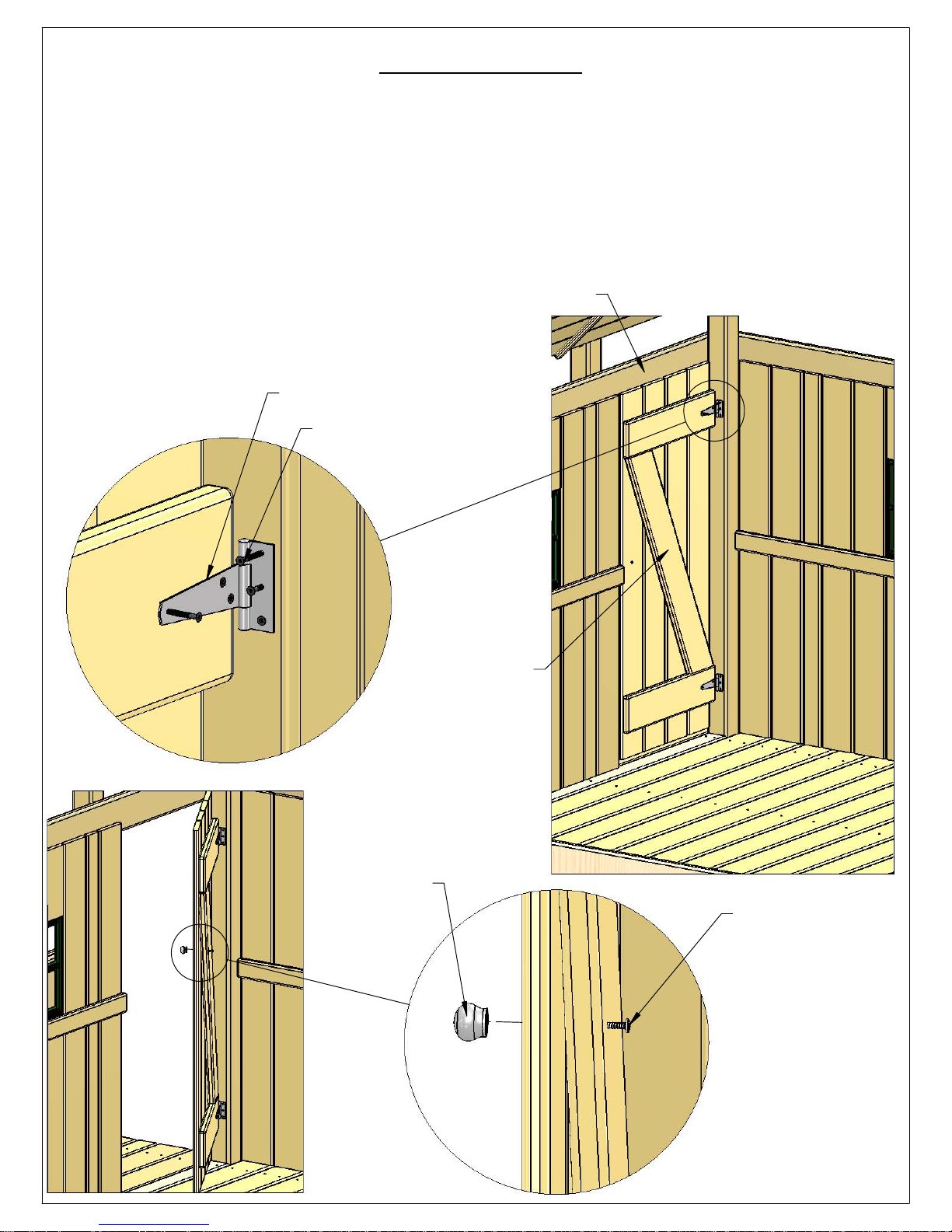

Door……………………………………………………................................................. Step 8

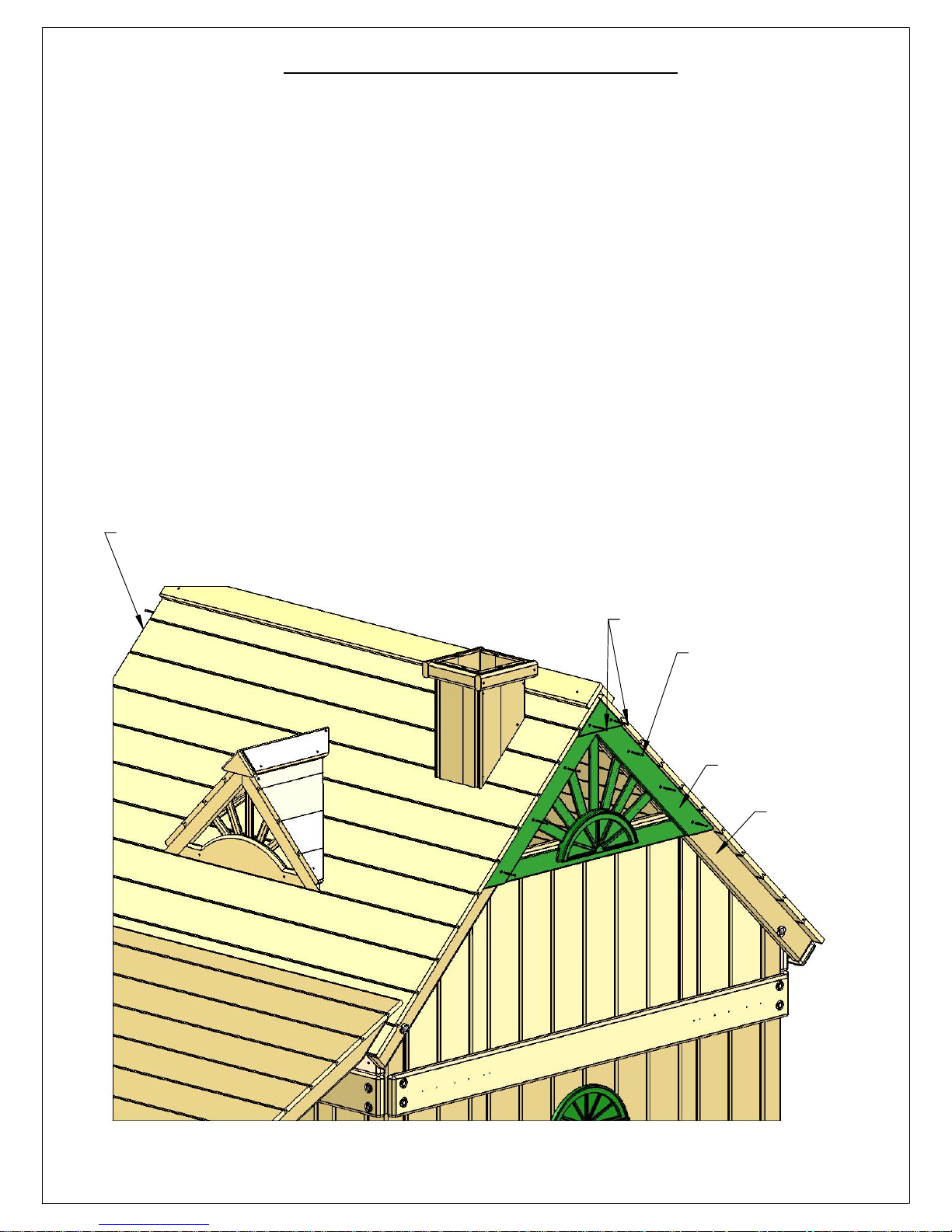

Gable Top Panel Board………………...…………………………….…....................... Step 9

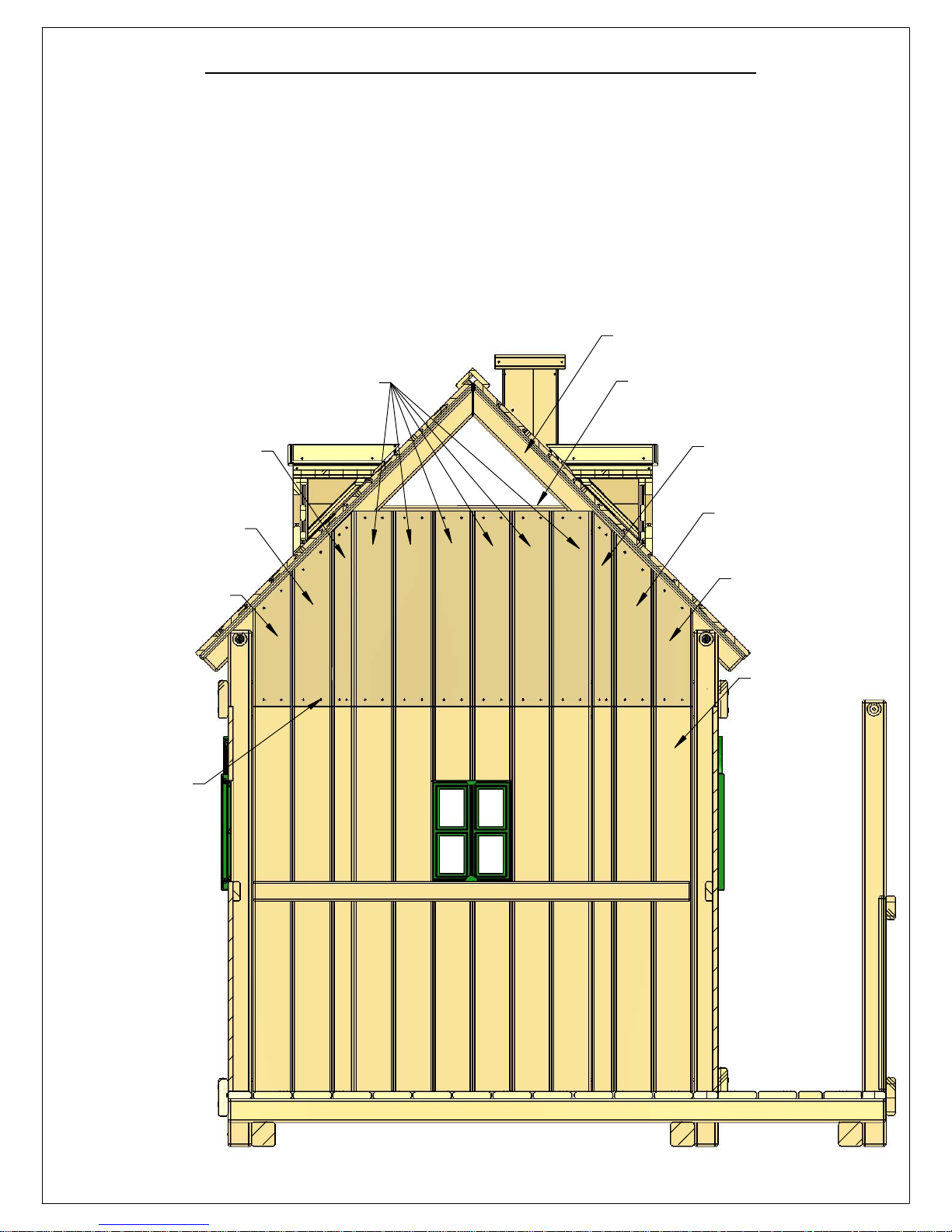

Gable Wall Panel Boards……………………………………….....………................. Step 10
Close Out Panel Boards…………………………………….…….……..................... Step 11

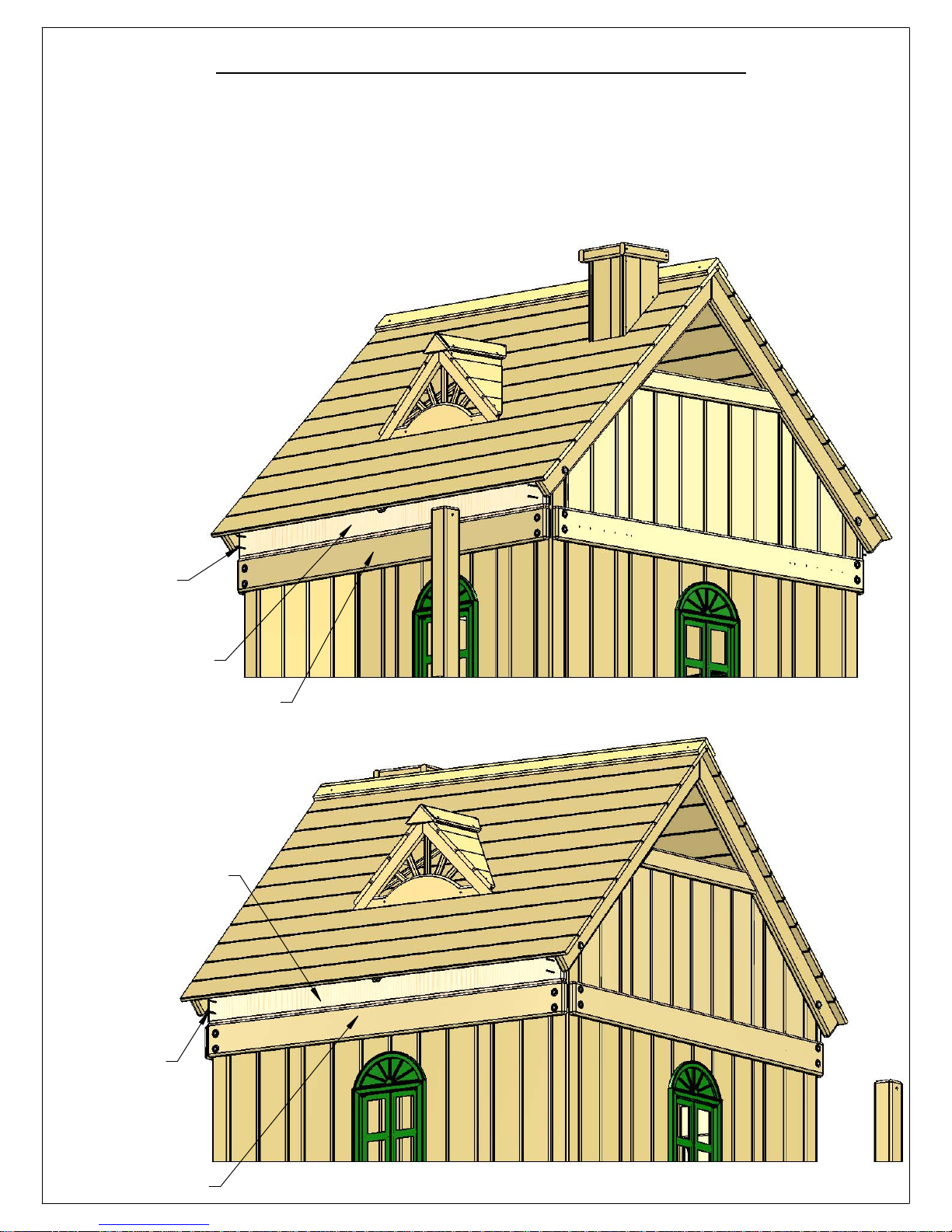

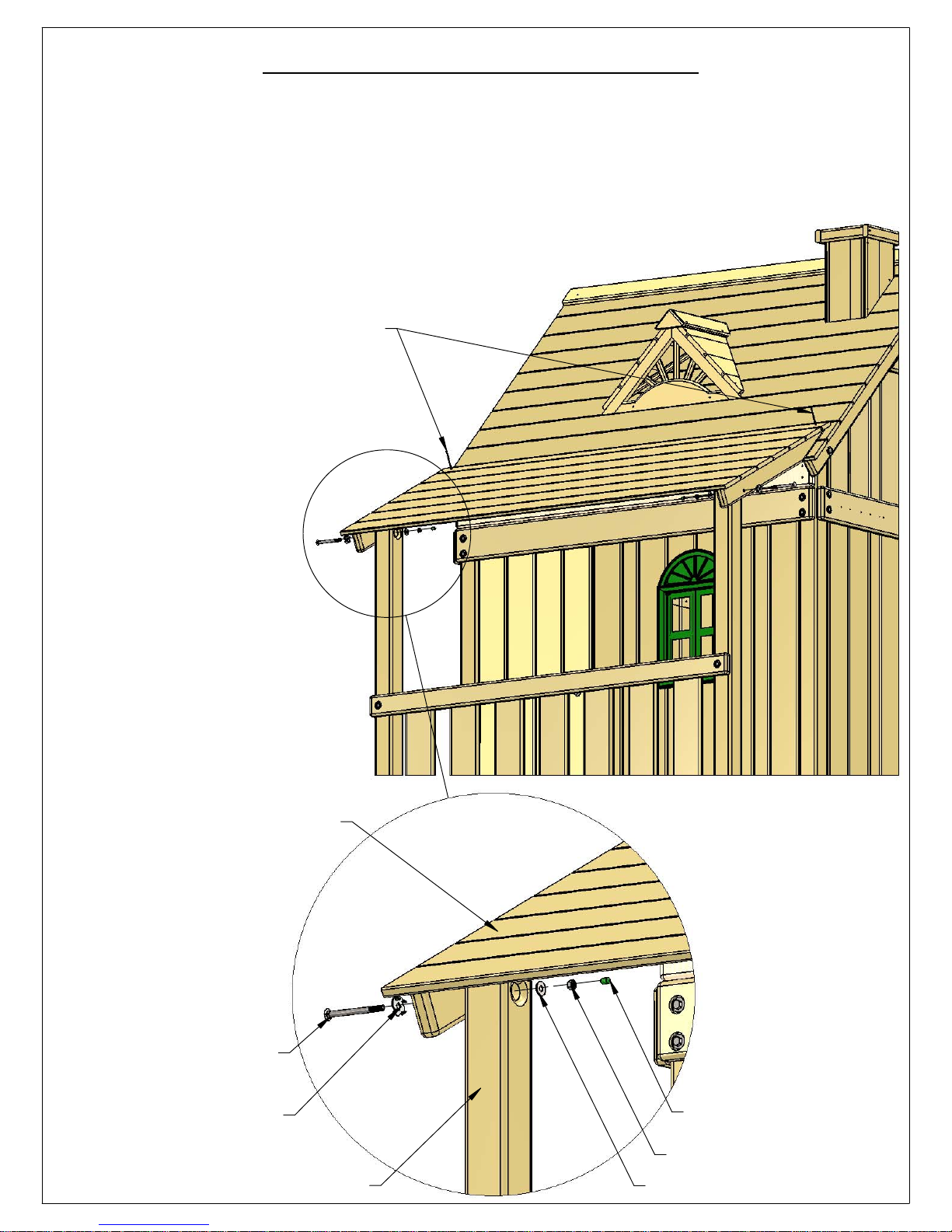

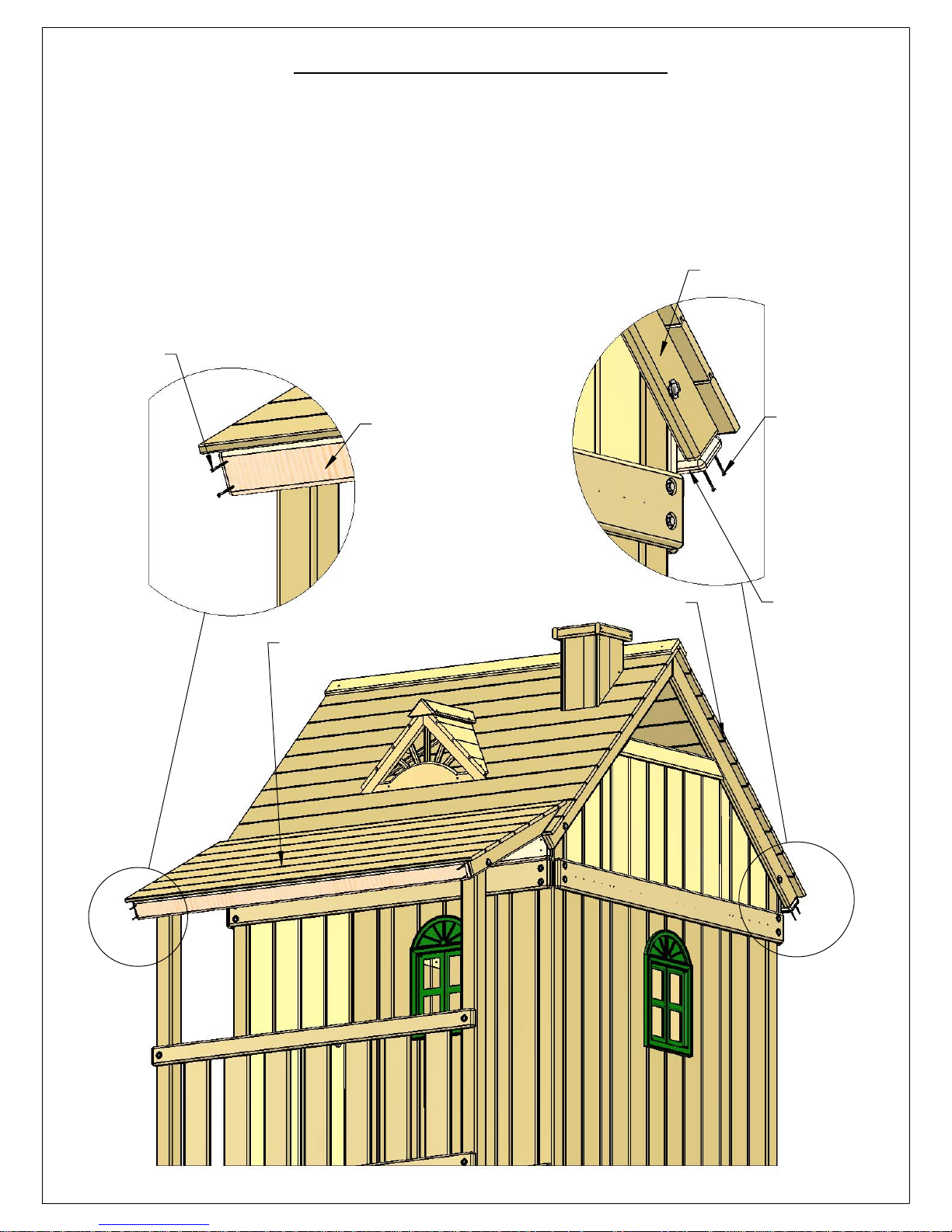

Porch Roof Panel…………………………………………………..……..................... Step 12
Roof End Caps.......................................................…...…..................................... Step 13

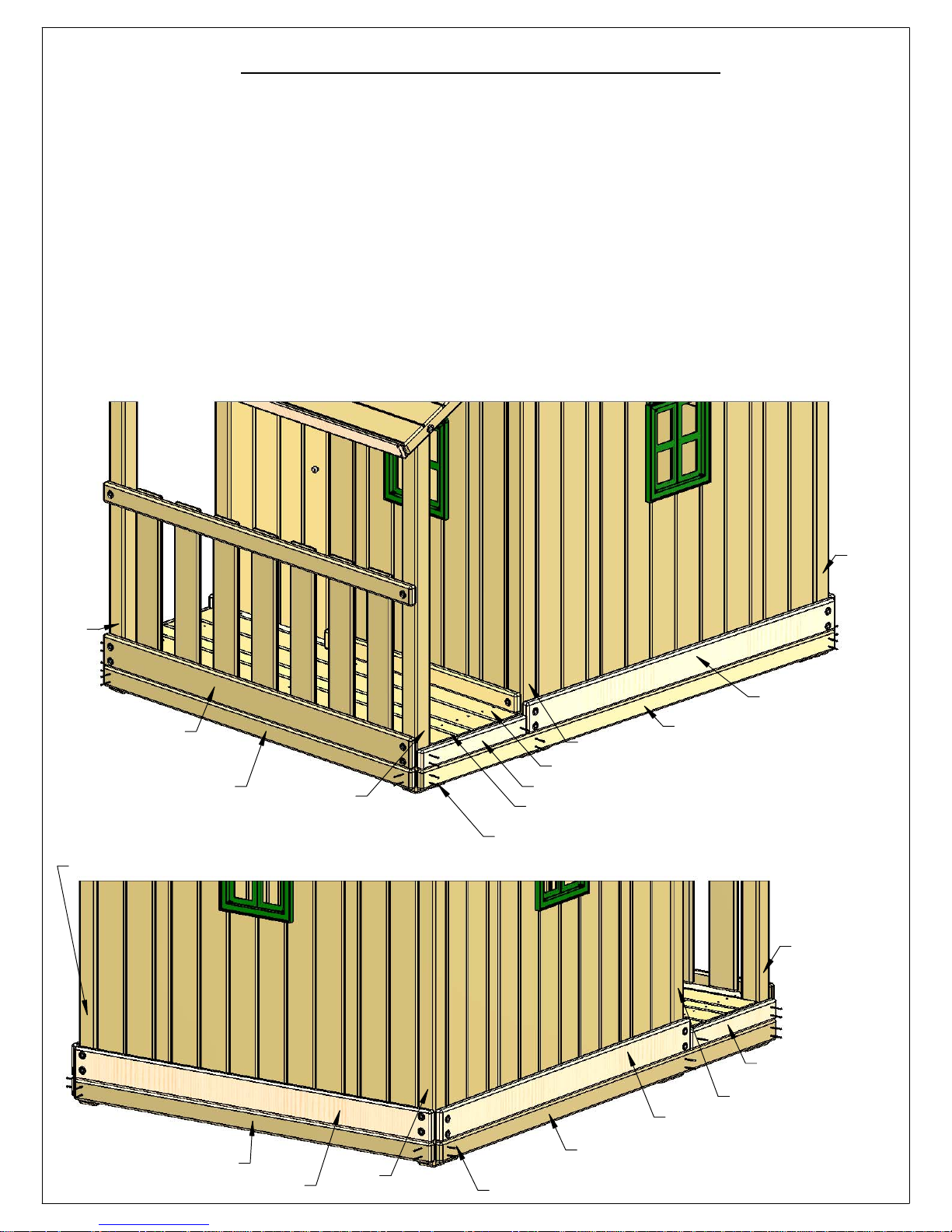

Bottom Filler Boards………………………………………….................................... Step 14
Plastic Sunburst………....……………………......................................................... Step 15
Appendix:

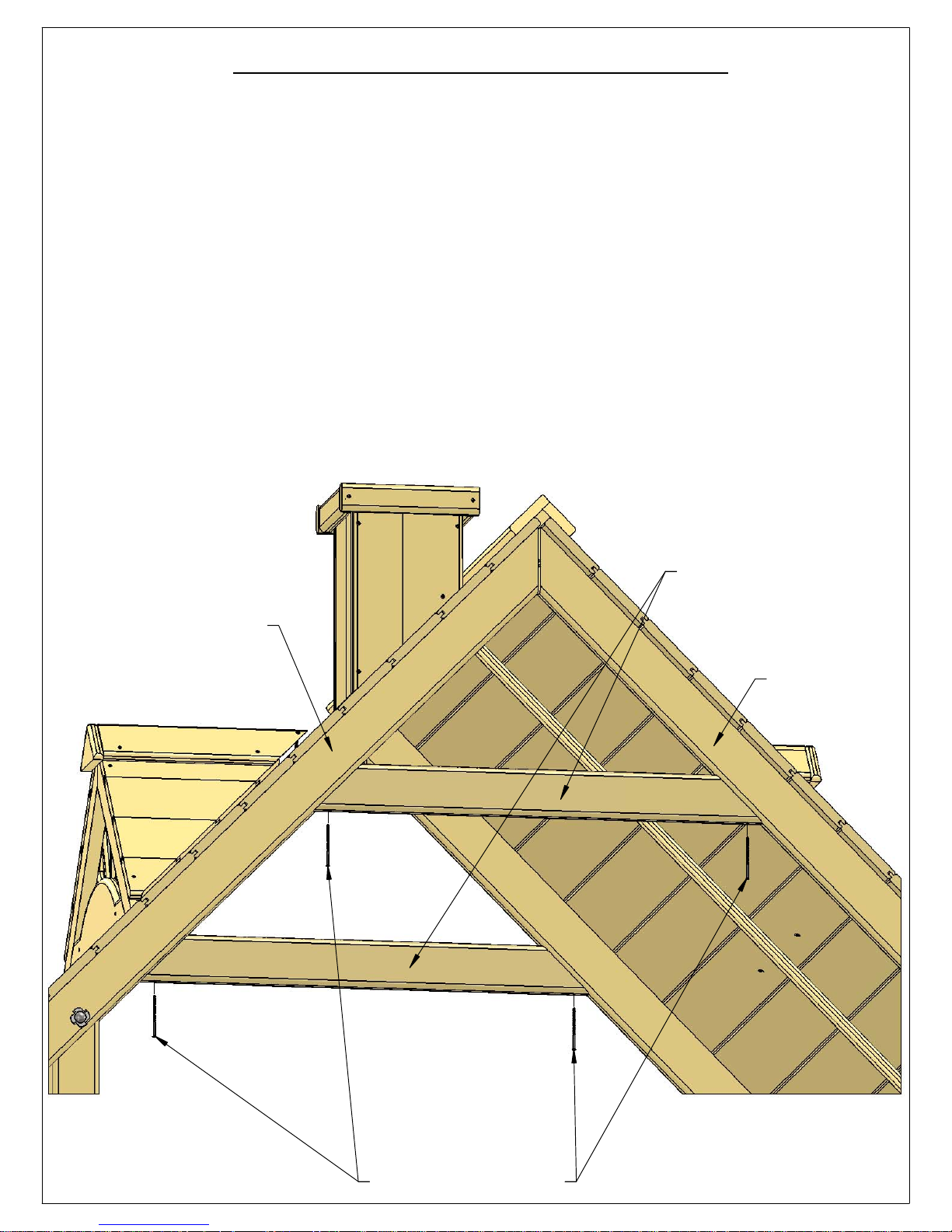

Chimney and Dormer Instructions…….....…..…………..….…………................... Page 38
PLEASE READ OWNER’S MANUAL CAREFULLY
BEFORE STARTING ASSEMBLY!
Page 13
Safety and Maintenance Tips for Your New Play Set:
3
NOTE: Your children’s safety is our #1 concern. Observing the
following statements and warnings reduces the likelihood of serious
or fatal injury. Please review these safety rules regularly with your
children.
• This play set is designed for the use of 4 occupants who have a combined weight not
exceeding 800 pounds on the oor.
• On-site adult supervision is required.
• Teach children not to use the equipment in a manner other than intended.
• The parents should have the children dress appropriately with well-tting shoes. Loose
clothing such as scarves and ponchos should not be worn. Always take off, tie up or
tuck in cords and drawstrings on children’s clothing. These things can get caught on
playground equipment and strangle a child.
• Teach children not to climb when the equipment is wet.
• Teach children to never crawl on top of a fort roof.
• Teach children not to attach items to the playground equipment that are not specically
designed for use with the equipment, such as, but not limited to, jump ropes, clothesline,
pet leashes, cables and chain as they may cause a strangulation hazard.
• Teach children to remove their bike or other sports helmet before playing on the
playgound equipment.
• Teach children to NEVER look at the sun or other bright light through any accessory
such as but not limited to a telescope, periscope or binoculars.
WARNING: Children must NOT use this play set until it has been
completely assembled and inspected by an adult.
Page 14
Safety and Maintenance Tips for Your New Play Set:
4
(continued)
Playgrounds should be inspected on a regular basis. If any of the following conditions are noted,
they should be removed, corrected, or repaired immediately to prevent injuries.
• Hardware that is loose, worn or that has protrusions or projections.
• Exposed equipment footings.
• Scattered debris, litter, rocks, or tree roots.
• Splinters, large cracks, and decayed wood components.
• Deterioration and corrosion on structural components, which connect to the ground.
• Missing or damaged equipment components, such as handholds, guardrails, swing seats.
• Check all nuts and bolts twice monthly during the usage season and tighten as required.
(But not so tight that you crack the wood) It is particularly important that this procedure be
followed at the beginning of each season.
• Oil all metallic moving parts monthly during the usage period.
• For rusted areas on metallic members such as monkey bars, hand supports brackets, etc.;
sand and repaint, using a non lead-based paint meeting the requirements of Title 16 C.F.R. Part
1303. These requirements are available at: http://www.cpsc.gov/
• Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season
causing splinters to appear. Light sanding may be necessary to maintain a safe playing
environment. If you are treating your play set with stain regularly, it will help prevent severe
checking/splitting and other weather damage.
• Once or twice a year, depending on your climate conditions, you must apply some type of
protection (sealant) to the wood of your unit. Prior to the application of sealant, lightly sand any
“rough” spots on your set. Please note this is a requirement of your warranty.
• Creating and maintaining the play set on a level location is very important. As your children
play, your play set will slowly dig its way into the soil, and it is very important that it settles
evenly. Make sure the play set is level and true once each year or at the beginning of each play
season.
• Twice a month during the usage season rake the playground protective surfacing materials to
prevent compaction and maintain appropriate depths. Replace the protective surfacing materials
as required.
• Disposal Instructions: When the play set is no longer desired, it should be disassembled and
disposed of in such away that no unreasonable hazards will exist at the time the play set is
discarded.
Page 15
Play Set Surfacing Recommendations:
5
Below are some of the recommendations that the U.S. Consumer Product Safety
Commission (CPSC) offers from its Handbook for Public Playground Safety. The guide
can be downloaded in full at www.cpsc.gov/cpscpub/pubs/325.pdf
1. Protective Surfacing - Since almost 60% of all injuries are caused by falls to the
ground, protective surfacing under and around all playground equipment is the most
critical safety factor on playgrounds.
Certain manufactured synthetic surfaces also are acceptable; however, test data on
shock absorbing performance should be requested from the manufacturer.
Asphalt and concrete are unacceptable. They do not have any shock absorbing
properties. Similarly, grass and turf should not be used. Their ability to absorb shock
during a fall can be reduced considerably through wear and environmental conditions.
Certain loose-ll surfacing materials are acceptable. Surfacing materials are acceptable,
such as the types and depths shown in the table.
Fall Heights and Materials
Type Of Material 6 in. depth 9 in. depth 12 in. depth
Double-Shredded bark mulch 6’ Fall Height 10’ Fall Height 11’ Fall Height
Wood Chips 6’ Fall Height 7’ Fall Height 12’ Fall Height
Fine Sand 5’ Fall Height 5’ Fall Height 9’ Fall Height
Shredded Tires* 10-12’ Fall Height N/A N/A
Fine Gravel 6’ Fall Height 7’ Fall Height 10’ Fall Height
*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples
produced by four manufacturers. The tests reported critical heights, which varied from 10 feet to greater than 12 feet. It is
recommended that persons seeking to install shredded tires as a protective surface request test data from the supplier showing the
critical height of the material when it was tested in accordance with ASTM F1292.
It should be recognized that all injuries due to falls cannot be prevented no matter what
surfacing material is used.
Page 16
2. Fall Zones - A fall zone, covered with a protective surfacing material, is essential
6
under and around equipment where a child might fall. This area should be free of other
equipment and obstacles onto which a child might fall. Stationary climbing equipment
and slides should have a fall zone extending a Minimum of 6’ in all directions from the
perimeter of the equipment.
Swings should have a fall zone extending a minimum of 6’ from the outer edge of the
support structure on each side. The fall zone in front and back of the swing should
extend out a minimum distance of twice the height of the swing as measured from the
ground to the top of the swing support structure.
LEVELING YOUR FORT DURING ASSEMBLY
• Complete the steps which will be the basic frame of the fort. {i.e. four corner posts with
base (sand box boards) and deck supports}
• Position in the most level area chosen for the play set, keeping in mind the location
and size of the swing beam, ladder, slides, etc. that extend off the fort.
• Once the frame is in the nal position, check for vertical and horizontal levelness to
determine which side(s) will need to be dug into the ground to level the play set.
• With a shovel, score the ground around the outside edges of the sandbox boards on
the ‘high’ side of the fort. This is the area that will be dug in. Make sure to score deep
enough; the scored lines will be your digging template.
• Push the frame off and away from the scored area, far enough to dig and remove dirt
to reach the appropriate depth.
• Dig a channel along the scored line(s) for the base of the fort (corner post and
sandbox boards) to rest into. Dig the channel(s) to the same level depth. The bottom
of the channel(s) should be level to each other so your frame doesn’t teeter or rock
because the channel(s) are uneven.
• Once you have removed enough grass and dirt, slide/push the frame into the
channel(s). Place a level on the vertical and horizontal boards of the frame to determine
if enough soil, or too much, was removed.
• Repeat this process until the basic frame is plumb and level and in its nal position
before completing the rest of the assembly.
• Measure to make sure fort is square.
Important: if you require a channel depth of more than 6”, then we
recommend you have your play set area professionally graded before
completing assembly.
Example Play area:
Side View of
Playset Frame
(Grade is the
Slanted Line)
The diagonal measurements should be the
same from corner post to
corner post. If not, adjust
corner posts so that the
distance is equal.
= Area to be scored and
channeled for levelness
Page 17
General Info to Review Before Installation
7
• Depending on your experience, assembly of the playset can take as little as 6 hours
up to 24 hours, depending on size, after inventory of parts; therefore, we recommend
you set aside a full two days for assembly.
• Identify all of the parts for your play set. Empty each box and lay out boards so you
can see each part. Your instruction book will have detailed drawings that will make it
easy for you to recognize individual parts. Keep all hardware and metal parts separate
from wooden pieces.
• After everything is laid out, check carefully to ensure all parts are present. Make sure
there are no broken boards.
• Find an area to sort your hardware. It is best to open the hardware on a solid surface
so that you do not lose any pieces in the grass. This will save time and familiarize you
with all the different pieces in the hardware bag.
• Important note: Wood has some natural defects such as knots, surface cracks, etc…
We reject parts that are structurally defective. We use a high quality lumber in our
structures; however, you should inspect each part for splinters or rough spots and sand
them smooth to prevent injury.
• After familiarizing yourself with all of the components, read all instructions thoroughly.
Reading instructions after you have studied the parts will help you understand the
installation process, and help to eliminate unnecessary mistakes.
• Pay close attention to the diameter and length of each bolt and screw.
• Never tighten hardware completely at rst. It helps to have some adjustment for bolt
alignment while you are attaching parts together. After everything is square, tighten
each joint.
• After the main unit is assembled it is critical that the oor is level and square. If the
main frame is not level, the walls and oor will be out of square.
• After you complete installation, make sure every bolt, screw, and nut is tight, and every
board is secure. Wood will expand and contract with the seasons.
• Place the set on level ground, not less than 6 feet from any structure or obstruction
such as a fence, garage, house, overhanging branches, laundry lines, or electrical
wires.
Page 18
This page is a list of denitions and explanations used throughout our
8
instructions to aid you in the assembly of your play set.
Offset Holes- Throughout the installation procedures we will refer to parts with offset
holes. This refers to the orientation of the holes on the board. An offset hole is one that
is closer to one side than it is the other or in other words, it is not centered on the board.
In the procedures you will be instructed to attach the boards with the holes offset up or
with the holes offset down. This refers to which side of the board the hole/holes should
be closer to. Offset holes up= hole/holes will be closer to the top of the board. Offset
holes down= hole/holes will be closer to the bottom of the board. Note: some parts do
not have offset holes, but instead the holes are on center. Therefore there will not be
any reference on how to offset these parts.
EXAMPLE OF OFFSET HOLES UP
EXAMPLE OF OFFSET HOLES DOWN
Counter-sunk holes - Many of the parts that will be used have counter-sunk holes. A
counter-sunk hole is one that surrounds one side of a through hole, but does not extend
through the wood it’s self. When using a counter-sunk hole the bolt will be inserted
through the through hole and either the head of the bolt and washer or nut and washer
will occupy the counter sunk hole.
Counter-Sunk Hole
Through Hole
Lag Screws- Lag screws are used in the construction of our play sets to enhance
the structural integrity of the unit. There will not be predrilled holes in the post for lag
screw installation. Lag screws are self-tapping, though if you are using a manual socket
wrench it may be advantageous to pre-drill a hole rst. Instructions for this are provided
on a separate page in the front of the manual. Be sure to tighten the lags completely
when driving them in by hand. Power tools such as a heavy duty impact driver or large
power drill should have enough torque to drive in the lag screws, but make sure not to
over tighten as this can cause the threads to “strip out” in the post.
Page 19
PRE-DRILL LAG SCREW DIRECTIONS
Pre-drilling holes for lag screws will make it easier to drive the screws in by hand.
9
"Jobber" length drill bits are available in sizes that are longer than standard drill bits and
those are ideal for the job. When using the drill bit you will have to "spot" drill the post
and then remove the board you are attaching to finish drilling the hole.
Pay attention to the DIAMETER of the lag screw you are installing. Your playset may
come with two different diameter lag screws. Each diameter will require a different size
drill bit. When installing lag screws DO NOT OVERTIGHTEN.
LAG SCREW DIAMETER DRILL BIT SIZE
7
16
2
" 3
16
Corner Post
5
"
5/16" DIAMETER 9/64"
3/8" DIAMETER 11/64"
Example: 3/8" diameter x 3-1/2" lag screw
This would be like the 2 x 4 board installation shown
below. Place the board into position. Spot Drill through
the holes in the 2 x 4 board into the corner posts with
an 11/64" drill bit. Remove the 2 x 4 board. Continue
to drill the holes to a total depth of 2-5/16" as shown at
the right. Install the 2 x 4 board.
Example 5/16" diameter x 3-1/2" lag screw
This would be like the 2 x 4 board installation shown
below. Place the board into position. Spot Drill through
the holes in the 2 x 4 board into the corner posts with
an 9/64" drill bit. Remove the 2 x 4 board. Continue to
drill the holes to a total depth of 2-5/16" as shown at
the right. Install the 2 x 4 board.
2 x 4 board
Example 3/8" diameter x 5" lag screw
This would be like the 4 x 4 board
installation shown below. Place the
board into position. Spot drill through the
holes in the 4 x 4 board into the corner
posts with an 11/64" drill bit. Remove the
4 x 4 board. Continue to drill the holes to
a total depth of 2-13/16" as shown at the
right. Install the 4 x 4 board.
Corner Post
Corner post
2 x 4 board
4 x 4 board
4 x 4 board
Corner Post
15
4 "
16
2
13
16
"
Page 20
"
10
1194
Opening
2
1
66 "
Wall to Wall
INSIDE DIMENSIONS AND DETAILS:
"21
5
8
Wall to Wall
"
13
16
22
"66
8
3
Wall to Wall
Door Clearance
28"
"
8
3
Door
53
Height
"
15
16
65
8
1
101 "
Inside Height
30"
Page 21
Please familiarize yourself with the manual, parts/components and general
11
construction process of your new playset before getting started.
SITE PLAN:
3
"
72
4
Playset height: 9’-6” approximately
96
3
"
4
Approximate assembly time: 6-8 hours
(6) foot unobstructed safety perimeter around playset recommended
Page 22
REQUIRED TOOL LIST:
12
___ Standard or Cordless Drill w/ Phillips Bit (#2 square bit provided)
___ Drill Bits 1/8”, 3/8”, 11/64”
___ 9/16” Deep Well Socket
___ 9/16” Wrench and Socket
___ Level
___ Tape Measure
___ Extension Cord (if using standard drill)
___ Hammer
___ Pencil
___ Locking Pliers (Vise Grips)
___ Shovel
KIT CONTENTS
Swings, Slides, Accessories:
___ (Qty ) Description
___ (2) Hinges
___ (1) Door Knob
___ (2) Plastic Sunburst
___ (1) 28-0001 PIP Ladder Bracket
Fort Hardware:
see following pages
Wood Components:
see following pages
Page 23
#14 X 1"
13
PAN HEAD SCREW
QTY: 1
#8 X 1"
PAN HEAD SCREW
QTY: 4
#10 X 1-1/4"
WOOD SCREW
QTY: 15
#10 X 1-1/2"
WOOD SCREW
QTY: 108
#8 X 2"
WOOD SCREW
QTY: 20
#8 X 2-1/2"
WOOD SCREW
QTY: 132
#8 X 3"
WOOD SCREW
QTY: 4
PN-PLAYHOUSE
Hardware
11-1025
S.O. 4/22/2015
9
8
7
6
3/8" LOCK NUT
QTY: 12
#2 SQUARE
BIT
QTY: 1
5
3/8" x 6-1/2"
CARRIAGE BOLT
QTY: 6
3/8" x 4-1/2"
CARRIAGE BOLT
QTY: 6
3/8" X 5"
HEX LAG SCREW
QTY: 9
3/8" X 3-1/2"
HEX LAG SCREW
QTY: 35
TORQUE WASHER
QTY: 12
3/8" WASHER
QTY: 56
PLASTIC
BOLT CAP
QTY: 12
4
3
2
1
USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN
ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.
Page 24
DESCRIPTIONPICTURE QTY.
14
PRE ASSEMBLED
SIDE WALL PANEL
(TOP HOLES
OFFSET UP,
BOTTOM HOLES
OFFSET DOWN)
2
PRE ASSEMBLED
REAR WALL PANEL
(TOP HOLES
OFFSET DOWN,
BOTTOM HOLES
OFFSET UP)
PRE ASSEMBLED
DOOR WALL
PANEL
1
1
Page 25
DESCRIPTIONPICTURE QTY.
15
PRE ASSEMBLED
PORCH HALF
WALL PANEL
1
PRE ASSEMBLED
ROOF PANEL
PRE ASSEMBLED
PORCH ROOF
PANEL
2
1
PRE ASSEMBLED
ROOF PEAK
1
Page 26
DESCRIPTIONPICTURE QTY.
16

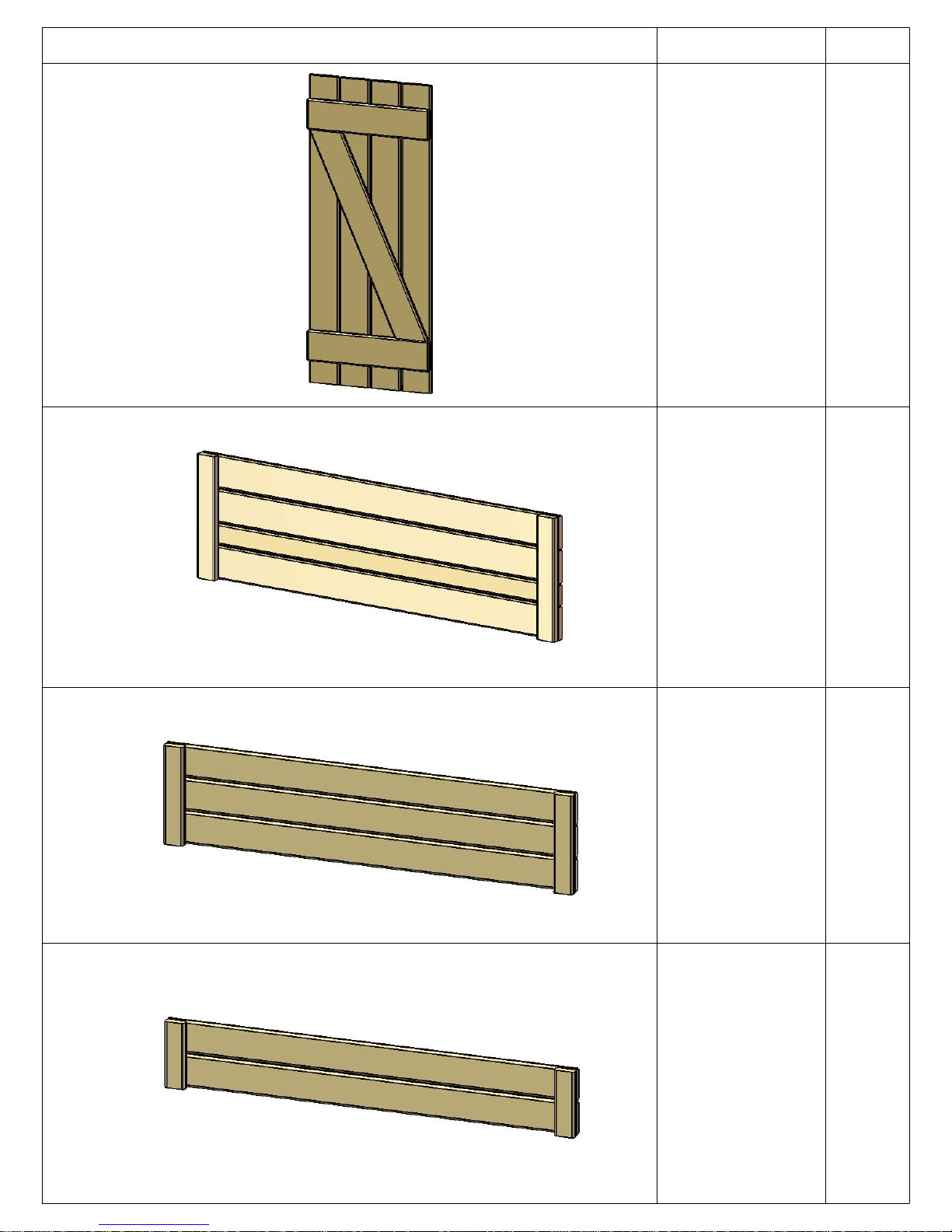

PRE ASSEMBLED
FORT DOOR
1
PRE ASSEMBLED
3.5-DECK BOARD
ASSEMBLY
PRE ASSEMBLED
3-DECK BOARD
ASSEMBLY
1
3
PRE ASSEMBLED
2-DECK BOARD
ASSEMBLY
1
Page 27
DESCRIPTIONPICTURE QTY.
17
1 X 6 X 19-1/2"
GABLE WALL
PANEL BOARD
1 X 6 X 25"
GABLE WALL
PANEL BOARD
4
4
1 X 3 X 28"
GABLE WALL
PANEL BOARD
1 X 6 X 28"
GABLE WALL
PANEL BOARD
4
12
5/4 X 4 X 62-3/4"
DECK SPACER
3
Page 28
DESCRIPTIONPICTURE QTY.
18
5/4 X 4 X 72-3/8"
ROOF END CAP
2 X 4 X 24"
PORCH SIDE
BOTTOM FILLER
BOARD
2
2
2 X 4 X 32-7/16"
GABLE TOP
PANEL BOARD
2 X 4 X 70"
FRONT/BACK
BOTTOM FILLER
BOARD
2 X 4 X 94"
SIDE BOTTOM
FILLER BOARD
2
2
2
2 X 6 X 68-3/4"
CLOSE OUT PANEL
BOARDS
2
Page 29
DESCRIPTIONPICTURE QTY.
19
4 X 4 X 63-3/4"
PORCH POST RH
4 X 4 X 63-3/4"
PORCH POST LH
1
1
4 X 4 X 70"
FORT BLOCK
SUPPORT
4 X 4 X 73-3/4"
CORNER POST RH
3
2
4 X 4 X 73-3/4"
CORNER POST LH
2
Page 30
DESCRIPTIONPICTURE QTY.
20
4 X 4 X 94"
DECK SUPPORT
4 X 4 X 94"
CENTER DECK
SUPPORT
2
1
Page 31
DESCRIPTIONPICTURE QTY.
21
PLASTIC
SUNBURST
07-0028-G
2
UNASSEMBLED
DORMER
(1513 BOX)
UNASSEMBLED
CHIMNEY
(1513 BOX)
2
1
Page 32
DESCRIPTIONPICTURE QTY.
22
HINGE
28-0001
BRACKET
2
1
HARDWARE BOX
DOOR KNOB
HARDWARE
BOX
11-1025
1
1
Page 33
STEP 1: POSTS & FORT BLOCK SUPPORTS
23
1: ASSEMBLE THE REAR AND MIDDLE SECTION BY PLACING THE 4 X 4 X 73.75" CORNER POST LH
AND 4 X 4 X 73.75" CORNER PORT RH FLUSH TO THE OUTSIDE OF THE 4 X 4 X 70" FORT BLOCK
SUPPORT, LINING UP THE COUNTER SUNK HOLES ON THE ENDS OF THE BLOCK SUPPORT WITH THE
COUNTER SUNK HOLES ON THE BOTTOM OF THE CORNER POSTS. FOLLOW THE DIAGRAM
BELOW FOR PROPER INSTALLATION.
2: FASTEN THE CORNER POSTS TO THE BLOCK SUPPORT USING 3/8" X 6-1/2" CARRIAGE BOLTS
WITH TORQUE WASHERS FROM THE OUTSIDE, AND 3/8" LOCK NUTS WITH 3/8" WASHERS ON THE
INSIDE. USE GREEN BOLT CAPS TO COVER ANY EXPOSED THREADS.
3: ASSEMBLE THE PORCH SECTION BY PLACING THE 4 X 4 X 63.75" PORCH POST LH AND 4 X 4 X
63.75" PORCH POST RH FLUSH TO THE OUTSIDE OF THE 4 X 4 X 70" FORT BLOCK SUPPORT, LINING
UP THE COUNTER SUNK HOLES ON THE ENDS OF THE BLOCK SUPPORT WITH THE COUNTER SUNK
HOLES ON THE BOTTOM OF THE PORCH POSTS. FOLLOW THE DIAGRAM BELOW FOR PROPER
INSTALLATION.
4: FASTEN THE PORCH POSTS TO THE BLOCK SUPPORT USING 3/8" X 6-1/2" CARRIAGE BOLTS
WITH TORQUE WASHERS FROM THE OUTSIDE, AND 3/8" LOCK NUTS WITH 3/8" WASHERS ON THE
INSIDE. USE GREEN BOLT CAPS TO COVER ANY EXPOSED THREADS.
POST
FORT BLOCK SUPPORT
3/8" WASHER
3/8" LOCK NUT
COUNTER SUNK HOLES
FACE INWARD
MIDDLE SECTION
PORCH SECTION 4 X 4 X 73.75"
CORNER POST LH
TORQUE WASHER
3/8" X 6-1/2"
CARRIAGE BOLTBOLT CAP
REAR SECTION
4 X 4 X 63.75"
PORCH POST LH
4 X 4 X 63.75"
PORCH POST RH
4 X 4 X 73.75"
CORNER POST RH
4 X 4 X 70" FORT BLOCK SUPPORT
Page 34
STEP 2: DECK SUPPORTS
24
1: PLACE THE 4 X 4 X 94" DECK SUPPORTS ON TOP OF THE FORT BLOCK SUPPORTS, THE
COUNTER SUNK HOLES MUST FACE INWARD. FASTEN THE DECK SUPPORTS TO THE POSTS
WITH 3/8" X 5" LAG SCREWS AND 3/8" WASHERS.
2: PLACE THE 4 X 4 X 94" CENTER DECK SUPPORT ON TOP OF THE FORT BLOCK SUPPORTS,
THE COUNTER SUNK HOLES MUST FACE UPWARDS AND THE HOLES MUST BE CENTERED ON
EACH FORT BLOCK SUPPORT. FOLLOW THE DIMENSIONS IN THE DIAGRAM BELOW FOR
PROPER INSTALLATION.
27
3
"
8
4 X 4 X 94"
DECK SUPPORT
F
R
O
N
T
FLUSH
3/8" WASHER
3/8" X 5" LAG
EQUAL
EQUAL
3
3
8
FLUSH
EQUAL
"
EQUAL
70"
4 X 4 X 94"
CENTER DECK
SUPPORT
FRONT
4 X 4 X 94"
DECK SUPPORT
Page 35
STEP 3: DECK
25
1: PLACE THREE 3-BOARD DECK PANELS, ONE 2-BOARD DECK PANEL AND ONE 3.5-BOARD
DECK PANEL ACROSS THE DECK SUPPORTS, ALLOWING THE 2 X 4 DECK STRINGERS TO OVERLAP
THE DECK SUPPORTS.
2: PLACE THE 5/4 X 4 X 62.75" DECK SPACERS ON TOP OF THE DECK SUPPORTS, BETWEEN THE
POSTS.
3: ATTACH THE DECK PANELS AND DECK SPACERS TO THE DECK SUPPORTS WITH TWO 2-1/2"
WOOD SCREWS PER SIDE PER BOARD.
4: ATTACH THE DECK BOARDS AND DECK SPACERS TO THE CENTER DECK SUPPORT WITH ONE
2-1/2" WOOD SCREWS PER BOARD.
2-BOARD DECK
3.5-BOARD DECK
DECK SUPPORT
CENTER DECK
SUPPORT
DECK SUPPORT
DECK STRINGER
#8 X 2-1/2"
WOOD SCREW
3-BOARD DECK
5/4 X 4 X 62.75"
DECK SPACER
Page 36
STEP 4: WALL PANELS
26
1: PLACE THE SIDE WALL PANELS FLUSH TO THE CORNER POSTS, ALLOWING THE WALL BOARDS
TO REST ON THE DECK. MAKE SURE THAT THE COUNTER SUNK HOLES ARE OFFSET UP ON THE TOP
BOARD AND OFFSET DOWN ON THE BOTTOM BOARD OF EACH SIDE WALL PANEL. FASTEN THE
SIDE WALL PANELS TO THE POSTS WITH 3/8" X 3-1/2" LAG SCREWS AND 3/8" WASHERS.
2: PLACE THE REAR WALL PANEL FLUSH TO THE REAR CORNER POSTS, ALLOWING THE WALL
BOARDS TO REST ON THE DECK. MAKE SURE THAT THE COUNTER SUNK HOLES ARE OFFSET
DOWN ON THE TOP BOARD AND OFFSET UP ON THE BOTTOM BOARD OF THE REAR WALL
PANEL. FASTEN THE REAR WALL PANEL TO THE REAR POSTS WITH 3/8" X 3-1/2" LAG SCREWS
AND 3/8" WASHERS.
FLUSH
SIDE WALL
TOP BOARD
(HOLES OFFSET UP)
FLUSH
FLUSH
3/8" WASHER
3/8" X 3-1/2" LAG SCREW
REAR WALL
TOP BOARD
(HOLES OFFSET DOWN)
FLUSH
SIDE WALL
BOTTOM BOARD
(HOLES OFFSET DOWN)
SIDE WALL
TOP BOARD
(HOLES OFFSET UP)
REAR WALL
BOTTOM BOARD
(HOLES OFFSET UP)
SIDE WALL
BOTTOM BOARD
(HOLES OFFSET DOWN)
Page 37
STEP 5: ROOF PANELS
27
1. PLACE ONE ROOF PANEL WITH THE 45° END FACING TOWARD THE INSIDE AND LET IT REST ON THE
CORNER POST AND WALL PANEL. FASTEN THE ROOF SUPPORT TO THE CORNER POST FROM THE OUTSIDE
WITH 3/8 X 4-1/2" CARRIAGE BOLTS AND TORQUE WASHERS AND 3/8” LOCKNUTS WITH 3/8" WASHERS
ON THE INSIDE. USE BOLT CAPS TO COVER ALL EXPOSED THREADS. DO NOT TIGHTEN BOLTS COMPLETELY
AT THIS TIME.
2: REPEAT SUB STEP 1 WITH SECOND ROOF PANEL.
3: AFTER BOTH ROOF PANELS ARE FASTENED, RAISE ROOF PANELS AT CENTER OF FORT UNTIL
THE 45° ANGLES COME TOGETHER TO MAKE A PEAK. FASTEN THE TWO ROOF SUPPORTS
TOGETHER WITH #8 X 3" WOOD SCREWS PERPENDICULAR AT THE MITER JOINTS AS SHOWN
BELOW. TIGHTEN BOLTS AT THE ROOF SUPPORT AND CORNER POST.
3/8" X 4-1/2" CARRIAGE BOLT
FORT ROOF PANEL
TORQUE
WASHER
3/8" WASHER
3/8" LOCK NUT
BOLT CAP
BOLT CAP
3/8" LOCK NUT
3/8" WASHER
TORQUE WASHER
3/8" X 4-1/2"
CARRIAGE BOLT
#8 X 3" WOOD SCREW
FORT ROOF PANEL
Page 38
STEP 6: ROOF CAP, CHIMNEY AND DORMERS
28
1: PLACE 1 X 5 X 75-1/2" ROOF PEAK ON TOP OF THE ROOF PANELS. FASTEN THE ROOF PEAK TO
THE ROOF PANELS WITH #8 X 1-1/4" WOOD SCREWS, TWO IN EACH SIDE, CENTERED AND EVENLY
SPACED AS SHOWN BELOW.
2: USE THE INSTRUCTIONS PROVIDED IN THE APPENDIX TO BUILD THE DORMERS AND CHIMNEY.
1-1/4" WOOD SCREW
ROOF CAP
CHIMNEY
DORMER
DORMER
Page 39
STEP 7: DOOR WALL PANEL AND
29
PORCH HALF WALL PANEL
1: PLACE DOOR WALL PANEL FLUSH ON THE CORNER POSTS, ALLOWING PANEL BOARDS TO REST ON
DECK. BE SURE THAT COUNTERSUNK HOLES ARE OFFSET DOWN ON TOP BOARD OF WALL PANEL. FASTEN
WITH 3/8 X 3 ½” LAG SCREWS AND 3/8” WASHERS. FASTEN THE BOTTOM CORNER OF THE DOOR PANEL
TO THE FLOOR ON THE INSIDE OF THE PLAY HOUSE WITH A 28-0001 BRACKET AND #8 X 1" PHILLIPS PAN
HEAD SCREWS AS SHOWN IN THE TOP RIGHT PICTURE BELOW.
2: PLACE THE PORCH HALF WALL PANEL FLUSH ON THE PORCH POSTS, ALLOWING THE PANEL SLATS TO
REST ON DECK. FASTEN WITH 3/8 X 3 ½” LAG SCREWS AND 3/8” WASHERS.
DOOR WALL PANEL
3/8" WASHER
3/8" X 3-1/2"
LAG SCREW
INSIDE VIEW
PORCH POST
PORCH HALF
WALL PANEL
28-0001 BRACKET
#8 X 1" PHILLIPS PAN HEAD SCREW
( TWO SCREWS IN EACH FLANGE)
Page 40
STEP 8: DOOR
30
1: PLACE DOOR INSIDE OF FORT. FLUSH DOOR WITH CORNER POST AND WALL PANEL
UPPER BOARD. PLACE A 1/2" WOOD PIECE UNDER DOOR FOR STABILITY. FASTEN HINGES TO
INSIDE OF FRONT CORNER POST WITH 1-1/2" WOOD SCREWS. DOOR WILL OPERATE WITH AN
IN-SWING WHEN OPENING IT.
2: INSTALL DOOR KNOB ON THE OUTSIDE OF THE DOOR AT THE DESIRED HEIGHT, FASTEN USING
ONE #14 X 1" PAN HEAD SCREW FROM THE INSIDE OF THE DOOR.
WALL PANEL
UPPER DOOR
HINGE
#8 1-1/2" WOOD SCREW
DOOR KNOB
DOOR PANEL
#14 X 1"
PAN HEAD SCREW
Page 41
STEP 9: GABLE TOP PANEL BOARD
31
1: PLACE THE 2 X 4 X 32.45" GABLE TOP PANEL BOARD IN BETWEEN THE ROOF SUPPORTS. FASTEN
USING #8 X 2-1/2" WOOD SCREWS.
ROOF SUPPORT
GABLE TOP PANEL BOARD
ROOF SUPPORT
#8 X 2-1/2" WOOD SCREW
Page 42
STEP 10: GABLE WALL PANEL BOARDS
32
1: STARTING FROM THE RIGHT TO THE LEFT, PLACE EACH GABLE WALL PANEL BOARD RESTING
ON TOP OF THE WALL PANEL BOARDS. THE GAP BETWEEN THE BOARDS SHOULD BE THE SAME
AS THE WALL PANEL BOARDS FROM UNDERNEATH (APPROXIMATELY 1/8"). FASTEN THE GABLE
WALL PANEL BOARDS USING FOUR #8 X 1-1/2" WOOD SCREWS PER BOARD.
2: FOLLOW THE DIAGRAM BELOW FOR PROPER INSTALLATION.
3: REPEAT SUB STEP 1 FOR THE OPPOSITE GABLE WALL.
ROOF SUPPORT
1 X 6 X 28" GABLE WALL PANEL BOARD
1 X 3 X 28"
GABLE WALL
PANEL BOARD
1 X 6 X 25"
GABLE WALL
PANEL BOARD
1 X 6 X 19.5"
GABLE WALL
PANEL BOARD
#8 X 1-1/2"
WOOD SCREW
(FOUR PER BOARD)
GABLE TOP PANEL BOARD
1 X 3 X 28"
GABLE WALL
PANEL BOARD
1 X 6 X 25"
GABLE WALL
PANEL BOARD
1 X 6 X 19.5"
GABLE WALL
PANEL BOARD
WALL PANEL BOARD
INSIDE VIEW
Page 43
STEP 11: CLOSE OUT PANEL BOARDS
33
1: PLACE THE 2 X 6 X 69.75" CLOSE OUT PANEL BOARD ABOVE THE DOOR WALL PANEL AND
FLUSH TO THE CORNER POSTS. FASTEN USING TWO #8 X 2-1/2" WOOD SCREWS ON EACH END.
1: PLACE THE 2 X 6 X 69.75" CLOSE OUT PANEL BOARD ABOVE THE REAR WALL PANEL AND
FLUSH TO THE CORNER POSTS. FASTEN USING TWO #8 X 2-1/2" WOOD SCREWS ON EACH END.
FRONT OF PLAYHOUSE
#8 X 2-1/2"
WOOD SCREW
2 X 6 X 69.75"
CLOSE OUT
PANEL BOARD
DOOR WALL PANEL
REAR OF PLAYHOUSE
2 X 6 X 69.75"
CLOSE OUT
PANEL BOARD
#8 X 2-1/2"
WOOD SCREW
REAR WALL PANEL
Page 44
STEP 12: PORCH ROOF PANEL
34
1: PLACE THE PORCH ROOF PANEL ON TOP OF THE PORCH CORNER POSTS, THE ANGLED ENDS MUST BE
RESTING ON TOP OF THE FORT ROOF. LINE UP THE PORCH ROOF PANEL HOLES WITH THE PORCH CORNER
POST COUNTERSUNK HOLES AND FASTEN USING 3/8" X 4-1/2" CARRIAGE BOLTS AND TORQUE WASHERS
FROM THE OUTSIDE AND 3/8" LOCK NUTS WITH 3/8" WASHERS FROM THE INSIDE. USE BOLT CAPS TO
COVER ALL EXPOSED THREADS.
2: FASTEN THE BACK OF THE PORCH ROOF TO THE FORT ROOF WITH #8 X 3" WOOD SCREWS AS SHOWN
IN THE DIAGRAM BELOW.
#8 X 3" WOOD SCREWS
PORCH ROOF
PANEL
3/8" X 4-1/2"
CARRIAGE BOLT
TORQUE WASHER
PORCH CORNER POST
BOLT CAP
3/8" LOCK NUT
3/8" WASHER
Page 45
STEP 13: ROOF END CAPS
35
1: LOCATE TWO 1 X 4 X 72-3/8" END CAPS.
1: PLACE ONE 1 X 4 X 72-3/8" ROOF END CAP AGAINST THE END OF THE ROOF SUPPORTS OF THE
PORCH ROOF PANEL. MAKE SURE THE TOP OF THE ROOF END CAP IS FLUSH TO THE END OF THE
ROOF BOARDS AND ATTACH TO THE ROOF SUPPORTS USING FOUR #8 X 2" WOOD SCREWS.
2: PLACE ANOTHER 1 X 4 X 72-3/8" ROOF END CAP AGAINST THE END OF THE ROOF SUPPORTS
OF THE REAR ROOF PANEL. MAKE SURE THE TOP OF THE ROOF END CAP IS FLUSH TO THE END OF
THE ROOF BOARDS AND ATTACH TO THE ROOF SUPPORTS USING FOUR #8 X 2" WOOD SCREWS.
ROOF SUPPORT
#8 X 2"
WOOD SCREW
1 X 4 X 72-3/8"
ROOF END CAP
PORCH ROOF PANEL
REAR ROOF PANEL
#8 X 2"
WOOD SCREW
1 X 4 X 72-3/8"
ROOF END CAP
Page 46
STEP 14: BOTTOM FILLER BOARDS
36
1: LOCATE TWO 2 X 4 X 94" SIDE BOTTOM FILLER BOARDS AND PLACE ONE ON THE RIGHT SIDE
OF THE PLAYHOUSE AND ONE ON THE LEFT SIDE AT THE BOTTOM. FASTEN USING TWO #8 X 21/2" WOOD SCREWS PER CORNER POST AS SHOWN IN THE DIAGRAM BELOW.
2: LOCATE TWO 2 X 4 X 24" PORCH SIDE BOTTOM FILLER BOARDS. PLACE ONE ON THE RIGHT
SIDE OF THE PORCH AND ONE ON THE LEFT SIDE ON TOP OF THE 2 X 4 X 94" SIDE BOTTOM FILLER
BOARDS. FASTEN USING TWO #8 X 2-1/2" WOOD SCREWS INTO THE POST AND ONE #8 X 2"
WOOD SCREW INTO THE DECK STRINGER AS SHOWN IN THE DIAGRAM BELOW.
3: LOCATE TWO 2 X 4 X 70" FRONT / BACK BOTTOM FILLER BOARDS AND PLACE ONE ON THE
REAR SIDE OF THE PLAYHOUSE AND ONE ON THE FRONT SIDE AT THE BOTTOM. FASTEN USING
TWO #8 X 2-1/2" WOOD SCREWS PER POST AS SHOWN IN THE DIAGRAM BELOW.
POST
HALF WALL PANEL
2 X 4 X 70" FRONT / BACK
BOTTOM FILLER BOARD
POST
POST
2 X 4 X 94"
POST
PORCH DECK PANEL
PORCH SIDE FILLER BOARD
FLUSH
#8 X 2-1/2" WOOD SCREWS
SIDE BOTTOM FILLER BOARD
POST
SIDE WALL PANEL
POST
2 X 4 X 70" FRONT / BACK
BOTTOM FILLER BOARD
REAR WALL PANEL
POST
2 X 4 X 24" PORCH
SIDE FILLER BOARD
POST
SIDE WALL PANEL
2 X 4 X 94"
SIDE BOTTOM FILLER BOARD
#8 X 2-1/2" WOOD SCREW
Page 47
STEP 15: PLASTIC SUNBURST
37
1: MOUNT THE PLASTIC SUNBURST TO THE ROOF SUPPORTS ON THE LEFT AND RIGHT SIDE OF THE
ROOF. THE SUNBURST MUST BE UP AGAINST THE OVERHANGING ROOF BOARDS. FASTEN THE
PLASTIC SUNBURST TO THE ROOF SUPPORTS USING TWO #8 X 2-1/2" WOOD SCREWS IN THE TOP
HOLES AND SIX #8 X 2" WOOD SCREWS IN THE REMAINING HOLES.
PLASTIC SUNBURST
#8 X 2-1/2" WOOD SCREW
(X2)
#8 X 2" WOOD SCREW
(X6)
PLASTIC SUNBURST
ROOF SUPPORT
Page 48
APPENDIX
38
Page 49
9
8
#8 X 1-1/4"
WOOD SCREW
QTY: 22
#8 X 1-1/2"
WOOD SCREW
QTY: 8
#8 X 2"
WOOD SCREW
QTY: 6
7
6
5
4
3
USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN
ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.
2
1
Page 50

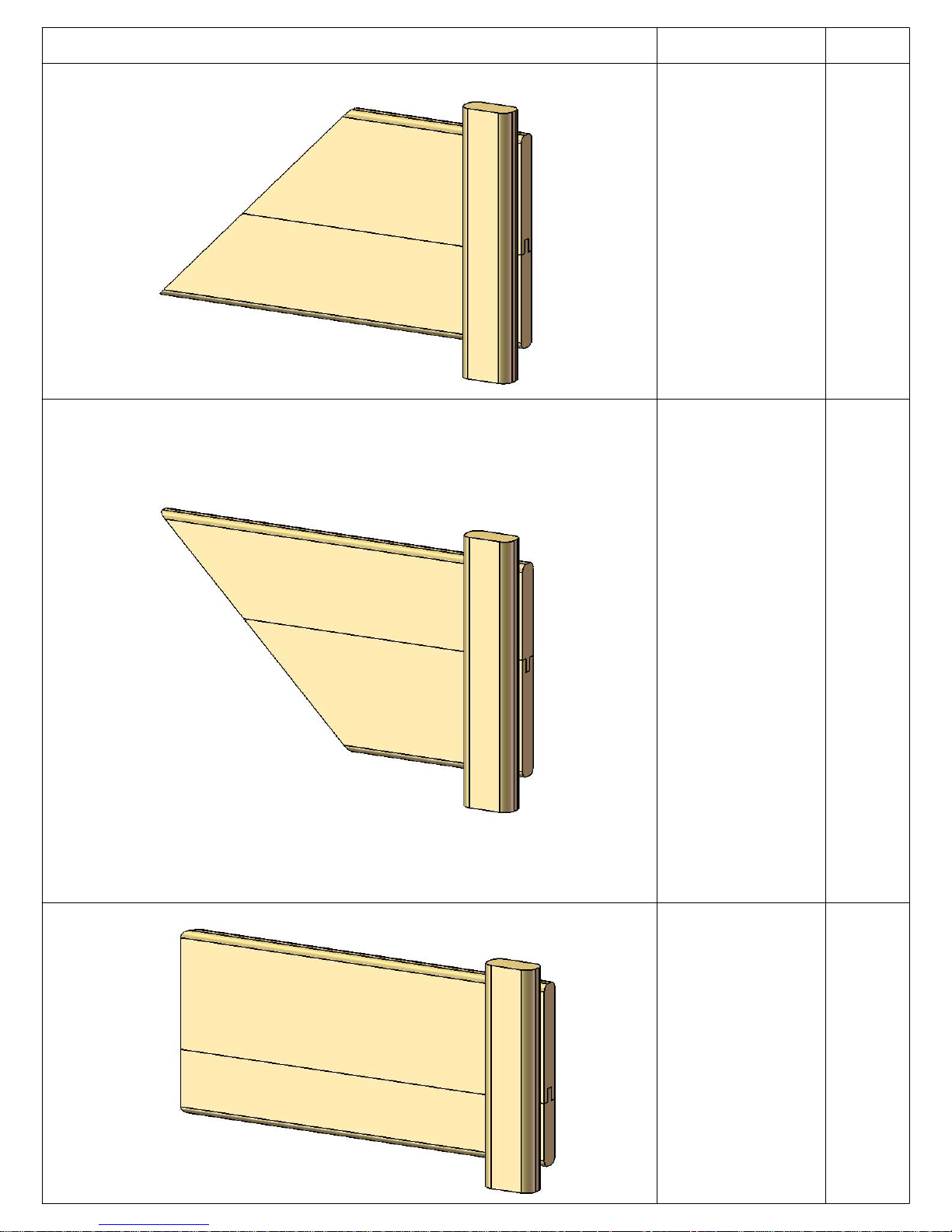

DESCRIPTIONPICTURE QTY.
CHIMNEY
LEFT SIDE
ASSEMBLY
1
CHIMNEY
RIGHT SIDE
ASSEMBLY
CHIMNEY
FRONT
ASSEMBLY
1
1
Page 51

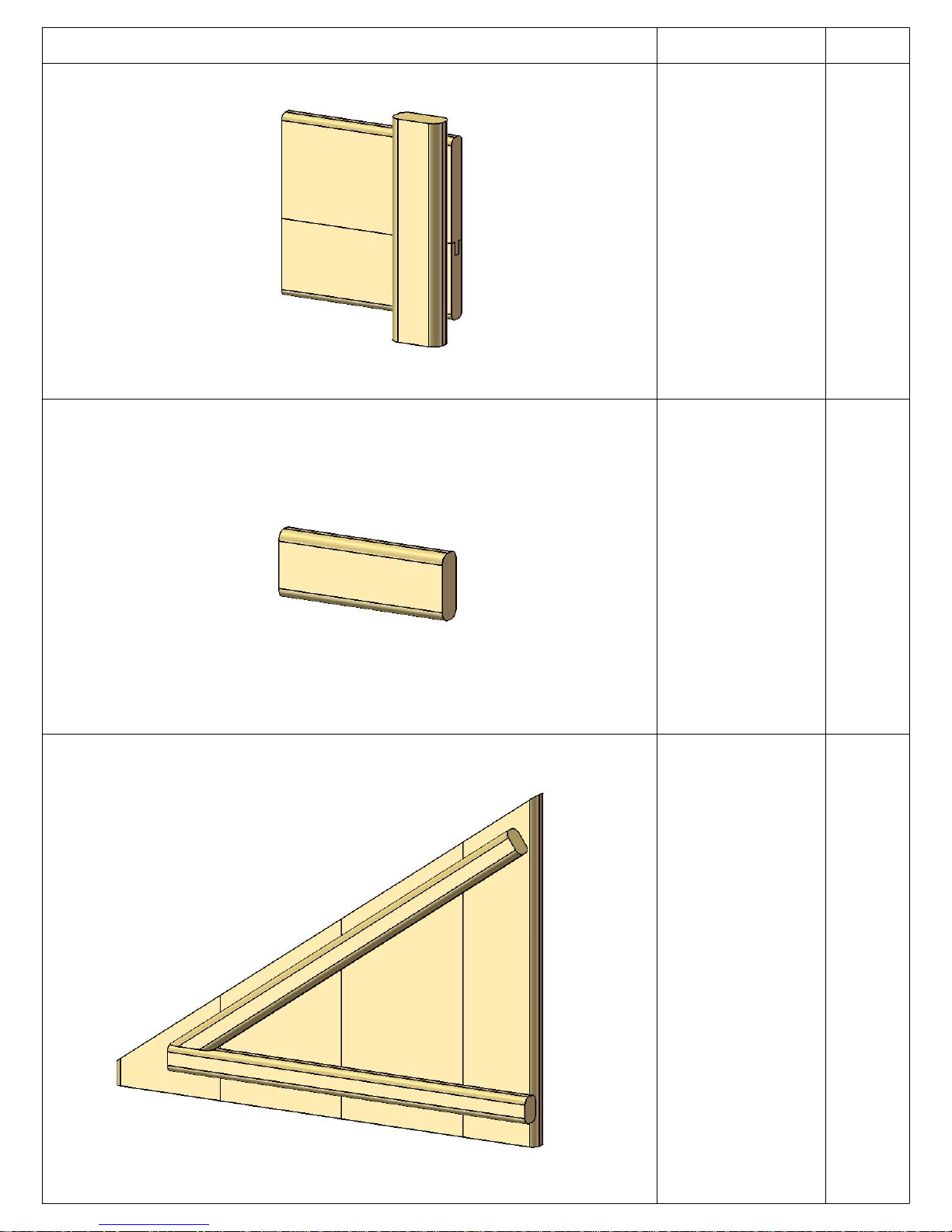

PICTURE DESCRIPTION QTY.
CHIMNEY
REAR
ASSEMBLY
1
5/4X3X6-3/4"
CHIMNEY
MOUNTING
BLOCK
DORMER
LEFT SIDE
ASSEMBLY
1
2
Page 52
PICTURE DESCRIPTION QTY.
DORMER
ROOF PEAK
ASSEMBLY
2
DORMER
RIGHT SIDE
ASSEMBLY
DORMER
SUNRAY
ASSEMBLY
2
2
Page 53
STEP 1: DORMER
1: FIND TWO LEFT SIDE AND TWO RIGHT SIDE DORMER ROOF ASSEMBLIES.
2: FIND TWO DORMER SUNRAY ASSEMBLIES.
3: PLACE THE LEFT AND RIGHT ROOF ASSEMBLIES ON THE BACK SIDE OF THE DORMER SUNRAY ASSEMBLY
AS SHOWN BELOW.
4: ATTACH THE DORMER ROOF SIDES TO THE DORMER SUNRAY WITH 1-1/4" WOOD SCREWS FROM THE
ROOF BOARDS OF THE ROOF ASSEMBLIES.
RIGHT SIDE
DORMER ROOF
LEFT SIDE
DORMER ROOF
ASSEMBLY
ASSEMBLY
DORMER SUNRAY
ASSEMBLY
USE 1-1/4" WOOD SCREWS IN
THESE LOCATIONS (EACH SIDE)
Page 54
STEP 2: DORMER
1: FIND THE DORMER ROOF PEAK ASSEMBLY.
2: PLACE THE ROOF PEAK ASSEMBLY IN THE TOP OF THE ROOF AND FASTEN WITH 1-1/4" WOOD SCREWS.
DORMER ROOF PEAK
Page 55
STEP 3: DORMER
1: CENTER THE DORMER ASSEMBLIES ON THE ROOF.
2: USE A 2" WOOD SCREW TO FASTEN THE DORMER PEAK TO THE ROOF.
3: USE 1-1/2" WOOD SCREWS TO FASTEN THE FACE OF THE DORMER TO THE ROOF.
USE A 2" WOOD SCREW
IN THIS LOCATION
(EACH SIDE)
USE 1-1/2" WOOD
SCREWS IN THESE
LOCATIONS
(EACH SIDE)
THE UNIT SHOWN ABOVE MAY NOT BE YOUR EXACT PLAYSET.
SHOWN FOR ILLUSTRATION PURPOSES ONLY
Page 56

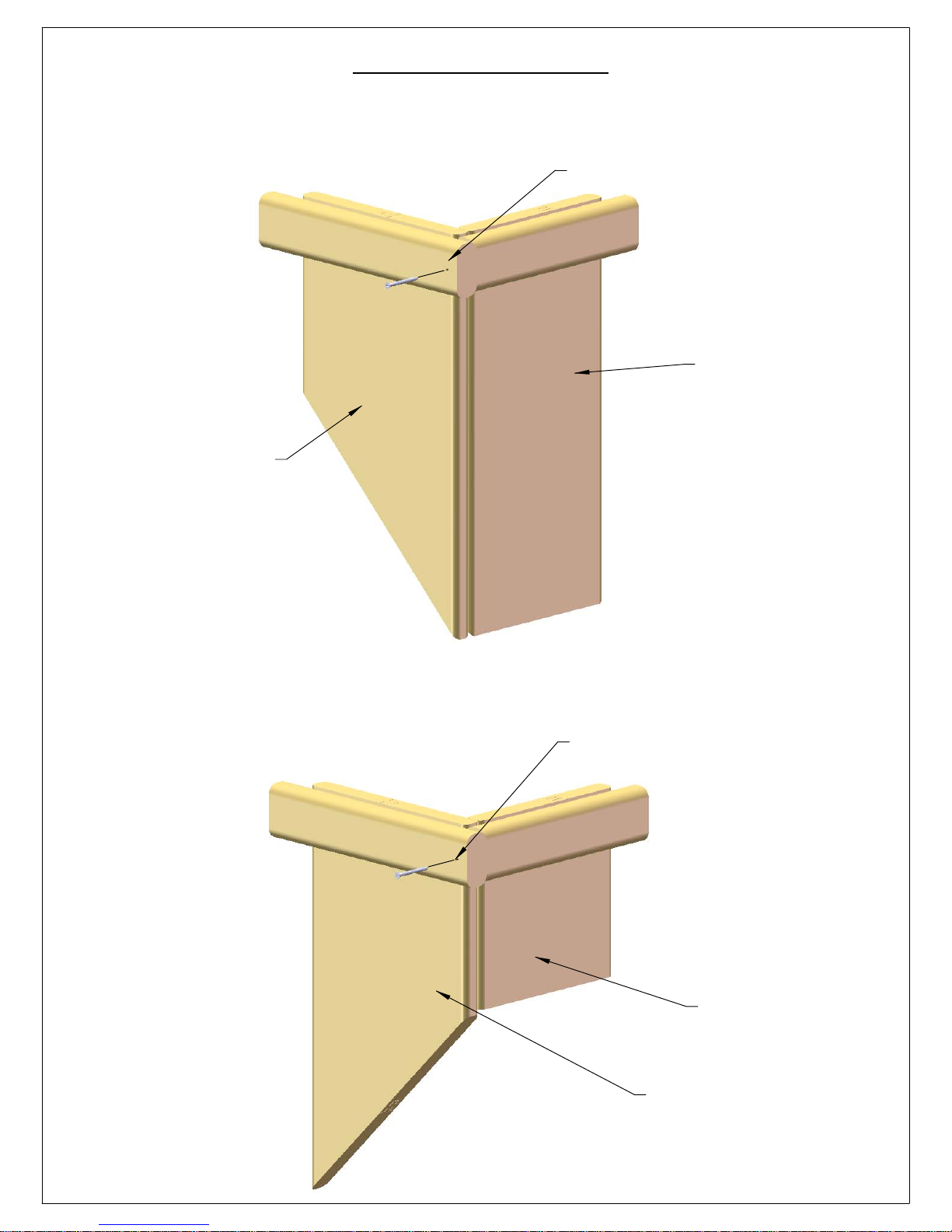

STEP 4: CHIMNEY
1: FIND THE FRONT AND LEFT SIDE OF THE CHIMNEY.
2: ATTACH THE FRONT AND LEFT SIDES OF THE CHIMNEY WITH A 2" WOOD SCREW.
USE A 2" WOOD SCREW IN THIS LOCATION
CHIMNEY LEFT SIDE
CHIMNEY FRONT
1: FIND THE REAR AND RIGHT SIDE OF THE CHIMNEY.
2: ATTACH THE REAR AND RIGHT SIDES OF THE CHIMNEY WITH A 2" WOOD SCREW.
USE A 2" WOOD SCREW IN THIS LOCATION
CHIMNEY REAR
CHIMNEY RIGHT SIDE
Page 57
STEP 5: CHIMNEY
1: ATTACH THE CHIMNEY SIDES FROM THE PREVIOUS SIDES TO FORM THE CHIMNEY WITH 2" AND 1-1/4" WOOD
SCREWS.
USE A 2" WOOD SCREW
IN THIS LOCATION (EACH SIDE)
USE 1-1/4" WOOD SCREWS
IN THIS LOCATION (EACH SIDE)
Page 58
STEP 6: CHIMNEY
1: FASTEN THE 5/4 X 3 X 6-3/4" CHIMNEY MOUNTING BLOCK TO THE ROOF WITH 1-1/2" WOOD SCREWS. YOU CAN
PLACE THE BLOCK AT ANY DESIRED PLACE ON THE ROOF. USE THE DIAGRAM BELOW AS A GUIDE AS TO WHERE
YOU MIGHT INSTALL YOUR CHIMNEY.
2: AFTER INSTALLING THE CHIMNEY MOUNTING BLOCK, PLACE THE CHIMNEY ASSEMBLY ON THE ROOF SO THAT THE
INSIDE OF THE BACK WALL RESTS AGAINST THE BLOCK.
3: FASTEN THE CHIMNEY TO THE CHIMNEY MOUNTING BLOCK WITH A 1-1/2" WOOD SCREW IN EACH SIDE.
1-1/2" WOOD SCREW
5/4 X 3 X 6-3/4"
CHIMNEY MOUNTING BLOCK
1-1/2"
WOOD
SCREW
ABOVE UNIT MAY NOT BE YOUR EXACT PLAYSET.
SHOWN FOR ILLUSTRATION PURPOSES ONLY.
