Playcraft PCF10346 Installation & Assembly

Yukon River

Models:

ASSEMBLY INSTRUCTIONS

PTYUKNDR08 - Yukon River 8’, Northern Dri

PTYUKRVN08 - Yukon River 8’, Weathered Raven

page 1

Congratulaons on selecng a Yukon River slate pool table - part of the Fairfield Collecon
by Playcra. Please contact us ia email at support@playcra.com should you require any
assistance.

Please carefully read all safety instrucons and direcons before proceeding

1) Your table is designed for use indoors in a climate controled environment only.
Damage can occur if the table is exposed to water, dampness, high humidity,
freezing temperatures, etc.

2) Professional assembly is strongly recommended. This assembly manual is intended to
guide an experienced slate pool table installer with the assembly process of this
specific cabinet. It does not guide on seng the slate or aaching the billiard cloth
for which the process is the same regardless of the cabinet type.

2) The pool table cabinet and slate are extremely heavy. Two or more people are
required for assembly.

3) The table must be assembled in the final locaon where the table will be played.
Aempng to move the table once assembled could result in damage to the table
or serious injury.

5) Only use the table for its intended purpose.

6) Damaged or worn parts may be dangerous for users and the integrity of the table.
Replace worn or damaged components immediately and do not use the table unl any
issues have been resolved. For best results, use only spare parts supplied by Playcra.

7) Unauthorized repairs or alterang the table’s design or funcons may be dangerous and
will void the warranty.

8) Check all screws, bolts, etc. on a regular basis to ensure that they are in good working
condion and have not loosened over me.

9) Over me, pool tables may require releveling. This is considered normal maintenance
as required with owning a slate pool table

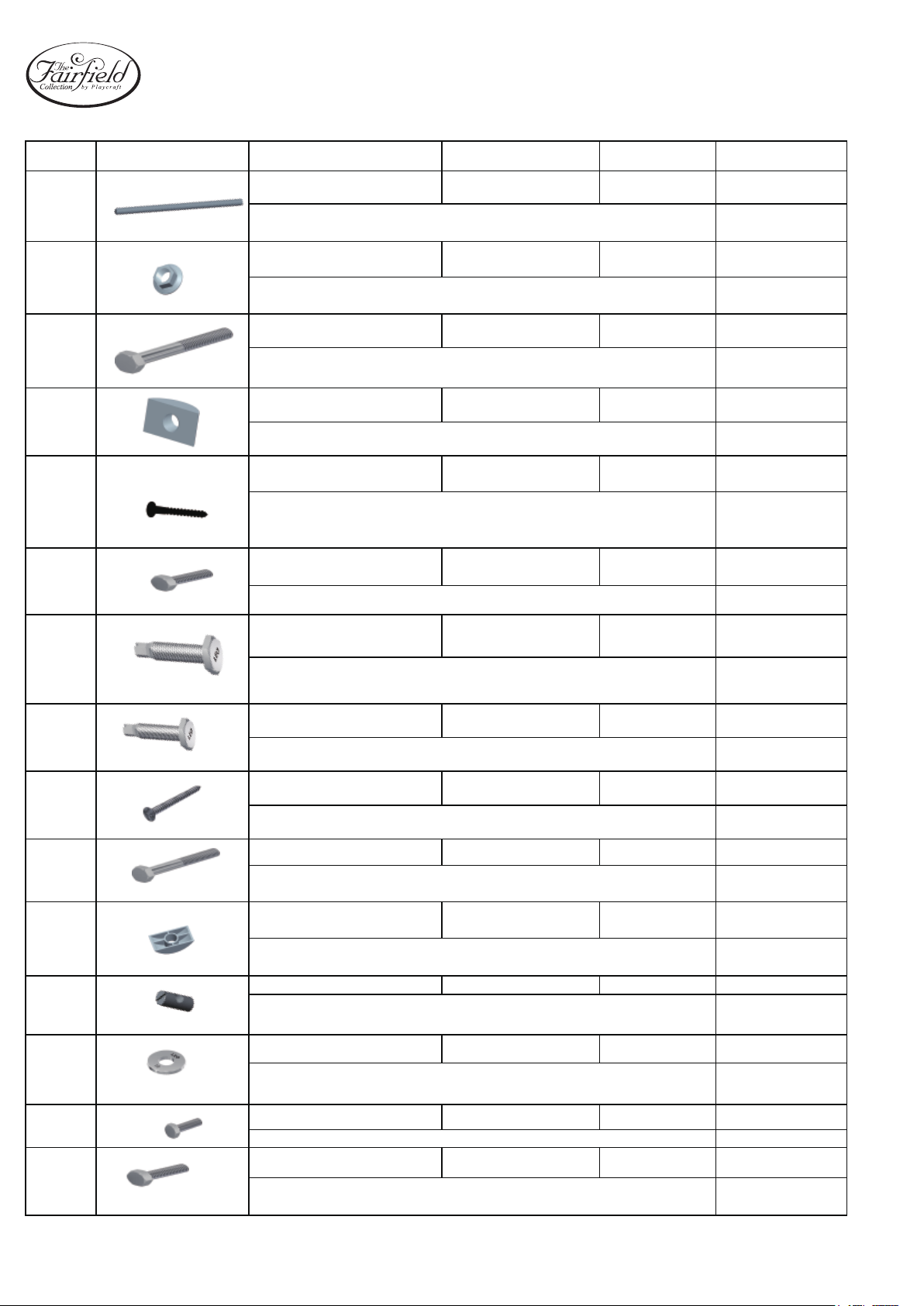

HARDWARE LIST

NO. REF. PARTS SPECIFICATION QTY UNIT

HANGER BOLT ø10*210 8 PCS

A

CONNECTION OF PANEL AND LEGS

WASHER ø10*80 12 PCS

B

CONNECTION OF PANEL AND LEGS

HEX BOLT ø12*220 4 PCS

C

CONNECTION FOR CROSS BEAMS

SEMICIRCLE SCREW NUT M12 4 PCS

D

CONNECTION FOR CROSS BEAMS

FLAT HEAD SCREW 4.2*60 8 PCS

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

E

CONNECTION FOR MIDDLE BEAMS

HEX BOLT ø10*60 4 PCS

ASSEMBLY

POSITION

F

CONNECTION FOR BAEM AND LEGS

ADJUSTABLE SCREW ø10*100 12 PCS

G

TO ADJUST AND LEVELING THE SLATE

ADJUSTABLE SCREW ø10*55 4 PCS

H

TO ADJUST AND LEVELING THE SLATE

FLAT HEAD SCREW 6*60 12 PCS

I

TO FIX THE SLATE

HEX BOLT ø8*80 8 PCS

J

CONNECTION FOR RAILS

SEMICIRCLE WASHER M8 8 PCS

K

CONNECTION FOR RAILS

NUT M8*30 8 PCS

L

FLAT WASHER M8 20 PCS

CONNECTION FOR RAILS

M

CONNECTION FOR PANELS AND RAILS

N

HEX BOLT ø8*30/ø8*40 8+12 PCS

CONNECTION FOR PANELS AND RAILS

HEX BOLT ø10*60 18 PCS

O

CONNECTION FOR RAILS AND SLATE

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

ASSEMBLY

POSITION

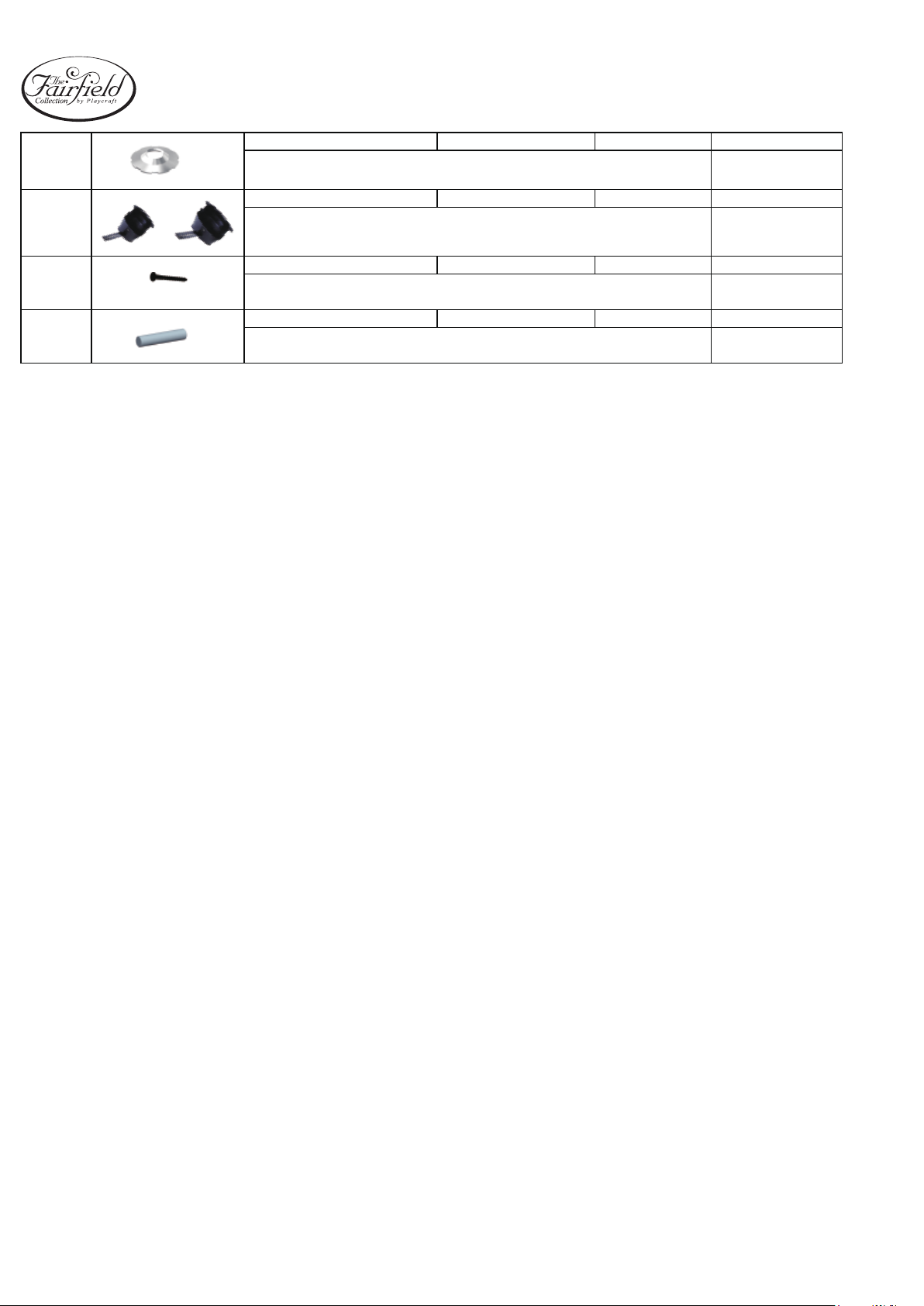

DOME WASHER M10 18 PCS

HARDWARE LIST

P

LEATHER POCKET 1 PCS

Q

FLAT HEAD SCREW 4.2*20 12 PCS

S

WOODEN PLUG ø10*50 2 PCS

T

CONNECTION FOR RAILS AND SLATE

POCKET

POCKET

CONNECTED #2 AND #3 TOP RAIL

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

ASSEMBLY

POSITION

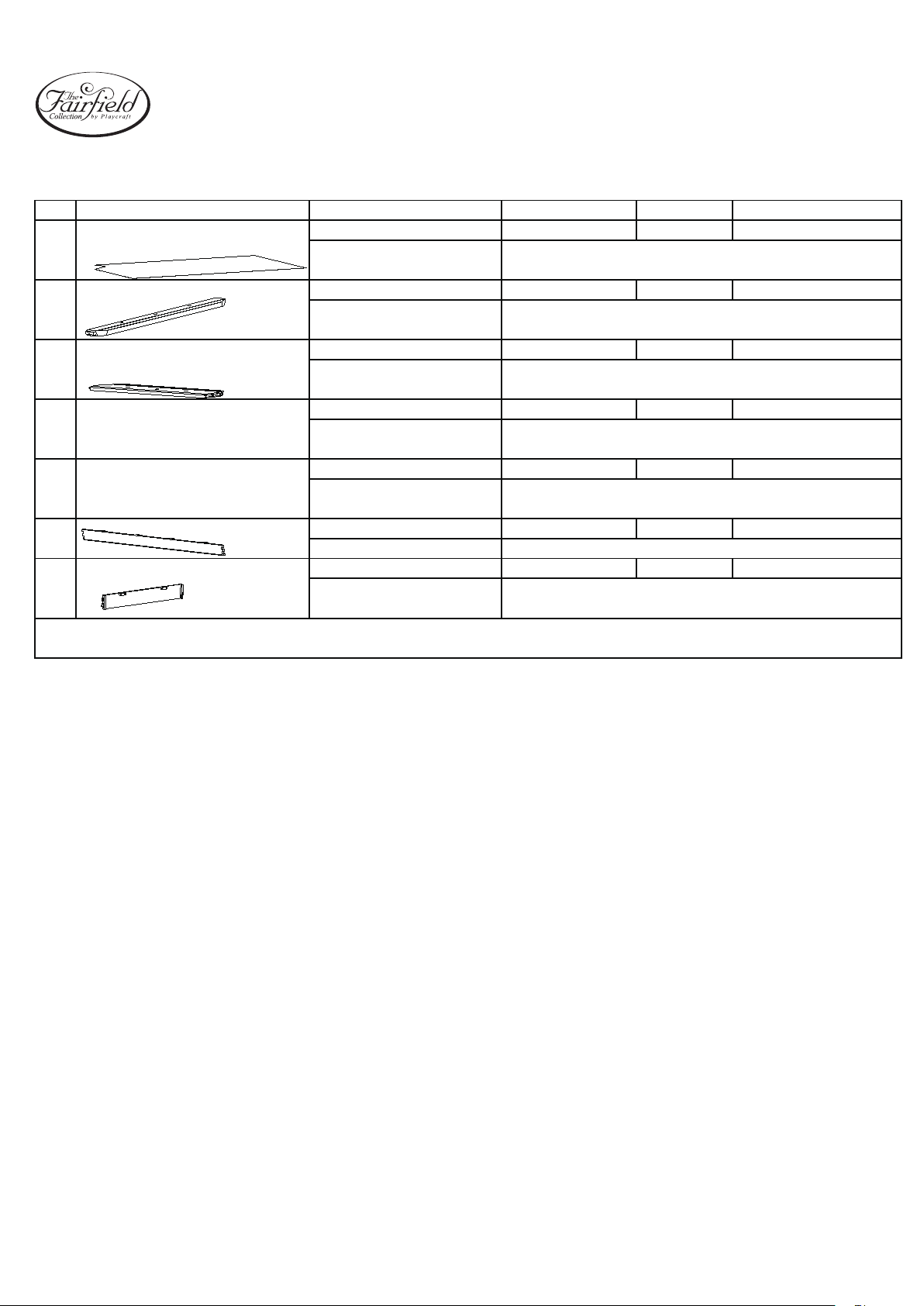

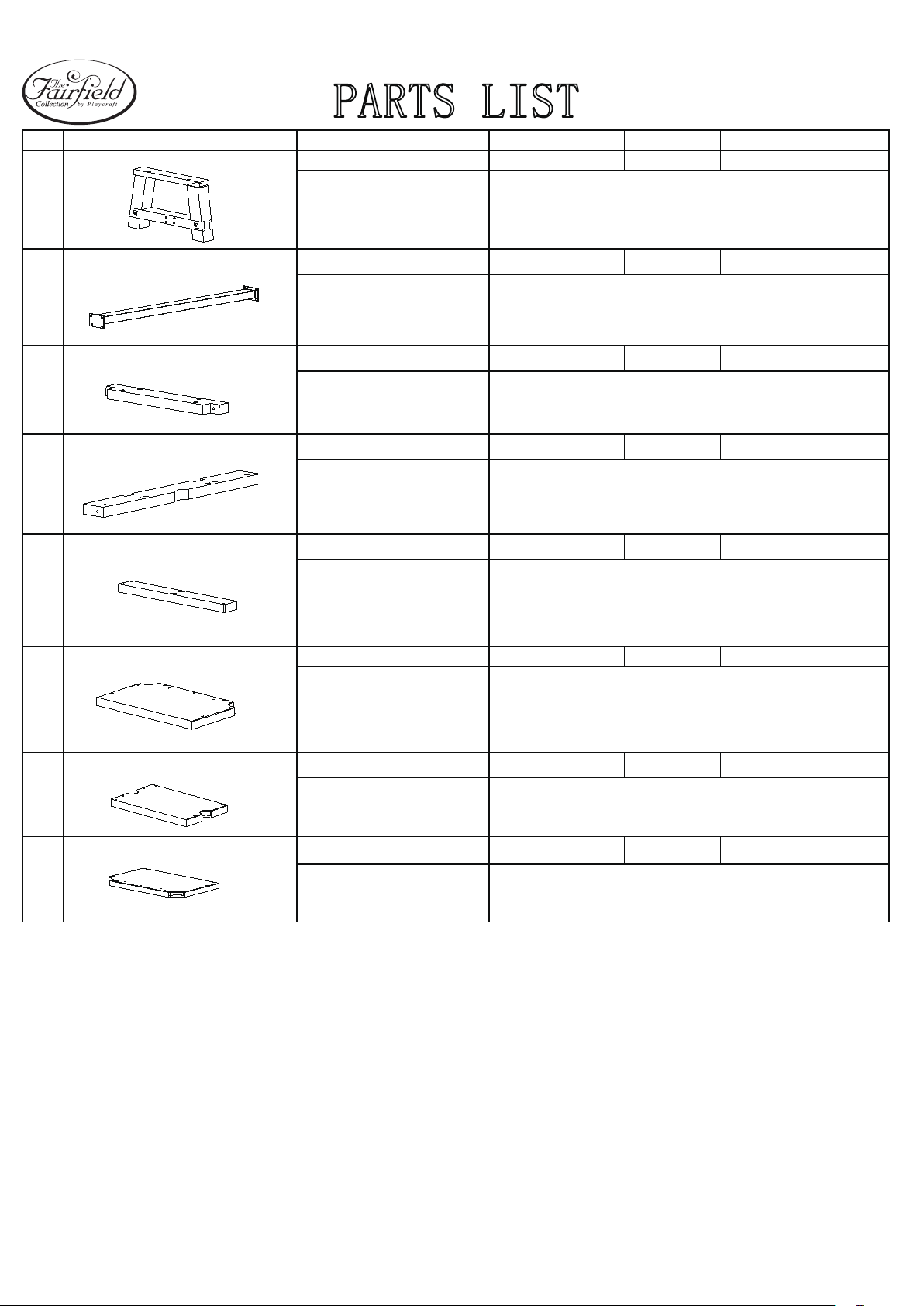

PARTS LIST

NO. DESCRIPTION ITEM SPECIFICATION QTY UNIT

LEG 2 PCS

1

2

3

4

5

ASSEMBLY POSITION FRAME

STEEL DECORATION 1 PC

ASSEMBLY POSITION FRAME

CROSS BEAM 2 PCS

ASSEMBLY POSITION FRAME

LONG BEAM 2 pcs

ASSEMBLY POSITION FRAME

MIDDLE BEAM 2

ASSEMBLY POSITION FRAME

PCs

SIDE SLATE 1 1 PC

6

7

8

ASSEMBLY POSITION RAILS

MIDDLE SLATE 1 PC

ASSEMBLY POSITION RAILS

SIDE SLATE 2 1 PC

ASSEMBLY POSITION RAILS

PARTS LIST

NO. DESCRIPTION ITEM SPECIFICATION QTY UNIT

CLOTH 1 PC

9

10

11

12

13

POSITION RAILS

SHORT RAIL 2 PCS

ASSEMBLY POSITION RAILS

SLATE 2 PCS

ASSEMBLY POSITION RAILS

SLATE 2 PCS

ASSEMBLY POSITION RAILS

SLATE 4 PCS

ASSEMBLY POSITION RAILS

14

15

SLATE 2 PCS

ASSEMBLY POSITION RAILS

SLATE 2 PCS

ASSEMBLY POSITION RAILS

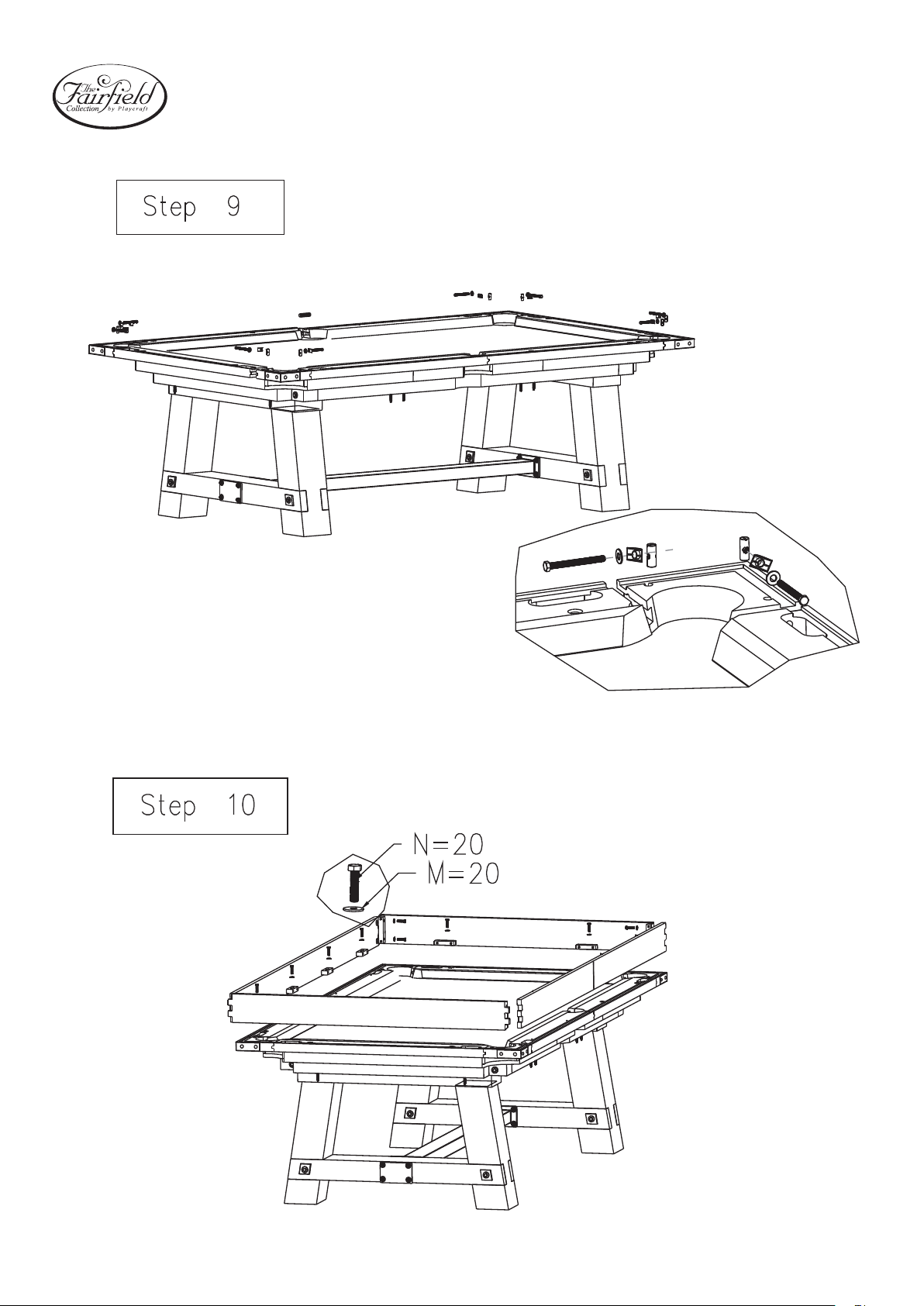

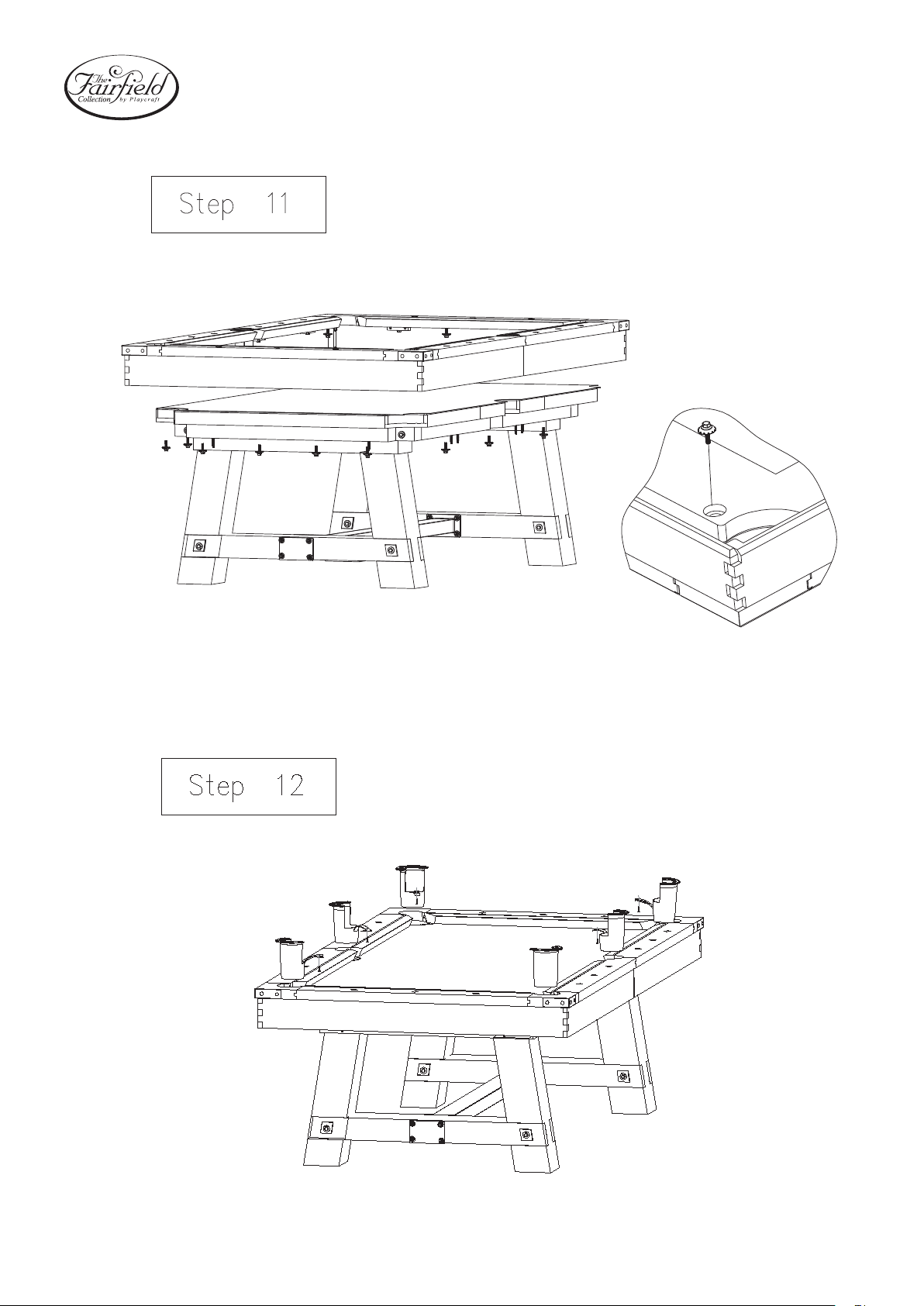

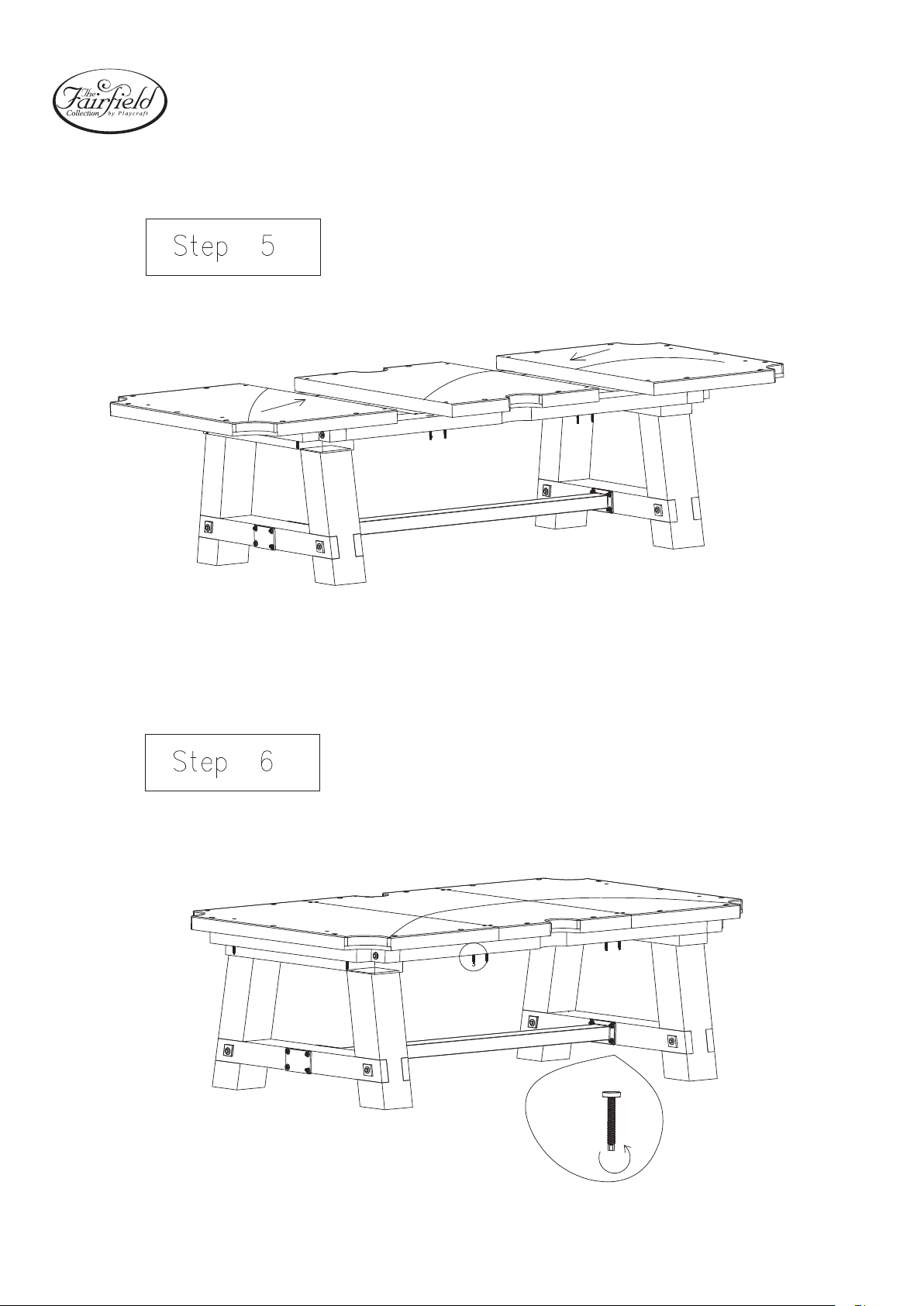

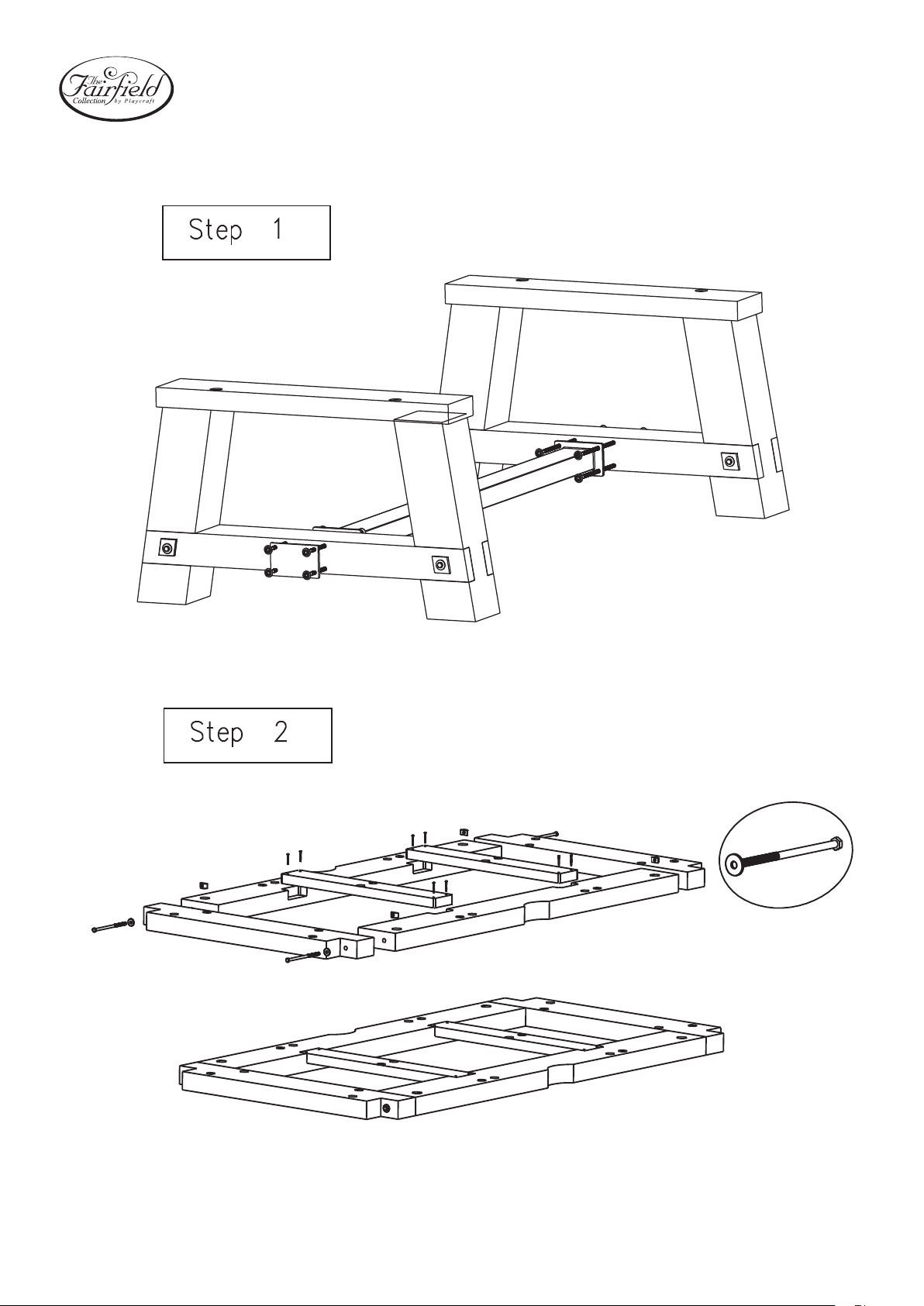

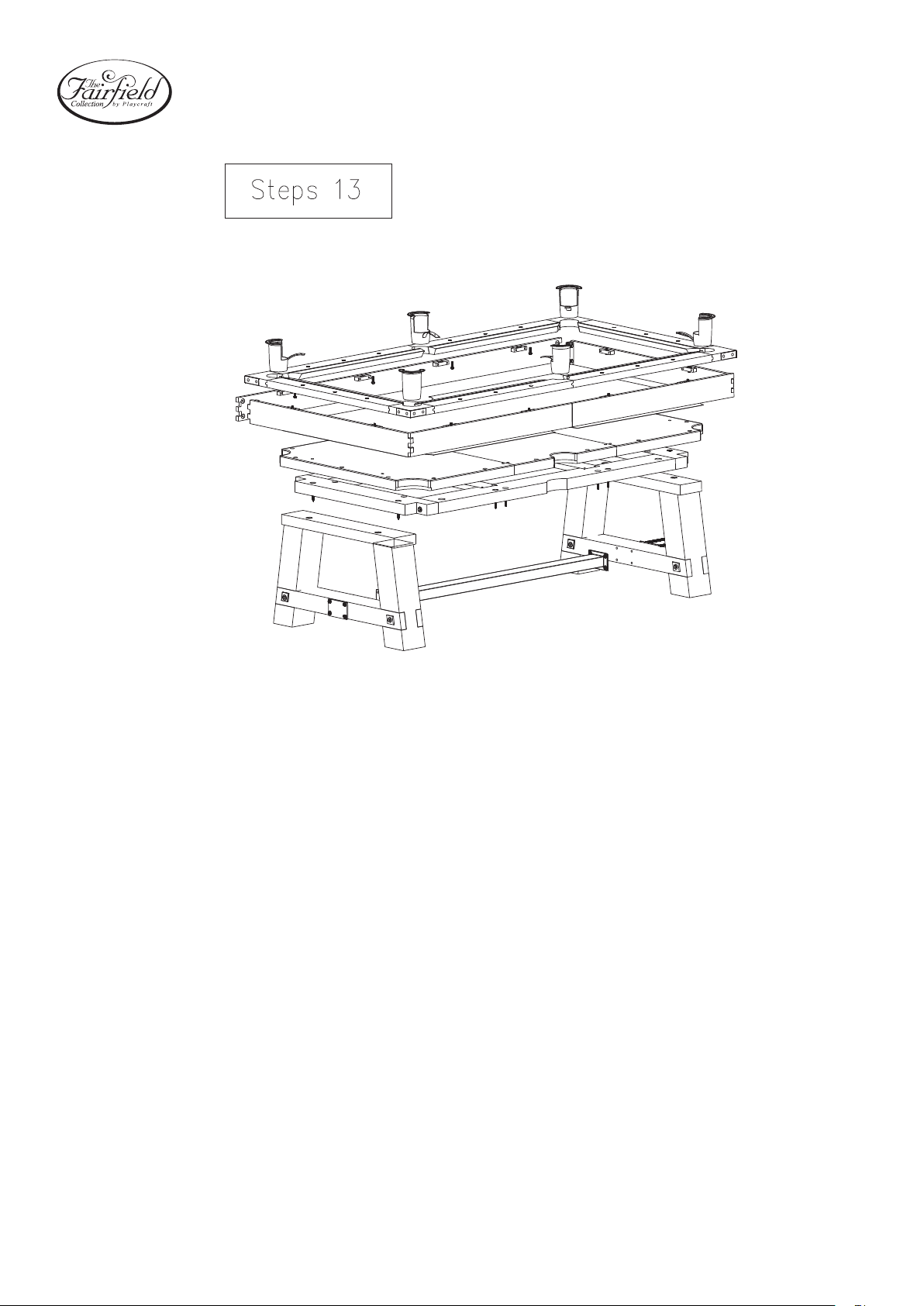

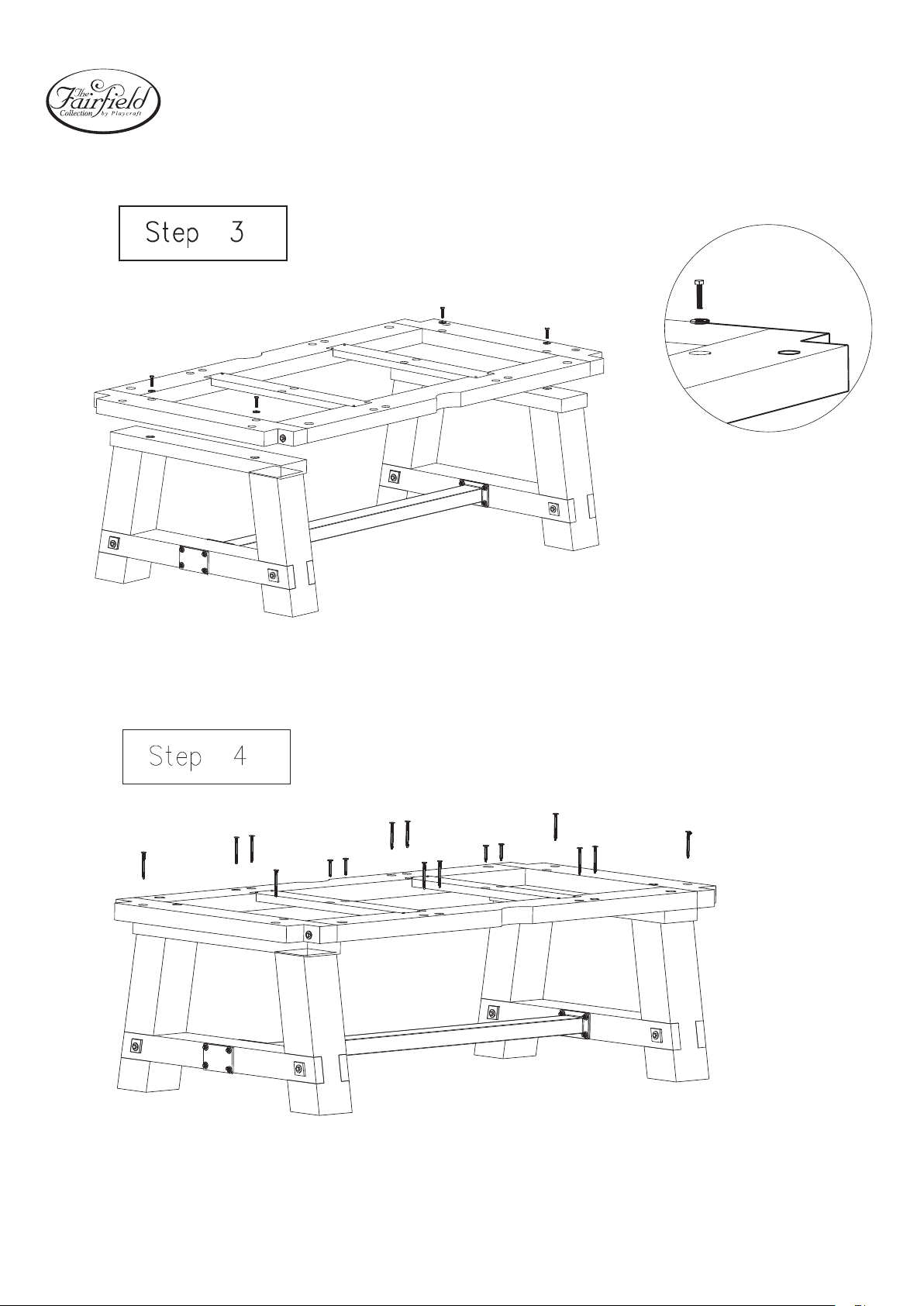

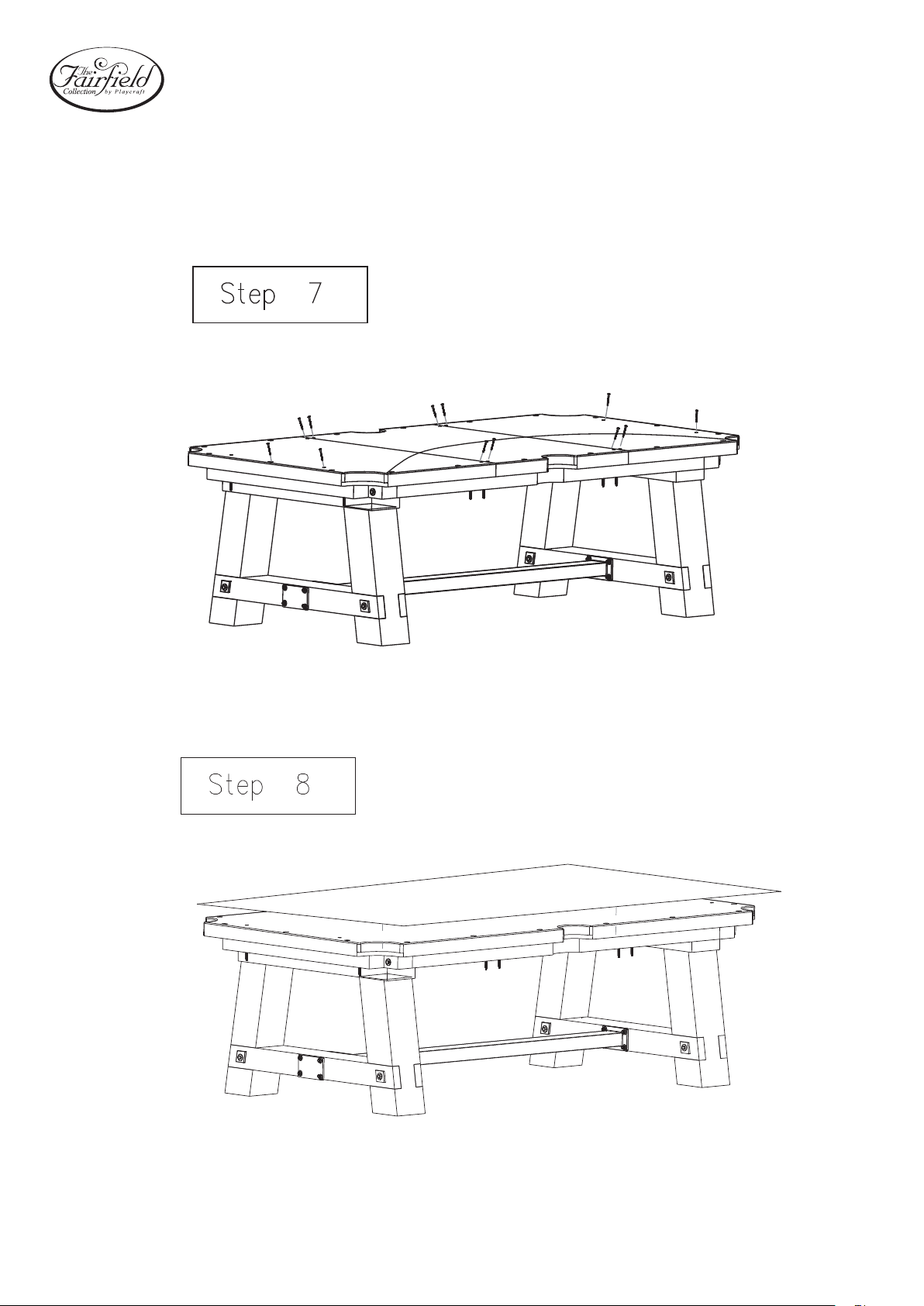

Customer Service

Global Merchants, Inc.

12 Lunar Drive

Woodbridge, CT 06525
