Playcore DERO BIKER BAR Quick Start Manual

BIKER BAR™

Setbacks

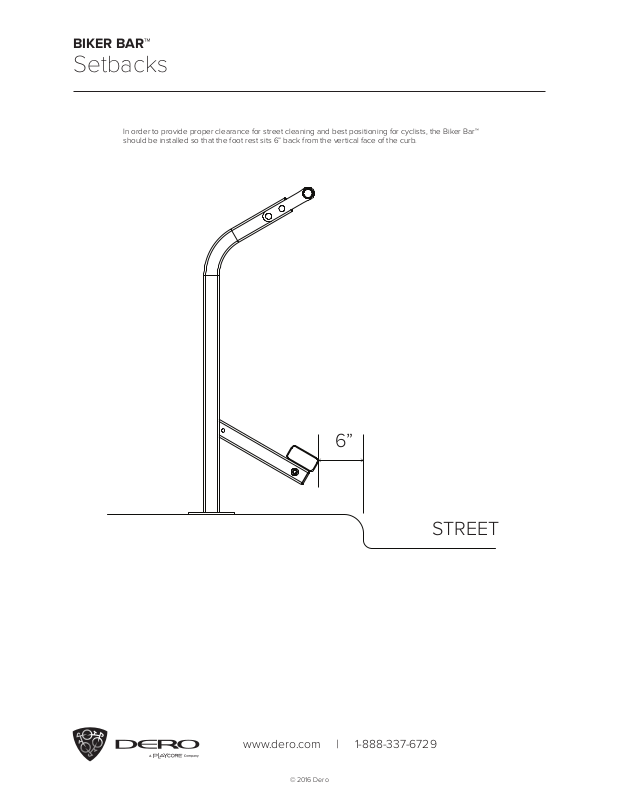

In order to provide proper clearance for street cleaning and best positioning for cyclists, the Biker Bar™
should be installed so that the foot rest sits 6” back from the vertical face of the curb.

6”

STREET

www.dero.com | 1-888-337-6729

© 2016 Dero

BIKER BAR™

Installation Instructions – Assembly

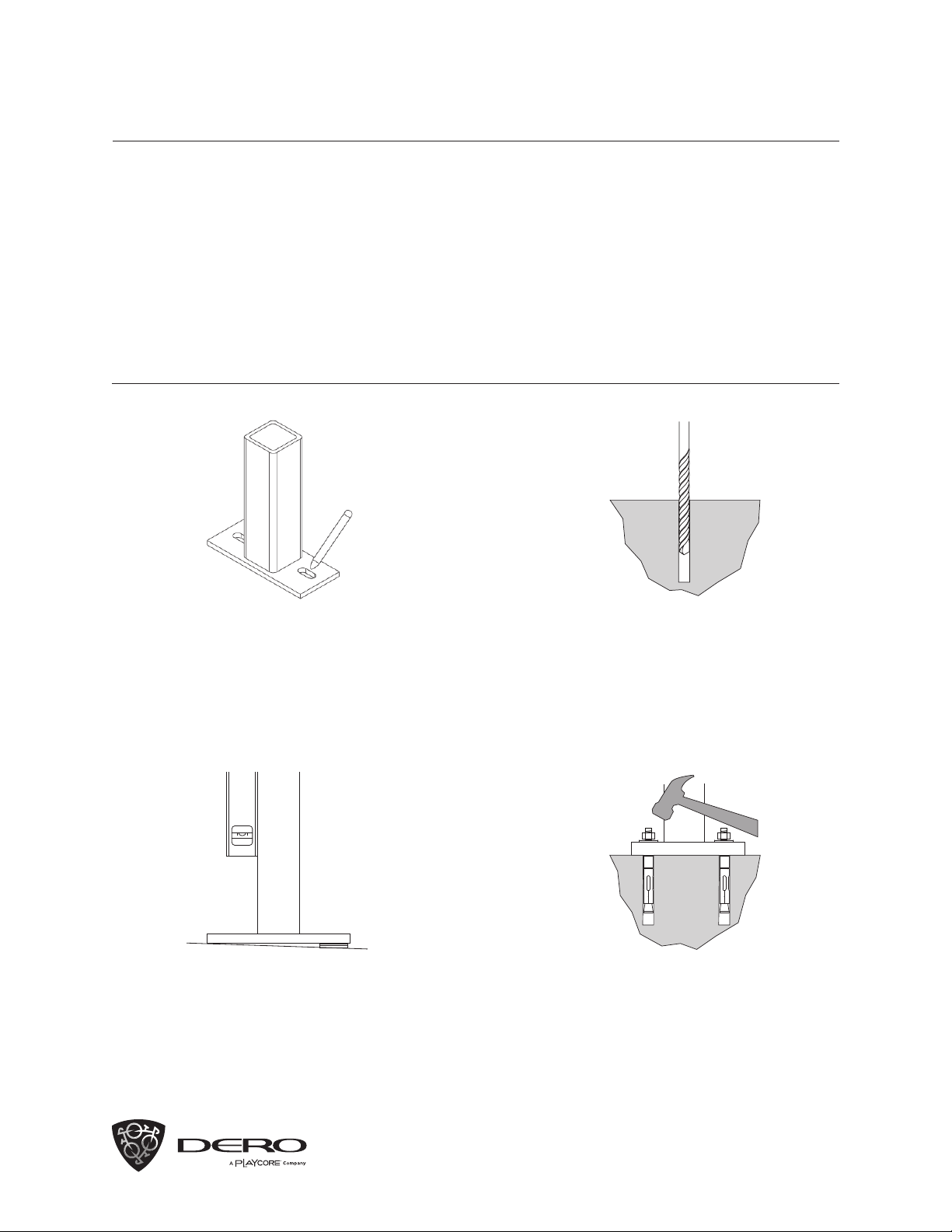

TOOLS NEEDED

Tape Measure
Marker or Pencil
Masonry Drill Bit
Drill (Hammer drill recommended)
Hammer
Wrench 9/16”
Level
Washers (for leveling if necessary)

RECOMMENDED BASE MATERIAL

Solid concrete is the best base material for installation. To ensure
the proper anchors are shipped with your rack, ask your Dero Rack
representative which anchor is appropriate for your application.
Be sure nothing is underneath the base material that could be
damaged by drilling.

1

Align the Handle Retainers over the Vertical Post
so the bolt holes line up. Using two 3/8”-16 x 3”
carriage bolts with matching washers and nuts, fix
each Handle Retainer to its Vertical Post.

2

Using two 3/8”-16 x 1/2” grub screws and a
3/16” Hex Key, fix each end of the Handle Bar to
the Handle Retainers, ensuring the Handle Bar
is fully inserted and no gap remains between
the parts.

3

Align the Foot Rest between the lower, angled
posts of the Vertical Post so the bolt holes line
up. Using two 3/8”-16 x 2.75” carriage bolts with
matching washers and nuts, fix each end of the
foot rest to the vertical posts.
