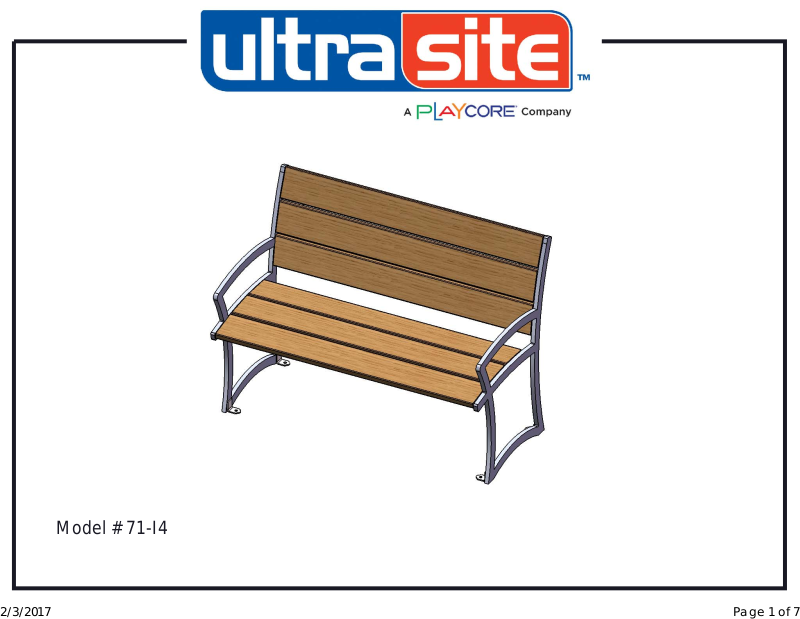

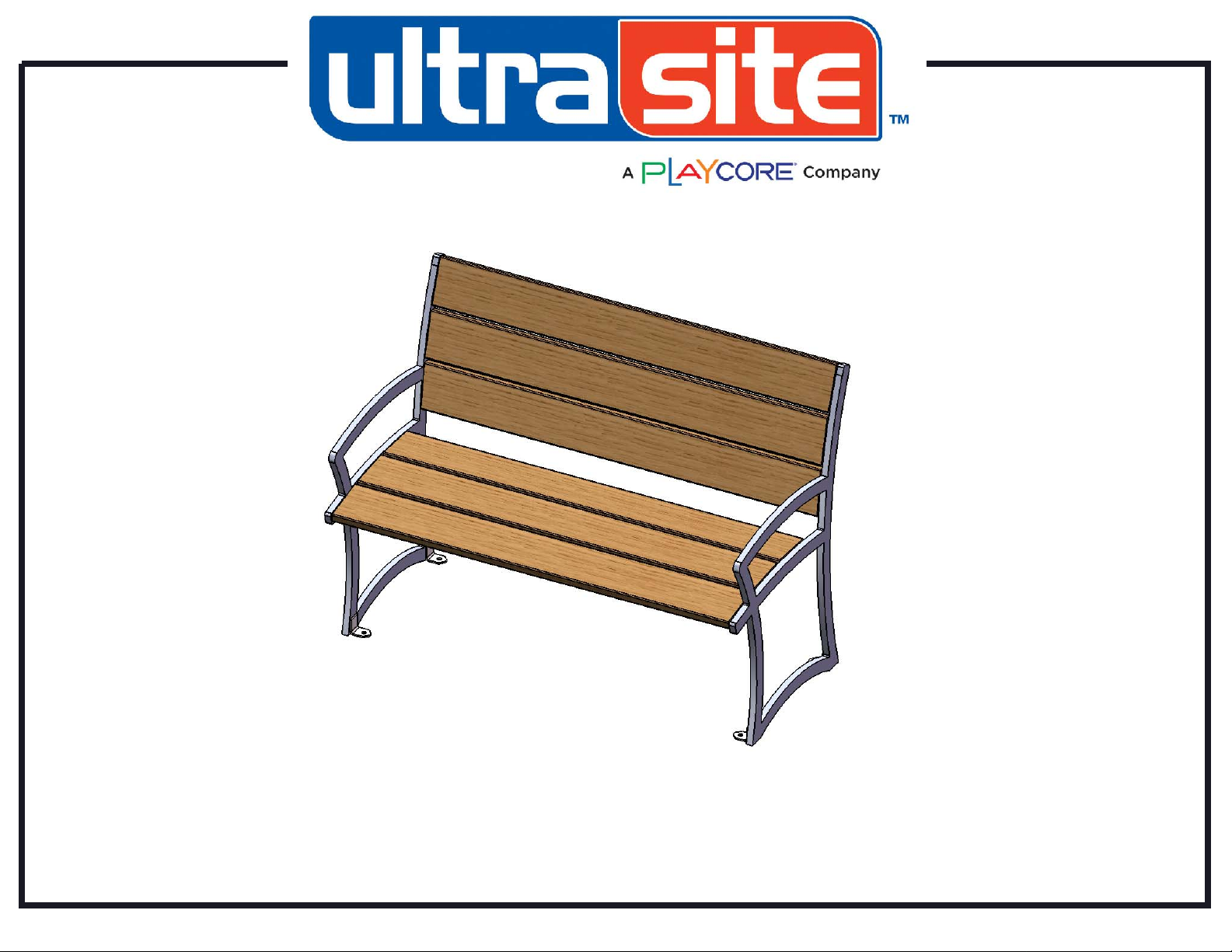

Playcore 71-I4 User Manual

Model # 71-I4

2/3/2017 Page 1 of 7

1675 Locust Street
Red Bud, IL 62278

Phone: [phone]

Fax: [phone]

WARRANTY & TERMS

WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements.

free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items
determined to be defective. Items specifically not covered by this warranty include vandalism, man made or natural disasters, lack of
maintenance, normal weathering or wear and tear due to public abuse.

Damages or loss in transit is the responsibility of the carrier, whether visible or concealed. It is the responsibility of the recipient to
assure that the order is received complete. Before signing the delivery receipt, inspect the shipment immediately and completely. Note
any damages or shortages on the bill of lading. Damage reports must be filed within 5 days. Ultra Play is NOT responsible for
damages or loss in transit. Title to all goods passes to the customer at the time of shipment. Ultra Play will assist in filing claims if the
freight arrangements were made by Ultra Play at your request.

CANCELLATIONS AND RETURNS:

without a Return Goods Authorization number which is issued by customer service. Any authorized merchandise must be carefully
packed and received in saleable condition. A restocking charge of up to 25% will be applied to all returned goods when the error is not
the fault of Ultra Play. All returns must be shipped freight prepaid.

Cancellations are only accepted with approval of Ultra Play. No merchandise shall be returned

Ultra Play guarantees all items for one full year to be

2/3/2017 Page 2 of 7

SAFETY WARNINGS & EQUIPMENT INSPECTION

Owners and installers please note these safety warnings and make use of this checklist on a regular basis.•
Follow installation instructions when erecting equipment.•
Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth •

should comply with ASTM and CPSC specifications.
Check for and repair damage caused by wear or vandalism, a major factor in injury causing situations.•
All protruding bolts should be covered or cut off and finished smooth. Sharp edges on pipes should be capped or removed. Check •

for bent, broken, or severely worn pipe, and replace.
All equipment should be free of rust and repainted whenever necessary to deter rusting.•
We provide our customers with layout sheets and installation instructions. Please keep on file the specifications sheet that contains •

the listing of every part used.
Never add components not intended for use with this product.•
Regular maintenance is necessary in this and all park and recreational equipment to insure the safety of the user.•
Note: Proper maintenance of equipment requires regular tightening of all bolts, nuts, and setscrews.•

2/3/2017 Page 3 of 7

Note: Regular checking of all parts, castings, etc. should be made. If a part is broken or worn, it should be replaced immediately.•
Check to be sure all fittings are tight and that bars and pipes do not move.•
Replace all worn S-hooks. S-hooks must be completely closed. Failure to close S-hooks can result in serious injury to the user. •

NEVER reuse S-hooks.
Test for free movement of swing hanger and other moving attached parts.•
Check for worn chains and replace them.•
A soft resilient surface should be placed under all swings extending at least twice the height of the top rail both front and back. •

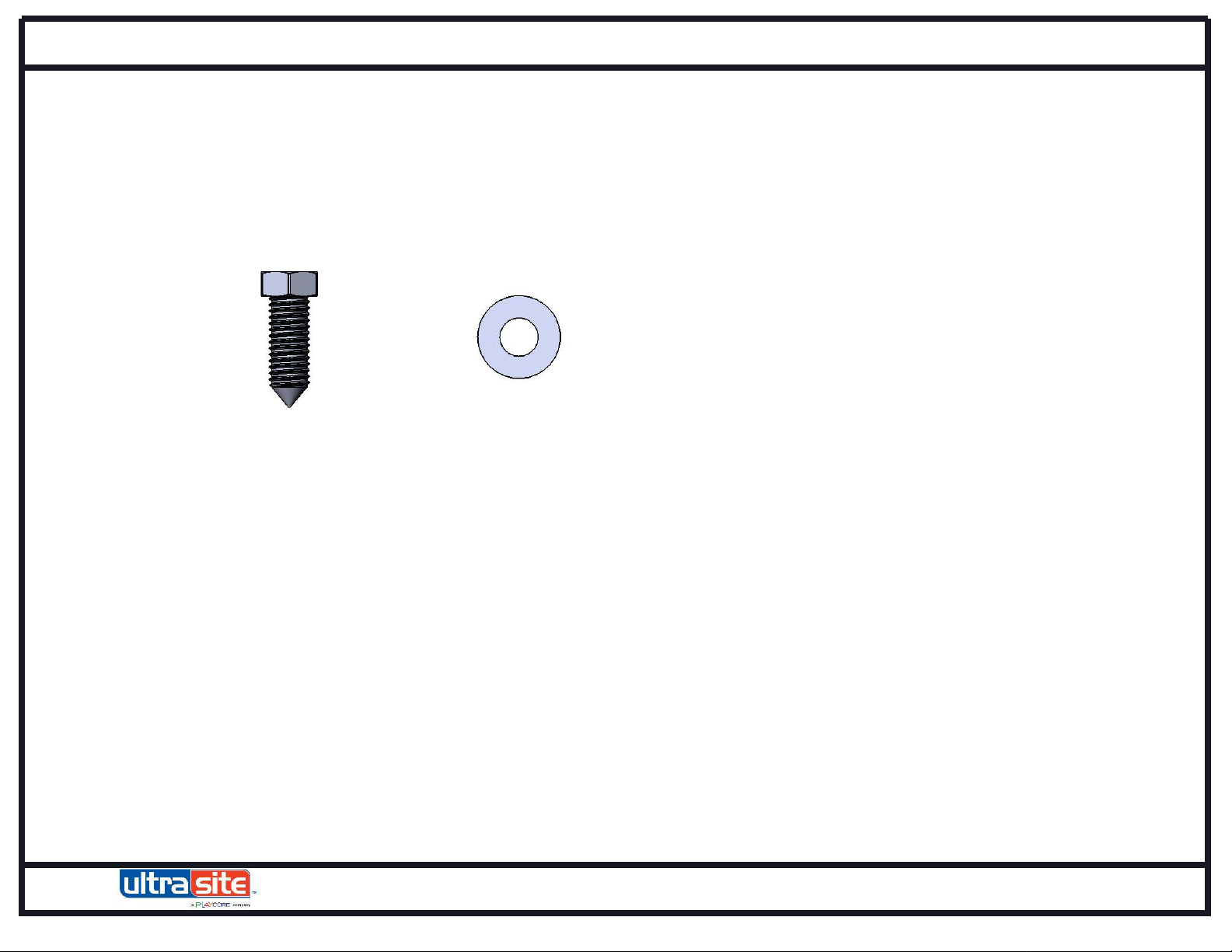

HARDWARE

5/16" x 1" Lag Bolt 5/16" Flat Washer

2/3/2017 Page 4 of 7

800-45-ULTRA www.ultra-site.com

ULTRA SITE PRODUCT SPECIFICATIONS

71-I4

PORTABLE BENCH WITH BACK

Seats: Seats are made from 1-1/4” x 6" Ipe wood. Reinforced with 7 gauge thick support ribs.

with 7 gauge attachment plates. Mounting plates shall be made from 7 gauge steel. All electrically MIG welded.

Coating: Steel is sandblasted to near white condition. Coated with zinc rich epoxy primer and top coated with electrostatic powder coat,
oven cured. Ipe wood is sealed on each end to prevent splitting and stained with a wood finish.

Hardware: Hardware shall be stainless steel.
Dimensions: 4’ portable bench with back. Seats are 18” wide x 48” long. Seat height is 18-3/4” from the ground to the top of the seat.

The overall dimensions are 49-3/4” x 26-5/16” x 36-1/4”

Recommended Surface Mount Hardware: 3/8" x 3-1/2" Concrete Expansion Anchor Bolts (Not Included)
IPE Wood Care and Maintenance to be applied twice a year.

Step 1.) Wash boards with a deck cleaner or IPE cleaner.
Step 2.) After boards are dry, Lightly sand and dust off boards. Before applying stain be sure wood is dry and free of sawdust or dirt.
Step 3.) Apply a new coat of stain per manufacturer's recommendations. We recommend using Penofin© Hardwood Formula.

Legs are fabricated from 3/4” steel plate

800-45-ULTRA www.ultra-site.com

2/3/2017 Page 5 of 7

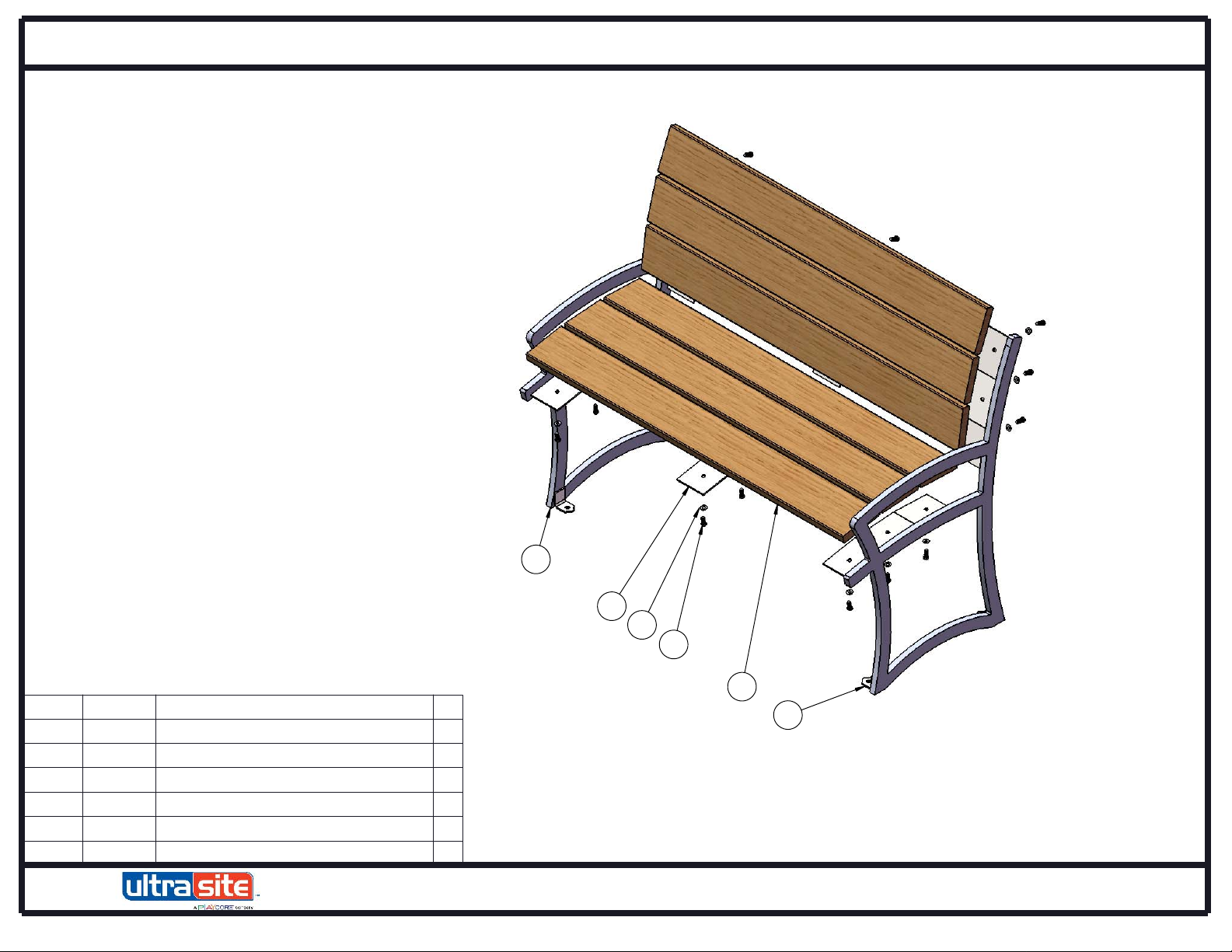

Attach the Ipe Wood Planks to the Madison
Endframes and the Attachment Plate using
the specified hardware.

OVERALL DIMENSIONS

ITEM NO. PartNo DESCRIPTION Qty.

1 01-01-0653 madison w/ back RH endframe wood-welded 1
2 01-01-0654 madison w/ back LH endframe wood-welded 1
3 01-01-0643 5/4" x 6" x 4' long ipe bench plank 6
4 01-01-0655 madison w/ back wood attachment plate 2
5 33-02-0007 5/16" SS Washer 18
6 33-05-0067 5/16" x 1" lag bolt, SS 18

2/3/2017 Page 6 of 7

1

4

5

6

3

2

WARNING

: Overtightening of lag bolts can cause damage to lumber.

800-45-ULTRA www.ultra-site.com

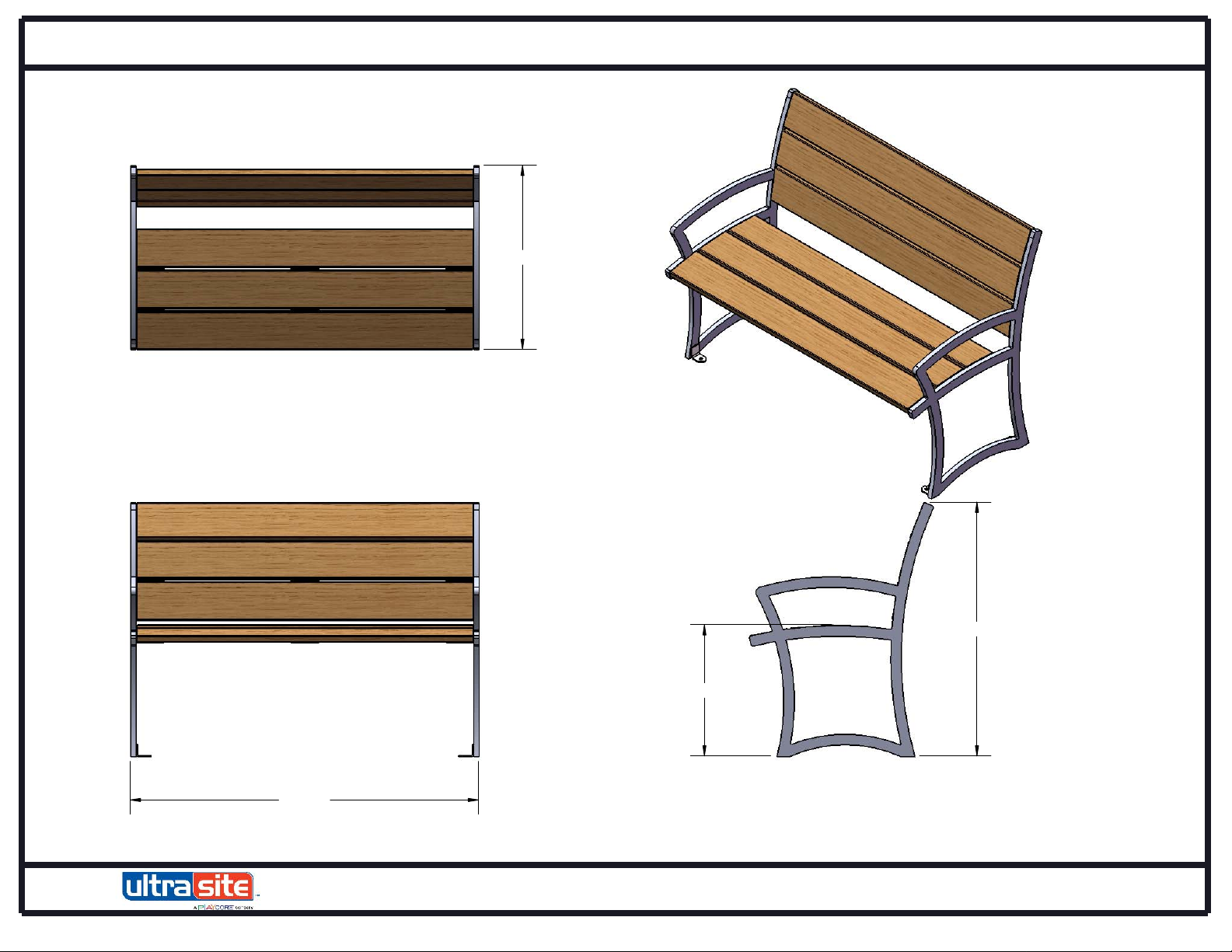

OVERALL DIMENSIONS

26 5/16"

2/3/2017 Page 7 of 7

36 1/4"

18 3/4"

49 3/4"
