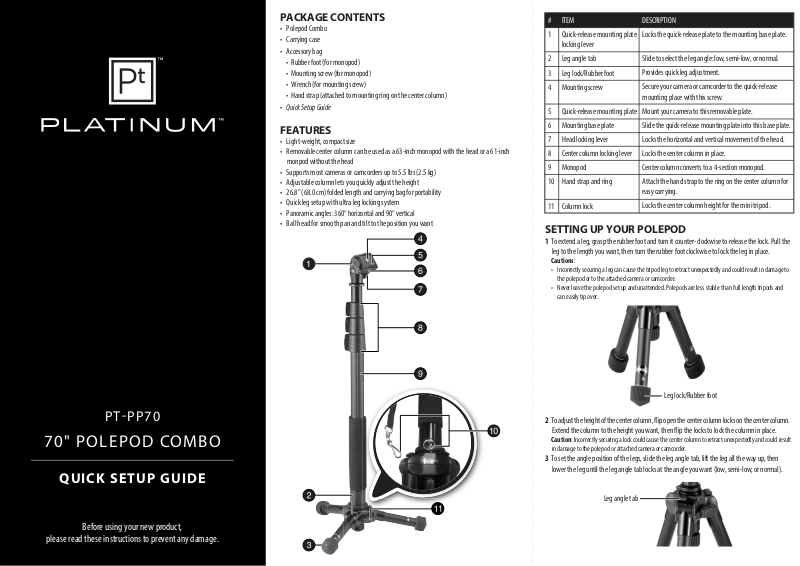

Page 1
PACKAGE CONTENTS
• Polepod Combo
• Carrying case
• Accessory bag
• Rubber foot (for monopod)
• Mounting screw (for monopod)
• Wrench (for mounting screw)
• Hand strap (attached to mounting ring on the center column)
• Quick Setup Guide
FEATURES
• Light-weight, compact size
• Removable center column can be used as a 63-inch monopod with the head or a 61-inch
monpod without the head
• Supports most cameras or camcorders up to 5.5 lbs (2.5 kg)
• Adjustable column lets you quickly adjust the height
• 26.8" (68.0 cm) folded length and carrying bag for portability
• Quick leg setup with ultra leg locking system
• Panoramic angles: 360° horizontal and 90° vertical
• Ball head for smooth pan and tilt to the position you want
# ITEM
1 Quick-release mounting plate
locking lever
2 Leg angle tab
3 Leg lock/Rubber foot
4 Mounting screw
5 Quick-release mounting plate
6 Mounting base plate
7 Head locking lever
8 Center column locking lever
9 Monopod
10 Hand strap and ring
11 Column lock
DESCRIPTION
Locks the quick-release plate to the mounting base plate.
Slide to select the leg angle: low, semi-low, or normal.
Provides quick leg adjustment.
Secure your camera or camcorder to the quick-release
mounting place with this screw.
Mount your camera to this removable plate.
Slide the quick-release mounting plate into this base plate.
Locks the horizontal and vertical movement of the head.
Locks the center column in place.
Center column converts to a 4-section monopod.
Attach the hand strap to the ring on the center column for
easy carrying.
Locks the center column height for the mini tripod.
SETTING UP YOUR POLEPOD
1 To extend a leg, grasp the rubber foot and turn it counter-clockwise to release the lock. Pull the
leg to the length you want, then turn the rubber foot clockwise to lock the leg in place.
Cautions:
• Incorrectly securing a leg can cause the tripod leg to retract unexpectedly and could result in damage to
the polepod or to the attached camera or camcorder.
• Never leave the polepod set up and unattended. Polepods are less stable than full length tripods and
can easily tip over.
PTPP70
70" POLEPOD COMBO
QUICK SETUP GUIDE
Before using your new product,
please read these instructions to prevent any damage.
Leg lock/Rubber foot
2 To adjust the height of the center column, ip open the center column locks on the center column.
Extend the column to the height you want, then ip the locks to lock the column in place.
Caution: Incorrectly securing a lock could cause the center column to retract unexpectedly and could result
in damage to the polepod or attached camera or camcorder.
3 To set the angle position of the legs, slide the leg angle tab, lift the leg all the way up, then
lower the leg until the leg angle tab locks at the angle you want (low, semi-low, or normal).
Leg angle tab
Page 2
4 Lift the quick-release plate locking lever, then remove the quick-release mounting plate.
Quick-release
mounting plate
locking lever
5 Align the bottom of your camera or camcorder with the 1/4" mounting screw, then secure
your camera or camcorder to the plate with the screw. The screw should be tight.
6 Slide the mounting plate onto the base plate, then press the locking lever down to lock the
mounting plate in place.
CONVERTING TO A MONOPOD
1 Remove the ball head from the center column by turning the ball head assembly counter-
clockwise.
2 Remove the tripod legs from the center column by collapsing the legs, then turning the leg
assembly counter-clockwise. Turn the column upside down.
4 To adjust the monopod height, ip open the center column locks and extend the column to
the height you want. Close the locks to lock the column in place.
Caution: Incorrectly securing a lock can cause the center column to retract unexpectedly and could result
in damage to the monopod or attached camera or camcorder.
5 Lift the quick-release plate locking lever, then remove the quick-release mounting plate.
6 Align the bottom of your camera or camcorder with the 1/4" mounting screw, then secure
your camera or camcorder to the plate with the screw. The screw should be tight.
7 Slide the mounting plate onto the base plate, then press the locking lever down to lock the
mounting plate in place.
CONVERTING TO A MINI TRIPOD
1 Remove the ball head from the center column by turning the ball head assembly counter-clockwise.
2 Remove the tripod legs from the center column by collapsing the legs, then turning the leg
assembly counter-clockwise.
3 Remove mounting screw from bottom of the ball head assembly, then attach the ball head to
the leg assembly.
4 To adjust the height of the center column, loosen the column lock knob, raise the center
column to the height you want, then tighten the lock.
Note: Extension is only 1".
USING YOUR BALL HEAD
• To pan, release the head locking lever, pan the tripod head, then lock it in place.
Note: For maximum stability, always make sure that your camera lens is over a leg.
• To adjust the vertical tilt, release the head locking lever, adjust the vertical position, then lock
it in place.
IMPORTANT SAFETY INSTRUCTIONS
• Make sure that all leg locks are correctly tightened and that the legs are fully opened before
use.
• Do not carry or transport your tripod with camera equipment attached (for example, over your
shoulder or cradled in your arms).
• Do not expose your tripod to excessive heat or cold, or use near any ame or re.
• Do not oil or grease any part of the tripod.
• Do not use any solvents or thinners to clean your tripod. Use only a mild detergent and wipe
dry with a soft, lint-free cloth.
• Do not exceed the load limit of this tripod.
SPECIFICATIONS
Maximum operating height 70.5 in. (179.1 cm)
Minimum operating height 24 in. (61 cm)
Folded height 26.8 in. (68.0 cm)
Net weight 2.1 lbs. (1 kg)
Max operating load 5.5 lbs. (2.5 kg)
Number of leg sections 2
Mounting screw thread 1/4” - 20
Panoramic angle Horizontal: 360°
Vertical: 90°
Material Aluminum alloy
3 Attach the ball head and rubber foot to the column.
Note: To use the monopod without the ball head, attach the spare mounting screw to the top of the
monopod using the included wrench.
Ball head
Rubber foot
Column lock
5 To extend a leg, grasp the rubber foot and turn it counter-clockwise to release the lock. Pull
the leg to the length you want, then turn the rubber foot clockwise to lock the leg in place.
Caution: Incorrectly securing a lock can cause the legs to retract unexpectedly and could result in damage
to the tripod or attached camera or camcorder.
6 Lift the quick-release plate locking lever, then remove the quick-release mounting plate.
7 Align the bottom of your camera or camcorder with the 1/4" mounting screw, then secure
your camera or camcorder to the plate with the screw. The screw should be tight.
8 Slide the mounting plate onto the base plate, then press the locking lever down to lock the
mounting plate in place.
ONE-YEAR LIMITED WARRANTY
CONTACT PLATINUM
For customer service, call 1-800-499-3964.
The Pt logo is a registered trademark of Best Buy.
PLATINUM is a trademark of Best Buy and its aliated companies. Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2014 Best Buy. All rights reserved.
Made in China
V1 ENGLISH 14-0527
