Plantronics VVX411 Datasheet

Page 1

Created on: Monday 26 April, 2021

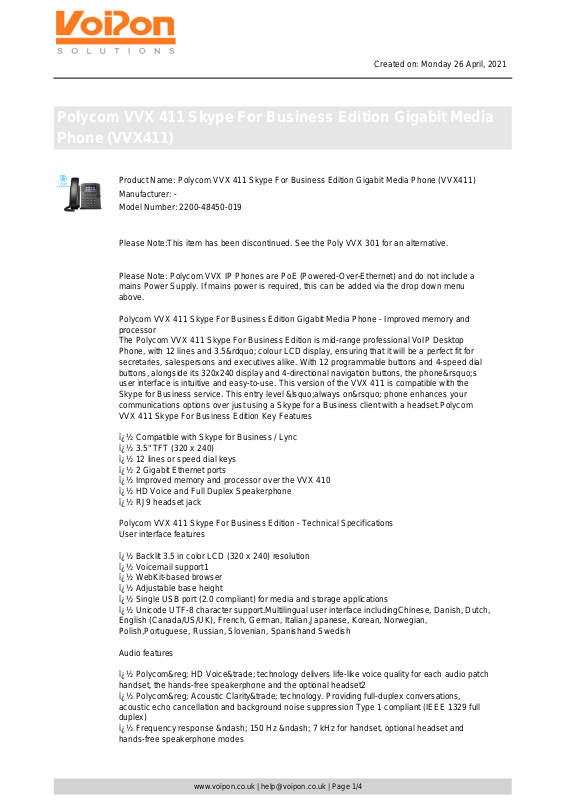

Polycom VVX 411 Skype For Business Edition Gigabit Media Phone (VVX411)

Product Name: Polycom VVX 411 Skype For Business Edition Gigabit Media Phone (VVX411) Manufacturer: Model Number: 2200-48450-019

Please Note:This item has been discontinued. See the Poly VVX 301 for an alternative.

Please Note: Polycom VVX IP Phones are PoE (Powered-Over-Ethernet) and do not include a mains Power Supply. If mains power is required, this can be added via the drop down menu above.

Polycom VVX 411 Skype For Business Edition Gigabit Media Phone - Improved memory and processor The Polycom VVX 411 Skype For Business Edition is mid-range professional VoIP Desktop Phone, with 12 lines and 3.5” colour LCD display, ensuring that it will be a perfect fit for secretaries, salespersons and executives alike. With 12 programmable buttons and 4-speed dial buttons, alongside its 320x240 display and 4-directional navigation buttons, the phone’s user interface is intuitive and easy-to-use. This version of the VVX 411 is compatible with the Skype for Business service. This entry level ‘always on’ phone enhances your communications options over just using a Skype for a Business client with a headset.Polycom VVX 411 Skype For Business Edition Key Features

ï¿½ Compatible with Skype for Business / Lync ï¿½ 3.5" TFT (320 x 240) ï¿½ 12 lines or speed dial keys ï¿½ 2 Gigabit Ethernet ports ï¿½ Improved memory and processor over the VVX 410 ï¿½ HD Voice and Full Duplex Speakerphone ï¿½ RJ9 headset jack

Polycom VVX 411 Skype For Business Edition - Technical Specifications User interface features

ï¿½ Backlit 3.5 in color LCD (320 x 240) resolution ï¿½ Voicemail support1 ï¿½ WebKit-based browser ï¿½ Adjustable base height ï¿½ Single USB port (2.0 compliant) for media and storage applications ï¿½ Unicode UTF-8 character support.Multilingual user interface includingChinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian,Japanese, Korean, Norwegian, Polish,Portuguese, Russian, Slovenian, Spanishand Swedish

Audio features

ï¿½ Polycom® HD Voice™ technology delivers life-like voice quality for each audio patch handset, the hands-free speakerphone and the optional headset2 ï¿½ Polycom® Acoustic Clarity™ technology. Providing full-duplex conversations, acoustic echo cancellation and background noise suppression Type 1 compliant (IEEE 1329 full duplex) ï¿½ Frequency response – 150 Hz – 7 kHz for handset, optional headset and hands-free speakerphone modes

www.voipon.co.uk | [email protected] | Page 1/4

Page 2

Created on: Monday 26 April, 2021

Polycom VVX 411 Skype For Business Edition Gigabit Media Phone (VVX411)

ï¿½ Codecs: G.711 (A-law and μ-law), G.729AB, G.722.1, iLBC ï¿½ Individual volume settings with visual feedback for each audio path ï¿½ Voice activity detection ï¿½ Comfort noise generation ï¿½ DTMF tone generation (RFC 2833 and in-band) ï¿½ Low-delay audio packet transmission ï¿½ Adaptive jitter buffers ï¿½ Packet loss concealment

Headset and handset compatibility

ï¿½ Dedicated RJ-9 headset port ï¿½ Hearing aid compatibility to ITU-T P.370 and TIA 504A standards ï¿½ Compliant with ADA Section 508 Subpart B 1194.23 (all) ï¿½ Hearing aid compatible handset for magnetic coupling to hearing aids ï¿½ Compatible with commercially available TTY adapter equipment

Call handling features1

ï¿½ Call handling features1 ï¿½ 12 lines (programmable line keys) ï¿½ Shared call/bridged line appearance ï¿½ Busy lamp field ï¿½ Flexible line appearance (1 or more line keys can be assigned for each line extension) ï¿½ Supports compatible USB headsets ï¿½ Distinctive incoming call treatment/ call waiting ï¿½ Call timer and call waiting ï¿½ Call transfer, hold, divert (forward), pickup ï¿½ Called, calling, connected party information ï¿½ Local 3-way audio conferencing ï¿½ 1-touch speed dial, redial ï¿½ Remote missed call notification ï¿½ Do not disturb function ï¿½ Electronic hook switch capable ï¿½ Local configurable digit map/dial plan

Open application platform

ï¿½ WebKit-enabled full browser that supports HTML5, CSS, SSL security and JavaScript ï¿½ Supports Polycom Apps SDK and API for third-party business and personal applications ï¿½ Bundled with Polycom UC Software:-- Corporate directory access using LDAP-- Visual conference management-- Local voice call recording on USB flash drive

Network and Provisioning

ï¿½ SIP protocol support ï¿½ SDP ï¿½ IETF SIP (RFC 3261 and companion RFCs) ï¿½ Two-port Gigabit Ethernet switch-- 10/100Base-TX across LAN and PC Ports-- 1000Base-TX available on VVX410-- Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment-Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation ï¿½ Manual or dynamic host configuration protocol (DHCP) network setup ï¿½ Time and date synchronization using SNTP

www.voipon.co.uk | [email protected] | Page 2/4

Page 3

Created on: Monday 26 April, 2021

Polycom VVX 411 Skype For Business Edition Gigabit Media Phone (VVX411)

ï¿½ FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deploymentsProvisioning and call server redundancy supported1 ï¿½ QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP ï¿½ VLAN-CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery ï¿½ Network address translation support for static configuration and “keep-alive” SIP signalling ï¿½ RTCP and RTP support ï¿½ Event logging ï¿½ Syslog ï¿½ Hardware diagnostics ï¿½ Status and statistics reporting ï¿½ IPv4 ï¿½ TCP ï¿½ UDP ï¿½ DNS-SRV

Security

ï¿½ 802.1X authentication and EAPOL ï¿½ Media encryption via SRTP ï¿½ Transport layer security ï¿½ Encrypted configuration files ï¿½ Digest authentication ï¿½ Password login ï¿½ Support for URL syntax with password for boot server address ï¿½ HTTPS secure provisioning ï¿½ Support for signed software executables

Power

ï¿½ Built-in auto-sensing IEEE 802.3af Power over Ethernet ï¿½ Energy-saving after-hours mode ï¿½ External universal AC adapter (optional), 48VDC 0.3A

Approvals

ï¿½ FCC Part 15 (CFR 47) Class B ï¿½ ICES-003 Class B ï¿½ EN55022 Class B ï¿½ CISPR22 Class B ï¿½ VCCI Class B ï¿½ EN55024 ï¿½ EN61000-3-2; EN61000-3-3 ï¿½ NZ Telepermit ï¿½ Korea KC3 ï¿½ UAE TRA ï¿½ Russia CU ï¿½ Brazil ANATEL3 ï¿½ Australia RCM ï¿½ ROHS compliant

Safety

www.voipon.co.uk | [email protected] | Page 3/4

Page 4

Created on: Monday 26 April, 2021

Polycom VVX 411 Skype For Business Edition Gigabit Media Phone (VVX411)

ï¿½ UL 60950-1 ï¿½ CE Mark ï¿½ CAN/CSA C22.2 No. 60950-1 ï¿½ EN 60950-1 ï¿½ IEC 60950-1 ï¿½ AS/NZS 60950-1 ï¿½ ICASA ï¿½ CITC

Operating condition

ï¿½ Temperature: 0 to 40°C (+32 to 104°F) ï¿½ Relative humidity: 5% to 95%, noncondensing

Storage temperature

ï¿½ -40 to +70°C (-40 to +160°F)

Polycom VVX 400 comes with:

ï¿½ VVX 400 console ï¿½ Handset with handset cord ï¿½ Network (LAN) cable - CAT-5E ï¿½ Quick start guide-- A ferrite clamp is included in the box-- Open source OFFER is included in the box

Size

ï¿½ 7.5 x 6 x 7 in (19 x 15 x 18 cm) (W x H x D)

Weight

ï¿½ 2.0 lbs (0.9 kg)

Unit box dimensions

ï¿½ 11.46 x 7.9 x 3.82 in (29.1 x 20 x 9.7 cm) ï¿½ 3.1 lbs (1.4 kg)

Price: £170.30

Options available for Polycom VVX 411 Skype For Business Edition Gigabit Media Phone (VVX411) :

Require Power Supply

Not Required, Universal 12V, 0.5A Power supply (+£15.10).
