Welcome

Thank you for purchasing the Plantronics Discovery® 925 earpiece. This guide contains instructions for setting up and using your new earpiece.

Please refer to the Safety Information in this booklet for important

product safety information prior to use of the product.

Getting Assistance

The Plantronics Technical Assistance Center is ready to assist you. You can ﬁnd answers to frequently asked questions, ask a question using e-mail, receive service over the Internet, or speak directly with a representative. Visit www.plantronics.com/support or call 1-866-363-BLUE (2583).

NOTE If you are considering returning this earpiece, please contact

the Technical Assistance Center ﬁrst.

Registering Your Product

Visit www.plantronics.com/productregistration to register your product online so we can provide you with the best service and technical support.

Contents

Package Contents, Features and Accessories ......................................iv

Charging Your Earpiece ........................................................................ 1

Using the AC or USB charger ...................................................... 1

Using the Charging Case .............................................................2

Checking the Battery Level .......................................................... 2

Recharging the Charging Case ....................................................3

Pairing Your Earpiece ............................................................................ 4

Plantronics QuickPair™ Technology ............................................ 4

How to Pair Your Phone With Your Earpiece for the First Time ..... 5

Adjusting the Fit ....................................................................................6

How to Install a Different Gel Eartip .............................................. 6

Earpiece Controls ................................................................................. 7

Hands-Free Features ............................................................................ 8

Range ..................................................................................................9

Indicator Lights and Tones .................................................................... 9

Troubleshooting .................................................................................. 11

Using More Than One Bluetooth Phone ..............................................13

How to Turn the Multipoint Feature On and Off .......................... 13

How to Initiate a Call..................................................................13

How to Answer a Call While Talking on the Other Phone ...........13

Product Speciﬁcations ........................................................................ 14

Limited Warranty.................................................................................15

Important Safety and Operational Information ..................................... 16

Regulatory Notices .............................................................................19

NOTE For pairing your Earpiece, your PIN code, or “Passkey,” is 0000.

Page 3

Package Contents and Features

Call Control Button

Volume Control Button

Charging Jack

Eartip

Stabilizing Eartips

(small, medium, and large)

Earpiece

Charging Your Earpiece

Your new earpiece performs best when fully charged. While your earpiece is charging, the indicator light slowly ﬂashes red. When your earpiece is fully charged, the indicator light turns off. This applies to all charging options.

CHARGING TIME

3 hours ..... Full charge using

AC or USB

1 hour ....... Minimum charge

before ﬁrst use

Option A: Using the AC Charger

1 Plug the AC charger into a power outlet. 2 Connect the AC charger to the charging jack on the earpiece.

Charging Case

AC Charger

100 – 240V

USB Charging Cable

Product Name & Number Accessories*

Vehicle Power Charger

#78583-01

* Not included. To order, please contact your Plantronics supplier or go to www.plantronics.com

USB Lanyard

#79393-01

Option B: Using the USB Charger

1 Connect USB charger to the USB

port on a computer or laptop.

2 Connect the USB charger to the

charging jack on the earpiece.

3 Turn the computer or laptop on.

WARNING Do not use your earpiece while it is

connected to the charger.

Page 4

Charging Your Earpiece

CHARGING TIME

3 hours ..... Full charge using

charging case

1 hour ....... Minimum charge

before ﬁrst use

Option C: Using the Charging Case

Open the cover of the case. Align the charging jack on the earpiece with the micro USB connection in the case. Gently push the earpiece onto the micro USB connection until you feel it click into place.

IMPORTANT Incorrect removal of the earpiece from the case will

damage the micro USB port in the case. To properly remove the earpiece, use your thumb to gently push the earpiece in a diagonal, not vertical, direction away from the micro USB connector.

Checking the Battery Level of Your Earpiece

Call Control Button

Volume Button

CHARGE INDICATOR LIGHTS

Red Flashes Battery Level

1 Full battery

2 1/3 to 2/3 full

3 Less than 1/3 full

With the earpiece on, simultaneously press and hold the call control button and the volume button for about 2 seconds. The indicator light flashes red to show the charge level.

Indicator Light

Charging Jack

CHARGING TIME

9 hours .... Full charge

using USB

3 hours .... Full charge

using AC

The charging case provides one full charge to your earpiece before the battery within the case requires charging. While the case is charging, the indicator light on the bottom of the case ﬂashes red. When fully charged, the indicator turns off.

Recharging the Charging Case

1 To check the battery status of the charging case, you must

connect the earpiece to the case. If the earpiece does not begin charging mode (indicator light slowly ﬂashes red) then both the earpiece and case need recharging.

2 Plug either the AC charger or the USB charger to power

source before connecting to the charging jack on the bottom of the case.

If you disconnect the power source from the case after 10 minutes of charging you must then wait at least 60 minutes before reconnecting a power source to resume the charging cycle.

NOTE If recharging with the AC charger, the charging case will feel

warm to the touch during the charging cycle. Once fully charged, the case will cool down. See “Safety Information” on page 16 for more information.

Page 5

Pairing Your Earpiece

SETTINGS

Time and Date

Phone Settings

Bluetooth

Sound Settings

Network Services

Security

Reset Settings

SETTINGS

Time and Date

Phone Settings

Bluetooth

Sound Settings

Network Services

Security

Reset Settings

BLUETOOTH

9XXPlantronics

PASSKEY

0000

BLUETOOTH

9XXPlantronics

PASSKE Y

0000

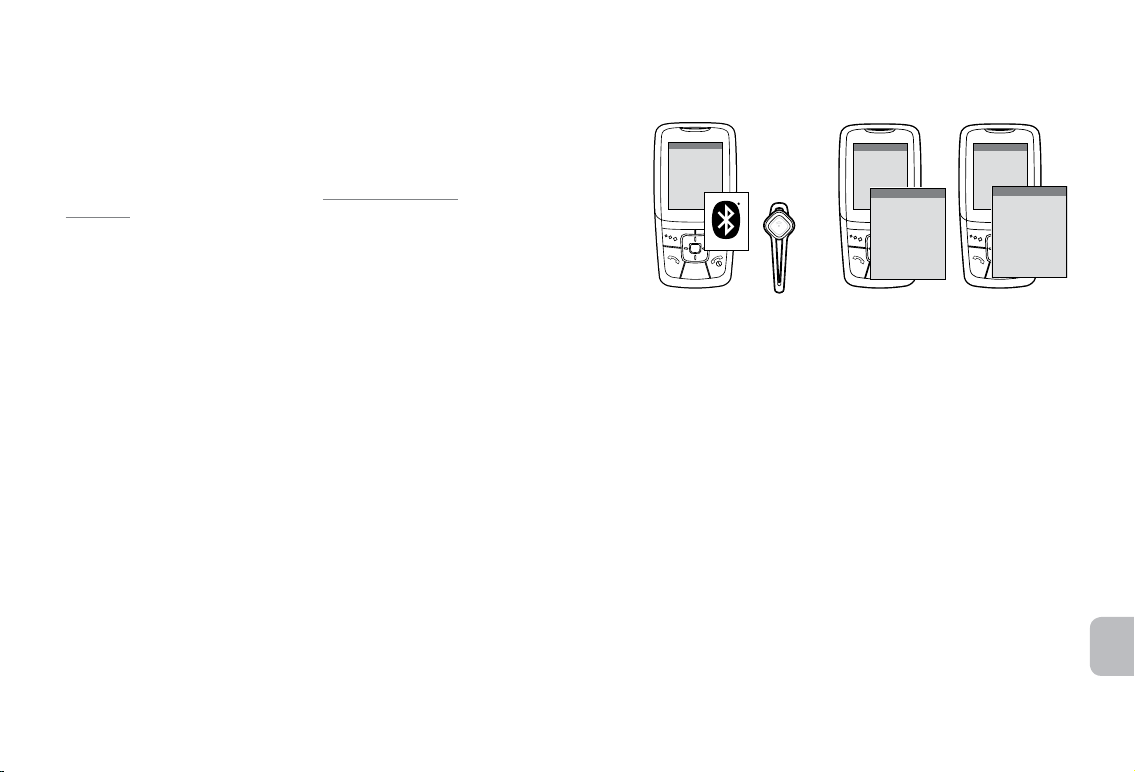

Pairing is the process of introducing your earpiece to your phone. Before using your earpiece for the ﬁrst time, you must pair it with your Bluetooth need to pair your earpiece with your phone only once.

To see a demo of the pairing process, visit www.plantronics.com/ EasyToPair.

Plantronics QuickPair

Your new earpiece includes Plantronics QuickPair technology to simplify the Bluetooth setup process. The ﬁrst time you turn your earpiece on, your earpiece automatically enters pairing mode for 10 minutes. Once paired successfully, your earpiece stays on for instant use.

If not successfully paired after 10 minutes, your earpiece automatically powers off. When you turn the earpiece on again, it automatically goes into pairing mode until successfully paired with a Bluetooth phone.

wireless technology enabled phone. Normally you

™

Technology

Pairing Your Earpiece

How to Pair Your Phone with Your Earpiece for the First Time

1 Turn on the Bluetooth feature on your phone.

For most phones, select Settings/Tools > Connections > Bluetooth > On. See your phone’s user guide for more information.

2 Turn the earpiece on.

Press and hold the call control button until the indicator ﬂashes red/blue. The earpiece is now in pairing mode.

If you don’t see the red/blue ﬂash, press and hold the call control button to turn your earpiece off, and then press and hold the call control button again until you see the red/blue ﬂash.

3 Use the commands on your phone to locate your earpiece.

For most phones, select Settings/Tools > Connections > Bluetooth > Search > 9XXPlantronics. See your phone’s user guide for more information.

4 When prompted for the PIN code or Passkey, enter 0000.

Pairing is successful when the indicator on your earpiece ﬂashes blue. Your earpiece is now connected and ready to use.

Page 6

Adjusting the Fit

Earpiece Controls

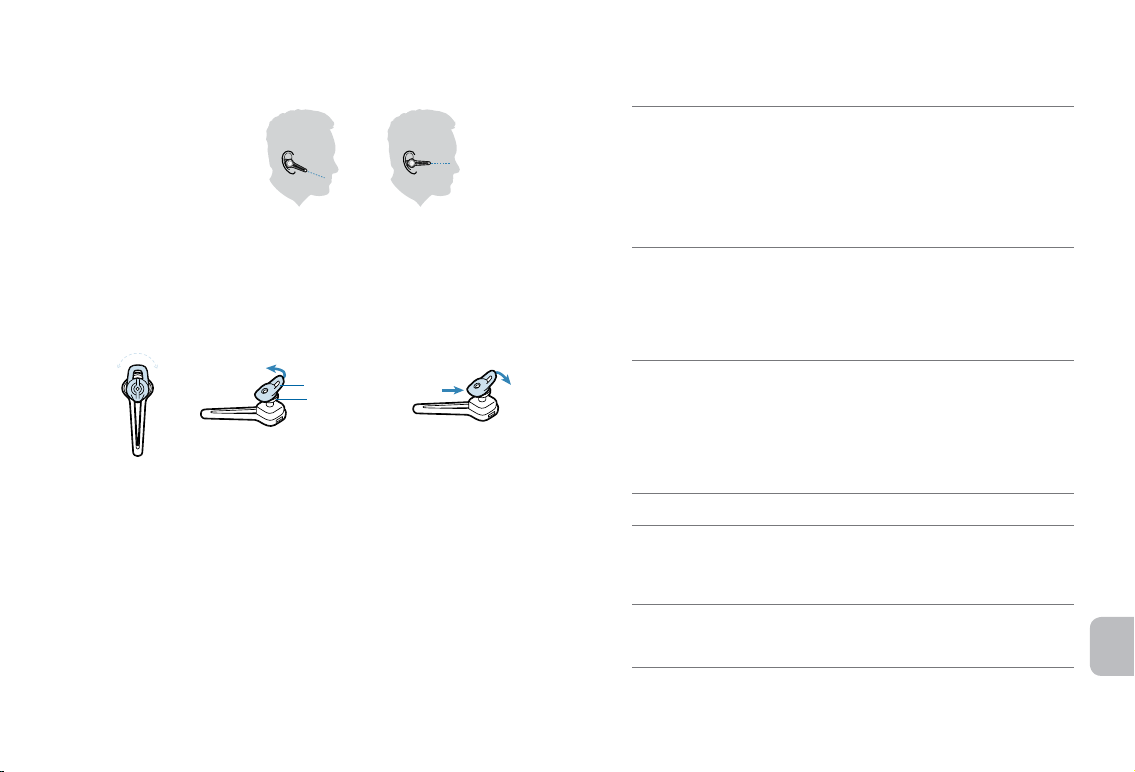

For optimal voice clarity, point the boom towards the corner of your mouth.

Correct Fit Incorrect Fit

How to Install a Different Gel Eartip

If the earpiece does not feel stable, the eartip needs adjusting or it may be the wrong size for your ear. The earpiece comes with the medium eartip installed, but you can replace it with the optional small or large eartip provided.

2 3

Eartip Speaker housing

1 Remove the earpiece from your ear.

Rotate the eartip on the earpiece to position the stabilizer to rest comfortably in your ear. If the earpiece still feels unstable, then remove the ear-piece from your ear and change the eartip to a different size.

2 To remove the eartip, gently pull the stabilizer loop of eartip

off of the speaker housing.

3 To ﬁt a new eartip, position the eartip over the speaker

housing with the stabilizer pointed away from the microphone boom and gently press the eartip onto speaker housing.

Turn on the earpiece Press and hold the call control button for 2

Turn off the earpiece Press and hold the call control button for 4

Answer or reject a call

End a call During active call, tap the call control button.

Make a call When the earpiece is paired to your phone and in

Transfer a call between earpiece and phone

seconds until the indicator glows blue. If earpiece ﬂashes red 3 times when you turn on the earpiece then the battery is very low and should be recharged.

NOTE When your earpiece is in standby mode, the indicator

is off. To conﬁrm that your earpiece is on, press any button. You should see a blue light ﬂash.

seconds until the indicator glows red. When power is off, indicator stays off.

NOTE If you’re wearing the earpiece, you hear ascending

tones when the power turns on and descending tones when the power turns off.

When your earpiece rings, tap the power button once; you should hear 1 low tone.

To reject a call and send the caller to voice mail, press the call control button for 2 seconds.

NOTE Your phone may ring before your earpiece rings.

Wait until you hear the ring in your earpiece to press the call control button and answer the call.

range, enter phone number on your phone and press send. The call automatically transfers to your earpiece.

During an active call, press and hold the call control button for 2 seconds. You will hear a single low tone followed by a double low tone.

Page 7

Earpiece Controls

Range

Turning the multipoint feature on

Turn off the online indicator

Adjust the volume During an active call, tap the volume button.

WARNING Do not use headphones/Earpieces at high volumes for an extended

period of time. Doing so can cause hearing loss. Always listen at moderate levels. See www.plantronics.com/healthandsafety for more information on Earpieces and hearing.

To prolong battery life, the multipoint feature is turned off by default. To turn on feature, see “Turning the Multipoint Feature On and Off” on page 13.

Press and hold the volume button for 4 seconds while the earpiece is on. Blue light will dim over 2 seconds. Repeat action to activate online indicators. Blue light will brighten over 2 seconds. You will hear a single low tone, silence, and then a double low tone.

There are 3 volume settings. Each tap will increase the volume until maximum is reached and you hear two low tones. Tapping again will drop volume to minimum setting and subsequent taps will increase volume until maximum is again

reached.

Hands-Free Features

If your phone and your wireless service provider both support hands-free operation, you can use the following features:

Redial the last number you called

Voice activated dialing When the earpiece is on, press and hold

Tap the call control button twice. You will hear two low tones.

the call control button for 2 seconds until you hear 1 low tone.

To maintain a connection, keep your earpiece within 33 feet (10 meters) of the Bluetooth phone. If there are obstacles between your earpiece and the phone you may experience interference. For optimal performance, place your earpiece and phone on the same side of your body.

Audio quality degrades as you move out of range. When you are far enough away to lose the connection, you hear a high tone in the earpiece.

The earpiece attempts to reconnect for 60 seconds. If you move back in range, you can manually reconnect by pressing the call control button.

NOTE Audio quality is also dependent upon the device with which the

Earpiece is paired.

Indicator Lights and Tones

Light Tone

Status check 1 blue ﬂash 1 tone

Charging 1 red ﬂash every 10 seconds None

Fully charged None None

Low battery 2 red ﬂashes for 2/3 full battery None

Very low battery 3 red ﬂashes every 10 seconds 3 high tones every

10 seconds

Pairing Red and blue ﬂashes 1 low tone

Paired Blue ﬂashes 1 low tone

Turning on Solid blue for 2 seconds Ascending tones

Turning off Solid red for 4 seconds Descending tones

Page 8

Indicator Lights and Tones

Troubleshooting

Light Tone

Incoming call 3 blue ﬂashes every 2 seconds 3 rapid low tones

Answer call 1 blue ﬂash 1 low tone

Call in progress 1 blue ﬂash every 2 seconds None

Volume up or down

End call 1 blue ﬂash 1 low tone

Missed call 3 purple ﬂashes every 10

Out of range None 1 high tone

Back in range Flashes to match current

Turning on multipoint

Turning off multipoint

NOTE By default, the online indicator is turned on. To turn off the online

indicator, see “Earpiece Controls” on page 8.

1 blue ﬂash for each volume adjustment

seconds for 5 minutes

earpiece state

2 blue ﬂashes None

1 blue ﬂash None

every 2 seconds

1 tone with volume corresponding to volume level

2 low tones to indicate maximum volume level reached

None

1 low tone

My earpiece does not work with my phone.

My phone did not locate the earpiece.

I could not enter my PIN code.

I cannot hear caller/dial tone.

Make sure the earpiece is fully charged. Make sure earpiece is paired with the Bluetooth

phone you are trying to use. See “Pairing Your Earpiece” on page 4.

Turn both your phone and earpiece off and on, and then repeat the pairing process on page 4.

Your PIN code, or Passkey, is 0000.

The earpiece is not turned on. Press the call control button for approximately 2 seconds until you hear a tone or see the indicator glow blue.

Your earpiece is out of range. Move the earpiece closer to the Bluetooth phone.

Your earpiece battery is drained. Charge your battery. See “Charging Your Earpiece” on page 1.

The listening volume is too low. Incremental tapping of the volume button will adjust volume. See instructions for adjusting the volume in “Earpiece Controls” on page 8.

Make sure that the eartip ﬁts properly. See “Adjusting the Fit” on page 6.

Page 9

Troubleshooting

Using More Than One Bluetooth Phone

Audio quality is poor.

Callers cannot hear me.

The eartips do not ﬁt my ear.

My earpiece falls out of my ear.

My eartip needs to be cleaned.

Make sure that earpiece is sitting correctly in ear with boom pointing towards corner of mouth. See “Adjusting the Fit” on page 6.

Your earpiece is out of range. Move the earpiece closer to the Bluetooth phone. See “Range” on page 9.

Try a different size eartip. See “Adjusting the Fit” on page 6.

Make sure that Earpiece is sitting correctly in ear with boom pointing towards corner of mouth. See “Adjusting the Fit” on page 6.

Remove the eartip from the earpiece and wash it in warm soapy water and dry thoroughly. When the eartip is completely dry, put it back on your earpiece.

Plantronics Discovery 925 supports multipoint technology, which allows you to use one earpiece with two different Bluetooth mobile phones.

How to Turn the Multipoint Feature On and Off

To use more than one phone, you must turn the multipoint feature on. When this feature is off, your earpiece can connect to only one Bluetooth phone.

1 With your earpiece turned off, press and hold the volume and

call control buttons simultaneously until earpiece turns on and indicator ﬂashes blue 2 times.

2 To pair earpiece to a second phone, see “Pairing Your

Earpiece” on page 5.

NOTE To turn the multipoint feature off, repeat step 1. The indicator

ﬂashes blue 1 time to indicate multipoint is off.

How to Initiate a Call

The earpiece initiates a call on the phone you most recently used. To use the second phone, initiate the call using the controls on the second phone. The second phone forms an active link with the earpiece.

How to Answer a Call While Talking on the Other Phone

To answer the second call, the ﬁrst call must be terminated. There is no function for placing one call on hold while answering another call from the earpiece.

1 Press the call control button once to hang up the existing call. 2 Press the call control button again to answer the new call from

the other phone.

NOTE If you choose not to answer the second call, and you have voice

mail on the second phone, the call will go to voice mail.

Page 10

Product Speciﬁcations

Limited Warranty

Talk Time* Battery enables up to 5 hours

Standby Time* Battery enables up to 175 hours with

multipoint feature OFF Battery enables up to 100 hours with

multipoint feature ON

Charge Time Charging headset using AC = 3 hours

Charging headset using USB = 3 hours Charging headset using the case = 3 hours Charging the case using AC = 3 hours Charging the case using USB = 9 hours

Range Up to 33 feet (10 meters)

Earpiece Weight 8 grams

Battery Type Headset: Lithium ion polymer

Charging Case: Nickel-metal hydride

Storage/Usage

50F–104F (10C – 40C)

Temperature

Version Bluetooth 2.0 + EDR (Enhanced Data Rate)

Bluetooth Proﬁles Headset Proﬁle (HSP) for talking on the phone

Hands-free Proﬁle (HFP) for talking on the phone and operating the phone

* Performance may vary by device.

This warranty covers defects in materials and workmanship of products manufactured, sold or certiﬁed by Plantronics which were purchased and used in the United States and Canada.

The warranty lasts for one year from the date of purchase of the products. This warranty extends to you only if you are the end user with the original

purchase receipt. We will, at our option, repair or replace the products that do not conform to the

warranty. We may use functionally equivalent reconditioned/refurbished/remanufactured/ pre-owned or new products or parts.

To obtain service in the U.S., contact Plantronics at 1-866-363-BLUE (2583). To obtain service in Canada call (800) 540-8363.

THIS IS PLANTRONICS’ COMPLETE WARRANTY FOR THE PRODUCTS. This warranty gives you speciﬁc legal rights, and you may also have other rights that

vary from state to state. Please contact your dealer or our service center for the full details of our limited warranty, including items not covered by this limited warranty.

Page 11

IMPORTANT SAFETY AND OPERATIONAL INFORMATION

Please read the following safety and operational instructions before using your Bluetooth earpiece and accessories. Please keep these instructions for your reference. Additional warnings may be present on the product, packaging, or in the user instructions.

This symbol warnings.

GENERAL: Operating and storage temperature is 10°C to +40°C (50°F to +104°F)

WARNINGS

Exposure to high volume sound levels or excessive sound pressure may damage your hearing. Although there is no single volume setting that is appropriate for everyone, you should always use your earpiece with the volume set at moderate levels and avoid prolonged exposure to high volume sound levels. The louder the volume, the less time is required before your hearing could be affected. You may experience different sound levels when using your earpiece with different devices. The device you use and its settings affect the level of sound you hear. If you experience hearing discomfort, you should stop listening to the device through your earpiece. To protect your hearing, some hearing experts suggest that you:

1. Set the volume control in a low position before putting the earpiece on your ears.

2. Limit the amount of time you use earpiece at high volume.

3. Avoid turning up the volume to block out noisy surroundings.

4. Turn the volume down if the sound from the earpiece prevents you from hearing

See www.plantronics.com/healthandsafety for more information on earpiece and hearing.

• Use of a earpiece that covers both ears will impair your ability to hear other

• Check local laws regarding use of a mobile phone and earpiece while driving.

• Observe all signs and instructions that require an electrical device or RF radio

identiﬁes and alerts the user to the presence of important safety

people speaking near you.

sounds. Use of such an earpiece while operating a motor vehicle or riding a bicycle may create a serious hazard to you and/or others, and is illegal in most regions.

If you use the earpiece while driving ensure your attention and focus remain on driving safely.

product to be switched off in designated areas, such as gas/refueling stations, hospitals, blasting areas, potentially explosive atmospheres, or aircraft.

• Keep all products, cords, and cables away from operating machinery. As with

all corded products, there is a danger of strangulation if a cord should become wrapped around your neck.

• This product is not a toy. Never allow children to play with the product– small

parts may be a choking hazard.

• Install and use eartips and earbuds in accordance with the instructions provided.

Do not force eartips or earbuds down the ear canal. If either becomes lodged in the ear canal, seek medical attention immediately.

• Ensure eartips and earbuds are kept clean and free of ear wax buildup to maintain the speciﬁed product performance.

• Applying excessive pressure to the earpiece may injure the outer ear. Do not wear

the earpiece while sleeping or in other situations where pressure may be exerted against the earpiece.

• Do not disassemble or insert anything into the product or charger because this

may cause damage to the internal components or cause injury to you.

• If the product or charger: overheats; has a damaged cord or plug; has been

dropped or damaged; has been dropped into water, disconnect any charger from its supply, discontinue use of the product and contact Plantronics.

• Prevent rain, moisture or other liquid from coming into contact with the product

to protect against damage to your earpiece or injury to you. This warning is not applicable for ruggedized or sports products which are designed to withstand contact with moisture.

CHARGING WARNINGS

• To reduce the risk of electric shock, explosion or re, use only the charger

supplied by Plantronics to charge the product. Do not use the chargers with other products or for any other purpose. Ensure that the voltage rating corresponds to the local mains or power supply you intend to use.

• If your earpiece is designed to be charged with your mobile phone charger using

a custom adapter, use only mobile phone chargers approved and provided by your mobile phone manufacturer.

• Charge the earpiece according to the instructions supplied with the unit.

• Ensure the mains (AC Power) socket-outlet for the charger is located near the

equipment and is easily accessible.

Page 12

BATTERY WARNINGS

To avoid the risk of explosion, ﬁre or leakage of toxic chemicals, please observe the following warnings:

• Do not dispose of the product or battery in a re. The battery cells may explode.

• Do not open or mutilate the battery. There may be corrosive materials which can

cause damage to eyes or skin and may be toxic if swallowed.

• Always store batteries where children cannot reach them.

• If your product has a non-replaceable battery, do not attempt to open the product

or remove the battery.

• If your product has a replaceable battery, use only the battery type supplied by

Plantronics. Observe the correct polarity when installing the battery. Remove the battery if it will not be used for an extended period; remove a spent battery promptly.

• If your product is designed to be recharged from a non-rechargeable battery:

use only the battery type speciﬁed in the product instructions; do not use a

rechargeable battery.

• Do not allow any battery or its holder to contact metal objects such as keys or coins.

RECYCLING: Your product and batteries must be recycled or disposed of properly. Contact your local recycling center for information on proper disposal.

Regulatory Notices

FCC REQUIREMENTS PART 15

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the radio or television off and on, the user is encouraged to try to correct interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on another circuit.

4. Consult the dealer or an experienced radio/TV technician for help.

ExPOSURE TO RADIO FREQUENCY RADIATION

This device and its antenna must not be collocated or operated in conjunction with any other antenna or transmitter. To comply with FCC RF exposure requirements, only use supplied antenna. Any unauthorized modiﬁcation to the antenna or device could void the user’s authority to operate this device.
