Planmeca ProScanner
user's manual
®
EN
10034288_10
Table of contents
1 INTRODUCTION ........................................................................................ 1
2 ASSOCIATED DOCUMENTATION .............................................................. 2
3 REGISTERING YOUR SCANNER ............................................................... 3
4 SYMBOLS ON PRODUCT LABELS ............................................................. 4
5 SAFETY PRECAUTIONS ............................................................................ 6
5.1 Laser safety statement .......................................................................................8
6 SYSTEM REQUIREMENTS ........................................................................ 9
7 UNPACKING PLANMECA PROSCANNER .................................................11
7.1 Package contents .............................................................................................11
7.2 Planmeca ProID kit (optional) ...........................................................................12
8 SYSTEM DESCRIPTION ...........................................................................13
8.1 USB or direct 1-to-1 Ethernet ...........................................................................13
8.2 1-to-1 Ethernet network configuration ...............................................................14
8.3 N-to-N Ethernet .................................................................................................14
9 SYSTEM SETUP .......................................................................................15
9.1 Scanner placement ...........................................................................................15
9.2 Planmeca Romexis and Planmeca ProScanner USB driver installation ..........16
9.3 Planmeca ProID driver installation ....................................................................17
9.4 Connecting cables ............................................................................................21
9.5 Switching on the scanner ..................................................................................24
9.6 Installing calibration files ...................................................................................24
9.7 Connecting scanner to network ........................................................................26
10 MAIN PARTS ............................................................................................28
10.1 Tray ...................................................................................................................28
10.2 Touch panel display ..........................................................................................29
11 CAPTURING IMAGES WITH PLANMECA PROSCANNER ..........................36
12 READING IMAGING PLATES WITH PLANMECA ProID READER ...............36
13 SCANNING / ERASING IMAGING PLATES ................................................37
14 RETRIEVING STORED IMAGES ................................................................40
15 EXPOSURE VALUES ................................................................................43
16 USE, CARE, MAINTENANCE AND INFECTION CONTROL OF IMAGING
PLATES ....................................................................................................44
16.1 Using protective cover ......................................................................................44
16.2 Using hygienic bags ..........................................................................................45
16.3 X-ray exposure .................................................................................................46
1 Planmeca ProScanner User’s & installation manual
Table of contents
16.4 Cleaning imaging plates ...................................................................................46
17 CLEANING PLANMECA PROSCANNER ....................................................47
17.1 Tray ...................................................................................................................47
17.2 Planmeca ProID RFID reader ...........................................................................47
18 SHIPPING .................................................................................................48
19 DISPOSAL ................................................................................................49
20 TECHNICAL SPECIFICATIONS .................................................................50
20.1 Operating conditions .........................................................................................51
Appendix A: Exposure value tables for Planmeca ProX
A.1 Default exposure values ............................................................................52
A.2 Preprogrammed settings values .................................................................52
Appendix B: Installing Planmeca ProScanner on MacOS
B.1 Romexis and ProScanner USB driver installation ........................................54
B.2 ProID driver installation .............................................................................54
B.3 Connecting scanner to network ..................................................................54
B.4 Installing calibration files ...........................................................................55
B.5 Setting on windowed option .......................................................................55
The manufacturer, assembler and importer are responsible for the safety, reliability and
performance of the unit only if:
- installation, calibration, modification and repairs are carried out by qualified authorised personnel
- electrical installations are carried out according to the appropriate requirements such
as IEC 60364
- equipment is used according to the operating instructions.
Planmeca pursues a policy of continual product development. Although every effort is
made to produce up-to-date product documentation this publication should not be regarded as an infallible guide to current specifications. We reserve the right to make
changes without prior notice.
COPYRIGHT PLANMECA
Publication number 10034288 Revision 10
Released 10 April 2017
2 Planmeca ProScanner User’s & installation manual
1 INTRODUCTION
NOTE
NOTE
NOTE
1 INTRODUCTION
The Planmeca ProScanner is a dental
computed radiography system intended for
capturing, digitization and processing of intra
oral X-ray images stored in imaging plate
recording media. The system scans an x-ray
exposed imaging plate and produces a digital
radiography which can be transferred to
workstation for further processing and routing.
The system consists of a scanner, reusable
imaging plates, RFID reader (optional) and
workstation software.
This manual is valid for ProScanner SW revision
1.0.0.211 or later.
This device must be operated in a radiological
environment by qualified personnel only.
Please read this manual carefully before using
the system.
This device complies with DHHS Radiation
Safety Standards in effect as of the date of
manufacture.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
the device does not cause harmful interference.
This equipment has been tested and found to
comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instruction, may cause
harmful interference to radio communication.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment causes harmful interference to radio
or television reception, which can be determined
by turning the device off and on, the user is
encouraged to try to correct the interference by
one or several of the following measures:
User’s & installation manual Planmeca ProScanner 1
2 ASSOCIATED DOCUMENTATION
CAUTION
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and
receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FOR US USERS
Federal law restricts this device to sale by or
on the order of a health care professional
2 ASSOCIATED DOCUMENTATION
• Planmeca Romexis User’s manual
(publication number 10014593)
• Planmeca Romexis Installation manual
(publication number 10014600)
2 Planmeca ProScanner User’s & installation manual
3 REGISTERING YOUR SCANNER
3 REGISTERING YOUR SCANNER
Before you start using your scanner, you must
register it to activate the warranty.
To enter the registration website:
• Read the QR code on the registration label on
top your scanner with a QR code reader
OR
• Navigate to the registration website
www.planmeca.com/register/
browser.
in your Internet

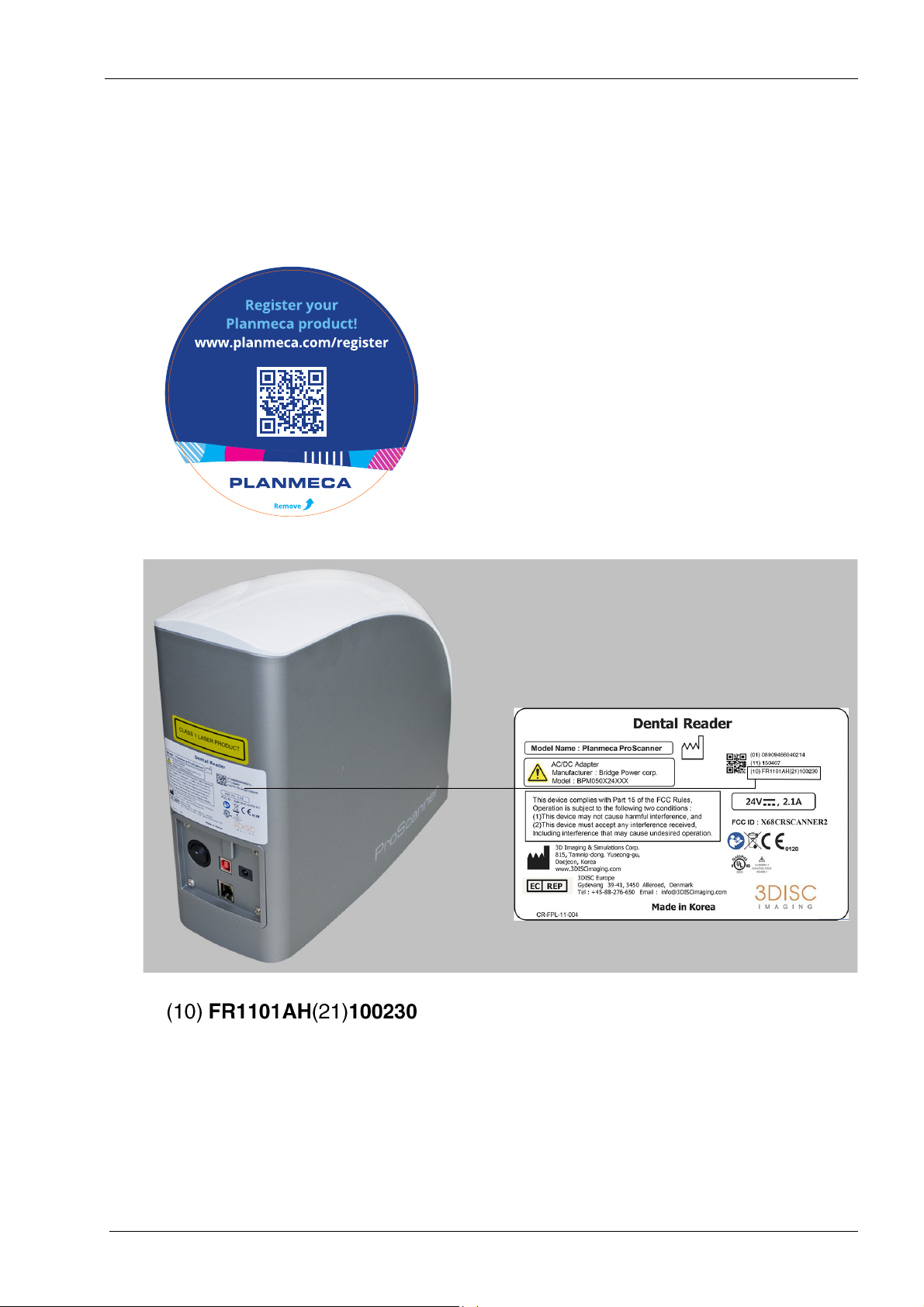

The serial number can be found on the
scanner’s device plate.
The serial number is formed of the numbers that
come after (10) and after (21). Thus the serial
number of this example equipment is formed as
follows: FR1101AH100230.
User’s & installation manual Planmeca ProScanner 3
4 SYMBOLS ON PRODUCT LABELS

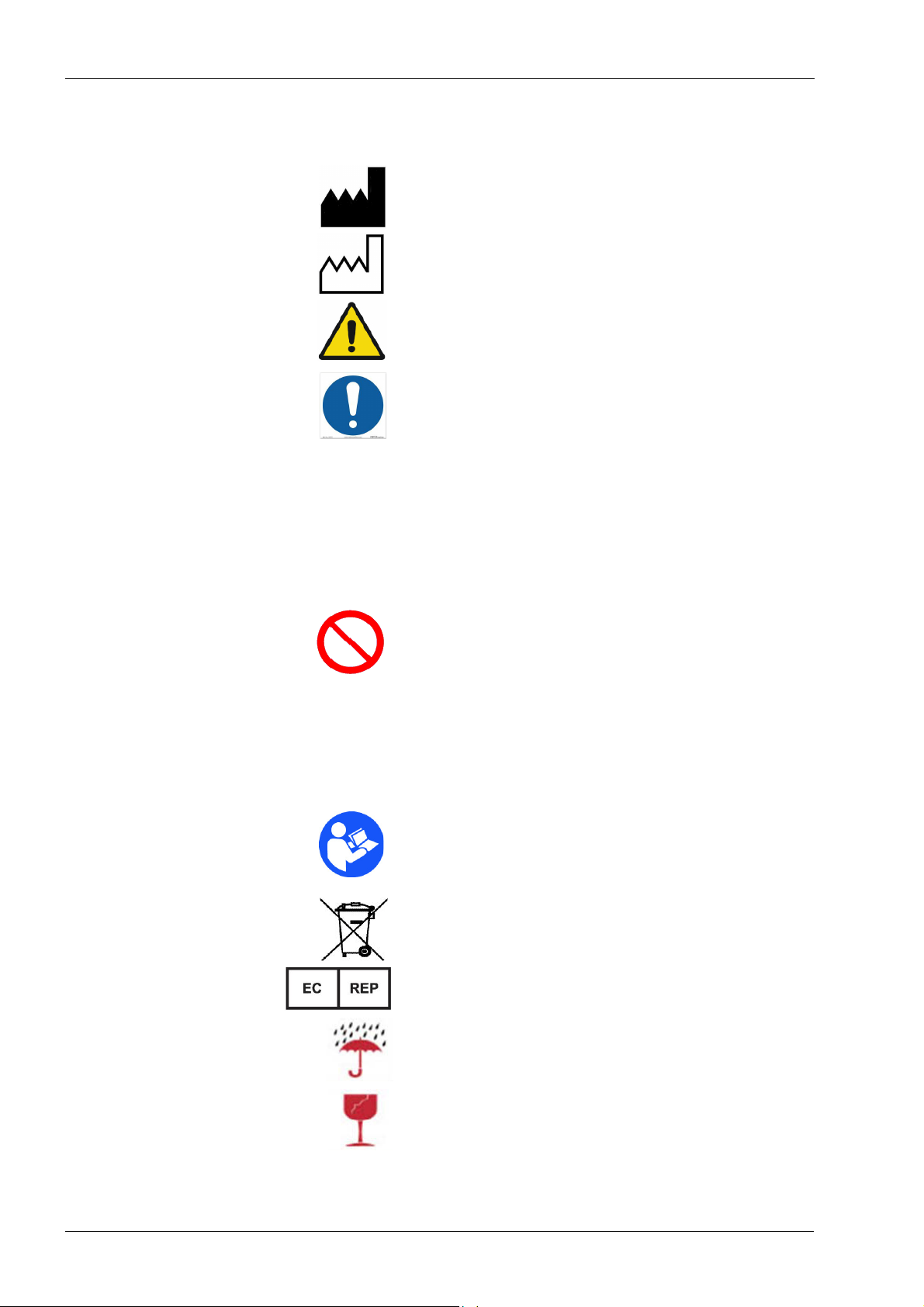

4 SYMBOLS ON PRODUCT LABELS
Manufacturer
Date of Manufacture
Warning, Consult Accompanying Documents
The functionality of the system can be limited in
the case of incorrect use. Hints that require
special attention.
General mandatory action manual
The functionality of the system can be destroyed
in case of incorrect use.
If unauthorized changes have been made to
delivered system and accessories, the warranty
by 3D Imaging & Simulations Corp. becomes
void. 3D Imaging & Simulations Corp. will not
accept any responsibility or liability for the
improper functioning of the product in such a
case.
General prohibition symbol
The functionality of the system can be destroyed
in case of incorrect use.
If unauthorized changes have been made to
delivered system and accessories, the warranty
by Planmeca Oy becomes void. Planmeca Oy
will not accept any responsibility or liability for
the improper functioning of the product in such a
case
Consult accompanying documents
Directive on Waste Electrical and Electronic
Equipment
Authorised Representative in the European
Community
Keep Dry
Fragile
4 Planmeca ProScanner User’s & installation manual
4 SYMBOLS ON PRODUCT LABELS
FCC ID:
X68CRSCANNER2
Handle with care
This side up
Non-ionizing electromagnetic radiation
FCC Mark
Medical Equipment
WITH RESPECT TO ELECTRIC SHOCK, FIRE,
AND MECHANICAL HAZARDS ONLY IN
ACCORDANCE WITH UL60601-1 / CAN / CSA
CSS.2 No. 601.1 3SE3
The software is created by 3Disc Imaging and
fulfils the requirements of Directive 93/42/EEC.
User’s & installation manual Planmeca ProScanner 5
5 SAFETY PRECAUTIONS
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
5 SAFETY PRECAUTIONS
This device has been designed and tested to
meet strict safety requirements applicable to
medical equipment, and has been supplied in a
safe condition.
To ensure personnel and patient safety, the
device shall be operated and serviced in
compliance with all procedures, warnings and
precautions during all phases of operation and
service of this device. Failure to comply with
these safety guidelines may result in injury to
operator, service personnel, or patient.
Planmeca assumes no liability for failure to
comply.
Any changes to software and hardware
delivered by Planmeca may only be made
with prior written permission from Planmeca.
This device must be used in normal conditions only. If this device is not used as specified, the protection provided by the device
could be impaired.
Installation, service and operation of this
device should only be undertaken by qualified and trained personnel. The instructions
and precautions must be carefully read
before using the system.
The device should only be opened and serviced by qualified service personnel. Failure
to heed this warning may result in injury to
service personnel or damage to equipment,
and void any and all warranties.
Do not spill liquids on the device, and never
operate the device in wet environment.
Keep the device away from radiators and
heat sources.
6 Planmeca ProScanner User’s & installation manual
5 SAFETY PRECAUTIONS
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
Use the device only with accessories supplied with this device.
This device is intended to be grounded. Plug
power cord into properly grounded electrical
outlets. This cord is equipped with threeprong plugs to help ensure proper grounding.
This device contains static sensitive components. Proper static handling procedures
and equipment must be used when servicing
this device.
Do not open the device.
If any of the following conditions occur,
unplug the device from the electrical outlet
and contact authorized service personnel:
• The power cord, the power adapter or the
Planmeca ProID USB cable has been damaged.
• An object has fallen into the device.
• The device has been exposed to water.
• The device has been dropped or damaged.
• The device does not operate correctly when the
operating instructions are followed.
User’s & installation manual Planmeca ProScanner 7
5 SAFETY PRECAUTIONS
WARNING
WARNING
5.1 Laser safety statement
The computed radiography reader is certified in
the U.S. to Conform to the requirements of
DHHS 21 CFR, chapter 1 Subchapter J for
Class I(1) Laser Products, and Elsewhere is
Certified as a Class I(1) Laser Product
Conforming to the Requirements of IEC 608251: 2007. Class I (1) Laser Products are not
Considered to be Hazardous. The Laser System
and Computed Radiography Reader are
Designed so there is never any Human Access
to Laser Radiation above a Class I (1) level
during normal Operation, user Maintenance or
Prescribed Service Condition.
• Wavelength: 658 nm (Typ.)
• Beam Divergence
Parallel: 9.5 degrees (-2.5/+2.5)
Perpendicular: 17 degrees (-3/+3)
• Maximum Power of Energy Output: 80 mW
(CW)
Never operate or service the product with
the protective cover removed from laser/
scanner assembly. The reflected beam,
although invisible, can damage your eyes.
When using this product, these basic safety
precautions should always be followed to
reduce risk of fire, electric shock and personal injury.
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation
exposure.
8 Planmeca ProScanner User’s & installation manual
6 SYSTEM REQUIREMENTS
NOTE
NOTE
NOTE
NOTE
NOTE
6 SYSTEM REQUIREMENTS
The PC and other equipment connected to the
system must be:
• approved by local authorities: e.g. IEC-approved
(CE marked), UL / CSA approved
• located outside the patient area (more than 2m
(79 in.) from the X-ray unit)
• protectively earthed.
The connection of additional equipment to a
multiple portable socket-outlet must only be
possible by using a tool or be supplied via
separating transformer.
The multiple portable socket-outlets shall not be
placed on the floor.
Make sure that the system is protected with fire
wall and up-to-date anti-virus software. If
possible, isolate the system from office network.
Please note that these requirements are
recommendations. Not meeting them may lead
to degraded performance.
For latest up-to-date system recommendations
browse to
http://www.planmeca.com/en/
Software/Desktop/Planmeca-Romexis/
Compatibility-and-DICOM/.
User’s & installation manual Planmeca ProScanner 9
6 SYSTEM REQUIREMENTS
Client workstation Server
2D Imaging and general
Processor Intel Core 2 Duo 2 GHz or better Intel Core 2 Duo 3 GHz or better
RAM 3 GB 3GB
Graphics
card
Hard disk 80 GB 2 x 500GB (RAID1 mirroring)
Operating
system
NOTE:
Consult
your local
dealer for
detailed
information
on device
support for
different
platforms.
Common minimum requirements
Monitor 1280 x 1024
Peripherals DVD ROM or R/W drive DVD ROM or R/W drive
Any (integrated or dedicated) Any
recommenrded
Windows 7 Pro (32 or 64 bit)
Windows 8.1 Pro (32 or 64 bit)
Windows 10 (64 bit)
Mac OS X (Intel)
(FullHD 1920x1080 recommended)
Windows 2008 Server
(32 or 64 bit)
Windows 2012 Server (64 bit)
Windows 7 Pro (32 or 64 bit)
Windows 8.1 Pro (32 or 64 bit)
Windows 10 (64 bit)
Mac OS X (Intel)
1280 x 1024
Backup
medium
Database None MS SQL 2012 Server Express
Java
Platform,
Standard
Edition
None required DAT or equivalent
(included)
MS SQL 2005 Server
MS SQL 2008 Server
MS SQL 2012 Server
Oracle 10g2
Firebird (Mac OS X)
Windows: Java SE Runtime
Environment 8 (JRE)
Apple OS X: Java SE Runtime
Environment 6 (JRE)
(included in installation)
Windows: Java SE Runtime
Environment 8 (JRE)
Apple OS X: Java SE Runtime
Environment 6 (JRE)
(included in installation)
10 Planmeca ProScanner User’s & installation manual
7 UNPACKING PLANMECA PROSCANNER
NOTE
CAUTION
7 UNPACKING PLANMECA PROSCANNER
Planmeca ProScanner is shipped in a custom
designed container to protect the scanner from
external shock. Before unpacking the scanner,
inspect the shipping container for damage. In
case the container is damaged, notify the
shipper immediately.
To unpack the scanner:
1. Carefully remove the contents from the box.
The imaging plates are on top of the package.
Handle them with care.
2. Check that all listed items are included in the
delivery.
3. Store the delivery box for possible later use.
7.1 Package contents
The scanner must always be shipped in the
original delivery box.
• Planmeca ProScanner
• Power adapter
AC/DC Adapter
Manufacturer: Bridge Power corp.
Model: BPM050X24XXX
This adapter meets the requirements of
IEC60601-1.
• USB 2.0 interface cable
• RJ45 CAT.5E FTP cable 2M (Cross type)
• Power Cord
Type SJT or SVT, min. 18AWG, 3-Conductor,
VW-1 125V, min 10A (or 250V, 10A). Max 3.0m
long; one end with Hospital Grade Type, NEMA
5-15P for 125V or NEMA 6-15P for 250V, other
end with appliance coupler.
Grounding reliability can only be achieved
when the equipment is connected to an
equipment receptacle marked “Hospital
Only” or “Hospital Grade”.
User’s & installation manual Planmeca ProScanner 11
7 UNPACKING PLANMECA PROSCANNER
WARNING
For connection to a supply not located in the
USA, make sure the power cord meets the
requirements for your area.
• Imaging plate storage case
• Imaging plate starter kit
• Hygienic bags, size 0, 100 pcs
• Hygienic bags, size 2, 100 pcs
• Planmeca Manuals media
• Planmeca Romexis Installation & License media
7.2 Planmeca ProID kit (optional)

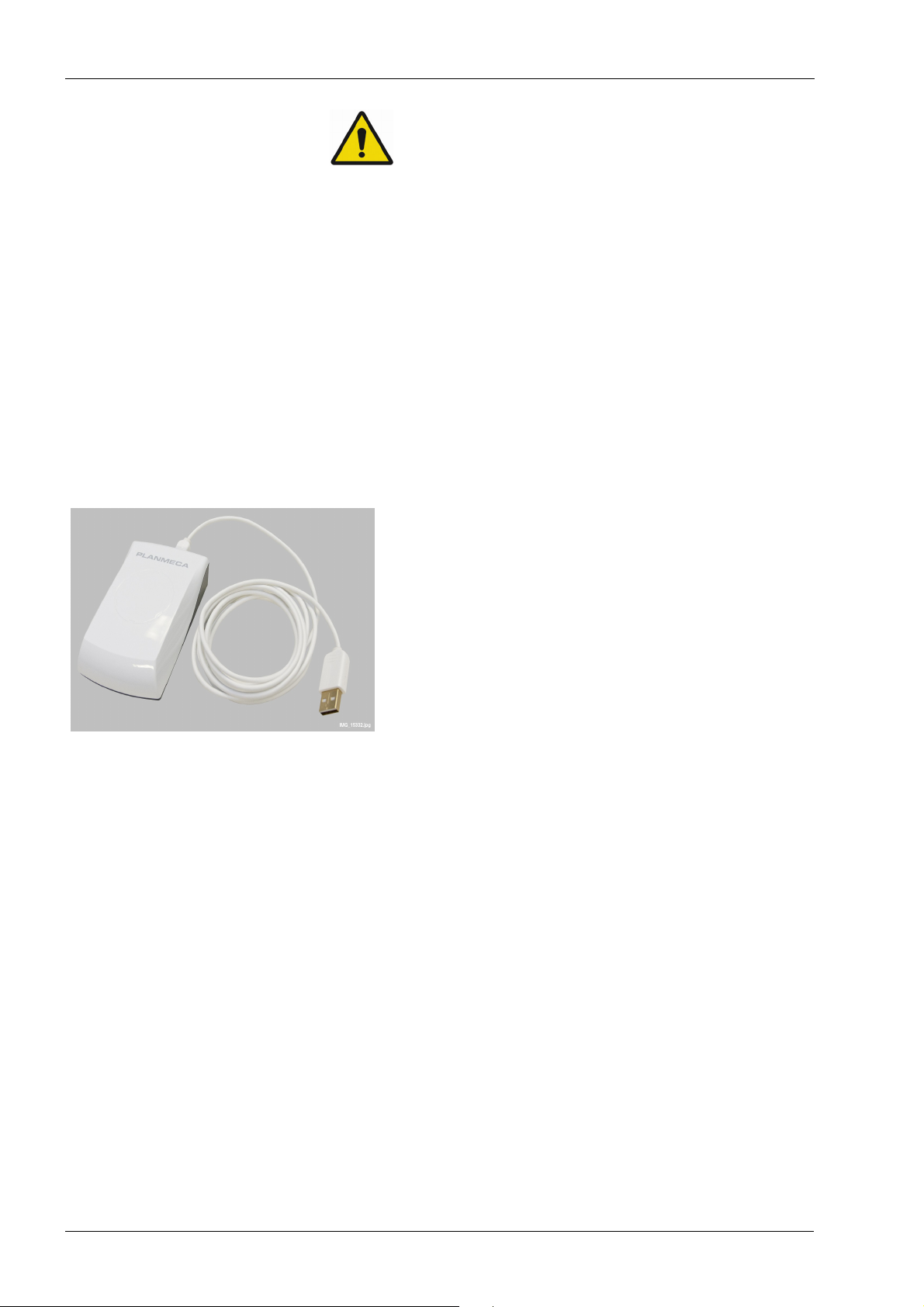

• Planmeca ProID RFID reader
• Mini USB cable
12 Planmeca ProScanner User’s & installation manual
8 SYSTEM DESCRIPTION
NOTE
USB cable Max. 2m
100 - 240 VAC
Romexis PC
Planmeca
ProScanner
Ethernet cable Max. 2m
CAT.5E, RJ45 FTP Cross Type Cable
8 SYSTEM DESCRIPTION
The Planmeca ProScanner systems consists of
a scanner, Planmeca Romexis computer, and
an optional Planmeca ProID RFID reader. The
scanner can be connected to the computer via
Ethernet or USB cable.
N-to-N Ethernet mode and 1-to-1 Ethernet mode
cannot be used in the same network at the same
time.

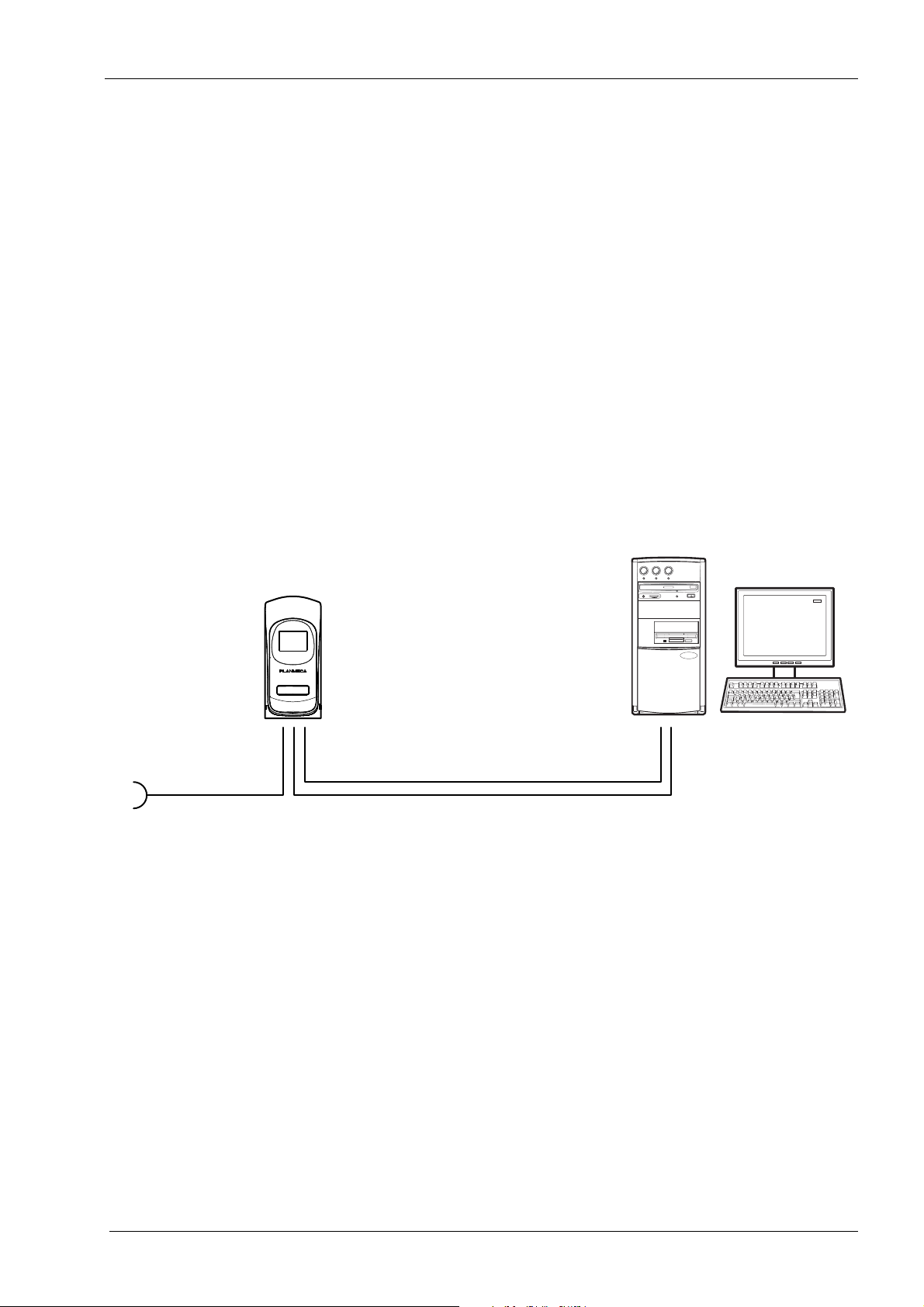

8.1 USB or direct 1-to-1 Ethernet
Planmeca ProScanner is attached to the PC
using direct USB or Ethernet connection.
Crossed Ethernet cable must be used.
User’s & installation manual Planmeca ProScanner 13
8 SYSTEM DESCRIPTION
100 - 240 VAC
Romexis PC
Planmeca
ProScanner
Hub
Ethernet cable Max. 100m
CAT.5E, RJ45 FTP
Cross / Direct Type Cable
Ethernet cable Max. 100m
CAT.5E, RJ45 FTP
Cross / Direct Type Cable
Romexis PCPlanmeca
ProScanner
Hub
Ethernet cable Max. 100m
CAT.5E, RJ45 FTP
Cross / Direct Type Cable
Ethernet cable Max. 100m
CAT.5E, RJ45 FTP
Cross / Direct Type Cable

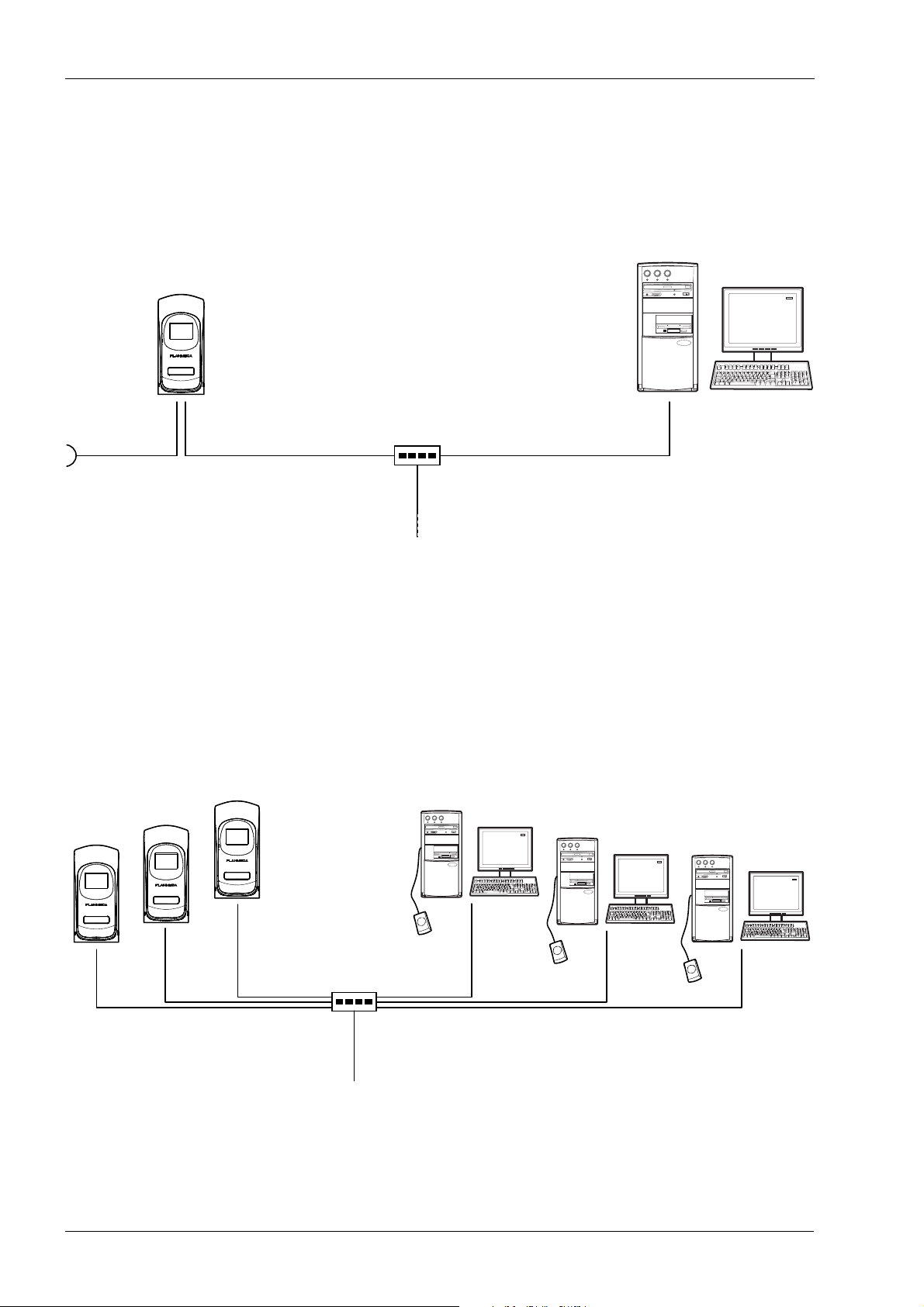

8.2 1-to-1 Ethernet network configuration
Planmeca ProScanner is attached to a HUB/
switch using Ethernet connection. Crossed or
straight Ethernet cable can be used depending
on the HUB/switch type.
8.3 N-to-N Ethernet
Planmeca ProScanner can be shared in the
network between several treatment rooms.
Planmeca ProScanner is attached to a HUB/
Switch using Ethernet connection. Planmeca
ProID readers are attached to the PC in the
treatment rooms with mini USB cable.
14 Planmeca ProScanner User’s & installation manual
9 SYSTEM SETUP
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION

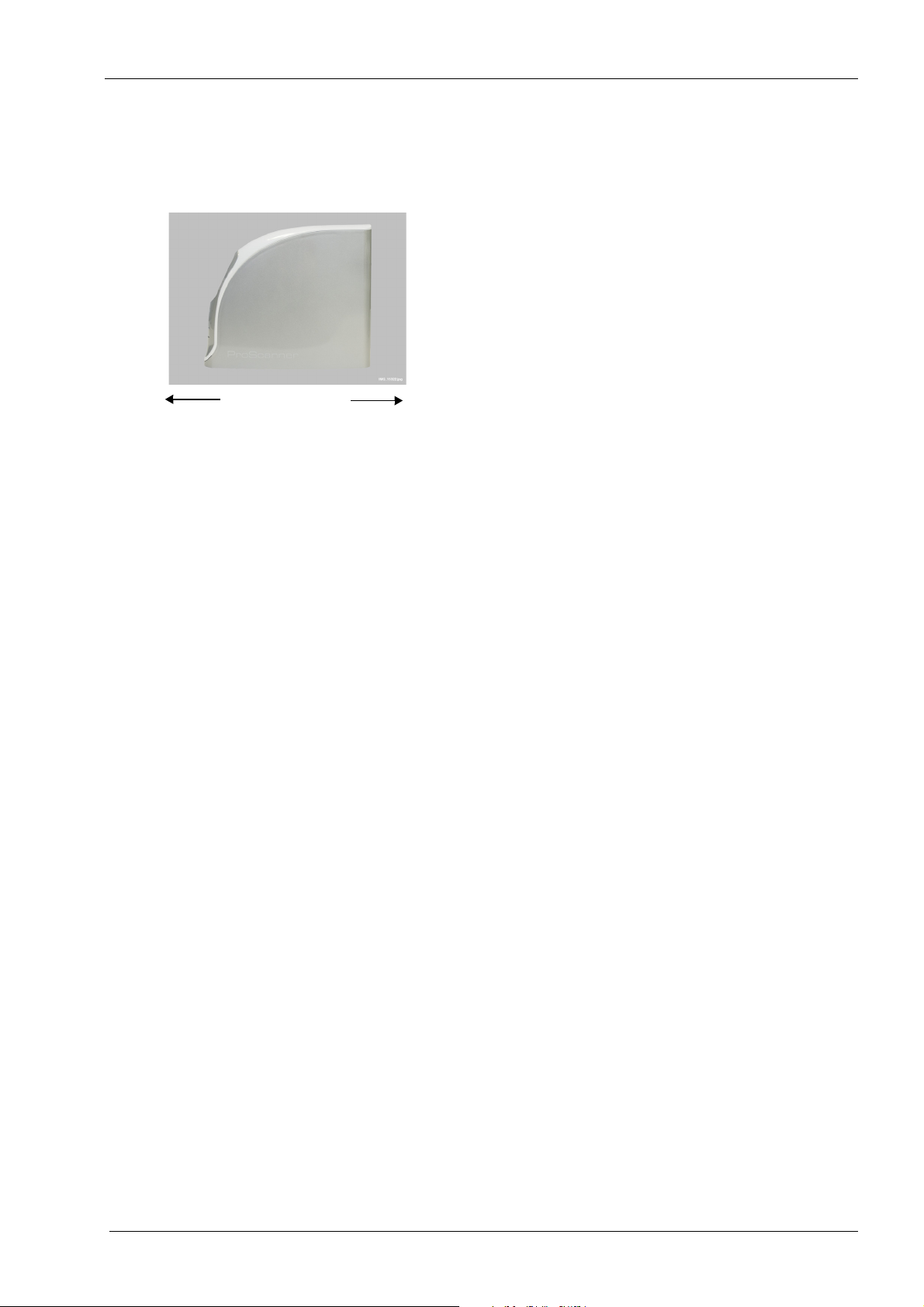

Front Back
9 SYSTEM SETUP
9.1 Scanner placement
The scanner must be placed on a rigid and flat
desk or tabletop with at least 5 cm (2 inches)
free space on both sides, 10 cm (4 inches) on
back side and 15 cm (6 inches) on the front side
for imaging plate insertion.
Never place the scanner on the floor. Install
only in a location that is level and stable.
Installation in an unsuitable location can provoke an accident, or deterioration in image
quality.
Sliding of the reader may result in internal
damage or misalignment of the optics. External vibration or shock during scanning may
affect image quality. The scanner must be
placed on a rigid, flat and reinforced desk or
tabletop.
Never install to locations with excessive
humidity or dust, subject to high temperature, subject to shaking or vibration,
exposed to considerable electrical or magnetic noise, or to any heath sources.
Do not place anything on top of the reader.
This equipment may be interfered with or
may interfere with electromagnetic or other
interferences. Assure a distance of minimum
1.0m between reader and neighbouring
equipment.
User’s & installation manual Planmeca ProScanner 15
9 SYSTEM SETUP
9.2 Planmeca Romexis and Planmeca ProScanner USB driver installation

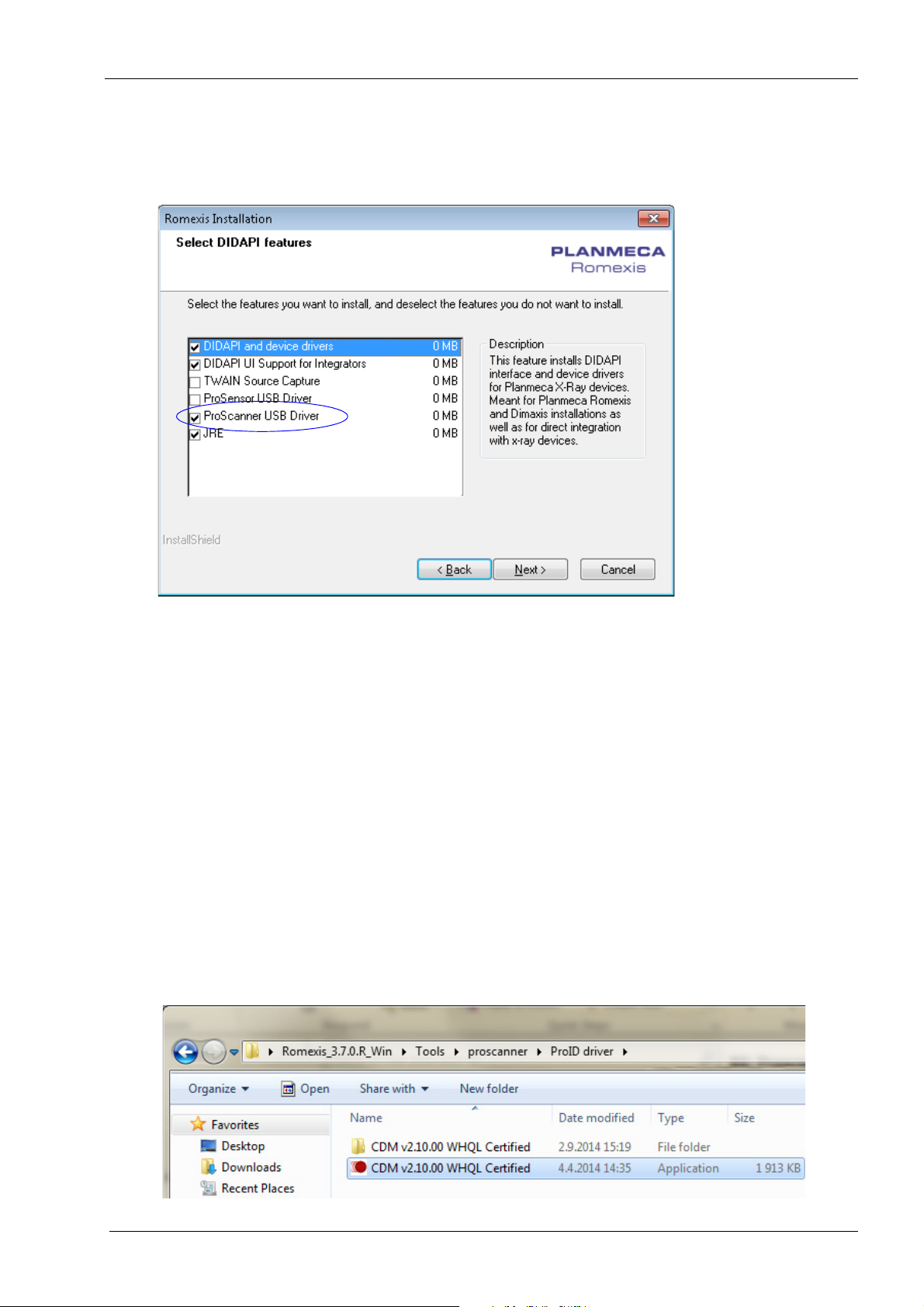

1. Install Romexis from the Romexis installation
media delivered together with the unit.

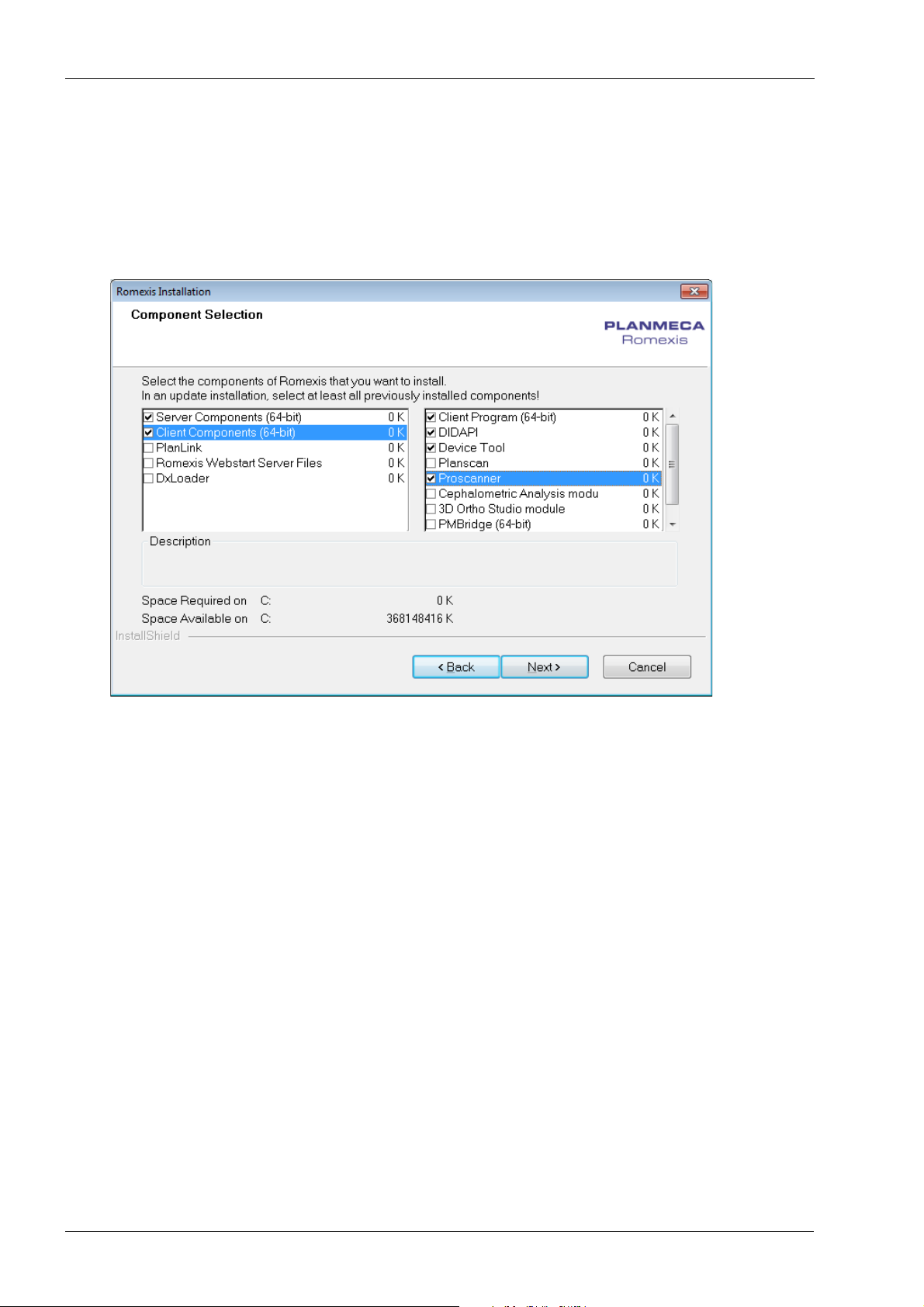

2. Tick the
installation in
under Client Components
ProScanner
Component Selection
checkbox during Romexis
dialogue
.
When the ProScanner component is
selected during Romexis installation, the
ProScanner USB driver is automatically
installed.
If needed, the driver can be installed
manually by running the
ProScanner_Driver_overwrite.exe file from
the Planmeca Romexis installation media
installation folder
/DIDAPIKIT.
16 Planmeca ProScanner User’s & installation manual
9 SYSTEM SETUP
The USB driver can also be installed
separately from DidapiKit by selecting the
ProScanner USB driver in the component
selection window.
9.3 Planmeca ProID driver installation
When attaching the Planmeca ProID RFID
reader to the computer, the driver is installed
automatically if the computer is connected to the
Internet.
In case the driver installation does not start
automatically or the driver installation fails, the
driver can be installed manually by using one of
the following methods.
9.3.1 Method 1
1. Browse to the Planmeca Romexis installation
media folder and start the CDM v2.10.00 WHQL
Certified.exe by double-clicking the application
icon.
User’s & installation manual Planmeca ProScanner 17
9 SYSTEM SETUP

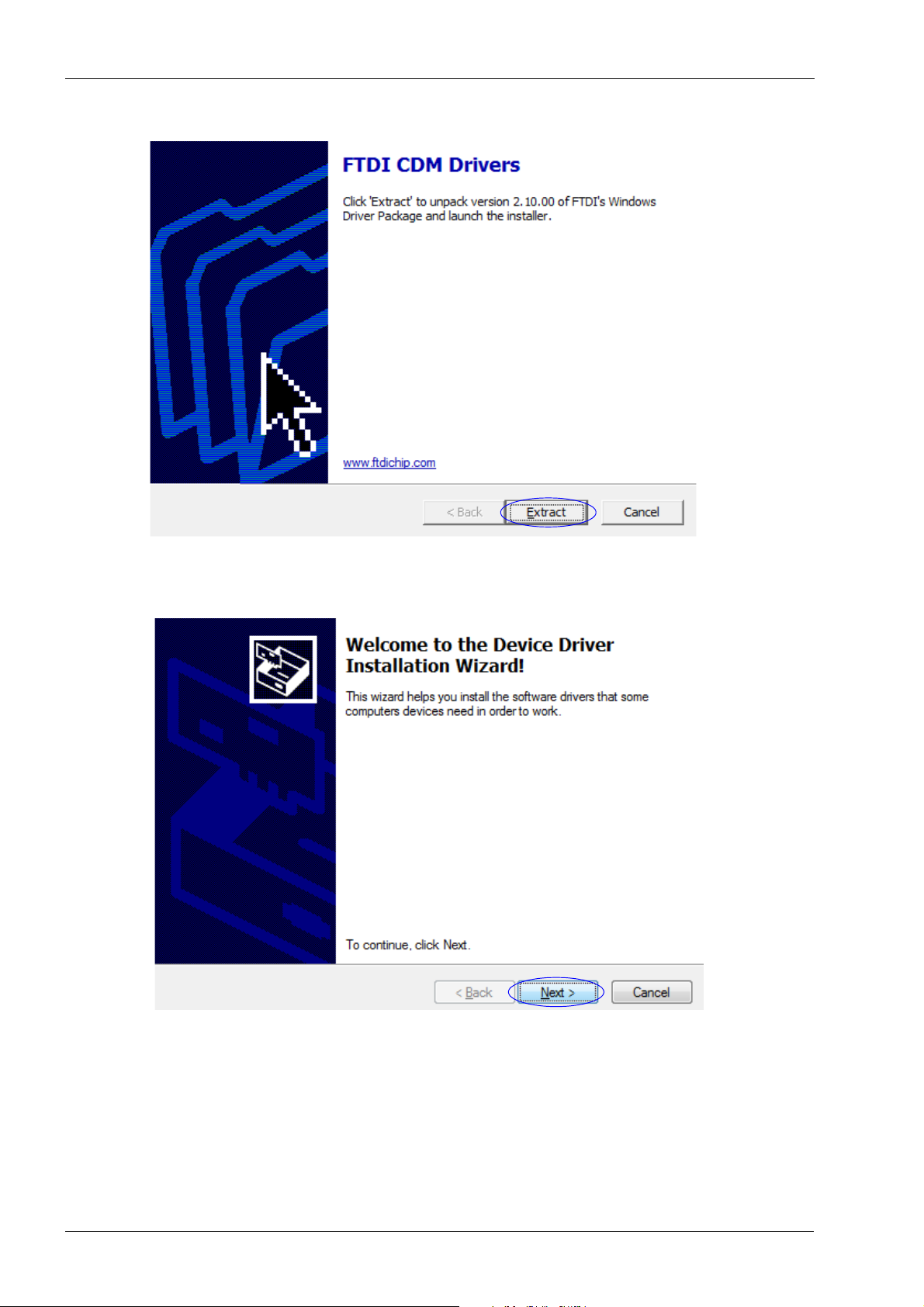

2. In the following window select Extract.
3. Click Next.
18 Planmeca ProScanner User’s & installation manual
9 SYSTEM SETUP

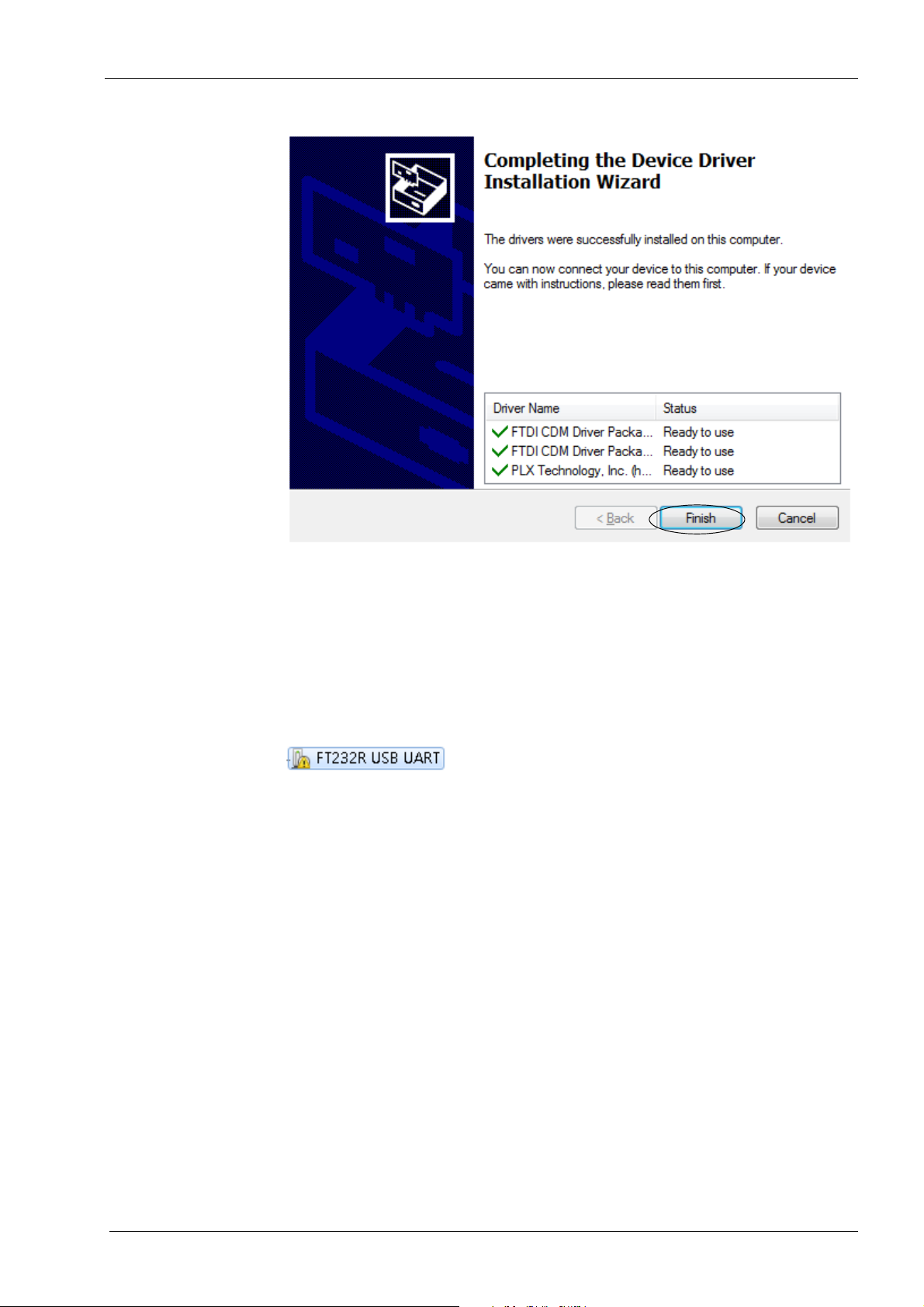

4. Click Finish to complete the installation.
9.3.2 Method 2
1. Start the installation by inserting the Planmeca
Romexis installation media to the PC.
2. From the Windows
Panel.
3. Go to
In the Device Manager, under
the following line appears.
4. Right-click on the line and select Update Driver
Software.
5. Select Browse my computer for driver software.
6. In the opening window, click the Browse button
to indicate the location of the ProID driver folder.
The folder is located under
Device Manager
\Tools\proscanner\ProID driver
installation media.
Start
menu select Control
.
Other devices
on Romexis
,
User’s & installation manual Planmeca ProScanner 19
9 SYSTEM SETUP
7. Click Next.

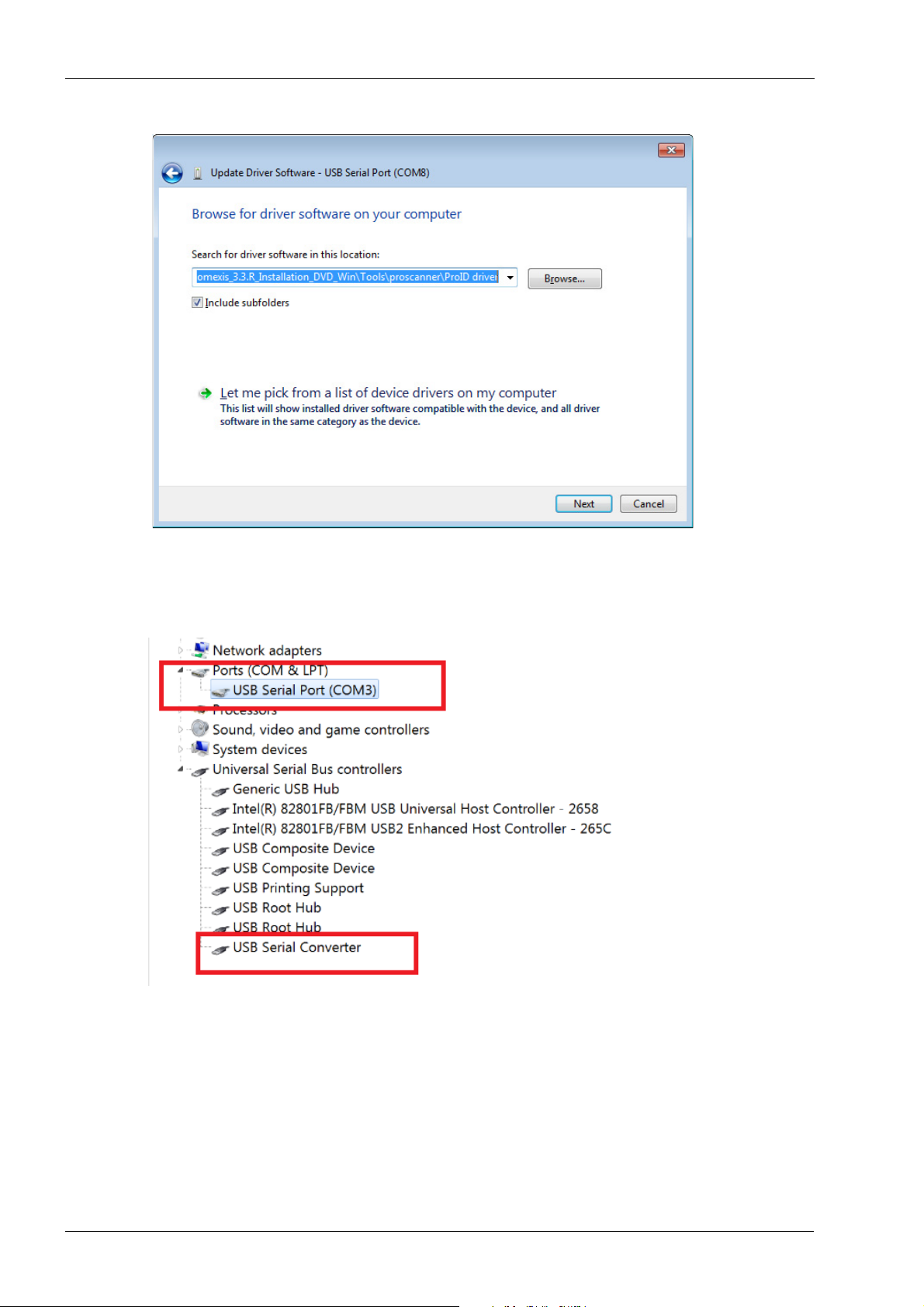

When the driver is installed correctly, a USB
Serial Converter is added under Universal Serial
Bus Controller category and a new USB Serial
Port is displayed under Ports category.
20 Planmeca ProScanner User’s & installation manual
9 SYSTEM SETUP
NOTE
NOTE
NOTE
WARNING
WARNING

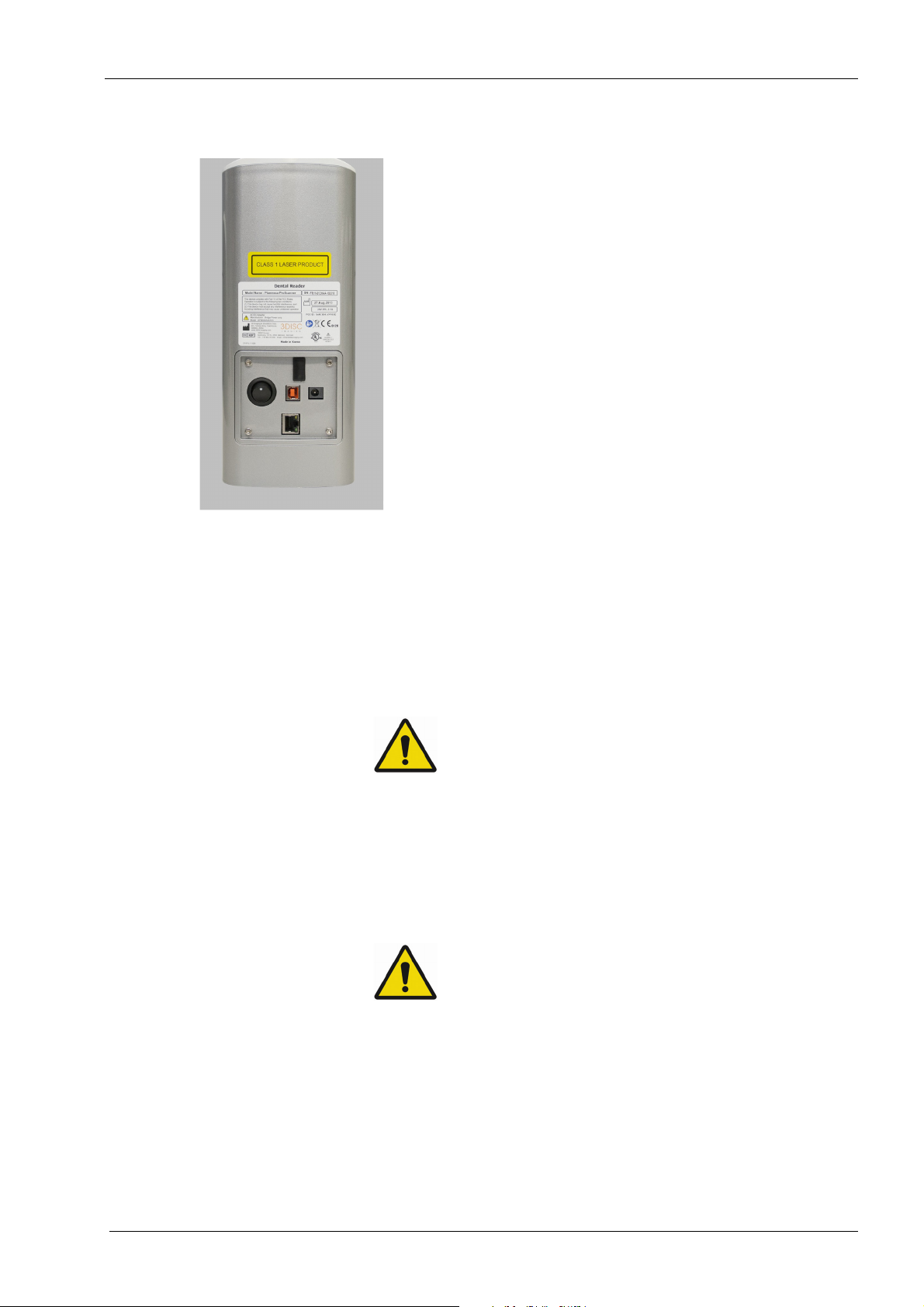

1. On / off switch
2. USB port
3. SD card slot
4. Power cord
connector
1.
3
2
4
5
5. Ethernet port
9.4 Connecting cables
This equipment is for indoor use only and all the
communication wiring is limited to inside of the
building.
Do not pull out the cables during scanning.
The SD card slot (3.) may also be hidden under
the back panel. To access the SD card please
see the technical manual.
9.4.1 Power cord
This equipment must only be connected to
supply mains with protective earth. Use only
a three-wire cord that has grounding. This is
a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your obsolete outlet. For your
safety, do not remove the ground from the
grounding-type plug.
Do not use the cord with any electrical power
supply that does not meet the ratings displayed on the power adapter. Usage of any
other power adapter may lead to fire or electrocution.
User’s & installation manual Planmeca ProScanner 21
9 SYSTEM SETUP
WARNING
CAUTION
CAUTION
CAUTION
.
Power
cord
connector
Only use the supplied power adapter and
power cord included with the system. Not
doing so may lead to fire, electrical shock, or
electrocution.
Socket-outlet should be installed near the
device for easy access.
Do not place the device where access to
appliance inlet is obstructed.
Do not unplug the power cord or turn the
power switch off during scanning.

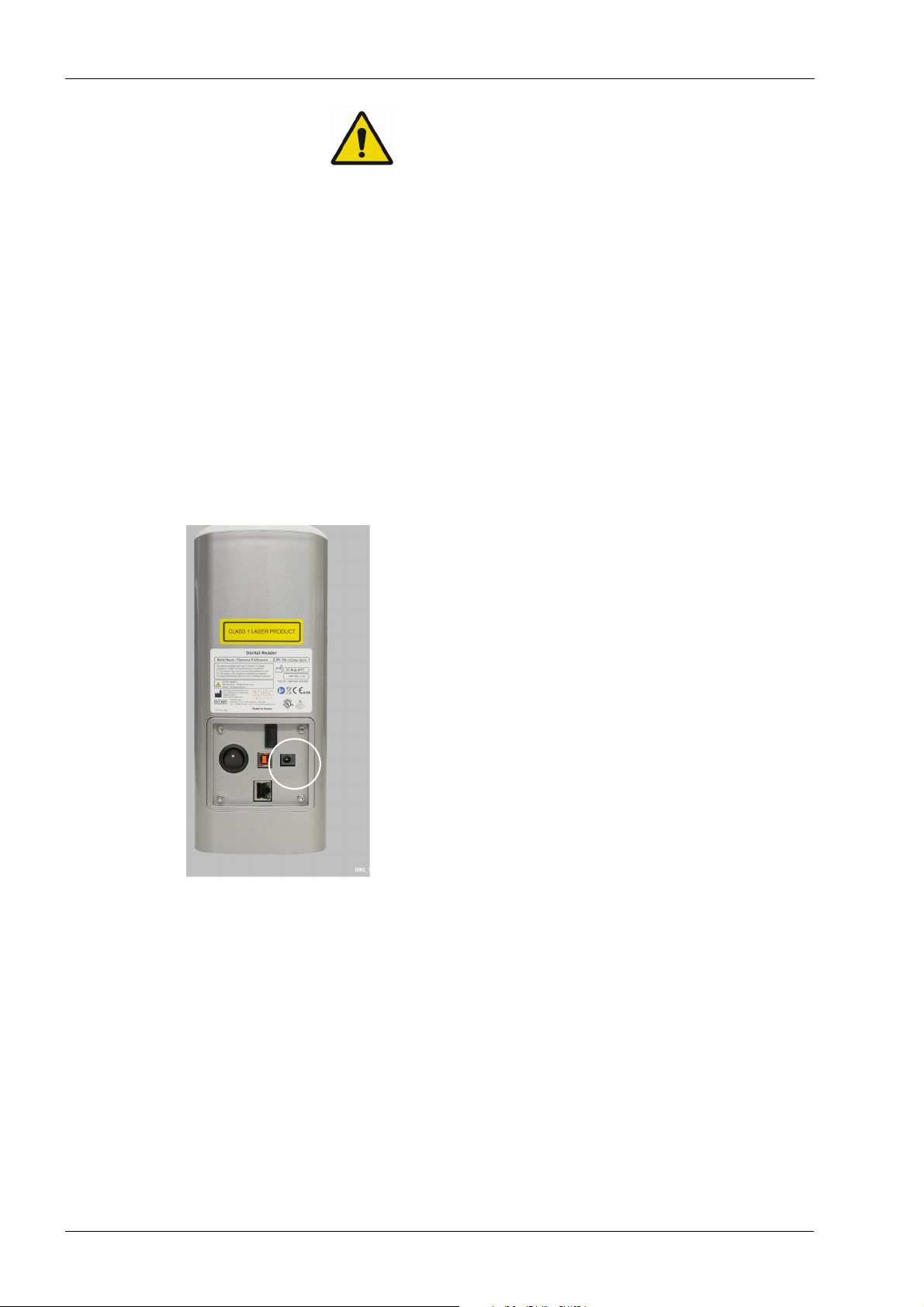

1. Connect the power cord to the back side of the
scanner.
2. Connect the other end of the cord to a grounded
power outlet.
22 Planmeca ProScanner User’s & installation manual
9 SYSTEM SETUP
NOTE
CAUTION
.
USB
connector
Ethernet port

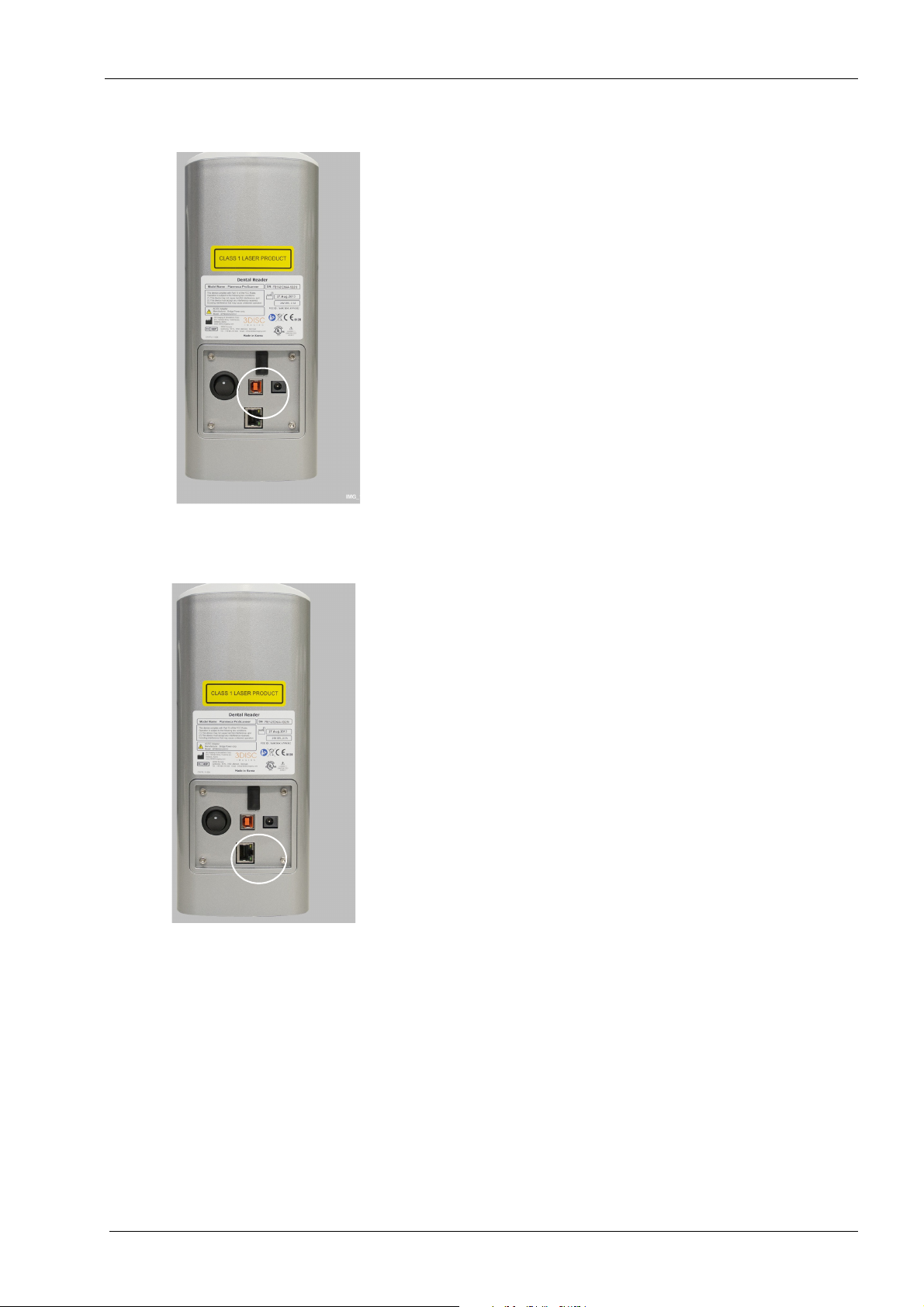

9.4.2 USB interface cable
The scanner interfaces with computer via USB
2.0 cable.
Use the USB cable delivered with Planmeca
ProScanner.
Use only devices meeting the requirements
of IEC60950-1 or IEC60601-1 when connecting to the Planmeca ProScanner via
USB port.
1. Connect the USB cable to the scanner’s USB
port.
2. Connect the other end of the cable to the USB
2.0 port on the computer.
9.4.3 Ethernet cable
The scanner interfaces with computer via
Ethernet cable (RJ45 CAT.5E FTP).
1. Connect the cable to the scanner’s Ethernet
port.
2. Connect the other end of the cable to the
Ethernet port of the Ethernet-hub or directly to
your computer.
To connect to PC directly, use the supplied
crossed type cable.

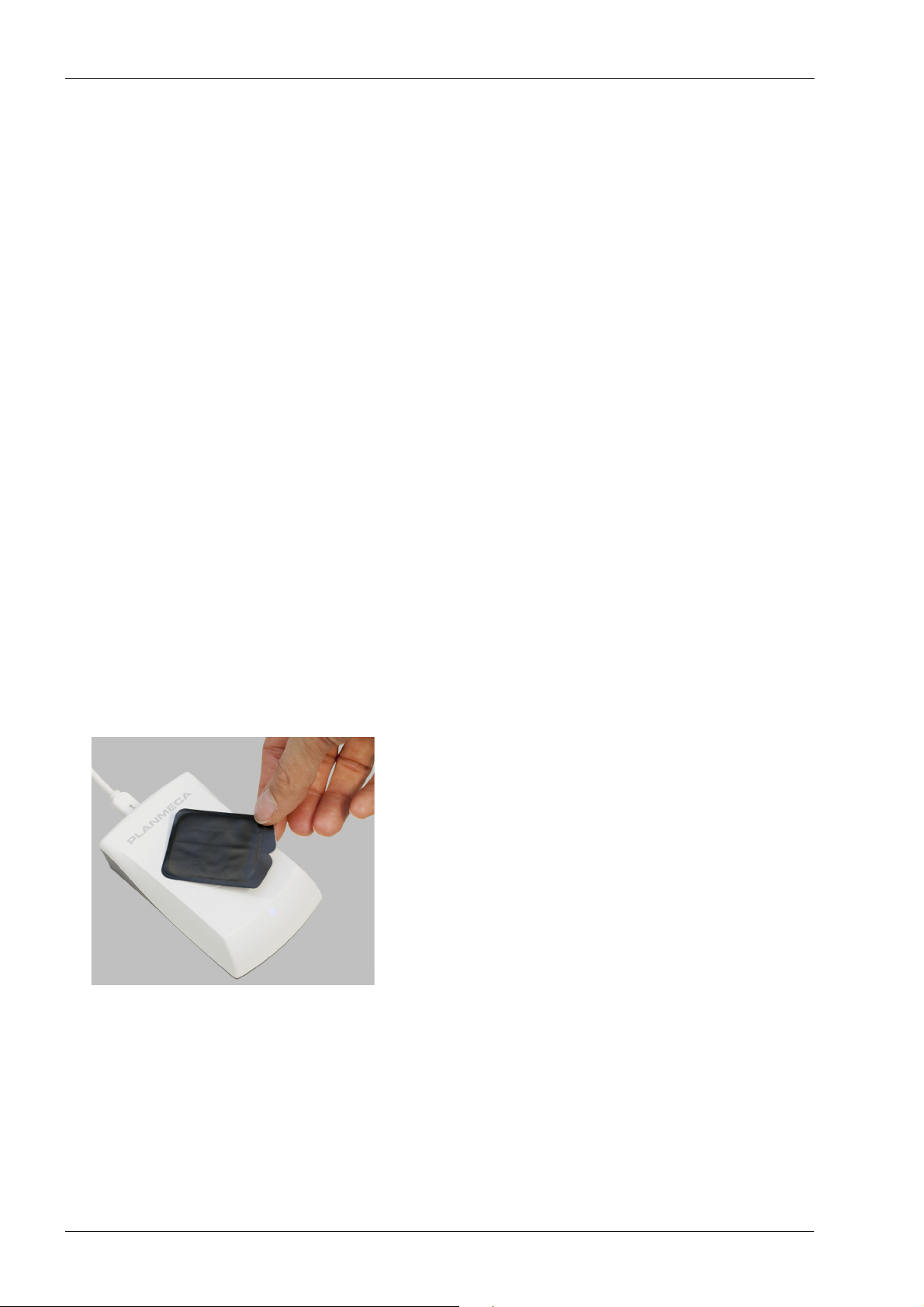

9.4.4 Planmeca ProID RFID reader cable
The reader interfaces with computer via mini
USB cable.
User’s & installation manual Planmeca ProScanner 23
1. Connect the other end of the cable to the
reader’s USB port.
2. Connect the other end of the cable to the USB
port on the computer.
9 SYSTEM SETUP
WARNING
9.5 Switching on the scanner
When the system has been properly connected
the system can be switched on.

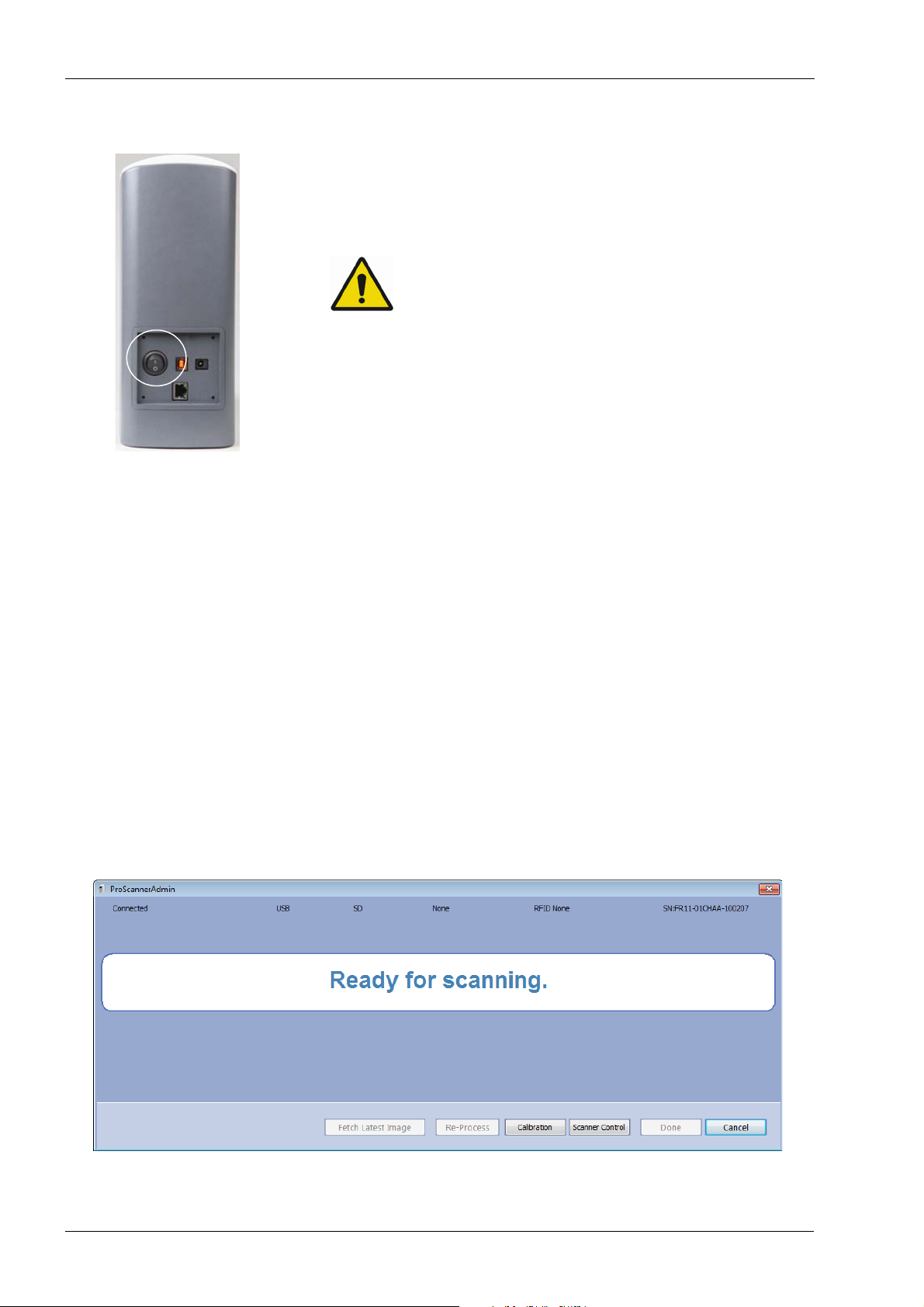

To switch on the scanner press the On/Off
switch on the back side of the scanner.
This device uses laser. Avoid looking inside
the scanner.
9.6 Installing calibration files
The calibration file of each used scanner must
be installed before use. The calibration files are
stored inside the scanner and may be retrieved
using ProScannerAdmin.exe.
1. To retrieve the calibration files, connect the
scanner using USB connection (see section 8.1
“USB or direct 1-to-1 Ethernet” on page 13).
2. Make sure Planmeca ProID is
not
connected to
the PC.
3. Browse to Planmeca Romexis
Client
installation
folder on your computer.
4. Start ProScannerAdmin.exe by double-clicking
the file.
If calibration file is not found on the computer,
the following window opens.
24 Planmeca ProScanner User’s & installation manual
9 SYSTEM SETUP
NOTE

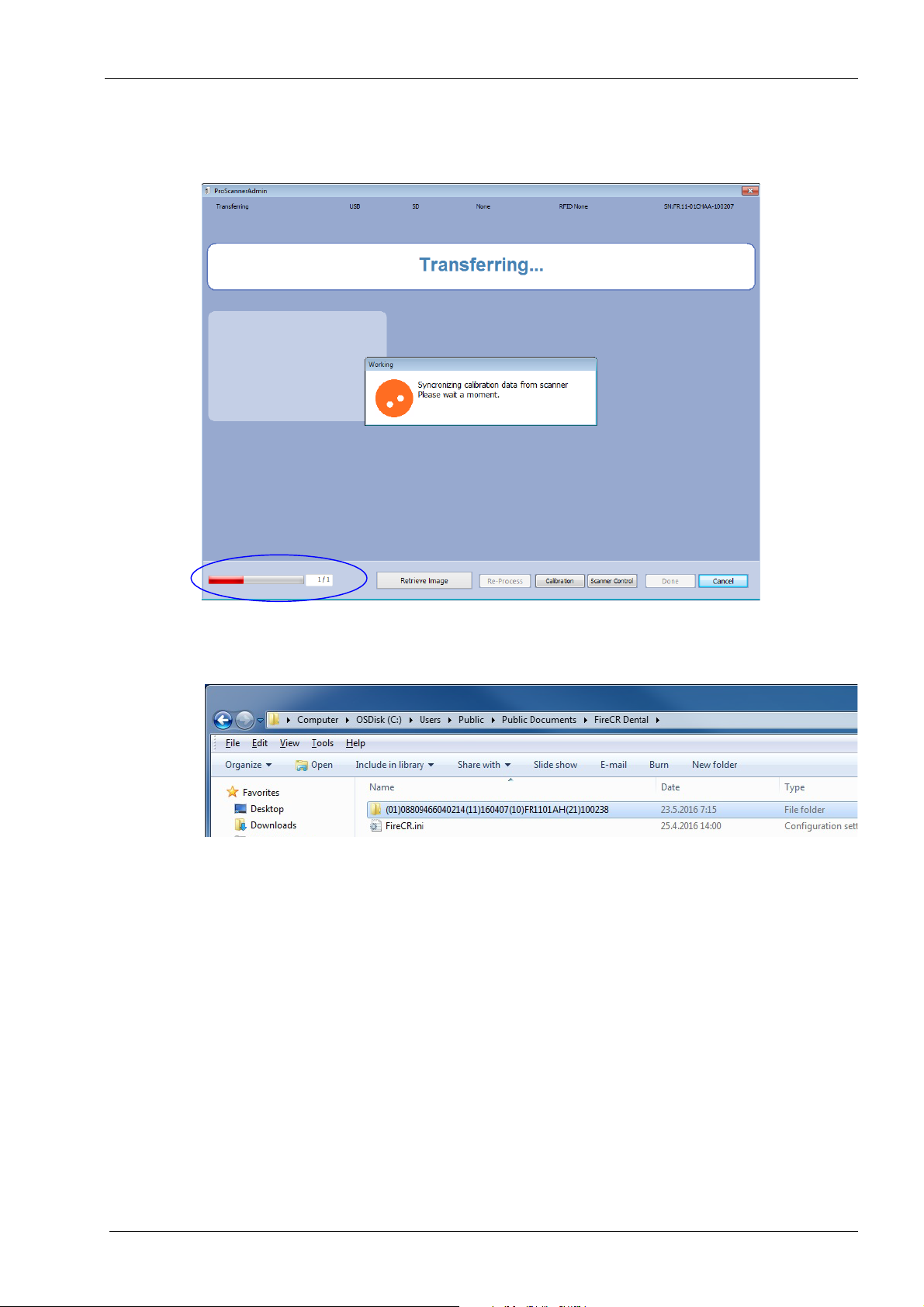

The calibration files are automatically
downloaded. The bar in the lower left corner
shows the download progress.
The calibration files are downloaded to
C:\Users\Public\Public Documents\FireCR
Dental
Seen in Windows Explorer window as
.
C:\Users\Public\Documents\FireCR Dental
The calibration file folder is named according to
the serial number of the scanner. Inside each
folder is located the calibration file named
Section.dat.

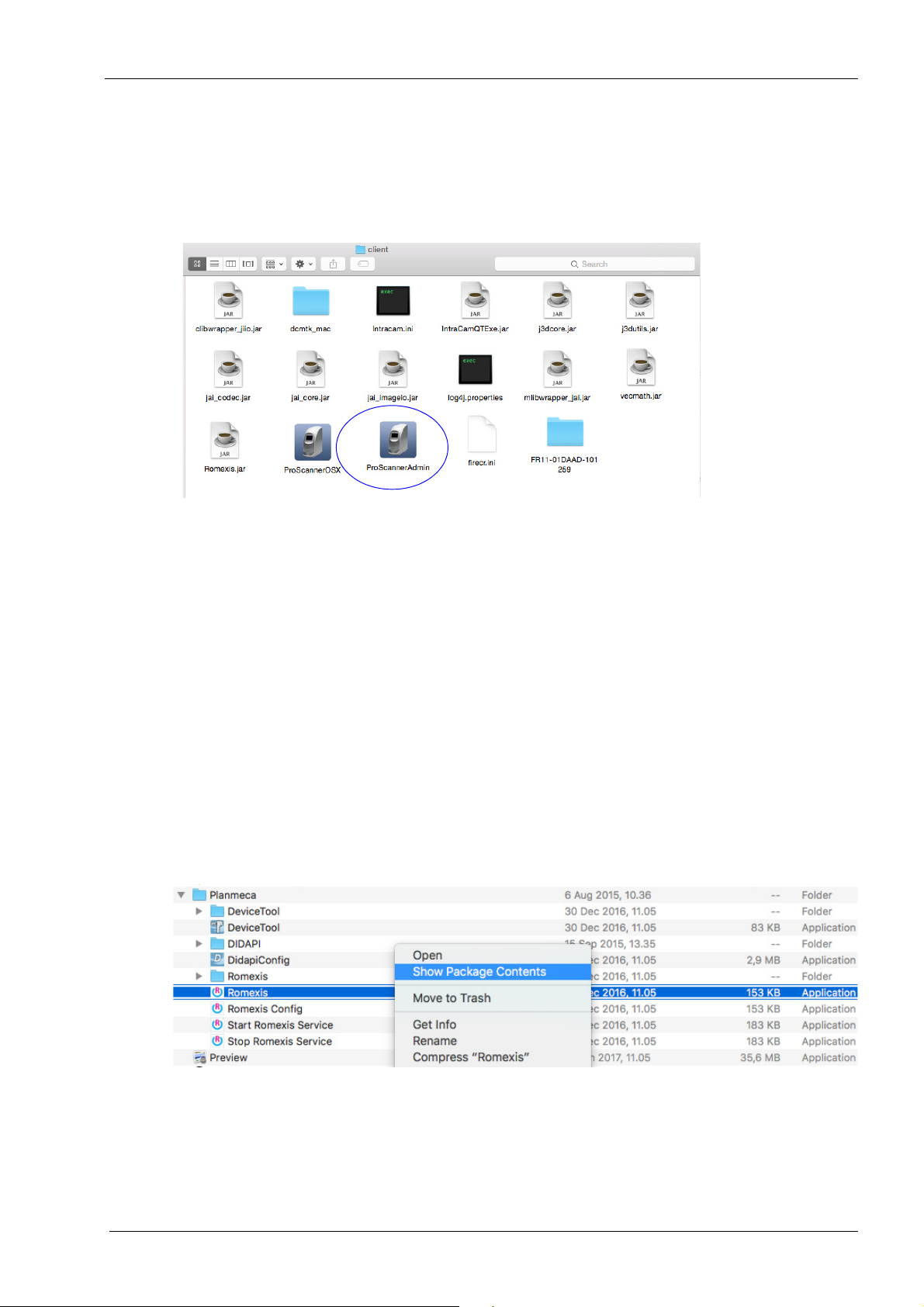

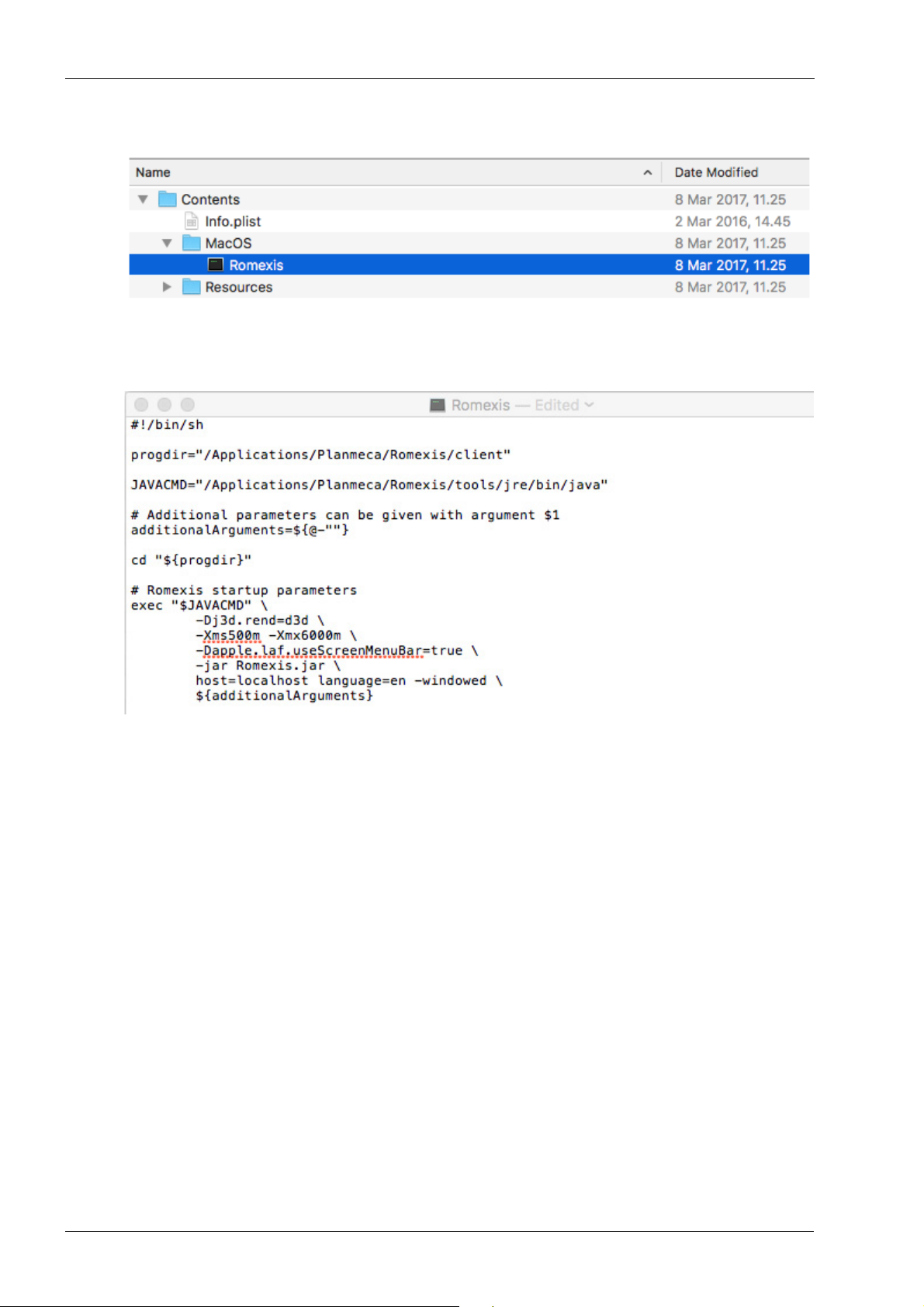

On how install calibration files for Mac OS see
instructions in Appendix B.4 "Installing
calibration files" on page 55.
5. When using shared scanners, repeat the same
procedure with all used scanners and copy all
calibration file folders to all client computers.
As a safety precaution, it is suggested that a
backup of the files is created.
User’s & installation manual Planmeca ProScanner 25
9 SYSTEM SETUP
NOTE
9.7 Connecting scanner to network

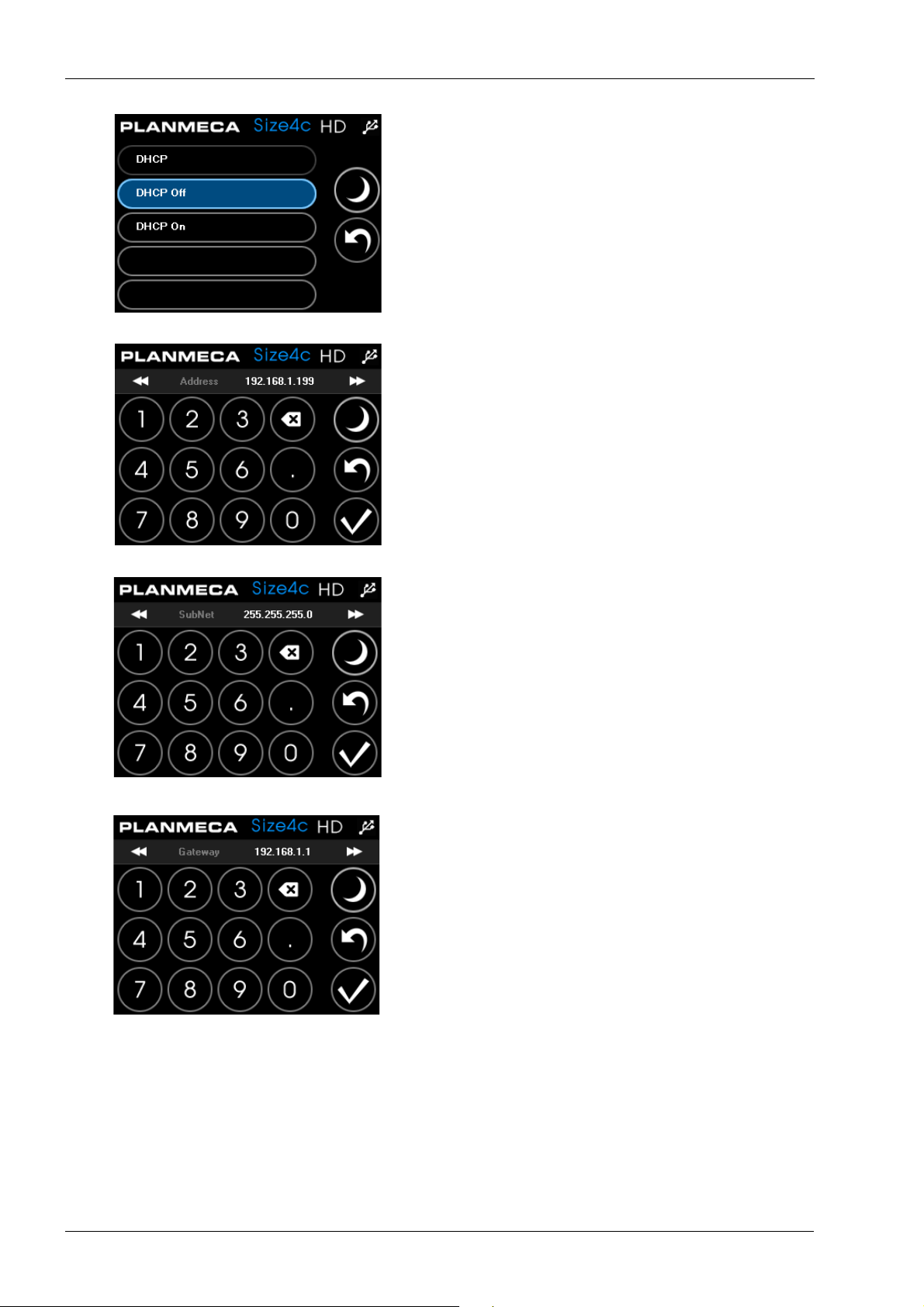

9.7.1 IP-address configuration on the scanner
When Ethernet connection is used, the network
9.7.2 IP-address configuration on PC
1-to-1 ETH mode
settings must be defined in the
before use.
For more information refer to section 10.2.5
“Settings” on page 32.
When several scanners are installed to the
same network in 1-to-1 Ethernet mode, the IPaddress of the used scanner must be defined
separately on each client computer. The IPaddress must be entered manually in the

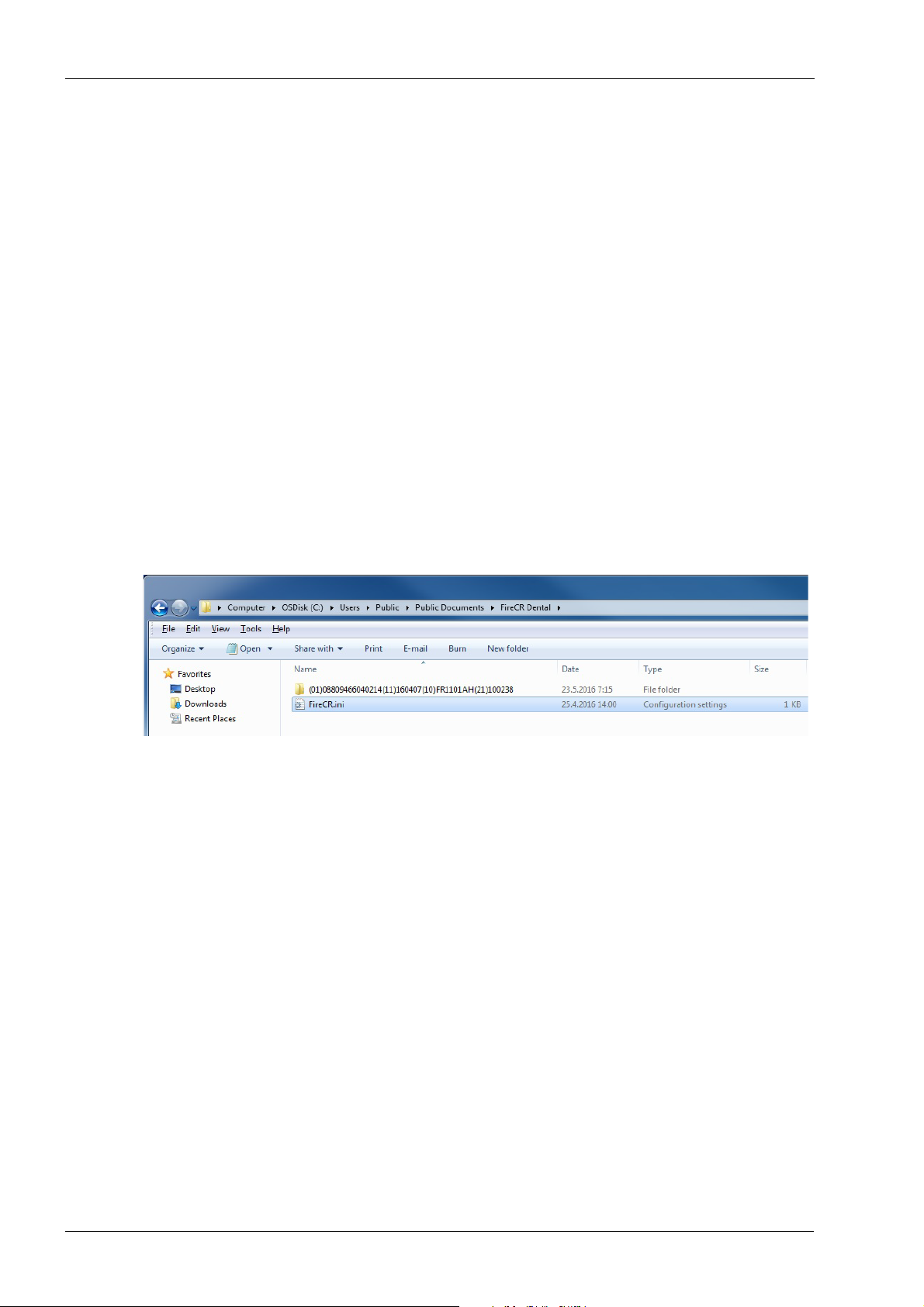

firecr.ini file under
C:\Users\Public\Public
Documents\FireCR Dental
.
Settings
menu
Seen in Windows Explorer window as
C:\Users\Public\Documents\FireCR Dental
Firecr.ini is created the first time the scanner is
connected to the PC. If necessary the fireri.ini file
can be created by starting the
ProScannerAdmin.exe.
By default the CONNECTION parameter is set
to AUTO in which case the HOST parameter is
not used. The IP-address of the scanner is
automatically detected.
//-----------------------------FireCR.ini-------------------
[SCANNER]
CONNECTION=AUTO
[NETWORK]
HOST=0.0.0.0
//--------------------------------------------------------------
26 Planmeca ProScanner User’s & installation manual
9 SYSTEM SETUP
NOTE
NOTE
NOTE
To set the IP-address manually, change the
CONNECTION parameter to MANUAL and fill in
the IP-address of the scanner to HOST
parameter.
//-----------------------------FireCR.ini-------------------
[SCANNER]
CONNECTION=MANUAL
[NETWORK]
HOST=192.168.1.134
//--------------------------------------------------------------
The configuration is not necessary if only one
scanner is used in the same network.
When configuring the IP-address manually, the
scanner DHCP mode must NOT be used.
N-to-N mode
When using N-to-N mode, it is not necessary to
configure the FireCR.ini file as the
CONNECTION parameter is by default set to
AUTO. The CONNECTION parameter cannot
be set to MANUAL in N-to-N mode.
However, make sure the Planmeca ProID
reader is attached to the PC before attempting
to connect from PC to the scanner in N-to-N
mode. If the reader is not connected, the
scanner will be connected in 1-to-1 ETH mode.
The device must be rebooted whenever the
mode is changed ie. if the scanner has been
used in 1-to-1 mode, a reboot is needed to
connect in N-to-N mode.
User’s & installation manual Planmeca ProScanner 27
10 MAIN PARTS

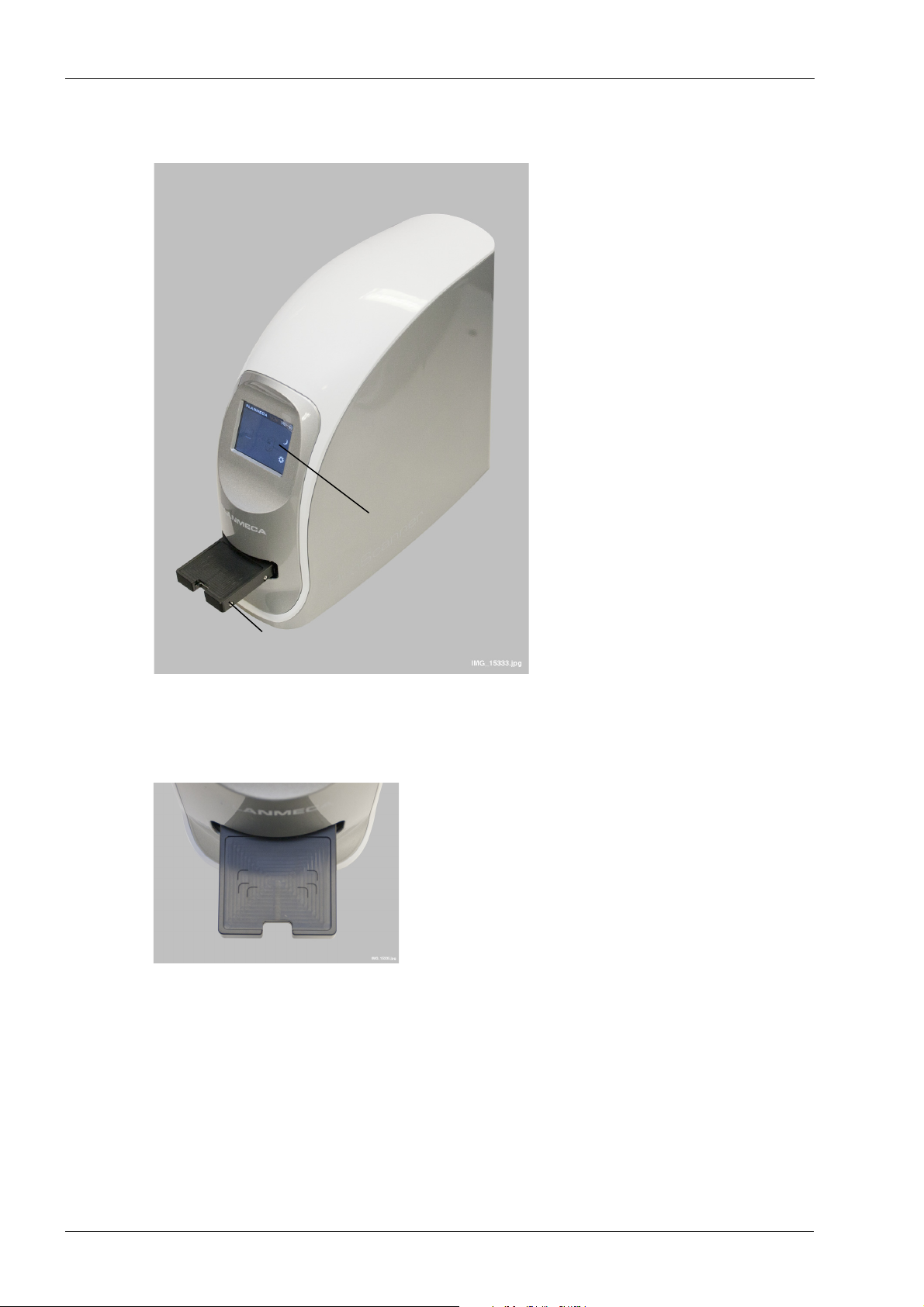

Touch panel
Tray
display
10 MAIN PARTS
10.1 Tray

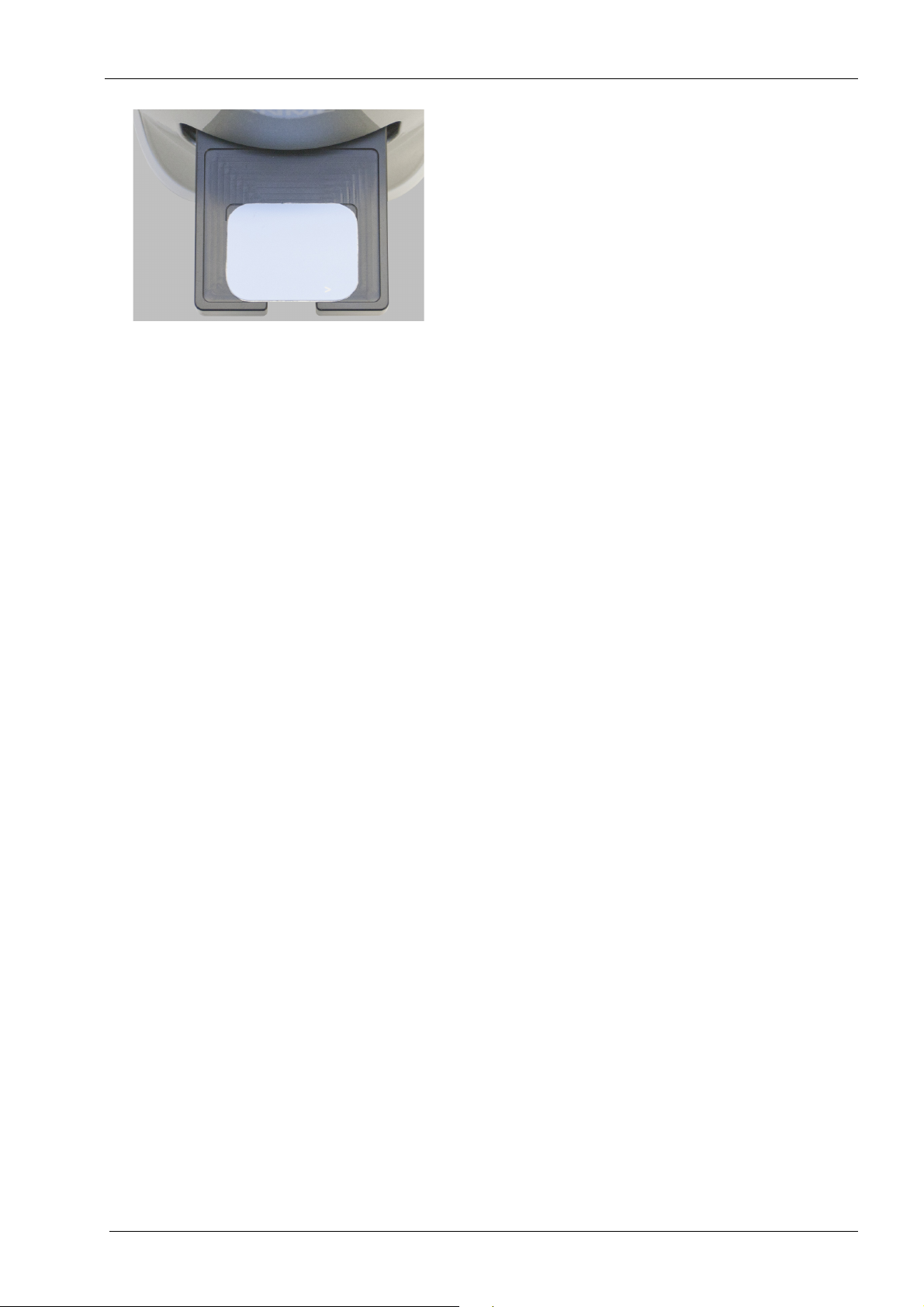

The tray is intended for placing imaging plates.
To start scanning, the tray is inserted into the
scanner manually.
The outlines on the tray indicate the correct
placement for imaging plates of different sizes.
28 Planmeca ProScanner User’s & installation manual
10 MAIN PARTS
10.2 Touch panel display
The touch panel display indicates the status of
the Planmeca ProScanner and is used to adjust
the settings of the scanner.

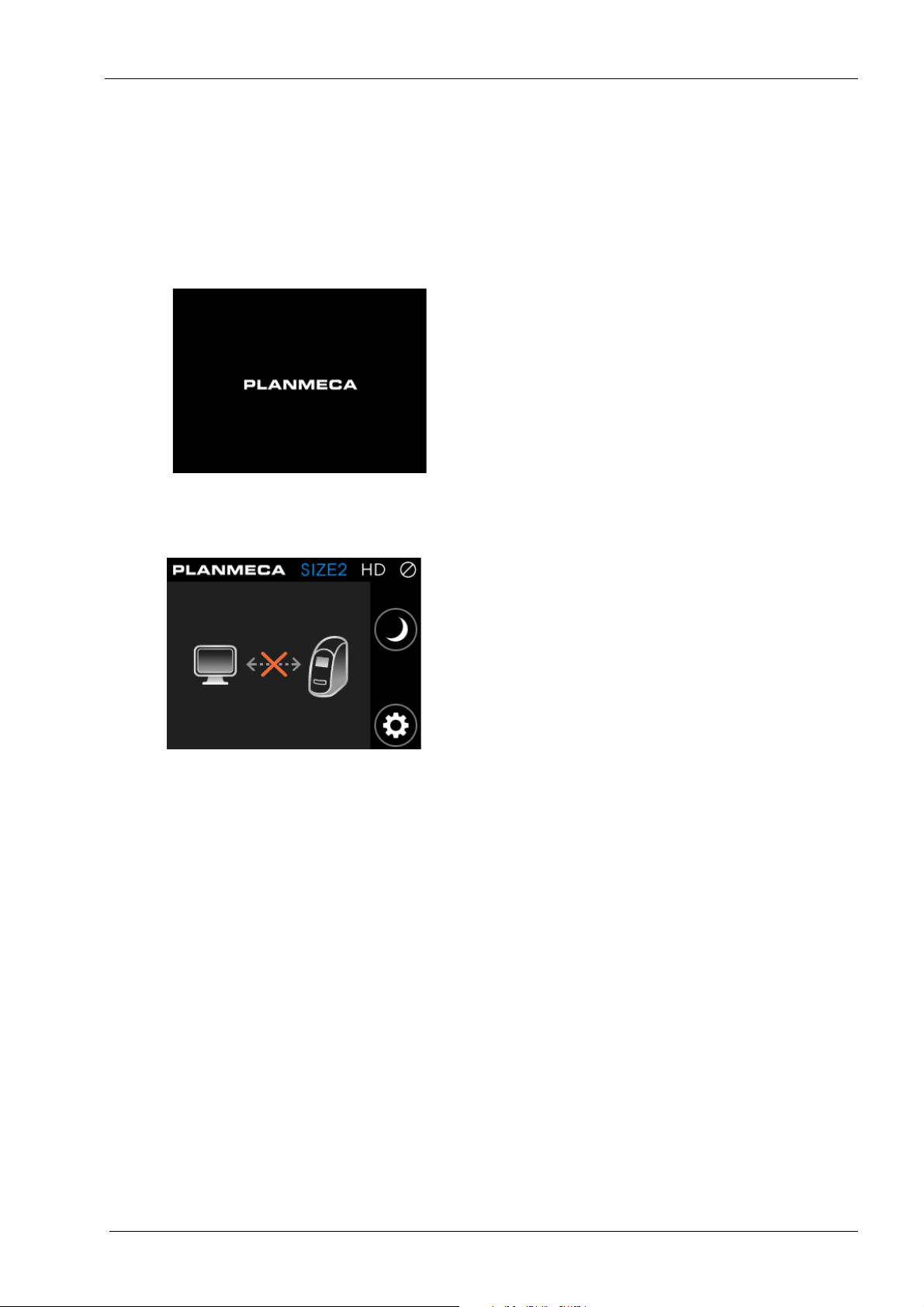

10.2.1 Initialization (booting screen)
The booting screen is displayed during system
initialization after the scanner is switched on.
10.2.2 Main window
The main window communicates the status of
the system and guides the user.
This screen is displayed when the scanner has
booted and is awaiting connection to Planmeca
Romexis.
• To activate a stand-alone scanner, open the
Planmeca Romexis ProScanner image
capturing window.
• To activate a shared scanner open the
Planmeca Romexis ProScanner image
capturing window and read an imaging plate
with Planmeca ProID reader.
When the scanner has been activated, the
scanning mode is displayed (see section
10.2.4 “Scanning” on page 31).
If the scanning mode cannot be activated,
check the cabling and network settings.
User’s & installation manual Planmeca ProScanner 29
10 MAIN PARTS

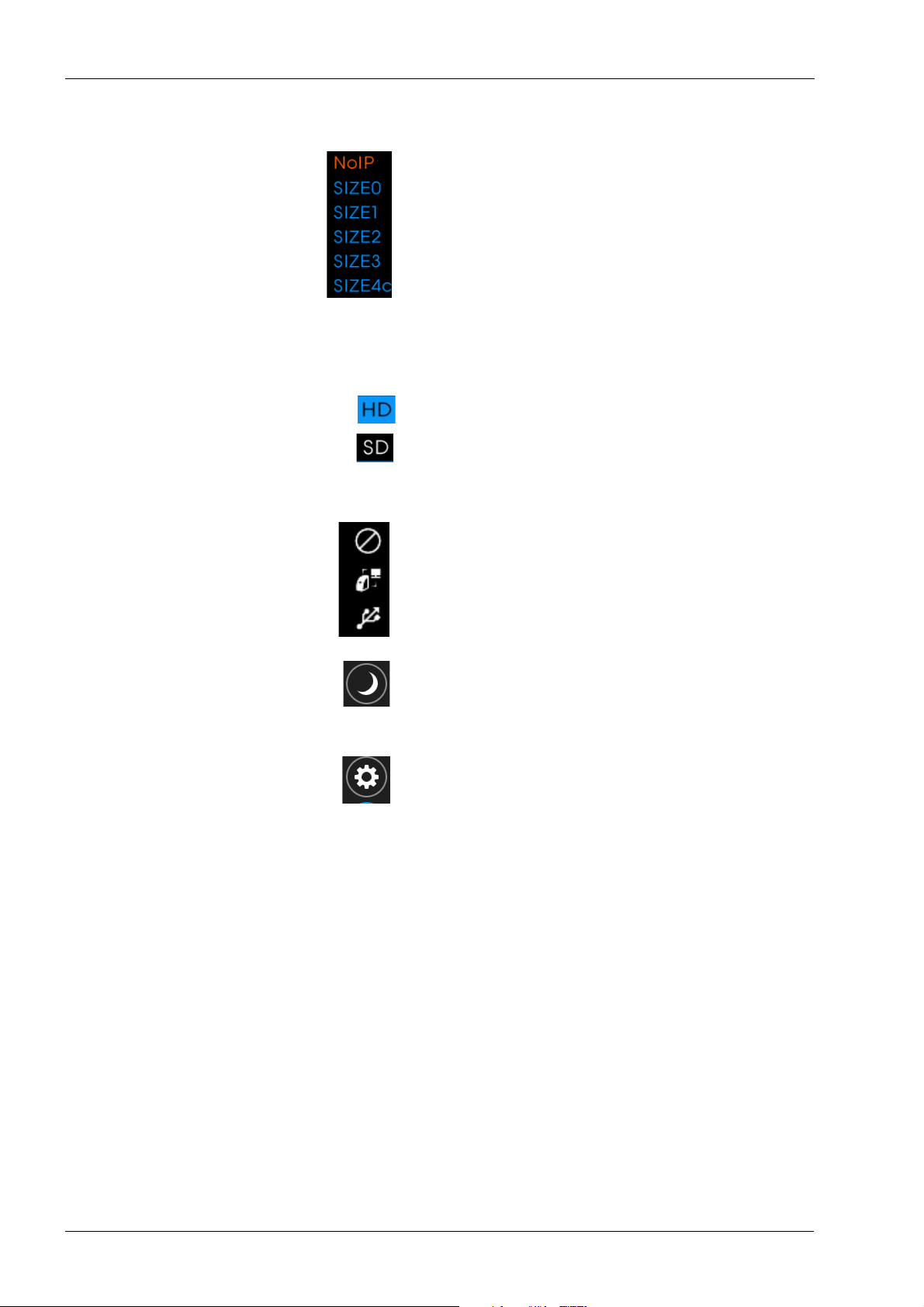

Display symbols
Imaging plate (size)
NOIP (no imaging plate on the tray),
Size0, Size1, Size2, Size3, Size4c
Resolution
Temporarily toggles when it is touched.
Permanent changes can be made at the
Settings
HD (High resolution)
SD (Standard resolution)
Connection status
menu.
No connection
Network connection
USB connection
Sleep button
See section 10.2.3 “Sleep mode” on page 31.
Settings button
See section 10.2.5 "Settings" on page 32.
30 Planmeca ProScanner User’s & installation manual
10 MAIN PARTS
10.2.3 Sleep mode
When the Sleep mode button is pressed the
scanner goes to sleeping (power saving) mode.
The imaging plate tray moves back inside the
scanner and the hatch closes.

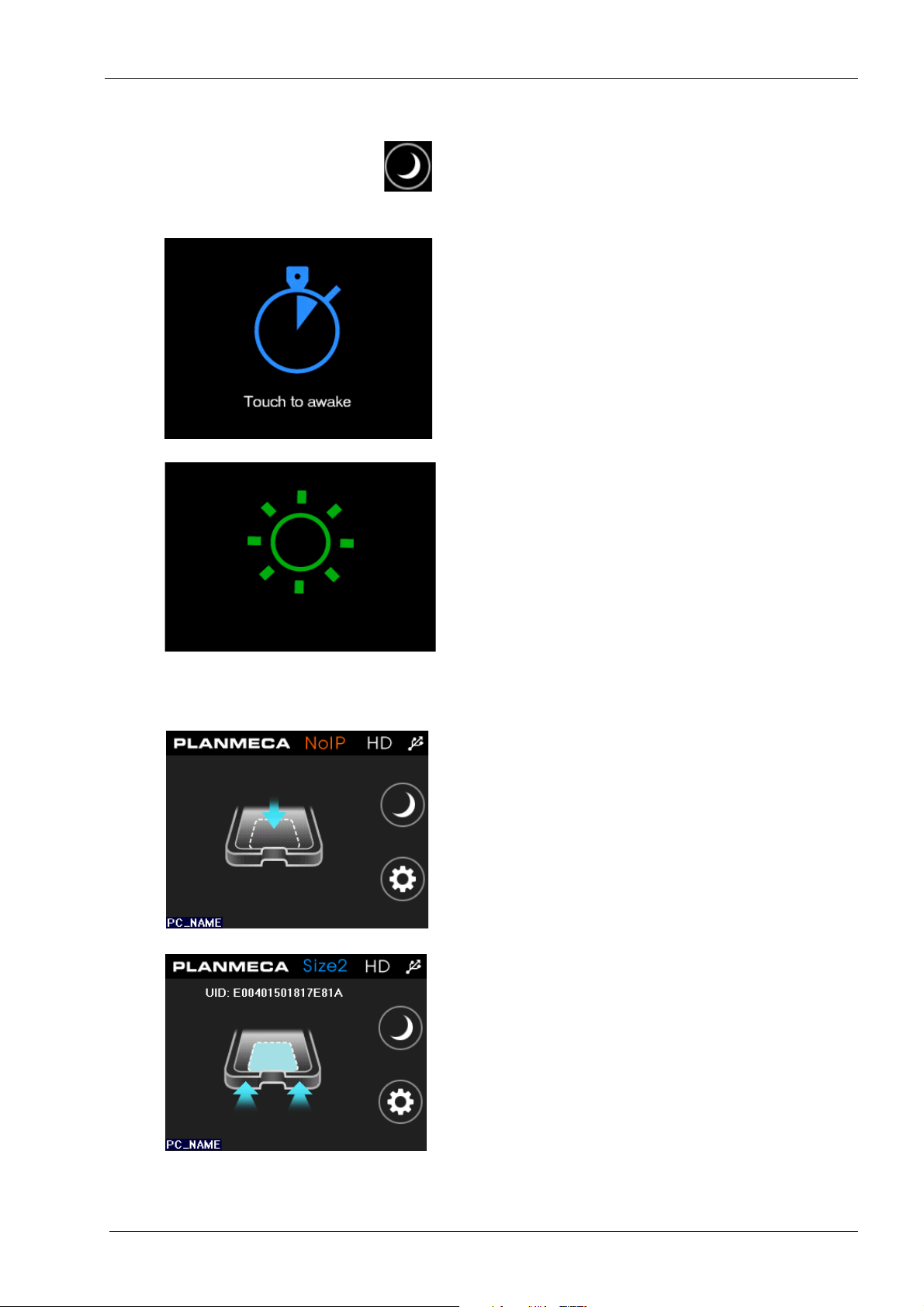

To awake the scanner and to return to the
normal operating mode simply touch the screen.
As the scanner awakes the tray ejects and the
following screen appears.
Once awake, the status of the scanner changes
to operating mode.
10.2.4 Scanning
The sleep mode can also be set to activate
automatically if the device has not been used for
a certain period of time. For more information,
see section “Auto sleep” on page 33.

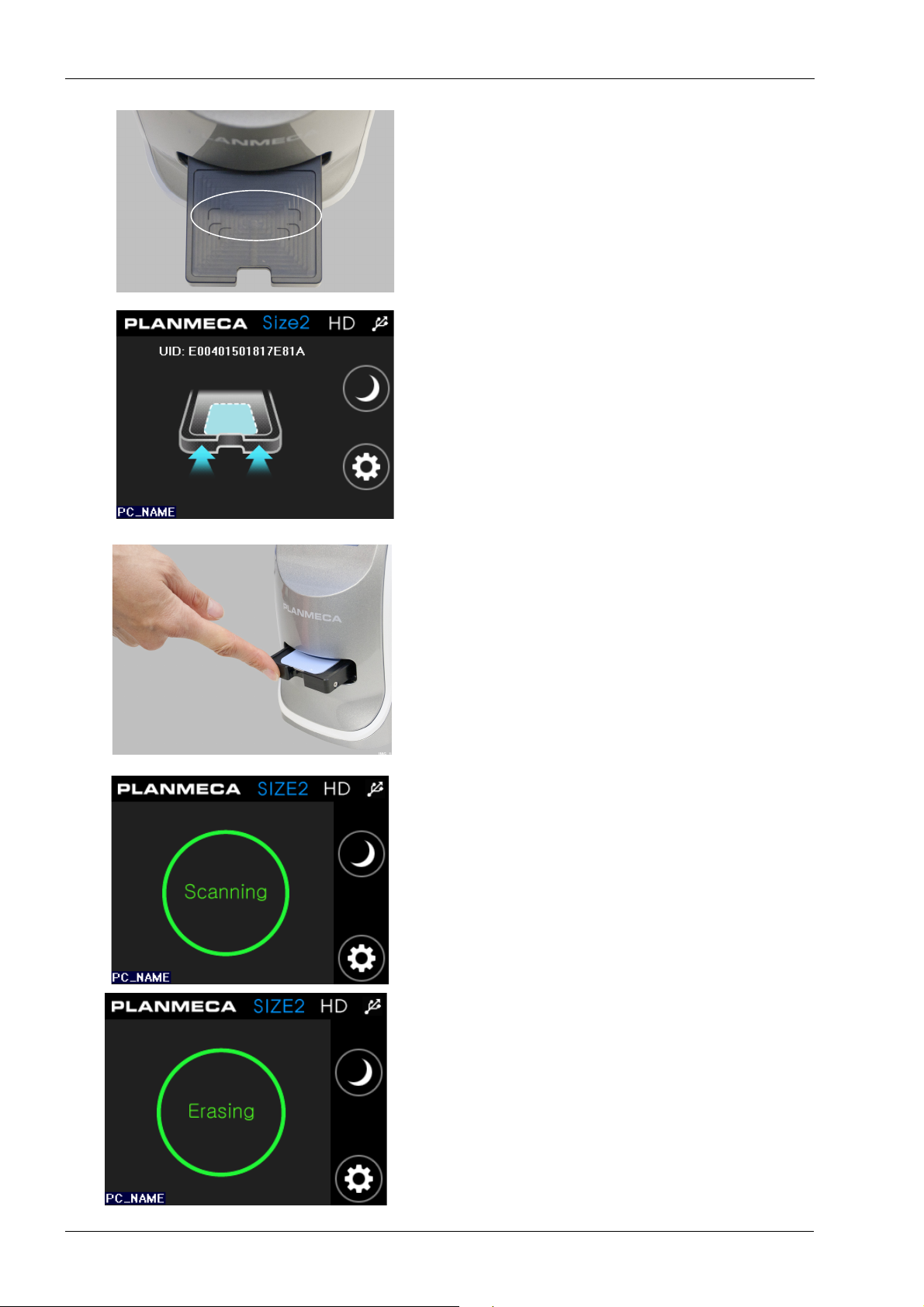

Scanner activated
The scanner is ready for scan, but there is no
imaging plate on the tray (NoIP). The name of
the currently connected computer appears on
the lower left corner of the screen.

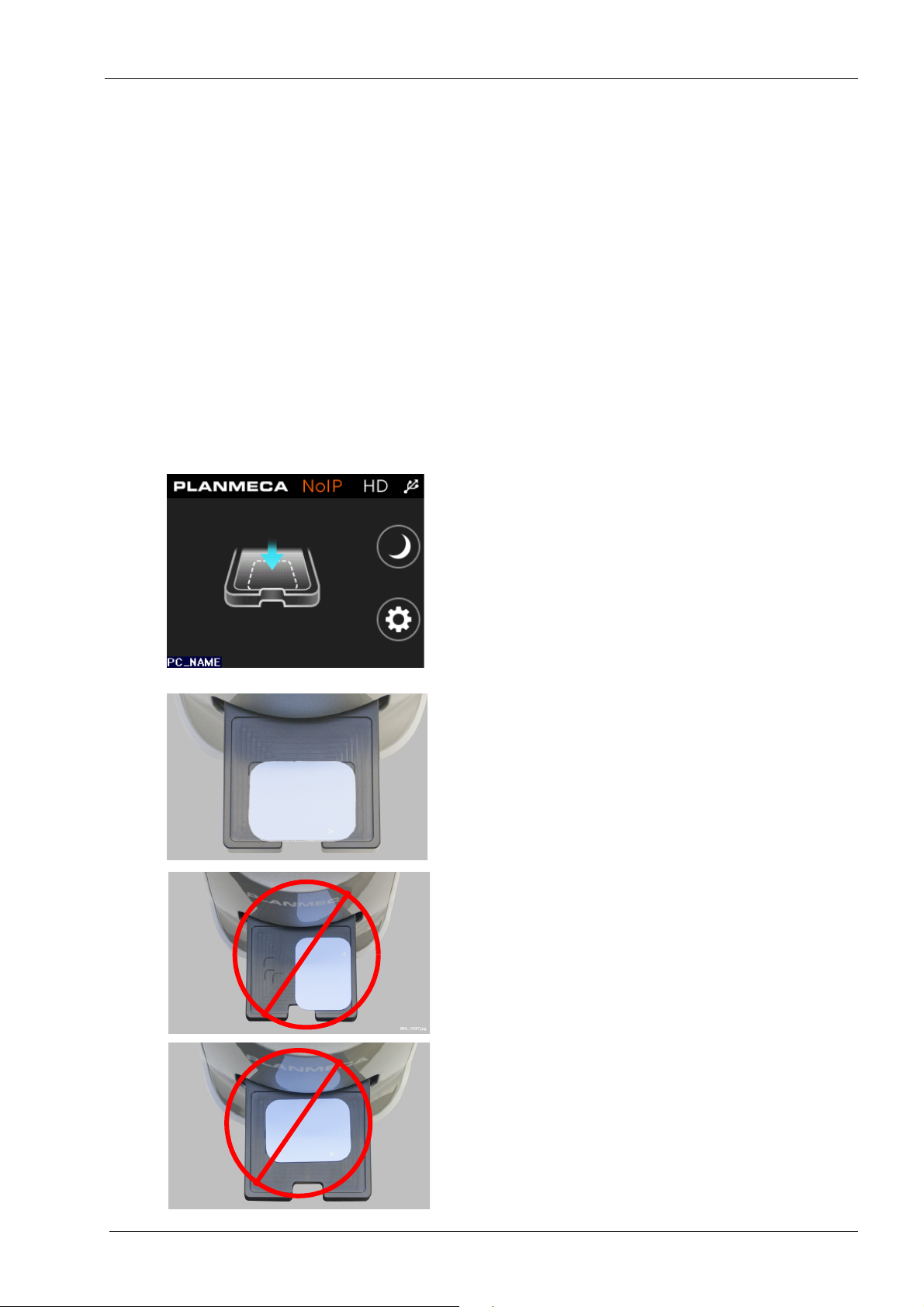

Ready for scan
The imaging plate size is recognized and the
scanner is ready for scan.
The imaging plate size is shown on top when
the plate is recognized. To start scanning insert
the tray.
The UID code is the image plate specific serial
number. The code is saved to the
properties
together with the image.
User’s & installation manual Planmeca ProScanner 31
window in Planmeca Romexis
10 MAIN PARTS

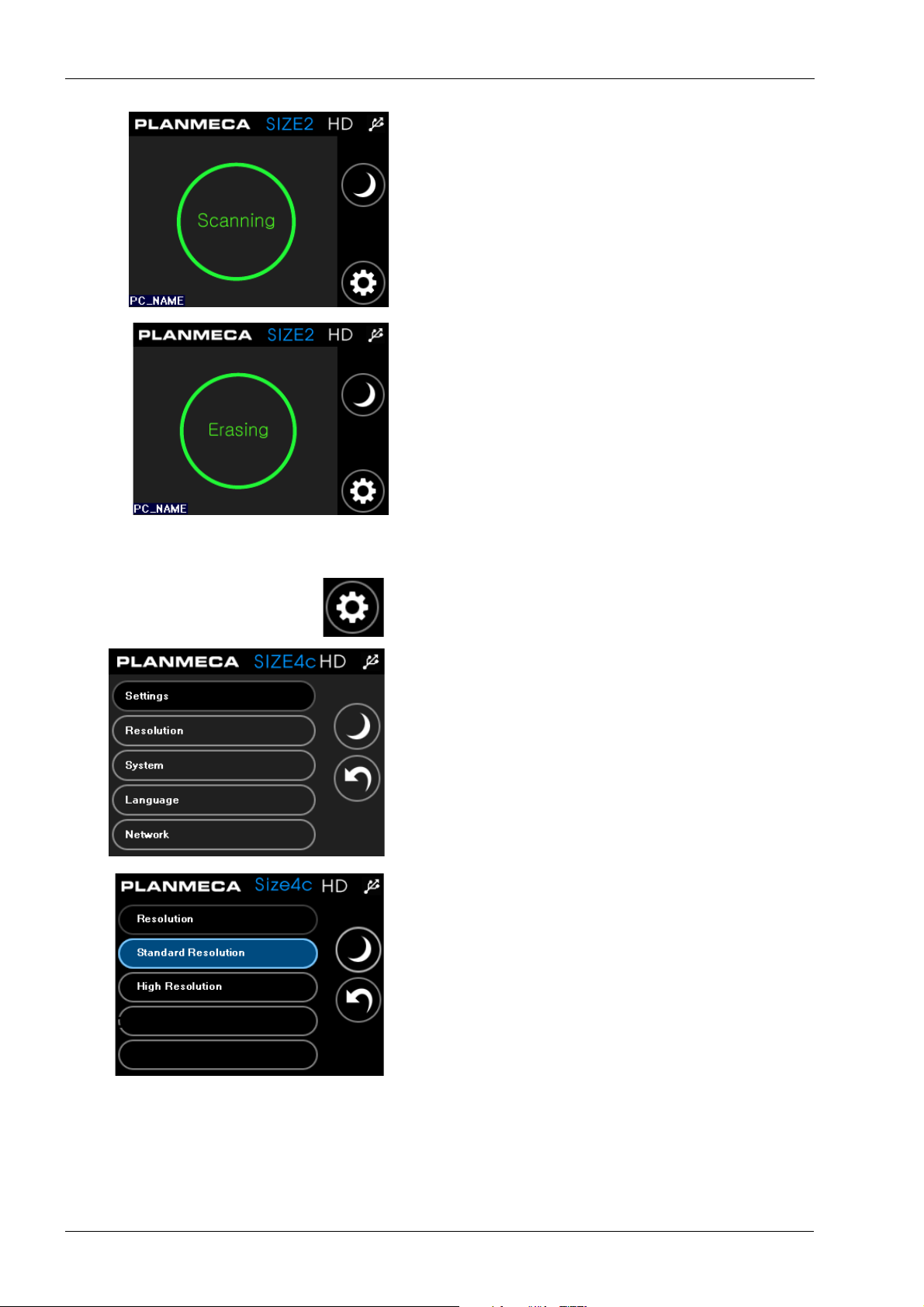

Scanning
Scanning in progress.
Erasing
Erasing in progress.
The imaging plate is automatically erased after
each scan.
10.2.5 Settings
To access the
In the
and adjust the system, language and network
settings.

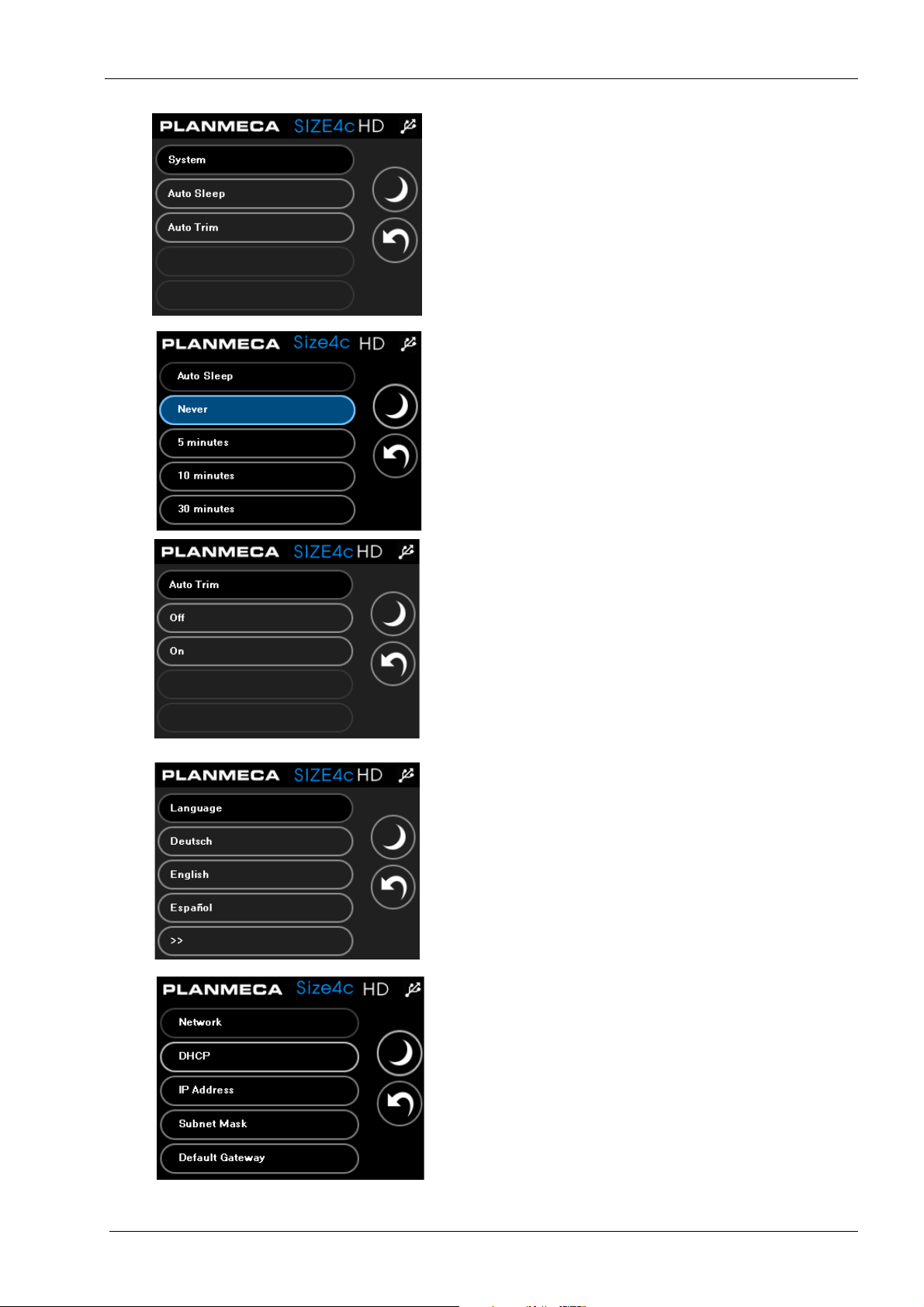

Resolution
Choose scanning resolution between standard
(SD) and high resolution (HD).
Settings
Settings
menu you can set the resolution
menu touch this button.
32 Planmeca ProScanner User’s & installation manual
10 MAIN PARTS
System
In the
System
menu you can set the auto sleep
and auto trim mode.
Auto sleep
In the auto sleep display you can set the period
of idle time after which the device goes into
sleep mode.
Select the setting by touching the appropriate
button.
Auto trim
The scanner scans an area slightly larger than
the imaging plate. With auto trim enabled, the
excess white area around the image will be
automatically removed.
Language
Click the
Language
menu to select the language
for the user interface.
Network
Network related settings.
User’s & installation manual Planmeca ProScanner 33
10 MAIN PARTS
DHCP mode
To search automatically the network settings
touch the DHCP on button.
For manual setting select DHCP Off and
proceed to IP address field to manually enter
the IP address.
When this setting is changed, the system will
restart automatically.
IP Address
From the
Network
menu select IP address.
Enter the IP address.
Save the new IP address by touching the check
mark button. The system will restart
automatically.
Subnet mask
From the
Network
menu select Subnet mask.
Enter subnet mask manually.
Save the new subnet mask by touching the
check mark button. The system will restart
automatically.
Default gateway
From the
Network
menu select Default
Gateway.
Enter gateway address manually.
Save the new gateway by touching the check
mark button. The system will restart
automatically.
34 Planmeca ProScanner User’s & installation manual
10 MAIN PARTS
10.2.6 System information

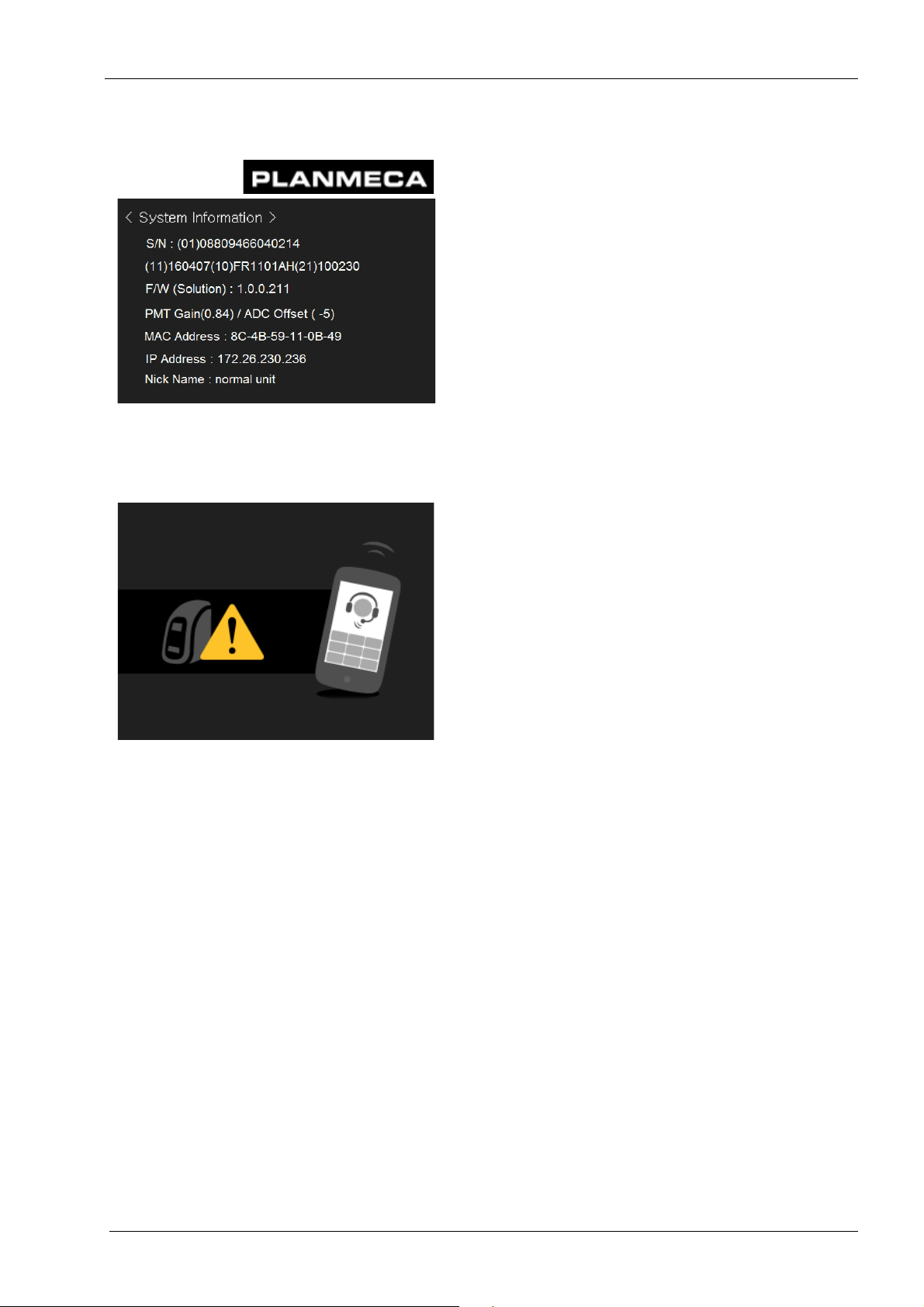

Clicking the Planmeca logo opens a window
displaying scanner related information.
10.2.7 System error
An unexpected system error occurred. Contact
technical support.
User’s & installation manual Planmeca ProScanner 35
11 CAPTURING IMAGES WITH PLANMECA PROSCANNER
NOTE
NOTE
11 CAPTURING IMAGES WITH PLANMECA
PROSCANNER
For detailed instructions on how to capture
ProScanner images see Planmeca Romexis
User’s manual (publication number 10014593)
12 READING IMAGING PLATES WITH PLANMECA
ProID READER
When the scanner is shared between several
treatment rooms the imaging plates must be
read in the treatment room with the Planmeca
ProID reader before scanning.
The Planmeca ProID reader identifies the serial
number of the plate. The serial number is used
to automatically route the images to the correct
patient file.
Select the patient and open the Planmeca
ProScanner imaging window in 2D module
before proceeding to reading.
1. Open the Planmeca ProScanner imaging
window in Planmeca Romexis 2D module.
2. Show the imaging plate to the Planmeca ProID
reader.
When the imaging plate serial number has been
recognized the serial number appears on the
Planmeca Romexis Imaging window (see
Planmeca Romexis 2D User’s Manual).
3. When all imaging plates have been read leave
the imaging window open and proceed to
exposing of the plates.
Never close the imaging window before all
images have been scanned.
4. Scan the plates as described in section 13
“SCANNING / ERASING IMAGING PLATES” on
page 37.
36 Planmeca ProScanner User’s & installation manual
13 SCANNING / ERASING IMAGING PLATES
NOTE
NOTE
13 SCANNING / ERASING IMAGING PLATES
The imaging plates must be removed from the
hygienic bag for scanning. To prevent the plates
from being exposed to light remove the plate
from the hygienic bag right before placing it onto
the tray. If there is a protective cover on the
imaging plate also remove the cover.
In shared use (N-to-N mode) images of one
patient cannot be scanned on different scanners
at the same time.
1. Open the Planmeca ProScanner imaging
window in Planmeca Romexis 2D module (if not
already open).

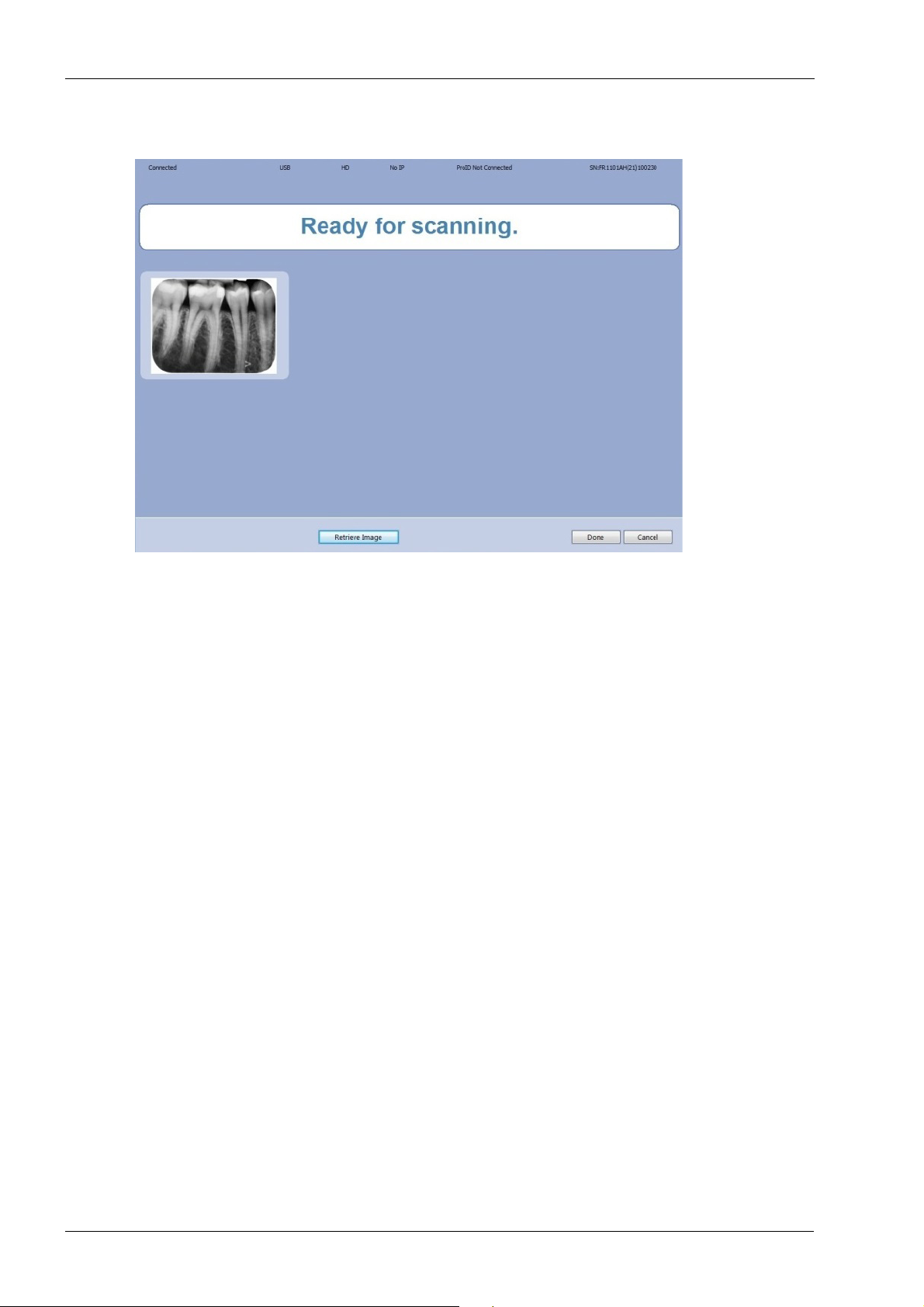

When the following screen appears the scanner
is ready for scanning and the imaging plate can
be placed on the tray.
2. Place the imaging plate towards the front and
centre of the tray with the active (blue) side up.

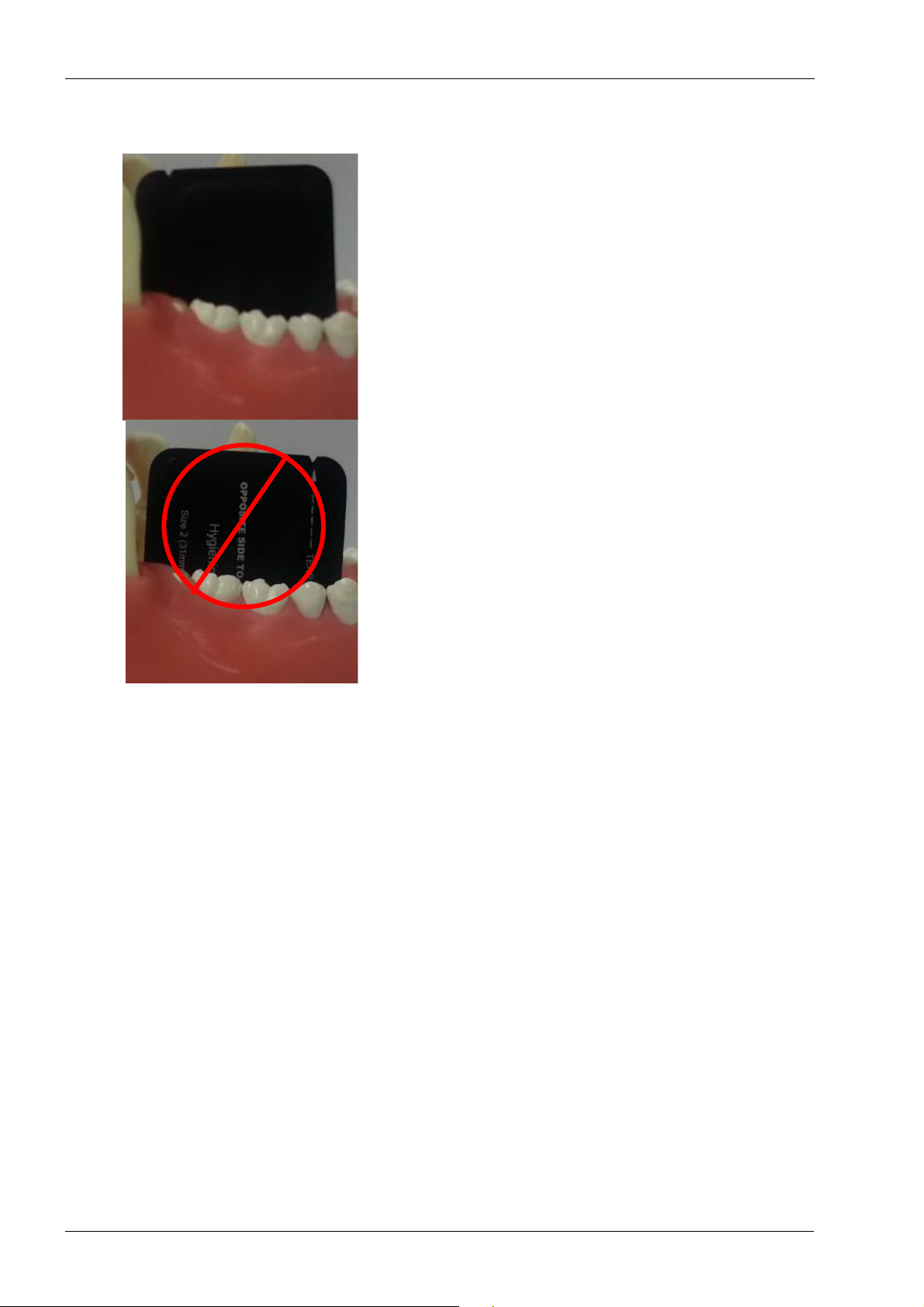

The following two images illustrate the
positioning of the imaging plates.
incorrect
User’s & installation manual Planmeca ProScanner 37
13 SCANNING / ERASING IMAGING PLATES
NOTE
NOTE
NOTE
The outlines for imaging plates of different sizes
are marked on the tray to help with correct
positioning.
Make sure the imaging plate is in correct position
and direction.
When the imaging plate has been placed on the
tray, the following window appears. The scanner
is now ready for scanning.
In shared use (N-to-N) once the imaging plate on
the tray is recognised and the UID code displays
you can no longer change the plate. Proceed
with scanning with the recognised plate.
3. Gently push the tray inside the scanner until the
interlock holds the tray.
If the tray cannot be inserted check that the
Planmeca Romexis imaging window is open and
that the plate has been read with Planmeca
ProID (when applicable)
4. When the tray is attached to the interlock
remove your hand from the opening.
The tray door closes and the scanning starts
automatically.
The scanner then automatically reads and
erases the plate and sends the image to
Planmeca Romexis.
38 Planmeca ProScanner User’s & installation manual
13 SCANNING / ERASING IMAGING PLATES
When scanning is completed the tray ejects and
a preview image appears on Planmeca
ProScanner touch panel display.
5. When the tray has ejected gently lift the plate off
of the tray.
When the plate has been removed, the preview
image will disappear from the ProScanner touch
panel display. Alternatively, the preview image
can be hidden by touching the screen when the
plate is still on the tray.
User’s & installation manual Planmeca ProScanner 39
14 RETRIEVING STORED IMAGES
NOTE
NOTE
NOTE
NOTE
14 RETRIEVING STORED IMAGES
The scanner is equipped with an SD card
capable of storing the scanned image to
memory. The images can be retrieved from the
scanner in the image capturing dialogue in
Planmeca Romexis. For more information, see
Planmeca Romexis 2D Imaging User’s manual.
Retrieving the images is not possible in N-to-N
Ethernet mode i.e. when using ProScanner with
Planmeca ProID reader. If the image must be
retrieved when the scanner is connected using
1-to-1 Ethernet or USB mode.
N-to-N Ethernet mode and 1-to-1 Ethernet mode
cannot be used in the same network at the same
time.
Make sure that the retrieved image belongs to
the selected patient.
To retrieve images from Planmeca ProScanner
1. Connect the PlanmecaProScanner with USB or
with 1-to-1 connection to Planmeca Romexis
workstation.
Retrieving images is not possible in N-to-N mode

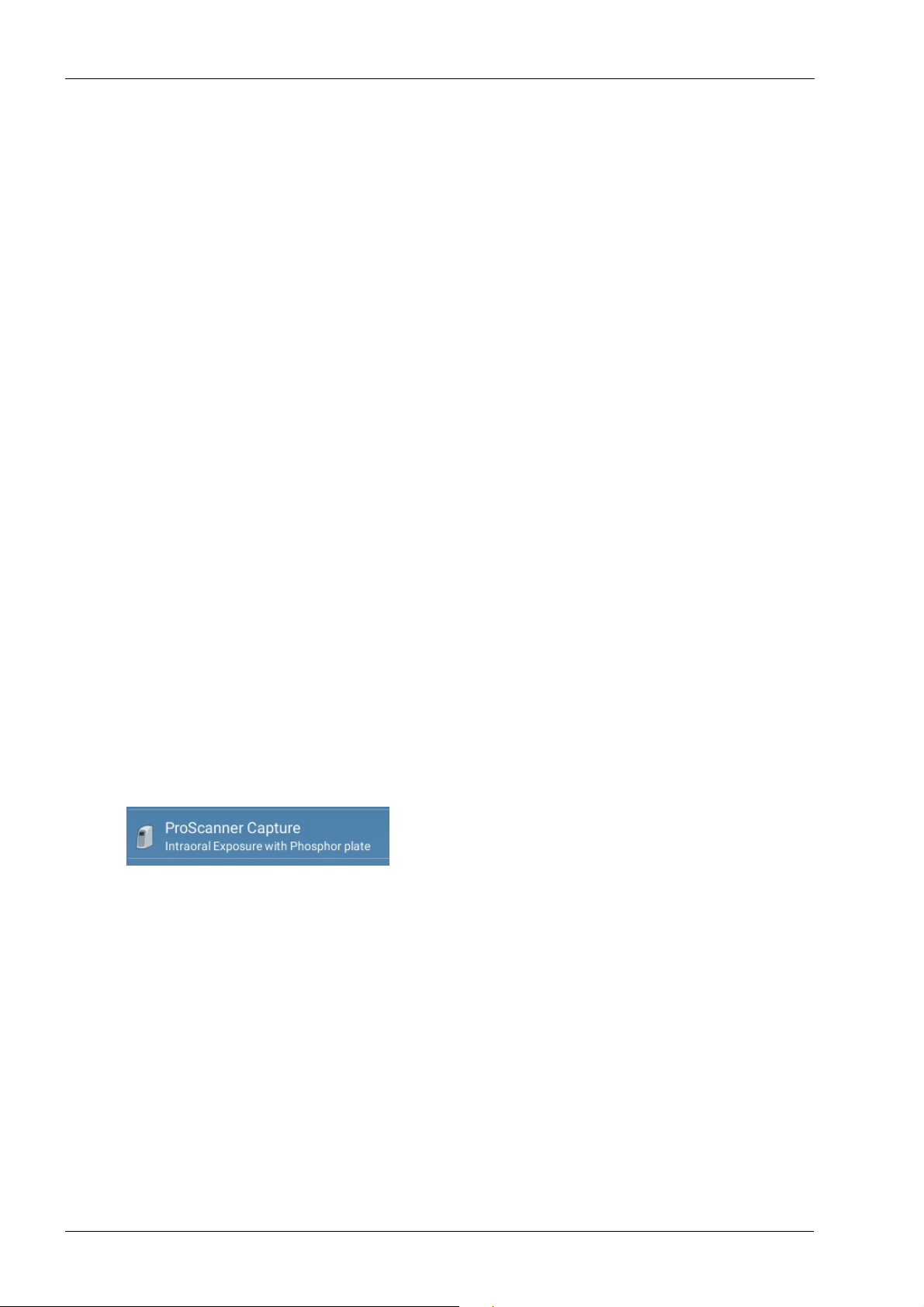

2. In Planmeca Romexis 2D imaging module
select ProScanner Capture.
40 Planmeca ProScanner User’s & installation manual
14 RETRIEVING STORED IMAGES
NOTE

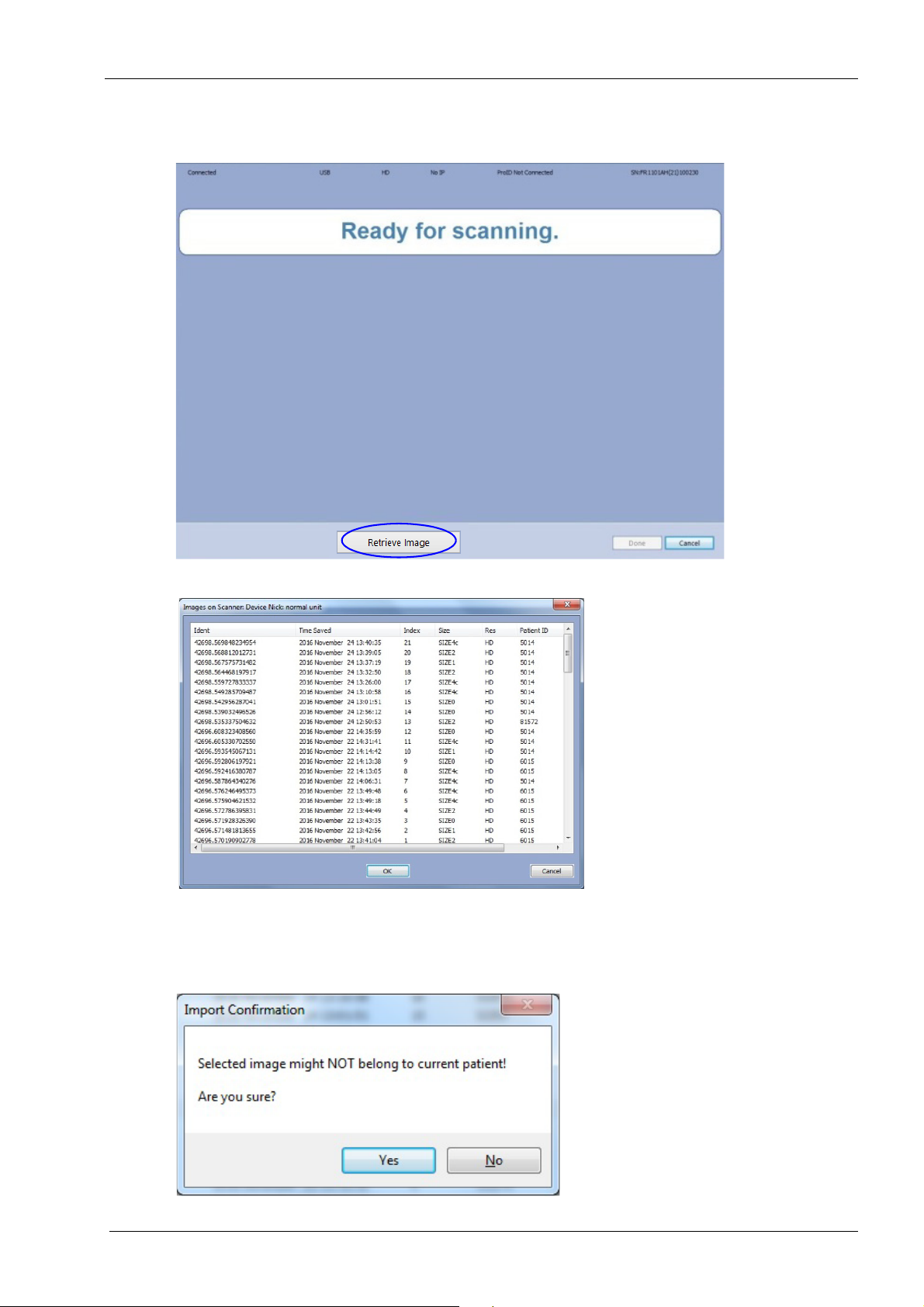

3. From the bottom of the Planmeca ProScanner
image capturing window select Retrieve image.
4. Select the desired image from the image list.
Make sure that the retrieved image belongs to
the selected patient.
User’s & installation manual Planmeca ProScanner 41
14 RETRIEVING STORED IMAGES
The selected image is transferred to Planmeca
Romexis.
42 Planmeca ProScanner User’s & installation manual
15 EXPOSURE VALUES
15 EXPOSURE VALUES
The following tables show the recommended exposure
values for Planmeca ProScanner
Short cone 20 cm (8”) exposure values
Jaw mA TIME
0.010s
0.012s
0.016s
0.020s
0.025s
0.032s
0.040s
0.050s
0.063s
0.080s
0.100s
0.125s
0.160s
0.200s
0.250s
0.320s
0.400s
0.500s
0.630s
MAXI
MAND I P I P M
MAXI
MAND I P I P M
MAXI
MAND I P M I P M
MAXI
MAND I P M I P M
MAXI
MAND I P I P M
MAXI
MAND I P I P M
MAXI
MAND I P I P M
MAXI
MAND I P I P M
8 mA
8 mA
8 mA
8 mA
8 mA
8 mA
8 mA
8 mA
70 kV/
child
66 kV/
child
63 kV/
child
60 kV/
child
70 kV/
adult
66 kV/
adult
63 kV/
adult
60 kV/
adult
IIPM
IPIPM
IPMIPM
IPMIPM
IPIPM
IPIPM
IPIPM
IPIPM
0.800s
I = INCISORS, M = MOLARS, P = PREMOLARS AND CANINES
Long cone 30 cm (12”) exposure values
Jaw mA TIME
0.010s
0.012s
0.016s
0.020s
0.025s
0.032s
0.040s
0.050s
0.063s
0.080s
0.100s
0.125s
0.160s
MAXI
MAND I P I P M
MAXI
MAND I P I P M
MAXI
MAND I P M I P M
MAXI
MAND I P M
MAXI
MAND I P M
MAXI
MAND I P M
MAXI
MAND I P M
MAXI
MAND I P M
8 mA
8 mA
8 mA
8 mA
8 mA
8 mA
8 mA
8 mA
70 kV/
child
66 kV/
child
63 kV/
child
60 kV/
child
70 kV/
adult
66 kV/
adult
63 kV/
adult
60 kV/
adult
IIPM
IPIPM
IPMIPM
IPM
IPM
IPM
IPM
IPM
0.200s
0.250s
0.320s
0.400s
0.500s
0.640s
0.800s
I = INCISORS, M = MOLARS, P = PREMOLARS AND CANINES
User’s & installation manual Planmeca ProScanner 43
16 USE, CARE, MAINTENANCE AND INFECTION CONTROL OF IMAGING PLATES
WARNING
NOTE
NOTE
NOTE
NOTE
NOTE
1.
2.
3.
4.
16 USE, CARE, MAINTENANCE AND INFECTION
CONTROL OF IMAGING PLATES
Pay particular attention to use, care, maintenance, and infection control of imaging
plates.
Before using the plates, read carefully the
instructions delivered inside the imaging plate
kit.
Only Planmeca imaging plates can be used with
Planmeca ProScanner.
16.1 Using protective cover
Handle the imaging plates with care. Damage in
the plate can result in the production of artifacts
that may interfere with diagnosis.
Make sure you use hygienic bags. The hygienic
bags have been found in most cases to be
effective in protecting the imaging plate from
becoming contaminated. Remove the hygienic
bags after use on each patient to prevent crosscontamination. The hygienic bags are for single
patient use only.
Never reuse a protective cover. A protective
cover is for single patient use only.

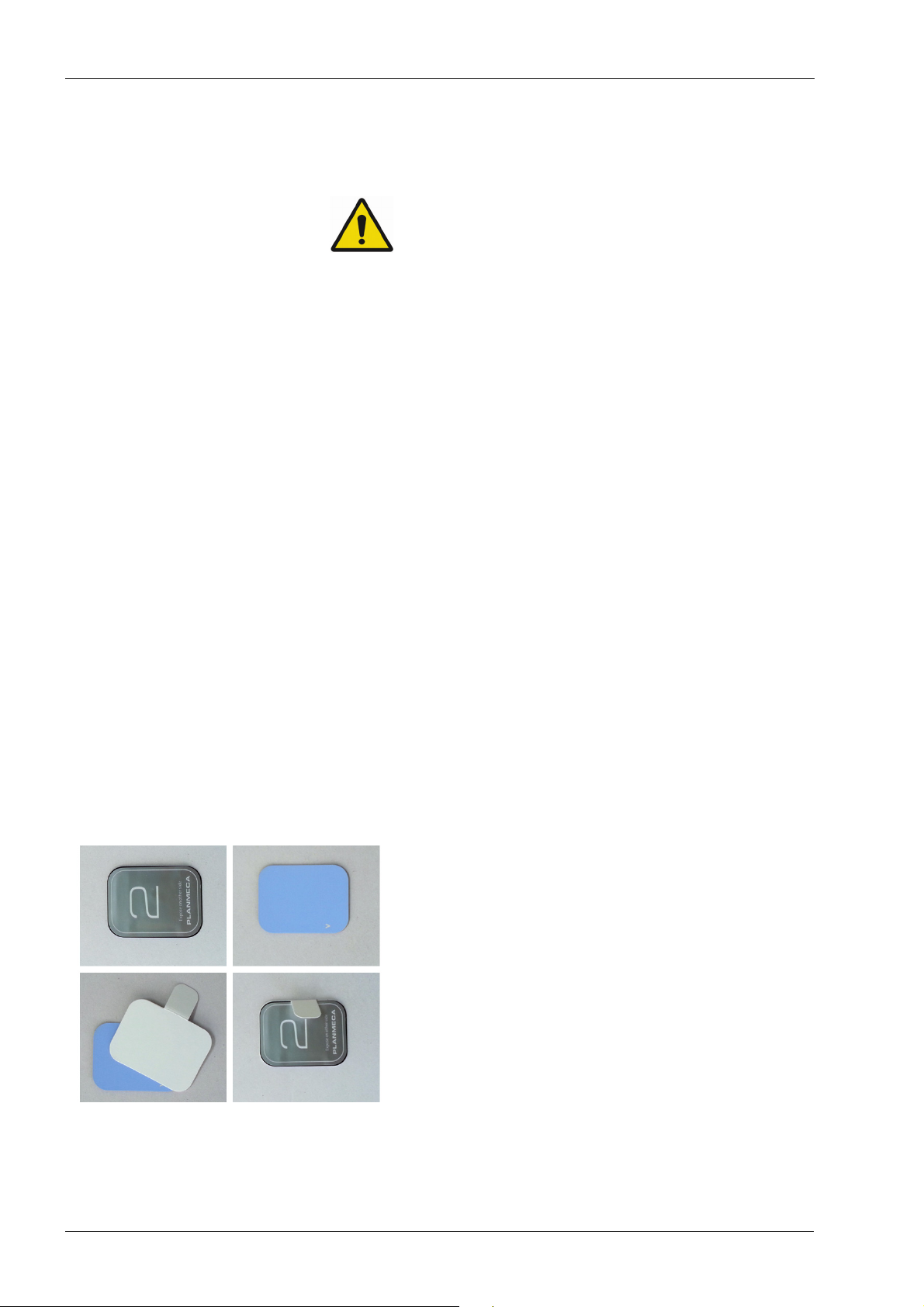

1. Back side of imaging plate.
2. Front = active side of imaging plate.
3. Place the protective cover on the active side of
the imaging plate.
4. Fold the tail of protective cover to opposite side
of imaging plate.
44 Planmeca ProScanner User’s & installation manual
16 USE, CARE, MAINTENANCE AND INFECTION CONTROL OF IMAGING PLATES
NOTE
WARNING
16.2 Using hygienic bags
Never reuse a hygienic bag. A hygienic bag is
for single patient use only.

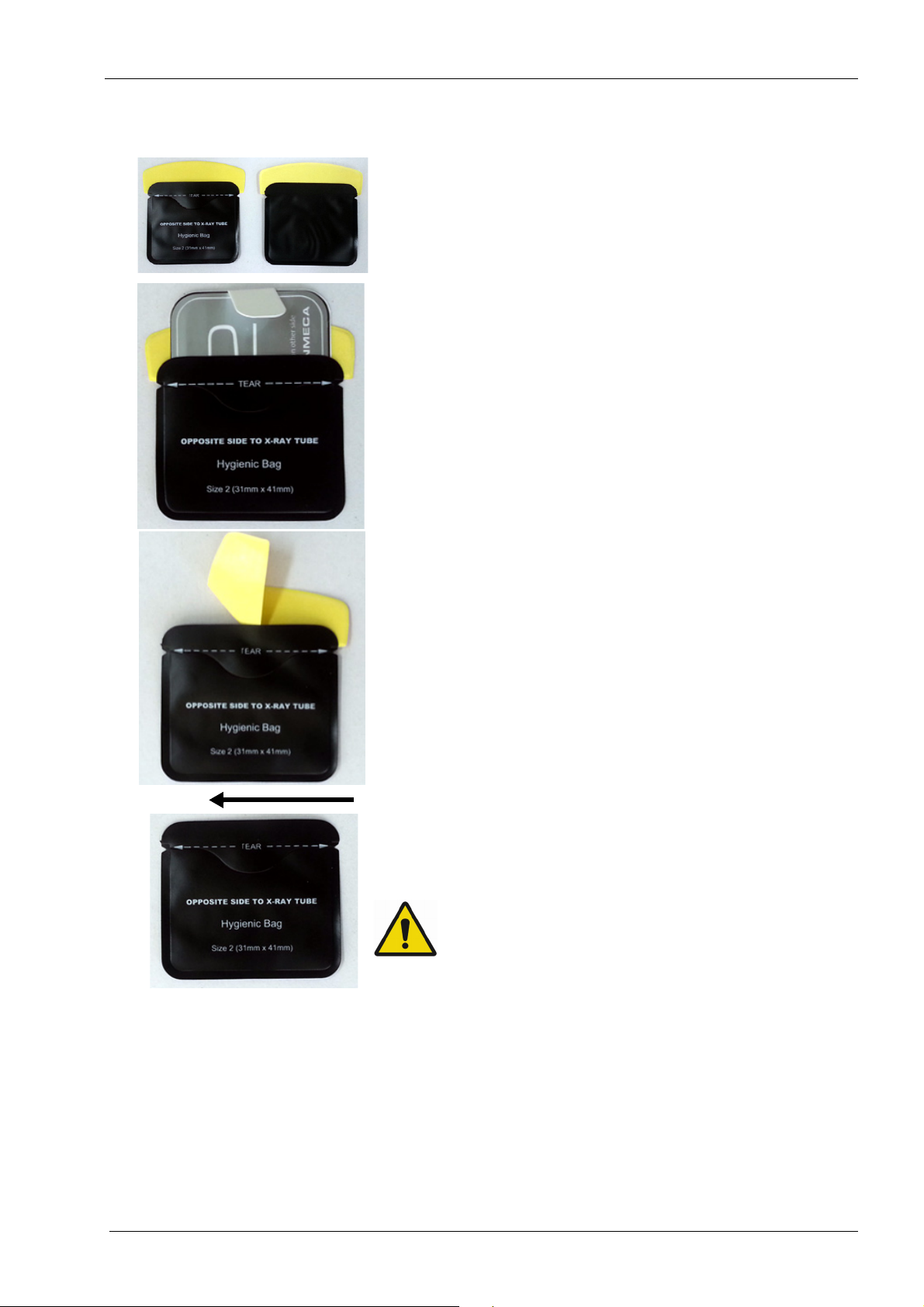

1. Insert imaging plate into the hygienic bag so that
the printed side of the imaging plate is facing the
printed side of the envelope as illustrated.
2. Peel off the adhesive strip and seal the
envelope.
3. Remove the plate from the hygienic bag by
tearing the hygienic bag lengthwise starting at
the notch and gently pull the plate out of the
hygienic bag.
Active side of the imaging plate should face
the blank side of the hygienic bag and the xray source.
User’s & installation manual Planmeca ProScanner 45
16 USE, CARE, MAINTENANCE AND INFECTION CONTROL OF IMAGING PLATES
16.3 X-ray exposure
The blank side of the hygienic bag (active side
of imaging plate) must face the tooth and X-ray
source.
16.4 Cleaning imaging plates
Clean imaging plate using soft lint-free cellulose
cloth with Ethanol (99.7%).
46 Planmeca ProScanner User’s & installation manual
17 CLEANING PLANMECA PROSCANNER
NOTE
WARNING
17 CLEANING PLANMECA PROSCANNER
Do not try to clean inside the Planmeca
ProScanner.
There are no user serviceable parts inside
the Planmeca ProScanner and Planmeca
ProID reader. They should only be opened
and serviced by qualified service personnel.
Failure to heed this warning may result in
injury to service personnel or damage to
equipment, and void any and all warranties.
In case of a service problem, please contact
Planmeca or an authorized dealer.
To remove dust wipe outside of the scanner with
soft and dry cloth.
17.1 Tray
17.2 Planmeca ProID RFID reader
Clean the tray using soft lint-free cellulose cloth
dampened with ethanol (99.7%).
Wipe the outside of the reader to remove dust,
using a soft and dry cloth.
User’s & installation manual Planmeca ProScanner 47
18 SHIPPING
18 SHIPPING
The Planmeca ProScanner is a solidly built
system designed to survive shipping around the
world. However, in order to avoid damage
during shipping, the Planmeca ProScanner and
all its accessories must be properly packaged.
In general, the best way to package the
Planmeca ProScanner is in the original factory
container. If this is no longer available, we
recommend carefully wrapping the Planmeca
ProScanner in at least 75 mm (3 inch) and the
Planmeca ProID RFID Reader in at least 25 mm
(1 inch) of foam or bubble pack sheeting. The
wrapped device should then be placed in a
sturdy cardboard carton. Mark the outside of the
box with word FRAGILE and an arrow showing
which way is up.
We do not recommend using loose foam pellets
to protect the Planmeca ProScanner. If the
carton is dropped by the shipper, there is a good
chance that the device will shift within the loose
pellet packing and be damaged.
It is user’s responsibility to package the system
properly before shipping. If the packaging is
inadequate, and the system is damaged during
shipping, the shipper will not honour the user’s
claim for compensation. If the user does not
have a means to adequately package it,
additional shipping containers may be
purchased from Planmeca.
For transportation conditions see section 20
“TECHNICAL SPECIFICATIONS” on page 50.
48 Planmeca ProScanner User’s & installation manual
19 DISPOSAL
WARNING
NOTE
19 DISPOSAL
Improper disposal of this product may result
in environmental contamination. When disposing of this equipment, contact Planmeca’s representative or related organs of
government. Do not dispose of any part of
this equipment without consulting a Planmeca’s representative first.
Planmeca does not assume any responsibility
for damage resulting from disposal of this
equipment without consulting Planmeca.
In order to reduce the environmental load over
the product’s entire life cycle, Planmeca’s
products are designed to be as safe as possible
to manufacture, use and dispose of.
Parts which can be recycled should always be
taken to the appropriate processing centres,
after hazardous waste has been removed.
Disposal of obsolete systems is the
responsibility of the waste possessor.
All parts and components containing hazardous
materials must be disposed of in accordance
with waste legislation and instructions issued by
the environmental authorities. The risks involved
and the necessary precautions must be taken
into account when handling waste products.
If the component boards cannot be recycled
handle them as electronic scrap, i.e. according
to the local legislation.
User’s & installation manual Planmeca ProScanner 49
20 TECHNICAL SPECIFICATIONS
20 TECHNICAL SPECIFICATIONS
Sampling pixel pitch SD 64um
HD 35um
Pixel matrix Size 0 SD 343 x 484
HD 628 x 885
Size 1 SD 375 x 625
HD 685 x 1143
Size 2 SD 484 x 640
HD 886 x 1171
Size 3 SD 421 x 843
HD 771 x 1542
Size 4c SD 750 x 843
HD 1370 x 1542
Accepted imaging plate size 0, 1, 2, 3, 4c
Gray scale resolution 16 bit
Eraser Embedded
Computer interface USB 2.0 / 100Mbps Ethernet
Dimensions 265 (H) x 120 (W) x 318 (D) mm
10.4 (H) x 4.7 (W) x 12.5 (D) inch
Weight 5.5 kg (12.1 lbs)
Power requirements 100 ~ 240V / 50 ~ 60Hz, 30W
Planmeca ProID RFID reader
Dimensions 27 x 60 x 96 (H x L x W)
Weight 90g
Frequency 13.56 MHz
Protocol ISO 15693
Interface Mini USB B
Power Supply USB Power
50 Planmeca ProScanner User’s & installation manual
20 TECHNICAL SPECIFICATIONS
NOTE
20.1 Operating conditions
Indoor use only.
Operating temperature 15°C ~ 30°C (59°F ~ 86°F)
Temperature gradient 0.5°C / Min
Relative humidity 15% ~ 95% (non-condensing)
Storage temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage humidity 15% ~ 95% (non-condensing)
Storage atmospheric pressure 500 ~ 1,060 hPa
Transportation temperature -10°C ~ 50°C (14°F ~ 122°F)
Transportation humidity 15% ~ 95% (non-condensing)
Transportation atmospheric pressure 500 ~ 1,060 hPa
Installation category II
Pollution degree 2
Ingress of liquids IPX0
Altitude Up to 2,000m
Protective class Class 1
Equipment maintenance No user maintenance is required and no
service is allowed. Please contact
technical support if there is a problem.
User’s & installation manual Planmeca ProScanner 51
Appendix A: Exposure value tables for Planmeca ProX
A.1 Default exposure values
The following table shows the default exposure values for
Planmeca ProScanner with no target selected
Short cone Long cone
kV mA s kV mA s
Adult 63 8 0,125 Adult 63 8 0,25
Child 60 8 0,1 Child 60 8 0,2
A.2 Preprogrammed settings values
.
Short cone 20 cm (8”)
INCISORS
kV mA time kV mA time kV mA time
Adult
Child
Adult
Child
Maxilla
60 8
Mandible 0.063 0.08 0.1
Maxilla
60 8
Mandible 0.050 0.063 0.08
OCCLUSAL ENDODONTIC BITE-WING
kV mA time kV mA time kV mA time
Maxilla
70 8 0.08 60 8 0.08 60 8
Mandible
Maxilla
66 8 0.063 60 8 0.063 60 8
Mandible
0.080
0.063
PREMOLARS AND
CANINES
0.1
63 8
0.08
60 8
MOLARS
0.125
63 8
0.1
60 8
0.125
0.1
52 Planmeca ProScanner User’s & installation manual
Appendix A: Exposure value tables for Planmeca ProXA.2 Preprogrammed settings values
Long cone 30 cm (12”)
Adult Maxilla
Mandible 0.125 0.16 0.2
Child Maxilla
Mandible 0.1 0.125 0.16
Maxilla
Adult
Mandible
Maxilla
Child
Mandible
INCISORS
kV mA time kV mA time kV mA time
60 8
60 8
OCCLUSAL ENDODONTIC BITE-WING
kV mA time kV mA time kV mA time
70 8 0,16 60 8 0.16 60 8 0.25
66
0.16
0.125
8
0,125 60 8 0.125 60 8 0.2
PREMOLARS AND
CANINES
0.2
63 8
0.16
60 8
MOLARS
0.25
63 8
0.2
60 8
User’s & installation manual Planmeca ProScanner 53
Appendix B: Installing Planmeca ProScanner on MacOS
B.1 Romexis and ProScanner USB driver installation
The Planmeca ProScanner USB does not
require a separate driver installation as the
driver is installed automatically during Planmeca
Romexis client installation. Therefore (contrary
to Windows version):
• During Romexis client installation no
ProScanner option selection is required.
• The driver cannot be found separately in the
DidapiKit for Mac.
B.2 ProID driver installation
Planmeca ProID does not require a separate
driver installation on MacOS. Driver is installed
automatically during Romexis client installation.
B.3 Connecting scanner to network
Please follow the instructions in section 9.7
"Connecting scanner to network" on page 26.
On Mac OS the FireCR.ini file is located under
Romexis client installation folder.
54 Planmeca ProScanner User’s & installation manual
Appendix B: Installing Planmeca ProScanner on MacOS B.4 Installing calibration files
B.4 Installing calibration files
Please follow the instructions in section 9.6
"Installing calibration files" on page 24. On
MacOS ProScannerAdmin.exe is named
ProScannerAdmin.app
On Mac OS the calibration files are installed to
Romexis client installation folder.
B.5 Setting on windowed option
If Planmeca Romexis is not used in Full screen
mode with MacOS the ProScannerApp opens in
the background. To avoid this set the windowed
option on. This setting can also be used if some
of the Romexis buttons are out of the visible are
in the monitor.
1. Open the folder
finder.
2. Right-click on the Romexis icon and select
Show Package Contents.
/Applications/Planmeca
with
User’s & installation manual Planmeca ProScanner 55
B.5 Setting on windowed option Appendix B: Installing Planmeca ProScanner on MacOS
3. Open the Romexis file in subfolder
MacOS
4. Add parameter
host=localhost language=en -windowed \
with a text editor.
-windowed
to Romexis file:
Contents/
5. Save the file and restart Romexis.
56 Planmeca ProScanner User’s & installation manual
Planmeca Oy | Asentajankatu 6 | 00880 Helsinki | Finland
tel. +358 20 7795 500 | fax +358 20 7795 555 | sales@planmeca.com | www.planmeca.com
Loading...
