This manual describes how to take 3D exposures. The
manual applies to:
• Planmeca ProMax 3D Plus X-ray unit
• Planmeca ProMax 3D Mid X-ray unit
NOTE This manual is valid for software version 3.4.0.0.r or
later. This software version is compatible with
Planmeca Romexis software version 3.6.0.r or later.

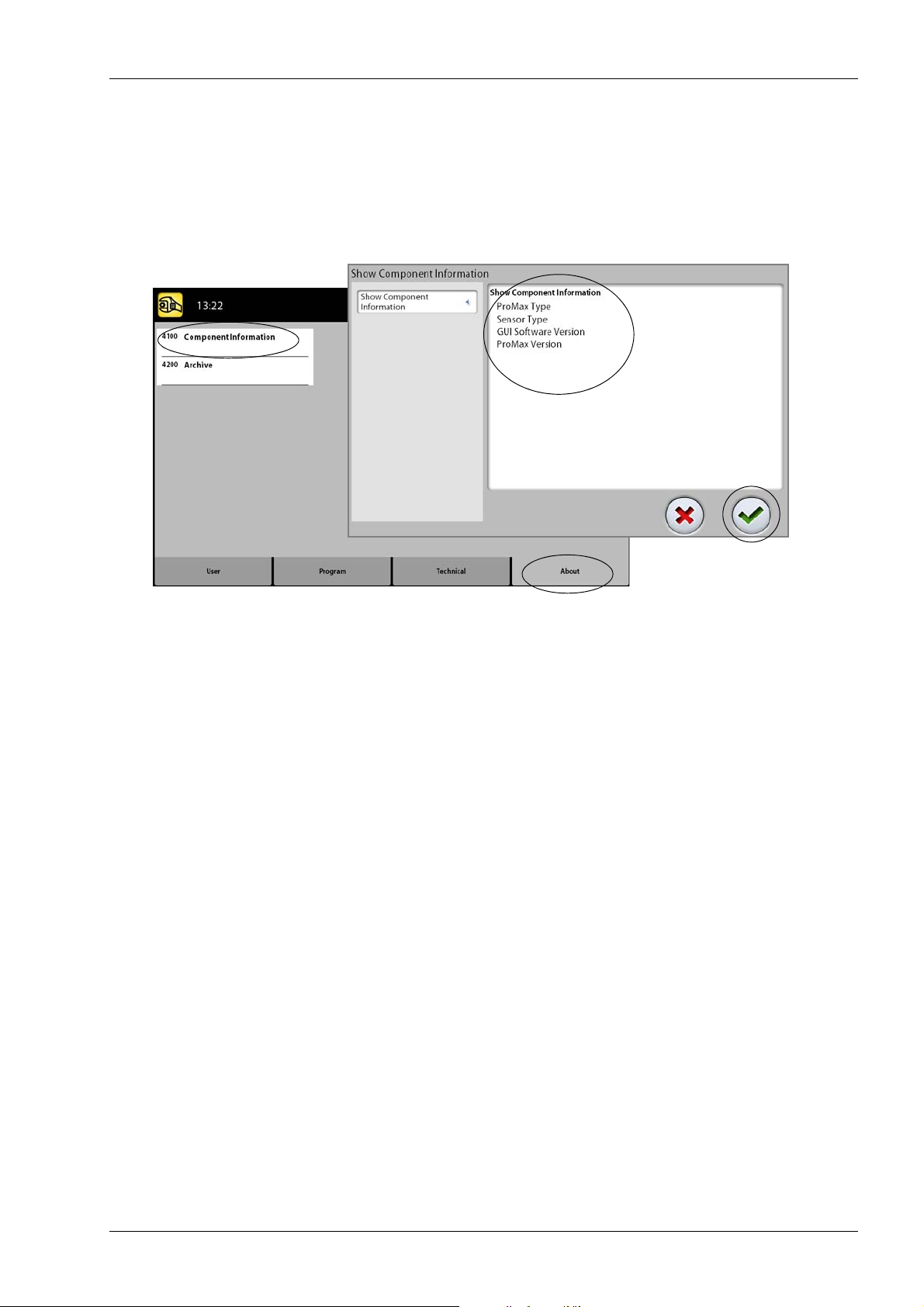

To check the software version of your X-ray unit, select
Settings > About > 4100 Component Information >
ProMax SW version.
The X-ray unit uses Cone Beam Computed Tomography
(CBCT) to produce three-dimensional (3D) X-ray images.
Panoramic, cephalometric and projection radiography
techniques can be used for two-dimensional (2D) X-rays.
If the X-ray unit has a ProFace sensor, you can take a 3D
photo of the patient’s face.
The X-ray images can be used to examine:
• Dentomaxillofacial area
• Ear, nose and throat
• Cervical spine
• Other cranial anatomies
The 3D face photo can be used for patient education or in
order to follow the results of medical treatments.
You need a PC with the Planmeca Romexis program in
order to save, view and modify the images.
Make sure that you are fully acquainted with the
appropriate radiation protection measures and these
instructions before you use the X-ray unit.
NOTE The X-ray unit may be used by health care
professionals only.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 1
ASSOCIATED DOCUMENTATION
2 ASSOCIATED DOCUMENTATION
The X-ray unit is supplied with the following manuals:
• User’s Manual(s) for
- 3D Imaging, Original English publication: 10032998
(- 2D Imaging, Original English publication: 10032999,
optional)
(- Cephalostat, Original English publication: 10033034 or
10033035, optional)
• Installation Manual,
Original English publication: 10033261
• Technical Manual,
Original English publication: 10034331
These manuals are intended to be used in conjunction
with the documentation for the Planmeca Romexis
program. The Romexis package contains the following
manuals:
• User’s Manual, Original English publication: 10014593
• Installation Manual,
Original English publication: 10014600
NOTE The latest versions of the User’s Manuals are available
on Planmeca’s website.
2 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)

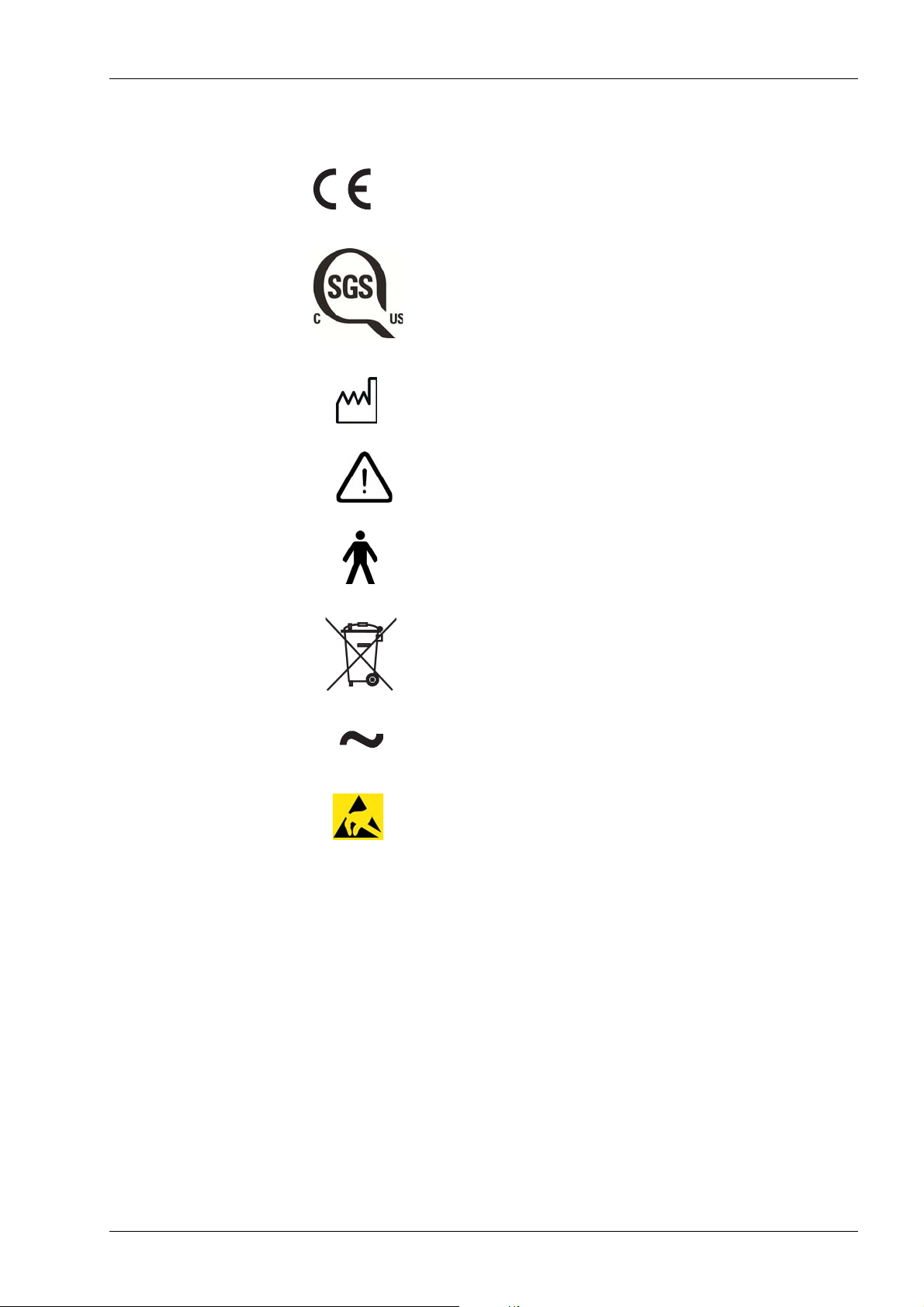

3 SYMBOLS ON PRODUCT LABELS
CE marking according to European standard
0598
(Directive 93/42/EEC)
SGS marking according to US and Canadian standards
(ANSI/UL 60601-1 and CAN/CSA C22.2 No. 601.1-M90)
Date of manufacture (Standard ISO 15223-1)
Attention, consult accompanying documents
(Standard IEC 60601-1)
SYMBOLS ON PRODUCT LABELS
Type B applied part (Standard IEC 60601-1)
Separate collection for electrical and electronic equipment
(Directive 2002/96/EC WEEE)
Alternating current (Standard IEC 60417)
Electrostatic sensitive device (Standard IEC 60417)
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 3
SAFETY PRECAUTIONS
4 SAFETY PRECAUTIONS
CAUTION FOR US USERS:
CAUTION This X-ray unit may be dangerous to both
CAUTION The patient positioning lights are laser
CAUTION Do not drop the sensor. Planmeca limited
Federal law restricts this device to sale by or
on the order of a health care professional.
patient and operator unless safe exposure
values are used and correct operating
procedures are observed.
lights. Do not stare into the laser beam.
warranty does not cover damage which is
due to misuse, e.g. dropping the sensor,
neglect, or any cause other than ordinary
use.
If you have any reason to believe that the
sensor might be faulty, take a test exposure
before taking a patient exposure.
CAUTION If an exposure is interrupted (e.g. exposure
button is released or emergency stop button
activated), the patient must be guided away
from the X-ray unit before the C-arm is
moved.
CAUTION Do not connect items which are not
specified as part of the system.
CAUTION Do not connect a multiple portable socket
outlet (MPSO) or extension cord to the
system.
CAUTION Do not touch an electrical connector and the
patient at the same time.
CAUTION If the X-ray unit shows any signs of oil
leakage, disconnect the unit from mains and
contact your service technician for help.
CAUTION Do not use the X-ray unit in an oxygen rich
environment or in the presence of flammable
anesthetics.
CAUTION Never use a defective or damaged X-ray
system. Contact your service technician for
help.
NOTE It is very important that the place where the unit is to
be used and the position from which the user is to
operate the unit are correctly shielded. Since radiation
safety requirements vary from country to country and
state to state it is the responsibility of the user to
ensure that all local safety requirements are met.
NOTE Cone beam imaging should not be used for routine (or
NOTE When it is likely that evaluation of soft tissues will be
screening) examinations. The imaging examinations
must be justified for each patient to demonstrate that
the benefits outweigh the risks.
required as part of the patient’s radiological
assessment, conventional CT or MR medical imaging
should be used rather than CBCT.
4 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
SAFETY PRECAUTIONS
CAUTION
LASER RADIATION -
DO NOT STARE
INTO BEAM
1mW
635nm
CLASS II
LASER
PRODUCT
LBL-X-099
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
IEC 60825-1:2007
NOTE Before taking an exposure, ask any female patient of
childbearing age whether she might be pregnant. The
X-ray unit is not intended for use on pregnant women.
NOTE FOR CANADIAN USERS:
All patients must be provided with a shielded apron for
gonad protection and a thyroid shield. The use of a
thyroid shield is especially important in children. The
shielded apron and thyroid shield should have a lead
equivalence of at least 0.25 mm on both sides (front
and back of the patient).
NOTE If the X-ray unit has been stored at temperatures under
+10°C for more than a few hours, time must be allowed
for the unit to reach room temperature before turning
it on.
NOTE Ensure efficient air conditioning in the X-ray room. It is
recommended to keep the room temperature between
+20°C and +25°C at all times.
NOTE If exposures are taken in rapid succession the X-ray
tube may overheat and a cooling time will flash on the
touch screen. The cooling time indicates the delay
before the next exposure can be taken.
NOTE If the X-ray system is not connected to an
Uninterruptible Power Supply (UPS), disconnect the
system from mains during lightning storms.
NOTE FOR US & CANADIAN USERS:
The patient positioning lights are class II laser
products (21 CFR § 1040.10).
NOTE FOR EUROPEAN USERS:
The patient positioning lights are class 1 laser
products (Standard IEC / EN 60825-1: 2007).
NOTE EMC requirements have to be considered, and the
equipment must be installed and put into service
according to the specific EMC information provided in
the accompanying documents.
NOTE Portable and mobile RF communications equipment
can affect the X-ray unit.
NOTE External equipment intended for connection to signal
input, signal output or other connectors, shall comply
with relevant IEC standard (e.g. IEC 60950 for IT
equipment and the IEC 60601 series for medical
electrical equipment). In addition, all such
combinations - systems - shall comply with the
standard IEC 60601-1-1, Safety requirements for
medical electrical systems. Equipment not complying
to IEC 60601 shall be kept outside the patient area
(more than 2m (79 in.) from the X-ray unit).
Any person who connects external equipment to
signal input, signal output or other connectors has
formed a system and is therefore responsible for the
system to comply with the requirements of IEC 606011-1. If in doubt, contact your service technician or local
representative for help.
NOTE Contact your service technician if you notice a
decrease in image quality.
NOTE Contact your service technician if you have taken an
exposure but the image does not appear in the
Planmeca Romexis program. The last ten images can
be manually imported into Romexis.
NOTE Never place or hang any objects on any part of the X-
ray unit.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 5

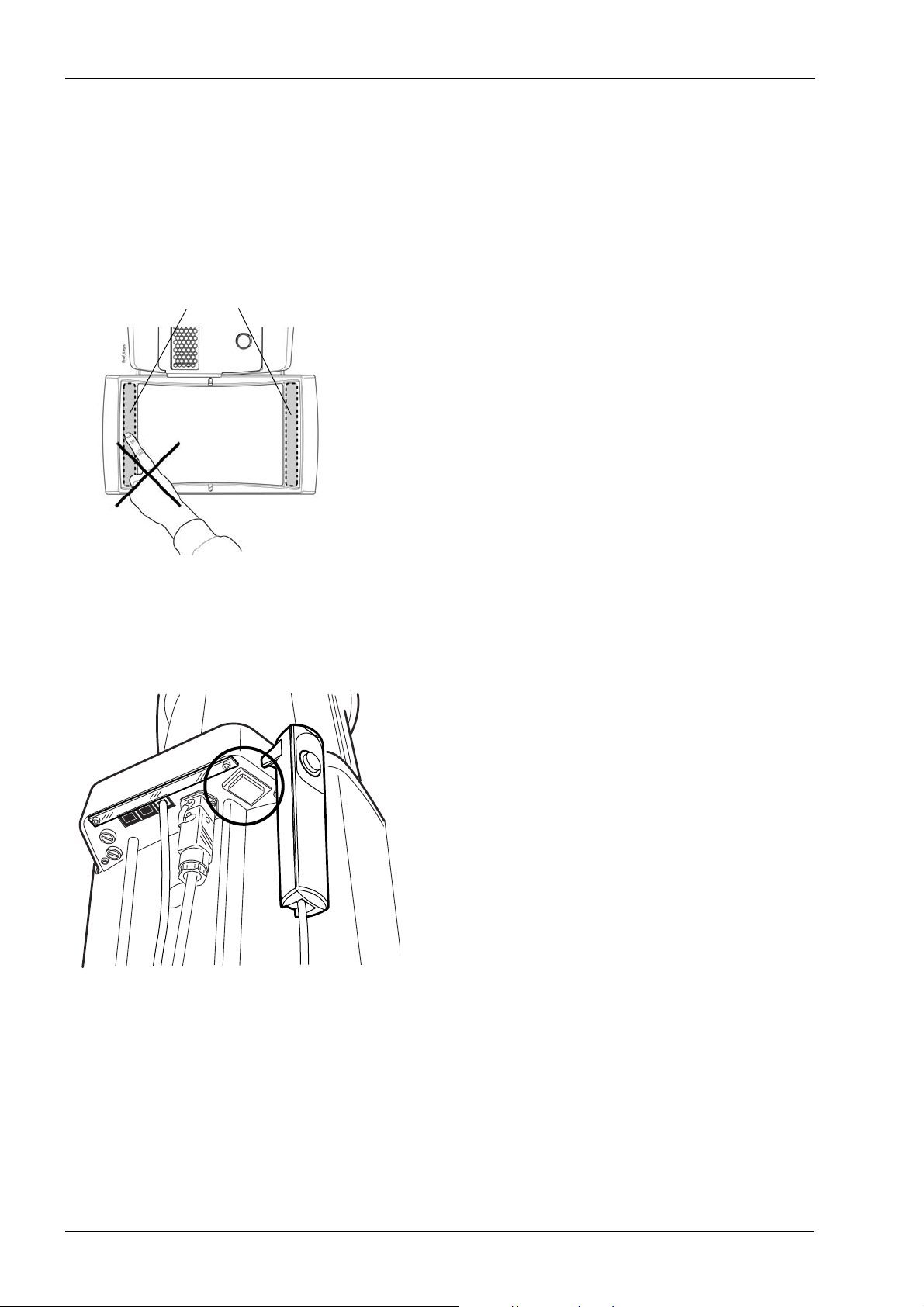

SWITCHING X-RAY UNIT ON
Glass windows
ProFace sensor
on_off_2.eps
NOTE Make sure that neither you nor your patient can get
NOTE If you have any reason to believe that the C-arm might
NOTE Do not touch the arm structures when the X-ray unit is
NOTE Patients are not allowed to hang on the patient
NOTE FOR PROFACE SENSOR:
caught or hooked up on any part of the X-ray unit.
Keep loose items of clothing, hair and jewellery tucked
away safely.
hit the patient during exposure (e.g. patients with wide
shoulders), take a test exposure without radiation
first. To switch radiation off, select Settings > User >
1300 Operational settings > 1310 Use Mode > 1311 Set
Demo Mode.
moving.
handles.
Do not touch the glass windows. Fingerprints or other
stains on the glass surface destroy image quality.
5 SWITCHING X-RAY UNIT ON
The on / off switch is located on the underside of the
stationary column top.
NOTE To prolong the lifetime of the X-ray unit, always switch
the X-ray unit off when it is not in active use.
6 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
6 MAIN PARTS
Mid_2B.eps
1
2
3

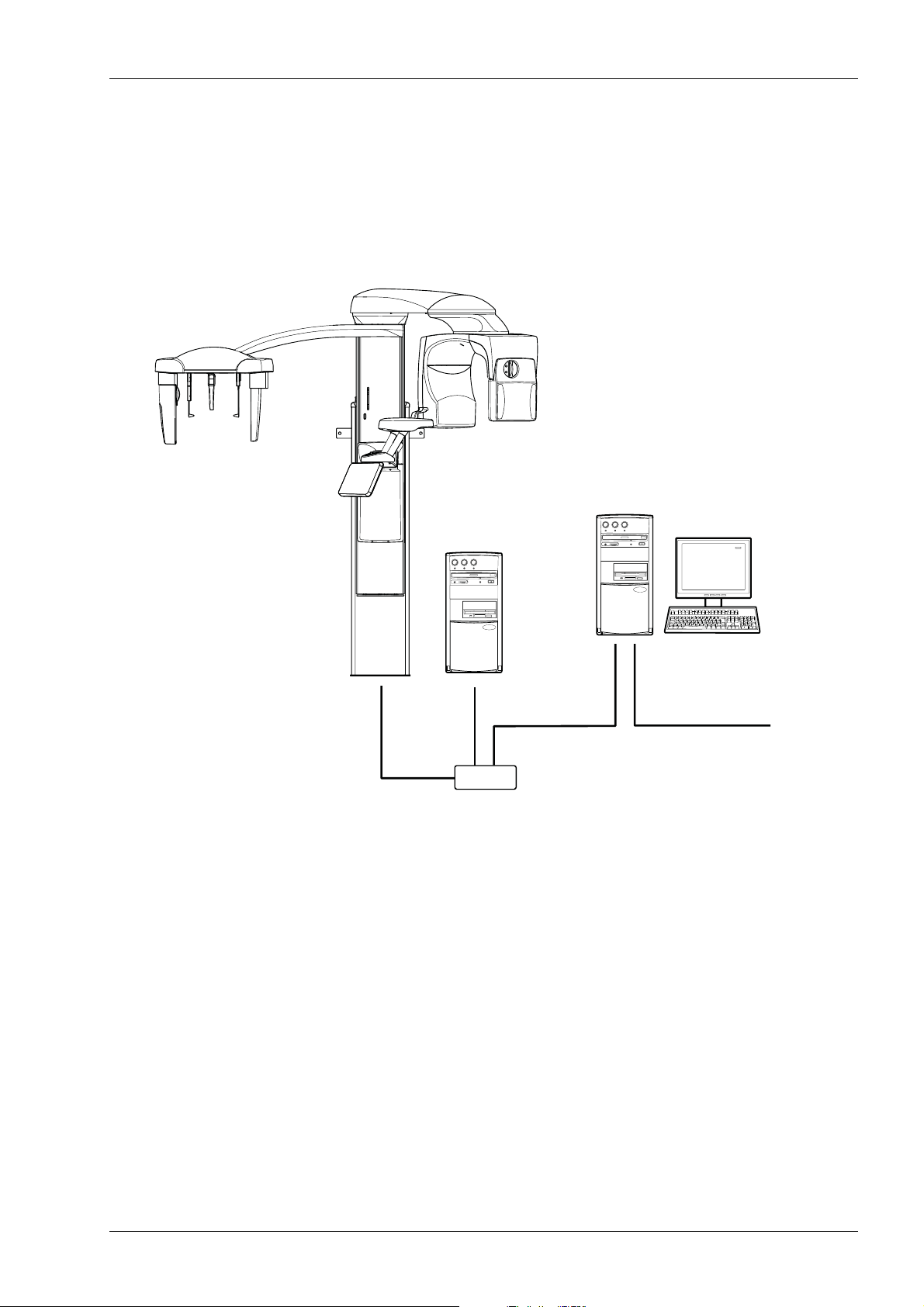

6.1 General view of X-ray system
MAIN PARTS
User’s Manual (3D)
1 X-ray unit
2 3D reconstruction PC
3 Planmeca Romexis program
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 7
MAIN PARTS
Mid_1_B.eps
Telescopic column
Stationary column
C-arm
Patient support
table
Patient handles
Positioning
controls
Touch screen
Chair
(included in delivery)
Cephalostat
(optional)
Sensor

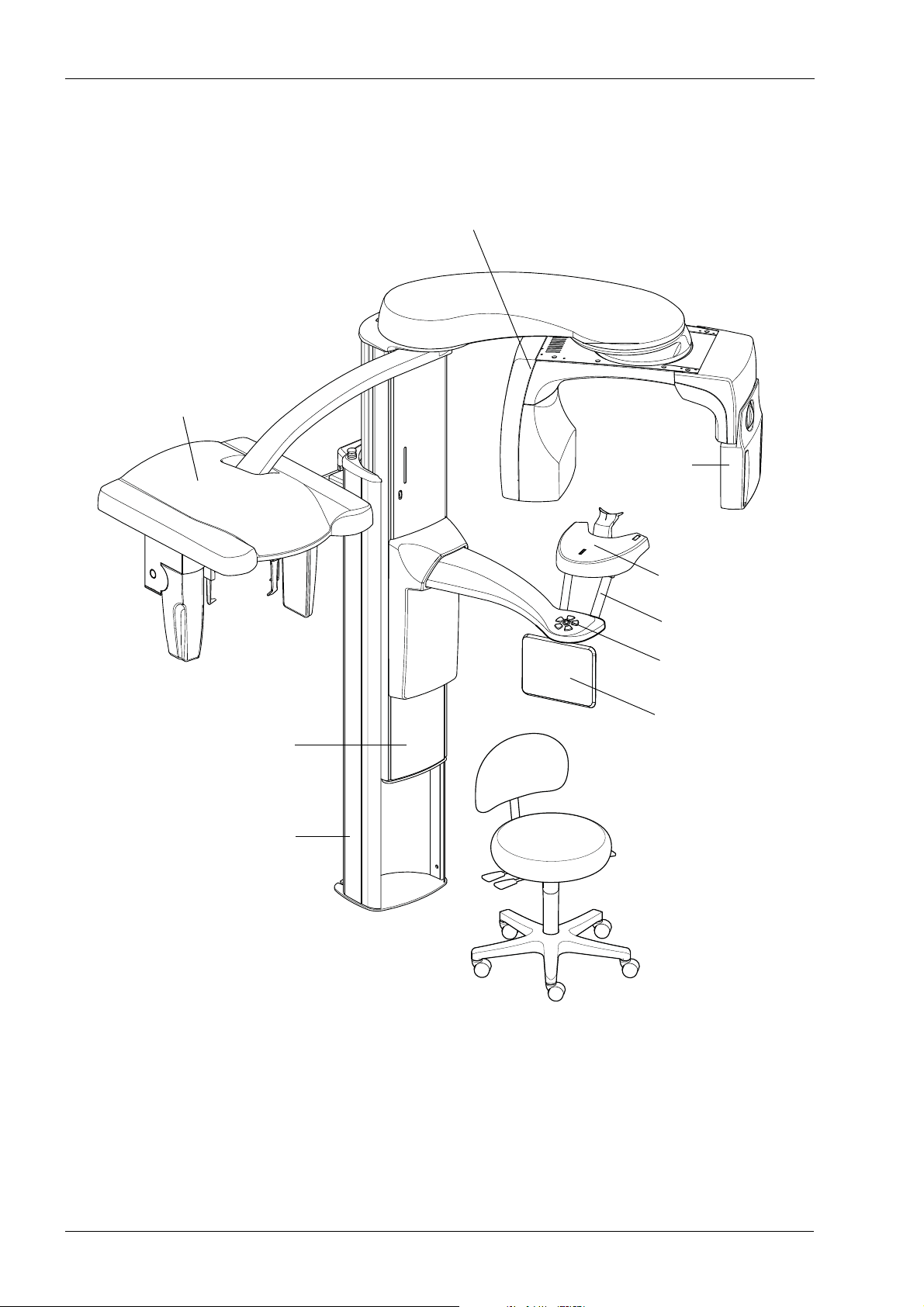

6.2 General view of X-ray unit
8 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
6.3 Sensors
Prof_1.eps
Mid_3D_15x15.eps
Mid_80.eps
1
2
3
MAIN PARTS
1 3D sensor for Planmeca ProMax 3D Plus
2 3D sensor for Planmeca ProMax 3D Mid
3 ProFace sensor for Planmeca ProMax 3D Plus and Planmeca ProMax 3D Mid
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 9
MAIN PARTS
B)
A)
1
2
2
3
4
1
2

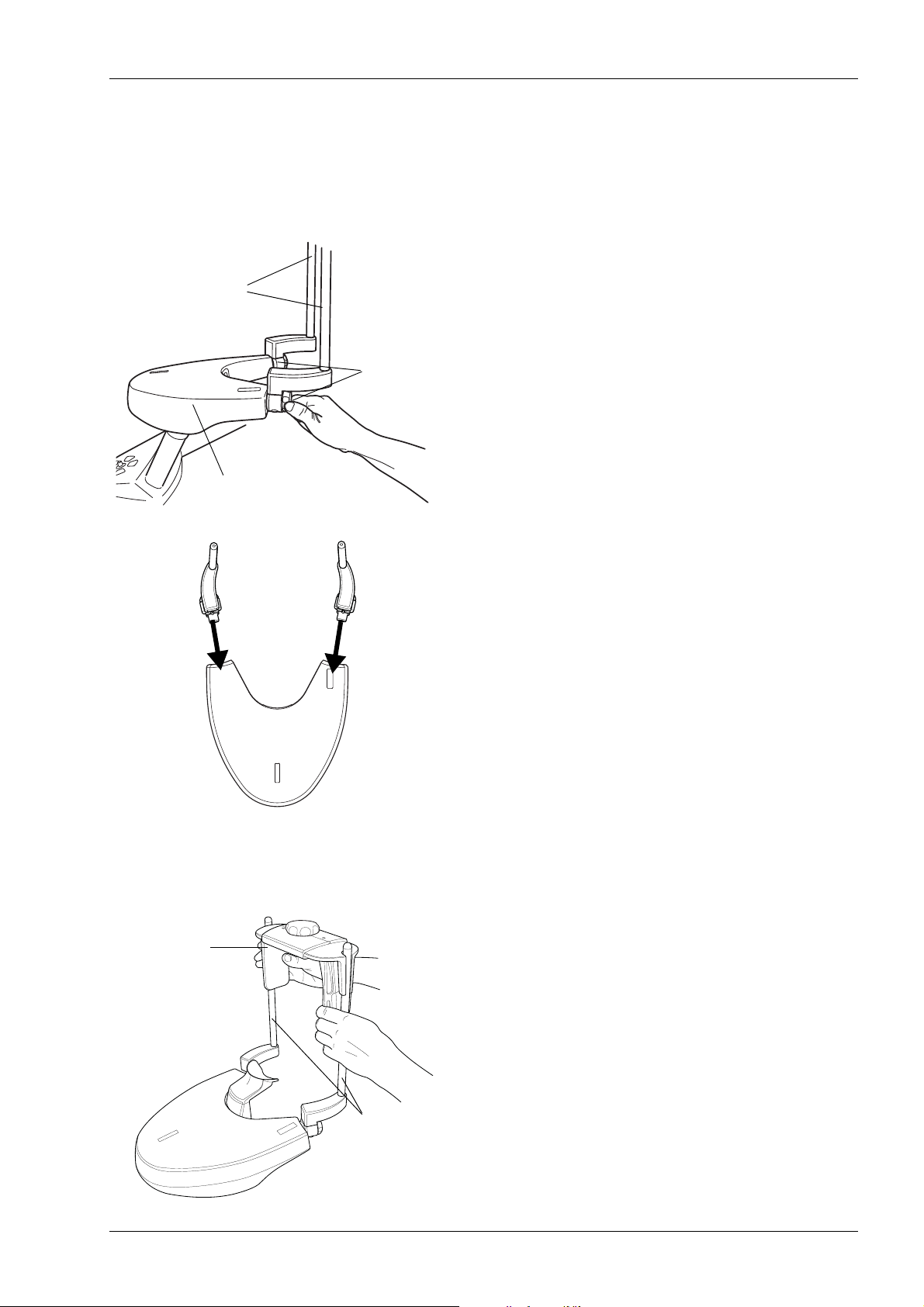

6.4 Patient supports

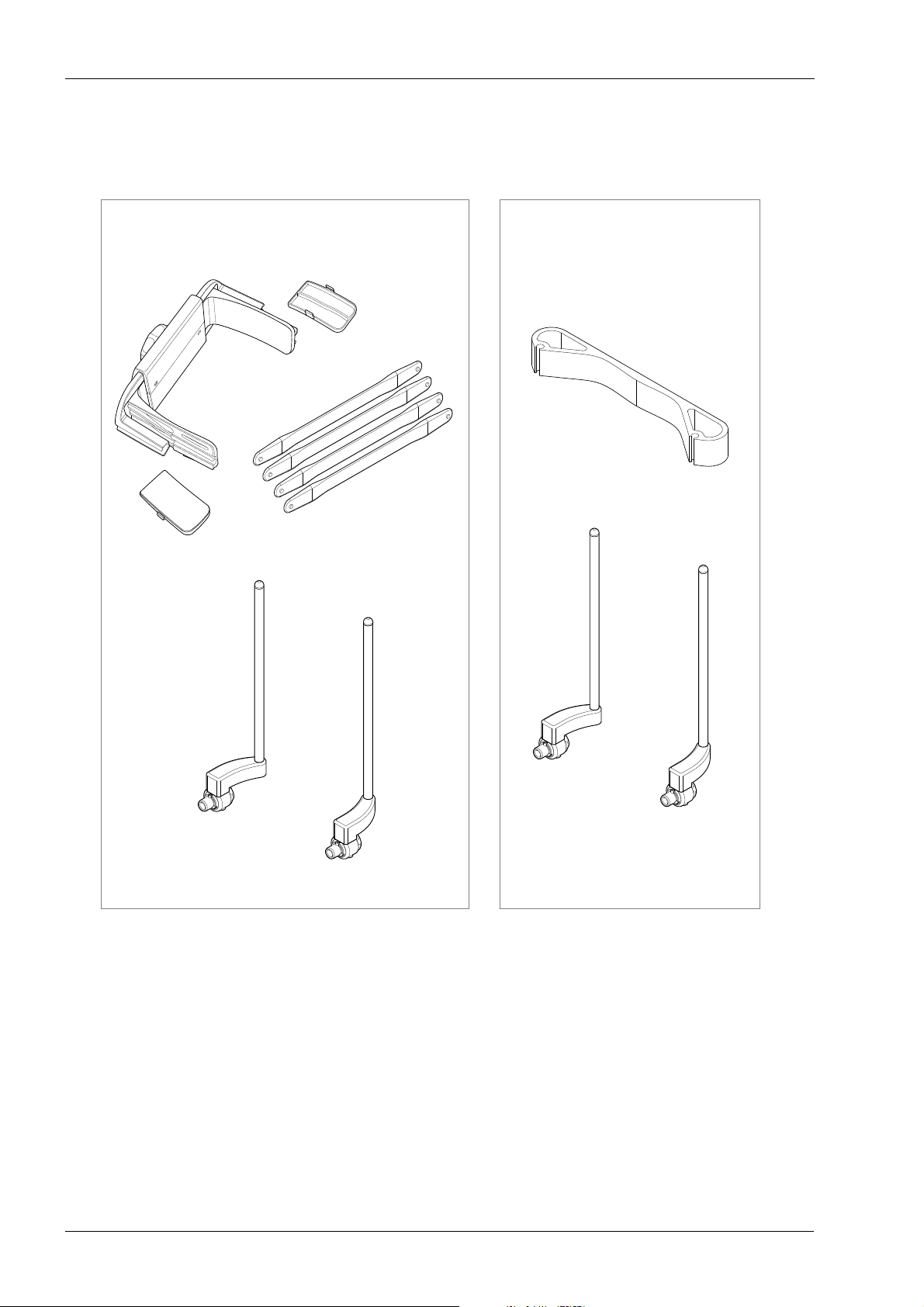

6.4.1 Head supports (A or B)
Head_support_attach_2.eps
Support_bars.eps
Support_bars.eps
1 Adjustable head support 1. Head band 25
2 Temple pads for children 2. Support bars
3 Fastening straps
4 Support bars
10 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
6.4.2 Chin supports
Bite1.eps
Chin1.eps
1
2
1) Flashing green =
Getting ready
2) Continuous green =
Ready
3) Yellow = Radiation
Exposure switch
Exposure button
MAIN PARTS
1 Chin cup
2 Adapter

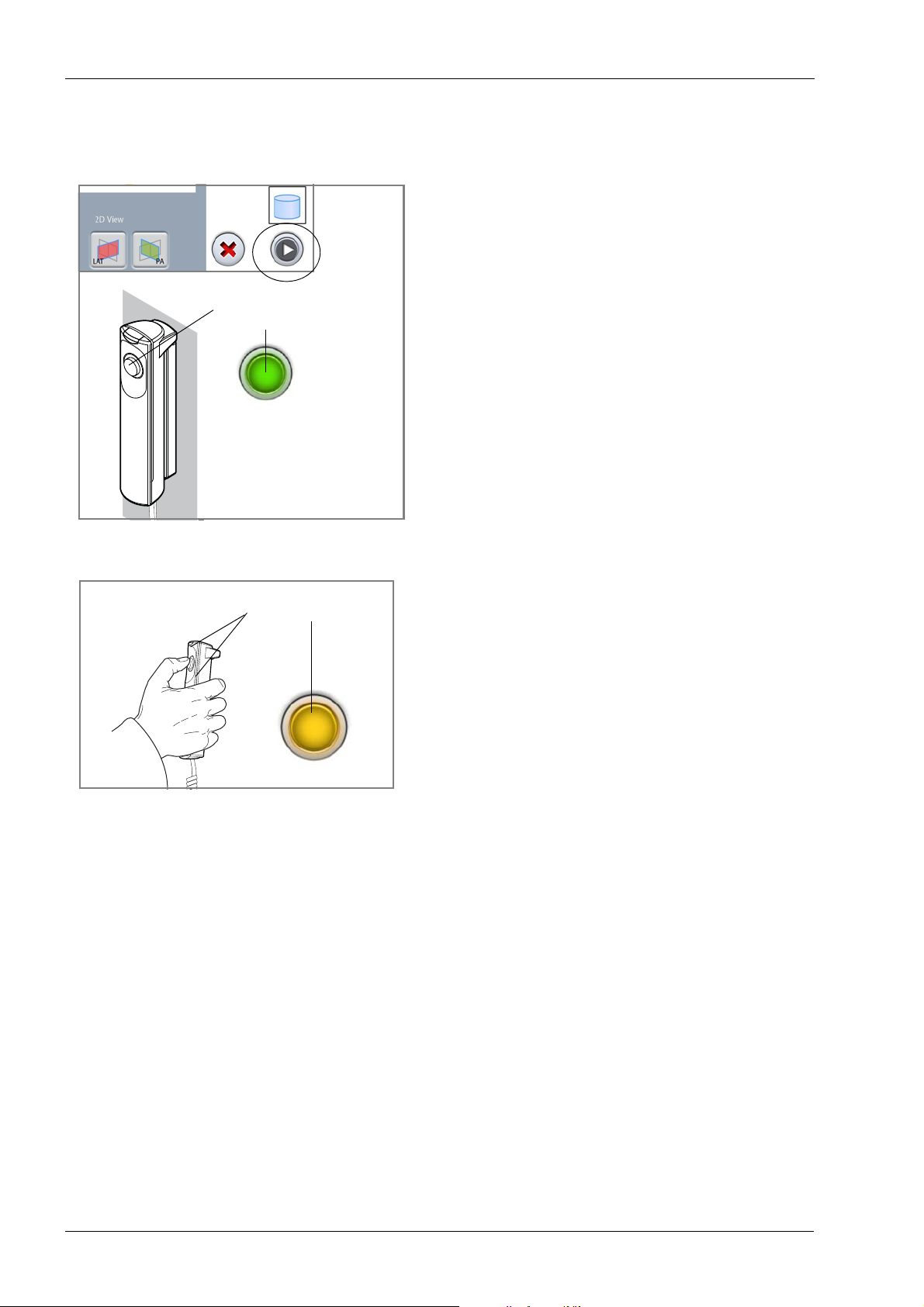

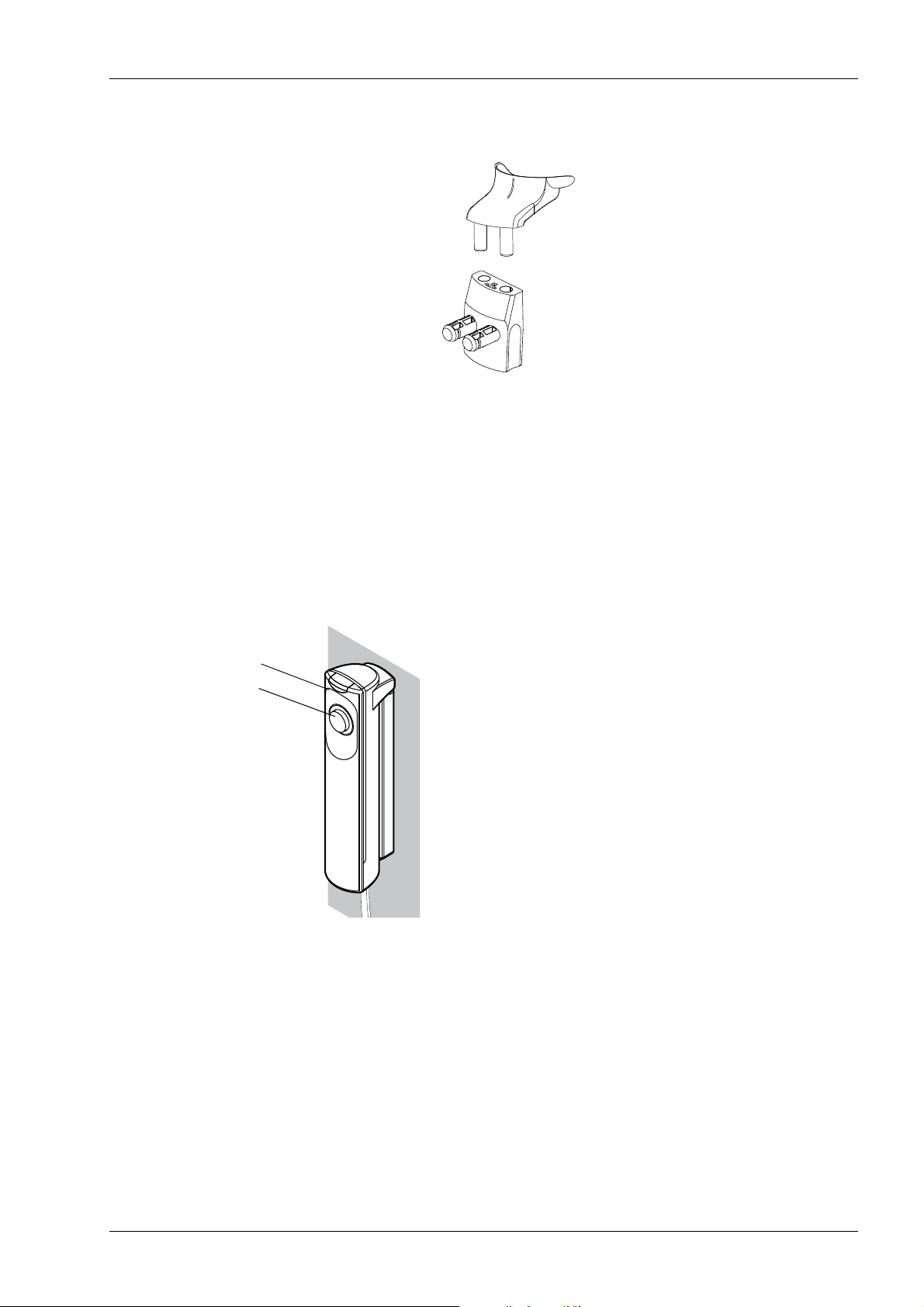

6.5 Exposure switch
The exposure switch can be mounted on the wall, or it can
be hung from the hook provided on the stationary column
top if a protected area is within reach.
Green lights flash on the exposure button and on the
touch screen when the X-ray system is getting ready for
an exposure. The green lights stop flashing and stay on
continuously when the X-ray system is ready for an
exposure.
During exposure yellow radiation warning lights illuminate
on the exposure switch and on the touch screen. They
indicate that the X-ray unit is generating radiation.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 11
MAIN PARTS
Mid_3B.eps
6.6 Emergency stop button
The emergency stop button is located on the top of the
stationary column. Press the button to stop the X-ray unit
operating in an emergency. When the emergency stop
button is pressed down, all movements of the X-ray unit
are blocked and the unit will not generate radiation. The
up / down movement will stop within a distance of 10 mm
(0.4 in.).
A help message will appear on the touch screen. Guide
the patient away from the X-ray unit. Then release the
emergency stop button. The X-ray unit will automatically
restart.
12 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
6.7 Touch screen
MAIN PARTS
NOTE The options shown on the touch screen depend on the
unit configuration. The X-ray unit can be upgraded
with new programs and features, contact your dealer
for further information. The views and values shown in
this manual are only examples.
NOTE The illustrations shown on the touch screen are based
on approximate patient anatomy. The actual volume
position depends on the individual anatomy of the
patient.
NOTE Never allow patients to touch the screen when they are
positioned in the X-ray unit. Touching the screen
during exposure will stop the imaging process.

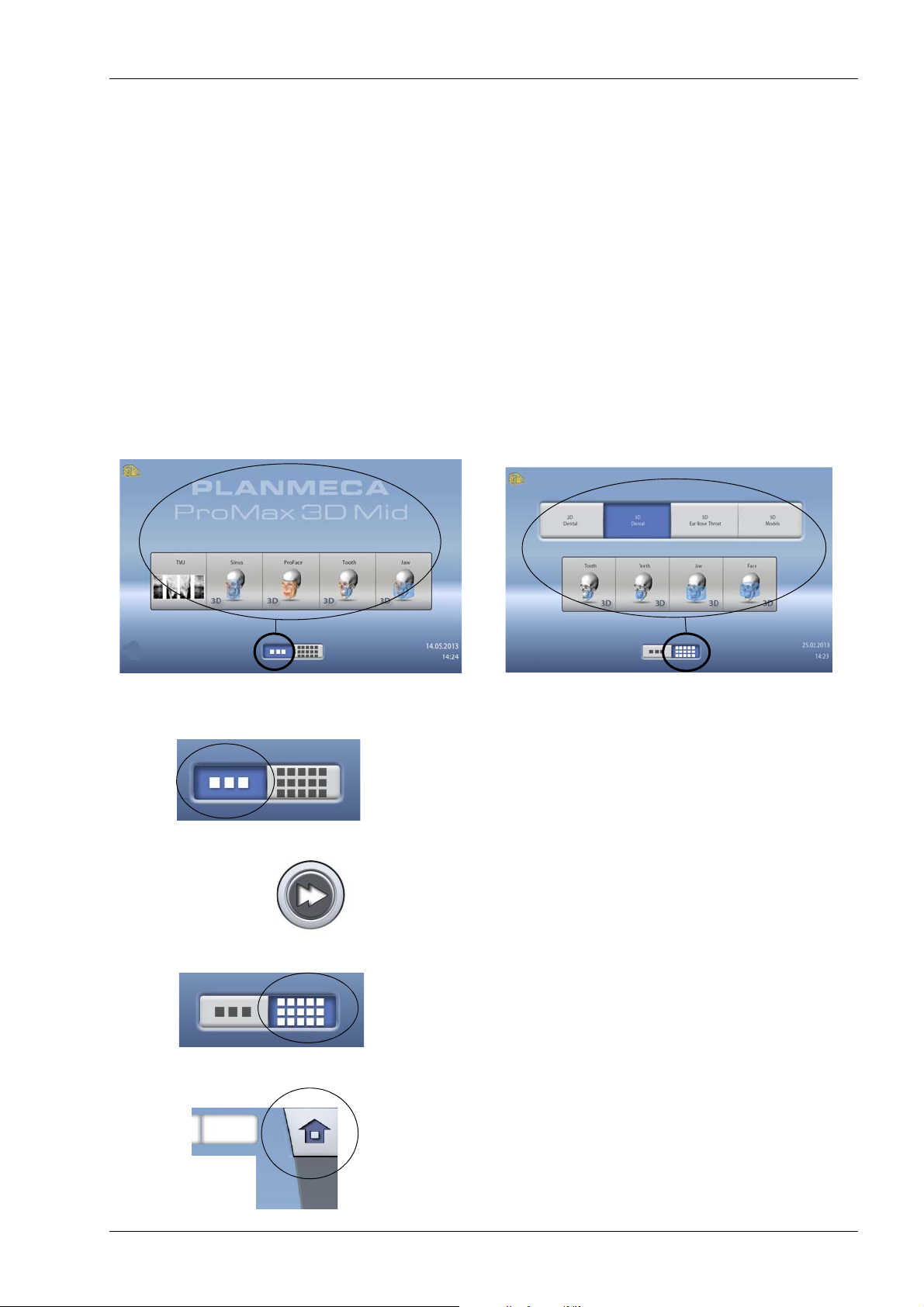

You can use the buttons at the bottom of the main screen
to change the appearance of the main view.
• Left button:
To view the ProMax model and up to five most recently
used programs, select the left button at the bottom of
the main screen. The most recently used program is
shown first. This is the default view of the main screen.
NOTE If you wish to use fast forward buttons on this view,
select Settings > Program > 2200 Program Features >
Fast Forward ON. Using a fast forward button takes
you directly to the last screen where you can take an
exposure.
• Right button:
To view two program bars on top of each other, select
the right button at the bottom of the main screen.
• Home button:
To return to the main view from another screen, select
the home button at the top right corner of the screen.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 13
MAIN PARTS

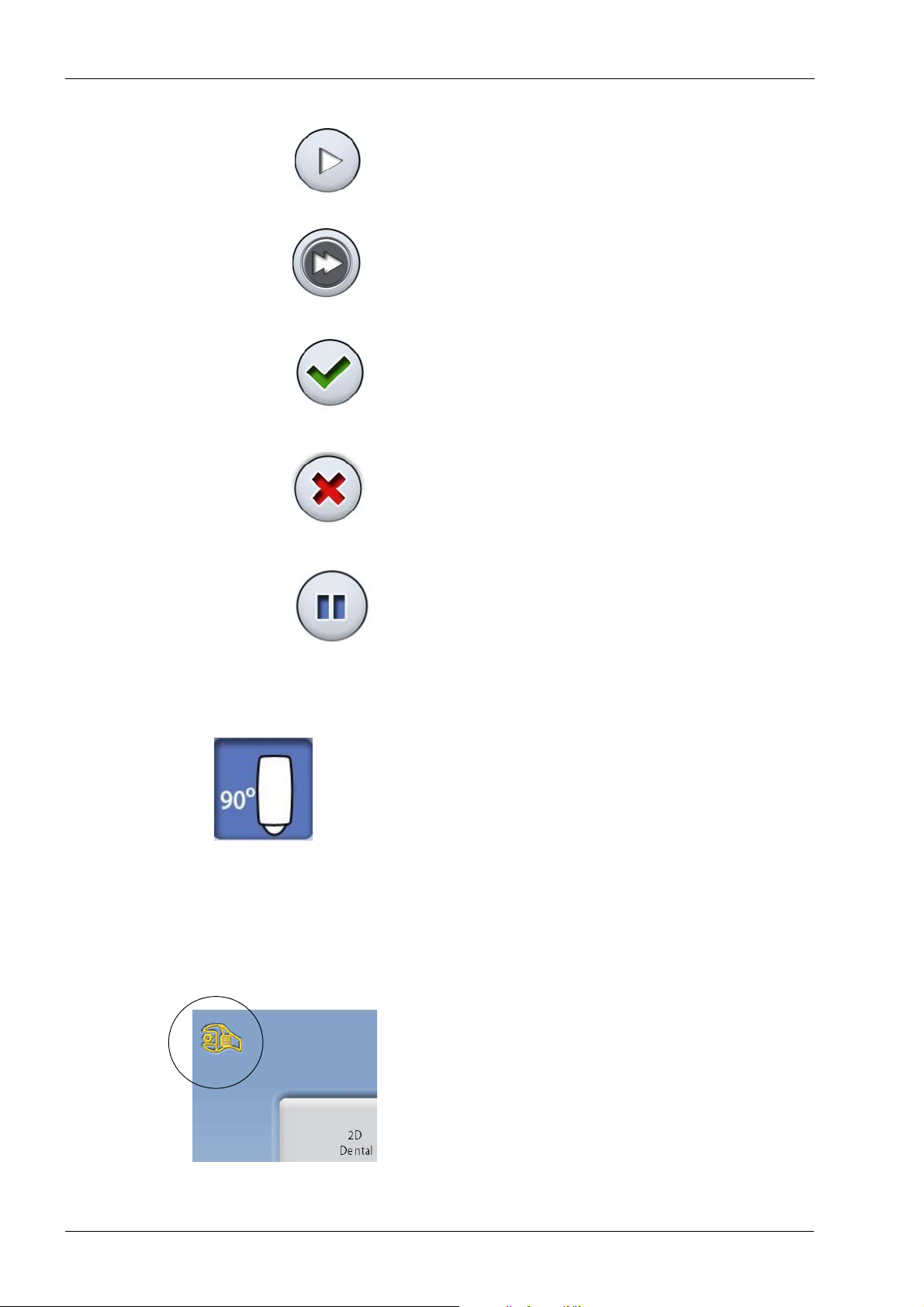

• Forward button:
To accept a selection and to go to the next screen,
touch the forward button.
• Fast forward button:
To accept a selection and to skip the next screen,
touch the fast forward button.
• Accept button:
To accept a selection, touch the green check mark
button.
• Cancel button:
To cancel a selection, touch the red cross button.
• Pause button:
To pause a function (instead of cancelling it), touch the
pause button.
• Making selections:
To make a selection on the touch screen, simply touch
a button or a field with your finger or a soft stylus. The
selected option is highlighted. To deselect an option,
touch the button or field again (or select an other
option if available).
NOTE Do not use sharp objects to operate the touch screen.
• Scrolling lists:
To scroll a list down or up, slide your finger on the
screen.
• Changing settings:

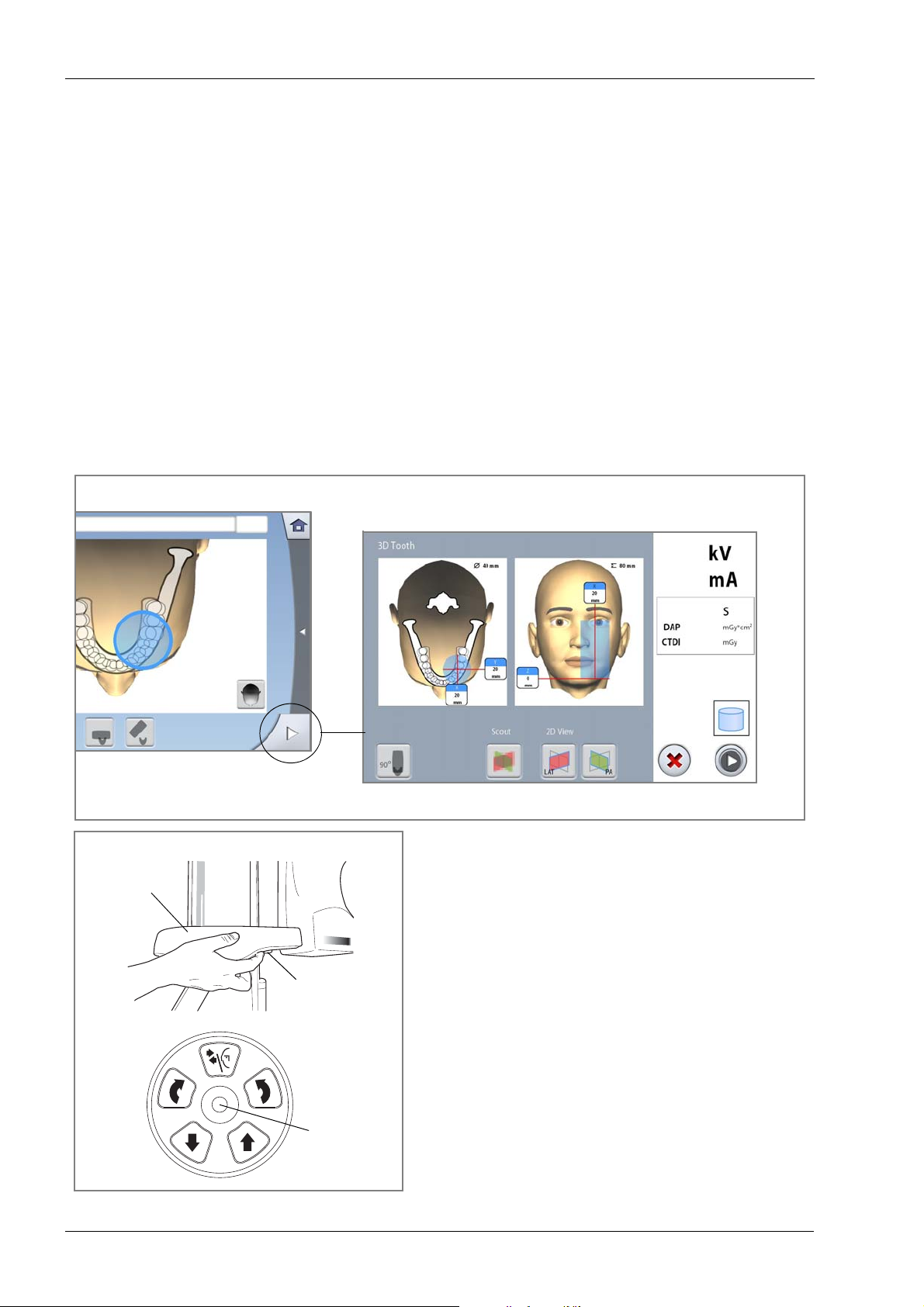

To change a setting, select the settings icon at the top
left corner of the main view. This takes you to the
settings menu where you can adjust the settings of the
X-ray unit.
14 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
MAIN PARTS
Open / close temple supports (2D imaging)
Move image volume up
Move X-ray unit up
Positioning joystick
Move X-ray unit down
Move image volume down
(3D imaging)
(3D imaging)

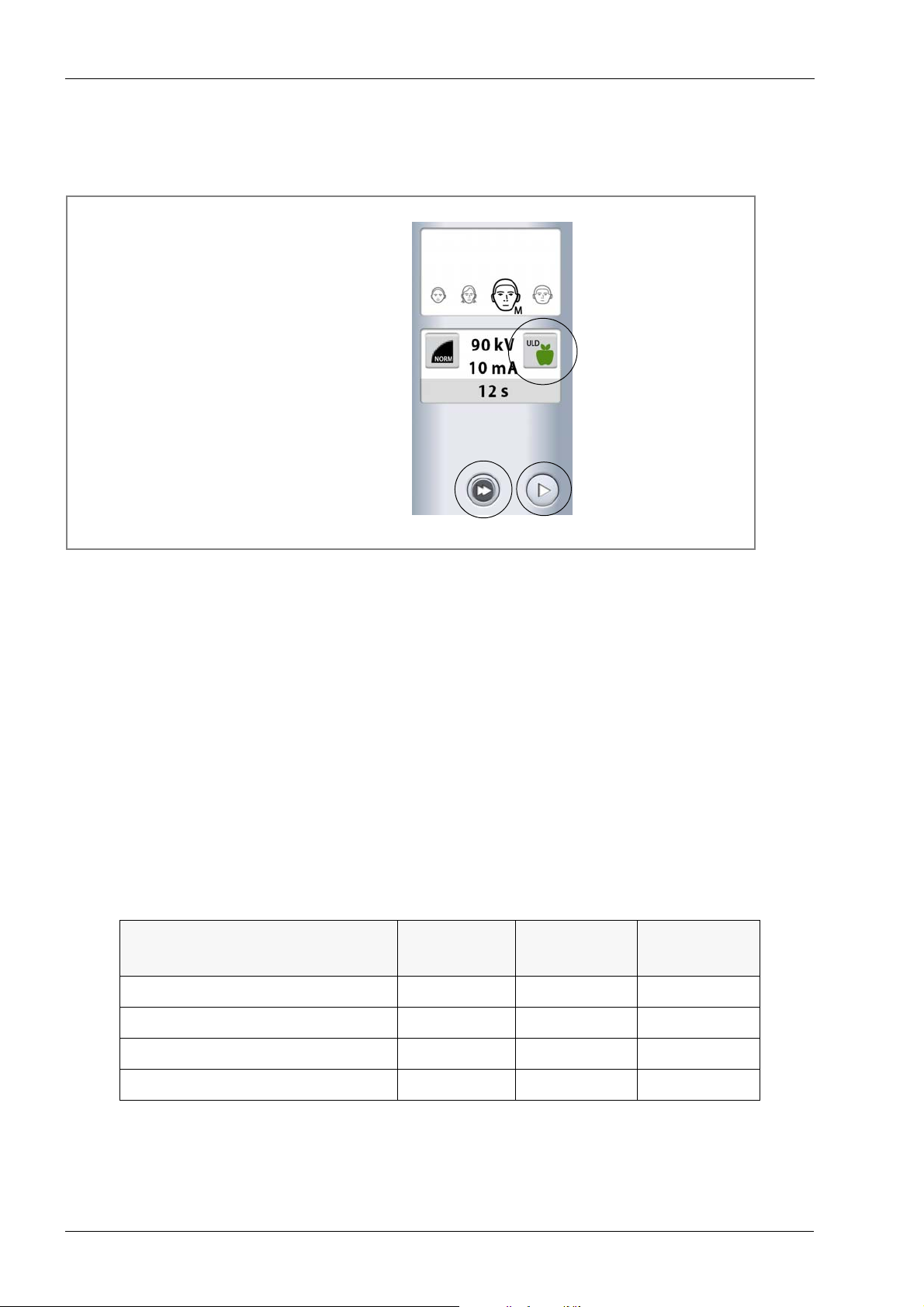

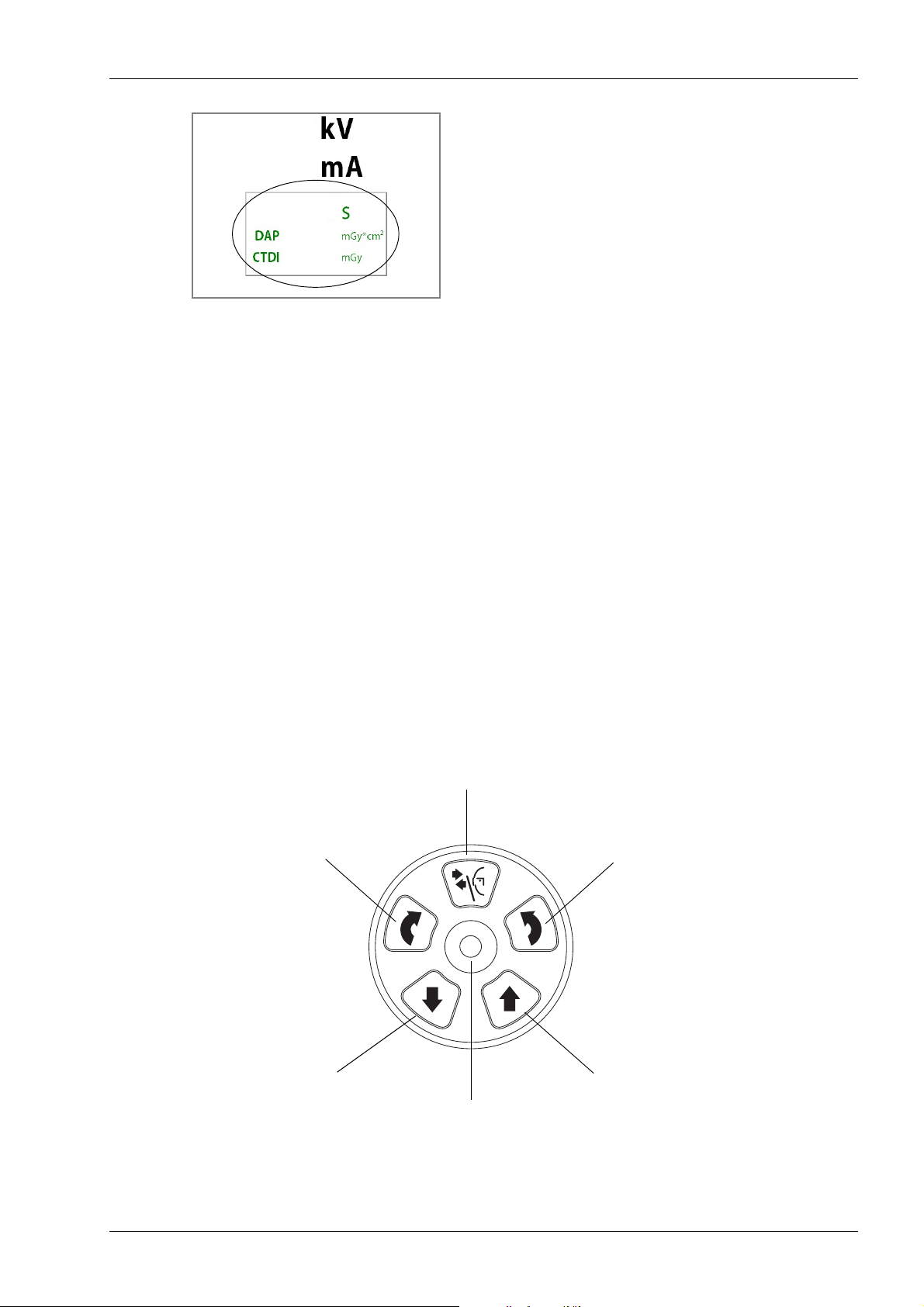

• Checking exposure time, DAP and CTDI values:
The estimated values for exposure time, DAP (Dose
Area Product) and CTDI (Computed Tomography
Dose Index) are shown with black text on the touch
screen before you take an exposure. The actual
values are shown with green text after the exposure.
• About stand-by mode:
The screen will automatically switch to stand-by mode
if you do not touch the screen or the exposure button
for more than thirty minutes. In stand-by mode the
green light on the exposure button indicates that the Xray unit is switched on even though the screen is dark.
The screen will switch on as soon as you touch it
again.

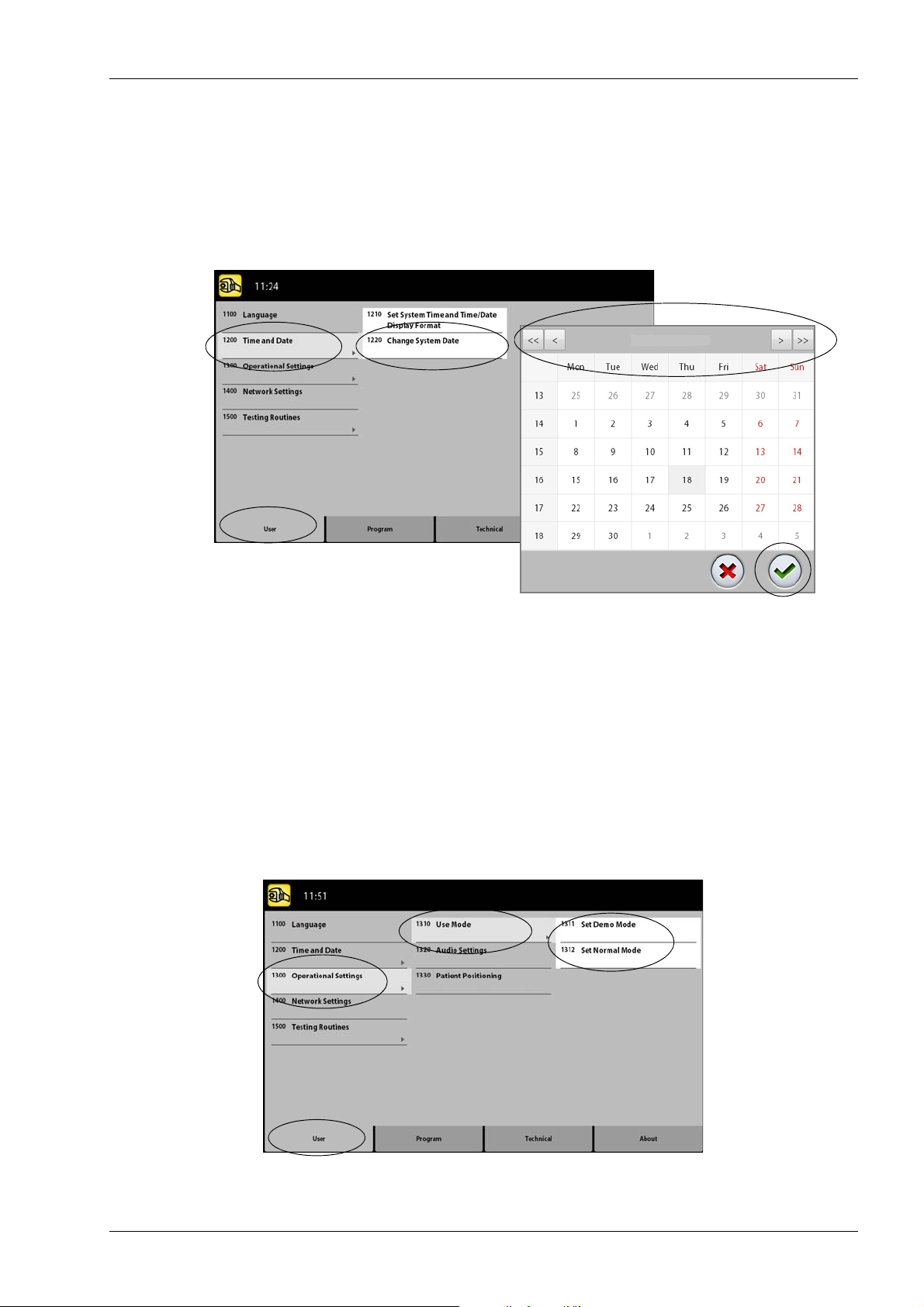

• Selecting demo mode:
You can switch demo mode on if you wish to practice
or demonstrate the functions of the X-ray unit without
radiation (Settings > User > 1300 Operational settings
> 1310 Use Mode > 1311 Set Demo Mode).
6.8 Patient positioning controls
NOTE Never allow patients to press the positioning controls
NOTE Pressing any of the positioning controls (button or
when they are positioned in the X-ray unit.
joystick) will switch the patient positioning lights on.
The lights will automatically switch off after two
minutes. To switch them off earlier, press the
positioning joystick.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 15
MAIN PARTS
Down
Up

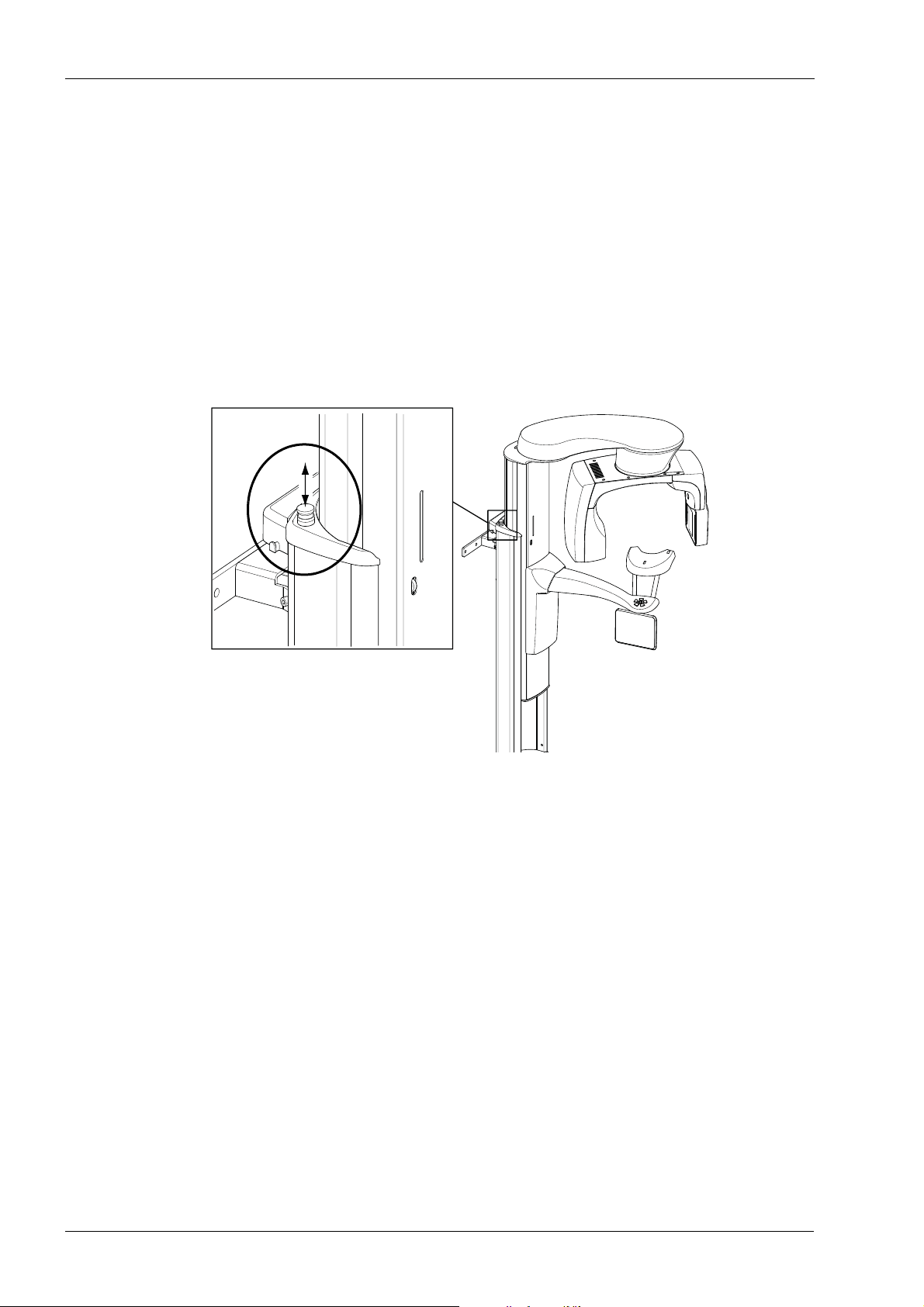

emergency_stop.eps
Stop plate
Down
Up

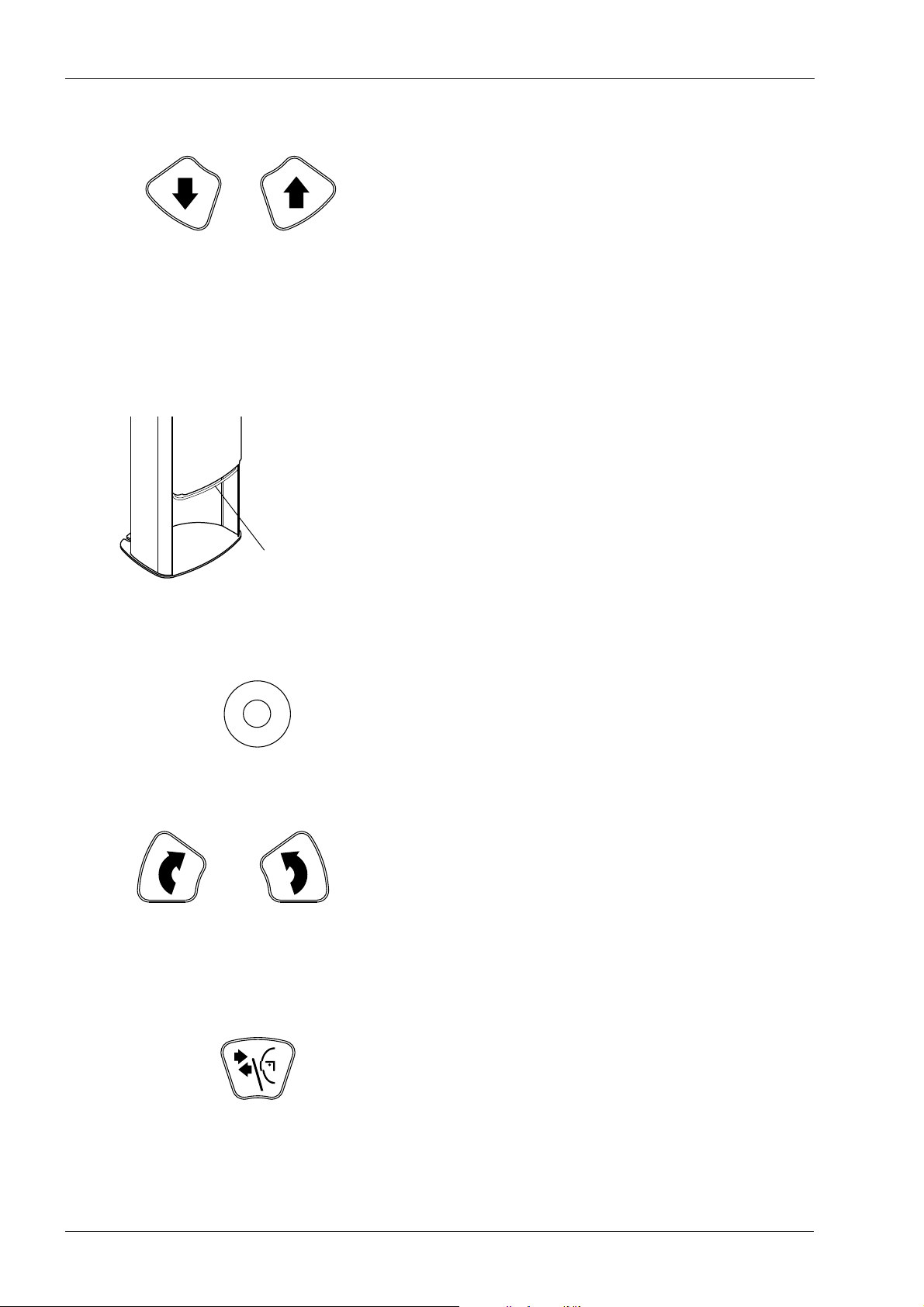

X-ray unit up / down
The X-ray unit up and down buttons are used to adjust the
X-ray unit to suit the height of the patient.
The X-ray unit moves slowly at first, then faster.
NOTE If for some reason either of the buttons gets stuck
during operation, you can stop the up / down
movement by pressing any of the other control
buttons or the positioning joystick. This is a safety
measure that guarantees that the up / down movement
can be stopped in an emergency.
NOTE Be careful that the X-ray unit does not hit the ceiling
when you press the up button. The maximum height
can be adjusted to suit offices with low ceiling, contact
your service technician for help.
NOTE Make sure that there is no object under the telescopic
column when you press the down button. If something
is in danger of becoming trapped, release the button
immediately to stop the movement.
NOTE The column movement stops automatically if the
emergency stop plate at the bottom is pressed
upwards. Clear any obstruction before moving the
column again.
NOTE When positioning wheelchair patients always first
move the X-ray unit down before you position the
patient in the unit.

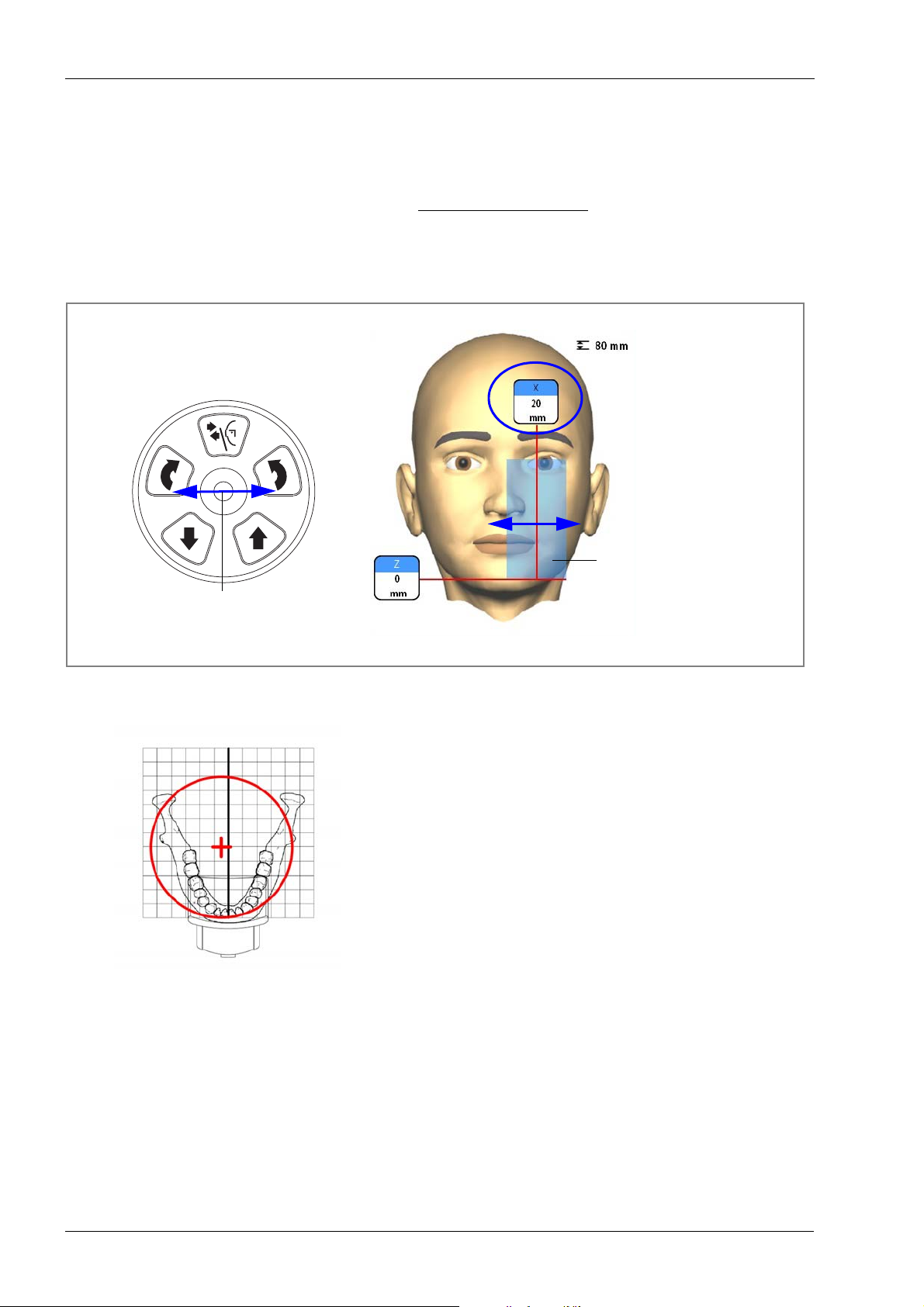

Positioning joystick
Image volume up / down
Open / close temple supports
The positioning joystick is used for horizontal adjustment
of the image volume in 3D imaging. It is used when the
patient is positioned in the X-ray unit.

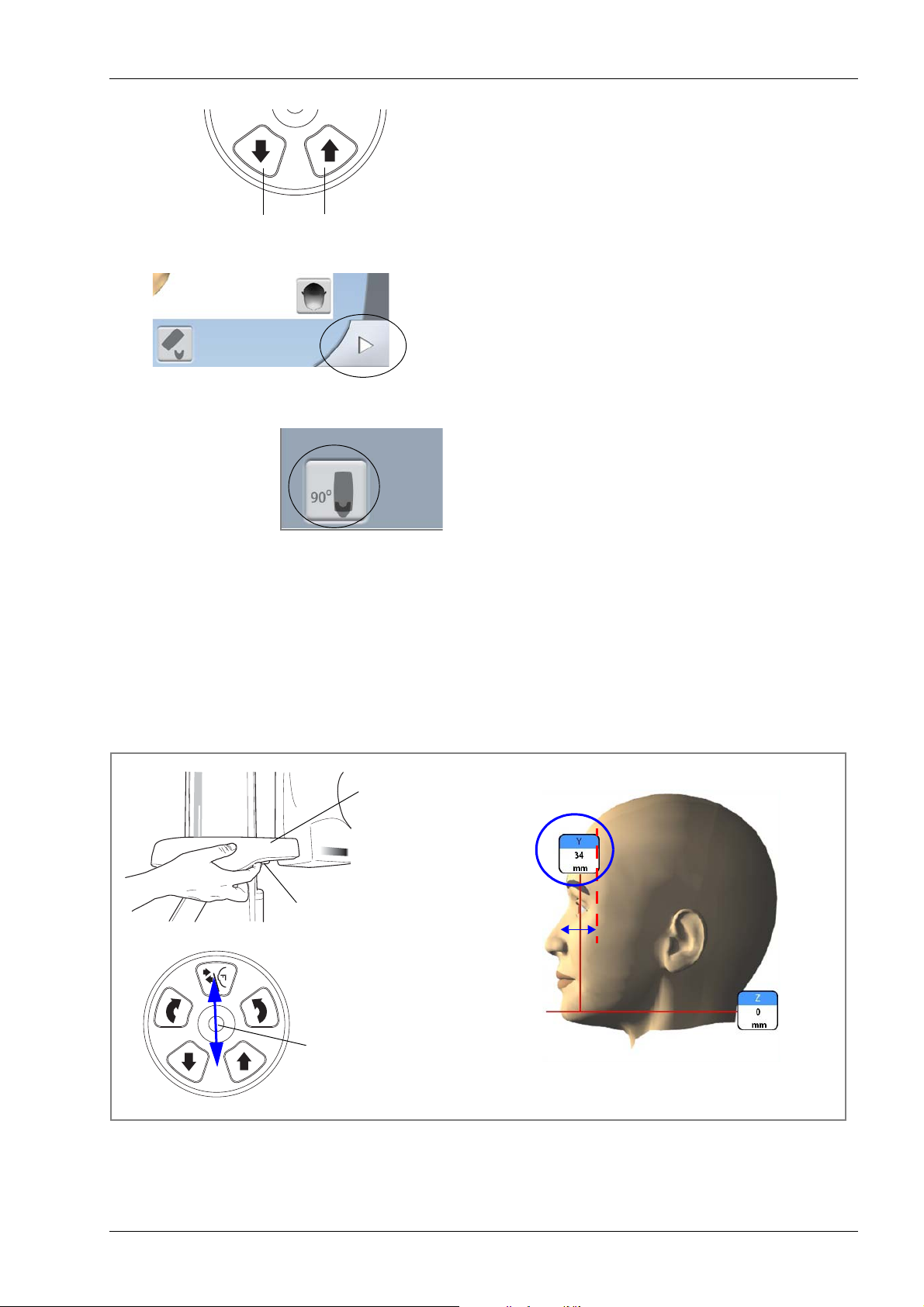

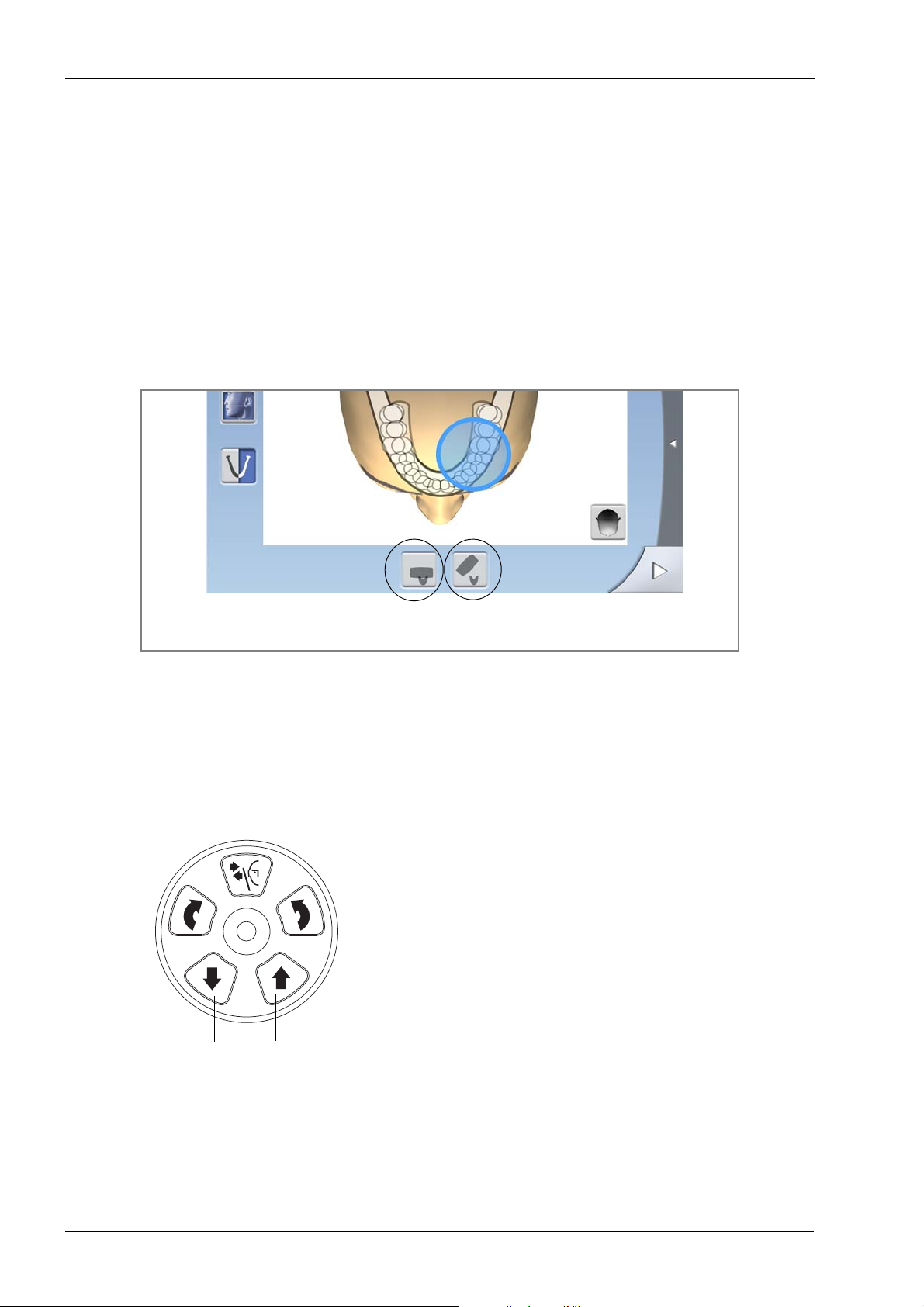

The image volume up and down buttons are used for
vertical adjustment of the image volume in 3D imaging.
The buttons are used when the patient is positioned in the
X-ray unit.
The X-ray unit moves slowly when you press the up /
down button. The height of the patient support table is not
changed, i.e. the patient remains in the same position.
Press the temple support button to open the temple
supports in 2D imaging. The temple supports can be
closed by pressing the temple support button again.
16 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
PLANMECA PROMAX 3D PLUS PROGRAMS
7 PLANMECA PROMAX 3D PLUS PROGRAMS
7.1 3D Dental
7.1.1 Volume sizes for children
Program Ø34 mm Ø60 mm Ø75 mm Ø140 mm
TOOTH Ø34 x H42 mm
Ø34 x H60 mm
TEETH Ø60 x H42 mm
JAW Ø140 x H50 mm
7.1.2 Volume sizes for adults
Program Ø40 mm Ø70 mm Ø90 mm Ø140 mm
TOOTH Ø40 x H50 mm
Ø40 x H70 mm
TEETH Ø70 x H50 mm
JAW Ø140 x H50 mm
Ø60 x H60 mm
Ø70 x H70 mm
Ø75 x H42 mm
Ø75 x H75 mm
Ø140 x H90 mm
Ø90 x H50 mm
Ø90 x H90 mm
Ø140 x H90 mm
7.2 3D Ear Nose Throat
7.2.1 Volume sizes for children
Program Ø34 mm Ø60 mm Ø90 mm Ø140 mm
NOSE Ø60 x H60 mm
SINUS Ø90 x H90 mm Ø140 x H90 mm
AIRWAYS Ø60 x H60 mm
MIDDLE EAR Ø34 x H42 mm Ø60 x H60 mm
TEMPORAL
BONE
VERTEBRAE Ø60 x H60 mm
User’s Manual (3D)
Ø60 x H60 mm
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 17
PLANMECA PROMAX 3D PLUS PROGRAMS
7.2.2 Volume sizes for adults
Program Ø40 mm Ø70 mm Ø90 mm Ø140 mm
NOSE Ø70 x H70 mm
SINUS Ø90 x H90 mm Ø140 x H90 mm
AIRWAYS Ø70 x H70 mm
MIDDLE EAR Ø40 x H50 mm Ø70 x H70 mm
TEMPORAL
BONE
VERTEBRAE Ø70 x H70 mm
Ø70 x H70 mm
7.3 3D Models
7.3.1 Volume size
Program Ø90 mm
IMPRESSION Ø90 x H40 mm
PLASTER CAST Ø90 x H40 mm
18 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
PLANMECA PROMAX 3D MID PROGRAMS
8 PLANMECA PROMAX 3D MID PROGRAMS
8.1 3D Dental
8.1.1 Volume sizes for children
Program Ø34 mm Ø68 mm Ø85 mm Ø200 mm
TOOTH Ø34 x H42 mm
Ø34 x H68 mm
TEETH Ø68 x H42 mm
JAW Ø200 x H60 mm
FACE Ø200 x H100 mm
8.1.2 Volume sizes for adults
Program Ø40 mm Ø80 mm Ø100 mm Ø200 mm
TOOTH Ø40 x H50 mm
Ø40 x H80 mm
TEETH Ø80 x H50 mm
JAW Ø200 x H60 mm
Ø68 x H68 mm
Ø80 x H80 mm
Ø85 x H50 mm
Ø85 x H85 mm
Ø200 x H100 mm
Ø200 x H170 mm
Ø100 x H60 mm
Ø100 x H100 mm
Ø200 x H100 mm
FACE Ø200 x H100 mm
Ø200 x H170 mm
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 19
PLANMECA PROMAX 3D MID PROGRAMS
8.2 3D Ear Nose Throat
8.2.1 Volume sizes for children
Program Ø34 mm Ø68 mm Ø100 mm Ø200 mm
NOSE Ø68 x H68 mm
SINUS Ø100 x H100 mm
AIRWAYS Ø68 x H68 mm
MIDDLE EAR Ø34 x H42 mm Ø68 x H68 mm
TEMPORAL
BONE
VERTEBRAE Ø68 x H68 mm
Ø68 x H68 mm
8.2.2 Volume sizes for adults
Program Ø40 mm Ø80 mm Ø100 mm Ø200 mm
NOSE Ø80 x H80 mm
SINUS Ø100 x H100 mm
AIRWAYS Ø80 x H80 mm
MIDDLE EAR Ø40 x H50 mm Ø80 x H80 mm
Ø100 x H170 mm
Ø100 x H170 mm
Ø200 x H100 mm
Ø200 x H170 mm
Ø200 x H100 mm
Ø200 x H170 mm
TEMPORAL
BONE
VERTEBRAE Ø80 x H80 mm
Ø80 x H80 mm
8.3 3D Models
8.3.1 Volume size
Program Ø80 mm
IMPRESSION Ø80 x H40 mm
PLASTER CAST Ø80 x H40 mm
20 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
9 3D PATIENT EXPOSURE
9.1 Preparing X-ray system
9.1.1 Attaching and removing sensor
NOTE The available sensors are shown in section 6.3
NOTE FOR PROFACE SENSOR:
3D PATIENT EXPOSURE
“Sensors” on page 9.

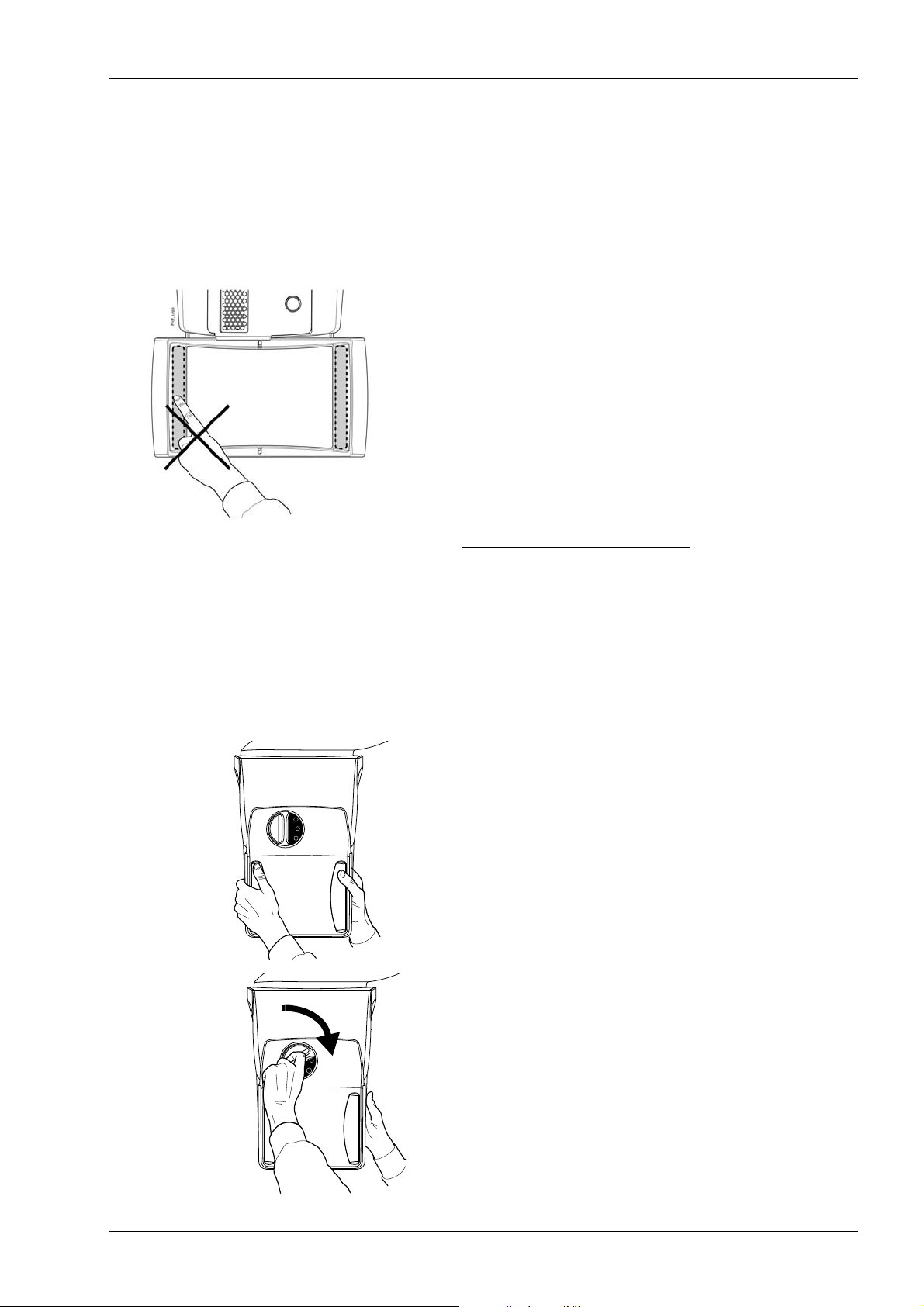

Do not touch the glass windows when you hold the
sensor. Fingerprints or other stains on the glass
surface destroy image quality.
CAUTION Do not drop the sensor. Planmeca limited

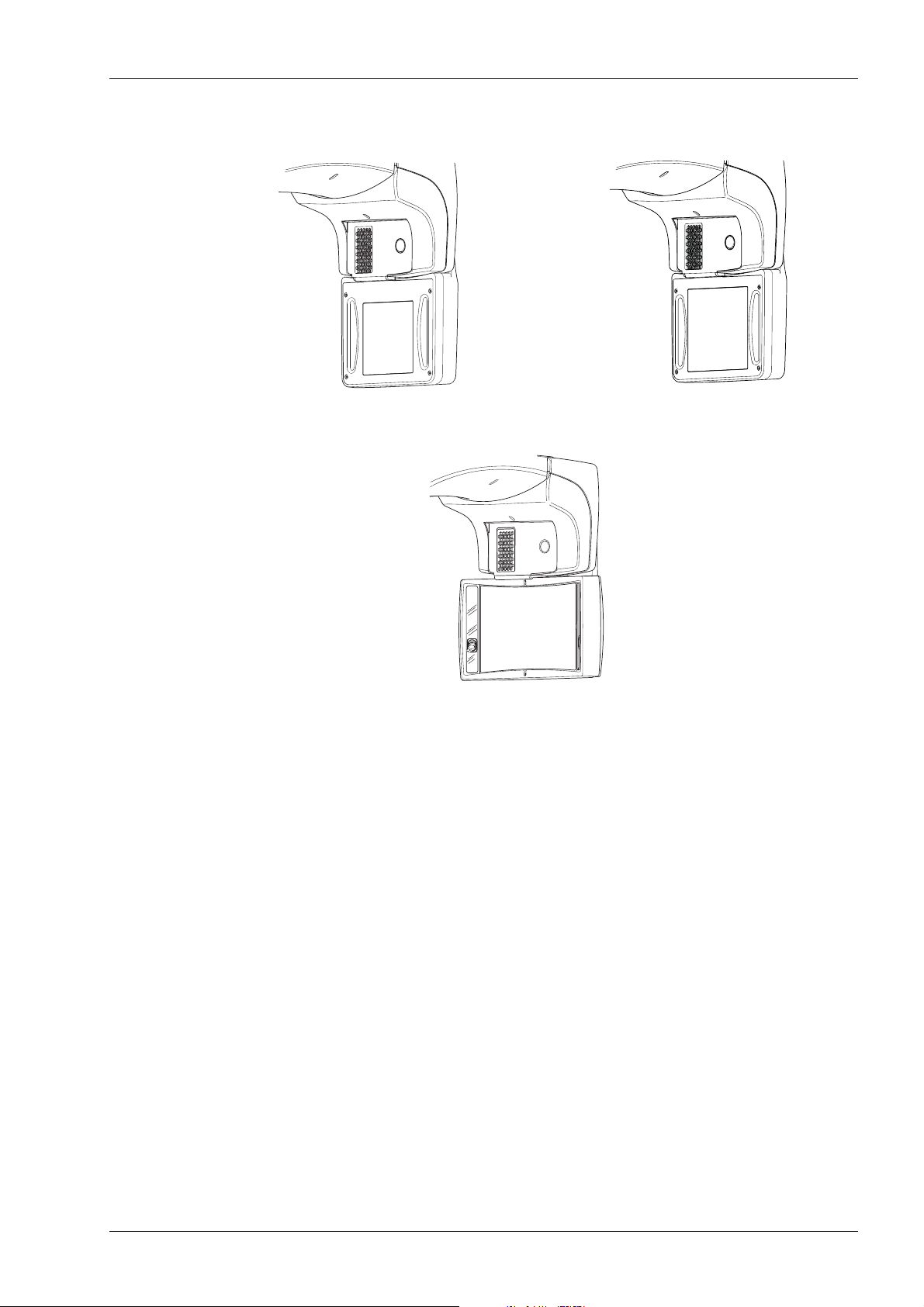

Attaching sensor to C-arm
warranty does not cover damage which is
due to misuse, e.g. dropping the sensor,
neglect, or any cause other than ordinary
use.
If you have any reason to believe that the
sensor might be faulty, take a test exposure
before taking a patient exposure.
1. Push the sensor onto the connector on the C-arm.
User’s Manual (3D)
2. Turn the locking knob over the fastening mechanism.
This will secure the sensor in position.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 21
3D PATIENT EXPOSURE
Mid_84.eps

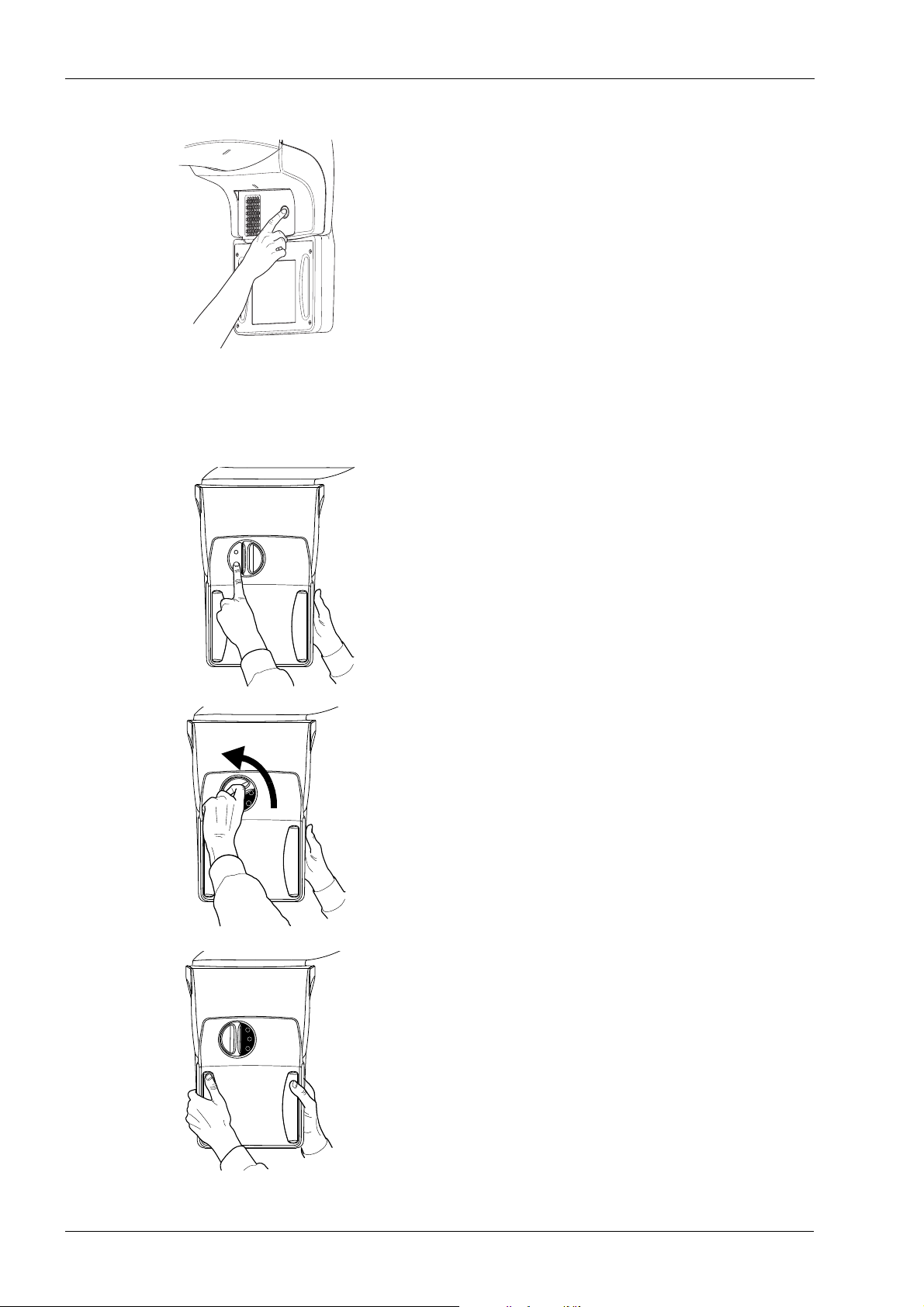

Detaching sensor from C-arm
3. Push in the C-arm electrical connector button on the
other side. This will make the electrical connection
between the sensor and C-arm.
NOTE Do not remove the sensor during imaging process.
1. Push in the C-arm electrical connector. This will
disconnect the electrical connection between the
sensor and C-arm.
2. Turn the locking knob 180 degrees. This will release
the locking mechanism.
3. Carefully pull the sensor out.
22 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)

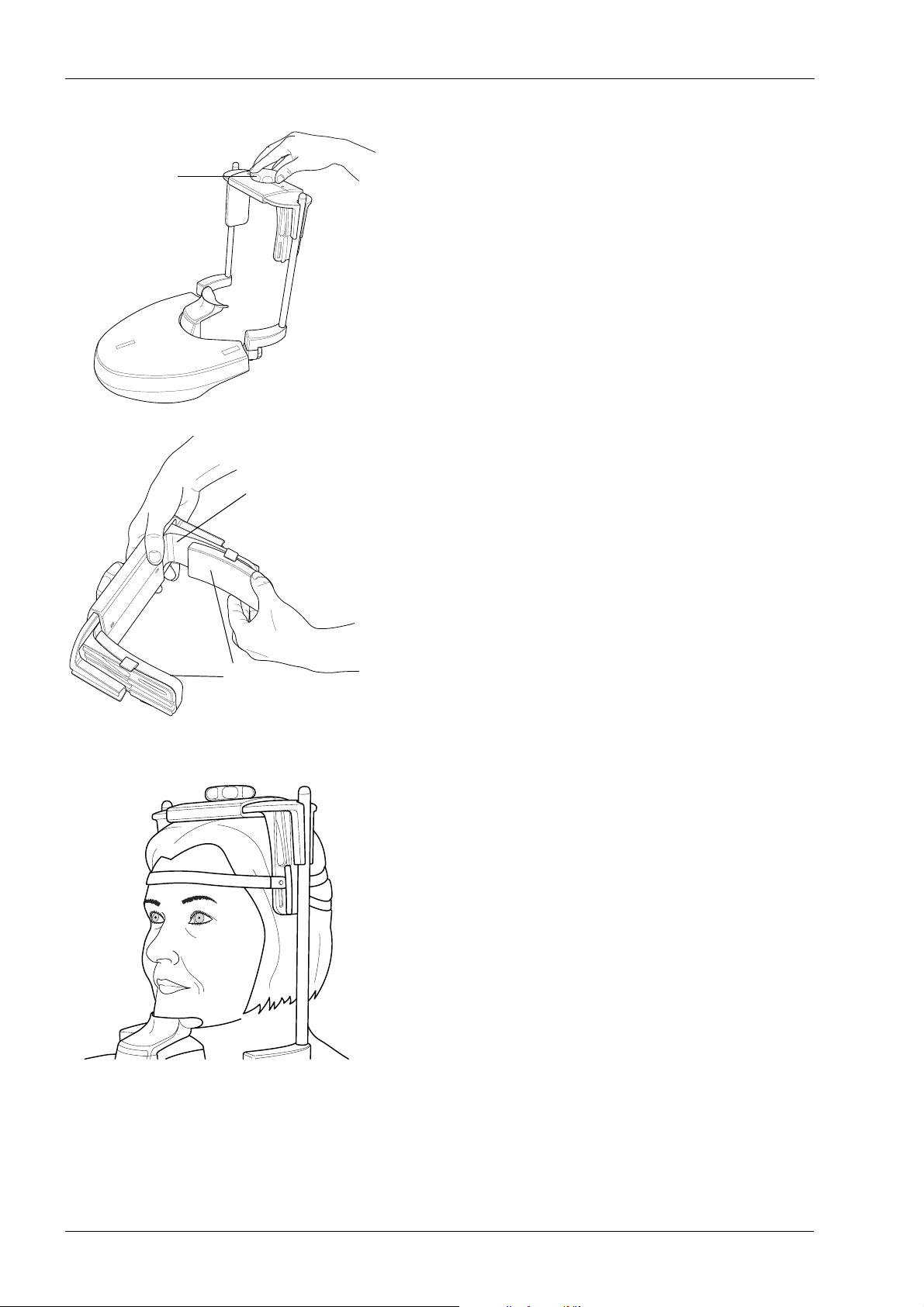

9.1.2 Attaching patient supports
ProMax_5_2.eps
Support bars
Patient support table
Locking
knobs
Head_support_attach.eps
Adjustable
Support bars
head support
3D PATIENT EXPOSURE
Attaching support bars
NOTE The available head supports are shown in section 6.5
“Exposure switch” on page 11.
Insert the support bars into the holes in the patient
support table and secure them in position by tightening
the locking knobs.
NOTE Ensure that you insert the support bars the right way
round.
ProMax_2_2.eps
Head support A: Attaching adjustable head support
If you are using the adjustable head support, slide it onto
the support bars.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 23
3D PATIENT EXPOSURE
Adjusting
knob
Head_support_attach_2.eps
Adjustable
head support
Temple pads
for children
Then turn the adjusting knob to adjust the head support to
suit the size of the patient’s head.
Head_support_tightening_knob.eps
• You can use temple pads if you take exposures of
children or patients with a small head. Slide the temple
pads onto the adjustable head support as shown.
Ensure that you slide the temple pads as far up as they
will go.
NOTE Use temple pads on both sides (not on one side only).
• You can use fastening straps for additional head
support if needed. Attach one strap in front of the
forehead and two at the back of the head as shown.
NOTE Be careful when you handle the straps. Do not let the
straps hit the patient in the eye or face.
NOTE Do not overstretch the straps. The straps lose their
elasticity if you pull them more than 50 mm (1.9 in.).
Straps with a free length (i.e. when they are not
stretched) of over 255 mm (10 in.) do not support the
patient’s head firmly.
24 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)

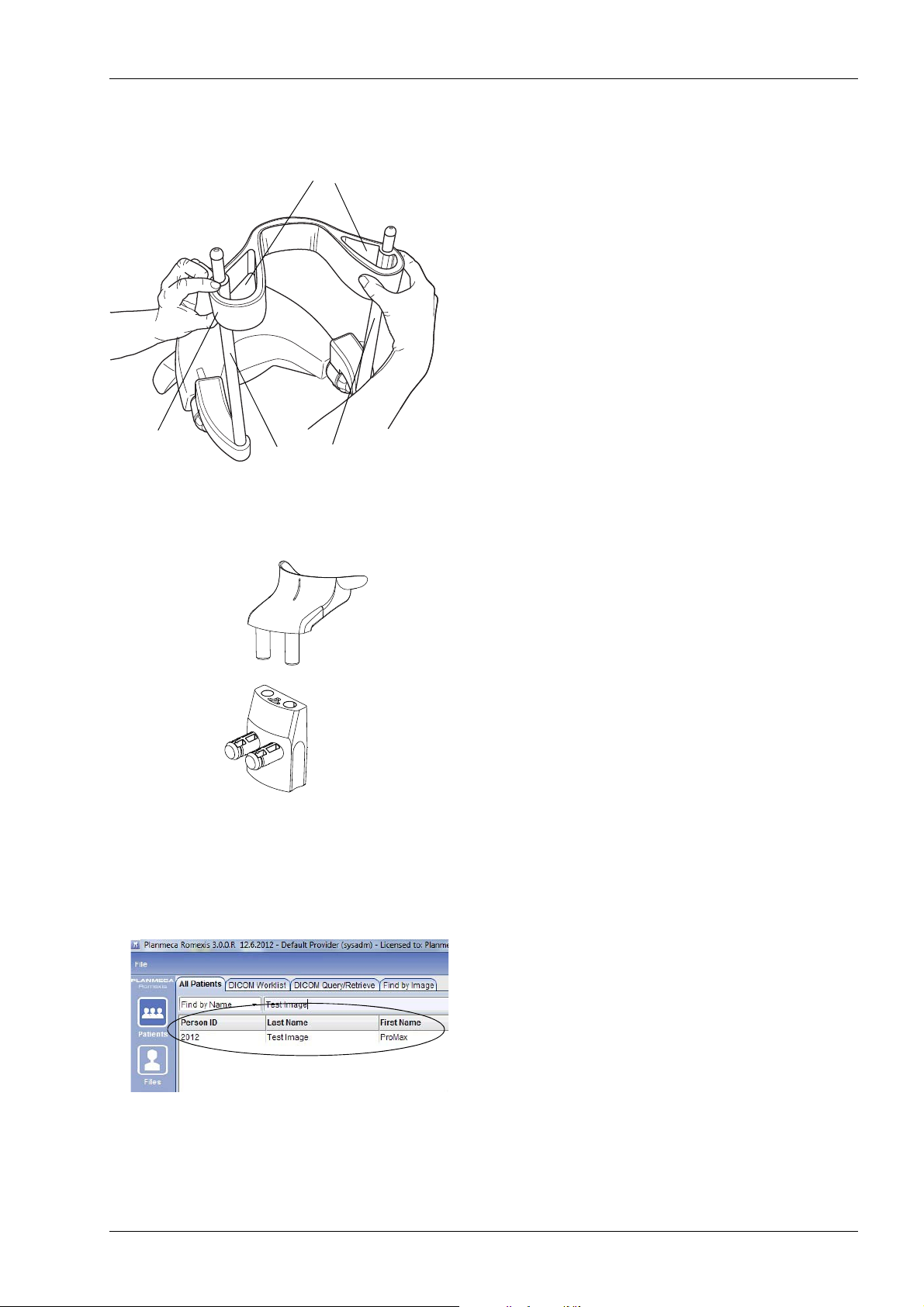

Head support B: Attaching head band
Attach_headband_25_2.eps
Head band
Support bars
Large openings
Bite1.eps
Chin1.eps
Chin cup
Adapter
If you are using the head band, attach it to the support
bars as shown. The side with the large openings should
be against the patient’s forehead.
3D PATIENT EXPOSURE
Attaching chin cup
9.1.3 Preparing Planmeca Romexis
Insert the chin cup into the adapter. Insert the adapter into
the holes in the middle of the patient support table.
User’s Manual (3D)
First select the patient.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 25
3D PATIENT EXPOSURE
XS = Child
S = Small adult
M = Medium-sized adult
L = Large adult
Select patient size:
Fast forward
Forward
(skip next screen)
9.2 Selecting exposure settings

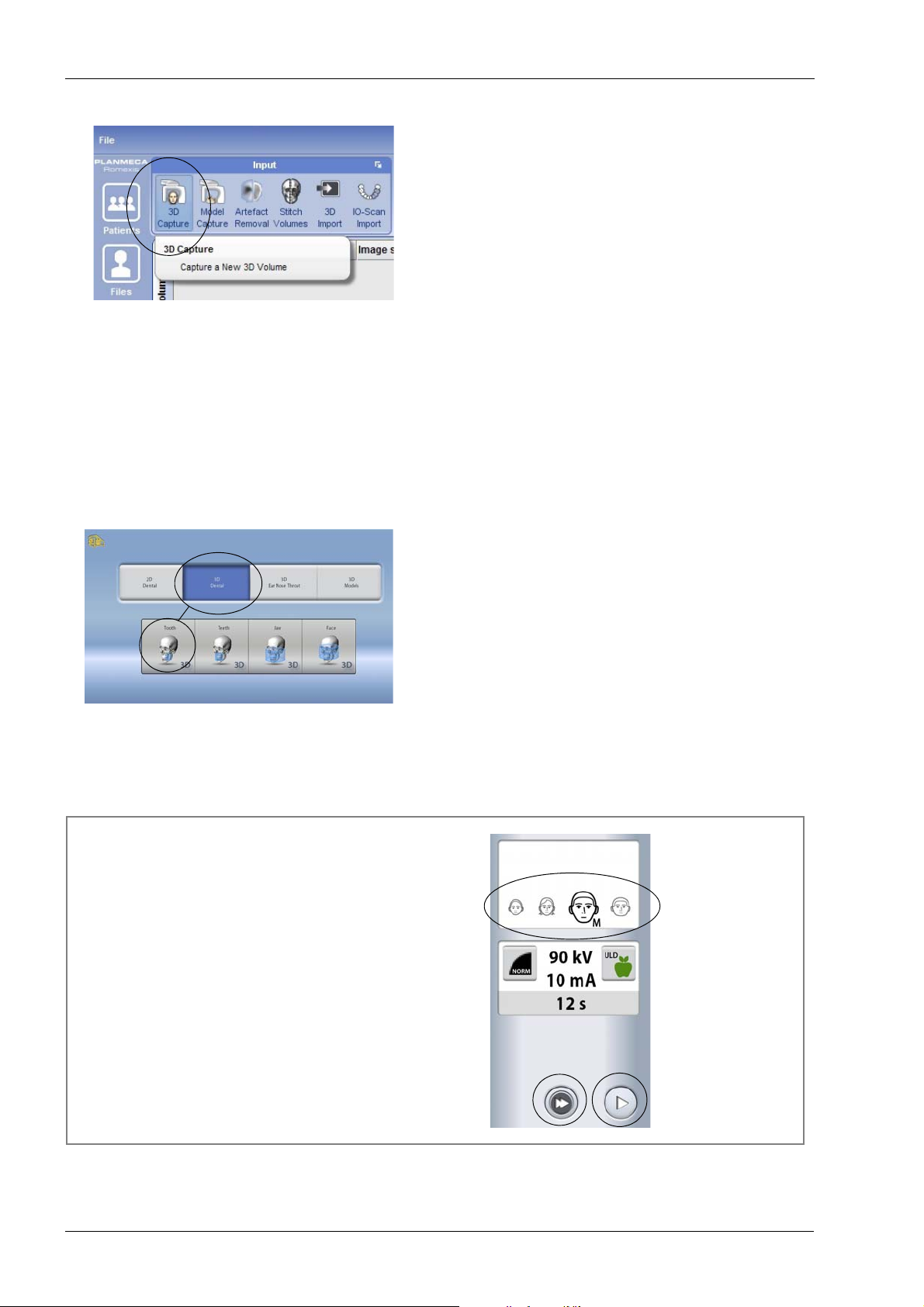

9.2.1 Selecting program
Then click the 3D capture button.
Refer to the Planmeca Romexis User’s Manual for details
on Romexis functions.
Refer to section 6.7 “Touch screen” on page 13 for
general information on how to make or cancel selections
on the touch screen.
9.2.2 Selecting patient size
Select the 3D program you wish to use.
Refer to
• section 7 “PLANMECA PROMAX 3D PLUS
PROGRAMS” on page 17 or
• section 8 “PLANMECA PROMAX 3D MID
PROGRAMS” on page 19
for details.
Select the patient size according to the build of the
patient.
26 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
NOTE Selecting child patient (XS) will automatically reduce
the volume size and patient dose.
User’s Manual (3D)
3D PATIENT EXPOSURE
Low dose
Normal resolution
High definition
High resolution
Select image resolution:
Fast forward
Forward
(skip next screen)
Endodontic

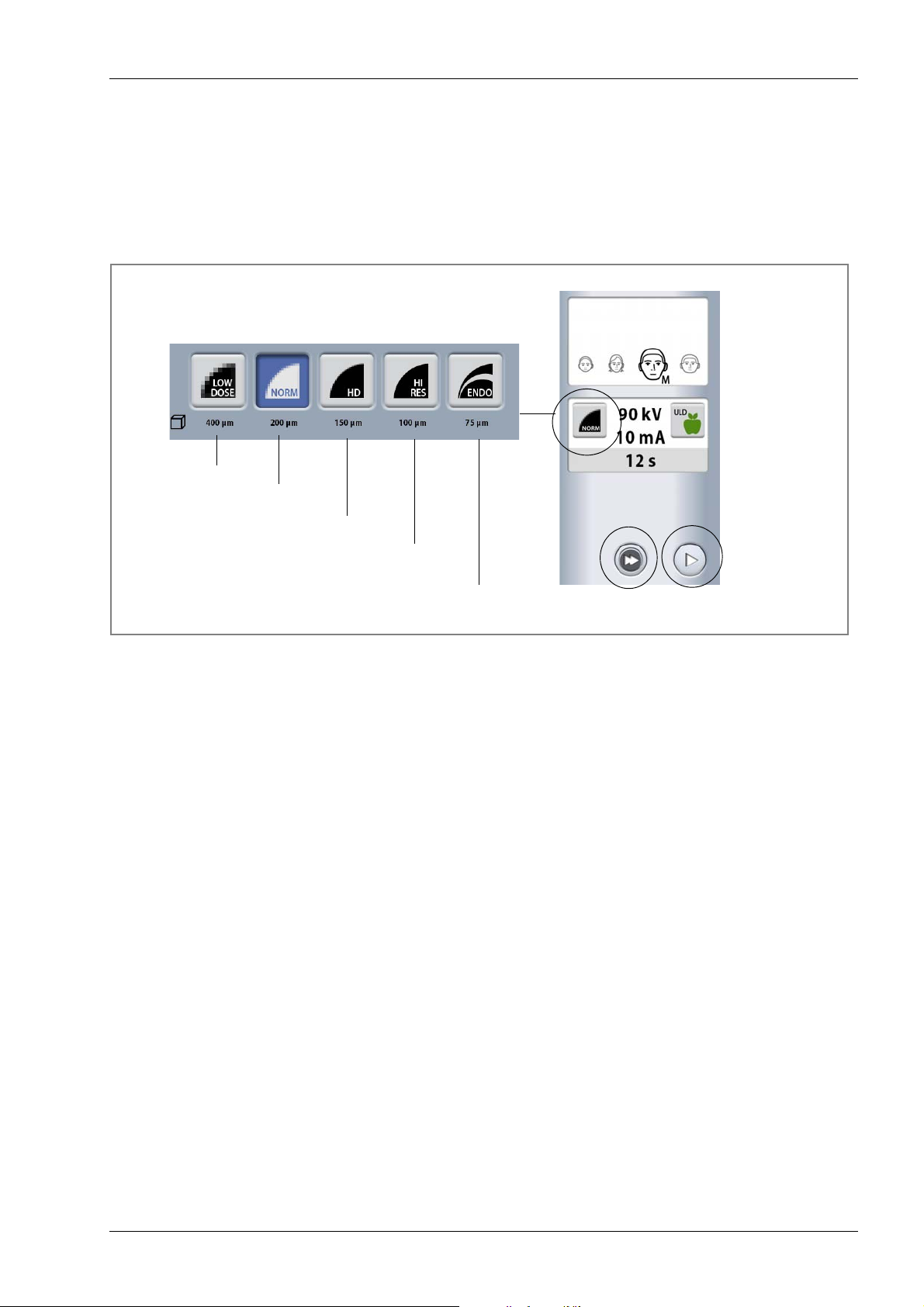

9.2.3 Selecting image resolution
NOTE The exposure values will automatically change
according to the selected patient size, image
resolution and ULD setting.
Select the image resolution you wish to use. The voxel
size is shown below the resolution button.
NOTE The available options depend on the selected program
and X-ray unit model.
NOTE The exposure values will automatically change
according to the selected patient size, image
resolution and ULD setting.
• Low dose: Lower exposure values and reduced patient
radiation dose
• Normal resolution: Suitable for most targets
• High definition: Better image quality for small targets,
e.g. ear bones
• High resolution: Sharp images
• Endodontic: Very sharp images for endodontic
applications and other small targets, e.g. ear bones
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 27
3D PATIENT EXPOSURE
Fast forward
Forward
(skip next screen)

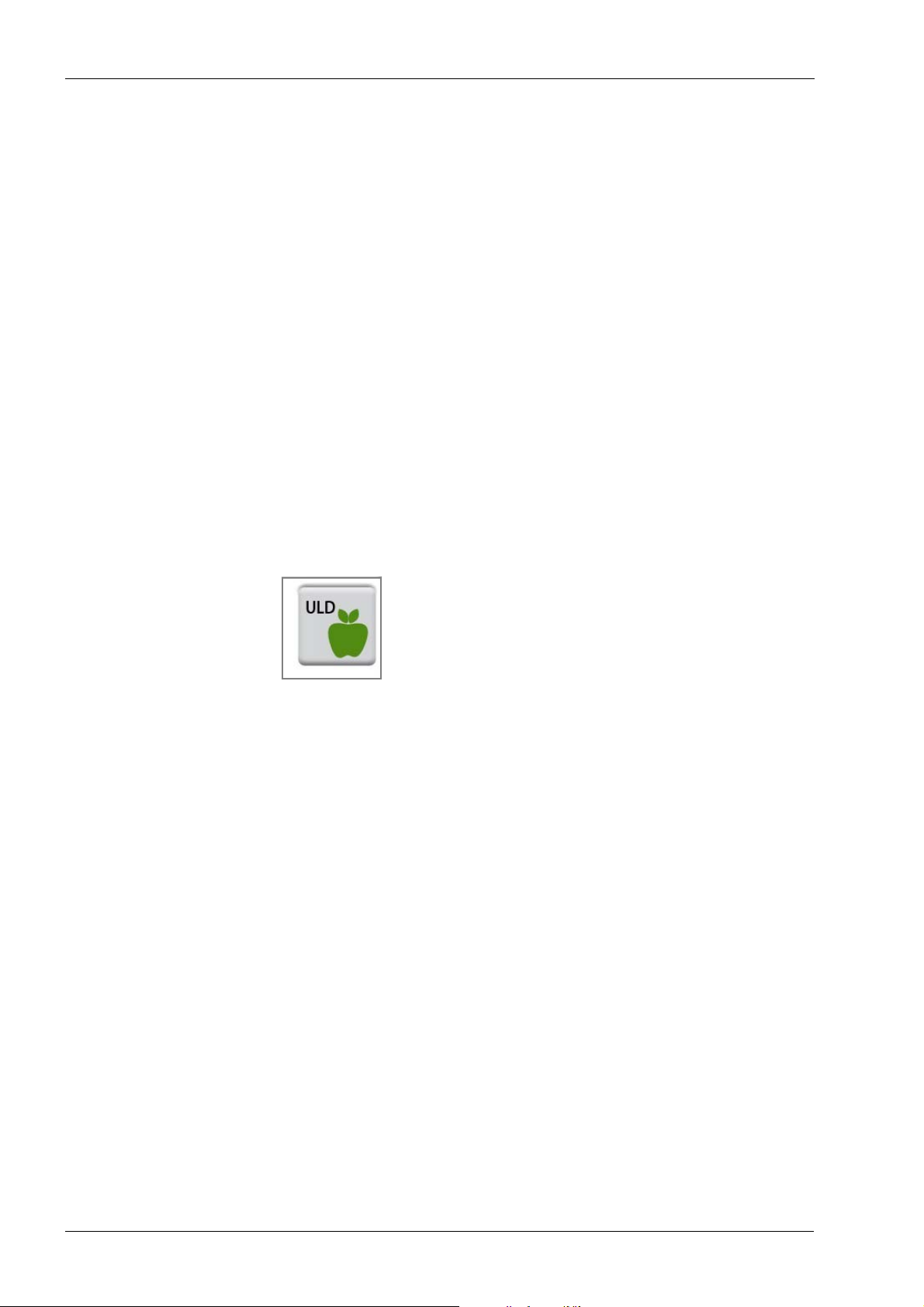

Select ULD button
9.2.4 Selecting Ultra Low Dose (ULD)
Select the ULD button to take an exposure with a very low
dose. The function can be used to reduce patient
radiation dose for example in follow-up studies.
NOTE The exposure values will automatically change
according to the selected patient size, image
resolution and ULD setting.

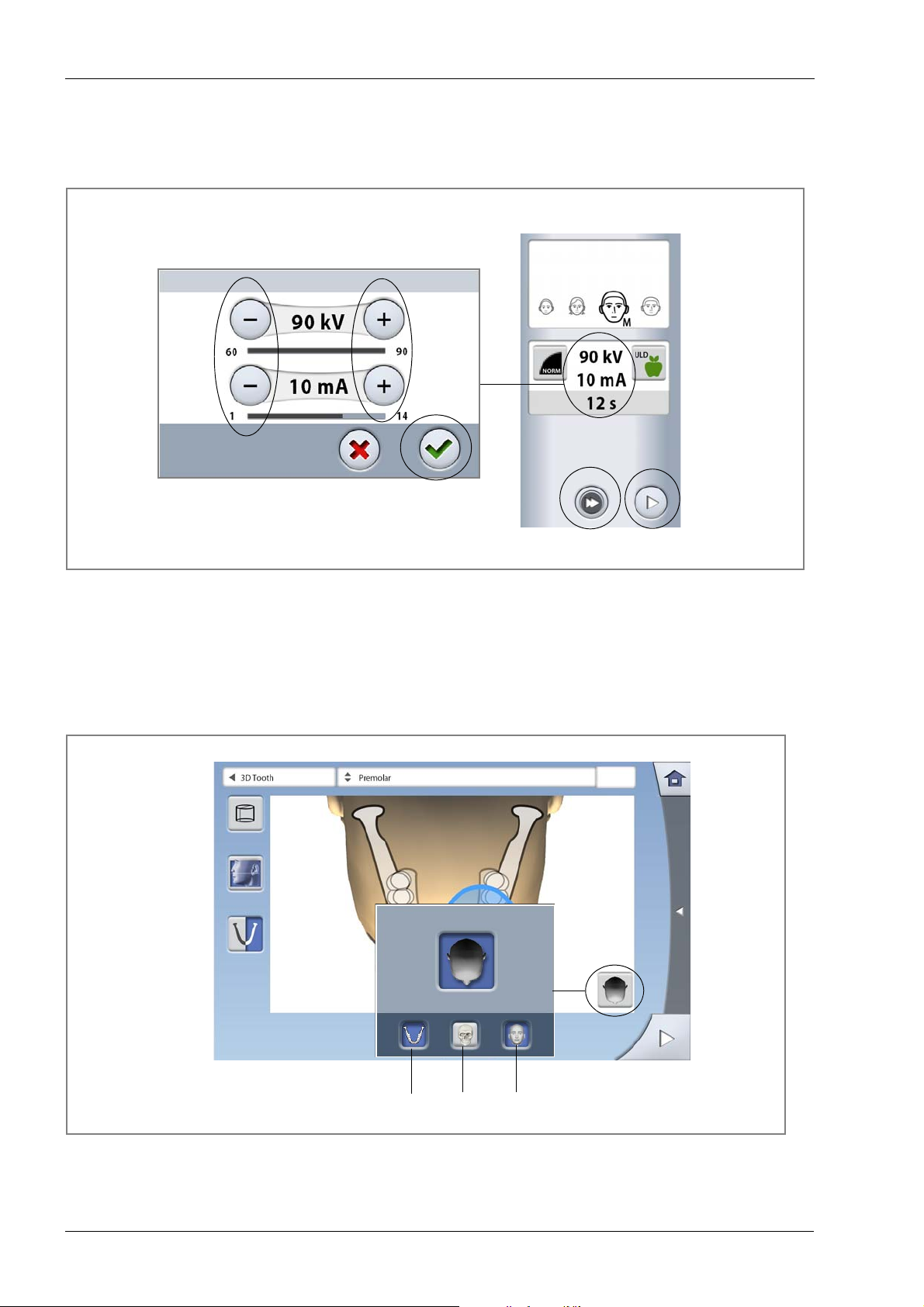

9.2.5 Adjusting exposure values for current exposure
NOTE Always try to minimize the radiation dose to the
patient.
The exposure values have been preset at the factory for
each patient size, image resolution and ULD (Ultra Low
Dose) setting. The preset exposure values are average
values and they are only meant to guide the user.
The preset exposure values are shown in the following
tables.
Factory presets for image resolution Low dose
in programs Nose and Sinus
PATIENT SIZE kV VALUE mA VALUE
Child (XS) 90 2.5 1.4
mA VALUE
WITH ULD
Small adult (S) 90 3.2 1.8
Medium-sized adult (M) 90 4 2.2
Large adult (L) 90 5 2.8
28 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
Factory presets for image resolution Low dose
in other programs
3D PATIENT EXPOSURE
PATIENT SIZE kV VALUE mA VALUE
Child (XS) 90 4 1.6
Small adult (S) 90 5 2
Medium-sized adult (M) 90 6.3 2.5
Large adult (L) 90 8 3.2
Factory presets for image resolution Normal
in programs Nose and Sinus
PATIENT SIZE kV VALUE mA VALUE
Child (XS) 90 4 2.8
Small adult (S) 90 5 3.6
Medium-sized adult (M) 90 6.3 4.5
Large adult (L) 90 8 5.6
mA VALUE
WITH ULD
mA VALUE
WITH ULD
Factory presets for image resolutions Normal, HD, Hi Res and Endo
in other programs
PATIENT SIZE kV VALUE mA VALUE
Child (XS) 90 6.3 4.5
Small adult (S) 90 8 5.6
Medium-sized adult (M) 90 10 7.1
Large adult (L) 90 12.5 9
mA VALUE
WITH ULD
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 29
3D PATIENT EXPOSURE
Reduce
value
Increase
value
Forward
Fast forward
(skip next screen)
Select view
Jaw
Skull Face
You can adjust the preset exposure values (kV and mA).
To improve the image contrast, reduce the kV value. To
reduce the radiation dose, reduce the mA value.
• To adjust the exposure values for this exposure:
9.2.6 Selecting screen view
NOTE You can adjust the preset exposure values
permanently as described in section 12.2.1 “Programs
(2100)” on page 62.
Use the button on the right of the screen to select the view
that you wish to use on this screen.
NOTE You can select one or more options. If all three buttons
30 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
are gray (no option selected), the screen shows the
preset volume positions for the selected program.
User’s Manual (3D)
9.2.7 Selecting volume position
OR
Select from list
Select from screen
Select
volume height
Select
jaw half
(lower / upper /
both halves)
3D PATIENT EXPOSURE

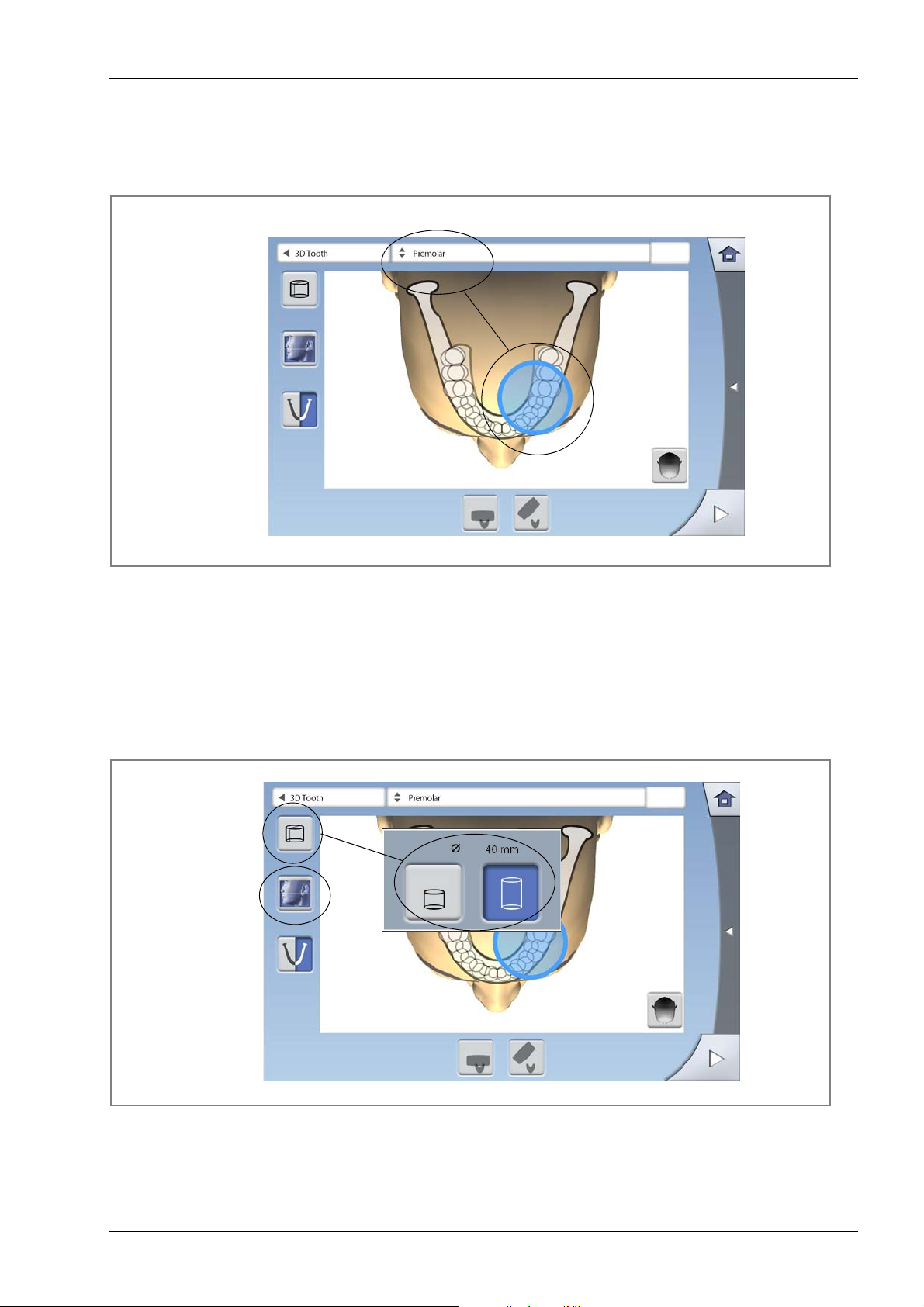

Touch the area that you wish to expose. Alternatively, you
can select the volume position from the drop-down menu
at the top.
9.2.8 Selecting volume height and jaw half
NOTE The available options depend on the selected
program.
Use the first button on the left of the screen to select the
volume height.
Use the second button on the left of the screen to select
the jaw half that you wish to expose.
User’s Manual (3D)
NOTE The available options depend on the selected
program.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 31
3D PATIENT EXPOSURE
Select jaw side
(right / left /
both sides)
Select 3D face photo
Prof_1.eps
ProFace sensor

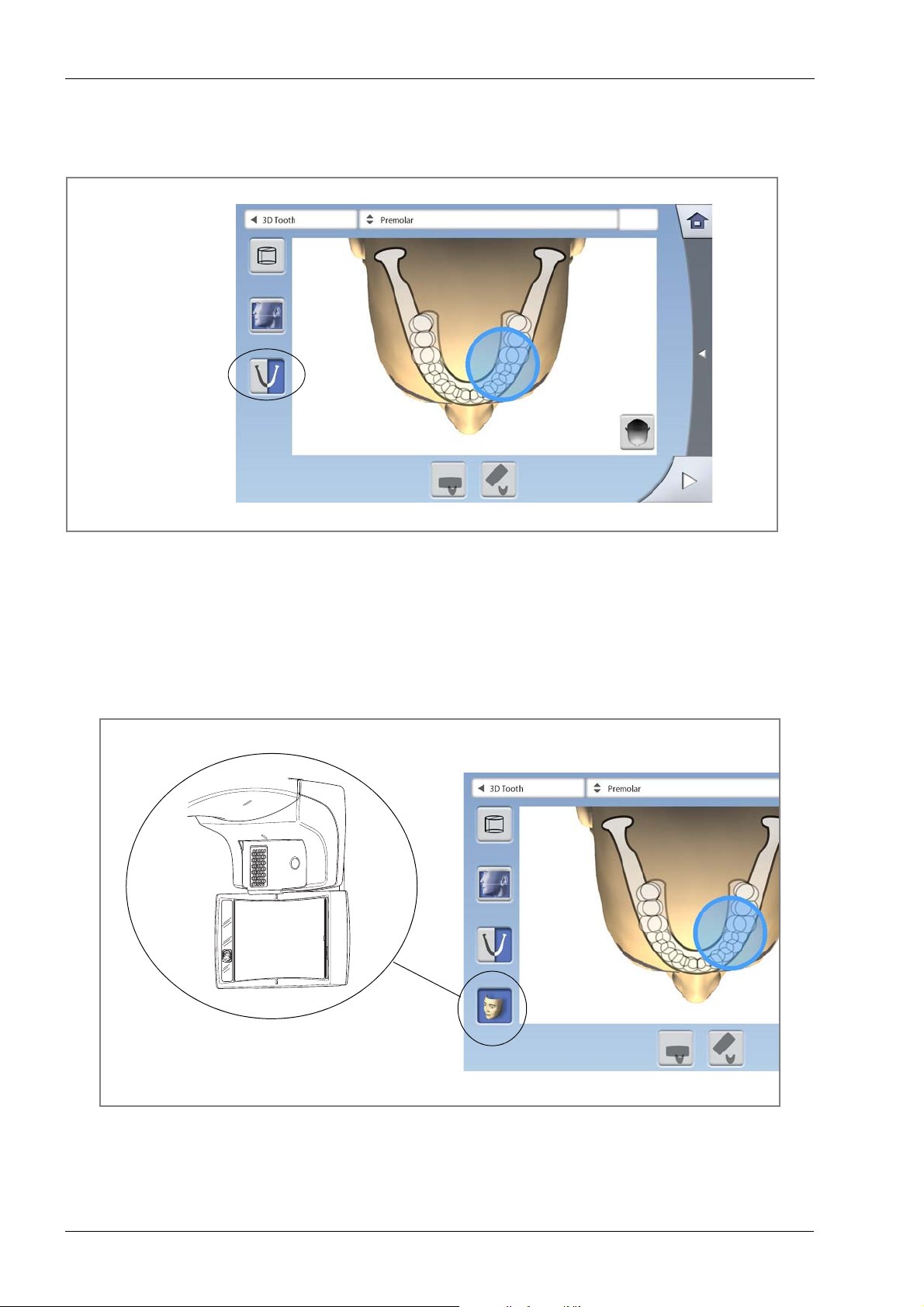

9.2.9 Selecting jaw side
Use the third button on the left of the screen to select the
jaw side that you wish to expose.
NOTE The available options depend on the selected program
and image resolution.

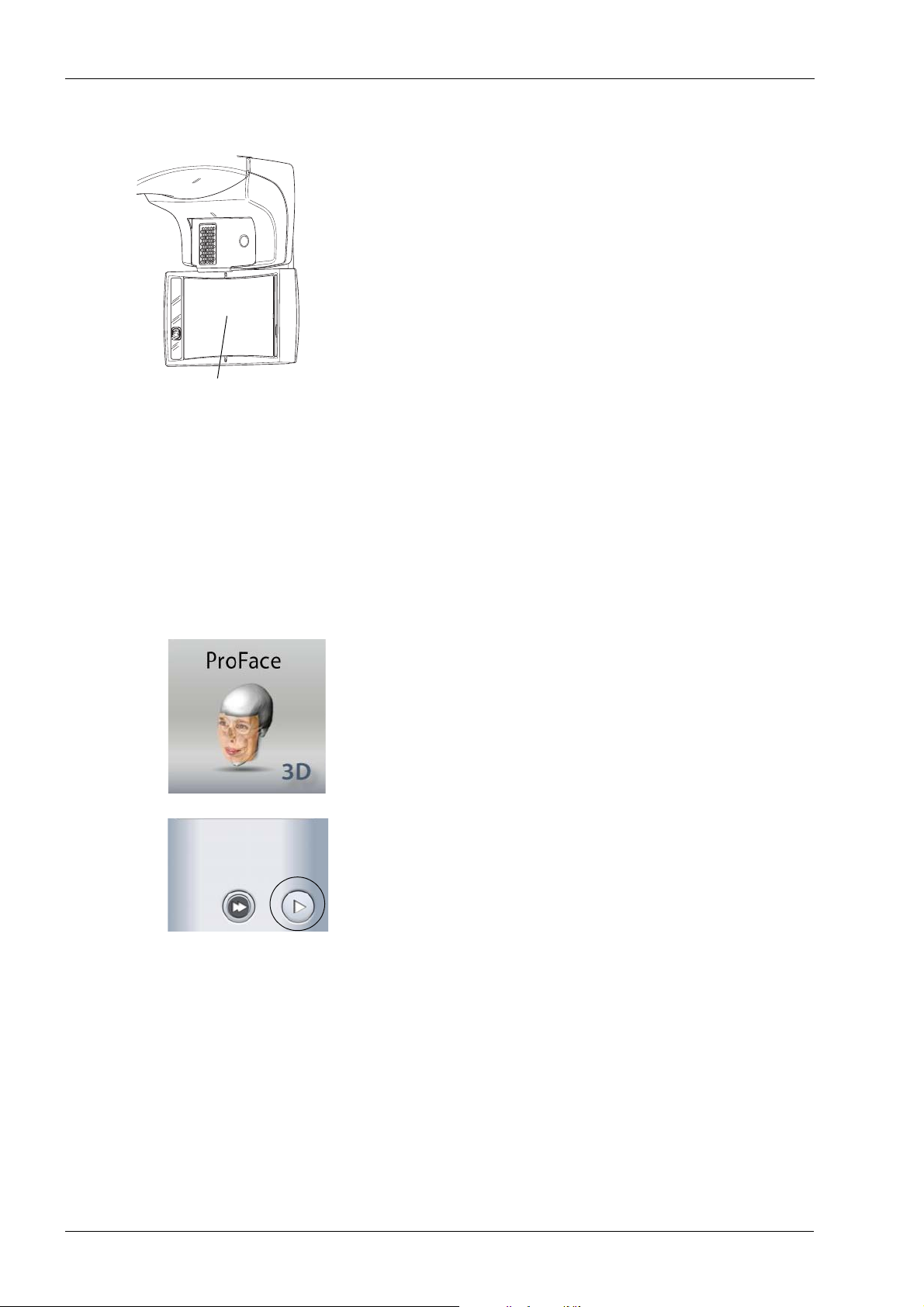

9.2.10 Selecting 3D face photo (X-ray units with ProFace sensor)
If the X-ray unit has a ProFace sensor, you can take a 3D
photo of the patient’s face at the same time as you take
an X-ray image. Select the last button on the left of the
screen to take both images at the same time.
32 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
9.3 Preparing patient
3D PATIENT EXPOSURE
Ask the patient to remove any spectacles, hearing aids,
dentures, hairpins, and personal jewellery such as
earrings, necklaces and piercings as these can produce
shadows or reflections in the image. The patient should
also remove any loose items of clothing (e.g. scarf, tie)
that might get caught in the arm structures of the X-ray
unit.
NOTE High contrast objects, such as gold teeth or amalgam,
may cause artefacts in the image.
Place a protective lead apron over the patient’s back if
required.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 33
3D PATIENT EXPOSURE
Select patient entry position
Closed Open
Down
Up
9.4 Patient positioning
9.4.1 Selecting patient entry position
Use the buttons at the bottom of the screen to select the
patient entry position.
• Selecting the left button will position the C-arm around
the patient support. This is the traditional closed
patient entry position.
• Selecting the right button will move the C-arm to the
back, away from the patient positioning area. This full
view position allows you to monitor and adjust the
patient’s position freely from all directions.
9.4.2 Positioning patient’s head

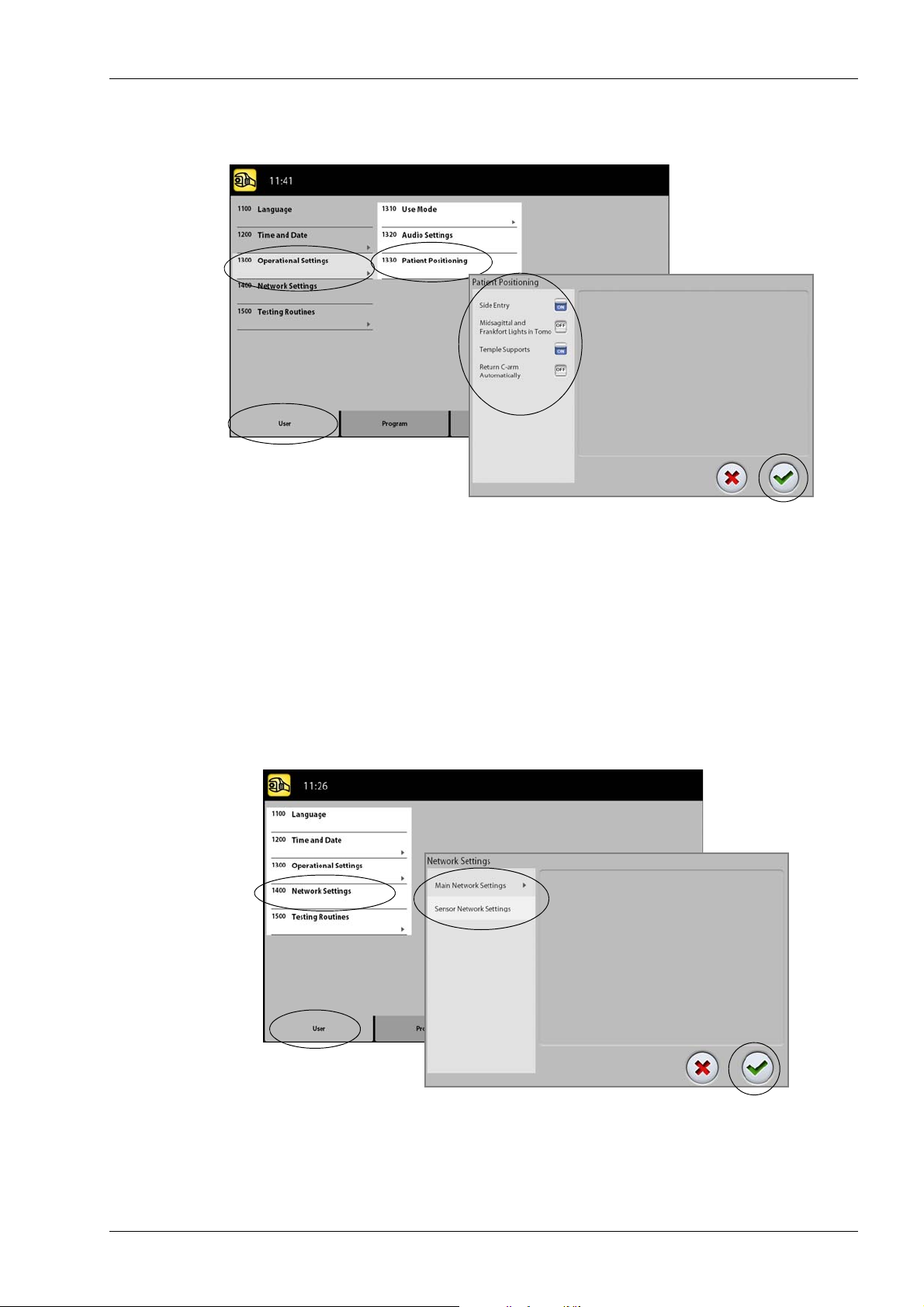

NOTE If needed, the full view position (right button) can be
disabled (Settings > User > 1300 Operational settings
> 1330 Patient positioning). This might be necessary if
there is no space for the C-arm to move back.
1. Guide the patient to the X-ray unit. The patient can sit
or stand during the exposure.
2. Adjust the X-ray unit to suit the height of the patient. To
do this, press either of the height adjusting buttons
until the chin cup is approximately level with the
patient’s lower jaw.
34 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
3D PATIENT EXPOSURE
Head_support_straps.eps

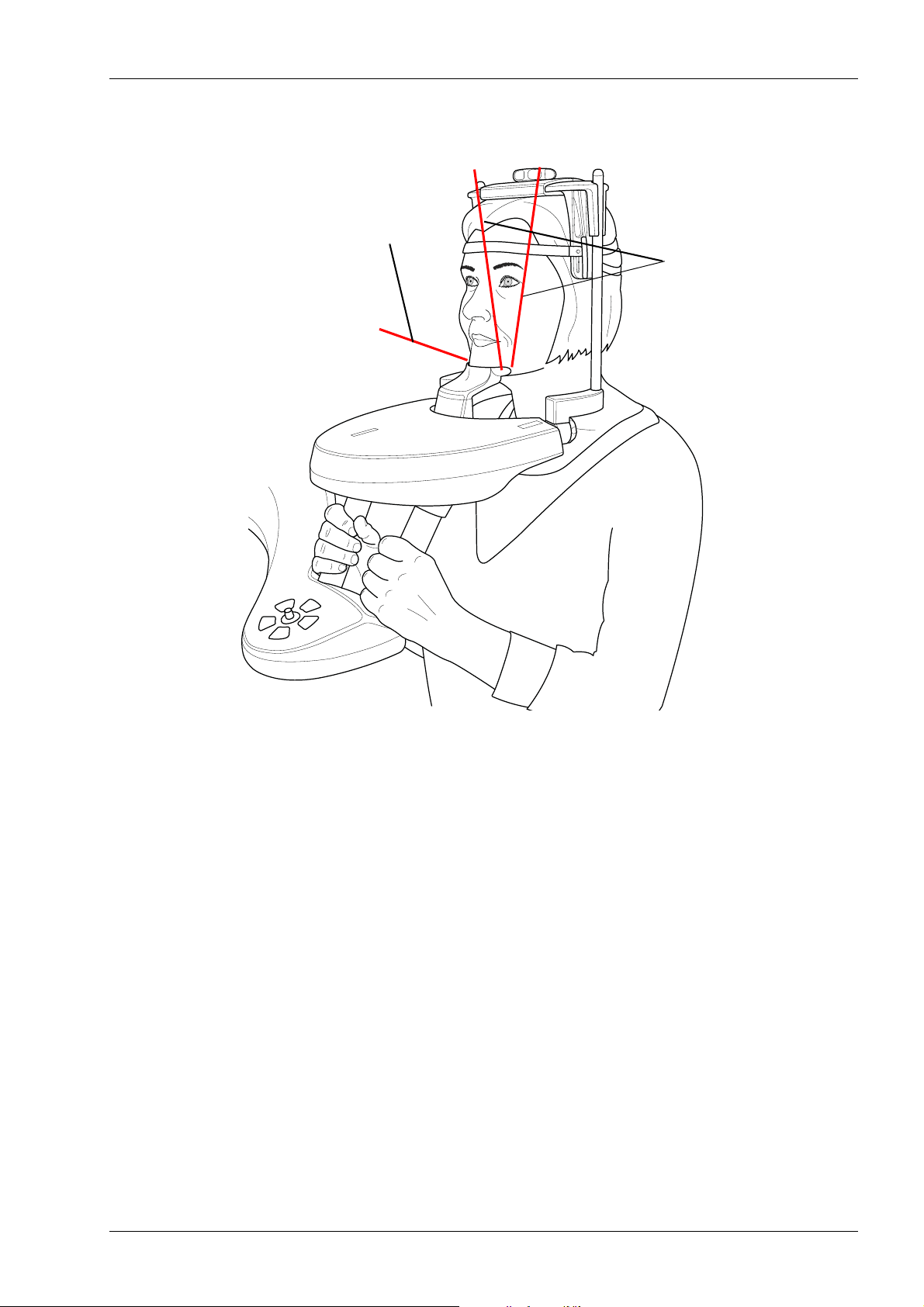

Volume bottom light
Volume center lights
(front and side lights)
The positioning lights come on:
3. Ask the patient to grasp the patient handles.
4. Check that the patient’s head is firmly positioned in the
head support.
• You can adjust the head support by turning the
adjusting knob at the top.
• You can use fastening straps for additional head
support if needed. Refer to section 9.1.2 “Attaching
patient supports” on page 23 for details.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 35
3D PATIENT EXPOSURE
Forward field
Top view
Front view
Thumb wheel
Patient support table
Positioning
controls
OR
Positioning
joystick
9.5 Adjusting volume position
NOTE The illustrations are for guidelines only. When you
The volume positions are preset at the factory for a
standard patient. However, as all patients and their
anatomical structures are different you have to check that
the preset position covers the area of interest for this
patient. If this is not the case, you have to adjust the
volume position according to the patient’s anatomy. The
positioning lights and the illustrations on the touch screen
help you to do this.
adjust the volume position the positioning lights move
on your patient’s face. The positioning lights on the
illustrations show the preset volume position and they
do not move according to your adjustments.

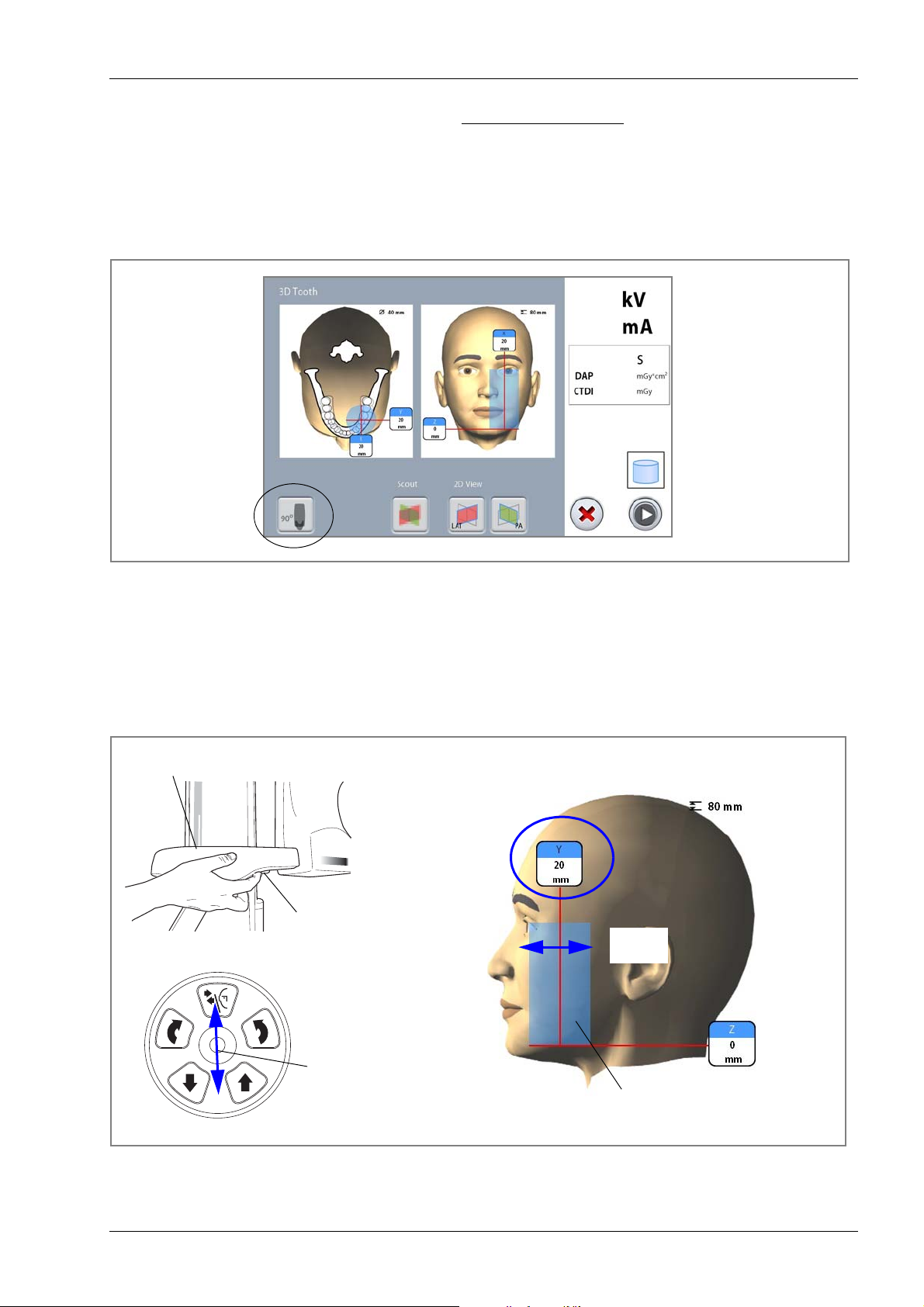

Use the forward field at the bottom right corner to enter
the view where you can adjust the volume position in
three directions.
To switch the positioning lights on (if they are not already
on), do one of the following:
• Press the thumb wheel on the underside of the patient
• Press any of the positioning controls (button or
patposlights3.eps
The lights will automatically switch off after two minutes.
To switch them off earlier, press the positioning joystick.
36 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
support table.
joystick).
User’s Manual (3D)
9.5.1 Moving image volume vertically (Z laser)
Image volume
Volume bottom light
Move image volume up
Move image volume down
Up
Down
Image volume
Side light
Front light
Volume center lights:
(X laser)
(Y laser)
The volume bottom light (Z laser) indicates the position
where the lower edge of the image volume is.
Check that the image volume is positioned at the correct
height for your patient. If you need to move the image
volume up or down, press the image volume up or down
button. The volume bottom light (Z laser) will move
accordingly.
3D PATIENT EXPOSURE
9.5.2 Moving image volume horizontally (X and Y lasers)

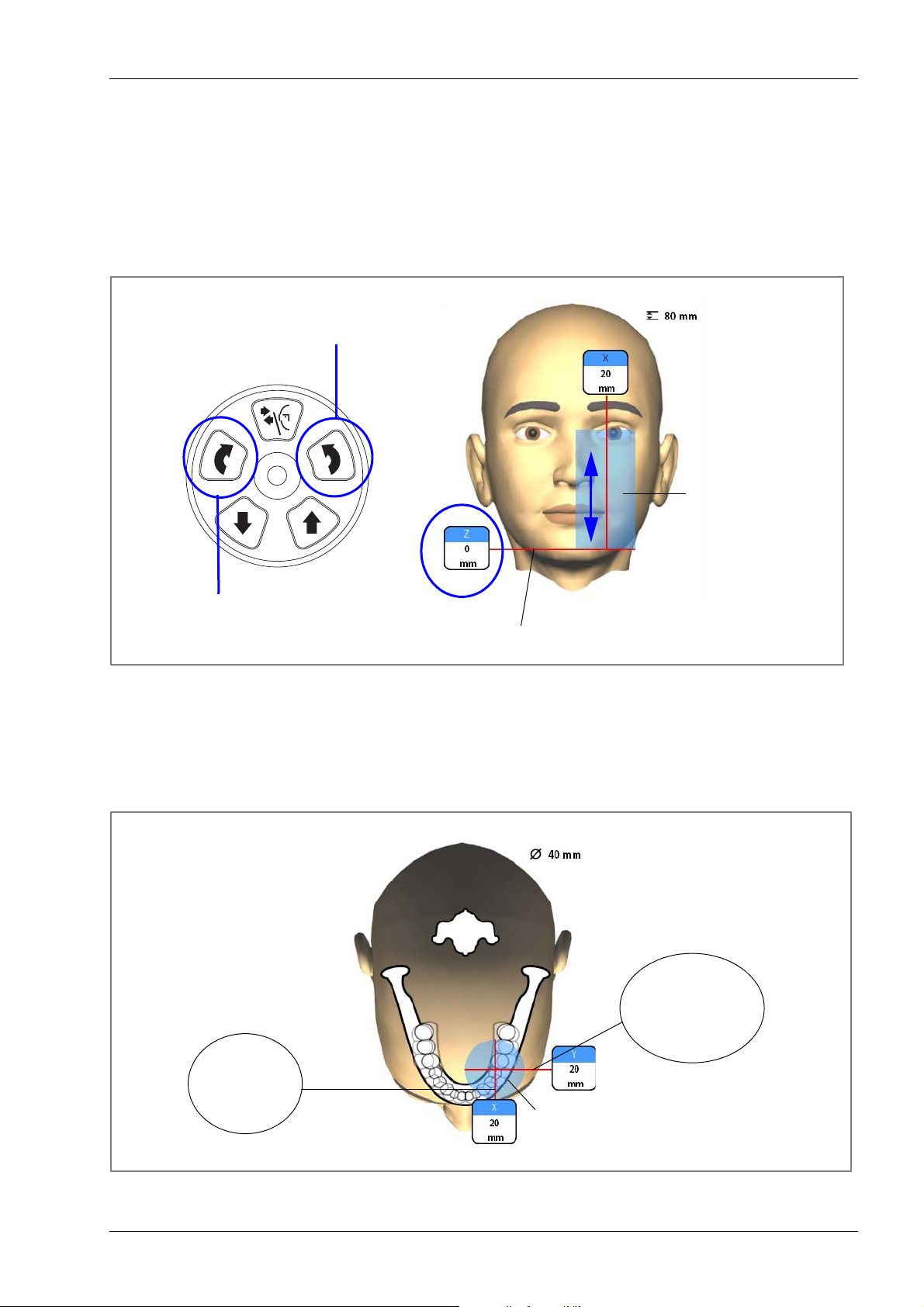

The volume center lights cross in the middle of the image
volume. With the patient positioned in the unit, the volume
center lights form red lines on the front (front light) and on
the left side (side light) of your patient’s head.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 37
3D PATIENT EXPOSURE
Small image volume
Left
Right
Positioning joystick
(front light = X laser)
Left Right
COLUMN
Planmeca ProMax 3D Plus:
Ø > 70 mm
Planmeca ProMax 3D Mid:
Ø > 80 mm
Check that the image volume is positioned correctly for
your patient. If you need to adjust the volume position,
proceed as follows.
Front light (X laser)
If you need to move the image volume to your left or right:
• Move the positioning joystick to your left or right. The
front light (i.e. the image volume center as seen from
the front) will move accordingly.
NOTE Image volumes with large diameters (3D Plus: Ø >
70 mm / 3D Mid: Ø > 80 mm) are slightly offset towards
the column. These image volumes cannot be moved to
the left or right.
38 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
3D PATIENT EXPOSURE
Rotate C-arm
90 degrees
Positioning joystick
(side light = Y laser)
patposlights3.eps
Thumb wheel
Patient support table
(side light = Y laser)
OR
Front
Back
Image volume
Back
Front
Side light (Y laser)
First rotate the C-arm 90 degrees clockwise by touching
the 90° button at the bottom of the screen. This will give
you a better view for checking the volume position.
Touch the button again if you wish to rotate the C-arm
back to the original position.
If you need to move the image volume to the front or back
do one of the following:
• Move the thumb wheel that is located on the underside
of the patient support table.
• Move the positioning joystick towards you or away
from you.
The side light (i.e. the image volume center as seen from
the side) will move accordingly.
User’s Manual (3D)
NOTE The largest image volume (3D Plus: Ø140 mm /
3D Mid: Ø200 mm) cannot be moved.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 39
3D PATIENT EXPOSURE
Incisor light
Image volume
(from patient support table)
at the front

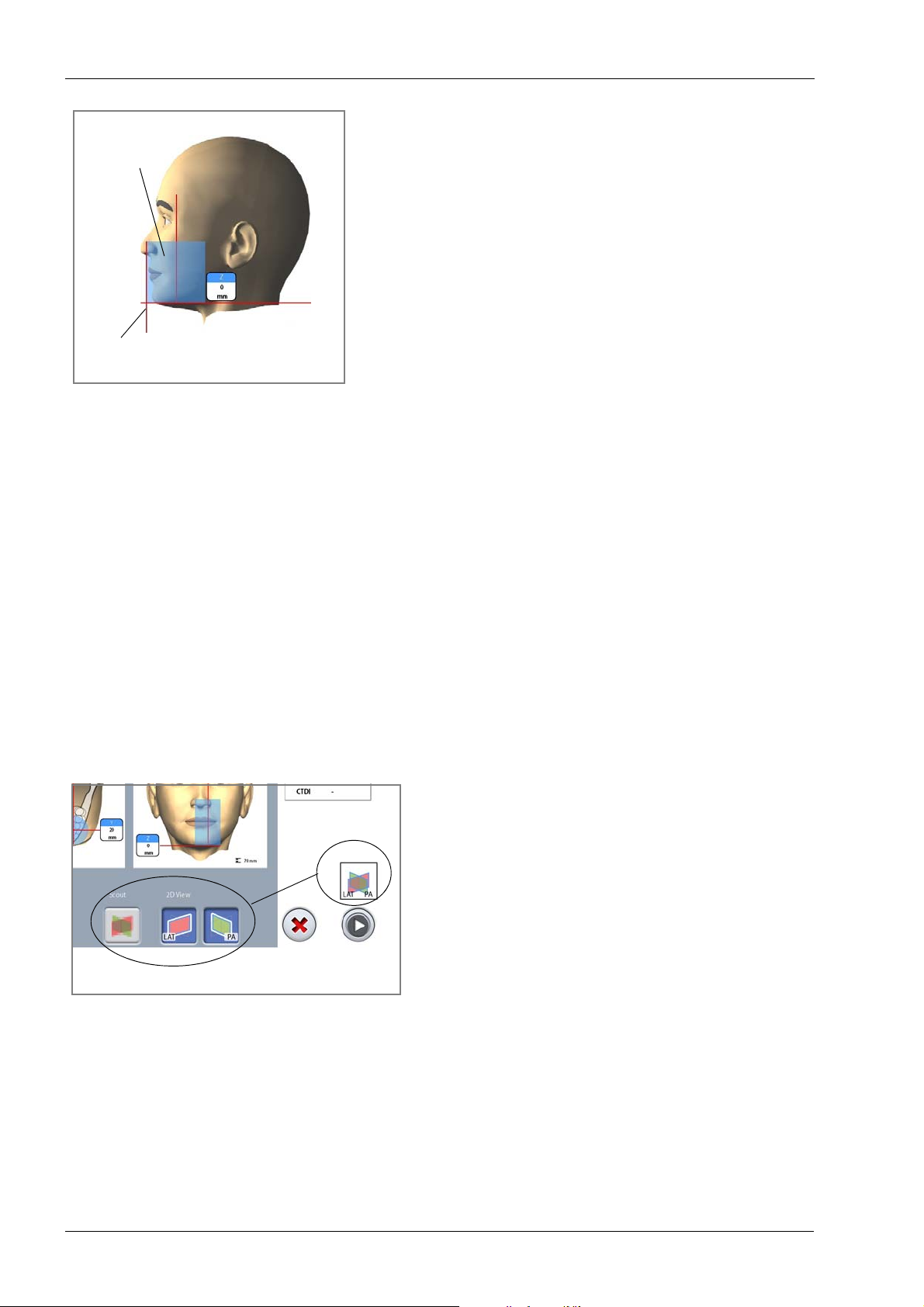

Select scout or 2D view
NOTE The incisor light indicates the front edge of the image
volume when the front position is selected.
NOTE Moving the positioning joystick switches the incisor
light off.
9.6 Taking a scout image or 2D views (LAT, PA or LAT-PA)
NOTE To switch the functions on, select Settings > Program
> 2200 Program Features > 3D Scout ON and 2D Views
for 3D ON.
You can take a scout image or 2D views (LAT, PA or LATPA) of the selected image volume before you take the
actual 3D image. This allows you to check the volume
position or, if necessary, confirm the need for a 3D
exposure.
NOTE If the image consists of several volumes, scout
NOTE 2D views are not available for all programs.
NOTE Make sure that you have selected the correct patient
imaging is available for the first image volume (1/2)
only.
and exposure mode in the Planmeca Romexis
program.
1. Select the view you wish to take. To take LAT-PA
views, select both buttons (LAT and PA). The selected
option is shown on the top of the forward button.
40 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
3D PATIENT EXPOSURE

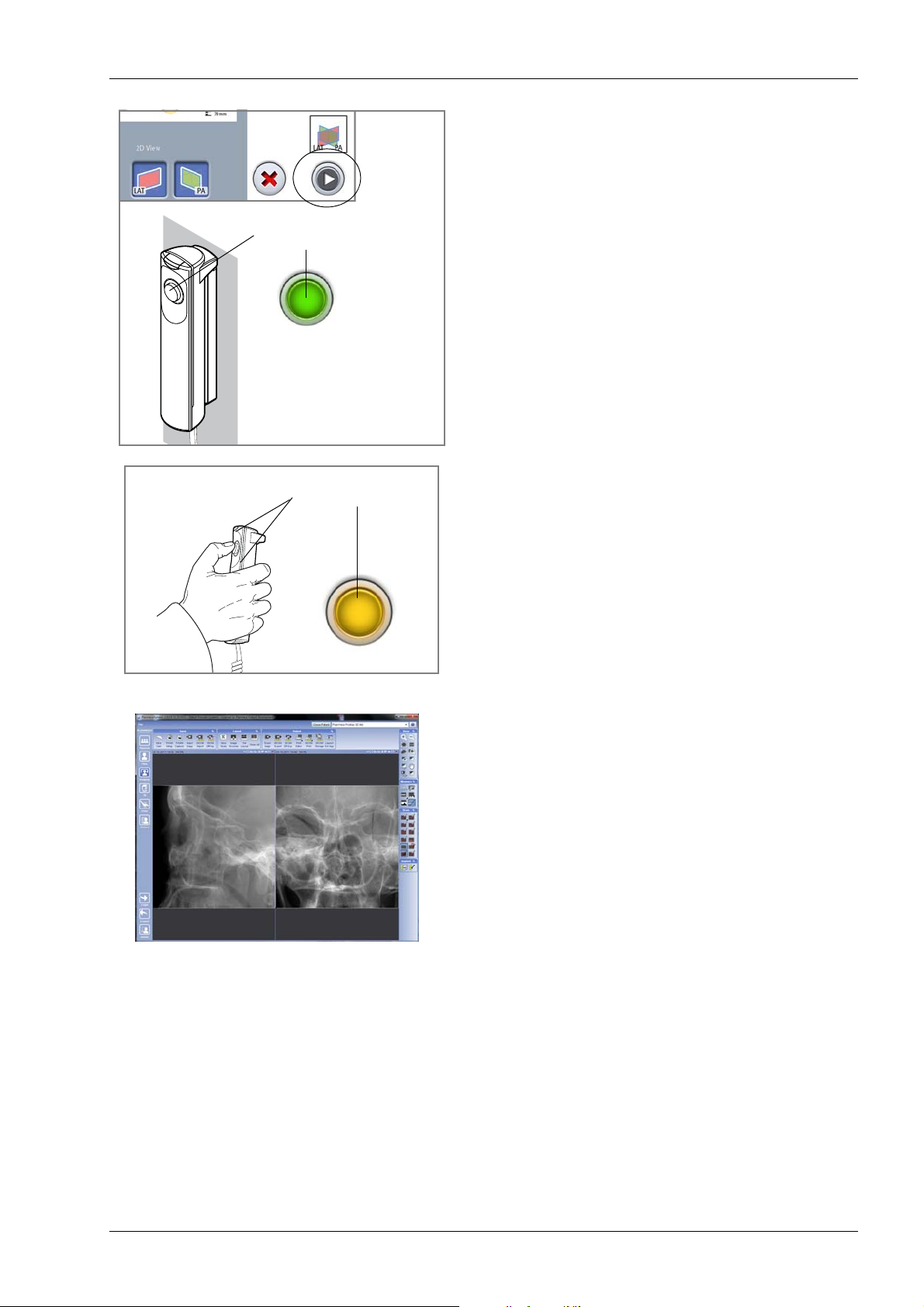

Forward
button
Green lights
Flashing green =
Getting ready
Continuous green =
Ready
_2eps
Yellow lights
Lat-PA
2. Select the forward button.

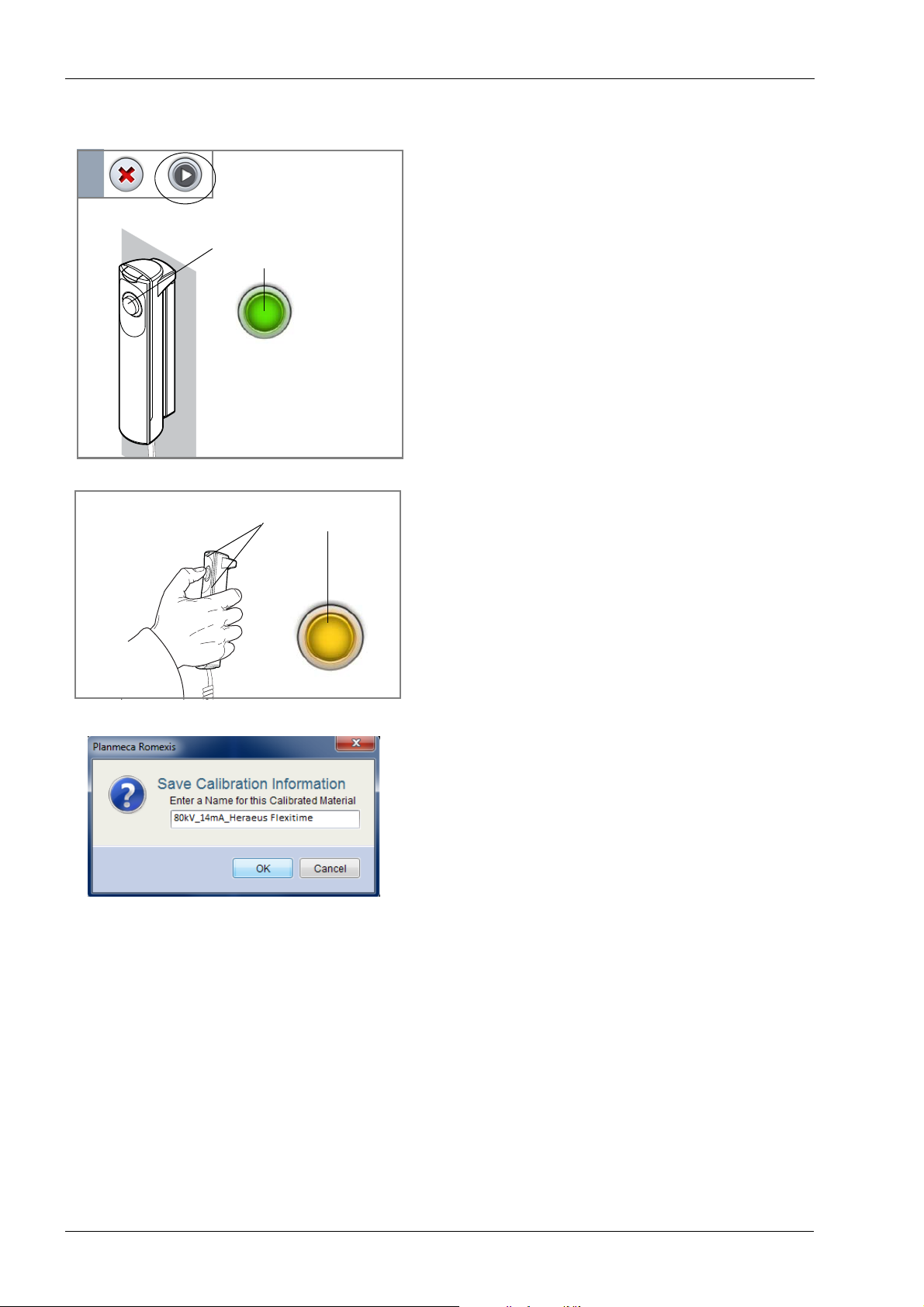

Green lights flash on the touch screen and exposure
button when the X-ray system is getting ready for an
exposure. The green lights stop flashing and stay on
continuously when the X-ray system is ready for an
exposure.
3. Ask the patient to stay as still as possible.
4. Move to a protected area.
5. Press and hold down the exposure button for the entire
duration of the exposure.
During exposure yellow radiation warning lights
illuminate on the exposure switch and on the touch
screen, and you hear a radiation warning tone.
Additionally, a radiation warning symbol is shown on
the touch screen.
6. The image is shown on the computer screen.
• You can now readjust the volume position as
described in section 9.5 “Adjusting volume position”
on page 36. Use the plus and minus signs that
have appeared on the touch screen to adjust the
position. Then take a new exposure as described
above. Repeat the procedure until the image
volume is in the correct place.
NOTE Scout images are not saved in the Planmeca Romexis
program.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 41
3D PATIENT EXPOSURE
Forward
button
Green lights
Flashing green =
Getting ready
Continuous green =
Ready
_2eps
Yellow lights
9.7 Taking a 3D exposure
NOTE Make sure that you have selected the correct patient
and exposure mode in the Planmeca Romexis
program.
1. Select the forward button.
Green lights flash on the touch screen and exposure
button when the X-ray system is getting ready for an
exposure. The green lights stop flashing and stay on
continuously when the X-ray system is ready for an
exposure.
2. Ask the patient to stay as still as possible.
• If you take a 3D face photo at the same time, tell
the patient that the lights on the sides of the sensor
will flash during exposure but he should not be
startled and move. Ask the patient to either keep
his eyes shut or to focus them on a fixed point so
that the eyes are not half open in the image.
3. Move to a protected area.
4. Press and hold down the exposure button for the entire
duration of the exposure.
During exposure yellow radiation warning lights
illuminate on the exposure switch and on the touch
screen, and you hear a radiation warning tone.
Additionally, a radiation warning symbol is shown on
the touch screen.
The C-arm moves around the patient’s head.
• Planmeca ProMax 3D Mid units:
If you take two vertical image volumes the lower
volume is imaged first and the upper volume last.
The C-arm is automatically moved upwards
between the volumes. You hear a warning tone
when the C-arm moves up.
• If you take two horizontal image volumes the
patient’s left side is imaged first and the right side
last.
• If you take one image volume and a 3D face photo
the X-ray image is taken first and the photo last.
You hear a fast ticking sound when the photo is
taken.
42 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
• Planmeca ProMax 3D Mid units:
If you take two vertical image volumes and a 3D
face photo the photo is taken between the X-ray
images. You hear a fast ticking sound when the
photo is taken and a warning tone when the C-arm
moves up.
• If you take two horizontal image volumes and a 3D
face photo the photo is taken last. You hear a fast
ticking sound when the photo is taken.
User’s Manual (3D)
3D PATIENT EXPOSURE
NOTE Do not release the exposure button before the end of
NOTE Maintain audio and visual contact with the patient and
the last exposure.
X-ray unit during exposure. If the C-arm stops moving
during exposure, or moves in an erratic way, release
the exposure button immediately.

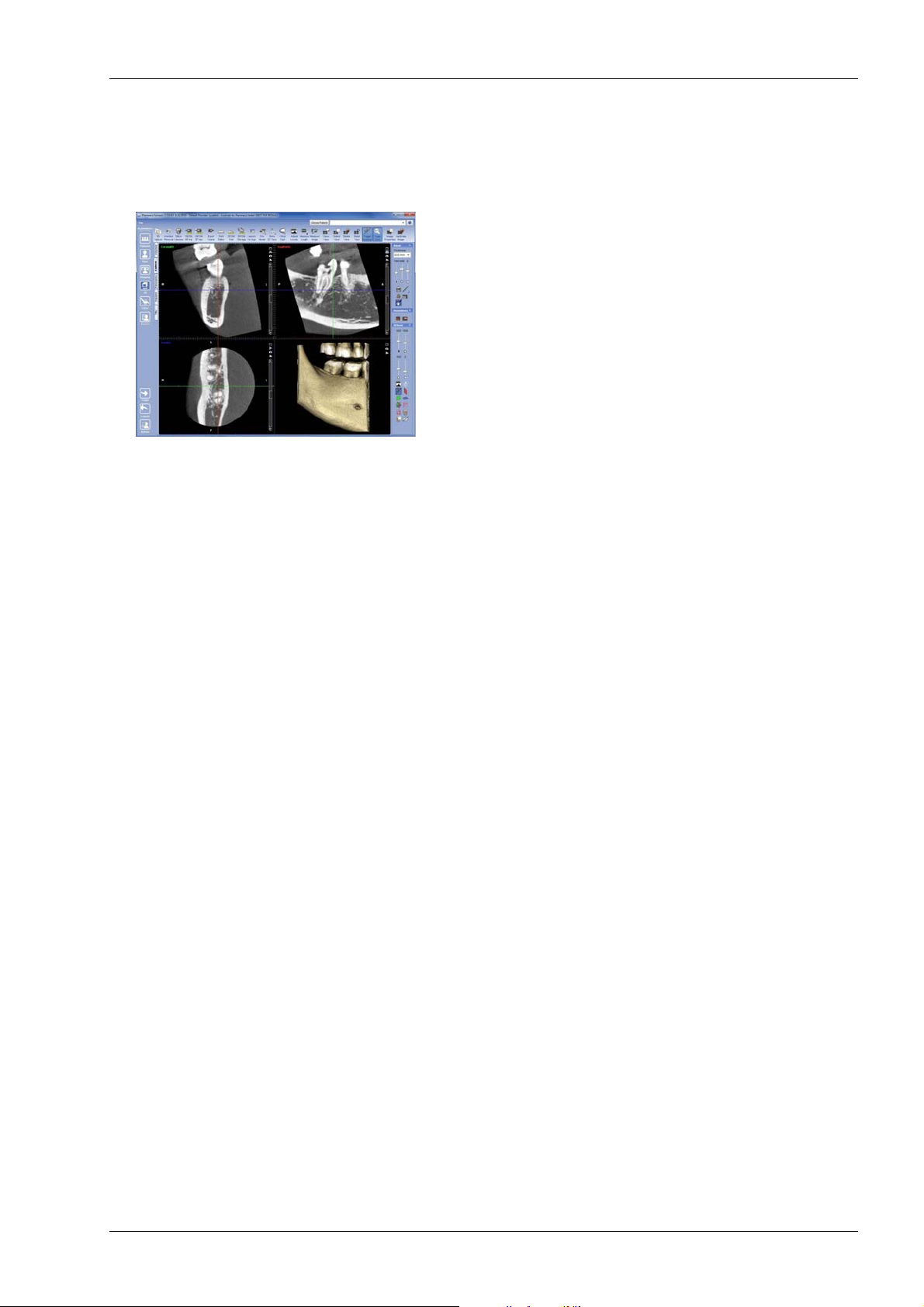

5. The image is shown on the computer screen.
• If you took two image volumes you must accept the
image stitching function in the Planmeca Romexis
program. Refer to the Romexis User’s Manual.
6. Guide the patient away from the X-ray unit.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 43
3D FACE PHOTO
Prof_1.eps
ProFace sensor
Forward
10 3D FACE PHOTO
If the X-ray unit has a ProFace sensor, you can take a 3D
photo of the patient’s face.
NOTE If you wish to take an X-ray image and a 3D face photo
10.1 Before exposure
NOTE You do not need to use the chin cup and adapter when
10.2 Selecting exposure settings
at the same time, refer to section 9.2.10 “Selecting 3D
face photo (X-ray units with ProFace sensor)” on page
32.
Proceed as described in section 9.1 “Preparing X-ray
system” on page 21.
taking 3D face photos.
First select the ProFace program (3D Dental > ProFace).
Then accept the next screen.
10.3 Patient positioning
1. Select the patient entry position as described in
section 9.4.1 “Selecting patient entry position” on page
34.
44 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
2. Guide the patient to the X-ray unit. The patient can sit
or stand during the exposure.
User’s Manual (3D)
3D FACE PHOTO
Down
Up
Forward field
Rotate C-arm
90 degrees
Positioning joystick
(side light = Y laser)
patposlights3.eps
Thumb wheel
Patient support
(side light = Y laser)
OR
table
3. Adjust the X-ray unit to suit the height of the patient. To
do this, press either of the height adjusting buttons
until the chin cup is approximately level with the
patient’s lower jaw.
4. Ask the patient to grasp the patient handles.
5. Use the forward field at the bottom right corner to enter
the view where you can adjust the lights.
6. Rotate the C-arm 90 degrees clockwise by touching
the 90° button at the bottom of the screen. This will
give you a better view for checking the position of the
side light (Y laser).
Touch the button again if you wish to rotate the C-arm
back to the original position.
7. Check that the side light (Y laser) is positioned 1 3 cm (0.4 - 1.2 in.) behind the eye corner.
If you need to move the side light do one of the
following:
• Move the thumb wheel that is located on the underside
of the patient support table.
• Move the positioning joystick towards you or away
from you.
User’s Manual (3D)
NOTE When you adjust the light position the positioning
light moves on your patient’s face. The positioning
light on the illustration does not move according to
your adjustment.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 45
3D FACE PHOTO
Forward
button
Green lights
Flashing green =
Getting ready
Continuous green =
Ready

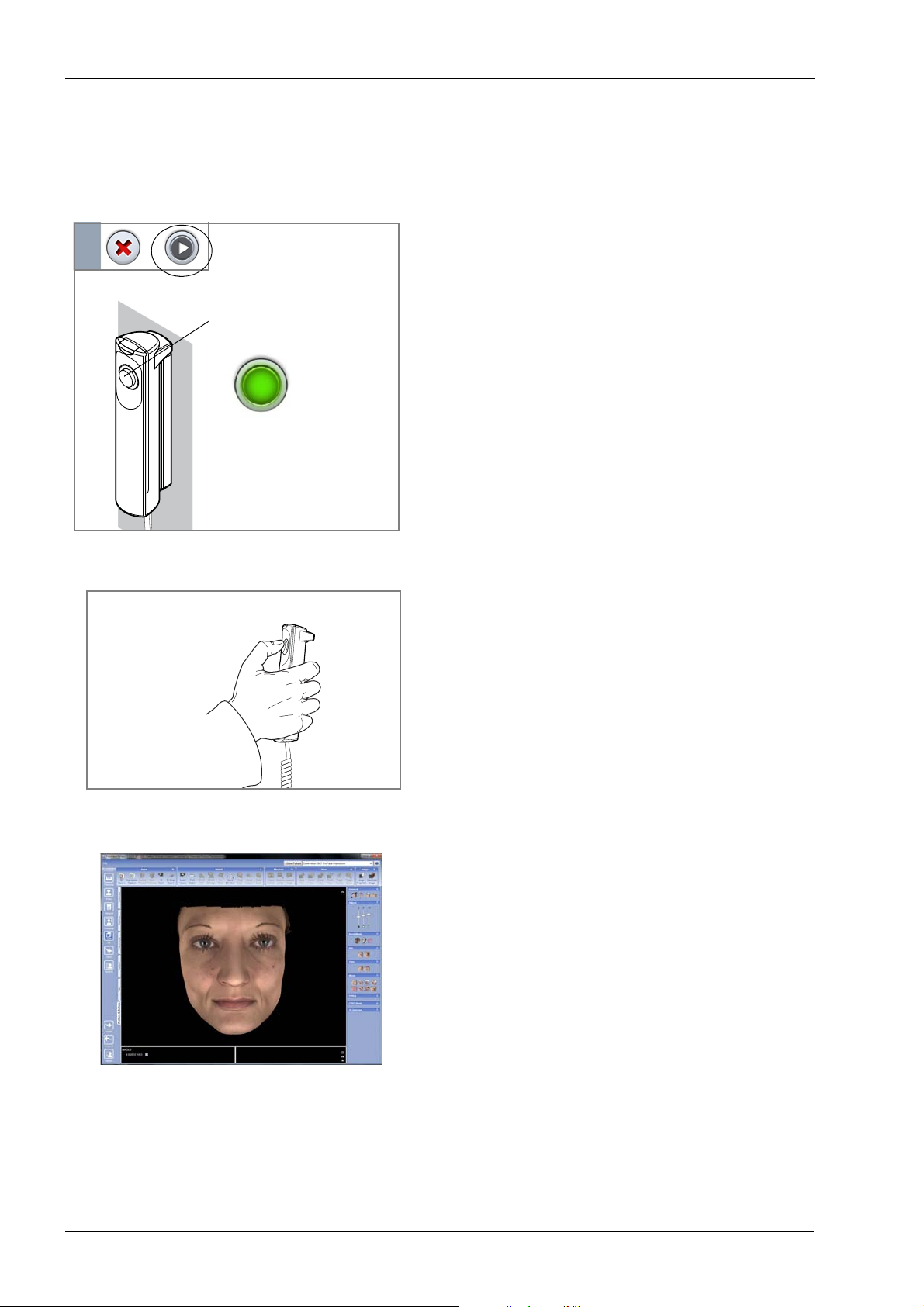

10.4 Taking a 3D face photo
NOTE Make sure that you have selected the correct patient
and exposure mode in the Planmeca Romexis
program.
1. Select the forward button.
Green lights flash on the touch screen and exposure
button when the X-ray system is getting ready for an
exposure. The green lights stop flashing and stay on
continuously when the X-ray system is ready for an
exposure.
2. Ask the patient to stay as still as possible. Tell the
patient that the lights on the sides of the sensor will
flash during exposure but he should not be startled
and move. Ask the patient to either keep his eyes shut
or to focus them on a fixed point so that the eyes are
not half open in the image.
3. Press and hold down the exposure button for the entire
duration of the exposure. You hear a fast ticking sound
when the photo is taken.
4. The photo is shown on the computer screen.
46 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
5. Guide the patient away from the X-ray unit.
User’s Manual (3D)
3D MODEL EXPOSURE

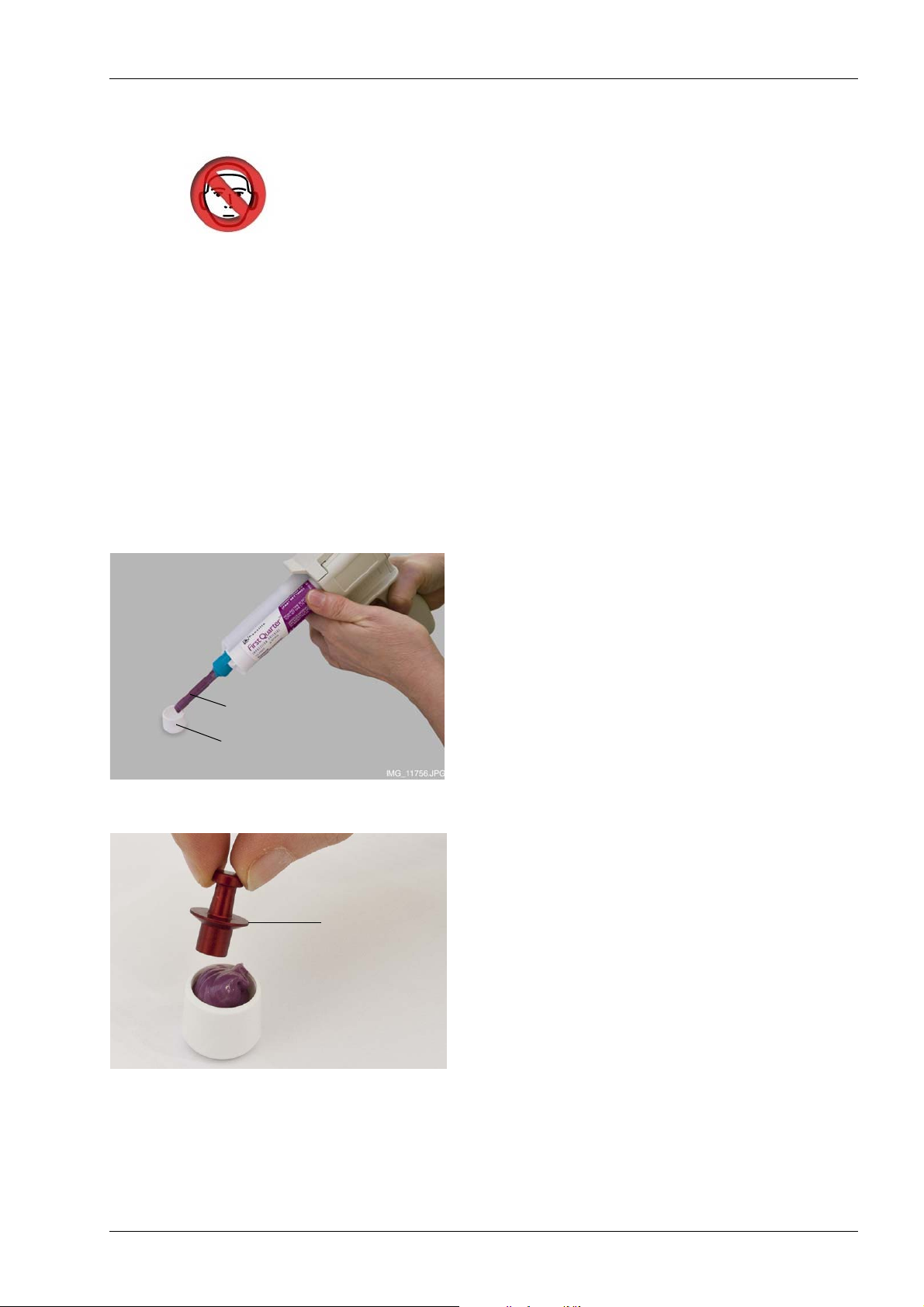

Calibration cup
(part number 10031325)
Impression material
Calibration pin
(part number
10031265)
11 3D MODEL EXPOSURE
CAUTION The 3D Model programs must not be used
for patient imaging. The programs are
intended for taking exposures of
impressions and plaster casts only.
11.1 Calibrating X-ray unit for impression or plaster material
NOTE The X-ray unit has to be calibrated for each new
material that is used. The X-ray unit needs to be
calibrated only once for each material.
NOTE FOR IMPRESSIONS:
NOTE FOR PLASTER CASTS:
Only monophase impression materials can be used.
If the plaster cast consists of two materials, the X-ray
unit has to be calibrated for the teeth material.
11.1.1 Preparing calibration material
1. Insert material into the calibration cup provided (part
number 10031325) until the calibration cup is full.
2. Place the calibration pin provided (part number
10031265) in the material. Note that the calibration pin
has to be pushed in thicker end first. The middle rim
has to be flush with the top edge of the calibration cup.
User’s Manual (3D)
3. Let the material set. The setting time depends on the
material used. Wait slightly longer than recommended
in the instructions supplied by the manufacturer to
ensure proper hardening.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 47
3D MODEL EXPOSURE
Adapter
Polystyrene disc
Patient support table
(part number 10030330)
Forward field

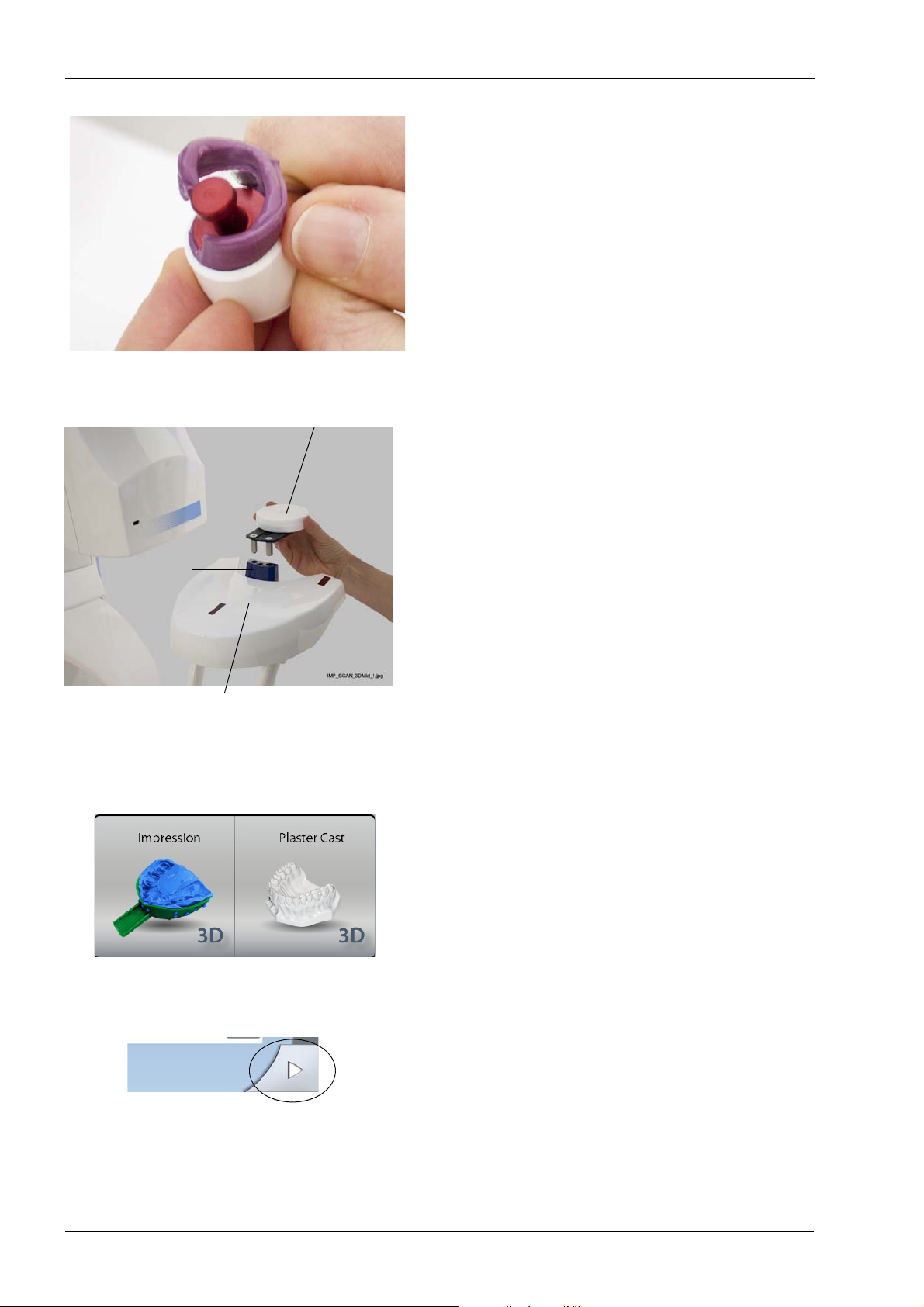

4. Remove all excess material from the top of the
calibration cup.
5. Gently pull the calibration pin out and ensure that the
surfaces of the hole formed by the calibration pin are
even (no air bubbles in inside walls).
6. Remove any patient supports attached to the X-ray
unit patient support table. Insert the polystyrene disc
provided (part number 10030330) into the adapter.
11.1.2 Selecting settings
1. On the X-ray unit, select the program.
• For impression material select
3D Models > Impression.
• For plaster material select
3D Models > Plaster Cast.
The required exposure values depend on the material
and X-ray unit (X-ray tube and sensor) used. If you
need to adjust the preset exposure values (80 kV /
12.5 mA), proceed as described in section 9.2.5
“Adjusting exposure values for current exposure” on
page 28.
2. Select the forward field on the touch screen. The
positioning lights (volume center lights, volume bottom
light and incisor light) come on. The volume center
lights cross in the middle of the image volume.
48 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
3D MODEL EXPOSURE
Volume center
lights
Calibration cup
on polystyrene disc

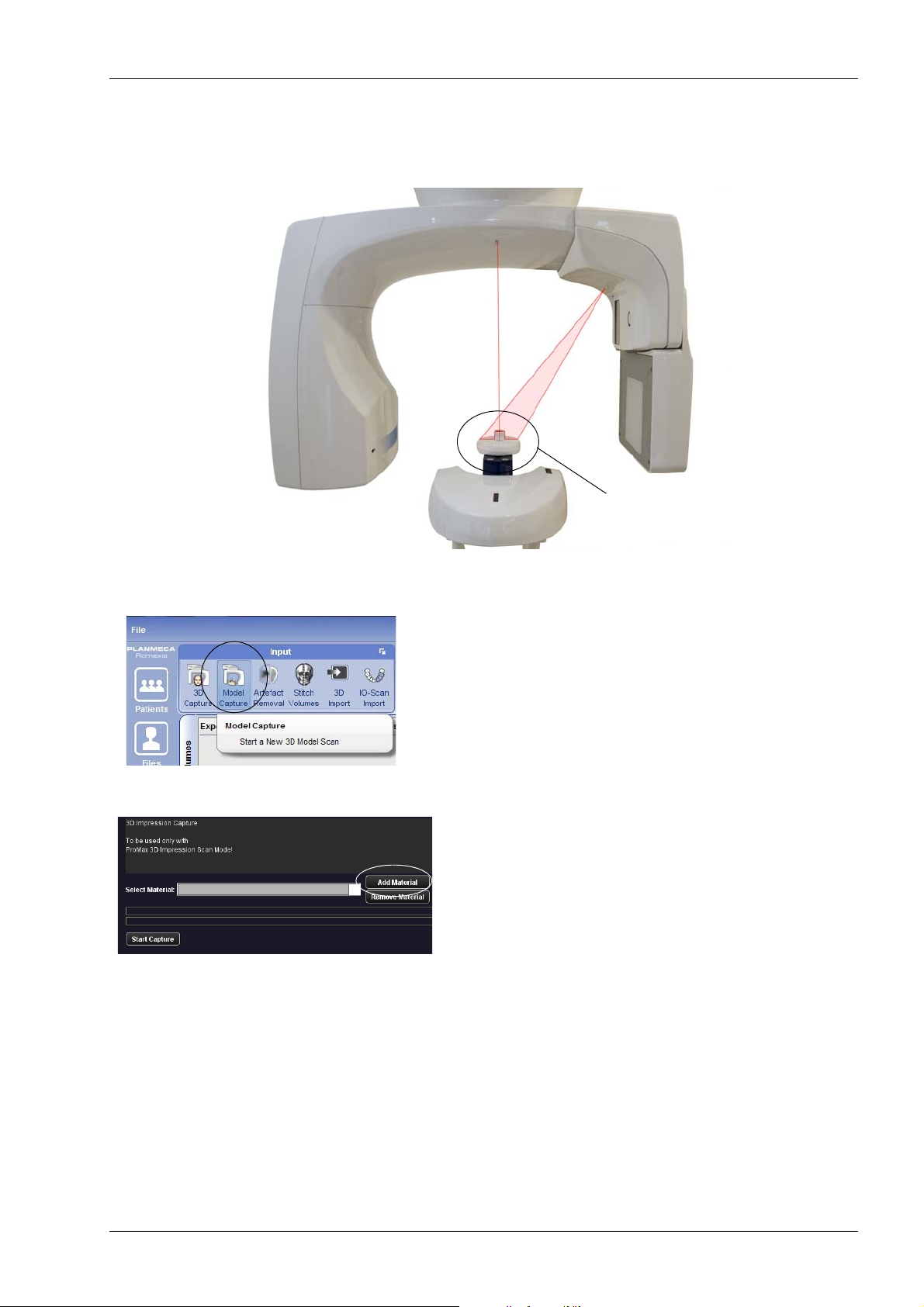

3. Place the calibration cup on the polystyrene disc so
that the volume center lights cross in the middle of the
cup.
4. In the Planmeca Romexis program, click 3D > Model
Capture. Refer to the Planmeca Romexis User’s
Manual for details on Romexis functions.
5. Click the option Add Material in the window that
appears.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 49
3D MODEL EXPOSURE
Forward
button
Green lights
Flashing green =
Getting ready
Continuous green =
Ready
Yellow lights
11.1.3 Taking a calibration exposure
1. Select the forward button.
Green lights flash on the touch screen and exposure
button when the X-ray system is getting ready for an
exposure. The green lights stop flashing and stay on
continuously when the X-ray system is ready for an
exposure.
2. Press and hold down the exposure button for the entire
duration of the exposure.
During exposure yellow radiation warning lights
illuminate on the exposure switch and on the touch
screen, and you hear a radiation warning tone.
Additionally, a radiation warning symbol is shown on
the touch screen. Note that the exposure lasts longer
than a 3D patient exposure.
3. In the Planmeca Romexis program, enter a name for
this material and click OK.
NOTE The calibration exposure values are automatically
included at the beginning of the name. The exposure
values shown here are only examples.
50 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)

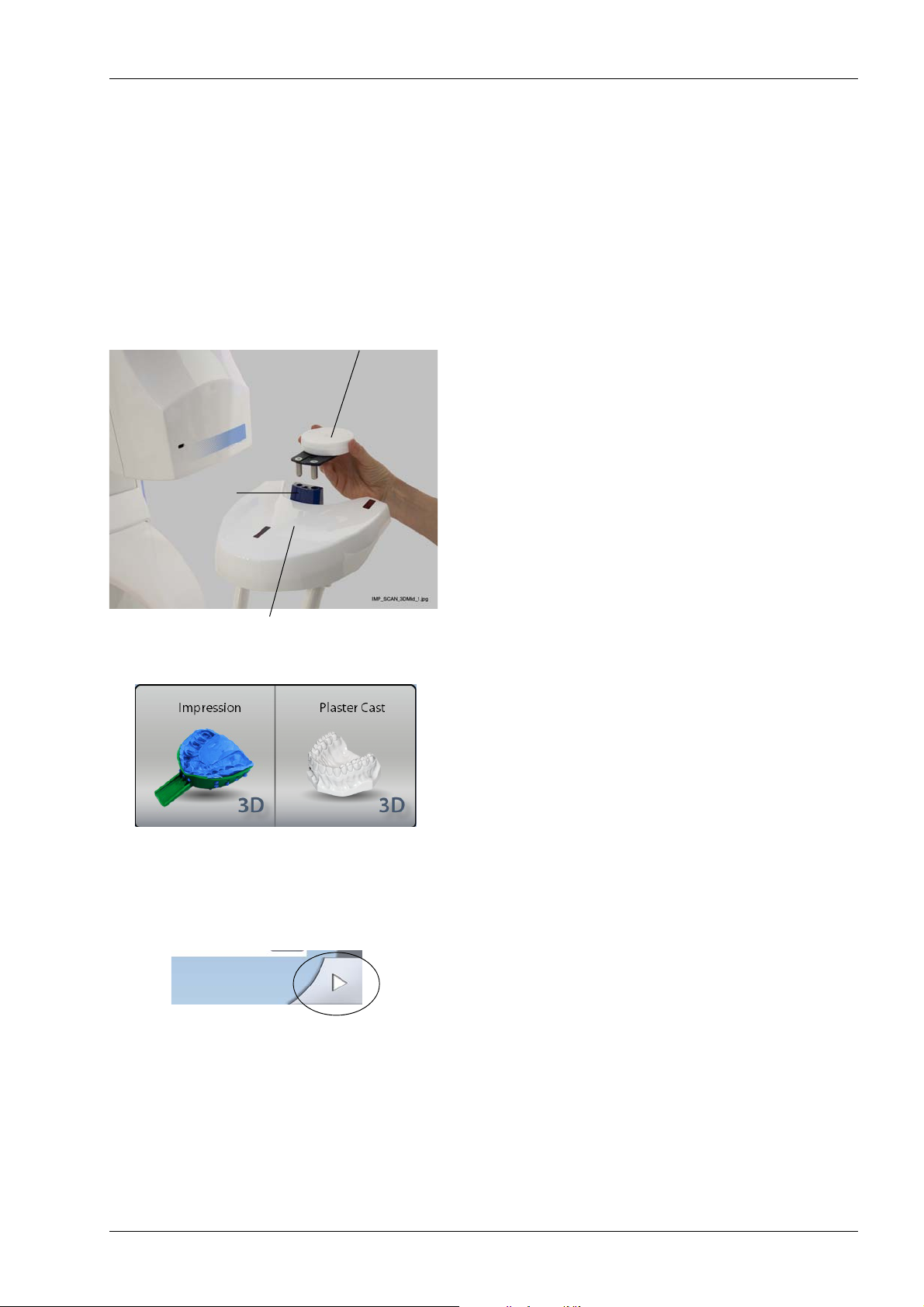

11.2 Taking an exposure of an impression or plaster cast
Adapter
Polystyrene disc
Patient support table
(part number 10030330)
Forward field
NOTE The X-ray unit has to be calibrated for each new
material that is used. Refer to the previous section for
details.
NOTE FOR IMPRESSIONS:
Do not use impression trays made of metal.
11.2.1 Selecting settings
1. Remove any patient supports attached to the X-ray
unit patient support table. Insert the polystyrene disc
provided (part number 10030330) into the adapter if it
is not in place.
3D MODEL EXPOSURE
2. On the X-ray unit, select the program.
• For impressions select
3D Models > Impression.
• For plaster casts select
3D Models > Plaster Cast.
3. Select the exposure values that you used in the
calibration process for this material. Refer to section
9.2.5 “Adjusting exposure values for current exposure”
on page 28.
4. Select the forward field on the touch screen. The
positioning lights (volume center lights, volume bottom
light and incisor light) come on. The volume center
lights cross in the middle of the image volume.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 51
3D MODEL EXPOSURE
Volume center
lights
45 mm
Impression
Sensor
on polystyrene disc
Move C-arm up

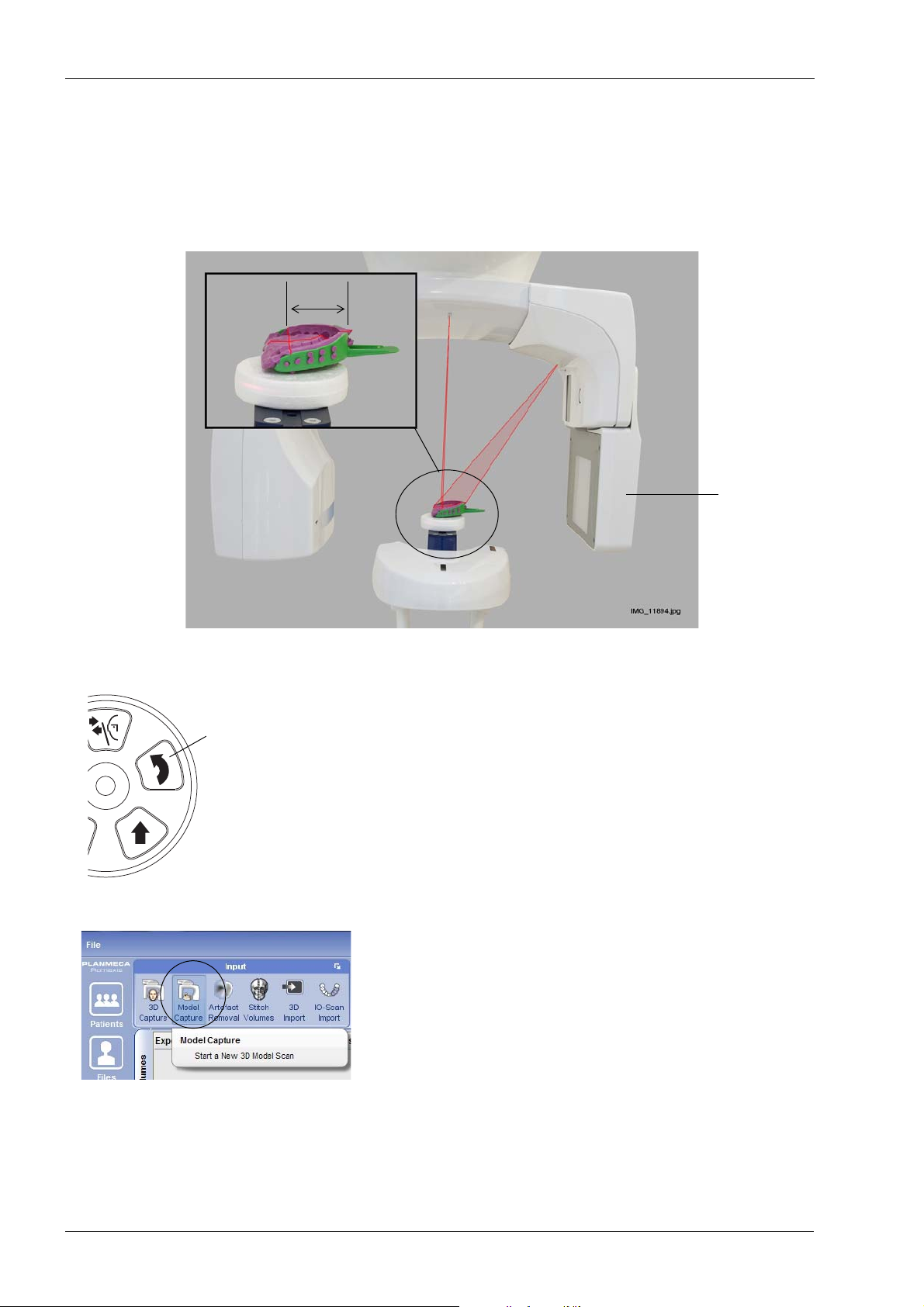

5. Place the model (impression or plaster cast) on the
polystyrene disc and ensure that:
• The model faces the sensor and
• The model is positioned so that the distance between
the cross formed by the volume center lights and the
front edge of the model is 45 mm.
NOTE FOR PLASTER CASTS:
Move the C-arm up about 13 mm (0.5 in.) by pressing
the image volume up button.
6. In the Planmeca Romexis program, click 3D > Model
Capture. Refer to the Planmeca Romexis User’s
Manual for details on Romexis functions.
52 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)

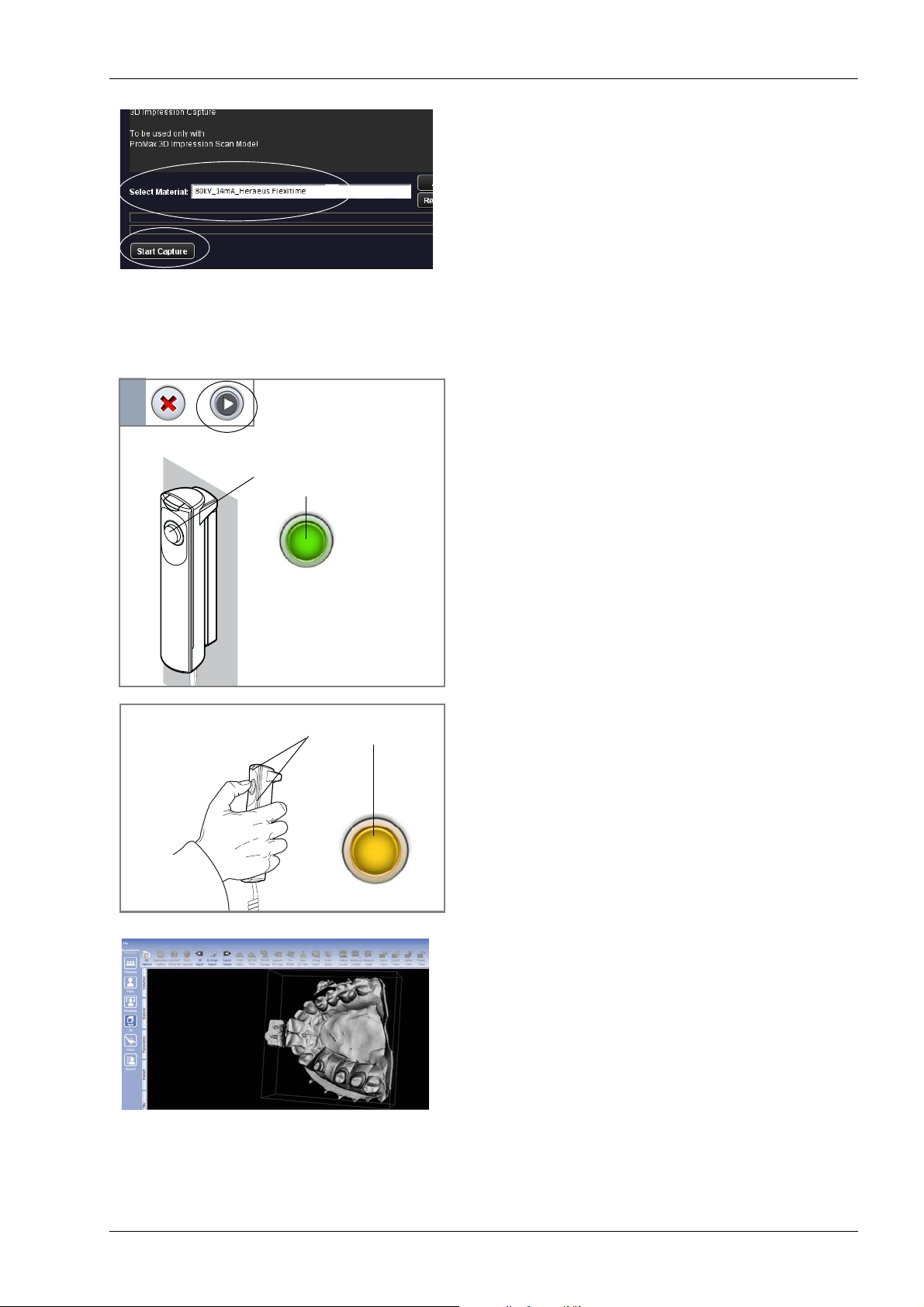

11.2.2 Taking an exposure
Forward
button
Green lights
Flashing green =
Getting ready
Continuous green =
Ready
_2eps
Yellow lights
3D MODEL EXPOSURE
7. In the window that appears, first select the material
you are exposing. Then click the option Start Capture.
NOTE Ensure that you have selected the correct exposure
values on the X-ray unit. The exposure values shown
here are only examples.
1. Select the forward button.
Green lights flash on the touch screen and exposure
button when the X-ray system is getting ready for an
exposure. The green lights stop flashing and stay on
continuously when the X-ray system is ready for an
exposure.
2. Press and hold down the exposure button for the entire
duration of the exposure.
During exposure yellow radiation warning lights
illuminate on the exposure switch and on the touch
screen, and you hear a radiation warning tone.
Additionally, a radiation warning symbol is shown on
the touch screen. Note that the exposure lasts longer
than a 3D patient exposure.
3. The image is shown on the computer screen.
NOTE The Romexis function Model Capture creates surface
models (instead of voxel data images).
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 53
SETTINGS
12 SETTINGS
NOTE Some of the settings can be used to alter the operation
of the X-ray unit. Never use functions that you are not
familiar with.
NOTE The contents of the displays depend on the unit
configuration. The displays shown here are from an Xray unit featuring all currently available programs and
functions.
Select the settings icon at the top left corner of the main
view to enter the settings menu.
Settings that can be entered by the user:
• User
• Program
• About
Settings that can be entered by service personnel only
(password required):
• Technical
To return to the main view, select the settings icon at the
top left corner.
54 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
12.1 User settings

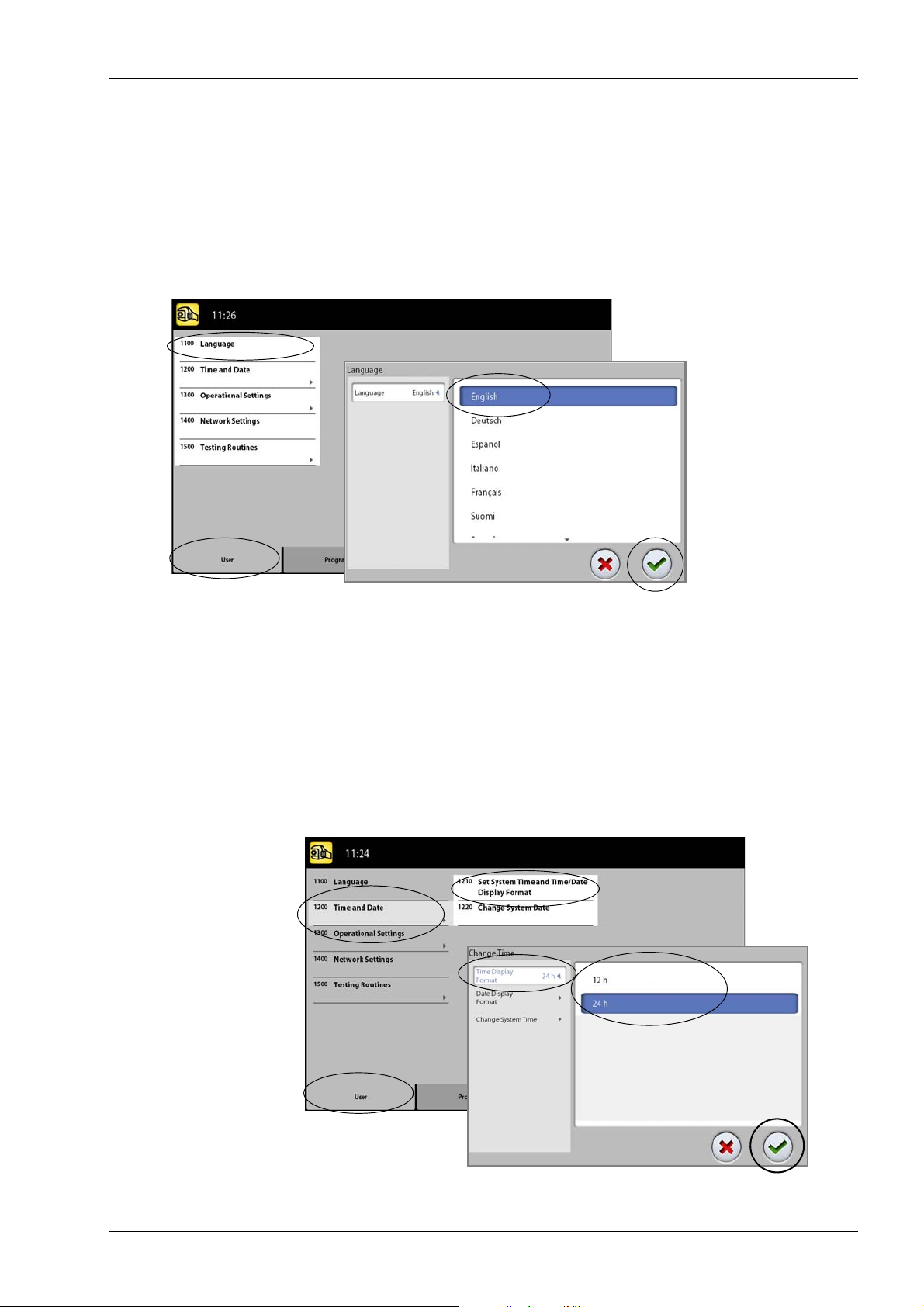

12.1.1 Language (1100)
SETTINGS
• To change language:
1. Select User > 1100 Language.
2. Select the language you wish to use.
3. Select the green check mark button.
12.1.2 Time and Date (1200)
• To set time display format:
1. Select User > 1200 Time and Date > 1210 Set System
Time and Time / Date Display Format > Time Display
Format.
2. Select the display format you wish to use.
3. Select the green check mark button.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 55
SETTINGS

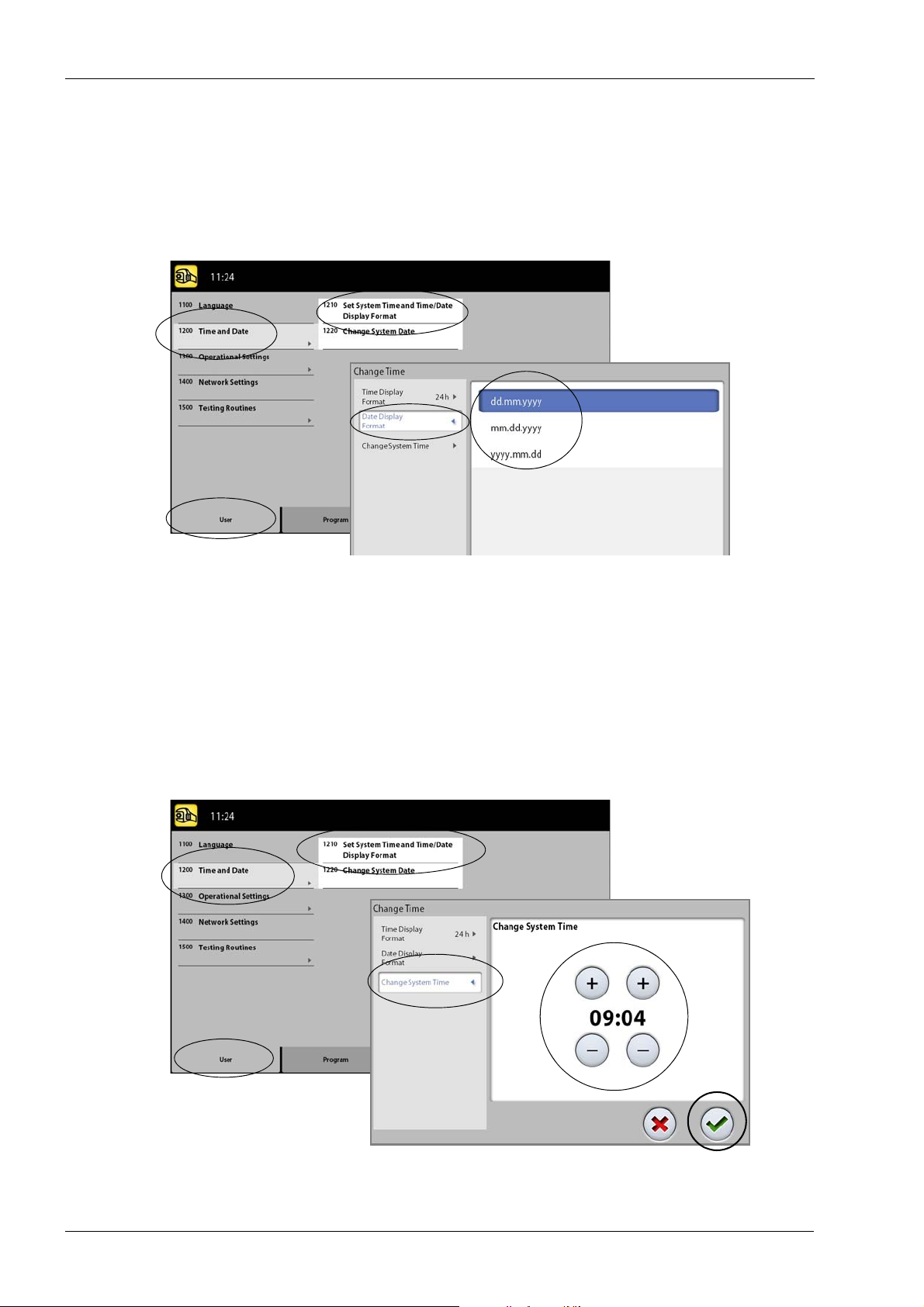

• To set date display format:
1. Select User > 1200 Time and Date > 1210 Set System
Time and Time / Date Display Format > Date Display
Format.
2. Select the display format you wish to use.
3. Select the green check mark button.
• To set time:
1. Select User > 1200 Time and Date > 1210 Set System
Time and Time / Date Display Format > Change
System Time.
2. Use the plus and minus buttons to change the time.
3. Select the green check mark button.
NOTE The time is set to the local time at the factory. Change
the time setting to show the correct time before you
start using the X-ray unit.
56 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
SETTINGS
• To set date:
1. Select User > 1200 Time and Date > 1220 Change
System Date.
2. Select the day or use the arrow buttons to change the
month (single arrow) or year (double arrow).
3. Select the green check mark button.
12.1.3 Operational Settings (1300)
• To select mode:
1. Select User > 1300 Operational Settings > 1310 Use
Mode.
2. Select the mode you wish to use.
In demo mode you can practice or demonstrate the
functions of the X-ray unit without radiation and PC
connection.
3. Select the green check mark button.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 57
SETTINGS

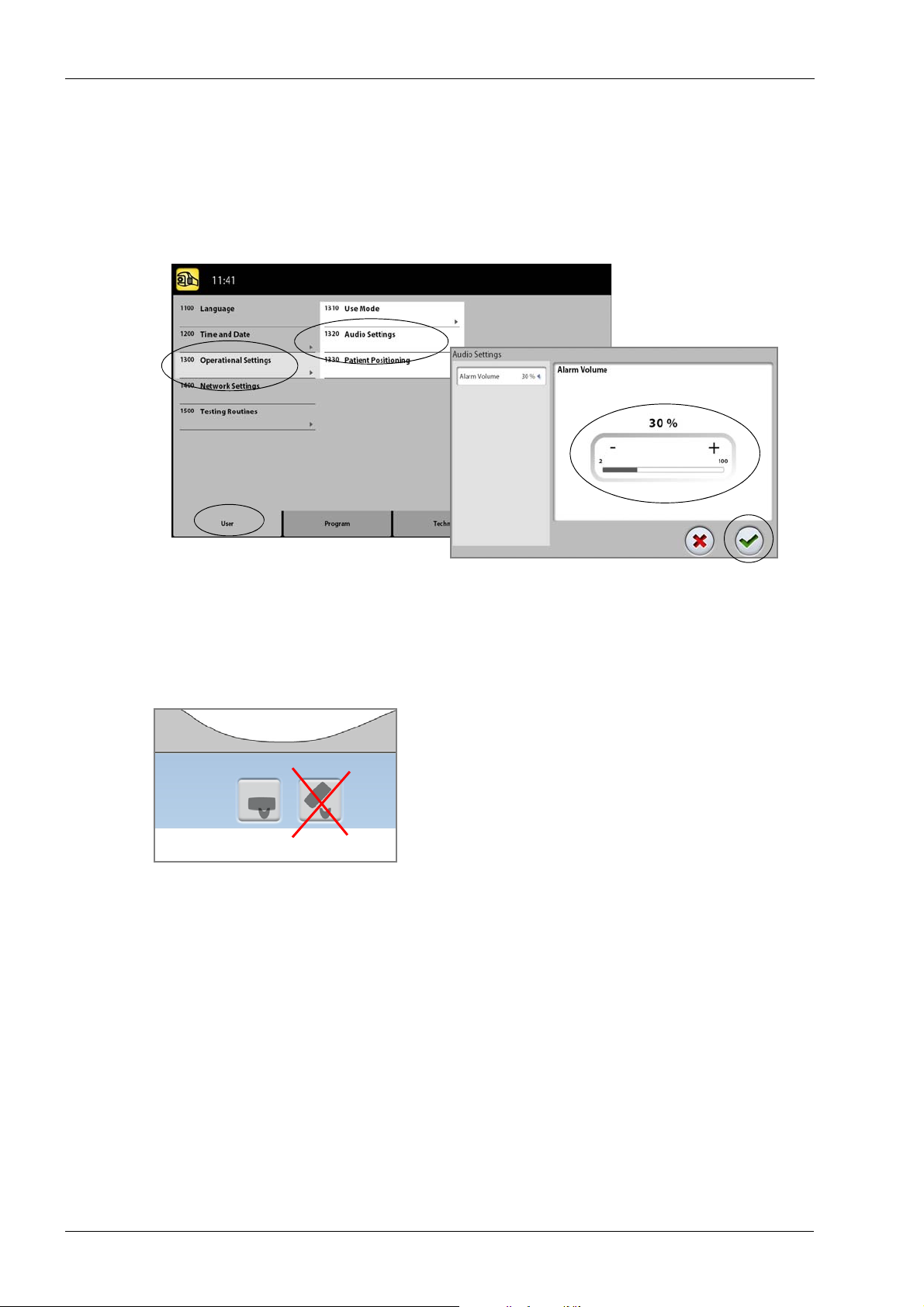

• To control audio settings:
1. Select User > 1300 Operational Settings > 1320 Audio
Settings.
2. Use the minus or plus button to reduce or increase the
volume of the radiation warning tone.
3. Select the green check mark button.
• To manage settings for patient positioning:
1. Select User > 1300 Operational Settings > 1330
Patient Positioning.
2. Turn an option(s) ON or OFF:
• Side Entry:
Turn this option OFF if you do not wish to use the
open (full view) patient entry position. This might be
necessary if there is no space for the C-arm to
move back.
NOTE:
Planmeca ProMax 2D S2 units offer only one
patient entry position. This entry position is the
closed patient entry position where the C-arm is
positioned around the temple supports.
• Midsagittal and Frankfort Lights in Tomo:
Turn this option ON if you wish to use the
midsagittal and Frankfort plane lights when you
take 3D exposures.
• Temple Supports:
Turn this option OFF if you do not wish to use the
temple supports.
• Return C-arm Automatically:
Turn this option ON if you wish to set the X-ray unit
so that the C-arm will automatically return to the
starting position at the end of an exposure cycle.
Note, however, that the automatic function works
only if the exposure button is pressed and held
down for the entire duration of the exposure.
58 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
3. Select the green check mark button.
SETTINGS
12.1.4 Network Settings (1400)
• To view network settings:
1. Select User > 1400 Network Settings.
2. If available, select the network settings you wish to
view.
3. Select the green check mark button.
NOTE Only a service technician or local administrator may
change the network settings.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 59
SETTINGS
PXR_Dsw._2eps

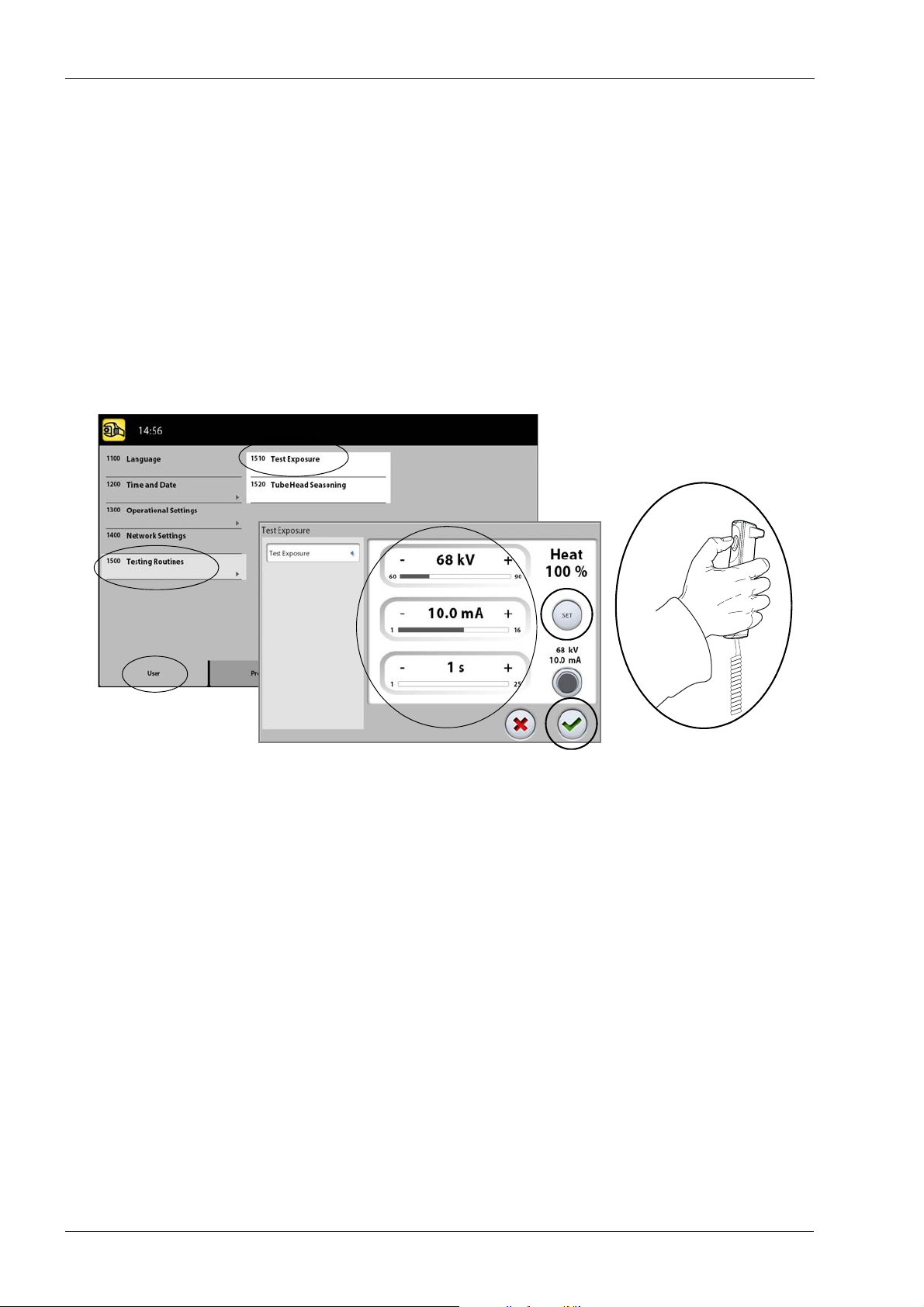

12.1.5 Testing Routines (1500)
• To take a test exposure:
1. Select User > 1500 Testing Routines > 1510 Test
Exposure.
2. Use the minus or plus buttons to set the exposure
values you wish to use.
3. Select the SET button.
4. Move to a protected area.
5. Press and hold down the exposure button for the
duration of the exposure. The C-arm will not move
when you take a test exposure.
6. Select the green check mark button.
60 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
SETTINGS

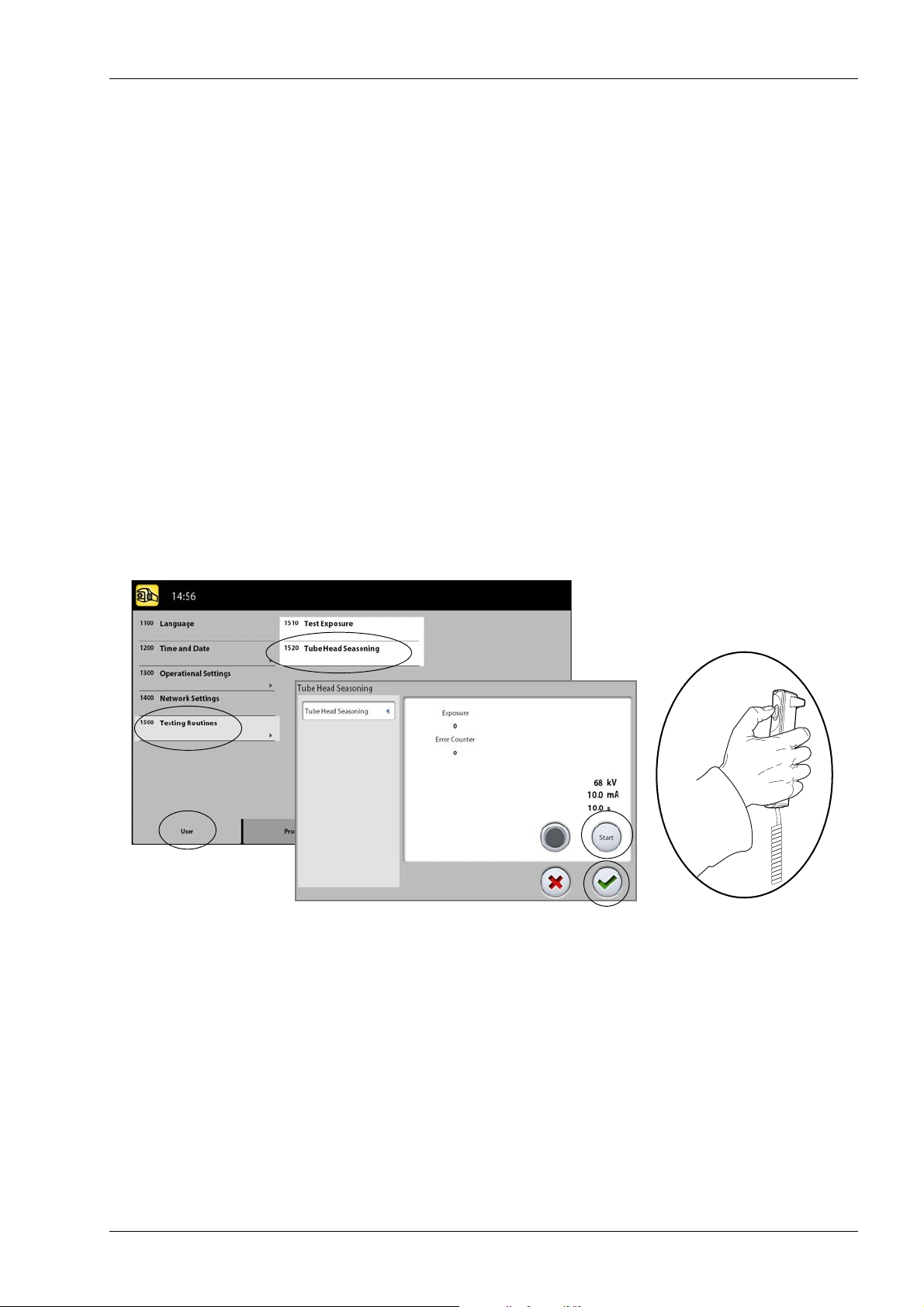

• To perform tube head seasoning:
1. Select User > 1500 Testing Routines > 1520 Tube
Head Seasoning.
This option allows you to warm up the X-ray tube, i.e.
run a tube head seasoning process. This is necessary
if the X-ray unit has not been used for a few days and
you receive error message E332 (Arcing across X-ray
tube).
2. Select the Start button.
3. Move to a protected area.
4. Press the exposure button when the word Ready
appears.
You can press and hold down the exposure button for
the whole duration of the process or remove your
finger from the exposure button when the word Wait
appears. Note that the seasoning process will take
several minutes. After a successful process the
message OK is shown.
5. Select the green check mark button.
NOTE Contact your service technician for help if error
message E332 (Arcing across X-ray tube) reappears
after a successful seasoning process.
PXR_Dsw._2eps
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 61
SETTINGS

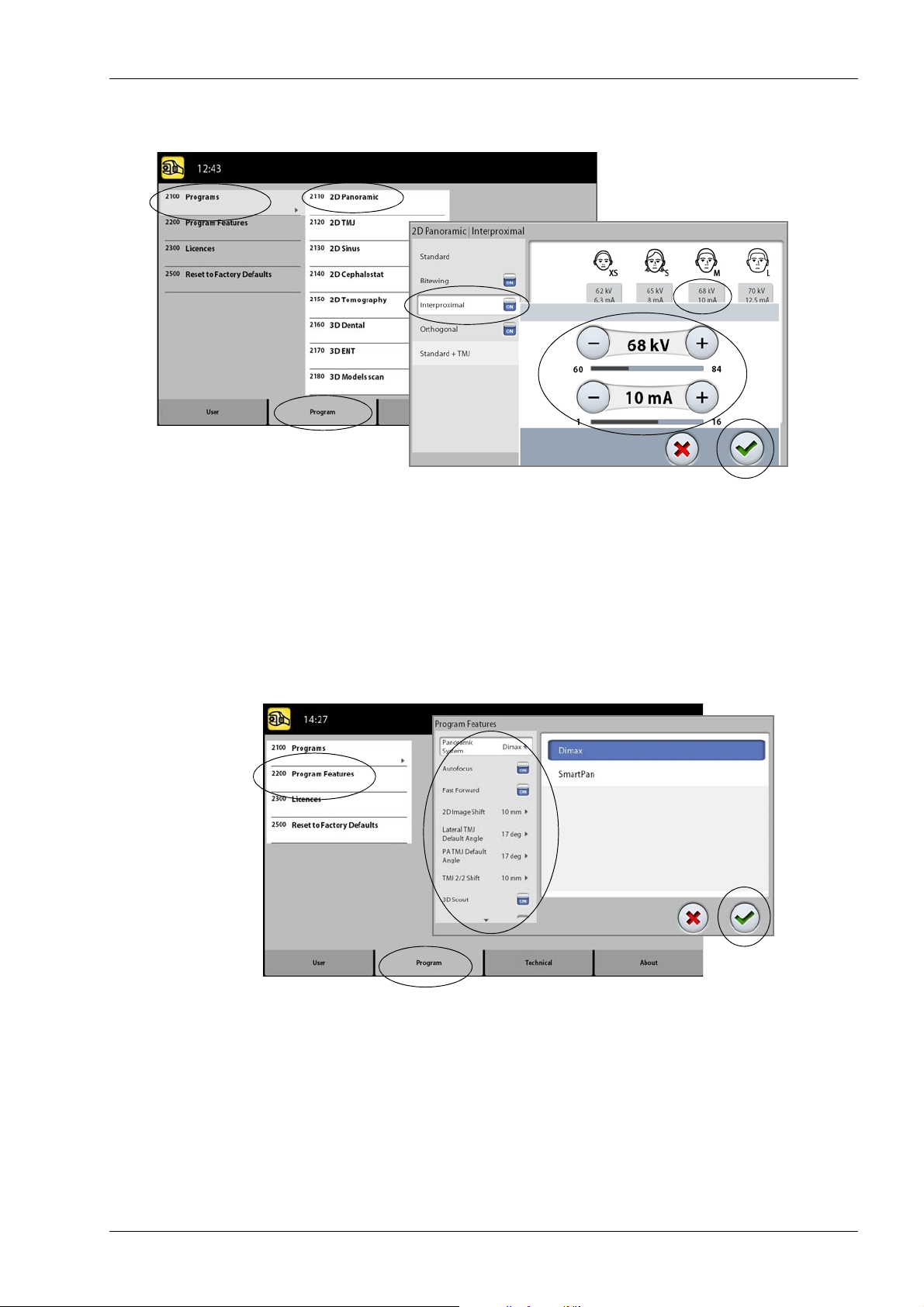

12.2 Program settings
12.2.1 Programs (2100)
• To turn a program(s) ON or OFF:
1. Select Program > 2100 Programs.
2. Select a program group (e.g. 2D Panoramic).
3. Turn a program type(s) (e.g. Interproximal) ON or
OFF.
4. Select the green check mark button.
NOTE The function is available for programs that have been
activated in menu 2300 Licences.
• To permanently adjust preset exposure values:
1. Select Program > 2100 Programs.
2. Select a program group (e.g. 2D Panoramic).
3. Select a program type (e.g. Interproximal).
Program types that are not available on your X-ray unit
are shown with a light gray background color.
4. Select the exposure values you wish to adjust (e.g. 68
kV / 10 mA for patient size M).
• In 3D programs the exposure values are given
NOTE Always try to minimize the radiation dose to the
NOTE You can restore the exposure values that have been
NOTE You can adjust the preset exposure values temporarily
separately for each image resolution. The image
resolutions that are not available are shown with
faded buttons. Select also the ULD (Ultra Low
Dose) button if you wish to adjust the presets for
the ULD mode.
5. Use the minus or plus buttons to set the exposure
values you wish to use.
6. Select the green check mark button.
7. Repeat for an other program type, patient size or
image resolution (3D) if needed.
8. Select the green check mark button.
patient.
preset at the factory (i.e. overrule your own settings)
by selecting Program > 2500 Reset to Factory
Defaults.
as des
values for current exposure” on page 28.
cribed in section 9.2.5 “Adjusting exposure
62 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
SETTINGS
12.2.2 Program Features (2200)
• To manage program settings:
Select Program > 2200 Program Features to manage
program settings. For details on a specific setting, refer to
the manual section that contains the corresponding
function.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 63
SETTINGS

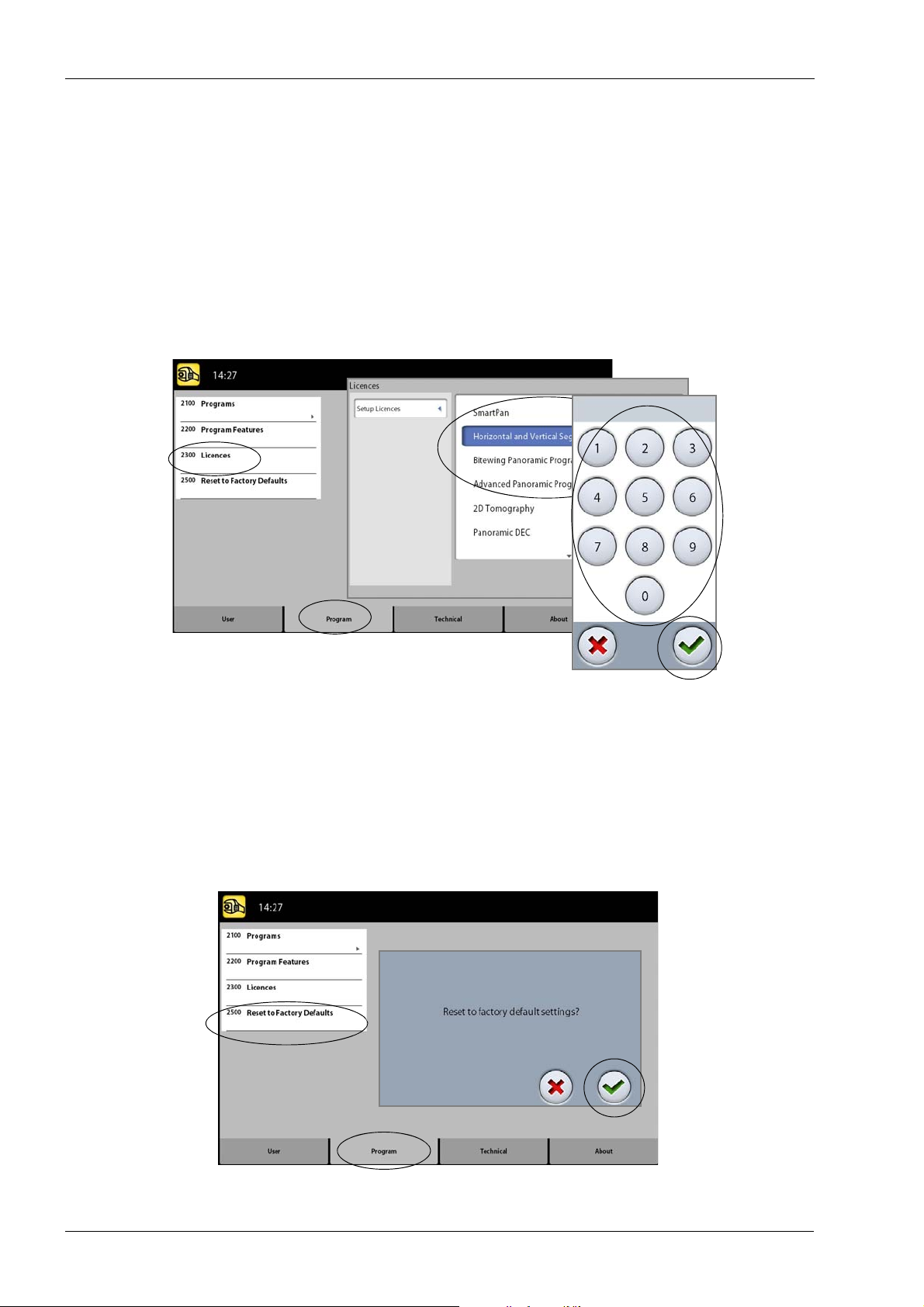

12.2.3 Licences (2300)
• To activate a program licence:
1. Select Program > 2300 Licences.
2. Select the licence you wish to activate.
3. Enter the licence code that you have received for this
licence on this X-ray unit.
4. Select the green check mark button.
5. Repeat for an other program licence if needed.
6. Select the green check mark button.
12.2.4 Reset to Factory Defaults (2500)
NOTE The function will restore the factory defaults in menu
• To reset to factory defaults:
1. Select Program > 2500 Reset to Factory Defaults.
2. Select the green check mark button.
Programs (2100)
.
64 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
12.3 About tab
12.3.1 Component Information (4100)
SETTINGS
• To view component information:
Select About > 4100 Component Information to view the
set-up or current software versions of the X-ray unit.
12.3.2 Archive (4200)
• To view error history:
Select About > 4200 Archive > Error History to view a list
of the error messages that have been generated by the Xray unit. The errors are shown in chronological order with
the latest error message on top.
• To view exposure statistics:
Select About > 4200 Archive > Exposure Statistics to view
statistical data about the X-ray unit.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 65
HELP MESSAGES
13 HELP MESSAGES
The X-ray unit incorporates a self-checking feature that
monitors the operation of the unit. If the system detects an
operating error a help message (e.g. H101) appears on
the touch screen.
The X-ray unit will not accept any commands from the
user until the help message is cleared from the touch
screen. Clear the message by touching the green check
mark.
The following list shows, in numerical order, all the help
messages that can appear.
Code Explanation Comments
H101 Exposure switch The exposure button was released
before end of exposure.
H102 The exposure button is stuck or the
cable is short circuited.
H105 Emergency stop
button
H142 Height movement Height movement is not possible
H144 Height movement is not possible
H148 Height movement is not possible. The
The emergency stop button has been
activated.
because the stop plate at the bottom of
the column was activated.
because one (or more) of the
positioning control buttons or the
positioning joystick is stuck.
position of the patient support table is
too high.
Guide the patient away from the
X-ray unit before moving the
C-arm.
Press and hold down the
exposure button for the entire
duration of the exposure.
Release the exposure button.
If necessary, contact your service
technician to replace the
exposure switch.
All movements of the X-ray unit
are blocked, no radiation is
generated.
Guide the patient away from the
X-ray unit. Then release the
emergency stop button to resume
normal operation.
Clear any obstruction before
moving the column again.
Release the button / joystick.
Press the X-ray unit down button
to move the patient support table
down.
H149 Height movement was stopped
because the C-arm cannot be moved
lower.
H150 Height movement was stopped
because the patient support table
cannot be moved lower.
66 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
Clear any obstruction before
continuing.
Clear any obstruction before
continuing.
User’s Manual (3D)
HELP MESSAGES
Code Explanation Comments
H151 Line voltage The line voltage was too low during
exposure.
H152 The line voltage is too low. Exposure is not possible.
H161 Temperature The temperature of the tube head is too
high.
H162 The temperature of the lift motor is too
high.
H163 The temperature of the power supply
unit (PSU) is too high.
H165 The temperature of the tube head is too
high for the selected exposure values.
H166 The maximum tube head energy level
was exceeded.
H172 User related
messages
H175 PC program selection is in conflict with
H177 Exposure is not possible with these
The sensor is not attached properly to
the cephalostat.
the selected X-ray unit program.
settings.
Exposure was interrupted.
Contact your service technician
for help.
Contact your service technician
for help.
Wait for a few minutes for the
tube head to cool down.
Wait for a few minutes for the lift
motor to cool down.
Wait for a few minutes for the
power supply unit (PSU) to cool
down.
Wait for a few minutes for the
tube head to cool down.
Wait for a few minutes for the
tube head to cool down or use
lower exposure values.
Attach and / or lock the sensor in
position.
Select another exposure mode in
Planmeca Romexis.
Change the image volume
settings.
H178 Exposure is not possible with these
settings.
H181 The imaging process was cancelled in
Planmeca Romexis.
H182 Timeout in image data transmission. Exposure was interrupted.
H183 The attached sensor is not suitable for
the selected program.
H184 Remove the 3D sensor.
H185 The 3D sensor is not attached properly. Attach and / or lock the sensor in
H186 No IP address defined for 3D sensor.
H187 Problem during image data
transmission.
H189 The screen was touched during
exposure.
H193 The Y coordinate is out of limits. Set the Y coordinate between 64-
H195 The 3D Model programs must not be
used for patient imaging.
Change the settings.
Contact your service technician
for help.
Change the sensor.
position.
Exposure was interrupted.
Contact your service technician
for help.
Exposure was interrupted.
72 mm.
Use the 3D Model programs for
taking exposures of impressions
or plaster casts only.
User’s Manual (3D)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 67
ERROR MESSAGES
14 ERROR MESSAGES
NOTE Contact your service technician for help if you receive
an error message.
The X-ray unit incorporates a self-checking feature that
monitors the operation of the unit. If the system detects a
technical fault an error message (e.g. E201) appears on
the touch screen.
An error message indicates that the X-ray unit has a
problem that needs to be solved before further exposures
can be taken. The X-ray unit will not accept any
commands from the user until the error message is
cleared from the touch screen. Guide the patient away
from the X-ray unit. Then clear the message by touching
the green check mark.
68 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
15 CLEANING
CLEANING
NOTE Disconnect the X-ray unit from mains before cleaning.
NOTE Do not use cleaning solutions in aerosol or spray form
directly on unit surfaces.
X-ray unit
Autoclave
up to 135°C
Wipe with
soft cloth using
alcohol based
cleaning solution
Wipe with
soft cloth using
mild cleaning
solution
3D head supports
(incl. support bars and
fastening straps)
Chin cup / rest /
support
Bite pieces XXX
Temple supports XXX
Cephalostat head
supports
Patient handles XX
Other surfaces
(incl. touch screen)
XXX
XXX
XX
X
Sensors
Wipe with soft cloth
(NO CLEANING
SOLUTION)
Compressed air
ProFace sensor;
laser windows in the middle
ProFace sensor;
other surfaces (incl. glass
windows on both sides)
Other sensors X
16 SERVICE
User’s Manual (3D)
X
X
To guarantee patient and user safety and to ensure
consistent image quality the X-ray unit must be checked
and recalibrated by a qualified Planmeca service
technician once a year or after every 10 000 exposures if
this is sooner.
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 69
DISPOSAL
17 DISPOSAL
In order to reduce the environmental load over the
product’s entire lifecycle, Planmeca’s products are
designed to be as safe as possible to manufacture, use
and dispose of.
Parts which can be recycled should always be taken to
the appropriate processing centers, after hazardous
waste has been removed. Disposal of obsolete units is
the responsibility of the waste possessor.
All parts and components containing hazardous materials,
as well as batteries, must be disposed of in accordance
with waste legislation and instructions issued by the
environmental authorities. Batteries must be disposed of
in compliance with the requirements of Directive 2006 / 66
/ EEC.
The risks involved and the necessary precautions must be
taken into account when handling waste products.
Recyclable
Part
Frame, covers &
patient supports
- metal
- plastic
Motors (X)
Component
boards
Cables,
transformers
Main materials
for disposal
Aluminium,
galvanized steel,
lead
PUR,
other plastics
Copper,
steel,
transformer oil
X
X
X
(X)
X
X
material
(X) =
if available
Waste
disposal
site
X
Hazardous
waste
(separate
collection)
X
X
X-ray tube X
Packing Wood,
cardboard,
paper,
polystyrene
Sensor Return sensor to Planmeca.
Other parts X
X
X
X
X
70 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
TECHNICAL SPECIFICATIONS
18 TECHNICAL SPECIFICATIONS
18.1 Technical data for Planmeca ProMax product family
Classification:
• Medical Device Directive 93/42/EEC (Class IIb)
• IEC 60601-1 Class I, type B
• CISPR 11 Class B
Generator
X-ray tube
Focal spot size
Total filtration:
• 3D min. 2.5 mm Al + 0.5 mm Cu
• Pan / ceph min. 2.5 mm Al
Anode voltage
(X-ray units with SW prior to 3.0):
• 3D 3D s / 3D Classic / 3D Mid: 54 - 90 kV ±5%
• Pan / SmartPan 54 - 84 kV ±5%
• Ceph 60 - 84 kV ±5%
Resonant-mode, DSP-controlled, 80...160 kHz,
according to IEC 60601-2-7: 1998
2D / 3D s / 3D Classic / 3D Plus / 3D Mid:
Toshiba D-054SB
3D Max: Toshiba D-067SB
According to IEC 60336
2D / 3D s / 3D Classic / 3D Plus / 3D Mid:
0.5 x 0.5 mm
3D Max: 0.6 x 0.6 mm
3D Max: 54 - 96 kV ±5%
Anode voltage
(X-ray units with SW 3.0 or later):
• 3D 3D s / 3D Classic / 3D Plus / 3D Mid:
• Pan / SmartPan 60 - 84 kV ±5%
• Ceph 60 - 84 kV ±5%
Anode current
(X-ray units with SW prior to 3.0):
• 3D 3D s / 3D Classic / 3D Mid: 1 - 14 mA ±10%
• Pan / SmartPan 1 - 16 mA ±10%
• Ceph 1 - 16 mA ±10%
User’s Manual (3D)
60 - 90 kV ±5%
3D Max: 60 - 96 kV ±5%
3D Max: 1 - 12.5 mA ±10%
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 71
TECHNICAL SPECIFICATIONS
Anode current
(X-ray units with SW 3.0 or later):
• 3D 3D s / 3D Classic / 3D Plus / 3D Mid:
• Pan / SmartPan 1 - 16 mA ±10%
• Scanning ceph 1 - 16 mA ±10%
• Planmeca ProCeph 16 mA ±10%
1 - 14 mA ±10%
3D Max: 1 - 12.5 mA ±10%
mAs range
mGy range
Linearity of radiation output
Cooling period
Exposure time:
• 3D 3D s:
• Pan 2D / 3D s / 3D Classic:
• SmartPan 3D s / 3D Classic:
min. / max. as indicated ±(10% + 0.2 mAs)
min. / max. as indicated ±40%
< 0.1
Automatically controlled
Pulsed, effective 4.8 - 36 s as indicated ±10%
3D Classic / 3D Plus / 3D Mid:
Pulsed, effective 2.4 - 36 s as indicated ±10%
3D Max:
Pulsed, effective 3.6 - 24 s as indicated ±10%
2.7 - 16 s as indicated ±10%
3D Plus / 3D Mid: 3.1 - 19 s as indicated ±10%
2D tomography: 4 - 12 s as indicated ±10%
3.3 - 19 s as indicated ±10%
3D Plus / 3D Mid: 3.7 - 23 s as indicated ±10%
3D Max: 10 s as indicated ±10%
• Scanning ceph / Normal 12 - 18.7 s as indicated ±10%
• Scanning ceph / High Speed 6.4 - 9.9 s as indicated ±10%
• Planmeca ProCeph 0.1 - 0.8 s as indicated ±10%
SID:
• 3D 3D s / 3D Classic: 527 mm (20.7 in.)
3D Plus / 3D Mid / 3D Max: 600 mm (23.6 in.)
• Pan 2D / 3D s / 3D Classic: 500 mm (19.7 in.)
3D Plus / 3D Mid: 573 mm (22.6 in.)
3D Max: 600 mm (23.6 in.)
• Ceph 1700 mm (66.9 in.)
Magnification:
• 3D 3D s / 3D Classic: 1.57
3D Plus / 3D Mid: 1.38, 1.44 or 1.80
3D Max: 1.38, 1.41 or 1.80
72 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
TECHNICAL SPECIFICATIONS
• Pan 2D / 3D s / 3D Classic: 1.2 - 1.5
3D Plus / 3D Mid: 1.35 - 1.8
2D tomography: 1.5
• SmartPan 3D s / 3D Classic: 1.27 - 1.5
3D Plus / 3D Mid: 1.35 - 1.8
3D Max: 1.4
•Ceph 1.13
Duty cycle for height adjustment
Line voltage
Line current
Line harmonics
Max. permissible apparent
impedance of supply mains
Maximum continuous heat
dissipation
Fuses:
• 2 user replaceable fuses
• Type
Weight:
• 2D / 3D s / 3D Classic 119 kg (263 lbs)
25 s ON / 300 s OFF
100 - 220 V~ / 50 - 60 Hz
230 - 240 V~ / 50 Hz
8 - 17 A
Cos better than 0.9
0.5 (100VAC)
< 250W
100 - 220 V~ / 16A FF H 500V
230 - 240 V~ / 8A FF H 500V
195100 ELU
• 3D Plus / 3D Mid 136 kg (300 lbs)
• 3D Max 134 kg (296 lbs)
• Scanning ceph 26 kg (57 lbs)
• Planmeca ProCeph 20 kg (44 lbs)
Colour
Environmental requirements
Transport:
• Temperature -20°C - +60°C
• Relative humidity 10 - 90% RH (non-condensing)
• Air pressure
Storage:
• Temperature -10°C - +50°C
User’s Manual (3D)
RAL 9016
700 - 1060 hPa
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 73
TECHNICAL SPECIFICATIONS
• Relative humidity 10 - 90% RH (non-condensing)
• Air pressure 700 - 1060 hPa
Operating:
• Temperature Pan / scanning ceph: +5°C - +40°C
• Relative humidity 10 - 90% RH (non-condensing)
3D / ProCeph: +10°C - +30°C
• Air pressure
Image properties
3D:
• Flat panel pixel size
• Flat panel active surface 3D s: 80 x 130 mm (3.15 x 5.12 in.)
SmartPan:
• Flat panel pixel size
• Flat panel active surface 3D s / 3D Classic / 3D Plus:
700 - 1060 hPa
127 m
3D Classic / 3D Plus:
130 x 130 mm (5.12 x 5.12 in.)
3D Mid: 146 x 146 mm (5.74 x 5.74 in.)
3D Max: 193 x 242 mm (7.6 x 9.5 in.)
127 m
8 x 130 mm (0.31 x 5.12 in.)
3D Mid: 8 x 146 mm (0.31 x 5.74 in.)
3D Max: 13 x 162 mm (0.51 x 6.38 in.)
3D Max MultiView: 25 x 162 mm (0.98 x 6.38 in.)
Pan / ceph CCD:
• Pixel size
• Pan active surface 6 x 146 mm (0.24 x 5.74 in.)
• Ceph active surface 6 x 292 mm (0.24 x 11.15 in.)
Planmeca ProCeph:
• Flat panel pixel size
• Flat panel active surface 302 x 249 mm (11.89 x 9.80 in.)
Operating conditions for X-ray units with ProFace sensor:
• Optimum colour temperature Approx. 6500 Kelvin
• Frequency for fluorescent lamps 100 Hz
• Even and uniform lighting
• No natural light (no windows in the room)
• No green objects next to X-ray
48 m
139 m
74 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
18.2 Original manufacturer
Scanning ceph or
Planmeca ProCeph
Scanning ceph or
Planmeca ProCeph
PLANMECA Oy, Asentajankatu 6, FIN-00880 Helsinki, FINLAND
Phone: +358 20 7795 500, Fax: +358 20 7795 555, www.planmeca.com

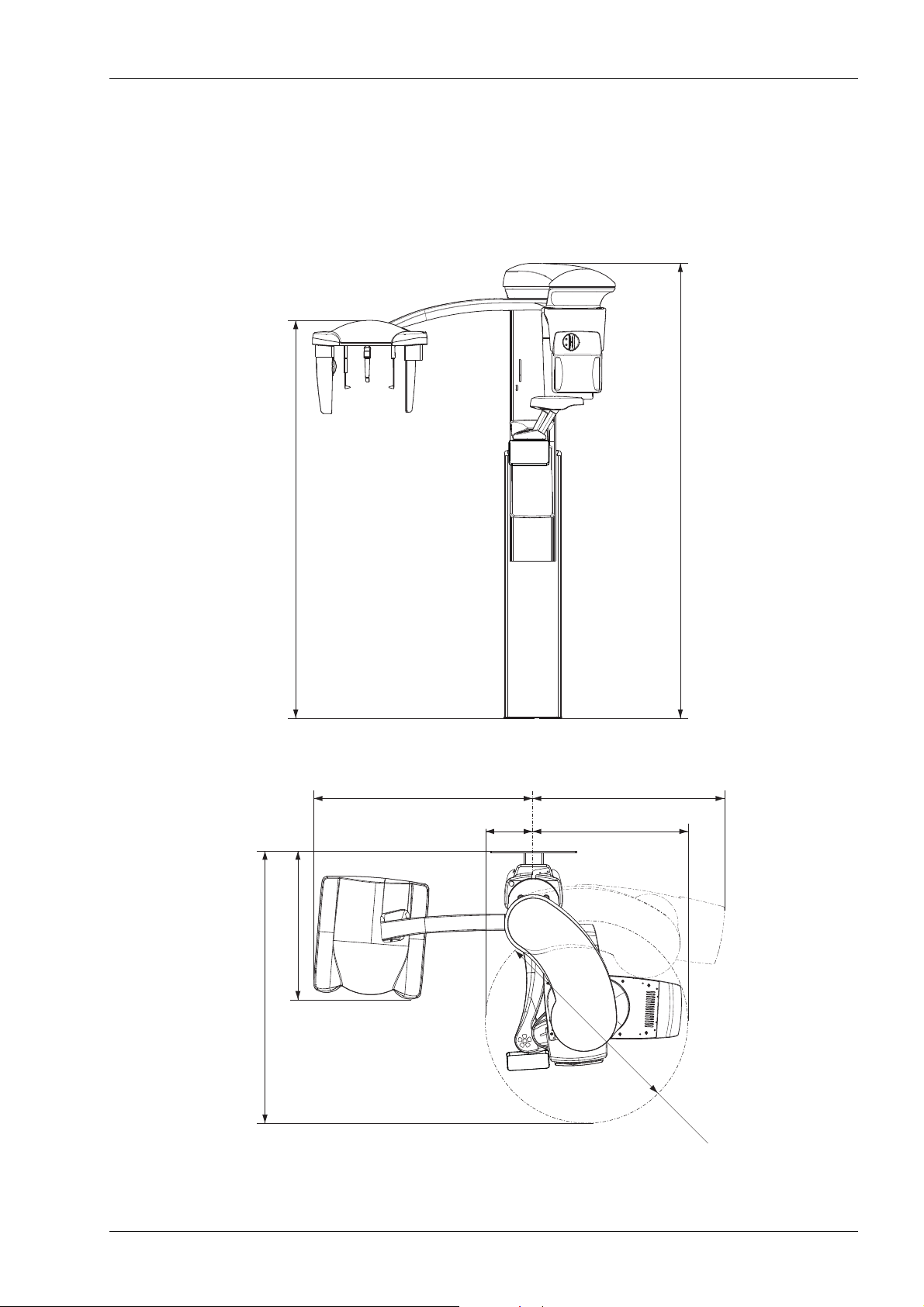

18.3 Dimensions
TECHNICAL SPECIFICATIONS
1315–2095mm (51.8–82.5”)
777mm (30.6”)
1145mm (45.1”)930mm (36.6”)
270mm
(10.6”)
810mm (32”)
1610–2390mm (63.4–94.1”)
User’s Manual (3D)
1366mm (53.8”)
Ø1010mm
(39.8”)
Planmeca ProMax 3D Plus & 3D Mid with ProTouch 75
TECHNICAL SPECIFICATIONS
18.4 Minimum operational space requirements
NOTE The maximum height can be adjusted to suit offices
with low ceiling.
Width Depth Height
X-ray unit 1580 mm
63 in.
X-ray unit with cephalostat 2275 mm
89.6 in.
1750 mm
69 in.
1750 mm
69 in.
2390 mm
94 in.
2390 mm
94 in.
76 Planmeca ProMax 3D Plus & 3D Mid with ProTouch
User’s Manual (3D)
Planmeca Oy | Asentajankatu 6 | 00880 Helsinki | Finland
tel. +358 20 7795 500 | fax +358 20 7795 555 | sales@planmeca.com | www.planmeca.com
Loading...
