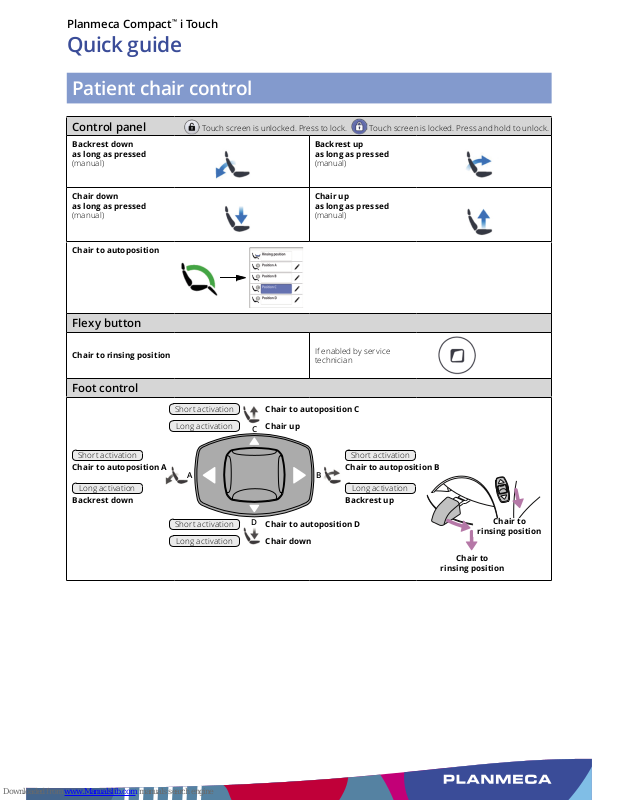

Planmeca Compact™ i Touch
Quick guide
Patient chair control
Control panel
Touch screen is unlocked. Press to lock.
Touch screen is locked. Press and hold to unlock.
Backrest down
as long as pressed
(manual)
Backrest up
as long as pressed
(manual)
Chair down
as long as pressed
(manual)
Chair up
as long as pressed
(manual)
Chair to autoposition
Flexy button
Chair to rinsing position
If enabled by service
technician
Foot control
C
A
D
B
Short activation
Short activation
Short activation
Long activation
Long activation
Long activation
Short activation
Chair to autoposition A
Long activation
Backrest down
Chair to autoposition B
Backrest up
Chair to autoposition C
Chair up
Chair to autoposition D
Chair down
Chair to
rinsing position
Chair to
rinsing position
Planmeca Compact™ i To uch
Dental unit control
Control panel
Touch screen is unlocked. Press to lock.
Touch screen is locked. Press and hold to unlock.
Cup ll and bowl rinse
Short activation
Cup ll as long as pressed (manual)
Long activation
Bowl rinse
Short activation
Door open / assistant call function
for preprogrammed time
Short activation
Door open / assistant call function
as long as pressed (manual)
Long activation
Operating light On ► O
Short activation
Intensity of operating light (manual)
Long activation
Operating light’s composite mode On ► O
Short activation
Intensity of operating light in composite mode (manual)
Long activation
Start required timer
Select timer number
Maintenance procedure
Select procedure
Foot control No instrument activated
Preprogrammed
unit function
Preprogrammed
unit function
Short activation
Door open /
assistantcall function
for preprogrammed time
Long activation
Door open /
assistantcall function
as long as pressed
(manual)
Short activation
Long activation
Cup ll and bowl rinse
Cup ll as long as pressed (manual)
Quick guide
Instrument control
Control panel
Touch screen is unlocked. Press to lock.
Touch screen is locked. Press and hold to unlock.
Automatic chip blow
On
►
O
Fibre optic light
On
►
O
Water & air ► Air ►
No spray
Scaler
Spray 1
►
Spray 2 ►
Nospray
Scaler
Change
operation mode
Turbine
Power reduction
On
►
O
Turbine
Quickstart On
►
O
Micromotor
Reverse rotation
On
►
O
Micromotor
RPM limit On
►
O
Brushless micromotor
Bien-Air MX2
Preset selection
Brushless micromotor
Bien-Air MX2
Torque limit On
►
O
Brushless micromotor
Bien-Air MX2
Toggle drive mode
when torque limit On
Auto stop Auto reverse Auto forward
Foot control Unit controlled instrument activated
Micromotor or turbine (standard pedal) Scaler (standard pedal)
Drive instrument
Drive instrument
Short activation
Long activation
Water & air ► Air ► No spray
Manual chip blow
Drive scaler
Drive scaler
Short activation
Spray 1 ► Spray 2 ► No spray
Polymerisation light Intraoral camera
Start ► Stop
Start
►
Stop
Start
►
Stop
Activate/deactivate
intraoral camera
(default)
Short activation
Save still picture
Freeze ► Unfreeze
Freeze
►
Unfreeze
Planmeca intraoral scanner
Preprogrammed
instrument function
Activate/deactivate
instrument view*
Activate/deactivate
instrument view*
Short activation
Long activation
Start scanning
Take image
Generate model
Select
scanning mode
Select scanning mode
*If enabled by servi ce technician
www.planmeca.com
For detailed instructions, please see the user’s manual. Copyright Planmeca. Rights for changes reserved.
10029686_8/11.2017/en
Programming
Control panel
Touch screen is unlocked. Press to lock.
Touch screen is locked. Press and hold to unlock.
Patient chair autoposition settings
The function is enabled.
The function is disabled.
Move chair
torequired position
Switch operating
light On/O
Start
programming
Press chairpositions
button
Select autoposition
Accept new
autoposition
Unit settings
The function is enabled.
The function is disabled.
Most programming follows this simple sequence:
Start programming Select function Adjust value Accept new value
Instrument settings
The function is enabled.
The function is disabled.
Most programming follows this simple sequence:
Activate instrument Start programming Select function Adjust value Accept new value
Time and date settings
The function is enabled.
The function is disabled.
Start
programming
Select
time and date
Select function Select format Adjust value
Accept
newvalue
Motorised headrest control
Foot control
Short activation
Long activation
Normal mode
On
O
Tilt mode
On
O
A
D
B
C
Normal mode
Tilt mode
Lengthen headrest
Move headrest up
Shorten headrest
Move headrest down
Normal mode
Tilt mode
Normal mode
Anatomical movement down
Tilt mode
Tilt headrest backward
Normal mode
Tilt mode
Anatomical movement up
Tilt headrest forward
