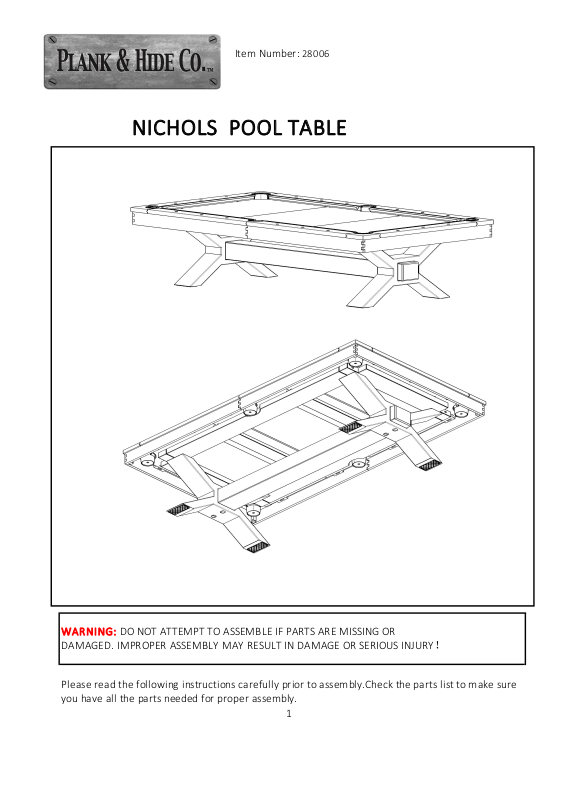

Item Number: 28006
NICHOLS POOL TABLE
WAR NING: DO NOT ATTEMPT TO ASSEMBLE IF PARTS ARE MISSING OR
DAMAGED. IMPROPER ASSEMBLY MAY RESULT IN DAMAGE OR SERIOUS INJURY！
Please read the following instructions carefully prior to assembly.Check the parts list to make sure
you have all the parts needed for proper assembly.
1
PARTS LIST （1）
DESCRIPTION
QTY
SIZE
H1 leg 2 1000*200*320
H2 support beam 1 2140*180*150
H3 short beam 2 1936*180*65
H4 long beam 2 1173*180*65
H5 middle beam 2 893*120*40
H6 side slate1 1 805*1295*43
H7 middle slate 1 805*1295*43
H8 side slate2 1 805*1295*43
H9 cloth 1
H10 1、4# rail 2 1083*164*43
H11 2、5#rail 2 1111*164*43
H12 3、6#rail 2 1101*164*43
H13 Corner 4 190*190*43
H14 long panel 2 2542*140*50
H15 short panel 2 1423*140*50
2

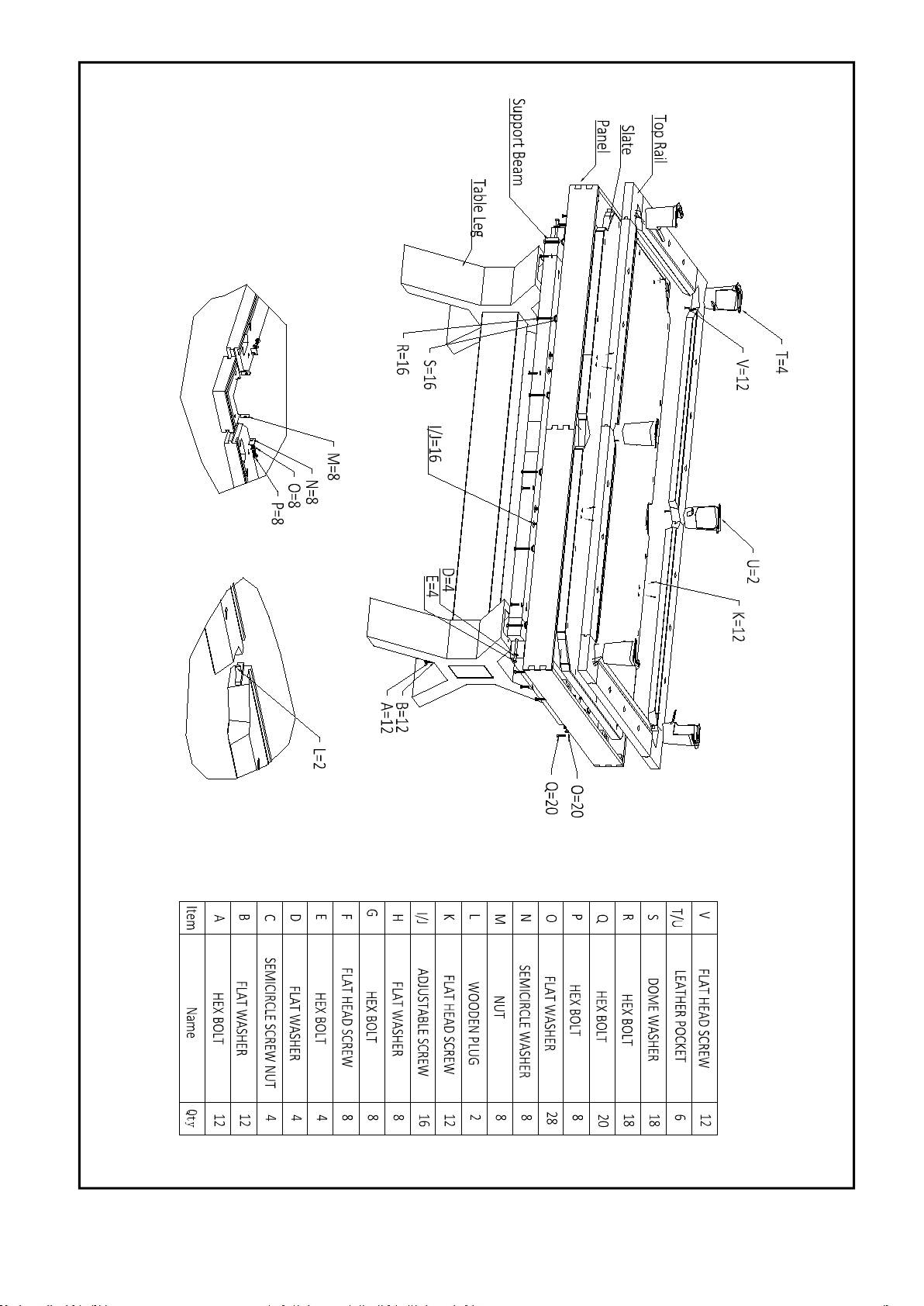

PARTS LIST（2）
PART
DESCRIPTION
QTY
SIZE
A hex bolt 4 ø10*25
B flat washer 4 M12
C semicircle screw nut 4 M12
D flat washer 4 M12*30*2
E hex bolt 4 ø12*180
F flat head screw 4 4.2*50
G hex bolt 8 ø10*80
H flat washer 8 M10*30*2
I
adjustable screw
4
ø10*55
J12ø10*100
K wooden screw 12 5*60
L wood plug 2 ø10*50
M nut 8 M8*30
N semicircle washer 8 M8*35
O flat washer 28 M8
P hex bolt 8 ø8*80
Q hex bolt 20 ø8*35
R hex bolt 18 ø10*60
S dome washer 18 M10*30*5
T leather pocket(corner) 4
U leather pocket(middle) 2
V flat head screw 12 ø4.2*16
3
4
Steps 1
Put the legs on floor,pls put the side with screw hole upward. Assembly the legs and support beam,
lock it by bolt A and nut B. Turn it over after assembled.
Steps 2
Assemble short beam(H3) and long beam(H4) by using bolt (E),washer(D) and semicircle nut(C)
accordingly; lock it tightly. Then put the middle beam(H5) in the notch of long beam, and lock it
with screw (F).
5
Steps 3
Put supporting beam on table legs and match the holes. Lock it tightly by using hexagon head bolt
(G) and flat washer (H) .
Steps 4
Put the slate leveling bolt(J/I) into nuts, keep them on the same level of beams.
6
Steps 5
Put the slate (H6,H7,H8) above the table frame, and secure it with screw (K) after leveling the slate,
then clean it up and put on the cloth(H9).
Steps 6
7
Steps 7
Put the top rails（H10、H11、H12）and corners (H13) on floor accoringly.Lock it by bolt P,washer
O,N and nut M. Note: upper side of rail shoul be put agaist the floor.
Steps 8
Assembly the long apron（H15） and shourt apron（H16）accordingly, lock it by bolt Q and
washer O.
8
Steps 9
Put the assembled apron frame on rails, lock it by bolt Q and washer O.
Steps 10
After completing step 9, turn the table rail by 180 degrees, and put it above the slate. Using
hexagon head bolt (R) to lock into long rail through washer (S) and slate(H6、H7、H8).
9
Steps 11
Install the leather pockets (U and T) and secure them with 2 pcs of stainless nails(V).
Complete
