Page 1
Copyright Planika Sp. z o.o. www.planikafires.com i1262#03 05.06.2017 1

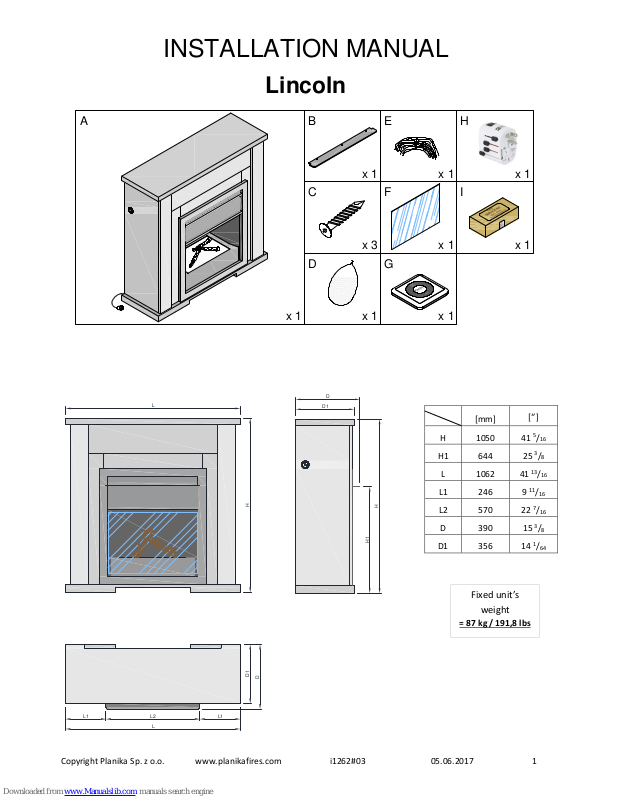

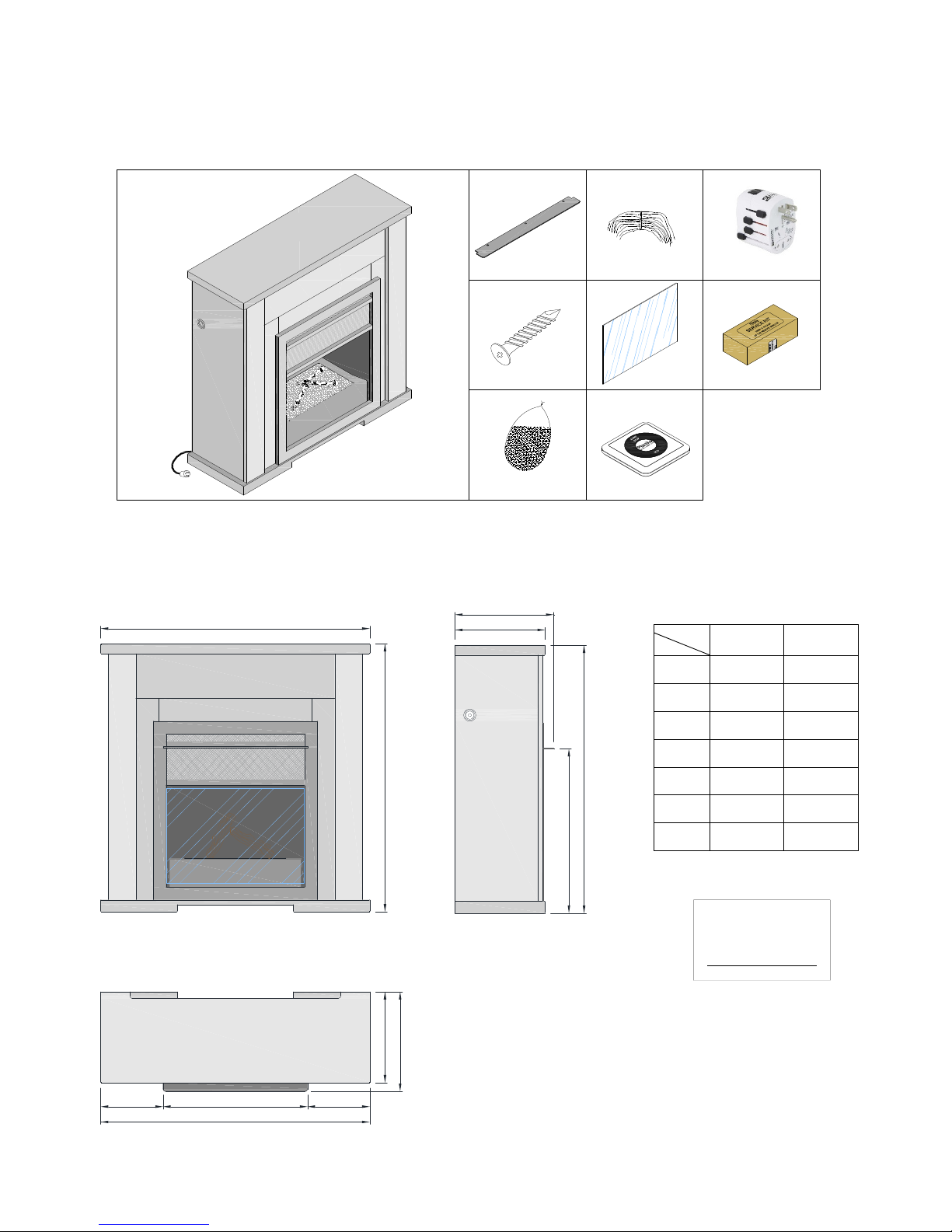

INSTALLATION MANUAL
Lincoln
B
x 1
C
x 3
D
x 1
E
x 1
F
x 1
G
x 1
H
x 1
I
x 1
A
x 1
L
H
D1
D
D1
D
L1 L2 L1
L
H1
H
[mm]
[‘’]
H 1050 41 5/16
H1 644 25 3/8
L 1062 41 13/16
L1 246 9 11/16
L2 570 22 7/16
D 390 15 3/8
D1 356 14 1/64
Fixed unit’s
weight
= 87 kg / 191,8 lbs
Page 2
Copyright Planika Sp. z o.o. www.planikafires.com i1262#03 05.06.2017 2
•
Do not install the device in areas with a capacity of less than 64 m3 / 2260 ft3 (25 m2 / 265 ft2
with a height of 2.6 m / 8.53 ft).
• While installing the device according to the instruction manual local and national
guidelines are to be observed.
• Place the device on a levelled surface. The place for the device has to be designed with the
use of a spirit level.
• Do not obstruct the ventilation slots and/or ventilators.
• Do not place on the furnace any decorative elements which are not provided by the
manufacturer.
• Do not install the device in areas of large drafts of air, near fans, vents, etc.
•
Do not place in areas where there might be a potentially explosive atmosphere of paint
vapours, industrial dusts, etc.
• No flammable items should be placed in direct contact and within a 1 m / 3.28 ft from the
device. Do not place near curtains, net curtains, etc.
• Do not expose the device to meteorological conditions. The device is for indoor use only.
• Do not place the device in close proximity to sources of humidity.
• It is obligatory to have a carbon-dioxide (CO2) or dry chemical extinguisher placed nearby
the device.
• The room in which the device will be installed must have efficient ventilation to ensure air
exchange in the room at least once per hour.
• Do not start the device before a complete and proper installation.
•
Do not fill the fuel container before placing the product into its final position.
• In case of mounting more than one unit in the room, the minimal cubature is the sum of
cubatures required for each unit.
• The substrate on which the device is installed must have a load capacity of 130 kg /
286,6 lbs.
• The device must be place out of reach of: children, animals and unauthorized persons..
• Do not install the device in mobile facilities (e.g. trailers, yachts).
!
Page 3
Copyright Planika Sp. z o.o. www.planikafires.com i1262#03 05.06.2017 3
A socket (230V, 50Hz), should be placed near the installation point, so that the device can be
powered.

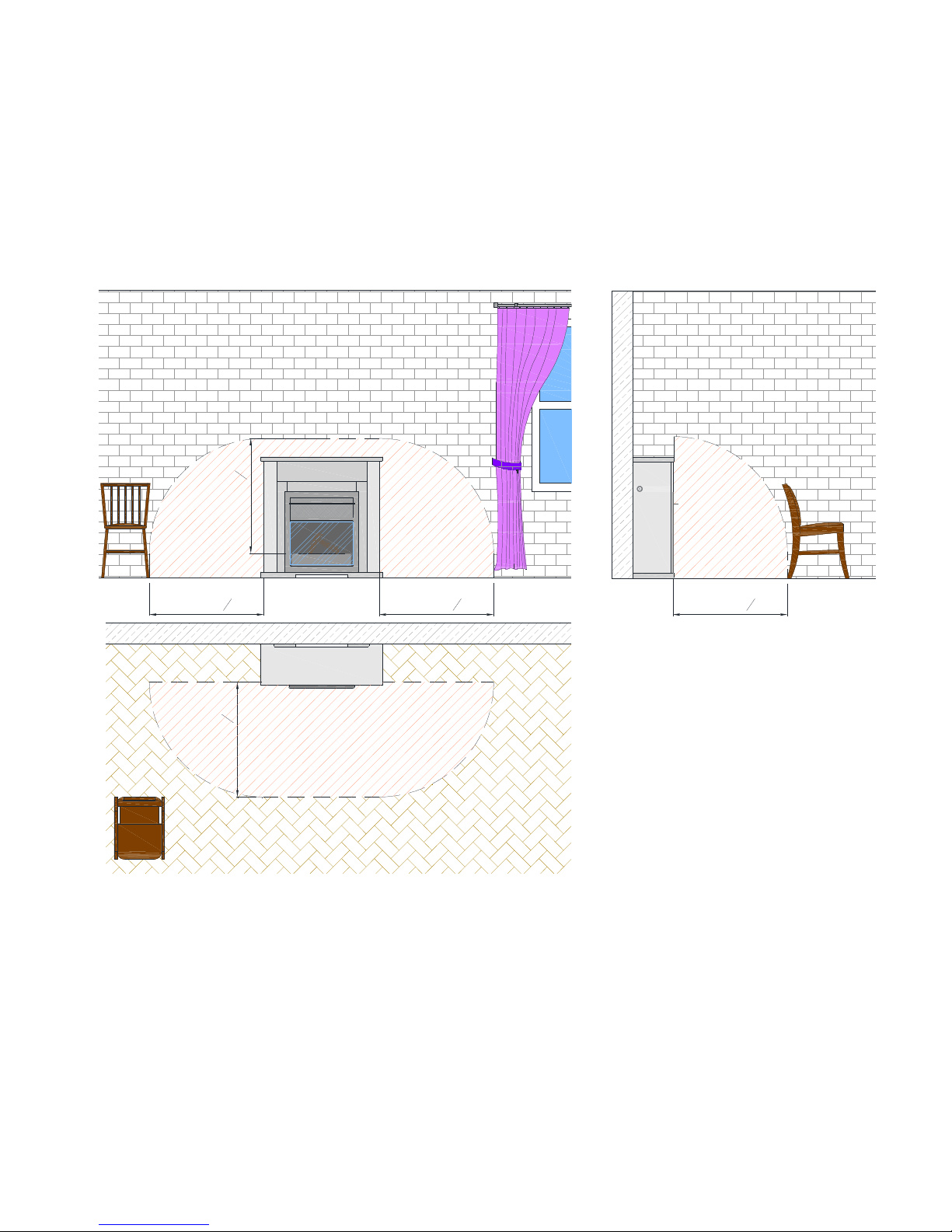

The wall behind the fireplace can be covered with any paint. It is not recommended to put the
wallpaper on the wall behind the fireplace up to 1 m.
Due to fire safety, under no circumstances can there be placed any flammable materials
within a 1 m (40 inches) from the device.
WARNING!
The product must be situated on the floor.
min. 1000 mm
min. 39
3
8
"
min. 1000 mm
min. 39
3
8
"
min. 1000 mm
min. 39
3
8
"
min. 1000 mm
min. 39
3
8
"
min. 1000 mm
min. 39
3
8
"
Page 4
Copyright Planika Sp. z o.o. www.planikafires.com i1262#03 05.06.2017 4

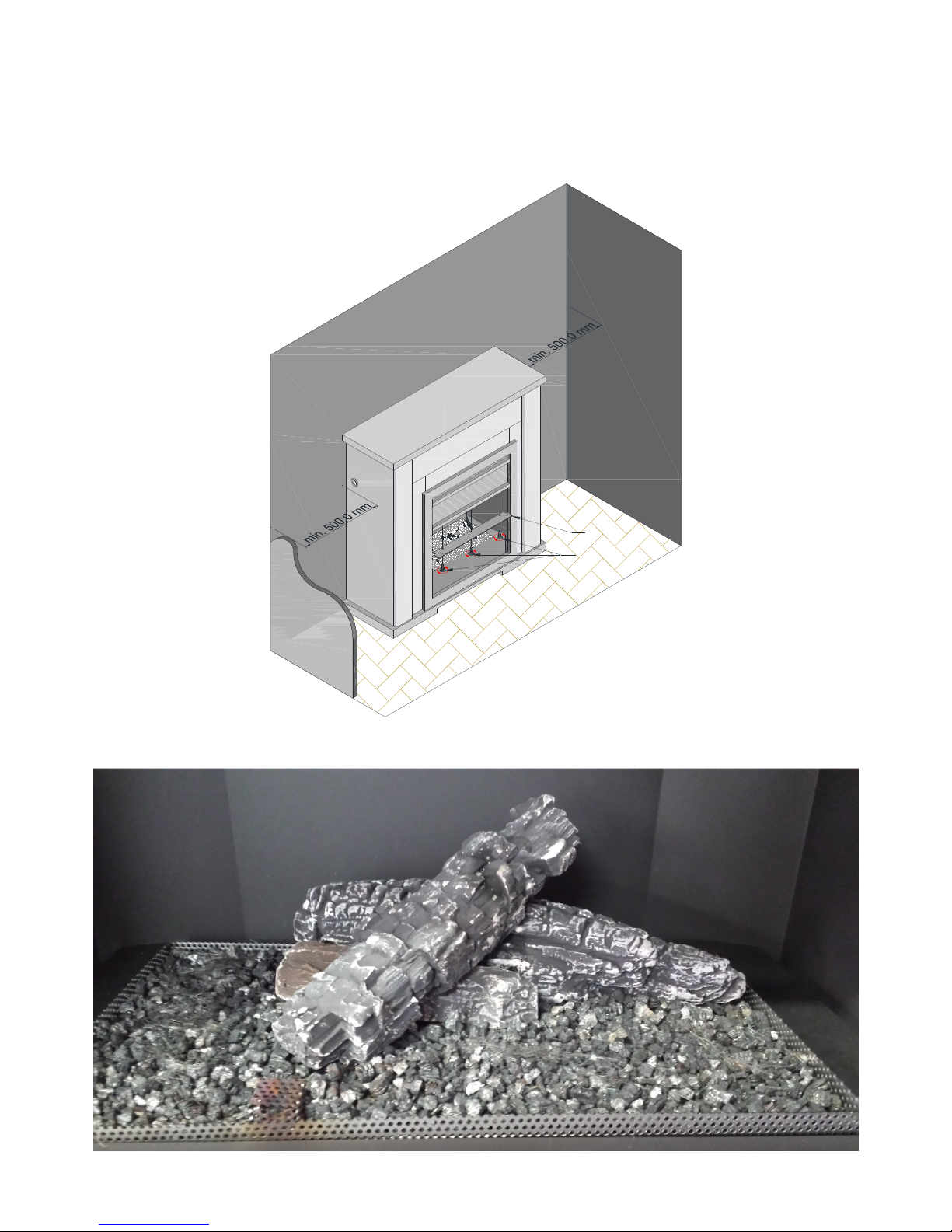

Additionally 0,5 m space should be left on both sides of the device in order to provide proper
ventilation.
Installation
1. Set the device to the desired location.
2. Screw the deflector "B" using self-drilling screws "C".
3. Spread the vermiculite "D" on the furnace net
B
C
Page 5
Copyright Planika Sp. z o.o. www.planikafires.com i1262#03 05.06.2017 5

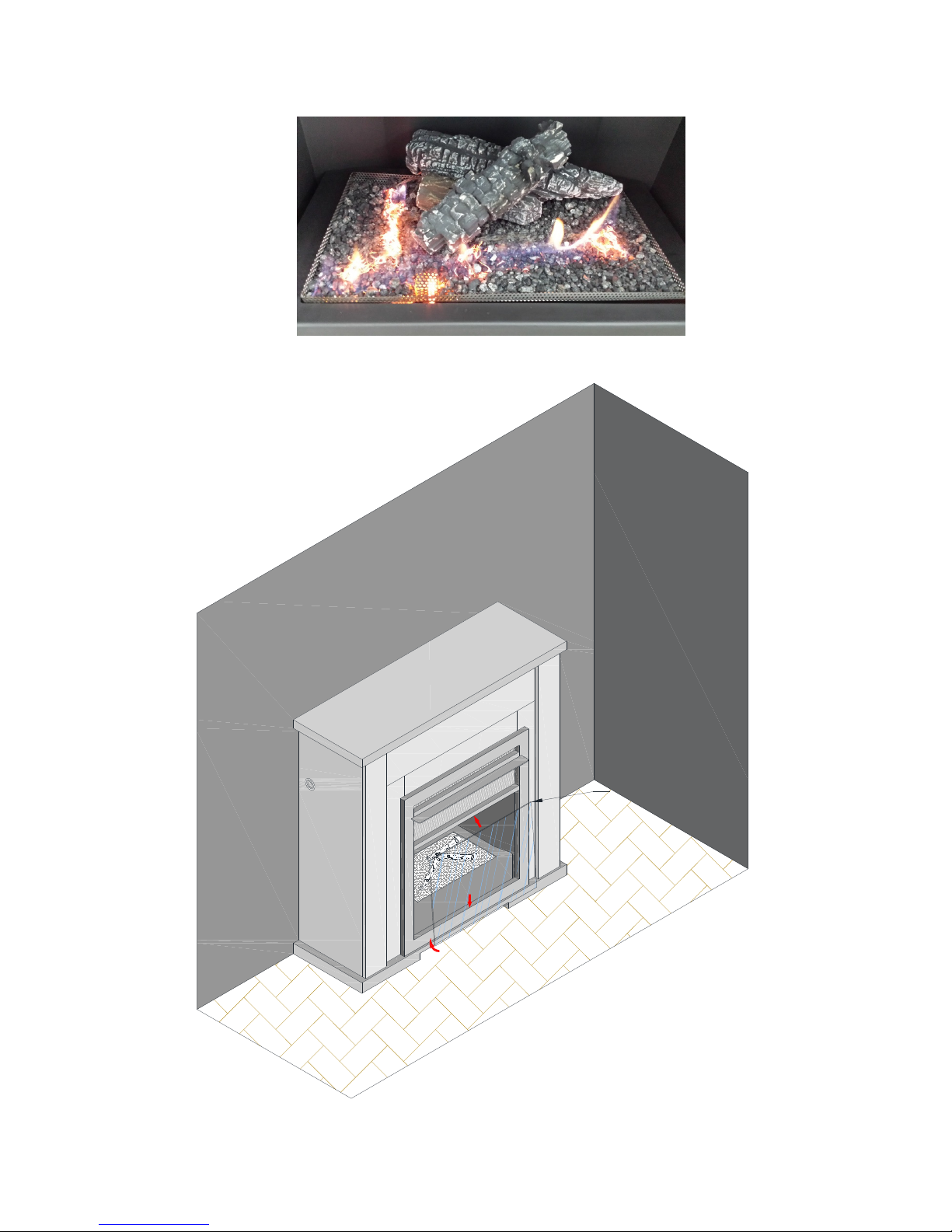

4. Location of the glowing fibers "E" is optional. It is advisable to lay them on fire for a better effect.
WARNING! Glowing fibers burn out over time - the manufacturer does not foresee replacement during
the warranty period.
5. It isn’t mandatory to install the glass shield. The way of mounting the glass is shown below.
6. Connect to the power supply
1
3
2
F
Page 6
Copyright Planika Sp. z o.o. www.planikafires.com i1262#03 05.06.2017 6
WARNING !!!
• Make sure that the product has been correctly installed and read the attached instruction manual.
• You are not allowed to fill the fuel tank and start the device before having read the instruction
manual.
• If the device needs to be moved in the future, this can only be accomplished after the fuel has been
completely burned - until the message appears. Then disconnect the power supply.
• Keep this instruction manual throughout the lifetime of the device.
