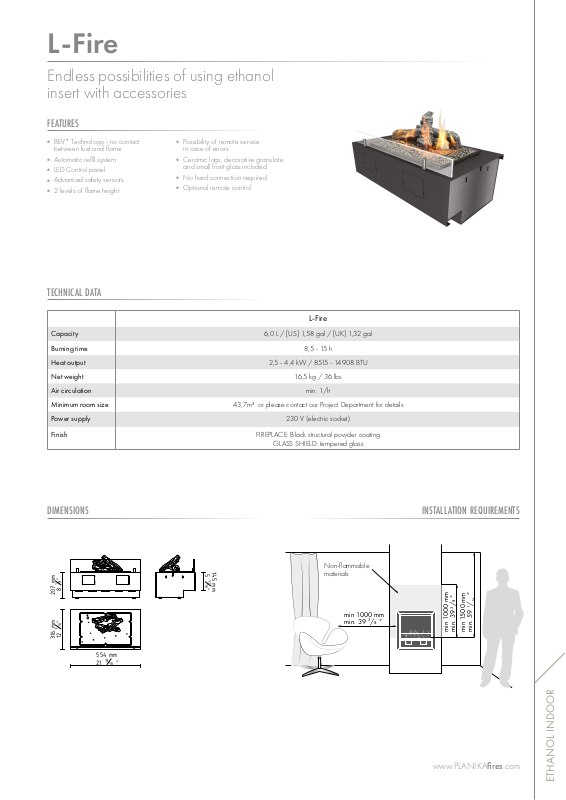

L-Fire
Endless possibilities of using ethanol
insert with accessories
FEATURES
●
BEV* Technology - no contact
between fuel and flame
●
Automatic refill system
●
LED Control panel
●
Advanced safety sensors
●
2 levels of flame height
●
Possibility of remote service
in case of errors
●
Ceramic logs, decorative granulate
and small front glass included
●
No hard connection required
●
Optional remote control
TECHNICAL DATA
L-Fire
Capacity 6,0 L / [US] 1,58 gal / [UK] 1,32 gal
Burning time 8,5 - 15 h
Heat output 2,5 - 4,4 kW / 8515 - 14908 BTU
Net weight 16,5 kg / 36 lbs
Air circulation min. 1/h
Minimum room size 43,7m³ or please contact our Project Department for details
Power supply 230 V (electric socket)
Finish FIREPLACE: Black structural powder coating
GLASS SHIELD: tempered glass
DIMENSIONS
8"
1
8
207 mm
16"
7
12
316 mm
554 mm
13
21
16 "
5
11
16"
145 mm
Non-flammable
materials
min 1000 mm
min. 39
3
/₈ “
INSTALLATION REQUIREMENTS
“
16
/
/₈ “
1
3
min 1500 mm
min. 59
min 1000 mm
min. 39
www.PLANIKAfires.com
ETHANOL INDOOR
