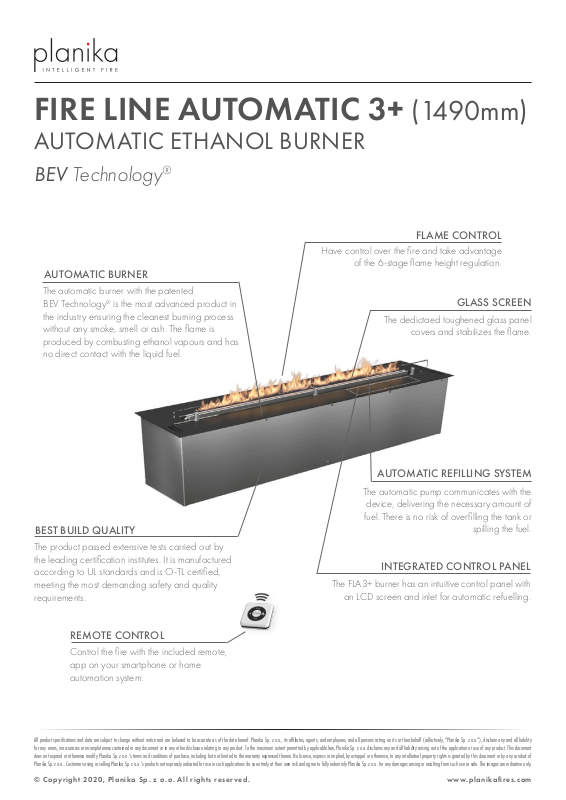

FIRE LINE AUTOMATIC 3+ (1490mm)
AUTOMATIC ETHANOL BURNER
BEV Technology
®
AUTOMATIC BURNER
The automatic burner with the patented
BEV Technology® is the most advanced product in
the industry ensuring the cleanest burning process
without any smoke, smell or ash. The flame is
produced by combusting ethanol vapours and has
no direct contact with the liquid fuel.
FLAME CONTROL
Have control over the fire and take advantage
of the 6-stage flame height regulation.
GLASS SCREEN
The dedictaed toughened glass panel
covers and stabilizes the flame.
AUTOMATIC REFILLING SYSTEM
The automatic pump communicates with the
device, delivering the necessary amount of
fuel. There is no risk of overfilling the tank or
BEST BUILD QUALITY
The product passed extensive tests carried out by
the leading certification institutes. It is manufactured
according to UL standards and is O-TL certified,
meeting the most demanding safety and quality
requirements.
INTEGRATED CONTROL PANEL
The FLA3+ burner has an intuitive control panel with
an LCD screen and inlet for automatic refuelling.
spilling the fuel.
REMOTE CONTROL
Control the fire with the included remote,
app on your smartphone or home
automation system.
All product specifications and data are subject to change without notice and are believed to be accurate as of the date hereof. Planika Sp. z o.o., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Planika Sp. z o.o.”), disclaim any and all liability
for any errors, inaccuracies or incompleteness contained in any document or in any other disclosure relating to any product. To the maximum extent permitted by applicable law, Planika Sp. z o.o. disclaims any and all liability arising out of the application or use of any product. Thisdocument
does not expand or otherwise modify Planika Sp. z o.o.’s terms and conditions of purchase, including but not limited to the warranty expressed therein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of
Planika Sp. z o.o.. Customers using or selling Planika Sp. z o.o.’s products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Planika Sp. z o.o. for any damages arising or resulting from such use or sale. The images are indicative only.
© Copyright 2020, Planika Sp. z o.o. All rights reserved.
www.planikafires.com
Fire Line Automatic 3+ (1490mm)
(BEV Technology®)
Fuel tank capacity 26.8 L
Maximum burn time 32 hours
CONTROL OPTIONS
Maximum heat output 13.0 kW
Minimum room cubature 130 m
3
Flame height regulation 6 stages
Weight 51.6 kg
Fuel type bioethanol 86 - 96,6%
Flue not required
Air change rate 1 space volume per hour
Power supply 230 V
Finish black powder coating
Materials steel, galvanized steel, toughened glass
Application for indoor use only
FRONT VIEW SIDE VIEW
included optionalincluded
‘PLANIKA N-CONTROL’ APP
Control the fire with your smartphone!
O-TL certified
Manufactured to UL standards
custom length
available on request
glass screens for See-Through and Room
Divider housings are available separately
1420 mm [55,9"]
305 mm [12,0"]
359 mm [14,1"]
TOP VIEW
1300 mm [51,2"]
1490 mm [58,7"]
