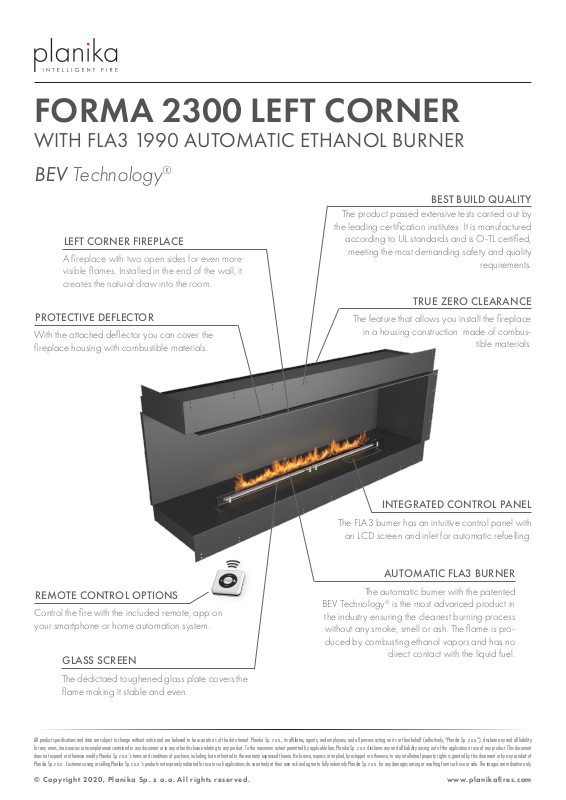

Page 1
FORMA 2300 LEFT CORNER
WITH FLA3 1990 AUTOMATIC ETHANOL BURNER
BEV Technology
®
LEFT CORNER FIREPLACE
A fireplace with two open sides for even more
visible flames. Installed in the end of the wall, it
creates the natural draw into the room.
PROTECTIVE DEFLECTOR
With the attached deflector you can cover the
fireplace housing with combustible materials.
BEST BUILD QUALITY
The product passed extensive tests carried out by
the leading certification institutes. It is manufactured
according to UL standards and is O-TL certified,
meeting the most demanding safety and quality
requirements.
TRUE ZERO CLEARANCE
The feature that allows you install the fireplace
in a housing construction made of combus-
tible materials.
INTEGRATED CONTROL PANEL
The FLA3 burner has an intuitive control panel with
an LCD screen and inlet for automatic refuelling.
AUTOMATIC FLA3 BURNER
REMOTE CONTROL OPTIONS
Control the fire with the included remote, app on
your smartphone or home automation system.
BEV Technology® is the most advanced product in
the industry ensuring the cleanest burning process
without any smoke, smell or ash. The flame is produced by combusting ethanol vapors and has no
GLASS SCREEN
The dedictaed toughened glass plate covers the
flame making it stable and even.
All product specifications and data are subject to change without notice and are believed to be accurate as of the date hereof. Planika Sp. z o.o., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Planika Sp. z o.o.”), disclaim any and all liability
for any errors, inaccuracies or incompleteness contained in any document or in any other disclosure relating to any product. To the maximum extent permitted by applicable law, Planika Sp. z o.o. disclaims any and all liability arising out of the application or use of any product. Thisdocument
does not expand or otherwise modify Planika Sp. z o.o.’s terms and conditions of purchase, including but not limited to the warranty expressed therein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of
Planika Sp. z o.o.. Customers using or selling Planika Sp. z o.o.’s products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Planika Sp. z o.o. for any damages arising or resulting from such use or sale. The images are indicative only.
© Copyright 2020, Planika Sp. z o.o. All rights reserved.
The automatic burner with the patented
direct contact with the liquid fuel.
www.planikafires.com
Page 2
Forma 2300 Left Corner
Burner model FLA3 1990 (BEV Technology®)
Fuel tank capacity 11.7 L
Maximum burn time 12 hours
Maximum heat output 18.0 kW
Minimum room cubature 180 m
3
Flame height regulation 6 stages
Weight 137.3 kg
Fuel type bioethanol 86 - 96,6%
Flue not required
Air change rate 1 space volume per hour
Power supply 230 V
Finish black powder coating
Materials steel, galvanized steel, toughened glass
CONTROL OPTIONS
included optionalincluded
‘PLANIKA N-CONTROL’ APP
Control the fire with your smartphone!
O-TL certified
Application for indoor use only
FRONT VIEW SIDE VIEW
1964 mm [77,3"]
2378 mm [93,6"]
TOP VIEW
2420 mm [95,3"]
2478 mm [97,6"]
Manufactured to UL standards
406 mm [16,0"]
688 mm [27,1"]
130 mm [5,1"]
255 mm [10,1"]
431 mm [17,0"]
508 mm [20,0"]
Framing dimensions
Width 2440 mm
Depth 450 mm
Height 710 mm
723 mm [28,5"]
