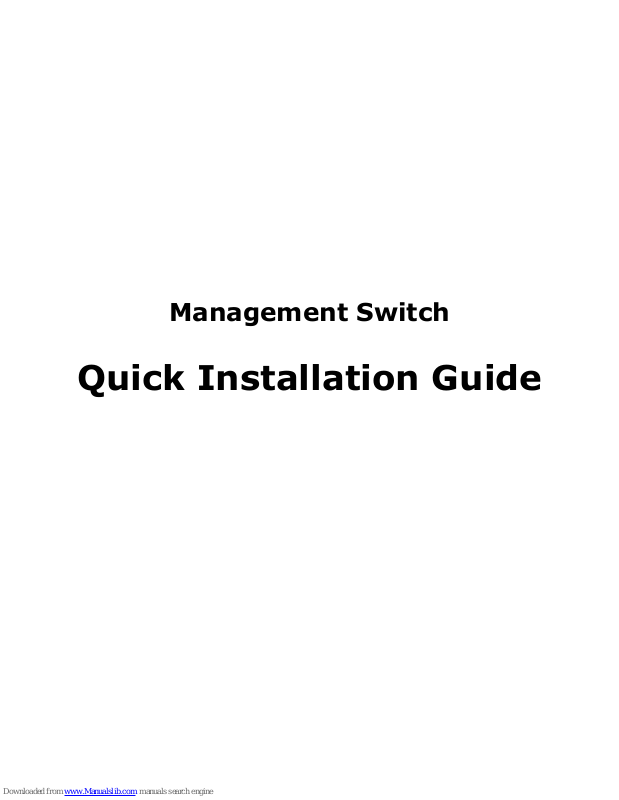

The Switch Quick Installation Guide
2
Step 1 Installation
The site where you place the
Switch
may greatly affect its performance. When
installing, take the following into your consideration.
1.1 Installation method
Follow the guidelines below to install the Switch.
Install the Switch in a fairly cool and dry place. See the Technical Specifications for
the acceptable temperature and humidity operating ranges.
Install the Switch on a sturdy, level surface that can support its weight, (at least 4KG)
Connect the power cord to the Switch and the power outlet. The distance is no more
than 182cm.
Leave at least 10cm (about 4 inches) of space at the front and rear of the Switch for
ventilation.
1.2 Desktop or Shelf Installation
When installing the Switch on the desktop or shelf, please attach the rubber feet to
the Switch. Peel off the protective paper on the pads and attach them on the bottom
of the Switch (one at each corner).
1.3 Rack Installation
The Switch is rack-mountable and can be installed on an EIA-19 inch equipment
rack. To do this, first install the mounting brackets on the Switch’s side panels (one
on each side), secure them with the included screws, and then use the screws
provided with the equipment rack to mount the Switch on the 19 inch rack.
1.4 Power on the Switch
The Switch has a universal power supply ranging from 100V to 220V AC, 50 ~ 60Hz
power source. The AC power connector is located at the rear of the unit adjacent to
and the system fan. The switch’s power supply will adjust to the local power source
automatically.
The Switch Quick Installation Guide
3
Step 2 Connecting the switch
This chapter describes how to connect the Switch to your Fast Ethernet network.
2.1 PC to Switch
Figure 2-1 PC to Switch
A PC can be connected to the Switch via a two-pair Category 3, 4, or 5 UTP/STP
straight-through Cable. For 100Mbps operation Category 5 must be used. The PC
(equipped with a RJ-45 10Mb Ethernet or 100Mb Fast Ethernet NIC) should be
connected to any port of the Switch. The LED indicators for PC connection are
dependent on the LAN card capabilities. If the LED indicators do not light after
making a proper connection, check the PC LAN card, the cable, the Switch
conditions and connections.
2.2 Hub to Switch
A hub (10 or 100BASE-TX) can be connected to the Switch via a two-pair Category
3, 4, or 5 UTP/STP straight cable. For 100Mbps operation a Category 5 cable must
be used. The connection is accomplished from any port of the hub to any port of the
Switch.
2.3 Switch to Switch (other devices)
The Switch can be connected to another switch or other devices (routers, bridges,
etc.) via a two-pair Category 3, 4, 5 UTP/STP straight or crossover cable. A
Category 5 cable must be used for 100Mbps operation. The connection can be done
from any (MDI-X) port of the Switch (Switch A) to any of the 10Mbps, 100Mbps
(MDI-X) port of the other switch (switch B) or other devices.
2.4 Port Speed & Duplex Mode
After plugging the selected cable to a specific port, the system uses auto-negotiation
The Switch Quick Installation Guide
4
to determine the transmission mode for any new twisted-pair connection:
If the attached device does not support auto negotiation or has auto-negotiation
disabled, an auto sensing process is initiated to select the speed and set the duplex
mode to half-duplex.
The Switch Quick Installation Guide
5
Step 3 Management
This chapter describes three management methods of the Switch.
Web-based management
Console management
Telnet management
SNMP provides v1/v2
3.1 Web-based management
The Switch has a Web GUI interface for switch configuration. The Switch can be
configured through the Web browser. A network administrator can manage, control,
and monitor the Switch from the local LAN. This section indicates how to configure
the Switch to enable its smart functions including:
Before you configure this device, note that when the Switch is configured through an
Ethernet connection, the manager PC must be set on the same the IP network. For
example, when the default network address of the default IP address of the Switch is
192.168.2.11, then the manager PC should be set at 192.168.2.x (where x is a
number between 1 and 254 except 11), and the default subnet mask is
255.255.255.0.
Open an Internet Explorer 5.0 or above Web browser.
Enter the IP address http://192.168.2.11 (the factory-default IP address setting) in
the address location.
Figure 1-1 IP address
The Switch Quick Installation Guide
6
NOTE:
The factory-default IP Address : 192.168.2.11
Through the Web Management Utility, you do not need to remember the IP Address;
select the device shown in the Monitor List of the Web Management Utility to settle
the device on the Web browser.
When the following dialog page appears, enter the default user name and password
and press Login to enter the main configuration window.
Figure1-2 Login
NOTE:
The factory-default User name is admin. Pass word is password
After entering the password, you can access main page of your switch.
3.2 Console Management
A local console is a terminal or a workstation running a terminal emulation program
that is connected directly to the switch via the RS-232 console port on the rear of the
switch. Local console management uses the terminal connection to operate the
console program built-in to the Switch a network Administrator can manage, control
and monitor the switch from the console program.
The Switch Quick Installation Guide
7
To start using the Console Management program, first connect an EIA-232 serial
cable to a COM port on a PC or notebook computer and to the Console Port on the
rear panel of the Switch. Note: do not use a null modem cable.
If you are using Microsoft Windows, boot up the computer, go to “Start” -“Programs”“Accessories”, -“Communications”, and open the “HyperTerminal”. After that follow
the instructions below to setup a new terminal connection for the Switch. If you are
using other communication software, please select the correct COM port and setup
the connection properties according to step 3 below.
Figure 1-3
1. Type in a name for the connection, select an icon for the connection, and
click “OK”.
The Switch Quick Installation Guide
8
Figure 1-4
2. Select the COM port that you are using for this connection and click “OK”.
Figure 1-5
The Switch Quick Installation Guide
9
3. Setup the COM port properties by using the information below and click
“OK”.
Figure1-6
NOTE:
The console port is set at the factory for the following configuration:
Baud rate: 9,600
Data width: 8 bits
Parity: none
Stop bits: 1
Flow Control: None
4. You should see some boot-up messages displayed within your
“HyperTerminal” session.
NOTE:
It is not necessary to input password when entering the switching, but it is a
must when entering modification mode of switching and the password is
"password."
3.3 Telnet Management
In addition to local terminal mode operation, the Switch supports remote
The Switch Quick Installation Guide
10
management through Telnet, over the Ethernet LAN network or even over internet.
If you are using Microsoft Windows, boot up the computer, go to “Start”-“Run”.
Enter ” Telnet 192.168.2.11”, Click “ ok”.
Figure 1-7 the main page
After connected successful please enter” username “and “password”
Figure 1-8
The Switch Quick Installation Guide
11
NOTICE:
The factory-default User name is “guest”. Pass word is “guest”
