1.Connecting to the Switch

Configuration Options

The FMG-24K PLANEX COMMUNICATIONS INC includes a built-in networkmanagement agent. The agent offers a variety of management options,including SNMP, RMON and a Web-based interface. A PC may also be connected directly to the switch for configuration and monitoring via a command line interface (CLI).

The IP address for this switch is assigned via 192.168.0.1 by default. To change this address, see “Setting an IP Address” on page 1-6.

The switch’s HTTP Web agent allows you to configure switch parameters,monitor port connections, and display statistics graphically using a standard Web browser such as Netscape Navigator version 6.2 and higher or Microsoft IE version 5.0 and higher. The switch’s Web management interface can be accessed from any computer attached to the network.

The switch’s management agent is based on SNMP (Simple Network Management Protocol). This SNMP agent permits the switch to be managed from any system in the network using management software,such as such as PLANEX COMMUNICATIONS INC ’s free EliteView software.

The CLI program can be accessed by a direct connection to the RS-232serial console port on the switch, or remotely by a Telnet connection over the network.

11..

SSWWIITTCCHH MMAANNAAGGEEMMEENNTT

The switch’s CLI configuration program, Web interface, and SNMP agent allow you to perform the following management functions:

> Set user names and passwords for up to 16 users > Set an IP interface for a management VLAN > Configure SNMP parameters > Enable/disable any port > Set the speed/duplex mode for any port > Configure up to 255 IEEE 802.1Q VLANs > Enable GVRP automatic VLAN registration > Configure IGMP multicast filtering > TFTP upload and download of system firmware > TFTP upload and download of switch configuration files > Configure Spanning Tree parameters >Configure Class of Service (CoS) priority queuing > Configure up to six static or LACP trunks > Enable jumbo frame support > Enable port mirroring > Set broadcast storm control on any port > Display system information and statistics

Required Connections

The switch provides an RS-232 serial port that enables a connection to a PC or terminal for monitoring and configuring the switch. A null-modem console cable is provided with the switch.

Attach a VT100-compatible terminal, or a PC running a terminal emulation program to the switch. You can use the console cable provided with this package, or use a null-modem cable that complies with the wiring assignments shown in .

To connect a terminal to the console port, complete the following steps:

1. Connect the console cable to the serial port on a terminal, or a PC running terminal emulation software, and tighten the captive retaining screws on the DB9 connector.

2. Connect the other end of the cable to the RS-232 serial port on the switch.

3. Make sure the terminal emulation software is set as follows:

> Select the appropriate serial port (COM port 1 or COM port 2). > Set the data rate to 9600 baud. > Set the data format to 8 data bits, 1 stop bit, and no parity. > Set flow control to none. > Set the emulation mode to VT100. > When using HyperTerminal, select Terminal keys, not Windows keys.

1. When using HyperTerminal with Microsoft ® Windows ® 2000,make sure that you have Windows 2000 Service Pack 2 or later installed. Windows 2000 Service Pack 2 fixes the problem of arrow keys not functioning in HyperTerminal’s VT100 emulation. See www.microsoft.com for information on Windows 2000 service packs.

2. Refer to “Line Commands” on page 3-56 for a complete description of console configuration options.

3. Once you have set up the terminal correctly, the console login screen will be displayed.

For a description of how to use the CLI, see “Using the Command Line Interface” on page 3-1. For a list of all the CLI commands and detailed information on using the CLI, refer to “Command Groups” on page 3-10.

Remote Connections

Prior to accessing the switch’s onboard agent via a network connection,you must first configure it with a valid IP address, subnet mask, and default gateway using a console connection, DHCP or BOOTP protocol.

The IP address for this switch is assigned via 192.168.0.1 by default. To manually configure this address or enable dynamic address assignment via DHCP or BOOTP, see “Setting an IP Address” on page 1-6.

This switch supports four concurrent Telnet sessions.

After configuring the switch’s IP parameters, you can access the onboard configuration program from anywhere within the attached network. The onboard configuration program can be accessed using Telnet from any computer attached to the network. The switch can also be managed by any computer using a Web browser (Internet Explorer 5.0 or above, or Netscape Navigator 6.2 or above), or from a network computer using network management software such as EliteView.

The onboard program only provides access to basic configuration functions. To access the full range of SNMP management functions, you must use SNMP-based network management software, such as EliteView.

2.Basic Configuration

Console Connection

The CLI program provides two different command levels — normal access level (Normal Exec) and privileged access level (Privileged Exec).The commands available at the Normal Exec level are a limited subset of those available at the Privileged Exec level and allow you to only display information and use basic utilities. To fully configure switch parameters,you must access the CLI at the Privileged Exec level.

Access to both CLI levels are controlled by user names and passwords.The switch has a default username and password for each level. To log into the CLI at the Privileged Exec level using the default user name and password, perform these steps:

1. To initiate your console connection, press <Enter>. The “User Access Verification” procedure starts.

2. At the Username prompt, enter “admin.”

3. At the Password prompt, also enter “admin.” (The password characters are not displayed on the console screen.)

4. The session is opened and the CLI displays the “Console#” prompt indicating you have access at the Privileged Exec level.

Setting Passwords

If this is your first time to log into the CLI program, you should define new passwords for both default user names using the “username” command, record them and put them in a safe place.

Passwords can consist of up to 8 alphanumeric characters and are case sensitive. To prevent unauthorized access to the switch, set the passwords as follows:

1. Open the console interface with the default user name and password “admin” to access the Privileged Exec level.

2. Type “configure” and press <Enter>.

3. Type “username guest password 0 password,” for the Normal Exec level, where password is your new password. Press <Enter>.

4. Type “username admin password 0 password,” for the Privileged Exec level, where password is your new password. Press <Enter>.

Username: admin Password: CLI session with the host is opened. To end the CLI session, enter [Exit]. Console#configure Console(config)#username guest password 0 [password] Console(config)#username admin password 0 [password] Console(config)#

Setting an IP Address

You must establish IP address information for the switch to obtain management access through the network. This can be done in either of the following ways:

> Manual — You have to input the information, including IP address and subnet

mask. If your management station is not in the same IP subnet as the switch, you will also need to specify the default gateway router.

> Dynamic — The switch sends IP configuration requests to BOOTP or DHCP

address allocation servers on the network.

Only one VLAN interface can be assigned an IP address (the default is VLAN 1). This defines the management VLAN, the only VLAN through which you can gain management access to the switch. If you assign an IP address to any other VLAN, the new IP address overrides the original IP address and this becomes the new management VLAN.

> Manual Configuration — You can manually assign an IP address to the

switch. You may also need to specify a default gateway that resides between this device and management stations that exist on another network segment. Valid IP addresses consist of four decimal numbers, 0 to 255, separated by periods. Anything outside this format will not be accepted by the CLI program.

The IP address for this switch is assigned via DHCP by default.

Before you can assign an IP address to the switch, you must obtain the following information from your network administrator:

> IP address for the switch > Default gateway for the network > Network mask for this network

To assign an IP address to the switch, complete the following steps:

1. From the Privileged Exec level global configuration mode prompt, type “interface vlan 1” to access the interface-configuration mode. Press <Enter>.

2. Type “ip address ip-address netmask,” where “ip-address” is the switch IP address and “netmask” is the network mask for the network. Press <Enter>.

3. Type “exit” to return to the global configuration mode prompt. Press <Enter>.

4. To set the IP address of the default gateway for the network to which the switch belongs, type “ip default-gateway gateway,” where “gateway” is the IP address of the default gateway. Press <Enter>.

Console(config)#interface vlan 1 Console(config-if)#ip address 192.168.1.5 255.255.255.0 Console(config-if)#exit Console(config)#ip default-gateway 192.168.1.254 Console(config)#

Dynamic Configuration

If you select the “bootp” or “dhcp” option, IP will be enabled but will not function until a BOOTP or DHCP reply has been received. You therefore need to use the “ip dhcp restart” command to start broadcasting service requests. Requests will be sent periodically in an effort to obtain IP configuration information. (BOOTP and DHCP values can include the IP address, subnet mask, and default gateway.)

If the “bootp” or “dhcp” option is saved to the startup-config file, then the switch will start broadcasting service requests as soon as it is powered on.

To automatically configure the switch by communicating with BOOTP or DHCP address allocation servers on the network, complete the following steps:

1. From the Privileged Exec level global configuration mode prompt,type “interface vlan 1” to access the interface-configuration mode. Press <Enter>.

2. At the interface-configuration mode prompt, use one of the following commands:

> To obtain IP settings through DHCP, type “ip address dhcp” and press

<Enter>.

> To obtain IP settings through BOOTP, type “ip address bootp” and press

<Enter>.

3. Type “exit” to return to the global configuration mode. Press <Enter>.

4. Type “ip dhcp restart” to begin broadcasting service requests. Press <Enter>.

5. Wait a few minutes, and then check the IP configuration settings, by typing the “show ip interface” command. Press <Enter>.

6. Then save your configuration changes by typing “copy running-config startupconfig.” Enter the startup file name and press <Enter>.

Console(config)#interface vlan 1 Console(config-if)#ip address dhcp Console(config-if)#exit Console#ip dhcp restart Console#show ip interface IP interface vlan IP address and netmask: 10.1.0.54 255.255.255.0 on VLAN 1, and address mode: User specified. Console#copy running-config startup-config Startup configuration file name []: startup

Console#

Enabling SNMP Management Access

The switch can be configured to accept management commands from Simple Network Management Protocol (SNMP) applications such as EliteView. You can configure the switch to (1) respond to SNMP requests or (2) generate SNMP traps.

When SNMP management stations send requests to the switch (either to return information or to set a parameter), the switch provides the requested data or sets the specified parameter. The switch can also be configured to send information to SNMP managers (without being requested by the managers) through trap messages, which inform the manager that certain events have occurred.

> Community Strings — Community strings are used to control management

access to SNMP stations, as well as to authorize SNMP stations to receive trap messages from the switch. You therefore need to assign community strings to specified users or user groups, and set the access level.

The default strings are: > public - with read-only access. Authorized management stations are only able

to retrieve MIB objects.

> private - with read-write access. Authorized management stations are able to

both retrieve and modify MIB objects.

If you do not intend to utilize SNMP, it is recommended that you delete both of the default community strings. If there are no community strings, then SNMP management access to the switch is disabled.

To prevent unauthorized access to the switch via SNMP, it is recommended that you change the default community strings.

To configure a community string, complete the following steps:

1. From the Privileged Exec level global configuration mode prompt,type “snmpserver community string mode,” where “string” is the community access string and “mode” is rw (read/write) or ro (read only). Press <Enter>.

2. To remove an existing string, simply type “no snmp-server community string,” where “string” is the community access string to remove. Press <Enter>.

Console(config)#snmp-server community PLANEX COMMUNICATIONS INC rw Console(config)#snmp-server community private Console(config)#

> Trap Receivers — You can also specify SNMP stations that are to receive

traps from the switch.

To configure a trap receiver, complete the following steps:

1. From the Privileged Exec level global configuration mode prompt, type “snmpserver host host-address community-string,” where “host-address” is the IP address for the trap receiver and “community-string” is the string associated with that host. Press <Enter>.

2. In order to configure the switch to send SNMP notifications, you must enter at least one snmp-server enable traps command. Type “snmp-server enable traps type,” where “type” is either authentication or link-up-down. Press <Enter>.

Console(config)#snmp-server enable traps link-up-down Console(config)#

Saving Configuration Settings

Configuration commands only modify the running configuration file and are not saved when the switch is rebooted. To save all your configuration changes in nonvolatile storage, you must copy the running configuration file to the start-up configuration file using the “copy” command.

To save the current configuration settings, enter the following command:

1. From the Privileged Exec mode prompt, type “copy running-config startup-config” and press <Enter>.

2. Enter the name of the start-up file. Press <Enter>.

Console#copy running-config startup-config Startup configuration file name []: startup Console#

3.Managing System Files

The switch’s flash memory supports three types of system files that can be managed by the CLI program, Web interface, or SNMP. The switch’s file system allows files to be uploaded and downloaded, copied, deleted, and set as a startup file.

The three types of files are: > Configuration — These files store system configuration information and are

created when configuration settings are saved. Saved configuration files can be selected as a system start-up file or can be uploaded via TFTP to a server for backup. A file named “Factory_Default_Config.cfg” contains all the system default settings and cannot be deleted from the system. See “Saving or Restoring Configuration Settings” on page 2-17 for more information.

> Operation Code — System software that is executed after boot-up, also

known as run-time code. This code runs the switch operation and provides the CLI, Web and SNMP management interfaces. See “Managing Firmware” on page 2-15 for more information.

> Diagnostic Code — Software that is run during system boot-up, also known

as POST (Power On Self-Test). This code also provides a facility to upload firmware files to the system directly through the console port (see “Upgrading Firmware via the Serial Port” on page A-2).

Due to the size limit of the flash memory, the switch supports only two operation code files, and two diagnostic code files. However, you can have as many configuration files as available flash memory space allows.

In the system flash memory, one file of each type must be set as the start-up file. During a system boot, the diagnostic and operation code files set as the start-up file are run, and then the start-up configuration file is loaded. Configuration files can also be loaded while the system is running, without rebooting the system.

4.System Defaults

The switch’s system defaults are provided in the configuration file “Factory_Default_Config.cfg.” To reset the switch defaults, this file should be set as the startup configuration file (see “Setting the Startup Configuration File” on page 2-18).

The following table lists some of the basic system defaults.

Function Parameter Default IP Settings

Management. VLAN 1 DHCP Disable BOOTP Disabled User Specified Disabled IP Address 192.168.0.1 Subnet Mask 255.0.0.0 Default Gateway 0.0.0.0

Web Management HTTP Server Enabled

HTTP Port Number 80

SNMP Community Strings “public” (read only)

“private” (read/write) Authentication Failure Enabled Traps Link-up-Down Traps Enabled

Security Privileged Exec Level Username “admin”

Password “admin” Normal Exec Level Username “guest”

Password “guest” Enable Privileged Exec Password “super” from Normal Exec Level RADIUS Authentication DisabledConsole Port

Function Parameter Default Console Port

Baud Rate 9600

Connection Data bits 8

Stop bits 1 Parity none Local Console Timeout 0 (disabled)

Port Status Admin Status Enabled

Auto-negotiation Enabled Flow Control Disabled 10/100/1000 Mbps Port 10 Mbps half duplex Capability 10 Mbps full duplex

100 Mbps half duplex 100 Mbps full duplex 1000 Mbps full duplex Full-duplex flow control disabled Symmetric flow control disabled

Link Aggregation

Static Trunks none LACP (all ports) Disabled

Spanning Tree Status Enabled Protocol (Defaults: All parameters based

on IEEE 802.1D)

Fast Forwarding Disabled

Address Table Aging Time 300 seconds Virtual LANs Default VLAN 1

PVID 1 Acceptable Frame Type All Ingress Filtering Disabled GVRP (global) Disabled GVRP (port interface) Disabled

Function Parameter Default Class of Service

Ingress Port Priority 0 Weighted Round Robin Class 0: 16

Class 1: 64 Class 2: 128

Class 3: 240 IP Precedence Priority Disabled IP DSCP Priority Disabled IP Port Priority Disabled

Multicast Filtering IGMP Snooping Enabled

Act as Querier Enabled

Broadcast Storm Status Enabled (all ports) Protection Broadcast Limit Rate 256 packets per second System Log Status Enabled

Messages Logged Levels 0-7 (all) Messages Logged to Flash Levels 0-3

Jumbo Frames Status Disabled

1.Using the Web Interface

This switch provides an embedded HTTP Web agent. Using a Web browser you can configure the switch and view statistics to monitor network activity. The Web agent can be accessed by any computer on the network using a standard Web browser (Internet Explorer 5.0 or above, or Netscape Navigator 6.2 or above).

You can also use the Command Line Interface (CLI) to manage the switch over a serial connection to the console port or via Telnet. For more information on using the CLI, refer to Chapter 3 “Command Line Interface.”

Prior to accessing the switch from a Web browser, be sure you have first performed the following tasks:

1. Configure the switch with a valid IP address, subnet mask, and default gateway using an out-of-band serial connection, BOOTP or DHCP protocol (see “Setting the IP Address” on page 2-9).

2. Set user names and passwords using an out-of-band serial connection. Access to the Web agent is controlled by the same user names and passwords as the onboard configuration program. (See “Configuring the Logon Password” on page 2-12.)

If you log into the Web interface as guest (Normal Exec level), you can view page information but only change the guest password. If you log in as admin (Privileged Exec level), you can apply changes on all pages.

2.CONFIGURING THE SWITCH

3. After you enter a user name and password, you will have access to the system configuration program.

If the path between your management station and this switch does not pass through any device that uses the Spanning Tree Algorithm, then you can set the switch port attached to your management station to fast forwarding to improve the switch’s response time to management commands issued through the Web interface (see “Managing STA Interface Settings” on page 2-35).

2.Navigating the Web Browser Interface

To access the Web-browser interface you must first enter a user name and password. The administrator has Read/Write access to all configuration parameters and statistics. The default user name and password for the administrator is “admin.”

Home Page

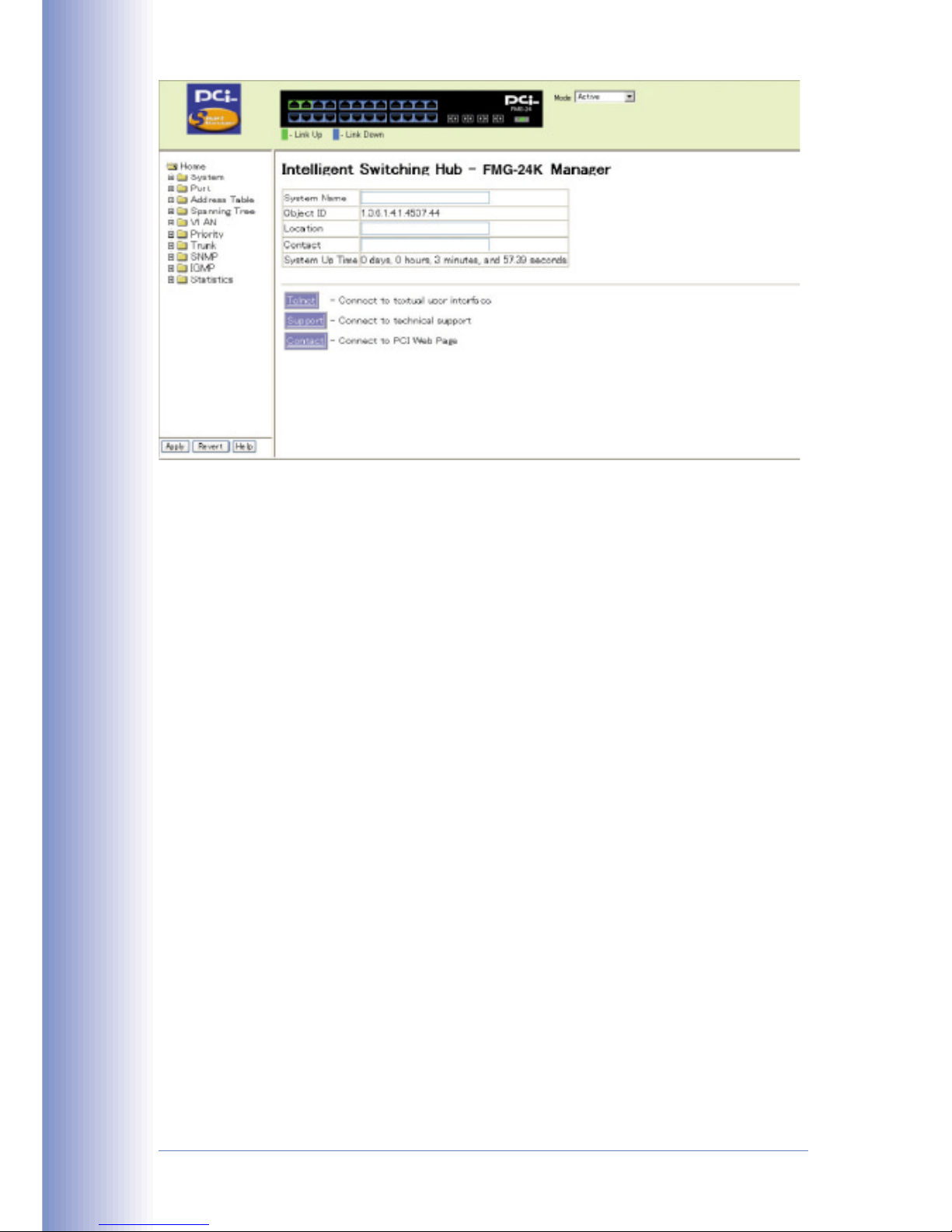

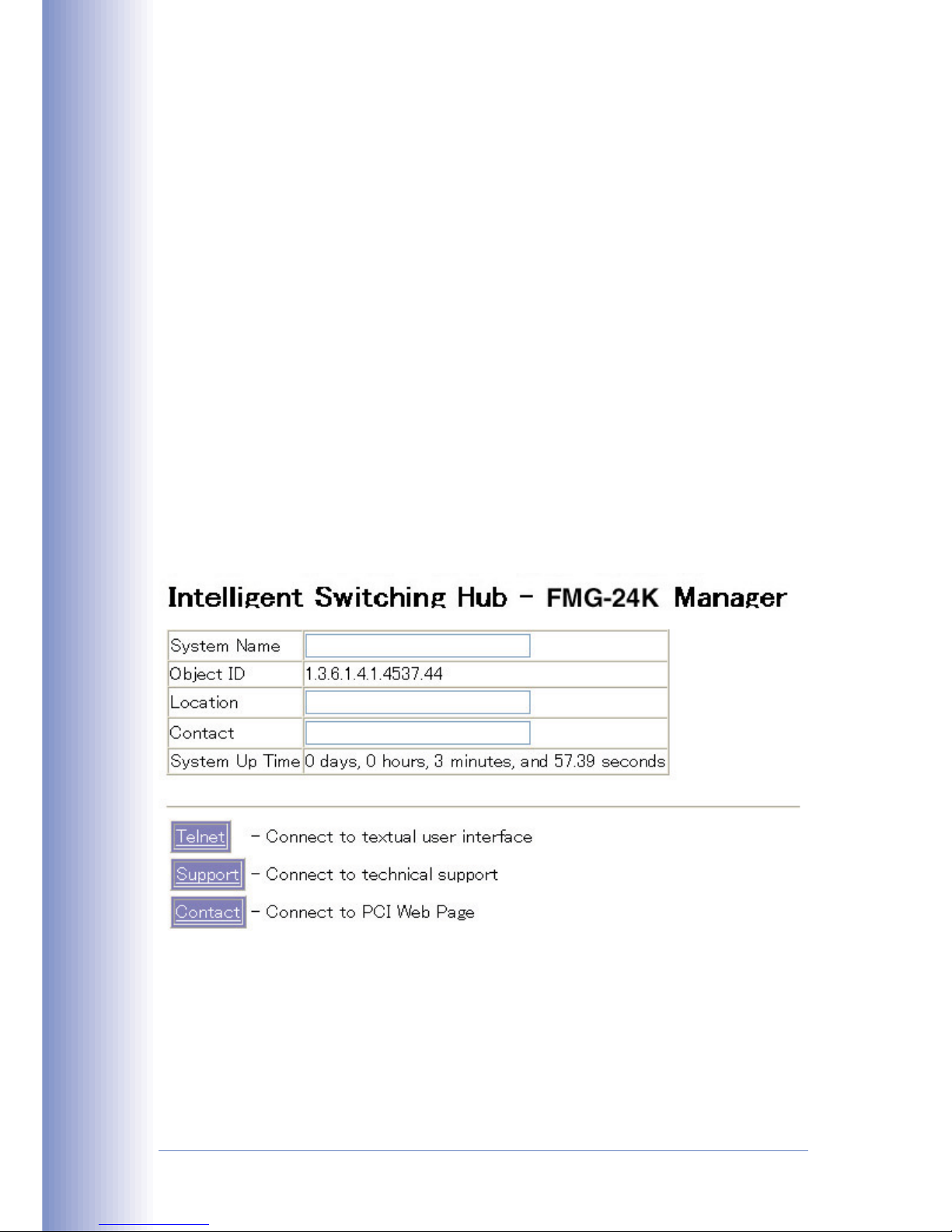

When your Web browser connects with the switch’s Web agent, the home page is displayed as shown below. The home page displays the Main Menu on the left side of the screen and System Information on the right side. The Main Menu links are used to navigate to other menus, and display configuration parameters and statistics.

If this is your first time to access the management agent, you should define a new Administrator user name and password, record them and put them in a safe place. Select Security from the Main Menu, and then enter a new user name and password for the Administrator. Note that user names and passwords can consist of up to 8 alphanumeric characters and are case sensitive.

You are allowed three attempts to enter the correct password; on the thirds failed attempt the current connection is terminated.

Configuration Options

Configurable parameters have a dialog box or a drop-down list. Once a configuration change has been made on a page, be sure to click on the “Apply” or “Apply Changes” button to confirm the new setting. The following table summarizes the Web page configuration buttons.

Button Action

Revert Cancels specified values and restores current values

prior to pressing “Apply” or “Apply Changes.” Refresh Immediately updates values for the current page. Apply Sets specified values to the system. Apply Changes Sets specified values to the system.

1.To ensure proper screen refresh, be sure that Internet Explorer 5.x is configured as follows: Under the menu “Tools / Internet Options / General / Temporary Internet Files / Settings,” the setting for item “Check for newer versions of stored pages” should be “Every visit to the page.”

2. When using Internet Explorer 5.0, you may have to manually refresh the screen after making configuration changes by pressing the browser’s refresh button.

3.Panel Display

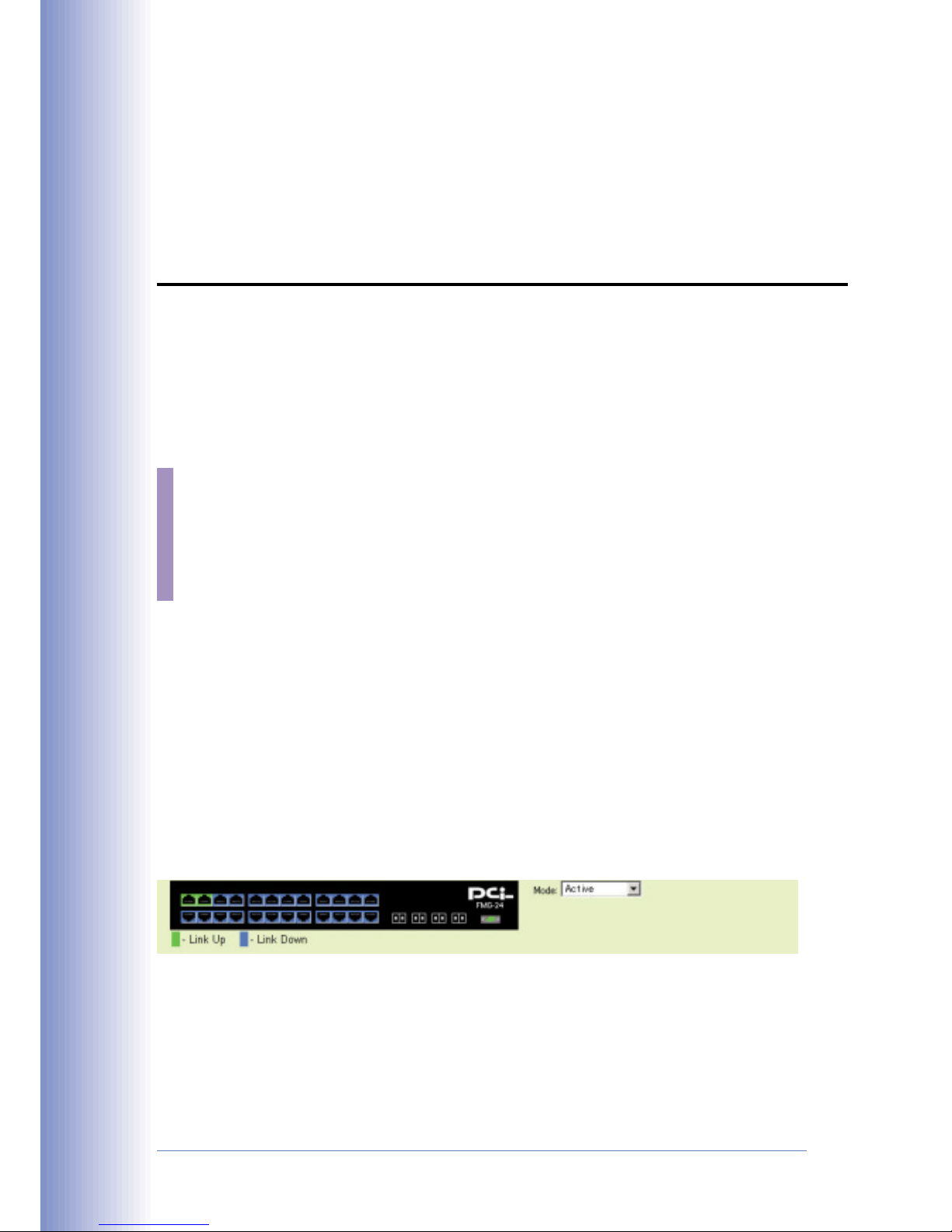

The Web agent displays an image of the switch’s ports, indicating whether each link is up or down. Clicking on the image of a port opens the Port Configuration page as described on page 2-25.

4.Main Menu

Using the onboard Web agent, you can define system parameters, manage and control the switch, and all its ports, or monitor network conditions. The following table briefly describes the selections available from this program.

Menu Description Page

System

System Information Provides basic system description, including

contact information 2-8

IP Sets the IP address for management access 2-9

Passwords Assigns a new password for the logon user name 2-12 Radius Configures RADIUS authentication parameters 2-13 Firmware Manages code image files 2-16 Configuration Manages switch configuration files 2-17

Reset Restarts the switch

Bridge Extension Shows the configuration for bridge extension

commands; enables GVRP multicast protocol 2-19

Switch Information Shows the number of ports, hardware/firmware

version numbers, and power status 2-21

Port

Port Information Displays port connection status 2-23 Trunk Information Displays trunk connection status 2-23 Port Configuration Configures port connection settings 2-25 Trunk Configuration Configures trunk connection settings 2-25 Broadcast Storm Sets the broadcast storm threshold for each port 2-27 Protect Configuration Mirror Sets the source and target ports for mirroring 2-28

Menu Description Page

Address Table

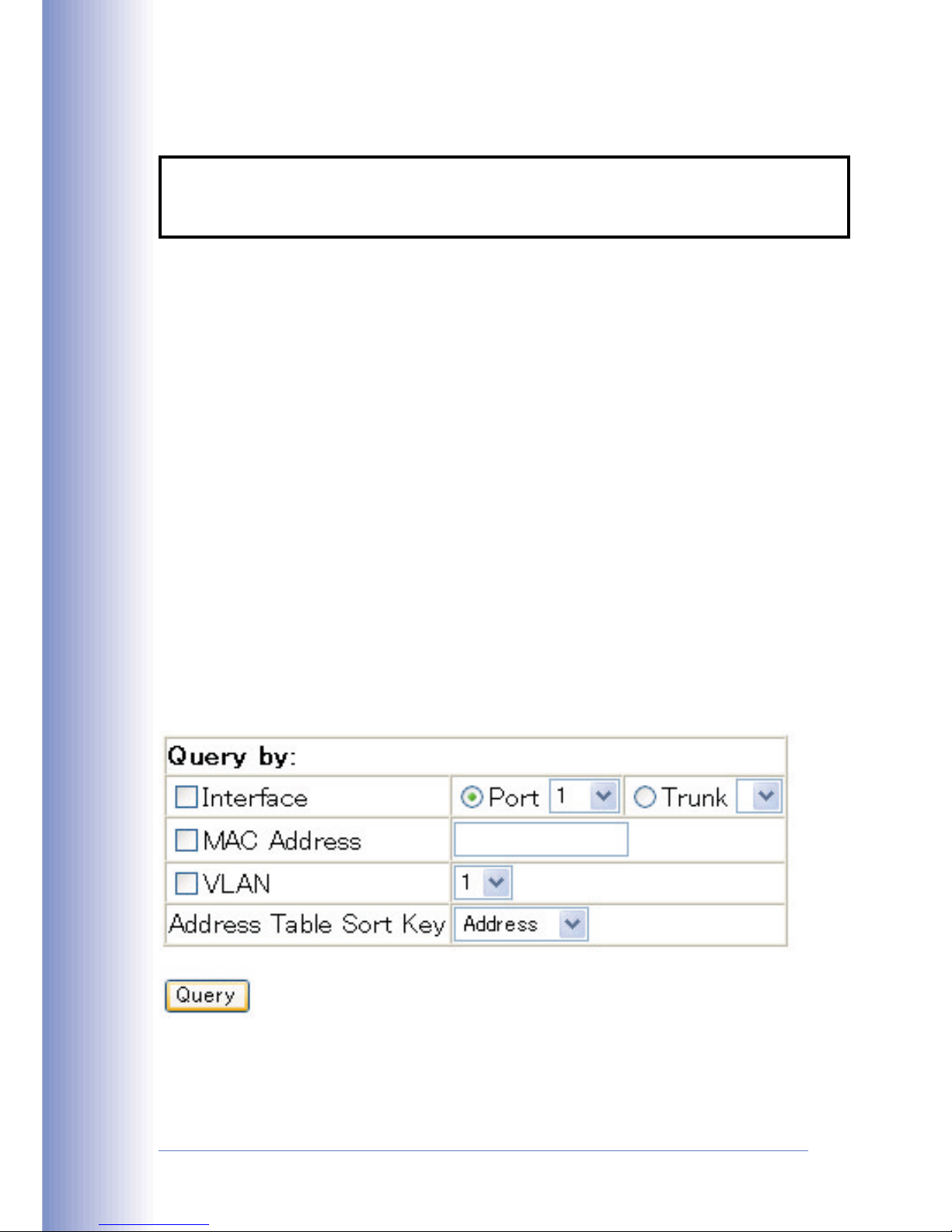

Static Addresses Displays entries for interface, address or VLAN 2-29 Dynamic Addresses Displays or edits static entries in the Address

Table 2-30

Address Aging Sets timeout for dynamically learned entries 2-31

Spanning Tree

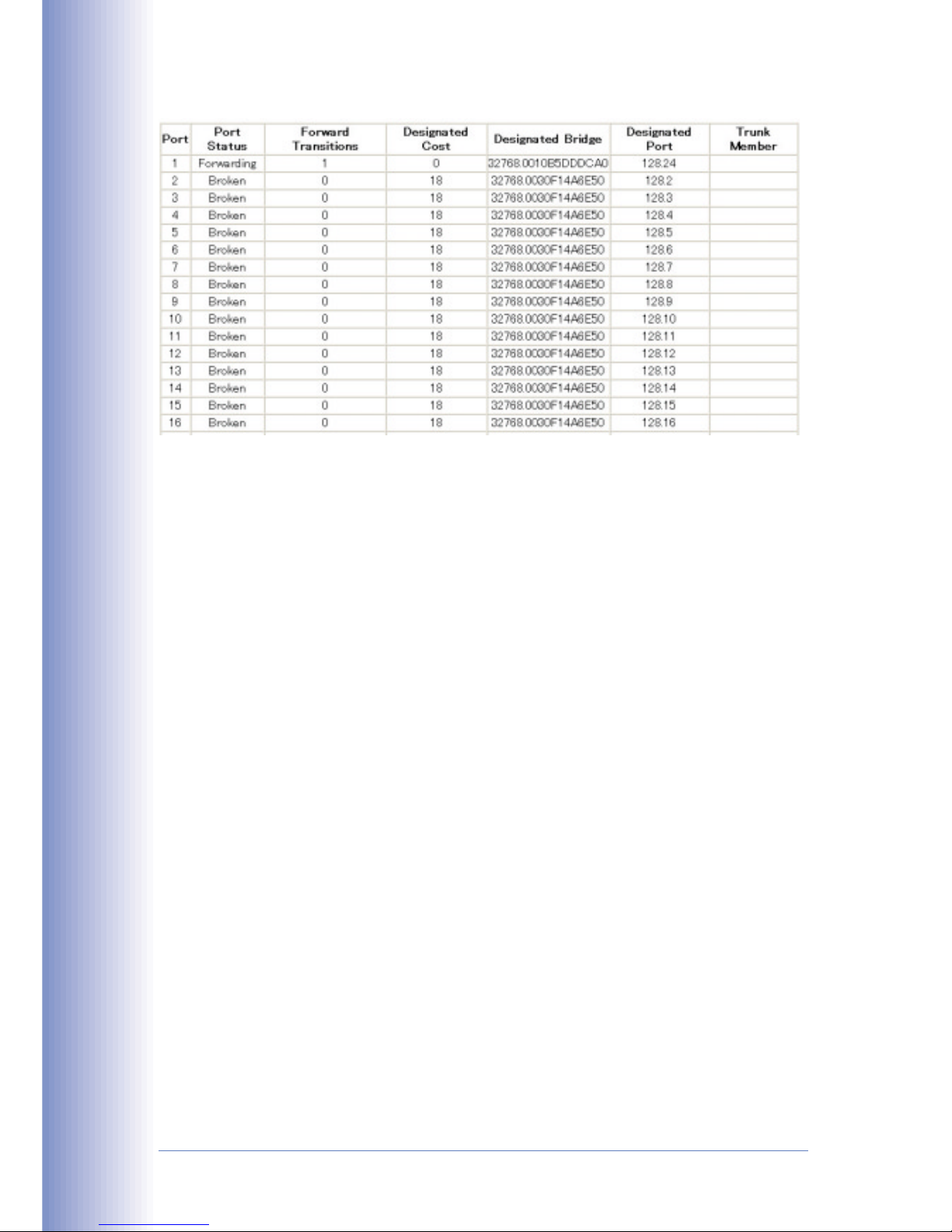

STA Information Displays STA values used for the bridge 2-34 STA Configuration Configures global bridge settings for STA 2-35 STA Port Information Configures individual port settings for STA 2-35 STA Trunk Configures individual trunk settings for STA 2-35 Information STA Port Configures individual port settings for STA 2-35 Configuration STA Trunk Configures individual trunk settings for STA 2-35 Configuration

VLAN

VLAN Basic Displays basic information on the VLAN type Information supported by this switch 2-42 VLAN Current Table Shows the current port members of each VLAN

and whether or not the port supports VLAN

tagging 2-43

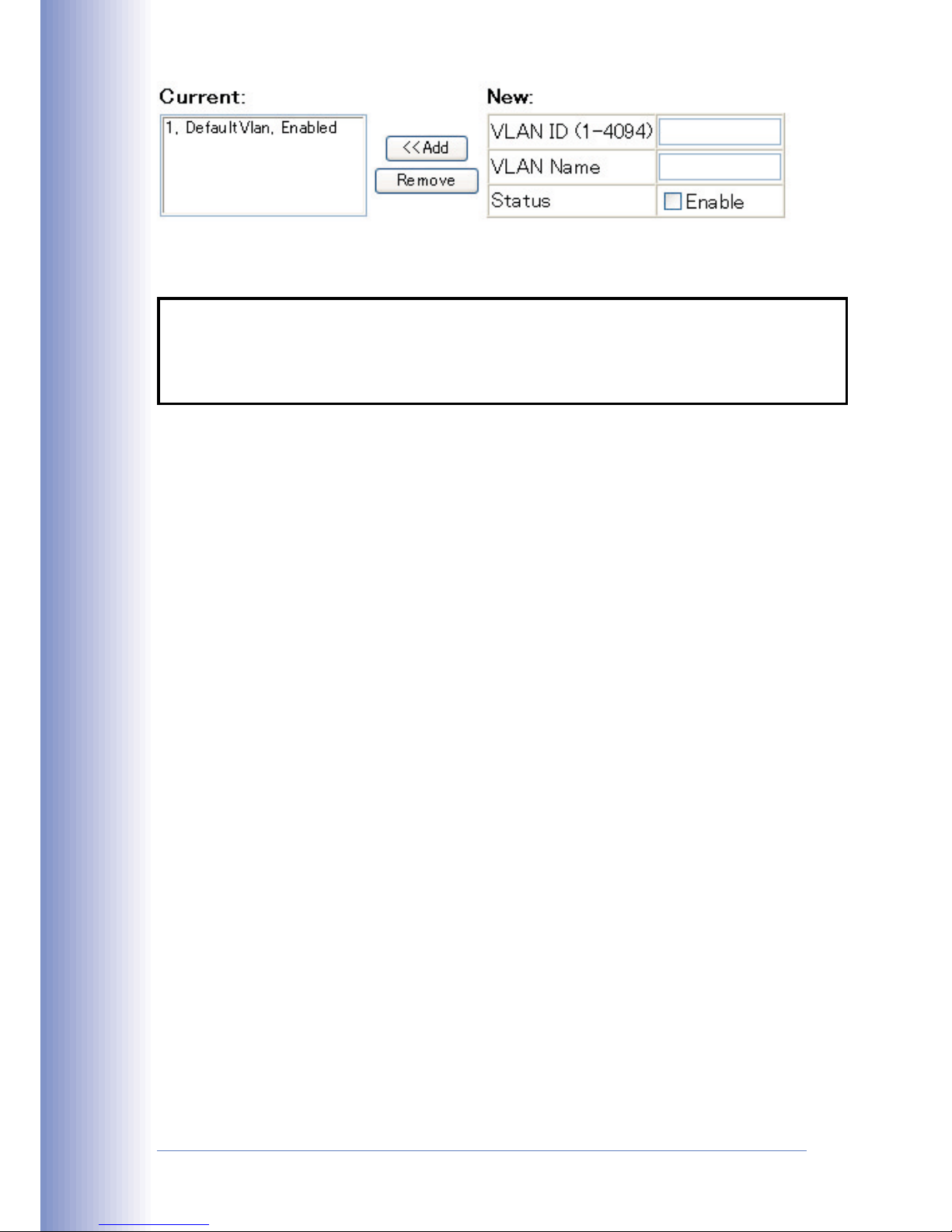

VLAN Static List Used to create or remove VLAN groups 2-45 VLAN Static Table Modifies the settings for an existing VLAN 2-46 VLAN Static Configures membership type for interfaces, Membership by Port including tagged, untagged or forbidden 2-48 VLAN Port Specifies default PVID and VLAN attributes 2-49 Configuration

VLAN Trunk Specifies default trunk VID and VLANattributes 2-49

Configuration

Priority

Default Port Priority Sets the default priority for each port 2-52 Default Trunk Priority Sets the default priority for each trunk 2-52 Traffic Class Maps IEEE 802.1p priority tags to outputqueues 2-53

5.Basic Configuration

Displaying System Information

You can easily identify the system by providing a descriptive name, location and contact information.

> Command Attributes

>> System Name

– Name assigned to the switch system.

>> Object ID – MIB II object ID for switch’s network management subsystem. >> Location – Specifies the system location.

>> Contact – Administrator responsible for the system. > System Up Time – Length of time the management agent has been up. > Web – Click System/System Information. Specify the system name, location,

and contact information for the system administrator, then click Apply. (This page also includes a Telnet button that allows you to access the Command Line Interface via Telnet.)

CLI – Specify the hostname, location and contact information.

Console(config)#hostname PLANEX COMMUNICATIONS

INC

8624T Test Switch

3-25 Console(config)#snmp-server location TPS - 3rd Floor 3-46 Console(config)#snmp-server contact Chris 3-45 Console#show system 3-37 System description: PLANEX COMMUNICATIONS

FMG-24K -

PLANEX COMMUNICATION

S8624T

System OID string: 1.3.6.1.4.1.202.20.24 System information System Up time: 0 days, 2 hours, 4 minutes, and 7.13 seconds System Name : PLANEX COMMUNICATIONS 8624T Test Switch System Location : TPS - 3rd Floor System Contact : Chris MAC address : 00-30-f1-47-58-3a Web server : enable Web server port : 80 POST result :

UART Loopback Test......................PASS

Timer Test.......................................PASS

DRAM Test .....................................PASS

I2C Initialization...............................PASS

Runtime Image Check ....................PASS

PCI Device Check ..........................PASS

Switch Driver Initialization...............PASS

Switch Internal Loopback Test........PASS

------------------- DONE -------------------Console#

Setting the IP Address

An IP address may be used for management access to the switch over your network. By default, the switch uses DHCP to assign IP settings to VLAN 1 on the switch. If you wish to manually configure IP settings, you need to change the switch’s user-specified defaults (IP address 0.0.0.0 and netmask 255.0.0.0) to values that are compatible with your network. You may also need to a establish a default gateway between the switch and management stations that exist on another network segment. You can manually configure a specific IP address, or direct the device to obtain an address from a BOOTP or DHCP server when it is powered on. Valid IP addresses consist of four decimal numbers, 0 to 255, separated by periods. Anything outside this format will not be accepted by the CLI program.

> Management VLAN – This is the only VLAN through which you can gain man-

agement access to the switch. By default, all ports on the switch are members of VLAN 1, so a management station can be connected to any port on the switch. However, if other VLANs are configured and you change the Management VLAN, you may lose management access to the switch. In this case, you should reconnect the management station to a port that is a member of the Management VLAN.

> IP Address Mode – Specifies whether IP functionality is enabled via manual

configuration (Static), Dynamic Host Configuration Protocol (DHCP), or Boot Protocol (BOOTP). If DHCP/BOOTP is enabled,IP will not function until a reply has been received from the server. Requests will be broadcast periodically by the switch for an IP address. (DHCP/BOOTP values can include the IP address, subnet mask, and default gateway.)

> IP Address – Address of the VLAN interface that is allowed management

access. Valid IP addresses consist of four numbers, 0 to 255, separated by periods.

> Subnet Mask – This mask identifies the host address bits used for routing to

specific subnets.

> Gateway IP Address – IP address of the gateway router between this device

and management stations that exist on other network segments.

> MAC Address – The MAC address of this switch.

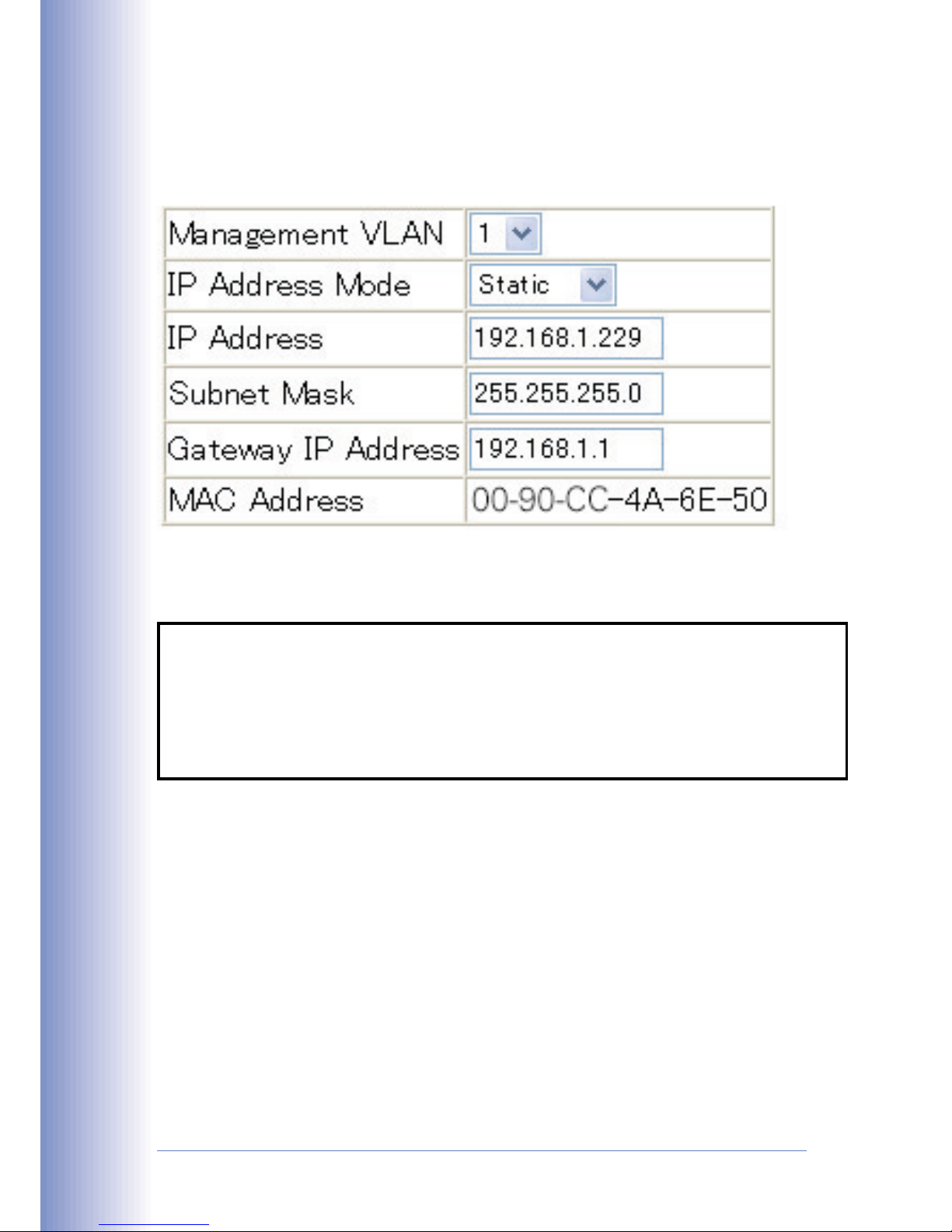

Manual Configuration Web

– Click System/IP. Specify the management interface, IP address and

default gateway, then click Apply.

CLI – Specify the management interface, IP address and default gateway.

Console#config Console(config)#interface vlan 1 3-68 Console(config-if)#ip address 10.2.13.30 255.255.255.0 3-51 Console(config-if)#exit Console(config)#ip default-gateway 192.168.1.254 3-53 Console(config)#

Using DHCP/BOOTP

If your network provides DHCP/BOOTP services, you can configure the switch to be dynamically configured by these services.

Web – Click System/IP. Specify the Management VLAN, set the IP Address Mode to DHCP or BOOTP. Then click “Apply” to save your changes. The switch will broadcast a request for IP configuration settings on the next power reset. Otherwise, you can click “Restart DHCP” to immediately request a new address.

If you lose your management connection, use a console connection and enter “show ip interface” to determine the new switch address.

> CLI – Specify the management interface, and set the IP Address Mode to

DHCP or BOOTP.

Console#config Console(config)#interface vlan 1 3-68 Console(config-if)#ip address dhcp 3-51 Console(config-if)#end Console#ip dhcp restart 3-52 Console#show ip interface 3-54 IP address and netmask: 10.1.0.54 255.255.255.0 on VLAN 1, and address mode: User specified. Console#

> Renewing DCHP – DHCP may lease addresses to clients indefinitely or for a

specific period of time. If the address expires or the switch is moved to another network segment, you will lose management access to the switch. In this case, you can reboot the switch or submit a client request to restart DHCP service.

> Web – If the address assigned by DHCP is no longer functioning, you will not

be able to renew the IP settings via the Web interface. You can only restart DHCP service via the Web interface if the current address is still available.

> CLI – Enter the following command to restart DHCP service.

store it in a safe place. Console#ip dhcp restart 3-52

6.Security

Configuring the Logon Password

The guest only has read access for most configuration parameters. However, the administrator has write access for parameters governing the onboard agent. You should therefore assign a new administrator password as soon as possible, and

1. If you log into the Web interface as guest (Normal Exec level),you can view page information but only change the guest password. If you log in as admin (Privileged Exec level), you can apply changes on all pages.

2. If for some reason your password is lost, you can reload the factory deafults file or reinstall runtime code to restore the default passwords. See “Upgrading Firmware via the Seria Port” on page A-2 for more information.

The default guest name is “guest” with the password “guest.” The default administrator name is “admin” with the password “admin.” Note that user names can only be assigned via the CLI.

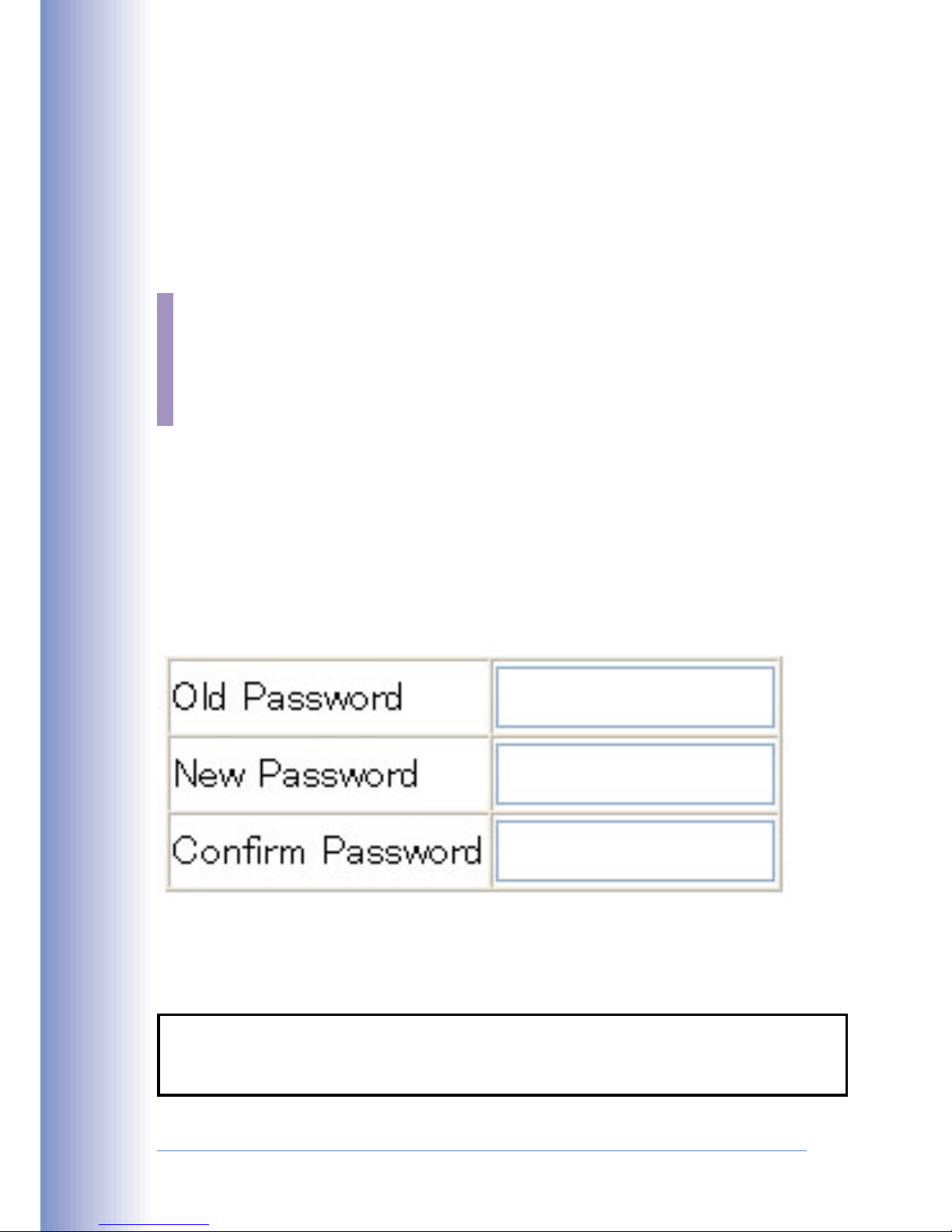

Web – Click System/Passwords. Enter the old password, enter the new password, confirm it by entering it again, then click “Apply.”

CLI – Assign a user name to access-level 15 (i.e., administrator), then specify the password.

Console(config)#username bob access-level 15 3-26 Console(config)#username bob password 0 smith Console(config)#

Configuring Radius Logon Authentication

Remote Authentication Dial-in User Service (RADIUS) is an authentication protocol that uses a central server to control access to RADIUS-compliant devices on the network. A RADIUS server can be programmed with a database of multiple user name/password pairs and associated privilege levels for each user or group that requires management access to this switch using the console port, Telnet or the Web.

When setting up privilege levels on the RADIUS server, level 0 allows guest (CLI

- Normal Exec) access to the switch. Only level 15 allows administrator (CLI Privileged Exec) access.

Command Attributes > Authentication

– Select the authentication, or authentication sequence

required:

> Radius – User authentication is performed using a RADIUS server only. > Local – User authentication is performed only locally by the switch. > Radius, Local – User authentication is attempted first using a RADIUS server,

then locally by the switch.

> Local, Radius – User authentication is first attempted locally by the switch,

then using a RADIUS server.

> Server IP Address – The IP address of the RADIUS server. > Server Port Number – The UDP port number used by the RADIUS server. > Secret Text String – The text string that is shared between the switch and the

RADIUS server.

> Number of Server Transmits – The number of request transmits to the

RADIUS server before failure.

> Timeout for a reply – The number of seconds the switch waits for a reply from

the RADIUS server before it resends the request.

The local switch user database has to be set up by manually entering user names and passwords using the CLI.

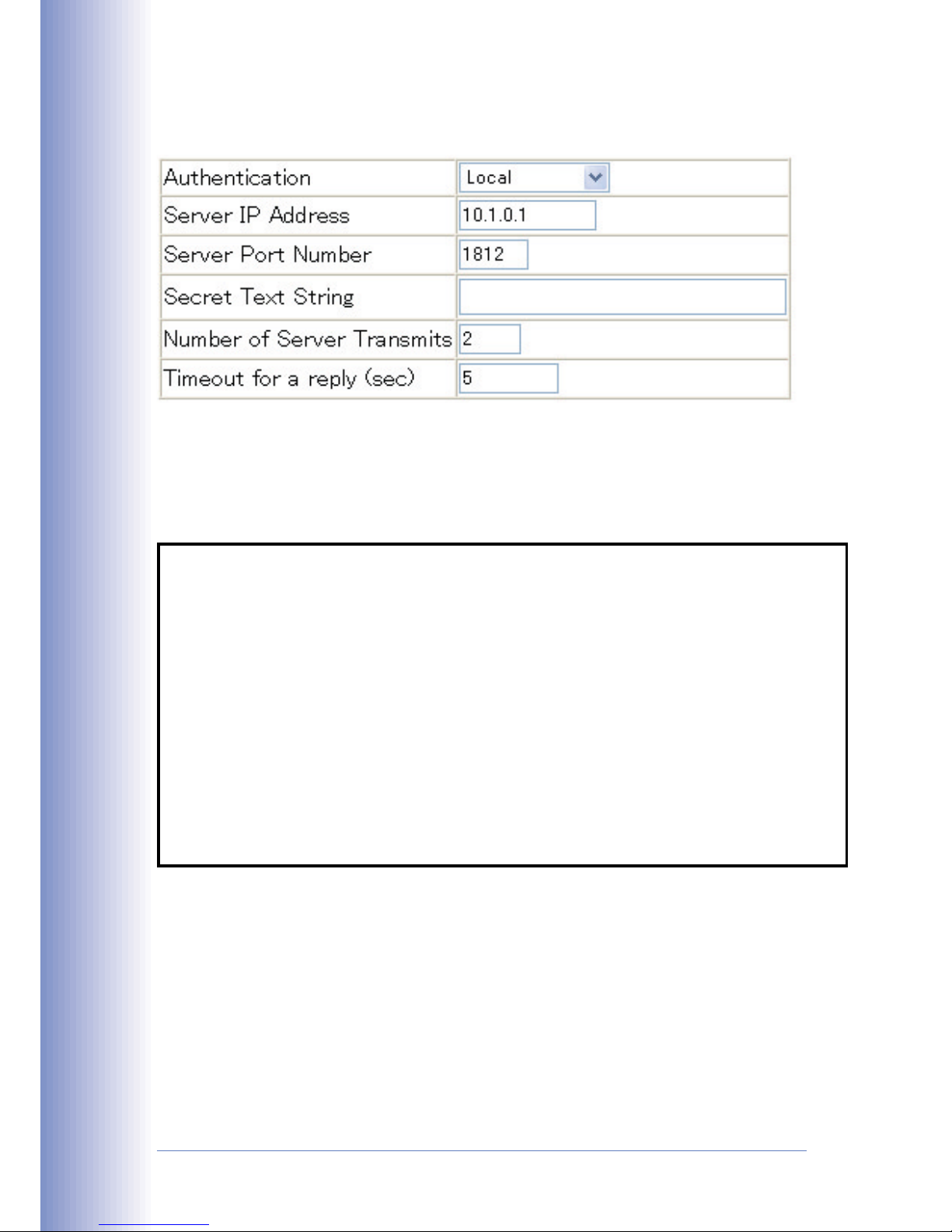

Web – Click System/Radius. Specify the authentication sequence, server address, port number and other parameters, then click “Apply.”

CLI Commands CLI

– Specify all the required parameters to enable logon authentication.

Console(config)#authentication login radius 3-39 Console(config)#radius-server host 192.168.1.25 3-40 Console(config)#radius-server port 181 3-41 Console(config)#radius-server key green 3-41 Console(config)#radius-server retransmit 5 3-42 Console(config)#radius-server timeout 10 3-42 Console#show radius-server 3-43 Server IP address: 192.168.1.25 Communication key with radius server: Server port number: 181 Retransmit times: 5 Request timeout: 10 Console(config)#

7.Managing Firmware

You can upload/download firmware to or from a TFTP server. By saving runtime code to a file on a TFTP server, that file can later be downloaded to the switch to restore operation. You can also set the switch to use new firmware without overwriting the previous version.

Command Attributes > TFTP Server IP Address

– The IP address of a TFTP server.

> Destination File Name – Destination file names should not contain slashes (\

or /), and the leading letter of a file name should not be a period (.).

> The maximum number of runtime code files is 2.

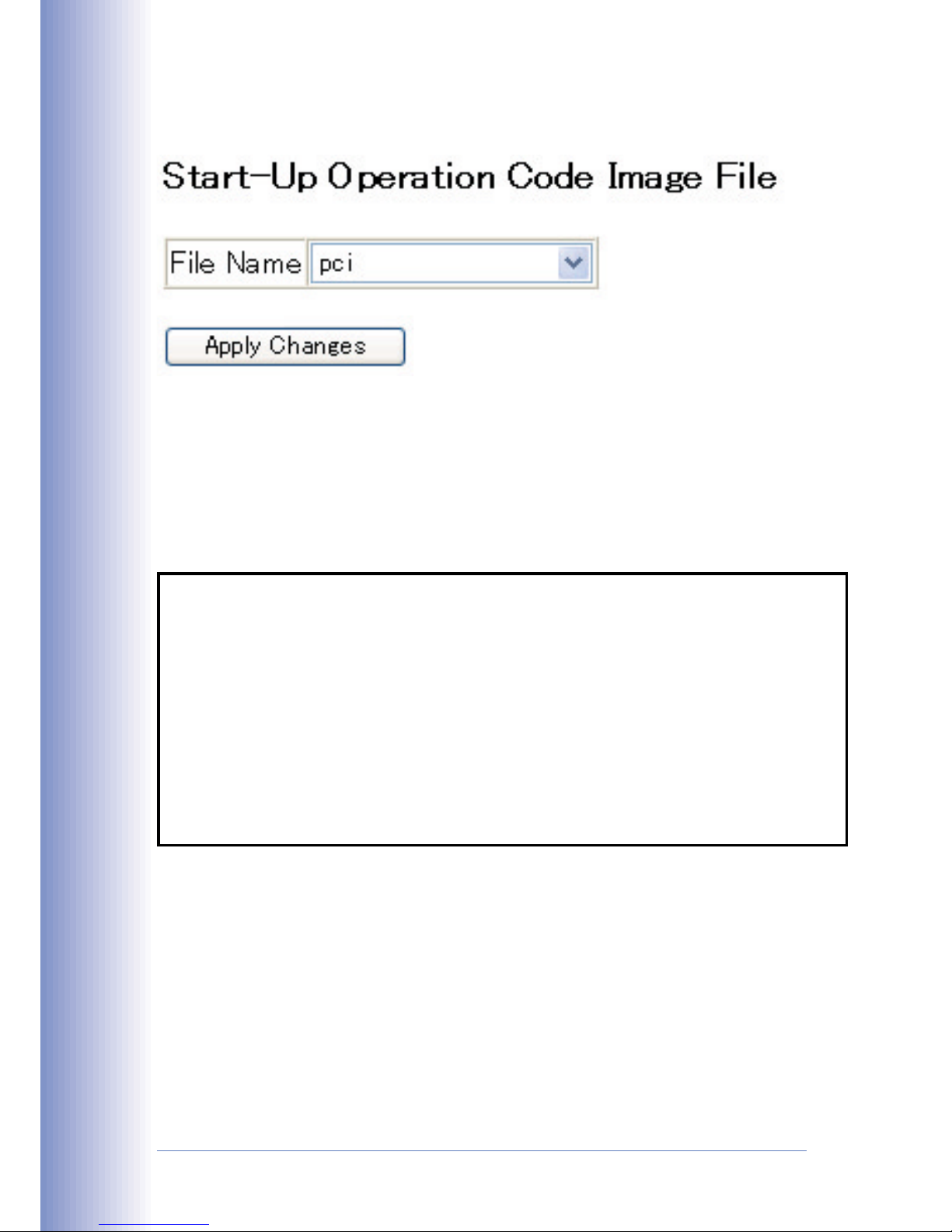

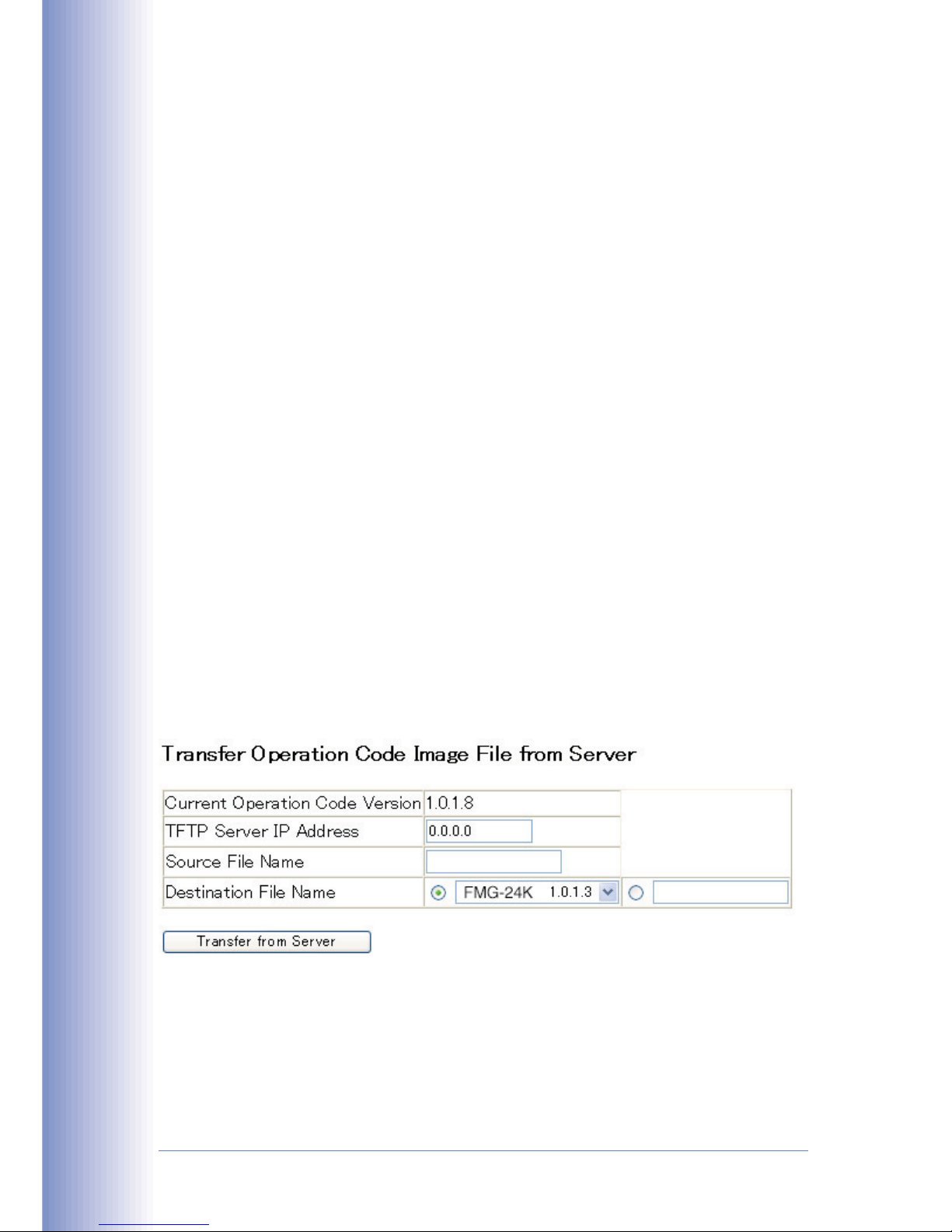

Downloading System Software from a Server

When downloading runtime code, you can specify the Destination File Name to replace the current image, or first download the file using a different name from the current runtime code file, and then set the new file as the startup file.

Web – Click System/Firmware. Enter the IP address of the TFTP server, enter the file name of the software to download, select a file on the switch to overwrite or specify a new file name, then click “Transfer from Server.”

If you download specifying a new destination file name, be sure to select the new file from the drop-down box, and then click Apply Changes.

To start the new firmware, reboot the system. CLI – Enter the IP address of the TFTP server, select “config” or “opcode” file

type, then enter the source and destination file names, set the new file to start up the system, and then restart the switch.

Console#copy tftp file 3-18 TFTP server ip address: 10.1.0.99 Choose file type:

1. config: 2. opcode: <1-2>: 2 Source file name: v10.bix Destination file name: V10000 / Console#config Console(config)#boot system opcode: V10000 3-23 Console(config)#exit Console#reload 3-15

To start the new firmware, enter the “reload” command or reboot the system.

Saving or Restoring Configuration Settings

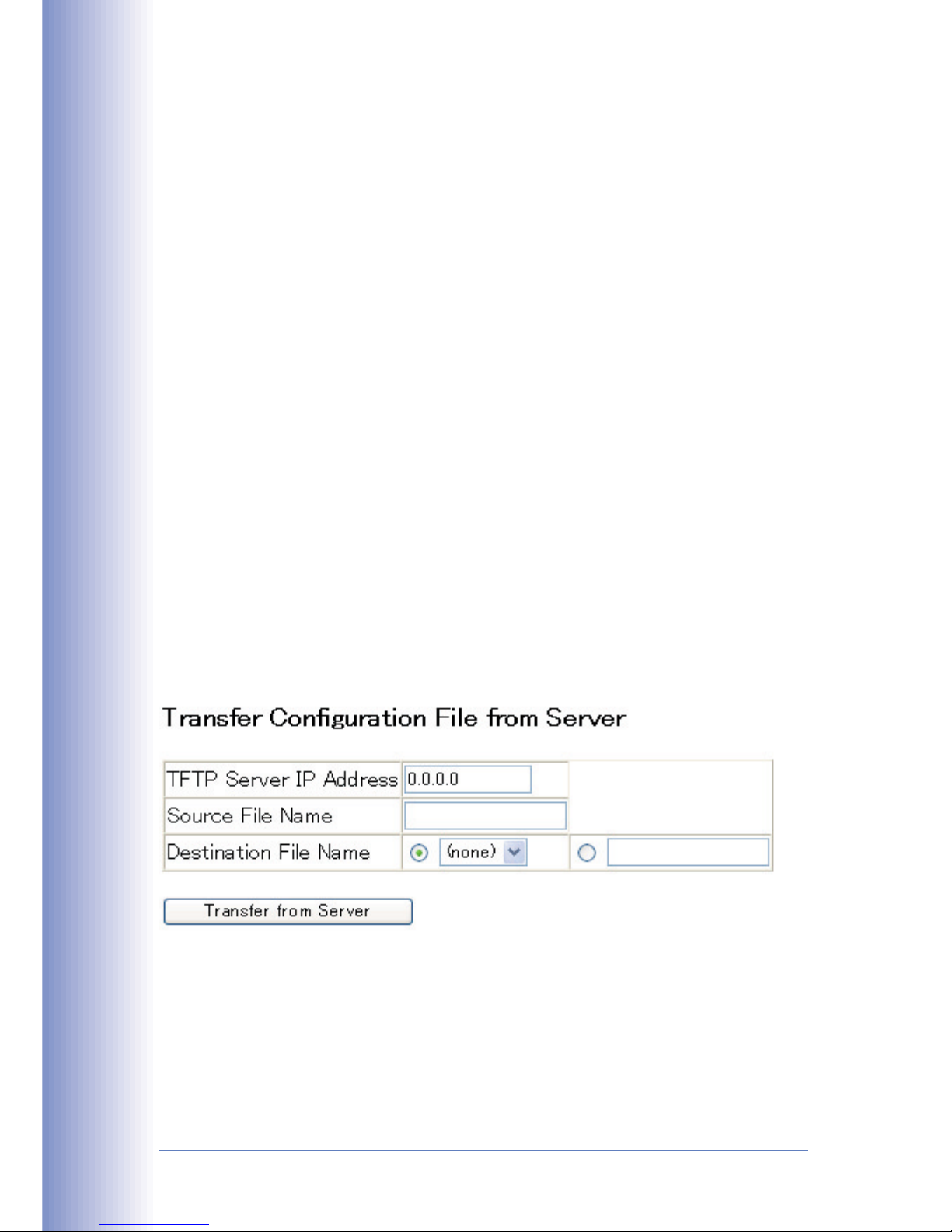

You can upload/download configuration settings to/from a TFTP server. The configuration file can be later downloaded to restore the switch’s settings.

Command Attributes > Destination File Name

— The destination configuration file name should not contain slashes (\ or /), the leading letter of the file name should not be a period (.), and the length of file name should be 1 to 32. (Valid characters: A-Z, az, 0-9, “.”, “-”, “_”)

> The maximum number of user-defined configuration files is limited only by

available Flash memory space.

You can save the configuration file under a new file name and then set it as the startup file, or you can specify the current startup configuration file as the destination file to directly replace it. Note that the file “Factory_Default_Config.cfg” can be copied to the TFTP server, but cannot be used as a destination file name on the switch.

Web – Click System/Configuration. Enter the IP address of the TFTP server, enter the name of the file to download, select a file on the switch to overwrite or specify a new file name, and then click “Transfer from Server.”

CLI – Enter the IP address of the TFTP server, specify the source file on the server, set the startup file name on the switch, and then restart the switch.

Console#copy tftp startup-config 3-18 TFTP server ip address: 192.168.1.19 Source configuration file name: startup2.0 Startup configuration file name [startup] : startup2.0 / Console#

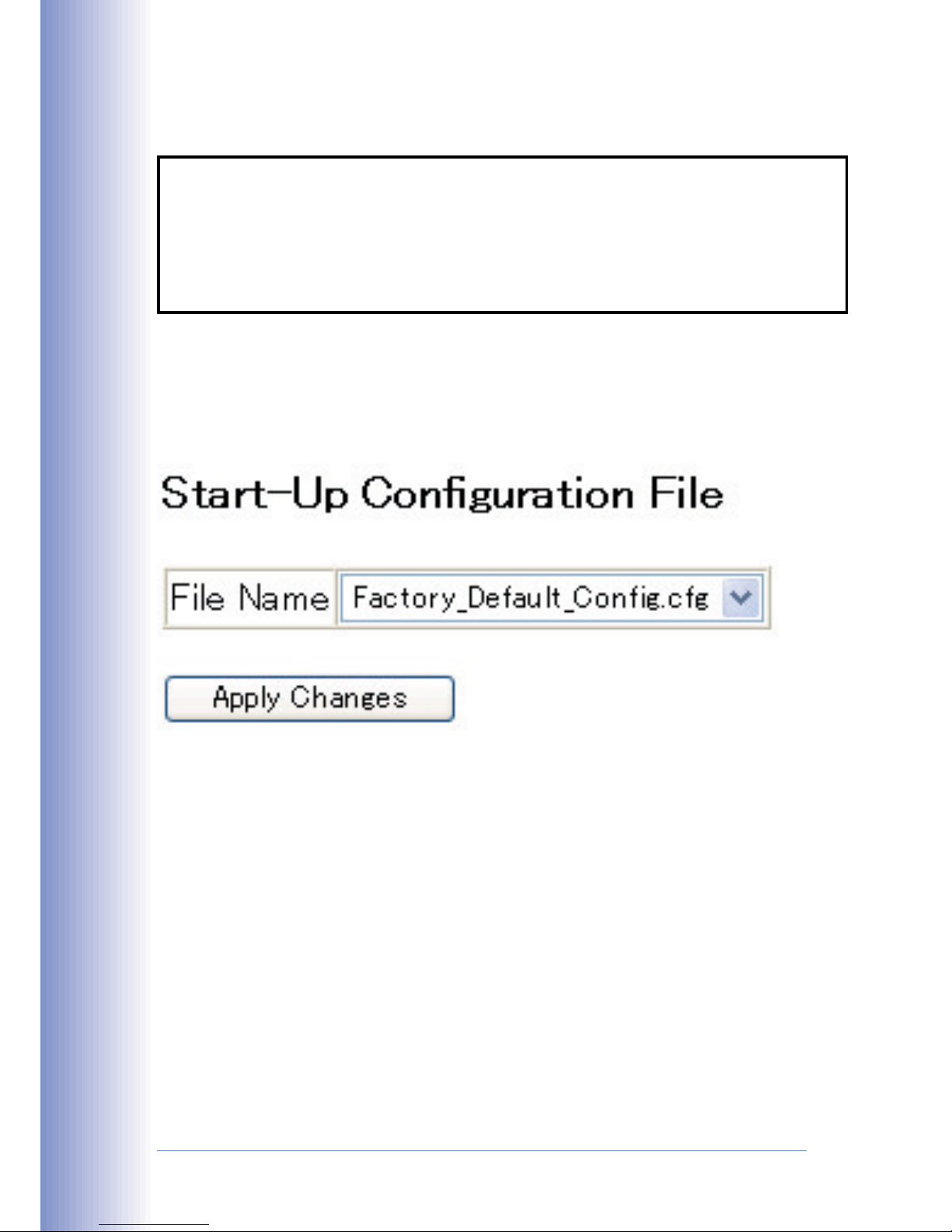

Setting the Startup Configuration File

If you download to a new file name, then select the new file from the drop-down box, and click “Apply Changes.”

To use the new settings, reboot the system. CLI – Enter the IP address of the TFTP server, specify the source file on the

server, set the startup file name on the switch, and then restart the switch.

Console#copy tftp startup-config 3-18 TFTP server ip address: 192.168.1.19 Source configuration file name: startup2.0 Startup configuration file name [startup] : startup2.0 / Console# Console#config Console(config)#boot system config: startup2.0 3-23 Console(config)#exit Console#reload

The CLI allows you replace a running configuration file without performing a reset.

Copying the Running Configuration to a File

CLI – If you copy the running configuration to a file, you can set this file as the startup file at a later time, and then restart the switch.

Console#copy running-config file 3-18 destination file name : 051902.cfg / Console# Console#config Console(config)#boot system config: 051902.cfg 3-23 Console(config)#exit Console#reload 3-15

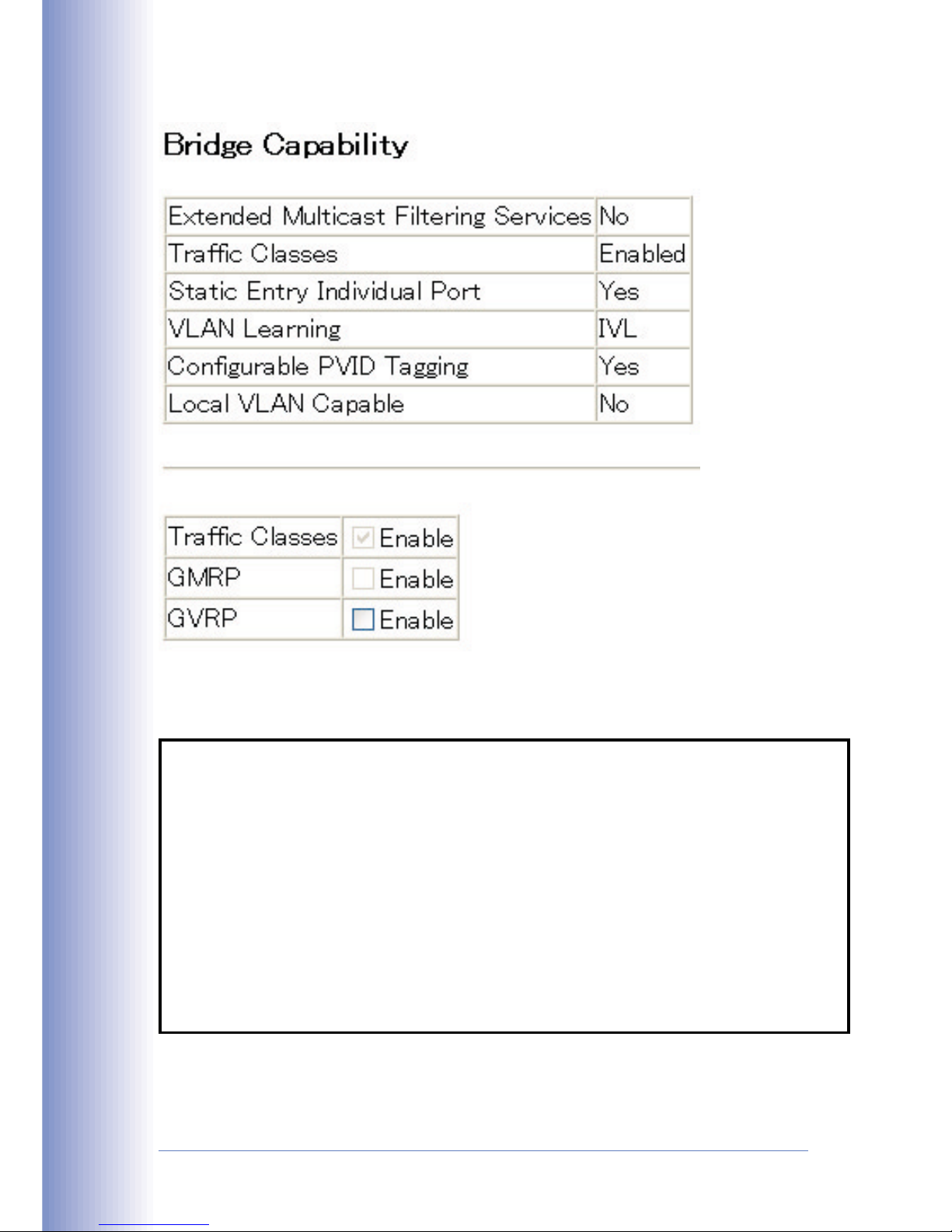

Displaying Bridge Extension Capabilities

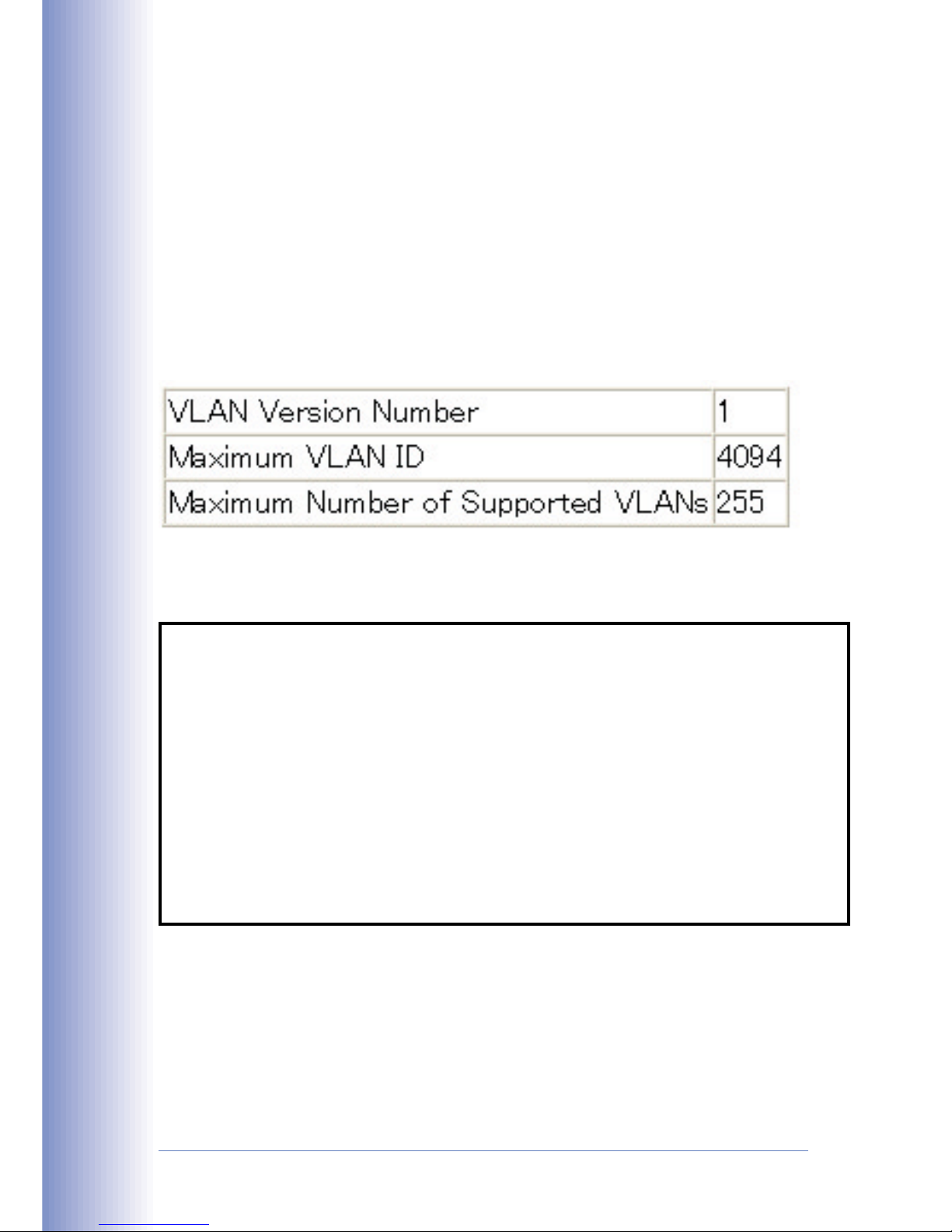

The Bridge MIB includes extensions for managed devices that support Multicast Filtering, Traffic Classes, and Virtual LANs. You can access these extensions to display default settings for the key variables, or to configure the global setting for GARP VLAN Registration Protocol (GVRP).

Command Attributes > Extended Multicast Filtering Services

– This switch does not support the filtering of individual multicast addresses based on GMRP (GARP Multicast Registration Protocol).

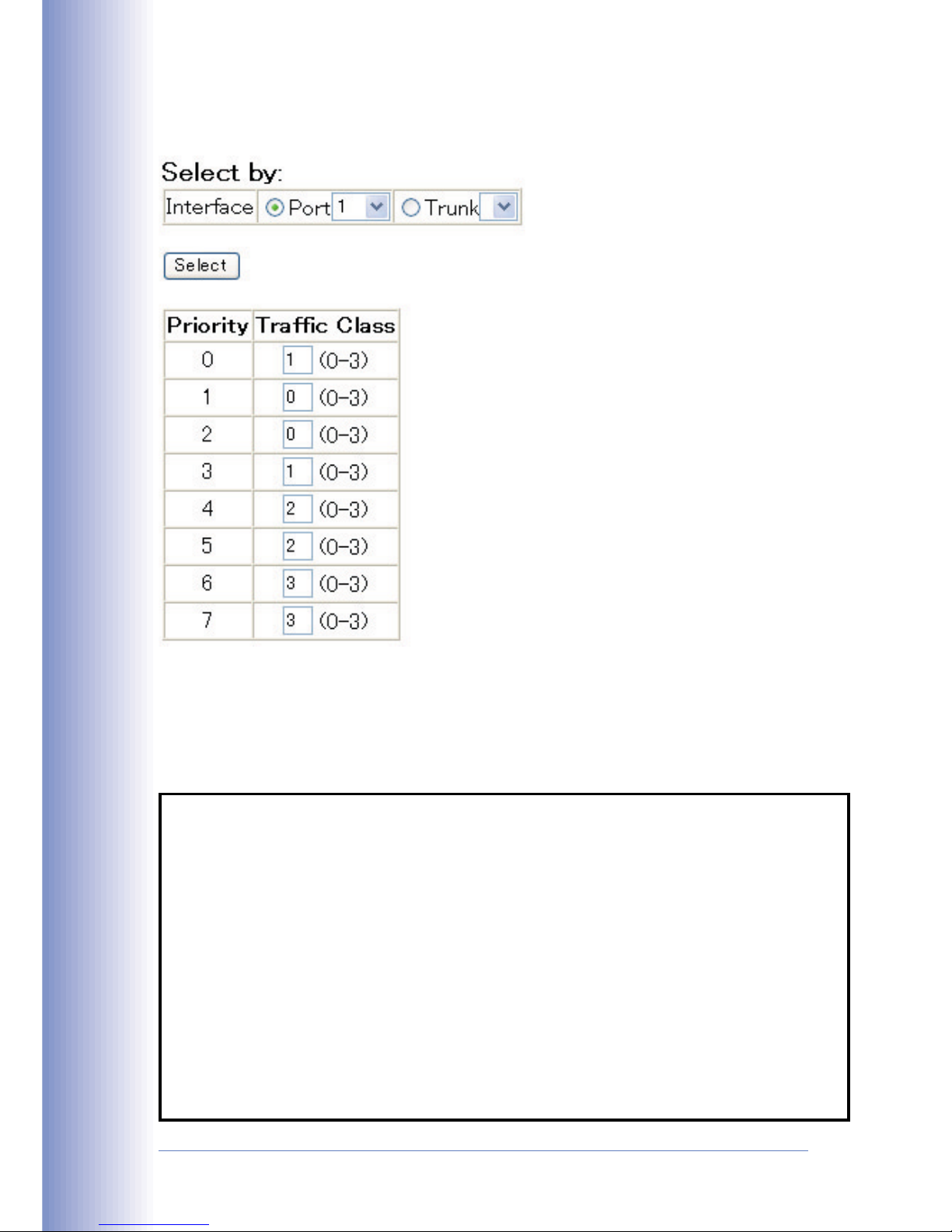

> Traffic Classes – This switch provides mapping of user priorities to multiple

traffic classes. (Refer to “Class of Service Configuration” on page 2-51.)

> Static Entry Individual Port – This switch allows static filtering for unicast and

multicast addresses. (Refer to “Setting Static Addresses” on page 2-29.)

> VLAN Learning – This switch uses Independent VLAN Learning (IVL), where

each port maintains its own filtering database.

> Configurable PVID Tagging – This switch allows you to override the default

Port VLAN ID (PVID used in frame tags) and egress status (VLAN-Tagged or Untagged) on each port. (Refer to “VLAN Configuration” on page 2-39.)

> Local VLAN Capable – This switch does not support multiple local bridges

(i.e., multiple Spanning Trees).

> GMRP – GARP Multicast Registration Protocol (GMRP) allows network

devices to register endstations with multicast groups. This switch does not support GMRP; it uses the Internet Group Management Protocol (IGMP) to provide automatic multicast filtering.

> GVRP – GARP VLAN Registration Protocol (GVRP) defines a way for switches

to exchange VLAN information in order to register necessary VLAN members on ports across the network. This function should be enabled to permit VLANs groups which extend beyond the local switch.

Web – Click System/Bridge Extension.

CLI – Enter the following command.

Console#show bridge-ext 3-106 Max support vlan numbers: 255 Max support vlan ID: 4094 Extended multicast filtering services: No0 Static entry individual port: Yes VLAN learning: IVL Configurable PVID tagging: Yes Local VLAN capable: No Traffic classes: Enabled Global GVRP status: Enabled GMRP: Disabled Console#

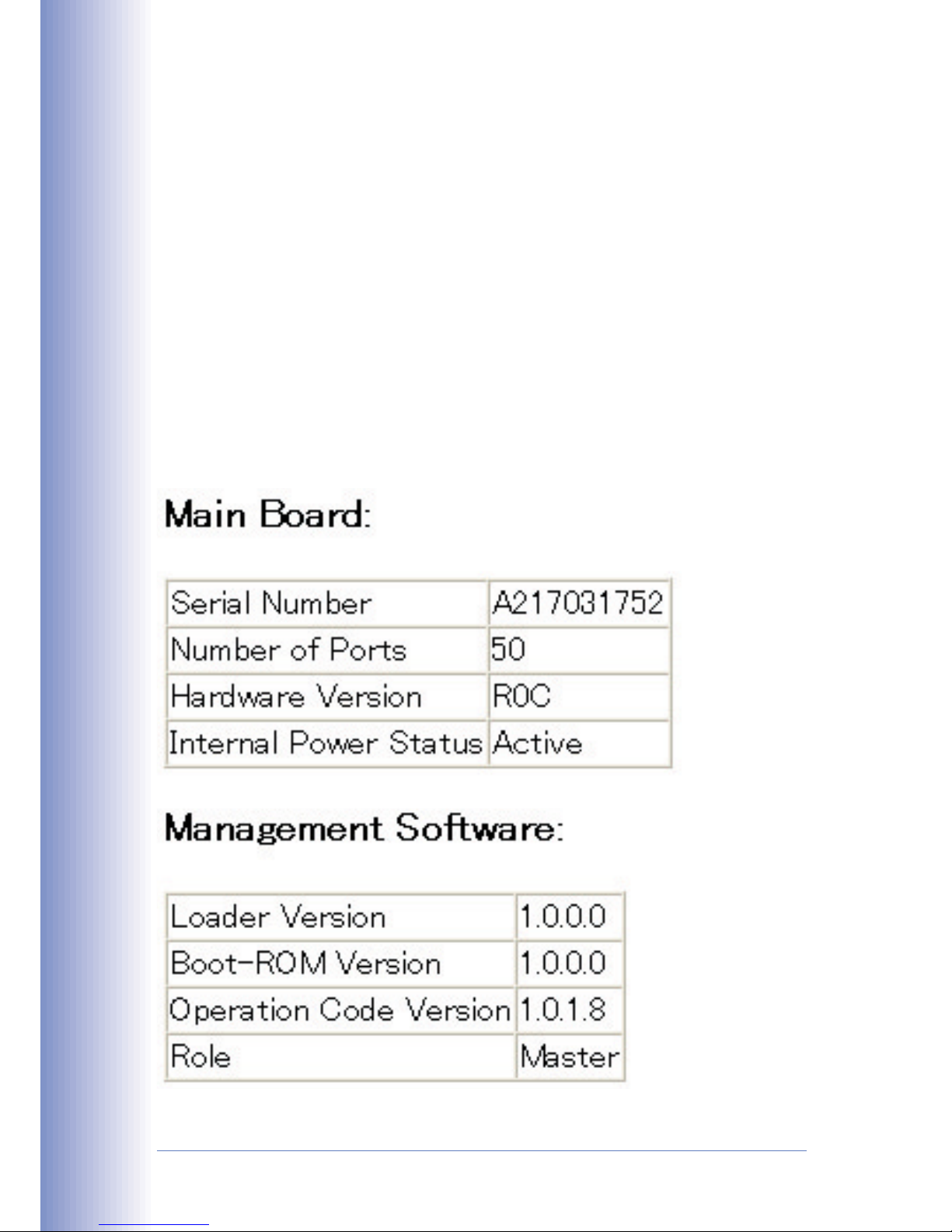

Displaying Switch Hardware/Software Versions

Command Attributes

Main Board > Serial Number

– The serial number of the switch

> Number of Ports – Number of ports on this switch > Hardware Version – Hardware version of the main board. > Internal Power Status – Displays the status of the internal power supply > Loader Version – Version number of loader code. > Boot-ROM Version – Version number of boot code. > Operation Code Version – Version number of runtime code. > Role – Shows that this switch is Master (i.e., operating stand-alone).

Web – Click System/Switch Information.

CLI – Use the following command to display version information.

Console#show version 3-38 Unit1

Serial number :A217056372 Service tag :[NONE] Hardware version :R0C Number of ports :24 Main power status :up Redundant power status :not present

Agent(master)

Unit id :1 Loader version :1.0.0.0

Boot rom version :1.0.0.0 Operation code version :1.0.1.4

Console#

8.Port Configuration

Displaying Connection Status

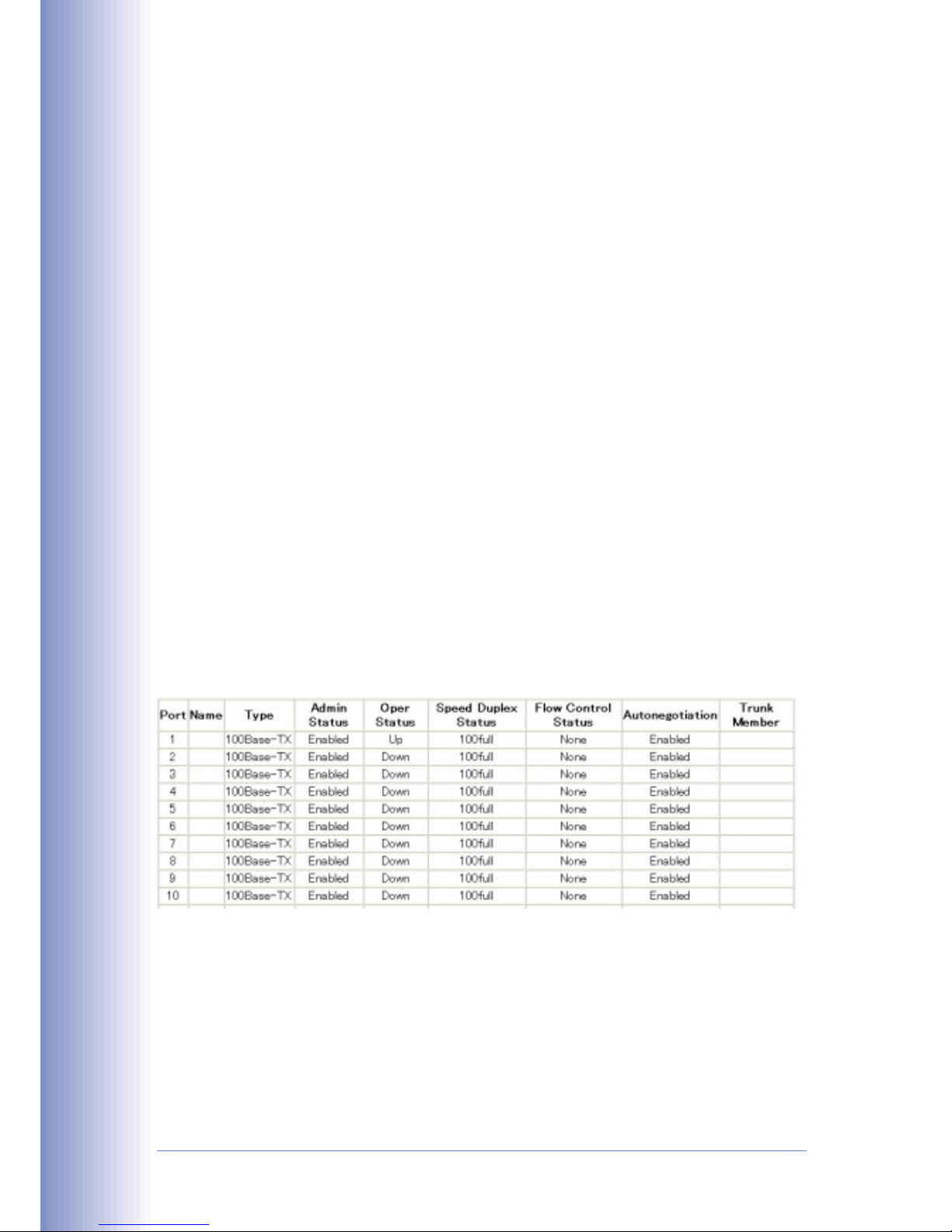

You can use the Port Information or Trunk Information pages to display the current connection status, including link state, speed/duplex mode, flow control, and auto-negotiation.

Command Attributes > Name

– Interface label.

> Type – Indicates the of port type (1000Base-TX or 1000Base-SFP). > Admin Status – Shows if the interface is enabled or disabled. > Oper Status – Indicates if the link is Up or Down. > Speed/Duplex Status – Shows the current speed and duplex mode. > Flow Control Status – Indicates the type of flow control currently in use. > Autonegotiation – Shows if auto-negotiation is enabled or disabled. > Trunk Member – Shows if port is a trunk member. (Port Information only) > Creation – Shows if a trunk is manually configured. (Trunk Information only)

Web – Click Port/Port Information or Trunk Information. Modify the required inter-

face settings, and click “Apply.”

CLI – This example shows the connection status for Port 13.

Console#show interfaces status ethernet 1/13 3-75 Information of Eth 1/13 Basic information: Port type: 1000t Mac address: 00-00-11-11-22-2F Configuration: Name: Port admin: Up Speed-duplex: Auto Capabilities: 10half, 10full, 100half, 100full, 1000full, Broadcast storm: Enabled Broadcast storm limit: 256 packets/second Flow control: Disabled Lacp: Disabled Current status: Link status: Down Operation speed-duplex: 1000full Flow control type: None Console#

Configuring Interface Connections

You can use the Trunk Configuration or Port Configuration page to enable/disable an interface, manually fix the speed and duplex mode, set flow control, set auto-negotiation, and set the interface capabilities to advertise.

Command Attributes > Name

– Allows you to label an interface. (Range: 1-64 characters)

> Admin – Allows you to manually disable an interface. You can disable an inter-

face due to abnormal behavior (e.g., excessive collisions), and then reenable it after the problem has been resolved. You may also disable an interface for security reasons.

> Speed/Duplex – Allows manual selection of port speed and duplex mode (i.e.,

with auto-negotiation disabled).

> Flow Control – Allows automatic or manual selection of flow control.

>> Flow control can eliminate frame loss by “blocking” traffic from end stations

or segments connected directly to the switch when its buffers fill. When enabled, back pressure is used for half-duplex operation and IEEE 802.3x for full-duplex operation.

>> Flow control should not be used if a port is connected to a hub. Otherwise

flow control signals will be propagated throughout the segment.

> Autonegotiation/Port Capabilities – Allows auto-negotiation to be

enabled/disabled. Specifies the capabilities to be advertised for a port during auto-negotiation. The following capabilities are supported.

>> 10half - Supports 10 Mbps half-duplex operation >> 10full - Supports 10 Mbps full-duplex operation >> 100half - Supports 100 Mbps half-duplex operation >> 100full - Supports 100 Mbps full-duplex operation >> 1000full - Supports 1000 Mbps full-duplex operation >> Sym - Transmits and receives pause frames for flow control >> FC - Supports flow control

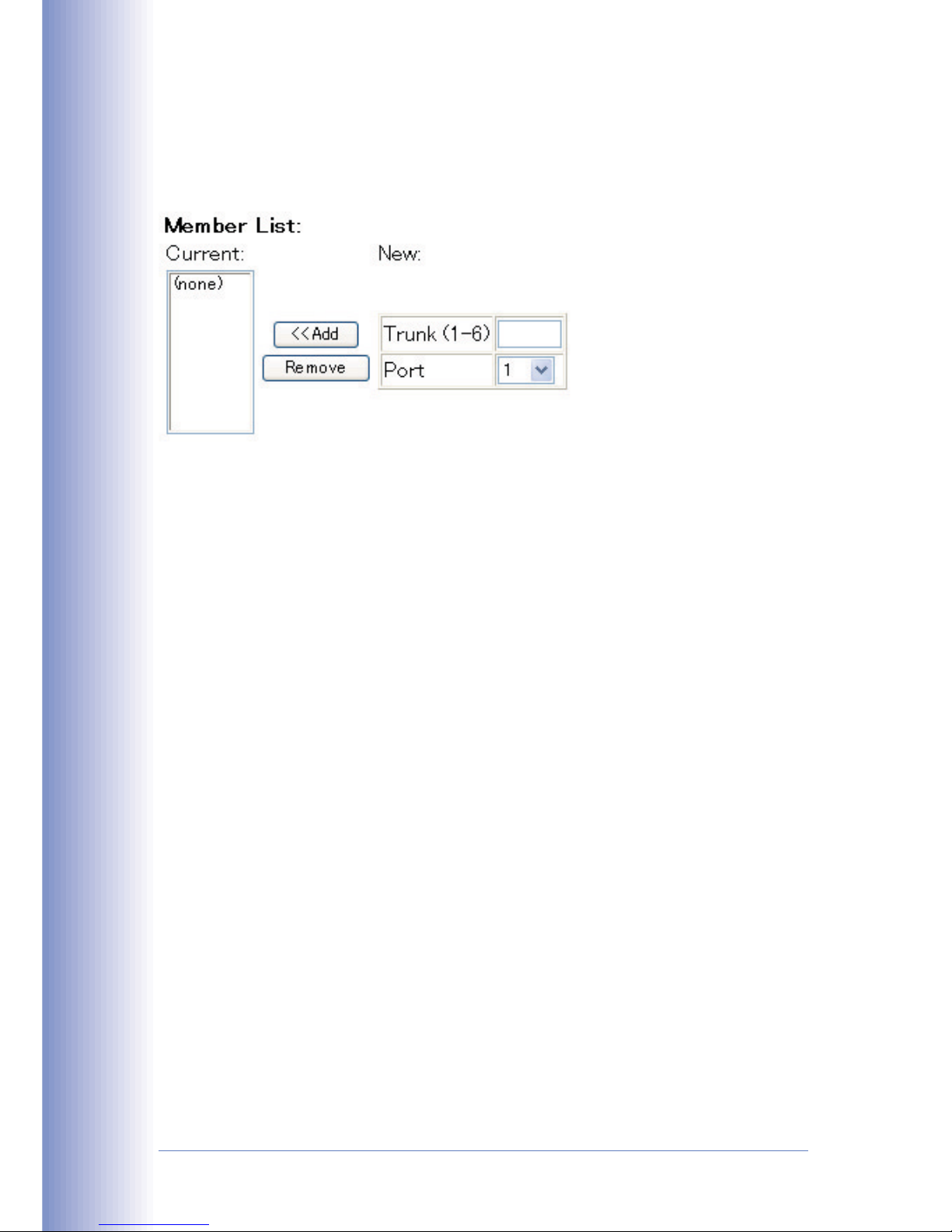

> Trunk – Indicates if a port is a member of a trunk. To create trunks and select port members, see “Port Trunk Configuration” on page 2-61.

Autonegotiation must be disabled before you can configure or force the interface to use the Speed/Duplex Mode or Flow Control options.

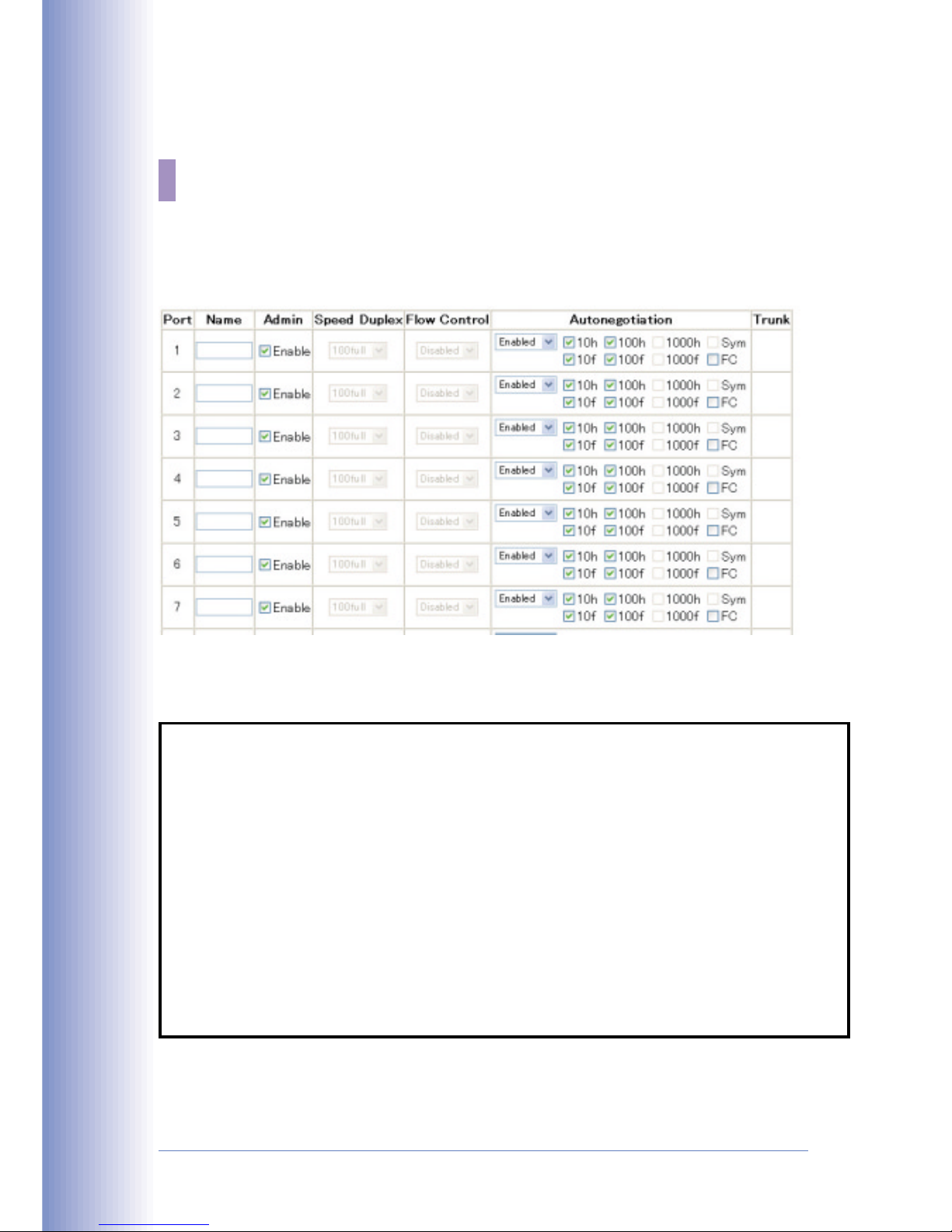

Web – Click Port/Port Configuration or Trunk Configuration. Modify the required interface settings, and click “Apply.”

CLI – Select the interface, and then enter the required settings.

Console(config)#interface ethernet 1/13 3-68 Console(config-if)#description RD SW#13 3-68 Console(config-if)#shutdown 3-73 . Console(config-if)#no shutdown Console(config-if)#no negotiation 3-70 Console(config-if)#speed-duplex 100half 3-69 Console(config-if)#flowcontrol 3-72 . Console(config-if)#negotiation Console(config-if)#capabilities 100half 3-71 Console(config-if)#capabilities 100full Console(config-if)#capabilities flowcontrol

Setting Broadcast Storm Thresholds

Broadcast storms may occur when a device on your network is malfunctioning, or if application programs are not well designed or properly configured. If there is too much broadcast traffic on your network, performance can be severely degraded or everything can come to complete halt.

You can protect your network from broadcast storms by setting a threshold for broadcast traffic for each port. Any broadcast packets exceeding the specified threshold will then be dropped.

Command Usage

> Default is enabled for all ports. Threshold 256 packets per second. > Broadcast control does not effect IP multicast traffic.

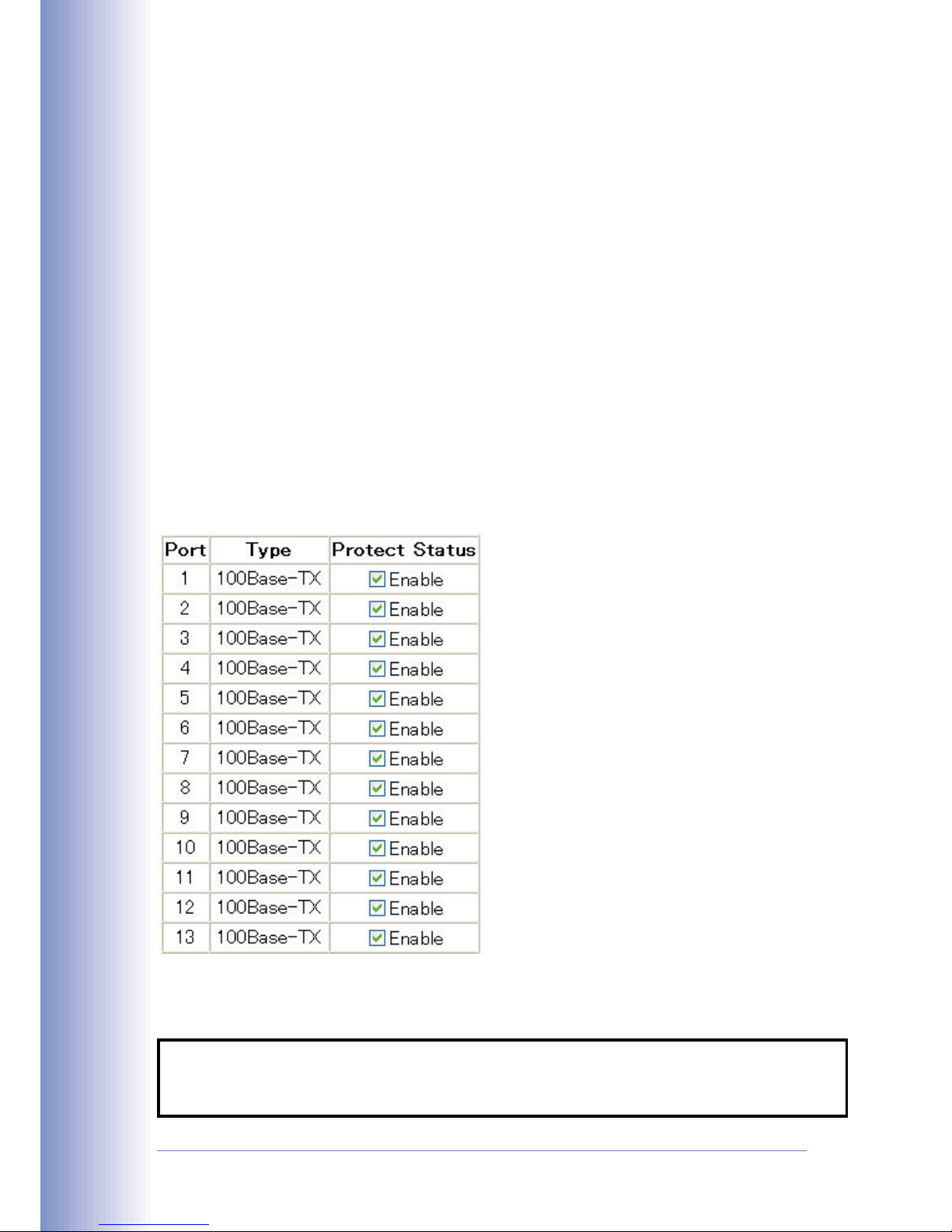

Web – Click Port/Port Broadcast Control. Set the threshold for all ports (16, 64, 128, or 256 pps), and then click “Apply.”

CLI – Specify the required interface, and then enter the threshold. The following sets broadcast suppression at 128 packets per second on port 1.

Console(config)#interface ethernet 1/1 3-68 Console(config-if)#switchport broadcast packet-rate 128 3-74 Console(config-if)#

Configuring Port Mirroring

You can mirror traffic from any source port to a target port for real-time analysis. You can then attach a logic analyzer or RMON probe to the target port and study the traffic crossing the source port in a completely unobtrusive manner.

Command Usage

> The mirror port and monitor port speeds must match, otherwise traffic may be

dropped from the monitor port. > The switch supports only one port mirror session. > The source and target port have to be either both in the port group of 1 to 12 or

both in the port group of 13 to 24.

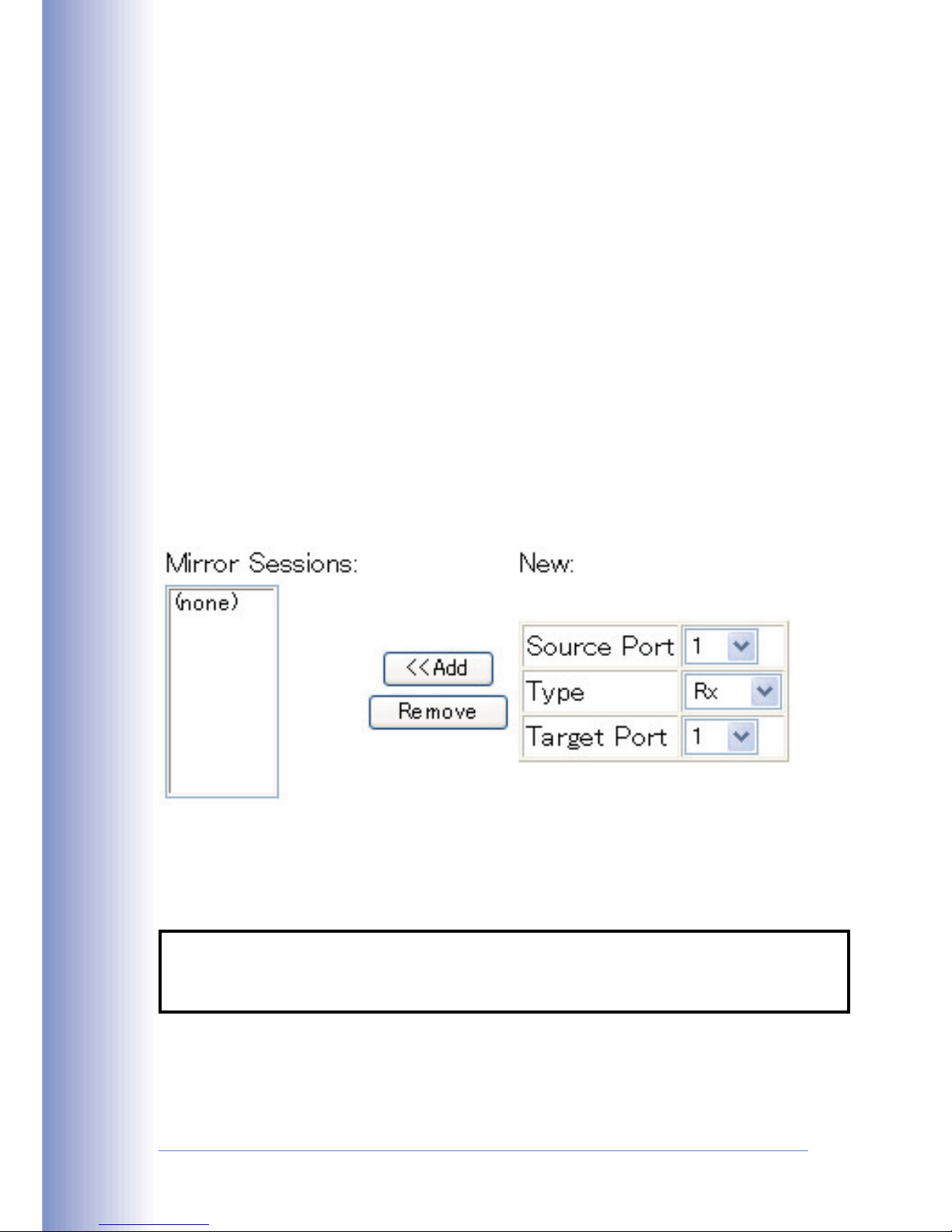

Web – Click Port/Mirror. Specify the source port, the traffic type to be mirrored, and the target port, then click “Add.”

CLI – Use the interface command to select the target port, then use the port monitor command to specify the source port. Note that default mirroring under the CLI is for both received and transmitted packets.

Console(config)#interface ethernet 1/10 1 3-68 Console(config-if)#port monitor ethernet 1/11 1 3-129 Console(config-if)#

9.Address Table Settings

Switches store the addresses for all known devices. This information is used to route traffic directly between the inbound and outbound ports. All the addresses learned by monitoring traffic are stored in the dynamic address table. You can also manually configure static addresses that are bound to a specific port.

Setting Static Addresses

A static address can be assigned to a specific interface on this switch. Traffic sent from devices listed in the static address table will only be accepted on the specified interface. If any packets with a source address listed in this table enter another interface, they will be dropped.

Command Usage

Entries specified via the Web interface are permanent. Entries specified via the CLI can be made permanent or can be set to be deleted on reset.

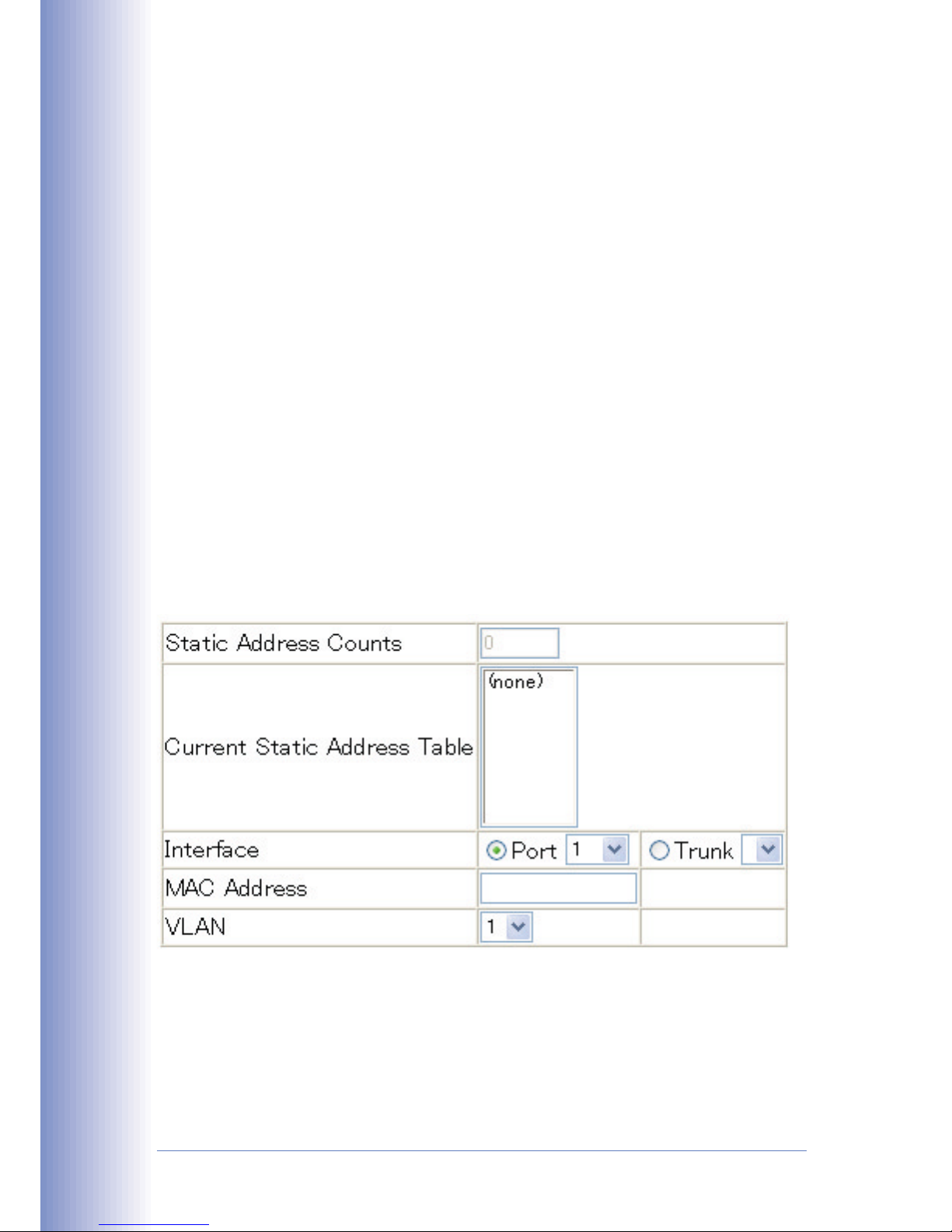

Web – Click Address Table/Static Addresses. Specify the interface, the MAC address and VLAN, then click “Add Static Address.”

CLI – This example adds an address to the static address table, but sets it to be deleted when the switch is reset.

Console(config)#bridge 1 address 00-e0-29-94-34-de vlan 1 forward ethernet 1/1 delete-on-reset 3-79 Console(config)#

Displaying the Address Table

The Dynamic Address Table contains the MAC addresses learned by monitoring the source address for traffic entering the switch. When the destination address for inbound traffic is found in the database, the packets intended for that address is forwarded directly to the associated port. Otherwise, the traffic is broadcast to all ports.

Command Usage

> You can display entries in the dynamic address table by selecting an interface

(either port or trunk), MAC address, or VLAN. > You can sort the information displayed based on interface (port or trunk), MAC

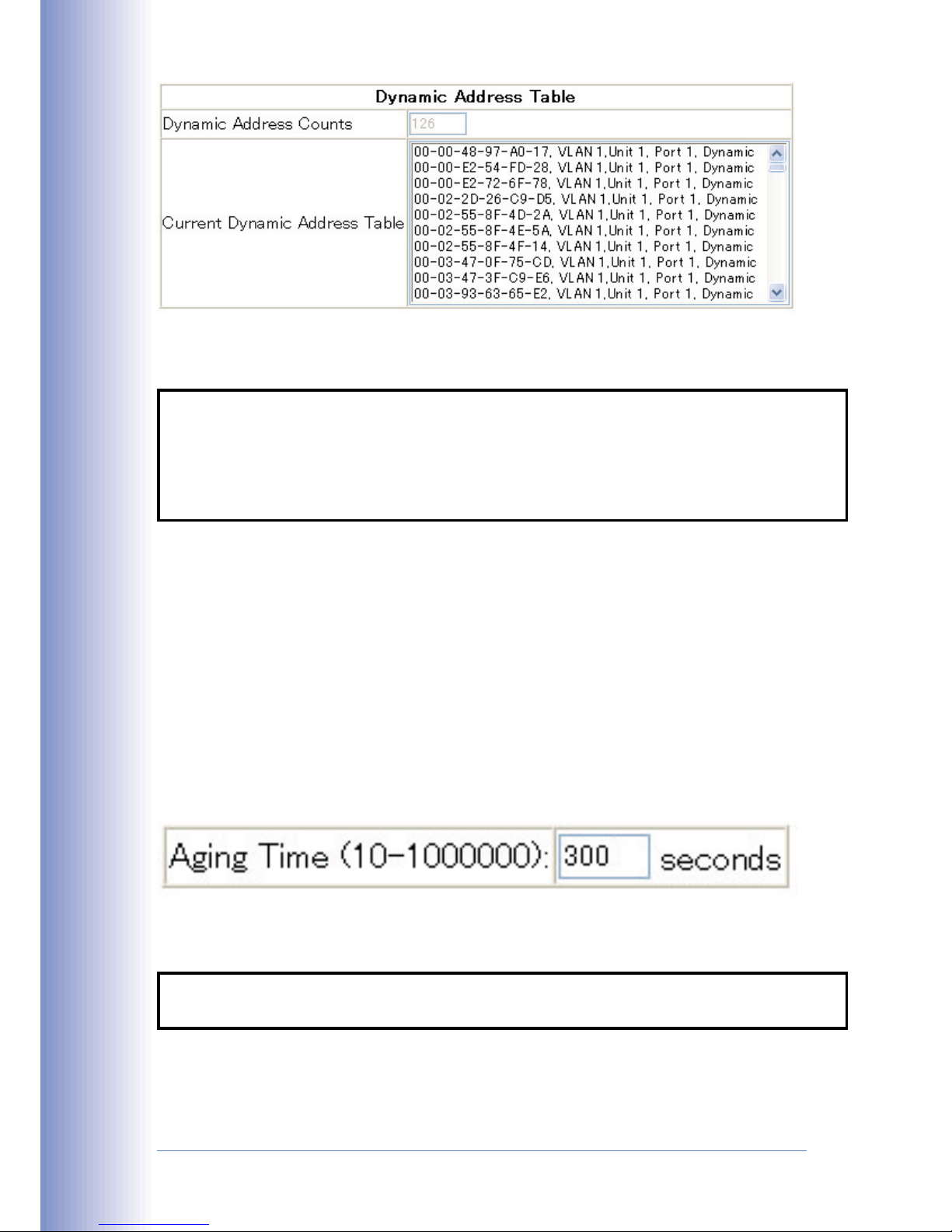

address, or VLAN. Web – Click Address Table/Dynamic Addresses. Specify

the search type (i.e., Interface, MAC Address, or VLAN), the method of sorting

the displayed addresses, then click Query.

For example, the following screen shows the dynamic addresses for port 7.

CLI – This example also displays the address table entries for port 11.

Console#show bridge 1 ethernet 1/11 3-80 Interface Mac Address Vlan Type

--------- ----------------- ---- ----------------Eth 1/11 00-10-b5-62-03-74 1 Learned Console#

Changing the Aging Time

You can set the aging time for entries in the dynamic address table.

Command Usage

The range for the aging time is 17 - 2184 seconds. (The default is 300 seconds.)

Web – Click Address Table/Address Aging. Specify the new aging time, then click “Apply.”

CLI – This example sets the aging time to 400 seconds.

Console(config)#bridge-group 1 aging-time 400 3-82 Console(config)#

10.Spanning Tree Protocol Configuration

The Spanning Tree Algorithm can be used to detect and disable network loops, and to provide backup links between switches, bridges or routers. This allows the switch to interact with other bridging devices (that is, an STA-compliant switch, bridge or router) in your network to ensure that only one route exists between any two stations on the network, and provide backup links which automatically take over when a primary link goes down.

Managing Global Settings

Global settings apply to the entire switch.

Command Attributes

The following global attributes are fixed and cannot be changed:

> Bridge ID – The priority and MAC address of this device. > Designated Root – The priority and MAC address of the device in the

Spanning Tree that this switch has accepted as the root device. > Root Port – The number of the port on this switch that is closest to the root.

This switch communicates with the root device through this port. If there is no

root port, then this switch has been accepted as the root device of the

Spanning Tree network. > Root Path Cost – The path cost from the root port on this switch to the root

device. > Configuration Changes – The number of times the Spanning Tree has been

reconfigured. > Last Topology Change – The time since the Spanning Tree was last reconfig-

ured.

The following global attributes can be configured:

> Spanning Tree State – Enable/disabled this switch to participate in a STA-

compliant network.

> Priority – Bridge priority is used in selecting the root device, root port, and

designated port. The device with the highest priority becomes the STA root device. However, if all devices have the same priority, the device with the lowest root device.

- Default : 32768

- Range : 0 - 65535

> Hello Time – Interval (in seconds) at which the root device transmits a configu-

ration message.

- Default : 2

- Minimum : 1

- Maximum : The lower of 10 or [(Max. Message Age / 2) -1]

> Maximum Age – The maximum time (in seconds) a device can wait without

receiving a configuration message before attempting to reconfigure. All device ports (except for designated ports) should receive configuration messages at regular intervals. Any port that ages out STA information (provided in the last configuration message) becomes the designated port for the attached LAN. If it is a root port, a new root port is selected from among the device ports attached to the network. (References to “ports” in this section means “interfaces,” which includes both ports and trunks.)

- Default : 20

- Minimum : The higher of 6 or [2 x (Hello Time + 1)].

- Maximum : The lower of 40 or [2 x (Forward Delay - 1)]

> Forward Delay – The maximum time (in seconds) the root device will wait

before changing states (i.e., listening to learning to forwarding). This delay is required because every device must receive information about topology changes before it starts to forward frames. In addition, each port needs time to listen for conflicting information that would make it return to a blocking state; otherwise, temporary data loops might result.

- Default : 15

- Minimum : The higher of 4 or [(Max. Message Age / 2) + 1]

- Maximum : 30

Displaying the current global settings for STA

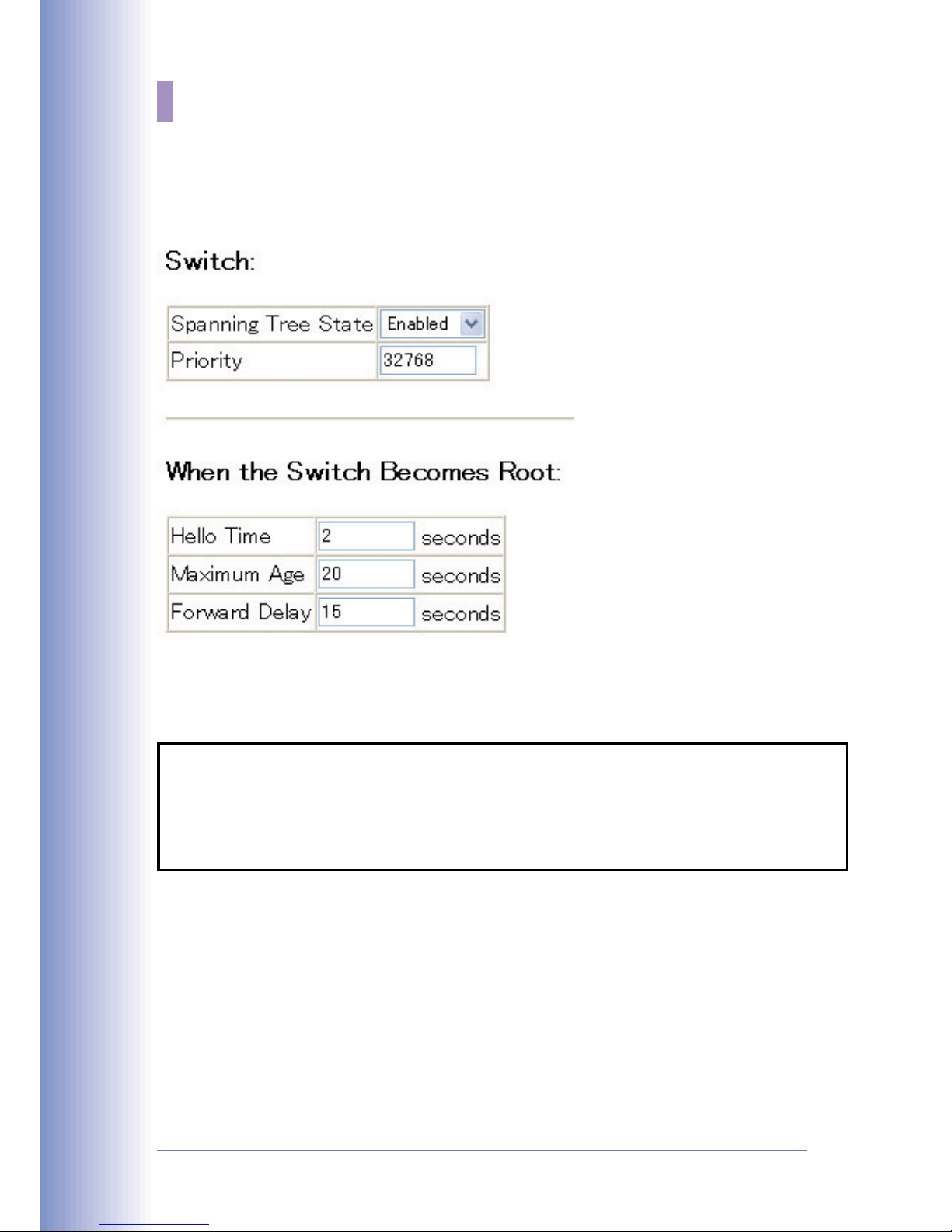

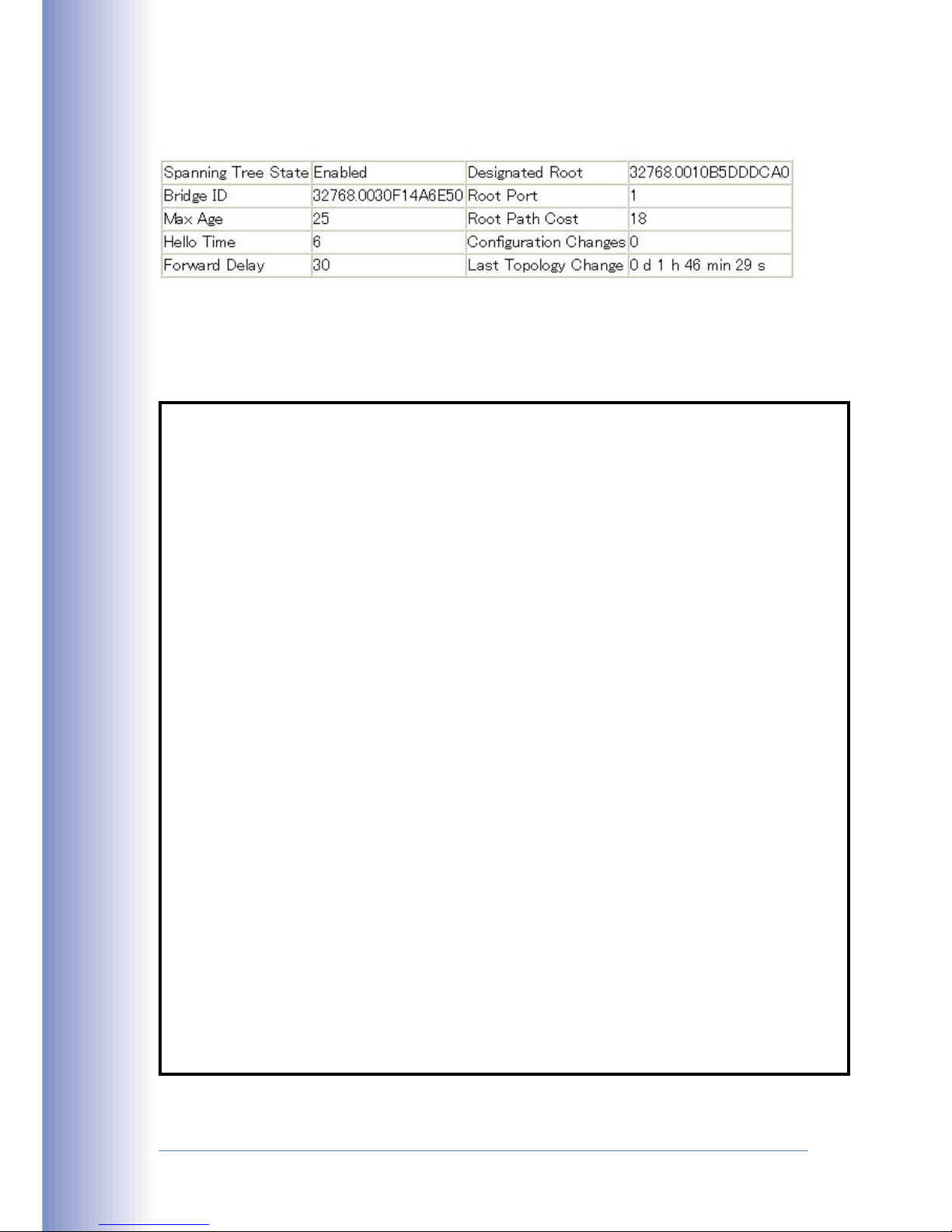

Web – Click STA/STA Information.

CLI – This command displays global STA settings, followed by the settings

for each port.

Console#show bridge group 1 3-90 Bridge-group information

-------------------------------------------------------------Spanning tree protocol :ieee8021d Spanning tree enable/disable :enable Priority :32768 Hello Time (sec.) :2 Max Age (sec.) :20 Forward Delay (sec.) :15 Designated Root :32768.000011112222 Current root port :0 Current root cost :0 Number of topology changes :1 Last topology changes time (sec.):4576 Hold times (sec.) :1

--------------------------------------------------------------Eth 1/ 1 information

-------------------------------------------------------------Admin status : enable STA state : broken Path cost : 4 Priority : 128 Designated cost : 0 Designated port : 128.1 Designated root : 32768.000011112222 Designated bridge : 32768.000011112222 Fast forwarding : disable Forward transitions : 0

The current root port and current root cost display as zero when this device is not connected to the network.

Configuring the global settings for STA

Web – Click STA/STA Configuration. Modify the required attributes, click “Apply.”

CLI – This example enables Spanning Tree Protocol, and then sets the indicated

attributes.

Console(config)#bridge 1 spanning-tree 3-83 Console(config)#bridge 1 priority 40000 3-87 Console(config)#bridge 1 hello-time 5 3-85 Console(config)#bridge 1 max-age 40 3-86 Console(config)#bridge 1 forward-time 20 3-84.

Managing STA Interface Settings

You can configure STA attributes for specific interfaces, including port priority, path cost, and fast forwarding. You may use a different priority or path cost for ports of same media type to indicate the preferred path.

Command Attributes

The following global attributes are read-only and cannot be changed:

> Port Status – Displays current state of this port within the Spanning Tree:

>> Disabled - The port has been disabled by the user or has failed diagnos-

tics.

>> Blocking - Port receives STA configuration messages, but does not for-

ward packets.

>> Listening - Port will leave blocking state due to a topology change, start

transmitting configuration messages, but does not yet forward packets.

>> Learning - Port has transmitted configuration messages for an interval set

by the Forward Delay parameter without receiving contradictory information. Port address table is cleared, and the port begins learning addresses.

>> Forwarding - Port forwards packets, and continues learning addresses. >> Broken - Port is malfunctioning or no link has been established.

> Forward Transitions – The number of times this port has transitioned from the

Learning state to the Forwarding state. > Designated Cost – The cost for a packet to travel from this port to the root in

the current Spanning Tree configuration. The slower the media, the higher the

cost. > Designated Bridge – The priority and MAC address of the device through

which this port must communicate to reach the root of the Spanning Tree. > Designated Port – The priority and number of the port on the designated

bridging device through which this switch must communicate with the root of

the Spanning Tree. > Trunk Member – Indicates if a port is a member of a trunk.

The following interface attributes can be configured:

> Priority –

Defines the priority used for this port in the Spanning Tree Protocol. If the path cost for all ports on a switch are the same, the port with the highest priority (i.e., lowest value) will be configured as an active link in the Spanning Tree. This makes a port with higher priority less likely to be blocked if the Spanning Tree Protocol is detecting network loops. Where more than one port is assigned the highest priority, the port with lowest numeric identifier will be enabled.

- Default: 128

- Range: 0 - 255

> Path Cost – This parameter is used by the STP to determine the best path

between devices. Therefore, lower values should be assigned to ports attached to faster media, and higher values assigned to ports with slower media. (Path cost takes precedence over port priority.)

>> Full Range: 1-65535 >> Recommended Range –

- Ethernet: 50-600

- Fast Ethernet: 10-60

- Gigabit Ethernet: 3-10

>> Defaults –

- Ethernet – half duplex: 100; full duplex: 95; trunk: 90

- Fast Ethernet – half duplex: 19; full duplex: 18; trunk: 15

- Gigabit Ethernet – full duplex: 4; trunk: 3

> Fast Link – Since end-nodes cannot cause forwarding loops, they can be pass

quicker convergence for end-node workstations and servers, and also overcome other STA related timeout problems. (Remember that Fast Link should only be enabled for ports connected to an end-node device.)

- Default is disabled

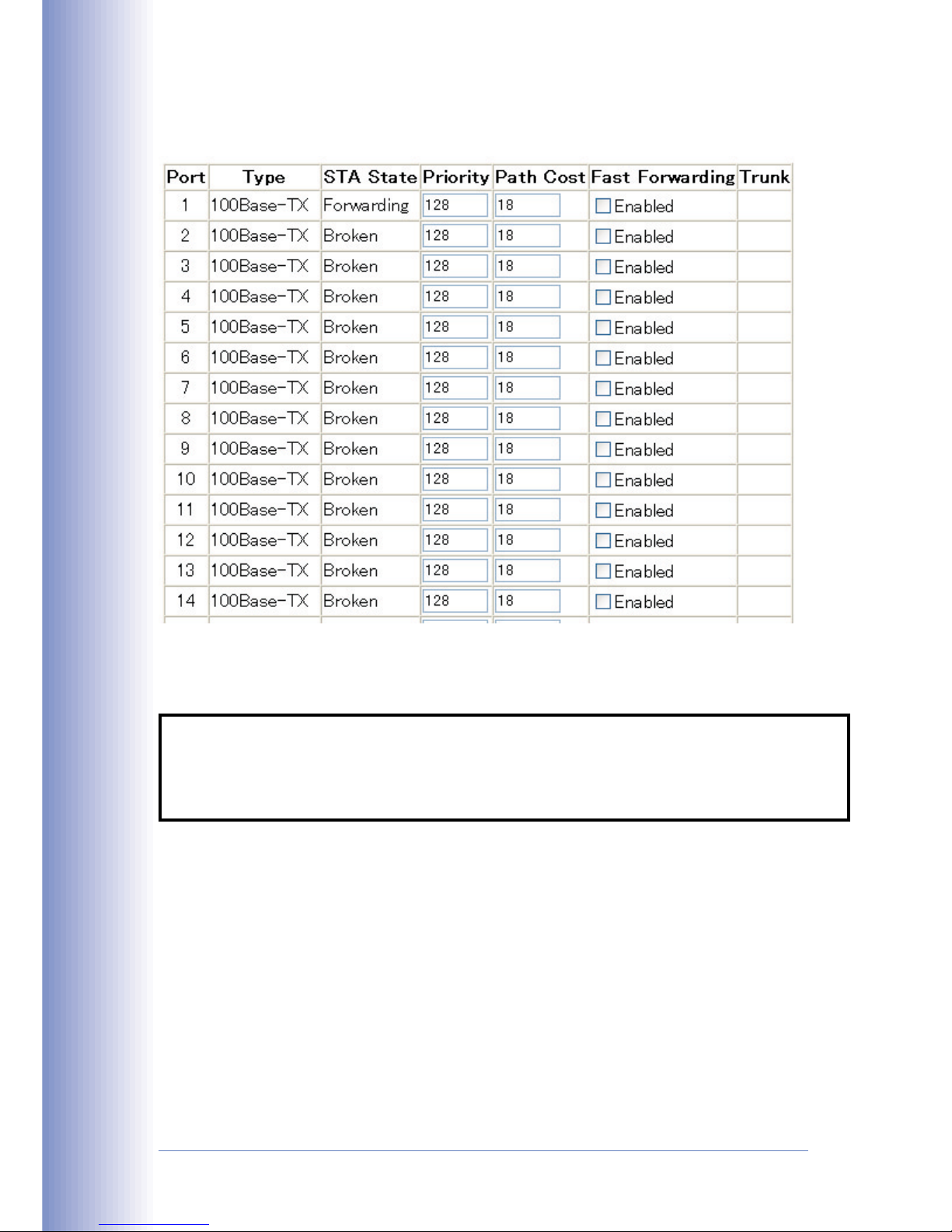

Web – Click STA/STA Port Information or STA Trunk Information.

CLI – This example shows the STA attributes for port 5.

Console#show bridge group 1 ethernet 1/5 3-90 Bridge-group information

-------------------------------------------------------------Spanning tree protocol :ieee8021d Spanning tree enable/disable :enable Priority :32768 Hello Time (sec.) :2 Max Age (sec.) :20 Forward Delay (sec.) :15 Designated Root :32768.0000e8000001 Current root port :13 Current root cost :4 Number of topology changes :325 Last topology changes time (sec.):18 Hold times (sec.) :1

--------------------------------------------------------------Eth 1/ 5 information

-------------------------------------------------------------Admin status : enable STA state : blocking Path cost : 4 Priority : 128 Designated cost : 4 Designated port : 128.5 Designated root : 32768.0000e8000001 Designated bridge : 32768.222222222222 Fast forwarding : enable Forward transitions : 18 Console#

Web – Click STA/STA Port Configuration or STA Trunk Configuration. Modify the required attributes, then click “Apply.”

CLI – This example sets STA attributes for port 5.

Console(config)#interface ethernet 1/5 3-68 Console(config-if)#bridge-group 1 priority 0 3-89 Console(config-if)#bridge-group 1 path-cost 50 3-88 Console(config-if)#bridge-group 1 portfast 3-90

11.VLAN Configuration

In conventional networks with routers, broadcast traffic is split up into separate domains. Switches do not inherently support broadcast domains. This can lead to broadcast storms in large networks that handle traffic such as IPX or NetBeui. By using IEEE 802.1Q-compliant VLANs, you can organize any group of network nodes into separate broadcast domains, thus confining broadcast traffic to the originating group. This also provides a more secure and cleaner network environment.

An IEEE 802.1Q VLAN is a group of ports that can be located anywhere in the network, but communicate as though they belong to the same physical segment.

VLANs help to simplify network management by allowing you to move devices to a new VLAN without having to change any physical connections. VLANs can be easily organized to reflect departmental groups (such as Marketing or R&D), usage groups (such as e-mail), or multicast groups (used for multimedia applications such as videoconferencing).

VLANs provide greater network efficiency by reducing broadcast traffic, and allow you to make network changes without having to update IP addresses or IP subnets. VLANs inherently provide a high level of network security since traffic must pass through a configured Layer 3 link to reach a different VLAN.

> Up to 255 VLANs based on the IEEE 802.1Q standard > Distributed VLAN learning across multiple switches using explicit or implicit

tagging > Port overlapping, allowing a port to participate in multiple VLANs > End stations can belong to multiple VLANs > Passing traffic between VLAN-aware and VLAN-unaware devices > Priority tagging

Assigning Ports to VLANs

Before enabling VLANs for the switch, you must first assign each port to the VLAN group(s) in which it will participate. By default all ports are assigned to VLAN 1 as untagged ports. Add a port as a tagged port (that is, a port attached to a VLAN-aware device) if you want it to carry traffic for one or more VLANs and if the device at the other end of the link also supports VLANs. Then assign the port at the other end of the link to the same VLAN(s). However, if you want a port on this switch to participate in one or more VLANs, but the device at the other end of the link does not support VLANs, then you must add this port as an untagged port (that is, a port attached to a VLAN-unaware device).

VLAN Classification – When the switch receives a frame, it classifies the frame in one of two ways. If the frame is untagged, the switch assigns the frame to an associated VLAN (based on the PVID of the receiving port. But if the frame is tagged, the switch uses the tagged VLAN ID to identify the port broadcast domain of the frame.

Port Overlapping – Port overlapping can be used to allow access to commonly shared network resources among different VLAN groups, such as file servers or printers. Note that if you implement VLANs which do not overlap, but still need to communicate, you can connect them by using a Layer-3 router or switch.

Port-based VLANs – Port-based (or static) VLANs are manually tied to specific ports. The switch’s forwarding decision is based on the destination MAC address and its associated port. Therefore, to make valid forwarding or flooding decisions, the switch must learn the relationship of the MAC address to its related port—and thus to the VLAN—at run-time. However, when GVRP is enabled, this process can be fully automatic.

Automatic VLAN Registration – GVRP (GARP VLAN Registration Protocol) defines a system whereby the switch can automatically learn the VLANs to which each endstation should be assigned. If an endstation (or its network adapter) supports the IEEE 802.1Q VLAN protocol, it can be configured to broadcast a message to your network indicating the VLAN groups it wants to join. When this switch receives these messages, it will automatically place the receiving port in the specified VLANs, and then forward the message to all other ports. When the message arrives at another switch that supports GVRP, it will also place the receiving port in the specified VLANs, and pass the message on to all other ports. VLAN requirements are propagated in this way throughout the network. This allows GVRP-compliant devices to be automatically configured for VLAN groups based solely on endstation requests. To implement GVRP in a network, you must first configure the static VLANs required on switches that are connected to PCs, servers, and other devices, so that these VLANs can be propagated across the network (Web - VLAN / VLAN Membership). For other core switches in the network, enable GVRP on the links between these devices (Web - VLAN / Port Settings or Trunk Settings). You should also determine security boundaries in the network and disable GVRP on ports to prevent advertisements being propagated, or forbid ports from joining restricted VLANs.

Forwarding Tagged/Untagged Frames

If you want to create a small port-based VLAN for devices attached directly to a single switch, you can assign ports to the same untagged VLAN. However, to participate in a VLAN group that crosses several switches, you need to create a VLAN for that group and enable tagging on all ports.

Ports can be assigned to multiple tagged or untagged VLANs. Each port on the switch is therefore capable of passing tagged or untagged frames. To forward a frame from a VLAN-aware device to a VLAN-unaware device, the switch first decides where to forward the frame, and then strips off the VLAN tag. However, to forward a frame from a VLAN-unaware device to a VLAN-aware device, the switch first decides where to forward the frame, and then inserts a VLAN tag reflecting this port’s default VID.

Displaying Basic VLAN Information

Command Attributes > VLAN Version Number

– The VLAN version used by this switch as specified

in the IEEE 802.1Q standard. (Web interface only.)

> Maximum VLAN ID – Maximum VLAN ID recognized by this switch. > Maximum Number of Supported VLANs – Maximum number of VLANs that

can be configured on this switch.

Web – Click VLAN/VLAN Basic Information.

CLI – Enter the following command.

Console#show bridge-ext 3-106

Max support vlan numbers: 255 Max support vlan ID: 4094 Extended multicast filtering services: No Static entry individual port: Yes VLAN learning: IVL Configurable PVID tagging: Yes Local VLAN capable: No Traffic classes: Enabled Global GVRP status: Enabled GMRP: Disabled

Console#

Displaying Current VLANs

Command Attributes for Web Interface > VLAN ID

– ID of configured VLAN (1-4094, no leading zeroes).

> Up Time at Creation – Time this VLAN was created; i.e., System Up Time. > Status – Shows how this VLAN was added to the switch.

- Dynamic GVRP: Automatically learned via GVRP.

- Permanent: Added as a static entry.

> Tagged Ports – Shows the tagged VLAN port members. > Untagged Ports – Shows the untagged VLAN port members

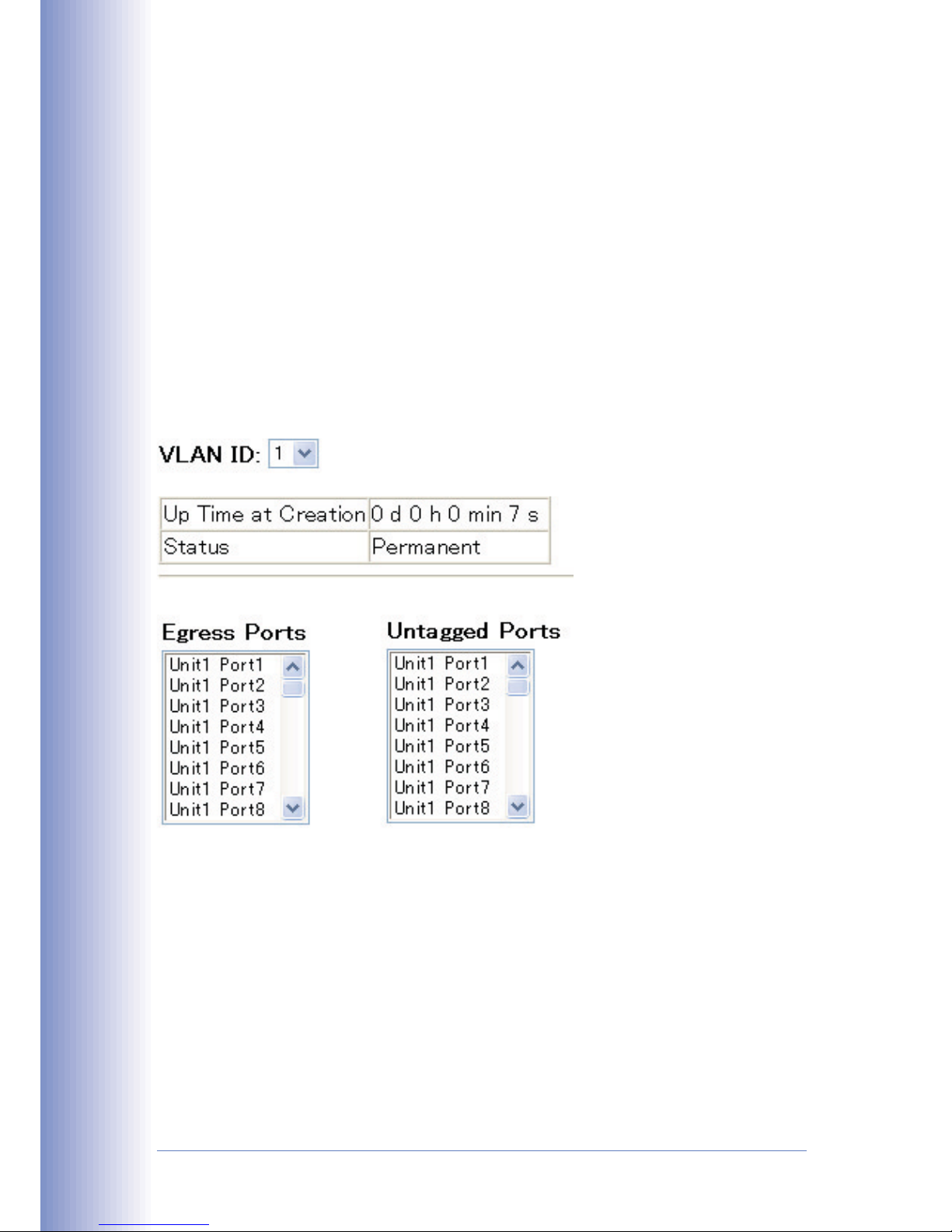

Web – Click VLAN/VLAN Current Table. Select any ID from the scroll-down list.

Command Attributes for CLI Interface > VLAN

– ID of configured VLAN (1-4094, no leading zeroes).

> Type – Shows how this VLAN was added to the switch.

- Dynamic: Automatically learned via GVRP.

- Static: Added as a static entry.

> Name – Name of the VLAN (1 to 32 characters). > Status – Shows if this VLAN is enabled or disabled.

- Active: VLAN is operational.

- Suspend: VLAN is suspended; i.e., does not pass packets.

> Ports / Channel groups – Shows the VLAN interface members.

CLI – Current VLAN information can be displayed with the following command.

Console#show vlan id 1 3-101 VLAN Type Name Status Ports/Channel groups

---- ------- ---------------- --------- --------------------------1 Static DefaultVlan Active Eth1/ 1 Eth1/ 2 Eth1/ 3 Eth1/ 4

Eth1/ 5 Eth1/ 6 Eth1/ 7 Eth1/ 8 Eth1/ 9 Eth1/10 Eth1/11 Eth1/12 Eth1/13

Console#

Creating VLANs

Command Attributes > VLAN ID

– ID of configured VLAN (1-4094, no leading zeroes).

> Name – Name of the VLAN (1 to 32 characters). > Status – Shows if this VLAN is enabled or disabled (Web).

- Enable: VLAN is operational.

- Disable: VLAN is suspended; i.e., does not pass packets.

> State – Shows if this VLAN is enabled or disabled (CLI).

- Active: VLAN is operational.

- Suspend: VLAN is suspended; i.e., does not pass packets.

Web – Click VLAN/VLAN Static List. Enter the VLAN ID and VLAN name, mark the Enable checkbox to activate the VLAN, and then click Add.

CLI – This example creates a new VLAN.

Console(config)#vlan database 3-93 Console(config-vlan)#vlan 5 name R&D media ethernet state active 3-93 Console(config-vlan)#

Adding Interfaces Based on Membership Type

Command Attributes > Port

– Port identifier.

> Trunk – Trunk identifier. > VLAN – ID of configured VLAN (1-4094, no leading zeroes). > Name – Name of the VLAN (1 to 32 characters). > Status – Shows if this VLAN is enabled or disabled.

- Enable: VLAN is operational.

- Disable: VLAN is suspended; i.e., does not pass packets.

> Membership Type – Select VLAN membership for each interface by marking

the appropriate radio button for a port or trunk:

- Tagged: Interface is a member of the VLAN. All packets transmitted by the port will be tagged, that is, carry a tag and therefore carry VLAN or CoS information.

- Untagged: Interface is a member of the VLAN. All packets transmitted by the port will be untagged, that is, not carry a tag and therefore not carry VLAN or CoS information. Note that an interface must be assigned to at least one group as an untagged port.

- Forbidden: Interface is forbidden from automatically joining the VLAN via GVRP. For more information, see “GVRP” on page 81.

- None: Interface is not a member of the VLAN. Packets associated with this VLAN will not be transmitted by the interface.

> Trunk Member – Indicates if a port is a member of a trunk. To add a trunk to

the selected VLAN, use the last table on the VLAN Static Table page.

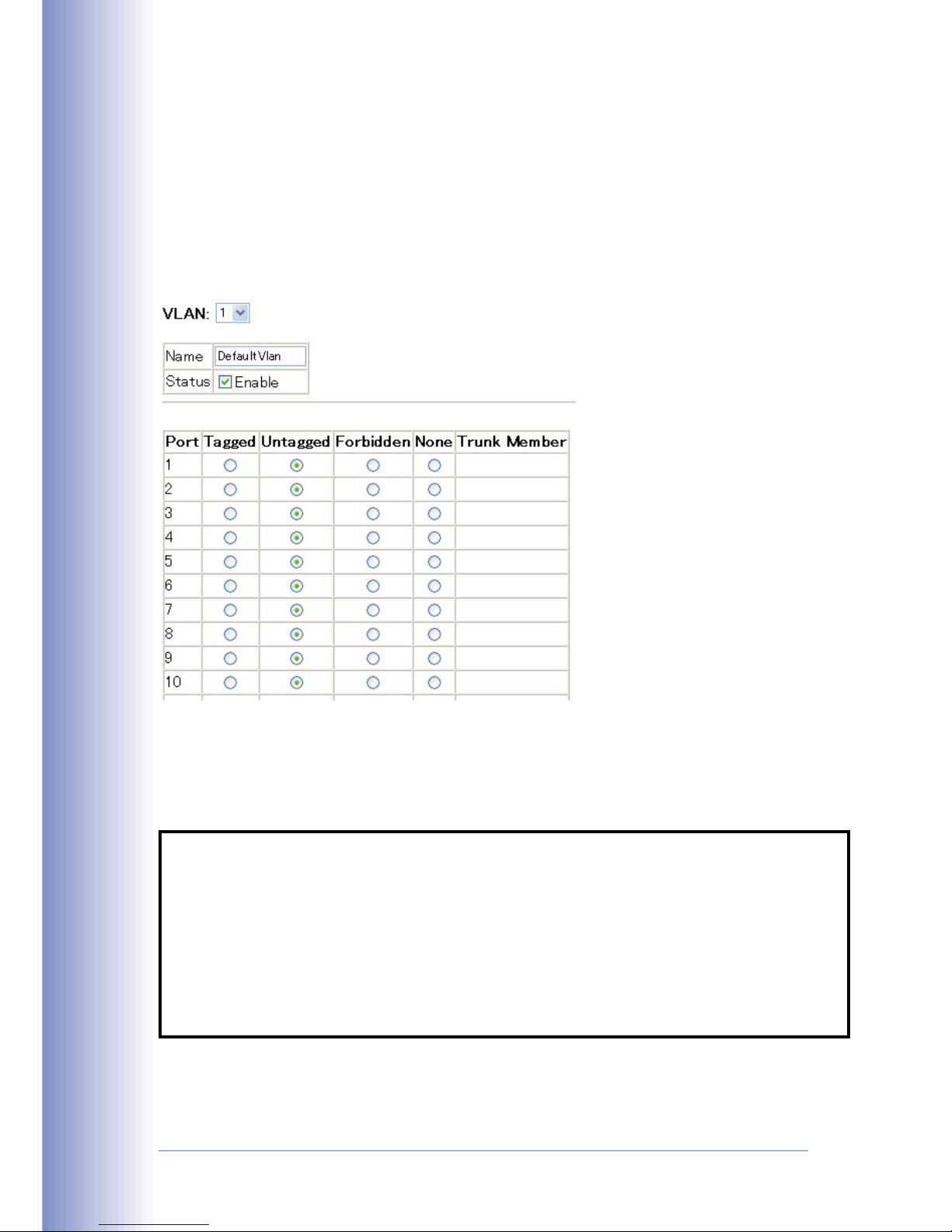

Web – Click VLAN/VLAN Static Table. Select a VLAN ID from the scroll-down

list. Modify the VLAN name and status if required. Select the membership type by marking the appropriate radio button in the list of ports or trunks. Click “Apply.”

CLI – This example adds the required interfaces, and then displays the VLAN members.

Console(config)#interface ethernet 1/1 3-68 Console(config-if)#switchport allowed vlan add 2 tagged 3-99 Console(config-if)#exit Console(config)#interface ethernet 1/2 Console(config-if)#switchport allowed vlan add 2 untagged Console(config-if)#exit Console(config)#interface ethernet 1/13 Console(config-if)#switchport allowed vlan add 2 tagged

Adding Interfaces Based on Static Membership

Command Attributes > Interface

– Port or trunk identifier.

> Member – VLANs for which the selected interface is a tagged member. > Non-Member – VLANs for which the selected interface is not a tagged mem-

ber.

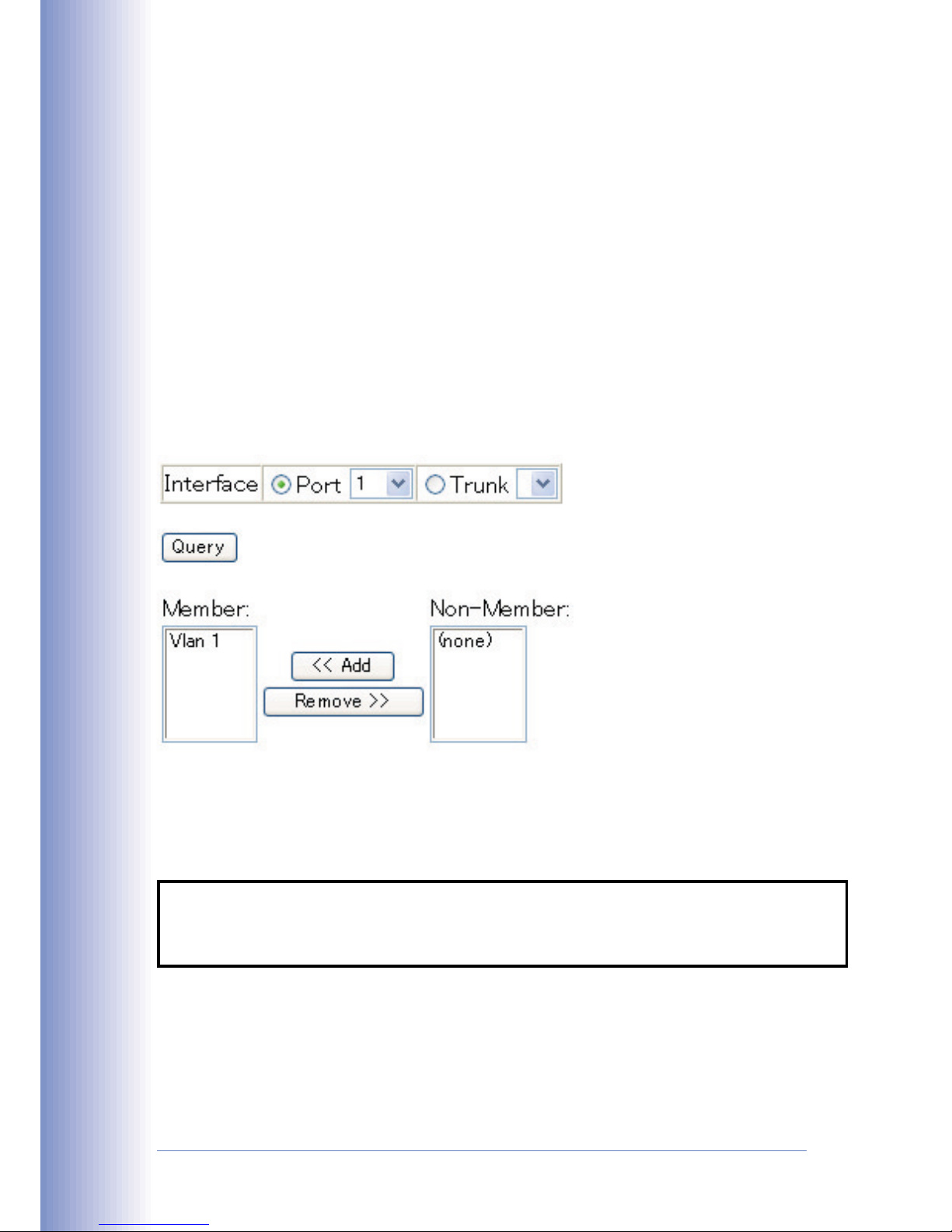

Web – Open VLAN/VLAN Static Membership. Select an interface from the scrolldown box (Port or Trunk). Click “Query” to display VLAN membership information for the interface. Select a VLAN ID, and then click “Add” to add the interface as a tagged member, or click “Remove” to remove the interface. After configuring VLAN membership for each interface, click “Apply.”

CLI – This example adds Port 3 to VLAN 1 as a tagged port, and removes Port 3 from VLAN 2.

Console(config)#interface ethernet 1/3 3-68 Console(config-if)#switchport allowed vlan add 1 tagged 3-99 Console(config-if)#switchport allowed vlan remove 2

Configuring VLAN Behavior for Interfaces

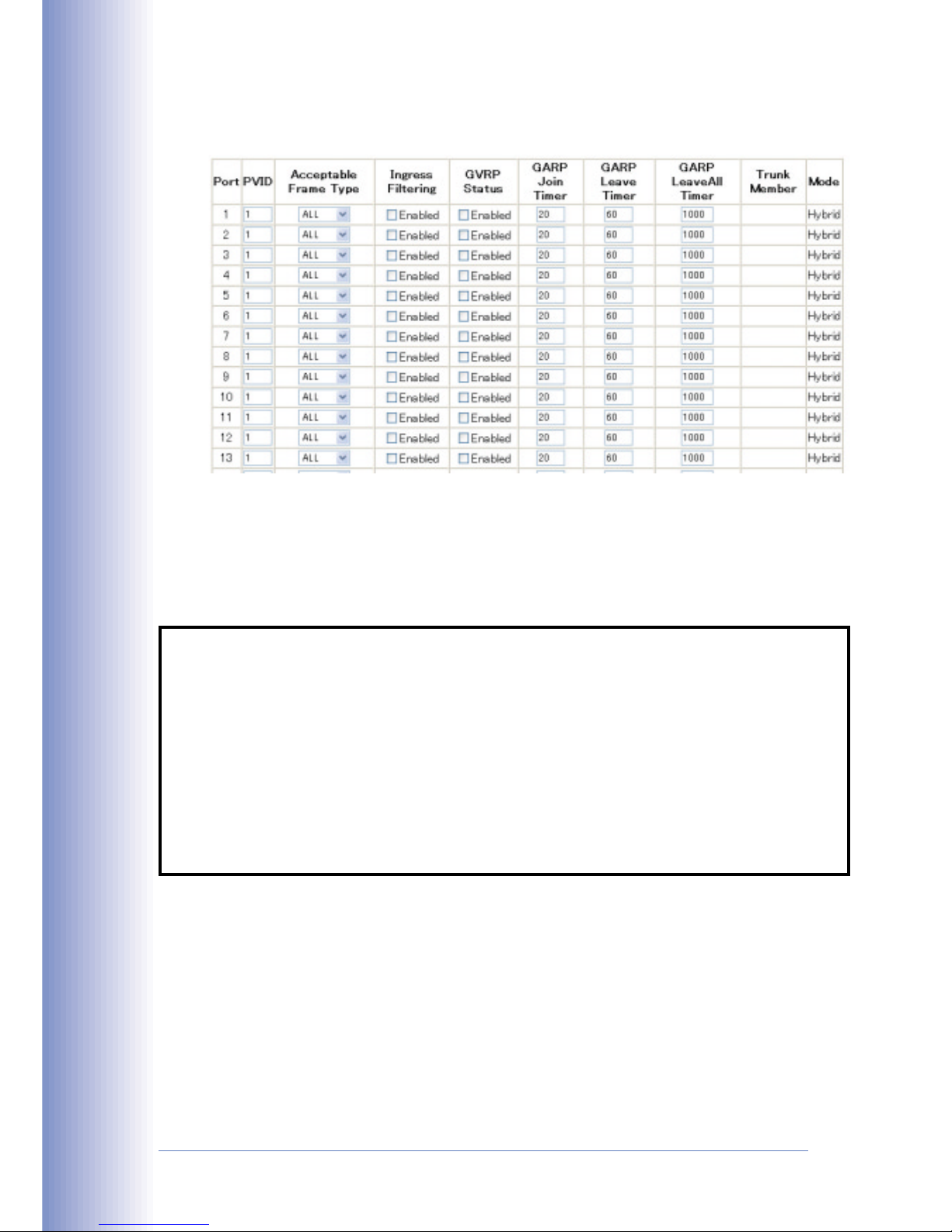

You can configure VLAN behavior for specific interfaces, including the default VLAN identifier (PVID), accepted frame types, ingress filtering, GVRP status, and GARP timers.

Command Usage > GVRP

– GARP VLAN Registration Protocol defines a way for switches to exchange VLAN information in order to automatically register VLAN members on interfaces across the network.

> GARP – Group Address Registration Protocol is used by GVRP to register or

deregister client attributes for client services within a bridged LAN. The default values for the GARP timers are independent of the media access method or data rate. These values should not be changed unless you are experiencing difficulties with GVRP registration/deregistration.

Command Attributes > PVID

– The VLAN ID assigned to untagged frames received on the interface. If the (CLI) switchport mode is set to trunk (see page 3-95), the PVID will be inserted into all untagged frames sent from a tagged port. (Default: 1)

> Acceptable Frame Type – Sets the interface to accept all frame types, includ-

ing tagged or untagged frames, or only tagged frames. If only tagged frames are accepted, the switch will only accept frames if the frame tag matches a VLAN to which this interface has been assigned. (Default: All)

> Ingress Filtering – If ingress filtering is enabled, incoming frames for VLANs

which do not include this ingress port in their member set will be discarded at the ingress port. This will not affect VLAN independent BPDU frames, such as GVRP or STP. (Default: Disabled)•

> GVRP Status – Enables/disables GVRP for the interface. GVRP must be glob-

ally enabled for the switch before this setting can take effect. (See “Displaying Bridge Extension Capabilities” on page 2-19.) When disabled, any GVRP packets received on this port will be discarded and no GVRP registrations will be propagated from other ports. (Default: Enabled)

> GARP Join Timer – The interval between transmitting requests/ queries to

participate in a VLAN group. (Default: 20 centiseconds)

> GARP Leave Timer – The interval a port waits before leaving a VLAN group.

This time should be set to more than twice the join time. This ensures that after a Leave or LeaveAll message has been issued, the applicants can rejoin before the port actually leaves the group. (Default: 60 centiseconds)

> GARP LeaveAll Timer – The interval between sending out a LeaveAll query

message for VLAN group participants and the port leaving the group. This interval should be considerably larger than the Leave Time to minimize the amount of traffic generated by nodes rejoining the group. (Default: 1000 centiseconds)

> Trunk Member – Indicates if a port is a member of a trunk. To add a trunk to

the selected VLAN, use the last table on the VLAN Static Table page.

> Mode – Indicates VLAN membership mode for a port. (Configure via CLI, see

page 3-95.)

>> 1Q Trunk – Specifies a port as an end-point for a VLAN trunk. A trunk is a

direct link between two switches, so the port transmits and receives tagged frames that identify the source VLAN.

>> Hybrid – Specifies a hybrid VLAN interface. The port may receive or trans-

mit tagged or untagged frames. Any frames that are not tagged will be assigned to the default VLAN.

Mode and the Acceptable Fame Type are comparable parameters.

Web – Click VLAN/VLAN Port Configuration or VLAN Trunk Configuration. Fill in the required settings for each interface, click “Apply.”

CLI – This example sets port 1 to accept only tagged frames, assigns PVID 3 as the native VLAN ID, enables GVRP, sets the GARP timers, and then sets the switchport mode to hybrid.

Console(config)#interface ethernet 1/1 3-68 Console(config-if)#switchport acceptable-frame-types tagged 3-96 Console(config-if)#switchport ingress-filtering 3-97 Console(config-if)#switchport native vlan 3 3-98 Console(config-if)#switchport gvrp 3-102 Console(config-if)#garp timer join 10 3-104 Console(config-if)#garp timer leave 90 3-104 Console(config-if)#garp timer leaveall 2000 3-104 Console(config-if)#switchport mode hybrid 3-95 Console(config-if)#

12.Class of Service Configuration

Class of Service (CoS) allows you to specify which data packets have greater precedence when traffic is buffered in the switch due to congestion. This switch supports CoS with four priority queues for each port. Data packets in a port’s high-priority queue will be transmitted before those in the lower-priority queues. You can set the default priority for each interface, and configure the mapping of frame priority tags to the switch’s priority queues.

Setting the Default Priority for Interfaces

You can specify the default port priority for each interface on the switch. All untagged packets entering the switch are tagged with the specified default port priority, and then sorted into the appropriate priority queue at the output port.

Command Usage

> This switch provides four priority queues for each port. It uses Weighted Round

Robin to prevent head-of-queue blockage.

> The default priority applies if the incoming frame is an untagged frame received

from a VLAN trunk or a static-access port. This priority does not apply to IEEE

802.1Q VLAN tagged frames. If the incoming frame is an IEEE 802.1Q VLAN

tagged frame, the IEEE 802.1p User Priority bits will be used. > If the output port is an untagged member of the associated VLAN, these frames are stripped of all VLAN tags prior to transmission.

Command Attributes

> Default Priority – The priority that is assigned to untagged frames received on

the specified port. (Range: 0 - 7, Default: 0) > Number of Egress Traffic Classes – The number of queue buffers provided for

each port.

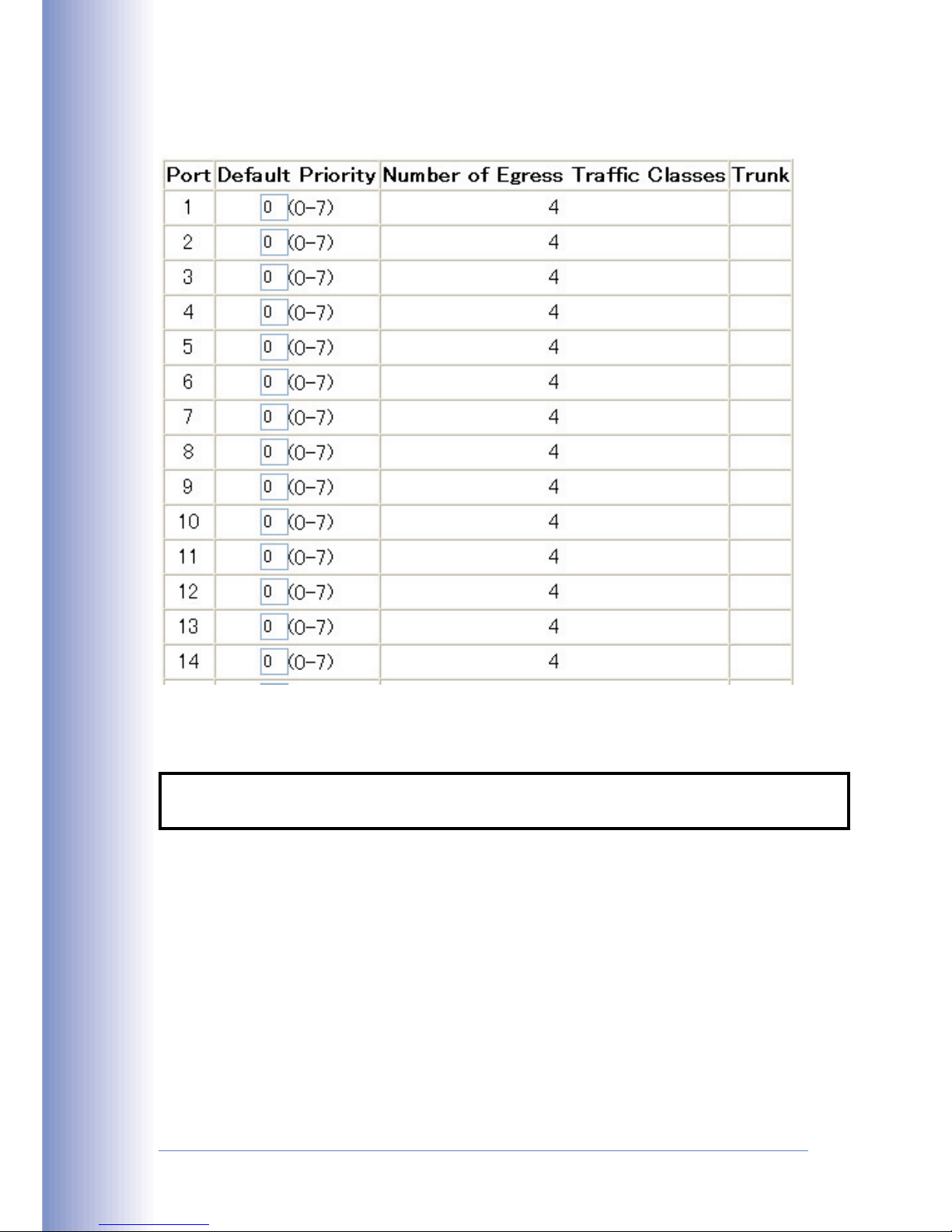

Web – Click Priority/Default Port Priority or Default Trunk Priority. Modify the default priority for any interface, then click “Apply.”

CLI – This example assigns a default priority or 5 to port 3.

Console(config)#interface ethernet 1/3 3-68

Console(config-if)#switchport priority default 5 3-118

Mapping CoS Values to Egress Queues

This switch processes Class of Service (CoS) priority tagged traffic by using four priority queues for each port, with service schedules based on Weighted Round Robin (WRR). Up to 8 separate traffic priorities are defined in IEEE 802.1p. The default priority levels are assigned according to recommendations in the IEEE

802.1p standard as shown in the following table.

Queue

0 1 2 3

0 1 2

Priority 3

6 7

The priority levels recommended in the IEEE 802.1p standard for various network applications are shown in the following table. However, you can map the priority levels to the switch’s output queues in any way that benefits application traffic for your own network.

Priority Level Traffic Type

1 Background 2 (Spare) 0 (default) Best Effort 3 Excellent Effort 4 Controlled Load 5 Video, less than 100 milliseconds latency and jitter 6 Voice, less than 10 milliseconds latency and jitter 7 Network Control

> Priority – CoS value. (Range: 0 to 7, where 7 is the highest priority) > Traffic Class – Output queue buffer. (Range: 0 - 3, where 3 is the highest CoS

priority queue)

Web – Click Priority/Traffic Classes. Assign priorities to the output queues, then click “Apply.”

CLI – The following example shows how to map CoS values 0, 1 and 2 to CoS priority queue 0, value 3 to CoS priority queue 1, values 4 and 5 to CoS priority queue 2, and values 6 and 7 to CoS priority queue 3.

Console(config)#interface ethernet 1/1 3-68 Console(config)#queue cos-map 0 0 1 2 3-120 Console(config)#queue cos-map 1 3 Console(config)#queue cos-map 2 4 5 Console(config)#queue cos-map 3 6 7 Console(config)#exit Console#show queue cos-map ethernet 1/1 3-122 Information of Eth 1/1 Queue ID Traffic class

-------- ------------0 0 1 2 1 3 2 45 3 67 Console#

Setting the Service Weight for Traffic Classes

This switch uses the Weighted Round Robin (WRR) algorithm to determine the frequency at which it services each priority queue. As described in “Mapping CoS Values to Egress Queues” on page 2-53, the traffic classes are mapped to one of the four egress queues provided for each port. You can assign a weight to each of these queues (and thereby to the corresponding traffic priorities). This weight sets the frequency at which each queue will be polled for service, and subsequently affects the response time for software applications assigned a specific priority value.

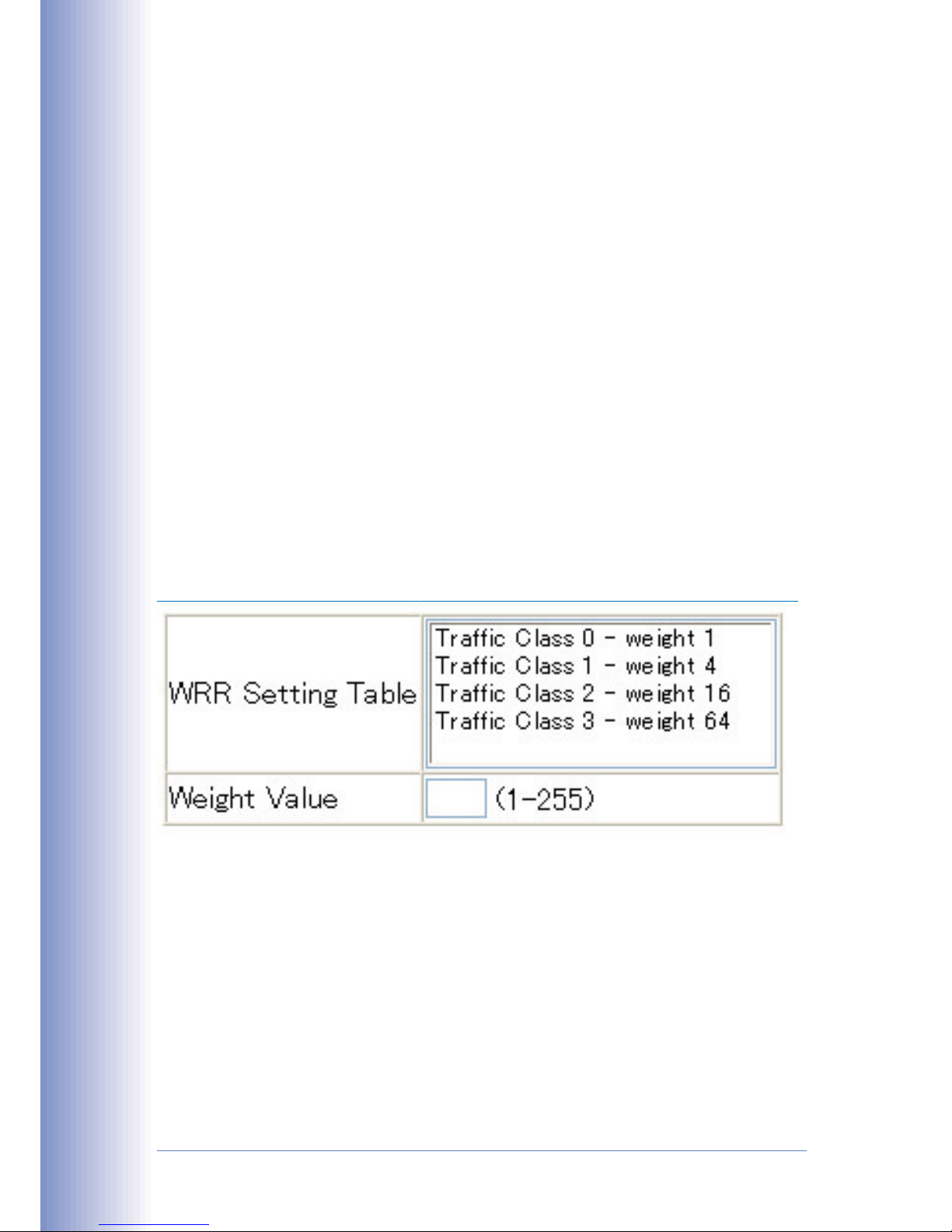

Command Attributes > WRR Setting Table

– Displays a list of weights for each traffic class (i.e.,

queue).

> Weight Value – Set a new weight for the selected traffic class.

Web – Open Priority/Queue Scheduling. Select a traffic class by clicking on it

with your cursor, enter a weight value, and then click “Apply.”

CLI – The following example shows how to assign WRR weights of 1, 4, 16 and 64 to the CoS priority queues 0, 1, 2 and 3.

Console(config)#queue bandwidth 1 4 16 64 3-119 Console(config)#exit Console#show queue bandwidth 3-122 Queue ID Weight

-------- -----0 1 1 4 2 16 3 64

Console#

Mapping Layer 3/4 Priorities to CoS Values

This switch supports a common method of prioritizing layer 3/4 traffic to meet application requirements. Traffic priorities can be specified in the IP header of a frame, using the priority bits in the Type of Service (ToS) octet. The ToS octet may contain three bits for IP Precedence or six bits for Differentiated Services Code Point (DSCP) service. When these services are enabled, the priorities are mapped to a Class of Service value by the switch, and the traffic then sent to the corresponding output queue.

Because different priority information may be contained in the traffic, this switch maps priority values to the output queues in the following manner:

> The precedence for priority mapping is IP Precedence or DSCP Priority and

then Default Port Priority.

> IP Precedence and DSCP Priority cannot both be enabled. Enabling one of

these priority types will automatically disable the other.

> IP Precedence and DSCP Priority settings are global and apply to all ports on

the switch.

Mapping IP Precedence

The Type of Service (ToS) octet in the IPv4 header includes three precedence bits defining eight different priority levels ranging from highest priority for network control packets to lowest priority for routine traffic. The default IP Precedence values are mapped one-to-one to Class of Service values (i.e., Precedence value 0 maps to CoS value 0, and so forth). Bits 6 and 7 are used for network control, and the other bits for various application types. ToS bits are defined in the following table.

Priority Level Traffic Type

7 Network Control 6 Internetwork Control 5 Critical 4 Flash O verride 3 Flash 2 Immediate 1 Priority 0 Routine

Command Attributes

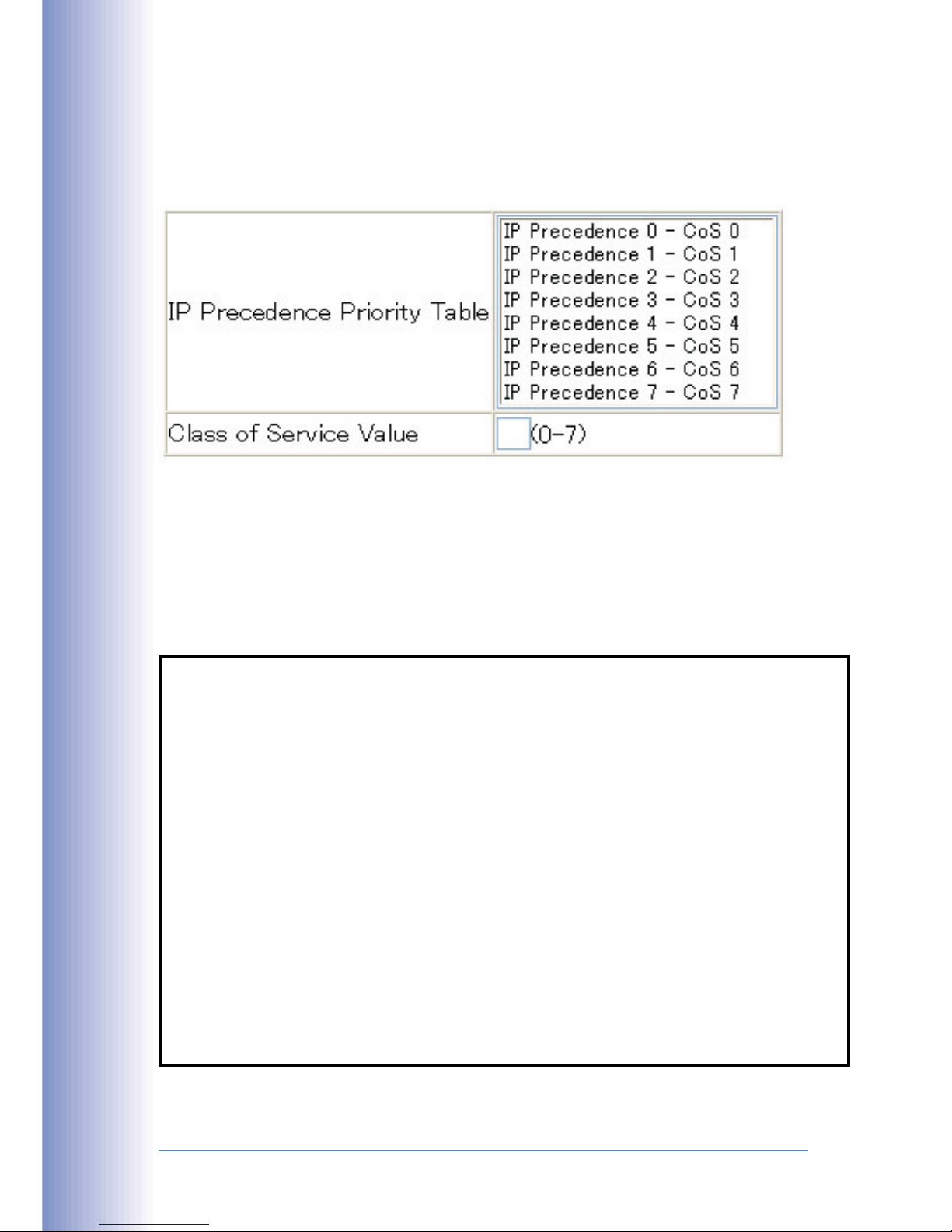

> IP Precedence/DSCP Priority Status – Selects IP Precedence, DSCP, or dis-

ables both priority services. > IP Precedence Priority Table – Shows the IP Precedence to CoS map. > Class of Service Value – Maps a CoS value to the selected IP Precendence

value. Note that “0” represents low priority and “7” represent high priority.

Web – Click Priority/IP Precedence Priority. Select “IP Precedence” from the IP Precedence/DSCP Priority Status menu. Select an IP Precedence value from the IP Precedence Priority Table by clicking on it with your cursor, enter a value in the Class of Service Value field, and then click “Ap pl y. ”

CLI – The following example globally enables IP Precedence service on the switch, maps IP Precedence value 1 to CoS value 0 on port 5, and then displays all the IP Precedence settings for that port. (Note that the setting is global and applies to all ports on the switch.)

Console(config)#map ip precedence 3-123

Console(config)#interface ethernet 1/5 3-68

Console(config-if)#map ip precedence 1 cos 0 3-124

Console(config-if)#end

Console#show map ip precedence ethernet 1/5 3-127

Precedence mapping status: disabled

Port Precedence COS

--------- ---------- ---Eth

1/ 5 0 0

Eth 1/ 5 1 0

Eth 1/ 5 2 2

Eth 1/ 5 3 3

Eth 1/ 5 4 4

Eth 1/ 5 5 5

Eth 1/ 5 6 6

Eth 1/ 5 7 7

Console#

Mapping DSCP Priority

The DSCP is six bits wide, allowing coding for up to 64 different forwarding behaviors. The DSCP replaces the ToS bits, and it retains backward compatibility with the three precedence bits so that non-DSCP compliant, ToS-enabled devices, will not conflict with the DSCP mapping. Based on network policies, different kinds of traffic can be marked for different kinds of forwarding. The DSCP default values are defined in the following table. Note that all the DSCP values that are not specified are mapped to CoS value 0.

IP DSCP Value CoS Value

0 0 8 1 10, 12, 14, 16 2 18, 20, 22, 24 3 26, 28, 30, 32, 34, 36 4 38, 40, 42 5 48 6 46, 56 7

Command Attributes > IP Precedence/DSCP Priority Status

– Selects IP Precedence, DSCP, or dis-

ables both priority services.

> DSCP Priority Table – Shows the DSCP Priority to CoS map. > Class of Service Value – Maps a CoS value to the selected DSCP Priority

value. Note that “0” represents low priority and “7” represent high priority.

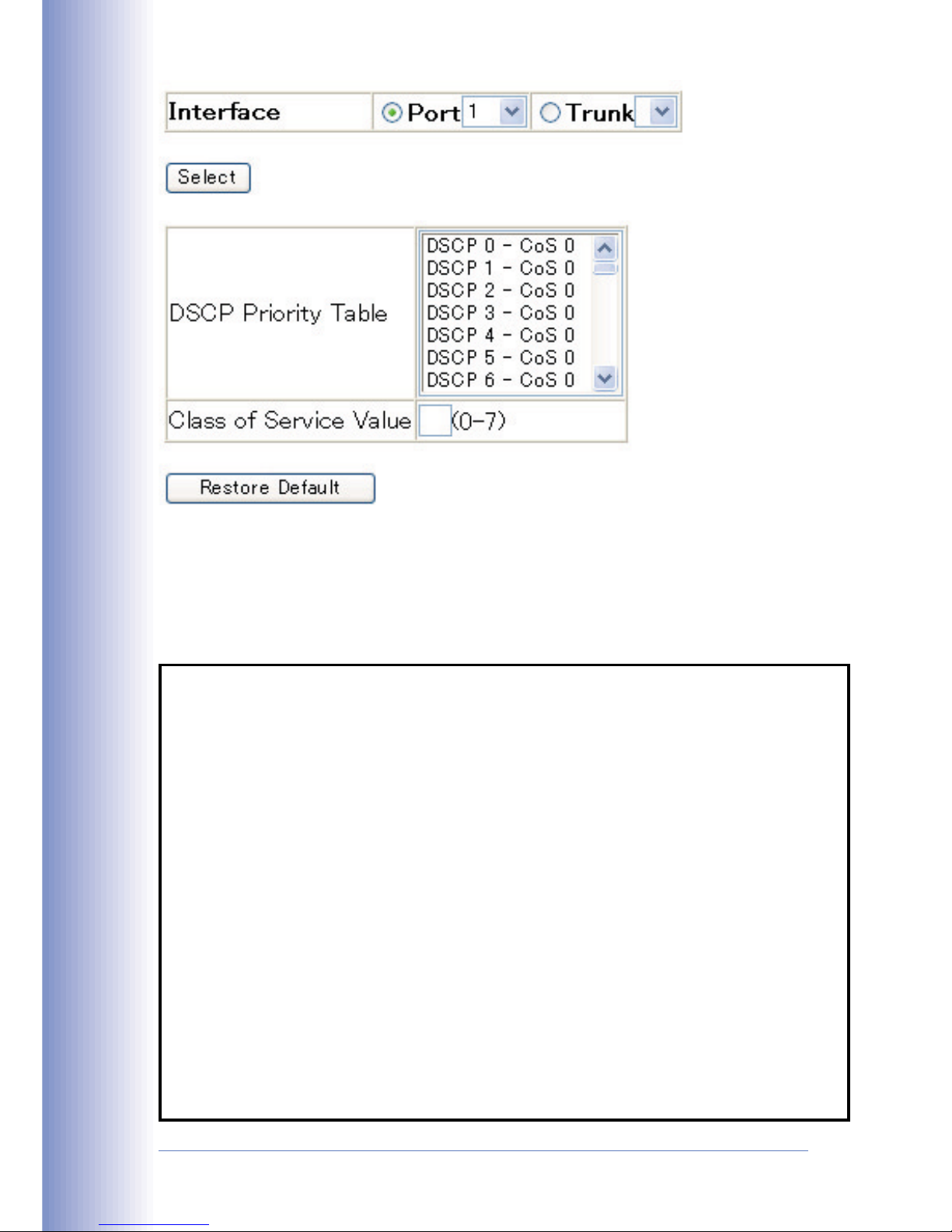

Web – Click Priority/IP DSCP Priority. Select “IP DSCP” from the IP Precedence/DSCP Priority Status menu. Select a DSCP priority value from the DSCP Priority Table by clicking on it with your cursor, enter a value in the Class of Service Value field, and then click “Apply.”

CLI – The following example globally enables DSCP Priority service on the switch, maps DSCP value 1 to CoS value 0 on port 5, and then displays all the DSCP Priority settings for that port. (Note that the setting is global and applies to all ports on the switch.)

Console(config)#map ip dscp 3-125

Console(config)#interface ethernet 1/5 3-68

Console(config-if)#map ip dscp 1 cos 0 3-126

Console(config-if)#end

Console#show map ip dscp ethernet 1/5 3-128

DSCP mapping status: disabled

Port DSCP COS

--------- ---- ---

Eth 1/ 5 0 0

Eth 1/ 5 1 0

Eth 1/ 5 2 0

Eth 1/ 5 3 0

Eth 1/ 5 6 1 0

Eth 1/ 5 62 0

Eth 1/ 5 63 0

Console#

13.Port Trunk Configuration

Ports can be combined into an aggregate link to increase the bandwidth of a network connection where bottlenecks exist or to ensure fault recovery. You can create up to six trunks at a time, with any single trunk containing up to four ports. The switch supports both static trunking and dynamic LACP (Link Aggregation Control Protocol). LACP configured ports can automatically negotiate a trunked link with LACP-configured ports on another device. You can enable LACP on any port that is not already a member of a static trunk. If LACP is also enabled for the connected ports on another device, the switch and the other device will automatically create a trunked link.

Besides balancing the load across each port in the trunk, the other ports provide redundancy by taking over the load if a port in the trunk fails. However, before making any physical connections between devices, use the Web interface or CLI to specify the trunk on the devices at both ends. When using a port trunk, take note of the following points:

> Finish configuring port trunks before you connect the corresponding network

cables between switches to avoid creating a loop. > The ports at both ends of a connection must be configured as trunk ports. > The ports at both ends of a trunk must be configured in an identical manner,

including communication mode (i.e., speed, duplex mode and flow control),

VLAN assignments, and CoS settings. > All ports on both ends of an LACP trunk must be configured for full duplex,

either by forced mode or auto-negotiation. > All the ports in a trunk have to be treated as a whole when moved from/to,

added or deleted from a VLAN. > STP, VLAN, and IGMP settings can only be made for the entire trunk.

Dynamically Configuring a Trunk with LACP

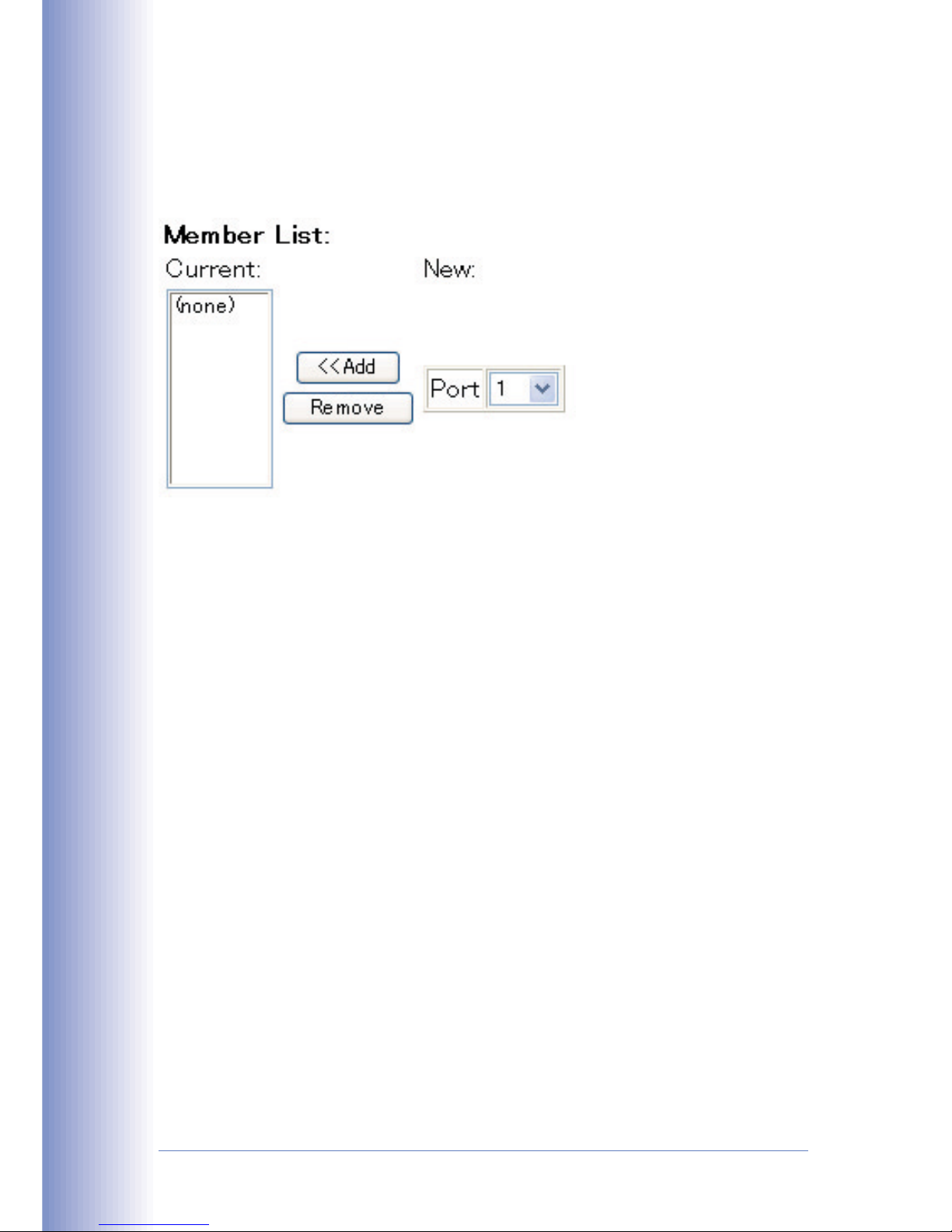

Web – Click Trunk/LACP Configuration. Select any of the switch ports from the scroll-down port list and click “Add.” After you have completed adding ports to the member list, click “Apply.”

CLI – The following example enables LACP for ports 17 and 18. Just connect these ports to two LACP-enabled trunk ports on another switch to form a trunk.

Console(config)#interface ethernet 1/17 3-68 Console(config-if)#lacp 3-133 Console(config-if)#exit Console(config)#interface ethernet 1/18 Console(config-if)#lacp Console(config-if)#end Console#show interfaces status port-channel 1 3-75 Information of Trunk 1 Basic information: Port type: 1000t Mac address: 22-22-22-22-22-2d Configuration: Name: Port admin status: Up Speed-duplex: Auto Capabilities: 10half, 10full, 100half, 100full, 1000full, Flow control status: Disabled Current status: Created by: Lacp Link status: Up Port operation status: Up Operation speed-duplex: 1000full Flow control type: None Member Ports: Eth1/17, Eth1/18, Console#

Statically Configuring a Trunk

Web – Click Trunk/Trunk Configuration. Enter a trunk ID of 1-6 in the Trunk field, select any of the switch ports from the scroll-down port list, and click “Add.” After you have completed adding ports to the member list, click “Apply.”

CLI – This example creates trunk 1 with ports 11 and 12. Just connect these ports to two static trunk ports on another switch to form a trunk.

Console(config)#interface port-channel 1 3-68 Console(config-if)#exit Console(config)#interface ethernet 1/11 3-68 Console(config-if)#channel-group 1 3-132 Console(config-if)#exit Console(config)#interface ethernet 1/12 Console(config-if)#channel-group 1 Console(config-if)#end Console#show interfaces status port-channel 1 3-75 Information of Trunk 1 Basic information: Port type: 1000t Mac address: 22-22-22-22-22-2c Configuration: Name: Port admin status: Up Speed-duplex: Auto Capabilities: 10half, 10full, 100half, 100full, 1000full, Flow control status: Disabled Current status: Created by: User Link status: Up Port operation status: Up Operation speed-duplex: 1000full Flow control type: None Member Ports: Eth1/11, Eth1/12, Console#

14.Configuring SNMP

The switch includes an onboard agent that continuously monitors the status of its hardware, as well as the traffic passing through its ports, based on the Simple Network Management Protocol (SNMP). A network management station can access this information using software such as EliteView. Access rights to the onboard agent are controlled by community strings. To communicate with the switch, the management station must first submit a valid community string for authentication. The options for configuring community strings and related trap functions are described in the following sections.

Setting Community Access Strings

You may configure up to five community strings authorized for management access. For security reasons, you should consider removing the default strings.

Command Attributes

Community String – A community string that acts like a password and permits access to the SNMP protocol.

Access Mode > Read-Only

– Specifies read-only access. Authorized management stations are

only able to retrieve MIB objects.

> Read/Write – Specifies read-write access. Authorized management stations

are able to both retrieve and modify MIB objects.

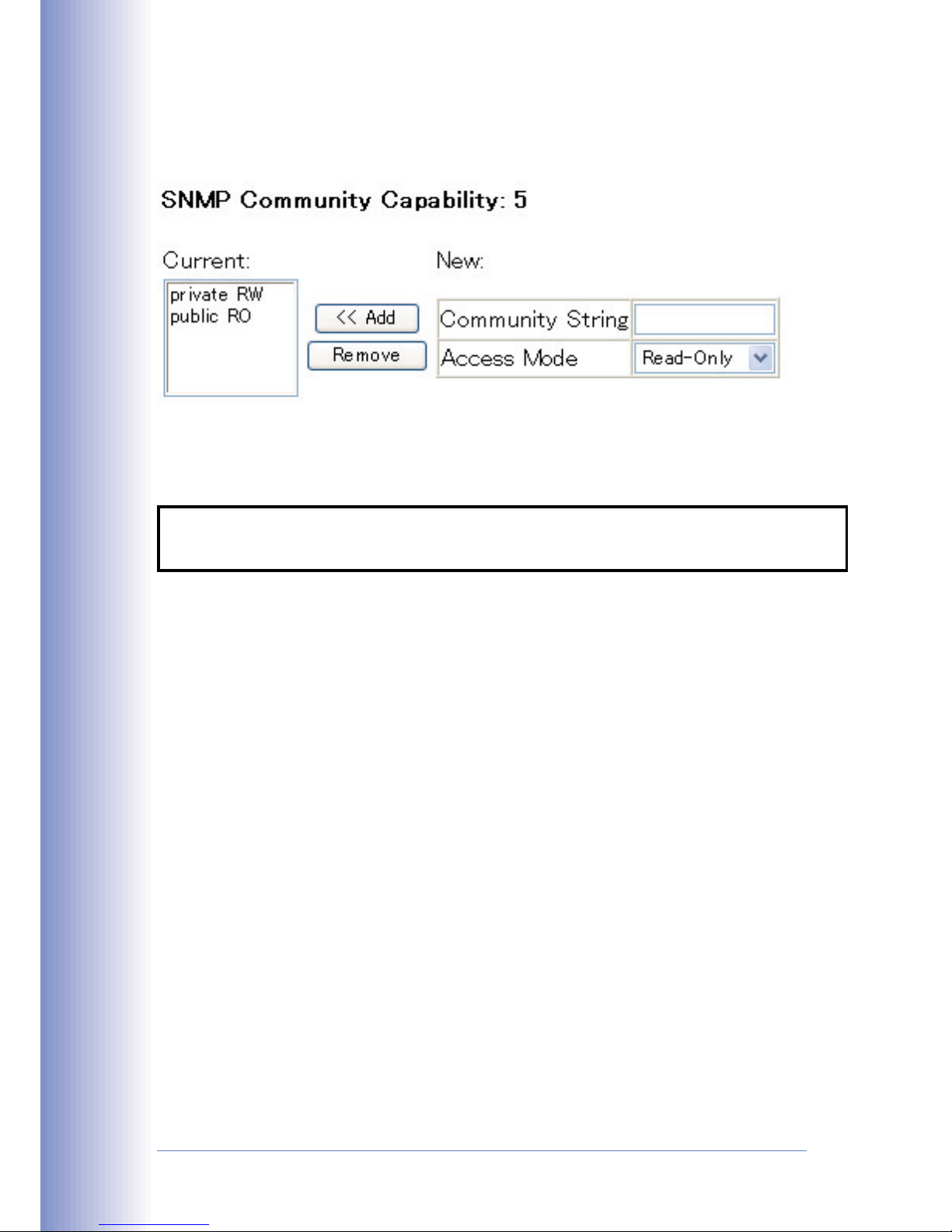

Web – Click SNMP/SNMP Configuration. Enter a new string in the Community String box and select the access rights from the Access Mode drop-down list, then click “Add.”

CLI – The following example adds the string “spiderman” with read/write access.

Console(config)#snmp-server community spiderman rw 3-44 Console(config)#

Specifying Trap Managers

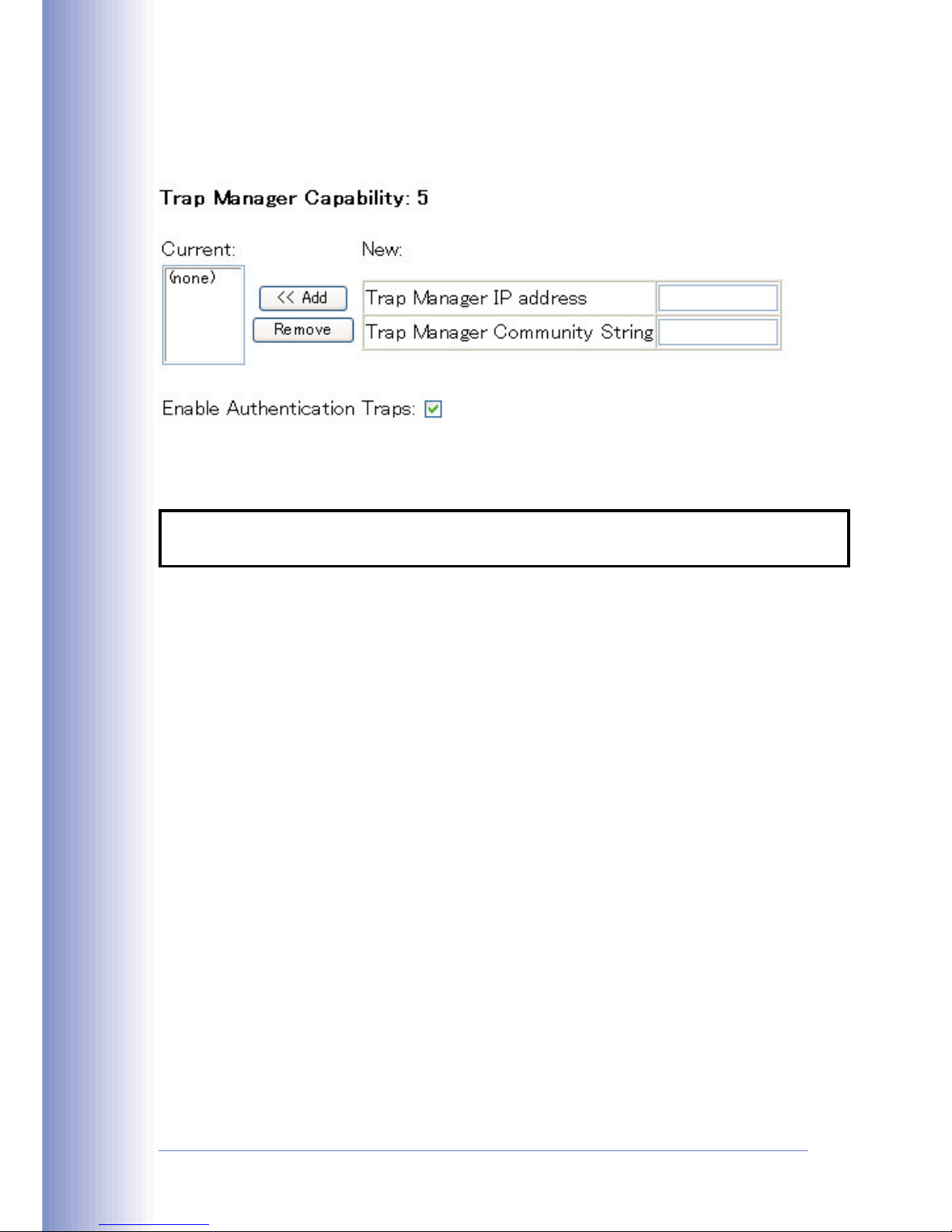

You can specify up to five management stations that will receive authentication failure messages and other trap messages from the switch.

Command Usage

> You can enable or disable authentication messages via the Web interface. > You can enable or disable authentication messages, link-up-down messages,

or all notification types via the CLI.

Web – Click SNMP/SNMP Configuration. Fill in the Trap Manager IP Address box and the Trap Manager Community String box, mark Enable Authentication Traps if required, and then click “Add.”

CLI – This example adds a trap manager and enables authentication traps.

Console(config)#snmp-server host 10.1.19.23 batman 3-46

Console(config)#snmp-server enable traps authentication 3-48

15.Multicast Configuration

Multicasting is used to support real-time applications such as video conferencing or streaming audio. A multicast server does not have to establish a separate connection with each client. It merely broadcasts its service to the network, and any hosts that want to receive the multicast register with their local multicast switch/router. Although this approach reduces the network overhead required by a multicast server, the broadcast traffic must be carefully pruned at every multicast switch/router it passes through to ensure that traffic is only passed on the hosts which subscribed to this service.

This switch uses IGMP (Internet Group Management Protocol) to query for any attached hosts that want to receive a specific multicast service. It identifies the ports containing hosts requesting to join the service and sends data out to those ports only. It then propagates the service request up to any neighboring multicast switch/router to ensure that it will continue to receive the multicast service. This procedure is called multicast filtering.

The purpose of IP multicast filtering is to optimize a switched network’s performance, so multicast packets will only be forwarded to those ports containing multicast group hosts or multicast routers/switches, instead of flooding traffic to all ports in the subnet (VLAN).

Configuring IGMP Parameters

You can configure the switch to forward multicast traffic intelligently. Based on the IGMP query and report messages, the switch forwards traffic only to the ports that request multicast traffic. This prevents the switch from broadcasting the traffic to all ports and possibly disrupting network performance.

Command Usage > IGMP Snooping

– This switch can passively snoop on IGMP Query and Report packets transferred between IP multicast routers/switches and IP multicast host groups to identify the IP multicast group members. It simply monitors the IGMP packets passing through it, picks out the group registration information, and configures multicast filters accordingly.

> IGMP Query – A router, or multicast-enabled switch, can periodically ask their

hosts if they want to receive multicast traffic. If there is more than one router/switch on the LAN performing IP multicasting, one of these devices is elected “querier” and assumes the role of querying the LAN for group members. It then propagates the service requests on to any adjacent multicast switch/router to ensure that it will continue to receive the multicast service.

Multicast routers use this information, along with a multicast routing protocol such as DVMRP, to support IP multicasting across the Internet.

Command Attributes > IGMP Status

— When enabled, the switch will monitor network traffic to determine which hosts want to receive multicast traffic. This is also referred to as IGMP Snooping. (Default: Disabled)

> Act as IGMP Querier — When enabled, the switch can serve as the Querier,

which is responsible for asking hosts if they want to receive multicast traffic. (Default: Disabled)

> IGMP Query Count — Sets the maximum number of queries issued for which

there has been no response before the switch takes action to solicit reports. (Default: 2, Range: 2 - 10)

> IGMP Query Interval — Sets the frequency (in seconds) at which the switch

sends IGMP host-query messages. (Default: 125, Range: 60

- 125)

> IGMP Report Delay — Sets the time (in seconds) between receiving an IGMP

Report for an IP multicast address on a port before the switch sends an IGMP Query out of that port and removes the entry from its list. (Default: 10, Range: 5 - 30)

> Query Timeout — Sets the time (in seconds) the switch waits after the previ-

ous querier has stopped querying before it takes over as the querier. (Default: 300 seconds, Range: 300 - 500)

> IGMP Version — Sets the protocol version for compatibility with other devices

on the network. (Default: 2, Range: 1 - 2)

1. All systems on the subnet must support the same version.

2. Some attributes are only enabled for IGMPv2, including IGMP Report Delay and IGMP Query Timeout.

Web – Click IGMP/IGMP Configuration. Adjust the IGMP settings as required, and then click “Apply.” (The default settings are shown below.)

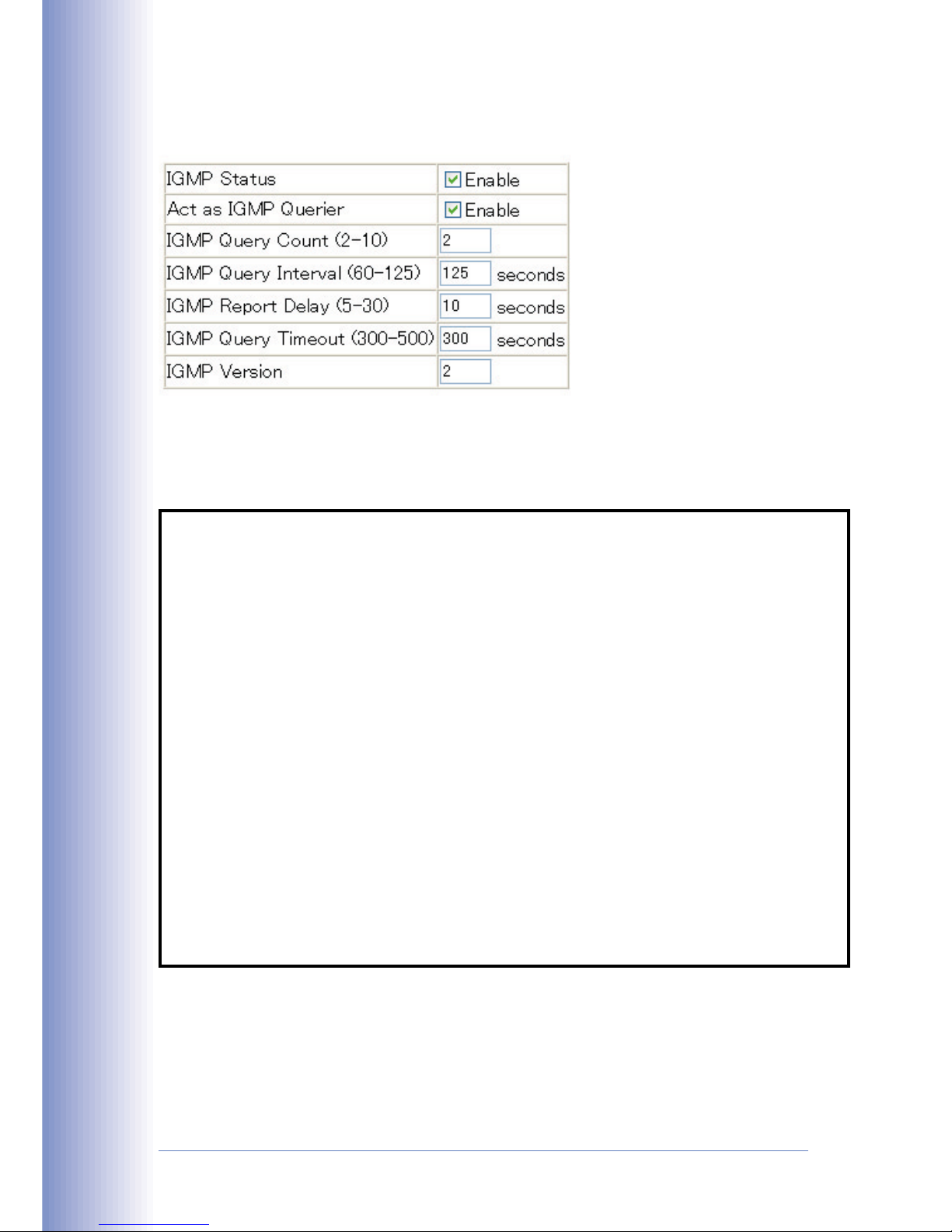

CLI – This example modifies the settings for multicast filtering, and then displays the current status.

Console(config)#ip igmp snooping 3-108 Console(config)#ip igmp snooping querier 3-112 Console(config)#ip igmp snooping query-count 10 3-112 Console(config)#ip igmp snooping query-interval 100 3-113 Console(config)#ip igmp snooping query-max-response-time 20 3-114 Console(config)#ip igmp snooping query-time-out 300 3-114 Console(config)#ip igmp snooping version 2 3-109 Console(config)#exit Console#show ip igmp snooping 3-110 Igmp Snooping Configuration

---------------------------------------------Service status : Enabled Querier status : Enabled Query count : 10 Query interval : 100 sec Query max response time : 20 sec Query time-out : 300 sec IGMP snooping version : Version 2 Console#

Interfaces Attached to a Multicast Router

Multicast routers use the information obtained from IGMP Query, along with a multicast routing protocol such as DVMRP, to support IP multicasting across the Internet. These routers may be dynamically discovered by the switch or statically assigned to an interface on the switch.

DDiisspp llaayyiinngg II nn tt ee rrffaa cc ee ss AAtt tt aa cchhee dd tt oo aa MM uu lltt iicc aa sstt RRoouuttee rr

Command Attributes > VLAN ID

– ID of configured VLAN (1-4094).

> Multicast Router List – Multicast routers dynamically discovered by this

switch or those that are statically assigned to an interface on this switch.

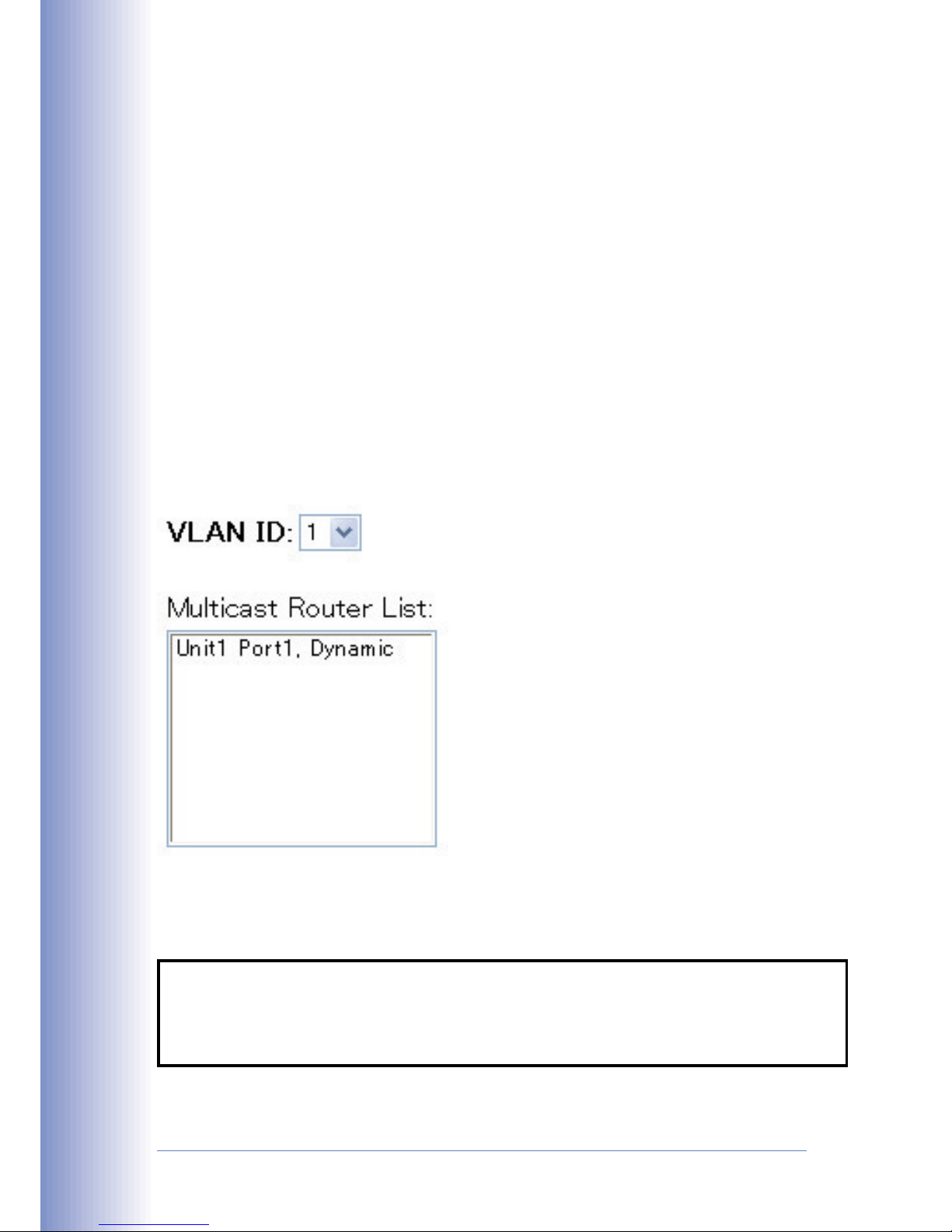

Web – Click IGMP/Multicast Router Port Information. Select the required VLAN ID from the scroll-down list to display the associated multicast routers.

CLI – This example shows that Port 11 has been statically configured as a port attached to a multicast router.

Console#show ip igmp snooping mrouter vlan 1 3-116 VLAN M'cast Router Port Type

---- ------------------ ------1 Eth 1/11 Static

SSpp ee cc iiff yy iinngg IInn tt ee rr ff aaccee ss AAtt tt aa cc hhee dd ttoo aa MM uu lltt iiccaa ss tt RRoouutt ee rr

Depending on your network connections, IGMP snooping may not always be able to locate the IGMP querier. Therefore, if the IGMP querier is a known multicast router/switch connected over the network to an interface (port or trunk) on your switch, you can manually configure that interface to join all the current multicast groups. This can ensure that multicast traffic is passed to all the appropriate interfaces within the switch.

Command Attributes > Interface

– Activates the Port or Trunk scroll down list.

> VLAN ID – Selects the VLAN to propagate all multicast traffic coming from the

attached multicast router/switch.

> Port or Trunk – Specifies the interface attached to a multicast router.

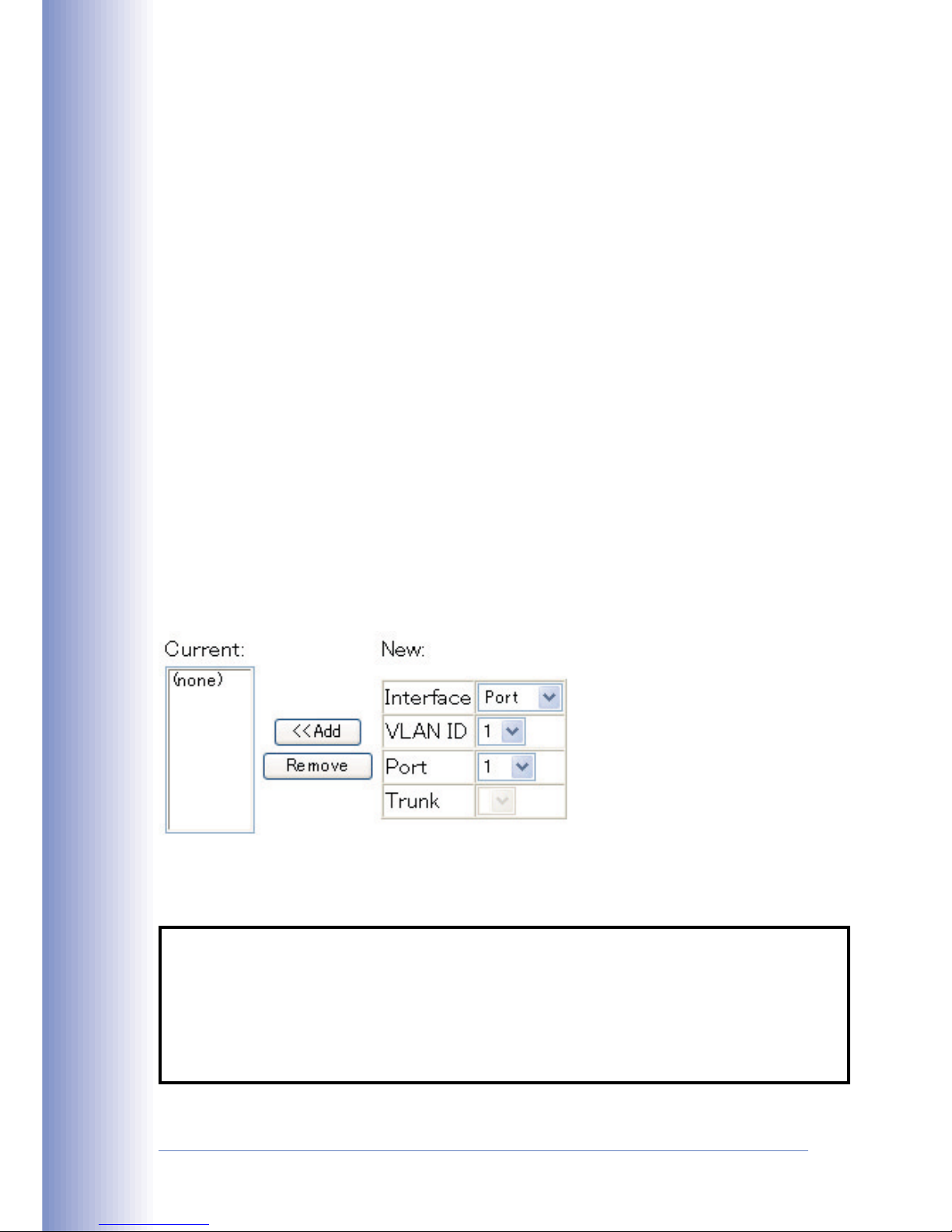

Web – Click IGMP/Static Multicast Router Port Configuration. Specify the inter-

faces attached to a multicast router, indicate the VLAN which will forward all the corresponding multicast traffic, and then click “Add.” After you have completed adding interfaces to the list, click “Apply.”

CLI – This example configures port 11 as a multicast router port within VLAN 1.

Console(config)#ip igmp snooping vlan 1 mrouter ethernet 1/11 3-115 Console(config)#exit Console#show ip igmp snooping mrouter vlan 1 3-116 VLAN M'cast Router Port Type

---- ------------------ ------1 Eth 1/11 Static

Displaying Port Members of Multicast Services

You can display the port members associated with a specified VLAN and multicast IP address.

Command Attribute > VLAN ID

– Selects the VLAN in which to display port members.

> Multicast IP Address – The IP address for a specific multicast service > Multicast Group Port List – Ports propagating a multicast service; i.e., ports

that belong to the indicated VLAN group.

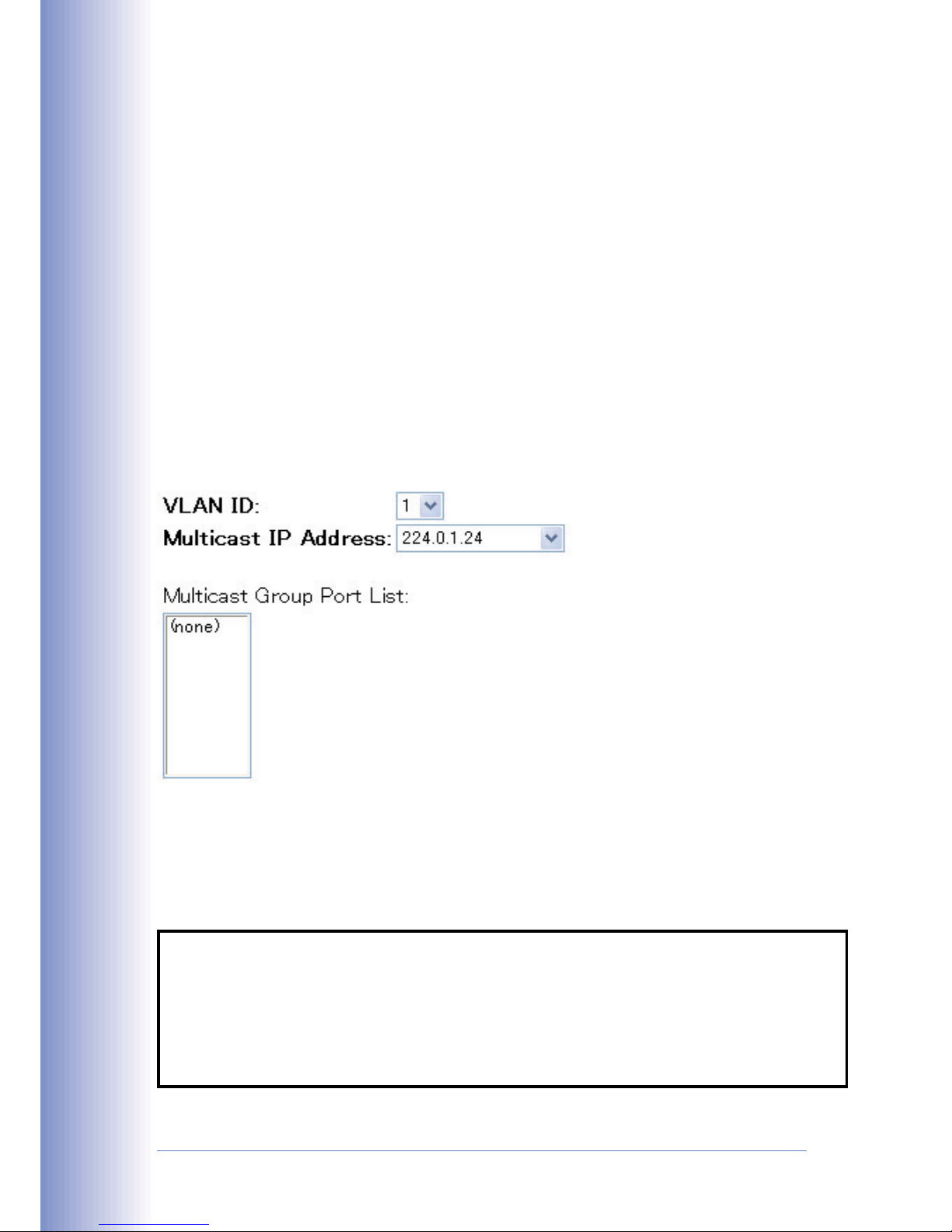

Web – Click IGMP/IP Multicast Registration Table. Select the VLAN ID and multicast IP address. The switch will display all the ports that are propagating this multicast service.

CLI – This example displays all the known multicast services supported on VLAN 1, along with the ports propagating the corresponding services. The type field shows if this entry was learned dynamically or was statically configured.

Console#show bridge 1 multicast vlan 1 3-111 VLAN M'cast IP addr. Member ports Type

---- --------------- ------------ ------1 224.0.0.12 Eth1/12 USER 1 224.1.2.3 Eth1/12 IGMP Console#

Adding Multicast Addresses to VLANs

Multicast filtering can be dynamically configured using IGMP Snooping and IGMP Query messages as described in “Configuring IGMP Parameters” on page 2-68. For certain application that require tighter control, you may need to statically configure a multicast service on the switch. First add all the ports attached to participating hosts to a common VLAN, and then assign the multicast service to that VLAN group.

Command Usage

> Static multicast addresses are never aged out. > When a multicast address is assigned to specific VLAN, the corresponding traf-

fic can only be forwarded to ports within that VLAN.

Command Attribute > Interface

– Activates the Port or Trunk scroll down list.

> VLAN ID – Selects the VLAN to propagate all multicast traffic coming from the

attached multicast router/switch.

> Multicast IP – The IP address for a specific multicast service > Port or Trunk – Specifies the interface attached to a multicast router.

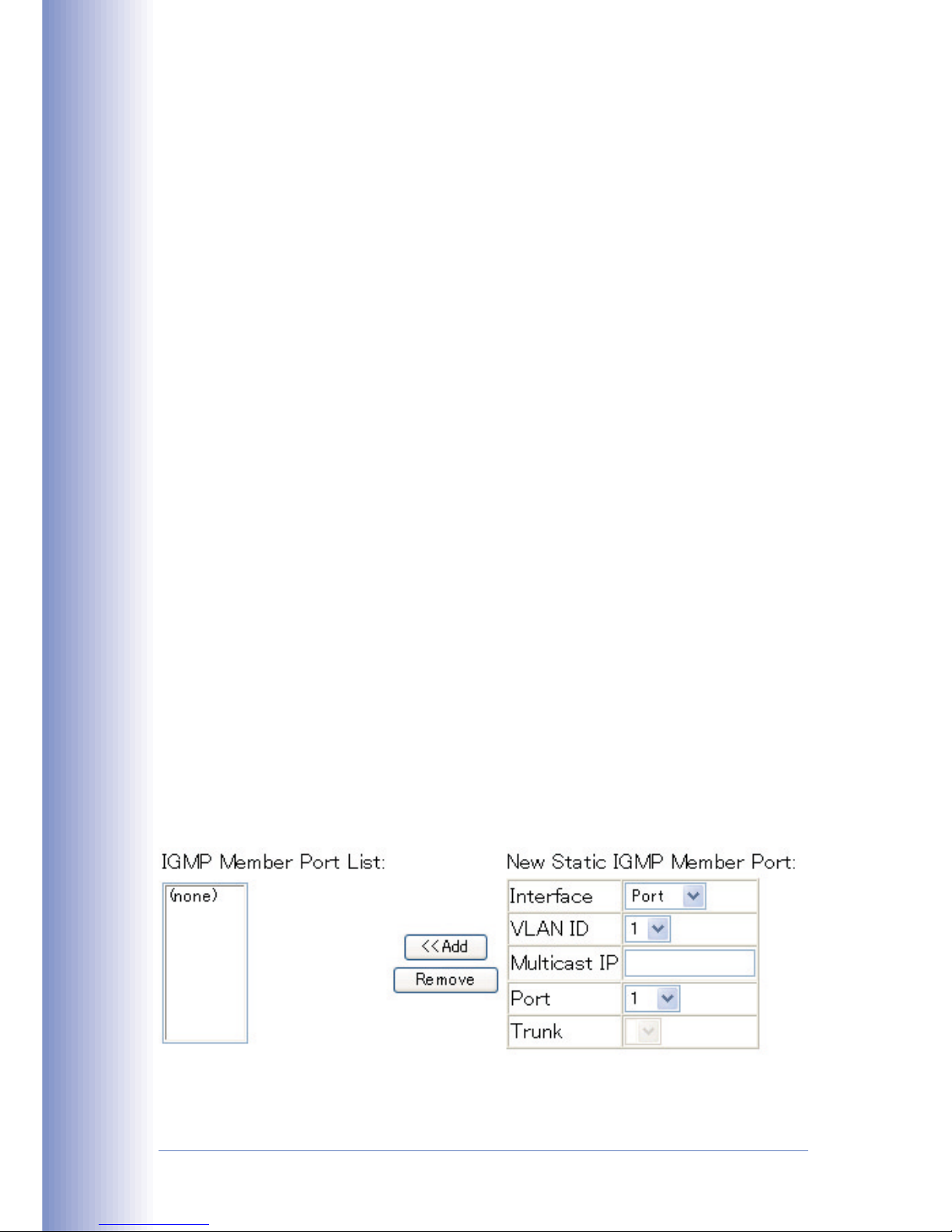

Web – Click IGMP/IGMP Member Port Table. Specify the interface attached to a

multicast service (via an IGMP-enabled switch or multicast router), indicate the VLAN that will propagate the multicast service, specify the multicast IP address, and then click “Add.” After you have completed adding ports to the member list, click “Apply.”

CLI – This example assigns a multicast address to VLAN 1, and then displays all the known multicast services supported on VLAN 1.

Console(config)#ip igmp snooping vlan 1 static 224.0.0.12 ethernet 1/12 3-109 Console(config)#exit Console#show bridge 1 multicast vlan 1 3-111 VLAN M'cast IP addr. Member ports Type

---- --------------- ------------ ------1 224.0.0.12 Eth1/12 USER 1 224.1.2.3 Eth1/12 IGMP Console#

Planex FMG-24K User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
