Planet Waves Auto-Trim Installation Guide

J.D’Addario & Company, Inc.

PO Box 290

Farmingdale, NY

11735 USA

Tel: [phone]

Fax: [phone]

www.planet-waves.com

3. Place the
washer and nut
over the tuning
post. Turn the
loose nut with
a wrench or nut
driver until
you feel the
first sign of
resistance.

2. Gently push
with thumb
until tuner is
flush against
the headstock.

1. Insert the
tuner through
the hole in the
headstock and
align it in
the desired
position.

5. Again, with a
wrench or nut driver,
turn the nut 1/4 turn
(90O). The nut should
be tight and secure.
If not, tighten it 1/4
turn at a time until
it is secure.

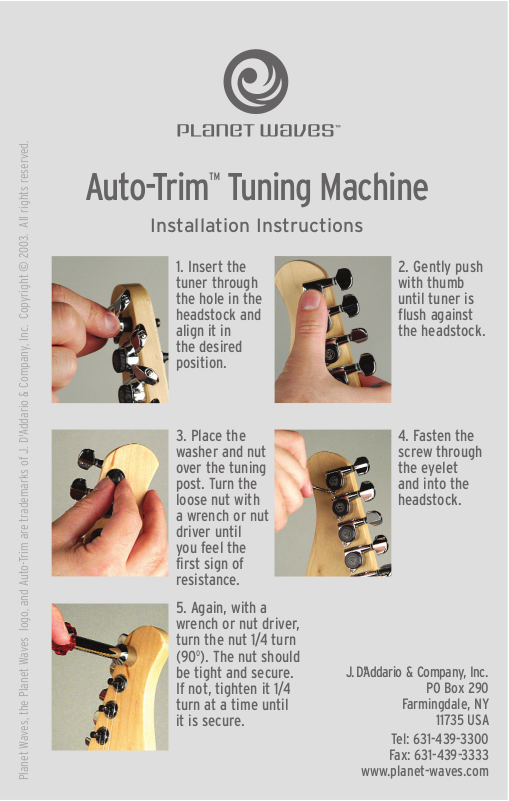

Auto-Trim™Tuning Machine

Installation Instructions

Planet Waves, the Planet Waves logo, and Auto-Trim are trademarks of J. D'Addario & Company, Inc. Copyright © 2003. All rights reserved.

4. Fasten the
screw through
the eyelet
and into the
headstock.
