Internet Broadband Router
XRT-811
User’s Manual
Copyright
Copyright (C) 2003 PLANET Technology Corp. All rights reserved.
The products and programs described in this User’s Manual are licensed products of PLANET
Technology, This User’s Manual contains proprietary information protected by copyright, and
this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced
to any electronic medium or machine-readable form by any means by electronic or mechanical.
Including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser's personal use, and without the prior express written permission
of PLANET Technology.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments
and applications, and makes no warranty and representation, either implied or expressed, with
respect to the quality, performance, merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a
commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies
that may be contained in this User’s Manual. PLANET makes no commitment to update or keep
current the information in this User’s Manual, and reserves the right to make improvements to
this User’s Manual and/or to the products described in this User’s Manual, at any time without
notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would
appreciate your comments and suggestions.
CE mark Warning
The is a class B device, In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
Trademarks
The PLANET logo is a trademark of PLANET Technology. This documentation may refer to
numerous hardware and software products by their trade names. In most, if not all cases, these
designations are claimed as trademarks or registered trademarks by their respective companies.
Revision
User’s Manual for PLANET Internet Broadband Router:
Model: XRT-811
Rev: 1.0 (Apr. 2003)
Part No. EM-XRT811V1
ii
Table of Contents
CHAPTER 1 INTRODUCTION..........................................1
XRT-811 Features.........................................................................1
Package Contents.........................................................................3
Physical Details............................................................................4
CHAPTER 2 INSTALLATION............................................6
Requirements...............................................................................6
Procedure....................................................................................6
CHAPTER 3 SETUP.........................................................8
Overview.....................................................................................8
Configuration Program...................................................................9
Config Wizard.............................................................................11
LAN Screen................................................................................14
Admin Login Screen....................................................................16
CHAPTER 4 PC CONFIGURATION.................................17
Overview...................................................................................17
Windows Clients.........................................................................17
Printer Setup for Windows............................................................29
Macintosh Clients........................................................................35
Linux Clients..............................................................................35
Other Unix Systems....................................................................36
CHAPTER 5 OPERATION AND STATUS..........................37
Operation..................................................................................37
Status Screen.............................................................................37
Connection Status - PPPoE...........................................................39
Connection Status - PPTP.............................................................42
Connection Status - Telstra Big Pond.............................................43
Connection Details - SingTel RAS..................................................44
Connection Details - Fixed/Dynamic IP Address..............................46
CHAPTER 6 INTERNET FEATURES.................................48
Overview...................................................................................48
Advanced Internet Screen............................................................48
Dynamic DNS (Dynamic Domain Name Server)...............................52
Virtual Servers...........................................................................54
Options......................................................................................57
CHAPTER 7 SECURITY CONFIGURATION......................58
Overview...................................................................................58
Admin Login...............................................................................58
Access Control............................................................................60
Firewall Rules.............................................................................62
Logs..........................................................................................66
Security Options.........................................................................68
Scheduling.................................................................................70
Services.....................................................................................71
i
CHAPTER 8 OTHER FEATURES AND SETTINGS.............73
Overview...................................................................................73
PC Database...............................................................................74
Printer Port................................................................................78
Remote Administration................................................................79
Routing.....................................................................................80
Upgrade Firmware.......................................................................84
UPNP.........................................................................................85
APPENDIX A TROUBLESHOOTING................................86
Overview...................................................................................86
General Problems........................................................................86
Internet Access...........................................................................86
Printing.....................................................................................87
Glossary....................................................................................90
APPENDIX B SPECIFICATIONS....................................93
XRT-811....................................................................................93
FCC Statement...........................................................................93
ii
1
Chapter 1
Introduction
This Chapter provides an overview of XRT-811's features and capabilities.
Congratulations on the purchase of your new Broadband Router. XRT-811 is a multi-function
device providing the following services:
• Shared Broadband Internet Access for all LAN users.
• 8-Port Switch for 10BaseT or 100BaseT connections.
• Network Printer - LAN users can share the printer attached to XRT-811.
Figure 1: XRT-811 connectivity
XRT-811 Features
XRT-811 incorporates many advanced features, carefully designed to provide sophisticated
functions while being easy to use.
Internet Access Features
• Shared Internet Access. All users on the LAN or WLAN can access the Internet
through XRT-811, using only a single external IP Address. The local (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Address
Translation).
• DSL & Cable Modem Support. XRT-811 has a 10/100M Ethernet port for connecting
a DSL or Cable Modem. All popular DSL and Cable Modems are supported. SingTel RAS
and Big Pond (Australia) login support is also included.
• PPPoE, PPTP, SingTel RAS and Telstra Big Pond Support. The Internet (WAN
port) connection supports PPPoE (PPP over Ethernet), PPTP (Peer-to-Peer Tunneling Protocol), SingTel RAS and Telstra Big Pond (Australia), as well as "Direct Connection" type
services.
• Fixed or Dynamic IP Address. On the Internet (WAN port) connection, XRT-811
supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP
Address.
1
XRT-811 User’s Manual
Advanced Internet Functions
• Communication Applications. Support for Internet communication applications, such
as interactive Games, Telephony, and Conferencing applications, which are often difficult
to use when behind a Firewall, is included.
• Special Internet Applications. Applications which use non-standard connections or
port numbers are normally blocked by the Firewall. The ability to define and allow such
applications is provided, to enable such applications to be used normally.
• Virtual Servers. This feature allows Internet users to access Internet servers on your
LAN. The required setup is quick and easy.
• DMZ. One (1) PC on your local LAN can be configured to allow unrestricted 2-way
communication with Servers or individual users on the Internet. This provides the ability to
run programs, which are incompatible with Firewalls.
• URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN users.
• Internet Access Log. See which Internet connections have been made.
• VPN Pass through Support. PCs with VPN (Virtual Private Networking) software
using PPTP, L2TP and IPSec are transparently supported - no configuration is required.
LAN Features
• 8-Port Switching Hub. XRT-811 incorporates an 8-port 10/100BaseT switching hub,
making it easy to create or extend your LAN.
• DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP
address to PCs and other devices upon request. XRT-811 can act as a DHCP Server for
devices on your local LAN and WLAN.
• Multi Segment LAN Support. LANs containing one or more segments are supported,
via XRT-811's RIP (Routing Information Protocol) support and built-in static routing table.
Network Printer
• Shared Printer (Network Printer). A printer connected to XRT-811's parallel port can
be shared by all PCs on the LAN or WLAN.
• Multiple OS Support. Clients may use any of the following operating systems:
• Windows 95/98/ME
• Windows NT 4.0, 2000, or XP.
• Unix
• Multi-protocol Support. The following printing methods are supported:
• Windows peer-to-peer printing over TCP/IP, using the supplied port driver.
• Windows LPD printing, using a Windows Server running NT 4.0 or Windows 2000
Server. In this situation, no software needs to be installed on the client PCs.
• Unix LPD printing. No additional software needs to be installed.
Configuration & Management
• Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for configu-
ration.
• Remote Management. XRT-811 can be managed from any PC on your LAN. And, if
the Internet connection exists, it can also (optionally) be configured via the Internet.
• UPnP Support. UPnP (Universal Plug and Play) allows automatic discovery and con-
figuration of XRT-811. UPnP is by supported by Windows ME, XP, or later.
2
Introduction
Security Features
• Password - protected Configuration. Optional password protection is provided to
prevent unauthorized users from modifying the configuration data and settings.
• NAT Protection. An intrinsic side effect of NAT (Network Address Translation) tech-
nology is that by allowing all LAN users to share a single IP address, the location and even
the existence of each PC is hidden. From the external viewpoint, there is no network, only
a single device - XRT-811.
• Stateful Inspection Firewall. All incoming data packets are monitored and all incom-
ing server requests are filtered, thus protecting your network from malicious attacks from
external sources.
• Protection against DoS attacks. DoS (Denial of Service) attacks can flood your
Internet connection with invalid packets and connection requests, using so much bandwidth
and so many resources that Internet access becomes unavailable. XRT-811 incorporates
protection against DoS attacks.
Package Contents
The following items should be included:
• XRT-811 Unit
• Power Adapter
• Quick Installation Guide
• CD-ROM containing the on-line manual and Print Port Driver for Windows.
If any of the above items are damaged or missing, please contact our local dealer immediately.
3
XRT-811 User’s Manual
Physical Details
Front-mounted LEDs
POWER On - Power on.
Off - No power.
Figure 2: Front Panel
STATUS
(Red)
PRINT ACT On - Connection to printer established.
PRINT ERR On - Printer error detected.
WAN LNK/ACT - Connection to the modem attached to the WAN (Internet)
LAN
On - Error condition.
Off - Normal operation.
Blinking - This LED blinks during start up.
Off - No connection to printer; printer is Off or Off-line.
Flashing - Data is being transmitted to the printer.
Off - No printer error detected.
port is established.
100 - Corresponding WAN port is using 100BaseT.
For each port, there are 2 LEDs
• LNK/ACT
• On - Corresponding LAN port is active.
• Off - No active connection on the corresponding LAN port.
• Flashing - Data is being transmitted or received via the corre-
sponding LAN port.
• 100
• On - Corresponding LAN port is using 100BaseT.
• Off - Corresponding LAN port connection is using 10BaseT, or
no active connection.
4
Rear Panel
Introduction
Figure 3: Rear Panel
Printer Port
Reset Button
10/100BaseT
LAN connections
Standard parallel printer port. If you wish to share a printer, connect it
here.
This button has three (3) functions:
• Reboot. When pressed and released, XRT-811 will reboot
(restart).
• Diagnostic print-out. If held down for 3 seconds, a diagnostic
print-out will be sent to the attached printer.
• Ensure the printer is ready.
• Both PRINT LEDs will flash simultaneously during the di-
agnostic printing.
• Clear All Data. This button can also be used to clear ALL data
and restore ALL settings to the factory default values.
To Clear All Data and restore the factory default values:
1. Power Off.
2. Hold the Reset Button down while you Power On.
3. Keep holding the Reset Button for a few seconds, until the RED
LED has flashed TWICE.
4. Release the Reset Button. XRT-811 is now using the factory
default values.
Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
WAN port
(10/100BaseT)
Power port
Note:
Any LAN port on XRT-811 will automatically function as an "Uplink" port when required. Just connect any port to a normal port on
the other hub, using a standard LAN cable.
Connect the DSL or Cable Modem here. If your modem came with a
cable, use the supplied cable. Otherwise, use a standard LAN cable.
Connect the supplied power adapter here.
5
2
Chapter 2
Installation
This Chapter covers the physical installation of XRT-811.
Requirements
• Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.
• TCP/IP protocol must be installed on all PCs.
• For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable
modem (for WAN port usage)
• For shared access to the attached printer, the following clients are supported:
• Windows 95/98/ME
• Windows NT 4.0, 2000 or XP
• Unix (LPD printing)
Procedure
Figure 4: Installation Diagram
1. Choose an Installation Site
Select a suitable place on the network to install XRT-811.
Ensure XRT-811 and the DSL/Cable modem are powered OFF.
6
Installation
2. Connect LAN Cables
Use standard LAN cables to connect PCs to the Switching Hub ports on XRT-811. Both
10BaseT and 100BaseT connections can be used simultaneously.
If required, connect any port to a normal port on another Hub, using a standard LAN cable.
Any LAN port on XRT-811 will automatically function as an "Uplink" port when required.
3. Connect WAN Cable
Connect the DSL or Cable modem to the WAN port on XRT-811. Use the cable supplied
with your DSL/Cable modem. If no cable was supplied, use a standard cable.
4. Connect Printer Cable
Use a standard parallel printer cable to connect your printer to the Printer port on XRT-811.
5. Power Up
• Power on the Cable or DSL modem.
• Connect the supplied power adapter to XRT-811 and power up.
Use only the power adapter provided. Using a different one may cause hardware damage
6. Check the LEDs
• The Power LED should be ON.
• The Status LED should flash, then turn Off. If it stays on, there is a hardware error.
• For each LAN (PC) connection, the LAN Link/Act LED should be ON (provided the PC is
also ON.)
• The WAN LED should be ON.
• The Print ACT LED should be ON.
For more information, refer to Front-mounted LEDs in Chapter 1.
7
3
Chapter 3
Setup
This Chapter provides Setup details of XRT-811.
Overview
This chapter describes the setup procedure for:
• Internet Access
• LAN configuration
• Assigning a Password to protect the configuration data.
PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Configuration.
Other configuration may also be required, depending on which features and functions of XRT811 you wish to use. Use the table below to locate detailed instructions for the required functions.
To Do this: Refer to:
Configure PCs on your LAN. Chapter 4:
PC Configuration
Check Broadband Router operation and Status. Chapter 5:
Operation and Status
Use any of the following Internet features:
• Special Applications
• DMZ
• Virtual Servers
• Dynamic DNS
• Remote Management
• Firmware Upgrade
Use any of the following Advanced Configuration settings:
• PC Database
• Options (Backup DNS, TFTP, UPnP, Firewall)
• Printer Port setup (for Linux/Unix only)
• Routing (RIP and static Routing)
Where use of a certain feature requires that
iNote
PCs or other LAN devices be configured, this
is also explained in the relevant chapter.
Chapter 6:
Advanced Features
Chapter 7
Advanced Configuration
8
Setup
Configuration Program
XRT-811 contains an HTTP server. This enables you to connect to it, and configure it, using
your Web Browser. Your Browser must support JavaScript. The configuration program has
been tested on the following browsers:
• Netscape V4.08 or later
• Internet Explorer V4 or later
Preparation
Before attempting to configure XRT-811, please ensure that:
• Your PC can establish a physical connection to XRT-811. The PC and XRT-811 must be
directly connected (using the Hub ports on XRT-811) or on the same LAN segment.
• XRT-811 must be installed and powered ON.
• If XRT-811's default IP Address (192.168.0.1) is already used by another device, the other
device must be turned OFF until XRT-811 is allocated a new IP Address during configuration.
Using UPnP
If your Windows system supports UPnP, an icon for XRT-811 will appear in the system tray,
notifying you that a new network device has been found, and offering to create a new desktop
shortcut to the newly-discovered device.
• Unless you intend to change the IP Address of XRT-811, you can accept the desktop
shortcut.
• Whether you accept the desktop shortcut or not, you can always find UPnP devices in My
Network Places (previously called Network Neighborhood).
• Double - click the icon for XRT-811 (either on the Desktop, or in My Network Places) to
start the configuration. Refer to the following section for details of the initial configuration
process.
Using your Web Browser
To establish a connection from your PC to XRT-811:
1. After installing XRT-811 in your LAN, start your PC. If your PC is already running, restart
it.
2. Start your WEB browser.
3. In the Address box, enter "HTTP://" and the IP Address of XRT-811, as in this example,
which uses XRT-811's default IP Address:
HTTP://192.168.0.1
9
XRT-811 User’s Manual
If you can't connect
If XRT-811 does not respond, check the following:
• XRT-811 is properly installed, LAN connection is OK, and it is powered ON.
You can test the connection by using the "Ping" command:
• Open the MS-DOS window or command prompt window.
• Enter the command:
ping 192.168.0.1
If no response is received, either the connection is not working, or your
PC's IP address is not compatible with XRT-811's IP Address. (See next
item.)
• If your PC is using a fixed IP Address, its IP Address must be within the range
192.168.0.2 to 192.168.0.254 to be compatible with XRT-811's default IP Address of 192.168.0.1. Also, the Network Mask must be set to 255.255.255.0.
See Chapter 4 - PC Configuration for details on checking your PC's TCP/IP
settings.
• Ensure that your PC and XRT-811 are on the same network segment. (If you
don't have a router, this must be the case.)
10
Setup
Config Wizard
The first time you connect to XRT-811, the Config Wizard will run automatically. (The Config
Wizard will also run if XRT-811's default settings are restored.)
1. Step through the Wizard until finished.
• You need to know the type of Internet connection service used by your ISP. Check the
data supplied by your ISP.
• The common connection types are explained in the tables below.
2. On the final screen of the Wizard, run the test and check that an Internet connection can be
established.
3. If the connection test fails:
• Check your data, the Cable/DSL modem, and all connections.
• Check that you have entered all data correctly.
• If using a Cable modem, your ISP may have recorded the MAC (physical) address of
your PC. Run the Wizard, and on the Cable Modem screen, use the "Clone MAC address" button to copy the MAC address from your PC to XRT-811.
Common Connection Types
Cable Modems
Type Details ISP Data required
Dynamic
IP Address
Static (Fixed)
IP Address
DSL Modems
Type Details ISP Data required
Dynamic
IP Address
Static (Fixed)
IP Address
Your IP Address is allocated
automatically, when you
connect to you ISP.
Your ISP allocates a permanent IP Address to you.
Your IP Address is allocated
automatically, when you
connect to you ISP.
Your ISP allocates a permanent IP Address to you.
Usually, none.
However, some ISP's may
require you to use a particular
Hostname, Domain name, or
MAC (physical) address.
IP Address allocated to you.
Some ISP's may also require
you to use a particular Hostname, Domain name, or MAC
(physical) address.
None.
IP Address allocated to you.
PPPoE You connect to the ISP only
when required. The IP address
is usually allocated automatically.
PPTP Mainly used in Europe.
You connect to the ISP only
User name and password.
• PPTP Server IP Address.
• User name and password.
11
XRT-811 User’s Manual
when required. The IP address
is usually allocated automatically, but may be Static
(Fixed).
Other Modems (e.g. Broadband Wireless)
Type Details ISP Data required
Dynamic
IP Address
Static (Fixed)
IP Address
Your IP Address is allocated
automatically, when you connect
to you ISP.
Your ISP allocates a permanent
IP Address to you.
Big Pond (Australia)
For this connection method, the following data is required:
• User Name
• Password
• Big Pond Server IP address
• IP Address allocated to you,
if Static (Fixed).
None.
IP Address allocated to you.
SingTel RAS
For this connection method, the following data is required:
• User Name
• Password
• RAS Plan
12
Setup
Home Screen
After finishing the Config Wizard, you will see the Home screen. When you connect in future,
you will see this screen when you connect. An example screen is shown below.
Figure 5: Home Screen
Navigation & Data Input
• Use the menu bar on the top of the screen, and the "Back" button on your Browser, for
navigation.
• Changing to another screen without clicking "Save" does NOT save any changes you may
have made. You must "Save" before changing screens or your data will be ignored.
On each screen, clicking the "Help" button will
iNote
display help for that screen.
From any help screen, you can access the list of all
help files (help index).
13
XRT-811 User’s Manual
LAN Screen
Use the LAN link on the main menu to reach the LAN screen An example screen is shown
below.
Figure 6: LAN Screen
Data - LAN Screen
TCP/IP
IP Address
Subnet Mask
DHCP Server
Buttons
Save
IP address for XRT-811, as seen from the local LAN. Use the default
value unless the address is already in use or your LAN is using a
different IP address range. In the latter case, enter an unused IP Address from within the range used by your LAN.
The default value 255.255.255.0 is standard for small (class "C")
networks. For other networks, use the Subnet Mask for the LAN
segment to which XRT-811 is attached (the same value as the PCs on
that LAN segment).
• If Enabled, XRT-811 will allocate IP Addresses to PCs (DHCP
clients) on your LAN when they start up. The default (and recommended) value is Enabled.
• If you are already using a DHCP Server, this setting must be
Disabled, and the existing DHCP server must be re-configured to
treat XRT-811 as the default Gateway. See the following section
for further details.
• The Start IP Address and Finish IP Address fields set the values
used by the DHCP server when allocating IP Addresses to DHCP
clients. This range also determines the number of DHCP clients
supported.
See the following section for further details on using DHCP.
Save the data on screen.
Cancel
The "Cancel" button will discard any data you have entered and reload
the file from XRT-811.
14
Setup
DHCP
What DHCP Does
A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a
DHCP Client (PC or device) upon request.
• The client request is made when the client device starts up (boots).
• The DHCP Server provides the Gateway and DNS addresses to the client, as well as
allocating an IP Address.
• XRT-811 can act as a DHCP server.
• Windows 95/98/ME and other non-Server versions of Windows will act as a DHCP client.
This is the default Windows setting for the TCP/IP network protocol. However, Windows
uses the term Obtain an IP Address automatically instead of "DHCP Client".
• You must NOT have two (2) or more DHCP Servers on the same LAN segment. (If your
LAN does not have other Routers, this means there must only be one (1) DHCP Server on
your LAN.)
Using XRT-811's DHCP Server
This is the default setting. The DHCP Server settings are on the LAN screen. On this screen,
you can:
• Enable or Disable XRT-811's DHCP Server function.
• Set the range of IP Addresses allocated to PCs by the DHCP Server function.
You can assign Fixed IP Addresses to some devices
iNote
while using DHCP, provided that the Fixed IP Addresses
are NOT within the range used by the DHCP Server.
Using another DHCP Server
You can only use one (1) DHCP Server per LAN segment. If you wish to use another DHCP
Server, rather than XRT-811's, the following procedure is required.
1. Disable the DHCP Server feature in XRT-811. This setting is on the LAN screen.
2. Configure the DHCP Server to provide XRT-811's IP Address as the Default Gateway.
To Configure your PCs to use DHCP
This is the default setting for TCP/IP under Windows 95/98/ME.
See Chapter 4 - Client Configuration for the procedure to check these settings.
15
XRT-811 User’s Manual
Admin Login Screen
The Admin Login screen allows you to assign a password to XRT-811.
Figure 7: Password Screen
Once you have assigned a password to XRT-811 (on the Password screen above) you will be
prompted for the password when you connect, as shown below. (If no password has been set,
this dialog will not appear.)
Figure 8: Password Dialog
• Leave the "User Name" blank.
• Enter the password for XRT-811, as set on the Password screen above.
16
4
Chapter 4
PC Configuration
This Chapter details the PC Configuration required on the local ("Internal")
LAN.
Overview
For each PC, the following may need to be configured:
• TCP/IP network settings
• Internet Access configuration
• Printer configuration
Windows Clients
This section describes how to configure Windows clients for:
• Internet access via XRT-811
• Sharing the Printer connected to XRT-811.
The first step is to check the PC's TCP/IP settings.
XRT-811 uses the TCP/IP network protocol for all functions, so it is essential that the TCP/IP
protocol be installed and configured on each PC.
TCP/IP Settings - Overview
If using the default Broadband Router settings, and the default Windows
TCP/IP settings, no changes need to be made.
• By default, XRT-811 will act as a DHCP Server, automatically providing a suitable IP
Address (and related information) to each PC when the PC boots.
• For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP
client.
If using a Fixed (specified) IP address, the following changes are required:
• The Gateway must be set to the IP address of XRT-811
• The DNS should be set to the address provided by your ISP.
If your LAN has a Router, the LAN Administrator must re-
iNote
configure the Router itself. Refer to Chapter 8 - Advanced
Setup for details.
17
XRT-811 User’s Manual
Checking TCP/IP Settings - Windows 9x/ME:
1. Select Control Panel - Network. You should see a screen like the following:
Figure 9: Network Configuration
2. Select the TCP/IP protocol for your network card.
3. Click on the Properties button. You should then see a screen like the following.
Figure 10: IP Address (Win 95)
Ensure your TCP/IP settings are correct, as follows:
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, XRT-811 will act as a DHCP
Server.
Restart your PC to ensure it obtains an IP Address from XRT-811.
Using "Specify an IP Address"
If your PC is already configured, check with your network administrator before making the
following changes:
18
PC Configuration
• On the Gateway tab, enter XRT-811's IP address in the New Gateway field and click Add,
as shown below. Your LAN administrator can advise you of the IP Address they assigned
to XRT-811.
Figure 11: Gateway Tab (Win 95/98)
• On the DNS Configuration tab, ensure Enable DNS is selected. If the DNS Server Search
Order list is empty, enter the DNS address provided by your ISP in the fields beside the
Add button, then click Add.
Figure 12: DNS Tab (Win 95/98)
19
XRT-811 User’s Manual
Checking TCP/IP Settings - Windows NT4.0
1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as
shown below.
Figure 13: Windows NT4.0 - TCP/IP
2. Click the Properties button to see a screen like the one below.
20
PC Configuration
Figure 14: Windows NT4.0 - IP Address
3. Select the network card for your LAN.
4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or Specify
an IP Address, as explained below.
Obtain an IP address from a DHCP Server
This is the default Windows setting. Using this is recommended. By default, XRT-811 will act
as a DHCP Server.
Restart your PC to ensure it obtains an IP Address from XRT-811.
Specify an IP Address
If your PC is already configured, check with your network administrator before making the
following changes.
1. The Default Gateway must be set to the IP address of XRT-811. To set this:
• Click the Advanced button on the screen above.
• On the following screen, click the Add button in the Gateways panel, and enter XRT-
811's IP address, as shown in Figure 15 below.
• If necessary, use the Up button to make XRT-811 the first entry in the Gateways list.
21
XRT-811 User’s Manual
Figure 15 - Windows NT4.0 - Add Gateway
2. The DNS should be set to the address provided by your ISP, as follows:
• Click the DNS tab.
• On the DNS screen, shown below, click the Add button (under DNS Service Search
Order), and enter the DNS provided by your ISP.
22
PC Configuration
Figure 16: Windows NT4.0 - DNS
23
XRT-811 User’s Manual
Checking TCP/IP Settings - Windows 2000:
1. Select Control Panel - Network and Dial-up Connection.
2. Right - click the Local Area Connection icon and select Properties. You should see a
screen like the following:
Figure 17: Network Configuration (Win 2000)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
24
PC Configuration
Figure 18: TCP/IP Properties (Win 2000)
5. Ensure your TCP/IP settings are correct, as described below.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, XRT-811 will act as a DHCP
Server.
Restart your PC to ensure it obtains an IP Address from XRT-811.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured, check with your network administrator before making the
following changes.
• Enter XRT-811's IP address in the Default gateway field and click OK. (Your LAN admin-
istrator can advise you of the IP Address they assigned to XRT-811.)
• If the DNS Server fields are empty, select Use the following DNS server addresses, and
enter the DNS address or addresses provided by your ISP, then click OK.
25
XRT-811 User’s Manual
Checking TCP/IP Settings - Windows XP
1. Select Control Panel - Network Connection.
2. Right click the Local Area Connection and choose Properties. You should see a screen
like the following:
Figure 19: Network Configuration (Windows XP)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
26
PC Configuration
Figure 20: TCP/IP Properties (Windows XP)
5. Ensure your TCP/IP settings are correct.
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, XRT-811 will act as a DHCP
Server.
Restart your PC to ensure it obtains an IP Address from XRT-811.
Using a fixed IP Address ("Use the following IP Address")
If your PC is already configured, check with your network administrator before making the
following changes.
• In the Default gateway field, enter XRT-811's IP address and click OK. Your LAN admin-
istrator can advise you of the IP Address they assigned to XRT-811.
• If the DNS Server fields are empty, select Use the following DNS server addresses, and
enter the DNS address or addresses provided by your ISP, then click OK.
27
XRT-811 User’s Manual
Internet Access
To configure your PCs to use XRT-811 for Internet access:
• Ensure that the DSL modem, Cable modem, or other permanent connection is functional.
• Use the following procedure to configure your Browser to access the Internet via the LAN,
rather than by a Dial-up connection.
For Windows 9x/ME/2000
1. Select Start Menu - Settings - Control Panel - Internet Options.
2. Select the Connection tab, and click the Setup button.
3. Select "I want to set up my Internet connection manually, or I want to connect through a
local area network (LAN)" and click Next.
4. Select "I connect through a local area network (LAN)" and click Next.
5. Ensure all of the boxes on the following Local area network Internet Configuration screen
are unchecked.
6. Check the "No" option when prompted "Do you want to set up an Internet mail account
now?".
7. Click Finish to close the Internet Connection Wizard.
Setup is now completed.
For Windows XP
1. Select Start Menu - Control Panel - Network and Internet Connections.
2. Select Set up or change your Internet Connection.
3. Select the Connection tab, and click the Setup button.
4. Cancel the pop-up "Location Information" screen.
5. Click Next on the "New Connection Wizard" screen.
6. Select "Connect to the Internet" and click Next.
7. Select "Set up my connection manually" and click Next.
8. Check "Connect using a broadband connection that is always on" and click Next.
9. Click Finish to close the New Connection Wizard.
Setup is now completed.
Accessing AOL
To access AOL (America On Line) through XRT-811, the AOL for Windows software must be
configured to use TCP/IP network access, rather than a dial-up connection. The configuration
process is as follows:
• Start the AOL for Windows communication software. Ensure that it is Version 2.5, 3.0 or
later. This procedure will not work with earlier versions.
• Click the Setup button.
• Select Create Location, and change the location name from "New Locality" to "Broadband
Router".
• Click Edit Location. Select TCP/IP for the Network field. (Leave the Phone Number blank.)
• Click Save, then OK.
Configuration is now complete.
• Before clicking "Sign On", always ensure that you are using the "Broadband Router"
location.
28
PC Configuration
Printer Setup for Windows
XRT-811 provides printing support for 2 methods for printing from Windows:
• Print Port Driver. After installing the Print Port Driver, Windows users can print directly
to XRT-811. Print jobs are spooled (queued) on each PC.
The supplied Print Port Driver supports Windows 95/98, Windows ME, Windows NT4.0,
Windows 2000 and Windows XP.
• LPD/LPR Printing. If using Windows NT 4.0 Server or Windows 2000 Server,
LPD/LPR printing can be used. No software needs to be installed on either the Windows
Server or each client PC. Print jobs will be spooled (queued) on the Windows Server, and
can be managed using the standard Windows Server tools.
Print Port Driver Setup
The following procedure is for all versions of Windows (95/98/ME, NT4.0, 2000, XP). The
Windows "Add Printer" screens will vary depending on your version or Windows, but the
procedure is the same:
1. Insert the supplied CD-ROM into your drive. If the setup program does not start automatically, run SETUP.EXE in the root folder.
2. At the Select Components screen, select the Print Port Driver option.
3. Follow the prompts to complete the installation.
4. The Print Port Setup will then run, and the following screen will be displayed.

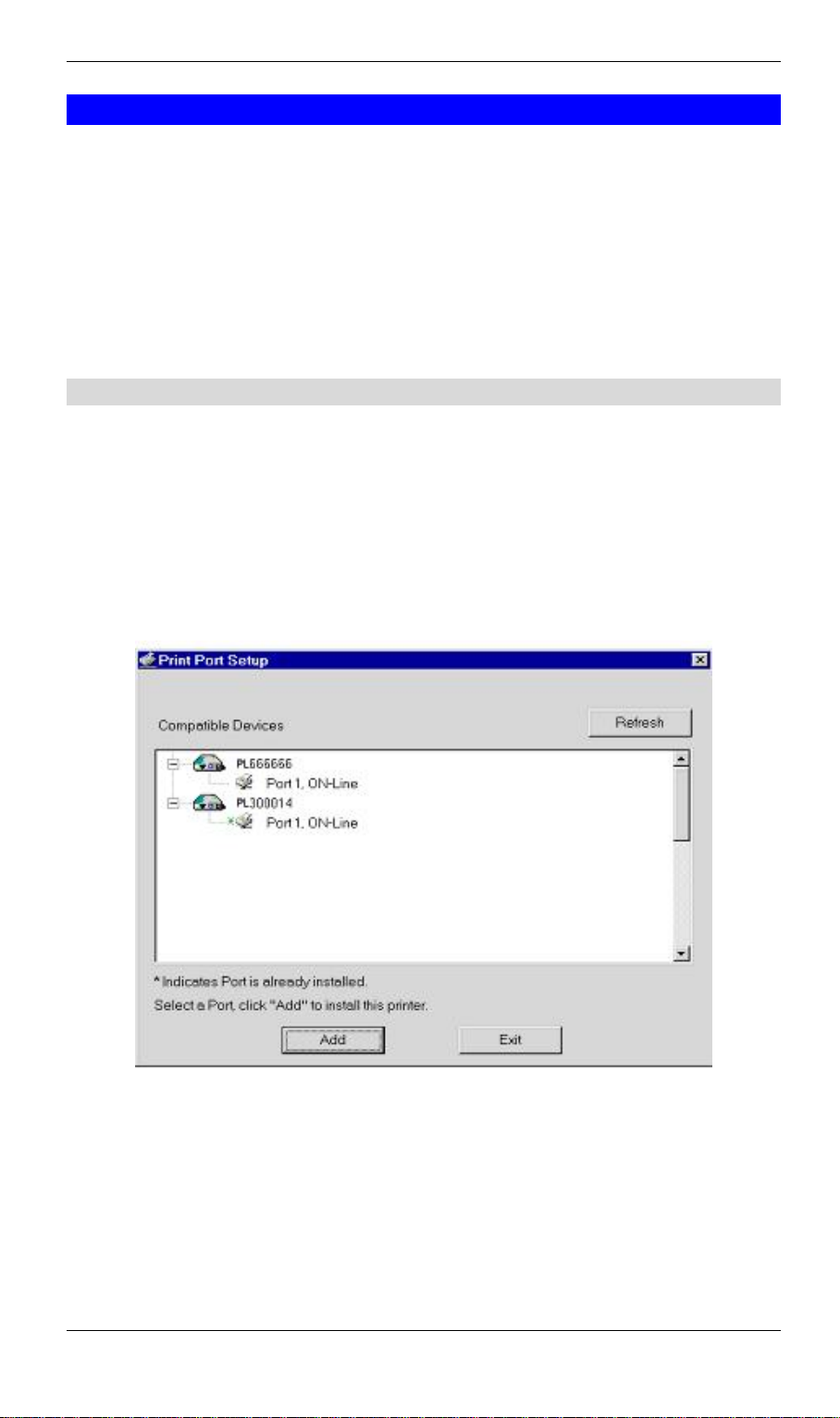

Figure 21: Print Port Setup
5. Select the desired device and port, and then click the "Add" button.
29
XRT-811 User’s Manual

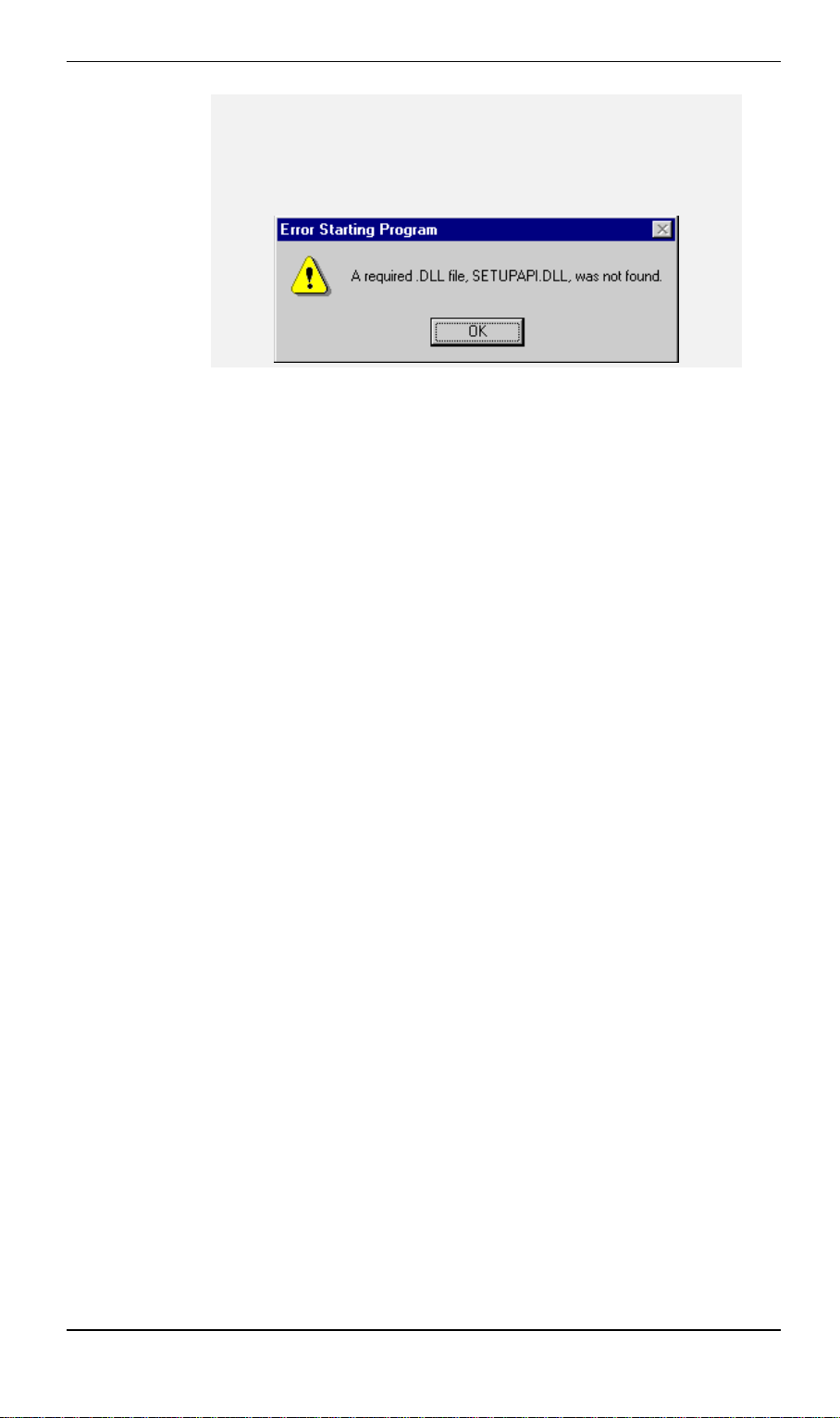

Under Windows 95, if you see the following error message,
iNote
6. A pop-up message will inform you if the port has been created successfully, and then the
Windows Add Printer wizard will start.
• Select the correct Printer Manufacturer and Model, or use the "Have Disk" option if
appropriate.
• If desired, change the Printer name so it indicates the device used (e.g. HP2100 on
SCA43600)
• If prompted about Sharing, do NOT enable Sharing.
7. Installation is now complete. You can now print using this printer.
• To install additional Printers (on different devices), repeat steps 6 and 7.
• Use the Start menu to run this program in future. The default installation is Start -
Programs - Broadband Internet Router - Add Port.
either install Internet Explorer 4 or later, or follow the procedure in the "Trouble Shooting - Printing" section of
Appendix A.
Management
• Print jobs can be managed like any Windows printer. Open the Printers folder (Start -
Settings - Printers) and double-click any printer to see the current print jobs.
• If the printer attached to XRT-811 is changed, just run this program again, and select the
correct printer.
• To delete a port created by this setup program, use the Windows Delete Port facility:
• Right-click any printer in the Printers folder, and select Properties.
• Locate the Delete Port button. This button is on the Details or Ports tab, depending on
your version or Windows.
• If XRT-811's IP Address is changed, and you can no longer print, delete the port (see
procedure above) and re-install it.
Port Options
The options for the Print Port Driver are accessed via the Windows Port Settings button.
Use Start - Settings - Printers to open the Printers folder, then right-click the Printer, and select
Properties. The Port Settings button is on the Details or Port tab, depending on your version of
Windows.
An example screen is shown below:
30

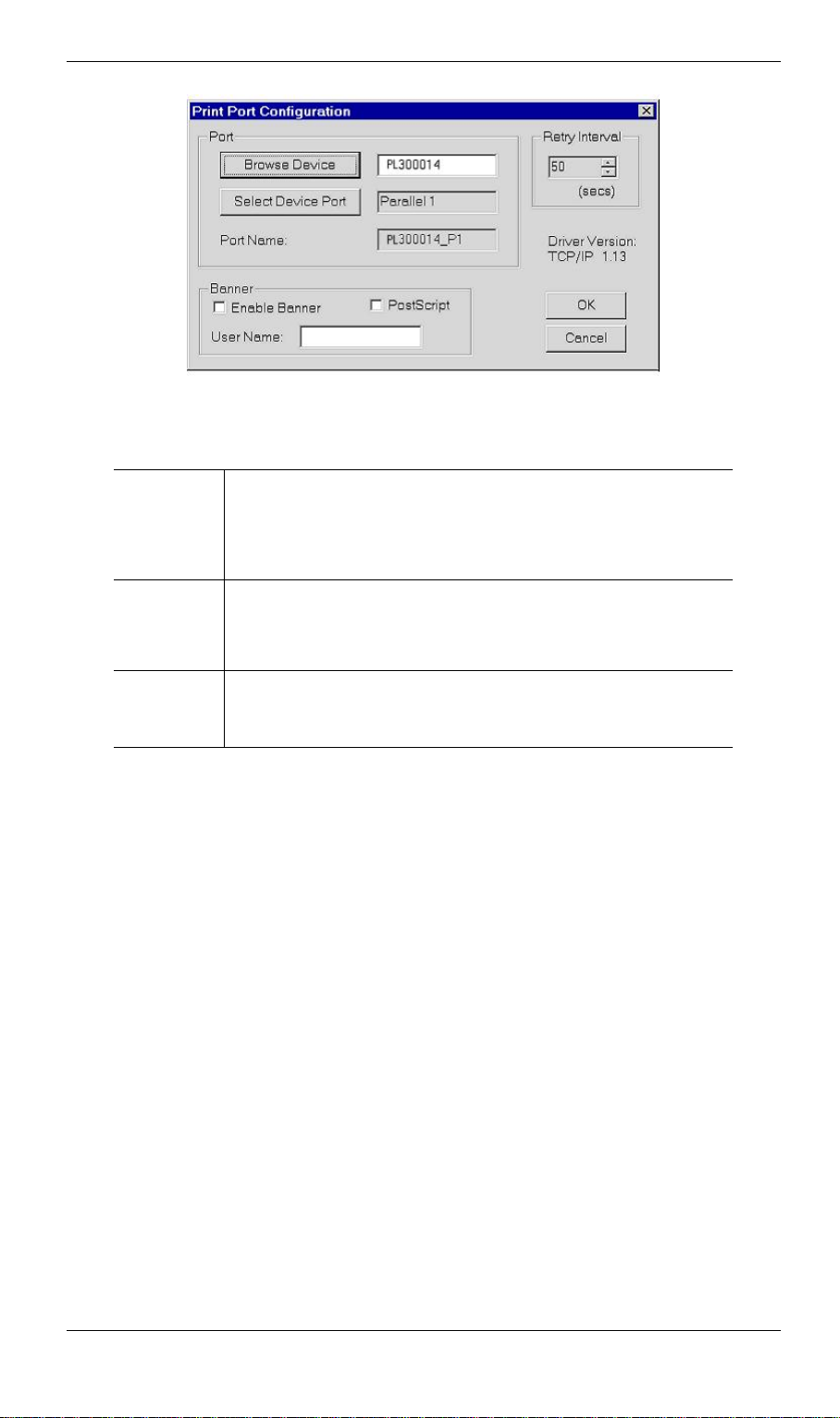

Figure 22: Print Port Configuration
Items shown on this screen are as follows:
Port
If desired, click Browse to select a different device. (The Select
Device Port button is provided to allow this software to work
with multi-port models.)
The Port Name is shown in the Printer's Properties.
PC Configuration
Banner
Check this option to print a banner page before each print job.
• If using a PostScript Printer, check the PostScript box.
• The User Name will be printed on the banner page.
Retry
Interval
Sets how often Windows will poll XRT-811 to establish a connection when the printer is busy. Increase this value if you get too
many warning messages.
31
XRT-811 User’s Manual
LPD/LPR Printing
LPD/LPR printing can be used with Windows NT 4.0 Server or Windows 2000. No software
needs to be installed on client PCs.
Windows NT 4.0 Server Configuration
To use LPD printing, Microsoft TCP/IP Printing must be installed and enabled. This can be
checked using Start-Settings-Control Panel-Network - Services.
To install LPD printing using XRT-811, follow this procedure:
1. Go to Start-Settings-Printer and invoke the Add Printer wizard.
2. When prompted with "This printer will be managed by..", select My Computer and click
Next.
3. Select Add Port, then select LPR Port and click New Port.
4. In the Dialog requesting Name of Address of server providing lpd, enter the IP address of
XRT-811.
5. For Name of printer or print queue on that server, enter L1
6. Click OK. When returned to the Printer Ports window, simply select Close and then install
your printer driver as usual.
7. When prompted whether or not the printer will be shared, select the Sharing radio button.
8. In the Shared dialog box, enter the shared printer name. The shared name is how other
users will see this printer. You should advise client PCs of the Server name and this printer
name.
9. Click OK to save and exit.
32
Windows 2000 Server Configuration
The LPD/LPR Port is not enabled by default. To enable it, use this procedure:
1. In Control Panel, select Add/Remove Programs, then Windows Components.
2. Select Other Network File and Print Services, then click the Details button.
PC Configuration

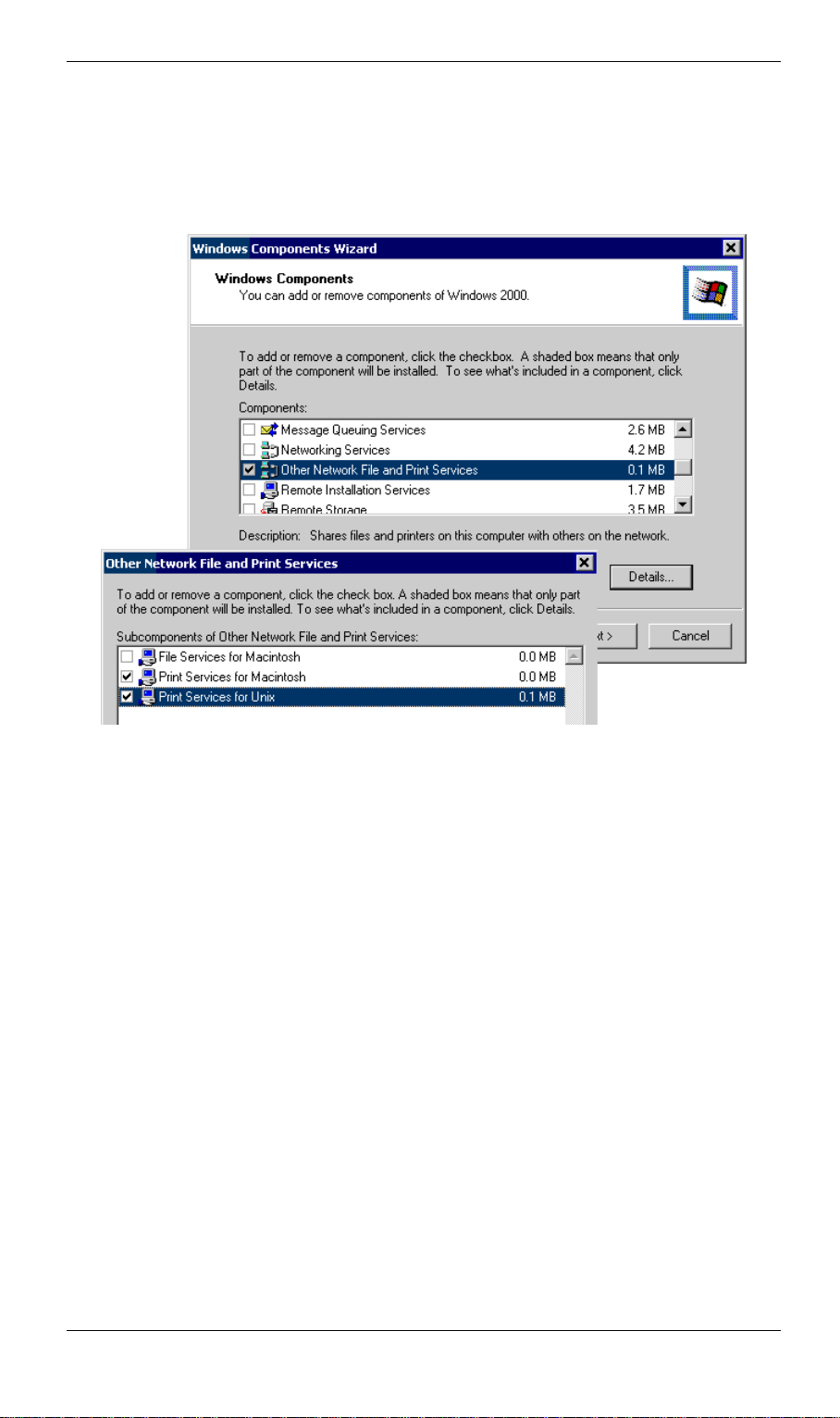

Figure 23: Adding LPD/LPR Port (Win 2000)
3. Enable Print Services for Unix, and click OK.
4. Click Next and complete the Wizard.
Adding the Printer
1. Open your Printers folder, and start the Add Printer Wizard.
2. When prompted, select Local Printer.
3. On the Select the Printer Port screen, select LPR Port, as shown below. Click Next to
continue.
33
XRT-811 User’s Manual
Figure 24: Windows 2000: Select Port
4. In the Dialog requesting Name or Address of server providing lpd, enter the IP address of
XRT-811.
5. For Name of printer or print queue on that server, enter L1
6. Click OK, and then Next, and continue the Wizard.
7. At the Select Sharing screen, select the Radio Button for Share As, and enter the shared
printer name. The shared name is how other users will see this printer. You should advise
client PCs of the Server name and this printer name.
8. Complete the Add Printer wizard.
Client PC Setup for LPD/LPR Printing
After configuring the Windows Server, client PCs on the LAN can install the new printer.
The following procedure is for Windows 95/98/ME, Windows NT4.0, and Windows 2000
workstation.
1. Open your Printers folder, and start the Add Printer Wizard.
2. When prompted, select Network Printer
3. When prompted for Network Path or Queue Name, click the Browse button, and locate the
Server and Printer which your Network Administrator advised you to use.
4. Click OK, then Next.
5. Select the correct printer Manufacturer and Model, as advised by your Network Administrator, and click Next.
6. Follow the prompts to complete the Wizard.
7. The new printer will be listed with any other installed printers, and may be selected when
printing from any Windows application.
34
PC Configuration
Macintosh Clients
From your Macintosh, you can access the Internet via XRT-811. The procedure is as follows.
1. Open the TCP/IP Control Panel.
2. Select Ethernet from the Connect via pop-up menu.
3. Select Using DHCP Server from the Configure pop-up menu. The DHCP Client ID field
can be left blank.
4. Close the TCP/IP panel, saving your settings.
Note:
If using manually assigned IP addresses instead of DHCP, the required changes are:
• Set the Router Address field to XRT-811's IP Address.
• Ensure your DNS settings are correct.
Linux Clients
To access the Internet via XRT-811, it is only necessary to set XRT-811 as the "Gateway".
Ensure you are logged in as "root" before attempting any changes.
Fixed IP Address
By default, most Unix installations use a fixed IP Address. If you wish to continue using a fixed
IP Address, make the following changes to your configuration.
• Set your "Default Gateway" to the IP Address of XRT-811.
• Ensure your DNS (Name server) settings are correct.
To act as a DHCP Client (recommended)
The procedure below may vary according to your version of Linux and X -windows shell.
1. Start your X Windows client.
2. Select Control Panel - Network
3. Select the "Interface" entry for your Network card. Normally, this will be called "eth0".
4. Click the Edit button, set the "protocol" to "DHCP", and save this data.
5. To apply your changes
• Use the "Deactivate" and "Activate" buttons, if available.
• OR, restart your system.
Printing Setup on Linux
XRT-811 supports LPD Printing on Linux.
• XRT-811 supports 3 "Logical Printers" under LPD. To configure the "Logical Printers" on
XRT-811, refer to Printer Port in Chapter 7.
• The procedure to install a LPD printer is detailed below, but may vary according to your
version of Linux and X -windows shell.
1. In your X Windows shell, select Control Panel, then Printer Configuration.
2. Select Add. For the printer type, select Remote Unix (lpd) Queue.
3. Use the following data to complete the resulting dialog.
35
XRT-811 User’s Manual
Field Data Example
Name
Spool Directory
File Limit
Remote Host
Remote Queue
4. Save this data, and exit the Printer Configuration. Configuration is now completed, and the
printer is now available for use.
Enter a name for this printer gw_prn
/var/spool/lpd/printer_name
Where printer_name is the "Name"
entry above.
Enter a suitable number. 0 (no limit)
XRT-811's IP address 192.168.0.1
Note:
If you have made a host file entry, you can use the name from the
host file instead of the IP Address.
Ln
Where n is the Logical Printer number
(L1, L2, L3). Logical Printers can be
configured on XRT-811's Options-
Printer Port screen.
/var/spool/lpd/gw_prn
L1
Other Unix Systems
To access the Internet via XRT-811:
• Ensure the "Gateway" field for your network card is set to the IP Address of XRT-811.
• Ensure your DNS (Name Server) settings are correct.
Printing Setup
To use LPD printing to XRT-811's printer, install an LPD printer using the standard procedure
for your system.
• Use XRT-811's IP Address as the location of the remote host
• Use L1, L2, or L3 for the name of the printer on the remote host.
On XRT-811, the logical printers (L1, L2, and L3) can be configured on the Advanced - Printer
Port screen. See Printer Port in Chapter 7 for details.
36
5
Chapter 5
Operation and Status
This Chapter details the operation of XRT-811 and the status screens.
Operation
Once both XRT-811 and the PCs are configured, operation is automatic.
However, there are some situations where additional Internet configuration may be required:
• If using Internet-based Communication Applications, it may be necessary to specify which
PC receives an incoming connection. Refer to Chapter 6 - Advanced Features for further
details.
• Applications which use non-standard connections or port numbers may be blocked by
XRT-811's built-in firewall. You can define such applications as Special Applications to
allow them to function normally. Refer to Chapter 6 - Advanced Features for further details.
• Some non-standard applications may require use of the DMZ feature. Refer to Chapter 6 -
Advanced Features for further details.
Status Screen
Use the Status link on the main menu to view this screen.

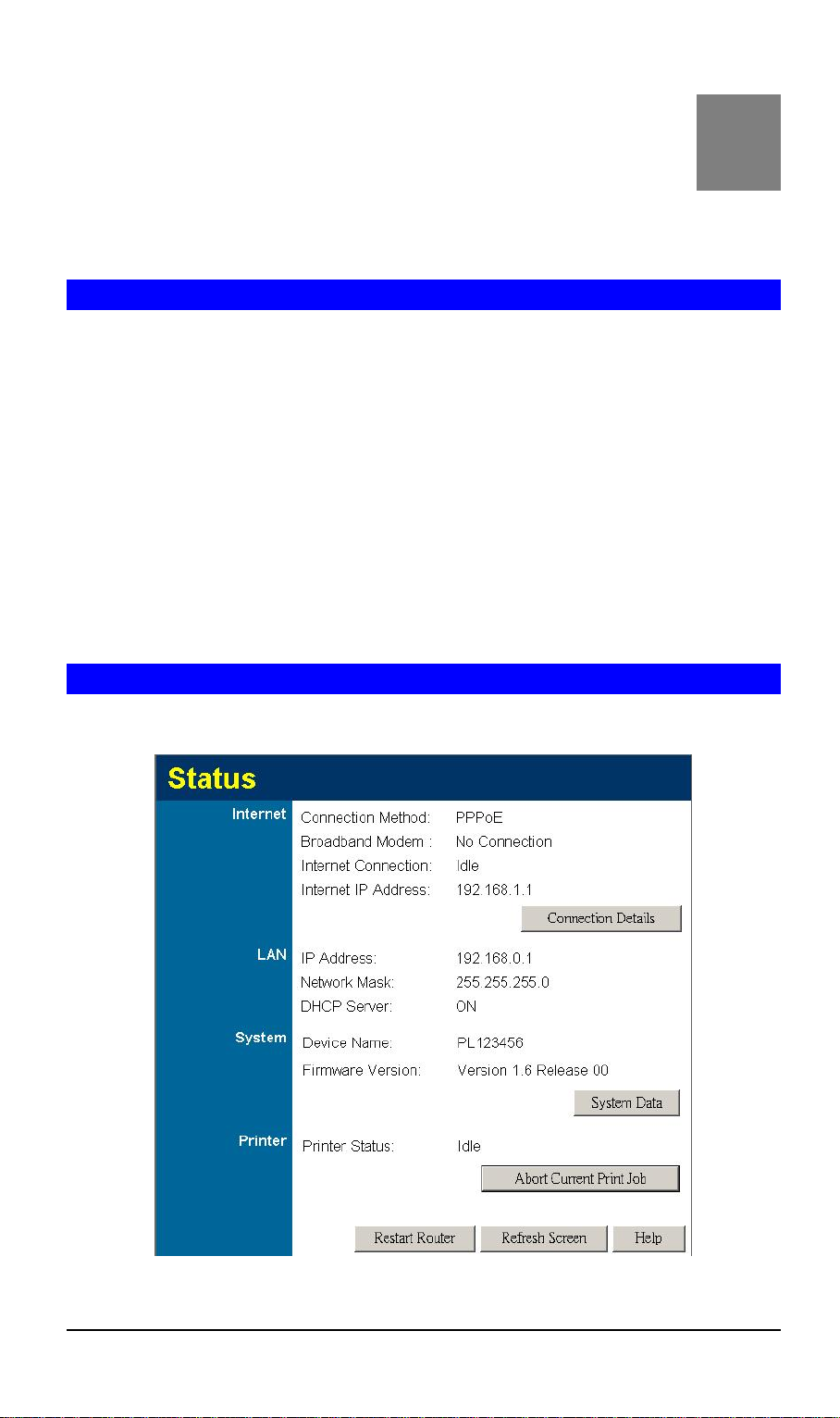

Figure 25: Status Screen
37
XRT-811 User’s Manual
screen displayed will depend on the connection method used. See
Data - Status Screen
Internet
Connection Method
Broadband Modem
Internet Connection
Internet IP Address
"Connection Details"
Button
LAN
IP Address
Network Mask
DHCP Server
This indicates the current connection method, as set in the Config
Wizard.
This shows the connection status of the modem.
Current connection status:
• Active
• Idle
• Unknown
• Failed
If there is an error, you can click the "Connection Details" button
to find out more information.
This IP Address is allocated by the ISP (Internet Service Provider).
Click this button to open a sub-window and view a detailed
description of the current connection. Depending on the type of
connection, a "log" may also be available.
The IP Address of XRT-811.
The Network Mask (Subnet Mask) for the IP Address above.
This shows the status of the DHCP Server function - either "En-
abled" or "Disabled".
System
Device Name
Firmware Version
"System Data"
Button
Printer
Printer Status
"Abort Current Print
Job" Button
Buttons

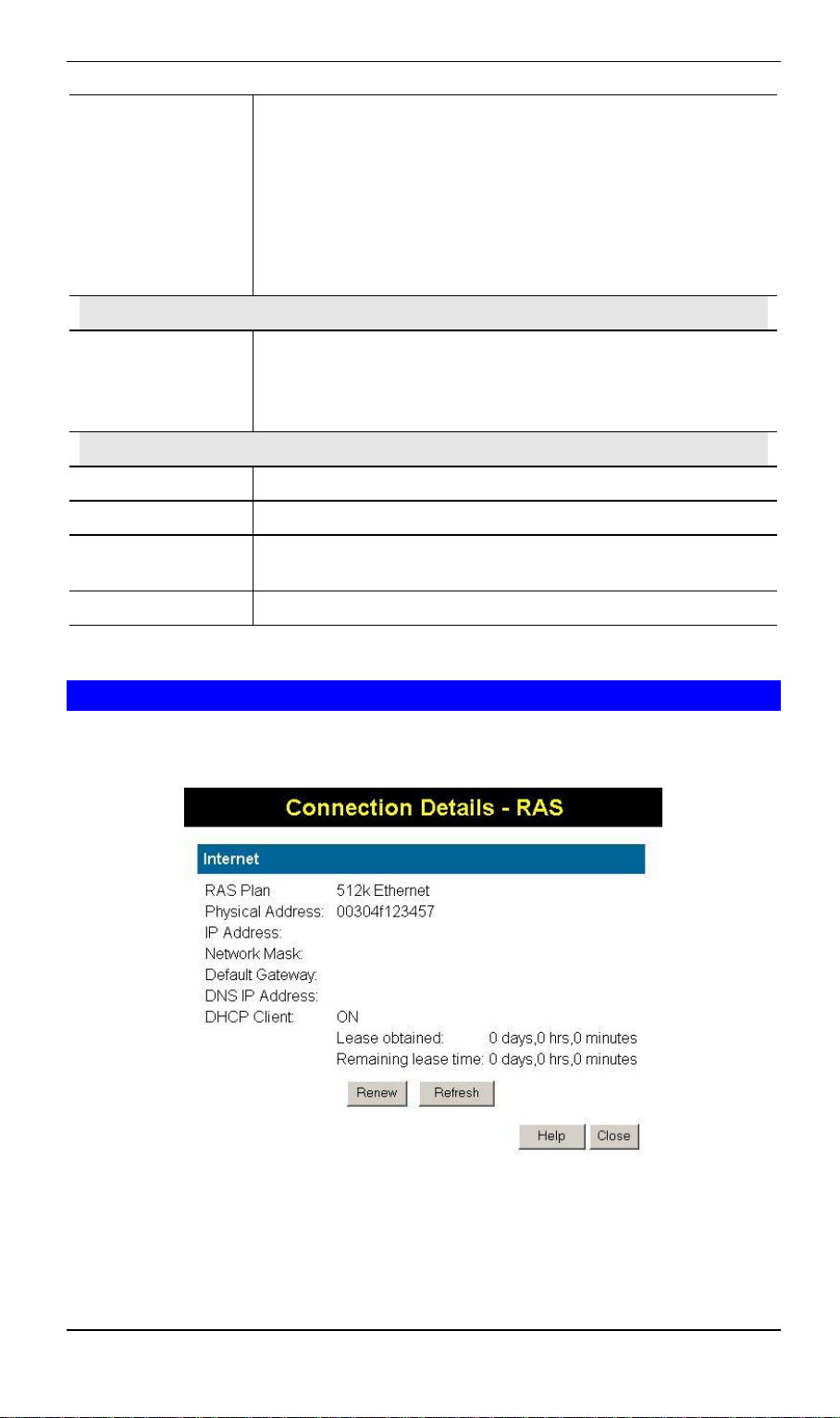

Connection Details
For additional information about the PCs on your LAN, and the IP
addresses allocated to them, use the PC Database option on the
Advanced menu.
This displays the current name of XRT-811.
The current version of the firmware installed in XRT-811.
Clicking this button will open a Window which lists all system
details and settings.
This indicates the current status of the printer. Possible values are:
• Idle
• Printing
• Off-line
• Out of paper
Click this button to terminate the current print job. This button
should be used if the current print job is not printing correctly.
View the details of the current Internet connection. The sub-
38
Operation and Status
• If the connection does not exist, the "Connect" button can be
the following sections for details of each sub-screen.
System Data
"Abort Current Print
Job" Button
Refresh Screen
Display all system information in a sub-window.
Click this button to terminate the current print job. This button
should be used if the current print job is not printing correctly.
Update the data displayed on screen.
Connection Status - PPPoE
If using PPPoE (PPP over Ethernet), a screen like the following example will be displayed
when the "Connection Details" button is clicked.
Figure 26: PPPoE Status Screen
Data - PPPoE
Connection
Physical Address
IP Address
Network Mask
PPPoE Link Status
The hardware address of this device, as seen by remote devices on
the Internet. (This is different to the hardware address seen by
devices on the local LAN.)
The IP Address of this device, as seen by Internet users. This
address is allocated by your ISP (Internet Service Provider).
The Network Mask associated with the IP Address above.
This indicates whether or not the connection is currently estab-
lished.
39
XRT-811 User’s Manual
Connection Log
Connection Log
Buttons
used to establish a connection.
• If the connection currently exists, the "Disconnect" button
can be used to break the connection.
• The Connection Log shows status messages relating to the
existing connection.
• The most common messages are listed in the table below.
• The "Clear Log" button will restart the Log, while the Re-
fresh button will update the messages shown on screen.
Connect
Disconnect
Clear Log
If not connected, establish a connection to your ISP.
If connected to your ISP, hang up the connection.
Delete all data currently in the Log. This will make it easier to
read new messages.
Refresh
Update the data on screen.
Connection Log Messages
Message Description
Connect on Demand Connection attempt has been triggered by the "Connect auto-
matically, as required" setting.
Manual connection Connection attempt started by the "Connect" button.
Reset physical connection Preparing line for connection attempt.
Connecting to remote
server
Remote Server located ISP's Server has responded to connection attempt.
Start PPP Attempting to login to ISP's Server and establish a PPP con-
Attempting to connect to the ISP's server.
nection.
PPP up successfully Able to login to ISP's Server and establish a PPP connection.
Idle time-out reached The connection has been idle for the time period specified in
the "Idle Time-out" field. The connection will now be termi-
nated.
Disconnecting The current connection is being terminated, due to either the
"Idle Time-out" above, or "Disconnect" button being clicked.
Error: Remote Server not
found
Error: PPP Connection
failed
ISP's Server did not respond. This could be a Server problem,
or a problem with the link to the Server.
Unable to establish a PPP connection with the ISP's Server.
This could be a login problem (name or password) or a Server
problem.
Error: Connection to
Server lost
The existing connection has been lost. This could be caused by
a power failure, a link failure, or Server failure.
40
Operation and Status
Error: Invalid or unknown
packet type
The data received from the ISP's Server could not be proc-
essed. This could be caused by data corruption (from a bad
link), or the Server using a protocol which is not supported by
this device.
41
XRT-811 User’s Manual
Connection Status - PPTP
If using PPTP (Peer-to-Peer Tunneling Protocol), a screen like the following example will be
displayed when the "Connection Details" button is clicked.
Data - PPTP
Connection
Physical Address
IP Address
PPTP Status
Connection Log
Connection Log
Figure 27: PPTP Status Screen
The hardware address of this device, as seen by remote devices on the
Internet. (This is different to the hardware address seen by devices on
the local LAN.)
The IP Address of this device, as seen by Internet users. This address
is allocated by your ISP (Internet Service Provider).
This indicates whether or not the connection is currently established.
• If the connection does not exist, the "Connect" button can be
used to establish a connection.
• If the connection currently exists, the "Disconnect" button can be
used to break the connection.
• The Connection Log shows status messages relating to the
existing connection.
• The "Clear Log" button will restart the Log, while the Refresh
button will update the messages shown on screen.
42
Buttons
Operation and Status
Connect
Disconnect
Clear Log
Refresh
If not connected, establish a connection to your ISP.
If connected to your ISP, hang up the connection.
Delete all data currently in the Log. This will make it easier to read
new messages.
Update the data on screen.
Connection Status - Telstra Big Pond
An example screen is shown below.
Data - Big Pond
Connection
Physical Address
IP Address
Connection Status
Figure 28: Telstra Big Pond Status Screen
The hardware address of this device, as seen by remote devices.
(This is different to the hardware address seen by devices on the
local LAN.)
The IP Address of this device, as seen by Internet users. This
address is allocated by your ISP (Internet Service Provider).
This indicates whether or not the connection is currently estab-
43
XRT-811 User’s Manual
Connection Log
Connection Log
Buttons
lished.
• If the connection does not exist, the "Connect" button can be
used to establish a connection.
• If the connection currently exists, the "Disconnect" button can
be used to break the connection.
• Normally, it is not necessary to use the Connect and Disconnect
buttons unless the setting "Connect automatically, as required"
is disabled.
• The Connection Log shows status messages relating to the
existing connection.
• The Clear Log button will restart the Log, while the Refresh
button will update the messages shown on screen.
Connect
Disconnect
Clear Log
Refresh
If not connected, establish a connection to Telstra Big Pond.
If connected to Telstra Big Pond, terminate the connection.
Delete all data currently in the Log. This will make it easier to read
new messages.
Update the data on screen.
Connection Details - SingTel RAS
If using the SingTel RAS access method, a screen like the following example will be displayed
when the "Connection Details" button is clicked.
Figure 29: Connection Details - RAS
44
Data - RAS
Internet
Operation and Status
RAS Plan
Physical Address
IP Address
Network Mask
Default Gateway
DNS IP Address
DHCP Client
Buttons
Release/Renew
Button will display
EITHER
"Release"
OR
"Renew"
The RAS Plan which is currently used.
The hardware address of this device, as seen by remote devices on the
Internet. (This is different to the hardware address seen by devices on
the local LAN.)
The IP Address of this device, as seen by Internet users. This address
is allocated by your ISP (Internet Service Provider).
The Network Mask associated with the IP Address above.
The IP Address of the remote Gateway or Router associated with the
IP Address above.
The IP Address of the Domain Name Server which is currently used.
This will show "Enabled" or "Disabled", depending on whether or not
this device is functioning as a DHCP client.
If "Enabled" the "Remaining lease time" field indicates when the IP
Address allocated by the DHCP Server will expire. The lease is
automatically renewed on expiry; use the "Renew" button if you wish
to manually renew the lease immediately.
This button is only useful if the IP address shown above is allocated
automatically on connection. (Dynamic IP address). If you have a
Fixed (Static) IP address, this button has no effect.
• If the ISP's DHCP Server has NOT allocated an IP Address for
XRT-811, this button will say "Renew". Clicking the "Renew"
button will attempt to re-establish the connection and obtain an
IP Address from the ISP's DHCP Server.
• If an IP Address has been allocated to XRT-811 (by the ISP's
DHCP Server), this button will say "Release". Clicking the "Release" button will break the connection and release the IP
Address.
Refresh
Update the data shown on screen.
45
XRT-811 User’s Manual
EITHER
Connection Details - Fixed/Dynamic IP Address
If your access method is "Direct" (no login), a screen like the following example will be displayed when the "Connection Details" button is clicked.
Figure 30: Connection Details - Fixed/Dynamic IP Address
Data - Fixed/Dynamic IP address
Internet
Physical Address
IP Address
Network Mask
Default Gateway
DNS IP Address
DHCP Client
The hardware address of this device, as seen by remote devices on the
Internet. (This is different to the hardware address seen by devices on
the local LAN.)
The IP Address of this device, as seen by Internet users. This address
is allocated by your ISP (Internet Service Provider).
The Network Mask associated with the IP Address above.
The IP Address of the remote Gateway or Router associated with the
IP Address above.
The IP Address of the Domain Name Server which is currently used.
This will show "Enabled" or "Disabled", depending on whether or not
this device is functioning as a DHCP client.
If "Enabled" the "Remaining lease time" field indicates when the IP
Address allocated by the DHCP Server will expire. The lease is
automatically renewed on expiry; use the "Renew" button if you wish
to manually renew the lease immediately.
Buttons
Release/Renew
Button will display
This button is only useful if the IP address shown above is allocated
automatically on connection. (Dynamic IP address). If you have a
Fixed (Static) IP address, this button has no effect.
46
Operation and Status
"Release"
OR
"Renew"
Refresh
• If the ISP's DHCP Server has NOT allocated an IP Address for
XRT-811, this button will say "Renew". Clicking the "Renew"
button will attempt to re-establish the connection and obtain an
IP Address from the ISP's DHCP Server.
• If an IP Address has been allocated to XRT-811 (by the ISP's
DHCP Server), this button will say "Release". Clicking the "Release" button will break the connection and release the IP
Address.
Update the data shown on screen.
47
6
Chapter 6
Internet Features
This Chapter explains when and how to use XRT-811's "Internet " Features.
Overview
The following advanced features are covered in this Chapter:
• Advanced Internet
• Communication Applications
• Special Applications
• DMZ
• URL filter
• Dynamic DNS
• Virtual Servers
• Options
Advanced Internet Screen

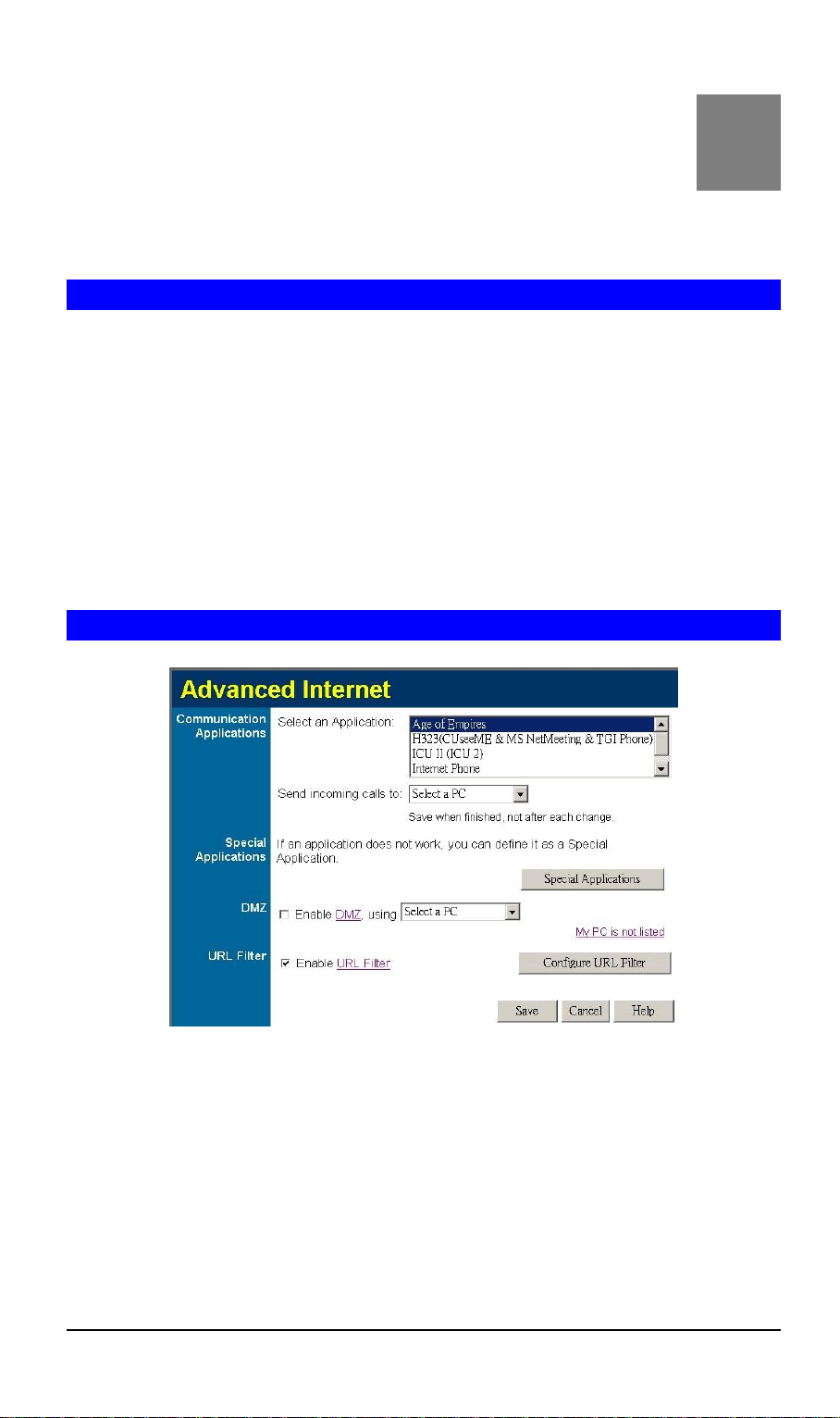

Figure 31: Advanced Menu
This screen allows configuration of all advanced features relating to Internet access.
• Communication Applications
• Special Applications
• DMZ
• URL filter
48
Advanced Features
Communication Applications
Most applications are supported transparently by XRT-811. But sometimes it is not clear which
PC should receive an incoming connection. This problem could arise with the Communication
Applications listed on this screen.
If this problem arises, you can use this screen to set which PC should receive an incoming
connection, as described below.
Communication Applications
Select an Application
Send incoming calls to
This lists applications, which may generate incoming connections,
where the destination PC (on your local LAN) is unknown.
This lists the PCs on your LAN.
• If necessary, you can add PCs manually, using the "PC
Database" option on the advanced menu.
• For each application listed above, you can choose a destina-
tion PC.
• There is no need to "Save" after each change; you can set the
destination PC for each application, then click "Save".
Special Applications
If you use Internet applications, which use non-standard connections or port numbers, you may
find that they do not function correctly because they are blocked by XRT-811's firewall. In this
case, you can define the application as a "Special Application".
Special Applications Screen
This screen can be reached by clicking the Special Applications button on the Internet screen.
You can then define your Special Applications. You will need detailed information about the
application; this is normally available from the supplier of the application.
Also, note that the terms "Incoming" and "Outgoing" on this screen refer to traffic from the
client (PC) viewpoint
Figure 32: Special Applications Screen
49
XRT-811 User’s Manual
Data - Special Applications Screen
Checkbox
Name
Incoming
Ports
Outgoing
Ports
Use this to Enable or Disable this Special Application as required.
Enter a descriptive name to identify this Special Application.
• Type - Select the protocol (TCP or UDP) used when you receive data
from the special application or service. (Note: Some applications use
different protocols for outgoing and incoming data).
• Start - Enter the beginning of the range of port numbers used by the
application server, for data you receive. If the application uses a single
port number, enter it in both the "Start" and "Finish" fields.
• Finish - Enter the end of the range of port numbers used by the applica-
tion server, for data you receive.
• Type - Select the protocol (TCP or UDP) used when you send data to
the remote system or service.
• Start - Enter the beginning of the range of port numbers used by the
application server, for data you send to it. If the application uses a single
port number, enter it in both the "Start" and "Finish" fields.
• Finish - Enter the end of the range of port numbers used by the applica-
tion server, for data you send to it. If the application uses a single port
number, enter it in both the "Start" and "Finish" fields.
Using a Special Application
• Configure the Special Applications screen as required.
• On your PC, use the application normally. Remember that only one (1) PC can use each
Special application at any time. Also, when 1 PC is finished using a particular Special Application, there may need to be a "Time-out" before another PC can use the same Special
Application. The "Time-out" period may be up to 3 minutes.
If an application still cannot function correctly,
iNote
try using the "DMZ" feature.
DMZ
This feature, if enabled, allows one (1) computer on your LAN to be exposed to all users on the
Internet, allowing unrestricted 2-way communication between the "DMZ PC" and other Internet
users or Servers.
• This allows almost any application to be used on the "DMZ PC".
• The "DMZ PC" will receive all "Unknown" connections and data.
• If the DMZ feature is enabled, you must select the PC to be used as the "DMZ PC".
• The DMZ feature can be Enabled and Disabled on the Advanced Internet screen.
The "DMZ PC" is effectively outside the Firewall, mak-
iNote
ing it more vulnerable to attacks. For this reason, you
should only enable the DMZ feature when required.
50
Advanced Features
URL Filter
The URL Filter allows you to block access to undesirable Web site
• To use this feature, you must define "filter strings". If the "filter string" appears in a re-
quested URL, the request is blocked.
• Enabling the URL Filter also affects the Internet Access Log. If Enabled, the "Destination"
field in the log will display the URL. Otherwise, it will display the IP Address.
• The URL Filter can be Enabled or Disabled on the Advanced Internet screen.
URL Filter Screen
Click the "Configure URL Filter" button on the Internet screen to access the URL Filter screen.
An example screen is shown below.
Data - URL Filter Screen
Filter Strings
Current Entries
Add Filter String
Buttons
Delete/Delete All
Add
This lists any existing entries. If you have not entered any values, this
list will be empty.
To add an entry to the list, enter it here, and click the "Add" button.
An entry may be a Domain name (e.g. www.trash.com) or simply a
string. (e.g. ads/ )
Any URL which contains ANY entry ANYWHERE in the URL will be
blocked.
Use these buttons to delete the selected entry or all entries, as required.
Multiple entries can be selected by holding down the CTRL key while
selecting.(On the Macintosh, hold the SHIFT key while selecting.)
Use this to add the current Filter String to the site list.

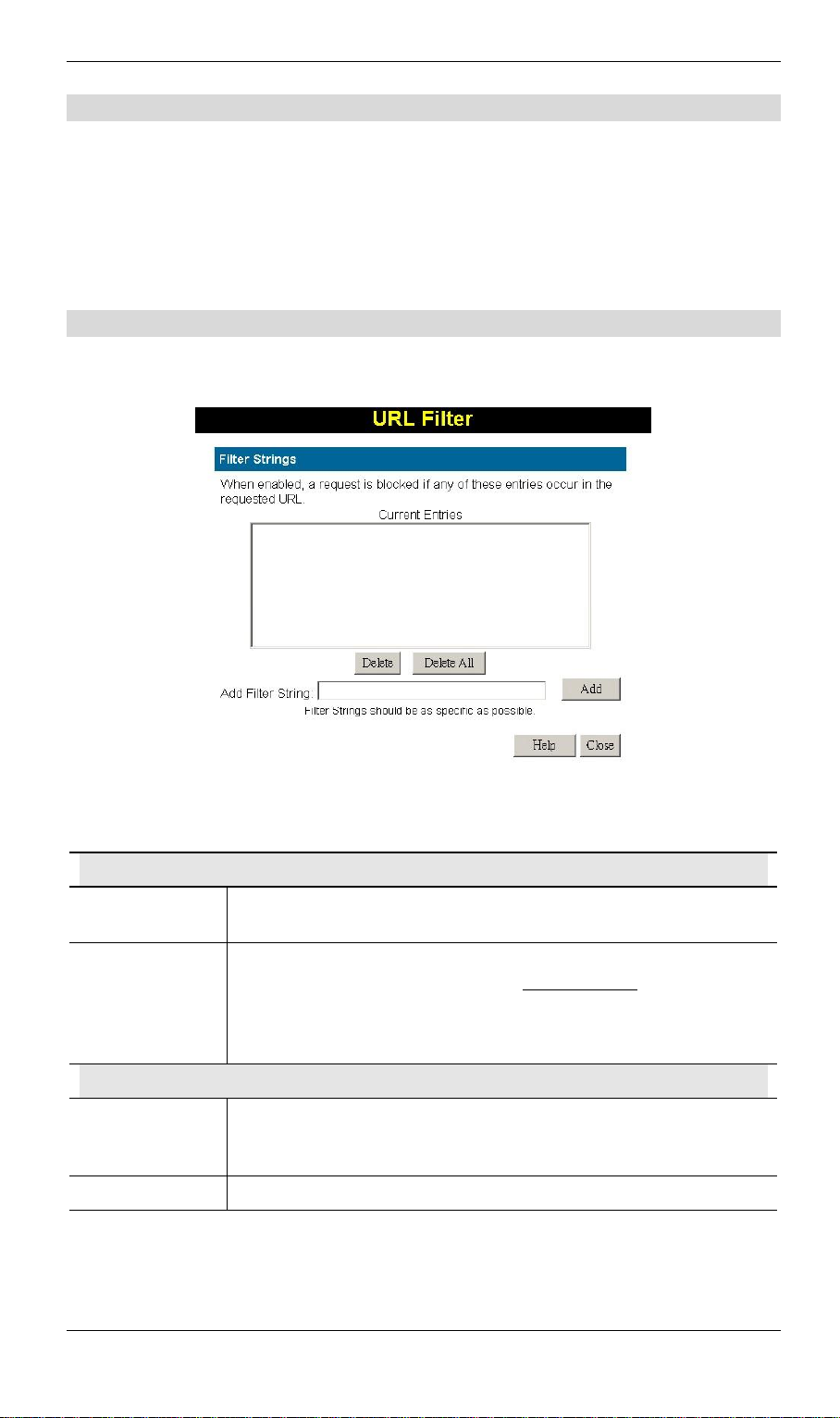

Figure 33: URL Filter Screen
51
XRT-811 User’s Manual
Dynamic DNS (Dynamic Domain Name Server)
This free service is very useful when combined with the Virtual Server feature. It allows Internet users to connect to your Virtual Servers using a URL, rather than an IP Address.
This also solves the problem of having a dynamic IP address. With a dynamic IP address, your
IP address may change whenever you connect, which makes it difficult to connect to you.
The Service works as follows:
1. You must register for the service at http://www.dyndns.org (Registration is free). Your
password will be E-mailed to you.
2. After registration, use the "Create New Host" option (at www.dyndns.org) to request your
desired Domain name.
3. Enter your data from www.dyndns.org in XRT-811 's DDNS screen.
4. XRT-811 will then automatically ensure that your current IP Address is recorded at
http://www.dyndns.org
5. From the Internet, users will be able to connect to your Virtual Servers (or DMZ PC) using
your Domain name, as shown on this screen.
Dynamic DNS Screen
Select Internet on the main menu, then Dynamic DNS, to see a screen like the following:
Figure 34: DDNS Screen
Data - Dynamic DNS Screen
DDNS Service
DDNS Service
• You must sign up first to create a new account before using the
service. The service is free.
• Click this link to connect to the www.dyndns.org Web site.
• Your initial password will be E-mailed to you; you can change
this later if you wish.
• After registration, use the "Create New Host" link (on the
www.dyndns.org Web site) to request a domain name.
52
DDNS Data
Advanced Features
User Name
Password
Domain Name
DDNS Status
Enter the "User name" specified at the www.dyndns.org Web site
when you registered.
Enter your current password for www.dyndns.org
• Enter your domain name, as allocated at www.dyndns.org.
• The name should consist only of letters and the hyphen (dash).
Using any other characters may cause problems..
This message is returned by the DDNS Server at www.dyndns.org
• Normally, this message should be "Update successful" (current
IP address was updated on the www.dyndns.org server).
• If the message is "No host", this indicates the host name entered
was not allocated to you. You need to connect to
www.dyndns.org and correct this problem.
53
XRT-811 User’s Manual
Virtual Servers
This feature allows you to make Servers on your LAN accessible to Internet users. Normally,
Internet users would not be able to access a server on your LAN because:
• Your Server does not have a valid external IP Address.
• Attempts to connect to devices on your LAN are blocked by the firewall in this device.
The "Virtual Server" feature solves these problems and allows Internet users to connect to your
servers, as illustrated below.
Figure 35: Virtual Servers
IP Address seen by Internet Users
Note that, in this illustration, both Internet users are connecting to the same IP Address, but
using different protocols.
To Internet users, all virtual Servers on your LAN have the same IP Address.
This IP Address is allocated by your ISP.
This address should be static, rather than dynamic, to make it easier for Internet users to connect to your Servers.
However, you can use the DDNS (Dynamic DNS) feature to allow users to connect to your
Virtual Servers using a URL, instead of an IP Address.
54
Advanced Features
Virtual Servers Screen
The Virtual Servers screen is reached by the Virtual Servers link on the Advanced screen. An
example screen is shown below.

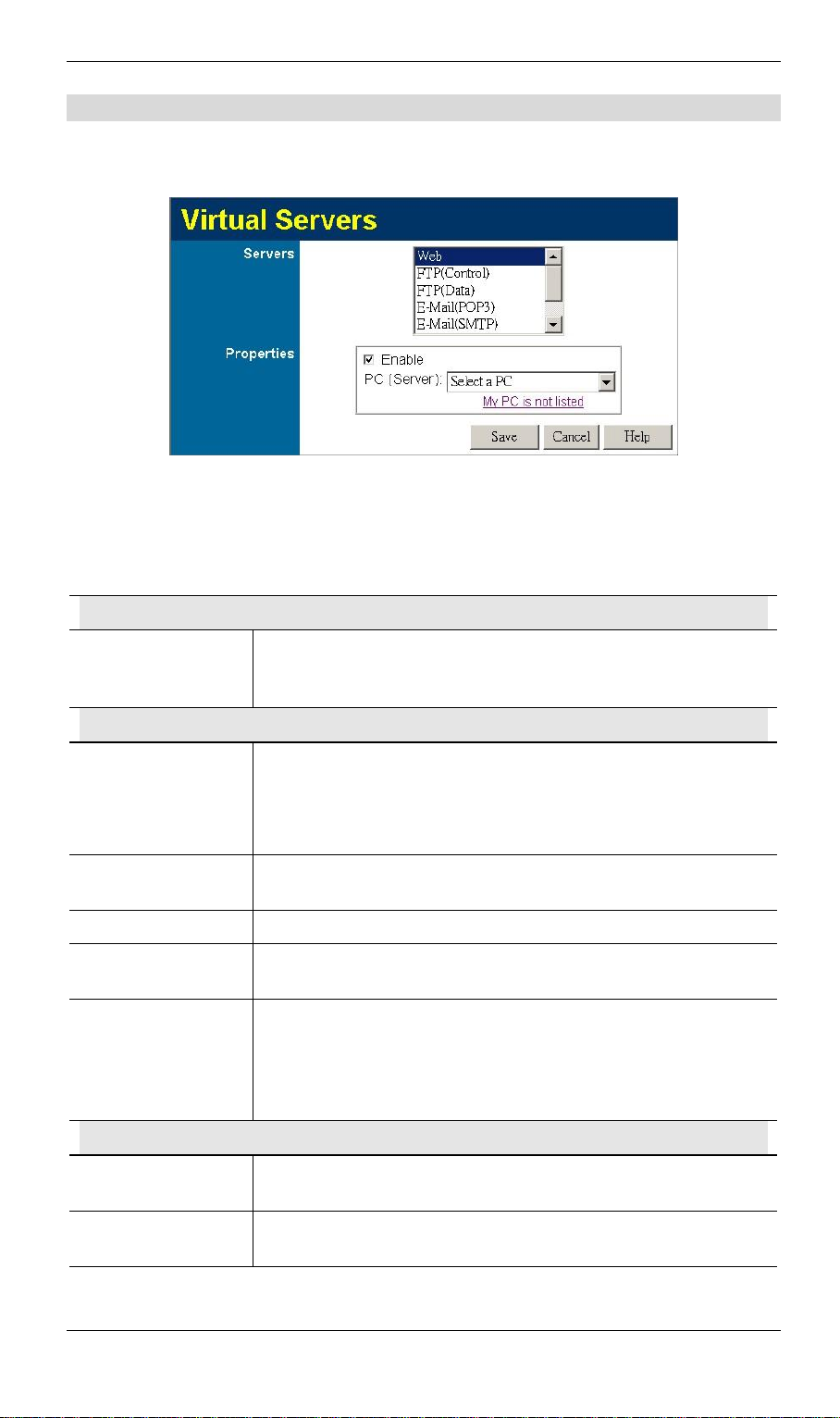

Figure 36: Virtual Servers Screen
This screen lists a number of pre-defined Servers, and allows you to define your own Servers.
Details of the selected Server are shown in the "Properties" area.
Data - Virtual Servers Screen
Servers
Servers
Properties
Enable
PC (Server)
Protocol
Internal Port No.
External Port No.
Buttons
This lists a number of pre-defined Servers, plus any Servers you
have defined. Details of the selected Server are shown in the "Properties" area.
Use this to Enable or Disable support for this Server, as required.
• If Enabled, any incoming connections will be forwarded to the
selected PC.
• If Disabled, any incoming connection attempts will be blocked.
Select the PC for this Server. The PC must be running the appropri-
ate Server software.
Select the protocol (TCP or UDP) used by the Server.
Enter the port number which the Server software is configured to
use.
The port number used by Internet users when connecting to the
Server. This is normally the same as the Internal Port Number. If it
is different, this device will perform a "mapping" or "translation"
function, allowing the server to use one port address, while clients
use a different port address.
Defaults
Disable All
This will delete any Servers you have defined, and set the predefined Servers to use their default port numbers.
This will cause the "Enable" setting of all Virtual Servers to be set
OFF.
55
XRT-811 User’s Manual
Update Selected
Server
Add as new Server
Delete
Clear Form
For each entry, the PC must be running the
iNote
Update the current Virtual Server entry, using the data shown in the
"Properties" area on screen.
Add a new entry to the Virtual Server list, using the data shown in
the "Properties" area on screen. The entry selected in the list is
ignored, and has no effect.
Delete the current Virtual Server entry. Note that the pre-defined
Servers can not be deleted. Only Servers you have defined yourself
can be deleted.
Clear all data from the "Properties" area, ready for input of a new
Virtual Server entry.
appropriate Server software.
Defining your own Virtual Servers
If the type of Server you wish to use is not listed on the Virtual Servers screen, you can define
and manage your own Servers:
Create a new Server:
1. Click "Clear Form"
2. Enter the required data, as described above.
3. Click "Add".
4. The new Server will now appear in the list.
Modify (Edit) a Server:
Delete a Server:
From the Internet, ALL Virtual Servers have the IP
iNote
1. Select the desired Server from the list
2. Make any desired changes (for example, change the
Enable/Disable setting).
3. Click "Update" to save changes to the selected Server.
1. Select the entry from the list.
2. Click "Delete".
Note: You can only delete Servers you have defined. Predefined Server cannot be deleted.
Address allocated by your ISP.
Connecting to the Virtual Servers
Once configured, anyone on the Internet can connect to your Virtual Servers. They must use the
Internet IP Address (the IP Address allocated to you by your ISP).
e.g.
http://203.70.212.52
ftp://203.70.212.52
56
Advanced Features
Options
This screen allows advanced users to enter or change a number of settings. For normal operation, there is no need to use this screen or change any settings.
Figure 37: Options Screen
Data - Options Screen
Backup DNS
IP Address
MTU
MTU size
Enter the IP Address of the DNS (Domain Name Servers) here. These
DNS will be used only if the primary DNS is unavailable.
MTU (Maximum Transmission Unit) value should only be changed if
advised to do so by Technical Support.
• Enter a value between 1 and 1500.
• This device will still auto-negotiate with the remote server, to set
the MTU size. The smaller of the 2 values (auto-negotiated, or entered here) will be used.
• For direct connections (not PPPoE or PPTP), the MTU used is
always 1500.
57
7
Chapter 7
Security Configuration
This Chapter explains the settings available via the security configuration
section of the "Security" menu.
Overview
The following advanced configurations are provided.
• Admin Login
• Access Control
• Firewall Rules
• Logs
• Security Options
• Scheduling
• Services
Admin Login
The Admin Login screen allows you to assign a user name and password to XRT-811.
Figure 38: Admin Login Screen
3. The default login name is "admin". Change this to the desired value.
4. The default password is blank (no password). Enter the desired password in the New
Password and Verify Password fields.
5. Save your changes.
You will see a login prompt when you connect to XRT-811, as shown below.
58
Security Configuration
Figure 39: Password Dialog
Enter the "User Name" and "Password" you set on the Admin Login screen above.
59
XRT-811 User’s Manual
Access Control
This feature is accessed by the Access Control link on the Security menu.
The Access Control feature allows administrators to restrict the level of Internet Access avail-
able to PCs on your LAN. With the default settings, everyone has unrestricted Internet access.
To use this feature:
6. Set the desired restrictions on the "Default" group. All PCs are in the "Default" group
unless explicitly moved to another group.
7. Set the desired restrictions on the other groups ("Group 1", "Group 2", "Group 3" and
"Group 4") as needed.
8. Assign PC to the groups as required.
Restrictions are imposed by blocking "Services", or types of
iNote
connections. All common Services are pre-defined.
If required, you can also define your own Services.
Access Control Screen
To view this screen, select the Access Control link on the Security menu.

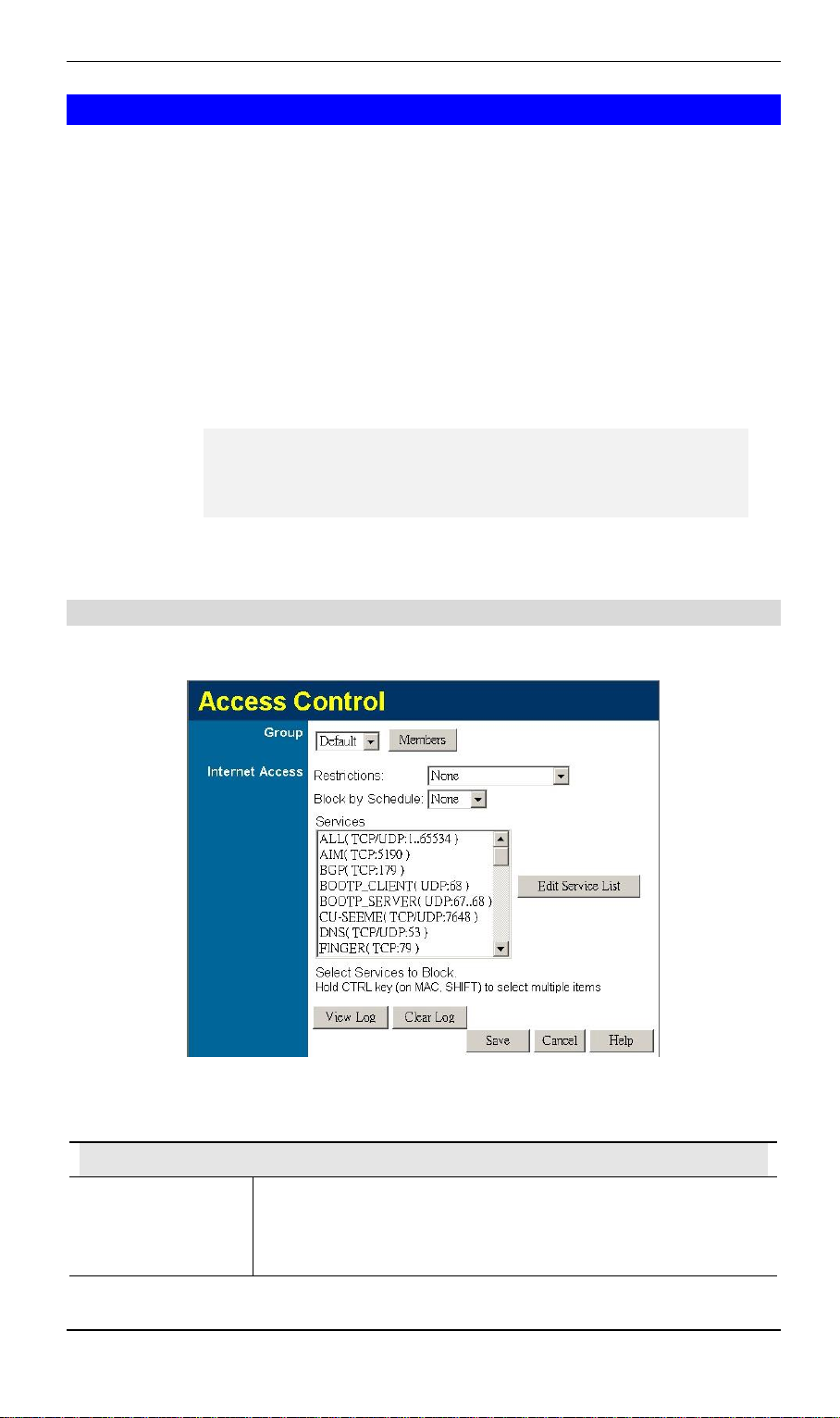

Figure 40: Access Control Screen
Data - Access Control Screen
Group
Group
Select the desired Group. The screen will update to display the
settings for the selected Group. Groups are named "Default",
"Group 1", "Group 2", "Group 3" and "Group 4", and cannot be renamed.
60
Security Configuration
"Members" Button
Internet Access
Restrictions
Block by Schedule
Click this button to add or remove members from the current
Group.
• If the current group is "Default", then members can not be
added or deleted. This group contains PCs not allocated to any
other group.
• To remove PCs from the Default Group, assign them to another
Group.
• To assign PCs to the Default Group, delete them from the
Group they are currently in.
See the following section for details of the Group Members screen.
Select the desired options for the current group:
• None - Nothing is blocked. Use this to create the least restric-
tive group.
• Block all Internet access - All traffic via the WAN port is
blocked. Use this to create the most restrictive group.
• Block selected Services - You can select which Services are to
block. Use this to gain fine control over the Internet access for
a group.
If Internet access is being blocked, you can choose to apply the
blocking only during scheduled times. (If access is not blocked, no
Scheduling is possible, and this setting has no effect.)
Services
Buttons
Members
Save
Cancel
View Log
Clear Log
This lists all defined Services. Select the Services you wish to
block. To select multiple services, hold the CTRL key while selecting. (On the Macintosh, hold the SHIFT key rather than CTRL.)
Click this button to add or remove members from the current
Group.
If the current group is "Default", then members can not be added or
deleted. This group contains PCs not allocated to any other group.
See the following section for details of the Group Members screen.
Save the data on screen.
Reverse any changes made since the last "Save".
Click this to open a sub-window where you can view the "Access
Control" log. This log shows attempted Internet accesses which
have been blocked by the Access Control feature.
Click this to clear and restart the "Access Control" log, making new
entries easier to read.
61
XRT-811 User’s Manual
Firewall Rules
For normal operation and LAN protection, it is not necessary to use this screen.
The Firewall will always block DoS (Denial of Service) attacks. A DoS attack does not attempt
to steal data or damage your PCs, but overloads your Internet connection so you can not use it the service is unavailable.
As well, you can use this screen to create Firewall rules to block or allow specific traffic. But
Incorrect configuration may cause serious problems.
This feature is for advanced administrators only!
Firewall Rules Screen
Click the Firewall Rules option on the Security menu to see a screen like the following example.
This example contains two (2) rules for outgoing traffic.
Since the default rule for outgoing (LAN => WAN) traffic is "Allow",
iNote
having an "Allow" rule for LAN => WAN only makes sense in
combination with another rule.
For example, the screen below shows a rule blocking all traffic to
a MSN Game Server, followed by another rule allowing access by
a specific PC.

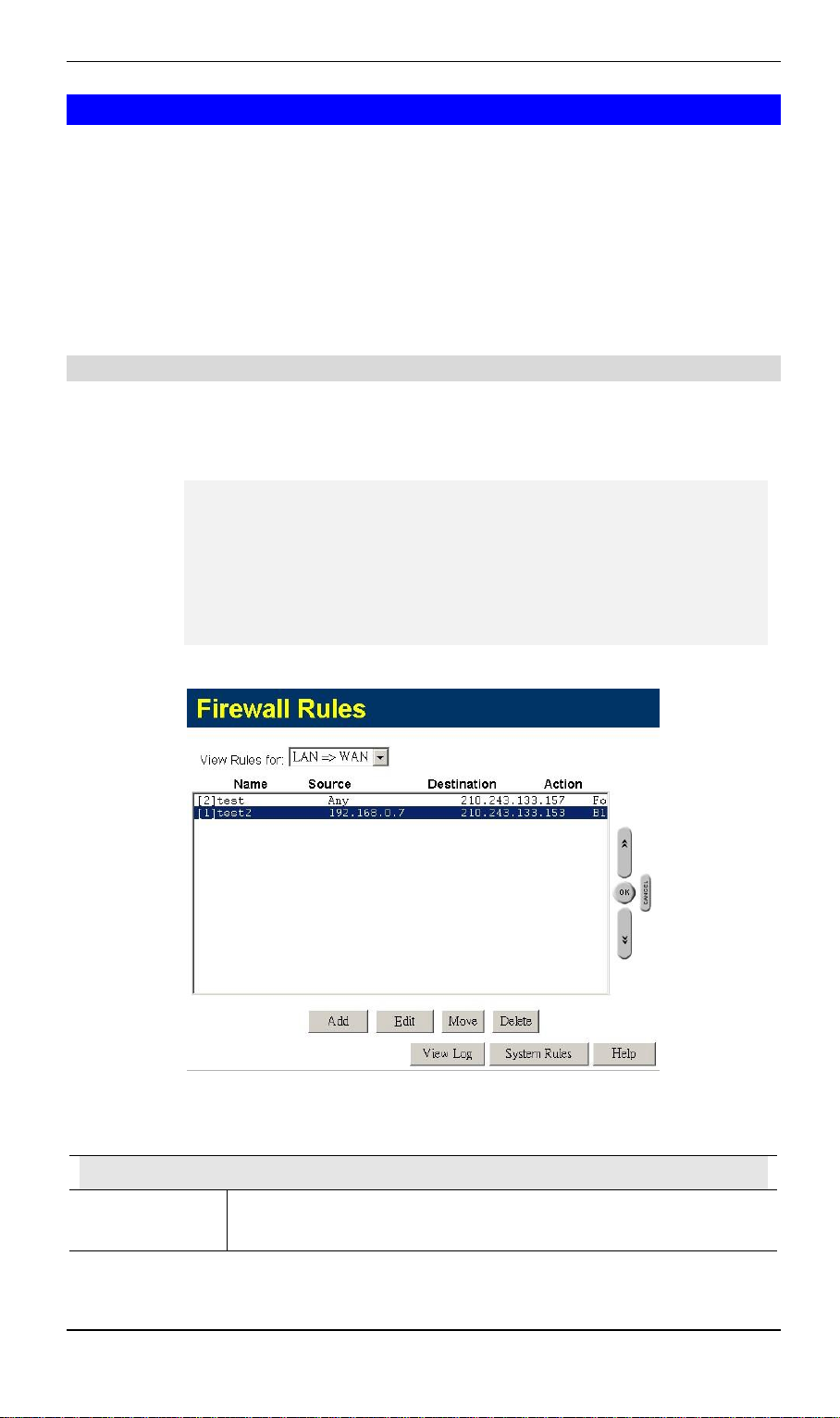

Figure 41: Firewall Rules Screen
Data - Firewall Rules Screen
Rule List
View Rules for ..
Select the desired option; the screen will update and list any current
rules. If you have not defined any rules, the list will be empty.
62
Security Configuration
Data
Add
Edit
Move
Delete
For each rule, the following data is shown:
• Name - The name you assigned to the rule.
• Source - The traffic covered by this rule, defined by the source IP
address. If the IP address is followed by ... this indicates there is
range of IP addresses, rather than a single address.
• Destination - The traffic covered by this rule, defined by destina-
tion IP address. If the IP address is followed by ... this indicates
there is range of IP addresses, rather than a single address.
• Action - Action will be "Forward" or "Block"
To add a new rule, click the "Add" button, and complete the resulting
screen. See the following section for more details.
To Edit or modify an existing rule, select it and click the "Edit" button.
There are 2 ways to change the order of rules
• Use the up and down indicators on the right to move the selected
rule. You must confirm your changes by clicking "OK". If you
change your mind before clicking "OK", click "Cancel" to reverse
your changes.
• Click "Move" to directly specify a new location for the selected
rule.
To delete an existing rule, select it and click the "Delete" button.
View Log
System Rules
Clicking the "View Log" button will open a new window and display
the Firewall log.
Clicking the "System Rules" button will open a new window and
display the default firewall rules currently applied by the system. These
rules cannot be edited, but any rules you create will take precedence
over the default rules.
63
XRT-811 User’s Manual
Define Firewall Rule
Clicking the "Add" button in the Firewall Rules screen will display a screen like the example
below.
Figure 42: Define Firewall Rule
Data - Define Firewall Rule Screen
Name
Type
Source IP
Enter a suitable name for this rule.
This determines the source and destination ports for traffic cov-
ered by this rule. Select the desired option.
These settings determine which traffic, based on their source IP
address, is covered by this rule.
Select the desired option:
• Any - All traffic from the source port is covered by this rule.
• Single address - Enter the required IP address in the "Start IP
address" field". You can ignore the "Subnet Mask" field.
• Range address - If this option is selected, you must complete
both the "Start IP address" and "Finish IP address" fields.
You can ignore the "Subnet Mask" field.
• Subnet address - If this option is selected, enter the required
mask in the "Subnet Mask" field.
64
Security Configuration
Dest IP
Services
Action
Log
These settings determine which traffic, based on their destination
IP address, is covered by this rule.
Select the desired option:
• Any - All traffic from the source port is covered by this rule.
• Single address - Enter the required IP address in the "Start IP
address" field". You can ignore the "Subnet Mask" field.
• Range address - If this option is selected, you must complete
both the "Start IP address" and "Finish IP address" fields.
You can ignore the "Subnet Mask" field.
• Subnet address - If this option is selected, enter the required
mask in the "Subnet Mask" field.
Select the desired Service or Services. This determines which
packets are covered by this rule, based on the protocol (TCP or
UDP) and port number. If necessary, you can define a new Service on the "Services" screen, by defining the protocols and port
numbers used by the Service.
Select the desired action for packets covered by this rule:
This determines whether packets covered by this rule are logged.
Select the desired option.
65
XRT-811 User’s Manual
Logs
The Logs record various types of activity on XRT-811. This data is useful for troubleshooting,
but enabling all logs will generate a large amount of data and adversely affect performance.
Since only a limited amount of log data can be stored in XRT-811, log data can also be Emailed to your PC or sent to a Syslog Server.
Data - Logs Screen
Enable Logs
DoS Attacks
Internet Connections
Access Control

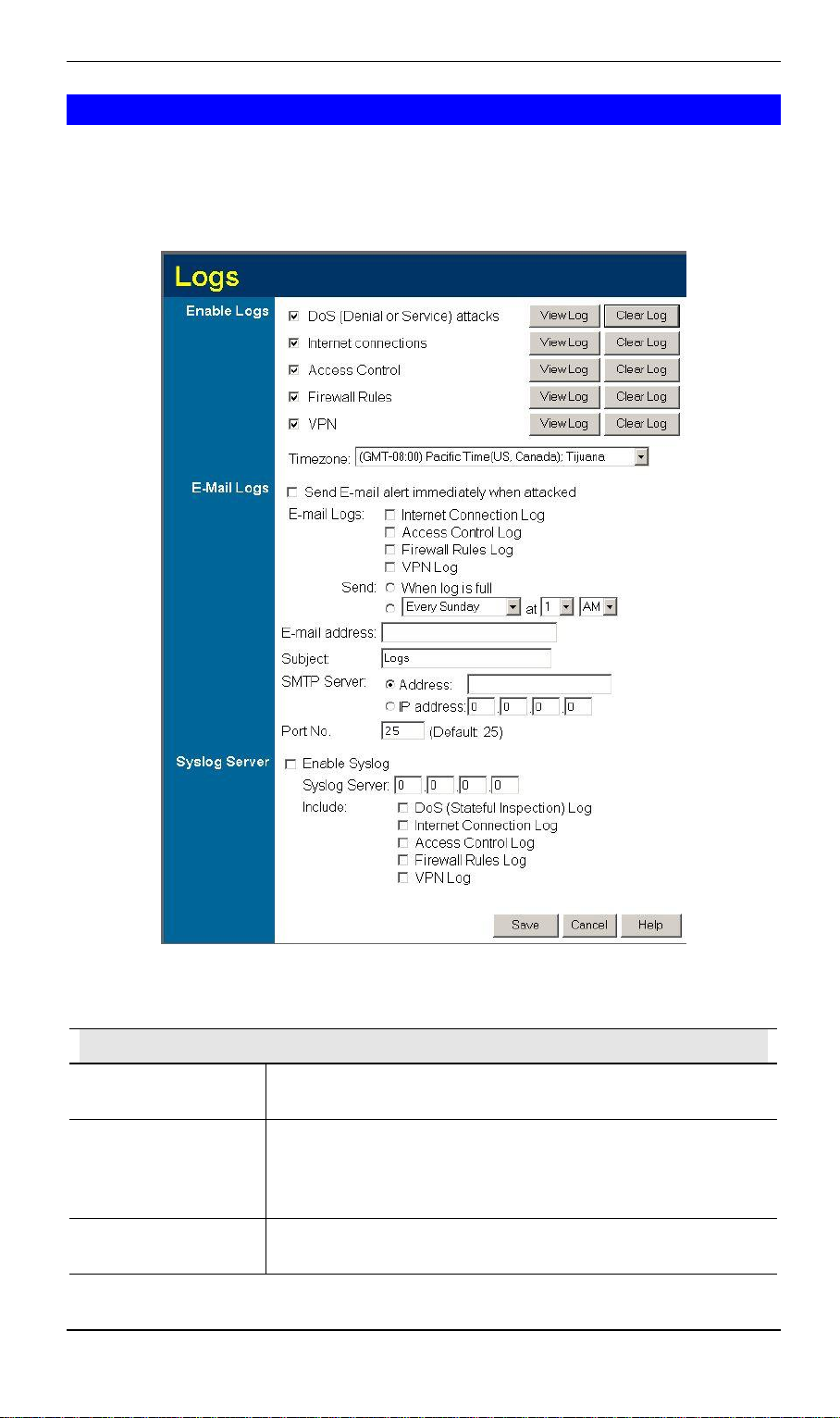

Figure 43: Logs Screen
If enabled, this log will show details of DoS (Denial of Service)
attacks which have been blocked by the built-in Firewall.
If selected, Outgoing Internet connections are logged. Normally,
the (Internet) "Destination" will be shown as an IP address. But if
the "URL Filter" is enabled, the "Destination" will be shown as a
URL.
If enabled, the log will include attempted outgoing connections
which have been blocked by the "Access Control" feature.
66
Security Configuration
Firewall Rules
VPN
Timezone
E-Mail Logs
Send E-mail alert
E-mail Logs
Send
If enabled, the log will details of packets blocked by user-defined
Firewall rules. Logging can be set for each rule individually. Only
rules which have logging enabled will be included.
If enabled, the VPN log will record incoming and outgoing VPN
connections.
Select the correct Timezone for your location. This is required for
the date/time shown on the logs to be correct.
If enabled, an E-mail will be sent immediately if a DoS (Denial of
Service) attack is detected. If enabled, the E-mail address
information must be provided.
You can choose to have the logs E-mailed to you, by enabling
either or both checkboxes. If enabled, the Log will send to the
specified E-mail address. The interval between E-mails is determined by the "Send" setting.
Select the desired option for sending the log by E-mail.
• When log is full - The time is not fixed. The log will be sent
when the log is full, which will depend on the volume of traffic.
• Every day, Every Monday ... - The log is sent on the
interval specified.
• If "Every day" is selected, the log is sent at the time
specified.
• If the day is specified, the log is sent once per week, on
the specified day.
• Select the time of day you wish the E-mail to be sent.
• If the log is full before the time specified to send it, it
will be sent regardless of the day and time specified.
E-mail Address
Subject
SMTP Server
Port No.
Syslog Server
Enable Syslog
Syslog Server
Include
Enter the E-mail address the Log is to be sent to. The E-mail will
also show this address as the Sender's address.
Enter the text string to be shown in the "Subject" field for the Email.
Enter the address or IP address of the SMTP (Simple Mail Transport Protocol) Server you use for outgoing E-mail.
Enter the port number used to connect to the SMTP Server. The
default value is 25.
If enabled, log data will be sent to your Syslog Server.
Enter the IP address of your Syslog Server.
Select the logs you wish to be included.
67
XRT-811 User’s Manual
Security Options
This screen allows you to set Firewall and other security-related options.
Figure 44: Security Options Screen
Data - Security Options Screen
SPI Firewall
Enable DoS
Firewall
Threshold
If enabled, DoS (Denial of Service) attacks will be detected and
blocked. The default is enabled. It is strongly recommended that this
setting be left enabled.
Note:
• A DoS attack does not attempt to steal data or damage your PCs,
but overloads your Internet connection so you can not use it - the
service is unavailable.
• This device uses "Stateful Inspection" technology. This system can
detect situations where individual TCP/IP packets are valid, but
collectively they become a DoS attack.
This setting affects the number of "half-open" connections allowed.
• A "half-open" connection arises when a remote client contacts the
Server with a connection request, but then does not reply to the
Server's response.
• While the optimum number of "half-open" connections allowed
(the "Threshold") depends on many factors, the most important
factor is the available bandwidth of your Internet connection.
• Select the setting to match the bandwidth of your Internet connec-
tion.
68
Options
Security Configuration
Respond to
ICMP
Allow IPsec
Allow PPTP
Allow L2TP
Allow TFTP
firmware upgrade
The ICMP protocol is used by the "ping" and "trace route" programs,
and by network monitoring and diagnostic programs.
• If checked, XRT-811 will respond to ICMP packets received from
the Internet.
• If not checked, ICMP packets from the Internet will be ignored.
Disabling this option provides a slight increase in security.
The IPSec protocol is used to establish a secure connection, and is
widely used by VPN (Virtual Private Networking) programs.
• If checked, IPSec connections are allowed.
• If not checked, IPSec connections are blocked.
PPTP (Point to Point Tunneling Protocol) is widely used by VPN
(Virtual Private Networking) programs.
• If checked, PPTP connections are allowed.
• If not checked, PPTP connections are blocked.
L2TP is a protocol developed by Cisco for VPNs (Virtual Private
Networks).
• If checked, L2TP connections are allowed.
• If not checked, L2TP connections are blocked.
If enabled, TFTP (Trivial FTP) connections can be made to this device.
• TFTP can be used to upgrade the firmware. This is normally not
required, and should not be enabled unless necessary.
• You must obtain the firmware upgrade file first; instructions for
using TFTP will be available with the upgrade.
69
XRT-811 User’s Manual
Scheduling
• This schedule can be (optionally) applied to any Access Control Group.
• Blocking will be performed during the scheduled time (between the "Start" and "Finish"
times.)
• Two (2) separate sessions or periods can be defined.
• Times must be entered using a 24 hr clock.
• If the time for a particular day is blank, no action will be performed.
Define Schedule Screen
This screen is accessed by the Scheduling link on the Security menu.
Figure 45: Define Schedule Screen
Data - Define Schedule Screen
Day
Session 1
Session 2
Start Time
Finish Time
Each day of the week can be scheduled independently.
Two (2) separate sessions or periods can be defined. Session 2 can be
left blank if not required.
Enter the start using a 24 hr clock.
Enter the finish time using a 24 hr clock.
70
Security Configuration
Services
Services are used in defining traffic to be blocked or allowed by the Access Control or Firewall
Rules features. Many common Services are pre-defined, but you can also define your own
services if required.
To view the Services screen, select the Services link on the Security menu.
Data - Services Screen
Available Services
Available Services
"Delete" button
Add New Service
Name
Type
Start Port
Finish Port
ICMP Type
This lists all the available services.
Use this to delete any Service you have added. Pre-defined Services
can not be deleted.
Enter a descriptive name to identify this service.
Select the protocol (TCP, UDP, ICMP) used to the remote system or
service.
For TCP and UDP Services, enter the beginning of the range of port
numbers used by the service. If the service uses a single port number,
enter it in both the "Start" and "Finish" fields.
For TCP and UDP Services, enter the end of the range of port numbers used by the service. If the service uses a single port number,
enter it in both the "Start" and "Finish" fields.
For ICMP Services, enter the type number of the required service.

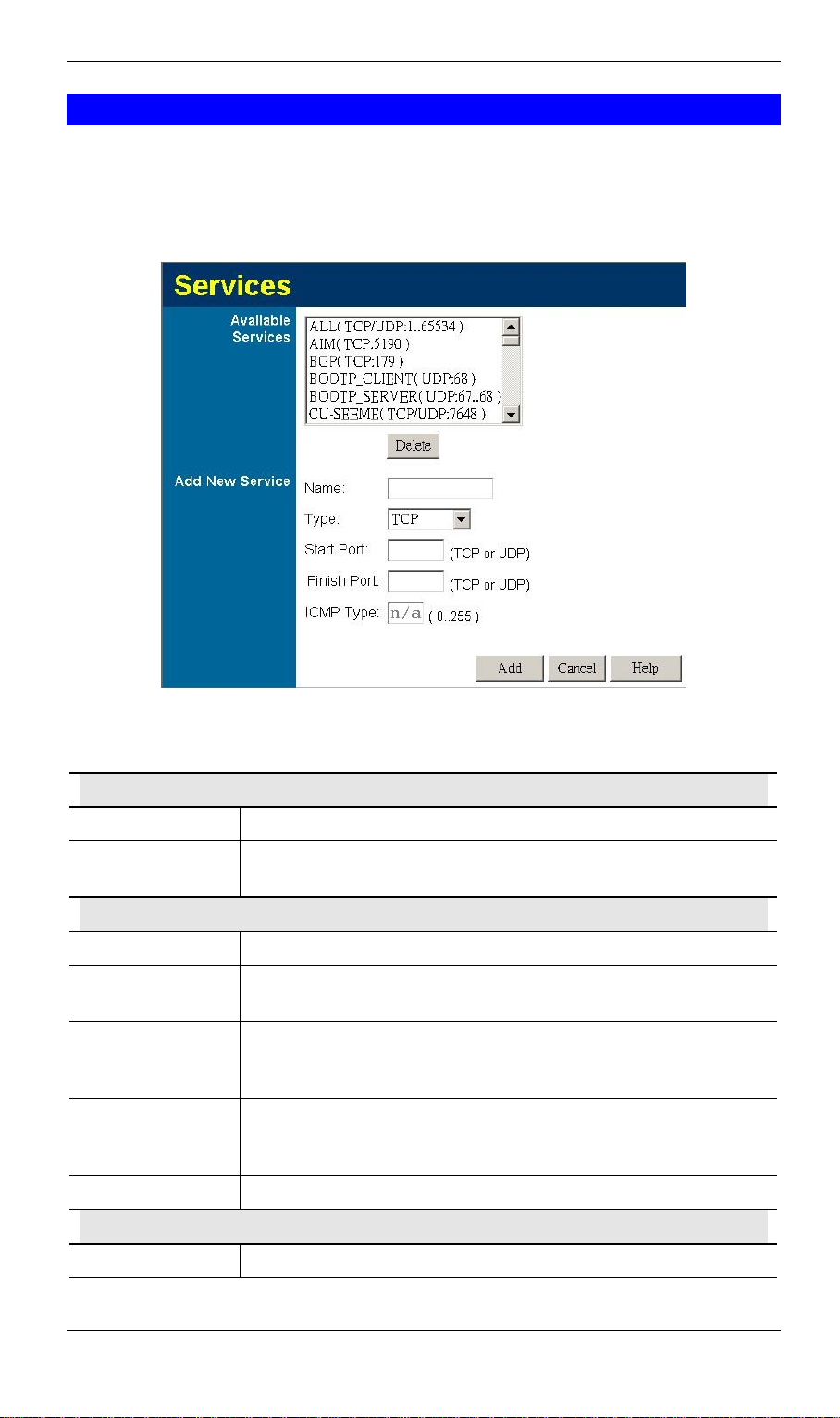

Figure 46: Services Screen
Buttons
Delete
Delete the selected service from the list.
71
XRT-811 User’s Manual
Add
Cancel
Add a new entry to the Service list, using the data shown in the "Add
New Service" area on screen.
Clear the " Add New Service " area, ready for entering data for a new
Service.
72
9
8
Chapter 8
Other Features and Settings
This Chapter explains the screens and settings available via the "Other" menu.
Overview
Normally, it is not necessary to use these screens, or change any settings. These screens and
settings are provided to deal with non-standard situations, or to provide additional options for
advanced users.
The screens available are:
PC Database
Printer Port
Remote
Administration
Routing
Upgrade
Firmware
UPnP
This is the list of PCs shown when you select the "DMZ PC", "Virtual
Server", or "Internet Application". This database is maintained automatically, but you can add and delete entries for PCs, which use a Fixed
(Static) IP Address.
Configure Logical Printers for use under Unix
This feature allows you to manage XRT-811 via the Internet.
Only required if your LAN has other Routers or Gateways.
The firmware (software) in XRT-811 can be upgraded using your Web
Browser.
UPnP (Universal Plug and Play) allows automatic discovery and configu-
ration of XRT-811
73
XRT-811 User’s Manual
PC Database
The PC Database is used whenever you need to select a PC (e.g. for the "DMZ" PC). It eliminates the need to enter IP addresses. Also, you do not need to use fixed IP addresses on your
LAN.
PC Database Screen
An example PC Database screen is shown below.
Figure 47: PC Database
• PCs which are "DHCP Clients" are automatically added to the database, and updated as
required.
• By default, non-Server versions of Windows act as "DHCP Clients"; this setting is called
"Obtain an IP Address automatically".
• XRT-811 uses the "Hardware Address" to identify each PC, not the name or IP address.
The "Hardware Address" can only change if you change the PC's network card or adapter.
• This system means you do NOT need to use Fixed (static) IP addresses on your LAN.
However, you can add PCs using Fixed (static) IP Addresses to the PC database if required.
74
Data - PC Database Screen
Other Features and Settings
Known PCs
Name
IP Address
Buttons
Add
Delete
Refresh
Generate Report
This lists all current entries. Data displayed is name (IP Address) type.
The "type" indicates whether the PC is connected to the LAN.
If adding a new PC to the list, enter its name here. It is best if this
matches the PC's "hostname".
Enter the IP Address of the PC. The PC will be sent a "ping" to determine its hardware address. If the PC is not available (not connected, or
not powered On) you will not be able to add it.
This will add the new PC to the list. The PC will be sent a "ping" to
determine its hardware address. If the PC is not available (not connected, or not powered On) you will not be able to add it.
Delete the selected PC from the list. This should be done in 2 situations:
• The PC has been removed from your LAN.
• The entry is incorrect.
Update the data on screen.
Display a read-only list showing full details of all entries in the PC
database.
Advanced
Administration
View the Advanced version of the PC database screen. See below for
details.
75
XRT-811 User’s Manual
PC Database (Admin)
This screen is displayed if the "Advanced Administration" button on the PC Database is
clicked. It provides more control than the standard PC Database screen.

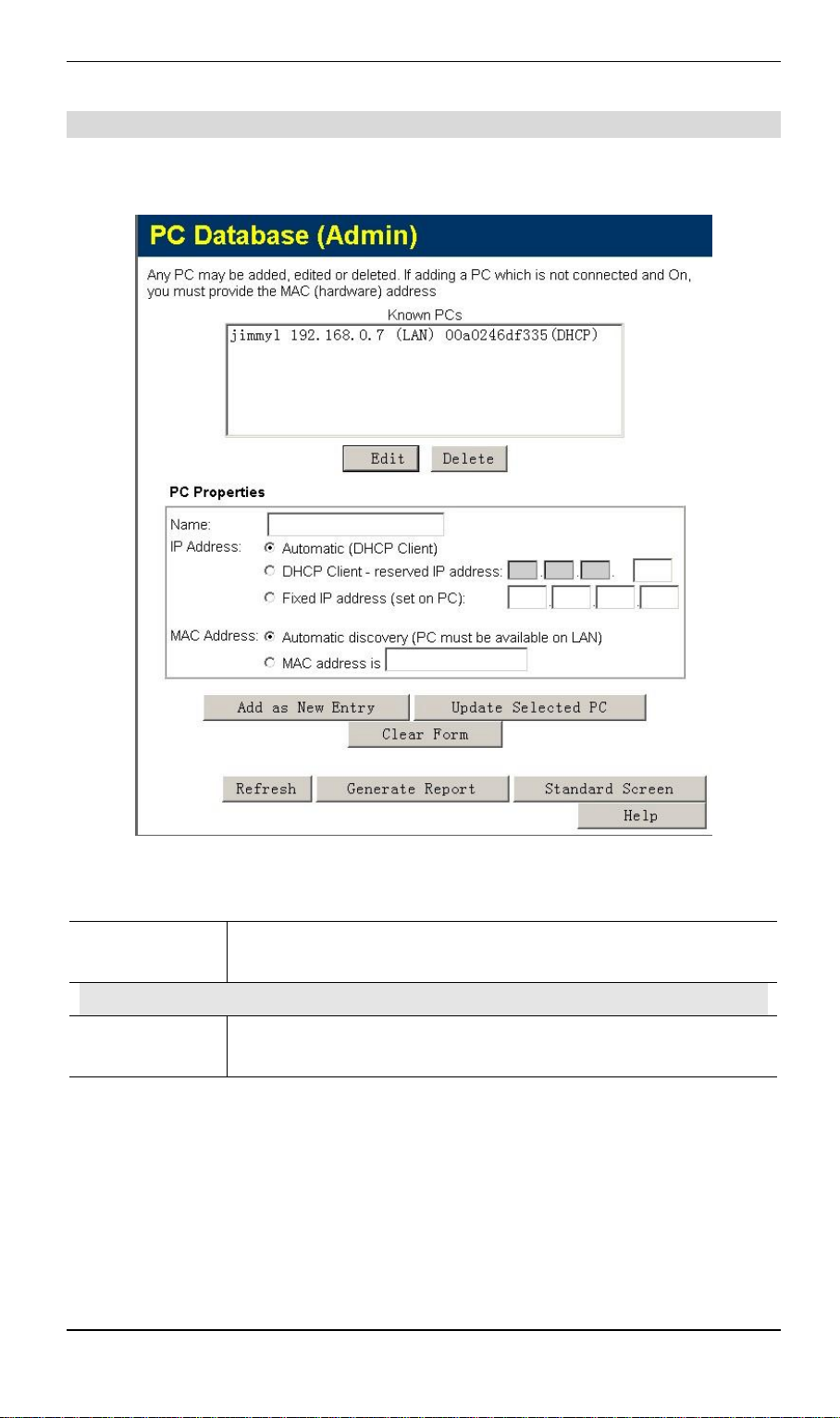

Figure 48: PC Database (Admin)
Data - PC Database ( Admin) Screen
Known PCs
PC Properties
Name
This lists all current entries. Data displayed is name (IP Address) type.
The "type" indicates whether the PC is connected to the LAN.
If adding a new PC to the list, enter its name here. It is best if this
matches the PC's "hostname".
76
Other Features and Settings
IP Address
MAC Address
Select the appropriate option:
• Automatic - The PC is set to be a DHCP client (Windows: "Ob-
tain an IP address automatically"). XRT-811 will allocate an IP
address to this PC when requested to do so. The IP address could
change, but normally won't.
• DCHP Client - Reserved IP Address - Select this if the PC is set
to be a DCHP client, and you wish to guarantee that XRT-811 will
always allocate the same IP Address to this PC.
Enter the required IP address. Only the last field is required; the
other fields must match XRT-811's IP address.
• Fixed IP Address - Select this if the PC is using a Fixed (Static)
IP address. Enter the IP address allocated to the PC. (The PC must
be configured to use this IP address.)
Select the appropriate option
• Automatic discovery - Select this to have XRT-811 contact the
PC and find its MAC address. This is only possible if the PC is
connected to the LAN and powered On.
• MAC is - Enter the MAC address on the PC. The MAC address is
also called the "Hardware Address", "Physical Address", or "Network Adapter Address". XRT-811 uses this to provide a unique
identifier for each PC. Because of this, the MAC address can NOT
be left blank.
Buttons
Add as New
Entry
Update Selected
PC
Clear Form
Refresh
Generate Report
Standard Screen
Add a new PC to the list, using the data in the "Properties" box.
If "Automatic discovery" (for MAC address) is selected, the PC will be
sent a "ping" to determine its hardware address. This will fail unless the
PC is connected to the LAN, and powered on.
Update (modify) the selected PC, using the data in the "Properties"
box.
Clear the "Properties" box, ready for entering data for a new PC.
Update the data on screen.
Display a read-only list showing full details of all entries in the PC
database.
Click this to view the standard "PC Database" screen.
77
XRT-811 User’s Manual
Printer Port
These settings are only useful if using LPD printing under Unix. Normally, these settings do not
need to be changed.
Figure 49: Printer Port Screen
Data - Printer Port Screen
Logical Printers
No (L1, L2, L3)
Pre-string (HEX)
Post-string (HEX)
LF to CR/LF
Logical printer configuration is only required if using LPD printing under Linux or Unix. Otherwise, these settings are ignored
There are 3 Logical Printers (Ports), named L1, L2, and L3.
These names can not be changed, and must be used when select-
ing the logical printer from your Unix system.
Enter (in HEX) the series of printer commands to be sent to the
attached printer BEFORE each print job.
Enter (in HEX) the series of printer commands to be sent to the
attached printer AFTER each print job.
If checked, Unix-style LF (line feed) characters at the end of each
line will be converted to CR/LF (carriage return/line feed) pairs,
as used in MSDOS and Windows.
78
Remote Administration
This feature allows you to manage XRT-811 via the Internet.
Figure 50: Remote Administration Screen
Data - Remote Administration Screen
Remote Administration
Other Features and Settings
Enable Remote
Administration
Port Number
Current
IP Address
Enable to allow administration via the Internet. If Disabled, this
device will ignore management connection attempts from the Internet.
Enter a port number between 1024 and 65535 (8080 is recommended). This port number must be specified when you connect (see
below).
Note: The default port number for HTTP (Web) connections is port
80, but using port 80 here will prevent the use of a Web "Virtual
Server" on your LAN. (See Advanced Internet - Virtual Servers)
You must use this IP Address to connect (see below).
This IP Address is allocated by your ISP. But if using a Dynamic IP
Address, this value can change each time you connect to your ISP. So
it is better if your ISP allocates you a Fixed IP Address.
To connect from a remote PC via the Internet
1. Ensure your Internet connection is established, and start your Web Browser.
2. In the "Address" bar, enter "HTTP://" followed by the Internet IP Address of XRT-811. If
the port number is not 80, the port number is also required. (After the IP Address, enter ":"
followed by the port number.)
e.g.
HTTP://123.123.123.123:8080
This example assumes the WAN IP Address is 123.123.123.123, and the port number is 8080.
79
XRT-811 User’s Manual
Routing
Overview
• If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing"
page completely.
• If XRT-811 is only acting as a Gateway for the local LAN segment, ignore the "Routing"
page even if your LAN has other Routers.
• If your LAN has a standard Router (e.g. Cisco) on your LAN, and XRT-811 is to act as a
Gateway for all LAN segments, enable RIP (Routing Information Protocol) and ignore the
Static Routing table.
• If your LAN has other Gateways and Routers, and you wish to control which LAN segments use each Gateway, do NOT enable RIP (Routing Information Protocol). Configure
the Static Routing table instead. (You also need to configure the other Routers.)
• If using Windows 2000 Data center Server as a software Router, enable RIP on XRT-811,
and ensure the following Windows 2000 settings are correct:
• Open Routing and Remote Access
• In the console tree, select Routing and Remote Access , [server name], IP Routing,
RIP
• In the "Details" pane, right-click the interface you want to configure for RIP version 2,
and then click "Properties".
• On the "General" tab, set Outgoing packet protocol to "RIP version 2 broadcast", and
Incoming packet protocol to "RIP version 1 and 2".
Routing Screen
The routing table is accessed by the Routing link on the Advanced screen.
Using this Screen
Generally, you will use either RIP (Routing Information Protocol) OR the Static Routing Table,
as explained above, although is it possible to use both methods simultaneously.
Static Routing Table
• If RIP is not used, an entry in the routing table is required for each LAN segment on your
Network, other than the segment to which this device is attached.
• The other Routers must also be configured. See Configuring Other Routers on your LAN
later in this chapter for further details and an example.
80
Other Features and Settings
Data - Routing Screen
RIP
Enable RIP
Static Routing
Static Routing
Table Entries
Properties
Check this to enable the RIP (Routing Information Protocol) feature
of XRT-811.
XRT-811 supports RIP 1 only.
This list shows all entries in the Routing Table.
• The "Properties" area shows details of the selected item in the
• Change any the properties as required, then click the "Update"
• Destination Network - The network address of the remote LAN
• Network Mask - The Network Mask for the remote LAN seg-
• Gateway IP Address - The IP Address of the Gateway or Router
• Metric - The number of "hops" (routers) to pass through to reach
Figure 51: Routing Screen
list.
button to save the changes to the selected entry.
segment. For standard class "C" LANs, the network address is
the first 3 fields of the Destination IP Address. The 4th (last)
field can be left at 0.
ment. For class "C" networks, the default mask is 255.255.255.0
which XRT-811 must use to communicate with the destination
above. (NOT the router attached to the remote segment.)
the remote LAN segment. The shortest path will be used. The default value is 1.
81
XRT-811 User’s Manual
Buttons
Save
Add
Update
Delete
Clear Form
Generate Report
Save the RIP setting. This has no effect on the Static Routing Table.
Add a new entry to the Static Routing table, using the data shown in
the "Properties" area on screen. The entry selected in the list is
ignored, and has no effect.
Update the current Static Routing Table entry, using the data shown
in the "Properties" area on screen.
Delete the current Static Routing Table entry.
Clear all data from the "Properties" area, ready for input of a new
entry for the Static Routing table.
Generate a read-only list of all entries in the Static Routing table.
Configuring Other Routers on your LAN
It is essential that all IP packets for devices not on the local LAN be passed to XRT-811, so
that they can be forwarded to the external LAN, WAN, or Internet. To achieve this, the local
LAN must be configured to use XRT-811 as the Default Route or Default Gateway.
Local Router
The local router is the Router installed on the same LAN segment as XRT-811. This router
requires that the Default Route is XRT-811 itself. Typically, routers have a special entry for the
Default Route. It should be configured as follows.
Destination IP Address
Network Mask
Gateway IP Address
Metric
Normally 0.0.0.0, but check your router documentation.
Normally 0.0.0.0, but check your router documentation.
The IP Address of XRT-811.
1
Other Routers on the Local LAN
Other routers on the local LAN must use XRT-811's Local Router as the Default Route. The
entries will be the same as XRT-811's local router, with the exception of the Gateway IP
Address.
• For a router with a direct connection to XRT-811's local Router, the Gateway IP Address
is the address of XRT-811's local router.
• For routers which must forward packets to another router before reaching XRT-811's local
router, the Gateway IP Address is the address of the intermediate router.
82
Other Features and Settings
Static Routing - Example
Figure 52: Routing Example
For XRT-811's Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, XRT-811 requires 2 entries as
follows.
Entry 1 (Segment 1)
Destination IP Address 192.168.1.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100 (Broadband Router's local
Metric 2
Entry 2 (Segment 2)
Destination IP Address 192.168.2.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100
Metric 3
For Router A's Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.0.1 (Broadband Router's IP Address)
For Router B's Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Router)
Gateway IP Address 192.168.1.80 (Broadband Router's local
router)
83
XRT-811 User’s Manual
Upgrade Firmware
The firmware (software) in XRT-811 can be upgraded using your Web Browser.
You must first download the upgrade file, then select Upgrade on the Other menu. You will see
a screen like the following.
Figure 53: Upgrade Firmware Screen
To perform the Firmware Upgrade:
9. Click the "Browse" button and navigate to the location of the upgrade file.
10. Select the upgrade file. It's name will appear in the Upgrade File field.
11. Click the "Start Upgrade" button to commence the firmware upgrade.
XRT-811 is unavailable during the upgrade process,
iNote
and must restart when the upgrade is completed.
Any connections to or through XRT-811 will be lost.
84
UPNP
An example UPNP screen is shown below.

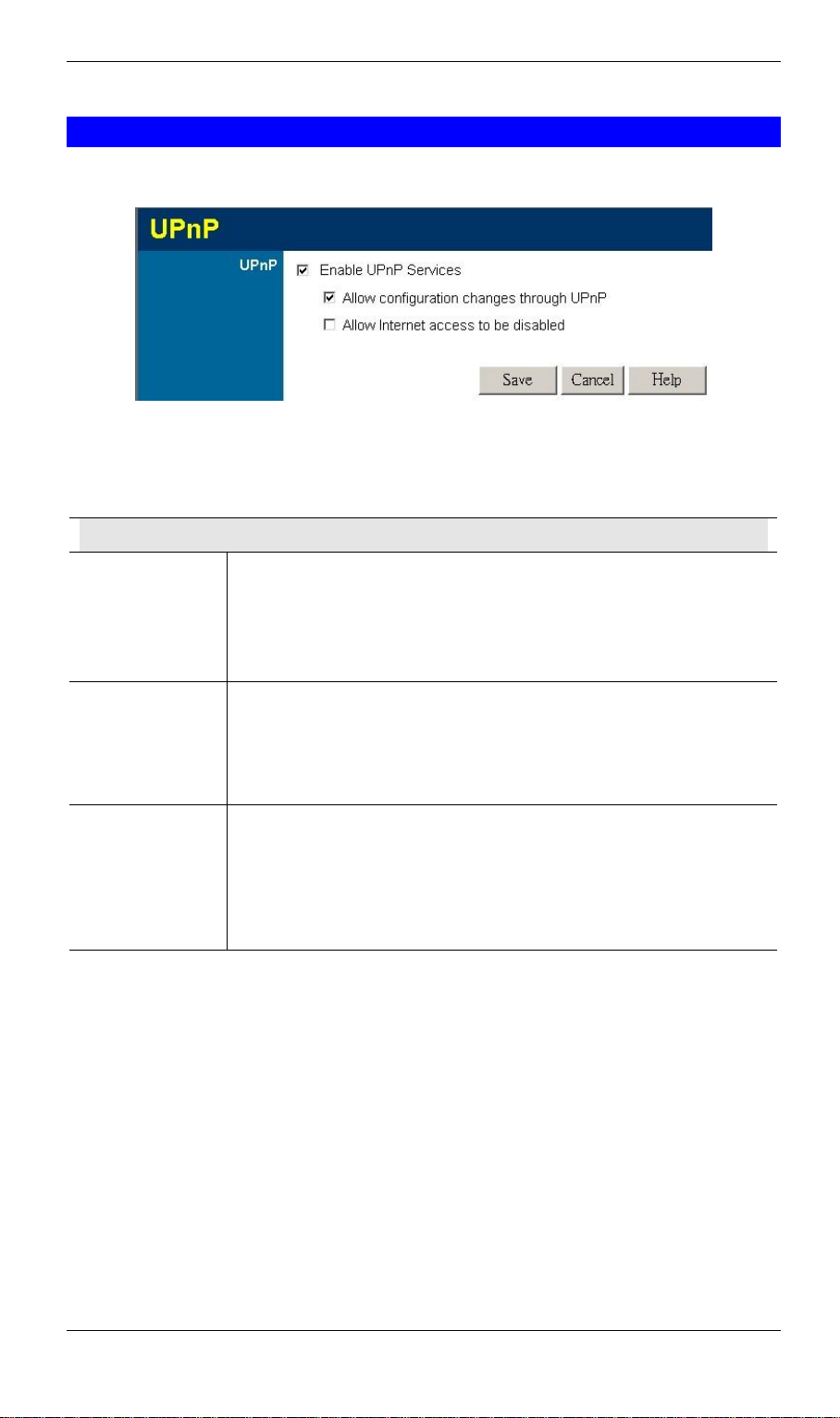

Figure 54: UPNP Screen
Data - UPNP Screen
UPnP
Enable UPnP
Services
Allow Configuration...
Allow Internet
access to be
disabled
• UPnP (Universal Plug and Play) allows automatic discovery and
configuration of equipment attached to your LAN. UPnP is by
supported by Windows ME, XP, or later.
• If Enabled, this device will be visible via UPnP.
• If Disabled, this device will not be visible via UPnP.
• If checked, then UPnP users can change the configuration.
• If Disabled, UPnP users can only view the configuration. But
currently, this restriction only applies to users running Windows
XP, who access the Properties via UPnP. (e.g. Right - click XRT811 in My Network Places, and select Properties)
• If checked, then UPnP users can disable Internet access via this
device.
• If Disabled, UPnP users can NOT disable Internet access via this
device. But currently, this restriction only applies to users running
Windows XP, who access the Properties via UPnP. (e.g. Right click XRT-811 in My Network Places, and select Properties)
Other Features and Settings
85
A
Appendix A
Troubleshooting
This Appendix covers the most likely problems and their solutions.
Overview
This chapter covers some common problems that may be encountered while using XRT-811
and some possible solutions to them. If you follow the suggested steps and XRT-811 still does
not function properly, contact your dealer for further advice.
General Problems
Problem 1: Can't connect to XRT-811 to configure it.
Solution 1:
Check the following:
• XRT-811 is properly installed, LAN connections are OK, and it is
powered ON.
• Ensure that your PC and XRT-811 are on the same network segment. (If
you don't have a router, this must be the case.)
• If your PC is set to "Obtain an IP Address automatically" (DHCP
client), restart it.
• If your PC uses a Fixed (Static) IP address, ensure that it is using an IP
Address within the range 192.168.0.2 to 192.168.0.254 and thus compatible with XRT-811's default IP Address of 192.168.0.1.
Also, the Network Mask should be set to 255.255.255.0 to match XRT-
811.
In Windows, you can check these settings by using Control Panel-
Network to check the Properties for the TCP/IP protocol.
Internet Access
Problem 1: When I enter a URL or IP address I get a time out error.
Solution 1:
A number of things could be causing this. Try the following troubleshooting
steps.
• Check if other PCs work. If they do, ensure that your PCs IP settings are
correct. If using a Fixed (Static) IP Address, check the Network Mask,
Default gateway and DNS as well as the IP Address.
• If the PCs are configured correctly, but still not working, check XRT-
811. Ensure that it is connected and ON. Connect to it and check its settings. (If you can't connect to it, check the LAN and power connections.)
• If XRT-811 is configured correctly, check your Internet connection
(DSL/Cable modem etc) to see that it is working correctly.
Problem 2: Some applications do not run properly when using XRT-811.
Solution 2:
XRT-811 processes the data passing through it, so it is not transparent.
Use the Special Applications feature to allow the use of Internet applications
86
Appendix A - Troubleshooting
which do not function correctly.
If this does solve the problem you can use the DMZ function. This should
work with almost every application, but:
• It is a security risk, since the firewall is disabled.
• Only one (1) PC can use this feature.
Printing
Problem 1: When I tried to install the Printing software for Peer-to-Peer printing,
I received an error message and the installation was aborted..
Solution 1:
Problem 2: I am using Windows 95, and the Printing software installed and ran,
Solution 2:
This may be caused by an existing installation of the printer port software.
Before attempting another installation:
• Remove the existing installation
• Restart your PC
To remove an existing printer port installation:
1. Open Start - Settings - Control Panel - Add/Remove Programs
2. Look for an entry with a name like "Shared Port", "Shared Printer
Port", "Print Server Driver" or "Print Server Port".
3. Select this item, click "Add/Remove", and confirm the deletion.
but when I selected a port on a Broadband Router and clicked "Add",
the printer was not installed.
Try installing the printer using the standard Windows tools, as follows:
1. Start the Add Printer Wizard.
2. Select Network Printer when prompted "How is the printer attached to
your Computer?", and click Next.
3. When prompted for the Network Path or Queue, enter a dummy value
such as \\123, as shown below. (Do NOT select Yes for "Do you print
for MS-DOS programs?")
87
XRT-811 User’s Manual
4. The printer wizard will display a message stating, “The Network
5. When finished, go to Control Panel-Printers. The printer icon will be
6. Right-click the Printer, and select Properties. Then select the Details
Printer is off-line”. This is OK. Continue the Add Printer Wizard until
finished.
grayed out indicating the printer is not ready.
tab, as shown below.
7. Click the Add Port button. On the resulting screen, select Other, then
Shared Port, as the port to add, as shown below.
88
Appendix A - Troubleshooting
8. Click OK to see the Print Port Configuration screen, as shown below.
9. Click the Browse Device button, select the desired Multi-function
Broadband Router, and click OK.
10. Click OK to return to the Printers folders, and right-click on the
Printer. Ensure that the Work off-line option is NOT checked.
The Printer should no longer be grayed out, and is ready for use.
89
XRT-811 User’s Manual
Glossary
Bridge: A bridge is an intelligent, internetworking device that forwards or filters packets
between different networks based on data link layer (MAC) address information.
Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s
IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out
towards the destination.
DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives every computer on your home network an IP address.
DNS Server IP Address: DNS stands for Domain Name System, which allows Internet servers
to have a domain name (such as www.Broadbandrouter.com) and one or more IP addresses
(such as 192.34.45.8). A DNS server keeps a database of Internet servers and their respective
domain names and IP addresses, so that when a domain name is requested (as in typing
"www.planet.com.tw" into your Internet browser), the user is sent to the proper IP address. The
DNS server IP address used by the computers on your home network is the location of the DNS
server your ISP has assigned to you.
DSL Modem: DSL stands for Digital Subscriber Line. A DSL modem uses your existing
phone lines to transmit data at high speeds.
Ethernet: A standard for computer networks. Ethernet networks are connected by special
cables and hubs, and move data around at up to 10/100 million bits per second (Mbps).
IP Address and Network (Subnet) Mask: IP stands for Internet Protocol. An IP address
consists of a series of four numbers separated by periods, that identifies a single, unique Internet computer host in an IP network. Example: 192.168.0.1. It consists of 2 portions: the IP
network address, and the host identifier.
The IP address is a 32-bit binary pattern, which can be represented as four cascaded decimal
numbers separated by “.”: aaa.aaa.aaa.aaa, where each “aaa” can be anything from 000 to 255,
or as four cascaded binary numbers separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb,
where each “b” can either be 0 or 1.
A network mask is also a 32-bit binary pattern, and consists of consecutive leading
1’s followed by consecutive trailing 0’s, such as
11111111.11111111.11111111.00000000. Therefore sometimes a network mask can also be
described simply as “x” number of leading 1’s.
When both are represented side by side in their binary forms, all bits in the IP address that
correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID.
For example, if the IP address for a device is, in its binary form,
11011001.10110000.10010000.00000111, and if its network mask is,
11111111.11111111.11110000.00000000
It means the device’s network address is
11011001.10110000.10010000.00000000, and its host ID is,
00000000.00000000.00000000.00000111 . This is a convenient and efficient method for
routers to route IP packets to their destination.
ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an IP address for
the Internet router located at the ISP's office.
90
Appendix A - Troubleshooting
ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet
for individuals and other businesses or organizations.
LAN: Local Area Network. A LAN is a group of computers and devices connected together in
a relatively small area (such as a house or an office). Your home network is considered a LAN.
MAC Address: MAC stands for Media Access Control. A MAC address is the hardware
address of a device connected to a network. The MAC address is a unique identifier for a
device with an Ethernet interface. It is comprised of two parts: 3 bytes of data that corresponds
to the Manufacturer ID (unique for each manufacturer), plus 3 bytes that are often used as the
product’s serial number.
NAT: Network Address Translation. This process allows all of the computers on your home
network to use one IP address. Using the broadband router’s NAT capability, you can access
the Internet from any computer on your home network without having to purchase more IP
addresses from your ISP.
Port: Network Clients (LAN PC) uses port numbers to distinguish one network application/protocol over another. Below is a list of common applications and protocol/port numbers:
Application Protocol Port Number
Telnet TCP 23
FTP TCP 21
SMTP TCP 25
POP3 TCP 110
H.323 TCP 1720
SNMP UCP 161
SNMP Trap UDP 162
HTTP TCP 80
PPTP TCP 1723
PC Anywhere TCP 5631
PC Anywhere UDP 5632
PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections.
PPPoE relies on two widely accepted standards, Ethernet and the Point-to-Point Protocol. It is a
communications protocol for transmitting information over Ethernet between different manufacturers
Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so
that when they interface with each other based on such a protocol, the interpretation of their
behavior is well defined and can be made objectively, without confusion or misunderstanding.
Router: A router is an intelligent network device that forwards packets between different
networks based on network layer address information such as IP addresses.
91
XRT-811 User’s Manual
Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by
your ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used
to create IP address numbers used only within a particular network (as opposed to valid IP
address numbers recognized by the Internet, which must be assigned by InterNIC).
TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and Unreliable
Datagram Protocol (UDP). TCP/IP is the standard protocol for data transmission over the
Internet. Both TCP and UDP are transport layer protocol. TCP performs proper error detection
and error recovery, and thus is reliable. UDP on the other hand is not reliable. They both run on
top of the IP (Internet Protocol), a network layer protocol.
WAN: Wide Area Network. A network that connects computers located in geographically
separate areas (e.g. different buildings, cities, countries). The Internet is a wide area network.
Web-based management Graphical User Interface (GUI): Many devices support a graphical
user interface that is based on the web browser. This means the user can use the familiar Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed.
92
B
Appendix B Specifications
XRT-811
Model XRT-811
Dimensions 253mm(W) * 179mm(D) * 40mm(H)
Operating Temperature
Storage Temperature
Network Protocol: TCP/IP
Network Interface: 9 Ethernet:
Printer Port 1 * parallel printer port
LEDs 22
Power Adapter 12 V DC External
0° C to 40° C
-10° C to 70° C
8* 10/100BaseT (RJ45) LAN connection
1 * 10/100BaseT (RJ45) for WAN
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to computer or peripheral
devices).
93
XRT-811 User’s Manual
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
CE Marking Warning
This is a Class B product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
94
Loading...
