Chapter 1 Introduction
Thank you for purchasing Planet XRT-402D/104D (XRT-D router, in the following section). This
Broadband router is a cost-effective IP Sharing Router that enables multiple users to share the
Internet through ADSL or cable modems. Simply configure your Internet connection settings in
XRT-D and plug your PC to the LAN port and you're ready to share files and access the Internet.
The XRT-402D/104D’s multi-homing function can combine two/four WAN lines into one virtual
high bandwidth WAN line, and let you get a better Internet surfing experience. As your network
grows, you can connect another hub or switch to the router’s LAN ports, allowing you to easily
expand your network. XRT-D provides a total solution for the Small and Medium-sized Business
(SMB) and the Small Office/Home Office (SOHO) markets, giving you an instant network today,
and the flexibility to handle tomorrow's expansion and speed.
1.1 Features
• High Internet Access throughput
• Allow multiple users to share a single Internet line
Supports up to 253 users
•
• Internet Access via Cable or xDSL modem
• Access Private LAN Servers from the Public Network
Equipped with four LAN ports (10/100M), two WAN ports (10/100M) for XRT-402D.
•
• Equipped with one LAN ports (10/100M), four WAN ports (10/100M) for XRT-104D.
• Support DHCP (Server/Client) for easy setup
• Support advance features such as: Special Applications, DMZ, Virtual Servers, Access
Control, and Firewall.
• Allow you to monitor the router’s status such as: DHCP Client Log, Security Log and
Device/Connection Status
• Easy to use Web-based GUI for configuration and management purposes
• Remote Management allows configuration and upgrades from a remote site (over the
Internet)
1.2 Minimum Requirements
One External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45)
•
• Network Interface Card (NIC) for each Personal Computer (PC)
• PCs with a Web-Browser (Internet Explorer 4.0 or higher, Netscape Navigator 4.7 or
higher)
1.3 Package Contents
• One broadband router unit
• One Quick Installation Guide
One User Manual CD
•
• One Power Adapter
1.4 Get to know XRT-D
Back Panel
The diagram (fig1.0/1.1) below shows XRT-402D/104D’s back panel. The router’s back panel is
divided into three sections, LAN, WAN and Reset:
1
Figure 1.0 XRT-402D
Figure 1.1 XRT-104D
1) Local Area Network (LAN)
XRT-D’s LAN ports are where you connect your LAN’s PCs, printer servers, hubs and switches
etc.
2) Wide Area Network (WAN)
The WAN ports are the segment connected to your xDSL or Cable modem and are linked to the
Internet.
3) Reset
The Reset button allows you to do one of two things.
1) If problems occur with your router, press the router’s reset button with a pencil tip (for
less than 7 seconds) and the router will re-boot itself, keeping your original
configurations.
2) If problems persist or you experience extreme problems or you forgot your password,
press the reset button for longer than 7 seconds and the router will reset itself to the
factory default settings. (warning: your original configurations will be replaced with
the factory default settings)
Front Panel
On XRT-D’s front panel there are LED lights that inform you of machine current status. Below is
an explanation of each LED and its description.
2
LED Light Status Description
PWR ON Router’s power supply is on
WAN 100 ON WAN port 100Mbps is connected
Off WAN port 10Mbps is connected
WAN LNK/ACT ON WAN is connected
OFF No WAN connection
Flashing WAN port has Activity (ACT), data being sent
LAN 100 ON LAN port 100Mbps is connected
(Port 1-4) OFF LAN port 10Mbps is connected
LAN LNK/ACT ON LAN is connected
(Port 1-4) OFF No LAN connection
Flashing LAN port has Activity (ACT), data being sent
1.5 Setup Diagram
Figure 1.2 below shows a typical setup for a Local Area Network (LAN).
Figure 1.2
1.6 Getting started
This is a step-by-step instruction on how to start using the router and get connected to the
Internet.
1) Setup your network as shown in the setup diagram above (fig 1.2).
3
2) You then need to set your LAN PC clients so that it can obtain an IP address automatically.
All LAN clients require an IP address. Just like an address, it allows LAN clients to find one
another.
Configure your PC to obtain an IP address automatically
By default XRT-D’s DHCP is on, this means that you can obtain an IP address automatically
once you’ve configured your PC to obtain an IP address automatically. This section will show
you how to configure your PC so that it can obtain an IP address automatically for either
Windows 95/98/Me, 2000 or NT operating systems.
For other operating systems (Macintosh, Sun, etc.), please follow the manufacturer’s
instructions. The following is a step-by-step illustration on how to configure your PC to obtain
an IP address automatically for 2a) Windows 95/98/Me, 2b) Windows XP, 2c) Windows
2000 and 2d) Windows NT.
2a) Windows 95/98/Me
1: Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2: Double-click Network icon. The Network window will appear.
3: Check your list of Network Components. If TCP/IP is not installed, click the Add button to
install it now. If TCP/IP is installed, go to step 6.
4: In the Network Component Type dialog box, select Protocol and click Add button.
5: In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the
OK button to start installing the TCP/IP protocol. You may need your Windows CD to
complete the installation.
6: After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of
Network Components and then click the Properties button.
7: Check each of the tabs and verify the following settings:
• Bindings: Check Client for Microsoft Networks and File and printer sharing for
Microsoft Networks.
• Gateway: All fields are blank.
• DNS Configuration: Select Disable DNS.
• WINS Configuration
• IP Address: Select Obtain IP address automatically
: Select Disable WINS Resolution.
.
4
8: Reboot the PC. Your PC will now obtain an IP address automatically from your
Broadband Router’s DHCP server.
Please make sure that XRT-D’s DHCP server is the only DHCP server
?Note:
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3
2b) Windows XP
available on your LAN.
1: Click the Start button and select Settings, then click Network Connections. The Network
Connections window will appear.
2: Double-click Local Area Connection icon. The Local Area Connection window will appear.
3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address
automatically and Obtain DNS server address automatically as shown on the following
screen.
5
e only DHCP server
5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically
from your Broadband Router’s DHCP server.
Please make sure that XRT-D’s DHCP server is th
?Note:
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3.
2c) Windows 2000
1: Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2: Double-click Network and Dial-up Connections icon. In the Network and Dial-up
Connection window, double-click Local Area Connection icon. The Local Area
Connection window will appear.
3: In the Local Area Connection window, click the Properties button.
4: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
5: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address
automatically and Obtain DNS server address automatically as shown on the following
screen.
available on your LAN.
6
’s DHCP server is the only DHCP server
6: Click OK to confirm the setting. Your PC will now obtain an IP address automatically
from your Broadband Router’s DHCP server.
Please make sure that XRT-D
?Note:
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3.
2d) Windows NT
1: Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2: Double-click Network icon. The Network window will appear. Select the Protocol tab from
the Network window.
3: Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not
installed, click the Add button to install it now. If TCP/IP is installed, go to step 5.
4: In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok
button to start installing the TCP/IP protocol. You may need your Windows CD to
complete the installation.
5: After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of
Network Protocols and then click the Properties button.
available on your LAN.
7
6: Check each of the tabs and verify the following settings:
’s DHCP server is the only DHCP server
• IP Address: Select Obtain an IP address from a DHCP server.
• DNS: Let all fields are blank.
• WINS: Let all fields are blank.
• Routing: Let all fields are blank.
7: Click OK to confirm the setting. Your PC will now obtain an IP address automatically
from your Broadband Router’s DHCP server.
Please make sure that XRT-D
?Note:
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3.
3) Once you have configured your PCs to obtain an IP address automatically, the router’s DHCP
server will automatically give your LAN clients an IP address. By default XRT-D’s DHCP
server is enabled so that you can obtain an IP address automatically. To see if you have
obtained an IP address, see Appendix A.
Note: Please make sure that XRT-D’s DHCP server is the only DHCP server available on
your LAN. If there is another DHCP on your network, then you’ll need to switch one of the
DHCP servers off. (To disable XRT-D’s DHCP server please refer to chapter 2 LAN Port)
available on your LAN.
8
4) Once your PC has obtained an IP address from your router, enter the default IP address
(broadband router’s IP address 192.168.0.1) into your PC’s web browser and press <enter>
5) The login screen below will appear. Enter the “User Name” and “Password” and then click
<OK> to login.
Note: By default the user name is “admin” and the password is “1234”. For security
reasons it is recommended that you change the password as soon as possible (in
General setup/system/password, see chapter 2)
6) The HOME page screen below will appear. The Home Page is divided into four sections,
Quick Setup Wizard, General Setup, Status Information and Tools.
9
Menu Description
Quick Setup Wizard (Chapter 2) Select your Internet connection type and then
input the configurations needed to connect to
your Internet Service Provider (ISP).
General Setup (Chapter 3) This section contains configurations for the XRT-
D’s advance functions such as: Port Forwarding,
Virtual Server, Access Control, DoS, DMZ,
Special Applications and other functions to meet
your LAN requirements.
Status Information (Chapter 4) In this section you can see XRT-D's system
information, Internet Connection, Device Status,
Security Log and DHCP client Log information.
Tools (Chapter 5) This section contain XRT-D’s Tools - Tools
include Configuration tools, Firmware upgrade
and Reset. Configuration tools allow you to
Backup (save), Restore, or Restore to Factory
Default configuration for your Broadband router.
The Firmware upgrade tool allows you to
upgrade your Broadband router's firmware. The
RESET tool allows you to reset your Broadband
router.
7) Click on Quick Setup Wizard (see chapter 2) to start configuring settings required so that
you can start accessing the Internet. The other sections (General Setup, Status Information
and Tools) do not need to be configured unless you wish to implement/monitor more advance
features/information.
Select the section (Quick Setup Wizard, General Setup, Status Information and Tools) you wish
to configure and proceed to the corresponding chapter. Use the selections on the web
management’s top right hand page to navigate around the web-based management User
Interface.
10
Chapter 2 Quick Setup
The Quick Setup section is designed to get you using XRT-D as quickly as possible. In the Quick
Setup you are required to fill in only the information necessary to access the Internet. Once you
click on the Quick Setup Wizard in the HOME page, you should see the screen below.
Step 1) Time Zone
The Time Zone allows your router to base its time on the settings configured here, this will affect
functions such as Log entries and Firewall settings.
Parameter Description
Set Time Zone Select the time zone of the country you are currently in.
The router will set its time based on your selection.
Time Server Address You can manually assign time server address if the
default time server is not workable.
Enable Daylight Savings The router can also take Daylight savings into account. If
you wish to use this function, you must check/tick the
enable box to enable your daylight saving configuration
(below).
Start Daylight Savings Time Select the period in which you wish to start daylight
Savings Time.
End Daylight Savings Time Select the period in which you wish to end daylight
Savings Time.
Click on NEXT to proceed to the next page (step 2) Broadband Type.
Step 2) Broadband Type
11
In this section you have to select one of many types of connections that you used to connect your
Different ISP’s require different methods of connecting, please check with your ISP
broadband router to your ISP (see screen below).
?Note:
for the types required..
Menu Description
2.1 Cable Modem Your ISP will automatically give you an IP address.
2.2 Fixed-IP xDSL
2.3 PPPoE Your ISP requires you to use a Point-to-Point Protocol over
2.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling Protocol
2.5 L2TP Layer 2 Tunneling Protocol is a common connection method used
2.6 Telstra Big Pond Telstra Big Pond is an Internet service is provided in Australia.
Your ISP has given you an IP address already.
Ethernet (PPPoE) connection.
(PPTP) connection.
in xDSL connections.
Click on one of the WAN type and then proceed to the manual’s relevant sub-section (2.1, 2.2,
2.3, 2.4, 2.5 or 2.6). Click on Back to return to the previous screen.
12
2.1 Cable Modem
if your
Choose Cable Modem if your ISP will automatically give you an IP address. Some ISP may also
require you to fill in additional information such as Host Name and MAC address (see screen
below).
The Host Name and MAC address section is optional and you can skip it
?Note:
Parameters Description
Host Name If your ISP requires a Host Name, type in the host name
MAC Address Your ISP may require a particular MAC address in order for you
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the Cable Modem connection. You can start using the router now,
if you wish to use some of the advance features supported by this router see chapter 3, 4, 5.
ISP does not require these settings for you to connect to the Internet.
provided by your ISP, otherwise leave it blank.
to connect to the Internet. This MAC address is the PC’s MAC
address that your ISP had originally connected your Internet
connection to. Type in this MAC address in this section or use
the “Clone MAC Address” button to replace the WAN MAC
address with the MAC address of that PC (you have to be using
that PC for the Clone MAC Address button to work). To find out
the PC’s MAC address see Appendix A. (see Glossary for an
explanation on MAC address)
13
2.2 Fixed-IP xDSL
Select Static IP Address if your ISP has given you a specific IP address for you to use. Your ISP
should provide all the information required in this section.
Parameters Description
IP The IP address that your ISP has given you.
Subnet Mask Enter the Subnet Mask provided by your ISP.
(e.g. 255.255.255.0)
Gateway IP The gateway provided by your ISP.

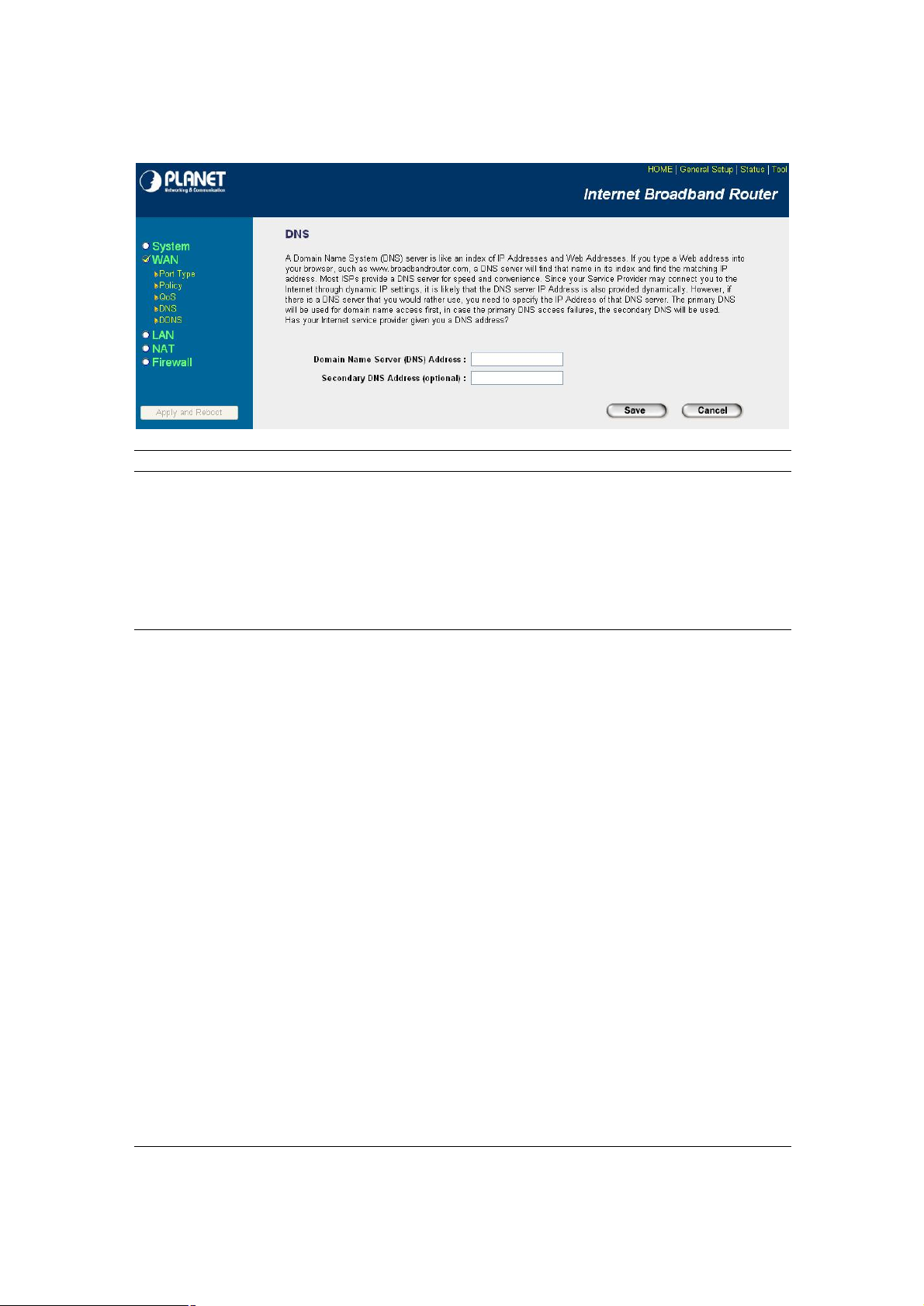

DNS The DNS server IP address that your ISP provides to
you.
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the Fixed-IP xDSL connection. You can start using the router now,
if you wish to use some of the advance features supported by this router see chapter 3, 4, 5.
14
2.3 PPPoE
Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP
should provide all the information required in this section.
Parameter Description
User Name The User Name provided by your ISP for PPPoE connection.
Password The Password provided by your ISP for PPPoE connection.
Service Name [Optional] The Service name should your ISP requires it,
otherwise leave it blank.
MTU This is optional. You can specify the maximum size of your
transmission packet to the Internet. Leave it as it is if you do not
wish to set a maximum packet size.
Connection Type If you select “Continuous”, the router will always connect to the
ISP. If the WAN line breaks down and links again, the router will
auto-reconnect to the ISP.
If you select “Connect On Demand”, the router will auto-connect
to the ISP when someone want to use the Internet and keep
connected until the WAN idle timeout. The router will close the
WAN connection if the time period that no one is using the
Internet exceeds the “Idle Time”.
If you select “Manual”, the router will connect to ISP only when
you click “Connect” manually from the Web user interface. The
WAN connection will not be disconnected due to the idle timeout.
If the WAN line breaks down and latter links again, the router will
not auto-connect to the ISP.
Idle Time You can specify an idle time threshold (minutes) for the WAN
port. This means if no packets have been sent (no one using the
15
Internet) during this specified period, the router will automatically
disconnect function may not work due to abnormal
computer virus or hacker attacks
ets to the
Internet in the background, even when you are not using the Internet. So please
turn off your computer when you are not using it. This function also may not work
with some ISP. So please make sure this function can work properly when you use
disconnect the connection with your ISP.
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the PPPoE connection. You can start using the router now, if you
wish to use some of the advance features supported by this router see chapter 3, 4, 5.
The WAN “idle timeout” auto-
activities of some network application software;
from the Internet. For example, some software sends network pack
?Note
this function in the first time, especially when your ISP charge you by time used.
16
Loading...
