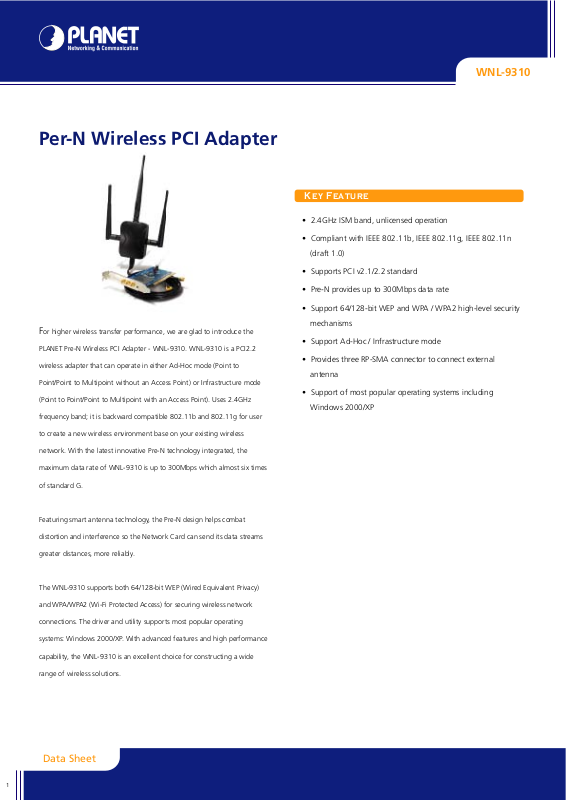

Planet Technology WNL-9310 User Manual

Per-N Wireless PCI Adapter
For higher wireless transfer performance, we are glad to introduce the
PLANET Pre-N Wireless PCI Adapter - WNL-9310. WNL-9310 is a PCI2.2
wireless adapter that can operate in either Ad-Hoc mode (Point to
Point/Point to Multipoint without an Access Point) or Infrastructure mode
frequency band; it is backward compatible 802.11b and 802.11g for user
WNL-9310
Key Feature
2.4GHz ISM band, unlicensed operation
Compliant with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
(draft 1.0)
Supports PCI v2.1/2.2 standard
Pre-N provides up to 300Mbps data rate
Support 64/128-bit WEP and WPA / WPA2 high-level security
mechanisms
Support Ad-Hoc / Infrastructure mode
Provides three RP-SMA connector to connect external
antenna
Support of most popular operating systems including
Windows 2000/XP
to create a new wireless environment base on your existing wireless
network. With the latest innovative Pre-N technology integrated, the
maximum data rate of WNL-9310 is up to 300Mbps which almost six times
of standard G.
Featuring smart antenna technology, the Pre-N design helps combat
distortion and interference so the Network Card can send its data streams
greater distances, more reliably.
The WNL-9310 supports both 64/128-bit WEP (Wired Equivalent Privacy)
and WPA/WPA2 (Wi-Fi Protected Access) for securing wireless network
connections. The driver and utility supports most popular operating
systems: Windows 2000/XP. With advanced features and high performance
capability, the WNL-9310 is an excellent choice for constructing a wide
range of wireless solutions.
Data Sheet
1
Specification
WNL-9310
Product
Model Attach Interface LED Indicators RF Modulation
RF Output Power Data Rate
Working Mode Media Access Protocol Security
Antenna Operating Frequency / Channel
Dimension (D x W x H) Temperature
Humidity Management Electromagnetic Compatibility
Pre-N Wireless PCI Adapter
WNL-9310
Complaint with PCI v2.1/2.2 standard LINK/ACT
802.11b: DSSS, CCK, QPSK, BPSK
802.11g: OFDM
802.11n: 64QAM, 16QAM, QPSK, BPSK
16.5dBm (max.) Pre-N: Up to 300Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto-rate fall back
802.11b: 11, 5.5, 2, and 1Mbps with auto-rate fall back Ad-Hoc, Infrastructure CSMA/CA + ACK (Half-Duplex) 64/128 WEP WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) WPA-RADIUS WPA2-RADIUS 3 x Dipole Antenna (with rack)
2.412~2.462GHz (FCC, Canada) / 11 Channels
2.412~2.4835GHz (Japan, TELEC) / 14 Channels
2.412~2.472GHz (Euro ETSI) / 13 Channels 132 x 120 x 22 mm Operating Temperature: 0~55 Degrees C Storage Temperature: -20~80 Degrees C < 90% (non-condensing) Built-in utility or Windows XP Zero Configuration utility FCC Class B, CE
Applications
Infrastructure
For some environments with limitations on running Ethernet cables around, simply install the WNL-9310 on your desktop or laptop, and users thus can get connected to the wired Ethernet through a wireless access point to access the network resources within the coverage of wireless signals. Replace the existing wireless device to wireless Pre-N router to increase the coverage of wireless signals and can ensure seamless network access for mobile users.
Ad-Hoc
Need connecting several desktop PC or notebooks wirelessly? Configuring all the wireless adapters to Ad-Hoc mode without wireless access point is the easiest and costly way to meet this application.
Ordering Information
WNL-9310
Pre-N Wireless PCI Adapter
Related Products
WNRT-610
WNL-U550
Pre-N Wireless Broadband Router
Pre-N Wireless USB2.0 Adapter
Data Sheet
2
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan R.O.C. Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 Email: sales@planet.com.tw www.planet.com.tw VoIP Gateway: vip.planet.com.tw
PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property or their respective owners. Copyright©2007 PLANET Technology Corp. All rights reserved.
03-07 C-WNL9310-1
