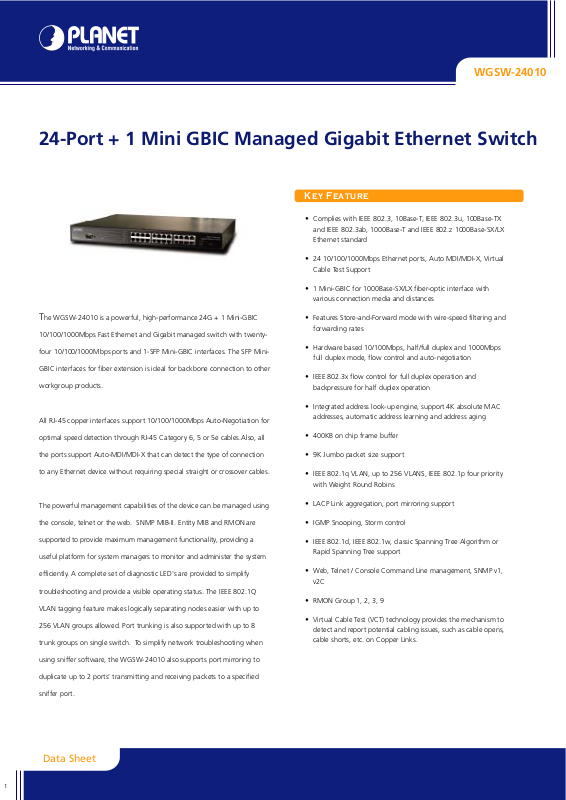

Planet Technology WGSW-24010 User Manual
WGSW-24010
24-Port + 1 Mini GBIC Managed Gigabit Ethernet Switch
Key Feature
• Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX
and IEEE 802.3ab, 1000Base-T and IEEE 802.z 1000Base-SX/LX
Ethernet standard
• 24 10/100/1000Mbps Ethernet ports, Auto MDI/MDI-X, Virtual
Cable Test Support
• 1 Mini-GBIC for 1000Base-SX/LX fiber-optic interface with
various connection media and distances
The WGSW-24010 is a powerful, high-performance 24G + 1 Mini-GBIC
10/100/1000Mbps Fast Ethernet and Gigabit managed switch with twenty-
four 10/100/1000Mbps ports and 1-SFP Mini-GBIC interfaces. The SFP Mini-
GBIC interfaces for fiber extension is ideal for backbone connection to other
workgroup products.
All RJ-45 copper interfaces support 10/100/1000Mbps Auto-Negotiation for
optimal speed detection through RJ-45 Category 6, 5 or 5e cables.Also, all
the ports support Auto-MDI/MDI-X that can detect the type of connection
to any Ethernet device without requiring special straight or crossover cables.
The powerful management capabilities of the device can be managed using
the console, telnet or the web. SNMP MIB-II. Entity MIB and RMON are
supported to provide maximum management functionality, providing a
useful platform for system managers to monitor and administer the system
efficiently. A complete set of diagnostic LED's are provided to simplify
troubleshooting and provide a visible operating status. The IEEE 802.1Q
VLAN tagging feature makes logically separating nodes easier with up to
256 VLAN groups allowed. Port trunking is also supported with up to 8
trunk groups on single switch. To simplify network troubleshooting when
• Features Store-and-Forward mode with wire-speed filtering and
forwarding rates
• Hardware based 10/100Mbps, half/full duplex and 1000Mbps
full duplex mode, flow control and auto-negotiation
• IEEE 802.3x flow control for full duplex operation and
backpressure for half duplex operation
• Integrated address look-up engine, support 4K absolute MAC
addresses, automatic address learning and address aging
• 400KB on chip frame buffer
• 9K Jumbo packet size support
• IEEE 802.1q VLAN, up to 256 VLANS, IEEE 802.1p four priority
with Weight Round Robins
• LACP Link aggregation, port mirroring support
• IGMP Snooping, Storm control
• IEEE 802.1d, IEEE 802.1w, classic Spanning Tree Algorithm or
Rapid Spanning Tree support
• Web, Telnet / Console Command Line management, SNMP v1,
v2C
• RMON Group 1, 2, 3, 9
• Virtual Cable Test (VCT) technology provides the mechanism to
detect and report potential cabling issues, such as cable opens,
cable shorts, etc. on Copper Links.
using sniffer software, the WGSW-24010 also supports port mirroring to
duplicate up to 2 ports' transmitting and receiving packets to a specified
sniffer port.
Data Sheet
1
Specification
WGSW-24010
Product
Model
Hardware Specification
Network Ports
Switch Processing Scheme
Switch fabric
Throughput (packet per second)
Address Table
Share data Buffer
Flow Control
Dimensions
Weight
Power Requirement
Temperature
Humidity
Management
Management Interface
Features
Standards Conformance
Regulation Compliance
Standards Compliance
24-Port + 1 Mini GBIC Managed Gigabit Ethernet Switch
WGSW-24010
24 10/100/100 Base-T STP Ports
1 Mini-GBIC for 1000Base-SX / LX fiber-optic interface (shared with port 12)
Store-and-Forward
48Gbps
35.7Mbps
4K entries
512KB
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
440 x 200 x 44 mm (1U height)
2.64 kg
100~240 VAC, 50-60 Hz
Operating: 0~50 Degree C, Storage -20~70 Degree
Operating: 10% to 90%, Storage: 5% to 95% (Non-condensing)
Web, Console, Telnet and SNMP
RFC 1157 SNMP v1/v2
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 1757 RMON 4 groups: stats, history, Alarms & Events
FCC Part 15 Class A, CE
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3z / 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.1p QoS priority
IEEE 802.1Q VLAN tag
IEEE 802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 826 ARP
RFC 854 Telnet
RFC 2068 HTTP
RFC 2236 IGMPv2
Applications
Backbone Switch
With up to 48 Gigabits per second of non-blocking switch fabric, the WGSW-24010 can easily provide the high bandwidth required
both now and in the future.
Server Farm Switch
Providing up to 24 Gigabit Ethernet ports, it is ideal for use as a server farm switch connecting servers. With its port trunking
function, a 2Gb fat pipe is provided for connecting to the backbone if required.
Ordering Information
WGSW-24010
Data Sheet
2
24-Port + 1 Mini GBIC Managed Gigabit Ethernet Switch
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: sales@planet.com.tw www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property or
their respective owners. Copyright©2006 PLANET Technology Corp. All rights reserved.
03-06 C-WGSW24010-2
