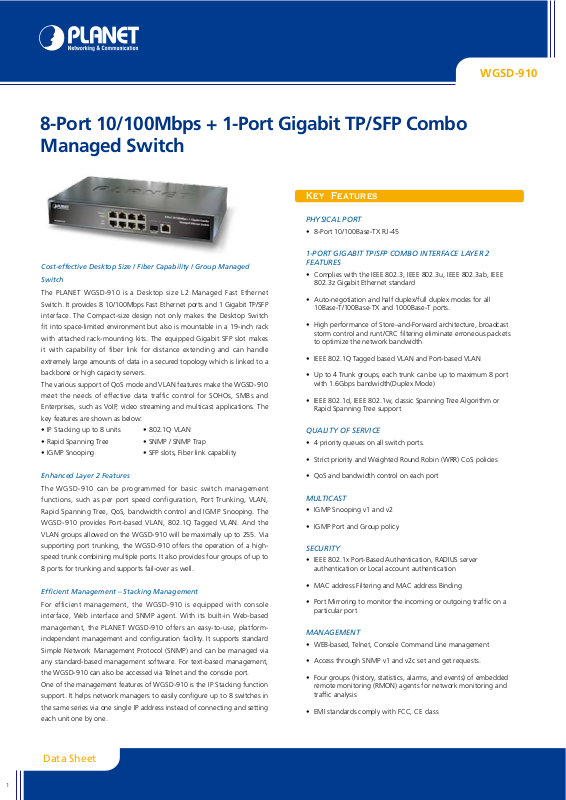

8-Port 10/100Mbps + 1-Port Gigabit TP/SFP Combo
Managed Switch
Key Features
PHYSICAL PORT
8-Port 10/100Base-TX RJ-45
•
1-PORT GIGABIT TP/SFP COMBO INTERFACE LAYER 2
Cost-effective Desktop Size / Fiber Capability / Group Managed
Switch
The PLANET WGSD-910 is a Desktop size L2 Managed Fast Ethernet
Switch. It provides 8 10/100Mbps Fast Ethernet ports and 1 Gigabit TP/SFP
interface. The Compact-size design not only makes the Desktop Switch
fit into space-limited environment but also is mountable in a 19-inch rack
with attached rack-mounting kits. The equipped Gigabit SFP slot makes
it with capability of fiber link for distance extending and can handle
extremely large amounts of data in a secured topology which is linked to a
backbone or high capacity servers.
The various support of QoS mode and VLAN features make the WGSD-910
meet the needs of effective data traffic control for SOHOs, SMBs and
Enterprises, such as VoIP, video streaming and multicast applications. The
key features are shown as below:
• IP Stacking up to 8 units • 802.1Q VLAN
• Rapid Spanning Tree • SNMP / SNMP Trap
• IGMP Snooping • SFP slots, Fiber link capability
FEATURES
Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE
•
802.3z Gigabit Ethernet standard
Auto-negotiation and half duplex/full duplex modes for all
•
10Base-T/100Base-TX and 1000Base-T ports.
High performance of Store–and-Forward architecture, broadcast
•
storm control and runt/CRC filtering eliminate erroneous packets
to optimize the network bandwidth
IEEE 802.1Q Tagged based VLAN and Port-based VLAN
•
Up to 4 Trunk groups, each trunk can be up to maximum 8 port
•
with 1.6Gbps bandwidth(Duplex Mode)
IEEE 802.1d, IEEE 802.1w, classic Spanning Tree Algorithm or
•
Rapid Spanning Tree support
QUALITY OF SERVICE
4 priority queues on all switch ports.
•
Strict priority and Weighted Round Robin (WRR) CoS policies
•
WGSD-910
Enhanced Layer 2 Features
The W GS D- 91 0 can be p rogrammed for basic s wi tc h mana ge ment
functions, such as per port speed configuration, Port Trunking, VLAN,
Rapid Spanning Tree, QoS, bandwidth control and IGMP Snooping. The
WGSD-910 provides Port-based VLAN, 802.1Q Tagged VLAN. And the
VLAN groups allowed on the WGSD-910 will be maximally up to 255. Via
supporting port trunking, the WGSD-910 offers the operation of a high-
speed trunk combining multiple ports. It also provides four groups of up to
8 ports for trunking and supports fail-over as well.
Efficient Management – Stacking Management
For efficient management, th e WGSD-910 is equipped with console
interface, Web interface and SNMP agent. With its built-in Web-based
management, the PLANET WGSD-910 offers an easy-to-use, platform-
independent management and configuration facility. It supports standard
Simple Network Management Protocol (SNMP) and can be managed via
any standard-based management software. For text-based management,
the WGSD-910 can also be accessed via Telnet and the console port.
One of the management features of WGSD-910 is the IP Stacking function
support. It helps network managers to easily configure up to 8 switches in
the same series via one single IP address instead of connecting and setting
each unit one by one.
QoS and bandwidth control on each port
•
MULTICAST
IGMP Snooping v1 and v2
•
IGMP Port and Group policy
•
SECURITY
IEEE 802.1x Port-Based Authentication, RADIUS server
•
authentication or Local account authentication
MAC address Filtering and MAC address Binding
•
Port Mirroring to monitor the incoming or outgoing traffic on a
•
particular port
MANAGEMENT
WEB-based, Telnet, Console Command Line management
•
Access through SNMP v1 and v2c set and get requests.
•
Four groups (history, statistics, alarms, and events) of embedded
•
remote monitoring (RMON) agents for network monitoring and
traffic analysis
EMI standards comply with FCC, CE class
•
Data Sheet
1
Specification
Product 8-Port 10/100Mbps + 1-Port Gigabit TP/SFP Managed Ethernet Switch
Model WGSD-910
Hardware Specification
Copper Ports
SFP/mini-GBIC Slots 1 SFP interface, shared with Port-9
Switch Architecture Store-and-Forward
Switch Fabric 3.6Gbps / non-blocking
Switch Throughput 2.67Mpps
Address Table 8K entries
Share Data Buffer 1Mbit
Maximum Frame Size 1522 Bytes packet
Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
LED Power, Link/Act and speed per port
Console Interface One RS-232 DB-9 male connector for switch management
Dimensions 280 x 173 x 44mm (W x D x H), 1U height
Weight 1.24 kg
Layer 2 function
Management Interface Console, Telnet, Web Browser, SNMP v1 and v2c
Port Configuration
Port Status Display each port speed duplex mode, link status, Flow control status. Auto-negotiation status
VLAN
Spanning Tree IEEE 802.1d, IEEE 802.1w
Link Aggregation Supports 4 groups of 8-Port trunk
QoS
IGMP Snooping
Bandwidth Control
Port Mirror Both
Security MAC filtering and Binding, up to 400 rules
SNMP MIBs
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance
Network Media
Environment Specifications
Operating
Storage
8 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
1 10/100/1000Base-T RJ-45 port
Port disable/enable.
Auto-negotiation 10/100Mbps full and half duplex mode selection.
Flow Control disable / enable. Bandwidth control on each port.
Port-based VLAN, up to 9 VLAN groups
IEEE 802.1Q Tagged Based VLAN , 4K VLAN ID, up to 255 VLAN groups
4 priority queues.
Traffic classification based on Port Number, 802.1p priority, DS/TOS field in IP Packet
v1 and v2
IGMP Port/Group Policy and Static Routing Port setting
Per port bandwidth control
Ingress: 500Kb~80Mbps
Egress: 64Kb~80Mbps
RFC-1213 MIB-II
RFC-2863 Interface MIB
RFC-1493 Bridge MIB
RFC-2674 Extended Bridge MIB (Q-Bridge)
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000Base-T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
10Base-T – UTP/STP category 3, 4 or 5 cable
100Base-TX – UTP/STP category 5 cable
1000Base-T – UTP/STP category 5e/6 cable
1000Base-SX – • 62.5/125μm multi-mode fiber optic cable, up to 220m
• 50/125μm multi-mode fiber optic cable, up to 550m
1000Base-LX – 9/125μm single-mode fiber optic cable, up to 120km (Vary on SFP Module)
Temperature: 0°C ~ 50 degree C
Relative Humidity: 20% ~90% (non-condensing)
Temperature: -40°C ~ 70 degree C
Relative Humidity: 20% ~ 90% (non-condensing)
WGSD-910
Data Sheet
2
Applications
Workgroup Switch
With 8 10/100Mbps copper ports and 1 Gigabit-Ethernet fiber port, the WGSD-910 provides a cost-effective and high-performance solution for
power users.
WGSD-910
Department Switch
With non-blocking switch fabric 3.6 Gigabits per second , the WGSD-910 can easily provide a local and high bandwidth and Fast Ethernet network
for backbone of departments. With the SFP port, the WGSD-910 provides the uplink to the backbone network through Gigabit Ethernet LX/SX SFP
mini-GBIC modules. The high backplane simplifies the tasks of upgrading the LAN for catering the increasing bandwidth demands.
Data Sheet
3
WGSD-910
FTTx Edge Switch
With the mini-GBIC 1000Base-SX/LX SFP (Small-Form Factor Pluggable) interface, the deploy distance of WGSD-910, a high-performance edge
device for FTTx solutions, can be extended from 550 meters (Multi-mode fiber) up to above 10/50/70/120 kilometers (Single-mode fiber).
To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building) for enterprises, the
various distances of SFP (Small-Form Factor Pluggable) and Bidi (WDM) transceivers are optional for customers. For security and applications, the 8
copper ports can be configured with VLAN settings and connect to different units, offices, houses and departments.
Ordering Information
WGSD-910 8-Port 10/100Mbps + 1 Gigabit TP/SFP Combo Managed Switch
Available Modules for wgsd-910
MGB-GT SFP-Port 1000Base-T Module
MGB-SX
MGB-LX
MGB-L30
MGB-L50
MGB-L70
MGB-L120
MGB-LA10
MGB-LB10
MGB-LA20
MGB-LB20
MGB-LA40
MGB-LB40 SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-40km
SFP-Port 1000Base-SX mini-GBIC module
SFP-Port 1000Base-LX mini-GBIC module
SFP-Port 1000Base-LX mini-GBIC module-30km
SFP-Port 1000Base-LX mini-GBIC module-50km
SFP-Port 1000Base-LX mini-GBIC module-70km
SFP-Port 1000Base-LX mini-GBIC module-120km
SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-10km
SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-10km
SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-20km
SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-20km
SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-40km
Relative Products (IP Stacking Series)
WSD-800 8-Port 10/100Mbps Managed Switch
WSW-2401A
WGSW-2840 24-Port 10/100Mbps + 4-Port Gigabit TP/SFP Combo Managed Switch
WGSW-5240 48-Port 10/100Mbps + 4-Port Gigabit TP/SFP Combo Managed Switch
24-Port 10/100Mbps + 1 Open Slot Managed Switch
