Planet Technology VIP-152T User Manual

SIP IP Phone

User’s Manual

Table of Contents

Chapter 1 Overview of the VIP-152T...................................................................................1

1.1 Hardware Overview................................................................................................2

1.1.1 Front View and Keypad function...................................................................2

1.1.2 Rear panel.................................................................................................... 3

1.1.3 Specification.................................................................................................4

1.2 Software Features and Specification ......................................................................5

Chapter 2 Configuring the VIP-152T through LCD .........................................7Phone menu

2.1 Initialize VIP-152T...................................................................................................7

2.2 LCD Menu Configuration........................................................................................ 9

Chapter 3

Configuring the VIP-152T through Web Pages.................................................15

Step 1. Browse the IP Address predefined via Keypad...............................................15

Step 2. Input the login name and password................................................................15

Step 3. Enter the web interface main screen..............................................................16

Step 4. Start configuration...........................................................................................16

1. Network Interface ............................................................................................17

2. SIP Information................................................................................................19

3. System Configuration...................................................................................... 21

4. PPPoE Configure ............................................................................................22

5. Voice Setting....................................................................................................23

6. Phone Book.....................................................................................................24

7. Password......................................................................................................... 25

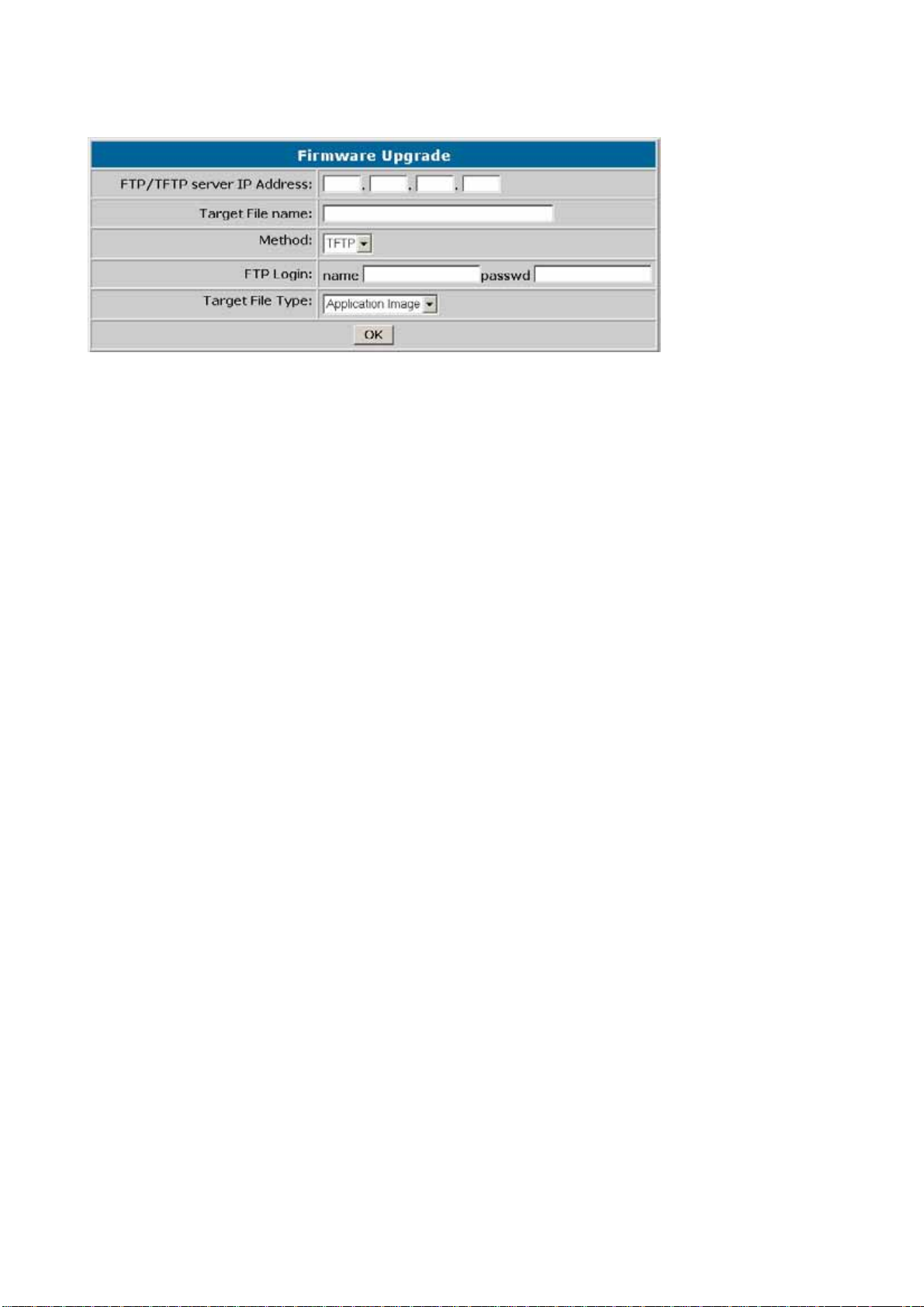

8. Firmware Upgrade...........................................................................................26

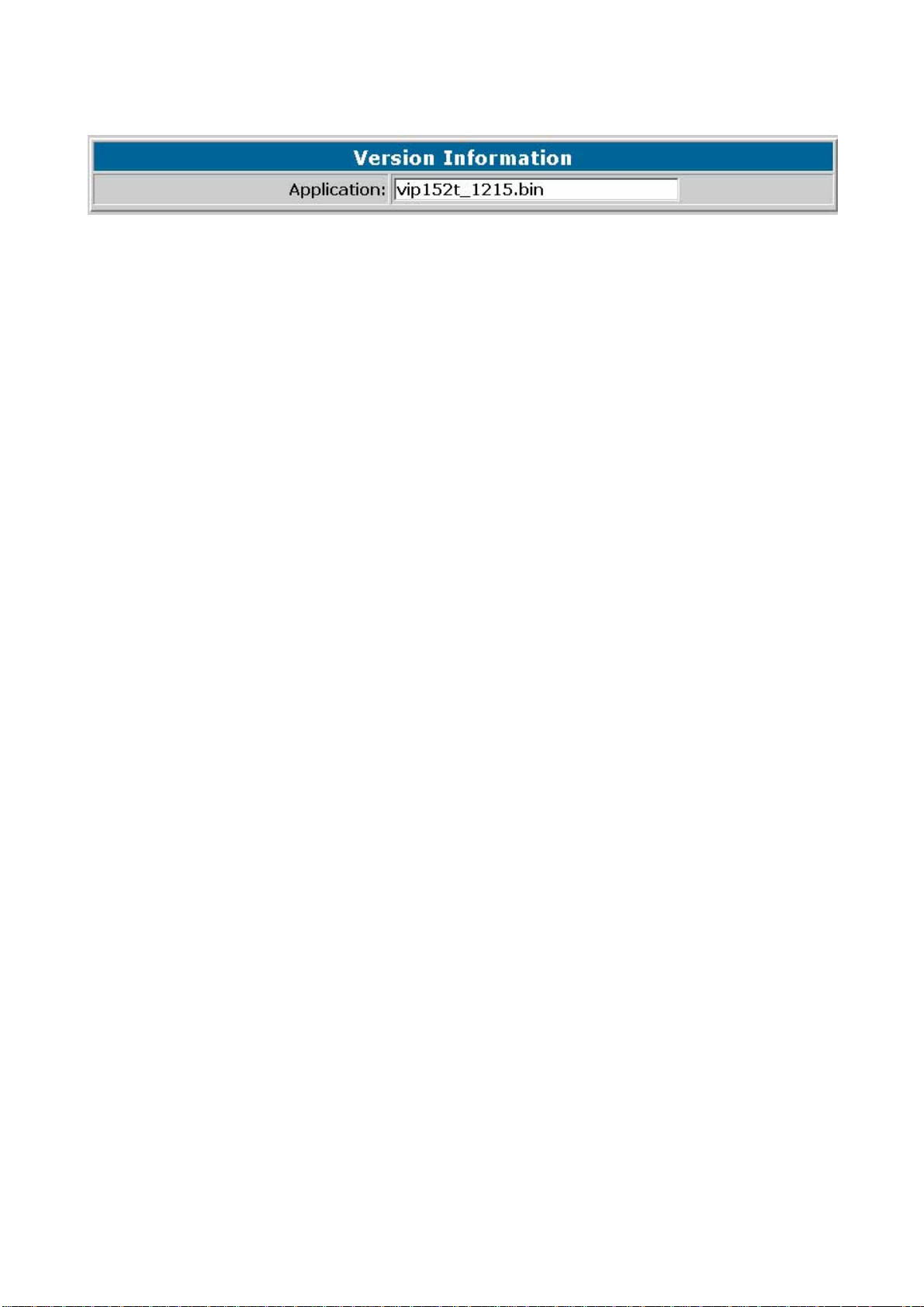

9. Version Information..........................................................................................27

10. Reboot System.............................................................................................. 28

Chapter 4

Configuring the VIP-152T through Telnet command lines.................................29

4.1. [help] command...................................................................................................29

4.2. [quit] command....................................................................................................30

4.3. [debug] command................................................................................................30

4.4. [reboot] command................................................................................................30

4.5. [pbook] command................................................................................................30

4.6. [commit] command ..............................................................................................31

4.7. [ping] command...................................................................................................32

4.8. [time] command...................................................................................................32

4.9. [ifaddr] command................................................................................................. 32

4.10. [pppoe] command..............................................................................................33

PLANET VIP-152T User’s Manual

4.11. [flash] command.................................................................................................34

4.12. [sysconf] command............................................................................................34

4.13. [sip] command ...................................................................................................35

4.14. [security] command............................................................................................37

4.15. [voice] command................................................................................................37

4.16. [tos] command...................................................................................................39

4.17. [bureau] command.............................................................................................40

4.18. [rom] command..................................................................................................40

4.19. [passwd] command............................................................................................41

Chapter 5 Upgrading Software on the VIP-152T ...............................................................43

5.1 From LCD Phone Menu........................................................................................43

5.2 Web Management ................................................................................................44

5.3 Telnet command lines...........................................................................................44

PLANET VIP-152T User’s Manual

Chapter 1

Overview of the VIP-152T

Based on the next-generation Internet telephony service demands--Session Initialization Protocol (SIP), the PLANET VIP-152T brings cost-effective solution for voice communications and interoperates with major other-vendor VoIP hardware and systems as well as the traditions of PLANET VoIP family. As a feature-rich IP Phone, the VIP-152T fulfills your needs. It’s simple to use, and has additional features such as: built-in PPPoE/DHCP clients, large LCD display, hands-free speakerphone, telephone number phonebook, direct-dial hotkeys, last number redial, incoming message indicator, and user-intuitive web administration system.

PLANET VIP-152T is the perfect desktop IP phone for office or home use, as well as installation for Internet Telephony Service Provider (ITSP) from leading vendors. It's the delivery platform for IP voice services that makes plenty features extremely easy to use.

VIP-152T, which built-in a powerful, self-contained, integrated microprocessor — offers a intelligent phone features, and powerful voice procesing power. The PLANET VIP-152T can effortlessly deliver toll voice quality equivalent to regular PSTN connections utilizing cutting-edge Quality of Service, echo cancellation, comfort noise generation and voice compensation technology. Meanwhile, the dual Ethernet interfaces on the VIP-152T allow users to install in an existing network location without interfering with desktop PC network connections.

PLANET VIP-152T User’s Manual

1.1 Hardware Overview

1.1.1 Front View and Keypad function

♦ System Indication LED: When VIP-152T didn’t register to Proxy server or having incoming call, system

indication LED will be blinking.

♦ MENU: Press to enter LCD Menu when in standby mode; if already in LCD Menu, press this button can

return to standby mode

♦ MUTE:

1. Mute the voice of Microphone and let others can’t hear from user in communication.

2. Change input mode to be digit or character mode: When configuration in LCD menu can change

input mode to be input digit only or input character .

♦ ▲▼: Move to up/down, left/right ; increase/decrease value.

OK: Press OK to confirm the modification.

♦

Flash:

♦

1. Transfer a call. User A can press FLASH button when in communication with user B, then input

phone number can make call to User C, after talk with C, A can hang up, User B and User C can communicate.

2. Back to upper level of menu: when in LCD Menu, press FLASH button can jump to upper level of

menu.

PLANET VIP-152T User’s Manual

♦ REDIAL / HOLD:

1. Redial the last outgoing call or hold one call in communication.

2. Upper-case/Lower-case character: change input character mode to be upper-case or lower-case.

♦ SPEAKER: Speaking without picking up handset.

♦ 5 Graphic Memory key: User presses these keys to do speed dial according to phone book data 1-5

(please refer to LCD configuration-Phone Book, Configuring the VIP-152T through Telnet command lines - [pbook] command, or Web Configuration-Phone Book chapter).

♦ Number 1 –10, * and #: The function is as the same as the general phone set.

Corresponding list of keypad and symbol:

1 “1” 2 “a” ; “ b” ; “c” ; “2” 3 “d” ; “e” ; “f” ; “3” 4 “g” ; “h” ; “i” ; “4” 5 “j” ; “k” ; “l” ; “5” 6 “m” ; “n” ; “o” ; “6” 7 “p” ; “q” ; “r” ; “s” ; “7” 8 “t” ; “u” ; “v” ; “8” 9 “w” ; “x” ; “y” ; “z” ; “9”

* “.” ; “@” ; “_” ; ”-“ ; “,” ; “!” ; “?” ; “’” ; “+” ; “$” ; “*” 0 “Space” ; “0” # “#”

1.1.2 Rear panel

♦ DC 5V: DC 5 V power input outlet ♦ WAN: 10/100 Base-T RJ-45 connectors, connected directly to the Hub through the straight CAT-5 cable. ♦ LAN

PLANET VIP-152T User’s Manual

: 10/100 Base-T RJ-45 connector, connected directly to the PC through the straight CAT-5 cable

1.1.3 Specification

1. Ethernet Port： Ethernet port is for connecting VIP-152T to network, transmit rate supports 1 0/10 0 Base-T.

Ethernet connector（LAN）

PLANET VIP-152T User’s Manual

1.2 Software Features and Specification

Application:

z ISP/ITSP (Internet Telephony Service Provider) z IP-PBX with office telephony services z Multi-nation enterprise communication

z SOHO Telephony

Calling Features

z Call Hold z Call Transfer z Call Forward

z 5 configurable speed dials

Network Supported

z Fixed IP z Dynamic Host Configuration Protocol (DHCP) z PPPoE connection (When PPPoE disconnect, VIP-152T can automatically re-connect) z Behind NAT IP Sharing Device

z Support QOS by setting DSCP (Differentiated Service Code Point) p aramete rs of VoIP packet

Audio Features

z G.711 a/µ-Law, G.723.1, G.729, G.729a z VAD, CNG z G.165/G.168 compliant echo cancellation z Programmable Dynamic Jitter Buffer z Bad Frame Interpolation

z Gain/Attenuation Settings

Provisioning and Configuration

z SIP (RFC3261) compliance z LCD configuration password protection z Provide Proxy Mode or Peer-to-Peer Mode (Non Proxy Server needed) selection z Ring tone, Speaker and Handset volume adjustable

z Support DNS server inquiry

Management Features

z Software Upgrade: TFTP/FTP download

PLANET VIP-152T User’s Manual

z Three easy ways for system configuration

z LCD Front Panel z Web Browser

z Telnet

Environmental

z Operating and storage Humidity: 10 to 95 % (Non-condensing) z Operational Temperature: 0 to +40 °C

z Storage Temperature: -10 to 60℃

PLANET VIP-152T User’s Manual

Configuring the VIP-152T through LCD

1. After any configuration has changed for the VIP-152T, user has to do reboot in the selection “Reboot”.

2. It is suggested to setup IP address via LCD menu Network→Get IP mode / IPAddress /

Chapter 2

Phone menu

Note:

Subnet Mask / Default GW first, then go to chapter 3 to do other configurations via web browser. If user need to do more detail or advanced configurations, please refer to chapter 4 and use Telnet command lines.

3. User can also try to enter web configuration via default IP address of VIP-152T:

192.168.0.1

2.1 Initialize VIP-152T

1. After VIP-152T finish initializing, it will get into standby mode:

P2P

The main LCD screen would be shown above. “P2P” means the VIP-152T in Peer-to-Peer communication mode, and “Proxy” means the VIP-152T is in Proxy Mode.

VIP-152T

Note:

If VIP-152T didn’t register to Proxy server, when VIP-152T been off-hook, user will hear busy tone instead of dial tone, also system LED indication will be blinking.

2. When VIP-152T is under peer-to-peer mode, on LCD will show “P2P” instead of “Proxy”.

P2P 10:10:10 AM

VIP-152T

PLANET VIP-152T User’s Manual

3. Press MENU to enter configuration mode then press OK to enter sub menus; press FLASH can

jump out current menu to previous level.

1. Call List

2. Forward

3. Phone Book

4. Ringer

5. Network

6. Advanced Set (can be protected by password)

7. Reboot

PLANET VIP-152T User’s Manual

2.2 LCD Menu Configuration

User can set the following configurations via LCD keypad.

1. Press REDIAL/HOLD before input data can switch characters to be capital or

lowercase.

Note:

2. Press MUTE before input data can switch input mode to be character mode or IP mode;

for example, user wants to enter IP address, after pressing SPEED can enter digits directly.

3. When user is inputting data, press ▲ will clear previous input data.

1. Call List

User can check all call records in this call list menu.

 Missed Calls：to see all missed calls in message box.  Received：to see all received calls in message box.  Dialed No.: to see all dialed numbers in message box.  Exit: return to upper level of LCD Menu

2. Forward

There are 3 selections in Forward type, user must select under which condition to forward calls.

 Busy

When VIP-152T is in busy status, the incoming call will be forwarded to the assigned phone number.

 Activate Enter a forwarded phone number to activate busy forward function.  Deactivate Deactivate Busy Forward function.  Exit Return to upper level of LCD Menu

 No Answer

When VIP-152T has incoming call and hasn’t be en picked up for around 10 seconds, the incoming call will be forwarded to the assigned phone number.  Activate Enter a forwarded phone number to activate No Answer Forward function.  Deactivate Deactivate No Answer Forward function.  Exit Return to upper level of LCD Menu

PLANET VIP-152T User’s Manual

 Uncondition (Unconditional Forward)

It is included the above two types. Whether the VIP-152T is in which status, calls will be automatically forwarded to the assigned phone number.  Activate Enter a forwarded phone number to activate Unconditional Forward function.  Deactivate Deactivate Unconditional Forward function.

 Exit

 Delete All: Delete all forward activated data.  Exit: Return to upper level of LCD Menu.

3. Phone Book

1. List

List all records of name, telephone number, and IP address in the phone address book.

2. Edit/Del

Edit or delete a record of name, telephone number, and IP address of the phone address book.

3. New

Add a new record of name, telephone number, and IP address of the phone address book.

4. Exit

Return to upper level of LCD Menu

4. Ringer

Return to upper level of LCD Menu

1. Volume

User can adjust ring volume by press ▼ or ▲ on the keypad to decrease or increase ringer volume.

2. Exit

Return to upper level of LCD Menu

5. Network

1. Information

User can press ▼ or ▲ to check current network status:

PLANET VIP-152T User’s Manual

 Mode: Display current network connection mode of VIP-152T to be Static (Fixed

IP), DHCP, or PPPoE.

 IP, Mask, Gateway: display current IP information.

2. Get IP Mode

Set network mode of VIP-152T to be Fix (Fixed IP), DHCP, or PoE (PPPoE).

3. IP address

Set IP address of VIP-152T.

4. Subnet Mask

Set subnet mask address of VIP-152T.

5. Default GW

Set default gateway address of VIP-152T.

6. DNS (Domain Name Server)

Set IP address of Domain Name Server. Once VIP-152T can connect to DNS server, user can set URL address for Proxy server or Phone book instead of IP address.

(1) Primary

Set Primary DNS server IP address

(2) Secondary

Set Secondary DNS server IP address

(3) Exit

Return to upper level of LCD Menu

7. PoE Config (PPPoE Configuration) (1) User Name

Set PPPoE connection authentication user name.

(2) Password

Set PPPoE connection authentication password.

(3) Reconnect

Select ON or OFF to enable or disable this function. If user enables this function, after PPPoE disconnected, VIP-152T will automatically reboot to re-connect, and after reboot, if VIP-152T still can’t connect with server, VIP-152T will keep trying to connect. On the other hand, if user disables this function, VIP-152T won’t reboot and keep trying to connect.

(4) Exit

Return to upper level of LCD Menu

8. IP-Sharing

 If VIP-152T is behind IP sharing or NAT device, and VIP-152T is under

PLANET VIP-152T User’s Manual

Peer-to-Peer mode or Proxy mode (doesn’t support endpoint behi nd NAT function), on IP sharing must enable “DMZ” function or set “Virtual Server” to open ports (UDP port: 5060 and 16384, 16385). VIP-152T must enable this IP sharing function.

 User must enter public IP address of IP sharing.

9. Exit: Return to upper level of LCD Menu

6. Advanced Set (can be protected by password)

z Password:

User must key in password to enter this menu if password has been set, items under this command are all important ones, which can only be configured by advanced users. If password hasn’t been set, user can enter this menu directly without entering password.

Note:

1. If user forget password, please contact with your distributor, we will generate a specific password according to your MAC address of VIP-152T.

2. User can also try to configure VIP-152T via Telnet or Web browser with default IP address: 192.168.0.1. (If IP haven’t been changed)

z SIP

 Mode

Select SIP connection mode to be peer-to-peer mode or Proxy mode.

 Proxy

 Proxy

Set Proxy IP address or Domain Name.

 Outbound

Set Outbound Proxy IP address or Domain Name.

 Px port

Set Proxy port for VIP-152T to send messages.

 Expire (in seconds)

Set expire time of registration, in the duration of 2/3 expire time, VIP-152T will re-register to Proxy Server again.

 Exit

Return to upper level of LCD Menu

PLANET VIP-152T User’s Manual
