Planet Technology VC-301 User Manual

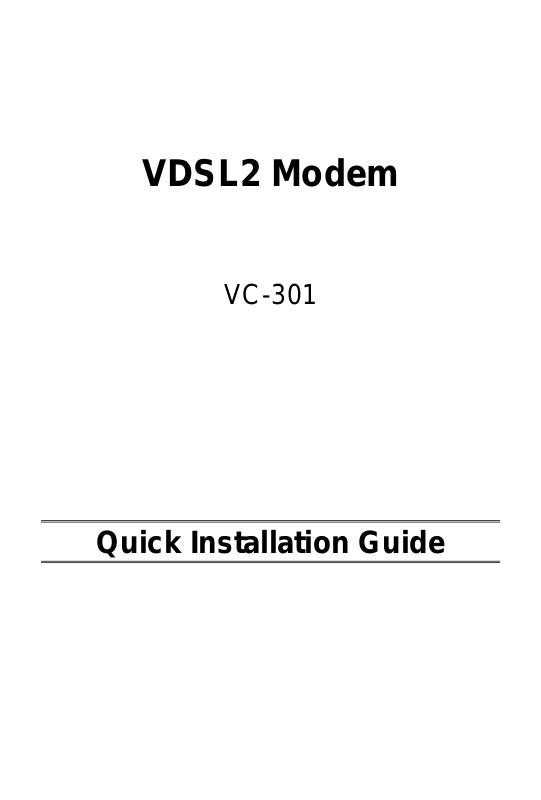

VDSL2 Modem

VC-301

Quick Installation Guide

Package Contents

The following items should be included:

• VC-301 Unit

• 1 RJ-45 (LAN) cable

• 2 RJ-11 (VDSL2) cable

• Power Adapter

• VDSL Splitter

• Quick Installation Guide

If any of the above items are damaged or missing, please contact
your dealer immediately.

Physical Details

Front-mounted LEDs

VC-301 Front Panel

Front Panel LED definition

LED State

PWR

Link

Flashing

Data

LAN

Reserved
Function

Flashing/ON

ON

OFF

Rear Panel

Connector

POWER

ETHERNET

LINE

Power connector with 5V DC 1.5 A
Modem is successfully connected to a device through

the Ethernet port. If the LED light of Ethernet is
flashing, the Modem is actively sending or receiving
data over that port.

The RJ-11 connector allows data communication
between the modem and the VDSL2 network through
a twisted-pair phone wire

Description

When the modem is powered on, and
in ready state.

When the modem is powered off.
Modem is trying to establish a

connection with telecom’s network.
Future Feature
Data is being transmitted or received

via the corresponding LAN port, and
in ready state.

Description

Installation Procedure

1. Choose an Installation Site

Select a suitable place to install the VC-301.

2. Connect RJ-45 Cable

Uses the supplied RJ-45 cable connects to PC with the
Ethernet port of VC-301. Both 10Base-T and 100Base-TX
connections can be used simultaneously.
If required, using a standard RJ-45 cable connect to Ethernet
port of VC-301 with a normal Hub.
Ethernet port of VC-301 will automatically function as an
"Uplink" port when required.

3. Connect RJ-11 Cable

Uses the supplied RJ-11 cable connects to VC-301 with your
phone company.

4. Power Up

Uses the supplied power adapter connects to VC-301. Please
use same power adapter we provided. Using a different one

may cause hardware damage.

5. Check the LEDs

• The PWR LED should be ON.

• For LAN connection, the LAN LED should be ON (the provided

PC is also ON.)

• The Link LED should be ON if VDSL2 line is connected.

Further Information

If you have any other questions, please contact
the dealer where you purchased this product or
you can contact PLANET directly at the following
email address: [e-mail]
