10/100/1000Base-T to 1000Base-SX/LX
Gigabit Ethernet Media Converter
User’s Manual
Trademarks
Copyright © PLANET Technology Corp. 2007
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. The information in this manual is subject to change without notice. All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance,
merchantability, or tness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without notice.
If you nd information in this manual that is incorrect,
misleading, or incomplete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment
should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
User’s manual for PLANET Gigabit Ethernet Converter
For Models: GT-802, GT-802S, GT-805A, GT-806A15, GT-
806B15, GT-806A60, GT-806B60
Rev 1.0 (August. 2007)
Part No: 2010-AA4230-000
Table of Contents
Chapter 1 OVERVIEW ......................................................6
About the Gigabit Ethernet Media Converter ................6
Chapter 2 PRODUCT FEATURES ........................................7
Chapter 3 MODEL LIST ...................................................9
Chapter 4 CHECKLIST ...................................................10
Chapter 5 PRODUCT OUTLOOK ......................................11
Chapter 6 INSTALLING THE CONVERTER .........................13
6.1 Stand-alone Installation ..................................... 13
6.2 Chassis Installation and Rack Mounting ............... 16
Chapter 7 DUPLEX MODE SUPPORT ................................18
Chapter 8 LED INDICATION ...........................................19
Chapter 9 CABLE CONNECTION PARAMETER ...................20
Chapter 10 PRODUCT SPECIFICATION ............................22
Chapter 11 POWER INFORMATION .................................24
6
Chapter 1 OVERVIEW
easily, efciently and inexpensively. The Gigabit Ethernet
This Gigabit Ethernet Media Converter can be used as a standalone unit or as a slide-in module to the 10”/19” media chassis (up to 15 units) for a multi-mode and single­mode Fiber combined networks at a central wiring closet. Please contact with your sales representative for more about the 10”/19” media chassis.
About the Gigabit Ethernet Media Converter
This Gigabit Ethernet Media Converter utilizes a netrwork
technology specied by IEEE 802.3 10Base-T, IEEE 802.3u
100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards. The Gigabit Ethernet Media Converter is used to converter one type media signal to other type equivalent that allows two type segments connect easily, effciently and inexpensively.
7
Chapter 2 PRODUCT FEATURES
● Comply with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-
TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/ LX Ethernet standard
● Bridge mode media converter with TP port supports
10/100/1000Base-T auto-negotiation and auto-MDIX
● Auto-Negotiation for 10/100/1000Base-T; Half-Duplex or
Full-duplex for 100Mbps and 10Mbps
● LED indicators for simple diagnostics and management
● Fiber Interface
● Compact in size, easy installation
● Can be installed on PLANET’s 10”/19” Media Converter
Chassis (MC-700/1000R/1500)
GT-802
1000Base-SX interface for up to 550 meters (multi-mode
50/125µm ber) and 220 meters (multi-mode 62.5 /125µm ber)
GT-802S
1000Base-LX interface for up to 10km (single mode
9/125µm ber) and up to 550m (multi-mode ber cable)
GT-805A
One SFP (Mini-GBIC) slot supporting either multi-mode or
single mode ber, exibility in Gigabit Ethernet ber-optic
wiring with different Mini-GBIC module installed
8
GT-806A15 / GT-806B15
1000Base-LX WDM interface for up to 15km (single mode
9/125µm ber)
GT-806A60 / GT-806B60
1000Base-LX WDM interface for up to 60km (single mode
9/125µm ber)
9
Chapter 3 MODEL LIST
Your Gigabit Ethernet Converter comes with one of the following models.
• GT-802: 10/100/1000Base-T to 1000Base-SX(SC)
• GT-802S: 10/100/1000Base-T to 1000Base-LX(SC)
• GT-805A: 10/100/1000Base-T to 1000Base-SX/LX(LC)
• GT-806A15: 10/100/1000Base-T to 1000Base-LX(WDM)
• GT-806B15: 10/100/1000Base-T to 1000Base-LX(WDM)
• GT-806A60: 10/100/1000Base-T to 1000Base-LX(WDM)
• GT-806B60: 10/100/1000Base-T to 1000Base-LX(WDM)
In the following sections, the term “GT-80X” indicates the product family above, the term “MM” and “SM” represent Multi-Mode and Single Mode ber-optic mode.
Notice:
Please note GT-806A15/806B15 and GT­806A60/806B60 is designed to work together. It means you must connect GT­806A15 to GT-806B15 or GT-806A60 to GT-806B60 from them to work normally. If both ends are GT-806A15 or GT-806A60 and GT806B15 or GT-806B60, they can’t work normally and may damage the fiber connectors.
10
Chapter 4 CHECKLIST
Your GT-80X carton should contain the following items:
• The Gigabit Ethernet Converter
• AC-DC Power Adapter (Output: 5VDC, 2A max.)
• This user’s manual
If any item is missing or damaged, please consult the dealer from whom you purchased your Gigabit Ethernet Converter.
Notice:
GT-805A is with one vacant SFP module slot. The mini GBIC SFP module is not bundled with in the package.
11
Chapter 5 PRODUCT OUTLOOK

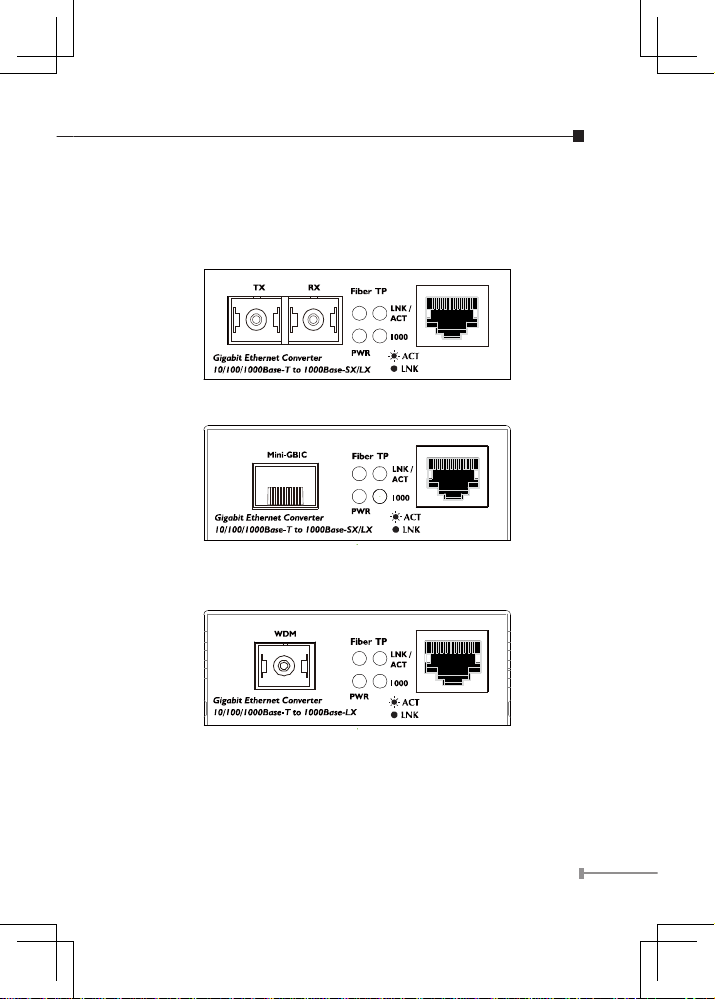

Right View (GT-80X)
GT-802/GT-802S
GT-805A
GT-806A15/B15/A60/B60
Left: Fiber-optic connector, Right: TP connector.
Two LED indicators per TP, ber port.
12

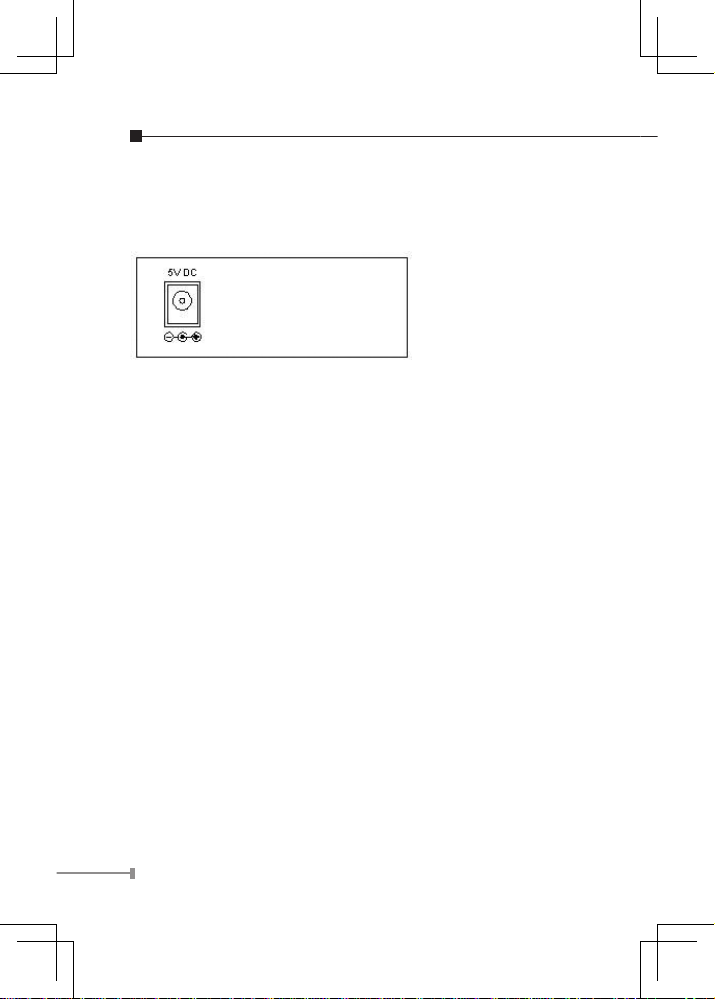

Rear View (GT-80X)
One DC jack for DC power input.
13
Chapter 6 INSTALLING THE CONVERTER
6.1 Stand-alone Installation
To install a GT-80X stand-alone, on a desktop or shelf, simply complete the following steps:
Step 1: Turn off the power of the device/station in a
network to which the GT-80X will be attached.
Step 2: Ensure that there is no activity in the network.
Step 3: Attach ber cable from the GT-80X to the ber
network. TX, RX must be paired at both ends.
Step 4: Connect the 5VDC power adapter to the GT-80X
and verify that the Power LED lights up.
LEDs should light when all cables are attached.
14
Figure 6-1 GT-80X installation
Notice:
Please refer to Section 9 for detailed wiring information of the GT-80X. To prevent from optic acceptor malfunction, check the both wires / transmitter before power on the converter.
15
GT-805A Installation
Step 1: Connect the ber cable. Attach the duplex LC
connector on the network cable into the SFP transceiver.
Step 2: Attach ber cable from the GT-805A to the ber
network. TX, RX must be paired at both ends.
and verify that the Power LED lights up.
LEDs should light when all cables are attached.
Figure 6-2 GT-805A installation
Notice:
It recommends using PLANET MGB-SX / MGB-LX series 1000Base-SX/LX SFP on the converter. If you insert a SFP transceiver that is not supported, the converter will not recognize it.
16
6.2 Chassis Installation and Rack Mounting
To install the media converter in a 10-inch or 19-inch with standard rack, follow the instructions described below.
Step 1: Place your GT-80X on a hard at surface, with the
front panel positioned towards your front side.
Step 2: Carefully slide in the module until it is fully and
rmly tted into the slot of the chassis.
Figure 6-3: Insert a media converter into an available slot
Step 3: Attach a rack-mount bracket to each side of the
Chassis with supplied screws attached to the package.
Step 4: After the brackets are attached to the chassis, use
suitable screws to securely attach the brackets to the rack, as shown in Figure 6-3.
Step 5: Proceed with the steps 4 and steps 5 of session
6.1 Stand-alone Installation to connect the network cabling and supply power to your switch.
17
Caution:
You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect screws would invalidate your warranty.
18
Chapter 7 DUPLEX MODE SUPPORT
The GT-80X is one-channel media conversion between
10/100/1000Base-T and 1000Base-SX/LX. 10/100/1000Base­T port can work under Auto-negotiation mode. 1000Base-
full duplex mode.
19
Chapter 8 LED INDICATION
LED Color Description
PWR Green
Lit: When +5VDC power detected.
Fiber
LNK/ACT
Green
Lit: To indicate the link through
that ber port is successfully
established. Blink: Indicate that the Fiber port is actively sending or receiving data over that port.
TP
LNK/ACT
Green
Lit: To indicate the link through that port is successfully established. Blink: Indicate that the port is actively sending or receiving data over that port.
TP
1000
Green
Lit: When the port runs in 1000Mbps Full duplex. Blink: When the port runs in 100Mbps Full duplex. Off: When the port runs in 10Mbps Full duplex.
Table 8-1: LED indication of GT-80x
20
Chapter 9 CABLE CONNECTION PARAMETER
The wiring details are as below:
Cables:
Standard Fiber Type Cable Specication
1000Base-SX
(850nm)
Multi-mode 50/125μm or 62.5/125μm
1000Base-LX
(1300nm)
Multi-mode 50/125μm or 62.5/125μm
Single-mode 9/125μm
Wiring Distances:
Standard Fiber
Diameter
(micron)
Modal
Bandwidth
(MHz * km)
Max. Distance (meters)
1000Base-SX MM
62.5
62.5 50 50
100 200 400 500
220 275 500 550
1000Base-LX
MM
62.5 50 50
5 4 5
550
SM 9 N/A 5000*
21
Notice:
The Single-mode port (1000Base-LX port) of GT-802S, GT-805A, GT-806A15/B15 and GT-806A60/B60 is complied with LX 5 kilometers and provides additional margin allowing for a 10/15/60 kilometers Gigabit Ethernet link on single mode fiber.
22
Chapter 10 PRODUCT SPECIFICATION
The GT-80X comes with the following standard features:
Model GT-802 GT-802S GT-805A
GT-806A15 GT-806A60
GT-806B15 GT-806B60
Connector – Fiber
SC-type connector
SFP, LC type
SC-type connector (WDM) LX
Mode
Multi­mode
Single
mode
Vary on module
Single mode Single mode
Fiber Maximum Distance
220m /
550m
10km
Vary on module
15km 60km
Connector
- Copper
10/100/1000Mbps RJ-45
Modes
Full Duplex, auto-negotiation
Packet Forwarding Rate (64bytes)
14880 pps @10Mbps 148810 pps @100Mbps 1488000 pps @ 1000Mbps
LED indicators: PWR, 1000, Fiber/LNK/ACT, TP/LNK/ACT
Protocols and Standards:
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX
23
Cable
10/100/1000Base-T:
1000Base-T-2-pair UTP Cat. 5/5e/6, up to 100m
1000Base-SX:
50/125μm or 62.5/125μm multi-mode ber optic cable, up to
220/550m
1000Base-LX:
9/125μm single-mode ber optic cable, up to 10/15/60km
Dimensions 26 x 70 x 97mm (H x W x D)
Power External power adaptor 5V 2A max.
EMI Compatibility:
FCC Class A, CE Certication Class A
Temperature:
Storage: -40°C ~ 70°C Operating: 0°C ~ 50°C
Humidity: 5% ~90% non-condensing
Notice:
Connecting to the Gigabit Ethernet products, please refer to the device’s Technical Manual.
24
Chapter 11 POWER INFORMATION
Please keep the AC-DC adapter as spare parts when your GT-80X is installed to a Media Chassis.
2010-AA4230-000
