Planet Technology GRT-501 User Manual

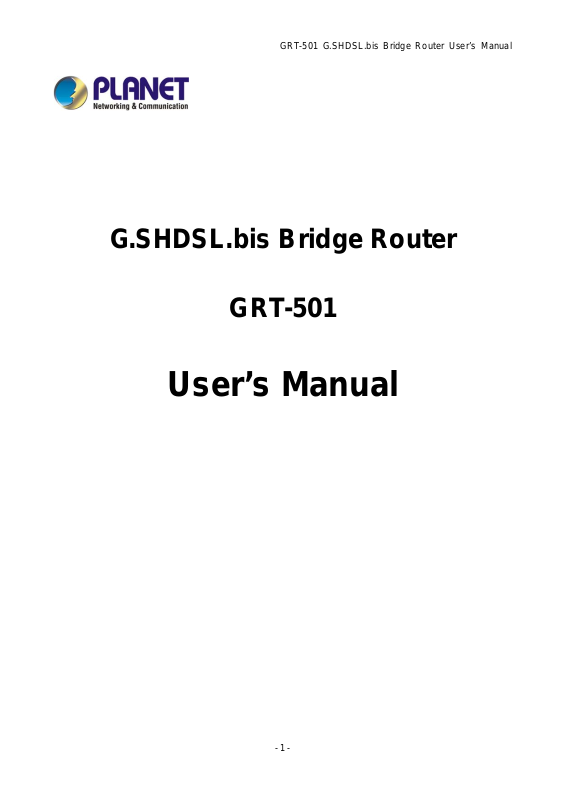

GRT-501 G.SHDSL.bis Bridge Router User’s Manual
G.SHDSL.bis Bridge Router
GRT 501 -
User’s Manual
- -
1
GRT-501 G.SHDSL.bis Bridge Router User’s Manual
Copyright© 2007 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET. PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all enviro nments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred. Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without notice. If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.
Trademarks
The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, these designations are claimed as trademarks or registered trademarks by their respective companies.
CE mark Warning
This is a class B device, in a domestic environment; this product may cause radio interference, in which case the user may be required to take adequate measures.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursu ant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequ ency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
- -
1
GRT-501 G.SHDSL.bis Bridge Router User’s Manual
FCC Caution:
To assure continued compliance (example-use only shielded interface cables when conne cting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions: (1) This device may not cause harmful interference, and (2) this Device must accept any interference received, including interference that may cause undesired operation.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
WEEE Caution
To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic e quipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
Customer Service
For information on customer service and support for the Multi-Homing Security Gateway, please refer to the following Website URL:
http://www.planet.com.tw
Before contacting customer service, please take a moment to gather the following information:
The GRT-501 serial number and MAC address Any error messages that displayed when the problem occurred Any software running when the problem occurred Steps you took to resolve the problem on your own
Revision
User’s Manual for PLANET G.SHDSL.bis Bridge Router Model: GRT-501 Rev: 1.0 (Octorber, 2007) Port No. EM-GRT501v1
- -
2
GRT-501 G.SHDSL.bis Bridge Router User’s Manual

Table of Contents

TABLE OF CONTENTS...................................................................................................................3
CHAPTER 1 OVERVIEW................................................................................................................5
PRODUCT FEATURES..........................................................................................................................5
HARDWARE SPECIFICATION...............................................................................................................6
PACKAGE CONTENTS.........................................................................................................................7
CHAPTER 2 INSTALLATION........................................................................................................8
2.1 GET TO KNOW YOUR G.SHDSL.BIS ROUTER ...............................................................................8
2.2 REAR PANEL CONNECTIONS ........................................................................................................9
2.3 SETTING UP THE HARDWARE ENVIRONMENT..............................................................................10
CHAPTER 3 LOGON PROCEDURE...........................................................................................11
3.1 SERIAL CONSOLE.......................................................................................................................11
3.2 TELNET ..................................................................................................................................... 11
3.3 WEB BROWSER..........................................................................................................................12
CHAPTER 4 CONFIGURATION BY WEB BROWSER ...........................................................13
4.1 BASIC SETTING .........................................................................................................................13
4.1.1 Bridge Mode......................................................................................................................13
4.1.2 Routing Mode for PPPoA and PPPoE with IP Sharing ...................................................15
4.1.3 Routing Mode for IPoA or EoA.........................................................................................17
4.1.4 LAN-to-LAN Connection with Bridge Mode.....................................................................19
4.2 ADVANCED SETUP .....................................................................................................................21
4.2.1 SHDSL.bis.........................................................................................................................21
4.2.2 W AN...................................................................................................................................22
4.2.3 Bridge................................................................................................................................24
4.2.4 VLAN.................................................................................................................................25
4.2.5 ETHERNET.......................................................................................................................26
4.2.6 Route .................................................................................................................................27
4.2.7 NAT/DMZ..........................................................................................................................29
4.2.8 Virtual Server....................................................................................................................31
4.3 STATUS ......................................................................................................................................32
4.4 ADMINISTRATION ......................................................................................................................33
4.4.1 Security..............................................................................................................................33
4.4.2 SNMP................................................................................................................................34
4.4.3 T ime Sync ..........................................................................................................................36
4.5 UTILITY..................................................................................................................................... 38
- -
3
GRT-501 G.SHDSL.bis Bridge Router User’s Manual
4.5.1 System Info........................................................................................................................38
4.5.2 Config Tool........................................................................................................................38
4.5.3 Upgrade ............................................................................................................................39
4.5.4 Logout ...............................................................................................................................40
4.5.5 Restart...............................................................................................................................40
APPENDIX A: VLAN......................................................................................................................41
SPECIFICATION ..............................................................................................................................41
FRAME SPECIFICATION .................................................................................................................42
APPLICATIONS ...............................................................................................................................42
APPENDIX B: GLOSSARY...........................................................................................................44
- -
4

Chapter 1 Overview

The Planet new SHDSL family member GRT-501 is the G.SHDSL.bis router that complies with ITU-T G.991.2 standard and provides affordable, flexible, efficient Internet access solution for SOHO and Small Medium Business environment. The GRT-501 supports business-class, multi-range from 192kbps to 5.7Mbps (2-wire) symmetric data rates and also can be connected as the LAN-to-LAN network connection at the distance up to 6.7km (4.2 miles) by using existing telephone copper wires.
The Planet GRT-501 is integrated high-end Bridging/Routing capabilities with advanced functions of DMZ, Virtual Server, and VPN pass-through. And because of the network environment growing rapidly, Virtual LAN has become more and more important feature in internetworking industry. The GRT-501 supports IEEE 802.1Q VLAN over ATM network.
With the built-in Simple Network Management Protocol (SNMP) and web-based management, the GRT-501 offers an easy-to-use, platform-independent management and configuration facility. And the GRT-501 also provides Command-Line Interface; it can be accessed via Telnet and the console port. The network administrator can manage the device by proper way.

Product Features

High Speed Symmetric Data TransmissionThe GRT-501 supports the latest
G.SHDSL.bis technology, provides the higher symmetric data rate up to 5.7 Mbp s on 2 wires.

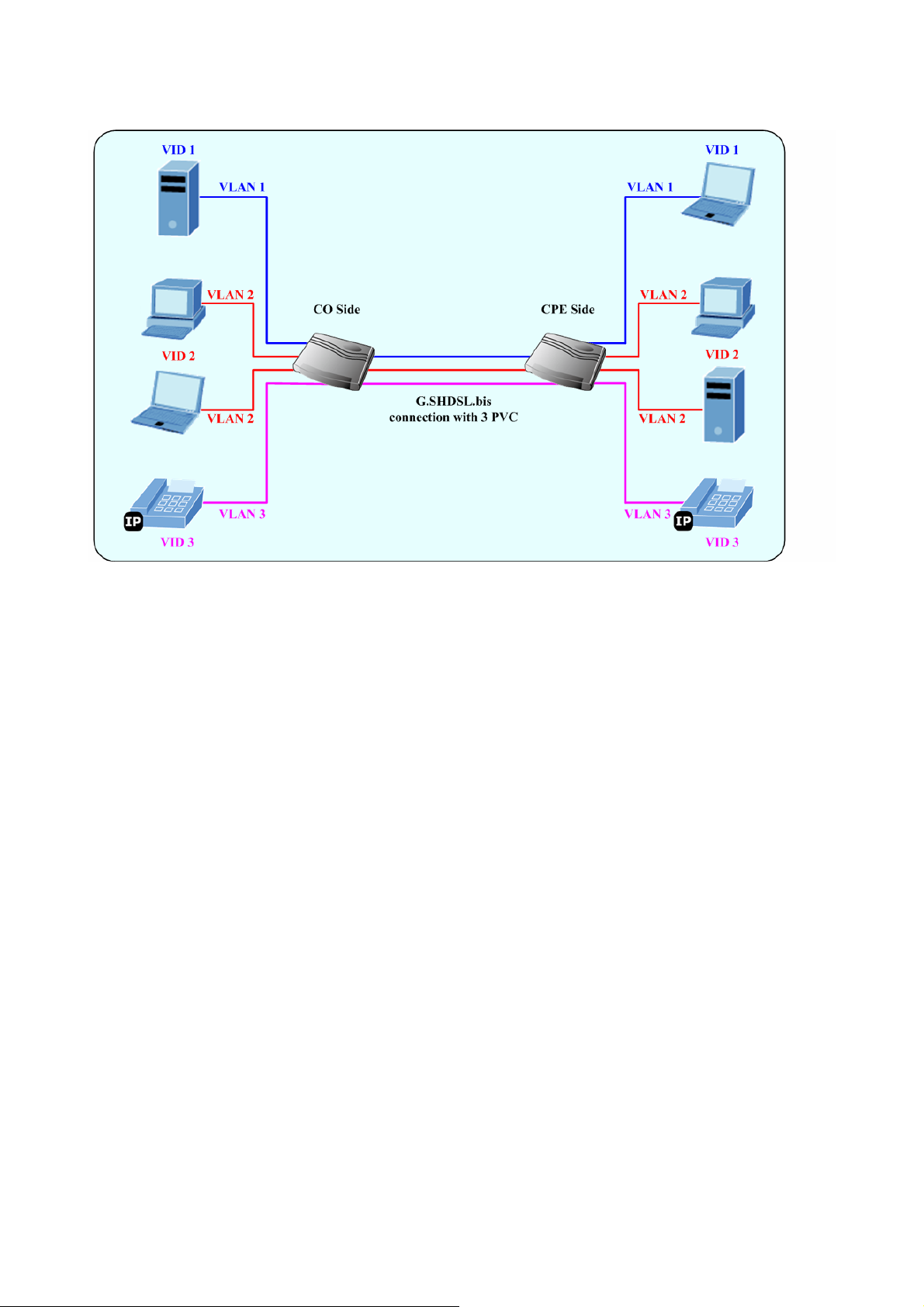

CO and CPE side SupportProvide the back-to-back connection.  IEEE 802.1Q VLAN SupportThe GRT-501 supports the IEEE 802.1Q Tagged
VLAN, it offer significant benefit in terms with efficient use of bandwidth, flexibility, performance and security
Bridge and Router Mode:The GRT -501 supports two connection modes. Currently,
it comes pre-configured with routing mode. Note that, routing mode and bridging mode cannot be used simultaneously.
Virtual Server :This feature allows Internet users to access Internet servers on your
LAN. The required setup is quick and easy.
VPN Pass through SupportPCs with VPN (Virtual Private Networking) software
using PPTP, L2TP and IPSec are transparently supported - no configuration is required.
DMZ Support:The GRT-501 can translate public IP addresses to private IP address
to allow unrestricted 2-way communication with Servers or individual users on the Internet. This provides the most flexibility to run programs, which could be incompatible in NAT environment.
RIPv1/v2 RoutingIt supports RIPv1/v2 routing protocol for routing capability.  Simple Network Management Protocol (SNMP)It is an easy way to remotely
manage the router via SNMPv1/v2.
GRT-501 G.SHDSL.bis Bridge Router User’s Manual
Fully ATM protocol stack implementation over G.SHDSL.bis PPPoA and PPPoE support user authentication with PAP/CHAP/MS-CHAP

Hardware Specification

Product G.SHDSL.bis Bridge Router Model GRT-501 Hardware
Standard
Protocol
AAL and ATM Support Support up to 8PVCs
LAN Port 1 x 10Base-T/100Base-TX ( Auto-Negotiation, Auto MDI/MDI-X) Console 1 x RS-232 (DB9) Button 1 x Reset Button LED Indicators PWR, WAN LNK/ACT, LAN 10M/100M, ALM Software
Protocol
Security
VPN Management
Environment Specification Dimension (W x D x H) 145 x 188 x 33mm Power 9V DC, 1A Temperature: Humidity Emission FCC, CE
Compliant with ITU-T G.991.2 Standard Annex A/B Compliant with G.SHDSL.bis Annex A/B/F/G TC-PAM Line Code Symmetric data transmission speed up to 5.7 Mbps on 2-wire Multi-range from 192kbps to 5.7Mbps RFC 1577 - Classical IP over ATM (RFC 1577) RFC 2364 - PPP over ATM RFC 1483/2684 - Ethernet over ATM RFC 2516 - PPP over Ethernet (fixed and dynamic IP) RFC 2364 - PPP over ATM (fixed and dynamic IP)
ATM Forum UNI 3.1/4.0 PVC Support OAM F4 / F5 AIS/RDI and loopback VC multiplexing and SNAP/LLC Integrated ATM QoS support (UBR,CBR,VBR-rt, and VBR-nrt)
IEEE 802.1D transparent learning bridge IEEE 802.1Q VLAN Support IP/TCP/UDP/ARP/ICMP/IGMP protocols IP routing with static routing and RIPv1/RIPv2 IP multicast and IGMP proxy Network address translation (NAT/PAT) DMZ host/Multi-DMZ/Multi-NAT function Virtual Server (RFC1631) DNS relay and caching DHCP server, client and relay Built-in NAT Firewall PPP over PAP (RFC1334) PPP over CHAP (RFC1994) Password protection for system management VPN (PPTP/L2TP/IPSec) pass-through
Web-based configuration Command-line Interpreter(CLI) via Console Command-line Interpreter(CLI) via Telnet Software upgrade via web-browser/TFTP server SNMPv1 and v2
Operating: 0~45 degree C, 0%~ 90% (non-condensing), Storage: -10~70 degree C, 0~95% (non-condensing)
- -
6
GRT-501 G.SHDSL.bis Bridge Router User’s Manual

Package Contents

The following items should be included. If any of these items are damaged or missing, please contact your dealer immediately.
GRT-501 G.SHDSL.bis Bridge Router x 1  Power Adapter x 1  Quick Installation Guide x 1  User’s manual CD x 1  Console Cable x 1  RJ-45 to RJ-11 Cable x 1
- -
7
GRT-501 G.SHDSL.bis Bridge Router User’s Manual

Chapter 2 Installation

2.1 Get to know your G.SHDSL.bis Router

Physical Detail
Front View
LED / Port Definition
LEDs Color Active Description
PWR Green ON The power adaptor is connected to GRT-501
WAN
LNK
ACT Green Blink Transmit data or receive data over G.SHDSL.bis link
10M/ACT
LAN
100M/ACT
ALM
Green ON G.SHDSL.bis connection is established Green Blink G.SHDSL.bis is handshaking
Green ON LAN Port connect with 10M Ethernet link Green Blink LAN Port Transmit or receive data in 10M mode Green ON LAN Port connect with 100M Ethernet link Green Blink LAN Port Transmit or receive data in 100M mode
Red ON Red Blink
Rear View
G.SHDSL.bis line connection is dropped G.SHDSL.bis self test
- -
8
GRT-501 G.SHDSL.bis Bridge Router User’s Manual
Port Definition
Port Description
DC-IN Power connector with 9V DC 1.0A LAN Ethernet 10/100BaseT for LAN port (RJ-45) CONSOLE RS- 232C (DB9) for system configuration and maintenance LINE G.SHDSL.bis interface for WAN Port RST The reset button, the router restore the default settings when press this
button until reboot.

2.2 Rear Panel Connections

The figure shows the rear panel connections of GRT-501. The GRT-501 is a standalone and can able to place in desktop. All the external wiring shall be located at the rear panel. The LAN port is a 10 Base-T / 100Base-TX auto-sensing and half/full duplex Ethernet interface and complied with IEEE 802.3 / 802.3u respectively. The console (RS-232C) interface for configuration is menu-driven operation and can also be configured through Ethernet interface by Telnet or Web-based operation.
Figure 2-1 Connection with Switch or HUB
Note: The GRT-501 supports auto MDI / MDI-X switching hub, so both straight through and cross-over Ethernet cable can be used.
- -
9
GRT-501 G.SHDSL.bis Bridge Router User’s Manual

2.3 Setting up the hardware environment

Step 1. Connect the power adapter to the port labeled DC-IN on the rear panel. Step 2. Connect the Ethernet cable between the LAN port and PC. Step 3. Connect male end of RS-232 cable to the console port and female end to any free
COM port in PC.
Step 4. Connect the phone cable to the Line port, and the other side of phone cable
connects to wall jack.
Step 5. Connect the power adapter to power source. Step 6. Turn on the PC or NB, which is used for configuration the Router.
- -
10
GRT-501 G.SHDSL.bis Bridge Router User’s Manual

Chapter 3 Logon Procedure

This chapter provides information about how to logon the GRT-501.
Note: After you have completed all necessary setting for GRT-501, make sure to write the new configuration to NVRAM by “write” command and reboot the system, or all of your changes will not take effect.
There are three methods to logon to GRT-501: serial console, Telnet, and web interface. For the first time configuration, perhaps only the serial console mode could be used because applications requiring Internet protocol (IP) communication, such as Telnet and web interface, are not available unless a management IP is configured properly for your local networking environment. After connecting all the necessary cables described in Chapter 2 Installation, power on GRT-501 and select one of the following procedures to access GRT-501.
Note: It is recommended that only one configuration application is used to setup GRT-501 at any given time, that is, Telnet, serial console and the web management interfaces should not be used simultaneously.

3.1 Serial console

Check the connectivity of the RS-232 cable from your computer to the serial port of GRT -501. Start your terminal access program with VT100 terminal emulation. Configure the serial link with baud rate of 9600, 8 data bits, no parity check, 1 stop bit, and no flow-control, and press the SPACE key until the login screen appears. When you see the login screen, enter the correct user and password and then you can logon to GRT-501.
User: admin Password: *****
Note: If you have not set any user profile for GRT-501, enter the factory default user “admin” and password “admin” to logon the device.

3.2 Telnet

Make sure the correct Ethernet cable is used for connecting the LAN port of your computer to GRT-501. The LAN LNK indicator on the front panel shall light if a correct cable is used. Starting your Telnet client with VT100 terminal emulation and connecting to the management IP of GRT-501(192.168.0.1 is the default IP), wait for the login screen appears. When you see the login screen, enter the correct user and password and then you can logon to GRT-501.
- -
11
GRT-501 G.SHDSL.bis Bridge Router User’s Manual
User: admin Password: *****
Note: The factory default management IP and subnet mask are 192.168.0.1 and
255.255.255.0. If you have not set any user profile for GRT-501, enter the factory
default user “admin” and password “admin” to logon the device.

3.3 Web browser

Make sure the correct Ethernet cable is used for connecting the LAN port of your computer to GRT-501. The LAN LNK indicator on the front panel shall light if a correct cable is used. Starting your web browser and connecting to the management IP of GRT-501(192.168.0.1 is the default IP), wait for the login screen appears. When you see the login screen, enter the correct user and password and then you can logon to GRT-501.
Open web browser and type http://192.168.0.1 in the browser's address box. This
number is the default IP address for this device. Press Enter.
A user name and password prompt will appear. The default username and password is
root”. Click OK button and you will login the GRT-501 for management.
Note: The factory default management IP and subnet mask are 192.168.0.1 and
255.255.255.0. If you have not set any user profile for GRT-501, enter the factory
default user “root” and password “root” to logon the device.
- -
12
GRT-501 G.SHDSL.bis Bridge Router User’s Manual

Chapter 4 Configuration by Web Browser

4.1 Basic Setting

The Basic Setup contains LAN, WAN, Bridge and Route operation mode. User can use it to completely setup the router. After successfully completing it, you can access Internet. This is the easiest and possible way to setup the router.
Note: The advanced functions are only for advanced users to setup advanced functions. The incorrect setting of advanced function will affect the performance or system error, even disconnection.

4.1.1 Bridge Mode

Web UI Configuration
Step 1.
Click Basic on the left menu, the BASIC setting screen will display. And then select Bridge and CPE Side to setup Bridge mode of the Router and then click Next for the next setting.
This product can be setup as two G.SHDSL.bis working mode: CO
(Central Office) and CPE (Customer Premises Equipment). For connection with DSLAM, the G.SHDSL.bis working mode is CPE.
- -
13
Step 2.
Enter Parameters in BASIC – TEP2: LAN
IP: 192.168.0.1 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.254 (The
Gateway IP is provided by ISP) Host Name: SOHO Some of the ISP requires the Host Name as identification. You may check with ISP to see if your Internet service has been configured with a host name. In most cases, this field can be ignored.
WAN1 VPI: 0
VCI: 32
Click LLC, and then Click Next for next setting.
Step 3.
The screen will prompt the new configured parameters. Check the parameters and click Restart. The router will reboot with the new setting or Continue to configure another parameters.
GRT-501 G.SHDSL.bis Bridge Router User’s Manual
- -
14
GRT-501 G.SHDSL.bis Bridge Router User’s Manual

4.1.2 Routing Mode for PPPoA and PPPoE with IP Sharing

Web UI Configuration
Step 1.
For Route Mode with Point-to-Point Protocol over ATM and Ethernet, follow the following setting. First, select
ROUTE and CPE Side, and then click Next for setting others parameters.
Step 2.
Enter Parameters in BASIC – STEP2:
LAN IP: 192.168.0.1
Subnet Mask: 255.255.255.0 Host Name: SOHO
The embedded DHCP server assigns network configuration information at most 253 users accessing the Internet in the same time. Click Next for next setting.
- -
15
