8-Port 10/100Mbps with 4-Port PoE
Web Smart Ethernet Switch
FSD-804PS
User’s Manual
- 1 -
Trademarks
Copyright © PLANET Technology Corp. 2006.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective
owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications,
and makes no warranty and representation, either implied or expressed, with respect to the quality, performance,
merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the
part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s
Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and
reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s
Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your
comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the Instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET 8-Port 10/100Mbps with 4-Port PoE Web Smart Ethernet Switch User's Manual
FOR MODEL: FSD-804PS
REVISION: 1.0(FEBAUARY.2006)
Part No.: 2080-A31120-000
- 2 -
TABLE OF CONTENTS
1. INTRODUCTION.......................................................................................................................................... 4
1.1 CHECKLIST ................................................................................................................................................4
1.2 ABOUT THE SWITCH ...................................................................................................................................4
1.3 FEATURES .................................................................................................................................................5
1.4 SPECIFICATION ..........................................................................................................................................5
2. HARDWARE DESCRIPTION...................................................................................................................... 6
2.1 FRONT PANEL............................................................................................................................................6
2.2 REAR PANEL.............................................................................................................................................. 6
2.3 HARDWARE INSTALLATION ..........................................................................................................................7
3. SWITCH MANAGEMENT............................................................................................................................9
3.1 OVERVIEW.................................................................................................................................................9
3.2 MANAGEMENT METHODS..........................................................................................................................10
3.2.1 Local Console Management...........................................................................................................10
3.2.2 Web Management...........................................................................................................................10
3.3 ASSIGNING AN IP ADDRESS TO THE SWITCH..............................................................................................10
3.4 LOGGING ON TO THE FSD-804PS.............................................................................................................11
4. CONSOLE INTERFACE............................................................................................................................12
4.1 CONNECT TO PC .................................................................................................................................12
4.2 LOGIN IN..................................................................................................................................................13
4.3 MAIN MENU SCREEN ................................................................................................................................13
4.4 GETTING STARTED...................................................................................................................................14
4.4.1 General Guidelines......................................................................................................................... 14
4.4.2 Show command.............................................................................................................................. 15
4.4.3 Set command..................................................................................................................................22
4.4.4 Factory default................................................................................................................................29
4.4.5 Reboot.............................................................................................................................................30
4.4.6 Logout.............................................................................................................................................31
5. WEB MANAGEMENT.................................................................................................................................32
5.1 LOGIN IN TO THE SWITCH..........................................................................................................................32
5-2 PORT STATUS..........................................................................................................................................33
5-3 PORT SETUP ...........................................................................................................................................34
5-4 PORT STATUS COUNTERS ........................................................................................................................35
5-5 VLAN SETUP ..........................................................................................................................................36
5-6 PORT TRUNK SETUP ................................................................................................................................38

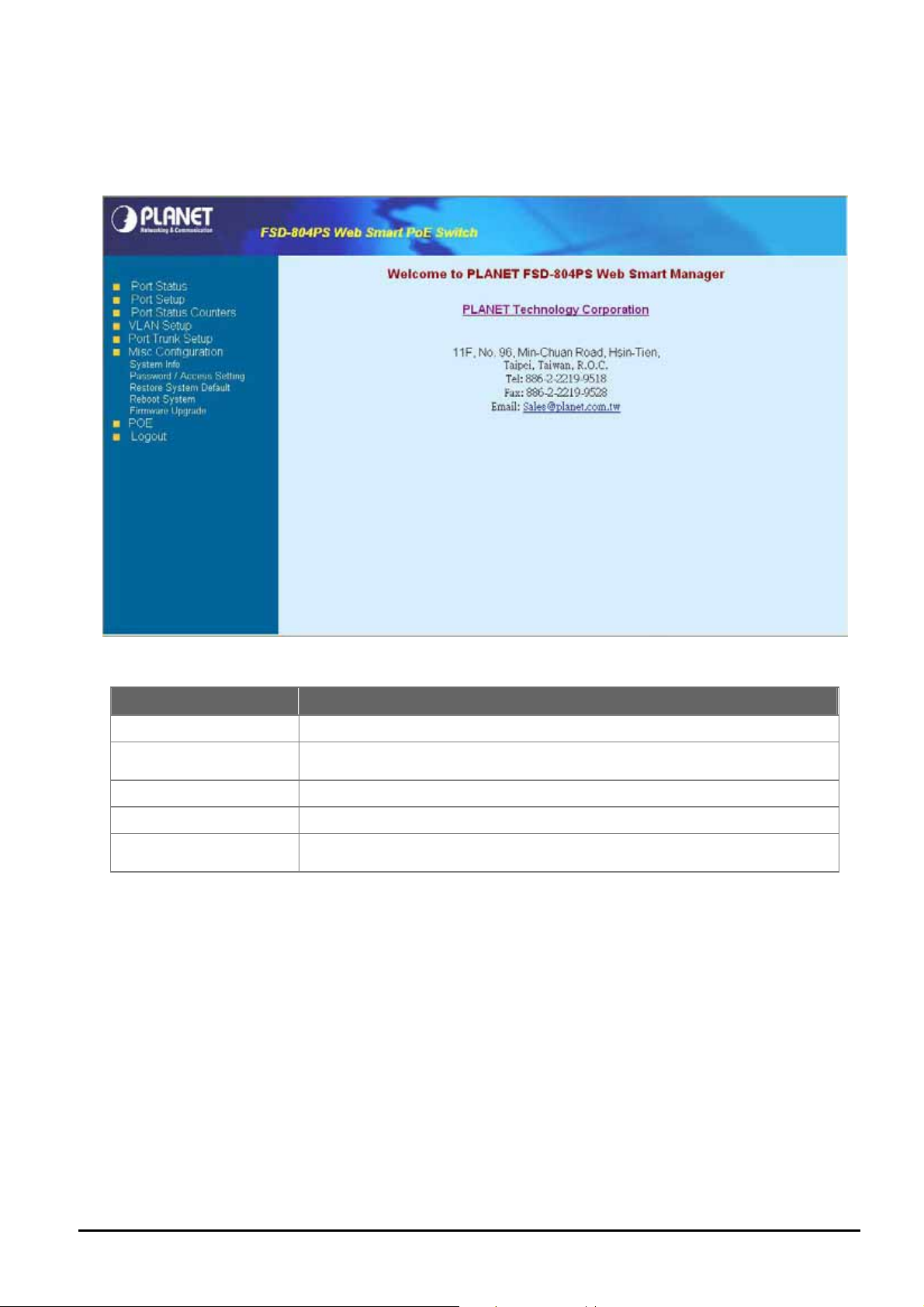

5-7 MISC CONFIGURATION ............................................................................................................................. 39
5.7.1 System Information.........................................................................................................................40
5.7.2 Password / Access Setting .............................................................................................................42
5.7.3 Restore System Default..................................................................................................................43
5.7.4 Reboot System ...............................................................................................................................45
5.7.5 Firmware Upgrade.......................................................................................................................... 47

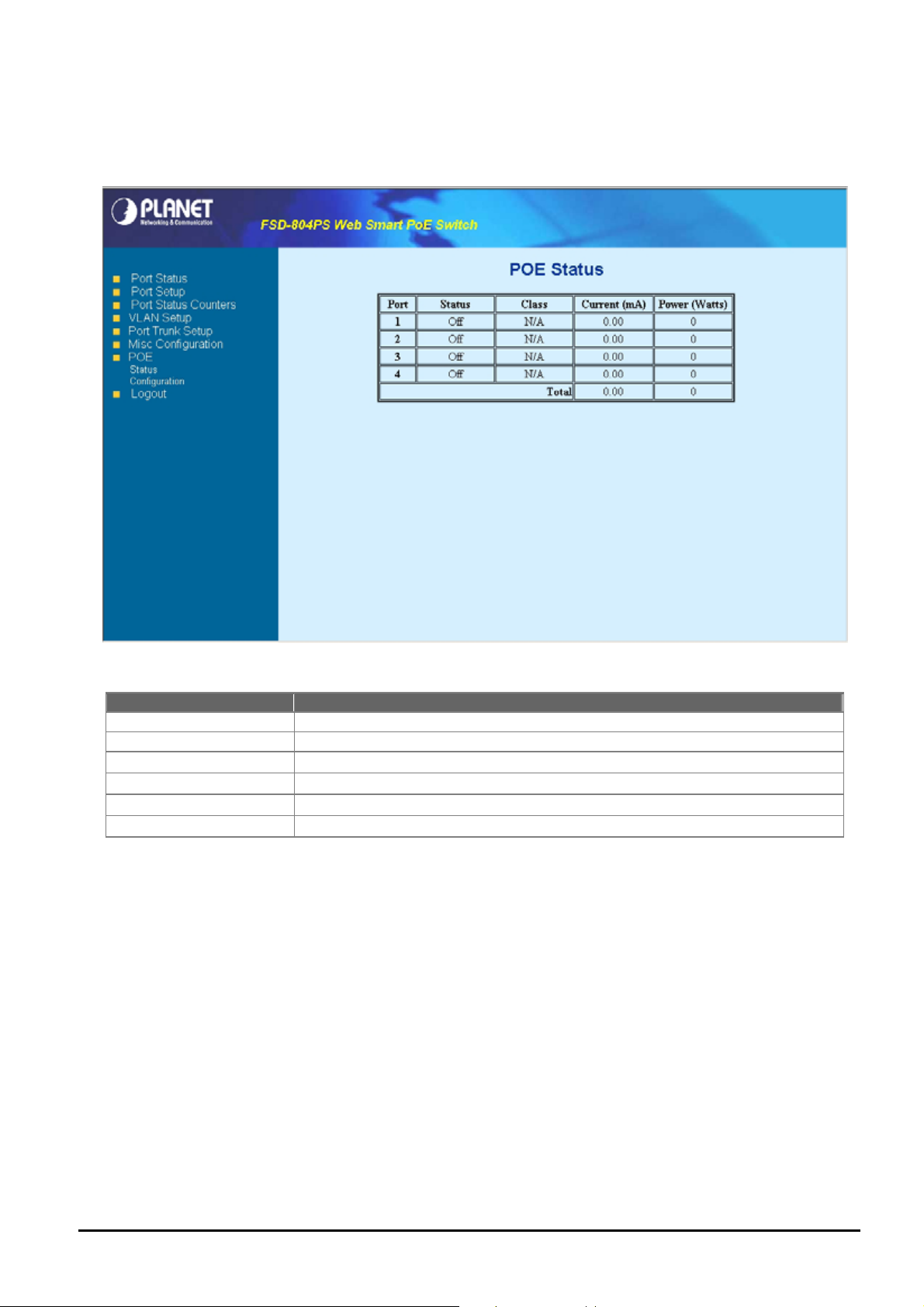

5-8 POE.......................................................................................................................................................51
5-9 LOGOUT ..................................................................................................................................................53
6. SWITCH OPERATION................................................................................................................................54
6.1 ADDRESS TABLE ......................................................................................................................................54
6.2 LEARNING................................................................................................................................................54
6.3 FORWARDING & FILTERING.......................................................................................................................54
6.4 STORE-AND-FORWARD.............................................................................................................................54
6.5 AUTO-NEGOTIATION.................................................................................................................................54
7.TROUBLESHOOTING.................................................................................................................................55
APPENDIX A NETWORKING CONNECTION...............................................................................................56
A.1 SWITCH‘S RJ-45 PIN ASSIGNMENTS.........................................................................................................56
A.2 10/100MBPS, 10/100BASE-TX.................................................................................錯誤! 尚未定義書籤。
A.3 RJ-45 CABLE PIN ASSIGNMENT .................................................................................................................56
- 3 -
1. INTRODUCTION
1.1 Checklist
Check the contents of your package for followi ng parts:
z FSD-804PS x1
z User's manual CD x1
z Quick installation guide x1
z Power cord x 1
z RS232 cable x1
z Rubber feet x 4
If any of these pieces are missing or damaged, please contact your dealer immediately, if possible, retain the carton
including the original packing material, and use them against to repack the product in case there is a need to return it to
us for repair.
1.2 About the Switch
The FSD-804PS is equipped with unshielded twisted-pair (UTP) cable ports providing dedicated 10 or 100Mbps bandwidth. The FSD-804PS supports MDI/ MDI-X convertible on 8-10/100Mbps ports, also provide PoE inject function on
port#1, 2, 3, 4, which is able to drive 4 IEEE 802.3af compliant powered devices. The dual speed ports use standard
twisted-pair cabling and are ideal for SOHO or segmenting networks into small. Each 10/100Mbps port can supports up to
200Mbps of throughput in full-duplex mode, the FSD-804PS also provides a simple, cost-effective, and highly reliable
network connection for data as well as power. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet
workgroups and networks.
With 4 PoE interfaces, the FSD-804PS is ideal for small business and workgroups requiring to deploy the PoE for the
wireless access points, IP-based surveillance camera or IP phones in any places easily, efficiently and cost effective.
The front panel of FSD-804PS provides LEDs for easy recognition of the switch operation status and troubleshooting.
These LED indicators display the power status for the system, LNK/ACT and speed for each10/100M port. Also the PoE in
use LED indicates for PoE ports (port#1 to port#4).
With data and power over Ethernet from one unit, the FSD-804PS shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the
installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. We are also
proud of the key feature – energy saving. With more efficient switching power supply, the efficiency of the FSD-804PS
would be much better than four linear power adapters in a long run.
The smart functions make it easy to survey and control the PoE power provision to the devices by the Web and Console
interface. Basic switching functions such as VLAN, Trunk, QoS are available for network management.
- 4 -
1.3 Features
◆ 8-Port 10/100Mbps Fast Ethernet ports
◆ 4-Port support 48VDC power to PoE Powered Device
◆ Hardware based 10/100Mbps auto-negotiation
◆ Flow control for full duplex operation and back pressure for half duplex operation
◆ Integrates address look-up engine, support 2K absolute MAC addresses
◆ Automatic address learning and address aging
◆ Supports Auto MDI/MDI-X function
◆ LED indicators for easy network diagnostic
◆ Web/Console management
◆ VLAN for network segregation
◆ Port trunk bandwidth aggregation
◆ Per port High/Low transmission priority configuration
◆ PoE power Disable/Enable by management interface
◆ PoE power consumption monitoring
◆ Ethernet standards comply with IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3x Flow Control and
IEEE 802.3af Power over Ethernet.
◆ EMI standards comply with FCC, CE class A
1.4 Specification
Model FSD-804PS
Network Connector 8-Port RJ-45 for 10/100TX, 4-Port with PoE injector function
LED Display One power, 1-4 port PoE in-use, LNK/ACT, 100, 5-8 port LNK/ACT, 100
Switch architecture Store and forward switch architecture. Back-plan up to 1.6Gbps
MAC address 2K MAC address table with Auto learning function
Switch fabric 1.6Gbps
Throughput 1.19Mbps
Remote power feeding End-point insert type and compatible with IEEE 802.3af
Per port feeding power: 15.4 Watts (maximum)
Management Web/Console management
VLAN Port-Based VLAN, up to 8 groups
Port priority High/Low
Storm Control Disable, 10%, 20%, 40%, 4 levels
Port Trunk Port #7 and #8, fixed
PoE power control Power provision Enable/Disable, priority configuration
Power AC 100~ 240V, 50/60Hz, Max. 45 watts power consumption
Operating environment 0~40 degree C, 10%~95%RH
Storage environment -40 ~70 degree C, 95% RH
Dimension (W x D x H) 217 x 135 x 43 mm
EMI FCC Class A, CE
Standard Compliance IEEE 802.3 Ethernet,
IEEE 802.3u Fast Ethernet,
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet.
- 5 -
2. HARDWARE DESCRIPTION
This product provides two different running speeds – 10Mbps, 100Mbps in the same switch and automatically distinguishes
the speed of incoming connection.
This section describes the hardware features of FSD-804PS. For easier management and control of the Switch, familiarize
yourself with its display indicators, and ports. Front panel illustrations in this chapter display the unit LED indicators. Before
connecting any network device to the FSD-804PS, read this chapter carefully.
2.1 Front Panel
The Front Panel of the FSD-804PS PoE Web Smart Ethernet Switch consists of 8x Auto-Sensing 10/100Mbps Ethernet
RJ-45 Ports. The LED Indicators are also located on the front panel of the FSD-804PS.
Figure 2-1: FSD-804PS Switch front panel
2.1.1 LED indicators
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
Per 10/100Mbps port
LED Color Function
PoE in-use Green Lights to indicate the port is providing 48VDC in-line power. (1-4 ports)
LNK/ACT Green Lights to indicate the link through that port is successfully established.
100 Green Lights to indicate the port is running in 100Mbps speed.
2.2 Rear Panel
The rear panel of the FSD-804PS indicates an AC inlet power socket, which accepts input power from 100 to 240VAC,
50-60Hz, 1A max. and one console port at rear panel for switch management.
Figure 2-2: FSD-804PS Switch rear panel
Power Notice:
1. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the
time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data
loss or network downtime.
2. In some area, installing a surge suppression device may also help to protect your FSD-804PS from being damaged by
unregulated surge or current to the FSD-804PS or the power adapter.
- 6 -
2.3 Hardware Installation
2.3.1 Before start up
Before your installation, please refer to the followings for your cabling:
100Base-TX
All 100Base-TX ports come with Auto-Negotiation capability. They automatically support 100Base-TX and 10Base-T
networks. Users only need to plug a working network device into one of the 100Base-TX ports, and then turn on the
FSD-804PS. The port will automatically runs in 10Mbps, 20Mbps, 100Mbps or 200Mbps after the negotiation with the
connected device.
Cabling
Each 10/100Base-TX ports use RJ-45 sockets -- similar to phone jacks -- for connection of unshielded twisted-pair
cable (UTP). The IEEE 802.3u Fast Ethernet standard requires Category 5 UTP for 100Mbps 100Base-TX. 10Base-T
networks can use Cat.3, 4, or 5 UTP (see table below). Maximum distance is 100meters (328 feet).
Port Type Cable Type Connector
10Base-T Cat 3, 4, 5, 2-pair RJ-45
100Base-TX Cat.5 UTP, 2-pair RJ-45
Any Ethernet devices like hubs/ PCs can connect to the FSD-804PS by using straight-through wires. The
eight-10/100Mbps ports are auto-MDI/MDI-X can be used on straight-through or crossover cable.
2.3.2 Connecting end node or switch
1. Place the FSD-804PS on a smooth surface or fasten the mounting brackets purchased separately with the provided screws in a standard 19” rack.
2. Connect the power cord to the power inlet socket of FSD-804PS and the other end into the local power source
outlet. When the Switch receives power, the Power LED should remain solid Green.
3. Connect other switch or PC to one port of the FSD-804PS using Category 3/4/5 UTP/STP cabling.
4. Connect another switch or PC to the other port of FSD-804PS by following the same process as described in Step
3.
Figure 2-3. End node or Switch connection
- 7 -
#Notice:
Cable distance for Switch
The cable distance between the FSD-804PS and PC should not exceed 100 meter for UTP/STP cable.
Make sure the wiring is correct
It can be used Category 3/4/5 cable in 10 Mbps operation. To reliably operate your network at 100Mbps, you must use
an Unshielded Twisted-Pair (UTP) Category 5 cable, or better Data Grade cabling. While a Category 3 or 4 cables
may initially seem to work, it will soon cause data loss.
2.3.3 As a department / workgroup PoE Switch
Providing up to 4 PoE, in-line power interface, the switch can easily build a power central-controlled IP phone system,
IP Camera system, AP group for the enterprise. For instance, 4 camera / AP can be easily installed around the corner
in the company for surveillance demands or build a wireless roaming environment in the office. Without the
power-socket limitation, the switch makes the installation of cameras or WLAN AP more easily and efficiently.
Figure 2-4. PoE Switch connection
- 8 -
3. SWITCH MANAGEMENT
This chapter describes how to manage the FSD-804PS. Topics include:
- Overview
- Management methods
- Assigning an IP address to the FSD-804PS
- Logging on to the FSD-804PS
3.1 Overview
The FSD-804PS provides a user-friendly, command line under console interface. Using this interface, you can perform
various switch configuration and management activities, including:
Command Description
Show port [n] / all Show per port or all port current status
Show static(n) Show per port detail Ethernet traffic pass through
Show VLAN Show current VLAN group status
Show trunk Show current trunk group test
Show IP Show current IP subnet address.
Show system Show firmware version, Mac address and IP address
Show PoE status[n] Show per PoE port status( On or Off)
Show PoE(n) Show per PoE port disable/enable and priority
Show management VLAN Show current management VLAN
Show VLAN mode Show current VLAN mode of FSD-804PS
Show PVID Show per port PVID of FSD-804PS
Set port [n] Set per port auto-negotiation speed duplex mode and QoS function
Set Trunk Enable or disable trunk group( port 7,8) of FSD-804PS
Set VLAN(n) Configure VLAN group 1-8
Set PoE[n] Configure per PoE port
Set VLAN mode Disable or enable Port-based VLAN function
Set PVID Assign PVID on each port
Set IP xxx.xxx.xxx.xxx, mmm. mmm,
mmm, mmm, ggg.ggg.ggg.ggg
Assign IP address, subnet mask, gateway of FSD-804PS
Set Pass Change the default password of FSD-804PS, the maximum length is 4 characters
Factory Default Reset the FSD-804PS to factory default mode
Reboot Reboot the FSD-804PS
Logout Logout console interface of FSD-804PS
Please refer to the following Chapter 4 and 5 for the details.
- 9 -
3.2 Management Methods
There are two ways to manage the FSD-804PS:
- Local Console Management via the Switch serial port.
- Web Management via a network or dial-up connection.
3.2.1 Local Console Management
You can manage the FSD-804PS locally by connecting a VT100 terminal, or a personal computer or workstation with
terminal emulation software, to the Switch serial port. The terminal or workstation connects to the Sw itch serial port using a
null modem cable that has the appropriate connectors on each end.
This management method is ideal when:
- The network is unreliable
- The Network Manager does not have direct network connection
The serial port of the Switch default setting is set to 19200 baud using a character format of 8 data bits, no parity, and 1
stop bit.
Therefore, configure the terminal or workstation to use these settings before you log on to the FSD-804PS. You can
change this default setting, if desired, after you log on.
3.2.2 Web Management
You can manage the FSD-804PS remotely by having a remote host with web browser, such as Microsoft Internet Explorer
or Netscape Navigator.
Using this management method:
The FSD-804PS must have an Internet Protocol (IP) address accessible for the remote host.
3.3 Assigning an IP Address to the Switch
To manage the FSD-804PS remotely through the web browser w ith a Management Station, you must assign an IP address
to the FSD-804PS.
To set the IP address, please use “set ip xxx.xxx.xxx.xxx mmm.mmm.mmm.mmm ggg.ggg.ggg.ggg” command. For
example, to configure the switch with the following IP settings:
IP Address: 192.168.0.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.0.254
Press the following command and press <Enter>
set ip 192.168.0.1 255.255.255.0 192.168.0.254
If the IP is successfully configured, the switch will automatically restart as the follow ing screens. After reboot the Switch and
power on completed, you can access the web interface of FSD-804PS through the new IP address.
- 10 -
3.4 Logging on to the FSD-804PS
When you log on to the FSD-804PS console port for the first time, a sign-on string appears and you are prompted for a
console login user name and password.
The factory default login username is admin without password.
#Notice:
1. For security reason, please change and memorize the new password after this first setup.
2. Only accept command in lowercase letter under console interface.
- 11 -
4. CONSOLE INTERFACE
4.1 CONNECT TO PC
RS-232 serial cable
Use the bundled RS-232 serial cable and attach the 9-pin female connector to the male connector on the FSD-804PS.
Plug the other side of this cable to your PC.
Hyper Terminal
In Windows 98/2000/ME/XP, launch “HyperTerminal”, create a new connection, and adjust settings as below:
Emulation: VT-100 compatible
Baud per second: 19200
Data bits: 8
Parity: None
Stop bits: 1
Flow Control: None
To gain a demo, please see the Figure 4-1.
Figure 4-1 Port Settings for console interface
- 12 -
4.2 Login in
Login is required to access the console interface after the self-test completes successfully. The factory default user name
is "admin" without password. You may change the password by use “set pass” command. Please always enter the
correct user name and password. (See Figure 4-2)
Figure 4-2 FSD-804PS login screen
4.3 Main Menu screen
After login the FSD-804PS, the main menu screen shows as below.
Figure 4-3 FSD-804PS Main Menu screen
- 13 -
4.4 Getting Started
4.4.1 General Guidelines
The FSD-804PS allows users to configure the device via command line under console interface. Please type “help” or “?”
for all available commands in the”FSD-804PS>” prompt. The screen of available commands in Figure 4-4 appears, and
the detail description shown in table 4-1.
Figure 4-4 FSD-804PS available commands screen
Command Description
Show port [n] / all Show per port or all port current status
Show static(n) Show per port detail Ethernet traffic pass through
Show VLAN Show current VLAN group status
Show trunk Show current trunk group test
Show IP Show current IP subnet address.
Show system Show firmware version, Mac address and IP address
Show PoE status[n] Show per PoE port status( On or Off)
Show PoE(n) Show per PoE port disable/enable and priority
Show management VLAN Show current management VLAN
Show VLAN mode Show current VLAN mode of FSD-804PS
Show PVID Show per port PVID of FSD-804PS
Set port [n] Set per port auto-negotiation speed duplex mode and QoS function
Set Trunk Enable or disable trunk group( port 7,8) of FSD-804PS
- 14 -
Set VLAN(n) Configure VLAN group 1-8
Set PoE[n] Configure per PoE port
Set VLAN mode Disable or enable Port-based VLAN function
Set PVID Assign PVID on each port
Set IP xxx.xxx.xxx.xxx, mmm. mmm,
mmm, mmm, ggg.ggg.ggg.ggg
Set Pass Change the default password of FSD-804PS, the maximum length is 4 characters
Factory Default Reset the FSD-804PS to factory default mode
Reboot Reboot the FSD-804PS
Logout Logout console interface of FSD-804PS
Table 4-1 Detail description of FSD-804PS available commands
Assign IP address, subnet mask, gateway of FSD-804PS
#Notice: Only accept command in lowercase letter under console interface.
4.4.2 Show command
From the main menu screen (see Figure 4-3), input “show” and press enter. The show command list screen in Figure 4-5
appears.
Figure 4-5 Show command list screen
- 15 -
This show command list contains eleven items:
Show port [n] / all: Please refer to chapter 4.4.2.1.
Show static [n]: Please refer to chapter 4.4.2.2.
Show vlan: Please refer to chapter 4.4.2.3.
Show trunk: Please refer to chapter 4.4.2.4.
Show ip: Please refer to chapter 4.4.2.5
Show system: Please refer to chapter 4.4.2.6
Show poe status [n]: Please refer to chapter 4.4.2.7
Show poe [n]: Please refer to chapter 4.4.2.8
Show management vlan: Please refer to chapter 4.4.2.9
Show vlan mode: Please refer to chapter 4.4.2.10
Show pvid: Please refer to chapter 4.4.2.11
4.4.2.1 Show port[n] / all
Display the status on each port of FSD-804PS, these two commands allows you to view the port status of the Switch and
the correct usage is shown as below:
Show port [n]: n=1-8, to view per port status of FSD-804PS. The screen in Figure 4-6 appears.
Show port: to view all port status of FSD-804PS. The screen in Figure 4-7 appears.
Figure 4-6 Per port Status screen
- 16 -
Figure 4-7 All port Status screen
4.4.2.2 Show static [n]
Display the traffic counters on each port of FSD-804PS, this command allows you to view per port traffic counters of the
Switch and the correct usage is shown as below:
Show static [n]: n=1-8, to view per port traffic counters of FSD-804PS. The per port traffic counters screen in Figure 4-8
appears.
Figure 4-8 Port Counters screen
- 17 -
4.4.2.3 Show vlan
Display the current VLAN group status of FSD-804PS, the VLAN group status screen in Figure 4-9 appears.
Figure 4-9 VLAN group status screen
4.4.2.4 Show trunk
Display the current trunk group status of FSD-804PS, the trunk group status screen in Figure 4-10 appears.
Figure 4-10 Trunk group status screen
- 18 -
4.4.2.5 Show ip
Display the current IP address, netmask and gateway of FSD-804PS, the IP subnet address information screen in Figure
4-11 appears.
Figure 4-11 IP subnet address information screen
4.4.2.6 Show system
Display the system information of FSD-804PS, such as software version, mac address and IP address. The system information screen in Figure 4-12 appears.
Figure 4-12 System information screen
- 19 -
4.4.2.7 Show poe status [n]
Display the poe link status on each port of FSD-804PS, this command allows you to view per poe port link status of the
Switch and the correct usage is shown as below:
Show poe status [n]: n=1-4, to view per poe port link status of FSD-804PS. The per poe port link status screen in Figure
4-13 appears.
Figure 4-13 Per poe port link status screen
4.4.2.8 Show poe [n]
Display the poe status on each port of FSD-804PS, this command allows you to view per poe port status of the Switch and
the correct usage is shown as below:
Show poe [n]: n=1-4, to view per poe port status of FSD-804PS. The per poe port status screen in Figure 4-14 appears.
Figure 4-14 Per poe port status screen
- 20 -
4.4.2.9 Show management vlan
Display the management vlan of FSD-804PS, the management vlan display screen in Figure 4-15 appears.
Figure 4-15 Display management VLAN screen
4.4.2.10 Show vlan mode
Display the current vlan mode of FSD-804PS, the vlan mode display screen in Figure 4-16 appears.
Figure 4-16 Display VLAN mode screen
- 21 -
4.4.2.11 Show pvid
Display the current per port pvid of FSD-804PS, the per port pvid display screen in Figure 4-17 appears.
Figure 4-17 Display pvid screen
4.4.3 Set command
From the main menu screen (see Figure 4-3), input “set” and press enter. The set command list screen in Figure 4-18
appears.
- 22 -
Figure 4-18 Switch Configuration screen
This set command list contains nine items:
Set port [n]: Please refer to chapter 4.4.3.1.
Set trunk: Please refer to chapter 4.4.3.2.
Set vlan [n]: Please refer to chapter 4.4.3.3.
Set poe [n]: Please refer to chapter 4.4.3.4.
Set management vlan: Please refer to chapter 4.4.3.5
Set vlan mode: Please refer to chapter 4.4.3.6
Set pvid: Please refer to chapter 4.4.3.7
Set ip xxx.xxx.xxx.xxx.mmm.mmm.mmm.mmm.ggg.ggg.ggg.ggg: Please refer to chapter 4.4.3.8
Set pass: Please refer to chapter 4.4.3.9
4.4.3.1 Set port [n]
This command allows configuring per port parameters of FSD-804PS. the correct usage is shown as below:
Set port [n]: n=1-8, to configuring per port parameters of FSD-804PS. The configuring per port parameters screen in
Figure 4-19 appears and the detail description shown in table 4-2.
Figure 4-19 Port Configuration screen
Object Description
Full Duplex Flow Control
Auto Negotiation
Speed
Duplex
IP TOS/802.1p Priority
Port-based Priority Mapping
Allow disable (off) or enable (on) flow control of each port.
Allow disable or enable Auto negotiation of each port.
Allow set per port run at 10Mbps or 100Mbps speed mode.
Allow set per port run at half or full duplex mode.
Allow disable or enable per port IP TOS/802.1p Priority function.
Allow assign low queue or high queue on each port.
Table 4-2 Descriptions of the Port Configuration screen Objects
- 23 -
4.4.3.2 Set trunk
This command allows disable or enable trunk function of FSD-804PS. The trunk function setting screen in Figure 4-20
appears
Figure 4-20 Port Configuration screen
4.4.3.3 Set vlan [n]
This command allows configuring eight port-based VLAN groups of FSD-804PS. the correct usage is shown as below:
Set vlan [n]: n=1-8, to configuring eight port-based VLAN groups of FSD-804PS. The configuring port-based VLAN
groups screen in Figure 4-21 appears
Figure 4-21 Port based VLAN Configuration screen
- 24 -
4.4.3.4 Set poe [n]
This command allows configuring per poe port parameters of FSD-804PS. the correct usage is shown as below:
Set poe [n]: n=1-4, to configuring per poe port parameters of FSD-804PS. The configuring per poe port parameters
screen in Figure 4-22 appears and the detail description shown in table 4-3.
Figure 4-22 PoE port Configuration screen
Object Description
POE Port 1-4 (1) Enable (2) Disable
POE Port 1-4 Priority (0-3)
Table 4-3 Descriptions of PoE port Configuration screen Objects
Allow disable or enable each POE port.
Assign POE power provision priority (0-3) to each POE port.
4.4.3.5 Set management vlan
This command allows assign one VLAN as management VLAN of FSD-804PS. The management vlan function setting
screen in Figure 4-23 appears
Figure 4-23 Management VLAN Configuration screen
#Notice: Before use this function, please enable port-based VLAN function and assign member port into 8 port-based
VLAN groups.
- 25 -
4.4.3.6 Set vlan mode
This command allows disable or enable port-based vlan function of FSD-804PS, the vlan mode setting screen in Figure
4-24 appears
Figure 4-24 VLAN mode Configuration screen
4.4.3.7 Set pvid
This command allows assign PVID of each port from FSD-804PS, the PVID setting screen in Figure 4-25 appears.
Figure 4-25 PVID Configuration screen
- 26 -
4.4.3.8 Set ip xxx.xxx.xxx.xxx.mmm.mmm.mmm.mmm.ggg.ggg.ggg.ggg
This command allows assign IP address, netmask and gateway of FSD-804PS. the correct usage is shown as below:
set ip 192.168.0.1 255.255.255.0 192.168.0.254 and press <Enter>
If the IP is successfully configured, the switch will automatically restart as the follow ing screens. After reboot the Switch and
power on completed, you can use the new IP address access of FSD-804PS.
The IP subnet address setting screen in Figure 4-26 & 4-27 appears.
Figure 4-26 IP subnet address configuration screen
Figure 4-27 IP subnet address configuration screen
- 27 -
4.4.3.9 Set pass
This command allows assign password of FSD-804PS. The password setting screen in Figure 4-28 appears.
Figure 4-28 Password configuration screen
#Notice:
1. For security reason, please change and memorize the new password after this first setup.
2. The maximum length is 4 characters.
- 28 -
4.4.4 Factory default
This command allows rest FSD-804PS to factory default mode. The factory default screen in Figure 4-29 & 4-30 appears.
Figure 4-29 Factory default screen
Figure 4-30 Factory default screen
- 29 -
4.4.5 Reboot
This command allows reboot FSD-804PS, the reboot screen in Figure 4-31 & 4-32 appears.
Figure 4-31 Switch reboot screen
Figure 4-32 Switch reboot screen
- 30 -
4.4.6 Logout
This command provides logout the FSD-804PS, the screen in Figure 4-33 appears.
Figure 4-33 FSD-804PS Logout screen
- 31 -
5. WEB MANAGEMENT
Before login the Web interface of FSD-804PS, please setup the “IP Address” with local serial console port (RS232 port)
and use this IP address to configure FSD-804PS through the Web interface.
Or modify your PC’s IP domain to the same with FSD-804PS then use the default IP address (192.168.0.100) to remote
configure FSD-804PS through the Web interface.
5.1 Login in to the Switch
To access the Web-browser interface you must first enter the user name, the default user name is "admin" without
password. You will see the following screen comes out on the Web browser program:
Figure 5-1 The FSD-804PS login screen
After the User name and Password is entered, you will see the web main menu screen.
- 32 -
Figure 5-2 The web main menu screen of FSD-804PS
5-2 Port Status
This section provides current status of each port from FSD-804PS, the screen in Figure 5-3 appears and Table 5-1 describes the port status object of switch.
Figure 5-3 FSD-804PS Port Status Web Page screen
- 33 -
Object Description
Port
Link
Speed
Duplex
Flow Control
Indicate port 1 to port 8.
The state of the link, indicating a valid link partner device. "Up" means a device is successful con-
nected to the port. “Down” means no device is connected.
Display the 10Mbps or 100Mbps speed state of each port on FSD-804PS.
Display half or full duplex mode of each port on FSD-804PS.
Display the flow control Disable or Enable state of each port on FSD-804PS.
Table 5-1 Descriptions of the Port Status screen Objects
5-3 Port Setup
This section introduces detail settings of per port on FSD-804PS, the screen in Figure 5-4 appears and table 5-2 de-
scriptions the Port Controls objects of switch.
Figure 5-4 FSD-804PS Port Statistics Web Page screen
Object Description
Auto Negotiation
Full Duplex Flow Control
Speed
Duplex
IP TOS/802.1p Priority
Port-based Priority Mapping
Allow disable or enable Auto negotiation of each port.
Allow disable (off) or enable (on) flow control of each port.
Allow set per port run at 10Mbps or 100Mbps speed mode.
Allow set per port run at half or full duplex mode.
Allow disable or enable per port IP TOS/802.1p Priority function.
Allow assign normal or high queue on each port.
Table 5-2 Descriptions of the Port Setup screen Objects
- 34 -
5-4 Port Status Counters
For those selected port, this function could provide you with an individual statistical counter, it is a useful page for administrator to monitor each port’s usage condition. Also, it is helpful to troubleshooting network problems. The screen in
Figure 5-5 appears.
Figure 5-5 FSD-804PS Port Status Counters Web Page screen
- 35 -
5-5 VLAN Setup
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic
so only members of the VLAN receive traffic from the same VLAN members. The FSD-804PS supports port-based VLAN
function. In the default configuration with VLAN disable, the screen in Figure 5-6 appears.
Figure 5-6 FSD-804PS VLAN Setting Web Page screen
Select “Port-based” and press “Apply” button, to enable the port-based VLAN function then continue configure eight
port-based VLAN groups as your request. After setup completed, please press “Apply” to take affect. The screen in Figure
5-7 & 5-8 appears.
- 36 -
Figure 5-7 FSD-804PS port-based VLAN Setting Web Page screen
Figure 5-8 FSD-804PS port-based VLAN Setting Web Page screen
5.5.1 VLAN setting example:
VLAN scenario
1. Port 8 is the file server port for all the workstations
2. Port 1 to port 7 are different devices that do need to see each other
Setup steps
1. Port Setting
1.1 Assign VLAN 1 as the default VLAN group for all port s
1.2 Assign VLAN 2 for the second VLAN group with port 1 and port 8
1.3 Repeat the same steps for port 2 to port 7. i.e. 2 & 8, 3 & 8, ….., 7 & 8
2. PVID setup
2.1 Assign “1” (i.e. ID of VLAN 1) to port 8 as its PVID (Port VLAN ID).
2.2 Assign “2” to port 1 as it s PVID
2.3 Repeat above steps for port 2 to port 7 with its PVID, i.e. 3 (port 2), 4 (port 3), to 8 (port 7)
After the above steps port 1 to port 7 are being sep arated physically due to it belongs to different VLAN groups
(different VLAN). However , they all can access port 8 due to port 8 is using PVID 1 to communicate with port 1
to port 7. This configuration can be found in
Figure 5-7 .
- 37 -
5-6 Port Trunk Setup
This section allows you to disable or enable trunk function of two ports together to speed up data transmission. The screen
in Figure 5-9 appears.
Figure 5-9 FSD-804PS Port Trunk Setup Web Page screen
After turn on the port trunk feature, port 7 and port 8 should connect to another switch, such as another
FSD-804PS, that also supports port trunk feature to double the bandwidth in between. Otherwise, if the connected switch do not support port trunk, it will cause network loop and hangs the whole network.
- 38 -
A
A
5-7 Misc Configuration
This section provides Misc Configuration of FSD-804PS, the screen in Figure 5-10 appears and table 5-3 descriptions the
Misc Configuration objects of FSD-804PS.
Figure 5-10 FSD-804PS Misc Configuration Web Page screen
Object Description
System Info
Password / Access Setting
Restore System Default
Reboot System
Firmware Upgrade
Allow user to configure the system configuration, please refer to chapter 5.7.1
Allow user to change the password and maximum up to 4 characters, please refer to
chapter 5.7.2
llow user to reset the FSD-804PS to factory default mode, please refer to chapter 5.7.3
Allow user to reboot the FSD-804PS, please refer to chapter 5.7.4
llow user to proceed the firmware upgrade process of FSD-804PS, please refer to
chapter 5.7.5
Table 5-3 Descriptions of the Misc Configuration screen Objects
- 39 -
A
A
d
A
A
A
5.7.1 System Information
This section provides System Configuration of FSD-804PS, the screen in Figure 5-11 appears and table 5-4 descriptions
the System Configuration objects of FSD-804PS.
Figure 5-11 FSD-804PS System Configuration Web Page screen
Object Description
Mac address
SW Version
Management VLAN
Broadcast Storm Control
IP Address
Subnet Mask
Gateway
Display Mac address of FSD-804PS.
Display firmware version of FSD-804PS.
llow user to select management VLAN and available options is 1 to 8.The screen in
Figure 5-12 appears.
llow user disable or enable broadcast storm control function, the available range is
isable, 10%, 20%, 40%. The screen in Figure 5-13 appears.
llow user to assign new IP address of FSD-804PS, after setup completed. Please press
“Apply” button and switch will reboot automatically to take effect.
llow user to assign new Subnet Mask of FSD-804PS, after setup completed. Please
press “Apply” button and switch will reboot automatically to take effect.
llow user to assign new Gateway of FSD-804PS, after setup completed. Please press
“Apply” button and switch will reboot automatically to take effect.
Table 5-4 Descriptions of the Misc Configuration screen Objects
- 40 -
Figure 5-12 FSD-804PS Management VLAN options Web Page screen
Figure 5-13 FSD-804PS Broadcast Storm Control options Web Page screen
- 41 -
5.7.2 Password / Access Setting
This section provides password change Configuration of FSD-804PS, please input the old password in “Password” space
and input the new password in “New Password” space. After setup completed, please press “Submit” button to take
effect and the switch will logout automatically. Please login web interface with new password, the screen in Figure 5-14 &
5-15 & 5-16 appears.
Figure 5-14 FSD-804PS Password change Web Page screen
Figure 5-15 FSD-804PS Re Login Web Page screen
- 42 -
Figure 5-16 The FSD-804PS login Web Page screen
5.7.3 Restore System Default
This section provides reset FSD-804PS to factory default mode, after choose this function and the following screen appears in Figure 5-17. Please press “OK” button to take effect and the switch will reboot automatically and ask you to
re-login web interface with default username “admin” without password, the screen in Figure 5-18 & 5-19 & 5-20 appears.
Figure 5-17 The FSD-804PS reset to factory default Web Page screen
- 43 -
Figure 5-18 The FSD-804PS rebooting Web Page screen
Figure 5-19 FSD-804PS Re Login Web Page screen
- 44 -
Figure 5-20 The FSD-804PS login Web Page screen
5.7.4 Reboot System
This section provides reboot FSD-804PS, after choose this function and the following screen appears in Figure 5-21.
Please press “OK” button to take effect and the switch will reboot and ask you to re-login web interface with correct
username “admin” and password, the screen in Figure 5-22 & 5-23 & 5-24 appears.
Figure 5-21 The FSD-804PS reboot system Web Page screen
- 45 -
Figure 5-22 The FSD-804PS rebooting Web Page screen
Figure 5-23 FSD-804PS Re Login Web Page screen
- 46 -
Figure 5-24 The FSD-804PS login Web Page screen
5.7.5 Firmware Upgrade
This section provides firmware upgrade of FSD-804PS, after choose this function and the following screen appears in
Figure 5-25. Please press “Update” button to continue following firmware upgrade process.
Figure 5-25 The FSD-804PS firmware upgrade Web Page screen
Please wait for two seconds and press “Continue” to next firmware upgrade web page, the screen in Figure 5-26 appears.
- 47 -
Figure 5-26 The FSD-804PS firmware upgrade Web Page screen
Please press “Browser” to locate the latest firmware of FSD-804PS that deposit in your PC and press
“Upgrade” to start the firmware upgrade process. The screen in Figure 5-27 appears.
Figure 5-27 The FSD-804PS firmware upgrade Web Page screen
- 48 -
Please wait for twenty-four seconds and go to next firmware upgrade web page, the screen in Figure 5-28 appears.
Figure 5-28 The FSD-804PS firmware upgrade Web Page screen
Then the re-login screen appears in Figure 5-29, please press “Re login” button to re-login web interface of FSD-804PS
with latest firmware version, the screen in Figure 5-30 appears.
Figure 5-29 The FSD-804PS firmware upgrade Web Page screen
- 49 -
Figure 5-30 The FSD-804PS login Web Page screen
#Notice: Please does not power off the FSD-804PS during firmware upgrade process.
- 50 -
y
5-8 POE
This section provides POE status and POE configuration of FSD-804PS, the POE Status screen in Figure 5-31 appears
and Table 5-5 describes the POE status object of FSD-804PS.
Figure 5-31 FSD-804PS POE Status Web Page screen
Object Description
Port
Status
Class
Current(mA)
Power(watts)
Total
Table 5-5 Descriptions of the POE Status screen Objects
Indicate port 1 to port 4.
Indicate the POE status of port 1 to port 4.
Displa
the POE PD power classification.
List each connected device current usage.
List each connected device power usage.
The summary list of Current(mA) and Power(watts)
- 51 -
A
The POE Configuration screen in Figure 5-32 appears and Table 5-6 describes the POE Configuration object of switch.
After setup completed, please press “Apply” button to take effect.
Figure 5-32 FSD-804PS POE Configuration Web Page screen
Object Description
Port
Enable / Disable
Priority
Indicate port 1 to port 4.
Allow to disable or enable each POE port.
llow to assign the POE power provision priority on each POE port, the available range is 0-3. The
0 is highest and the 3 is lowest.
Table 5-6 Descriptions of the POE Configuration screen Objects
- 52 -
5-9 Logout
This section allows to logout the FSD-804PS, the screen in Figure 5-33 & 5-34 appears.
Figure 5-33 FSD-804PS Logout Web Page screen
Figure 5-34 The FSD-804PS login Web Page screen
- 53 -
6. SWITCH OPERATION
6.1 Address Table
The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to
store the address information of some node in network, including MAC address, port no, etc. This information comes
from the learning process of Ethernet Switch.
6.2 Learning
When one packet comes in from any port. The Switch will record the source address, port no. And the other related
information in address table. This information will be used to decide either forwarding or filtering for future packets.
6.3 Forwarding & Filtering
When one packet comes from some port of the Ethernet Switching, it will also check the destination address besides
the source address learning. The Ethernet Switching will lookup the address-table for the destination address. If not
found, this packet will be forwarded to all the other ports except the port which this packet comes in. And these ports
will transmit this packet to the network it connected. If found, and the destination address is located at different port
from this packet comes in, the Ethernet Switching will forw ard this packet to the port w here this destination address is
located according to the information from address table. But, if the destination address is located at the same port with
this packet comes in, then this packet will be filtered. Thereby increasing the network throughput and availability.
6.4 Store-and-Forward
Store-and-Forward is one type of packet-forwarding techniques. A Store-and Forward Ethernet Sw itch ing stores the
incoming frame in an internal buffer, do the complete error checking before transmission. Therefore, no error packets
occurrence, it is the best choice when a network needs efficiency and stability.
The Ethernet Switch scans the destination address from the packet-header, searches the routing table provided for
the incoming port and forwards the packet, only if required. The fast forwarding makes the switch attractive for connecting servers directly to the network, thereby increasing throughput and availability. However, the switch is most
commonly used to segment existing hubs, which nearly alway s improves overall performance. An Ethernet Switching
can be easily configured in any Ethernet network environment to significantly boost bandwidth using conventional
cabling and adapters.
Due to the learning function of the Ethernet switching, the source address and corresponding port number of each
incoming and outgoing packet are stored in a routing table. This information is subsequently used to filter packets
whose destination address is on the same segment as the source address. This confines network traffic to its respective domain, reducing the overall load on the network.
The Switch performs "Store and forward" therefore, no error packets occur. More reliably, it reduces the
re-transmission rate. No packet loss will occur.
6.5 Auto-Negotiation
The STP ports on the FSD-804PS switch have built-in "Auto-negotiation". This technology automatically sets the best
possible bandwidth when a connection is established with another network device (usually at Power On or Reset).
Detecting the modes does this and speeds at the second of both devices are connected and capable of, both
10Base-T and 100Base-TX devices can connect with the port in either Half- or Full-duplex mode.
- 54 -
7.TROUBLESHOOTING
This chapter contains information to help you solve problems. If the Switch is not functioning properly, make sure the
Ethernet Switch was set up according to instructions in this manual.
The Link LED is not lit
Solution:
Check the cable connection and remove duplex mode of the Switch.
Some stations cannot talk to other stations located on the other port
Solution:
Please check the VLAN, port trunking function that may introduce this kind of problem.
Performance is bad
Solution:
Check the full duplex status of the Ethernet Switch. If the Ethernet Switch is set to full duplex and the partner is set to
half duplex, then the performance will be poor.
100Base-TX port link LED is lit, but the traffic is irregular
Solution:
Check that the attached device is not set to dedicate full duplex. Some devices use a physical or software switch to
change duplex modes. Auto-negotiation may not recognize this type of full-duplex setting.
Why the Switch doesn’t connect to the network
Solution:
Check the LNK/ACT LED on the switch Try another port on the Switch Make sure the cable is installed properly Make
sure the cable is the right type Turn off the power. After a while, turn on power again.
Why I connect my PoE device to FSD-804PS and it cannot power on?
Solution:
1. Please check the cable type of the connection from FSD-804(port 1 to port 4) to the other end.
The cable should be an 8-wire UTP, Category 5 or above, EIA568 cable within 100 meters. A
cable with only 4-wire, short loop or over 100 meters, all will affect the power supply.
2. Please check and assure the device that fully complied with IEEE 802.3af standard.
How to deal forgotten password situation of FSD-804PS?
Solution:
1. Please contact Planet sw itch support team and the mail address is support_switch@planet.com.tw
- 55 -
APPENDIX A NETWORKING CONNECTION
A.1 Switch‘s RJ-45 Pin Assignments
Contact MDI MDI-X
1 1 (TX +) 3
2 2 (TX -) 6
3 3 (RX +) 1
6 6 (RX -) 2
4, 5, 7, 8 Not used Not used
A.2 RJ-45 cable pin assignment
2 1
3 6
2 1 3 6
6
3
2
1
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation
and color of straight cable and crossover cable connection:
Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with same pin assignment and color as above picture before deploying the
cables into your network.
2080-A31120-000
- 56 -
Loading...
