PLANET 16/24-port + 2-slot Fast Ethernet Switch User’s Manual
FOR MODEL: FNSW-1602, FNSW-2402
Part No.: 2010-000024-000
Table of Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 How to Use This Manual 1
1.3 Product Features 2
1.4 Product Specifications 3
Chapter 2 Installation 5
2.1 Product Description 5
2.2 Installing a Switch 6
Chapter 3 Switch Operation 9
3.1 Address Table 9
3.2 Learning 9
3.3 Forwarding & Filtering 9
3.4 Store-and-Forward 9
3.5 Auto-Negotiation 10
Chapter 4 Troubleshooting 11
Appendix A 13
A.1 Switch‘s RJ-45 Pin Assignments 13
Chapter 1
INTRODUCTION
1.1 Package Contents
Check the contents of your package for following parts:
● Fast Ethernet Switch x1
● User’s manual x1
● Power cord x1
● Two Rack-Mounting Brackets with Attachment Screws x1
If any of these are missing or damaged, please contact your dealer immediately, if
possible, retain the carton including the original packing material, and use them against
to repack the product in case there is a need return to it to us for repairing.
1.2 How to Use This Manual
This Fast Ethernet Switch User’s Manual is structured as follows:
• Section 2, Installation
It explains the functions of FNSW-1602/FNSW-2402 and how to physically
install the FNSW-1602/FNSW-2402.
• Section 3, Switch operation
It explains the Switch operation of FNSW-1602/FNSW-2402.
• Section 4 Troubleshooting
It contains troubleshooting guide of FNSW-1602/FNSW-2402.
• Appendix A
It contains cable information of FNSW-1602/FNSW-2402.
In the following section, the term “Switch” means the two Switches, i.e. FNSW-1602/
FNSW-2402, term of “switch” or “Ethernet switch” can be any third part switches.
1
3
1.3 Product Features
• Complies with IEEE802.3 and 802.3u standards for 100Base-TX/FX
• 16/24-port 10/100 Mbps Fast Ethernet Switch
• Each Switching ports support auto-negotiation-10/20, 100/200Mbps supported
• 2 open slots for 10/100Base-TX and 100Base-FX fiber-optic interface with various connection media and distances
• Auto-MDI/MDI-X detection on each RJ-45 port
• Prevents packet loss with back pressure (half-duplex) and 802.3x PAUSE frame
flow control (full-duplex)
• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• 2K/6K MAC address table, automatic source address learning and ageing
• 256K/512K bytes shared data memory buffering
2
1.4 Product Specications
Model FNSW-1602 FNSW-2402
Hardware Specification
Network ports 16 24
Module slot 2 open slots for 10/100Base- TX and 100Base-FX fiber-
optic interface
Dimensions 440 x 200 x 44 mm (1U height)
Weight 2.6 kg
Power Requirement 100~240 (±10%) VAC, 50-60 (±3) Hz
Power Consumption 30 Watts maximum / 100 BTU/hr maximum
Switch Specification
Switch architecture Store-and-forward
Address Table 2K entries, auto learning/
ageing
Shared data Buffer 256K bytes 512K bytes
Flow Control Back pressure for half duplex, IEEE 802.3x for full du-
plex
Packet Control Runt & CRC filtering
Switching Fabric 4.5Gbps 8.8Gbps
Standards Conformance
Network Standards IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet),
IEEE802.3x (flow control)
Operating Temperature
Storage Temperature
Humidity 5% to 95% (Non-condensing)
Regulation Compliance
0~50˚C
-40~70˚C
FCC Class A, VCCI Class A, CISPR 22 Class A
6K entries, auto learning/
ageing
3
4
5
Chapter 2
INSTALLATION
This section describes the functionalities of FNSW-1602/FNSW-2402 components and
guides how to install it on the desktop or shelf. Basic knowledge of networking is assumed.
Please read this chapter completely before continuing.
2.1 Product Description
The PLANET Switch provides 16/24 10/100Mbps Fast Ethernet ports with 2 open slots
(port#17/25, port#18/26). The two open slots can be installed by either 10/100Base-TX
TP port or 100Base-FX ber-optic in distance from 100 meters (TP), 2 kilometers (Multimode, ST or SC) up to 15 kilometers (Single-mode, SC). The PLANET Switch is with nonblocking backplane and simplies the task of upgrading your LAN to cater for increased
bandwidth demand.
2.1.1 Product Overview
PLANET Switch is Fast Ethernet switch with 16/24 RJ-45 10/100Mbps ports and up to
two 100Mbps ber ports or two 10/100Mbps TP ports for cost effective high-performance
network connectivity. With its 4.5/8.8Gbps non-blocking switch fabric, the PLANET Switch
can also provide a local, high bandwidth.
This products also supports store-and-forward forwarding scheme to ensure low latency
and high data integrity, eliminates unnecessary trafc and relieves congestion on critical
network paths. With an intelligent address recognition algorithm, FNSW-1602/FNSW2402 could recognize up to 2K/6K different MAC address and enables ltering and
forwarding at full wire speed.
2.1.2 FNSW-1602 Front Panel
Figure 2-1 shows front panel of FNSW-1602.
Figure 2-1 PLANET FNSW-1602 Front Panel
2.1.3 FNSW-2402 Front Panel
Figure 2-2 shows front panel of FNSW-2402.
Figure 2-2 PLANET FNSW-2402 Front Panel
5
7
2.1.4 LED Indicators
LED Color Function
PWR Green Lit: Power on
LNK/ACT Green Lit: indicate the link through that port is successfully
established
Blink: indicate that the switch is actively sending or
receiving data over that port
100 Orange Lit: indicate that the port is operating at 100Mbps.
Off: indicate that the port is operating at 10Mbps.
2.1.5 Extension Slots
The Switch extension slots #17, #18 or #25, #26 can be a 10/100Base-TX or 100Base-FX
switching port as the extension module installed.
Note: The 100Base-FX modules only support full-duplex mode.
2.1.6 FNSW-1602 and FNSW-2402 Rear Panel
The rear panel of the Switch indicates an AC inlet power socket and power switch, which
accepts input power from 100 to 240VAC, 50-60Hz.
Figure 2-3 shows Rear panel of Switch.
Figure 2-3 Rear Panel of Switch
Power Notice:
1.The device is a power-required device, it means, it will not work till it is
powered. If your networks should active all the time, please consider using
UPS (Uninterrupted Power Supply) for your device. It will prevent you from
network data loss or network downtime.
2.In some area, installing a surge suppression device may also help to protect
your switch from being damaged by unregulated surge or current to the
Switch or the power adapter.
2.2 Installing a Switch
This part describes how to install your Fast Ethernet Switch and make connections to the
switch. Please read the following topics and perform the procedures in the order being
presented.
To install your Switch on a desktop or shelf, simply complete the following steps.
6
2.2.1 Desktop Installation
To install a Switch on a desktop or shelf, simply complete the following steps:
Step1: Attach the rubber feet to the recessed areas on the bottom of the switch.
Step2: Place the Switch on a desktop or shelf near an AC power source.
Step3: Keep enough ventilation space between the switch and the surrounding
objects
Note: When choosing a location, please keep in mind the environmental re-
strictions discussed in Chapter 1, Section 4, Specification.
Step4: Connect your Switch to network devices
A. Connect one end of a standard network cable to the 10/100 RJ-45 ports
on the front of the Switch.
B. Connect the other end of the cable to the network devices such as printer
servers, workstations or routers…etc.
Note: Connection to the Switch requires UTP Category 5 network cabling with
RJ-45 tips. For more information, please see the Cabling Specification
in Appendix A.
Step5: Supply power to the Switch.
A. Connect one end of the power cable to the Switch.
B. Connect the power plug of the power cable to a standard wall outlet then
power on the Switch.
When the Switch receives power, the Power LED should remain solid Green.
2.2.2 Rack Mounting
To install the switch in a 19-inch standard rack, follow the instructions described below.
Step1: Place your Switch on a hard flat surface, with the front panel positioned
towards your front side.
Step2: Attach a rack-mount bracket to each side of the switch with supplied
screws attached to the package. Figure 2-4 shows how to attach brackets
to one side of Switch.
7
9

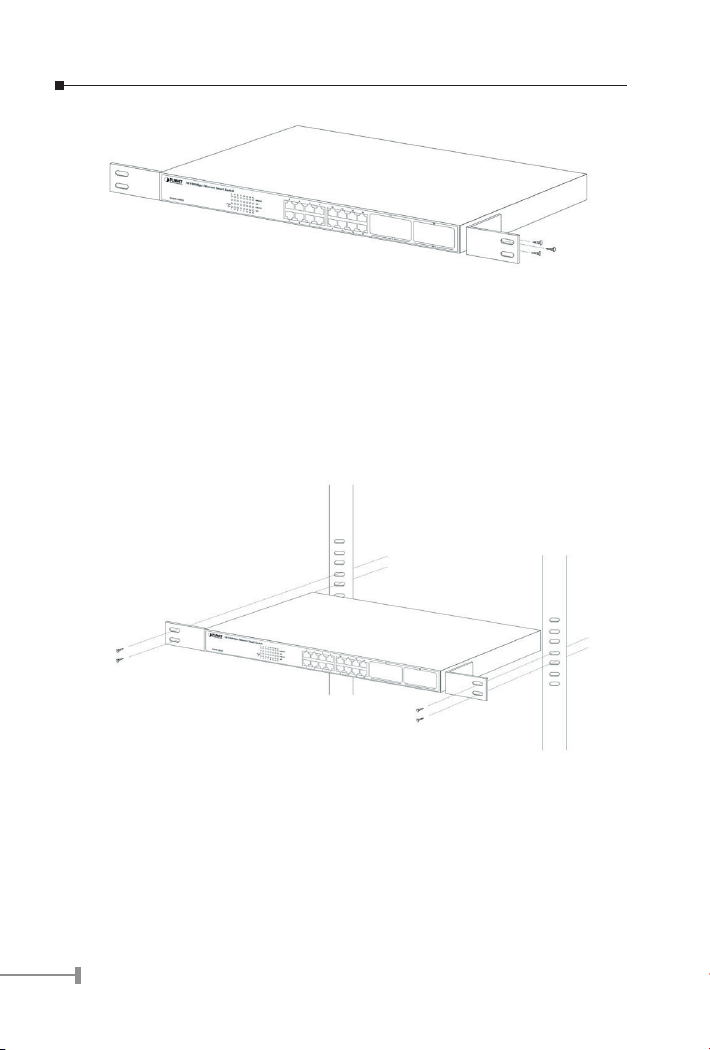

Figure 2-4 Attaching the brackets to the Switch (example on FNSW-1602)
Caution:
You must use the screws supplied with the mounting brackets. Damage caused
to the parts by using incorrect screws would invalidate your warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the switch, use suitable screws to se-
curely attach the brackets to the rack, as shown in Figure 2-5.
Figure 2-5 Mounting the Switch in a Rack (example on FNSW-1602)
Step 6: Proceed with the steps 4 and steps 5 of section 2.2.1 Desktop Installation
to connect the network cabling and supply power to your switch.
8
Chapter 3
SWITCH OPERATION
3.1 Address Table
The Switch is implemented with an address table. This address table composed of many
entries. Each entry is used to store the address information of some node in network,
including MAC address, port no, etc. This information comes from the learning process
of Ethernet Switch.
3.2 Learning
When one packet comes in from any port, the Switch will record the source address, port
no. And the other related information in address table. .
This information will be used to decide either forwarding or ltering for future packets.
3.3 Forwarding & Filtering
When one packet comes from some port of the Ethernet Switching, it will also check
the destination address besides the source address learning. The Ethernet Switching will
lookup the address-table for the destination address. If not found, this packet will be
forwarded to all the other ports except the port, which this packet comes in. And these
ports will transmit this packet to the network it connected. If found, and the destination
address is located at different port from this packet comes in, the Ethernet Switching will
forward this packet to the port where this destination address is located according to the
information from address table. But, if the destination address is located at the same port
with this packet comes in, then this packet will be ltered. Thereby increasing the network
throughput and availability
3.4 Store-and-Forward
Store-and-Forward is one type of packet-forwarding techniques. A Store-and-Forward
Ethernet Switching stores the incoming frame in an internal buffer, do the complete error
checking before transmission. Therefore, no error packets occurrence, it is the best choice
when a network needs efciency and stability.
The Ethernet Switch scans the destination address from the packet-header, searches the
routing table provided for the incoming port and forwards the packet, only if required. The
fast forwarding makes the switch attractive for connecting servers directly to the network,
thereby increasing throughput and availability. However, the switch is most commonly
used to segment existing hubs, which nearly always improves overall performance. An
Ethernet Switching can be easily congured in any Ethernet network environment to
signicantly boost bandwidth using conventional cabling and adapters.
Due to the learning function of the Ethernet switching, the source address and
corresponding port number of each incoming and outgoing packet are stored in a routing
table. This information is subsequently used to lter packets whose destination address is
on the same segment as the source address. This connes network trafc to its respective
domain, reducing the overall load on the network.
9
11
The Switch performs “Store and forward” therefore, no error packets occur. More reliably,
it reduces the re-transmission rate. No packet loss will occur.
3.5 Auto-Negotiation
The STP ports on the Switch have built-in “Auto-negotiation”. This technology automatically
sets the best possible bandwidth when a connection is established with another network
device (usually at Power On or Reset). This is done by detect the modes and speeds at
the second of both device is connected and capable of, Both 10Base-T and 100Base-TX
devices can connect with the port in either Half- or Full-Duplex mode.
If attached device is: 100Base-TX port will set to:
10Mbps, no auto-negotiation
10Mbps, with auto-negotiation
100Mbps, no auto-negotiation
100Mbps, with auto-negotiation
10Mbps
10/20Mbps (10Base-T/Full-Duplex)
100Mbps
100/200Mbps
(100Base-TX/Full-Duplex)
10
Chapter 4
TROUBLESHOOTING
This chapter contains information to help you solve problems. If the Ethernet Switch is not
functioning properly, make sure the Ethernet Switch was set up according to instructions
in this manual.
The LNK LED is not lit
Solution:
Check the cable connection and remove duplex mode of the Ethernet Switch
The 100Base-FX ber module’s link LED and FDX LED is not lit
Solution:
Please check the fiber connection is correct and set the module slide switch at fullduplex mode.
Performance is bad
Solution:
Check the full duplex status of the Ethernet Switch. If the switch is set to full duplex
and the partner is set to half duplex, then the performance will be poor. Please also
check the in/out rate of the port.
Why the Switch doesn’t connect to the network
Solution:
Check the LNK/ACT LED on the switch
Try another port on the Switch
Make sure the cable is installed properly
Make sure the cable is the right type
Turn off the power. After a while, turn on power again
11
12
13
Appendix A
A.1 Switch's RJ-45 Pin Assignments
When connecting your 10/100Mbps Ethernet Switch to another switch, a bridge or a hub,
a straight or crossover cable is necessary. Each port of the Switch supports auto-MDI/
MDI-X detection. That means you can directly connect the Switch to any Ethernet devices
without making a crossover cable. The following table and diagram show the standard
RJ-45 receptacle/ connector and their pin assignments:
RJ-45 Connector pin assignment
Contact
1 TX + (transmit) Rx + (receive)
2 TX - (transmit) Rx - (receive)
3 Rx + (receive) TX + (transmit)
4,5* Not used
6 Rx - (receive) TX - (transmit)
7,8* Not used
The standard cable, RJ-45 pin assignment
MDI
Media
Dependant
Interface
MDI-X
Media
Dependant
Interface -Cross
The standard RJ-45 receptacle/connector
13
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following
shows the pin allocation and color of straight cable and crossover cable connection:
Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with same pin assignment and color as above
picture before deploying the cables into your network.
14
Part No.:2010-000024-000
Loading...
