Planet Technology FGSW-2620PVS User Manual

24-Port 10/100Mbps + 2-Gigabit
Web Smart PoE Switch
FGSW-2402PVS
FGSW-2620PVS
FGSW-2612PVS
User's Manual
Trademarks
Content subjects to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective
owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and
makes no warranty and representation, either implied or expressed, with respect to the quality, performance,
merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of
PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET
makes no commitment to update or keep current the information in this User's Manual, and reserves the right to make
improvements to this User's Manual and/or to the products described in this User's Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and
suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the Instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at its own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user
may be required to take adequate measures.
Revision
24-Port 10/100Mbps + 2-Gigabit Web Smart PoE Switch User's Manual
FOR MODEL: FGSW-2402PVS / FGSW-2620PVS / FGSW-2612PVS
Rev: 1.0(May. 2005)
Part No.: 2080-A81070-000
Table of Contents
1. INTRODUCTION.................................................................................................................................................................. 5
1.1 Package Contents .................................................................................................................................................... 5
1.2 How to Use This Manual........................................................................................................................................... 5
1.3 Product Features ...................................................................................................................................................... 5
1.4 Product Specifications .............................................................................................................................................. 6
2. INSTALLATION ................................................................................................................................................................... 8
2.1 Product Description .................................................................................................................................................. 8
2.1.1 Product Overview ......................................................................................................................................... 8
2.1.2 PoE Switch Front Panel ............................................................................................................................... 8
2.1.3 LED Indicators.............................................................................................................................................. 9
2.1.4 Extension Slots............................................................................................................................................. 9
2.1.5 PoE Switch Rear Panel .............................................................................................................................. 10
2.2 Installing PoE Switch .............................................................................................................................................. 10
2.2.1 Desktop Installation .................................................................................................................................... 10
2.2.2 Rack Mounting ........................................................................................................................................... 11
3. CONSOLE CONFIGURATION........................................................................................................................................... 12
3.1 Preparing for configuration...................................................................................................................................... 12
3.1.1 Connecting a PC or Terminal to the RS-232 Port....................................................................................... 12
3.1.2 Terminal Emulation Setup Program............................................................................................................ 12
3.1.3 Power-up Self-test Status........................................................................................................................... 13
3.1.4 Login .......................................................................................................................................................... 13
3.2 Getting Started........................................................................................................................................................ 13
3.2.1 General Guidelines..................................................................................................................................... 13
3.2.2 Main Menu Screen ..................................................................................................................................... 14
3.2.3 Port Status.................................................................................................................................................. 15
3.2.4 Port Configuration ...................................................................................................................................... 16
3.2.5 Trunk Configuration .................................................................................................................................... 17
3.2.6 VLAN Configure ......................................................................................................................................... 17
3.2.7 Port Mirroring Configuration ....................................................................................................................... 23
3.2.8 QoS Configuration...................................................................................................................................... 24
3.2.9 Bandwidth Control ...................................................................................................................................... 25
3.2.10 Misc Configuration.................................................................................................................................... 26
3.2.11 PoE Configuration .................................................................................................................................... 32
3.2.12 Logout ...................................................................................................................................................... 34
4. WEB CONFIGURATION.................................................................................................................................................... 35
4.1 Login in to the Switch.............................................................................................................................................. 35
4.2 Main Menu .............................................................................................................................................................. 35
4.3 Port Status .............................................................................................................................................................. 36
4.4 Port Configuration................................................................................................................................................... 37
4.5 Trunk Configuration ................................................................................................................................................ 38
4.6 VLAN Configuration ................................................................................................................................................ 38
4.7 Port Mirroring Configuration.................................................................................................................................... 40
4.8 QoS Configuration .................................................................................................................................................. 41
4.9 Bandwidth Control .................................................................................................................................................. 42
4.10 Misc Configuration ................................................................................................................................................ 43

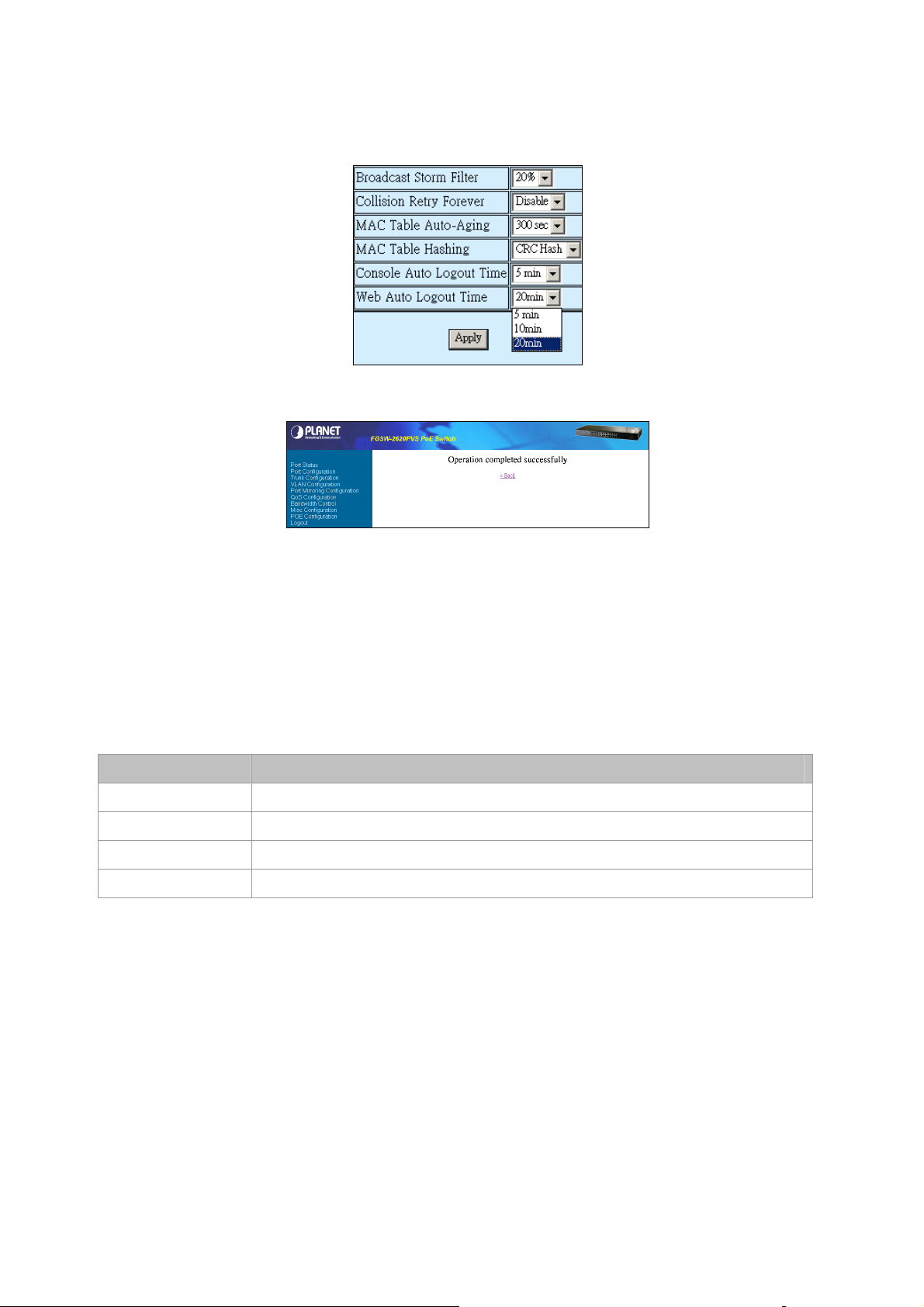

4.10.1 Advanced Switch Configuration................................................................................................................ 44
4.10.2 Password Setting ..................................................................................................................................... 46
4.10.3 Reset System Default Setting .................................................................................................................. 48
4.10.4 Reboot System......................................................................................................................................... 48
4.10.5 System Information .................................................................................................................................. 49
4.10.6 IP Configuration........................................................................................................................................ 49
4.11 PoE Configuration ................................................................................................................................................. 50
4.11.1 POE Ports................................................................................................................................................. 50
4.11.2 PoE Ports Status ...................................................................................................................................... 51
4.12 Logout................................................................................................................................................................... 51
5. SWITCH OPERATION ....................................................................................................................................................... 52
5.1 Address Table ......................................................................................................................................................... 52
5.2 Learning.................................................................................................................................................................. 52
5.3 Forwarding & Filtering ................................................................................................................................... 52
5.4 Store-and-Forward ........................................................................................................................................ 52
5.5 Auto-Negotiation ..................................................................................................................................................... 53
6. TROUBLE SHOOTING...................................................................................................................................................... 54
APPENDEX A........................................................................................................................................................................ 55

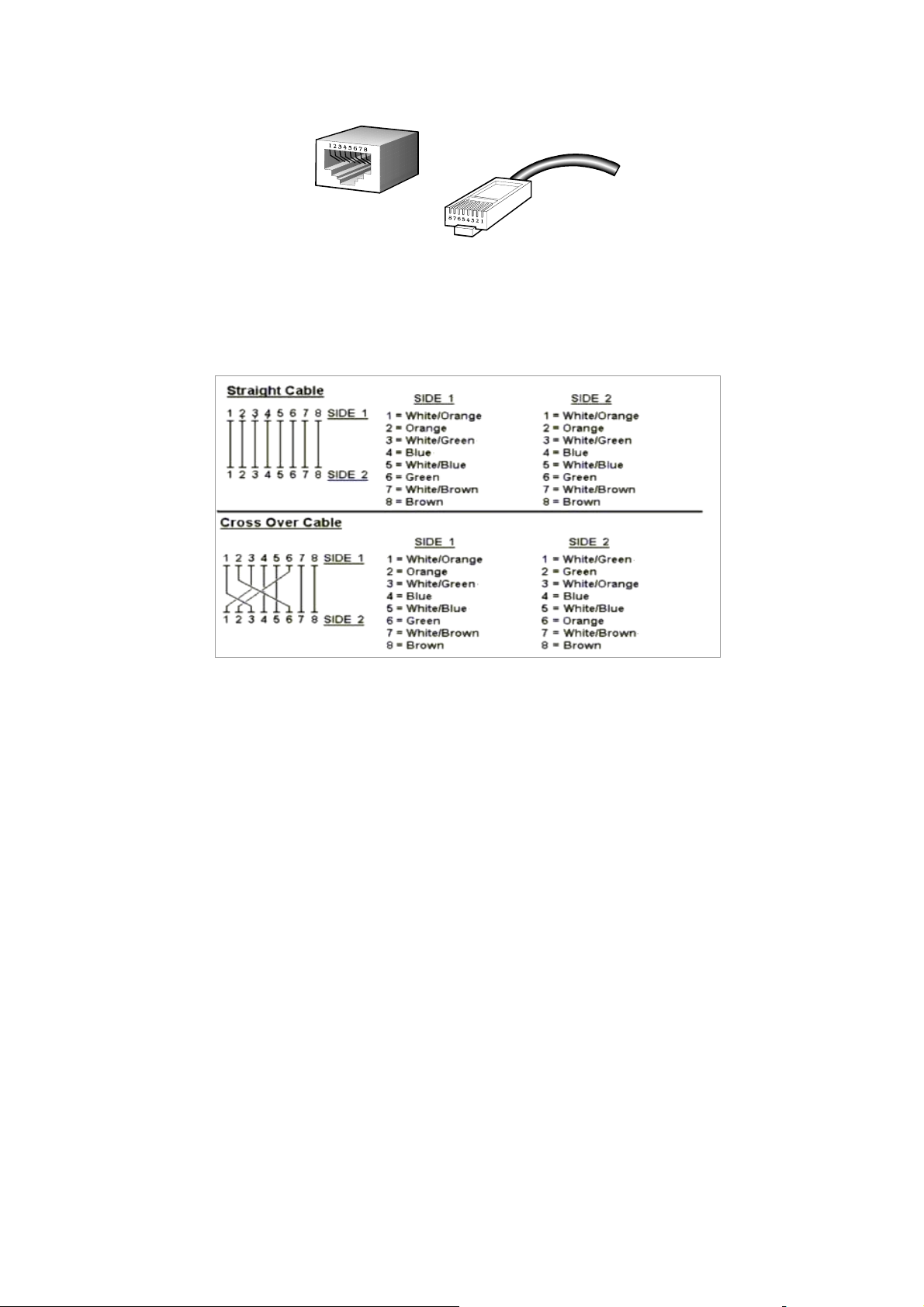

A.1 Switch's RJ-45 Pin Assignments ............................................................................................................................ 55
A.2 10/100Mbps, 10/100Base-TX................................................................................................................................. 55

1. INTRODUCTION

1.1 Package Contents

Check the contents of your package for following parts:
24-Port 10/100Mbps + 2-Gigabit Web smart PoE Switch x1
User's manual x1
RS-232 cable x1
Power cord x1
Two Rack-Mounting Brackets with Attachment Screws x1
If any of these are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the
original packing material, and use them against to repack the product in case there is a need return to it to us for repairing.
Note: In the following section, unless specified, terms "Switch" with upper case means the three PoE switches, i.e.
FGSW-2402PVS, FGSW-2620PVS or FGSW-2612PVS. Terms with lower case "switch" means any Ethernet switches.

1.2 How to Use This Manual

This 24-Port 10/100Mbps +2-Gigabit Web Smart Power over Ethernet Switch User's Manual is structured as follows:
Section 2, Installation
It explains the switch functions and how to physically install the Switch.
Section 3, Console Configuration
It contains information about the smart function from the console interface of the Switch.
Section 4, Web Configuration
It contains information about the smart function from the Web interface of the Switch.
Section 5 Switch operation
It explains the Switch operation of the Switch.
Section 6 Troubleshooting
It contains troubleshooting guide of the Switch.
Appendix A
It contains cable information of the Switch.

1.3 Product Features

Complies with the IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab Gigabit Ethernet, and IEED802.3af Power
over Ethernet standard
24-Port 10/100 Mbps Fast Ethernet Switch
12-port POE (FGSW-2612PVS), 24-port POE (FGSW-2620PVS/ FGSW-2402PVS) support
Each Switching ports support auto-negotiation-10/20, 100/200Mbps supported
Support full 48VDC power for any remote IEEE802.3af powered device (PD) like Wireless LAN Access Point, IP
phone, and LAN Camera.
Supporting power supply of 260 watts that provides sufficient power to the 24 remote devices.
Each Switching ports support full 48VDC power over unused twisted-pair wires to IEEE802.3af Powered Device.
2 open slots for 10/100Base-TX, 1000Base-T and 100Base-FX, 1000Base-SX/LX fiber-optic interface with various
connection media and distances (FGSW-2402PVS only)
2 10/100/1000Mbps ports and 2 SFP interfaces (FGSW-2620PVS and FGSW-2612PVS)
Auto-MDI/MDI-X detection on each RJ-45 port
Prevents packet loss with back pressure (half-duplex) and 802.3x PAUSE frame flow control (full-duplex)
High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates
erroneous packets to optimize the network bandwidth
6K MAC address table, automatic source address learning and ageing
4 Mbit embedded memory for packet buffers
Console and Web interface for Switch basic management and setup
Support up to 26 port-based VLAN groups
Support up to 7 Trunk groups, each trunk for up to maximum 4 port with 800Mbps bandwidth
Port mirroring allows monitoring of the traffic across any port in real time
Support QoS and bandwidth control on each port
Misc Configuration for Switch advanced configuration

1.4 Product Specifications

Model FGSW-2402PVS FGSW-2620PVS FGSW-2612PVS
Hardware Specification
Network Port 24 10/100Base-TX RJ-45 MDI/MDI-X ports
Module Slot 2 open slots for 10/100Base-
TX, 1000Base-T and 100Base-FX, 1000Base-SX /LX fiber-optic interface
Gigabit Port
POE Port 24 (port #1 to #24) 12 (port#1 to #12)
Console Port 1 RS-232 DB-9 male
Dimension 440 x 200 x 44 mm (1U height)
Weight 2.6 kg
Power Requirement 100~240 (±10%) VAC, 50-60 (±3) Hz
System Power Consumption

Switch Specification

2; interface vary on module installed
30 Watts maximum; 102 BTU / hr maximum
N/A; Fixed interfaces N/A; Fixed interfaces
2 10/100/1000Mbps TP ports and 2 SFP interfaces (shared)
Switch Architecture Store-and-forward
Address Table 6K entries, auto learning/ageing
Shared Data Buffer 4 Mbit embedded memory for packet buffers
Flow Control Back pressure for half duplex, IEEE 802.3x for full-duplex
Packet Control Runt & CRC filtering, Broadcast storm control
Switch Fabric 8.8Gbps
PoE Power Feeding 48VDC
PoE Power Consumption 260 watts; 800 BTU/hr max. 130 watts; 400BTU/hr max.
Switch Management
Port Configuration
Port Status
Trunk 7-trunk groups with up to 4-port per trunk
VLAN 26 Port-based VLAN groups
Port Mirroring
QoS Allow to assign low and high priority on each port
Bandwidth Control Allow to assign rate control on each port
PoE Configuration PoE power supply enable/disable, power feeding priority
PoE Status PoE power consumption, per port power injection status
Standard Conformance
Network Standards
Operation Temperature 0~50 degree C
Port disable/enable. Auto-negotiation disable/enable. 10/100Mbps full and half duplex mode selection. Flow control disable/enable Display each port's disable/enable status, each port's link status, and speed duplex mode. Flow control status.
1 Mirroring port to monitor several mirrored ports. The monitor modes are Disable, RX, TX, TX& RX
IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet) IEEE 802.3z(Gigabit Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE802.3x (Flow control) IEEE 802.1p QoS IEEE802.3af Power over Ethernet
Storage Temperature -40~70 degree C
Humidity 5% to 95% (Non-condensing)
Regulation Compliance FCC, CE Class A

2. INSTALLATION

This section describes the functionalities of the Switch components and guides how to install it on the desktop or shelf. Basic
knowledge of networking is assumed. Please read this chapter completely before continuing.

2.1 Product Description

PLANET FGSW-2402PVS/FGSW-2620PVS/FGSW-2612PVS, the Switch, provides 24 10/100Mbps Fast Ethernet ports with
2 open slots or 2 fixed 10/100/1000Mbps ports (port25, 26). The two open slots can be installed by either 10/100Base-TX TP
port or 1000Base-T TP port and 100Base-FX or 1000Base-SX/ LX fiber-optic interfaces. The distance range is 100 meters
(TP) and 2 kilometers (Multi-mode, ST or SC), up to 15 kilometers (Single-mode, SC). The Switch with non-blocking
backplane and simplifies the task of upgrading your LAN to cater for increased bandwidth demand.
Both switches are equipped with non-blocking 8.8Gbps backplane greatly simplify the tasks of upgrading your LAN to cater to
increased bandwidth demands. The PoE, in-line power, following the standard IEEE802.3af, makes the both switches able to
power 24/12 PoE devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire.
Equipped with console and Web interface, the Web Smart Ethernet Switch can be programmed for basic Switch
management functions such as port speed configuration, Port Trunking, VLAN, Port Mirroring, QoS, bandwidth control, Misc
Configuration.

2.1.1 Product Overview

The Switch are web smart fast Ethernet switch which with IEEE802.3af Power over Ethernet power injector built-in. Except 24
RJ-45 10/100Mbps TP ports, the switches provide up to two 100Mbps or 1000Mbps fiber ports, and two 10/100Mbps TP or
1000Base-T ports for cost effective high-performance network connectivity. All or half (FGSW-2612PVS) of the 24 TP ports
are able to supply standard 48VDC power that can supply power to 24/12 IEEE802.3af compliant Ethernet devices.
With its 8.8Gbps non-blocking switch fabric, the PLANET Switch can also provide a local, high bandwidth, Fast Ethernet
network for your departmental backbone plus the ability to trunk four ports (800Mbps) to enable switch-to-switch backbone.
The advanced functionality of the Switch eliminates traditional problems associated with the use of Ethernet. Users can be
segregated using built-in VLAN functionality. These, coupled with the flexible fiber module options, make the Switch one of
the best and most cost-effective MTU switch solutions for Multi-tenant service providers.
This product also supports store-and-forward forwarding scheme to ensure low latency and high data integrity, eliminates
unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm,
Switch could recognize up to 6K different MAC address and enables filtering and forwarding at full wire speed.

2.1.2 PoE Switch Front Panel

FGSW-2402PVS front panel:
24-port 10/100M bps + 2 Gigabit-slot
FGSW-2402VS
Console
9600, N, 8, 1
Ethernet Web Smart Switch
2 4 6 8 10 12 14 16
PWR13579111315
18 20 22 24
17 19 21 23
FGSW-2620PVS front panel:
2 4 6 8 10 12 14 16
LNK/ACT
100
LNK/ACT
100
1357 9111315
18 20 22 24
17 19 21 23
Figure 2-1 PLANET FGSW-2402PVS front panel.
25 26
Slot 1
Slot 2
FGSW-2620VS
Console
9600, N, 8, 1
24-port 10/100Mbps + 2 Gigabit
Ethernet Web Sm art Swit ch
2 4 6 8 10 12 14 16
PWR1 3 5 7 9111315
18 20 22 24
17 19 21 23
2 4 6 8 10 12 14 16
LNK/ACT
100
LNK/ACT
100
1357 9111315
18 20 22 24
17 19 21 23
1000 Base-T 1000 Base-T
LNK/ACT
100/1000
FDX
25 26
LNK/ACT
100/1000
FDX
Figure 2-2 PLANET FGSW-2620PVS front panel.
FGSW-2612PVS front panel:
Figure 2-3 PLANET FGSW-2612PVS front panel.

2.1.3 LED Indicators

System:
LED COLOR FUNCTION
PWR Green Light: Power ON
Per 10/100Mbps port:
LED COLOR FUNCTION
LNK/ACT Green
100 Orange
PoE In-use Green Light: indicate that the port is providing 48VDC to remote Powered Device
Light: indicate the link through that port is successfully established. Blink: indicate that the switch is actively sending or receiving data over that port. Light: indicate that the port is operating at 100Mbps. Off: indicate that the port is operating at 10Mbps.
Per 10/100/1000Mbps port (FGSW-2620PVS and FGSW-2612PVS)
LED COLOR FUNCTION
LNK/ACT Green
Light: indicate the link through that port is successfully established. Blink: indicate that the switch is actively sending or receiving data over that port.
100 Green/Orange
Orange: indicate that the port is operating at 1000Mbps. Green: indicate that the port is operating at 100Mbps.
FDX/COL Green
Light: indicate that port is operating in full-duplex mode. Off: indicate that port is operating in half-duplex mode. Blink: if a collision is detected when the port is in half-Duplex mode.

2.1.4 Extension Slots

The extension slots #25 and #26 of FGSW-2402PVS can be a 10/100Base-TX, 1000Base-T or 100Base-FX,
1000Base-SX/LX switching port as the extension module installed.
Please refer to the section 3.2.4 Port Configuration for the detailed installation and settings.

2.1.5 PoE Switch Rear Panel

The rear panel of the Switch indicates an AC inlet power socket, which accepts input power from 100 to 240VAC, 50-60Hz.
Figure 2-3 shows Rear panel of the Switch.
Figure 2-3 Rear Panels of FGSW-2402PVS / FGSW-2620PVS / FGSW-2612PVS
Power Notice:
1. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the
time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data loss
or network downtime.
2. In some area, installing a surge suppression device may also help to protect your Switch from being dam-aged by
unregulated surge or current to the Switch or the power adapter.

2.2 Installing PoE Switch

This part describes how to install your Web Smart Ethernet Switch and make connections to the Switch. Please read the
following topics and perform the procedures in the order being presented.
To install your Switch on a desktop or shelf, simply complete the following steps.

2.2.1 Desktop Installation

To install a Switch on a desktop or shelf, simply complete the following steps:
Step1: Attach the rubber feet to the recessed areas on the bottom of the Switch.
Step2: Place the Switch on a desktop or shelf near an AC power source.
Step3: Keep enough ventilation space between the Switch and the surrounding objects
Note: When choosing a location, please keep in mind the environmental restrictions discussed in Chapter 1, Section 4,
Specification.
Step4: Connect your Switch to network devices
A. Connect one end of a standard network cable to the 10/100 RJ-45 ports on the front of the Switch.
B. Connect the other end of the cable to the network devices such as printer servers, workstations or routers…etc.
Note: Connection to the Switch requires UTP Category 5 network cabling with RJ-45 tips. For more information, please
see the Cabling Specification in Appendix A.
Step5: Supply power to the Switch.
A. Connect one end of the power cable to the Switch
B. Connect the power plug of the power cable to a standard wall outlet then power on the Switch.
When the Switch receives power, the Power LED should remain solid Green.

2.2.2 Rack Mounting

To install the Switch in a 19-inch standard rack, follow the instructions described below.
Step1: Place your Switch on a hard flat surface, with the front panel positioned towards your front side.
Step2: Attach a rack-mount bracket to each side of the Switch with supplied screws attached to the package. Figure 2-4
shows how to attach brackets to one side of the Switch.
Figure 2-4 Attaching the brackets to the Switch
Caution: You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect
screws would invalidate your warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as
shown in figure 2-5.
Figure 2-5 Mounting the Switch in a Rack
Step6: Proceeds with the steps 4 and steps 5 of section 2.2.1 Desktop Installation to connect the network cabling and supply
power to your Switch.
3. CONSOLE CONFIGURATION
Unlike the unmanaged switch, the FGSW-2402PVS/ FGSW-2620PVS/FGSW-2612PVS perform series smart functions that
make the Switch operate more effectively. This section will describe the common usage of the Switch Smart Con-figuration.
Note: The following section will base on the console screens of FGSW-2620PVS. For FGSW-2402PVS and
FGSW-2612PVS, the display will be the same to FGSW-2620PVS.

3.1 Preparing for configuration

3.1.1 Connecting a PC or Terminal to the RS-232 Port

When you are ready to configure the smart functions of the Switch, make sure you had connected the supplied RS-232 serial
cable to the RS-232 port at the front panel of your Switch and your PC.

3.1.2 Terminal Emulation Setup Program

In Windows 98/2000/XP, launch "HyperTerminal", create a new connection, and adjust settings as below:
Emulation: VT-100 compatible
Baud per second: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow Control: None
To get a demonstration, please see the figure 3-1.
Figure 3-1 Console Port Settings for smart functions

3.1.3 Power-up Self-test Status

As the Switch powers on, it goes through a self-test process to ensure proper operations of the Switch hard-ware. The
messages will be displayed to show the test progress. When the test completes successfully, the system will display a login
screen. If any of the components fails during the test, you may need to contact your local dealer and have the Switch
replaced. Figure 3-2 shows a successful Self-test menu of the Power-up System Self-diagnostic Process.
Figure 3-2 Power-up System Self-diagnostic screen

3.1.4 Login

After the self-test completes successfully, the screen in figure 3-3 appears. Login is required to access the console interface.
The factory default username is "admin" without password. You may change it in the Misc Configuration. To access to the
Main Menu, please always enter the correct username and password.
Figure 3-3 Switch Console Login screen

3.2 Getting Started

3.2.1 General Guidelines

Switch allows users to configure the device via menu screens.
To work within the menu, please follow the guidelines shown in Table 3-1.
Item Description
Value 0-9 Choose one item from the console screen.
Tab Key Choose next item from the console screen.
Arrow Key ↑↓← → means up, down, left, right .
Backspace Key Back to previous item from the console screen.
Enter Key Access the highlighted item from the console screen.
Space Bar When a List item is performed, the Space key starts the
selection and scrolls through the available choices.
Esc Return to the actions menu.
Table 3-1 General Guideline within the Menu

3.2.2 Main Menu Screen

The main menu enables you to view and manage the Switch settings. Use the "Tab" keys to move the highlight over a
selection. Press "Enter" key for chooses Smart function of Switch. After entering into any smart function screen, choose
<Edit> for configuring. Then Press the "Space Bar" to toggle back and forth between the options. After setup completed,
press "Esc" key to return to Actions menu and use the "Tab" key to choose the <Save> for save the current configuration.
You can also choose each function through press the value 0-9 on your keyboard. Please refer to figure 3-4 for available
options on main menu.
Figure 3-4 Main Menu Screen
1. Port Status
Display the port status, which allow you to view the port disable/enable status, current link status, speed/duplex mode, flow
control status. This function is explained in section 3.2.3.
2. Port Configuration
Allow user to disable/enable each port, Auto-negotiation disable/enable on each port, per port 10/100Mbps full and half
duplex mode selection. Flow control disable/enable on each port. This function is explained in section 3.2.4.
3. Trunk Configuration
Allow user to enable the trunk function and configure. This function is explained in section 3.2.5.
4. VLAN Configuration
Allow user to enable the port-based VLAN function and configure. This function is explained in section 3.2.6.
5. Port Mirroring Configuration
Allow user to enable the port mirroring function and con figure. This function is explained in section 3.2.7.
6. QoS Configuration
Allow user to enable the QoS function and configure. This function is explained in section 3.2.8.
7. Bandwidth Control
Allow user to enable the bandwidth control function and configure. This function is explained in section 3.2.9.
8. Misc Configuration
Allow user to configure the advanced function. This function is explained in section 3.2.10.
9. PoE Configuration
Allow user to configure the Power over Ethernet function. This function is explained in section 3.2.11.
0. Logout
Allow user to logout the Switch console interface. This function is explained in section 3.2.12.

3.2.3 Port Status

Press 1 on your keyboard or use the "Tab" key to move the highlight to the Port Status and press "Enter" to access the
screen of Port Status from the Main Menu screen (please see the figure3-4). The screen of Port Status in figure 3-5 appears.
Table 3-2 describes the Port Status objects of Switch. This menu allows you to view the port status of the Switch.
Figure 3-5 Port Status Screen
Object Description
Port Indicate port 1 to port 24, and 2-module slot.
Enable Display disable or enable on each port.
Link Display current link status on each port.
Spd/Dpx Display current speed duplex mode on each port.
Flow Ctrl Display current flow control status on each port.
Table 3-2 Descriptions of the Port Status screen Objects

3.2.4 Port Configuration

Press 2 on your keyboard or use the "Tab" key to move the highlight to the Port Configuration and press "Enter" to access
the screen of Port Configuration from the Main Menu screen (please see the figure3-4).
The screen of Port Configuration in figure 3-6 appears. Table 3-3 describes the Port Configuration objects. This menu
allows you to change the port configuration of the Switch. The user can disable/enable each port and determine each port's
auto-negotiation, mode, speed, duplex mode, flow control. Use the "Tab" key to choose the <Edit> then press "Enter". Then
start to modify these settings. Use the "Tab" key to move the highlight to the object and press the "Space Bar" key to toggle
back and forth between the options. After setup completed, press "Esc” key to return to Actions menu and use the "Tab" key
to choose the <Save> for saving the current configuration.
Figure 3-6 Port Configuration Screen
Object Description
Port Indicate port 1 to port 24, and 2-module slot.
Enable Display disable or enable on each port.
Link Display current link status on each port.
Spd/Dpx Display current speed duplex mode on each port.
Flow Ctrl Display current flow control status on each port.
Table 3-3 Descriptions of the Port Configuration Screen Objects
Due to the hardware restriction, port #25/ port # 26 of the Switch does not allow configuring the speed and duplex mode. The
operation of the two ports will base on the table below.
Module-Slot / Port #25, #26 Module / Port Type Speed / Duplex
MII-TP 100Base-TX, RJ-45 Auto-negotiation
MII-GT / FGSW-2620PVS 10/100/1000Base-T, RJ-45 Auto-negotiation
MII-Sxx*1 100Base-FX, SC Force 100 Full-duplex mode
MII-ST 100Base-FX, ST Force 100 Full-duplex mode
MII-SA20/SB20 100Base-FX, Single SC Force 100 Full-duplex mode
MII-SX 1000Base-SX, SC Force 1000 Full-duplex mode
MII-LX, MII-Lxx*1 1000Base-LX, SC Force 1000 Full-duplex mode
Table 3-4 Operation of MII-series module
Note:
1. xx represents the maximum fiber-optic distance, for example MII-L40 for 40kilometers. For the available models, please
consult your local dealer for the available modules.
2. For fiber module/interface, please also check the link partner is set to forced full-duplex for the connection.

3.2.5 Trunk Configuration

Press 3 on your keyboard or use the "Tab" key to move the highlight to the Trunk Configuration and press "Enter" to
access the screen of Trunk Configuration from the Main Menu screen (please see the figure3-4).
The screen of Trunk Configuration in figure 3-7 appears. Table 3-5 shows the descriptions of the Trunk Configuration
screen Objects. The Port Trunk Configuration menu controls the port trunking or the so-called Link Aggregation function.
There are 7 Trunk groups in the Switch can be bundled together to form a high-speed trunk. Use the "Tab" key to choose the
<Edit> and press "Enter". Then start to modify these settings. Use the "Tab" key to move the highlight to the selection and
press the "Space Bar" key to toggle back and forth between the options. After setup completed, press "Esc" key to return to
Actions menu and use the "Tab" key to choose the <Save> for saving the current configuration.
Figure 3-7 Trunk Configuration Screen
Object Description
Trunk 1 to Trunk 7 Allow user to disable or enable trunk function in Trunk 1 to Trunk 7 groups.
Trunk Groups 1-7 From port 1 to port 24. Allow user to assign maximum 4 ports of each
Trunk group.
Table 3-5 Descriptions of the Trunk Configuration screen Objects

3.2.6 VLAN Configure

Press 4 on your keyboard or use the "Tab" key to move the highlight to the VLAN Configuration and press "Enter" to
access the screen of VLAN Configuration from the Main Menu screen (please see the figure3-4).
The screen of VLAN Configuration in figure 3-8 appears. Table 3-6 shows the descriptions of the VLAN Configuration
Menu Objects.
Loading...
+ 39 hidden pages
