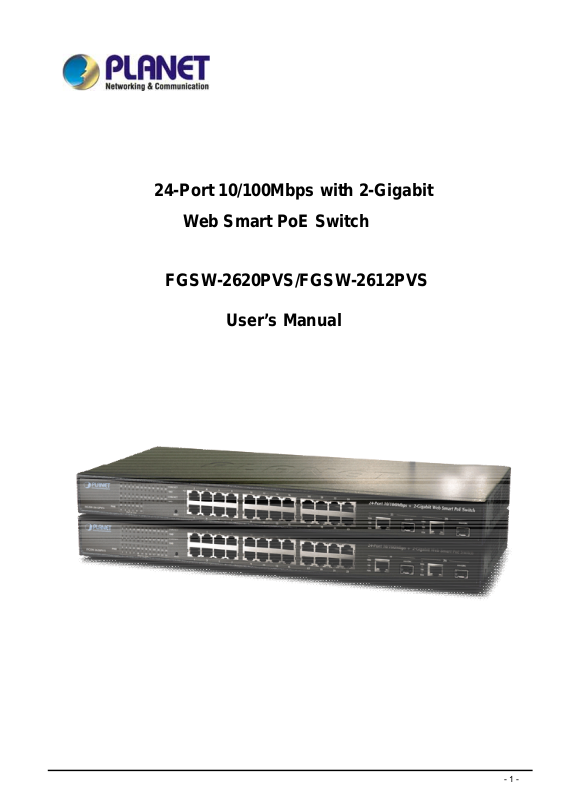

Planet Technology FGSW-2620PVS, FGSW-2612PVS User Manual
24-Port 10/100Mbps with 2-Gigabit
Web Smart PoE Switch
FGSW-2620PVS/FGSW-2612PVS
User’s Manual
- 1 -
Trademarks
Copyright © PLANET Technology Corp. 2006.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective
owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications,
and makes no warranty and representation, either implied or expressed, with respect to the quality, performance,
merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the
part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s
Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and
reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s
Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the Instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET 24-Port 10/100Mbps with 2-Gigabit Web Smart PoE Switch User's Manual
FOR MODELS: FGSW-2620PVS / FGSW-2612PVS
REVISION: 2.0(NOVEMBER.2006)
Part No.: 2080-A31120-001
- 2 -
TABLE OF CONTENTS
1. INTRODUCTION.......................................................................................................................................... 4
1.1 CHECKLIST .................................................................................................................................................. 4
1.2 ABOUT THE SWITCH ..................................................................................................................................... 4
1.3 FEATURES ................................................................................................................................................... 5
1.4 SPECIFICATION ............................................................................................................................................ 5
2. HARDWARE DESCRIPTION......................................................................................................................7
2.1 FRONT PANEL .............................................................................................................................................. 7
2.2 REAR PANEL................................................................................................................................................ 8
2.3 HARDWARE INSTALLATION ............................................................................................................................ 8
3. SWITCH MANAGEMENT..........................................................................................................................11
3.1 OVERVIEW ................................................................................................................................................. 11
3.2 MANAGEMENT METHOD.............................................................................................................................. 11
3.2.1 Web Management...........................................................................................................................11
3.3 LOGGING ON TO THE FGSW-2620PVS / FGSW-2612PVS ........................................................................ 11
4. WEB MANAGEMENT.................................................................................................................................12
4.1 LOGIN IN TO THE SWITCH ............................................................................................................................ 12
4-2 PORT STATUS............................................................................................................................................ 13
4-3 PORT CONFIGURATION ............................................................................................................................... 14
4-4 TRUNK CONFIGURATION ............................................................................................................................. 16
4-5 VLAN CONFIGURATION .............................................................................................................................. 18
4.5.1 Enable port-based VLAN function and add a port-based VLAN group..........................................18
4.5.2 Edit existence port-based VLAN group...........................................................................................22
4.5.3 Delete existence port-based VLAN group......................................................................................23
4.5.4 Disable port-based VLAN function..................................................................................................25
4-6 PORT MONITORING .................................................................................................................................... 28
4-7 QOS CONFIGURATION ................................................................................................................................29
4-8 PORT COUNTERS ....................................................................................................................................... 32
4-9 ACCESS CONTROL LIST.............................................................................................................................. 33
4-10 WEB SMART FUNCTION ............................................................................................................................ 41
4-11 MISC OPERATION..................................................................................................................................... 46
4.11.1 Switch Configuration.....................................................................................................................47
4.11.2 TFTP Firmware Upgrade..............................................................................................................50
4.11.3 Password Setting..........................................................................................................................51
4.11.4 IP Configuration............................................................................................................................52
4.11.5 Factory Default..............................................................................................................................53
4.11.6 Reboot System..............................................................................................................................55
4.11.7 System Information.......................................................................................................................57
4-12 POE CONFIGURATION .............................................................................................................................. 58
4.12.1 POE Ports Config..........................................................................................................................59
4.12.2 POE Port Status............................................................................................................................ 60
4-13 LOGOUT .................................................................................................................................................. 61
5. SWITCH OPERATION................................................................................................................................64
5.1 ADDRESS TABLE ........................................................................................................................................ 64
5.2 LEARNING .................................................................................................................................................. 64
5.3 FORWARDING & FILTERING ......................................................................................................................... 64
5.4 STORE-AND-FORWARD............................................................................................................................... 64
5.5 AUTO-NEGOTIATION ................................................................................................................................... 64
6. TROUBLESHOOTING................................................................................................................................65
APPENDIX A NETWORKING CONNECTION...............................................................................................66
A.1 SWITCH‘S RJ-45 PIN ASSIGNMENTS ........................................................................................................... 66
A.2 RJ-45 CABLE PIN ASSIGNMENT ................................................................................................................... 66
- 3 -
1. INTRODUCTION
1.1 Checklist
Check the contents of your package for followi ng parts:
z FGSW-2620PVS or FGSW-2612PVS x1
z User's manual CD x1
z Quick installation guide x1
z Power cord x 1
z Rubber feet x 4
z Rack mount accessory x 1
If any of these pieces are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the original packing material, and use them against to repack the product in case there is a need to return it to us
for repair.
In the following section, the term “Web Smart PoE Switch” means the two Switch devices, ie. FGSW-2620PVS and
FGSW-2612PVS; term of “switch” can be any third switches.
1.2 About the Switch
The Web Smart PoE Switches provides 24 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP combo ports, the two
Gigabit ports either can be 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable)
interface. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode fiber), up to above 10/50/70/120
kilometers (Single-mode fiber).
Both Web Smart PoE Switches are equipped with non-blocking 8.8Gbps backplane greatly simplifies the tasks of upgrading
your LAN to cater for increased bandwidth demands. The PoE in-line power following the standard IEEE 802.3af, makes the
both Web Smart PoE Switches able to power on 12/24 PoE devices at the distance up to 100 meters through the 4-pair Cat
5/5e UTP wire.
For efficient management, the Web Smart PoE Switch is equipped with web interface. The two Web Smart PoE Switches
can be programmed for basic switch management functions such as port speed configuration, Port Trunking, Port-based
VLAN, Port Mirroring, QoS, bandwidth control, Access Control list and Misc Configuration.
The Web Smart PoE Switch provides port-based VLAN (including overlapping). The VLAN groups allowed on the 2 Web
Smart PoE Switches will be maximally up to 26 for port-based VLAN. Via supporting port trunking, the Web Smart PoE
Switch allows the operation of a high-speed trunk combining multiple ports. The Web Smart PoE Switch provides seven
groups of up to 8-ports for trunking, and it supports fail-over as well.
With its Auto-Negotiation capability, all the RJ-45/STP ports of Web Smart PoE Switch can be configured to speeds of
10/20Mbps or 100/200Mbps automatically. In addition, the product is equipped with the MDI/MDI-X auto detection for easily
plug and play connection, regardless of cabling types-straight through or crossover.
- 4 -
1.3 Features
◆ Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3z and IEEE 802.3ab Gigabit Ethernet standard
◆ 24-Port 10/100Mbps Fast Ethernet Switch
◆ 2-Port Gigabit TP/SFP combo ports
◆ 12-Port PoE( FGSW-2612PVS) and 24-Port PoE( FGSW-2620PVS)
◆ Each Switching ports support auto-negotiation-10/20, 100/200Mbps supported
◆ Supports IEEE 802.3af 15.4 watts power output on each port
◆ Auto-MDI/MDI-X detection on each RJ-45 port
◆ Prevents packet loss with back pressure (half-duplex) and 802.3x PAUSE frame flow control (full- duplex)
◆ High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous
packets to optimize the network bandwidth
◆ 8K MAC address table, automatic source address learning and ageing
◆ 512K Bytes packet buffers
◆ Web interface for Switch basic management and setup
◆ Support up to 26 port-based VLAN groups
◆ Support up to 7 Trunk groups, each trunk for up to maximum 8 port with 800Mbps bandwidth
◆ Port mirroring allows monitoring of the traffic across any port in real time
◆ Support QoS and bandwidth control on each port
◆ Supports Access Control List function
◆ 19-inch rack mount size
◆ Internal full-range power supply suitable for worldwide use
◆ EMI standards comply with FCC, CE class A
1.4 Specification
Product FGSW-2620PVS FGSW-2612PVS
Hardware Specification
Ports 24 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
Module Slots 2 Gigabit TP/SFP combo ports
PoE ports
Switch Processing Scheme Store-and-forward
Throughput (packet per second) 6.547Mpps
Switch fabric 8.8Gbps
Address Table 8K entries
24( port 1 to port 24)
12( port 1 to port 12)
Share data Buffer 512K Bytes
Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Dimensions 440 x 265 x 44 mm, 1U height
Weight 3.87kg 3.51kg
Power Requirement 100~240V AC, 50-60 Hz
Power Consumption /
Dissipation
13.5 Watts maximum / 46 BTU/hr maximum
- 5 -
PoE power Consumption /
Dissipation
Temperature Operating: 0~50 degree C, Storage -40~70 degree C
Humidity Operating: 10% to 90%, Storage: 5% to 95% (Non-condensing)
Smart function
System Configuration Web interface
260 Watts maximum / 887 BTU/hr
maximum
130 Watts maximum / 443 BTU/hr maximum
Port Status
Port Configuration
Trunk Configuration
VLAN Configuration
Port Monitoring
QoS Configuration IEEE 802.1p QoS on each port
Port counters Display detail traffic counters on each port
Access Control List Supports up to 16 Access Control list group
PoE Ports configuration Per PoE port disable / enable and power feeding priority assign
PoE Ports Status Per PoE port status such as Enable or disable, power consumption and current.
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance
Display per port’s disable/enable status, per port’s link status and speed duplex
mode. Also the Flow control status
Per port disable/enable, Auto-negotiation disable/enable. 10/100Mbps full and half
duplex mode selection. Flow control disable/enable and bandwidth control on each
port
Support 7 groups of 8-Port trunk support
Maximum up to 26 VLAN groups for port-based VLAN
One Mirroring port to monitor one mirrored port. The monitor modes are RX, TX and
RX & TX
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab(Gigabit Ethernet)
IEEE 802.3z(Gigabit Ethernet)
IEEE 802.3af Power over Ethernet
IEEE 802.3x (Full-duplex flow control)
IEEE 802.1p QoS
- 6 -
2. HARDWARE DESCRIPTION
This product provides three different running speeds – 10Mbps, 100Mbps and 1000Mbps in the same Web Smart PoE
Switch and automatically distinguishes the speed of incoming connection.
This section describes the hardware features of Web Smart PoE Switch. For easier management and control of the Web
Smart PoE Switch, familiarize yourself with its display indicators, and ports. Front panel illustrations in this chapter display
the unit LED indicators. Before connecting any network device to the Web Smart PoE Switch, read this chapter carefully.
2.1 Front Panel
The Front Panel of the Web Smart PoE Switch consists of 24x Auto-Sensing 10/100Mbps Ethernet RJ-45 Ports, the Web
Smart PoE Switch provides 2 Gigabit TP/SFP combo ports either can be 1000Base-T for 10/100/1000Mbps or
1000Base-SX/LX through SFP (Small Factor Pluggable) interface.
The LED Indicators are also located on the front panel of the Web Smart PoE Switch.
Figure 2-1: FGSW-2620PVS Switch front panel
Figure 2-2: FGSW-2612PVS Switch front panel
2.1.1 LED indicators
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
Per 10/100Mbps port
LED Color Function
LNK/ACT Green Lights to indicate the link through that port is successfully established.
100 Orange Lights to indicate the port is running in 100Mbps speed.
Per PoE port
LED Color Function
PoE In-use Green Light: indicate the port is providing 15.4 watts power output to remote Powered Device.
Per 10/100/1000Base-T port /SFP interfaces
LED Color Function
Lit: indicate that the port is operating at 1000Mbps.
LNK/ACT
1000
Green
Off: indicate that the port is operating at 10Mbps or 100Mbps.
Blink: indicate that the switch is actively sending or receiving data over that port.
Lit: indicate that the port is operating at 100Mbps.
LNK/ACT
100
FDX Green
- 7 -
Green
Off: indicate that the port is operating at 10Mbps or 1000Mbps.
Blink: indicate that the switch is actively sending or receiving data over that port.
Lit: indicate that the port is operating at full-duplex mode.
Off: indicate that the port is operating at half-duplex mode.
#Notice:
1. Press the RESET button once. The Web Smart PoE Switch will reboot automatically.
2. Press the RESET button for 5 seconds. The Web Smart PoE Switch will back to the factory default mode; the entire
configuration will be erased.
3. The 2 Gigabit TP/SFP combo ports are shared with port 25/26 of Web Smart PoE Switch. Either of them can operate at
the same time.
2.2 Rear Panel
The rear panel of the Web Smart PoE Switches indicates an AC inlet power socket, which accepts input power from 100 to
240VAC, 50-60Hz.
100~240V AC
ON
OFF
POWER
50 / 60Hz
Figure 2-3: FGSW-2620PVS Switch rear panel
100~240V AC
ON
OFF
POWER
50 / 60Hz
Figure 2-4: FGSW-2612PVS Switch rear panel
Power Notice:
1. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the
time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data loss
or network downtime.
2. In some area, installing a surge suppression device may also help to protect your Web Smart PoE Switch from being
damaged by unregulated surge or current to the Web Smart PoE Switch.
2.3 Hardware Installation
This part describes how to install your Web Smart PoE Switch and make connections to the Switch. Please read the following topics and perform the procedures in the order being presented. To install your Web Smart PoE Switch on a desktop
or shelf, simply completed the following steps.
2.3.1 Desktop Installation
To install Web Smart PoE Switch on a desktop or shelf, simply completed the following steps:
Step 1: Attached the rubber feet to the recessed areas on the bottom of the Web Smart PoE Switch.
Step 2: Place the Web Smart PoE Switch on a desktop or shelf near an AC power source.
Step 3: Keep enough ventilation space between the Web Smart PoE Switch and the surrounding objects.
#Notice:
When choosing a location, please keep in mind the environmental restrictions discussed in Chapter 1, Section 4, Specification.
Step 4: Connect your Switch to network devices.
A. Connect one end of a standard network cable to the 10/100 RJ-45 ports on the front of the Web Smart PoE Switch.
B. Connect the other end of the cable to the network devices such as printer servers, workstations or routers…etc.
#Notice:
Connection to the Web Smart PoE Switch requires UTP Category 5 network cabling with RJ-45 tips. For more information,
please see the Cabling Specification in Appendix A.
Step 5: Supply power to the Web Smart PoE Switch.
A. Connect one end of the power cable to the Web Smart PoE Switch.
B. Connect the power plug of the power cable to a standard wall outlet then power on the Web Smart PoE Switch.
- 8 -
When the Web Smart PoE Switch receives power, the Power LED should remain solid Green.
2.3.2 As a department / workgroup PoE Switch
Providing up to 12 / 24 PoE, in-line power interface, the Web Smart PoE Switch can easily build a power central-controlled
IP phone system, IP Camera system, AP group for the enterprise. For instance, 12 / 24 camera / AP can be easily installed
around the corner in the company for surveillance demands or build a wireless roaming environment in the office. Without
the power-socket limitation, the switch makes the installation of cameras or WLAN AP more easily and efficiently.
Figure 2-5. PoE Switch connection
2.3.3 Rack Mounting
To install the Web Smart PoE Switch in a 19-inch standard rack, follow the instructions described below.
Step 1: Place your Web Smart PoE Switch on a hard flat surface, with the front panel positioned towards your front side.
Step 2: Attach a rack-mount bracket to each side of the Web Smart PoE Switch with supplied screws attached to the
package. Figure 2-6 shows how to attach brackets to one side of the Web Smart PoE Switch.
Figure 2-6 Attaching the brackets to the Web Smart PoE Switch
Caution:
You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect screws would
invalidate your warranty.
Step 3: Secure the brackets tightly.
Step 4: Follow the same steps to attach the second bracket to the opposite side.
- 9 -
Step 5: After the brackets are attached to the Web Smart PoE Switch, use suitable screws to securely attach the brackets to
the rack, as shown in Figure 2-7.
Figure 2-7 Mounting the Web Smart PoE Switch in a Rack
Step 6: Proceed with the steps 4 and steps 5 of section 2.3.1 Desktop Installation to connect the network cabling and
supply power to your Web Smart PoE Switch.
- 10 -
3. SWITCH MANAGEMENT
This chapter describes how to manage the Web Smart PoE Switch. Topics include:
- Overview
- Management method
- Logging on to the Web Smart PoE Switch
3.1 Overview
The Web Smart PoE Switch provides a user-friendly, web interface. Using this interface, you can perform various switch
configuration and management activities, including:
Please refer to the following Chapter 4 for the details.
3.2 Management Method
User can manage the Web Smart PoE Switch by Web Management via a network connection.
3.2.1 Web Management
You can manage the Web Smart PoE Switch remotely by having a remote host with web browser, such as Microsoft Internet
Explorer or Netscape Navigator.
Using this management method:
The Web Smart PoE Switch must have an Internet Protocol (IP) address accessible for the remote host.
3.3 Logging on to the FGSW-2620PVS / FGSW-2612PVS
When you log on to the Web Smart PoE Switch Web interface for the first time, a sign-on string appears and you are
prompted for a Web login username and password.
The factory default login username and password is admin.
#Notice:
1. For security reason, please change and memorize the new password after this first setup.
2. Only accept command in lowercase letter under Web interface.
- 11 -
4. WEB MANAGEMENT
To modify your PC’s IP domain to the same with Web Smart PoE Switch then use the default IP address (192.168.0.100) to
remote configure Web Smart PoE Switch through the Web interface.
#Notice:
The following section will base on the web screens of FGSW-2620PVS, for FGSW-2612PVS the display will be the same to
FGSW-2620PVS.
4.1 Login in to the Switch
To access the Web-browser interface you must first enter the user name and password, the default user name and password
is "admin”. You will see the following screen comes out on the Web browser program:
Figure 4-1 Web login screen
After the User name and Password is entered, you will see the web main menu screen.
- 12 -
Figure 4-2 Web main menu screen
4-2 Port Status
This section provides current status of each port from Web Smart PoE Switch, the screen in Figure 4-3 appears and table
4-1 describes the port status objects of Web Smart PoE Switch.
Figure 4-3 Port Status Web Page screen
- 13 -
Object Description
Port
Enable
Link Status
Spd/Dpx
Flow Control
Refresh button
Indicate port 1 to port 26.
Display the port Disable or Enable state of each port on Web Smart PoE Switch.
The state of the link, indicating a valid link partner device. "Up" means a device is successful con-
nected to the port. “Down” means no device is connected.
Display the Speed duplex mode of each port on Web Smart PoE Switch.
Display the flow control On or Off state of each port on Web Smart PoE Switch.
Press this button for refresh current status of each port on Web Smart PoE Switch.
Table 4-1 Descriptions of the Port Status screen Objects
4-3 Port Configuration
This section introduces detail settings of per port on Web Smart PoE Switch; the screen in Figure 4-4 & 4-5 appears and
table 4-2 describes the Port Configuration objects of Web Smart PoE Switch.
Figure 4-4 Port Configuration Web Page screen
- 14 -
Object Description
Port
Enable
Auto
Spd/Dpx
Flow Control
InRate
OutRate
Apply button
Indicate port 1 to port 26.
Per port Disable or Enable on Web Smart PoE Switch.
Per port Disable (Off) or enable (On) Auto negotiation on Web Smart PoE Switch.
Adjust per port speed duplex mode on Web Smart PoE Switch; the available options are Auto, 100F,
100H, 10F, 10H. Default mode is Auto.
Per port Flow control Disable (Off) or enable (On) on Web Smart PoE Switch. Default mode is On.
Input the value of packet rate sent from the connected port to this port must enable the flow control
feature of this port for the function to work normally. The available value ranges from 1 to 99 and rate
unit: 1Mbps.
Input the value of packet rate sent from this port to the connected port. The available value ranges
from 1 to 99 and rate unit: 1Mbps.
Press this button for save current configuration of each port on Web Smart PoE Switch.
Figure 4-5 Port Configuration Web Page screen
Table 4-2 Descriptions of the Port Configuration screen Objects
- 15 -
4-4 Trunk configuration
This function allows to configuring the trunk function. It provides up to 7 trunk groups and each trunk group provides 2 to 8
member ports. Please check the member port from “Normal” to 7 trunk groups and the screen in Figure 4-6 & 4-7 appears.
Figure 4-6 Trunk Configuration Web Page screen
Figure 4-7 Trunk Configuration Web Page screen
After setup completed, please press “Apply” button to take effect and the screen in Figure 4-8 appears.
- 16 -
Figure 4-8 Trunk Configuration Web Page screen
Please press “Back” for return to Trunk configuration screen for further configuration. If the member port from each trunk
group is out of range or less than 2 ports than the following screen appears.
Figure 4-9 Trunk Configuration Web Page screen
Please press “Back” for return to Trunk configuration screen for adds other trunk group.
- 17 -
4-5 VLAN configuration
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic so
only members of the VLAN receive traffic from the same VLAN members. The Web Smart PoE Switch supports 26
port-based VLAN groups. In the default configuration with VLAN disable, the screen in Figure 4-10 appears.
Figure 4-10 Port-based VLAN Setting Web Page screen
4.5.1 Enable port-based VLAN function and add a port-based VLAN group
Select “PortBased” and press “Apply” button, to enable the port-based VLAN function then the Web Smart PoE Switch will
reboot for take affect. The screen in Figure 4-11 appears.
- 18 -
Figure 4-11 Port-based VLAN Setting Web Page screen
Press “Relogin” to re-login the Web Smart PoE Switch and the screen in Figure 4-12 appears.
Figure 4-12 Port-based VLAN Setting Web Page screen
After login web interface of Web Smart PoE Switch and choose VLAN configuration, the screen in Figure 4-13 appears.
Figure 4-13 Port-based VLAN Configuration Web Page screen
- 19 -
Press “AddNew” button to add a port-based VLAN group and setup procedure is shown as below:
1. Input a VLAN group ID and available range is 1-4094.
2. Select specific port as member port and the screen in Figure 4-14 appears.
3. After setup completed, please press “Apply” button to take effect and the screen in Figure 4-15 appears.
4. Please press “Back” for return to VLAN configuration screen to add other VLAN group, the screen in Figure 4-16
appears.
Figure 4-14 Port-based VLAN Setting Web Page screen
- 20 -
Figure 4-15 Port-based VLAN Setting Web Page screen
Figure 4-16 Port-based VLAN Setting Web Page screen
- 21 -
Loading...
