4/16-Channel

H.264 Digital Video Recorder

DVR-470

DVR-1670

USER’S MANUAL

Page 1

may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language or computer language, in any form or by any means, electronic, mechanical, magnetic,

optical, chemical, manual or otherwise, without the prior written permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular

purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove

defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes

the entire cost of all necessary servicing, repair, and any incidental or consequential damages

resulting from any defect in the software. Further, PLANET reserves the right to revise this

publication and to make changes from time to time in the contents hereof without obligation to notify

any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or registered trademarks

of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

To assure continued compliance. (example-use only shielded interface cables when connecting to

computer or peripheral devices). Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two

conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this Device must accept

any interference received, including interference that may cause undesired operation.

Page 2

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In

order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human

proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it.

However, special attention must be paid to the dangers of electric shock and static electricity when

working with electrical equipment. All guidelines of this and of the computer manufacture must

therefore be allowed at all times to ensure the safe use of the equipment.

WEEE regulation

To avoid the potential effects on the environment and human health as a result of the

presence of hazardous substances in electrical and electronic equipment, end users of

electrical and electronic equipment should understand the meaning of the crossed-out

wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to

collect such WEEE separately.

Revision

User’s Manual for PLANET 4/16-channel H.264 Digital Video Recorder Model: DVR-470 / DVR-1670

Rev: 1.0 (March, 2007)

Part No. EM-DVR460_1670

Page 3

Content

Chapter1 Product Introduction..................................................................................................6

1.1 Summary ...................................................................................................................6

1.2 Features .....................................................................................................................6

Chapter2 Installation.................................................................................................................8

2.1 Checking the DVR and Its Accessories.....................................................................8

2.2 HDD Installation .......................................................................................................8

2.3 Rear Panel Description..............................................................................................9

2.4 External Alarm In/Out Connection .........................................................................10

Chapter3 Operational Instructions.......................................................................................... 11

3.1 Front Panel ..............................................................................................................11

3.2 IR Controller ...........................................................................................................13

3.3 Menu Description....................................................................................................15

3.3.1 Menu Items .....................................................................................................15

3.3.2 Menu Operation ..............................................................................................16

3.4 Character Input........................................................................................................18

Chapter4 Basic Operation Guide ............................................................................................19

4.1 Power on .................................................................................................................19

4.2 Preview....................................................................................................................19

4.3 User name and password.........................................................................................22

4.4 PTZ Control ............................................................................................................24

4.5 Manual Record........................................................................................................26

4.6 Playback ..................................................................................................................27

4.7 Backup Recorded Files ...........................................................................................31

4.8 Shut Down DVR .....................................................................................................33

Chapter5 Parameters Setup Guide ..........................................................................................34

5.1 Administrator and Password ...................................................................................34

5.2 Add and Delete User...............................................................................................36

5.3 Unit Name and Device ID.......................................................................................39

5.4 Video Output Standard and VGA Setup..................................................................40

5.5 OSD Setup...............................................................................................................41

5.6 Video Parameters Setup ..........................................................................................44

5.7 Mask Area Setup .....................................................................................................45

5.8 View Tampering Alarm...........................................................................................47

5.9 Video Loss Alarm....................................................................................................49

5.10 Motion Detection Alarm .........................................................................................51

5.11 Preview Properties ..................................................................................................54

5.12 Recording Setup......................................................................................................56

5.13 External Alarm Input and Relay Output..................................................................60

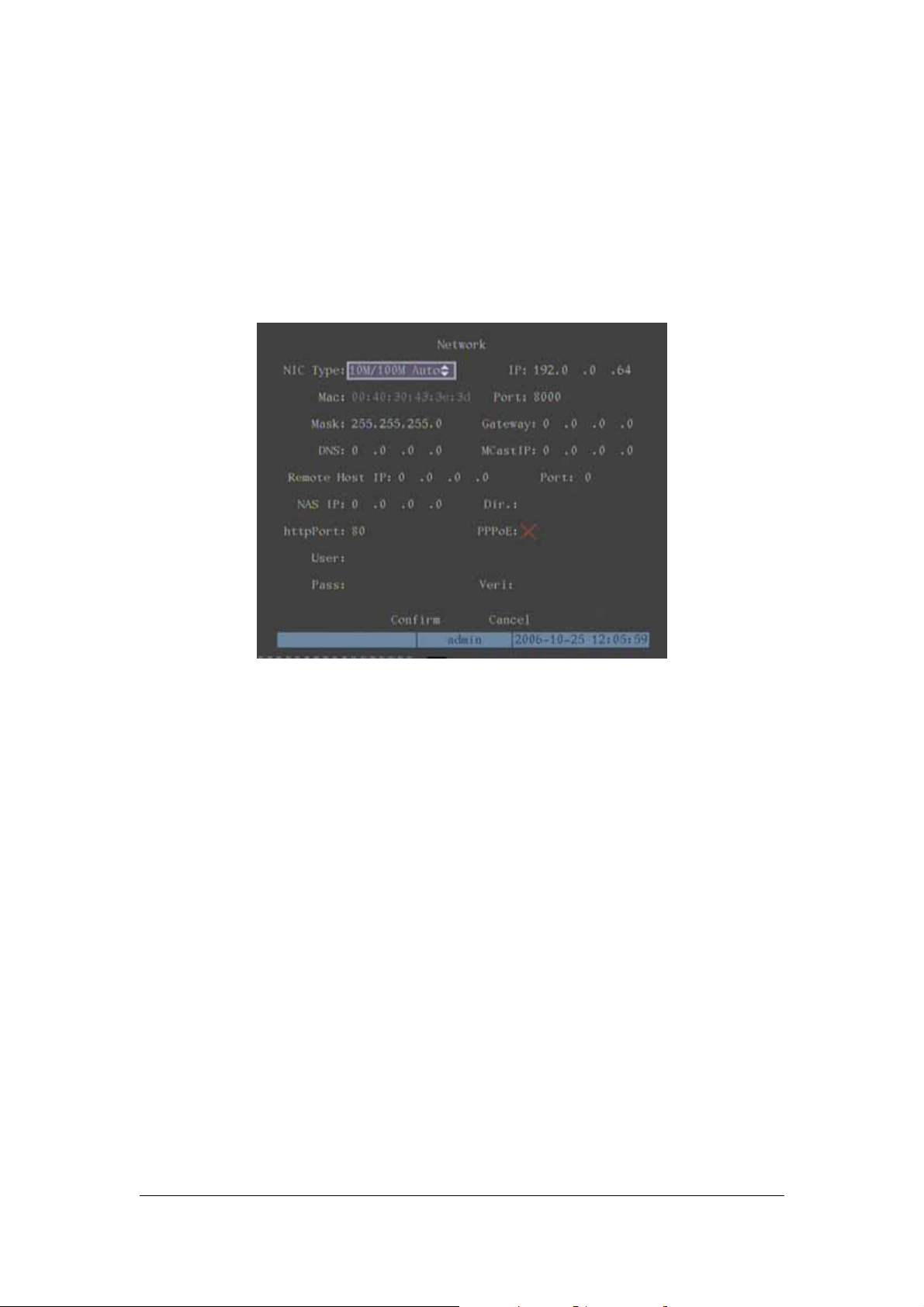

5.14 Network Parameters................................................................................................64

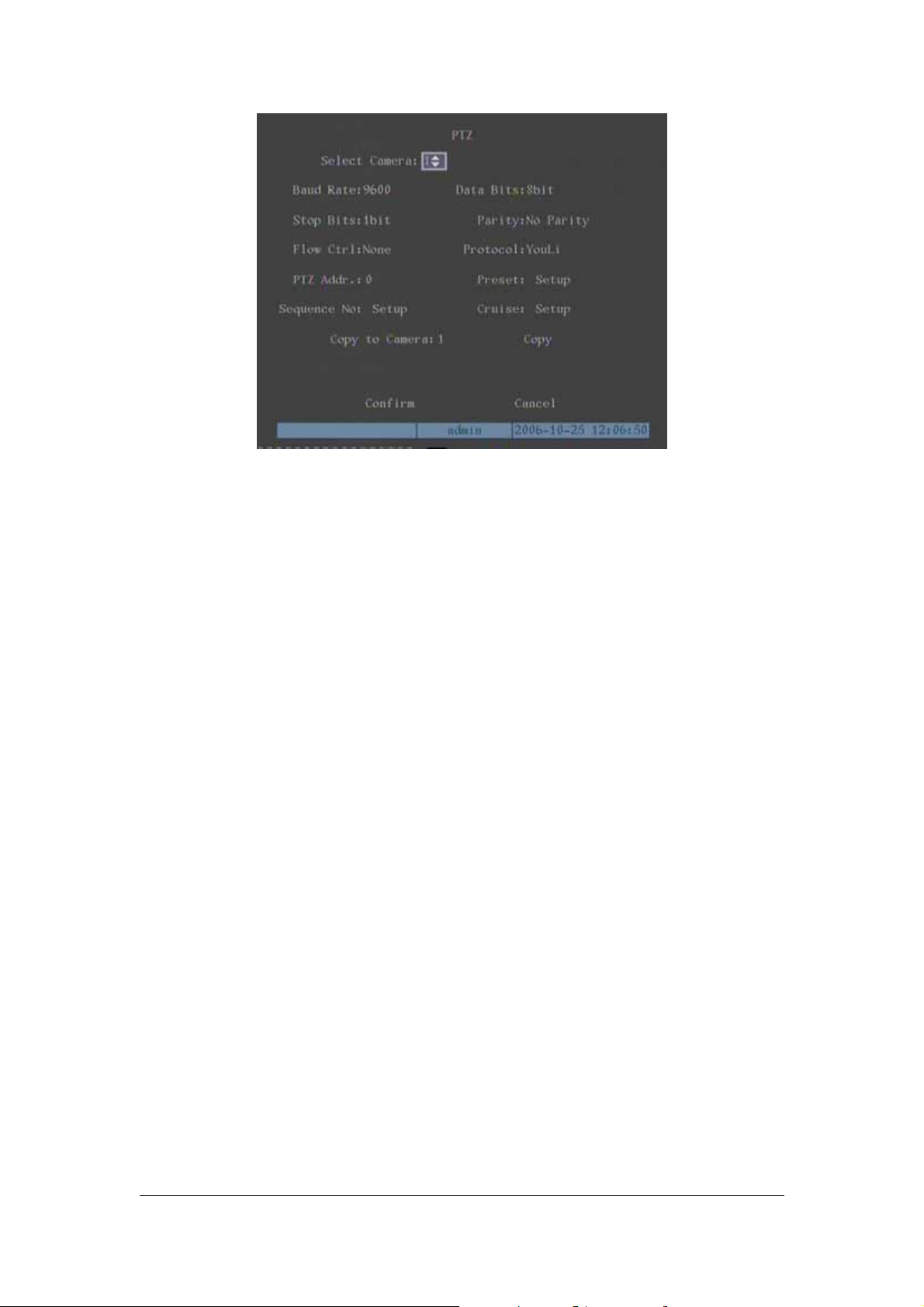

5.15 PTZ .........................................................................................................................65

5.16 RS232 setup ............................................................................................................70

5.17 Exceptions...............................................................................................................75

Page 4

5.18 Transaction Information..........................................................................................76

Chapter6 Utilities....................................................................................................................80

6.1 Save Parameters ......................................................................................................80

6.2 Restore Parameters..................................................................................................80

6.3 Upgrade...................................................................................................................81

6.4 Hard Disk Management ..........................................................................................82

6.5 Clear Alarm Out ......................................................................................................82

6.6 Reboot .....................................................................................................................82

6.7 Power Off................................................................................................................82

6.8 View Log .................................................................................................................82

6.9 System Information.................................................................................................85

Chapter7 Firmware Upgrade ..................................................................................................86

7.1 FTP Server Setup ....................................................................................................86

7.2 Upgrade Mode.........................................................................................................89

Appendix A DVR Connect Cable Definition ......................................................................90

1 UTP network connect cable made method..............................................................90

2 RS-232 connect cable made method.......................................................................91

Appendix B Specifications ..................................................................................................92

Appendix C List of Recommended DVR Peripherals.........................................................94

Appendix D Quick Search Function Table ..........................................................................96

Appendix E Troubleshooting ......................................................................................................98

Page 5

Chapter1 Product Introduction

1.1 Summary

DVR-470/DVR-1670 H.264 network digital video recorder is an excellent digital

surveillance product. It uses the embedded MCU and real time operating system, combining

the most advanced technology in Information Industry such as video and audio

encoding/decoding, hard disk record and TCP/IP. The firmware is burned in the flash, more

stable and reliable.

DVR-470/DVR-1670 has both the features of digital video recorder (DVR) and digital v

video server (DVS). It can work stand alone, also be used to build a powerful surveillance

network, widely used in bank, telecommunication, transportation, factories, warehouse,

irrigation, etc.

1.2 Features

Compression

z Support max. 16 channels video input (PAL/NTSC) at most. Each channel is

independent, H.264 hardware compression. For DVR-470 , total frame is 100FPS (PAL)

or 120FPS (NTSC). For DVR-1670, total frame is 200FPS (PAL, first 8-ch 100FPS and

second 8-ch 100FPS) or 240FPS (NTSC, first 8-ch 120FPS and second 8-ch 120FPS).

Support both variable bitrate and variable frame rate.

z Support 4 channels audio inputs. Each channel is independent, OggVorbis compression

and bitrate is 16Kbps.

z Compressed video and audio are synchronous. You can select either mixed stream or

only video stream.

z Support video loop. z Support CIF and QCIF resolution. z Support multi area motion detection. z Support OSD and changeable OSD position. z Support LOGO and changeable LOGO position.

Local functions Record

z Support multiple record type, including real time, manual record, motion detection,

external alarm, motion&alarm, motion|alarm.

z Support max. 4 IDE HDDs and each HDD can max support 2000GB. z Support FAT32 file system. z Support HDD S.M.A.R.T technology.

Page 6

z Support cycle or none cycle record. z Support backup the recorded files and clips. Support USB memory, USB HDD, USB

CD-R/W, USB DVD-R/W, IDE CD-R/W and IDE DVD-R/W.

Preview and playback

z Support analog monitor and VGA output. z Support multiple preview modes. z Support sensitive area mask. z Support camera spiteful block alarm. z Support one channel play back by files or by time. z Display local record status.

PTZ

z Support many kinds of PTZ protocol. z Support preset, sequence and cruise.

Alarms

z Support exception alarm, motion detection alarm, external alarm, etc.

Others

z Support IR control. z Support multi-level user management.

Network

z Support TCP, UDP, RTP, and Multicast for network preview. z Support PPPoE for board band dialup. z Support PSTN for narrow band dialup. z Support remote parameters setup. z Alarm information can be sent to remote center. z Network control PTZ. z Network record live stream. z Network download and playback the recorded files in DVR. z Remote upgrade the firmware. z RS-232 supports transparent channel function so that the remote PC can use DVR to

control serial devices.

z Support IE to preview and config DVR. z Support log.

Development support

z Provide network SDK. z Provide client demo source code.

Page 7

Chapter2 Installation

Warning：Before you install the DVR, please make sure the power of DVR is off.

2.1 Checking the DVR and Its Accessories

When you get the product, check that all the items are included in your product package.

There is a list in the package. If any of the items is missing, please contact your dealer.

2.2 HDD Installation

Installation notice

The DVR has not HDD when leaving factory. Based on the record schedule, you can

calculate the total capacity you need (refer to Appendix A). Please ask the specialist to

disassembly the DVR and install HDD.

Installation instrument

One cross screw driver

HDD installation

1. Open the DVR box.

2. If you want to install 2 HDD for one IDE interface, please set master and slaver HDD. If

you want to install 4 HDD, please remove CD-R/W mount bracket.

3. Place the HDD on the soleplate and fix it with screw.

4. Connect the ATA data cable correctly. The cable has three connectors for DVR main

board, master HDD and slaver HDD.

5. Plug the HDD power connector.

6. Cover and fix the DVR box.

Note：After you install the HDD, you must format them. Please refer to section 6.4.

Page 8

2.3 Rear Panel Description

Notice：Please refer to real product for different model.

DVR-470 Rear Panel

DVR-1670 Rear Panel

Index Physical Interface Description

Video Input

Video Output

Audio Output

Audio input

Video Loop out

VGA Interface

RS-232

UTP Network Interface

Standard BNC.

Connect monitor, output video and menu.

1 channel RCA (1.0 Vp-p, 75

4 channel RCA (1.0 Vp-p, 75

DVR-1670 uses DB15 connectores. DVR-470 uses on

board BNC connectors.

VGA display.

Connect RS-232 devices. Refer to Appendix B for pin

definition.

Connect network devices. Refer to Appendix B for pin

definition.

Ω) Ω)

RS-485

PTZ connection. Refer to Appendix B for pin definition.

Page 9

External Alarm Input

4/8/16 Alarm in.

Relay Output

AC Input

2/4 Alarm out

100V~240VAC

2.4 External Alarm In/Out Connection

Alarm input port：

G (GND)：Conenct the GND of sensor. 1~16：Alarm input, support normal open/normal close. 0：Reserved.

Alarm output： 1G~4G：4 relay output.

Alarm output connection

Please note the usage of jumper JJ1. If you use DC, either of connections is OK. We suggest

you to use those DC under 12V, 1A.

If you use AC, please open the jumper. There are 4 jumpers (JJ1, JJ2, JJ3 and JJ4) in DVR

main board, corresponding with 4 alarm output. The default is closed.

Warning：If you use AC input for relay output, please open the jumpers.

Page 10

Chapter3 Operational Instructions

3.1 Front Panel

n o

Index Type Name Description

State

Lamps

2 Lamp IR receiver.

Numeric

Keys

Function

Keys

READY

STATUS

ALARM

RECORD

NETWORK

Input number, lower case, upper case character and

ESC

EDIT

PLAY

DVR is ready.

Green means you can use IR remote control.

Red means there is alarm.

Twinkle in red means reading or writing HDD.

Network status.

symbols.

1. Switch preview mode into menu;

2. Brush control short key【WIPER】.

3. Press [MENU] for more than 5 seconds to cancel

button beep sound.

【ZOOM-】in PTZ control.

【ZOOM+】in PTZ control.

Cancel and back to parent menu.

1. In edit state, delete the current cursor character;

2. 【IRIS+】in PTZ control;

3. Select 9 or × to enable or disable.

1. Local playback;

2. 【AUTO】in PTZ control.

p q r

Page 11

Control

Keys

5 POWER

REC

PTZ

SHIFT

Direction

Keys

ENTER

POWER Device switch with power indicator lamp. Green

1. Manual record;

2. 【SHOT】in PTZ control (adjust preset).

1. Enter into PTZ control mode;

2. 【IRIS-】in PTZ control..

1. Multi screen preview switch;

2. Switch menu mode into preview;

【FOCUS-】in PTZ control.

1. Input switch (number, lower case, upper case

and symbol);

2. 【FOCUS+】in PTZ control;

3. In preview mode, display or hide the channel

status bar.

Switch between numeric keys and function keys

Composed of 【Ç】,【È】,【Å】 and 【Æ】.

1. Menu mode, use【Å】/【Æ】 select,【Ç】/【È】

to edit;

2. PTZ direction control;

3. Playback speed control.

1. Menu confirmation;

2. Select 9 or × to enable or disable;

3. Pause playback.

means DVR is working; Red means DVR is powered

off; No light means no power is supplied.

Please note that [SHIFT] button is used to switch between numeric keys and function keys.

Page 12

3.2 IR Controller

Index Name Description

1 POWER Turnoff device.

2 DEV Enable/Disable IR remote control

3 Numeric Keys Same as numeric keys of front panel.

4 EDIT Same as EDIT key of front panel.

5 A Same as A key of front panel.

6 REC Same as REC key of front panel.

7 PLAY Same as PLAY key of front panel.

8 INFO Same as INFO key of front panel.

9 VOIP Same as VOIP key of frint panel.

10 MENU Same as MENU key of front panel.

11 PREV Same as PREV key of front panel.

Direction Keys

ENTER

Same as direction keys and enter key

of front panel.

13 PTZ Same PTZ key of front panel.

14 ESC Same as ESC key of front panel.

Page 13

15 Reserved

16 F1 Same as【F1】key of front panel.

17 Lens control

IRIS, FOCUS ZOOM for lens

control.

18 F2 Same as【F2】key of front panel.

Loading the batteries into the IR controller

1. Remove the battery cover.

2. Insert the battery. Please take care that the poles (+ and -) are correctly positioned.

3. Replace the battery cover.

Start to use IR controller

Press【DEV】key, input the DVR device ID (default is “88”, can be changed in “Display” menu) and then press【ENTER】key. If the “STATUS” lamp of DVR front panel is turned into

green, it means you can use IR controller to operate this DVR.

Stop using IR controller When IR controller status is on, press【DEV】key again, the “STATUS” lamp will be turned

off. The IR controller can not control this DVR.

Switch the DVR off

When IR controller status is on, press【POWER】key for several seconds, the DVR will be

powered off.

When IR controller can not work normally

z Check batteries poles. z Check the remaining charge in the batteries. z Check IR controller sensor is mask.

Please change another IR controller to try again. It the problem is still existed, please

contact administrator.

Page 14

3.3 Menu Description

3.3.1 Menu Items

Menu Name

Display

Recording

Alarms

PTZ

Preview

Function

Unit name

Device ID

Require password

Screen saver

Video standard

Brightness

Menu transparency

VGA resolution

DST

Date and Time

Overwrite/Stop recording

Resolution and recording

parameters setup

Record schedule

PreRecord time

PostRecord time

Alarm input type (Normal

open/ Normal close)

Alarm response and PTZ

linkage

Alarm output and schedule

PTZ parameters

Preset setup

Sequence setup

Cruise setup

Preview mode

Switch time

Enable/Disable audio

preview

Preview layout

Menu Name


Network

Exceptions

RS232

User

Password

Function

Camera name and position setup

Adjust Brightness, Contrast, Hue

and Saturation

OSD Display mode, position and

OSD format setup

Mask area setup

View tampering area and

response setup

Video signal loss

Motion detection sensitivity, area

and response setup

DVR IP address

DNS IP

Multicast IP address

Remote host IP and port

NAS IP and directory

PPPoE username and password

Exceptions type

Exceptions response

RS232 parameters

RS232 work mode

Add or delete user

Password setup or modification

User rights setup

Page 15

Restore parameters

Upgrade firmware

HDD management

Clear alarm output

Reboot

Power off

View log

System information

Transaction

Text input mode

ATM IP address

ATM type

Text information

Utilities

3.3.2 Menu Operation

How to enter into menu mode

z Press【MENU】key to enter into DVR main menu. z Press【PLAY】short key to enter into playback menu. z Perss【REC】short key to enter into manual record menu. z Perss【PTZ】short key to enter into PTZ control interface.

Notes：You must input user name and password. The default user name is “admin” and

password is “12345”.

Main Menu Description

The main menu interface is following：

There is one small rectanglar frame named “Active Frame”. It can be moved from one icon to

another by using 【Æ】or【Å】key. When the “Active Frame” is located on one icon, you can press【ENTER】key to enter into the secondary menu. For example, move the “Active Frame” to “Image” icon, press 【ENTER】to enter into the secondary menu as following：

Page 16

Each menu contains different kinds of items. There is a small rectangular frame named

“Active Frame” which is pointing to the selected item. This “Active Frame” can be moved by

【Æ】or【Å】keys. There are such kinds of menu items：

1. Check Box：Provide 2 options, “9” means enable and “×” means disable. You can use

【ENTER】or【EDIT】key to switch over.

2. List Box：Provide more than 2 options. However, only one of them can be selected. You

can use【↑】and【↓】to select one option. For example, on the right side of “Select

Camera”, there is a list box for you to select one camera.

3. Edit Box：This is for you to input characters. Press【EDIT】key to enter into edit status,

you can input characters as following：

a) Press【A】key to select number, upper case, lower case or symbols; b) Use【Æ】and【Å】keys to move cursor; c) Use【EDIT】key to delete the charcter in front of cursor; d) Press【ENTER】or【ESC】to exit edit.

4. Button：Excute a special function or enter into next sub-menu. For example, press

“Policy” button to enter into sub-menu. Press【Confirm】to save parameters and return

to parent menu. Press

【Cancel】button to cancel and return to parent menu. The button in

grey means it can be operated only after it is enabled.

How to exit menu

Press【PREV】key to exit menu and return to preview mode.

Page 17

3.4 Character Input

In the menu interface, if you enter into edit status (for example, in the “camera name” edit

box), at the bottom of screen, the input status is appeared：

Here it means you can press numeric keys to input digital number.

Press【A】key to change input methods. You can select “number”, “Uppercase”, “Lowercase”

or “Symbol”.

Uppercase

Lowercase

Symbol

There are 24 symbols in all. They are divided into 4 pages, and you can use【0】key to turn

over page.

Page 18

Chapter4 Basic Operation Guide

4.1 Power on

Note：Please make sure the power supply matches DVR and AC cable connected correctly. Before switch DVR on, please connect one monitor with VOUT or VGA interface. Otherwise, you can not see graphic user interface and can not operate.

If【POWER】lamp is off, please do as following： Step1：Connect AC cable correctly; Step2：Switch on the power button on the real panel.

If【POWER】lamp is in red, just press【POWER】button to start DVR.

When DVR is started,【POWER】lamp is in green. On the monitor or VGA display, DSP and

HDD initialization process will be shown.

The first line represents DSP initialization. If the DSP icon is “×”, it means that the DSP is

initialized error, please contact administrator at once.

The second line represents HDD initialization. Icons of IDE1 master and slaver HDDs, IDE2

master and slaver HDDs, etc are displayed. If the HDD icon is “×”, it means the

corresponding HDD is not installed or not detected. If HDD is not detected, please contact

administrator.

Note：If HDD is not installed or not detected, DVR will beep for alarm. You can disable

the alarm option in “Exceptions” menu.

4.2 Preview

DVR will enter into preview mode after it is started.

On preview screen, you can see date, time, camera name and camera status icon.

Set system date and time in “Display” menu, referring to 5.2.9; Change camera name in

“Image” menu, referring to 5.3.2.

In the screen, it will display record and alarm status of each camera. These two kinds of

status will switch over automatically.

Press【A】key to display or hide the camera status bar.

Page 19

Camera record status is following：

Icon Icon Color Status Description

White No video signal

Yellow Vdieo input

Pink Manual recording

Green Real time recording

Blue Motion detect recording

Red External alarm recording

Page 20

Camera alarm status is following：

Icon Icon Color Status Description

White Video signal lost

Yellow View tampering alarm

Pink Motion&External alarm

Green No alarm

Blue Motion alarm

Red External alarm

Press numeric keys to switch over individual camera preview. If DVR has less than 10

channels, press one numeric key to switch corresponding channel. For example, press【2】key

to preview 2

to switch corresponding channel. For example, press 【0】【2】to preview 2 and press 【1】【2】keys to preview 12

camera. If DVR has 10 or more than 10 channels, press two numeric keys

camera.

Press【EDIT】key to manual cycle preview. You can set the auto preview mode in “Preview”

menu, referring to 5.11.

Press【PREV】key to switch multi-screen perview.

camera;

Page 21

4.3 User name and password

Note：When DVR is delivered from factory, there is only one default administrator

named “admin”, and password is “12345”. The administrator’s name can not be modified, while the password can be modified. The administrator can create 15 users and define their user rights.

Use【Ç】/【È】keys to select one user, perss【Æ】key to enter into “Password” edit box, input corresponding password, press【ENTER】key to exit edit box. The “Active Frame” will be moved to “Confirm” button. Press【ENTER】key to enter into main menu. If there is beeper

alarm, it means the user name and password are not matched. After three error times, DVR

will enter into preview mdoe.

Modify password

For those users created by admin, they can modify their password as following： Step1：Enter into main menu Press【MENU】key, in the login dialog, select your user name, input the correct password, you

can enter into the main menu.

Page 22

Setp 2：Enter into password modification menu Move the “Active Frame” to “Password” icon by using【Æ】/【Å】keys. Press【ENTER】 key to enter into following password menu：

Step 3：Input new password Press【EDIT】key to enter into edit box. You can use numeric keys to input new password. The password can be null. It also can be 16 numerals. Press【ENTER】to exit edit box, and

move to “Verify” item to input the verify password.

Note：In edit box, use 【Æ】/【Å】to move cursor and【EDIT】key to delete the numeral

in front of the cursor.

Step 4：Modify password successfully

Move the “Active Frame” to “Confirm” button, press【ENTER】key. If the password is

modified successfully, you will get the main menu. Or an error dialog will be pop up. You

can repeat step 3 to modify again.

Page 23

4.4 PTZ Control

Note：The user must have the “PTZ control” right.

PTZ control interface

In preview mode, press【PTZ】key, in the login dialog, select one user name and input the

correct password, you can enter into PTZ control interface.

In menu mode, press【PTZ】key, you can enter into PTZ control interface directly.

There is “PTZ Control” prompt in the PTZ control interface. The displayed camera name

means which channel’s PTZ is under control. For example, “Camera 01” means you are

controlling the 1

camera PTZ.

Select channel

In PTZ control mode, you can press numeric keys to select channel. If DVR has less than 10

channels, press one numeric key to select. For example, press【2】 key to selct 2 PTZ. If DVR has 10 or more than 10 channels, you must press two numeric keys to

select. For example, press【0】【2】to select 2

camera PTZ. After you select the camera PTZ, you can use the short keys to control

camera PTZ, and press【1】【2】to select

PTZ.

PTZ control keys description

Direction control keys：【↑】,【↓】,【←】,【→】; ZOOM control keys：【ZOOM+】,【ZOOM-】; FOCUS control keys：【FOCUS+】,【FOCUS-】; IRIS control keys：【IRIS+】,【IRIS-】; Adjust preset keys：【REC/SHOT】; Auto control key：【PLAY/AUTO】; Wiper control key：【WIPER/MENU】; Light control key：【LIGHT/F1】; Auxiliary device control key：【AUX/F2】

camera

Page 24

Adjust preset description

In PTZ control mode, press【REC/SHOT】key, and press the preset number (three numeric

keys), DVR will adjust the corresponding preset number. Repeat pressing【REC/SHOT】key,

and press the preset number, DVR will adjust that preset number.

When you exit PTZ control mode, the camera will stay at the current position.

Note：The PTZ preset number is set already. Please refer to PTZ menu for preset setup. V1.4

firmware can support 128 preset numbers at most.

Start/Stop auto in PTZ control mode

In PTZ control mode, press【PLAY/AUTO 】key to start PTZ auto function. Press

【PLAY/AUTO】key again to stop.

When PTZ is in auto mode, if you exit PTZ control mode, PTZ will continue auto

function.You must enter into PTZ control mode again, and press【PLAY/AUTO】key to stop.

Exit PTZ control mode

Press【ESC】or【ENTER】to exit and return preview mode.

Page 25

4.5 Manual Record

Note：The user must have the corresponding right, DVR has HDD and HDD is

formatted already.

Manual record

In preview mode, press【REC】key, in the pop-up login dialog, select the name and input the

correct password, you can enter into the “Manual Record” interface.

In menu mode, press【REC】key to enter into “Manual Record” interface directly.

Description

Manual record interface has following parts：channel number, channel status, start/stop record,

start all and stop all buttons.

Channel：List the channel number that DVR has. Status：Channel work status has 4 cases：

recording (including real time recording, alarm recording, motion detection recording). Red

means network tramsmission. Orange means both recording and network transmission.

Start/Stop：“9” means you can start corresponding channl recording. “×” menas you can

stop recording.

Start All：Press this button to start all channels recording. Stop All：Press this button to stop all channel recording.

Exit manual record

Press【ESC】key to enter into preview mode. Press【MENU】key to enter into main menu.

Press【PLAY】key to enter into playback menu. Press【PTZ】key to enter into PTZ control

mode.

means idle. Green means the channel is

Page 26

4.6 Playback

Note：The user must have “Playback” right.

Playback interface

In preview mode, press【PLAY】key, in the pop-up login dialog, select username and input

correct password, you can enter into “Playback” interface.

In menu mode, press【PLAY】key, you can enter into “Playback” interface directly.

Playback

Description

This series DVR only supports one channel playback,

Chan：Use【↑】or【↓】key to select one channel.

Rec T ype：Use【↑】or【↓】to select recorded files type. The file type options have “All”,

“All Time”, “Motion Detect”, “Alarm” and “Manual”.

Time Section：You can define the search time section. Move “Active Frame” to the time edit

box, use numeric keys to input the detail time.

Card Number：DVR can get text number through RS-232 or network port. The text is sent

from devices such as ATM machine, POS machine or others. DVR can overlay the text on the

real time image and record. You can use the text to search the recorded files and playback

them. Use the numeric keys to input the text number.

Search：Search the matched reorded files and display them in the list box. If there is not

matched file, a corresponding dialog box will be pop-up.

Page 27

Play by Time：Playback the recorded stream directly based on the time section.

Select Page：In the file list box, each page will only display 8 files. If the matched files are

more than 8, you can select page to list other files. 500 pages (4000 files) can be searched in

one time. You can use numeric keys or 【↑】【↓】keys to select page.

File List Box：List the matched files. File started time, file size are displayed in the list box. You can use【↑】【↓】keys to move the scroll bar to select file.

Backup Devices：You can select USB flash, USB HDD, USB CD-R/W or IDE CD-R/W to

backup the files or clips.

Copy：Start to backup.

Backup Today：Backup all recorded files of today.

Three kinds of playback mode

1. Search and playbck file：In the playback interface, you can select main channel, second

channel (2-ch palyback), record type, time section. Move “Active Frame” to “Search”

button and press【ENTER】key, DVR will search and list the matched files.

If the matched files are more than 8, you can use “Page No.” to select page (use numeric

keys or【↑】【↓】keys to select page). In the file list box, use【↑】【↓】keys to move the scroll bar to the file, press【ENTER】key to playback the file. If the second channel is

selected, these two channels can be playbak synchronously.

If DVR can not find the matched files, a failure dialog box will be pop-up.

2. Playback by Time：In the playback interface, select channel number, record type and time

section, move “Active Frame” to “Play” button, press【ENTER】key, DVR will start to

playback based on time section.

Page 28

3. Search by Card No and Playback file：In the playback interface, select channel number,

record type, enable card No. search option (“9”) and input the card number, move “Active Frame” to “Search” button, press【ENTER】key, DVR will search and list the matched files. If the matched files are more than 8, you can use numeric keys or【↑】【↓】keys to select page. Use【↑】【↓】keys to move scroll bar to the file, press【ENTER】key to playback

the selected file. If DVR can not find the matched files, a message dialog will be pop-up.

Operation when playback

Playback picture：

Playback

At the bottom of image, there is an information bar and the following information is

included：Volume, Play Progress, Play Speed, Played Time and File Total Time.

z Display/Hide information bar：【MENU】 z Open/Close sound：【PLAY】 z Adjust play progress：【←】(Backward),【→】(Forward). The unit is “%”. z Adjust play speed：Normal speed is “1x”. Use 【↑】to increase play speed ( 2X, 4X,

8X and MAX). Use【↓】to decrease play speed (1/2X, 1/4X, 1/8X and Frame by

Frame)

z Pause/Continue：Press 【ENTER】to pause/continue playback. If played frame by

frame, Press【ENTER】to paly one frame.

z Copy segment：【EDIT】 z Exit：【ESC】

Note：When DVR is busy, if you select high play speed, maybe there is difference for actual

play speed.

Page 29

Exit playback

In playback interface, press【ESC】key to enter into preview mode. In playback interface, press【MENU】key to enter into main menu, press【REC】key to enter

into manual record, and press【PTZ】key to enter into PTZ control mode.

Page 30

4.7 Backup Recorded Files

Note：The user must have “Playback” right. Please connect with backup devices before

you start to backup.

In the playback interface, you can backup the recorded files.

In the preview mode, press【PLAY】key, in the login dialog, select username and input the

correct password, you can enter into the playback interface.

In the menu mode, just press【PLAY】key, you can enter into playback interface directly.

Backup intraday recorded files In the playback interface, move “Active Frame” to “Backup Today” button, press【ENTER】

key, all intraday recorded files of all channels will be backup to the save device. A pop-up

dialog will display the backup status.

If bakup device is not connected correctly or DVR do not detect the backup device, the

following dialog will be pop-up. Please ask administrator for more information.

Backup the files that matched your requirement Step 1：Search the matched files

In the playback interface, select one channel and record type, input the time section, move

“Active Frame” to “Search” button, press【ENTER】key, DVR will start to find and list the

matched files.

Page 31

Step 2：Select the files that you want to backup

In the file list box, use【↑】or【↓】keys to move the scroll bar. When the scroll bar stays at the file you wan to backup, press【EDIT】key to select it. The symbol “9” is the selection tag.

You can use the same method to select other files you want to backup. After finish, you can

do next step.

Step 3：Select backup device

Please confirm the backup device：USB flash memory, USB HDD, USB CD-R/W or IDE

CD-R/W, and select the corresponding backup device.

Step 4：Start and finish backup

Move “Active Frame” to “Save” button and press【ENTER】key to start backup.

When backup is started, corresponding message box will pop-up to indicate the result.

Backup video segment

You also can backup the image segments when the image is being playback. The steps are：

1) Enter into the interface of playback the files or playback by time;

2) Press【EDIT】key to start selecting the current playback image, and press【EDIT】again

to stop selecting. This segment is slected;

3) You can repeat step 2 to select many segments. 30 segments can be selected in all;

4) After you select all segments, press【ESC】key, a message window will pop-up. If you

press “Confirm” button, DVR will start to backup the selected segments. If you press

“Cancel” button, DVR will abort backup.

Note：The backup function is effective when two channels are playback synchronously. In

such case, each channel can backup 30 segments so 60 segments can be backup for

two channels.

Playback the video segment

You can use our file player software to playback the video segment in PC. You can find the

player software in attached CD.

Exit playback interface

Please refer to chapter 4.6.

Page 32

4.8 Shut Down DVR

Note：Do not switch off the power directly in case of damaging HDD. The correct step is

using “Power Off” in the “Utilities” menu, or【POWER】key on the front panel or on IR controller.

Shut down DVR normally Use menu

Enter into “Utilities” menu, move “Active Frame” to “Power Off” button and enter into

power off dialog, press “Confirm” to shut down the DVR.

Use【POWER】key of front panel or IR controller

Press【POWER】key for above 3 seconds.

In preview mode, a login dialog will pop-up, select user name and input password, press

【Enter】to enter into power off dialog and press “Confirm” to shut down DVR. If you input

error password for three times, DVR will return preview mode.

In menu mode, if the user has “Utilities” right, you can enter into power off dialog; press

“Confirm” to shut down DVR. Otherwise, the user can not shut down DVR.

If DVR is shut down correctly, the【POWER】lamp is in red.

Note：When message of “Shut down…” is appeared, please do not press【POWER】key any

more, otherwise, DVR can not be shut down.

Shut down DVR abnormally Use the power switch of real panel

When DVR is run, if you switch off the power, the HDD in DVR will be damaged. Please

avoid such operation.

Take away the power cable

Please avoid taking away the power cable directly.

Note：In some cases, when the power supply is abnormal, DVR will be damaged. We suggest

you to use those stable power supplies.

Page 33

Chapter5 Parameters Setup Guide

Only the users that have “Parameters Setup” right need read this chapter. When the following

parameters are modified and saved, you must reboot the DVR to make the new parameters

take into effective. Other parameters do not need to reboot.

z Any network parameters z Stream type, resolution and record schedule z External alarm sensor type z View tampering alarm schedule z Video lost alarm schedule z Motion detection alarm schedule z External alarm schedule z Alarm output schedule z Transaction z RS232 work mode z Change video output standard

5.1 Administrator and Password

When DVR is left from factory, there is one default administrator. The name is “admin” and

password is “12345”. The name can not be changed, while the password can be.

Password modification

Press【MENU】key, in the login dialog, select the username as “admin”, use【→】key, move

cursor to password edit box, input “12345”, press “Confirm” to enter into administrator

menu.

Page 34

Move “Active Frame” to “User” icon, press【ENTER】key to enter into “User Management”

menu.

In the user name list box, only “admin” is existed. You can use【→】key, move “Active

Frame” to password edit box, and press【EDIT】key to enter into edit status. Press numeric

keys to input the new password. The password is only combined by 16 numerals at most.

After you finish inputting password, press【ENTER】key to exit. Move “Active Frame” to

“Verify password” edit box, input the verify password. Move “Active Frame” to “Confirm”

button, and press【ENTER】, if password and verify password are the same, the password will

be saved and taken into effective. If password and verify password are not same, a warning

message box will be appeared.

In this case, press【ENTER】to return password edit box, and input new password again.

Page 35

5.2 Add and Delete User

Enter into “User Management” interface.

Add user

The steps are following：

Step 1：Enter into “User Management” menu

Please refer to chapter 5.1

Step 2：Add new user name

In the “User Management” menu, move “Active Frame” to “Add” button and press

【ENTER】, in the pop-up dialog, input the new user name (refer to chapter 3.4), press 【ENTER】and return “User Management” menu. 15 users can be added in all.

Step 3：Setup the password for new user

After you add one new user, the password is null. You can skip this step if you do not want to

change the password. In the users list box of “User Management” menu, use【Ç】【È】keys to select the new user name, then use【Æ】key to the password edit box. Press【EDIT】key

to enter into edit box, use numeric keys to input the new password.

Step 3：Setup the rights for new user

The new added user has not any operational rights. You must setup rights for him.

Page 36

In the users list box of “User Management” menu, use【Ç】【È】keys to select the new user

name, then use【Æ】key to “Default Rights” button, press【ENTER】, the user will have the

default rights. The default rights include local playback, remote playback and view log.

If you want to define the detail rights, move “Active Frame” to “Setup Rights” button and

press【ENTER】to enter into rights setup menu as following：

Operational rights are divided into “Local Rights” and “Remote Rights”. You can assign the

necessary rights to the user. Use【Æ】【Å】key to move “Active Frame” to the corresponding right items, press【ENTER】or【EDIT】key to enable or disable the item. “9” means assigning

the right to that user.

After you finish, press “Enter” button, the user’s rights will be saved and return “User

Management” menu. If you press “Cancel” button, the user’s rights will be aborted.

Step 4：Save the new user’s password and rights

In the “User Management” menu, press “Confirm” button, the user’s password and rights

will be saved and return main menu. If you press “Cancel” button, the user’s password and

rights will be aborted.

User rights description

“Local Rights”：

Local rights are for local operation, such as the operation using front panel, IR controller

and RS-485 keyboard.

PTZ control：Locally control PTZ; Record：Manual start/stop recording; Playback：Local playback and backup the recorded files; Parameters Setup：Locally setup the DVR parameters; Log：Locally view the log on DVR; Utilities：Locally upgrade firmware, format HDD, reboot DVR and shut down DVR, etc.

Page 37

“Remote Rights”：

PTZ Control：Remote control PTZ; Record：Remote manual start/stop recording; Playback：Remote playback, download the recorded files on DVR; Parameters Setup：Remote setup the DVR parameters; Log：Remote view the log on DVR; Utilities：Remote upgrade firmware, format HDD, reboot DVR and shut down DVR, etc. Vo i c e ：Client talks with DVR; Preview：Network live preview; Alarm：Remote control DVR alarm output; Local Video Out：Remote control DVR video output; Com Control：DVR RS-232 transparent channel function.

MAC address

This MAC address is not the address of DVR but the PC that will access DVR. If you setup

this MAC address, only the PC with this MAC address can access this DVR. At PC end, in

DOS prompt, you can use “ipconfig” command to get the PC MAC address (6 bytes).

Locoal Play

Administrator Can seting locoal playback right option for each channel for users.

Remote Play

Administrator Can seting remote playback right option for each channel for users.

Remote Watch

Administrator Can seting remote preview right option for each channel for users.

Delete user

In “User Management” interface, you can use【Ç】【È】keys to select one user, then use【Æ】, move “Active Frame” to “Del” button, press【ENTER】, in the pop-up confirmation dialog, press “Confirm” button to delete the selected user and return. Press “Cancel” or【ESC】to

abort deleting.

Page 38

5.3 Unit Name and Device ID

Unit name

In the “Display” menu：

There is an item named “Unit Name”. The default unit name is “Embedded Net DVR”. Move

“Active Frame” to unit name edit box, press【EDIT】key to enter into edit status, you can

modify the unit name. About how to input characters, please refer to chapter 3.4. Press

【ENTER】key to finish modification. Select “Confirm” button and press【ENTER】, you can save the new unit name and make it into effect. Press “Cancel” button or【ESC】key to abort

modification.

Device ID：

When you use IR controller to operate DVR, you must use device ID to select DVR. The

default device ID of DVR is “88”. If there are more than one DVR in one place, please define

different device ID for each DVR. Otherwise, the IR controller will control all DVR with the

same device ID at the same time.

In “Display” menu, move “Active Frame” to the device ID edit box, in the edit status, you

can use numeric keys to input new device ID. The device ID value is ranged among 01-100.

After you finish the modification, press “Confirm” button to save and take effect or press

“Cancel” to abort modification.

Page 39

5.4 Video Output Standard and VGA Setup

Video output standard

There is one VOUT BNC connector at the rear panel of DVR. It is used to connect with

analog monitor and can support PAL or NTSC video output. You can modify video output

standard to match video input.

In “Display” menu：

There is a list box named “Video Output Standard”, you can use【Ç】【È】key to select PAL

or NTSC video output.

VGA setup

There is one VGA interface at the real panel of DVR. You can use it to connect with VGA

display. You can define VGA resolution, refresh frequency in “Display” menu.

There are following options：1024*768/60Hz, 800*600/60Hz and 800*600/75Hz. You can use【Ç】【È】key to select. Press “Confirm” button to save or “Cancel” to abort.

Page 40

5.5 OSD Setup

OSD is abbreviation of “On Screen Display”. For our embedded DVRDVS, it includes

displaying system time and camera name.

OSD settings include：System time, time format, time display position, camera name, camera

name display position, etc.

System Time

In “Display” menu, you can setup DVR system date and time.

Display System Time

You can setup display properties for each camera, including display status, position and

format. Of course, you can copy the properties of one camera to all cameras. In “Image

Setup” menu as following, select one camera：

Page 41

Display mode：There are several display modes：Opaque&Steady, Transparent&Steady,

Transparent&Flashing, Opaque&Flashing,

Move “Active Frame” to “OSD” item, you can select one mode.

Display position and format：Move “Active Frame” to “Position” button on the right side of “OSD”, press 【ENTER】to enter into setup image, you can find there are 22*18 (for NTSC, 22*15) small panes, and OSD position is in red. You can use【È】【Ç】【Æ】【Å】keys to move

the OSD position.

Press【EDIT】key to select OSD format. There are following OSD formats： MM DD YYYY W hh：mm：ss (default) MM DD YYYY hh：mm： ss DD MM YYYY hh：mm：ss YYYY MM DD W hh：mm：ss YYYY MM DD hh：mm：ss

Here YYYY means year, MM means month, DD means day, W means weekday, hh menas

hour, mm means minute and ss means second.

Press【ENTER】 to save and return “Image” menu or perss to【ESC】abort modification.

Copy parameters：After you setup the properties of one camera, you can copy it’s parameter

to any other camera or all cameras.

After you save the modification, you can find the modification will be taken into effective.

You can perss “Cancel” button or【ESC】key to abort.

Camera Name

In “Image Setup” menu, you can define name for each camera. Please note that camera’s

name can not be copied.

The steps of camera name setup：

Step 1：Select one camera. Step 2：Move “Active Frame” to camera name edit box, press【EDIT】key to enter into edit

status, you can input digital number, uppercase and lowercase characters (refer to

Page 42

Chapter 3.4). The camera name can support 32 characters.

Step 3：Press【ENTER】key to exit edit status. Move “Active Frame” to “Confirm” button, press【ENTER】to save the modification and you can see the new camera name. Press “Cancel” button or【ESC】key to abort.

Setup Camera Name Position

If you do not want to display camera name, just disable the check box beside camer name

edit box. The disable flag is “×”. If you enable the check box, you can setup the camera name position. You can copy the position to any other camera. The setup stpes are：

Step 1：Enter into “Image Setup” menu. Step 2：Select one camera. Step 3：Enable the check box on the right side of camer name, then you move “Active

Frame” to “Position” button, press【ENTER】to enter into camera name position setup interface, in that interface, you can use【È】【Ç】【Æ】【Å】keys to move camera name position. When the position is fixed, press【ENTER】and return

“Image Setup” menu, and press “Confirm” button to save it. In the “Image Setup”

menu, perss “Cancel” button or【ESC】key, you can abort the modification.

Page 43

5.6 Video Parameters Setup

For different camera and different background, in order to get the best video image, you need

to adjust video parameters such as brightenss, saturation, contrast and hue, etc.

You can setup the camera individually, and also you can copy the video parameters of one

camera to any other cameras. Here are the setup steps：

Step 1：Enter into “Image Setup” menu：

Step 2：Select camera：Please use【Ç】【È】keys to select one camera.

Ste p 3：Adjust brightness, contrast, saturation and hue：Move “Active Frame” to the

“Adjust” button on the right side of Brightness, Contrast, Saturation and Hue, press

【ENTER】key, you will enter into the corresponding adjust interface. In the adjust interface, there is one scroll bar at the bottom, you can use【Ç】【È】keys to adjust and

can find the video image will be changed at the same time. When you are satisfied

with the real time video image, press【ENTER】to return “Image Setup” menu.

Ste p 4 ：You can copy the video parameters of current camera to any other cameras. Or you

can repeat setp2 and step3 to adjust for any other camera.

After adjust, in “Image Setup” menu, press “Confirm” button to save parameters and make

them into effective. Otherwise, perss “Cancel” button or【ESC】key to abort modification.

Page 44

5.7 Mask Area Setup

In some cases, maybe you want mask the sensitive area. This area will not be preview and

recorded. The mask area setup steps are following：

Step 1：Enter into “Image Setup” menu：

Step 2：Select one camera：You can use【Ç】【È】keys to select one camera.

Step 3：Enter into mask area setup interface：Enable the check box beside “Privacy Mask”

item, you can press【EDIT】key to change the flag into “9”, and active “Area” button.

Move “Active Frame” to “Area” button on the right side of mask check box, press

【ENTER】key to enter into mask area setup interface.

Step 4：Setup mask area：In the mask area setup interface, there is one small yellow pane on

the upper left side. For PAL camera, the whole screen is divided into 22*18 panes

Page 45

(22*15 for NTSC), you can use【↑】【↓】【→】【←】keys to move the yellow pane to your hope position and press【EDIT】key, the yellow pane will be turned into red, then you can use【↑】【↓】【→】【←】keys to extend the red pane. This red area is

the mask area.

After you make sure the red mask area, press【EDIT】key to save the mask area. Press【ESC】

key to cancel the mask area. The maximum mask area size is 8*8 panes and the minimum

size is only one pane. You can setup 4 mask areas at most.

After you finish setup, press【ENTER】key to return “Image Setup” menu. You can press【A】

key to clear all mask areas.

Step 5：Save mask area：You can repeat step2, step3 and step4 to setup mask area for other

cameras. In “Image Setup” menu, press “Confirm” button to save the mask area, press

“Cancel” bbutton to abort.

Here is the example for mask area function.

If you disable the mask check box, you can cancel the mask area.

Page 46

5.8 View Tampering Alarm

If you enable this function, when someone blocks the camera spitefully, DVR will make

warning alarm.

Step 1：Enter into “Image Setup” memu：

Step 2：Select camera：Please use【Ç】【È】keys to select one camera.

Step 3：Select sensitivity：You can use【↑】【↓】keys to select the sensitivity for “View

Tampering” item. The sensitivity options are： Low, Normal and High. Select one of them

will active “Area Setup” and “Policy Setup” function.

Step 4：View tampering area setup Move “Active Frame” to “Area” button, press

【ENTER】key to enter into area setup interface. The setup methods are same as that of mask

area setup. After setup the area, press【ENTER】key to return “Image Setup” menu. You can press【ESC】key to abort.

Only one view tampering area can be setup.

Ste p 5：View tampering alarm setup In “Image Setup” menu, move “Active Frame” to “Policy” button, press【ENTER】key to enter into “View Tampering Handle” menu：

Page 47

Ste p 6：Alarm schedule setup：When there is view tampering alarm happened, DVR will

handle the alarm based on the schedule. You can set 4 periods for each day one week. Also

you can copy the schedule of one day to other days.

Notes：Time periods can not be repeated. Please reboot DVR to make the parameters into

effective.

Step 7：Setup alarm policy：If there is view tampering alarm happended in schedule, DVR

will response based on the policy. You can select one or more solution including “On Screen

Warning”, “Audible Warning”, “Upload to Center” and “Trigger Alarm Output”. You can use

【↑】【↓】and 【EDIT】key to enable or disable them. “×” is disable and “9” is enable.

Ste p 8：Save alarm setup：After your setup, press “Confirm” button and return “Image

Setup” interface. In “Image Setup” menu, press “Confirm” button to save current camera

parameters and return main menu.

Ste p 9 ：Save all cameras：If you want to setup other cameras, please repeat from step2 to

step 8. In “Image Setup” menu, press “Confirm” key to save all cameras parameters. Press

“Cancel” button or【ESC】key to abort.

Select “Off” option for “View Tampering”, you can delete the view tampering area.

Note：Only one view tampering area can be setup for each camera. The view tampering area

can not be copied. If the schedule is modified, you must reboot the device to make the

parameters into effective.

Page 48

5.9 Video Loss Alarm

When the video cable or camera has something wrong, the video image is lost. If you enable

video loss alarm, in such case, DVR will make alarm.

Step 1：Enter into “Image Setup” menu：

Step 2：Select camera：Use【Ç】【È】keys to select one camera.

Step 3：Enter into “Video Signal Loss Handle” interface：Move “Active Frame” to the list

box on the right side of “Video Loss” item, use【Ç】key to select “Handle” option and move “Active Frame” to the “Policy” button on right side. Press【ENTER】to enter into “Video Signal Loss Handle” interface：

Step 4：Setup alarm schedule：You can setup working schedule. Only when the video loss is

happened in the schedule, DVR will response.

Note：The 4 time periods can not be repeated. Please reboot DVR to make parameters into

effective.

Page 49

Step 5：Setup alarm policy：You can select one or more response solutions, including “On

Screen Warning”, “Audible Warning”, “Upload to Center” and “Trigger Alarm Output”. You

can use 【↑】【↓】and 【EDIT】key to enable or disable them. “×” is disable and “9” is

enable.

Ste p 6：Save alarm setup：After your setup, press “Confirm” button and return “Image

Setup” interface. In “Image Setup” menu, press “Confirm” button to save current camera

parameters and return main menu.

Ste p 7 ：Save all cameras：If you want to setup other cameras, please repeat from step 2 to

step 6. In “Image Setup” menu, press “Confirm” key to save all cameras parameters. Press

“Cancel” button or【ESC】key to abort.

Page 50

5.10 Motion Detection Alarm

If you enable this function, when there is motion detected, DVR will make alarm.

Step 1：Enter into “Image Setup” menu：

Step 2：Select camera：Use【Ç】【È】key to select one camera.

Step 3：Select motion detection sensitivity：On the right side of “Motion Det. Level” item,

there is a list box. That is motion detection sensitivity. There are 7 options, from 0 (the lowest)

to 5 (the highest) and “Off”. You can use【↑】【↓】keys to select one. If you select “Off”

option, DVR will not response even if there is motion detection. If you select other options, it

will active “Motion Area Setup” button and “Policy Setup” button. If you select low

sensitivity such as 0, only when there are great motion detection, DVR can response. On the

other side, for high sensitivity such as 5, DVR will response with small motion detection.

Step 4：Motion area setup：You must define motion areas so that DVR will response when

there is motion in those areas. Move “Active Frame” to “Area” buton on the right side of

sensitivity list box, press【ENTER】key, you can enter into “Motion Area Setup” interface.

Page 51

The whole screen is divided into 22*18 panes (NTSC：22*15). There is one yellow panel on

the upper left side. The motion area setup steps are the same as that of mask area setup (refer

to chapter 5.7). The only differences are that you can use【PTZ】key to set the whole screen as motion area, and mutil motion areas can be defined. Press【A】key to clear all motion areas. Setup multi areas：After you setup one motion area, press【EDIT】key, the yellow pane will

appear again, then you can setup another motion area.

Clear motion area： Clear part of motion area：Move the yellow pane to the start clear position of motion area,

press【EDIT】, you will find the yellow pane is turned into black pane. You can use【↓】【→】 key to enlarge or shrink the black area. Press【EDIT】key to clear this part motion area. Press【Enter】key to save and return “Image” menu. Press【ESC】to cancel. Clear all motion areas：Press【A】key to clear all motion areas of this channel.

The kyes used to setup motion areas are following：

z 【↑】【↓】【←】【→】：Move yellow panel to any position; z 【EDIT】：Yellow panel and red panel switch key; z 【→】：Right enlarge red pane; z 【←】：Left shrink red pane; z 【↓】：Down enlarge red pane; z 【↑】：Up shrink red pane; z 【

PTZ】：Set whole screen as motion area;

z 【A】：Clear all motion areas; z 【ENTER】：Save and return “Image Setup” menu; z 【ESC】：Cancel setup and return “Image Setup” menu;

The motion detection area is displayed as following：

Step 5：Motion alarm policy：Move “Active Frame” to the corresponding “Policy” button of motion detection alarm, press【ENTER】key to enter into “Motiomn Alarm Handle” menu：

Page 52

Ste p 6 ：Motion alarm record channel setup：When there is motion alarm happened, you

can trigger related camera to start recording. In “Motion Alarm Handle” menu, you can select

one or more record channels. Please use【ENTER】or【EDIT】key to enable the flag into “9”.

Note：In order to make the cameras start recording, in “Recording” menu, you must enable

recording schedule and set “Rec Type” as “Motion Detection” or “Motion | Alarm”.

Please refer to chapter 5.12 for recording setup.

Step 7：Motion alarm schedule：When the motion alarm is happened in schedule, DVR will

response such as “On Screen Warning”, “Audible Warning”, “Upload to Center” and “Trigger

Alarm Output”. You can setup 4 time periods for one day and 7 days for one week.

Note：Time periods in one day can not be repeated.

Ste p 8：Motion alarm handle method setup：You can select one or more handle methods

such as “On Screen Warning”, “Audible Warning”, “Upload to Center” and “Trigger Alarm

Output”.

Description：If “On Screen Warning” is enabled, when there is motion alarm happened and

DVR is in preview mode, DVR will pop-up the related camera. If you trigger

more than one camera, DVR will pop-up them one by one every 10 seconds.

When the motion alarm is disappeared, DVR will restore preview mode.

Step 9：Save motion alarm setup：Press “Confirm” button to return “Image Setup” menu. In

the “Image Setup” menu, press “Confirm” button to save the current camera parameters.

Ste p 1 0：Save all cameras：You can repeat from step2 to step8 to setup motion detection

parameters for other cameras. Also you can copy the parameters of one camera to any other

cameras.

Note：Motion alarm area can not be copied.

If you want to disable motion alarm area and motion alarm policy, you just need to select the

motion alarm sensitivity as “Off”.

Page 53

5.11 Preview Properties

In “Preview” menu, you can setup preview mode, screen switch time, enable or disable audio

preview and preview layout.

Step 1：Enter into “Preview” menu：In the main menu, move “Active Frame” to “Preview” icon and press【ENTER】, you can enter into “preview” menu.

Step 2：Preview properties： Preview mode：For preview mode item, you can use【↑】【↓】key to select one mode. If

DVR has only 1 channel, you can select only “1 Screen” option. If DVR has 4 channels, there

are “1 Screen” and “4 Screen” options. If DVR has more than 4 but less than 9 channels,

there are “1 Screen”, “4 Screen” and “9 Screen” options. If DVR has 16 channels, there are

“1 Screen”, “4 Screen”, “9 Screen”, “12 Screen” and “16 Screen” options.

Switch time：That is image preview switch time. You can use【↑】【↓】keys to select switch

time. There are many options, including “5 Seconds”, “10 Seconds”, “20 Seconds”, “30

Seconds”, “1 Minutes”, “2 Minutes”, “5 Minutes” and “Nerver”. If you select “Nerver”, the

preview image will not be switched automatically. For example, for 16 chanenls DVR, if you

select “4 Screen” preview mode and “20 Seconds” switch time, DVR will cycle display 4

channels image every 20 seconds.

Audio preview：If you enable audio preview (“9”), when you preview single camera, DVR

will play the audio of that channel.

Display delay：If you enable “On Screen Warning” option, when there are several cameras

has alarm, DVR will popup the camer screen one by one according to this time interval

Page 54

Preview layout setup：There is a square frame divided into many windows. If you select “4

Screen”preview mode, this frame is divided into 4 windows. Each window represents one

camera. You can move “Active Frame” among the windows. There is one bar under the

square to display the preview order of all cameras.

First select the biggest screen preview mode, for example, for 16-channel DVR, select “16

Screen” preview mode so that all windows are display in the square.

Secondly, move “Active Frame” to one of these windows, press numeric keys to input

camera index (If DVR has less than 10 channels, just use one numeric key, otherwise, use 2

numeric keys). The small window will display that camera number. In this way you can

change the display order. If you press 0 or 00, then the corresponding window will not

display live video.

After you define the camera perview order, you can select preview mode to meet your

demand.

Save setup：Press “Confirm” button to save preview properties. Press “Cancel” or 【ESC】

key to abort.

Page 55

5.12 Recording Setup

In main menu, there is an icon named “Recording”. You can enter into recording menu as

following：

“Recording” menu description： If HD Full：There are two options：“Overwrite” and “Stop recording”. If you select

“Overwrite” option, when all HDDs in DVR are full, DVR will overwrite the earliest

recorded files and continue recording. If you select “Stop recording” option, when all HDDs

are all full, DVR will handle it as “Hard Disk Full” exception, please refer to chapter 5.17 for

exception menu.

Select Camera：Here all channels are listed. You can use【↑】【↓】keys to select one.

Stream Type：There are two options, one is “Audio&Video” stream and the other is “Video”

stream only. If you want to record video and audio, please select “Audio&Video” option,

otherwise you can select “Video” option to record only video.

Note：If you change this option, please reboot DVR to make parameter into effective.

Resolution：The higher resolution is, the clearer the image is. The resolution options from low to high are：QCIF, CIF, 2CIF, DCIF, 4CIF.

DVR-470 supports QCIF and CIF. 100FPS (PAL) or 120FPS (NTSC)

DVR-1670 supports QCIF and CIF. First 8-ch has 100FPS and second 8-ch has 100FPS (PAL) or first 8-ch has 120FPS and second 8-ch has 120FPS (NTSC)

Note：If you change this resolution option, please reboot DVR to make it into effective.

Bit Rate Type：There are two options：“Variable” and “Fixed”.

Page 56

If you select variable bit rate, DVR will adjust the actual bit rate according to the video

movement. When there is not much movement, DVR will use low bit rate, while there is

much movement, DVR will use high bit rate. In this case, DVR can save HDD usage and

network bandwidth. If you select fixed bit rate, DVR will use the fixed bit rate to compress

iamge. The bit rate size is defined in “Max Bit Rate” option. In this case, we can calculate the

recorded file size and network bandwidth that we need.

Max Bit Rate：If you select variable bit rate, when the video input has great movement, we need to limit the max bit rate. The max bit rate has following options (bps)：32K, 48K, 64K,

80K, 96K, 128K, 160K, 192K, 224K, 256K, 320K, 384K, 448K, 512K, 640K, 768K, 896K,

1M, 1.25M, 1.5M, 1.75M, 2M and “User define”.

The max bit rate selection has relations with resolution. If you select high resolution, you

must select high bit rate. For CIF resolution, the typical max bit rate is 384K-768Kbps. For

DCIF resolution, the typical bit rate is 512K-1Mbps. For 4CIF resolution, the typical bit rate

is 1Mbps-1.5Mbps. Of course, you will select the proper max bit rate based on the camera,

background and image quality requirement.

Bit rate：You can select bit rate size for fixed bit rate type. It is the same as “Max Bit Rate”.

Image Quality：If you select variable bit rate type, you can define image quality. There are 6

options：Highest, Higher, High, Average, Low and Lowest. High image quality needs high bit

rate size.

Frame Rate：Frame per second. Options are：Full (PAL is 25 FPS and NTSC is 30FPS), 20,

16, 12, 10, 8, 6, 4, 2, 1, 1/2, 1/4, 1/8, 1/16. For low frame rate, you can select low bit rate

size.

PreRecord Time：When you enable motion detection recording or external alarm recording, you can define prerecord time. The options are：No PreRecord, 5 Seconds (default selection),

10 Seconds, 15 Seconds, 20 Seconds, 25 Seconds, 30 Seconds and Max PreRecord.

MaxPreRecord is to save all data in PreRecord buffer. The PreRecord time is related with bit

rate. The lower bit rate, the longer PreRecord time is.

If the bit rate (Max bit rate) is very low, and you select “PreRecord Time” as “5 Seconds”,

maybe the actual perrecord time is more than 5 seconds. On the other side, if the bit rate is

high, and set “PreRecord Time” as “30 Seconds”, the actual prerecord time maybe is less

than 30 seconds.

PostRecord Time：When external alarm or motion alarm is stopped, DVR will continue recording time. The options are：5 Seconds (default), 10 Seconds, 30 Seconds, 1 Minute, 2

Minutes, 5 Minutes and 10 Minutes.

Enable Rec：Enable or disable selected camera record function. “×” means disable and “9”

means enable.

Schedule：When you enable recording function, you can setup recording schedule.

Page 57

Note：When the camera’s recording schedule is modified, you must reboot DVR to make it

into effective.

All day recording setup： Step 1：Enter into recording schedule menu

In recording menu, use【ENTER】or【EDIT】key to enable record function (“9” flag), press

“Schedule” button to enter into recording schedule menu.

Step 2：Select ond day and enable all day recording option

For “Day” item, there are options：Monday, Tuesday, Wednesday, Thursday, Friday, Saturday and Sunday. Use【↑】【↓】keys to select one day. Move “Active Frame” to the check box on the right side of “All Day” item, press【ENTER】or【EDIT】key to enable “All Day” option. “×” means disable and “9” means enable.

Step 3：Record type

For “Rec Type” item, the options are：All Time, Motion Detect, Alarm, Motion|Alarm, and

Motion&Alarm. For all day record mode, only one record type can be selected.

Step 4：Copy to other days

You can repeat step2 and step3 to setup for other days. Also you can copy the current day to

other days.

Step 5：Save

Press “Confirm” back to “Recording” menu. Press “Confirm” again to save the parameters

and return main menu.

None all day recording setup

Page 58

Step 1：Enter into recording schedule menu

In recording menu, use【ENTER】or【EDIT】key to enable record function (“9” flag), press

“Schedule” button to enter into recording schedule menu.

Step 2：Select ond day and disable all day recording option

For “Day” item, there are options：Monday, Tuesday, Wednesday, Thursday, Friday, Saturday and Sunday. Use【↑】【↓】keys to select one day. Move “Active Frame” to the check box on the right side of “All Day” item, press【ENTER】or【EDIT】key to disable “All Day” option. “×” means disable and “9” means enable.

Step 3：Setup time period and record type

There are 4 time periods for one day, and each time period can select different record type.

Input start time and stop time for each time period, and select record type for each period.

The record type options are：All Time, Motion Detect, Alarm, Motion&Alarm and

Motion|Alarm.

Note：The time periods in one day can not be repeat.

Step 4：Copy to other days

You can repeat step2 and step3 to setup for other days. Also you can copy the current day to

other days.

Step 5：Save

Press “Confirm” back to “Recording” menu. Press “Confirm” again to save the parameters

and return main menu.

Note：

1) If record type is “Motion Detect” or other related types, you must setup “Motion

Detection” in order to trigger motion recording (refer to chapter 5.10).

2) If record type is “Alarm” or other related types, you must setup “Alarms” in order

to trigger alarm recording (refer to chapter 5.13).

3) The time period is among 00：00 - 24：00.

Page 59

5.13 External Alarm Input and Relay Output

For DVR-470, there are 4 external alarm input and 2 relay output. For DVR-1670, there are

16 external alarm input and 4 relay output. In “Alarms” menu, you can setup for each

external alarm input. In main menu, move “Active Frame” to “Alarms” icon and press

【ENTER】key to enter into alarms menu：

External alarm input setup：

Step 1：Select one alarm input

Use【↑】【↓】keys to select one alarm input.

Step 2：Alarm type

This is sensor type. You can select “Normal Open” or “Normal Close” according to the

sensor type.

Step 3：Enter into “Alarm in Handling” sub menu

In the “Alarms” menu, there are two options for “Alarm Handling” item. One is “Ignore”,

and the other is “Handle”. If you select “Handle” option, you can active “Policy” and “PTZ

Linkage” buttons on right side. Move “Active Frame” to “Policy” button and press【ENTER】 key, you will enter into “Alarm in Handling” sub menu：

Page 60

Step 4：Alarm trigger record channel setup

You can select channels to record for each alarm input. In the sub menu, you can use

【ENTER】or【EDIT】key to enable record channel. “×” means disable and “9 means enable.

Note：In order to trigger the channel to record, in “Recording” menu, you must enable

recording and select record type as “Alarm” or other related type. Please refer to

chapter 5.12.

Step 5：Schedule for alarm handle method

When there is external alarm happened in the schedule, DVR will response according to the

handle methods.

Step 6：Alarm handle method

You can select one or more handle method：“On Screen Warning”, “Audible Warning”,

“Upload to Center” and “Trigger Alarm Output”.

Description：If “On Screen Warning” is enabled, when there is external alarm happened and

DVR is in preview mode, DVR will pop-up the related camera. If you trigger

more than one camera, DVR will pop-up them one by one every 10 seconds.

When the external alarm is disappeared, DVR will restore preview mode.

Step 7：Save setup

In “Alarm in Handling” sub menu, press “Confirm” button and return “Alarms” menu. In

“Alarms” menu, press “Confirm” button to save the parameters.

Step 8：PTZ Linkage Move “Active Frame” to “PTZ Linkage” button, press【ENTER】key to enter into “PTZ Linkage” setup menu：

Page 61

First select one camera, then select one of following PTZ linkage：

z Preset：Set the flag as “9” to enable preset, in the preset number edit box and input one

preset number that has been setup already. Please refer to chapter 5.15 for preset setup.

z Sequence：Set the flag as “9” to enable sequence and input one sequence number that

has been setup already. Please refer to chapter 5.15 for sequence setup.

z Cruise：Set the flag as “9” to enable cruise. Please refer to chapter 5.15 for cruise setup.

Press “Confirm” button to save and return “Alarms” menu. Press “Cancel” button or【ESC】

key to abort and return “Alamrs” menu.

Note：Please make sure that the PTZ you are using can support preset, sequence and cruise

functions. One external alarm input can trigger many cameras PTZ linkage.

Step 9：Copy the parameters to other external alarm input

You can copy the parameters of current alarm input to other external input.

Step 10：Save setup

In “Alarms” menu, press “Confirm” button to save the parameters. Press “Cancel” button or

【ESC】key to abort.

Alarm relay output setup

Step 1：In “Alarms” menu, use【↑】【↓】keys to select one alarm output.

Step 2：Select delay time

The delay time is when the alarm is disappeared, the alarm output will continue output time.

The delay time options are：5 Seconds, 10 Seconds, 30 Seconds, 1 Minute, 2 Minutes, 5

Minutes, 10 Minutes and Manual Stop. If you select “Manual’ option, the alarm output will

not stop until you press “Clear Alarm” button in “Utilities” menu. So the actual alarm output

time is made up of alarm input time and this delay time.

Page 62

Step 3：Enter into alarm out schedule

You can set the schedule to make alarm output into effective. Move “Active Frame” to

“Schedule” button on right side of “Alarm Out Time” item, press【ENTER】key to enter into the corresponding schedule menu：

Step 4：Setup alarm out schedule

Like other schedule setup, you can set 4 time periods for one day and 7 days for one week.

When you finish setup, press “Confirm” button to return “Alarms” menu.

Step 5：Copy one alarm output parameters to other alarm output In “Alarms” menu, you can copy parameters of current alarm output to other alarm output.

Step 6：Save setup

When you finish setup, in “Alarms” menu, press “Confirm” button to save all parameters.

Note：If any schedule is modified, you must reboot DVR to make it into effective.

Page 63

5.14 Network Parameters

If you want use network to access DVR, you must setup network parameters.

Note：If any network parameter is modified, you must save and reboot DVR to make it into

effective.

In main menu, move “Active Frame” to “Network” icon and press【ENTER】, you can enter

into “Network” menu as following：

“Network” menu description： *NIC type：Defautl is “10M/100M Auto”, the other options are：10M Half-Dup, 10M

Full-Dup, 100M Half-Dup and 100M Full-Dup.

*IP address：This IP address must not be conflict with other IP. If there is DHCP server in

network, you can set the IP as “0.0.0.0”, save and reboot DVR. In reboot process, DVR will

search the DHCP server and get one dynamic IP address. This item will display the dynamic

IP address. If DVR uses PPPoE function, also DVR can dialup into internet and this item will

display the dynamic internet IP address.

*Port：Network access port number, must be greater than 2000. *Mask：This is sub net mask.

Gateway：The gateway IP is used to communicate in different network segments

DNS address：If DVR uses PPPoE function, and get one dynamic IP address. If you set DNS

IP with one fixed Internet IP, DVR will send some information such as DVR name, DVR

serial number, DVR current IP to that fixed IP address. We call that fixed Internet IP as DNS

IP. The DNS server with that fixed Internet IP can receive DVR information and used to

resolve DVR dynamic IP.

Page 64

This DNS is special software, not the normal domain name server. You can use the provided

SDK to develop this DNS software.

Multicast IP：It is one D-class IP address, among 224.0.0.0 --- 239.255.255.255. If you do

not use multicast function, you do not need to set. Some routers will prohibit multicast

function in case of network storm.

Remote Host IP and Port：If you set this IP and port, when there is alarm and exception

happened, DVR will send information to that host IP. The center with this IP can receive

alarm and exception information from DVR. You can use SDK to develop this center

software.

NAS：Network access storage. DVR will regard network HDD as local HDD. If you enable

this function, DVR will send and save the real time image to that network HDD.

NAS IP：The IP of that network storage server. Dir：The directory name shared by that network storage server.

This function is not available.

HttpPort：The port is for IE browser. The default value is 80. It can be modified.

PPPoE：DVR support PPPoE dail-up function.

Example：Use PPPoE function Step 1：Enter into “Network” menu. Step 2：Select NIC type. Step 3：Input port number. In the port edit box, use numeric keys to input port number. The

port number must be more than 2000.

Ste p 4：Input DNS IP. Input one fixed Internet IP address where the IP analyst software

(IPServer) is run.

Step 5：Input PPPoE parameters. Use【ENTER】or【EDIT】key to enable PPPoE function

(set PPPoE flag as “√”). Input PPPoE username, password and verify password that

ISP provided.

Step 6：Save parameters. In “Network” menu, press “Confirm” to save parameters. Reboot

DVR to make parameters into effect. In reboot process, DVR will start dialup using

PPPoE function. If DVR dialup Internet successfully, DVR will display the dynamic

internet IP address in “Network” menu.

5.15 PTZ

There is one RS-485 port at DVR rear panel used for PTZ control. You can setup RS-485

parameters to match your PTZ protocol. In main menu, move “Active Frame” to PTZ icon

and press【ENTER】key, you can enter into PTZ menu as following：

Page 65

PTZ menu description Select channel：Select one PTZ camera. RS-485 parameters：Including baudrate, data bit, stop bit, parity, flow control, etc. These

parameters must be the same as those of PTZ. Protocol.

PTZ address：Each PTZ has one different address.

PTZ type：DVR had the following PTZ protocol：YouLi, LinLin-1016, LinLin-820, Pelco-p,

DM DynaColor, HD600, JC-4116, Pelco-d WX, Pelco-D, VCOM VC-2000,

NetStreamer, SAE/YAAN, Samsung, Kalatel-312, CELOTEX, TLPelco-p,

TLHHX-2000, BBV, RM110, KC3360S, ACES, ALSON, INV3609HD, Howell,

Tc Pelco P, Tc Pelco D, AUTO-M, AUTO-H, ANTEN, CHANGLIN, DeltaDome,

XYM-12, ADR8060, EVI-D30, DEMO-SPEED, DM-PELCO-D, ST832,

LC-D2104, HUNTER, A01, TECHYIN, WEIHAN, LG, D-MAX, Panasonic,

KTD-348, infinova, PIH-7625, LCU, DennarDome, etc. Other PTZ protocols

will be added with the new firmware.

Note：In DVR “PTZ” menu, if you select Pelco-P protocol, when you setup PTZ address,

please plus or minus one compared with Camera ID. For example, if camera ID is 2,

the DVR PTZ address is set as ID 3.

Preset setup：Preset is using one number to represent the camera’s position, zoom, focus and

iris. Move “Active Frame” to “Setup” button on the right side of “Preset” item, press

【ENTER】key to enter into preset setup menu. You can save 128 preset numbers. Please make sure the PTZ support preset function before you setup preset.

Sequence setup：Each sequence is made up of several curise points. Each cruise point

includes one preset number, dwell time and dwell speed. Please make sure the PTZ you are

using can support sequence function before you start to setup. You can save 16 sequnece.

Page 66

Cruise setup：Cruise is remembering the track of PTZ movement. Please make sure the PTZ

you are using can support cruise function.

Preset setup

In “PTZ” menu, move “Active Frame” to “Setup” button on the right side of “Preset” item,

press【ENTER】, you can enter into “Preset” setup menu：

Add preset number：You can input preset number (among 1-128) in the edit box. Then press

“Adjust” button to enter into PTZ control interface. In PTZ control interface, you can use

direction keys to adjust PTZ position, and use【IRIS+】【IRIS-】【FOCUS+】【FOCUS-】

【ZOOM+】【ZOOM-】keys to adjust iris, focus and zoom. After you finish adjusting, press 【ENTER】, then press “Save” button to save the preset number. You can repeat this step to

setup other preset numbers.

After you setup all preset numbers, press “Return” button to return “PTZ” menu. In “PTZ”

menu, press “Confirm” button to save all parameters.

Delete preset number：In “Preset” setup menu, input one preset number, press “Delete”

button, you can delete this preset number. After deleting, press “Return” button to “PTZ”

menu. In “PTZ” menu, press “Confirm” button to save all modification.

Please make sure the PTZ you are using can support preset function.

Sequence setup

In “PTZ” menu, press “Setup” button on the right side of “Sequence No” item, you can enter

into “Sequence” setup menu：

Page 67

In “Sequence” setup menu, first input the sequence number. The sequence is among 1 --- 16.

Each sequence is made up of cruise points, and each cruise point includes preset number,

dwell time and dwell speed. Dwell time is the time staying at that preset number. Dwell speed

is the speed that PTZ is moved to that preset number.

Press “Add” button to add one cruise point.

Press “Confirm” button to save the cruise point into the sequence.

After you finish setup the sequence number, press “StartSeq” to check the current sequence.

Perss “StopSeq” button to stop checking.

You can delete cruise points in one sequence.

After you finish sequence setup, press “Return” button back to “PTZ” menu. In “PTZ” menu,

perss “Confirm” button to save the modification.

Please make sure the PTZ you are using can support sequence function.

Cruise setup

In “PTZ” menu, press “Setup” button on the right side of “Cruise” item, you can enter into

“Cruise” setup menu：

Page 68

Press “RecCru” button, you will enter into “PTZ control” interface. You can start controlling

PTZ with direction keys, press【ENTER】to save the operation track and return “Cruise” setup

menu. Press “StartCru” button to repeat the PTZ track until you press “Stop” button.

Press “Return” button back to “PTZ” menu. In “PTZ” menu, press “Confirm” button to save

this cruise.

Please make sure the PTZ you are using can support cruise function.

Page 69

5.16 RS232 setup

There is one RS-232 port at DVR rear panel. In main menu, move “Active Frame” to

“RS232” icon and perss【ENTER】key, you enter into “RS232” setup menu：

RS232 menu description

RS-232 parameters：Including baud rate, data bit, stop bit, parity, flow control, etc.

Work mode：The RS-232 can be used as “Console”, “PPP” or “Transparent Channel”.

Console：Connect with PC serial port. You can use HyperTerminal or NetTerm to control it. PPP：Connect Modem, using PSTN to transfer video image. Transparent channel：Connect serial devices. Remote PC can control these serial devices

through network.

PPP Mode：Only used when work mode is “PPP”. There are two options：“Active”

and”Passive”. “Active” means DVR will diaup through PSTN. “Active” function is not

available. “Passive” means DVR will wait for dialup.

Callback mode：Only used when work mode is “PPP”. There are two options：“By Dialer”

and “Preset Tel’. This function is not available.

Remote IP：Only used when work mode is “PPP”. This IP is defined for remote PC that will

connect DVR through PSTN.

Local IP：Only used when work mode is “PPP”. This IP is defined for DVR.

Mask：Only used when work mode is “PPP”. Remote IP and Local IP are in the same sub net.

Page 70

Username, password and Verify password：Only used when work mode is “PPP”. Used for

Phone：Only used when work mode is “PPP” and PPP mode is “Active”. It is the phone

number of remote PC.

Callback and Data Encryption：Only used when work mode is “PPP”. They are not

available.

Confirm：Save parameters and return main menu.

Cancel：Abort modification and return main menu.

Example：PPP (Modem) passive dialup through PSTN

There are two Modems. One is connected DVR RS-232 port with DCE cable. The other is

connected with PC COM port.

Setup at DVR end Step 1：RS232 setup Setup baud rate, data bit, stop bit, parity and flow control. They must be

the same as those of modem connected with PC.

Ste p 2 ：Video setup In “Recording” menu, select the camera you want to transfer through

PSTN. If you set CIF resolution, we suggest you set frame rate as 1 FPS. If you set QCIF

resolution, the frame rate can be selected under 4FPS. You can adjust bit rate, resolution and

frame rate according to real conditions.

Page 71

Step 3：Save setup In “Recording” menu, press “Confirm” button to save parameters. Step 4：Setup Modem used on DVR side Use DCE calbe to connect Modem with PC serial

port. You can use HyperTerminal or NetTerm to setup modem：

AT&F ---- Retore default parameters (Generally, Modem is hard flow control)

AT&S0=1---- Set Modem as answer

ATE0 ---- Not display the input characters

ATQ1 ---- Commit instruction and not display

AT&W&W1 ---- Save parameters

Step 5：Use DCE cable to connect Modem with DVR RS232 port.

Setup at PC end Ste p 1 ：Setup Modem used on PC side. Use DCE calbe to connect Modem with PC serial

port. You can use HyperTerminal or NetTerm to setup modem：

AT&F ---- Retore default parameters (Generally, Modem is hard flow control)

AT&W&W1 ---- Save parameters

Step 2：Open “Network and Dial-up Connections” in control panel, then press “New

Connection…”, select “Dial-up to private network” according to the guide. Select the

corresponding MODEM, input the telephone no. to be dialed in the next step, finish it

according to the guide. At this time, you will find a new program named “Dial-up

Connection” in “Network and Dial-up Connections” folder.

Setup should be specially pay attention to：

Open the properties of the new-established dialup program, select “Advanced”(custom

settings) in security option, press setup, set it in the popup dialogue box that is “Advanced

Security Settings” as follows：

Page 72

Page 73

Step 3：Establish the dialup connection

Select the Modem connected with PC just like the dialup network connection, input the

telephone number connected with DVR’s modem. Input the username, password. They must

be the same as that DVR PPP setup.

Ste p 4：During the dialup connection, it will give the message of “verification of username

and password”, after successfully verification; the message will be given “on process of

Ste p 5：After successful dialup, network will designate the “remote IP” address to PC, e.g.

the set 192.1.0.1. User can Ping-link the assigned IP address through Ping command, and can

Ping-link DVR. Please refer to the following picture.

Step 6：You can preview the image of 192.1.0.2 by using client-end software.

Page 74

5.17 Exceptions

The exceptions can be handled at present include： hard disk full, hard disk error, illegal

access, IP address conflict, network failure, and NTSC/PAL differ.

Enter into “Exceptions” menu：

Including the following handle methods： Audible Warning：DVR beep warning. Upload to Center：Send exception information to center host PC. Trigger Alarm Output：trigger local relay output.

You can select more than one handle methods.

After you finish setup, press “Confirm” button to save parameters. Press “Cancel” button or

【ESC】key to abort.

Page 75

5.18 Transaction Information

The DVR can actively obtain or passively receive the credit card number from ATM machine

linked through network or serial port, and credit card number can be overlay on live video,

recorded and playback. The following description indicates how to carry out relevant

parameter setting according to different links to ATM machine.

In “Transaction Information” menu, there are 4 kinds of text capture solutions：

1. Network Sniff：Obtain the transaction information such as credit card number actively

through network.

The network connection is as following：

The corresponding setup menu is following：

You need to setup the following information：

IP address of ATM machine

Type of ATM machine

Start & end position, length and the content of data message

Start & end position and length of credit card number

Page 76

Start & end position and length of transaction type

Transaction type and code

When the ATM machine is sending transaction information to bank center, DVR will capture

the data package through network, and analyse the data according to the format. Then DVR

will overlay the correspond text on live video.

2. Network receive：DVR receives data sent by ATM machine through network.

You only need to setup DVR listen port. The default port value is 10000.

In this case, you must develop the software that is run in the ATM machine based on special

protocol. The software will send the transaction information directly to the DVR. DVR will

receive, analyse and overlay the text on live video.

3. Receive data sent by ATM through serial port

The connection is following：

The corresponding setup menu is following：

You only need to setup ATM machine type.

Page 77

In the case, you must set the RS-232 of DVR as transparent channel mode as following：

A software must be run in the ATM machine, and send the credit card number, transaction

code to DVR through RS-232 port.

Please provide detail ATM machine communication protocol for actual projects.

4. Receive the command sent by ATM through serial port

Page 78

In the case, you must set the RS-232 of DVR as transparent channel mode as following：

Also, a software must be run in ATM machine, and send command to DVR through RS-232

port based on special communication protocol.

Page 79

Chapter6 Utilities

There are many tools in “Utilities” menu. Including “SavePara”, “RestorePara”, “Upgrade”,

“Hard Disk”, “Stop Alarm Out”, “Reboot”, “Power Off”, “View Log” and “System Info”.

Enter into “Utilities” menu：

6.1 Save Parameters

Save factory default parameters into FLASH memory. You can reboot DVR to make them

into effective.

6.2 Restore Parameters

Restore factory parameters for DVR. The IP address, gateway and port number will not be

restored.

Page 80

6.3 Upgrade

You can use this function to upgrade the firmware. Please confirm the language is matched.

Press “Upgrade” icon, in the pop-up dialog, you can select either “FTP” or “USB” upgrade

mode.

If you select “FTP” mode, you will enter into “FTP Upgrade” menu：

Input the ftp server IP and press【ENTER】key. DVR will connect with FTP server through

network and download the firmware file.

If you select “USB” mode, please make sure you connect one USB flash memory with DVR

and the firmware file is in its root directory.

Reboot after successfully upgrading, the system will use the new firmware.

Page 81

6.4 Hard Disk Management

Check HDD work status

Capacity, Free space, Stand by or not, Normal status or not.

Format HDD

Before formatting stop all recording. After formatting, you must reboot DVR, otherwise

DVR will not work normally.

6.5 Clear Alarm Out

Clear the alarm output manually.

6.6 Reboot

Reboot DVR.

6.7 Power Off

Shut down DVR.

6.8 View Log

To view the log recorded in DVR HDD.

In “Utilities” menu, press “View Log” to enter into “Log” menu：

Page 82

If you want to view the log based on default option, just press【ENTER】key. DVR will list all

matched information. Also you can select options to search (By Type, By Date, By

Type&Date).

By Type

To view log information of the assigned type.

Type is divided into “Major type” and “Minor type”. Major type includes operation, alarm,

exception and all.

For operation major type, there are many minor types, including Power On, Shut Down,

Abnormal Shut, Panel Login, Panel Logout, Panel Config, Panel File Play, Panel Time Play,

Local Start Record, Local Stop Record, Panel PTZ, Panel Preview, Panel Set Time, Local

Upgrade, Net Login, Net Logout, Net Start Record, Net Stop Record, Net Start Transparent

Channel, Net Stop Transparent Channel, Net Get Parameter, Net Config, Net get Status, Net

Alert On, Net Alert Off, Net Reboot, BiComStart (Start Voice Talk), BiComStop (Stop Voice

Talk), Net Upgrade, Net File Play, Net Time Play, Net PTZ.

For alarm major type, the minor type includes： External Alarm In, External Alarm Out,

Motion Detect Start, Motion Detect Stop, View Tamper Start, View Tamper Stop.

For exception major type, the minor type includes： Video Signal Loss, Illegal Access, Hard

Disk Error, Hard Disk Full, IP Conflict, DCD Lost.

For example：The steps of viewing alarm log. Step 1：For “Query” item, select “By Type” to active “Major Type” and “Minor Type” items. Step 2：For “Major Type” option, select “Alarm” option. For “Minor Type” option, select one

of following options：All, External Alarm In, External Alarm Out, Motion Detect Start,

Motion Detect Stop, View Tamper Start, View Tamper Stop .

Step 3：Move “Active Frame” to “Search Log” button, press【ENTER】key to start searching.

Page 83

Ste p 4：When searching is finished, DVR will list all matched alarm information. In the list box, the information includes：Index, Occur Time, Major Type, Minor Type, Panel User, Net

User, Host Address, Para. Type, Channel No, HDD No, Alarm In and Alarm Out. You can

press “More Info” button for more information, also slect page number to view more

information.

Step 5：Press “Return” button back to “Utilities” menu.

By Time

View the log between one time period.

Step 1：Select “By Time” for “Query” option to active “Start Time” and “Stop Time” items. Step 2：Input start time and stop time. Step 3：Move “Active Frame” to “Search Log” button and press【ENTER】key to start

searching.

Step 4：After finish searching, DVR will list the matched log information. Step 5：Press “Return” button back to “Utilities” menu.

By T ype&Date

View one kind of log in the assigned time period.

Ste p 1 ：Select “By Type&Time” for “Query” option to active “Major Type”, “Minor Type”

“Start Time” and “Stop Time” items.

Step 2：Select “Operation” for major type and select one option for minor type. Step 3：Input start time and stop time. Step 4：Move “Active Frame” to “Search Log” button and press【ENTER】key to start

searching.

Step 5：After finish searching, DVR will list the matched log information. Step 6：Press “Return” button back to “Utilities” menu.

Page 84

6.9 System Information

Press “System Info” icon in “Utilities” menu, you can get DVR system information：

Page 85

Chapter7 Firmware Upgrade

The DVR firmware is stored in FLASH ROM. You can use DVR upgrade function to write

the firmware file (digicap) into FLASH.

There are two cases that you need to upgrade DVR firmware. One is update old firmware.

The other is when the code in DVR FLASH is crashed.

Note：Make sure that the DVR and the firmware are compatible before the upgrade.

7.1 FTP Server Setup

You can download FTP server software through internet. Here we use wftpd32.exe as the

example：

1. Run wftpd32.exe (FTP server software).

2. Select “Logging” in the menu，choose Log Options in the sub menu, and give the choice

as following：

Page 86

3. Select “Users/rights” under “Security” menu item. The following dialog box will be

pop-up.

4. Create new user. Click “new user’. New user dialog pops up. Input user name “target”.

Click “OK”.

5. In the password dialog, input password “target” in “New Password” and “Verify

Password” edit box. Click “OK” to save and exit the dialog box.

Page 87

6. In the “User/Rights Security” Dialog, select “User Name” as “target”. In “Home

Directory” edit box, input the path where the firmware file (digicap) is placed. Then

press “Done” to exit.

7. Next time, you need not setup again, just double click and open “wftpd32.exe” to upgrade

the DVR/DVS firmware.

Page 88

7.2 Upgrade Mode

1. Use client software to upgrade the firmware file. You do not need to use ftp server

software. Please refer to the client software user manual for detail information.

2. Use “FTP” function of “Upgrade” sub menu in “Utilities” menu. You need one host PC

to run FTP server software and place firmware file (digicap), and make sure DVR and

PC are in the same sub net.

3. Use “USB” function of “Upgrade” sub menu in “Utilities” menu. Please make sure the

firmware file (digicap) is placed under root directory of USB flash memory.

4. After you reboot DVR, if you can only hear the startup sound, but can not see startup

picture, you can input shell commands under HyperTerminal. You need one host PC to

run FTP server and HyperTerminal software, and make sure DVR and host PC are in the

same sub net. Please use DTE cable to connect DVR will host PC.

Step 1：Setup and run HyperTerminal The parameters are：Baud rate：115200bps, Data bit：8 bits, Stop bit：1 bit,

Parity：No, Flow ctrl：None.

Step 2：Press "ctrl" and "u" keys of the PC keyboard. Do not release them. Ste p 3 ：Switch off and on the power supply of DVRDVS. In the HyperTerminal, the

following sentence is appeared：Please input [u/U] or [ESC] key Release "ctrl" and "u"

keys.

Step 4：Press “u” key. In the message line of “IP address of NET DVR”, input any one

ip, just make sure DVR IP and FTP server IP are in the same sub net.

Step 5：In the message line of “IP address of the FTP server”, input the FTP server IP. Step 6：In the message line of “Confirm? (y/n)”, press “y”. DVR will connect with that

FTP server, and download the firmware file (digicap) through network. Please make

sure FTP server and firmware file are setup and run correctly. After upgrade finished,

press any key to reboot DVR.

Page 89

Appendix A DVR Connect Cable

Definition

1 UTP network connect cable made method

Material and tool

One twist cable (8 pin, the length can be defined as to the actual demand, but must be within

100m), 2 standard RJ45 head, one tool for RJ45.

：

Suggestion

Pin definition

To make the network cable according to the actual situation, there are two options：

(1) Use the following method to make the network cable when DVR is connected with

have a network cable test tool to test each cable made.

network hub or switch.

The corresponding relati ship of the direct cable

(2) make the cross network cable when DVR is directly

Use the following method to

connected with client-end PC.

Page 90

The corresponding relationship of cross cable

2 RS-232 connect cable made method

DVR-802x has standard DB9 RS-232 interface, like PC COM port.

Pin definition

“I” means DVR input and O means DVR output.

Pin index Name I/O Description

1 DCD I Carrier Detect

2 RXD I Receive Data

3 TXD O Transfer Data

4 DTR O Terminal Device Ready

5 GND Ground

6 -- -- --

7 RTS O Request to Send

8 CTS I Clear Data

Page 91

Appendix B Specifications

Model name

Video

compression

Preview

resolution

Playback

resolution

Video input 4 16

Video input

interface

Video output 1 channel, BNC (Electrical Level：1.0Vp-p, resistance：75Ω)

Video loop out 4 16

Total frame

rate

Stream type Video/Video&Audio Video/Video&Audio

Max bit rate 32Kbps--2Mbps, self-define

Audio input 4 4

Audio input

interface

Audio output

Audio

compression

Audio

compression

rate

Communicatio

n interface

HDD IDE

interface

USB interface

VGA interface

External alarm

RCA (Linear Electrical Level,

1 channel, RCA (Linear Electrical

Level, Resistance：600Ω)

1 RJ45 10M/100M Self-adaptive Ethernet Interface

1 RS232 interface

1 RS485 interface

2 IDE interface, can support 4 IDE HDD and each HDD can support 2000GB or 2

HDD + IDE CD-RW/DVD-RW

1 USB interface, USB1.1, can support USB flash memory, USB HDD, USB

CD-RW/DVD-RW.

1 VGA interface, support resolution：800×600/60Hz, 800×600/75Hz, 1024×

768/60Hz

DVR-470 DVR-1670

H.264

PAL ：704*576 (4CIF), NTSC：704*480 (4CIF)

CIF/QCIF

BNC (Electrical Level：1.0Vp-p, resistance：75Ω)

PAL ：100FPS

NTSC：120FPS

RCA (Linear Electrical Level,

Resistance：600Ω)

1 channel, RCA (Linear Electrical Level,

OggVorbis OggVorbis

16Kbps 16Kbps

4 16

PAL ：200FPS

NTSC：240FPS

Resistance：600Ω)

Resistance：600Ω)

Relay output 2 4

Page 92

Power supply 100~240VAC, 6.3A, 50~60 HZ

Power

consumption

Work in g

temperature

Work in g

humidity

20--42W (without HDD)

-10℃--＋55℃

10％--90％

Size 14.25 inch standard (440mm*390mm*70mm)

Weig ht ≤8Kg (without HDD and CD-R/W)

PAL ：176*144(QCIF), 352*288(CIF), 704*288(2CIF), 528*384(DCIF), 704*576(4CIF); NTSC：176*120(QCIF), 352*240(CIF), 704*240(2CIF), 528*320(DCIF), 704*480(4CIF).

Page 93

Appendix C List of Recommended DVR

Peripherals

USB DVD-R/W：

1. LG GSA-E10L

2. BENQ EW164B

USB CD-R/W：

1. BENQ external 5232WI-ok2

2. ASUS CRW-4824A + USB Convertor case

3. SONY CD-R/RW CRX230AD + Convertor cable

4. SONY CD-R/RW CRX225E + Convertor cable

5. BENQ external EW162I-OK2

IDE CD-R/W：

1. Sony CD-R/RW CRX225E

2. NEC DVD R/RW & CD-R/RW ND-3500A

3. Toshiba Samsung CD-RW SH-R522

4. LG GCE-8525B CD-R/W

IDE HDD： Maxtor：

1. DiamondMax Plus 9 80G ATA/133 HDD

2. DiamondMax Plus 9 160G ATA/133 HDD

3. DiamondMax Plus 9 200G ATA/133 HDD

4. MaxLine Plus II 250G ATA/133 HDD

5. MaxLine II 300GB ATA/133 HDD

6. MaxLine III 300GB ATA/133 HDD

Seagate：

1. Barracuda 7200.7 40G

2. Barracuda 7200.7 80G

3. Barracuda 7200.7 120G

4. Barracuda 7200.7 160G

5. Barracuda 7200.7 200G

6. U Series 9 ce ST3160022ACE 160GB

7. DB35 Series ST3250823ACE 250GB

8. DB35 Series ST3300831ACE 300GB

9. SV35 Series ST3160812AV 160GB

10.

SV35 Series ST3250824AV 250GB

Page 94

West Digital：

1. WD Caviar WD400BB

2. WD Caviar WD800BB

3. WD Caviar WD1200BB

4. WD Caviar WD2000BB

5. WD Caviar WD2500BB

6. WD Caviar SE WD1600BB

7. WD Caviar SE WD2000JB

8. WD Caviar SE WD2500JB

9. WD Caviar SE WD3000JB

Page 95

Appendix D Quick Search Function Table

Type Name Description Index

Safety

function

HDD

recording

Local

monitoring

Network

User

management

Password

Management

HDD

management

Recording

mode

Recording

para.

Playback Playback by time, Playback by file. Fast, Slow,

Backup Backup record files and video clips. 4.7

Preview mode Monitor and VGA display. 1 screen/4 screen/9

PTZ control Control pan, tilt, zoom, focus and iris. Setup and

Motion

detection

Alarm input Alarm input response policy, schedule setup. 5.13

Relay output Alarm output parameters setup. 5.13

Mask Sensitive mask area setup. 5.7

View

tampering

Exceptions Exception response, such as HDD error, HDD full,

Camera status Recording, video loss status display. 4.2

ASDL Using PPPoE dialup function, support DNS. 5.14

Preview TCP, UDP, RTP, Multicast. *

Control Control DVR through network. *

Alarm Send alarm information to host PC through network. 5.14

PTZ control Remote control PTZ. *

Remote setup Remote setup DVR parameters. *

Create and delete users. System has one default

administrator. The administrator can create 15 users

and define their rights.

Modify password. 4.3&5.1

Format HDD, HDD information. 6.4

Manual record, All time record, Motion detection

record, Alarm record, Motion&Alarm record,

Motion|Alarm record.

Bit rate, Frame rate, Image quality etc 5.12

Pause, Frame by frame. 2-ch synchronized.

screen/16 screen preview mode. Auto switch or

manual switch.

adjust preset, sequence and cruise.

Motion detect area, sensitivity and response policy

setup.

Camera spiteful block setup. 5.8

illegal access, etc.

5.2

5.12

4.6

5.11

4.4

5.10

5.17

Page 96

Remote

Remote record real time stream. *

record

Remote

Remote playback the recorded files in DVR *

playback

Download Download recorded files in DVR. *

Remote

Remote upgrade firmware. *

upgrade

Transparent

channel

Remote control serial device connected with serial

port of DVR.

Web Using IE to access DVR *

PSTN Access DVR through PSTN. 5.16

OSD OSD setup 5.5

Utilities

LOGO Logo setup 5.5

View log View log 6.8

【*Note】The network SDK and client demo source code are included in attached CD.

5.16

Page 97

Appendix E Troubleshooting

Failure Possible reasons

After plugging in power, turning on the power switch,

“POWER” light in front Panel does not turn on, and fan

does not work.

After plugging in power, turning on the power switch,

“POWER” light in front panel turn to green while fan does

not work.

After plugging in power, turning on switch, “POWER”

light turn to green, the indicator lights in the panel turn on

at the same time, but fan does not work.

DVR continuously reboots after start up, and makes a

sound like “di” every 10 seconds.

There are no images in the monitor connected with VOUT

after DVR is started.

Cannot find the hard disk in reboot process. 1) Hard disk cable is broken.

No reponse in HyperTerminal interface. 1) Baud rate is not matched.

DVR can not control PTZ through RS-485 port. 1) RS-485 cable is not

Client software can not view DVR live image. 1) Network is error.

Page 98

1) Power cable is broken.

2) Power supply is broken.

1) Front panel cable is broken.

2) Fan is broken.

The ATX plug in main board is

not well plugged in.

1) Upgrade the wrong firmware

2) Compression board has

problems.

3) Main board has problems.

1) The cable connected with the

monitor is broken.

2) Real board of DVR has

problems.

3) Main board of DVR has

problems.

2) The power cable of hard disk

is not connected.

3) Hard disk is broken.

2) RS-232 cable is broken.

3) Serial port of PC is broken.

4) RS-232 port of DVR is

broken.

connected correctly or

broken.

2) PTZ parameters error.

3) RS-485 port of DVR is

broken.

2) Connect wrong DVR (wrong

IP, port number, username or

password, ect).

3) Old player SDK (playm4.dll)

Notes：

1) Place the DVR in well ventilated space so that it operates within the allowed range of

temperature and humidity as in specification.

2) If the circuit board is wet, dust on circuit board can cause a short circuit. The circuit board,

lug and socket, housing fan and housing should be cleaned by brushing regularly.

Page 99

Planet Technology DVR-470 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter1 Product Introduction

1.1 Summary

1.2 Features

Chapter2 Installation

2.1 Checking the DVR and Its Accessories

2.2 HDD Installation

2.3 Rear Panel Description

Index Physical Interface Description

2.4 External Alarm In/Out Connection

Chapter3 Operational Instructions

3.1 Front Panel

3.2 IR Controller

3.3 Menu Description

3.3.1 Menu Items

Display

3.3.2 Menu Operation

3.4 Character Input

Chapter4 Basic Operation Guide

4.1 Power on

4.2 Preview

Icon Icon Color Status Description

Icon Icon Color Status Description

4.3 User name and password

4.4 PTZ Control

4.5 Manual Record

4.6 Playback

4.7 Backup Recorded Files

4.8 Shut Down DVR

Chapter5 Parameters Setup Guide

5.1 Administrator and Password

5.2 Add and Delete User

5.3 Unit Name and Device ID

5.4 Video Output Standard and VGA Setup

5.5 OSD Setup

5.6 Video Parameters Setup

5.7 Mask Area Setup

5.8 View Tampering Alarm

5.9 Video Loss Alarm

5.10 Motion Detection Alarm

5.11 Preview Properties

5.12 Recording Setup

5.13 External Alarm Input and Relay Output

5.14 Network Parameters

5.15 PTZ

Preset setup

5.16 RS232 setup

RS232 menu description

Example：PPP (Modem) passive dialup through PSTN

5.17 Exceptions

5.18 Transaction Information

Chapter6 Utilities

6.1 Save Parameters

6.2 Restore Parameters

6.3 Upgrade

6.4 Hard Disk Management

6.5 Clear Alarm Out

6.6 Reboot

6.7 Power Off

6.8 View Log

6.9 System Information

Chapter7 Firmware Upgrade

7.1 FTP Server Setup

7.2 Upgrade Mode

1 UTP network connect cable made method

2 RS-232 connect cable made method

Appendix B Specifications

Appendix D Quick Search Function Table

Appendix E Troubleshooting
