Planet Technology DVR-450 User Manual

Triplex Digital Video Recorder

DVR-1650

User’s manual

Copyright (C) 2005 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted. No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form by any means by electronic or mechanical. Including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser's personal use, and without the prior express written permission of PLANET Technology.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred. Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without notice. If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and

suggestions.

CE mark Warning

The is a class B device, In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Trademarks

The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, their respective companies claim these designations as trademarks or registered trademarks.

Revision

User’s Manual for PLANET Triplex Digital Video Recorder Model: DVR-1650

Rev: 1.0 (Oct. 2005)

Part No. EM-DVR1650V1

Table of Contents

Chapter 1 Introduction....................................................................................1

Overview.......................................................................................................................1

DVR Functions................................................................................................................1

Package Content..........................................................................................................2

Physical Details............................................................................................................2

Buttons Definitions..........................................................................................................3

Physical Interfaces...........................................................................................................5

Chapter 2 DVR- 1650 Menu Setup................................................................10

Introduction................................................................................................................10

Menu Tree......................................................................................................................11

MAIN MENU...............................................................................................................12

SYSTEM SETUP..........................................................................................................13

DISPLAY SETUP.........................................................................................................16

RECORDING SETUP...................................................................................................18

ALARM SETUP...........................................................................................................19

MOTION SETUP..........................................................................................................21

WEEKLY SCHEDULE.................................................................................................23

NETWORK SETUP......................................................................................................25

ARCHIVING................................................................................................................27

Playback archived video files........................................................................................28

HDD INFORMATION..................................................................................................30

PLAYBACK Configurations.......................................................................................32

Search List....................................................................................................................32

Display mode..............................................................................................................34

Recording mode.........................................................................................................36

Playback mode...........................................................................................................37

PTZ control Procedure..............................................................................................38

Chapter 3 Utility Administration...................................................................39

NetViewer utility.........................................................................................................39

Procedures of DVR Client utility...................................................................................39

Appendix A Pin Description of connectors.................................................63

Appendix B Software Upgrade Procedure..................................................65

Appendix C Specification..............................................................................68

Chapter 1

Introduction

Overview

The DVR-1650 (Triplex Digital Video Recorder) is for recording/playback/Network video streams from up to 16 channels at the same time. It adopts cutting-edge digital image compression technology to compress the analog input channel video streams, and uses HDD to record the compressed video stream. The following operation guide explains how to operate/manage the DVR-1650, and the following installation

guide explains how to complete the first DVR-1650 installation on your side.

DVR Functions

This DVR provides recording capabilities for 16 camera inputs. It provides playback or live display and network function while in recording mode. And it also offers the following features:

• Real-time recording for up to 16 analog cameras, maximum up to 60 NTSC IPS (Image per second),

50 PAL Images per Second

• Simultaneously Record, Playback and Network viewing

• Remote monitoring via Internet Explorer or bundled utility

• Convert traditional surveillance equipment into digitalized surveillance network

• Local monitoring, no special equipment required

• Display and Record Video Resolution: NTSC (720x480), PAL (720x576)

• 1 channel audio recording

• Loop-Through video connectors to secondary monitor device

• Built-in buzzer alarm to send warning when alarm or motion has been triggered

• USB interface for machine archiving

• Powerful Search Engines (Schedule/ Motion/ Alarm/ Manual recording search or by Date/Time

• Bundled recording and playback utility for remote computer

• DDNS / DHCP client support

Package Content

Remote Controller

The contents of your product should contain the following items:

l DVR-1650 l Power adapter l Rack Mount Bracket l Quick Installation Guide l User Manual CD l Remote controller

Physical Details

Overview of front panel and rear panel

USB Memory Drive

Cameras

• • • • •

Microphone

Loop Through for 16ch out

75 Ohm

Terminator

Sensor

Input

Ethernet

Alarm

Output

Adaptor

(12V)

RS485

(PTZ controller)

cable

Monitor & Spot

Speaker

Buttons Definitions

2 3 4 5 6 7 8 9 11 10 12 14 13 15 16

1. USB port

A USB port is provided to connect external USB memory drive for backup video.

NOTE: All working functions of DVR will stop while USB port is in use.

2. Video Display Channel Selection buttons

Channel button from CH1 to CH16 is to select video channel displayed on monitor.

3. Channel Display mode selection buttons

There are four kinds of video display modes which consists of sequential display, QUAD, 9CH, 16CH

display mode.

Full Picture Display mode: Full picture can be selected by channel selection button from CH1 to CH16.

• Sequential Display mode:

If this button is pressed under given video display mode, each video display mode is switched

sequentially. For example, if this button is pressed in QUAD mode, QUAD picture is switched sequentially from CH1-4, CH5-8 to CH13-16.

• QUAD Display mode:

If QUAD button is pressed, QUAD picture will be displayed. Whenever this button is pressed,

QUAD picture including CH1 to CH4, CH5 to CH8, CH9 to CH12 and CH13 to Ch16 will be changed in turn.

• 9 Picture Display mode:

If 9 picture display button is pressed initially, 9 pictures of CH1 to CH9 will be displayed. The

coming 9 picture of CH8 to CH16 will be displayed by pressing this button one more. Whenever this button is pressed, 9 pictures set is switched in turn.

• 16 Picture Display mode:

Whenever 16 picture display button is pressed, picture display mode will be changed from 16

picture set display to 1(large)+7 (small) set display mode and 2(large)+8(small) set display mode.

4. FUNCTION

The larger picture display mode in 1(large) +7 (small), 2(large) + 8(small) set display mode can be changed by the combination of FUNCTION and channel selection button. While in the 1(large) +7 (small), 2(large) + 8 (small) set display modes, press FUNCTION button first then press channel buttons from CH1 to CH16, ex: CH2. The larger picture will change to the pressed channel number, CH1à CH2.

NOTE: This function is doing once after pressing FUNCTION button.

5. KEY LOCK

In order for only authorized person to operate buttons in front panel, this button can be utilized. If this button is pressed, all of buttons in front panel are not operated with yellow LOCK LED. To release KEY LOCK button, password will be requested just after pressing LOCK button. If correct password is input, button LOCK will be released.

6. Archiving button Whenever ARCHIVING button is pressed, archiving will be started.

NOTE: Please make sure USB device is plug into USB port while pressing this button.

7. REC button Press REC (Red circle) to start to record. This is toggle button. Press REC to stop recording again.

8. RR (◀◀)

Press REW to perform high speed backward playback. It supports 2 to 16 times playback speed.

9.PLAY button (▶) and 10. STOP button If PLAY (▶ ) is pressed, search lists will be displayed on monitor. After selecting one recorded file among lists, playback will be started by PLAY button. To stop playback, STOP button is used. While DVR is in high speed playback mode like FF or REW, it returns to normal playback by PLAY button.

11. FF (▶▶) Press FF to perform high speed forward playback. It support 2 to 32 times playback speed.

12. PAUSE Press PAUSE to pause playback. This PAUSE button can be used for backward or forward movement by

one field. The direction of field movement is decided by pressing FF or REW previously.

13. MENU Press MENU button to enter menu system.

14. ESC ESC button is used to return to upper menu and to save set up parameter at the same time

15. Direction button and Enter Button

Direction buttons are used to move LEFT, RIGHT, UP and DOWN in menu. They also can be used to input password. ENTER button is used to save parameter settings and to select parameters in the menu. While in playback they are used to select one of listed file for playback after searching recorded files (use all, time, alarm, motion, manual sorting moethod and so on).

16 LED Indicators

POWER

NETWORK

IR receiver

USB Archiving

REC

1) POWER LED

This LED turns“ON” when power is “ON”.

2) NETWORK LED

This LED will turn“ON”, while data communication is working through network.

3) Archiving LED

This LED will turn“ON”, while data archiving is working through USB Memory driver.

4) REC

This LED will turn “ON” during recording.

5) EXT:

This LED will turn“ON”, when external alarms are triggered or motions are detected.

6) LOCK

This LED will turn“ON” while LOCK button is working.

7) IR Receiver

EXT LOCK

Remote controller sensor input window

Physical Interfaces

2 3 5 6 7 8 9 4

1. Video Input: 16 channel composite video inputs with BNC connectors

Since this DVR automatically detects video format (NTSC or PAL) as soon as power is

ON, NTSC or PAL video sources can be connected in DVR. But NTSC and PAL video sources for 16CH

video inputs can not be mixed. If they are mixed, DVR can’ not be operated properly.

2. Video Output One video output (Upper BNC) is used to monitor live, playback pictures. The other

(lower BNC) is used to monitor SPOT monitoring which displays all of connected video channels

sequentially.

3. Audio input (upper RCA) and Output (Lower RCA) Unbalanced audio signal input and output with RCA jack. Connect the audio source (microphone) to

audio input, audio output (speaker) to your amplifier because the DVR does not have amplified audio output, therefore, a speaker will be needed for audio playback. The audio input can be fro m an amplified source or directly from a microphone.

4. 16CH Loop through outputs: 16 channel composite video outputs with D-SUB connectors. If the connection of loop-through video outputs into video equipments is requested, 16CH Loop-Through outputs can be utilized for it. If loop-through video outputs will be connected to another video equipments, 75 Ohm termination switch should be “OFF”. Then, another video equipments should be 75 ohm terminated.

5. 75 Ohm Termination Switch

If you want to connect loop-through video outputs into another video equipments, 75 Ohm termination

switch should be “OFF”. Then, the other video equipments should be 75 ohm terminated. If loop through video outputs are not connected to the other video equipments, it should be “ON”.

If 75 Ohm termination switch “ON” or “OFF” is changed unintentionally, it will cause poor video quality.

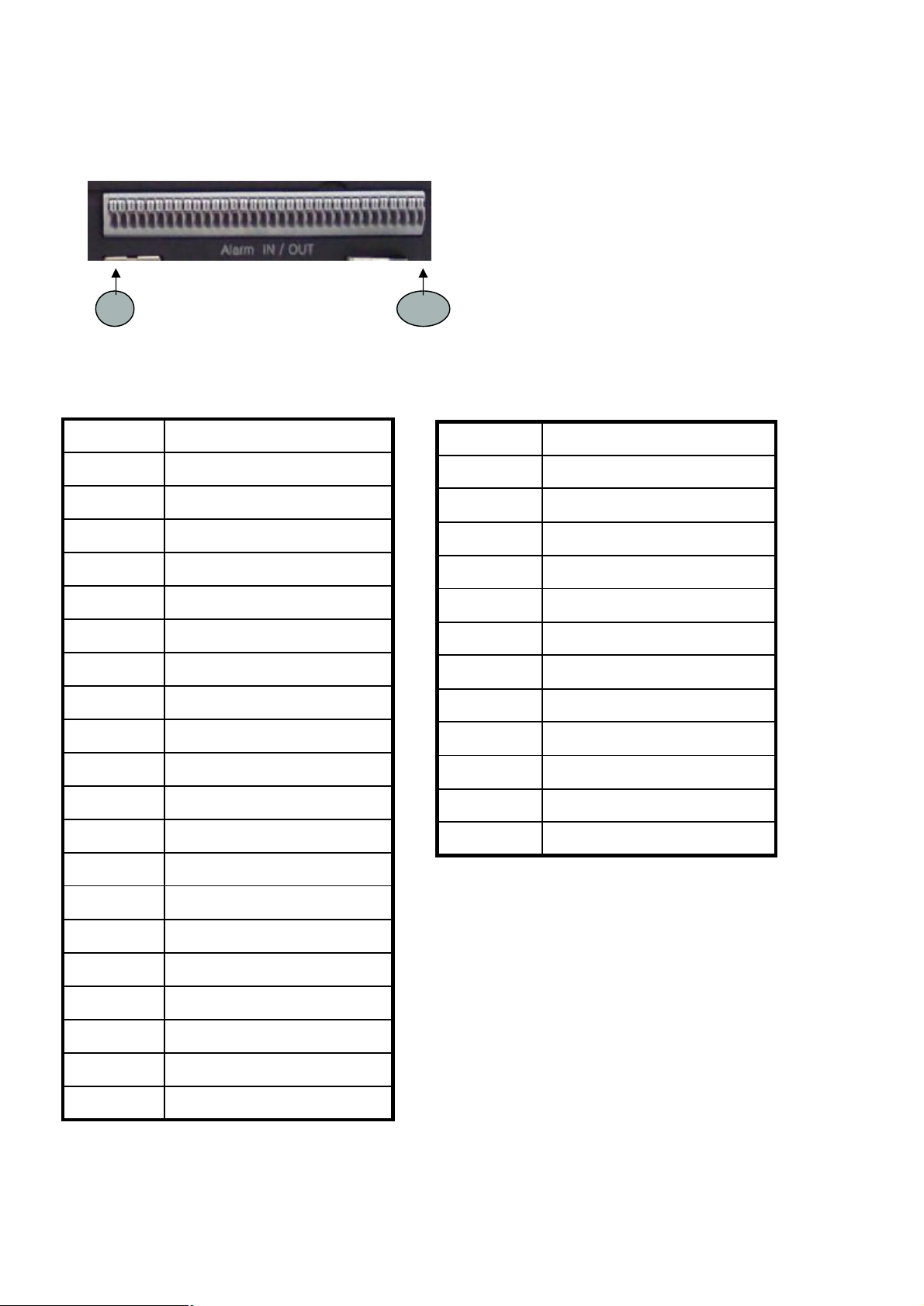

6. Alarm input and relay output: (16 alarm inputs and 4 relay output with NO, NC)

To make secure connections on the Alarm Connector Box, press and hold the button then insert the wire

of alarm in the hole below of connector pin. After releasing the pin, pull gently on the wire to test it is

D/ PelcoP/

GC_755_NP/

connected securely. To disconnect a wire, press and hold the connector pin above the wire and pull out the wire.

• 16 Alarm Inputs: 1,2,3,4,…, 16,G (Ground)

You can use external devices to signal the DVR responding to events. Mechanical or electrical switches

can be wired to the Alarm Inputs and GND (Ground) connectors. The threshold voltage is 4.3V and should be stable at least 0.5 seconds to be detected.

• G (Ground), COM (common): G is same as common.

Connect the ground side of the Alarm input to G (Ground). Connect the ground side of relay output to

COM connector.

• 4 Relay output:

4 relay outputs with NO or NC can be sent to external device. You can select NO or NC according to

characteristic of mechanical or electrical switch.

7. Ethernet Port:

Connect a Cat5 cable with an RJ-45 jack to the DVR connector. Remote computer viewer via network to

live viewing or searching.

8. RS485: For camera pan and tilting control

This DVR can be controlled remotely by remote PC software. The RS485 connector can be used to control PTZ (pan, tilt, zoom) cameras. Connect RX+, RX- of the control system to the TX+, TX- (respectively) of the DVR.

Note

9. Power Input (from Adapter)

Connect the adaptor to the DVR for DC power supply.

Currently PTZ camera support: Panasonic/ PelcoTechwin/ Niko/ DRX502A_DSC230s /KRE_301_302/ TOA_CC554/ RAS716LS / LPT-100 / KD.

Remote Controller

6 9 12 2

1 REC Start /Stop recording button 2 USB Start archiving button 3 1,2,3,…0, +10 Video channel selection buttons

(1,2,3,4 is designed for password input

as well) 4 F1 Function key. 5 ESC Exit to upper menu 6 MENU Enter menu mode 7

1) UP (▲)

2) DOWN (▼)

LEFT/RIGHT button to move

UP/DOWN button to change ENTER

3) LEFT (◀)

Please be sure to finish the hard disk drive installation

before using the DVR. The Maximum HDD capacity support is

4) RIGHT (▶)

5) ENGER 8 STOP Stop playback button 9 Search/ PLAY Start playback or search event list

10 FF, REW Fast Playback buttons 11 Forward/backward by 1 field PAUSE/ 1 field movement backward

12 Video Picture Display mode 1) Sequential display button

13 LOCK LOCK Enable/Disable 14 Reserve key

to confirm settings.

button

PAUSE/ 1 field movement forward

2) QUAD display button

3) 9 picture display button

4) 16/8/10 picture display button

Note

400GB.

Chapter 2 DVR- 1650 Menu Setup

Introduction

The DVR-1650 OSD menu provides ease-of-use machine configurations; please press the MENU button of the front panel to enter OSD menu. Each setting item can be moved by the up and down buttons.

Menu Tree

BUZZER ALERT

SENSITIVITY

CAM4

00: 00

WEEK START DURATION

00: 00

SUN

LANGUAGE

MAIN MENU

SYSTEM SETUP 1

DISPLAY SETUP 2

RECORDING SETUP 3

ALARM SETUP 4

MOTION SETUP 5

WEEKLY SCHEDULE 6

NETWORK SETUP 7

ARCHIVING 8

HDD INFORMATION 9

ALARM SETUP

FRAME RATE 1

DURATION

SENSOR TYPE

TRIGGER OUT

BUZZER ALERT

WEEKLY SCHEDULE

MON

00: 00

TUE

00: 00

WED

00: 00

THU

00: 00

FRI

00: 00

SAT

00: 00

00: 00 00: 00 00: 00 00: 00 00: 00 00: 00

SYSTEM SETUP

VIDEO FORMAT

PASSWORD

ADMIN LOCK

TIME FORMAT

DATE FORMAT

DATE/TIME SET

DEFAULT

RECORDING SETUP

QUALITY 1

FRAME RATE

AUDIO

STOP KEY

NETWORK SETUP

CONNECT 1

IP ADD

SUB NET

GATE WAY

DNS

PORT

NTP TIME

TIME ZONE

DDNS STATUS

ARCHIVING

ARCHIVING TYPE 1

ARCHIVING TIME

ARCHIVE INFO

NAME: / TOTAL: ARCHIVE LOG

DISPLAY SETUP

ADJUST CHANNEL 1

BRIGHTNESS CONTRAST PTZ TYPE SEQ DWELL TIME

TIME/DATE OSD

CAM NUMBER OSD

VIDEO LOSS OSD

POP-UP DISPLAY

POSITION

MOTION SETUP

FRAME RATE 2

DURATION 3

CAM1 4

CAM2 5

CAM3 6

HDD INFORMATION

HDD DISK 1

TOTAL FREE FORMAT HDD

OVERWRITE

▲ ▼ ◀ ▶

ENTE

MAIN MENU

MOTION SETUP

SYSTEM SETUP

ARCHIVING

ALARM SETUP

RECORDING SETUP

DISPLAY SETUP

MAIN MENU

▲ ▼ ◀ ▶

EXIT

ENTER

menu for security

Press MENU/ESC button of DVR front panel. If ADMIN LOCK is set as YES (factory default is YES), below figure will be appeared. Input default password

1111 and press ENTER button. MAIN MENU will be appeared.

PASSWORD

Input password number using 1, 2, 3, 4 Channel Buttons (Factory default is to press “1” button 4

PASSWORD

times), and press ENTER button. MAIN MENU will be appeared.

*****

Note

Please setup a new password in SYSTEM SETUP reason.

WEEKLY SCHEDULE 6 NETWORK SETUP 7

HDD INFORMATION 9

Operation Buttons

1.2.1

: NTSC

VIDEO FORMAT

DEFAULT : YES / NO

: YES

: ****

ADMIN LOCK

PASSWORD

SYSTEM SE

TUP

▲ ▼ ◀ ▶

EXIT

ENTER

Please connect video signals to the channel inputs first

ult video format is PAL

◀(LEFT/ 4), ▶(RIGHT /2), ▲(UP /1), ▼(DOWN /3) and ENTER buttons.

To enter or escape the DVR Main Menu, press MENU/ESC. Buttons for movement in Menu are ▲(UP /1),

▼(DOWN /3).Buttons for changing parameter of selected item are ◀(LEFT/ 4), ▶(RIGHT /2 ) .

Button for selection is ENTER. Press MENU/ESC to return to the previous MENU after setting and to save the values of setup.

SYSTEM SETUP

To enter SYSTEM SETUP menu, moving highlight bar to SYSTEM SETUP item in MAIN MENU, then press

ENTER button.

TIME FORMAT 5 DATE FORMAT 6

DATE/TIME SET 7 2005: 10: 25 10:50:11

REV STATUS :VERSION

: ENG LANGUAGE 1

: 24HOURS : MM-DD-YY

1) LANGUAGE: English, Chinese, and Japanese. Choose a proper language by ◀(LEFT/ 4), ▶(RIGHT /2 ) buttons.

2) VIDEO FORMAT: NTSC/ PAL

Video format is automatically detected after power ON. The detected video information

will be displayed on this item. Users do not need to change video format.

Note

before power on the DVR. The defa if there are not any video signals connected.

Since DVR will detect the video format automatically, please

do not mix the NTSC/PAL cameras, otherwise, display will

OLD

****

PASSWORD

SYSTEM SETUP

****

SYSTEM SETUP

****

If date and time is set older than some of your recorded

Note

be abnormal.

3) PASSWORD: Move Highlight bar to PASSWORD item using ▲(UP /1), ▼(DOWN /3) button.

And then press ENTER to change four-digit password, press ◀(LEFT/ 4), ▶(RIGHT /2),

▲(UP /1), ▼(DOWN /3) buttons to input digits

Input old password. (Factory Default is 1111)

PASSWORD 3

NEW

Input a new password.

SYSTEM SETUP

PASSWORD 3

AGN

Input the new password again to confirm new password.

4) ADMIN LOCK: YES/ NO

Move Highlight bar to ADMIN LOCK item.

If ADMIN LOCK is selected as YES then password is requested whenever entering menu. If NO, then password is not required.

5) TIME FORMAT: 24/ 12 HOURS

24 HOURS (military time, ex: 16:00) or 12 HOURS (AM/PM, ex: 4:00 PM). Whenever time format is

changed, clock information on display monitor and playback will be changed together.

6) DATE FORMAT: MM-DD-YY/ DD-MM-YY/ MM-DD-YY Choose a proper date format.

7) DATE/ TIME SET:

Move Highlight bar to DATE/TIME SET item, and then press ENTER to set the time.

Note

Before starting your DVR, DATE/ TIME SET should be setting properly.

files, it will be difficult to manager DVR files.

SYSTEM SETUP

upper menu. After

SYSTEM SETUP

DATE/TIME SET 7

DATE/TIME SET

…

Year is changed by DOWN or UP button.

By LEFT or RIGHT button to move to next selection

Month is changed by DOWN or UP button.

By LEFT or RIGHT button to move to next selection

Date is changed by DOWN or UP button.

By LEFT or RIGHT button to move to next selection

Time is changed by DOWN or UP button as well. Press ENTER button to save the settings.

Note

MENU/ESC button can be used to return to setting the DATE and TIME, please remember press ENTER button to save the settings.

8) DEFAULT: YES/ NO

Return to factory default mode.

9) REVISION STATUS

It shows DVR software version. Whenever upgrading software, upgraded version will be displayed.

DISPLAY SETUP

ON/ OFF

POP

UP DISPLAY

ON/ OFF

VIDEO LOSS OSD

ON/ OFF

CAM NUMBER OSD

ON/ OFF

TIME/ DATE OSD

NONE, 1

60 SEC

SEQ DWELL TIME

2 1-

99 %

BRIGHTNESS

99 %

CH1

ADJUST CHANNEL

POSITION

PTZ TYPE

CONTRAST

DISPLAY SETUP

▲ ▼ ◀ ▶

EXIT

ENTER

GC_755_NP/ TOA_CC554/

To access DISPLAY SETUP, press ENTER button after moving highlight bar to this item in MAIN MENU. Below menu will appear on monitor.

1) ADJUST CHANNEL: CH1 / CH2 / CH3 /CH4

Select the camera channel to adjust brightness, contrast or PTZ type.

BRIGHTNESS: 1 to 99 % BRIGHTNESS can be changed using LEFT or RIGHT button

Note

Higher percentage shows brighter image.

CONTRAST: 1 to 99 %

CONTRAST can be changed using LEFT or RIGHT button. PTZ TYPE (Pan, Tilt and Zoom protocol selection)

Each camera has its own control protocol to control panning, tilting and zooming, according to PTZ

camera manufacturer. In order to control PTZ camera from remote area by DVR utility, proper PTZ TYPE should be selected here.

Note

Currently support Panasonic/ Pelco-D/ PelcoP/ Techwin/ Niko/ DRX502A_DSC230s /KRE_301_302/ RAS716LS / LPT-100 / KD.

2) SEQ DEWLL TIME: NONE/ 1 to 60 seconds.

It is the period of sequential display mode.

NOTE: It is just reflected in sequential display mode.

3) SPOT DWELL: 1 to 60 seconds.

SPOT DWELL TIME can be changed using LEFT or RIGHT button. All of video channels connected

with video inputs of DVR are sequentially switched for video output for SPOT monitoring.

4) TIME/DATE OSD: ON/ OFF When it is set as OFF, time and date will disappear on monitor. But time and date information still are added

into recording files.

5) CAM NUMBER OSD: ON/ OFF When it is set as OFF, camera number character will disappear on monitor.

6) VIDEO LOSS OSD: ON/ OFF

When it is set as OFF, black pictures will be displayed in the cameo with video loss. When it is set as ON, “VIDEO LOSS” character will be displayed in blue screen.

7) POP-UP DISPLAY: ON/ OFF

When it is set as ON, the channel image will POP-UP up to maximum 30 seconds if any motions are detected in enabled motion detection camera or any external alarm is triggered.When it is set as OFF, the channel image will not pop-up if there is any motion detected. In case that motion detection or alarm event is occurred more than two channels, POP-UP picture will be appeared in monitor turn by turn during 3 seconds for each channel. Total period of POP-UP display is 30 seconds.

8) POSITION:

Channel display position can be adjusted by this item. Even same video signal can be displayed on different position of monitor by the deflection characteristic of it.

POSITION

1 VERTICAL : 52 2 HORIZONTAL : 205 3 DEFAULT : NO

RECORDING SETUP

30 15 10 5 1

65 13

85 17

20 10

Some parameters related to recording function can not be

he higher the record frame rate is; the more natural look

But the lower the record frame rate is, the more you can

RECORDING SETUP

QUALITY 1

: HIGH

FRAME RATE 2

AUDIO 3

: 60/ IPS

: OFF

CAMERA NUM RECORD

: DISABLE STOP KEY 4

: CH01-16 : ENABLE

To access RECORDING SETUP, press ENTER when RECORDING SETUP in MAIN MENU using DOWN or UP is highlighted with blue color. The menu above will appear on monitor.

1) QUALITY: LOW / STANDARD / STANDARD PLUS / HIGH The DVR supports four recording qualities depending on practical bandwidth.

2) FRAME RATE: 60, 30, 15, 10, 5, 1, 0.5 IPS. (NTSC) 50, 25, 12, 10, 5, 1, 0.5 IPS. (PAL)

Several frame rates can be choosed for user’s need from 0.5 to 60 Image per seconds for NTS from 0.5 to 50 IPS for PAL. It can be selected using LEFT or RIGHT button.

Note

changed while DVR is recording.

The following is the recording table (unit: capacity KB per second)

Quality FPS 60

LOW 780

STANDARD 1020

STD PLUS 1200

HIGH 1500

390

510

600

750

195

255

300

375

130

170

200

250

100

125

Note

RECORDING FRAME RATE TABLE

T will be displayed on the screen when playing back.

0.5

6.5

8.5

12.5

save the space on HDD.

3) AUDIO: ON/ OFF

and date/ time setup

Some parameters related to recording function can not be

: DISABLE, 1 to 4

TRIGGER OUT

Select ON to record audio signal with video signal together or not. It can be selected using LEFT or RIGHT button.

4) STOP KEY: DISABLE/ ENABLE Disbale STOP KEY can protect the DVR from pressing the recording toggle key unintentionally to stop

recording.

Note

While DVR is in recording mode, changing the settings related to recording function is not effective, such as recording quality, frame rate, audio in SYSTEM SETUP.

5) CAMERA NUM: CH01-16 RECORD: ENABLE/ DISABLE

Recording channel from CH1 to CH16 can be selected separately. The video channels which don’t need

to record can be set “DISABLE” after selecting channel in CAMERA NUM.

ALARM SETUP

FRAME RATE 1 DURATION 2 SENSOR TYPE 3

ALARM INPUT

: 60/ IPS : 3 MIN : NONE/ N.O/ N.C : 01 to 16

1) FRAME RATE: 60, 30, 15, 10, 5, 1, 0.5 IPS(NTSC) 50, 25, 12, 10, 5, 1, 0.5 IPS. (PAL)

This is the recording frame rate of alarm recording.

button.

Note

changed while DVR is recording.

2) DURATION: This is a recording duration after alarm is triggered. This DVR support 10, 30 seconds, 1,2,3,4,5,6,7,8,9,10,20,30,40,50,60 minutes. It can be selected using LEFT or RIGHT

: DISABLE BUZZER ALERT 5

3) SENSOR TYPE: NONE/ N.O/ N.C DVR can select the input type for external alarm relay which usually has normal open or normal closeusing

LEFT or RIGHT button.

4) ALARM INPUT (Relay TRIGGER Out): DVR supports both dry open and dry contact through relay output port 1 to port 4.

It can be selected using LEFT or RIGHT button. Trigger Output 1 to 4 corresponding to alarm input from 01 to 16 can separately be designated. For example, trigger output for alarm input 01 can be designated as “ DISABLE”(when trigger output isn’t needed). Trigger output for alarm input 02 can be designated as “trigger output 1”. Trigger output for alarm input 10 can be designated as “trigger output 3”. Trigger output for alarm input 16 can be designated as “trigger output 4”.

5) BUZZER ALERT: DISABLE/ ENABLE If external alarm sensor(s) be triggered, beep sound from buzzer would be occurred during two seconds

while choosing ENABLE

MOTION SETUP

: DISABLE

BUZZER ALERT

: 1 MIN

: 60/ IPS

: Normal

SENSITIVITY

DURATION

FRAME RATE

MOTION SETUP

DVR has built-in video motion detection function. Motion detection area can be selected separately for each camera. When your DVR detects motions, it begins to record multiplexed video signals from the camera which motion is detected and display that camera image with up to 30 seconds while selecting POP-UP DISPLAY è On. (Refer to the section DISPLAY SETUPà POP-UP DISPLAY)

Recoding duration can be selected in MOTION SETUP menu. To access MOTION SETUP, press ENTER when MOTION SETUP in MAIN MENU using DOWN or UP button is highlighted with blue color. The menu below will appear on monitor.

CAM NUM 4

AREA SETTING

: CH1 – CH16

: DISABLE, ALL, SETUP

1) SENSITIVITY: 5 steps (very low, low, normal, high, very high)

DVR supports 5 sensitivity levels. Higher sensitivity will detection motions easily even there is a brightness

change. It can be selected using LEFT or RIGHT button.

2) FRAME RATE: 60, 30, 15, 10, 5, 1, 0.5 IPS.(NTSC)

50, 25, 12, 10, 5, 1, 0.5 IPS. (PAL)

The recording frame rate after motion is detected. It can be selected using LEFT or RIGHT button.

3) DURATION: It defines recording duration after motion is detected. This DVR support 10,30sec,

1,2,3,4,5,6,7,8,9,10,20,30,40,50,60 minutes. It can be selected using LEFT or RIGHT button.

4) CAM NUM: CH1 – CH16

• AREA SETTING : DISABLE/ ALL/ SETUP

Enable/Disable motion detection; motion zone can be selected separately for each sixteen cameras

using LEFT or RIGHT button.

DISABLE means that motion detection function is not utilized. ALL means that entire image area is selected for motion detection. SETUP is used to select motion detection image areas which want to monitor motion detection. Total

motion area consists of 14x10 blocks. To select arbitrary motion zone, select SETUP using LEFT or RIGHT button. And then press ENTER button to designate motion areas in 14x10 blocks. You can use LEFT or RIGHT button for horizontal movement; UP or DOWN button for vertical movement, ENTER button for selection. You can define the area of the image where you don’t want to detect motion.

Selected blocks in 14x10 blocks will be blinking. To remove previously defined image block for

motion detection, press ENTER button again to clear that block. After defining motion zone, press ESC button to return upper Menu, meanwhile, the settings will be saved.

Motion detection zone is the area which edge of the motion blocks is not flickering.

< The example of motion area setup >

• TRIGGER OUT: DISABLE/ 1 to 4 It is supported to output alarm output (relay output) when motion is detected. In case that relay output is not required, it can be set“DISABLE”. When motion is detected in

some selected video channels, relay output 1 to 4 can be selected to support relay output. For example, trigger output for motion detection in CH02 can be designated as “trigger output 1”. Trigger output for motion detection in CH10 can be designated as “trigger output 3”.

5) BUZZER ALERT: DISABLE/ ENABLE

If motions are detected in decided motion detection area, beep sound from buzzer by would be occurred

during two seconds by selecting ENABLE.

WEEKLY SCHEDULE

WEEK START DURATION

total recording time, not ending time ,

for example, schedule recording during 8:00 am to 9:00

To access WEEKLY SCHEDULE, using DOWN or UP button to select the item in MAIN MENU, then press ENTER into setup menu when WEEKLY SCHEDULE is highlighted with blue color. The menu below will

appear on monitor.

WEEKLY SCHEDULE

HOLIDAY

ENTER

00: 00 SUN 00: 00 MON 00: 00 TUE 00: 00 WED

00: 00 THU

00: 00 FRI

00: 00 SAT

▲ ▼ ◀ ▶ EXIT

00: 00 00: 00 00: 00 00: 00

00: 00

NONE NONE

OFF OFF OFF OFF

OFF

OFF OFF

Select days by moving the blue bar from SUN to SAT and HOLIDAY With DOWN or UP button. To return to Main Menu, press MENU/ESC button. Move to START, DURATION and OFF/ ON setting use LEFT or RIGHT button to the location then use DOWN or UP button to decide the desired time for START time, DURATION and OFF/ ON. START: The start time of schedule recording. DURATION: The recording period of schedule recording. OFF/ ON: Disable or enable the schedule recording task.

Note

For example, the blue bar movement by LEFT or RIGHT Button like below. When blue bar is placed on START, DURATION and OFF/ ON, you can change value by pressing DOWN or UP button

Duration means

am, then set START 08:00, DURATION, 01:00.

Make sure DATE/TIME setting in SYSTEM SETUP is correct

OFF

00: 00

SUN

OFF

00: 00

SUN

WEEKLY SCHEDULE

OFF

00: 00

SUN

WEEKLY SCHEDULE

OFF

00: 00

START DURATION

00: 00

SUN

WEEKLY SCHEDULE

When there is no bold character, blue bar can move from SUN to SAT and HOLIDAY. START means recording starting time. It can be changed from 00:00 to 23:59. DURATION means total recording time duration. HOLIDAY is for holiday recording setup. It can be adjusted from SUN to SAT.

WEEKLY SCHEDULE

START DURATION

Note

before setting the schedule recording.

NETWORK SETUP

be concurrently. One administrator can be allowed to login.

To access NETWORK SETUP, using DOWN or UP button to select the item in MAIN MENU, then press ENTER into setup menu when NETWORK SETUP is highlighted with blue color. The menu below will appear

on monitor.

: STATIC/ DHCP CONNECT

1) CONNECT: STATIC / DHCP Select STATIC or DHCP to set up DVR IP address using LEFT or RIGHT Button.

STATIC: Fixed IP. Directly enter the IP adddree and related items according to user’s network topology. Please make sure to use a vacant IP address for DVR. This will prevent errors from occurring if the IP address is overlapped. Please consult your MIS personnel to setting the IP address for proper remote viewing.

IP ADD

SUB NET

GATE WAY

DNS

PORT

NTP TIME

TIME ZONE

ENTER

: 192. 168. 123. 171 : 255. 255. 255. 000 : 192. 168. 123. 254 : 168.126.063.001 : 5000

: OFF/ON

: GMT + 08:00

▲ ▼ ◀ ▶ EXIT

DHCP: DVR is automatically assigned an IP address from DHCP server. Each time triplex DVR series starts up, be sure the DHCP server is setup ready to assign a static IP to your DVR as a DHCP client.

2) IP ADDRESS, 3) SUBNET, 4) GATEWAY: If static IP is selected, IP address, subnet mask, and gateway values should be assigned manually,

If DHCP is selected, the DVR should receive network related parameters automatically from DHCP server

Note

according to user’s network environment. LEFT or RIGHT button is used for item movement, DOWN or UP button is used for changing the value of parameter.

and those values will be displayed on IP ADD, SUBNET and GATEWAY item.

Remote access via web browser or NetViewer utility cann

5) DNS:

Computers installed with NetViewer utility should use the

same port number to access remote DVR through network. Do

not

DNS (Domain Name System) server is an Internet service that translates domain names into IP addresses.Enter a correct DNS IP Address in this field.

6) PORT: Defaut is 5000. Port number is used for TCP/IP connection between DVR and remote computers.

If IP sharing device is used in network environment, “port forwarding” / “port mapping” should be

7) NTP TIME: OFF/ON

DVR can synchronize “standard time” with time server using Network Time Protocol.

Note

NOT block this port in firewall or personnal firewall

If using default port 5000, port number of from 5000 to 5002 is reserved for DVR image transmission and 5002 is reserved for HTTP of Internet Explorer, ex: http://192.168.0.20:5002 . Therefore, if any firewall or personnal firewall software is built up, port number of from 5000 to 5002 should be opened for DVR’s the Internet access purpose.

configured properly.

Note

software.

NTP TIME function can not be switched while DVR in recording mode.

8) TIME ZONE SETTING: GMT + 08:00

Select the time zone for the region to synchroniz the DVR with regional time server.

For example to synchronize time in Taiwan choosing GMT + 8, GMT + 9 for Korea or Japan.

9) DDNS STATUS: NONE / ERR / OK

Dynamic DNS status display.It is recommended not to use this DDNS service for fixed IP or IP sharing

machine. NONE: It indicates that DDNS is not used. ERR: DDNS IP update failure OK: Normal operation

Note

This DDNS status is used for checking status and it can be configured

< How to use DDNS service >

▲ ▼ ◀ ▶

EXIT

ENTER

Memory Drive can be executed

only in live mode or playback mode. All working functions

1. Create User ID, password and domain Name in the company which support DDNS service with free of charge. (Ex: www.dyndns.org )

2. Access to your DVR by NetViewer software.

3. Input User ID, password, DDNS server (Ex: members.dyndns.org ) and “DDNS enable” received from

company which support DDNS service in DDNS setting of remote setup of NetViewer.

DVR will be updated as soon as DDNS setting in NetViewer software is finished.

4. Check the status in DVR OSD of 8. DDNS STATUS of NETWORK SETUP. If it displays OK, then the

domain name can be used properly.

ARCHIVING

ARCHIVING TYPE 1

ARCHIVING TIME 2

ARCHIVE INFO

: SINGLE

: 1 SEC

NAME: TOTAL: FREE:

1) ARCHIVING TYPE: SINGLE / MOTION For archiving data via USB port, first set up ARCHIVING TYPE and ARCHIVING TIME which you want to

have using LEFT or RIGHT Button. And then insert USB memory drive to USB port of DVR front panel. Press ARCHIVEING button in playback mode or live mode.

: NONE ARCHIVE LOG 4

SINGLE: field by field image can be captured in USB memory drive. MOTION: it can be captured during the time duration when you set in ARCHIVE TIME.

2) ARCHIVE TIME: 1 to 60 seconds and 30 Minute.

ARCHIVE TIME is a duration which you want to archive in MOTION type.

Note

Archiving operation through USB

of DVR will stop while using archiving. EX: recording.

3) ARCHIVE INFO:

Don’t keep connecting USB Memory drive in USB port of DVR

USB Memory

drive when it is in processing. Please plug out USB memory

pictures is archived, archived speed is followed by playback

Insert USB memory drive in USB port of DVR front panel. And then enter ARCHIVING menu. You can see

the information of USB Memory Drive displayed, such as USB memory drive manufacturer, total memory size, available memory size.

4) ARCHIVE LOG: NONE / ENTER Select ENTER to ARCHIVE LOG through USB memory drive by using LEFT or RIGHT Button. Then press

ENTER button. All log information including DVR power ON/ OFF, recording time, event time and so on can be backup through USB Memory drive. After backup log file, user can check the backup log information using WordPad in computer.

Note

after finishing DVR power up. And don’t plug out

drive after “ARCHIVING” LED turn off. When playback

speed.

Playback archived video files

Use NetViewer utility to play archived images.

To playback archived image file in USB memory driver, First connect USB memory drive to PC, then execute

Netviewer program.

The procedure of playing archived files: A) Install NetViewer utility and execute the utility after finishing installation. B) Double-click the icon to execute NetViewer utility. Main screen of NetViewer utility will be appeared. (refer

to the next page figure.) C) Connect USB Memory drive to USB port of computer / notebook D) Make sure NetViewer is in local searching mode by checking the DVR/LOCAL icon in the upper right site

of NetViewer screen. D) Search archived files using searching icon of NetViewer utility. And locate the proper file path. E) Playback the archived file.

USB Memory driver usually will be recognized as removable disk in most of computer. An example of recognizing USB Memory drive in computer:

2 3 4 5 6 7 8

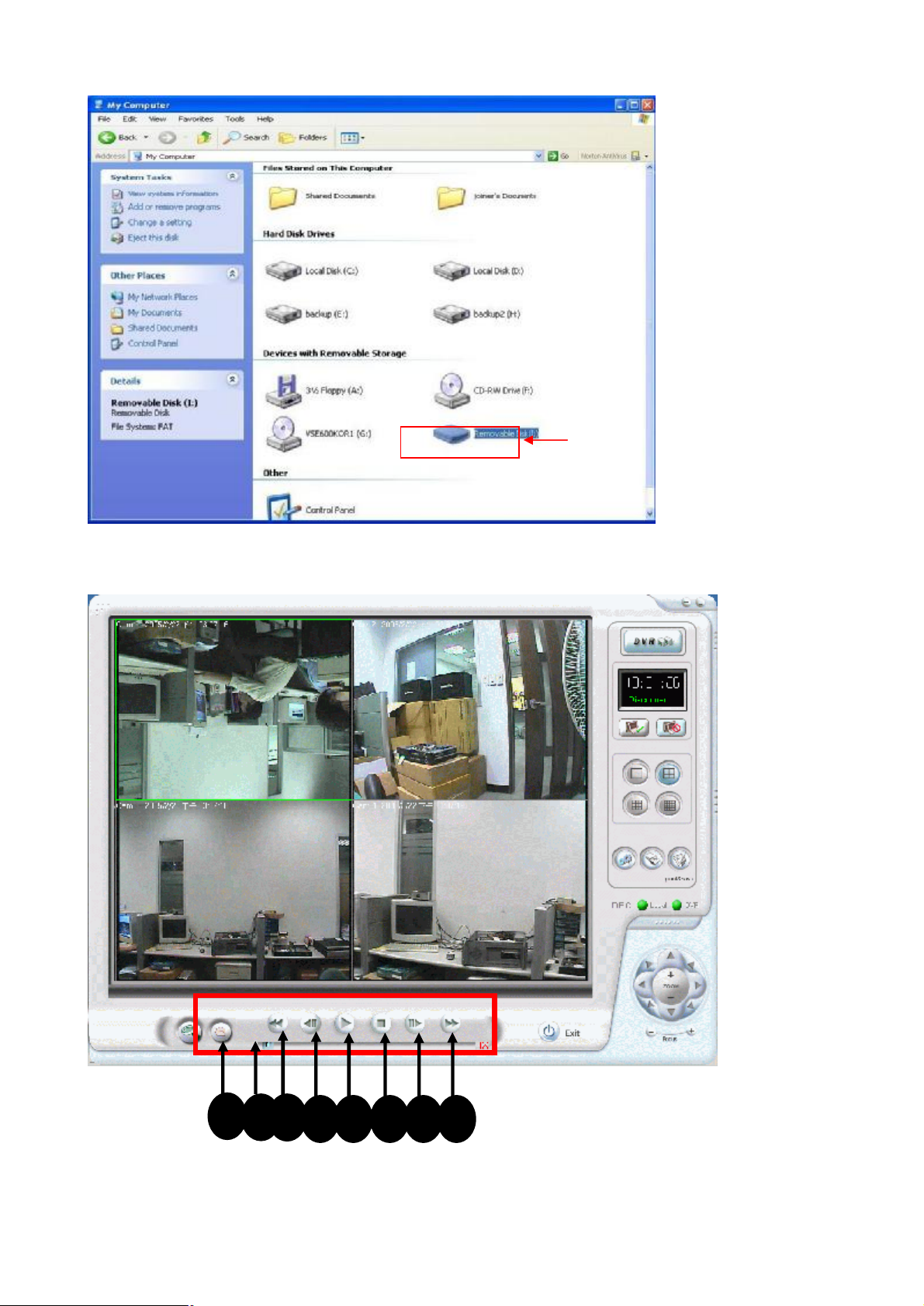

Playback icons introduction:

Removable Disk

NetViewer main screen

1. Search Button:

OFF

OVERWRITE

: NO

111GB

MASTER

HARD DISK

FORMAT HDD

FREE

TOTAL

HDD INFORMATION

not be recovered. Please backup the important video files

Support max.400GB hard drive disk per slot. It is suggested

HDDs in DVR, since of the HDD power

This button can be used to find local recorded image files. After searching the image files, double-click

the file. And then it will be playbacked.

2. Slide bar; In order to move faster to playback the necessary video, just drag this slide bar forward or backward.

3. Decrease playback speed

4. Move single frame backward

5. Playback button

6. STOP/ PAUSE button

7. Move single frame forward

8. Increase playback speed

HDD INFORMATION

FORMAT

1) HARD HISK:

DVR automatically detects HDD and displays HDD information in menu such as total HDD capacity and

available memory space.

2) FORMAT HDD: This supports quick HDD format function. Select YES using LEFT or RIGHT button, and then press

Note

not to install two segate conclict issue.

ENTER

▲ ▼ ◀ ▶ EXIT

ENTER button. Press ENTER button again after MASTER is displayed. Then quick format is

implemented with CONFIRM.

Note

All the video files in the HDD will be formatted and ca

before format the HDD.

3) OVERWRITE: ON / OFF

DVR can enable cycle recording when HDD has not enough free space.

PLAYBACK Configurations

10-15-2004 23:10

10-15-

2004 22:00

10-15-2004 21:50

10-15-

2004 21:20

9 10-15-

2004 20:25

10-15-

2004 20:20

10-15-2004 19:25

10-15-

2004 19:20

10-15-2004 18:50

10-15-2004 13

:20

10-15-2004 11:20

AALLL

-15-

2005

LIST TYPE

10-15-2004 18:20

10-15-2004 12:20

10-15-2004 10:20

SEARCH LIST

10/ 10

Total lists

If you’d like to view the recorded video files, the front panel buttons can be used to operate various playback functions. Press „ button, then the playback time /events selection menu as the below figure appears on the screen. Or you can simply press „ twice to start playing directly.

Search List

ENTER

The current list /

10-15-2004 13:20 3 10-15-2004 14:20 4

10-15-2004 16:20 5

10-15-2004 14:20 10-15-2004 15:20

10-15-2004 17:20

Latest recorded file

▲ ▼ ◀ ▶ EXIT

Search list can classify all the recorded file as ALL/ TIME/ MANUAL/ ALARM/ MOTION/ SCHEDULE using

DOWN or UP button to change the proper recorded file category to accelerate the searching speed.

SEARCH LIST 10/ 10

AALLL

10-15-2004 10:20 1

10-15-2004 11:20

SEARCH LIST 10/ 10

10-16-2005 10:20 1

SCHEDULE 10-16-2005 LIST TYPE

10-16-2005 11:20

10-15-2005 LIST TYPE

10-15-2004 23:10

10-15-

2004 22:00

10 10-15-

2004 11:20

AALLLL

2005

-10-15

LIST TYPE

10-15-2004

10:20

SEARCH LIST

10/

Change the date by highlighting them and using the DOWN or UP button to increase or decrease the number for year/ month/ date after moving to date, EX, 2005-10-15 using LEFT or RIGHT Button.

To select recorded file for playback, pressing ENTER button to enter a recording category then using DOWN or UP button to select a file to playback. .

NOTE:

1. If PLAY/ STOP button is pressed two times successively, the latest recorded file willbe playbacked.

2. The example for searching recorded files by TIME. Search list by TIME can be selected from ALL/ TIME/ MANUAL/ ALARM/ MOTION/ SCHEDULE using

DOWN or UP button.

After moving 11-20-2004 date area using LEFT or RIGHT Button (and then related date character would be turned into bold character), the date which want to search can be selected by using DOWN or UP button. Then recorded files would be listed as bellows following by selected date, time (ex, 11-20-2005 10:33). To playback a recorded file from listed files, press ENTER button to move listed files. And then press PLAY/ STOP button (▶) for playback after selecting the recorded file using DOWN or UP button.

SEARCH LIST 2/ 2

LIST TYPE TIME 11-20-2005 10:33

1 11-20-2005 10:33 11-20-2005 11:20 2 11-20-2005 22:00 11-20-2005 23:10

Display mode

There are three kind of display modes: single (as full), QUAD, sequential mode regardless recording mode. When there are motion detection or alarm triggering, the video channel which motion is detected or alarm is triggered would be display as a full screen on monitor during 30 seconds, then back to previous display mode such as full, QUAD or sequential picture.

When DVR is in recording, playback and network mode, icons ▶ are displayed on left top corner

of monitor. But it is on MENU Mode, ▶ are temporarily disappeared, the playback is still playing.

12: 03: 2004 06: 26: 23 PM

Picture Display Mode A) Full Picture

If each video channel selection is pressed, the channel will be

displayed as full screen. The video channel from CH11 to CH16 in remote controller can be selected with “+10 ” button and 1 digit button

together.

Ex) For selecting CH15, press” +10” and then press “5 “ number.

B) QUAD Picture

If QUAD picture button is pressed first time, QUAD picture with CH1 to CH4 will be displayed on monitor. Whenever it is pressed, QUAD picture displayed on monitor will be changed from CH1-CH4, CH5-CH8, CH9-CH12 to CH13-CH16 in turns. The QUAD picture display mode for monitoring can be selected by pressing this button repeatedly.

C) 9 Picture Display

If 9 picture button is pressed first time, 9 picture with CH1 to

CH9 will be displayed on monitor. Whenever it is pressed, 9 picture displayed on monitor will be changed from CH1-CH9 to CH8-CH16 on and on. The 9 picture mode for monitoring can be selected by pressing this button repeatedly.

D) 16/ 8/ 10 Picture Display

If 16 picture button is pressed first time, 4x4 (16) picture will be displayed on monitor. Whenever it is pressed, two 8 (1+7) picture with CH1-CH8 and CH9-CH16 and two 10 (2+8) picture with CH1-CH10 and CH7-CH16 will be displayed on monitor repeatedly. If changing main picture (bigger picture) is requested in 8(1+7) picture mode and 10 (2+8) picture mode, it can be done by pressing FUNCTION button, then pressing channel number button.

< 16 picture Display > < 8 (1+7) picture Display > < 10 (2+8) picture Display >

E) Sequential Picture Display

All video channels connected with video inputs of DVR are sequentially displayed on monitor via SPOT connector.

Recording mode

There are several kinds of recording modes such as Manual, Schedule, Alarm event, Motion Detection mode. Recording quality including high, standard plus, standard, low for all of recording is set up in QUALITY setting of RECORDING SETUP menu. Frame rate, motion / alarm recording duration can be separately selected in each of RECORDING SETUP, ALARM SETUP, and MOTION SETUP menu.

It is recorded on HDD that 16Ch video input signals are multiplexed with field by field.

1) Manual recording is started by pressing REC/STOP button of front panel.

2) WEEKLY RECORDING can be started by setting in WEEKLY SCHEDULE.

3) Motion Recording can be started when any motions in images are detected according to the

setting in MOTION SETUP menu.

4) Alarm recording is started by external alarm trigger input according to the setting in ALARM

SETUP menu.

12: 03: 2004 06: 26: 23 PM

Recording Mode

12: 03: 2004 06: 26: 23 PM

Playback mode

up image display of the channel

up image

display of the channel when your DVR is in playback mode

Normal playback can be started by pressing PLAY/ STOP button (▶) to enter into search list. While DVR is in playback mode, the camera channel which want to watch could be selected by UP(1), RIGHT(2), DOWN(3), LEFT(4) button. Fast forward (FF, ▶▶) or fast backward playback (RR ◀◀) can be done by ( FF▶▶) and (RR ◀◀) button. Press PAUSE button to freeze picture in playback. The movement of single field in still picture mode can be fulfilled by PAUSE button. For selecting the forward or backward playback of single field, (FF ▶▶) and (RR ◀◀) button would be needed to press before using PAUSE button. DVR supports x2,x4,x8,x16,x32 playback speed for Fast Forward and x2,x4,x8,x16 playback speed for Fast Backward.

Note

When motion in image is detected or external alarm is triggered, there is popduring 30 seconds. But your DVR doesn’t display pop-

or search list Menu to minimize user’s inconvenience.

12: 03: 2004 06: 26: 23 PM

Playback Mode

12: 03: 2004 06: 26: 23 PM

PTZ control Procedure

protocol in PTZ type of DISPLAY SETUP is

a) Select the camera (which PTZ camera is connected) to control PTZ using UP, RIGHT, DOWN, LEFT buttons of front panel in your DVR.

b) Press ENTER button to select PTZ mode. PTZ MODE OSD will be displayed on upper right corner of monitor.

c) Use UP, DOWNbutton for tilt movement of PTZ camera, LEFT(4), RIGHT(2) for pan movement and (FF ▶▶) and (RR ◀◀) buttons for zoom IN and zoom OUT.

d) To escape PTZ control mode, press ENTER button or any button. Then the PTZ MODE OSD on upper right corner of monitor will be disappeared.

Note

Before using PTZ control mode, please check that right selection of PTZ done

Chapter 3

If an older version of Netviewer software or similar viewer

software has been already installed on your computer, you

Utility Administration

NetViewer utility

This Triplex Digital Video Recorder allows system administrator to manage machine from a remote location to view live and recorded video over private network or the Internet connection. Also, you can capture the video from the unit and play the stored video later on.

Procedures of DVR Client utility

1. Installation

Note

should uninstall the software first.

1) Insert the installation CD.

2) Run the NetViewer.exe file. And following dialog box will be appeared. Please wait a few seconds.

3) When the following dialog box appears, click Next.

4) Please fill in user name and company name,click Next.

5) Please select installation type in following dialog box. Recommend that “Typical” installation type for normal installation. And then click Next.

6) Please click Next.

7) Installation is finished.

Remote DVR Search

2. NetViewer Program Operations

1) NetViewer Features

n Live pictures monitoring and remote recording in local HDD. n DVR file list searching remotely to DVR or local file searching n Fast Playback by time selecting n Remote configuration of the DVR menu n Pan, tilt and zooming Control n JPEG & AVI conversion n Print images

Remote DVR or Local Select Clock & Network Status Connection Button

Image Display Window

Set-up, Save, Print Function

Recording Status

PTZ functions

Local Computer Search

Playback

Exit Main Window

3) Network Connection

Account

A) Connection Button When this connection icon is clicked, below “Log-in” window will be appeared.

B) Admin

C) IP Address of DVR

D) DVR Port number (Default Port is 5000)

E) Password Input (This password number is as same as the password of the DVR, default is 1111)

F) Start Connection G) Cancel the connection

4) Image Display Window Selection

A) Single Picture Display

C) 9 Pictures Display (for 9CH Expansion)

B) QUAD Pictures Display

D) 16 Pictures Display (for 16CH Expansion)

5) The Storage of pictures transmitted through network in local HDD

The pictures received through network from remote DVR

can be saved in local Hard Disk Driver.

When “REC” icon is pressed , the color of REC

status icon will turn to be “red”. If “REC” icon is pressed again, local recording will be stopped. And then the color of REC status icon will turn to be “green”.

6) Viewer Program Set-up

7) PTZ Camera Control

A) User selection

B) IP Address Input (or Changing) C) PORT Input

D) Video Format Selection (NTSC or PAL). It needs to

select Video Format NTSC or PAL for better video quality.

F) Exit without saving set-up

parameters.

1) Tilt Up

2) Pan Right

3) Tilt Down

4) Pan Left

5) Pan/Tilt Up-Left

6) Pan/Tilt Up-Right

7) Pan/Tilt Down-Right

8) Pan/Tilt Down-Left

9) Focus Far

10) Focus Near

8) Remote Searching

Remote playback list is limited to last 27 event list. This

n when user needs to playback

the important videos for recent days. If want to playback

For searching recorded files in remote DVR, DVR search icon (in above figure) can be pressed. If this icon is pressed, below figure will be appeared.

1) File List Window It displays recorded file lists which is transmitted from remote DVR.

2) The recorded file list in remote DVR can be read by clicking this icon.

3) Selected file in File List Window can be playbacked by clicking this icon.

4) Stop playback

5) Exit after saving set-up parameter Viewer Program will palyback the file, if there is any selected file.

6) “Time Search” or “Time Search Slide bar” enables user to move and playback the given time of selected recorded file directly. For example, user can playback the recorded file from time 08:25:14 during 8 to 9 am file.

7) It enables user to search the recording files by specific recording type.

Note

is purpose of urgent conditio

far, please use DVR to view or backup to the USB device.

9) Local Searching

10) Playback Icons for local playback

1) “LOCAL” means Local Search Mode

2) Current time Display

3) Network Status Display (Connection or Disconnection)

STOP/ PAUSE

Playback

Move to Previous frame

Decrease playback Speed

Local Recorded File Searching

Time search slide bar

Move to Next Frame

Increase playback Speed

Playback Speed:

(1X,2X,4X,16X…..)

11) Print

1) Select a displaying channel which would like to be printed, click the “Print icon”

2) A window for printing preview will be appeared as below. Selected image will be printed by clicking this icon.

3) To save a standard JPEG file, click “Save” icon, after selecting image.

4) If “Save” icon is pressed, below window will be appeared. Input a file name like “image1.jpg” which want to be saved. And press “SAVE(S), then the image will be converted as JPEG file and will be saved.

5) The saved file can be opened in any computer using any graph editing software.

12) Remote Configuration

1) SYSTEM SETTING

2) DISPLAY SETTING

A) ADMIN LOCK: YES/ NO If ADMIN LOCK is selected as YES, password is required whenever user goes into menu. If NO, password isn’t requested.

B) Change password C) Automatic time setting by

GMT+Hour time Server in worldwide (it is not supported for 4CH DVR)

D) Exit without saving set-up E) Save set-up value. The configuration

parameters will be transferred to remote DVR then exit the window.

A) Channel Selection. For DVR-1650, channel 1 to 16 will be active.

B) Picture Quality Setting (Brightness, Contrast)

C) PTZ Camera Protocol Setting D) Dwell Time Setting for Sequential

displaying and SPOT monitoring.

(SPOT DWELL Time isn’t supported in 4CH DVR )

E) OSD ON/ OFF Setting G) Exit without saving set-up parameter. F) Exit after saving set-up value.

Selected configuration parameters will be transferred to remote DVR

3) RECORDING SETTING

4) ALARM SETTING

A) Recording Quality Setting. B) Frame rate Setting

D) AUDIO: ON/ OFF

DVR can select whether to record audio signal with video signal together or not.

E) STOP KEY: DISABLE/ ENABLE Enable this STOP KEY then DVR can not stop recording by press stop button intentionally.

A) FRAME RATE From 0.5 to 60 Image per seconds for NTSC, from 0.5 to 50 IPS for PAL. can be selected. B) DURATION It define recording duration after alarm is triggered. C) SENSOR TYPE: NONE/ N.O/ N.C Normal open or normal close can be selected for external alarm inputs D) TRIGGER OUT (Relay Output) Both dry open and dry contact through different relay output port can be supported.

E) BUZZER ALERT

Beep sound from buzzer when external alarm sensor(s) be triggered.

5) MOTION RECORDING SETTING

means recording starting time. It can be changed from 00:00 to 23:59.

A) Camera Selection for motion setting B) Motion Area Setting:

Y: Active Motion Area N: inactive motion Area

C) Motion Area SET/RESET

C) Motion Type

Disable/ All area/ Motion Area Setting D) Sensitivity: 5 steps from very low,

low, normal, high to very high.

F) Frame Rate F) Duration

6) SCHEDULE RECORDING SETTING

G) BUZZER ALERT

Beep sound from buzzer when motion is detected.

A) START time Setting Start time selection for schedule recording.

B) Duration time Setting C) On/ Off

Enable or disable schedule recording. D) Holiday: Select a particular day to on (enable)/off (disable) the recording.

Note

START DURATION means total recording time. HOLIDAY is for holiday recording setup. It can be adjusted from SUN to SAT.

7) HDD SETTING

8) DDNS SETTING

1. HDD Information Display It displays total HDD capacity with HDD manufacturer.

2. On(enable) / off (disable) recycle recording.

DDNS Setting for IP address.

First, enroll www. dyndns. Org which supports DNS service with free of charge for DDNS setting.

And input the information of ID/password/DDNS site (member.dyndns.org ). (This password is for DDNS account, not for DVR password.)

Update button can transfer to remote DVR, it will be useful for user to access remote DVR by site name because Domain Name (site name) is utilized, even though IP address is changed in floating IP address (DHCP).

9) AVI conversion The saved files in local HDD, which is M-JPEG format can be converted into AVI file for playback in any PC using Avi Converter which is generated by installing NetViewer software. Path is Start > Programs Files > Planet NetViewer > Avi Converter or simply click on the shortcut on desktop. Then “AVI converter 1.0” window will be appeared.

Conversion Procedure:

a) Click “File Open” icon as below figure.

b) Select a file to convert into AVI file. And then input file name for converting file.

c) AVI Conversion Program can be executed channel by channel. First, select the channel which is converted. Then press “MAKE AVI” to convert into AVI file. Below window will be appeared.

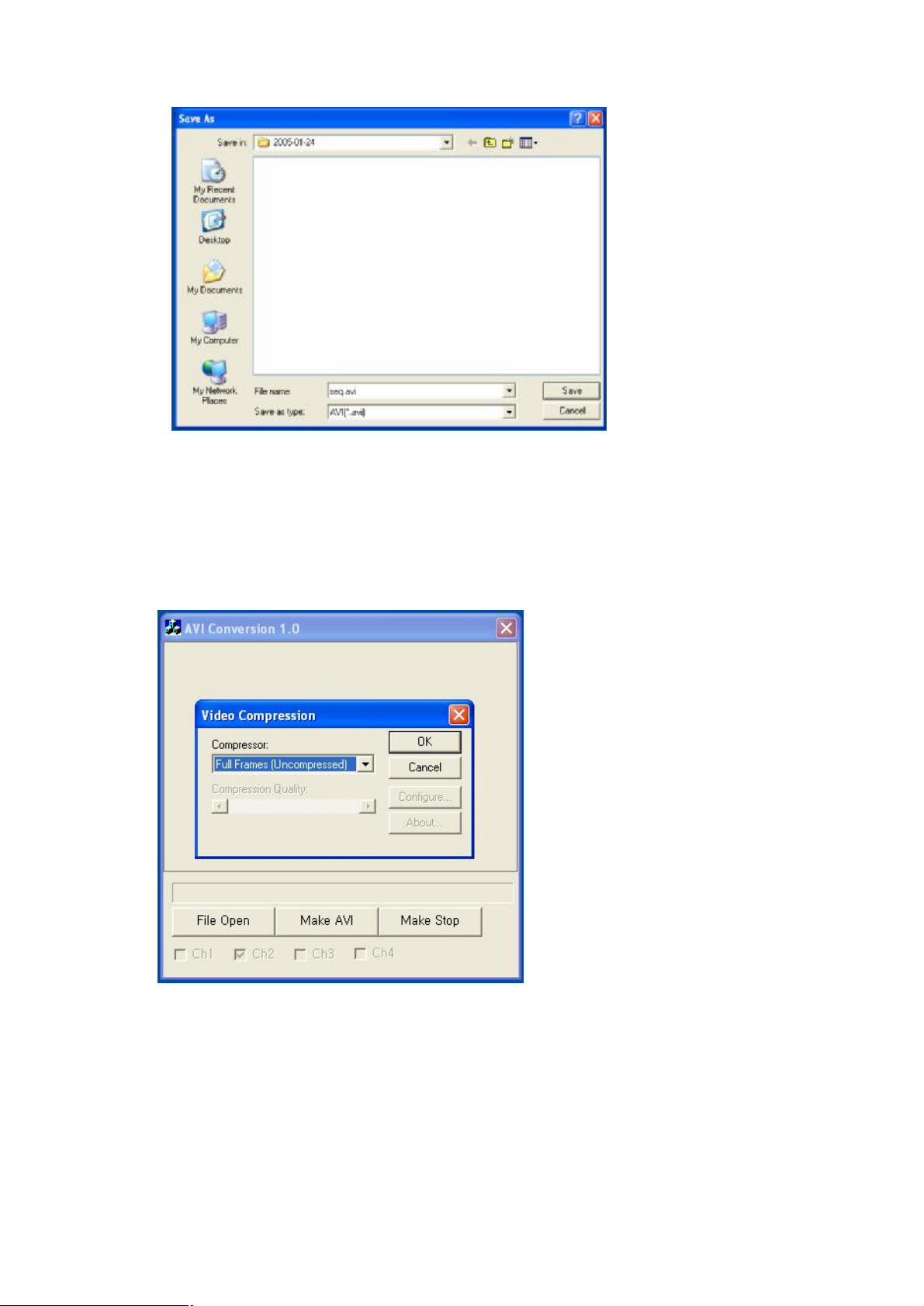

d) Input file name and press “ Save (S)”. Then below window will be appeared. If compression type is selected, AVI Conversion Program can start AVI conversion.

e) If conversion is finished, below figure will be appeared. To finish it, press “Confirm”. For another channel conversion, same procedure will be requested.

f) Converted file can be played in any PC using any graph editing software.

II. Remote Viewing by Internet Explorer

1. Open Internet Explorer with IP address which is set-up in NETWORK SETUP of DVR. Then below dialog box will be appeared.

Input IP address with port number. For example, http://192.168.0.20:5002

2. Please press “Connect” icon on the right corner to access remote DVR. Then below dialog box will be appeared.

“Connect” icon.

Please input IP Address, Port number and password in below dialog box.

Note: Password is the number which is stored in DVR. Default is 1111

3. You can view live image of remote DVR through Internet Explorer as below dialog.

4. How to control PTZ Camera and picture display mode.

In order to control PTZ Camera, correct PTZ Camera protocol should be selected in DVR web.

PTZ Control Icons

- Left and Right

- Up and Down

- Zoom In/ Out

- Focus Near/ Far

Picture Display Mode

- 4CH/ 9CH/ 16CH

The picture area (Cameo) (which PTZ function is needed to control) is selected by mouse. And then press the PTZ control icon.

5. In order to search all of the recorded files of DVR, “NetSearch” icon can be pressed. Then below dialog box will be appeared.

6. How to search recorded files of remote DVR.

1) Read List Icon: It is used to read recorded files of remote DVR. All of reading files can be sorted by “Type” which includes Manual, Alarm, Motion

and Schedule.

2) Play: It is used to play one of file selected by mouse from all of lists < Playback procedure >

1. Select one file which you want to play by mouse

2. Press “Play” icon for playback.

3. Press “Stop” icon for stop the playback.

4. Press “Exit” icon to return to “live picture”.

No connected

RXD

- 6

No connected

RXD+

TXD

- 2

TXD+

n description

SHIELD

GND

D+(TX+)

D- (TX

-) 2

VCC

Pin description

GND

RS485 D

(TX

-) 2

RS485 D+ (TX +)

Pin description

RS485 D

(RX

-) ?

RS485 D+ (RX +)

Pin description

Pin NO.

DVR

Appendix A Pin Description of connectors

1. USB Pin Descriptions

1 5

2. LAN port (RJ-45) Pin Descriptions

1 8

3. RS485 Pin Descriptions

1 3

Slave Unit like PTZ Camera

Sensor input 05

Sensor input 04

Sensor input 03

Sensor input 02

Sensor input 01

Ground (Common)

Sensor input 12

Sensor input 11

Sensor input 10

Sensor input 09

Sensor input 08

Sensor input 07

Sensor input 06

Ground (Common)

Sensor input 16

Sensor input 15

Sensor input 14

Sensor input 13

Pin description

Pin NO.

Ground (Common)

Relay output NC2

Relay output NO2

Ground (Common)

lay output NC1

Relay output NO1

Relay output NC4

Ground (Common)

Relay output NO4

Ground (Common)

Relay output NC3

Relay output NO3

Pin description

Pin NO.

4. Alarm Input & Outputs Pin Descriptions

< Alarm Input Pin > < Alarm Output Pin >

1 : 1 : 1

NTSC

VIDEO FORMAT

DEFAULT

: YES / NO

****

PASSWORD

SYSTEM SETUP

After finishing S/W upgrade, version will be changed. The

Appendix B Software Upgrade Procedure

1. S/W Upgrade procedure

1) Copy upgrading zip file into USB Memory Drive using PC in advance. DVR will automatically unzip the files.

2) Insert the USB Memory Drive into USB port in front panel of DVR.

3) Go to menuà 8. ARCHIVING item to check if USB Memory Drive information is displayed. If yes, then

press ESC to exit. If not, please check your USB devices is available for DVR.

5 6

ENTER

: ENG/CHN LANGUAGE

ADMIN LOCK TIME FORMAT

DATE FORMAT

DATE/TIME SET

05: 20: 2005 10:50:11

REV STATUS : VERSION

▲ ▼ ◀ ▶ EXIT

: YES : 24HOURS

:MM-DD-YY

Note

upgraded firmware will be relected on screen

1 : 1 : 1

1 : 1 : 2

NTSC

DEFAULT

: ****

1 : 1 : 1

1 : 1 : 2

: ****

5) Go to menuà 1. SYSTEM SETUPà 9. REV STATUS. Press RIGHT button to change UPGRADEà

CONFIRM.

SYSTEM SETUP LANGUAGE

VIDEO FORMAT PASSWORD ADMIN LOCK TIME FORMAT

DATE FORMAT

DATE/TIME SET

05: 20: 2005 10:50:11

REV STATUS UPGRADE

: ENG

YES

: 24HOURS

: MM-DD-YY

SYSTEM SETUP LANGUAGE

VIDEO FORMAT PASSWORD ADMIN LOCK TIME FORMAT

DATE FORMAT

DATE/TIME SET

05: 20: 2005 10:50:11

DEFAULT REV STATUS CONFIRM

: ENG

NTSC

YES

: 24HOURS

: MM-DD-YY

10) Press ENTER button of front panel in DVR.

While “9. REV STATUS : WAIT” is appearing, S/W upgrade will be executed. It takes around 20 seconds.

After completing S/W upgrade, DVR will be re-booted.

1 : 1 : 1

1 : 1 : 2

: NTSC

VIDEO FORMAT

GMT HOUR SET

: 09 HOUR

: YES

: ****

ADMIN LOCK

PASSWORD

SYSTEM SETUP

: NTSC

VIDEO FORMAT

2 GMT HOUR

: YES

: ****

05: 20: 2005 10:50:11

ADMIN LOCK

PASSWORD

SYSTEM SETUP

NOTE:

1. After pressing ENTER button for upgrading, USB Memory Driver should not be plugged out before

displaying “INITIALIZING” message in your DVR.

2. Please remove USB Memory Drive from front panel of DVR, when DVR reboot and “INITIALIZING”

character is displayed on monitor.

TIME FORMAT

11) S/W Upgrade Completion !!!

S/W upgrade version will be seen on 9. REV STATUS of SYSTEM SETUP.

DATE FORMAT

DATE/TIME SET

05: 20: 2005 10:50:11

REV STATUS : WAIT

: ENG/CHN LANGUAGE 1

: 24HOURS : MM-DD-YY

TIME FORMAT DATE FORMAT

DATE/TIME SET 7

: ENG LANGUAGE

: 24HOURS :MM-DD-YY

Upgrade Version

REV STATUS : VERSION

Appendix C Specification

Video Input 16 Ch, NTSC/PAL, 1V peak-to-peak, 75 Ohm, BNC Audio Input/ Output 1 Ch Input/ 1 Ch Output Video Output 1CH for Monitor, 1CH for Spot, 16Ch loop-through Output Display Resolution Display Resolution ( NTSC: 720x480, PAL: 720x576 ) Display Mode Single, QUAD, Octal, Hex and Sequential image Recording Resolution Full Mode, 16Ch Multiplexing Recording,( NTSC: 720x480, PAL: 720x576 ) Compression Algorithm M-JPEG (modified) OS Embedded Linux Triplex Record / Playback / Network at the same time Unit processing Speed 1/60 Sec for 720x240(NTSC), 1/50 Sec for 720x288(PAL) Compression Rate (KB/

image) (NTSC: 720x240, PAL: 720x288)

Frame Rate : Recording (IPS)

Recording Mode Manual, Schedule, Motion, Event Display Real Time

Password Protection Front Panel Password Protection

Normal image: 13~17KB/Image (NTSC) 15~19KB/Image (PAL) Complex image: 20~25KB/Image (NTSC), 22~27KB/Image (PAL)

16CH video real time multiplexing recording Total number of Images/sec: 60 IPS (720x240:NTSC), 50 IPS (720x288:PAL) Recoding Mode (Images/sec) 60/30/15/10/5/1/0.5 (NTSC), 50/25/12/6/5/1/0.5 (PAL)

Choose recording section at 1min time intervals during days of week Schedule Recording Full-time recording, Holiday Recording option

Permits those allowed to access the system

Status Indicator (LED) Power, Network, Archive, Record, EXT, Key Lock

Selectable recording CH, Pop up Display Alarm (Event,

Motion) Alarm In(16)/ Relay

Out(4) Playback

Network (GUI or Internet Explorer)

Duration: 30sec/1,2,3,4,5,6,7,8,9,10,20,30,40,50,60 min NONE/ NO or NC selectable. Both NO and NC support in rear panel for Relay Out

Normal: x1 speed Fast Forward: x2,x4,x8,x16,x32 (NTSC, PAL)

Fast Backward: x2,x4,x8,x16 (NTSC, PAL) Move 1 image per pushbutton at still image (STILL Button) Searching function: Move to search list, Time/ Manual/ Event/ Schedule Protocol: TCP/IP, PPP, and DHCP

GUI or Internet Explorer viewing and configuration support.

HDD Management One or Two (EIDE, ATA-6, 3.5 inch, 7200rpm) Back-up Archiving: USB Storage Class Key for data backup USB Firmware upgrade, System log file Pan/Tilt/Zoom RS485 (Controlled by button, Viewer S/W) Power 12V DC Adaptor Mechanical

Ambient Temperature

Approval FCC Class A, CE and MIC

Unit dimension 44(W) x1131.5(D) x4.4(H) (17.3 in. x12.4In. x 1.73 In.) (19" rack mountable, 1U)

Unit Weight 11lb (5kg)

40° to 104 °F (5 ° to 40 °)

Planet Technology DVR-450 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
