802.11g Wireless

ADSL 2/2+ Router

ADW-4401 A/B

User's Manual

Copyright© 2006 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET. PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution:

To assure continued compliance (example-use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions: (1) This device may not cause harmful interference, and (2) this Device must accept any interference received, including interference that may cause undesired operation.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

WEEE Regulation

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should

understan

d the meaning of the crossed-out wheeled bin symbol. Do not

dispose of WEEE as unsorted m

unicipal waste and have to collect such

WEEE separately.

Safety

This equipment is designed with the utm and use it. However, special

attention must be paid to the dangers of electric shock

ost care for the safety of those who install

and static electricity when working with electrical equipment. All guidelines of this and of

the computer manufacture must therefore be allowed at all times to ensure the

safe use of the equipment.

evision

User’s Manual for 802.11g Wireless ADSL 2/2+ Router

-4401 A/B Model: ADW Rev: 1.0 (Dec. 2005) Part No.

EM-ADW4401v1

Table of Contents

. INTRODUCTION .....................................................................................................7

1.1 FEATURE...........................................................................................................7

1.2 PACKAGE CONTENT ..............................................9

1.3 PHYSICAL DETAILS .......................................................................................9

2. INSTALLATION ....................................................................................................11

2.1 SYSTEM REQUIREMENT .............................................................................11

2.2 HARDWARE INSTALLATION .....................................................................11

3 CONFIGURATION..................................................................................................13

3.1 DETERMINE YOUR CONNECTION SETTINGS ........................................13

3.2 CONNECTING THE ADSL ROUTER TO YOUR NETWORK....................13

3.3 CONFIGURING WITH WEB BROWSER .....................................................13

3.3.1 QUICK SETUP GUIDE ........................................................................14

3.3.2 System Time..........................................................................................18

3.3.3 Admin Setting........................................................................................19

3.3.4 Firmware Update...................................................................................20

3.3.5 System Log............................................................................................20

S......................................

3.3.6 System Reset..........................................................................................21

3.4.1 ADSL Status..........................................................................................22

3.4.2 ADSL Statistics .....................................................................................22

3.4.3 VC Configuration..................................................................................23

3.5.1 WAN Configuration..............................................................................23

3.5.2 WAN Status...........................................................................................24

3.5.3 DNS.......................................................................................................25

3.5.4 DDNS ....................................................................................................26

3.6.1 LAN Configuration................................................................................27

3.7.1 Wireless Settings...................................................................................27

3.7.2 Wireless Security...................................................................................28

3.8.1 IP Filtering.............................................................................................29

3.9.1 NAT Setting...........................................................................................30

3.9.2 Virtual Server ........................................................................................31

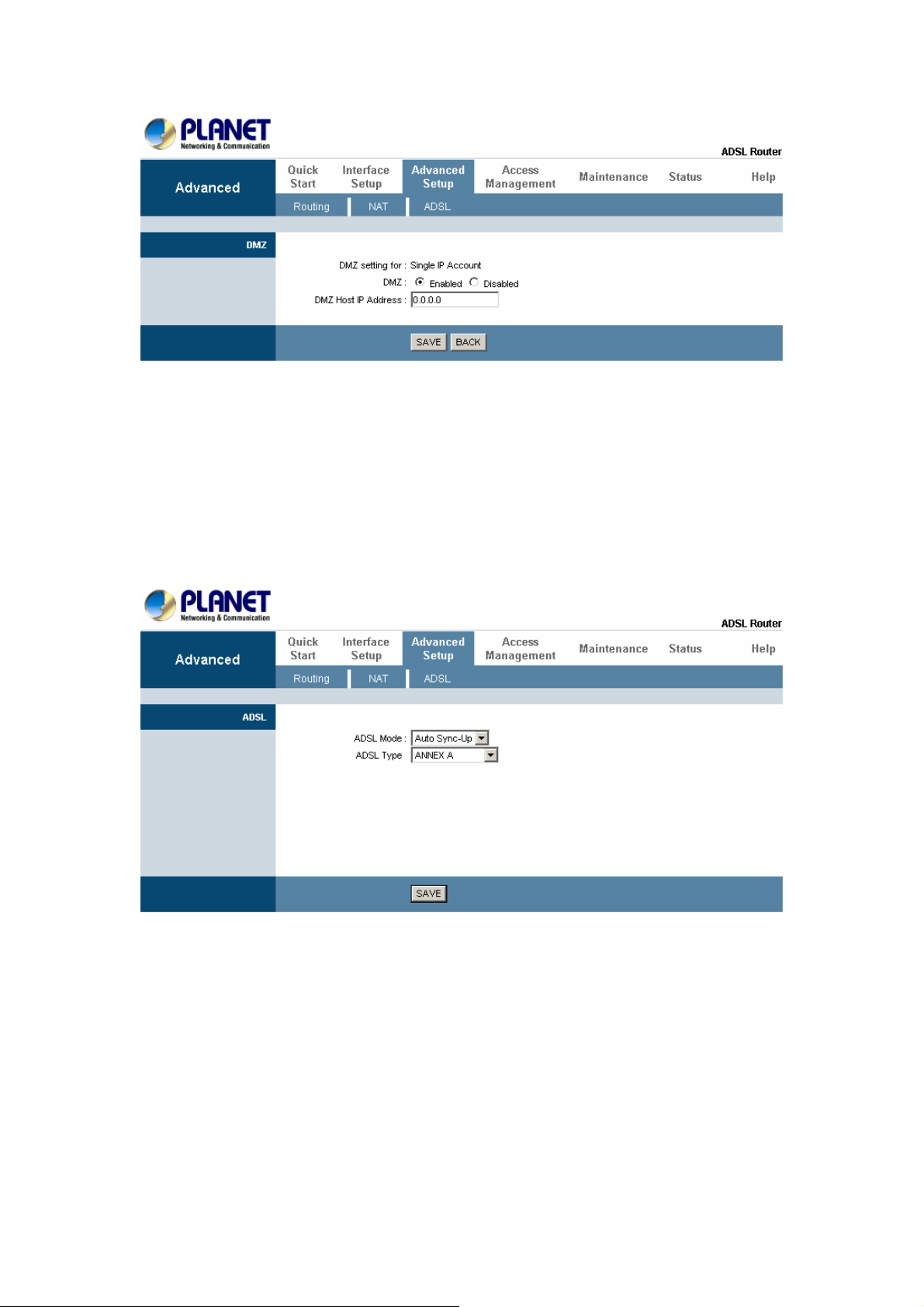

3.9.3 DMZ Setting..........................................................................................31

3.9.4 ADSL Type Setting...............................................................................32

3.10.1 Static Routing......................................................................................32

3.10.2 Dynamic Routing.................................................................................33

3.10.3 Routing Table......................................................................................34

3.11.1 System Status.......................................................................................35

Append

ix A: Glossary..................................................................................................36

1. Introduction

The PLANET 802.11g Wireless ADSL 2/2+ Router, ADW-4401, provides office and residential users the ideal solution f Internet connection on a 5

4Mbps wireless network and a 10/100Mbps Fast Ethernet

or sharing a high-speed ADSL 2/2+ broadband

backbone. It can support downstream transmission rates of up to 24Mbps and upstream transmission rates of up to 3.5Mbps. The product supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 2684 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with ISP.

Via the user-friendly management interface, ADW-4401 can be managed by workstations running standard web browsers. Furthermore, ADW-4401 provides DHCP serv

er, NAT, virtual server, DMZ, access control, IP filter, PPTP/IPSec

pass-through, DDNS, and UPnP capability. The ADW-4401 also serves as an Internet firewall, protecting your network from b

accessed by outside users. It provides the natural firewall function (Network Ad Translation, NAT). All incoming and outgoi

ng IPs are monitored and filtered.

eing

dress

Moreover, it can be configured to block internal users from accessing to the Internet.

1.1 Feature

Internet Access Features

 Shared

Internet through the ADW-4401 using only a single external IP Address. The local (invalid) IP A called NAT (Network Address Translation).



Built-in ADSL 2/2+ Modem. The ADW-4401 provides ADSL 2/2+ modem, and supports all common ADSL connections.

 pport. Various WAN

IPoA, PPPoE, PPPoA, Direct Connection Su

connections are supported by ADW-4401.

 d. In most situations, the

Auto-detection of Internet Connection Metho

ADW-4401 can test your ADSL and Internet connection to determine connection method used by your ISP.

Internet Access. All users on the LAN or WLAN can access the

ddresses are hidden from external sources. This process is

the

Fixed or Dynamic IP Address. On the Internet (WAN port) connection,



the ADW-4401 supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP Address.

Adv c

an ed Internet Functions

 s

Virtual Servers. This feature allows Internet users to access Internet server on your LAN. The required setup is

 Firewall. Supports simp

le firewall with NAT technology and provides option

quick and easy.

for blocking access from Internet, like Web, FTP, Telnet, SNMP, ICMP.

 atic discovery and

Universal Plug and Play (UPnP) UPnP allows autom configuration of the Broadband Router. UPnP is supported by Windows ME, XP, or later.

 Dynamic DNS Support. DDNS, when used with the Virtual Servers fea

allows users to connect to Servers on your LAN using a Domain Name, even if you have a dy

 VPN Pass through Support. PCs with VPN (Virtual Private Networking)

namic IP address which changes every time you connect.

software using PPTP, L2TP and IPSec are transparently supported - no configuration is required.

ture,

 RIP1/2 Routing. It supports RIP1/2 routing protocol for routing capability.  otely

Simple Network Management Protocol (SNMP). It is an easy way to rem manage the router via SNM

Wir s

ele s Features

 Standards Compliant. The ADW-4401 complies with the IEEE802.11g

(DSSS) specifications for Wire

less LANs. Maximum of 54Mbps are

supported.

 Supports both 802.11b and 802.11g Wireless Stations. The 802.11g stand

provides for backward compatibility with the 802.11b standard, so bo

802.11b and

 WEP support. Support for WEP (Wired Equivalent Privacy) is included. Key

802.11g Wireless stations can be used simultaneously.

sizes of 64 Bit and 128 Bit are supported.

 on are

WPA-PSK support. WPA-PSK_TKIP and WAP-PSK_AES encrypti supported.

 less Access Control feature can

Wireless MAC Access Control. The Wire

ard

check the MAC address (hardware address) of Wireless stations to ensure th only trusted

Wireless Stations can access your LAN.

LAN Features

4-Port Switch. The ADW-4401 incorporates a 4-port 10/100Base-TX



switching hub, making it easy to create or extend your LAN. DHCP Server Support. Dynamic Host Configuratio n Protocol provides a

dynamic IP address to PCs and othe can act as a DHCP Server for devices on your local LAN and WLAN.

1.2 Pa

‧

ckage Contents

ADW-4401 Unit

‧ Power Adapter ‧ Quick Installation Guide ‧ User’s Manual CD ‧ RJ-11 (ADSL) cab

‧ RJ-45 cable

1.3 Physical Details

r devices upon request. The ADW-4401

ront Panel

Front Panel LED definition

LED State Description

ON When the router is powered on and in ready state

Power

Flashing The router is in booting stage

Successful connection between ADSL modem and telecom's

ADSL

network

Flashing Modem is trying to establish a connection to telecom’s network

ACT

Flashing Data is transferred between router and Internet

WLAN

Flashing When wireless AP is ready

ON Link

Flashing TX or RX activity

LAN

No Link These four LAN (Local Area Network) ports are where you

1-4

OFF

will connect networked devices, such as PCs, print servers remote hard drives, and anything else you want to put on your network

Rear Panel

Rear panel Port and Button Definition

Connector Description

POWER

Power connector with 9V DC 1.5 A

Reset

Switch

AN (1-4)

ADSL

Connector

The reset button, the router restore the default settings when press this button until reboot

Router is successfully connec through the corresponding

ted to a device port (1, 2, 3, or 4). If the LED is flashing, the Router is actively sending or receiving data over that port.

The RJ-11 connector allows data communication between the modem and the ADSL network through a twisted-pair phone wire

2. Installation

This chapter offers infor the hardware or software parameters presented here, please consult your service provider for the values needed.

.1 System Requirement

1. Personal computer (PC)

2. Pentium II 233 MHz processor minimum

3. 32 MB RAM minimum

4. 20 MB of free disk space minimum

.2 Hardware Installation

This section describes how to con

mation about installing your router. If you are not familiar with

nect and configure the ADW-4401.

tep 1. Connect the ADSL Line

onnect the router directly to the wall jack using the included ADSL cable.

Step 2. Connect a Workstation to the Router's LAN port

here are two methods to connect the router and workstation. The one use the crossover

Power To PC /

Hub

To ADSL Line Adapter

Ethernet cable to connect directly between them. The other us to connect router with hub (or switch), then go to the workstation.

e straight Ethernet cable

Step 3. Connect the Power Adapter to the Router C

onnect the power adapter to the port labeled POWER on the rear panel of router.

Step 4. Connect All Cables to the Network T

he procedure for connecting cables differs depending on whether or not your

telephone equipment is connected to a POTS s

plitter.

3 Configuration

3.1 Determine your connection settings

Before you configure the router, you need to know supplied by your ADSL service provider.

.2 Connecting the ADSL Router to your network

Unlike a simple hub or switch, the setup of the ADSL Router co simply plugging everything together. Because the Router acts as a DHCP server, you will have to set some values within the Router, and also configure your networked PCs to accept the IP Addresses the Router chooses to assign them. Generally there are several different operating modes for your applic can know which mode is necessary for your system from ISP. These modes are router bridge, PPPoE+NAT, and PPPoA+NAT.

the connection information

nsists of more than

ations. And you

3.3 Configuring with Web Browser

It is advisable to change the administrator password to safeguard the security of your

network. To configur

bar and click 'Go' to get to the login page. Save this address in your Favorites for futur

t the User name prompt, type 'admin'. And the Password prompt, type 'admin'. You A

can change these later if you wish. Click 'OK'.

e the router, open your browser, type 'http://192.168.0.1' into the address

e reference.

3.3.1 Quick Setup Guide

You can use "Quick Setup" to setup the router as follows, and the router will connect to the Internet via ADSL line.

Click "Quick Start" to get into the quick setup procedures.

Click "RUN WIZARD" to start up this procedure.

Step 1 - Click "Next" to setup your new administrator's password.

Step 2 - Click "Next" to setup your time zone.

Step 3 - Click "Next" to setup your Internet connection type. You can have this information from your Internet Service Provider.

Enter the connection information provided by your ISP.

3.3.2 System Time

Go to Maintenance->Time Zone and select system time as you wish.

Connecting to a Simple Network Time Protocol (SNTP) server allows the router to synchronize the system clock to the global Internet. The synchronized clock in the router is used to record the security log and control client filtering.

3.3.3 Admin Setting

Go to Maintenance-> Administration to set a new user's name and password to restrict management access to the router. The default is admin (User's name) and admin (Password)

3.3.4 Firmware Update

Go to Maintenance -> Firmware to upgrade the firmware. The new firmware for your router can improve functionality and performance. Enter the path and name of the upgrade file then click the UPGRADE button below. You will be prompted to confirm the upgrade.

3.3.5 System Log

Go to Status -> System Log and you can see the system log file. Click “Save Log” to save system log file.

3.3.6 System Reset

In the event that the router stops responding correctly or in some way stops functioning, you can perform a reset. Your settings will not be changed. To perform the reset, select "Current Setting" and click on the "RESTART" button below. The router will reboot with current setting.

Select "Factory Default Setting" and click on the “RESTART” button, the router will reboot with factory default settings.

3.4.1 ADSL Status

Go to Status->Device Info. The 'ADSL Line Status' enables you to check the status of your ADSL connection including how fast data is being transferred.

3.4.2 ADSL Statistics

Go to Status-> Statistics and select ADSL interface. You can see the traffic Statistics of ADSL interface.

3.4.3 VC Configuration

Go to Interface Setup -> Internet. To add or delete ADSL VC configuration, these information provide by ISP.

3.5.1 WAN Configuration

Go to Interface Setup -> Internet. The router can be connected to your service provider in any of the following ways.

Dynamic IP Address: Obtain an IP address automatically from your service provider.

Static IP Address: Uses a static IP address. Your service provider gives a static IP address to access Internet services.

PPPoE: PPP over Ethernet is a common connection method used for xDSL PPPoA: PPP over ATM is a common connection method used for xDSL Bridge: Bridge mode is a common connection method used for xDSL modem.

3.5.2 WAN Status

Go to Status -> Device Info and select the Virtual Circuit to see the connection status.

3.5.3 DNS

Go to Interface -> LAN to enable DHCP server. Then you can set DNS server for the router. A Domain Name system (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into you browser, a DNS server will find that name in its index and find the matching IP address. Most ISPs provide a DNS server for speed and convenience. Since your Service Provider many connect to the Internet with dynamic IP settings, it is likely that the DNS server IP addresses are also provided dynamically. However, if there is a DNS server that you would rather use, you need to specify the IP address below.

3.5.4 DDNS

Go to Access Management -> DDNS to setup your DDNS parameters. Dynamic DNS allows you to update your dynamic IP address with one or many dynamic DNS services. So anyone can access your FTP or Web service on your computer using DNS-like address.

3.6.1 LAN Configuration

Go to Interface Setup -> LAN. The 'LAN Settings' option enables you to configure the LAN port.

If the DHCP Relay is selected, the DHCP requests from local PCs are forward to the DHCP server runs on WAN side. To have this function working properly, disable the NAT to run on router mode only, disable the DHCP server on the LAN port, and make sure the routing table has the correct routing entry.

3.7.1 Wireless Settings

Go to Interface -> Wireless to setup the wireless parameters. SSID

SSID is the identifier for the network. You can change the SSID. Only devices with the same SSID can interconnect.

Channel ID The channel number is used for wireless networking. The channel setting of the

wireless devices within a network should be the same.

3.7.2 Wireless Security

Go to Interface -> Wireless to setup the wireless security. The Authentication type supports “shared key WEP 64bits", "shared key WEP

128bits”, “WPA-PSK”.

3.8.1 IP Filtering

Go to Access Management -> IP Filtering to block some packets form WAN. The router provides extensive firewall protection by restricting connection parameters

to limit the risk of intrusion and defending against a wide array of common hacker attacks.

“Block WAN Scan” allows you to prevent the hackers from testing the services of the router. To add IP filtering rule to block certain packet from WAN.

3.9.1 NAT Setting

Go to Advanced Setup->NAT to setup the NAT features. Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single public IP address or multiple public IP addresses. NAT can also prevent hacker attacks by mapping local addresses to public addresses for key services such as the Web or FTP.

3.9.2 Virtual Server

Go to Advanced Setup ->NAT -> Virtual Server to set virtual server as you need. (known as Port Mapping).

You can configure the router as a virtual server so that remote users accessing services such as the Web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses. In other words, depending on the requested service (TCP/UDP port numbers), the router redirects the external service request to the appropriate server (located at another internal IP address). For some applications, you need to assign a set or a range of ports (example 4000-5000) to a specified local machine to route the packets. The router allows the user to configure the needed port mappings to suit such applications.

3.9.3 DMZ Setting

Go to Advanced Setup ->NAT -> DMZ to set DMZ parameters. If you have a local client PC that cannot run an Internet application properly from

behind the NAT firewall, you can open the client up to unrestricted two-way Internet access by defining a virtual DMZ Host.

3.9.4 ADSL Type Setting

Go to Advanced Setup ->ADSL to set different ADSL connection If you meet an ADSL connection problem, you can select a different ADSL

connection type to get more fast connection.

3.10.1 Static Routing

Go to Advance Setup -> Routing ->Add to setup static route features. The static routing function determines the path that router follows over your network

before and after it passes through your router. You can use static routing to allow different IP domain users to access the Internet through this device.

3.10.2 Dynamic Routing

Go to Interface Setup -> Internet to select Dynamic Route as you need. The dynamic routing feature of the router can be used to allow the router to

automatically adjust to physical changes in the network's layout. The router uses the dynamic RIP protocol. It determines the route that the network packets take based on the fewest number of hops between the source and the destination. The RIP protocol regularly broadcasts routing information to other routers on the network.

3.10.3 Routing Table

Go to Advance Management -> Routing to see the Routing Table. The Routing table allows you to see how many routings on your routing table and

interface information

3.11.1 System Status

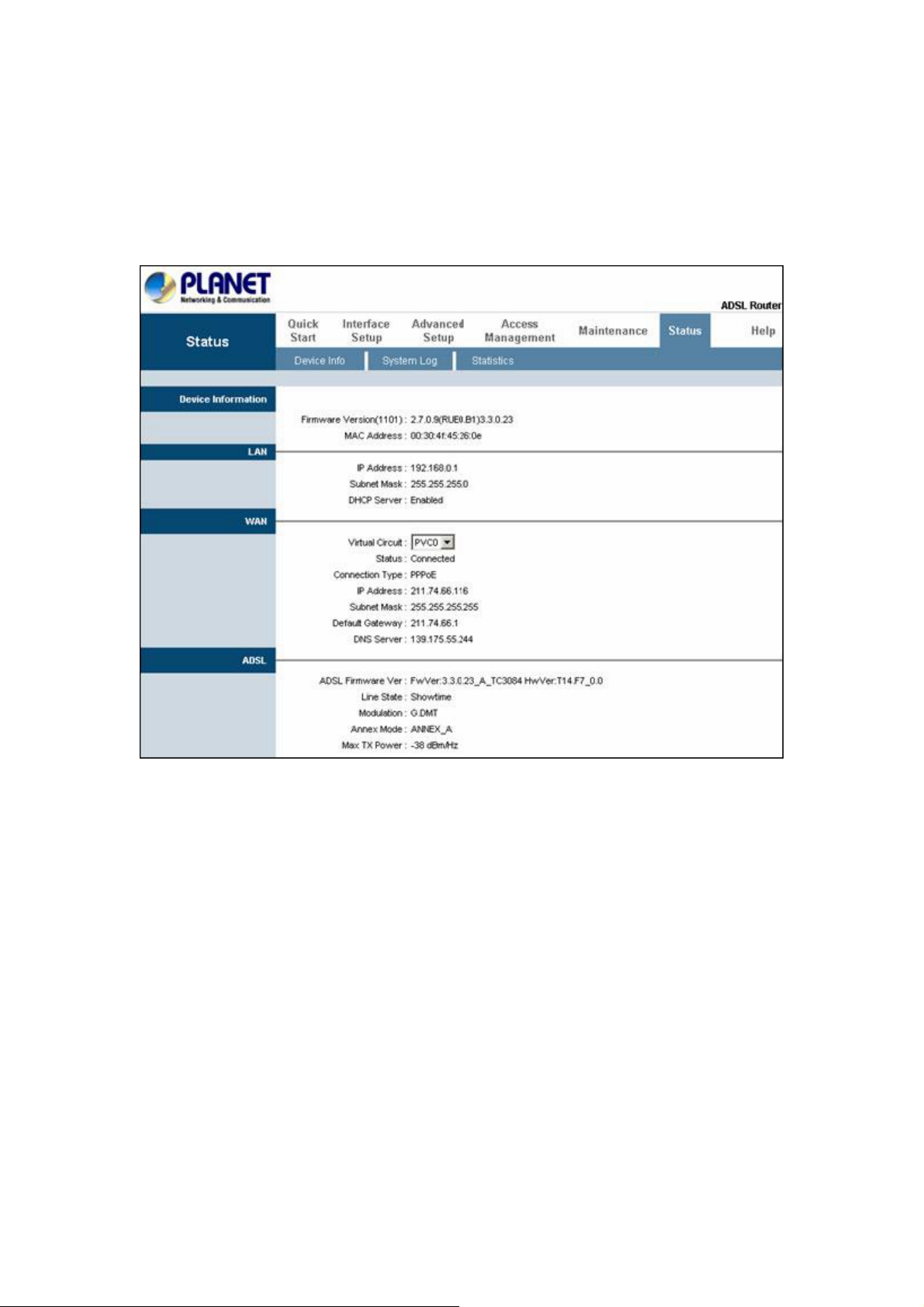

Go to Status -> Device Info to see the router's information. The System Status page shows the WAN, LAN and the router's firmware version.

Appendix A: Glossary

Address mask

A bit mask select bits from an Internet address for subnet addressing. The mask is 32 bits long and selects the network portion of the Internet address and one or more bits of the local portion. Sometimes it called subnet mask.

AAL5 ATM Adaptation Layer - This layer maps higher layer user data into ATM cells, making the data suitable for transport through the ATM network.

ADSL Asymmetric digital subscriber line

ATM Asynchronous Transfer Mode - A cell-based data transfer technique in which channel demand determines packet allocation. ATM offers fast packet technology, real time, and demand led switching for efficient use of network resources.

AWG American Wire Gauge - The measurement of thickness of a wire

Bridge A device connects two or more physical networks and forward packets between them. Bridges can usually be made to filter packets, that is, to forward only certain traffic. Related devices are repeaters which simply forward electrical signals from one cable to the other and full-fledged routers which make routing decisions based on several criteria.

Broadband Characteristic of any network multiplexes independent network carriers onto a single cable. Broadband technology allows several networks to coexist on one single cable; traffic from one network does not interfere with traffic from another. Broadcast a packet delivery system where a copy of a given packet is given to all hosts attached to the network. Example: Ethernet.

CO Central Office. Refers to equipment located at a Telco or service provider's office.

CPE Customer Premises Equipment located in a user's premises

DHCP (Dynamic Host Configuration Protocol) DHCP is software that automatically assigns IP addresses to client stations logging onto a TCP/IP network. DHCP eliminates having to manually assign permanent IP addresses to every device on your network. DHCP software typically runs in servers and is also found in network devices such as Routers.

DMT Discrete Multi-Tone frequency signal modulation

Downstream rate The line rate for return messages or data transfers from the network machine to the user's premises machine.

DSLAM Digital Subscriber Line Access Multiplex

Dynamic IP Addresses A dynamic IP address is an IP address that is automatically assigned to a client station (computer, printer, etc.) in a TCP/IP network. Dynamic IP addresses are typically assigned by a DHCP server, which can be a computer on the network or another piece of hardware, such as the Router. A dynamic IP address may change every time your computer connects to the network.

Encapsulation The technique layer protocols in which a layer adds header information to the protocol data unit (PDU) from the layer above. As an example, in Internet terminology, a packet would contain a header from the physical layer, followed by a header from the network layer (IP), followed by a header from the transport layer (TCP), and followed by the application protocol data.

Ethernet One of the most common local area network (LAN) wiring schemes, Ethernet has a

transmission rate of 10 Mbps.

FTP File Transfer Protocol. The Internet protocol (and program) transfer files between hosts.

Hop count A measure of distance between two points on the Internet. It is equivalent to the number of gateways that separate the source and destination.

HTML Hypertext Markup Language - The page-coding language for the World Wide Web.

HTML browser A browser used to traverse the Internet, such as Netscape or Microsoft Internet Explorer.

http Hypertext Transfer Protocol - The protocol carry world-wide-web (www) traffic between a www browser computer and the www server being accessed.

ICMP Internet Control Message Protocol - The protocol handle errors and control messages at the IP layer. ICMP is actually part of the IP protocol.

Internet address An IP address is assigned in blocks of numbers to user organizations accessing the Internet. These addresses are established by the United States Department of Defense's Network Information Center. Duplicate addresses can cause major problems on the network, but the NIC trusts organizations to use individual addresses responsibly. Each address is a 32-bit address in the form of x.x.x.x where x is an eight- bit number from 0 to 255. There are three classes: A, B and C, depending on how many computers on the site are likely to be connected.

Internet Protocol (IP) The network layer protocol for the Internet protocol suite

IP address The 32-bit address assigned to hosts that want to participate in a TCP/IP Internet.

ISP Internet service provider - A company allows home and corporate users to connect to the Internet.

MAC Media Access Control Layer - A sub-layer of the Data Link Layer (Layer 2) of the ISO OSI Model responsible for media control.

MIB Management Information Base - A collection of objects can be accessed via a network management protocol, such as SNMP and CMIP (Common Management Information Protocol).

NAT Network Address Translation - A proposal for IP address reuse, where the local IP address is mapped to a globally unique address.

NVT Network Virtual Terminal

PAP Password Authentication Protocol

PORT

The abstraction used in Internet transport protocols to distinguish among multiple simultaneous connections to a single destination host.

POTS Plain Old Telephone Service - This is the term describe basic telephone service.

PPP Point-to-Point-Protocol - The successor to SLIP, PPP provides router-to-router and host-to-network connections over both synchronous and asynchronous circuits.

PPPoE PPP over Ethernet is a protocol for connecting remote hosts to the Internet over an always-on connection by simulating a dial-up connection.

Remote server A network computer allows a user to log on to the network from a distant location.

RFC Request for Comments - Refers to documents published by the Internet Engineering Task Force (IETF) proposing standard protocols and procedures for the Internet. RFC can be found at www.ietf.org.

Route The path that network traffic takes from its source to its destination. The route a datagram may follow can include many gateways and many physical networks. In the Internet, each datagram is routed separately.

Router A system is responsible for making decisions about which of several paths network (or Internet) traffic will follow. To do this, it uses a routing protocol to gain information about the network and algorithms to choose the best route based on several criteria known as "routing metrics".

Routing Table Information stored within a router that contains network path and status information. It is used to select the most appropriate route to forward information along.

Routing Information Protocol Routers periodically exchange information with one another so that they can determine minimum distance paths between sources and destinations.

SNMP Simple Network Management Protocol - The network management protocol of choice for TCP/IP-based Internet.

SOCKET (1) The Berkeley UNIX mechanism for creating a virtual connection between processes.

(2) IBM term for software interfaces that allow two UNIX application programs to talk via TCP/IP protocols.

Spanning-Tree Bridge Protocol (STP) Spanning-Tree Bridge Protocol (STP) - Part of an IEEE standard. A mechanism for detecting and preventing loops from occurring in a multi-bridged environment. When three or more LAN's segments are connected via bridges, a loop can occur. Because of a bridge forwards all packets that are not recognized as being local, some packets can circulate for long periods of time, eventually degrading system performance. This algorithm ensures only one path connects any pair of stations, selecting one bridge as the 'root' bridge, with the highest priority one as identifier, from which all paths should radiate.

Spoofing A method of fooling network end stations into believing that keep alive signals have come from and returned to the host. Polls are received and returned locally at either end

Static IP Address A static IP address is an IP address permanently assigned to computer in a TCP/IP network. Static IP addresses are usually assigned to networked devices that are consistently accessed by multiple users, such as Server PCs, or printers. If you are using your Router to share your cable or DSL Internet connection, contact your ISP to see if they have assigned your home a static IP address. You will need that address during your Router's configuration.

Subnet For routing purposes, IP networks can be divided into logical subnets by using a subnet mask. Values below those of the mask are valid addresses on the subnet.

TCP Transmission Control Protocol - The major transport protocol in the Internet suite of protocols provides reliable, connection-oriented full-duplex streams.

TFTP Trivial File Transfer Protocol. A simple file transfer protocol (a simplified version of FTP) that is often boot diskless workstations and other network devices such as routers over a network (typically a LAN).

Telnet The virtual terminal protocol in the Internet suite of protocols - Allows users of one host to log into a remote host and act as normal terminal users of that host.

Transparent bridging The intelligence necessary to make relaying decisions exists in the bridge itself and is thus transparent to the communicating workstations. It involves frame forwarding, learning workstation addresses, and ensuring no topology loops exist (in conjunction with the Spanning-Tree algorithm).

UDP User Datagram Protocol - A connectionless transport protocol that runs on top of TCP/IP's IP. UDP, like TCP, uses IP for delivery; however, unlike TCP, UDP provides for exchange of datagram without acknowledgments or guaranteed delivery. Best suited for small, independent requests, such as requesting a MIB value from an SNMP agent, in which first setting up a connection would take more time than sending the data.

UNI signaling User Network Interface signaling for ATM communications.

Virtual Connection (VC) A link that seems and behaves like a dedicated point-to-point line or a system that delivers packets in sequence, as happens on an actual point-to-point network. In reality, the data is delivered across a network via the most appropriate route. The sending and receiving devices do not have to be aware of the options and the route is chosen only when a message is sent. There is no pre-arrangement, so each virtual connection exists only for the duration of that one transmission.

WAN Wide area network - A data communications network that spans any distance and is usually provided by a public carrier (such as a telephone company or service provider).
