Planet Technology ADE4400 User Manual

ADSL 2/2+ Router

ADE-3410 / ADE-3400v2 / ADE4400v2

User's Manual

Copyright© 2006 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET. PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution:

To assure continued compliance (example-use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions: (1) This device may not cause harmful interference, and (2) this Device must accept any interference received, including interference that may cause undesired operation.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

WEEE

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not

dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

Revision

User’s Manual for ADSL 2/2+ Router Model: ADE-3410 / ADE-3400v2 / ADE-4400v2 Rev: 1.0 (May 2006) Part No. EM-ADE3410v1

Table of Contents

1. INTRODUCTION....................................................................................................7

1.1 FEATURE...........................................................................................................7

1.2 PACKAGE CONTENTS...................................................................................8

1.3 PHYSICAL DETAILS.......................................................................................9

2. INSTALLATION...................................................................................................12

2.1 SYSTEM REQUIREMENT............................................................................12

2.2 HARDWARE INSTALLATION....................................................................12

2.3 INSTALLING THE USB DRIVER ON A PC (ADE-3410) .........................14

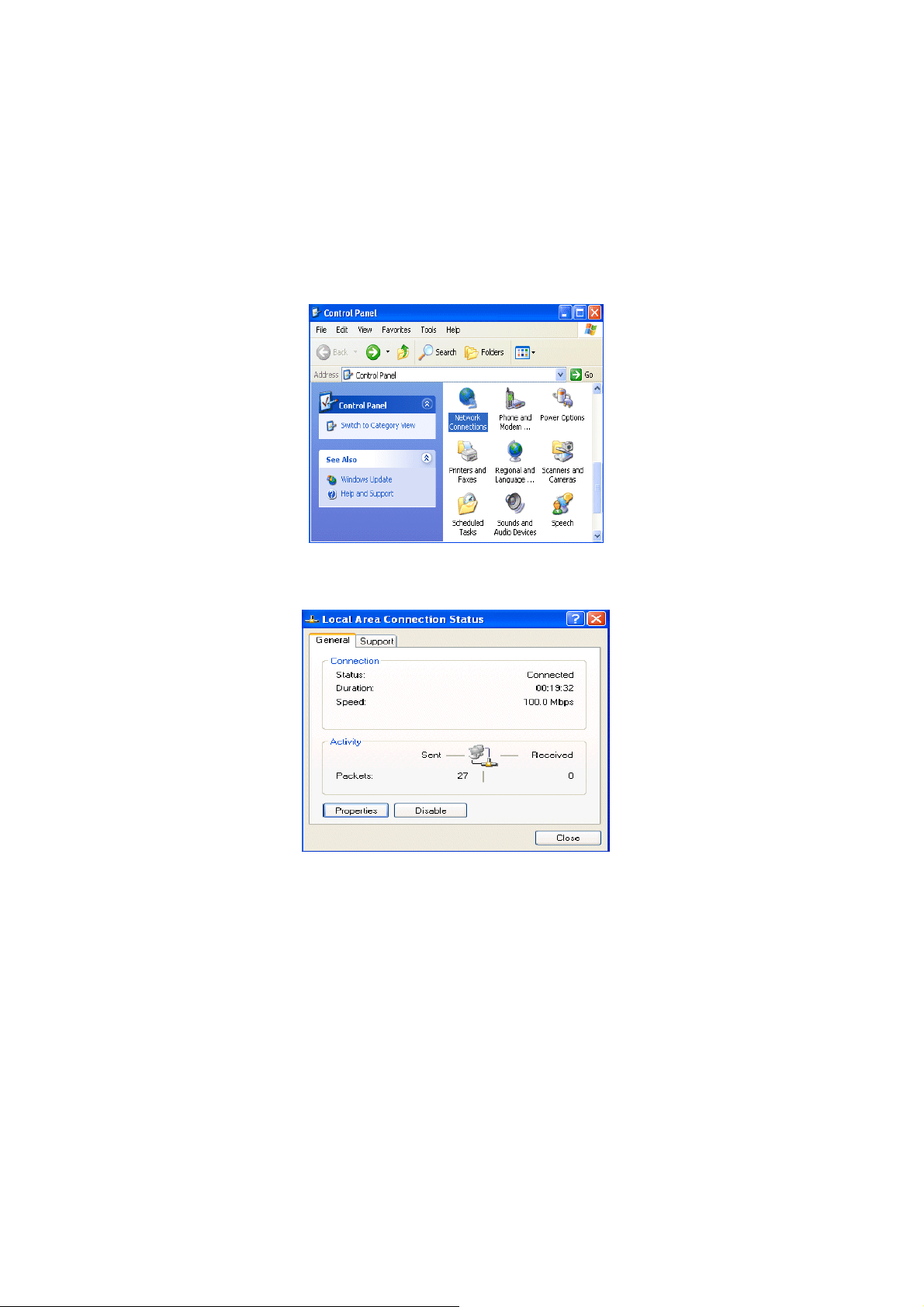

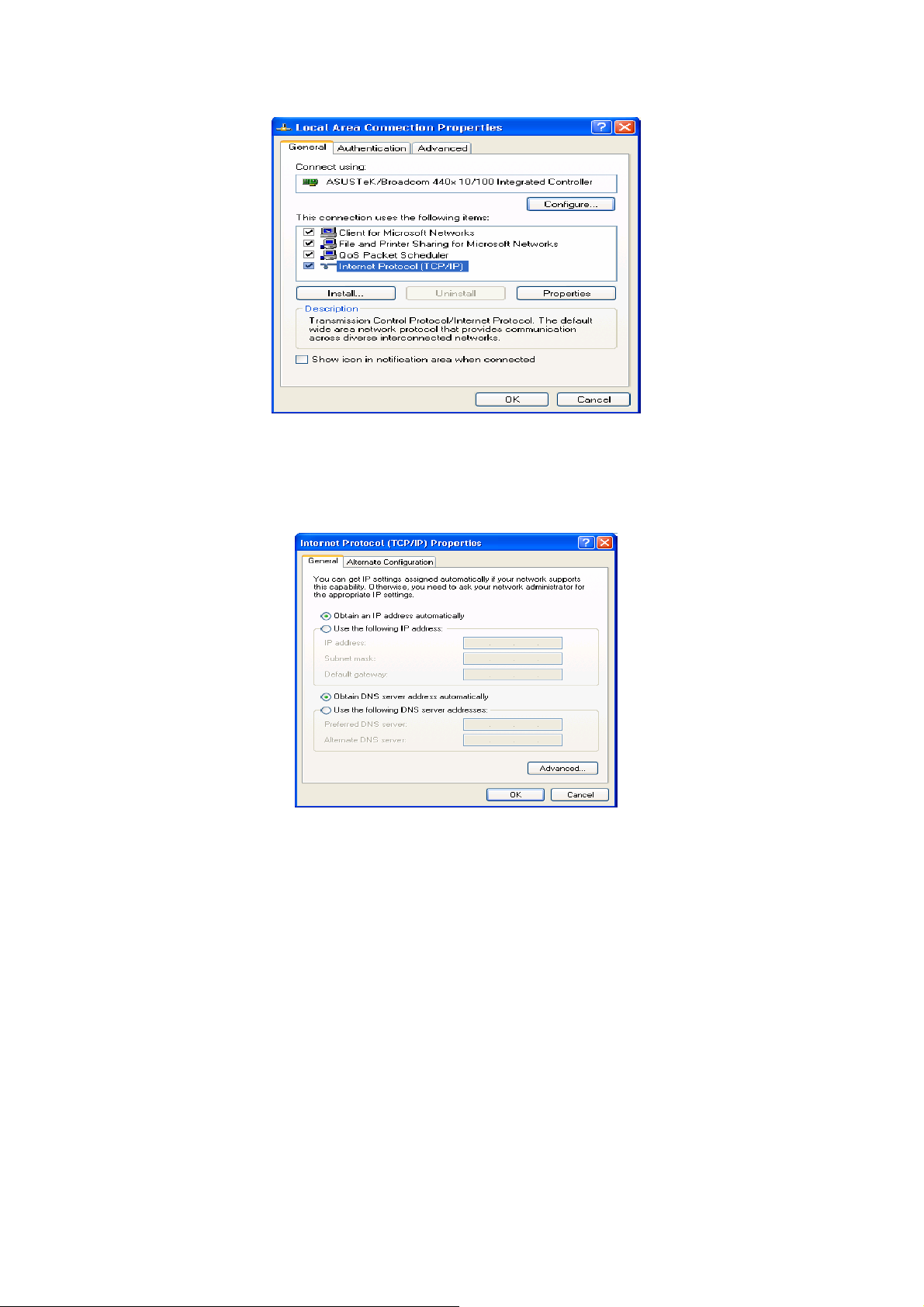

2.4 CONFIGURING THE NETWORK PROPERTIES ....................................18

3 CONFIGURATION................................................................................................24

3.1 DETERMINE YOUR CONNECTION SETTINGS.....................................24

3.2 CONNECTING THE ADSL ROUTER TO YOUR NETWORK ...............24

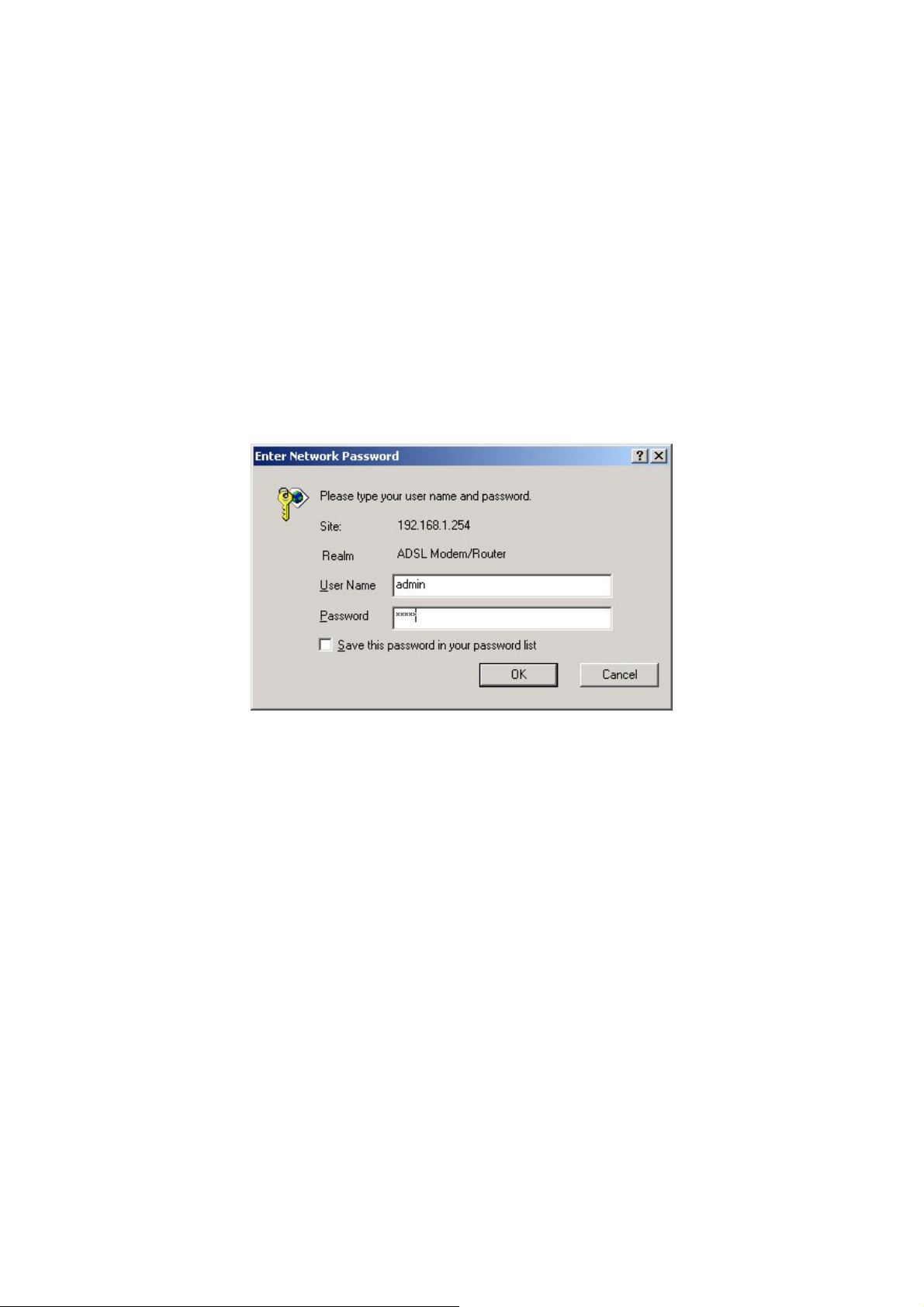

3.3 CONFIGURING WITH WEB BROWSER...................................................25

3.3.1 QUICK SETUP GUIDE............................................................................26

3.3.2 SYSTEM TIME..........................................................................................30

3.3.3 ADMIN SETTING.....................................................................................30

3.3.4 FIRMWARE UPDATE.............................................................................31

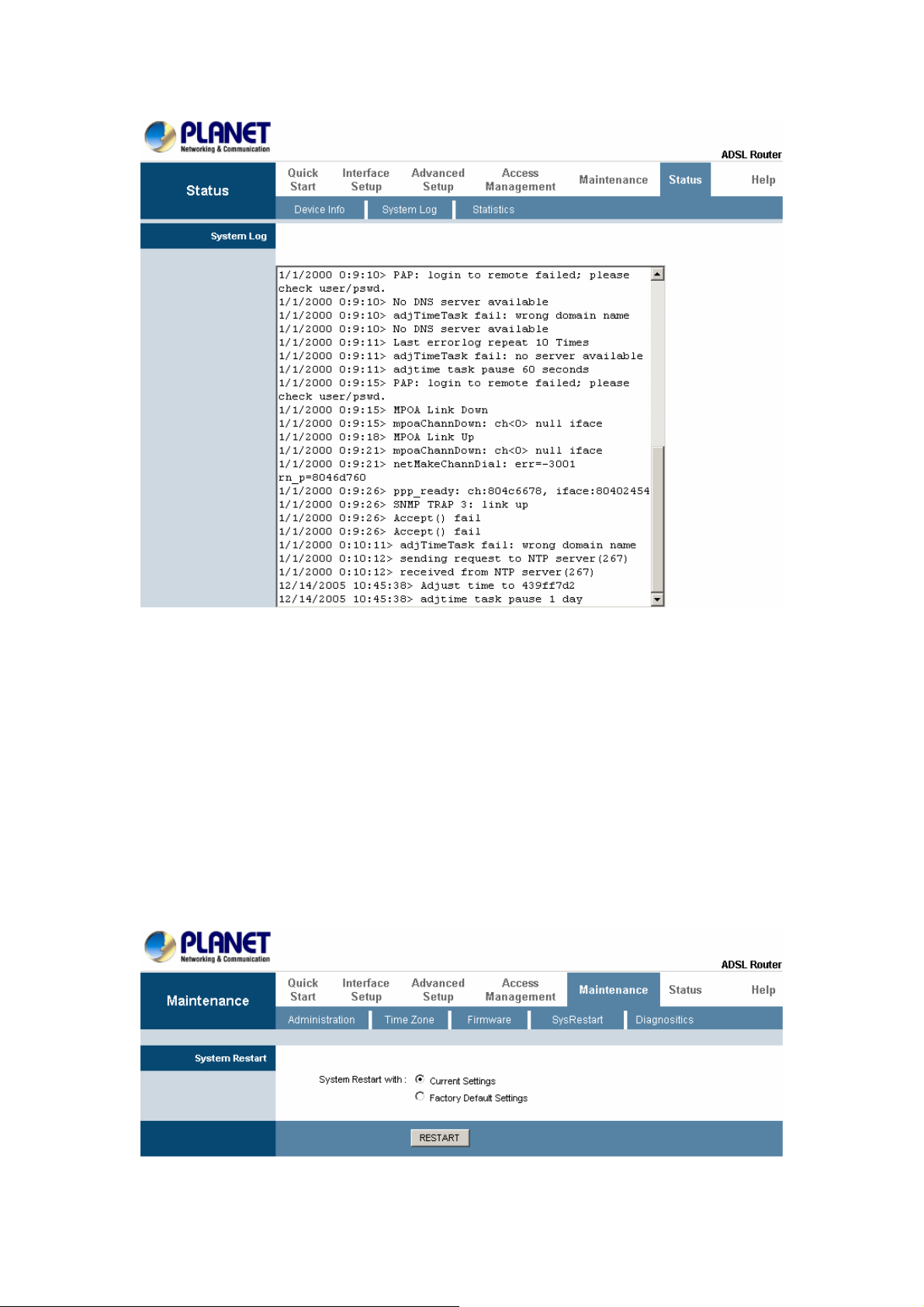

3.3.5 SYSTEM LOG ...........................................................................................31

3.3.6 SYSTEM RESET.......................................................................................32

3.4.1 ADSL STATUS...........................................................................................33

3.4.2 ADSL STATISTICS...................................................................................33

3.4.3 VC CONFIGURATION............................................................................34

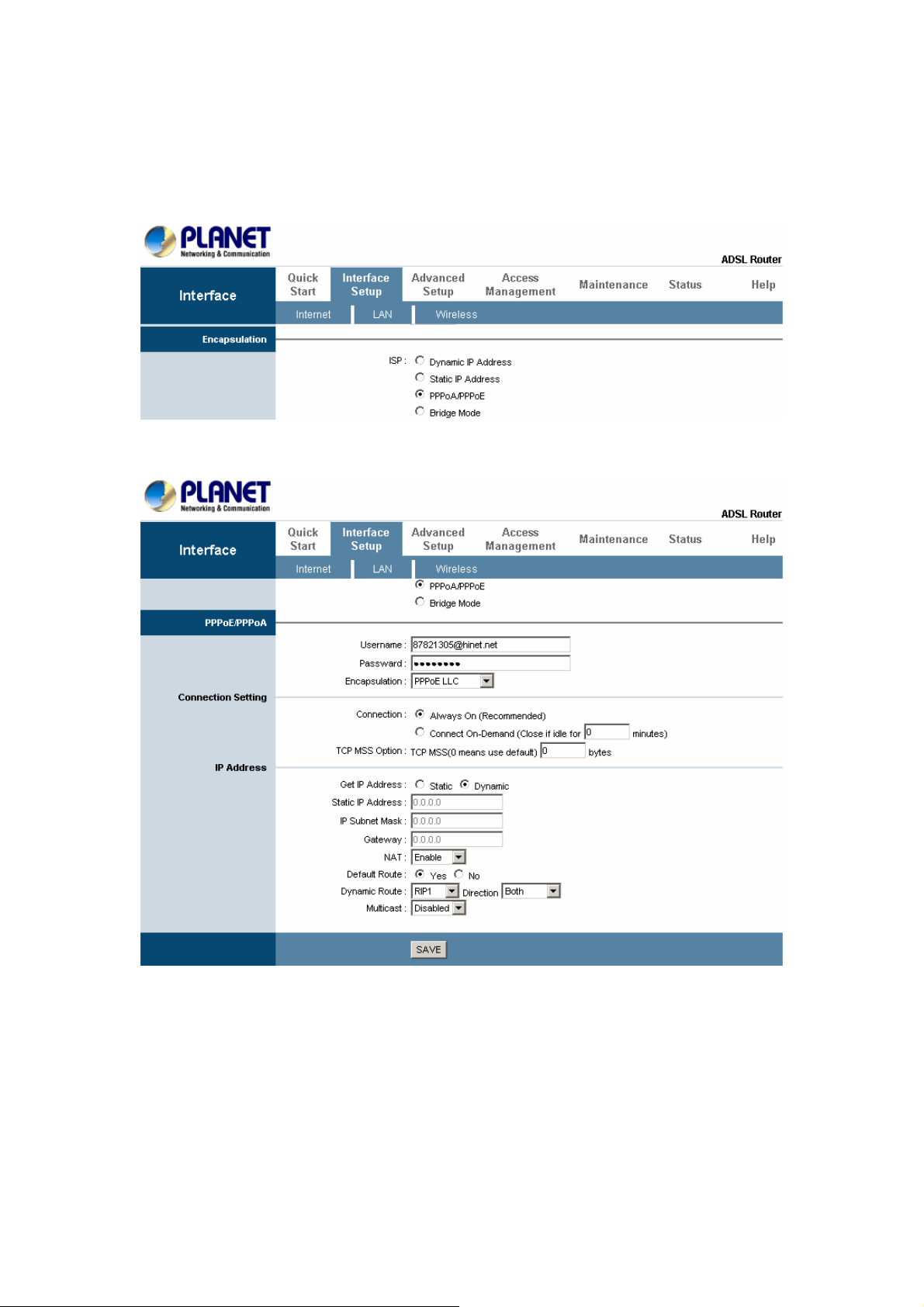

3.5.1 WAN CONFIGURATION........................................................................34

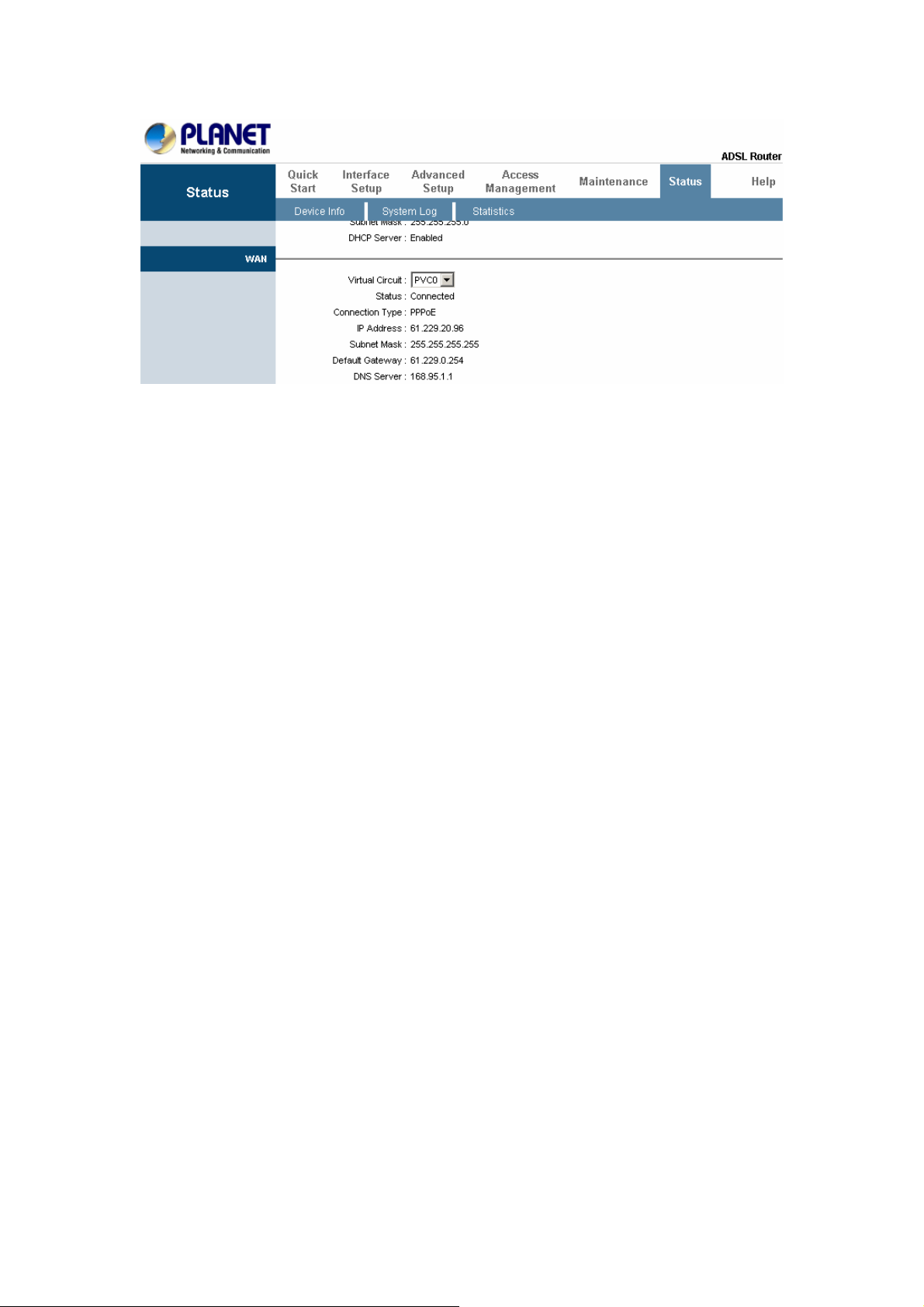

3.5.2 WAN STATUS ...........................................................................................35

3.5.3 DNS ..............................................................................................................36

3.5.4 DDNS...........................................................................................................37

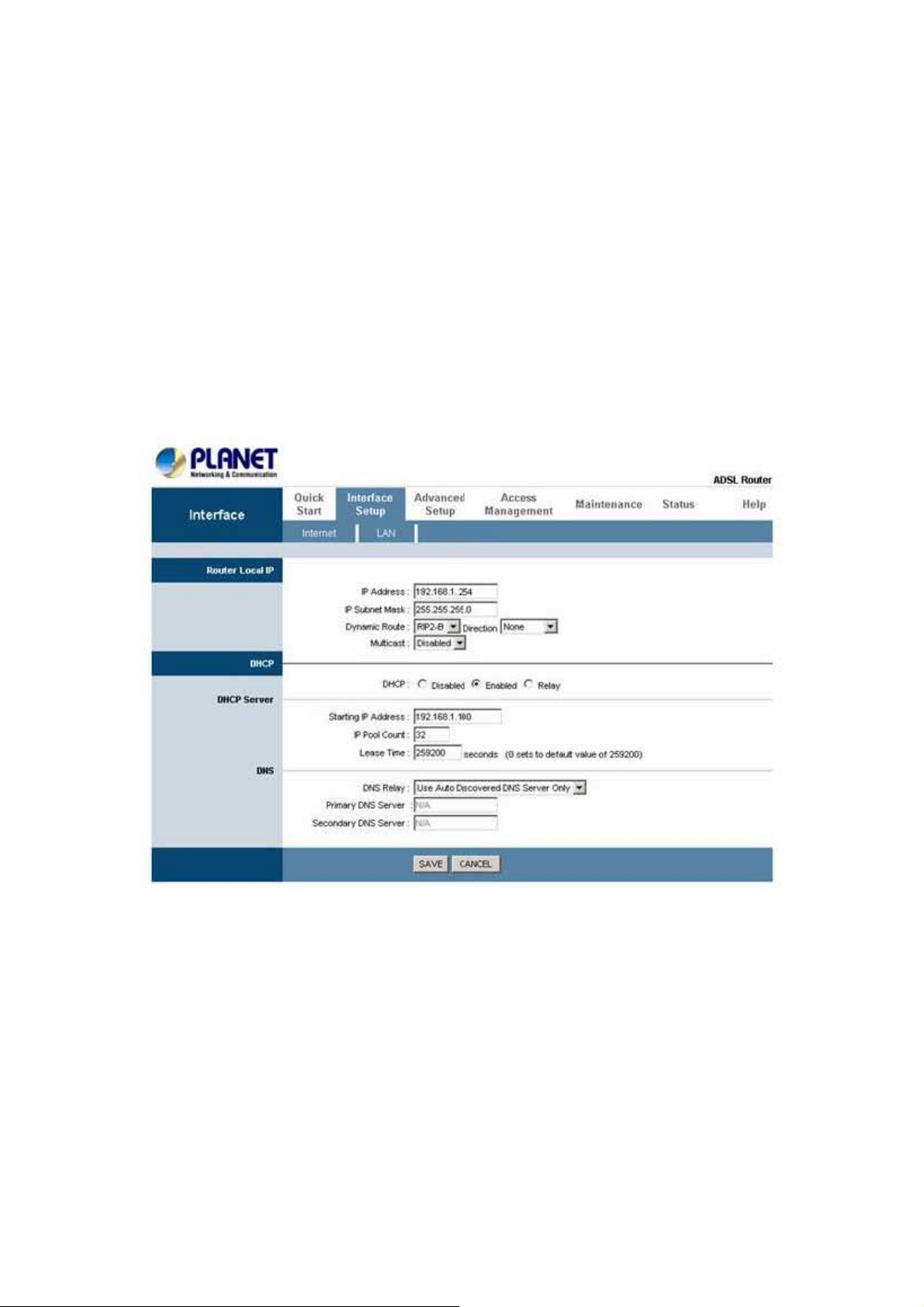

3.6.1 LAN CONFIGURATION .........................................................................38

3.7.1 IP FILTERING ..........................................................................................38

3.8.1 NAT SETTING...........................................................................................40

3.8.2 VIRTUAL SERVER..................................................................................41

3.8.3 DMZ SETTING..........................................................................................42

3.8.4 ADSL TYPE SETTING.............................................................................43

3.9.1 STATIC ROUTING...................................................................................43

3.9.2 DYMANIC ROUTING..............................................................................44

3.9.3 ROUTING TABLE....................................................................................44

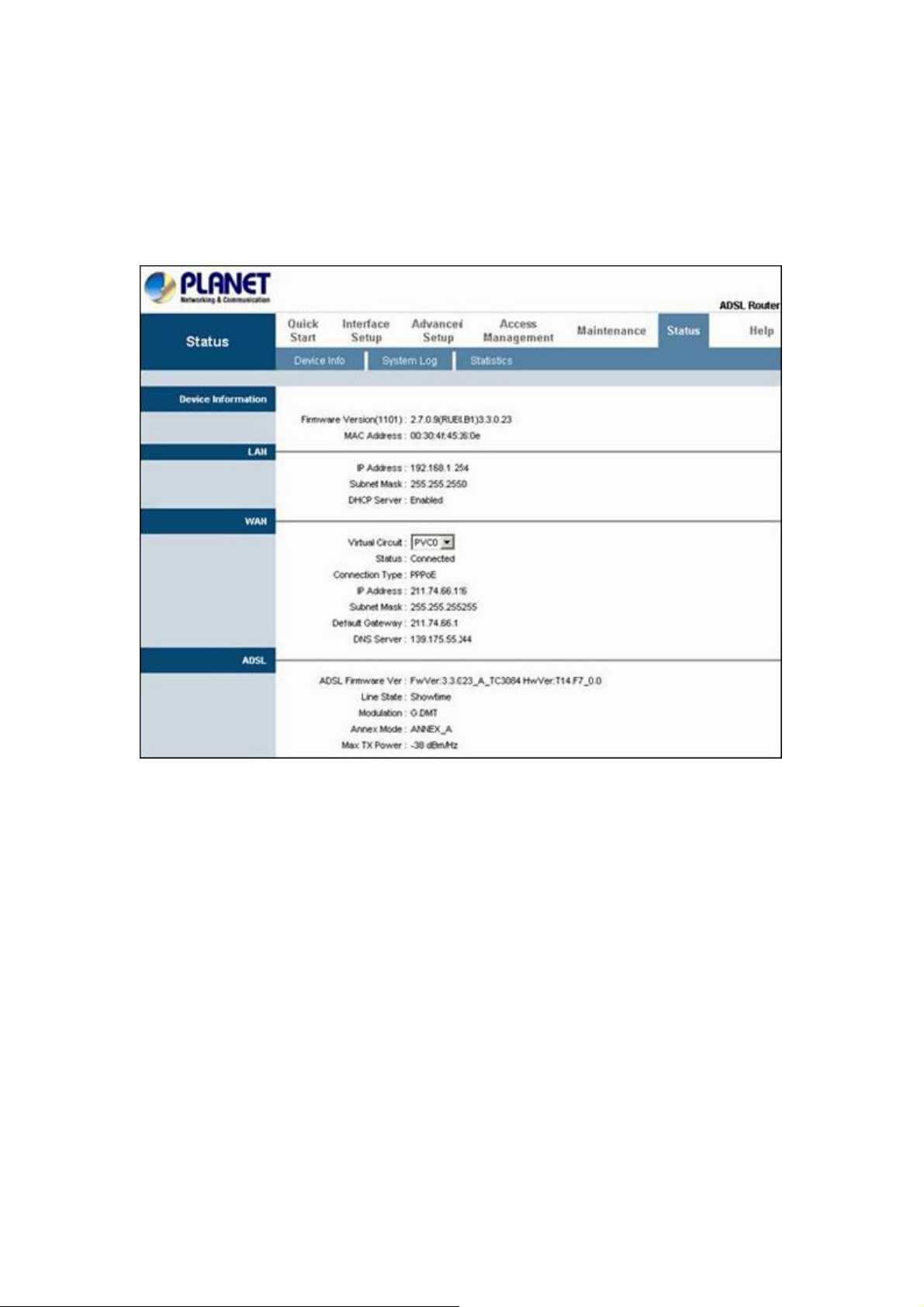

3.10.1 SYSTEM STATUS...................................................................................45

3.11.1 ACCESS CONTROL LIST.....................................................................46

3.12.1 SIMPLE NETWORK MANAGEMENT PROTOCOL.......................46

3.13.1 UNIVERSAL PLUG and PLAY.............................................................47

3.14.1 SYSTEM DIAGNOSTICS ......................................................................48

APPENDIX A: GLOSSARY.....................................................................................49

1. Introduction

The PLANET ADSL 2/2+ Router, ADE-3410 / ADE-3400v2 / ADE-4400v2, provides office and residential users the ideal solution for sharing a high-speed ADSL 2/2+ broadband Internet connection. It can support downstream transmission rates of up to 24Mbps and upstream transmission rates of up to 3.5Mbps. The product supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 2684 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with ISP.

Via the user-friendly management interface, ADE-3410 / ADE-3400v2 / ADE-4400v2 can be managed by workstations running standard web browsers. Furthermore, the device provides DHCP server, NAT, virtual server, DMZ, access control, IP filter, PPTP/IPSec/L2TP pass-through, DDNS, and UPnP capability.

The device also serves as an Internet firewall, protecting your network from being accessed by outside users. It provides the natural firewall function (Network Address Translation, NAT). All incoming and outgoing IPs are monitored and filtered. Moreover, it can be configured to block internal users from accessing to the Internet.

1.1 Feature

Internet Access Features

 Shared Internet Access. All users on the LAN can access the Internet through

the ADE-3410 / ADE-3400v2 / ADE-4400v2 using only a single external IP Address. The local (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Address Translation).

 Built-in ADSL 2/2+ Modem. The device provides ADSL 2/2+ modem, and

supports all common ADSL connections.

 IPoA, PPPoE, PPPoA, Direct Connection Support. Various WAN

connections are supported by ADE-3410 / ADE-3400v2 / ADE-4400v2.

 Auto-detection of Internet Connection Method. In most situations, the

device can test your ADSL and Internet connection to determine the connection method used by your ISP.

Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the



device supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP Address.

Advanced Internet Functions

 Virtual Servers. This feature allows Internet users to access Internet servers

on your LAN. The required setup is quick and easy.

 Firewall. Supports simple firewall with NAT technology and provides option

for access control from Internet, like Web, FTP, Telnet, SNMP, ICMP, and ALL services. It also supports DoS prevention and IP filtering.

 Universal Plug and Play (UPnP) UPnP allows automatic discovery and

configuration of the Broadband Router. UPnP is supported by Windows ME, XP, or later.

 Dynamic DNS Support. DDNS, when used with the Virtual Servers feature,

allows users to connect to Servers on your LAN using a Domain Name, even if you have a dynamic IP address which changes every time you connect.

 VPN Pass through Support. PCs with VPN (Virtual Private Networking)

software using PPTP, L2TP, and IPSec are transparently supported - no configuration is required.

 RIP1/2 Routing. It supports RIP1/2 routing protocol for routing capability.  Simple Network Management Protocol (SNMP). It is an easy way to remotely

manage the router via SNMP.

LAN Features

 Dual-Port. The ADE-3410 incorporates on one Ethernet port and one USB

port, making it easy to create or extend your LAN.

 Ethernet Port. The ADE-3400v2 provides one Ethernet port, making it easy to

create or extend your LAN.

 4-Port Switch. The ADE-4400v2 incorporates a 4-port 10/100BaseT switching

hub, making it easy to create or extend your LAN.

 DHCP Server Support. Dynamic Host Configuration Protocol provides a

dynamic IP address to PCs and other devices upon request. The device can act as a DHCP Server for devices on your local LAN.

1.2 Package Contents

‧ ADE-3410 / ADE-3400v2 / ADE-4400v2 Unit

‧ Power Adapter ‧ Quick Installation Guide ‧ User’s Manual CD ‧ RJ-11 (ADSL) cable ‧ RJ-45 cable ‧ USB cable (ADE-3410)

1.3 Physical Details

Top-mounted LEDs of ADE-3410

Top-mounted LEDs of ADE-3400v2

Top-mounted LEDs of ADE-4400v2

LED Indicator

LED Meaning

Lit steady when there is a PPPoA / PPPoE

1 PPP :

connection. Lit when successfully connected to an ADSL

2 ADSL:

DSLAM (“linesync”). Lit when the USB port is connected to the PC

3 USB:

and working properly (ADE-3410). Lit when connected to an Ethernet device.

4 LAN:

Green for 100Mbps; Orange for 10Mbps.

Blinking when data is Transmitted / Received.

5 SYS: 6 PWR:

Rear Panel of ADE-3410

Rear Panel of ADE-3400v2

Lit when the system is ready. Lit when power is ON.

Rear Panel of ADE-4400v2

Port Meaning

Power

Switch

2 12V

Power ON/OFF switch (ADE-3410).

Connect the supplied power adapter to this jack (ADE-3410 / ADE-3400v2: 12V AC; ADE-4400v2: 12V DC). After the device is powered on, press it to reset the device or restore to factory default settings.

3 RESET

Reset the device 6 seconds above to restore the factory default settings (this is used when you

can not login to the router, e.g. forgot the password)

Connect a UTP Ethernet cable (Cat-5 or

4 LAN

5 USB

6 ADSL

Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps or 100Mbps.

Connect the supplied USB cable to this port when connecting to the PC (ADE-3410). Connect the supplied RJ-11 (“telephone”) cable to this port when connecting to the ADSL/telephone network.

2. Installation

This chapter offers information about installing your router. If you are not familiar with the hardware or software parameters presented here, please consult your service provider for the values needed.

2.1 System Requirement

1. Personal computer (PC)

2. Pentium II 233 MHz processor minimum

3. 32 MB RAM minimum

4. 20 MB of free disk space minimum

2.2 Hardware Installation

This section describes how to connect and configure the ADE-3410, ADE-3400v2, and ADE-4400v2.

ADE-3410

ADSL Line

ADE-3400v2

USB Cable

PC / Hub

Power Adapter

ADE-4400v2

ADSL Line

Power Adapter

PC / Hub

Power Adapter

ADSL Line

2.3 Installing the USB Driver on a PC (ADE-3410)

If you connect the device through USB port instead of Ethernet port, Windows will automatically detect the device when the USB cable is connected to the PC at the first time. Please follow the steps to install the USB driver.

For Windows XP & 2000：

1. Start Windows. Then insert the installation CD into the CD-ROM drive. In next

window, to specify the driver directory such as “G:\USB Driver\setupXP2K_En_De_Fi” and to continue.

2. Choose the setup language and click “Next” (There are three languages that

user can choose: English, German, and French).

3. Then follow screen.

4. Click the type of setup you prefer, then click “Next”.

5. Setup enough information of coping the program files then click “Next”.

6. Please plug USB cable into ADSL USB Modem.

7. Click “Finish”.

8. The windows will show the screen and please enter “User Name” and

“Password” to configure the status report on web page.

For Windows 98 & Me：

1. Start Windows. Then insert the installation CD into the CD-ROM drive. In next

window, to specify the driver directory such as “G:\USB Driver\setup98 Me_En_De_Fi” and to continue.
