Planet Technology ADE-4110 User Guide

ADSL Modem Router

With 4-port Switch

ADE-4110

User’s Manual

The products and programs described in this User’s Manual are licensed products of

PLANET Technology, This User’s Manual contains proprietary information protected by

mentation are copyrighted.

No part of this User’s Manual may be copied, photocopied, reproduced, translated, or re-

duced to any electronic medium or machine-readable form by any means by electronic or

mechanical. Including photocopying, recording, or information storage and retrieval sys-

tems, for any purpose other than the purchaser's personal use, and without the prior ex-

press written permission of PLANET Technology.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environ-

ments and applications, and makes no warranty and representation, either implied or ex-

pressed, with respect to the quality, performance, merchantability, or fitness for a particular

purpose.

PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET dis-

claims liability for any inaccuracies or omissions that may have occurred.

Information in this User’s Manual is subject to change without notice and does not repre-

sent a commitment on the part of PLANET. PLANET assumes no responsibility for any in-

accuracies that may be contained in this User’s Manual. PLANET makes no commitment to

update or keep current the information in this User’s Manual, and reserves the right to

make improvements to this User’s Manual and/or to the products described in this User’s

Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would

appreciate your comments and suggestions.

FCC Compliance Statement

This equipment generates and uses radio frequency energy and if not installed and used

properly, that is, in strict accordance with the instructions provided with the equipment, may

cause interference to radio and TV communication. The equipment has been tested and

found to comply with the limits for a Class A computing device in accordance with the

specifications in Subpart B of Part 15 of FCC rules, which are designed to provide rea-

sonable protection against such interference in a residential installation. However, there is

no guarantee that interference will not occur in a particular installation. If you suspect this

equipment is causing interference, turn your Ethernet Switch on and off while your radio or

TV is showing interference, if the interference disappears when you turn your Ethernet

Switch off and reappears when you turn it back on, there is interference being caused by

the Ethernet Switch.

You can try to correct the interference by one or more of the following measures:

w Reorient the receiving radio or TV antenna where this may be done safely. w To the extent possible, relocate the radio, TV or other receiver away from the Switch. w Plug the Ethernet Switch into a different power outlet so that the Switch and the receiver

are on different branch circuits.

If necessary, you should consult the place of purchase or an experienced radio/television

technician for additional suggestions.

CE mark Warning

The is a class B device, In a domestic environment, this product may cause radio interfer-

ence, in which case the user may be required to take adequate measures.

Trademarks

The PLANET logo is a trademark of PLANET Technology. This documentation may refer to

numerous hardware and software products by their trade names. In most, if not all cases,

these designations are claimed as trademarks or registered trademarks by their respective

companies.

Revision

User’s Manual for PLANET ADSL Modem Router:

Model: ADE-4110A/ADE-4110B

Rev: 2.0 (July 2004)

Part No.: EM-ADE4110v2

TABLE OF CONTENTS

1. INTRODUCTION ..................................................................................................................1

1.1 Features..............................................................................................................................................1

1.2 System Requirements.........................................................................................................................2

2. KNOWING YOUR ROUTER ...................................................................................................3

2.1 Front Panels........................................................................................................................................3

2.2 Rear Panels.........................................................................................................................................3

2.3 LED Indicators.....................................................................................................................................4

3. LOGIN ...............................................................................................................................5

4. STATUS PAGES ..................................................................................................................7

4.1 Home Page.........................................................................................................................................7

4.2 PPP Page............................................................................................................................................8

4.3 ADSL Page........................................................................................................................................10

5. CONFIGURATION PAGES ...................................................................................................13

5.1 Modes................................................................................................................................................13

5.2 WAN Configuration............................................................................................................................15

5.2.1 ATM.......................................................................................................................................................17

5.2.2 DHCP Client..........................................................................................................................................18

5.2.3 MAC Spoofing.......................................................................................................................................18

5.2.4 Static IP Settings...................................................................................................................................19

5.3 LAN Configuration.............................................................................................................................20

5.3.1 DHCP Server........................................................................................................................................20

5.3.2 Ethernet Mode Setting..........................................................................................................................22

5.4 PPP Configuration.............................................................................................................................23

5.4.1 PPP Account Configuration...................................................................................................................23

5.4.2 PPP Session Configuration...................................................................................................................24

5.4.3 PPP Disconnect Timer Configuration....................................................................................................27

5.4.4 PPP Miscellaneous Configuration.........................................................................................................29

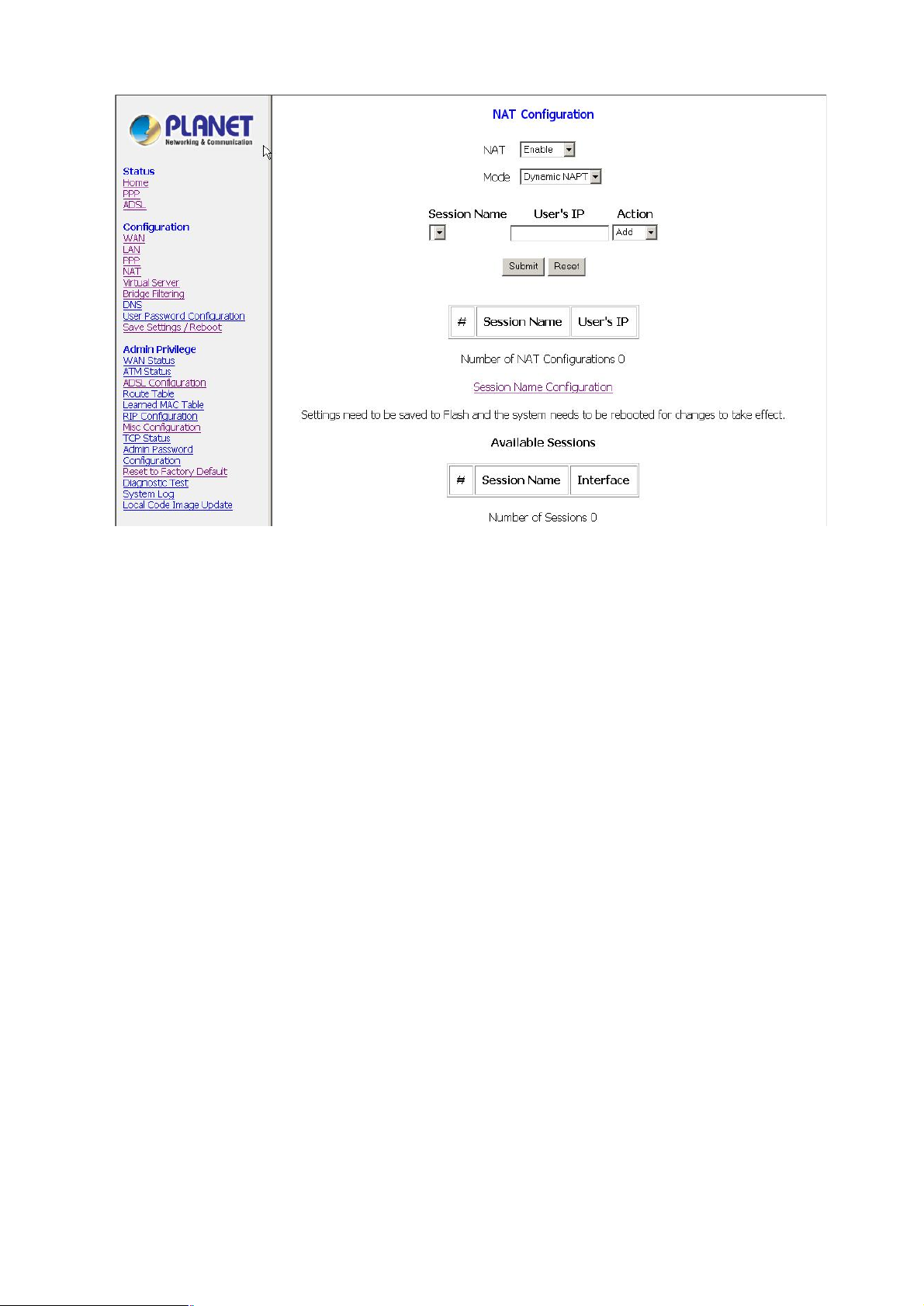

5.5 NAT Configuration Pages..................................................................................................................30

5.6 Virtual Server Configuration..............................................................................................................33

5.7 Bridge Filtering..................................................................................................................................34

5.8 DNS Configuration............................................................................................................................35

5.9 User Password Configuration............................................................................................................37

5.10 Save Settings / Reboot....................................................................................................................37

6. ADMIN PRIVILEGE.............................................................................................................39

6.1 WAN Status.......................................................................................................................................39

6.2 ATM Status........................................................................................................................................39

6.3 ADSL Configuration...........................................................................................................................40

6.4 Route Table.......................................................................................................................................41

6.4.1 System Default Gateway Configuration................................................................................................43

6.4.2 Route Configuration..............................................................................................................................43

6.5 Learned MAC Table...........................................................................................................................44

6.6 RIP Configuration..............................................................................................................................44

6.6.1 RIP Per Interface Configuration............................................................................................................46

6.7 Miscellaneous Configuration.............................................................................................................47

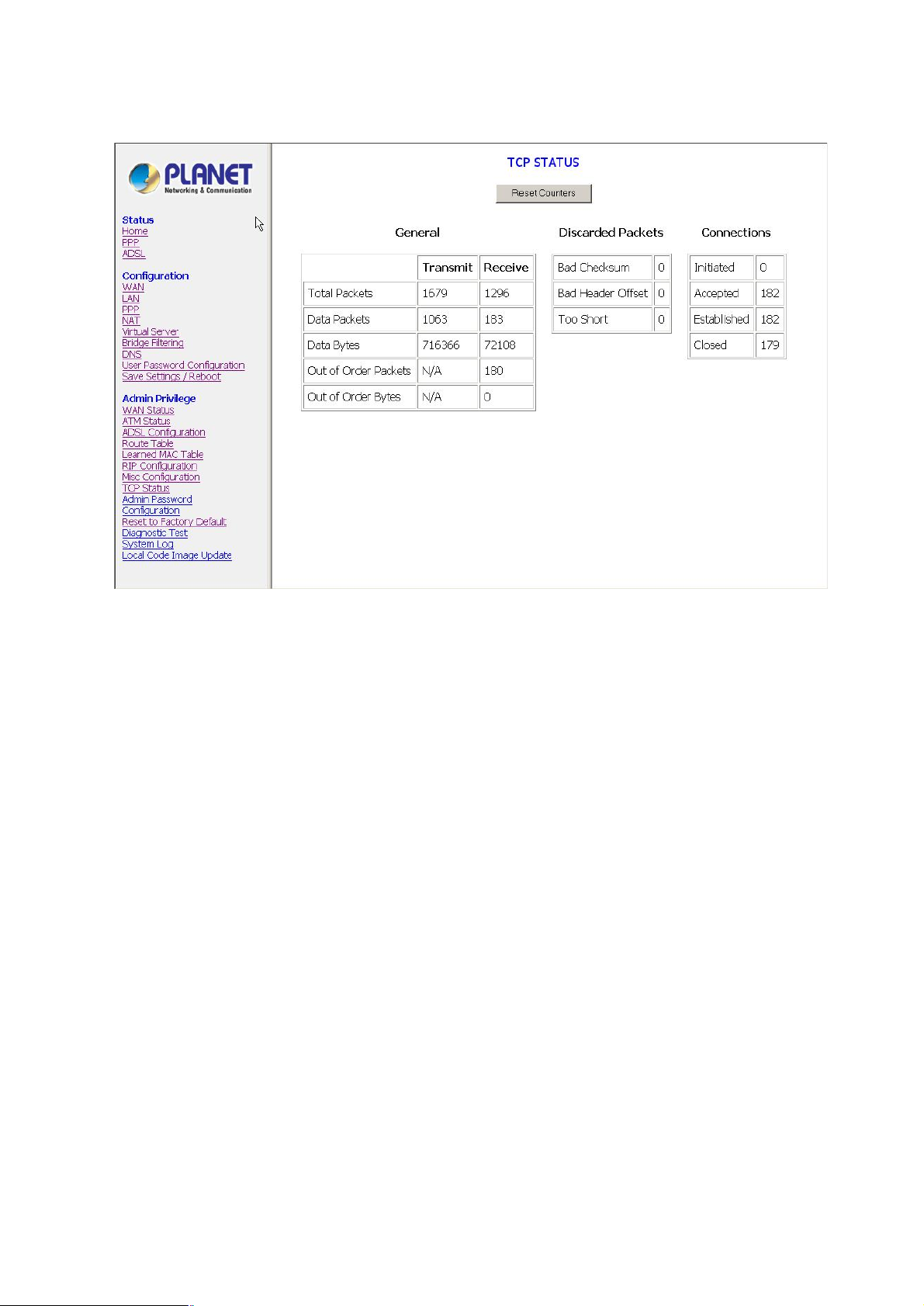

6.8 TCP Status........................................................................................................................................50

6.9 Admin Password Configuration.........................................................................................................52

6.10 Reset to Factory Default..................................................................................................................52

6.11 Diagnostic Test................................................................................................................................54

6.12 System Log.....................................................................................................................................54

6.13 Local Code Image Update...............................................................................................................55

APPENDIX A. COMPLIANCE STATEMENT .................................................................................57

APPENDIX B. ENCAPSULATION MODE ....................................................................................58

APPENDIX C. TROUBLESHOOTING .........................................................................................59

Overview..................................................................................................................................................59

General Problems...................................................................................................................................59

Configuration and Internet Access..........................................................................................................59

APPENDIX D. SPECIFICATIONS ..............................................................................................61

ADE-4110A/ADE-4110B..........................................................................................................................61

1. Introduction

This Router is a highly integrated, cost-effective solution. All setup and provisioning is ac-

complished via a simple intuitive Web interface which further enhances the user experi-

ence.

1.1 Features

l ADSL Compliance

n Compliant with ADSL standards

u Full-rate ANSI T1.413 Issue 2 and ITU G.dmt (G.992.1) standards u Splitterless ITU G.lite (G.992.2) specification

u ADSL over POTS (Annex A) and ADSL over ISDN (Annex B) n DMT modulation and demodulation n Full-rate adaptive modem

u Maximum downstream rate of 8 Mbps

u Maximum upstream rate of 1 Mbps

l ATM Protocols

n WAN mode support: PPP over ATM (RFC 2364) and PPP over Ethernet (RFC

2516)

n LAN mode support: bridged/routed Ethernet over ATM (RFC 1483) and Classi-

cal IP over ATM (RFC 1577)

n ATM Forum UNI 3.1/4.0 PVC n Up to 8 VCs (Virtual Circuits)

l Bridge Mode

n Ethernet to ADSL self-learning Transparent Bridging (IEEE 802.1D) n Supports up to 128 MAC learning addresses

l Router Mode

n IP routing–RIPv2 n Static routing n DHCP (Dynamic Host Configuration Protocol) Server and Client n NAPT (Network Address and Port Translation) n NAT (Network Address Translation) n ICMP (Internet Control Message Protocol)

l Security

n User authentication for PPP n PAP (Password Authentication Protocol) n CHAP (Challenge Authentication Protocol) n Password protected system management

1.2 System Requirements

l Pentium III 266 MHz processor minimum l 128 MB RAM minimum l 20 MB of free disk space minimum l Ethernet Network Interface Controller (NIC) RJ45 Port l Internet Browser l Ethernet (CAT5) Cable

2. Knowing Your Router

When selecting the location for the Router, allow room to access the connections on the

rear panel. You will want to place the Router so that you will be able to see the LED indi-

cators on the front panel. It may be convenient for you locate the Router near the PC you

intend to use for initial configuration of the Router.

2.1 Front Panels

Place the Router in a location that permits an easy view of the LED indicators shown in

the front panel diagram below.

2.2 Rear Panels

The rear panel of the Router provides access to the power adapter cord connection as

well as the port connections.

RESET button: The Router comes with a reset button built into the rear panel. Use this

button to restore the factory default settings. If you need to reset the Router, press the

reset button for 2-3 seconds and then release it. The ADSL LED will stop blinking tem-

porarily and then blink again in about 15 seconds. It means the Router finish rebooting.

2.3 LED Indicators

The LED Indicators read as follows:

PWR

ADSL

LNK/ACT

100

Illuminated when the unit is powered on.

Illuminated when the physical layer link is activated.

Illuminated when transmitting data to the ADSL line.

Illuminated when receiving data from the ADSL line.

Illuminated when the device is connected to LAN port(s).

Illuminated when the connecting speed at 100 Mbps and

non-illuminated indicates the connecting speed at 10

Mbps.

3. Login

There are two levels of access rights/privileges for the Router:

l Administrator: User name admin, the administrator account has complete

read/write access on all pages (Status, Configuration, Admin Privilege, and Firewall

Configuration). Admin account also has FTP server access.

l User: User name user, the User account has read/write access to pages under the

Status and Configuration sections.

The following steps will enable you to log into the Router:

1. Launch the Web browser (Internet Explorer, Netscape, etc.).

2. Enter the LAN port default IP address (default gateway) http://10.0.0.2 in the address

bar.

3. Entry of the username and password will be prompted. Enter the default login User

Name and Password:

The default login User Name of the administrator is admin, and the default login Password

is epicrouter. The default login User Name for the non-administrator is user, and the de-

fault login Password is password.

4. Remember my password checkbox: By default, this box is not checked. Users can

check this box so that Internet Explorer will remember the User name and Password

for future logins. It is recommended to leave this box unchecked for security purposes.

Admin and User passwords can be changed after login. Refer to Section 5.9 for User

Password configuration and Section 6.9 for Admin Password configuration for further in-

struction.

4. Status Pages

The links under the Status column are associated with the pages that represent the status

of system (computer and Router) and interfaces (connections). This includes LAN, WAN,

DHCP, PPP, and ADSL status. These pages can be viewed and modified by both user and

admin accounts.

4.1 Home Page

The Home page shows the firmware versions; LAN, WAN, and DHCP interface status;

and Ethernet connection status.

Firmware Version: It is the default version number, which is not changeable.

Customer Software Version: It is the version of the firmware that is controllable by the

ADSL Modem/Router manufacturer.

WAN and LAN: It displays the IP address, Subnet Mask and MAC address for the WAN

(ADSL) and LAN interface.

Total Number of LAN Interfaces: It displays the total number of available interfaces for

the LAN interface. The total number of available interfaces is the amount of computers

that are able to hook up to the DHCP Server.

Number of Ethernet Devices Connected to the DHCP Server: It displays the DHCP

client table with the assigned IP addresses and MAC addresses.

If there are no devices connected to the DHCP server, then a

table will not appear, otherwise a table listing all devices con-

Ethernet Link Status: It displays the link up or down for the Ethernet connection (up if

connected, down if not connected).

USB Link Status (reserved function): It displays the link up or down for the USB con-

nection (up if connected, down if not connected).

nected to DHCP server will appear on the bottom of the page.

4.2 PPP Page

The PPP Status page shows the status of each PPP session for each PPP interface.

This page contains information that is dynamic and will refresh every 8 seconds.

PPP interfaces can be created, modified, and deleted in the

PPP Configuration page. Refer to Section 5.4 for further in-

formation.

PPP (Point-to-Point Protocol): The table displays the following fields:

l Connection Name: This is user defined. User defined connections for PPP can

be created in PPP Configuration page.

l Interface: States the interface that is being used (PVC0 ... PVC7). l Mode: There are two available modes for the connection:

PPP over Ethernet (PPPoE)

PPP over ATM (PPPoA)

l Status: States whether PPP connection is Connected or Not Connected. l Packets Sent: Number of packets sent by a particular PPP Connection. l Packets Received: Number of packets received by a particular PPP Connection. l Bytes Sent: Number of bytes sent by a particular PPP Connection. l Bytes Received: Number bytes received by a particular PPP Connection.

Connect and Disconnect: It allows you to manually connect/disconnect the PPP con-

nection for each PPP interface. In other words, each PPP session can be connected and

disconnected individually.

l Connection #: Specifies the PPP session to be connected/disconnected. l Connect/Disconnect Execute: Press this button to either connect or disconnect.

Connection status dialog will be displayed below the Execute button after it is pressed.

Sample dialog with explanation:

l PPP X: Connecting... This is displayed while the PPP session is attempting to

connect to the ISP.

l PPP X: Connect ERROR This is displayed when a connection cannot be made

due to an error.

l PPP X: is currently not connected This is displayed when a disconnect attempt

is made on a session that is not currently connected.

l PPP X: does not exist! This is displayed when a connect or disconnect attempt is

made on a session number that does not exist.

4.3 ADSL Page

The ADSL Status page shows the ADSL physical layer or link status. The information dis-

played on this page is either inherent to the Router or set by the ADSL Central Office (CO)

DSLAM, neither of which cannot be changed by the user. This page contains information

that is dynamic and will refresh every 2 seconds.

Restart/Stop Execute: It allows you to stop or restart the ADSL connection by selecting

the appropriate action and clicking Execute.

Showtime Firmware Version: It displays the ADSL data pump firmware version.

ADSL Line Status: It displays the ADSL connection process and status. The different

states for this field are as follows:

l Activation: The Router is in this state when it is attempting to start the activation

process.

l Initialization: The Router is initializing handshake with the CO. l Training: It is a part of the handshake process with the CO. l Channel Analysis: It is a part of the handshake process with the CO. l Exchange: It is a part of the handshake process with the CO. l Down: It indicates that the ADSL connection is down. l Showtime: It indicates that a connection has been established between the

Router and the CO.

ADSL Modulation: It displays the ADSL modulation status, which can either be G.dmt or

T1.413.

ADSL Annex Mode: It displays the ADSL annex mode, which can either be Annex A or

Annex B.

ADSL Startup Attempts: It displays the number of ADSL connection attempts after loss

of showtime. A connection attempt is recorded only if showtime is attained.

ADSL Max TX Power: It displays the transmit output power level of the CPE (Customer

Premise Equipment), which is the transmit output power level of the Router.

ADSL CO Vendor: It displays the Central Office (CO) DSLAM vendor name, if available.

If the Router is not connected to an ADSL vendor, then ‘UNUSED_VENDOR_0’ will ap-

pear in this field.

Elapsed Time: It displays the time of the Router has been in operation. This is the

amount of time the Router is on, not the amount of time it is connected to the PC or in

showtime status.

A table contained the information of SNR Margin, Line Attenuation, Errored Seconds,

Loss of Signal, Loss of Frame, CRC Errors, Data Rate, and Latency is also available.

5. Configuration Pages

Classical IP over

The links under Configuration column are associated to the pages that represent the con-

figurations of system and interfaces. These pages can be viewed and modified by both user

and admin accounts.

When any settings are changed, please go to the Save Set-

tings page to save the new setting(s) and reboot the Router.

Changes will not take effect until the settings are saved and

the Router is rebooted. If power is lost before saving, all new

configurations since the last save will be lost, even if they were

submitted.

5.1 Modes

Table 5-1 lists the mode configurations.

Table 5-1 Mode Configuration

WAN Configura-

tion

IP Address

Subnet Mask

Gateway

Bridge Mode

N/A Automatically as-

Router Mode

(PPPoA/PPPoE)

signed by ISP

Router Mode

(Dynamic IP)

Automatically

assigned by ISP

Automatically

assigned by ISP

Automatically

assigned by ISP

Router Mode

(Static IP)

Provided by ISP Automatically

Half Bridge

assigned by ISP

Encapsulation

PPP Service

PPP User Name

PPP Password

DHCP Client

Bridge

1483 Bridged IP

LLC, 1483

Bridged IP

VC-Mux

Enabled Disabled Disabled Disabled Disabled

N/A Provided by ISP N/A N/A Provided by ISP

Unchedked Unchedked Checked Unchedked Unchedked

PPPoA

LLC/VC-Mux,

PPPoE

LLC/VC-Mux

1483

Bridged/Routed

IP LLC, 1483

Bridged/Routed

IP VC-Mux,

Classical IP over

ATM

1483

Bridged/Routed

IP LLC, 1483

Bridged/Routed

IP VC-Mux,

ATM

PPPoA

LLC/VC-Mux,

PPPoE

LLC/VC-Mux

Enable

PPP Half Bridge

DHCP Server

NAT

DNS Proxy

Disabled Disabled Disabled Disabled

Disabled Enabled Enabled Enabled

Disabled Enabled (Dynamic

NAPT)

Disabled Enabled Enabled Enabled Disabled

Enabled (Dy-

namic NAPT)

Enabled (Dy-

namic NAPT)

Disabled

Bridge Mode: Bridge Mode is used when there is one PC connected to the LAN-side

Ethernet port. IEEE 802.1D method of transport bridging is used to bridge between the

WAN (ADSL) side and the LAN (Ethernet) side, i.e., to store and forward.

Router Mode: Router Mode is used when there is more than one PC connected to the

LAN-side Ethernet port. This enables the ADSL WAN access to be shared with multiple

nodes on the LAN. Network Address Translation (NAT) is supported so that one

WAN-side IP address can be shared among multiple LAN-side devices. DHCP is used to

serve each LAN-side device and IP address.

PPP Half Bridge: Although the Router mode is capable of terminating the PPP in the

modem and hence does not require PPPoE client software on the host PC, there are

some disadvantages to Router mode when only single-user support is required. For in-

stance, Router mode uses NAT which requires ALG support. PPP Half Bridge also ter-

minates the PPP in the modem and does not require a PPPoE client on the PC. However,

PPP Half Bridge does not use NAT and is not limited by ALGs. PPP Half Bridge will work

with Ethernet interface to the PC.

Single-User Mode: Only one computer is connected at the LAN side through Ethernet.

Multi-User Mode: Multiple computers are connected at the LAN side through Ethernet.

5.2 WAN Configuration

The WAN configuration page allows you to set the configuration for the WAN/ADSL

ports. Before you enter the WAN Configuration page, you will be asked to select an

adapter (PVC0 through PVC7) first. Once you select the adaptor, then following page will

appear.

+ 46 hidden pages
