Planet Technology ADE-3000 User Manual 2

Networking&Communicatio

ADSL Bridge Router

ADE-3000

User’s Manual

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.

No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form by any means by electronic or mechanical. Including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser's personal use, and without the prior express written permission of PLANET Technology.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User ’s Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.

CE mark Warning

The is a class B device, In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Trademarks

The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, these designations are claimed as trademarks or registered trademarks by their respective companies.

Revision

User’s Manual for PLANET ADSL Bridge/Router: Model: ADE-3000 Rev: 2.0 (August 2002) Part No.: EM-ADE3000V2

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION..............................................................................................1

ADE-3000 Features...........................................................................................................1

Internet Access Features...............................................................................................1

Advanced Functions......................................................................................................2

LAN Features................................................................................................................2

Configuration & Management......................................................................................2

Security Features...........................................................................................................2

Package Contents...............................................................................................................2

Physical Details..................................................................................................................3

Front Panel....................................................................................................................3

Rear Panel.....................................................................................................................3

Restore Default IP Address and Clear Password…………………………………………...3

CHAPTER 2 INSTALLATION...............................................................................................4

System Requirements........................................................................................................4

Installation Procedure.......................................................................................................4

CHAPTER 3 LOGIN AND SYSTEM STATUS.....................................................................6

Login...................................................................................................................................6

Preparation....................................................................................................................6

Connecting to ADE-3000..............................................................................................6

Status..................................................................................................................................8

CHAPTER 4 SYSTEM CONFIGURATION........................................................................10

Overview...........................................................................................................................10

WAN configuration.........................................................................................................10

System Wide Settings.................................................................................................10

Per VC Setting............................................................................................................10

Internet connection services............................................................................................11

Bridge Mode...............................................................................................................11

PPPoE, PPPoA Connection for WAN (Routing mode)..............................................13

Fixed IP for WAN.......................................................................................................14

Dynamic IP for WAN.................................................................................................15

Other settings..............................................................................................................16

LAN Configuration..........................................................................................................19

DHCP Setting.............................................................................................................19

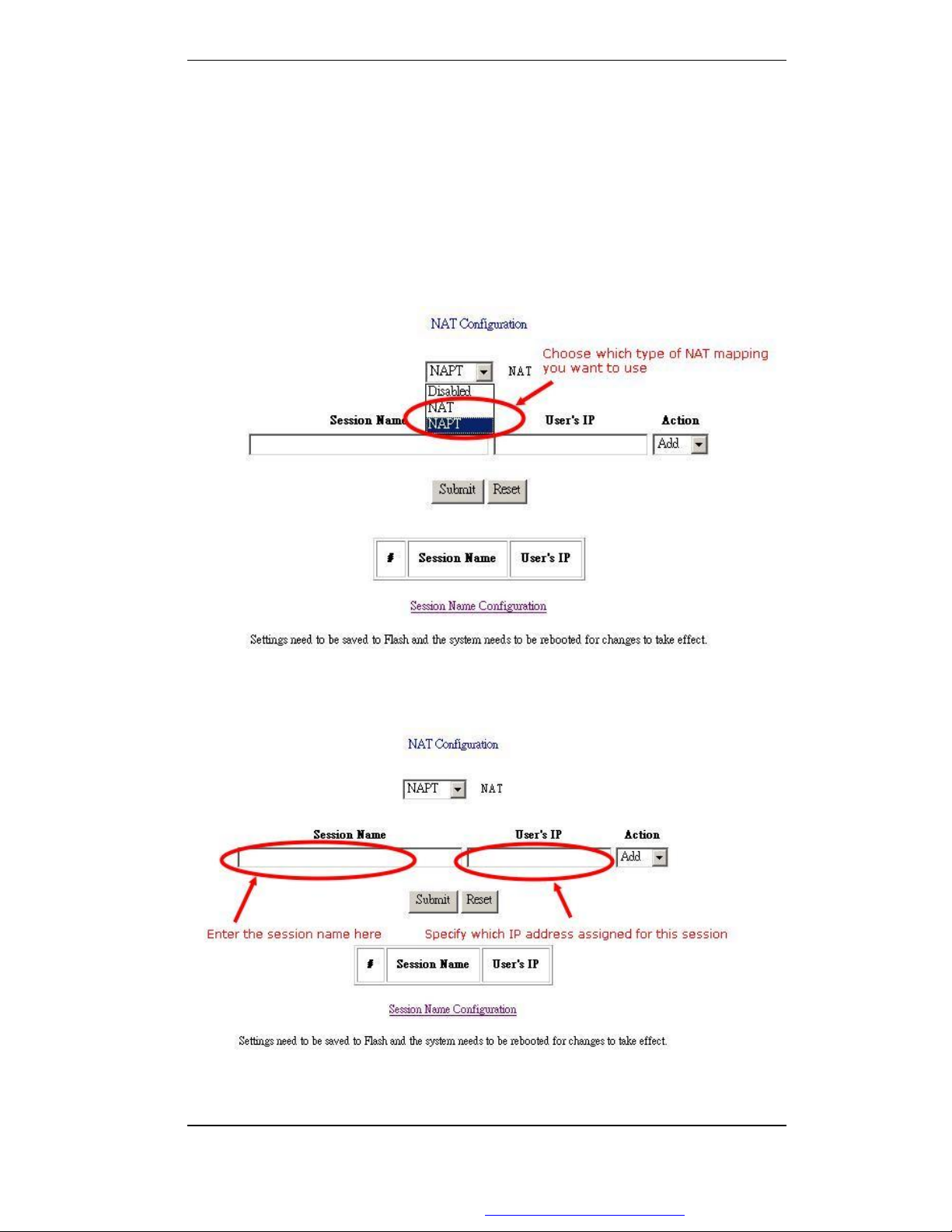

NAT Settings....................................................................................................................20

Virtual Servers.................................................................................................................23

Bridge Filtering................................................................................................................24

DNS Configuration..........................................................................................................25

CHAPTER 5 PC CONFIGURATION...................................................................................27

Overview...........................................................................................................................27

Windows Clients..............................................................................................................27

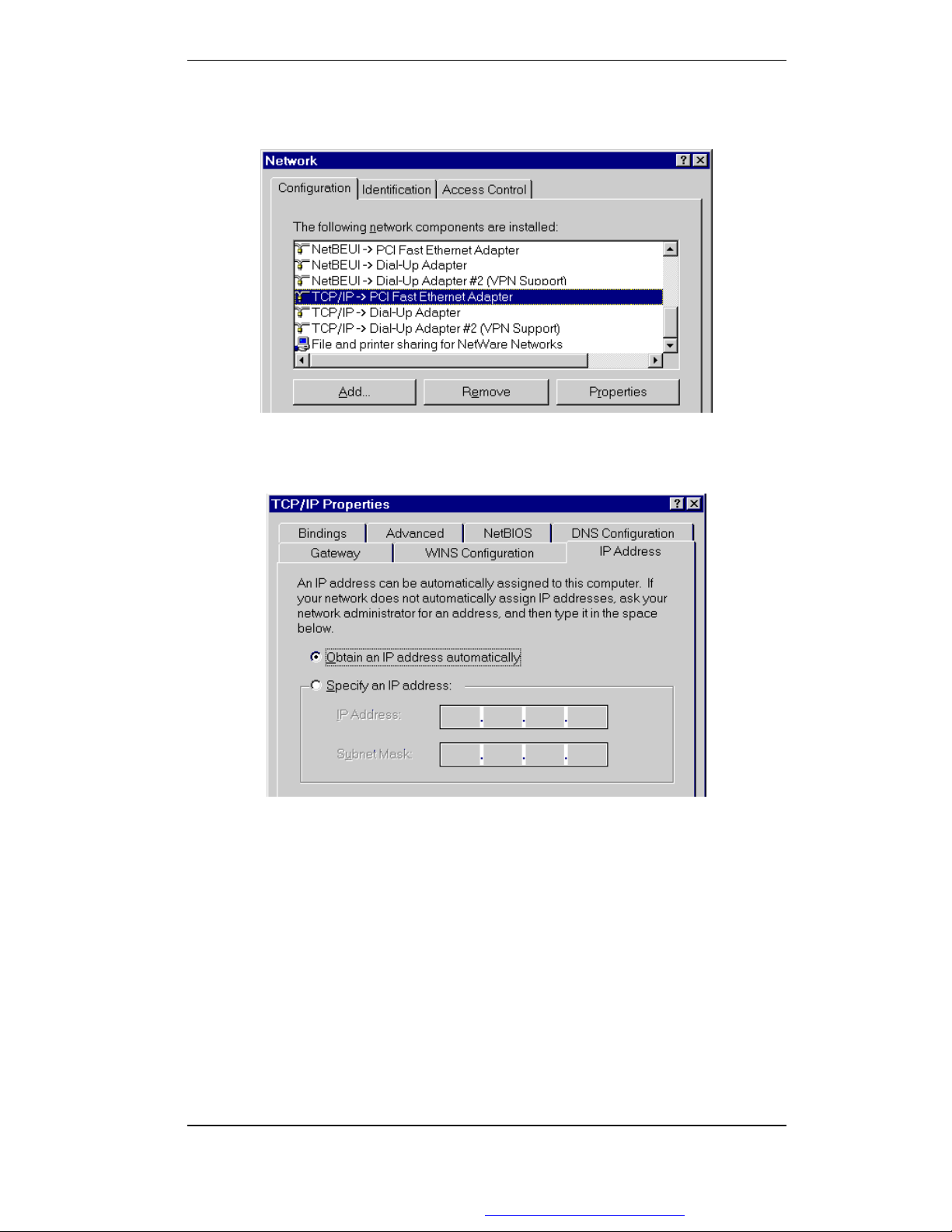

TCP/IP Settings..........................................................................................................27

Windows 9x/ME…………………………………………………………………………..28 Windows 2000…………………………………………………………………………….29 Windows XP………………………………………………………………………………32

Internet Access............................................................................................................33

Windows 9x/2000 ………………………………………………………………………….33

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

Windows XP………………………………………………………………………………33

Macintosh Clients............................................................................................................34

Linux Clients....................................................................................................................34

CHAPTER 6 ADMIN PRIVILEGE......................................................................................35

WAN Status......................................................................................................................35

ATM Status......................................................................................................................35

PPP Status........................................................................................................................36

TCP Status.......................................................................................................................37

Route Table......................................................................................................................37

Learned MAC Table.......................................................................................................38

ADSL Configuration.......................................................................................................38

RIP Configuration...........................................................................................................39

Password Configuration..................................................................................................40

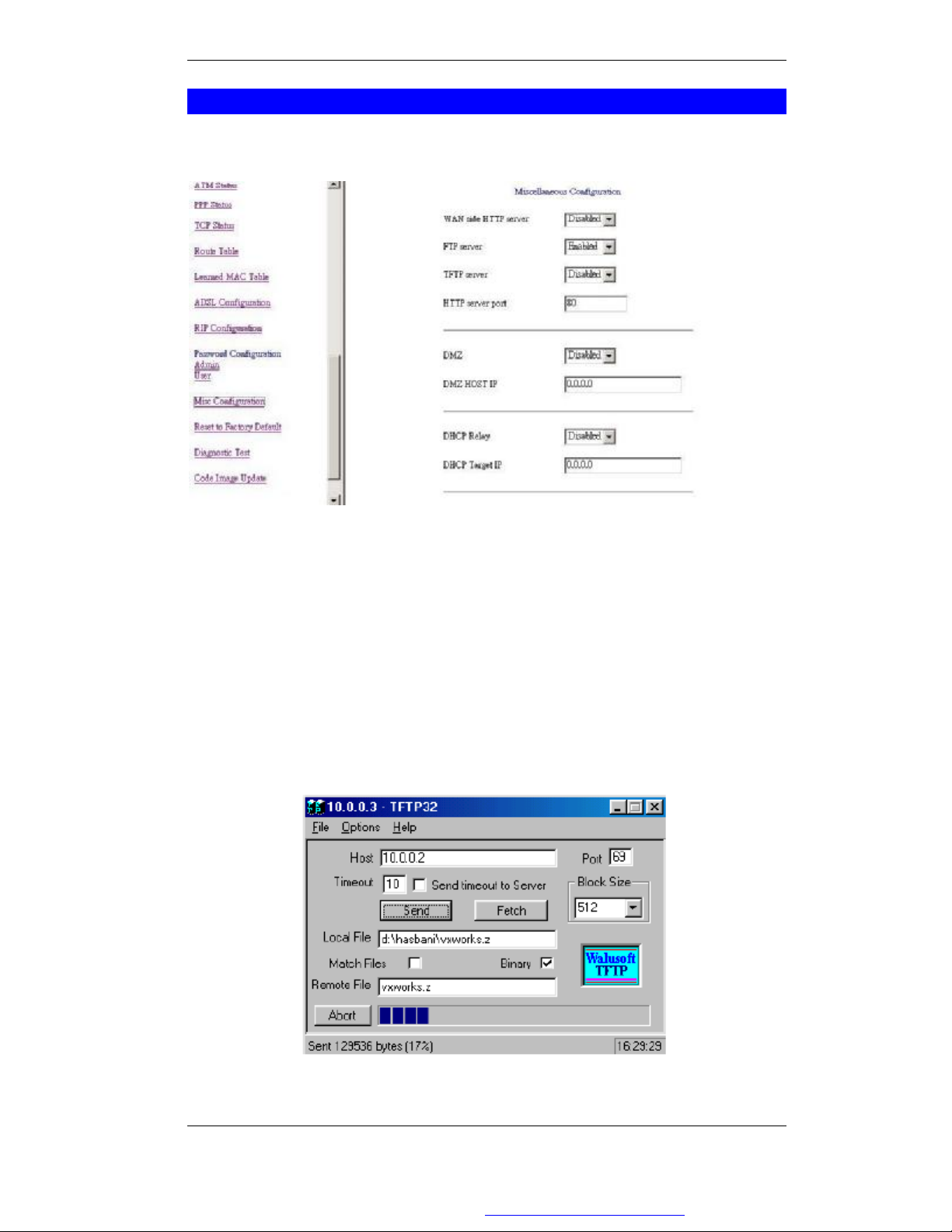

Miscellaneous Configuration..........................................................................................41

Reset to Factory Default.................................................................................................43

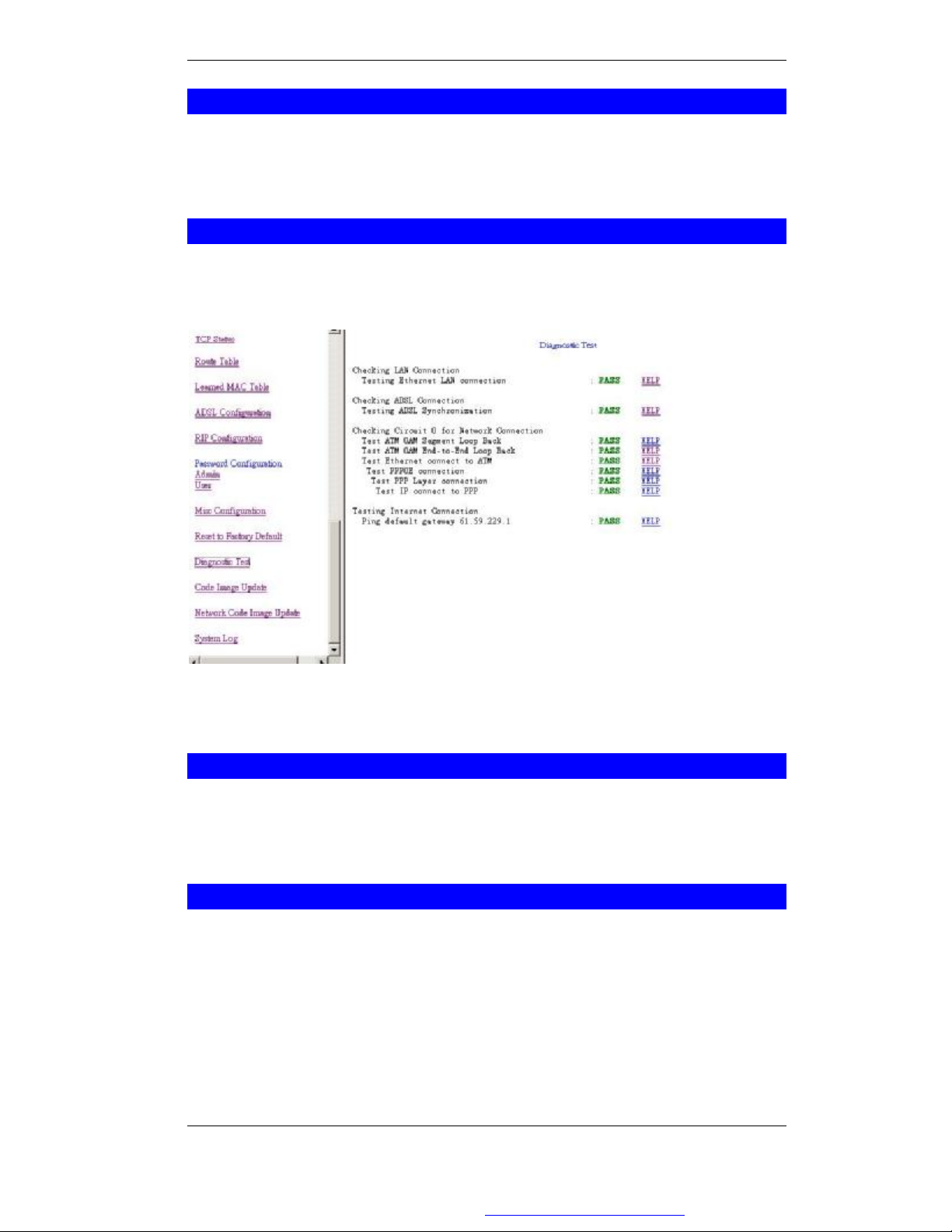

Diagnostic Test.................................................................................................................43

Code Image Update.........................................................................................................43

Network Code Image Update..........................................................................................43

System Log.......................................................................................................................44

APPENDIX A TROUBLESHOOTING.................................................................................45

Overview...........................................................................................................................45

General Problems............................................................................................................45

Configuration and Internet Access................................................................................45

APPENDIX B SPECIFICATIONS........................................................................................47

ADE-3000.........................................................................................................................47

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

Chapter 1

Introduction

This Chapter provides an overview of ADE-3000's features and capabilities.

Congratulations on the purchase of ADE-3000. The ADSL Bridge Router will allow multiple LAN users to share an Internet user account, via a DSL connection. Once the ADSL Bridge Router is installed and configured, the Internet is just a click away.

Figure 1-1: ADSL Bridge Router

ADE-3000 Features

ADE-3000 incorporates many advanced features, carefully designed to provide sophisticated functions for user’s convenience while surfing in the net.

Internet Access Features

· Shared Internet Access. All users on the LAN (up to 253 users) can access the Internet through ADE-3000, using only a single external IP Address. (router mode).

· DSL Service Support. ADE-3000 has a RJ-11 port for connecting a DSL connection to provide Internet resource sharing feature. All popular DSL service providers are supported.

· Standard Compliance. ADSL-Compliant with ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt) Annex A , and G.992.2 (G.lite).

· Data Transfer Rate. Data rate up to 8 Mbps downstream and up to 1 Mbps upstream

· Multi-system Support. USB interface driver supports Microsoft Windows 98/ME/2000 and Windows XP.

· User Friendly Interface. Simple, intuitive, yet powerful graphical user interface can be accessed from common web browsers nowadays

· Fixed or Dynamic IP Address. On the Internet (WAN port) connection, ADE3000 supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP Address.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

ADE-3000 User Manual

Advanced Functions

· Virtual Servers. This feature allows Internet users to access Internet servers on your LAN. The required setup is quick and easy.

· DMZ. One (1) PC on your local LAN can be configured to allow unrestricted 2way communication with Servers or individual users on the Internet. This provides the ability to run programs, which demand for bi-directional communication.

· System Log & Internet Access diagnostics ADE-3000 implements system log and Internet access diagnostic help users to diagnose what could be wrong via system log or Internet access diagnostics.

· VPN Support. VPN (Virtual Private Networking) connections using PPTP, L2TP and IPSec are transparently supported - no configuration is required.

LAN Features

w Dual Ethernet and USB ports. One (the Ethernet RJ-45 port) is used to

connect to your network adapter. The other (the USB port) can be connected to USB interface DSL/Cable router or directly with computer.

w DHCP Server support. Dynamic Host Configuration Protocol provides a

dynamic IP address to PCs and other devices upon request. ADE-3000 can act as a DHCP Server for devices on your local LAN.

Configuration & Management

· Easy Setup. Use WEB browser from anywhere to begin the configuration.

· Remote Management. The ADE-3000 can be managed from any PC on your

LAN. And, if the Internet connection exists, it can also (optionally) be configured via the Internet.

Security Features

w Two-level password protected Configuration. Two-level password

protection can provided stronger protection to prevent unauthorized users from modifying the configuration data and settings.

w NAT Protection. An intrinsic side effect of NAT (Network Address Translation)

technology is that by allowing all LAN users to share a single IP address, the location and even the existence of each PC is hidden. From the external viewpoint, there is no network, only a single device - ADE-3000.

Package Contents

The following items should be included:

· ADE-3000 Unit

· Power Adapter

· Quick Installation Guide

· CD-ROM containing USB port driver

· USB cable

· RJ-11 cable

If any of the above items are damaged or missing, please contact your dealer immediately.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

Introduction

Physical Details

Front Panel

The front panel of ADE-3000 has 2 LEDs for one LAN port and one ADSL port. Figure 2 displays a front panel of the router.

Figure 1-2: Front Panel

LED definitions

Status ADSL On – ADSL LED status will be on after chaining procedure

with DSLAM is completed

Status LAN On –LAN LED will be on while RJ-45 connector is plugged

in.

Rear Panel

Figure 1-3: Rear Panel

Button definition

Reset Button This button has two (2) functions:

· When pressed and released, ADE-3000 will reboot (restart).

· When reset button is pressed over 5 seconds and then release. ALL data will be clear and restore ALL settings to the factory default values.

Restore Default IP Address and Clear Password

If ADE-3000's IP Address or password is lost, the following procedure can be used to recover from this situation.

Pressing the Reset button for more than 5 seconds. ADE-3000 will restore to factory default setting. Note that this should be done only when you had tried all the troubleshooting options. Pressing the Reset button during operation may bring you into the risk of creating IP address conflict between your PC and the router. In such a case, you may be compelled to reboot your entire system(s).

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

Chapter 2

Installation

This Chapter covers the physical installation of ADE-3000.

System Requirements

Computer

· PC or TCP/IP compliant workstations

· 32 MB RAM

· 20 MB of free disk space minimum (for USB driver installation)

· Ethernet Network Interface Controller (NIC) RJ45 Port

· USB Port

· Internet Browser

Installation Procedure

Figure 2-1: Installation Diagram

Step 1

Choose an Installation Site

Select a suitable place on the network to install ADE-3000. Ensure ADE-3000 is powered OFF.

Step 2

Connect LAN Cables

Use standard LAN cables to connect PCs to the ETHERNET port on ADE-3000. Either 10BaseT or 100BaseT connections can be used.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

If required, use a standard LAN cable to connect the "Uplink" port to a standard port on another hub.

Step 3

Connect WAN Cable

Connect one end of the RJ-11 phone cord to the LINE port on your ADSL modem. Connect the other end of the RJ-11 phone cord to your wall phone jack.

Step 4

Power Up

Connect the supplied power adapter to ADE-3000 and power up. Use only the power adapter provided. Using a different one may cause hardware damage

Step 5

Check the LEDs

If there is no cable or wrong cable connected, LAN LED on ADE-3000 should flash in Red, then turn OFF. If it stays Red, there might be a hardware error.

For each LAN (PC) connection, the LAN Link/Act LED should be ON (provided the PC is also ON.)

The ADSL LED should be ON.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

ADE-3000 User Manual

Chapter 3

This Chapter details the first time login procedure and the Status screen

ADE-3000 contains an HTTP server. This enables you to connect to it, and configure it, using your Web Browser. Your Browser must have JavaScript support. The configuration program has been tested on the following browsers:

· Netscape V4.08 or later

· Internet Explorer V4 or later

Preparation

Before attempting to configure ADE-3000, please ensure that:

· Your PC can establish a physical connection to ADE-3000. The PC and ADE-3000 must be directly connected (using the ETHERNET port on ADE-3000) or on the same LAN segment.

· ADE-3000 must be installed and powered ON.

· If ADE-3000's default IP Address (10.0.0.2) is already used by another device, the

other device must be turned OFF until ADE-3000 is allocated a new IP Address during configuration.

Connecting to ADE-3000

To establish a connection from your PC to ADE-3000:

1. After installing ADE-3000 in your LAN, start your PC. If your PC is already running, restart it.

2. Start your WEB browser.

3. In the Address box, enter "HTTP://" and the IP Address of ADE-3000, as in this example, which uses ADE-3000's default IP Address:

http://10.0.0.2

4. If connection is established, a pop-up password request page will show up. The default login User Name of ADE-3000 administrator is “admin”, and Password is “conexant”. The default login User Name for non-administrator is “user”, and Password is “password”.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

If you can't connect

Figure 3-1: Logon Window

If ADE does not respond, check the following:

· Machine is properly installed, LAN connection is OK, and it is powered ON. You can test the connection by using the "Ping" command:

· Open the MS-DOS window or command prompt window.

· Enter the command:

ping 10.0.0.2 If no response is received, either the connection is not working, or your PC's IP address is not compatible with ADE-3000's IP Address. (See next item.)

· If your PC is using a fixed IP Address, its IP Address must be within the range 10.0.0.3 to 10.255.255.254 to be compatible with ADE-3000's default IP Address of 10.0.0.2. Also, the Network Mask must be set to

255.0.0.0. See Chapter 5 - PC Configuration for details on checking your PC's TCP/IP settings.

· Ensure that your PC and ADE-3000 are on the same network segment. (If you don't have a router, this must be the case.)

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

ADE-3000 User Manual

Status

Home

Once you login in ADE-3000, its Home page will appear. It shows the firmware versions and WAN and LAN interface status.

Figure 3-2: Home page

ADSL

The ADSL Status page shows the ADSL physical layer status.

Figure 3-3: ADSL status

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

LAN

The LAN page shows the information and status of LAN port, DHCP client table, linking status of Ethernet and USB interface.

Figure 3-4: LAN status

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

Chapter 4

System Configuration

This Chapter details the configurations for ADE-3000

Overview

This chapter describes the setup procedure for:

· WAN Access

· LAN configuration

PCs on your local LAN may also require configuration. For details, see Chapter 5 - PC Configuration.

WAN configuration

Select the WAN link under Configuration column to set up WAN connection. It is required to know the type of Internet connection service used by your ISP.

Note: You only need to fill in the fields that your ISP provided, and leave the others as default.

Figure 4-1: WAN Configuration

System Wide Settings

Under the System Wide Settings, the configuration will take effect on all WAN PVCs. Default Gateway: The default gateway is the next-hop router IP address on the

Internet.

Per VC Setting

Under Per VC Setting, it provides the configurations for IP address and VPI/VCI.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

System Configuration

Figure 4-2: Per VC Settings

To switch between the PVCs, please choose the options of virtual circuit and click on the Submit button to switch over.

Figure 4-3: Switch between PVCs

Internet connection services

Types of Internet connection services supported by ADE-3000 are explained below.

Bridge Mode

Step 1

At the WAN Configuration page, insert the VCI/VPI provided by ISP. Enable “Bridge”, and choose suitable packet encapsulation.

Figure 4-4: Bridge status

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

ADE-3000 User Manual

Figure 4-5: Encapsulation types of Bridge mode

Step 2

Click “submit” to commit modifications you’ve done, then click “Save Configuration” to store settings. (Modifications will not take effects until next reboot.)

Step 3

Click on “NAT” tab on left panel, and disable the NAT function in the option menu.

Figure 4-6: NAT Disable screen

Step 4

Click “Save settings” on left panel to write configuration into machine, and reboot to make settings effective.

PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com

+ 36 hidden pages
