▶Thisproductisadeviceforrecordinghigh-resolutionvideo,designedtomonitordrivingbehaviorand
captureincidentsthatcouldoccurwhileyourvehicle ison theroad orparked. Therecorded evidencemay

or may not hold any legal validity in the court of law. Bear in mind that we are not responsible for any
disputesorlossincourtfromrecordedorunrecordedvideodata.Besafe,drivesafe!

01. Product Information

▪ Instructions Before Operating this Product
▪ Warranty and Safeguard
▪ Product at a Glance

▪ Specifications
▪ Installation
▪ Identifying Parts
▪ Key Functions and Features

02. Operations and Functions of Viewer

▪ Key Functions of Viewer
▪ Upgrading the Product
▪ To View Video Data
▪ Setup Configurations
▪ Printing a Video Image

▪ AVI Backup
▪ Smart Backup
▪ Capturing a Video Image
▪ GPS Tracker

03. Warranty Policy and After Services

▪ Frequently Asked Questions
▪ Warranty Policy

▪ Warranty Limitations

Table of Contents

• Thank you for purchasing our product. This manual also includes our product
warranty information, so please keep this manual for future reference.

• Please read the safety instructions completely before operating this product.

• This product is a device for recording video and audio and is to be installed on the in
side of your vehicle. Optional cameras may be mounted on the outside of the vehicle.
This product is to help drivers monitor their driving behavior. The recorded audio and

video hold no legal validity.

• The purpose of this product is to record surroundings of your motor vehicle when
driving or parked. There is no guarantee that the product will capture every desired
image.

• This product may not record as an event during a mild impact or a minor collision.
We recommend to categorize a certain situation by pressing the emergency button.

• We cannot guarantee any product defects if a memory card other than the one
provided with the camera is used.

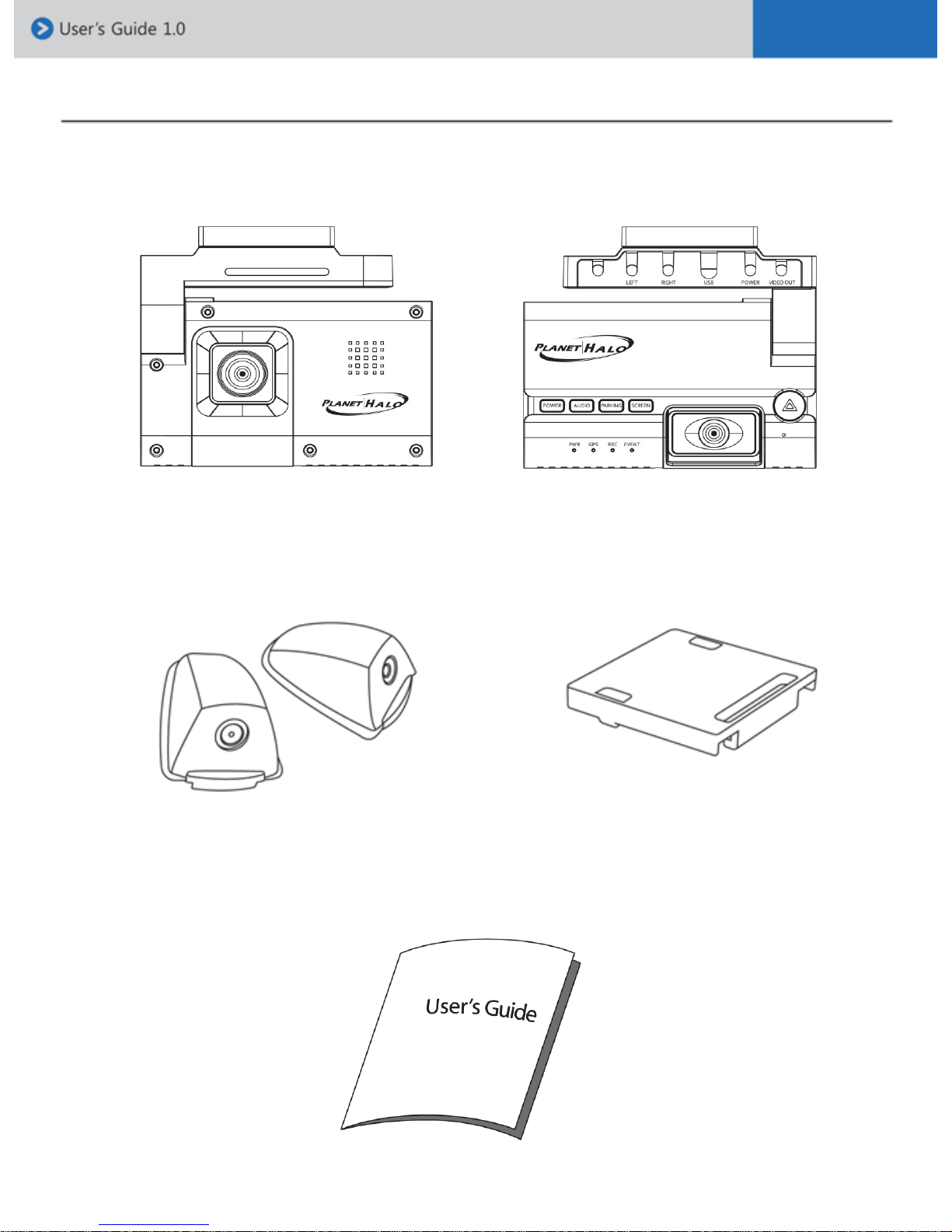

1. Product Information

Main body

Side camera Camera Bracket

User’s manual

Table of Contents

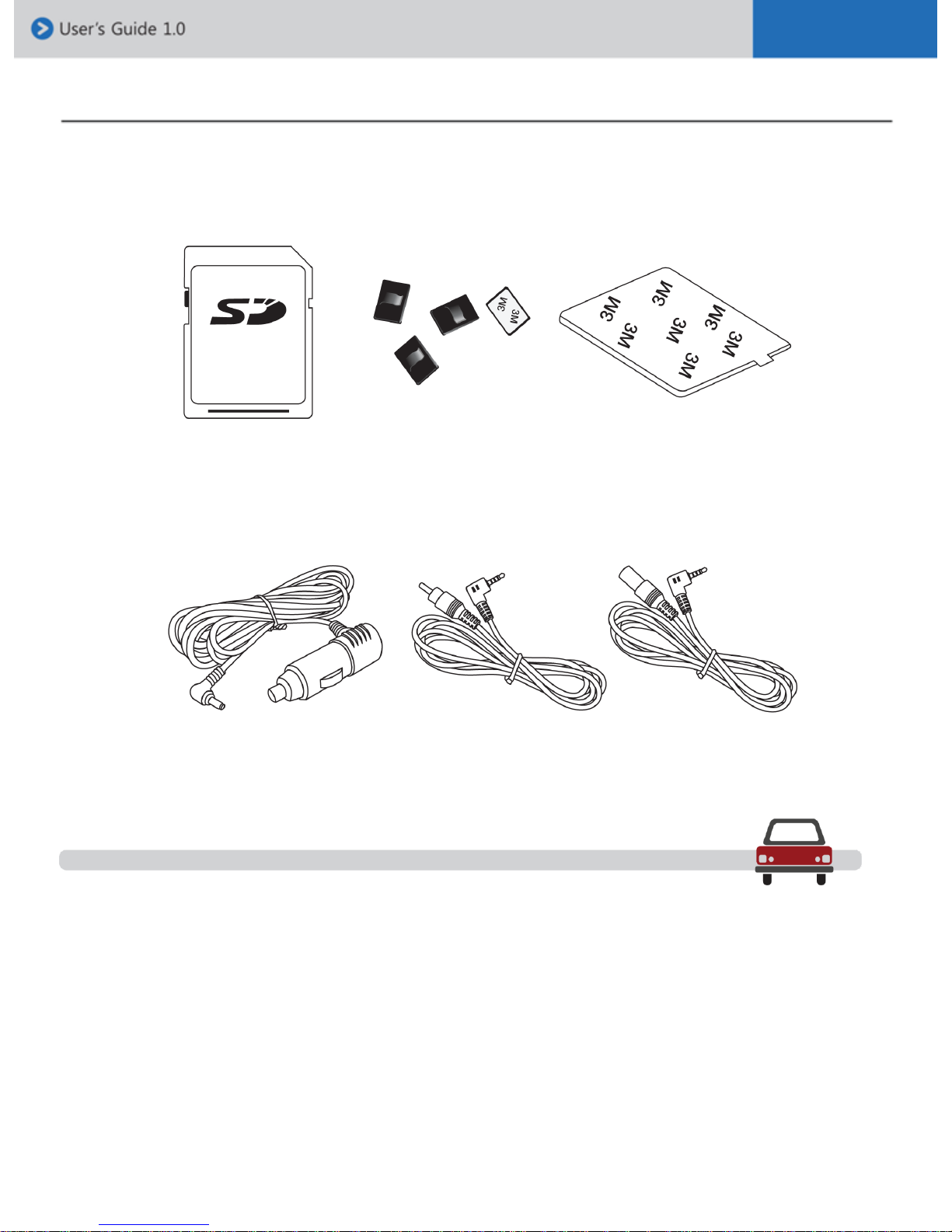

SD memory card / Cable holder / Holder adhesive tape

Cigarette plug (power cable) / Video cable / Video extension cable

Direct power cable (controls power voltage to prevent battery discharge for continuous recor

ding)

SD memory card (8G / 16G / 32G)

SD memory card reader

External HDD

Optional accessories

Table of Contents

[Checking LED lamp signal]

• Power : The LED light will flicker during the reboot once the power is supplied after turning t
he engine on. The LED light will be turned on once the rebooting is completed. (If there is a
problem with the battery, or the battery protection mode is on, the LED light will continue to
flicker)

• GPS : The green LED light will appear while receiving GPS reception. (The LED light will
be turned off after 10 seconds if there is no GPS reception)

• Video recording : The red LED light will appear during video recording. (The LED light will
flicker every 1 second during driving mode and will flicker every 3 seconds while in park
mode)

• Event recording : The blue LED light will appear during event recording. (The LED light will
be turned off if the event recording mode is off)

[Product button functions]

• Power button

: Pressing the ‘power’ button for 3-4 seconds, will turn on/off the product.

• Audio button

: Press the ‘audio’ button to turn on/off audio.

• Parking button

: If you press the ‘parking’ button once, the recording mode will change to parking mode.

*Pressing the ‘parking’ button for 3-4 seconds, will turn on/off the audio.

: If you press the ‘parking’ button once more, then it will change back to the normal recording
mode.

Parking mode is a function that allows you to record for a longer period of time than

normal recording mode by reducing the frames per second. The parking mode records at 3
frames per second

If you set ‘0’ (do not use) for parking mode in the configuration, it will not change the
recording mode even if you press the ‘park’ button.

• Screen button

: The screen button allows you to switch the displaying screen mode; full(1ch.), 2ch. and 4ch
when you see the playback via video out device.

• Emergency button

: This function enables you to store data for a longer period than the normal recording by
creating an ‘event’ occurrence while driving or parking.
: If you press the ‘event’ button from the time of accident, it categorize the event. This means
that you can store data for a longer period than the normal recording.

Table of Contents

• This product provides real time high-resolution recording with the option to record up to 4
cameras (front, internal, left and right). Recording begins after you connect the unit with the
power cable and turn on the engine. The product stops recording when you turn off the
engine. The last few seconds will be recorded after the power disconnects. When the
memory card is full, the recording cycles to the beginning and begins to overwrite the data.

[4 channel high-resolution video image]

: The product is able to record clear images by processing the video in Variable Bit Rate
(VBR).

[Recording 4 different directions simultaneously: front, internal, left and right]

: Easy to install cameras with multiple angles and directions for recording.

[Simultaneous playback mode : full, 2ch. and 4ch. screen mode]

: The viewer allows you to watch video playback in single channel mode, 2 channel or four
channels.

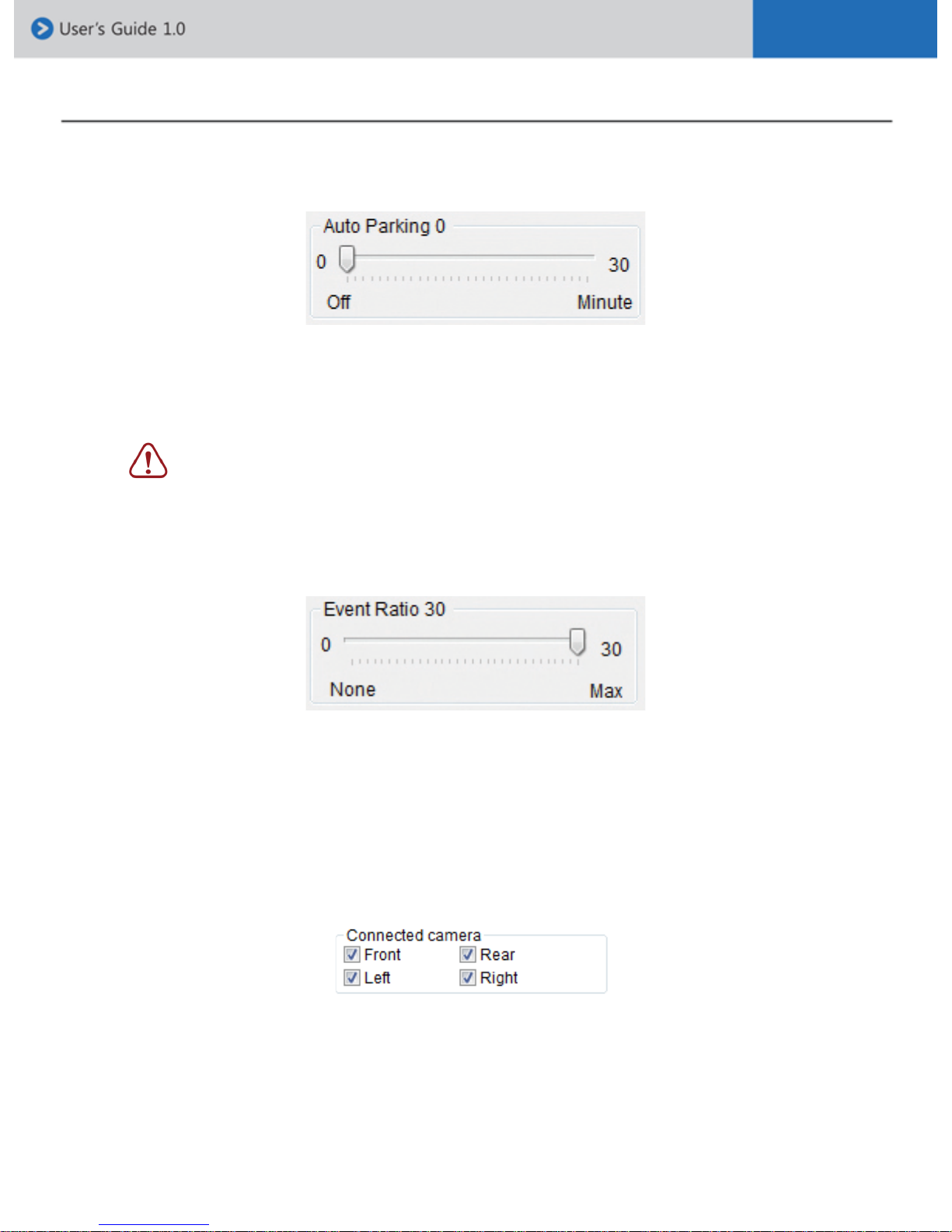

[Automatic parking mode]

: Set the parking mode time in the menu of the Viewer program, to when you want park
mode to be activated.

[Built-in GPS and high-sensitivity G-SENSOR]

: View the location (linked to Google maps), speed and acceleration of your vehicle by using
the embedded GPS. Events are categorized with g-sensors.

[Vehicle battery monitoring]

: Prevents the vehicles battery from discharging by monitoring the battery voltage.

[External camera]

: Low power consumption design.
: Best quality resolution by using embedded a deinterlace filter.
: The auto mirror function allows for the external cameras to be placed and adjusted to the
appropriate direction

Key Functions and Features

1)  Select the desired location to mount the camera, and then attach the sliding bracket to
the windshield.

2) Slide the product on to the bracket.

3) Place the side and rear cameras on the appropriate position and connect the camera

cables to the camera input terminal by using the provided extension cables.

4) Insert the SD card into the main body if it has not been inserted already. (Ensure that the

SD card is inserted the correct way).

[Note : Using the SD memory card]

: In order to remove the SD card, the LED lights on the camera must be completely turned off

: The SD card contains both the Viewer program and the update program. Please copy and p
aste the programs to your PC.

: Using either damaged or low-quality SD cards could damage the recorded data, could skip
data and decrease the speed of video playback.

: Please be aware of the fact that the SD card does not last forever, and will wear out after us
ing it for an extended period of time. It also may cause errors when recording. Try to conduct
a format and run virus checking programs from time to time to prevent the SD card from
malfunctioning. SD card related problems are not under the manufacturer’s guarantee and
the manufacturer or the supplier is not responsible for your data loss or missing recordings.

: We recommend you to make a back up of your files and save them to other storage
mediums such as your PC, in the event of an external power shortage.

: Do not put heavy pressure on the SD card and never use a wet SD card.

5) Connect a cigarette plug to the power terminal of the product.

6) Insert the cigarette plug into the cigarette jack of your vehicle.

7) Check the LED lamp.

8) Use cable holders to tidy up cables.

Prior to attaching the holder, please be aware that cold weather, cond
ensation, and dust may cause the holder from sticking properly.

Table of Contents

Camera

Front: ¼” CMOS image sensor (105 degree)
Internal: ¼” CMOS image (infrared) sensor (142 degree)
Side camera input: up to 2 PH-SC (see below)

Recording Resolution

720x480 / 1CH : 30 fps, 2CH: 15 fps per channel,
4CH: 10 fps per channel / *5 fps per channel (Parking mode)

Recording Format

H.264 VBR Recording

Output Device

CVBS output (1V Vp-p 75 ohm)

GPS

Built-in type GPS module

G-Sensor

Built-in 11BIT 3 Axis (X, Y, Z axis), acceleration sensor
Detects sudden start & stop / impact / overspeed / emergency

Recording Medium

SD memory card: SD, SDHC : 2GB~32GB support
External HDD support

Audio Recording

Built-in high-sensitivity microphone
PCM COMPRESSION

Audio Announcement

Built-in high-quality speaker for notice announcement

Recording Mode

Normal (continuous), Parking mode, Event mode

Time Setting

GPS embedded model :
Before GPS connection : run by internal RTC time
After GPS connection : automatic internal RTC time setting

Power

Rated voltage : DC 12V ~ 24V cigar plug
Operating voltage : DC 7V ~ 28V

Power Consumption

12V : 350~390mA

Temperature Range

Storage (-30℃~80℃)
Operating (-10℃~70℃)

Other Functions

Auto update, battery protection, auto parking mode

PH-SC (

Side camera

)

Camera

¼” CMOS image sensor (92 degree)

Recording Resolution

720x480

Output Display

CVBS output (1V Vp-p 75 ohm)

Power

Operating voltage : DC 4V ~ 5V

Power Consumption

140mA

Temperature Range

Storage (-30℃~80℃), Operating (-20℃~70℃)

Other Functions

Deinterlace filter, auto mirror

Main body [PH-4]

Specifications

• Insert the SD card in to your PC, or use a memory card reader to connect the SD card to

your PC. Open the SD card folder and then double click on [planethalo.exe] file to run the
viewer program.

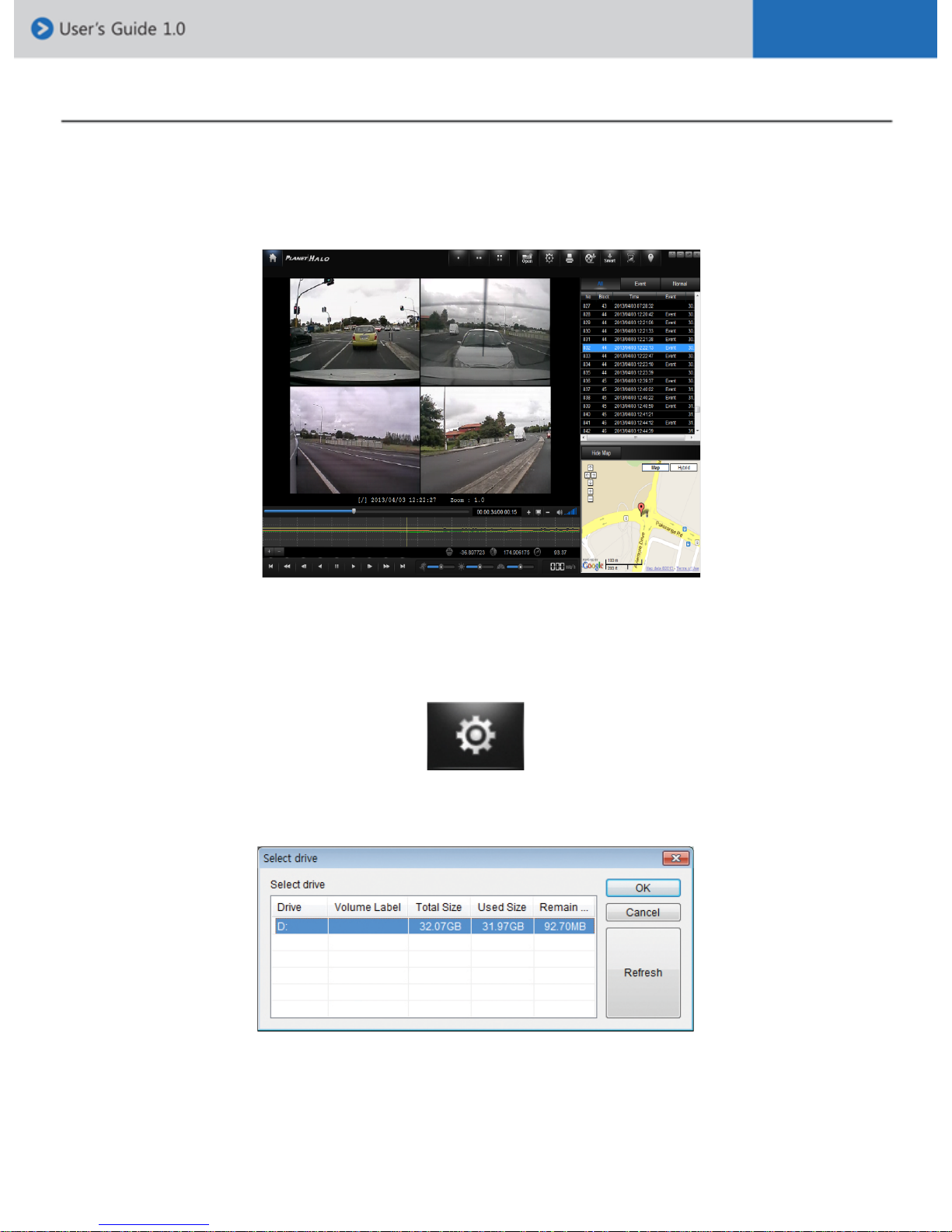

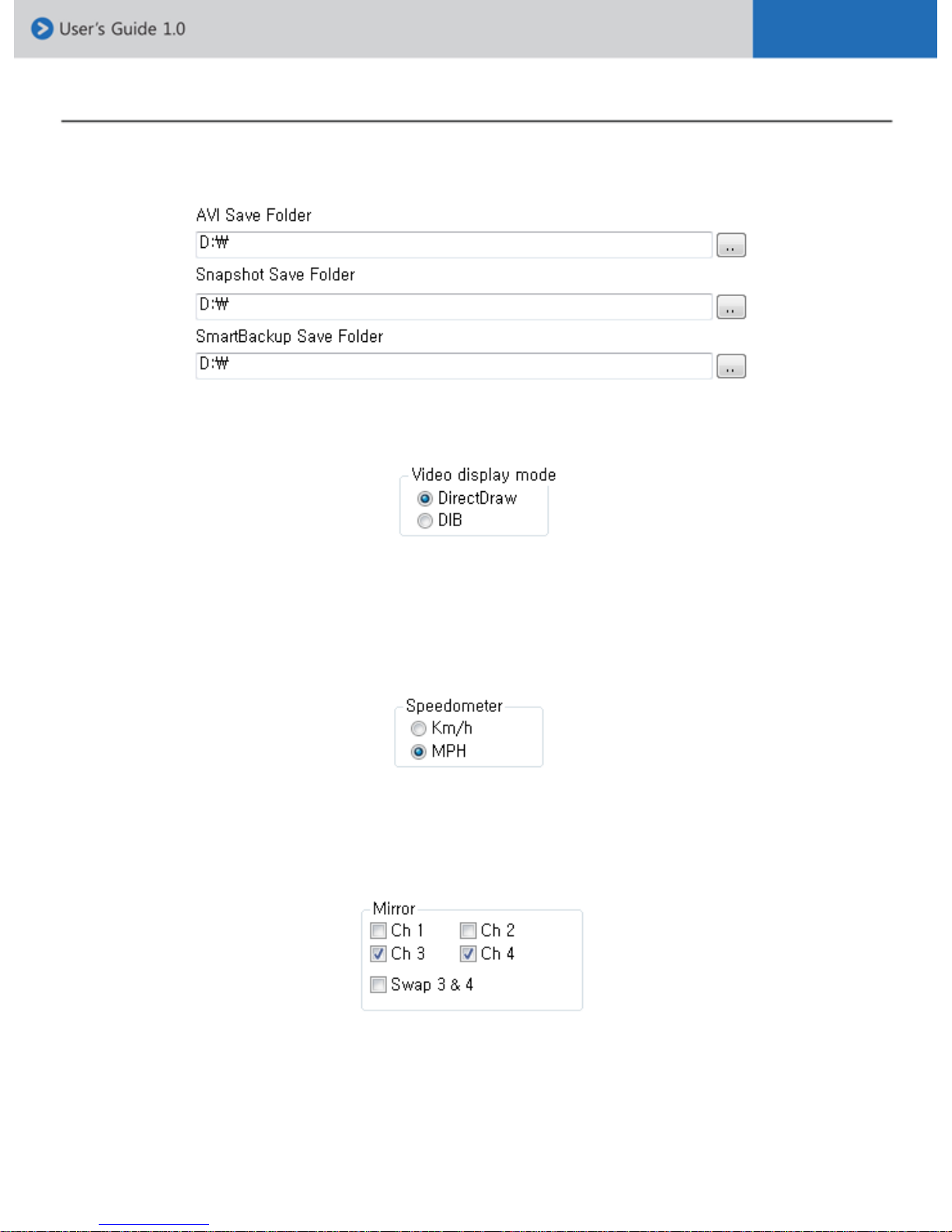

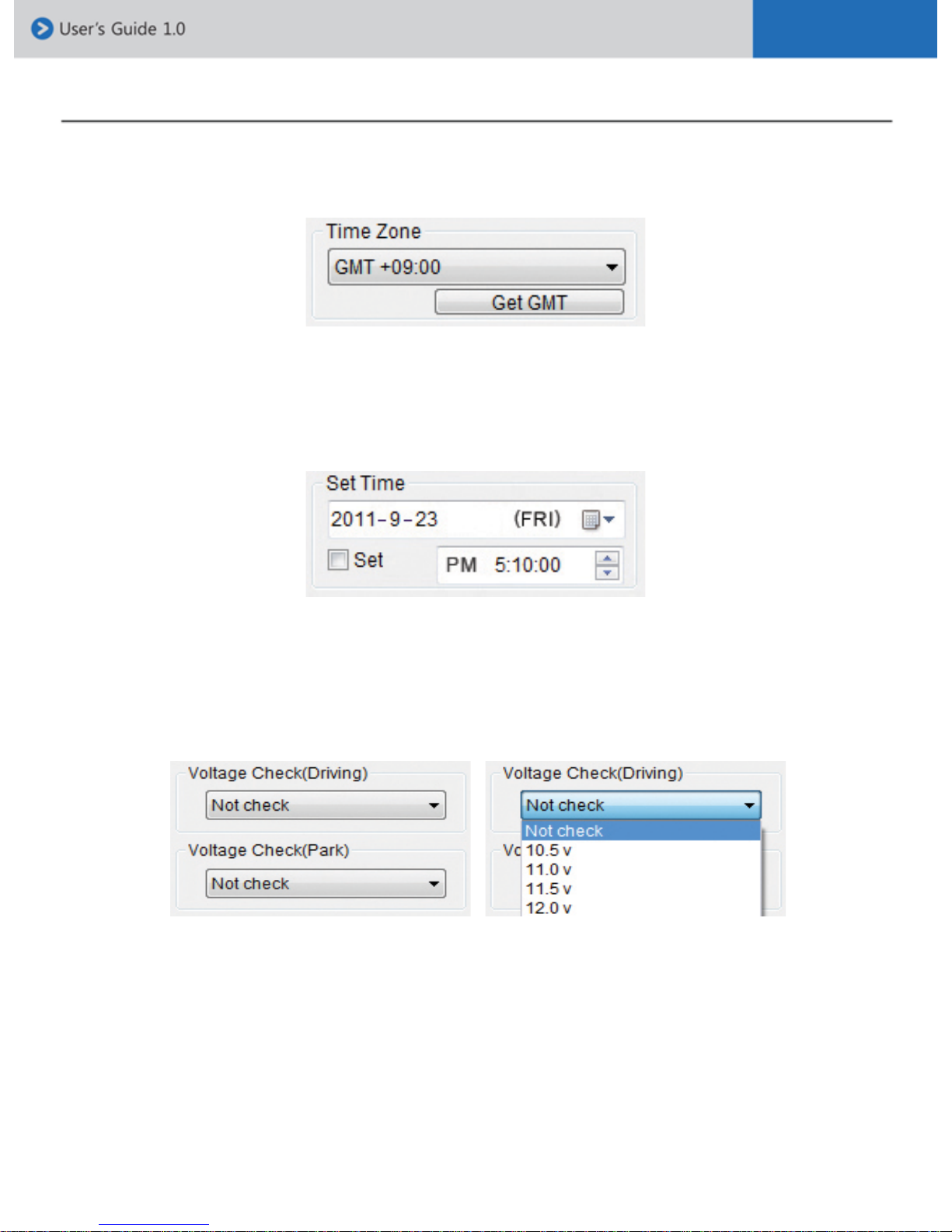

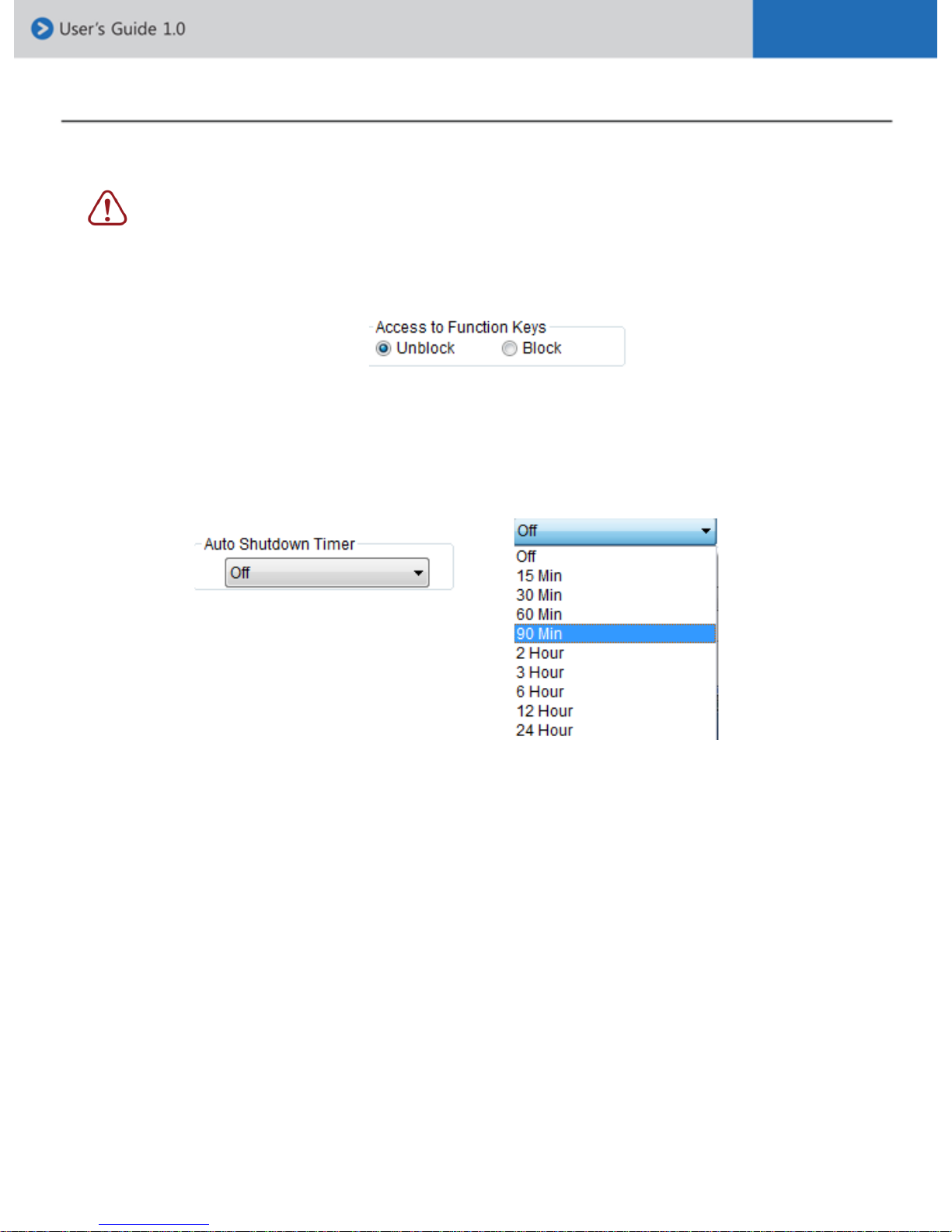

[Setup configurations]

1) Click the ‘Configuration’ icon

2) ‘Select Drive’ window appears. Select drive and then click the [ok] button.

Operations and Functions of Viewer

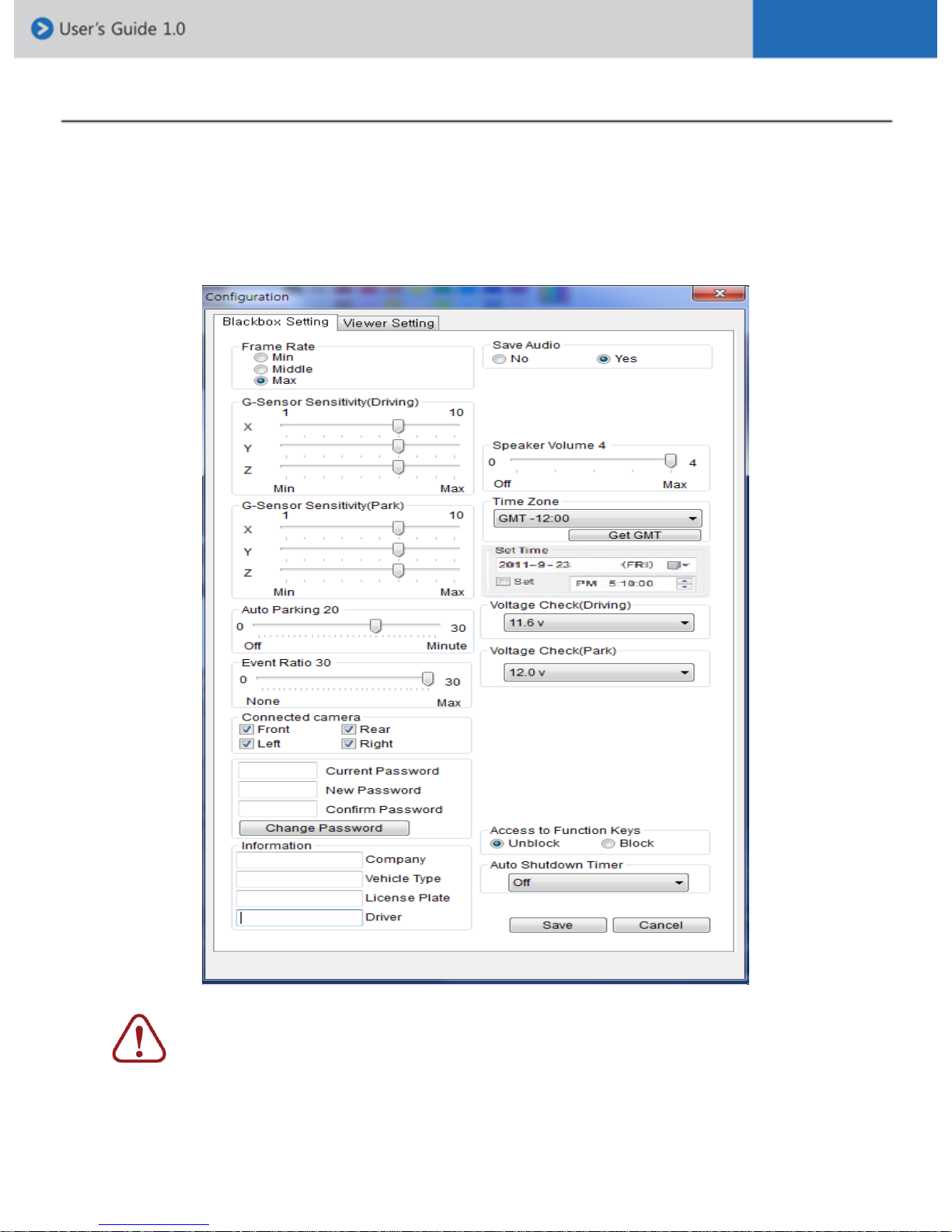

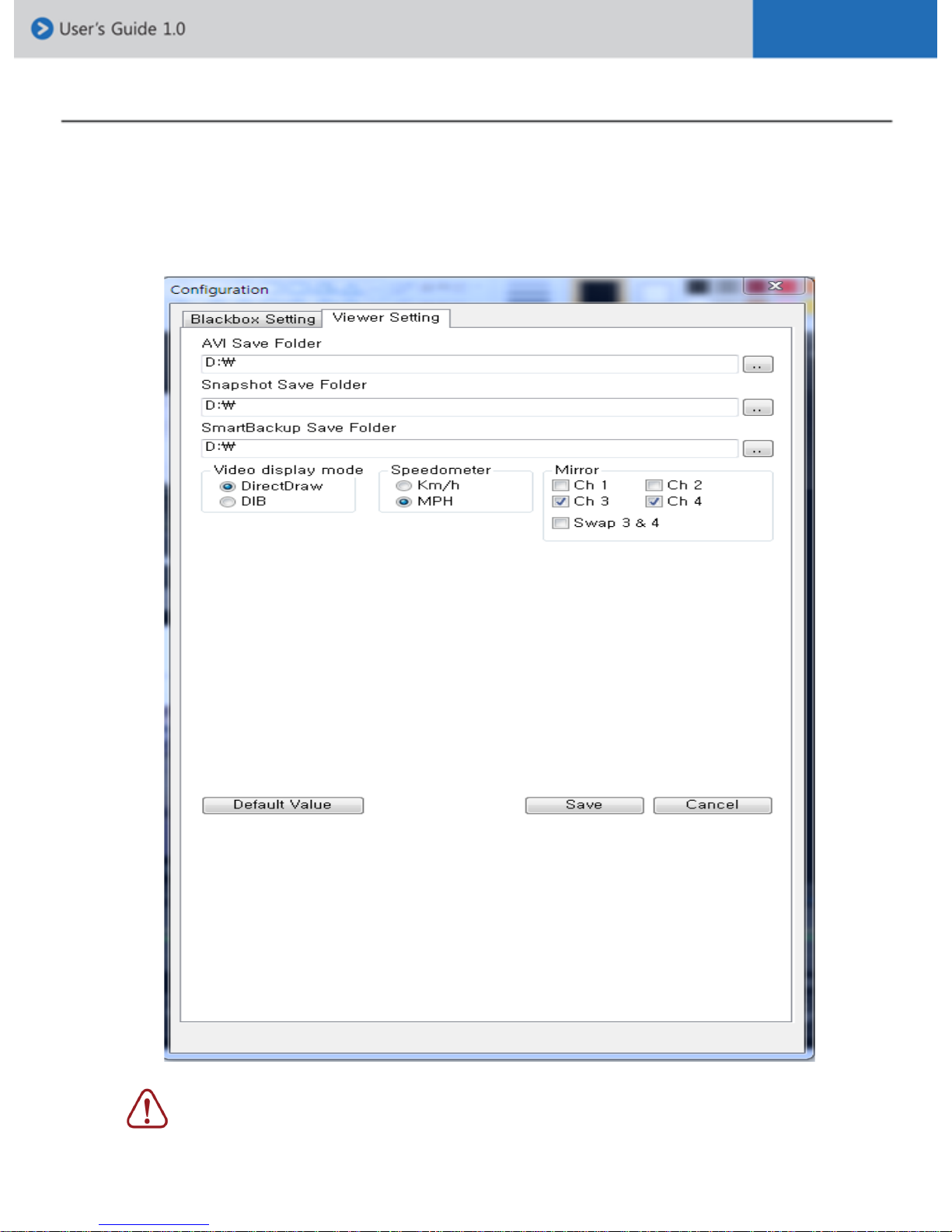

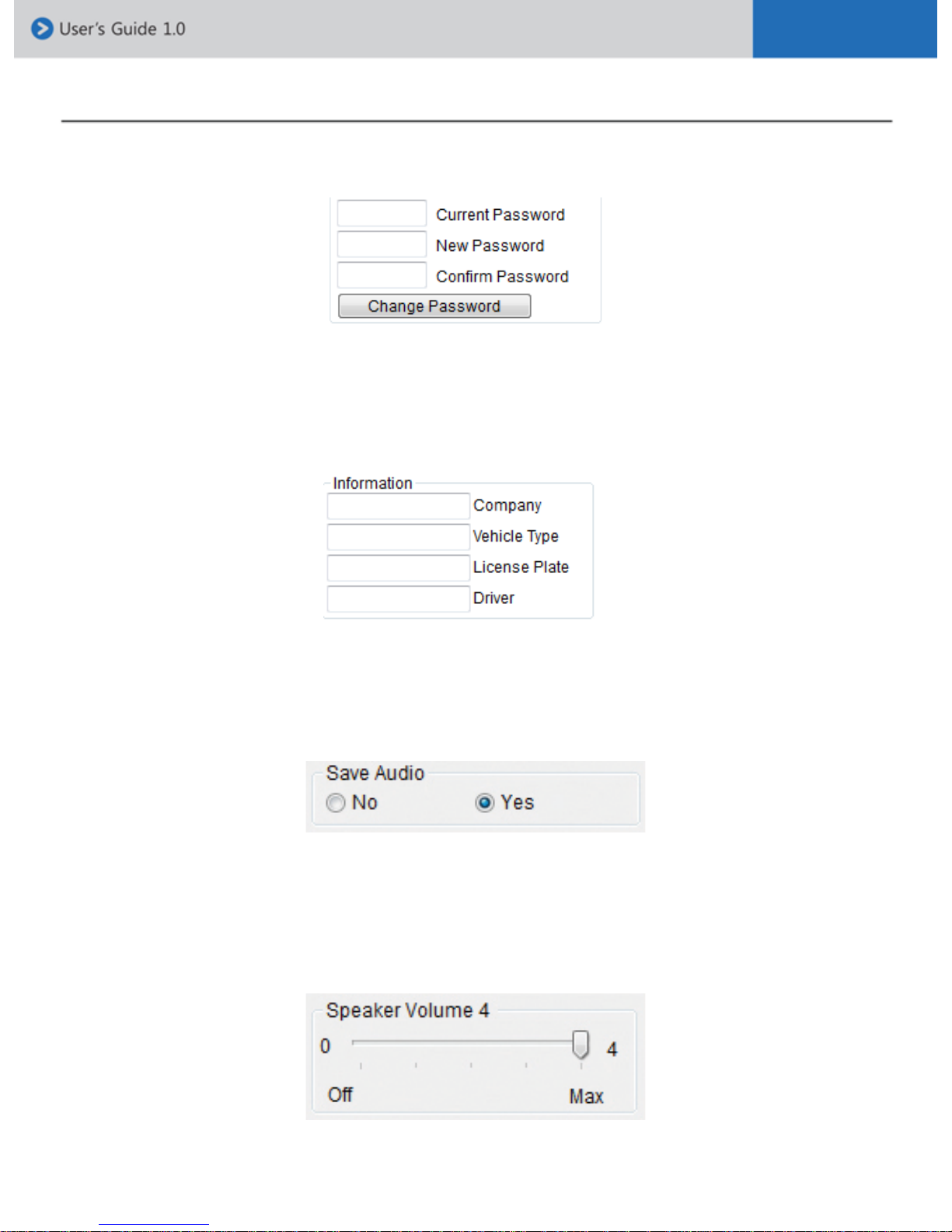

3) ‘Configuration’ window appears. Select each function and its settings, then press save.

The updated settings are saved to the SD card. Insert the SD card into the SD card slot of
the product and turn the power on. The product will be updated with the new settings.

Operations and Functions of Viewer (Cont.

)

Please be aware that if the [index.dat] file gets deleted from the SD
card, it will not save the configuration settings. The [index.dat] file can
be created again when the SD card is inserted into the product and

the power is turned on, but the settings will not be applied.

Operations and Functions of Viewer (Cont)

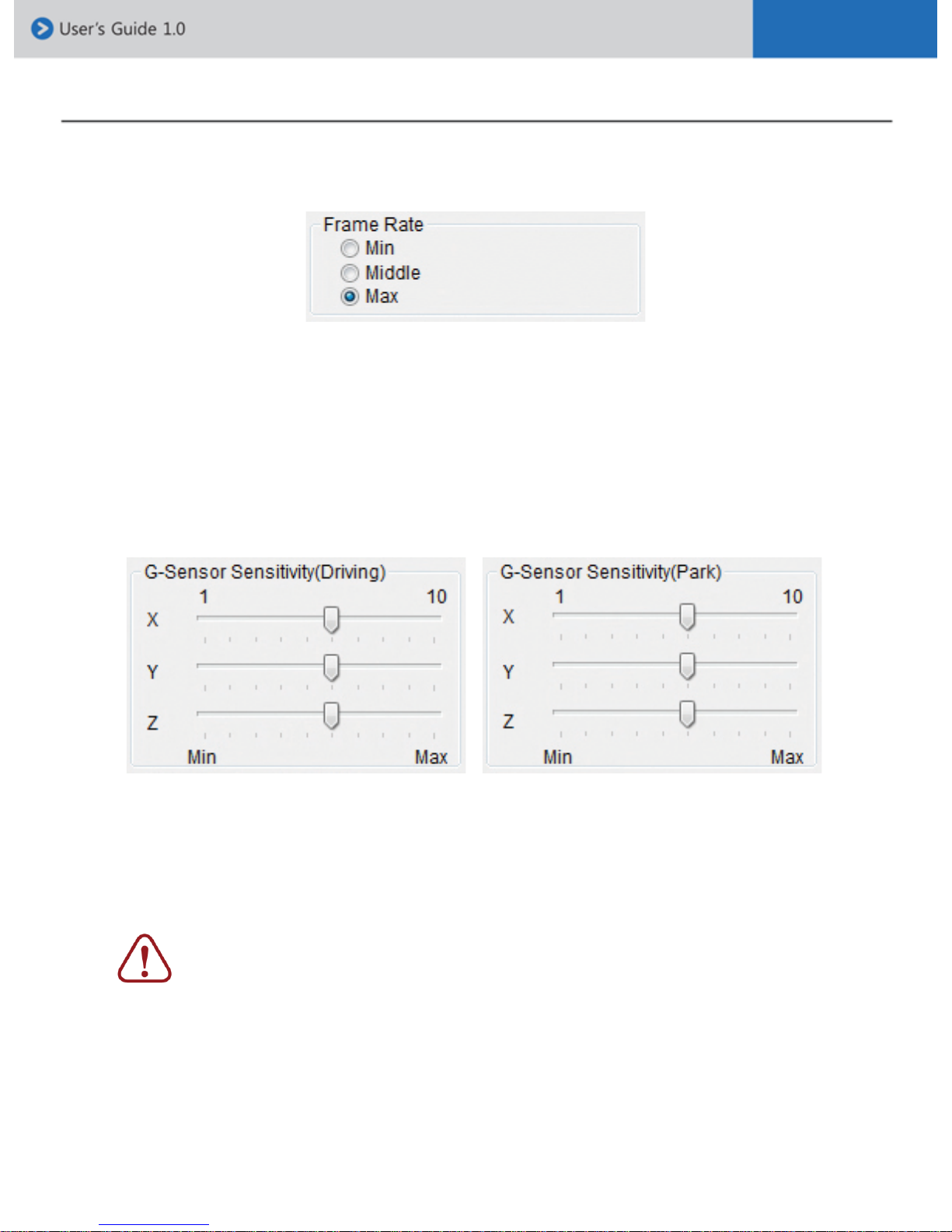

• Recording frame setting (default setting : maximum)

- Maximum recording mode (max. normal recording mode function)

: This is the normal recording mode at 10 frames per second (fps) for 4 channels.

- Mid-recording mode (mid.)

: records at 7.5 fps for 4 channels.

- Minimum recording mode (min.)

: record 5 fps for 4 channels.

• G-Sensor sensitivity setting (default setting : while driving / parking (X)6, (Y)6, (Z)6

- X-axis / Y-axis / Z-axis.

- This feature adjusts the sensitivity of the shock sensor. Select the sensitivity level from 1

(min.) to 10 (max.) to save the video recording as an ‘event’.

The higher the sensitivity level the more event recordings.

Operations and Functions of Viewer (Cont)

• Auto parking mode (default setting : 0)

- Configuration setting : 0 (do not use) ~ 30mins (max.)

- This function records at 3 frames per second when the vehicle is parked. The camera will

record at the normal frames if it senses an impact to the vehicle. It will also change from park
mode to the auto driving mode when the vehicle turns on.

• Event save ratio (default setting : 30)

- Configuration setting : 0 (do not use) ~ 30% (max.)

- This function sets the total event recording capacity

(%) out of the whole capacity of the SD card. For instance, if you set ‘30’ as the event
recording ratio, all event recorded data will not be deleted prior to reaching 30 percent of the
SD card. If the total event recorded data reaches beyond 30 percent of the SD card, the
data will begin to delete starting with the oldest events first in consecutive order.

• Connected camera (default setting : 4 cameras)

-  Choose the cameras that you want to record.

If you select ‘0 (do not use)’ for the configuration setting, this will disable parking
mode. Pressing the ‘parking’ button on the camera will also have no affect if the
auto parking is set to ‘0’.

Operations and Functions of Viewer (Cont)

• Change Password

-  The password function prevents unauthorized users from viewing your recorded data.

• Information

-  You can insert information such as company name, vehicle type, license plate and drive

name or ID to be displayed on the screen or screen shot.

• Audio recording (default setting : to save)

- Option to turn on or off audio recording.

:Pressing the ‘parking’ button for 3-4 seconds can change the audio recording function to
on or off.

• Speaker volume (default setting : 4)

-  Adjusts the volume of the audio announcement and operation status melody.

Operations and Functions of Viewer (Cont)

• Time zone : regional time setting (default setting : +9(Seoul))

* GMT(Greenwich Mean Time)

- Pressing [Get GMT] will adjust the time of your camera to your time on your computer

- Time Zone setting will also automatically set, through the camera’s GPS.

• Time settings

- When you change the time, please ensure ‘□ set’ is checked in order to activate your

updated time.

• Voltage check (default setting : (Normal/Parking mode) do not check)

-  This function allows for avoiding battery discharge protecting your vehicle’s battery.

-  Driving mode and parking mode are configured separately.

- Not check: operates without battery protection.

-  10.5V : Camera stops operating when the voltage drops below 10.5V, but starts again when

the voltage goes over 10.5V.

-  11.0V : similar to above at 11.0V.

-  11.5V : similar to above at 11.5V.

-  12.0V : similar to above at 12.0V.

Operations and Functions of Viewer (Cont)

• Access to function keys

- Select ‘Block’ option to prevent unauthorized persons from using the function keys on the

camera.

• Auto shutdown timer

- Select a time period you wish to use the ‘auto shutdown timer’ function. This allows your

camera to shutdown after a certain period of time when the engine is turned off.

You may need to set the clock ahead of the current time, in order to adjust the
time difference that is taken to insert the SDcard into the product and reboot
the system. This is irrelevant with internet access

Operations and Functions of Viewer (Cont)

Click on ‘Viewer Setting’ under ‘Configuration’. Select the functions you desire and press
save on the configuration settings. The updated settings are saved to the SD card. Insert the
SD card into the SD card slot of the product and turn the power on. The product will be
updated with the new settings.

Operations and Functions of Viewer (Cont.

)

Please be aware that if the [index.dat] file gets deleted from the SD memory card, it
will not allow you to save the configuration settings. The [index.dat] file can be
recreated when the SD card is inserted into the product and the power is turned on,
but the configuration settings will not be applied.

Operations and Functions of Viewer (Cont)

• Select the folder for AVI, Snapshot and Smart Backup to be saved.

• Video display mode (default setting : Direct Draw)

- DirectDraw – select this option if you are using a high-quality graphic card.

- DIB – select this option if you are using a low-qualify graphic card.

• Speedometer (default setting : MPH)

- Adjust the speed of your vehicle in kilometers per hour (Km/h) or miles per hour (MPH) in

accordance with your local road code.

• Mirror

- Mirror function allows you to switch the viewing mode between actual image and mirror

image. Choose the camera that you would like to view as a mirror image.

Operations and Functions of Viewer (Cont)

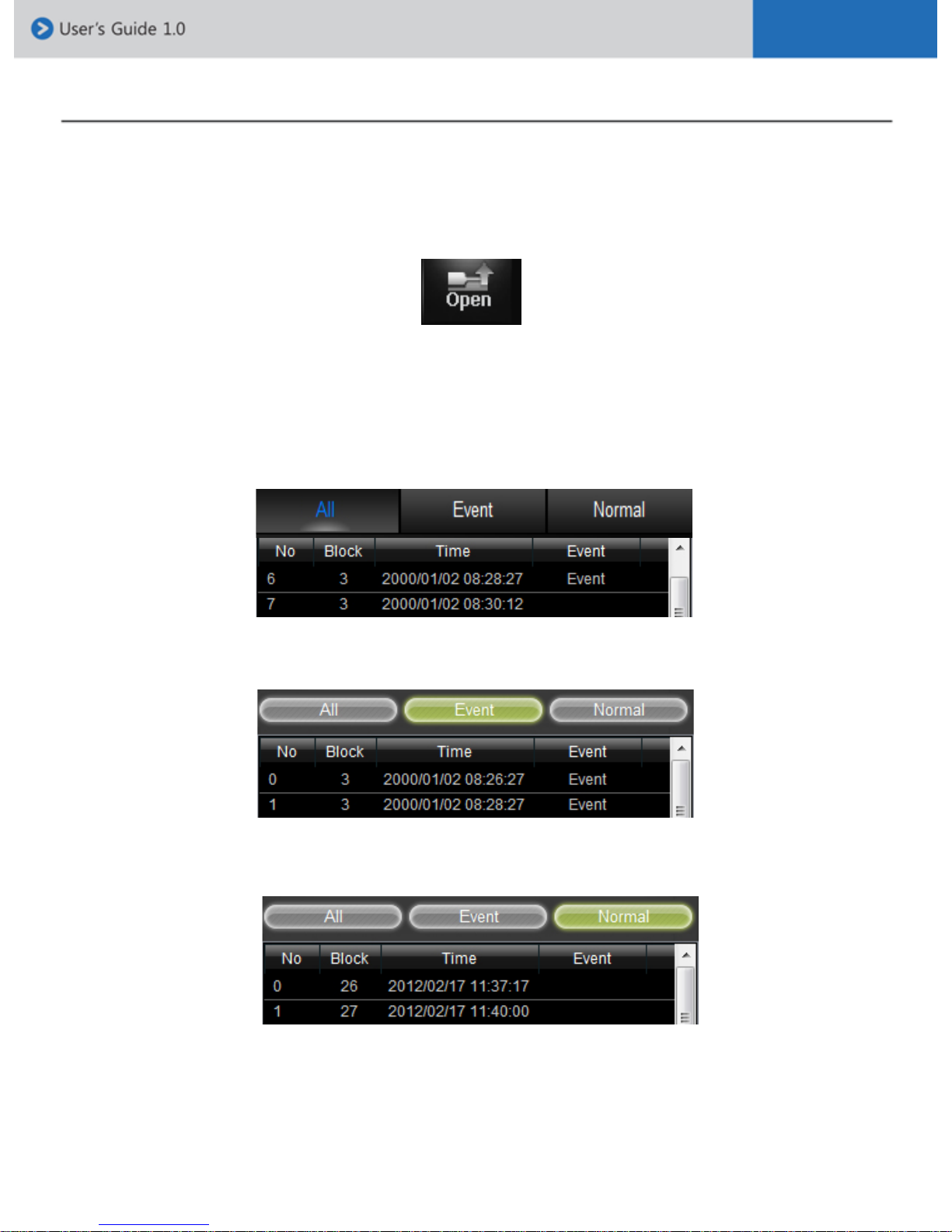

[Playing the recorded data]

1)  Click the ‘OPEN’ button to load the data from the SD card when connected to your PC.

3)  [Select drive] window appears. Select the SD card drive and then click the ‘OK’ button.

5)  A list of playback appears. Select the file to watch by double clicking on a file.

* All- Normal+Event files

* Event- event recorded files

* Normal- normal recorded files

Operations and Functions of Viewer (Cont)

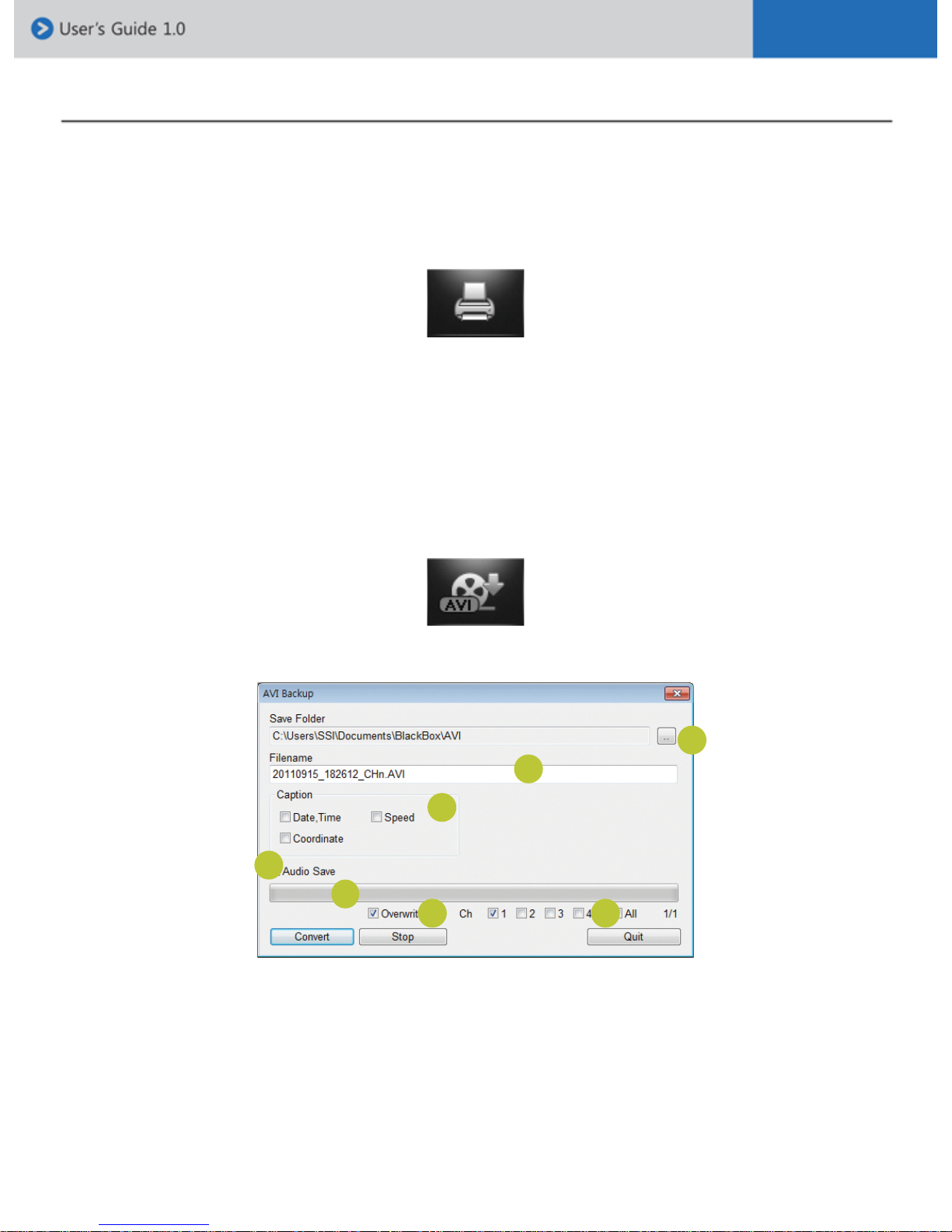

[Printing the video image on display]

1) Click the ‘PRINT’ icon to open print option, then click the [OK] button. This allows you to

print the video image on display during playback.

[AVI Backup]

1) This allows the files to be exported and converted to a file readable for a PC media player

such as Windows Media Player or VLC. Click the ‘AVI’ button to open AVI Backup window.
Select the following options: Save Folder/ Filename/ Caption (Date, Time, Speed, Coordinate
)/ Audio Save and the channels to be selected and click ‘Convert’. The file will then be saved
to your designated folder

2) Filename will be saved as (user’s input)_CHn.AVI [n:Ch.1(front)/ 2(rear)/ 3(left)/ 4(right)]

- 1 : Browse (folder) location

- 2 : Enter the filename

- 3 : Select save option: Date,Time/Speed/Coordinate

- 4 : Audio save option

- 5 : Status bar of saving

- 6 : Overwrite filename option

- 7 : Select which channel to save / all channels

1

2

3

4

5

6 7

Operations and Functions of Viewer (Cont)

[Smart backup]

1)  This function enables to select desired time periods of recording data and watch them vi
a Viewer and other PC media players.

- 1 : Playback list

- 2 : Select button

- 3 : Delete button

- 4 : Delete all button

- 5 : A selected bloc from the playback list.

- 6 : Saving status

- 7 : Start button (select the folder location + insert filename)

1

2

3

4

5

6

7

Operations and Functions of Viewer (Cont)

[Saving the video image on display as jpg, png, bmp files]

1)  Click the 'Capture‘ icon to open [Select Channel] window. Select the ‘Save Folder’ and fil
e type such as JPG, PNG, BMP and then click on the ‘OK’ button.

- 1 : Browse (folder) location

- 2 : Enter the filename

- 3 : Choose desired channel display type

- 4 : Select file type (JPG, PNG, BMP)

- 5 : Select the channel

-  6 : Option for overwriting on the same filename

2)  You can select your desired channel. Filename will be saved as (user’s input)_CHn.bmp
(file type). (n: Ch. number 1[front]/2[rear]/3[left]/4[right])

4)  You can select all 4 channels. Filename will be saved as (user’s input)_QUAD.bmp (file
type)

1

2

3

4

5

6

Operations and Functions of Viewer (Cont)

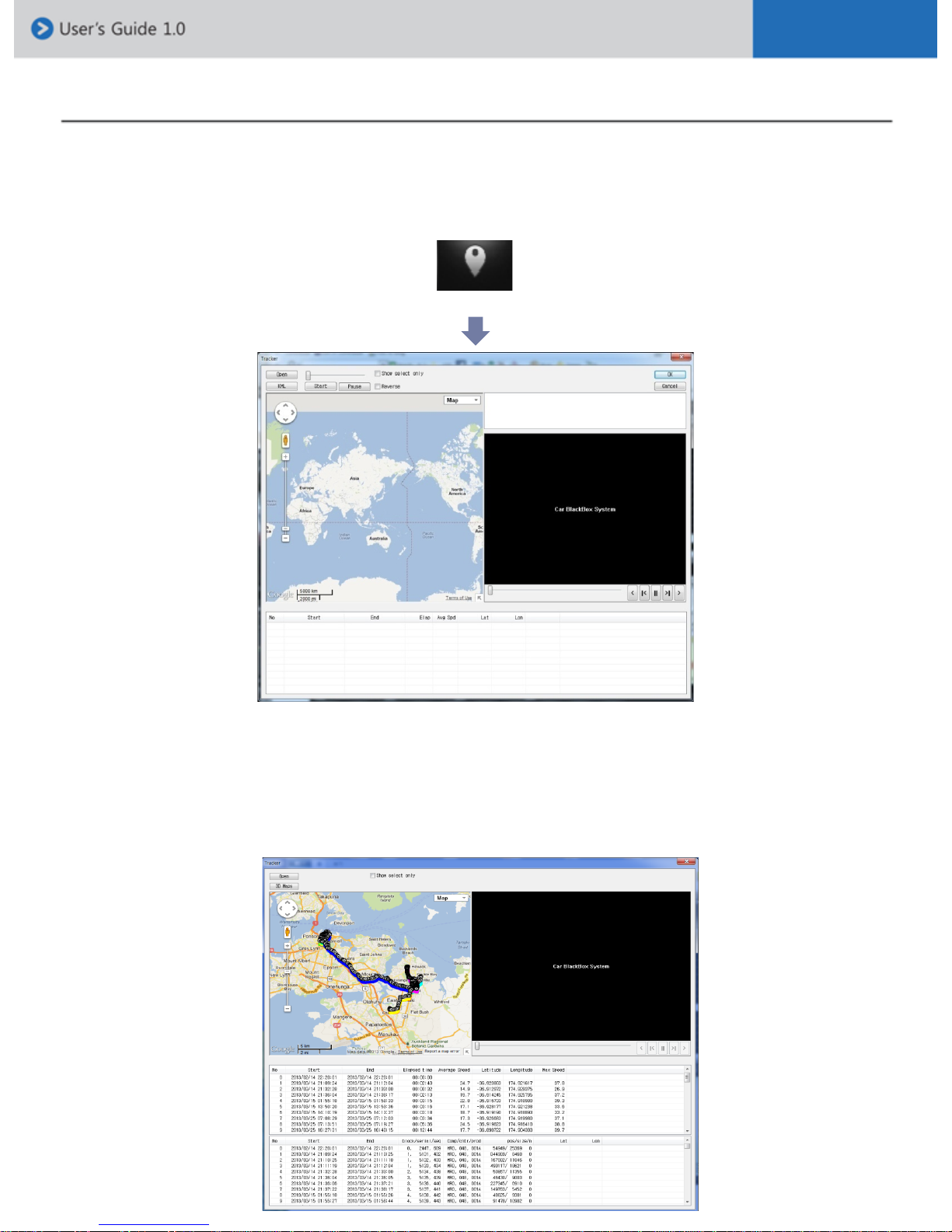

•  GPS Tracker : This function allows users to track driver’s history by forming the driven route

on the map.

1)  Click the “Viewer-Tracker” button.

2)  Click the [OPEN] button.

3)  [Browsing] window appears. Select the drive for the SD card and click on [OK].

4)  A list of files appears on the bottom. Double click on the file you want to see (check the
‘Select only’ box) to trace the driven path from the start to the end. Click on a dot to show
the date, time, latitude, longitude and speed at that location. Click on [Play] to watch the
video on the right side of the screen.

Operations and Functions of Viewer (Cont)

•  3D Maps: ‘Street View’ function: This allows users to watch the recorded driving video by

panorama view linked with Google Earth. Users can easily recognize the exact location and
situation through satellite images, road and surroundings information by using the GPS.

1)  Click the “3D Maps” button. This will create a file (.klm) which can be opened with
Google Earth.

2)  Save the file on your PC and then double click to open. This will start Google Earth and
show the driven route on the map of the selected time.

3)  Clicking on ‘edit’ then ‘show elevation profile’ in google earth will graph a line for speed
and elevation on every part of your route. The top speed and elevation is also detailed.

Google Earth must be downloaded to view the files.

Operations and Functions of Viewer (Cont)

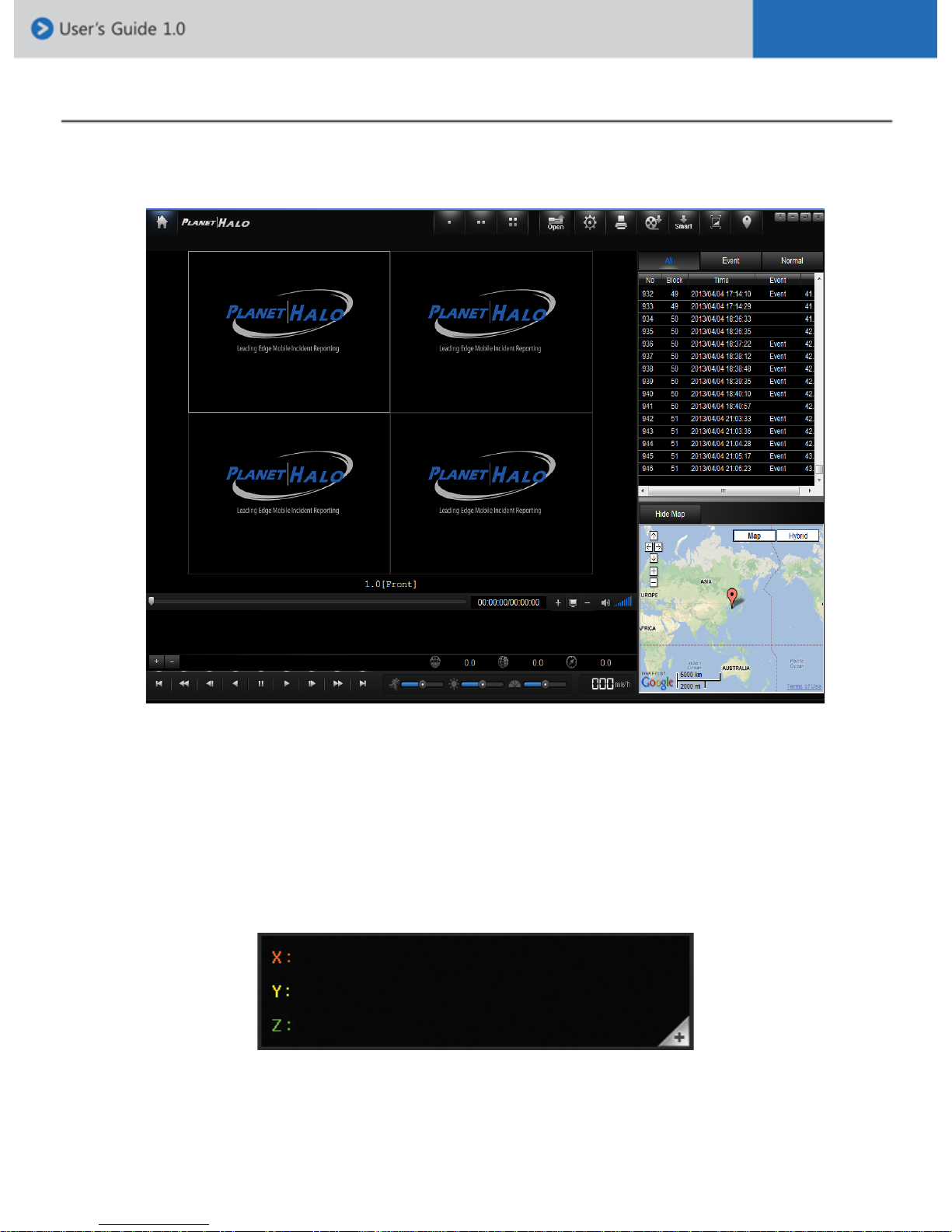

[Functions of Viewer]

1.  Playback display: It shows the playback of your recorded video data from the SD card.
Double click the mouse (left) button twice to enlarge the displaying screen. Double click
again to go back to normal screen display. Zoom in and out by scrolling your mouse
wheel (upward – zoom in /downward – zoom out) (Min. 1.0 ~ Max. 3.0 times). Click and
drag your mouse pointer to view the desired position on the displaying screen.

2. G-Sensor Graph: Shows 3 axis of the G-sensors. If you want to see the graph more at a

closer view, press the ‘Zoom’ button on the top left corner of the box.

Operations and Functions of Viewer (Cont)

1

2

4

6

8

9

10

11

12

13

14

7

3

5

3)  GPS Information: latitude, longitude, azimuth and time of playback.

4)  -1. Playback Position Slider : Position of playback.

-2. Playback Time (Total time of current playback / block time of current playback)

5)  Control Button (4ch. Viewer does not function high-speed plays)

- 1 : Jump to previous file

- 2 : Reverse playback search

- 3 : Frame by frame in reverse mode

- 4 : Reverse playback

- 5 : Pause

- 6 : Forward playback

- 7 : Frame by frame in forward mode

- 8 : Forward playback search

- 9 : Jump to next file

6)  Speed : speed display in kmh, mph

7) Volume Control Slider : Controls the volume of recorded audio.

8) -1. Playback Speed Slider : Adjusts playback speed.

-2. Brightness Control Slider : Changes the brightness of the video

-3. Saturation Control Slider: Changes the saturation of the video

9)  1Ch. / 2Ch. / 4Ch. / Open file / Configuration / Print / AVI Backup / Smart Backup / Save
(Capture) / Tracker button

10)  Click on Normal, Event or All to show the lists of each recorded.

1 2 3 4 5 6 7 8 9

Operations and Functions of Viewer (Cont)

11)  Playback List : Shows recorded files in the playback list: double click to play.

12)  Google Maps: GPS information is linked to Google maps, for vehicle tracking. Click on
Hybrid for real image viewing

13)  Homepage button

14)  Software version information / Minimize window / Maximize window / Close button

[Upgrading the product]

Our product may need upgrading for continuous product development and maintenance. For
the latest firmware upgrade, please visit our webpage under ‘Firmware download.’

1.  Insert or connect the SD card to the computer.

2.  Download the upgrading file from out homepage to the SD card.

3.  Insert the SD card into the product and turn the power on. Then LED will begin to flicker.
Remember not to unplug the power or remove the SD card during a firmware upgrade
until the lights have stopped flickering.

[Viewer requirement]

•  CPU : Pentium4 (Recommended-Dual Core)

•  Memory : RAM 2G (Recommended-RAM 4G)

•  Graphic : Graphic card compatible with DIRECT-X 10

•  Operating System : MS WINDOWS XP/VISTA/7

Operations and Functions of Viewer (Cont)

Problem



Troubleshooting



!

Product does not start.



1.  Check that the power of product is properly connected.

2.  Use only the cable that is supplied or recommended by

your local dealer or supplier.

!

Video is not as clear as it should

be.



1.  Make sure your camera lens is clean and dust free.

2.  Make sure your vehicle’s windshield is clean.

3.  Make sure the desired resolution is selected.

! Footage is not being saved on
the SD card.



!  The device does not recognize
the SD card.

1.  Eject your SD card and insert it into the device again.

2.  Make sure your SD card is not locked.

3.  Format your SD card and try it again.

!

Cannot receive GPS signal

!

Loss of GPS reception

1.  Check that the GPS cable is connected properly.

2.  Make sure your windshield is not tinted.

3.  If you have not used the product for more than 3 days or
are using it for the first time, it may take longer, as much

as up to 15 minutes, to receive the GPS signal.

4.  The GPS may lose reception depending on weather
conditions and surroundings. Stop at a location where

your GPS can regain its reception, before proceeding. 

Frequently*Asked*Questions

Warranty Policy and After Services

Warranty*Policy*

*

Planet Halo values your business and strives to provide you with the very best of service.

General warranty is provided by Planet Halo (“PH”) unless your Planet Halo product
(“Product”) was purchased from an authorized distributor or authorized reseller. Distributors
may sell Products to resellers who then sell Products to end users. Please see below for
warranty information or obtaining service. No warranty service is provided unless the Product
is returned to an authorized supplier or return center.

Note: The term of your general warranty period shall commence on the purchase date
appearing on your purchase receipt from an authorized distributor or authorized reseller and
extends only for the period of time set forth in the Product documentation.

Proof of purchase shall be required to be eligible for this warranty and to establish the
commencement date of this warranty. To verify the warranty of your Product, Please refer to
your User Manual for a statement of your limited warranty. A User Manual can be obtained
from your SD card which comes with Product or authorized distributor or reseller or the
Planet Halo web site.

No Product may be returned directly to Planet Halo without first contacting PH for a Return
Material Authorization ("RMA") number. If it is determined that the Product may be defective,
you will be given an RMA number and instructions for Product return. An unauthorized return
i.e. one for which an RMA number has not been issued, will be returned to you at your
expense. Authorized returns are to be shipped prepaid and insured to the address on the
RMA in an approved shipping container. Your original box and packaging materials should
be kept for storing or shipping your Product. If upon inspection of your returned Product,
Planet Halo suspects fraud or deems such Product to be counterfeit, PH may, in its sole
discretion, confiscate such Product or take such other actions as it deems necessary. To
request an RMA, please contact your supplier.

Note: RMA shipments may be subject to delays if we encounter discrepancies such as
entering incorrect information, wrong product shipped to PH or incorrect quantity.



YOUR EXCLUSIVE REMEDY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE
REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT.



PH may elect which remedy or combination of remedies to provide in its sole discretion. PH
shall have a reasonable time after determining that a defective Product exists to repair or rep
lace a defective Product. PH's replacement Product under its limited warranty will be
manufactured from new and serviceable used parts. PH's warranty applies to repaired or
replaced Products for the balance of the applicable period of the original warranty or ninety
days from the date of shipment of a repaired or replaced Product, whichever is longer.

Warranty Policy and After Services

Warranty*Policy*(Cont.)*

PH’s ENTIRE LIABILITY FOR ANY DEFECTIVE PRODUCT SHALL IN NO EVENT EXCEED
THE PURCHASE PRICE FOR THE DEFECTIVE PRODUCT. THIS LIMITATION APPLIES
EVEN IF PH CANNOT OR DOES NOT REPAIR OR REPLACE ANY DEFECTIVE
PRODUCT AND YOUR EXCLUSIVE REMEDY FAILS OF ITS ESSENTIAL PURPOSE.

*

NOTWITHSTANDING ANYTHING ELSE IN THIS POLICY OR OTHERWISE, PH WILL NOT
BE LIABLE WITH RESPECT TO THE PRODUCTS UNDER ANY CONTRACT,
NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY (I) FOR
ANY AMOUNT IN EXCESS OF THE PURCHASE PRICE FOR THE DEFECTIVE PRODUCT
OR (II) FOR ANY GENERAL, CONSEQUENTIAL, PUNITIVE, INCIDENTAL OR SPECIAL
DAMAGES. THESE INCLUDE LOSS OF RECORDED DATA, INTERRUPTION OF USE,
THE COST OF RECOVERY OF LOST DATA, LOST PROFITS AND THE COST OF THE I
NSTALLATION OR REMOVAL OF ANY PRODUCTS, THE INSTALLATION OF
REPLACEMENT PRODUCTS, AND ANY INSPECTION, TESTING, OR REDESIGN
CAUSED BY ANY DEFECT OR BY THE REPAIR OR REPLACEMENT OF PRODUCTS
ARISING FROM A DEFECT IN ANY PRODUCT. THIS SECTION DOES NOT LIMIT
LIABILITY FOR BODILY INJURY OF A PERSON.

*

Your Use of the Product

PH will have no liability for any Product returned if PH determines that:
The product was stolen from PH.
The asserted defect: is not present, is attributable to misuse, improper installation, alteration
(including removing or obliterating labels and opening or removing external covers (unless
authorized to do so by Planet Halo or an authorized Service Center), accident or mishandling
while in the possession of someone other than PH.
The Product was not sold to you as new.
The Product was not used in accordance with PH specifications and instructions.
The Product was not used for its intended function (for example, in-vehicle recording
environment).

Additional Limitations on Warranty

PH’s warranty does not cover Products which have been received improperly packaged,
altered, or physically damaged. Products will be inspected upon receipt. Please see
additional examples of the warranty limitations below:

Packaging

-  Improperly packaged

-  Non-qualified shipping container

Alterations

- Counterfeit label(s)

-  Customer added wires

-  Labels have been switched

-  Labels exhibit tampering

-  Missing barcode or top cover label

-  Serial number on product does not match barcode on end*

Warranty Policy and After Services

Warranty*Policy*(Cont.)*

Damage

-  Broken pins on connector

-  Connector(s) are damaged, cracked, missing or broken

-  Cracked components on the circuit board

-  Dented base casting

-  Torn or punctured tape seal

-  Dented top cover

-  Deep scratch

-  Loose, damaged, or missing screws

-  Missing PCBA (Circuit Board)

-  Obscured breather filter holes

-  Stripped mounting hole threads*

*
*

Warranty Period

-  Main Camera Unit: 12 months (from purchase)

-  External Camera: 6 months (from purchase)

-  SD Card and other accessories: N/A*

*
*

After Services

-  Product parts of a discontinued product will be kept for 12 months only

-  Make sure you record on the warranty form upon your purchase of the product
and please keep it for after services

-  After services may or may not be free of charge depending on the type of product
defect. Repairing costs may arise upon examination of the product

Warranty Policy and After Services

Upon Different Occasions



After Services



Within the Warranty Period



After the Warranty Period



Product defect or malfunction occurs after
using it



Replacement or Repairing (Free)

Repairing (Cost Charged)

Product defect or malfunction occurs during
shipment (upon purchase)



Replacement or Repairing (Free)

N/A

Product defect or malfunction occurred
during shipment (upon after services)



Replacement or Repairing (Free)

Replacement or Repairing (Free)

Repeated defect or malfunction occurs
more than 5 times



Replacement or Refund Repairing (Cost Charged)

Product defect or malfunction occurs due to
natural disasters



Repairing (Cost Charged)

Repairing (Cost Charged)
