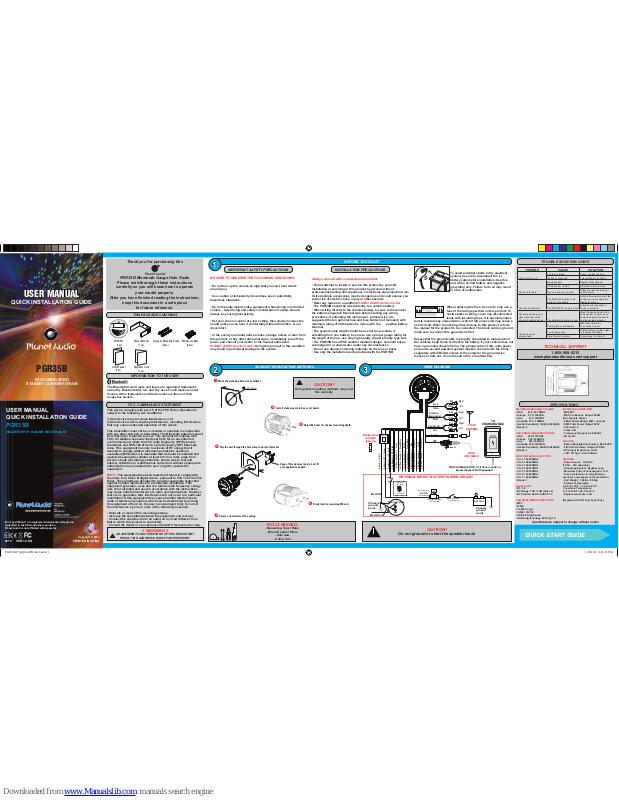

Planet Audio PGR35B User Manual

Make the mounting hole size as follows

3.00” / 76mm

Snap off break-away tabs to best fit your applications depth

Slip the unit through the hole cutout and into U-bracket

Install studs mounts into rear of chassis

Adjust M4 nuts for the best mounting depth

Firmly tighten remaining M4 nuts

Secure and waterproof the wiring

PGR35B

USER MANUAL

FEATURING ZERO

STANDBY CURRENT DRAIN

QUICK INSTALLATION GUIDE

PGR35B

USER MANUAL QUICK INSTALLATION GUIDE

BLUETOOTH® GAUGE HOLE RADIO

PRINTED IN CHINA

VER:1.0 EN

0215

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

BEFORE YOU START

IMPORTANT SAFETY PRECAUTIONS

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

• Do not turn up the volume so high that you can’t hear what’s

around you.

• Use caution or temporarily discontinue use in potentially

hazardous situations.

• Do not operate mobile video equipment while driving a motorized

vehicle – safe driving and safety consideration of others should always be your highest priority.

• Set your volume control at a low setting, then slowly increase the

sound until you can hear it comfortably without distortion, or ear discomfort.

• In the event you should notice smoke, strange noises or odor from

this product, or any other abnormal signs, immediately turn off the power and consult your dealer or the nearest authorized

PLANET AUDIO Service Center Using this product in this condition

may result in permanent damage to the system.

WIRE DIAGRAM

Thank you for purchasing this

PGR35B Bluetooth Gauge Hole Radio

Please read thorough these instructions

carefully so you will know how to operate

your model properly.

After you have nished reading the instructions,

keep this document in a safe place

for future reference.

SUGGESTED MOUNTING METHODS

INFORMATION TO THE USER

TROUBLE SHOOTING GUIDE

!! WARNING !!

ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

PGR35B

(1pc)

Hexagon Mounting Studs

(2pcs)

M4 Secure Nuts

(8pcs)

User Manual

(1pc)

Metal Bracket

(1pc)

B A N D

S RC

ENTER

DISP

VOL VOL

50wx4

USB

Warranty Card

(1pc)

THIS PACKAGE CONTAINS

White

Red

Yellow

Aux-In

Left

Right

Black

Rear Line Out

White

Red

Left

Right

Antenna

Fuse Box

Left Rear Speaker (+) Green

15A

Left Rear Speaker (-) Green/Black

Left Front Speaker (+) White

Left Front Speaker (-) White/Black

Right Front Speaker (+) Gray

Right Front Speaker (-) Gray/Black

Right Rear Speaker (+) Purple

Right Rear Speaker (-) Purple/Black

Accessory (+12V) Red

Ground (-) Black

Battery (+12V) Yellow

Amp Remote (+12V) Blue

CHARGING MAX

Replace Fuse

with AGU type only

BATTERY

20A

Fuse and Fuse Holder

(not included)

Chassis ground

point

Battery Kill Switch

(not included)

OPTIONAL DIRECT BATTERY WIRING CIRCUIT

BLACK

Chassis ground point

Ground wire

Metal frame

Recommended

12 ~ 14ga Primary Wire (not included)

15A

INSERT

USB

YOUR

USB CABLE

YOUR

ANTENNA

Normally open

ACC switch

(not included)

Grey

Subwoofer

Front Line Out

White

Red

Left

Right

To avoid potential shorts in the electrical system, be sure to disconnect the (–) battery cable before installation. Use this unit with a 12-Volt battery and negative grounding only. Failure to do so may result

in a re or malfunction.

When replacing the fuse, be sure to only use a

fuse of the rating specied on this product. To

avoid short-circuiting, cover any disconnected

leads with insulating tape. It is specially important to insulate any unused wires, which if left uncovered may cause a short circuit. When connecting other devices to this product, refer to the manual for the product to be connected. The black cable is ground,

make sure to connect the ground wire rst.

Ensure that the ground cable is properly connected to metal parts of the vehicles body frame or direct to the battery if your vehicle does not have a grounded chassis frame. The ground cable of this units power amp and a second powered system must be connected to the frame separately with different screws. If the screw for the ground wire

loosens or falls out, it could result in re or malfunction.

CAUTION!!

Do not ground or short the speaker leads

1-805-988-0215

www.planetaudiousa.com/support

TECHNICAL SUPPORT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The Bluetooth antenna cannot be removed (or replaced) by user. This equipment complies with FCC/ IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and

ankles). Alteration or modications carried out without appropriate

authorization may invalidate the user’s right to operate the equipment.

NOTE: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Relocate or reorient the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC COMPLIANCE STATEMENT

TROUBLE CAUSE SOLUTION

Unit will not turn on

The fuse is blown Check / replace the fuse

Ignition not engaged Turn ignition to on position

No sound is heard

Blown speaker Replace faulty speaker

Volume is low / muted Press the volume level up

Device is paused or muted

Check your devices playing / volume status

Cannot pair Bluetooth

The Bluetooth function of the device is not enabled

Refer to the user manual of the device for how to enable the Bluetooth function

The PGR35B BT memory is full

Follow how to reconnect a device in section E

The audio quality is poor after connection with a Bluetooth enabled device The Bluetooth reception is poor

Move the device closer to the audio system or remove any obstacle between the device and the systems antenna

Unit has become unresponsive

Power glitch or interference

Disconnect power for 10 seconds to reset

Low battery power

Charge battery, run the engine to recharge the battery

Reset the main system Follow steps in section B

INSTALLATION PRECAUTIONS

Always consult with a professional installer

• Do not attempt to install or service this product by yourself.

Installation or servicing of this product by persons without professional training and experience in electronic equipment and motorized vehicle accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards

• Refer any repairs to a qualied PLANET AUDIO Service Center

• The PGR35B should be wired directly to a vehicles battery

• When wiring directly to the vehicles battery, be sure to disconnect

the batteries negative terminal wire before starting any wiring procedures, if extending the main power primary wire, it is suggested that an optional fuse and fuse holder (not included) with minimum rating of 20 Amperes be in-line with the positive battery terminal

• The ground cable length should be as short as possible, if

extending from you battery, be sure to use a proper gauge rating for the length of the run, use only high quality copper primary type wire

• The PGR35B has a IPX6 weather resistant design, it should not be

submerged in or under water under any circumstances

• Do not use abrasive cleaning materials on the lens or bezel

• Use only the installation parts provided with the PGR35B

TOOLS NEEDED:

- Measuring Tape / Ruler

- Wrench and/or Pliers

- Hole Saw

- Crimp Tool

CAUTION!!

Using other mounting methods may void

this warranty

FM TUNER FREQUENCY RANGE

• USA 87.5~107.9MHz

• Europe 87.5~108MHz

• Asia 87.5~108MHz

• Australia 87.5~108MHz

• Usable Sensitivity: 12dB (S/N=30dB)

• Bands: 2

AM TUNER FREQUENCY RANGE

• USA 530~1710KHz

• Europe 522~1620KHz

• Asia 522~1620KHz

• Australia 522~1620KHz

• Usable Sensitivity: 40dB (S/N=20dB)

• Bands: 1

WEATHER BAND SELECTION

• CH.1 162.400MHz

• CH.2 162.425MHz

• CH.3 162.450MHz

• CH.4 162.475MHz

• CH.5 162.500MHz

• CH.6 162.525MHz

• CH.7 162.550MHz

• Bands: 1

BLUETOOTH

• BT: 3.0

• BT Range: 33Ft / 10M (Class 2)

• BT Proles: A2DP / AVRCP 1.3

USB DRIVE MEDIA SUPPORTED

• MP3

• WMA

• 65,000 Songs

• 32GB / FAT 32

• USB 2.0 High Speed

• USB Output Voltage: 5VDC @ 1A

INTEGRATED AMPLIFIER

• MOSFET

• MAX Continuous Output: 240W

(All channels driven)

• PEAK Power Rating: 60W / channel

• RMS Total Power Output: 80W

• Channels: 4

• Class: AB

• Frequency Response: 20-20kHz

• 4Ω stable

CHASSIS

• Button Backlight Illumination: BLUE LED

• F/R/S RCA Preamp Output: 2VRMS

• RCA Input Impedance: 10kΩ

• LCD: TN Type / Active Matrix

GENERAL

• Power Source: 14.4VDC

(10.8V ~ 16V allowable)

• Grounding System: Negative type

• Maximum Current Consumption: 15A

• 3-way protection circuitry (thermal,

overload, and speaker short protection)

• Unit Weight: 1.08lbs / 0.52kg

• Storage Temperature:

-22oF to 176oF / -30oC to 80oC

• Operation Temperature:

-4oF to 158oF / -20oC to 70oC

• Replacement Fuse: 15A

(Replace with ATG Fuse Type Only)

SPECIFICATIONS

Specications subject to change without notice

QUICK START GUIDE

FOR CHARGING ONLY: Cell Phone and iPod

Media Playback Not Supported

iPod® and iPhone® are registered trademarks of Apple Inc. registered in the USA and other countries.

Planet Audio is not afliated with Apple Inc.

PGR35B-UM-QSG-FINALv1.indd 1 1/25/2015 8:56:35 PM

AUDIO

xBass On/Off

MID Level

Treble Level

Balance Level

Fader Level

AUDIO

Short Press

VOL

AUDIO

Long Press

ENTER

DISP

VOL

ENTER

DISP

ENTER

DISP

BASS Leve l

SYSTEM

AUDIO

VOL

Subwoofer Settings

ENTER

DISP

VOL

ENTER

DISP

BLUETOOTH OPERATION

BLUETOOTH STREAMING MUSIC

PAIRING & DISCOVERING A NEW BLUETOOTH CONNECTION

1) Power on the PGR35B by pressing and holding down the Power

button for 1 second, the Bluetooth ICON

will start to ash signalling that the PGR35B is now ready for Bluetooth pairing.

NOTE: You have 2 minutes before you must restart this procedure over again.

2) Now that the PGR35B is in pairing mode:

ANDROID users: a. Go into the Settings Menu of your ANDROID device b. Enter the Bluetooth Menu and press SCAN c. “MARINE RADIO” will now be display under AVAILABLE DEVICES d. If prompted, enter passcode: “0000” iOS users: a. Go into the Settings Menu of your iOS device b. Enter the Bluetooth Menu c. “MARINE RADIO” will now be displayed d. If prompted, enter passcode: “0000”

3) If the PGR35B is not seen, repeat the above steps to refresh the “Device List”

4) When the BT connection is successful you will see BT CONNECTED message on the PGR35B LCD display, you are now ready to stream music from your devices favorite media player to the PGR35B

RECONNECTION

1) Power on the PGR35B and your last paired device Bluetooth

2) The unit will now automatically be reconnected

3) If your device was previously paired with the PGR35B, but it wasn’t the last paired device:

a. Ensure no other devices are currently paired b. Press and hold MENU button to manually connect / reconnect to the PGR35B

4) If the device is out of range from the PGR35B, it will disconnect automatically:

5)The PGR35B will reconnect to the device once in range, a conrmation message will be displayed on the LCD

AUX-INPUT

1) Press the SRC button to select BT AUDIO

2) Press

to start PLAY, press again to PAUSE

3) To skip songs or advance tracks press

, press and hold to FAST FORWARD

4) To select the previous track press the button

, press and hold to FAST REWIND

5) Press the

VOL

Selectable settings

This feature allows to Reconnect or Disconnect to the paired mobile phone or Bluetooth device manually.

Turn On or Off beep sound.

To restore the factory defult settings.

To view the device hardward and software versions.

MGR350B

FM Tuner

Frequency Range.....................USA 87.5~107.9MHz

Europe 87.5~108MHz Asia 87.5~108MHz Australia 87.5~108MHz

Usable Sensitivity...................12dB (S/N=30dB)

AM Tuner

Weather Band Selection

USB

Frequency Range.....................USA 530~1710KHz

Europe 522~1620KHz Asia Australia

522~1620KHz 522~1620KHz

Usable Sensitivity....................40dB(S/N=20dB)

CH.1 162.400MHz CH.2 162.425MHz CH.3 162.450MHz CH.4 162.475MHz CH.5 162.500MHz CH.6 162.525MHz CH.7 162.550MHz

General

USB.........................................2.0 High Speed

Power Supply Voltage.............14.4V DC(10.8 to 15.6V

allowable)

Grounding System...................Negative Ground

ENTER

DISP

ENTER

DISP

B A N

ENTER

DISP

Navigate Main MENU Tree

To select through MENU options

Press ENTER to select option

Exit

button to display song ID3 information

1) Press the SRC button to select AUX IN

2) Press

to MUTE, press again to UNMUTE

Ensure to adjust the level of your

devices master volume to 75%

Tips:

USB OPERATION

RADIO OPERATION

1) Press the SRC button to select USB

2) Press

to start PLAY, press again to PAUSE

3) To skip songs or advance tracks press

, press and hold to FAST FORWARD

4) To select the previous track press

, press and hold to FAST REWIND

5) Press the

VOL

Selectable settings

This feature allows to Reconnect or Disconnect to the paired mobile phone or Bluetooth device manually.

Turn On or Off beep sound.

To restore the factory defult settings.

To view the device hardward and software versions.

MGR350B

FM Tuner

Frequency Range.....................USA 87.5~107.9MHz

Europe 87.5~108MHz Asia 87.5~108MHz Australia 87.5~108MHz

Usable Sensitivity...................12dB (S/N=30dB)

AM Tuner

Weather Band Selection

USB

Frequency Range.....................USA 530~1710KHz

Europe 522~1620KHz Asia Australia

522~1620KHz 522~1620KHz

Usable Sensitivity....................40dB(S/N=20dB)

CH.1 162.400MHz CH.2 162.425MHz CH.3 162.450MHz CH.4 162.475MHz CH.5 162.500MHz CH.6 162.525MHz CH.7 162.550MHz

General

USB.........................................2.0 High Speed

Power Supply Voltage.............14.4V DC(10.8 to 15.6V

allowable)

Grounding System...................Negative Ground

ENTER

DISP

ENTER

DISP

B A N

ENTER

DISP

Navigate Main MENU Tree

To select through MENU options

Press ENTER to select option

Exit

button to display song ID3 information

1) Press the SRC button to select RADIO

2) Press

to MUTE, press again to UNMUTE

3) To advance stations press

4) To skip previous stations press

5) Press the

VOL

Selectable settings

This feature allows to Reconnect or Disconnect to the paired mobile phone or Bluetooth device manually.

Turn On or Off beep sound.

To restore the factory defult settings.

To view the device hardward and software versions.

MGR350B

FM Tuner

Frequency Range.....................USA 87.5~107.9MHz

Europe 87.5~108MHz Asia 87.5~108MHz Australia 87.5~108MHz

Usable Sensitivity...................12dB (S/N=30dB)

AM Tuner

Weather Band Selection

USB

Frequency Range.....................USA 530~1710KHz

Europe 522~1620KHz Asia Australia

522~1620KHz 522~1620KHz

Usable Sensitivity....................40dB(S/N=20dB)

CH.1 162.400MHz CH.2 162.425MHz CH.3 162.450MHz CH.4 162.475MHz CH.5 162.500MHz CH.6 162.525MHz CH.7 162.550MHz

General

USB.........................................2.0 High Speed

Power Supply Voltage.............14.4V DC(10.8 to 15.6V

allowable)

Grounding System...................Negative Ground

ENTER

DISP

ENTER

DISP

B A N

ENTER

DISP

Navigate Main MENU Tree

To select through MENU options

Press ENTER to select option

Exit

button to display RADIO information

6) Press the PRESET button to recall PRESETS 1 ~ 6

P6 10350

SUBW

LOCAL

RADIO

MY SONGS

SUBW

P6 10350

SUBW

LOCAL

RADIO

MY SONGS

SUBW

TITLE

SUBW

USB

P6 10350

SUBW

LOCAL

RADIO

MY SONGS

SUBW

TITLE

SUBW

USB

SUBW

AUX-IN

P6 10350

SUBW

LOCAL

RADIO

GETTING STARTED

VOL

Tuner/Weather Band Mode: Press to enter into the Manual Seek mode, press and hold to enter into the Auto Seek mode. MediaPlayback Mode: Press to TrackUp Down press andhold for Fast Forward/Rewind.

/ ,

Short press to mute or restore volume. Turn the unit on, Press and hold again to turn the unit off. Press to pause, Press again to resume playback.

Press to scroll and select available Source.

Press to decrease the volume, press to increase the volume.

Press and hold to enter into the Tuner Function modes: A-STORE / M-STORE / LOCAL / AREA / RDS / AF / TA / PTY

SRC

PRESET Fn

Turn On or Off the RDS function.

22334

RDS On/Off

Item

Media Playback

Mode

Tuner Mode

Selectable settings

This feature allows to Reconnect or Disconnect to the paired mobile phone or Bluetooth device manually.

This function allows you to play tracks/songs from the current album, songs or artists in a random order.

When one expected radio station has been detected, press to store it in the memory.

This function allows you to play the first seconds to each track on the device.

Turn On or Off beep sound.

To restore the factory defult settings.

To view the device hardward and software versions.

Repeat

Auto Store

Random On/Off

Manual Store

Introl

On/Off

Local On/Off

BEEP

RESET

ABOUT

When you press or hold the following button(s)...

ALL: Song:

to repeat all tracks on the storage media

the current track will be repeated

Folder: repeats all tracks in the current folder

Press to access into Auto Store mode, the strongest stations of the selected band will be saved in preset channel automatically.

ON:

OFF:

only stations with strong signal can be broadcast.

The Local indicator will light up

Stations ofboth strong and weak signals can be

broadcast.

Area

Select suitable country area for this unit: USA / EUROPE / ASIA / AUST

ON: The unit will search for another station with stronger signal, but with the same program identification as the current station automatically. OFF: Turn off AF function

ON: When there is traffic announcement, unit will automatically switch to the tuner mode (regardless of the current mode) and begins to broadcast the announcement on traffic conditions. When the traffic announcement is over, unit

will automatically return to the previous mode.

OFF: Traffic announcement does not cut in.

AF On/off

TA On/off

On your Bluetooth-enabled device, follow the steps below.

1. Search for Bluetooth devices.

2. In the device list, select

3. will appear on the display.

4. The unit will automatically enter the BT Audio source and you can now start streaming audio from your Bluetooth enabled device.

MGR350B

CONNECTED

Bluetooth Audio Streaming A2DP

If the connected Bluetooth device supports Advanced Audio Distribution Profile (A DP), you can listen to the music stored on the device through the unit. If the device also supports Audio Video Remote Control Profile (AVRCP) profile, you can use the control on the unit or its remote control to play music stored on the device.

If your mobile phone doesn't support SSP (Simple Secure Pairing) Profile, please enter pass code of 0000

NOTE

FM Tuner

Frequency Range.....................USA 87.5~107.9MHz

Europe 87.5~108MHz Asia 87.5~108MHz Australia 87.5~108MHz

Usable Sensitivity...................12dB (S/N=30dB)

AM Tuner

Weather Band Selection

USB

Frequency Range.....................USA 530~1710KHz

Europe 522~1620KHz Asia Australia

522~1620KHz 522~1620KHz

Usable Sensitivity....................40dB(S/N=20dB)

CH.1 162.400MHz CH.2 162.425MHz CH.3 162.450MHz CH.4 162.475MHz CH.5 162.500MHz CH.6 162.525MHz CH.7 162.550MHz

Tuner Mode: To change different Band. Press and hold to access into Auto Store mode, the strongest stations of the selected band will be saved in preset channel automatically. MediaPlaybackMode: Pressto access into search Folder/File music mode Returnsto theprevious item

/Weather Band

Tuner Mode: Press to view RDS receiver information. Media Playback: Press to view ID3 information.

BAND

DISP ENTER

AUDIO

Once inside the PTY mode, press the get into program type item, and rotat encoder volume knob to selected category.

PTY

Available Program Type:

POP M; ROCK M; EASY M; LIGHT M; CLASSICS; OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO; SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE; VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL; RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT

Press repeatedly to select .

Press to start play, press it again to pause.

To track up/down, press / .

Press to view song title information.

SRC [BT AUDIO]

General

USB.........................................2.0 High Speed

Power Supply Voltage.............14.4V DC(10.8 to 15.6V

allowable)

Grounding System...................Negative Ground

Speaker Impedance.................4~8 ohms per channel

VOL

ENTER

DISP

ENTER

DISP

ENTER

DISP

ENTER

DISP

B A

N D

B A

N D

ENTER

DISP

Function Button

Navigate Main Sys Tree

Navigate Sub Me

nus

Press Enter to Finish

Press to scroll and select Presets 1 ~ 6

Long Press for MAIN MENU options

AUDIO

Navigate Main MENU Tree

To select through MENU options

Press ENTER to select option

Exit

VOL

B A N

To select through FUNCTION options

Exit

FM1, FM2, AM1, WB1

Press to access into the Audio Menu mode for adjustments: EQ / XBASS / BASS / MIDDLE / TREBLE / BALANCE / FADER / REAROUT / SUBW / SUBW LPF / SUBW LEVEL Press and hold to access into the System Menu: BT RECONNECT / BEEP ON/OFF / ABOUT / RESET

Nyne Cruiser

USB CHARGE

5V 1A

TUNER SETUP

SUBW

SYSTEM

LOCAL

SUBW

FUNC

P6 10350

SUBW

LOCAL

RADIO

P6 10350

SUBW

LOCAL

RADIO

MY SONGS

SUBW

OPERATION QUICK START GUIDE \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \

P6 10350

SUBW

LOCAL

RADIO

MY SONGS

SUBW

P6 10350

SUBW

LOCAL

RADIO

MY SONGS

SUBW

TITLE

SUBW

USB

P6 10350

SUBW

LOCAL

RADIO

MY SONGS

SUBW

TITLE

SUBW

USB

SUBW

AUX-IN

P6 10350

SUBW

LOCAL

RADIO

EN \ \ \ \

AUDIO and SYSTEM SETUP

VOL

Item

Selectable settings

This feature allows to Reconnect or Disconnect to the paired mobile phone or Bluetooth device manually.

Turn On or Off beep sound.

To restore the factory defult settings.

To view the device hardward and software versions.

BEEP

RESET

ABOUT

ENTER

DISP

ENTER

DISP

B A N

Long Press for MAIN MENU options

AUDIO

Navigate Main MENU Tree

To select through MENU options

Press ENTER to select option

Exit

Turn On or Off the RDS function.

RDS On/Off

Media Playback

Mode

Tuner Mode

Selectable settings

This function allows you to play tracks/songs from the current album, songs or artists in a random order.

When a desired radio station is set, press M-STORE to save it in the memory, you can store a total of 12 FM or 6 AM.

Repeat

Auto Store

Random On/Off

Manual Store

Local On/Off

ALL: Song:

to repeat all tracks on the storage media

the current track will be repeated

Folder: repeats all tracks in the current folder

Press to access into A-STORE mode, the strongest stations of the selected band will be saved in FM 1 or FM 2, AM 1 BAND presets automatically

ON:

OFF:

only stations with strong signal can be broadcast.

The Local indicator will light up

Stations ofboth strong and weak signals can be

broadcast.

Area

Select suitable country area for this unit: USA / EUROPE / ASIA / AUST

ON: The unit will search for another station with stronger signal, but with the same program identification as the current station automatically. OFF: Turn off AF function

er, unit will automatically return to the previous mode.

OFF: Traffic announcement does not cut in.

AF On/off

TA On/off

Once inside the PTY mode, press the get into program type item, and rotat encoder volume knob to selected category.

PTY

Available Program Type:

VOL

2 3 4

ENTER

DISP

A N

Long Press for FUNCTION options

PRESET

Navigate Main System Tree

To select through FUNCTION options

Press ENTER to select option

Exit

ENTER

DISP

PRESET

PRESET AUTO STORE 1 ~ 6

PRESET RECALL

PRESET

Short Press

Long Press

ENTER

DISP

ENTER

DISP

VOL

ENTER

DISP

VOL

ENTER

DISP

ENTER

DISP

ENTER

DISP

VOL

ENTER

DISP

ENTER

DISP

MORE SETTINGS

FM1 / FM2 / AM1 / WB1

SOURCE MODES

form or by any means, including photocopying, recording, or other electronic or mechanical methods,

without the prior written permission of PLANET AUDIO.

To avoid battery exhaustion be sure to run the

vehicles engine while using this product.

Using this product without running the engine can drain the battery.

Tips:

PGR35B-UM-QSG-FINALv1.indd 2 1/25/2015 8:56:50 PM

Planet Audio PGR35B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
