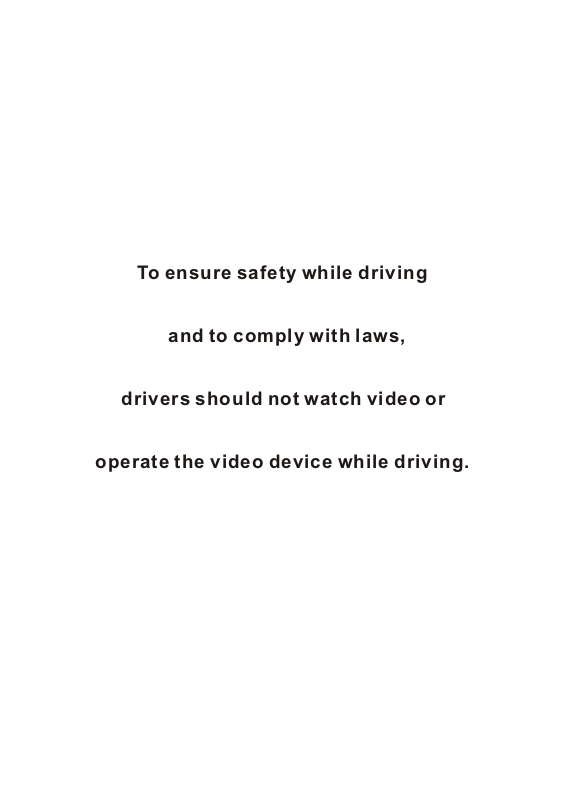

Page 1
To ensure safety while driving
and to comply with laws,
drivers should not watch video or
operate the video device while driving.
Page 2
Content
Precaution......................................
Safety Information.........................
Disc Note.......................................
Installation ....................................
Electric Connection ......................

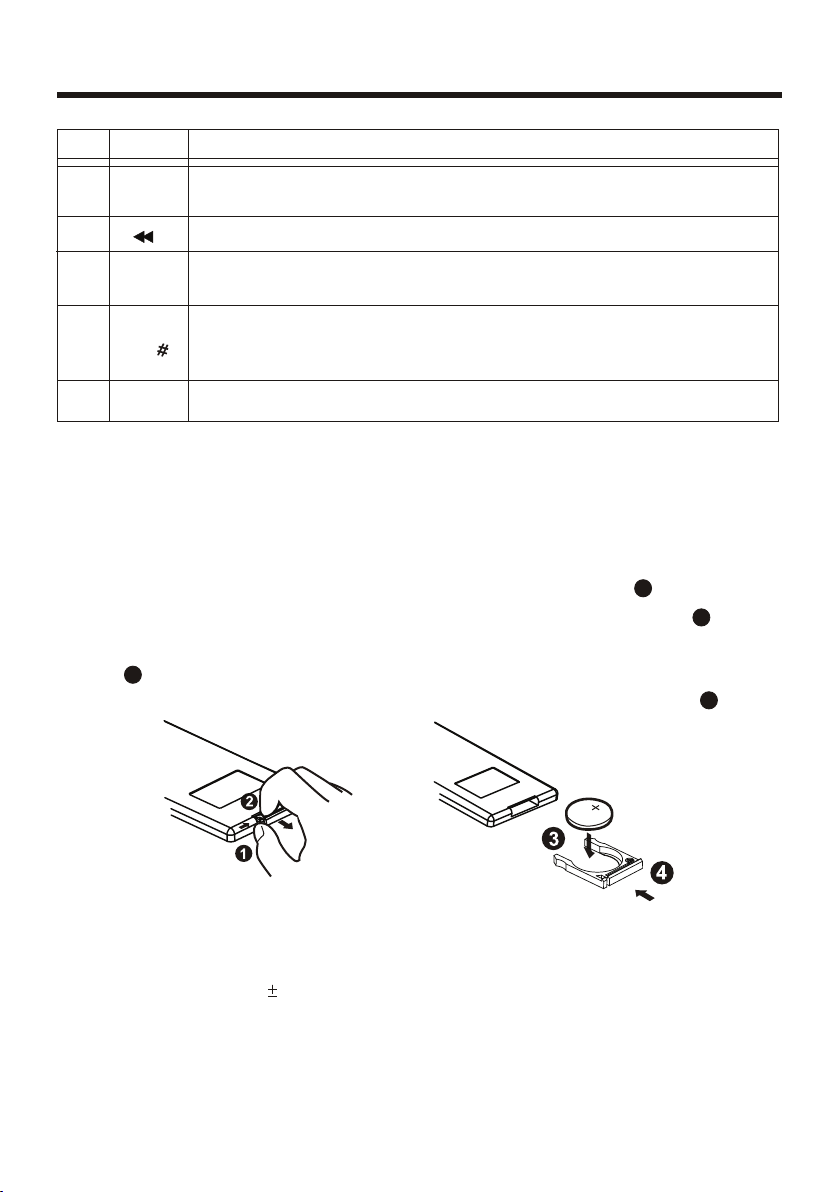

Remote Control ............................
Basic Operation ............................
Main Menu Operation......................
Setting animation...........................
Setting disc....................................
Setting radio...................................
Setting bluetooth............................
Setting wallpaper............ ................
Version about..................................

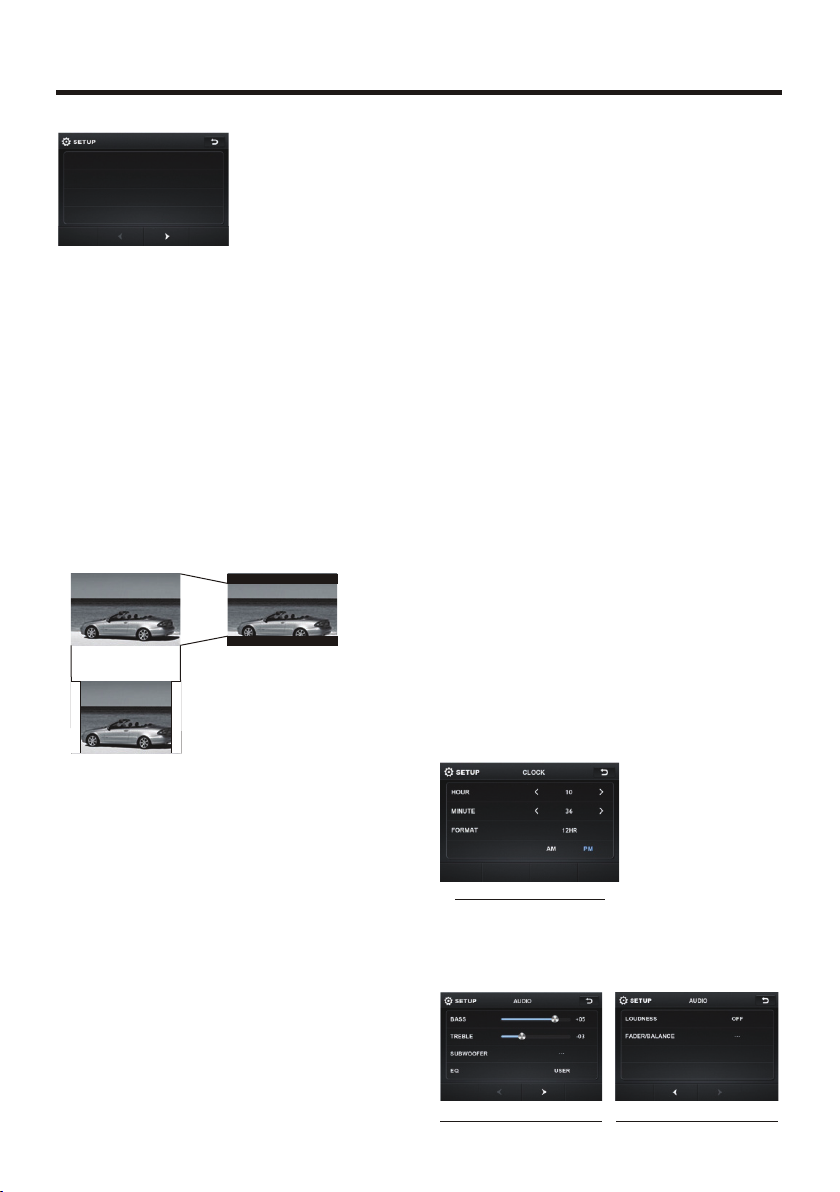

Setting time.......... .........................
Setting audio mode.........................
Setting video mode.........................
Setting OSD language....................
Setting skin....................................
TFT display calibration. ..................
Rear View Camera ........................

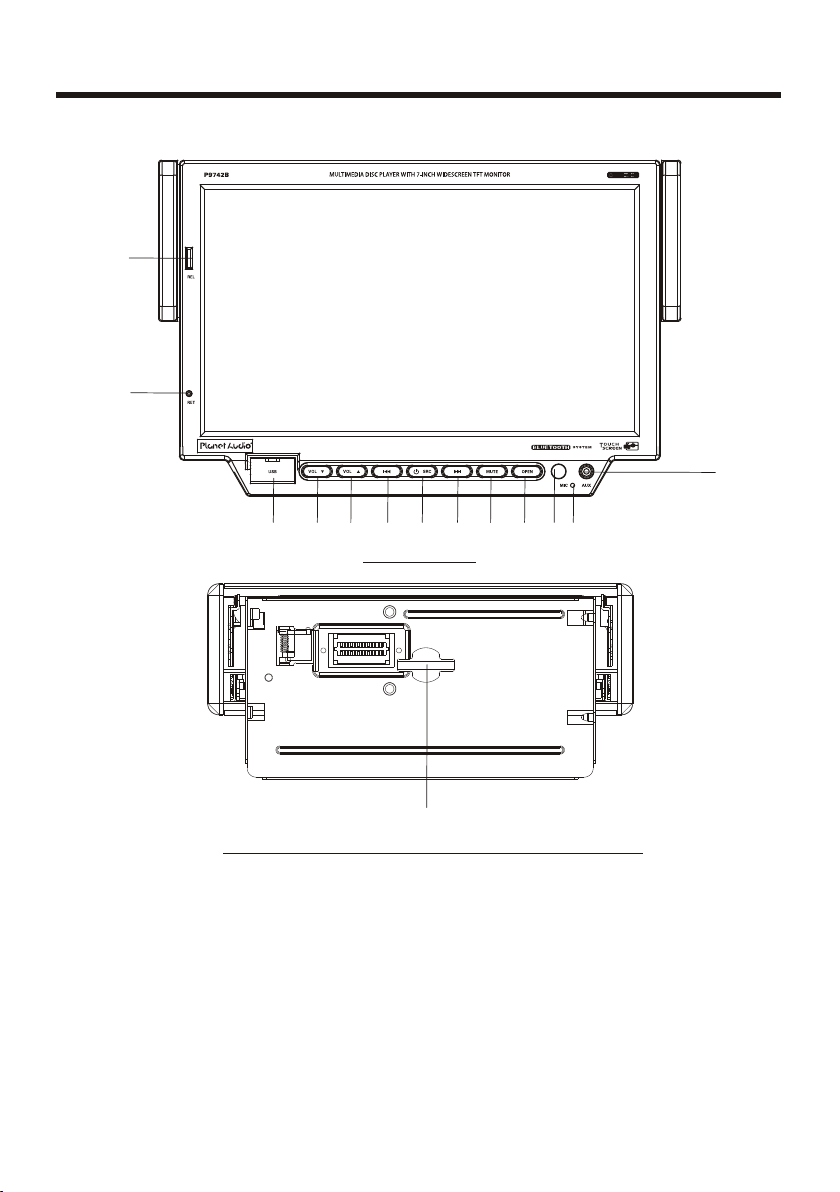

Control Panel ................................
Unit keys ........................................

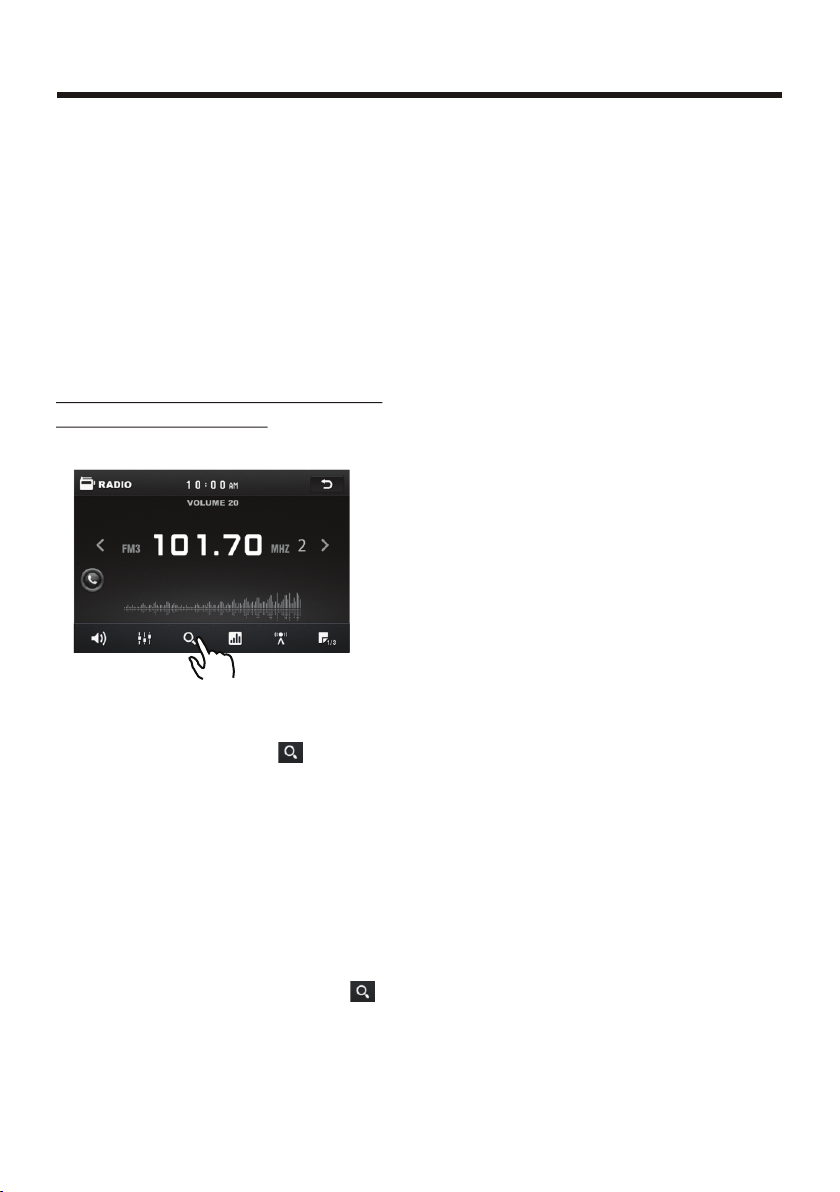

Radio Operation............................
Listening to the radio ......................
Storing and Listening to a memory
station ........................................
Automatic Memory Storing &
2
Program Scanning.......................
3
Media Operation.............................
4

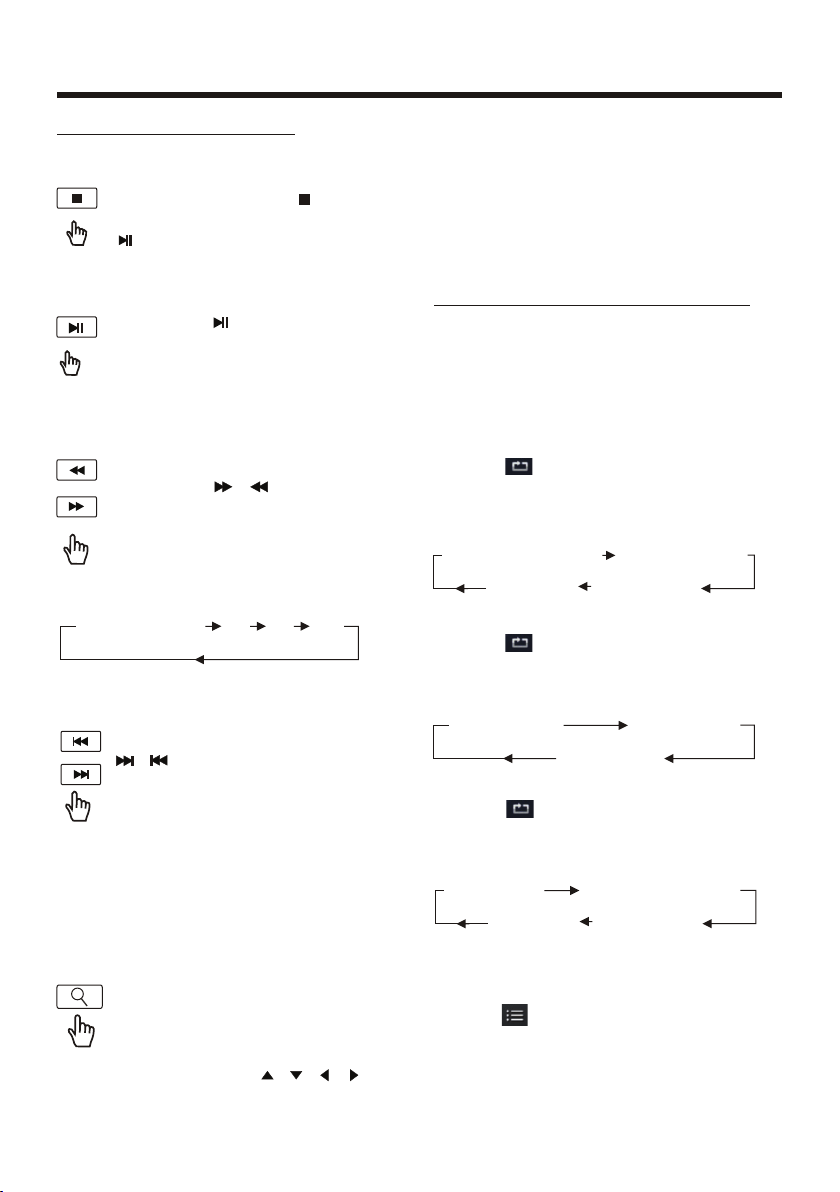

Basic Operation ..............................
5
Selecting Play Mode ........................
9

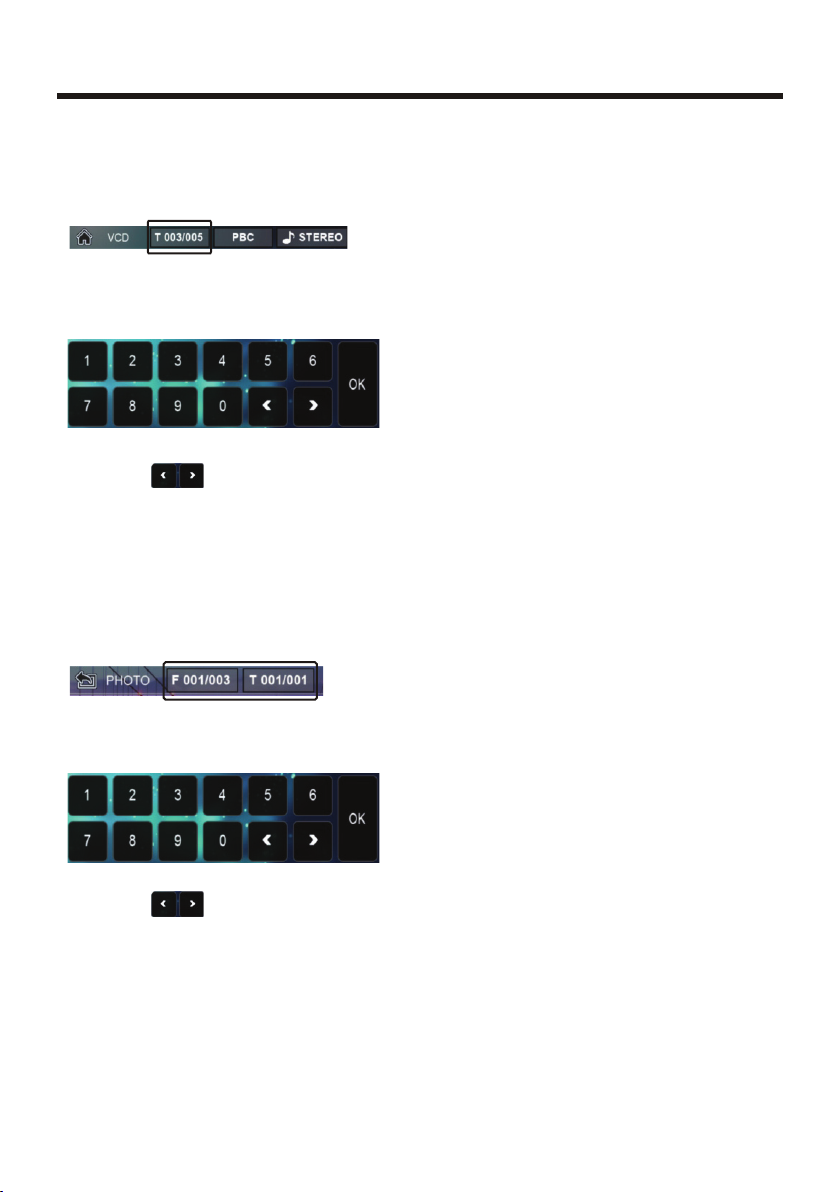

On-Screen Display Function .............
10
Digital Video Special Function........
13
Multi-Subtitle Language function.......
13
Multi-audio language Function..........
13
Multi-angle Function........................
13
Tit l e menu function ..........................
14
14

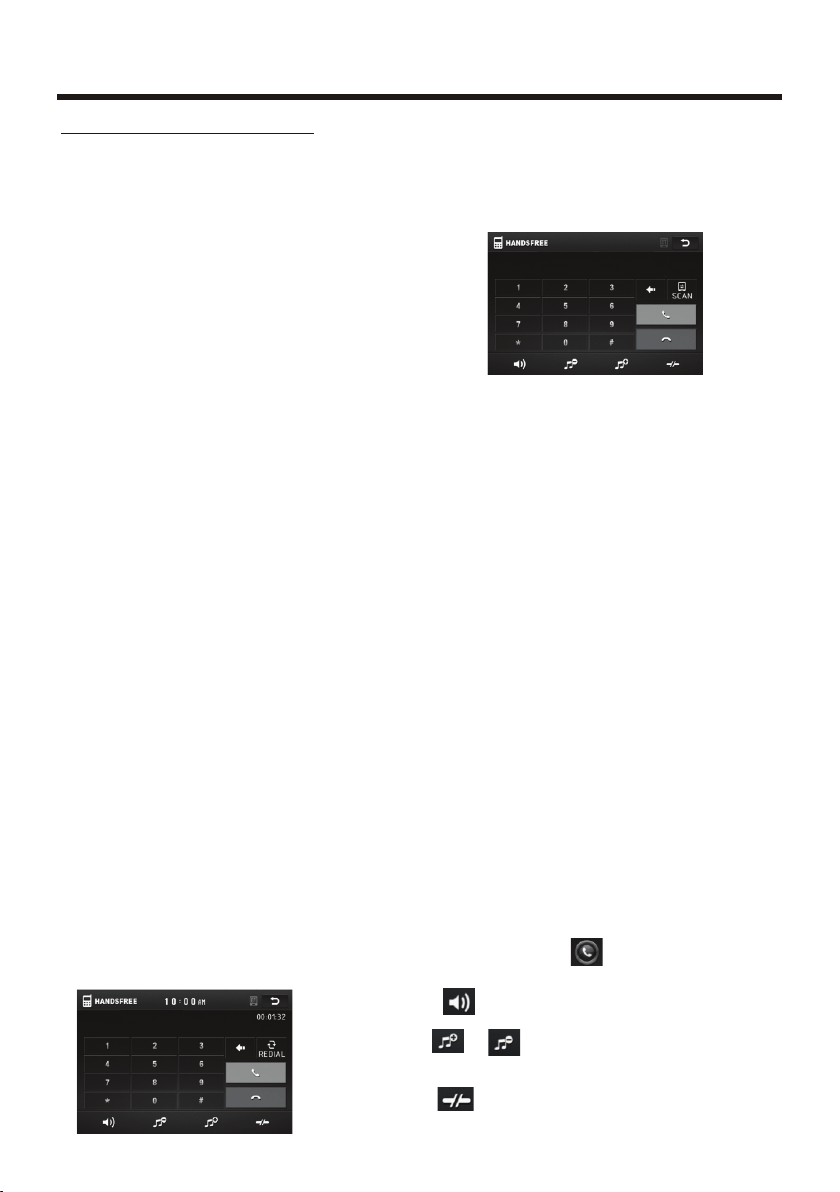

Bluetooth Operation.....................
14
AUX Operation ...............................
14

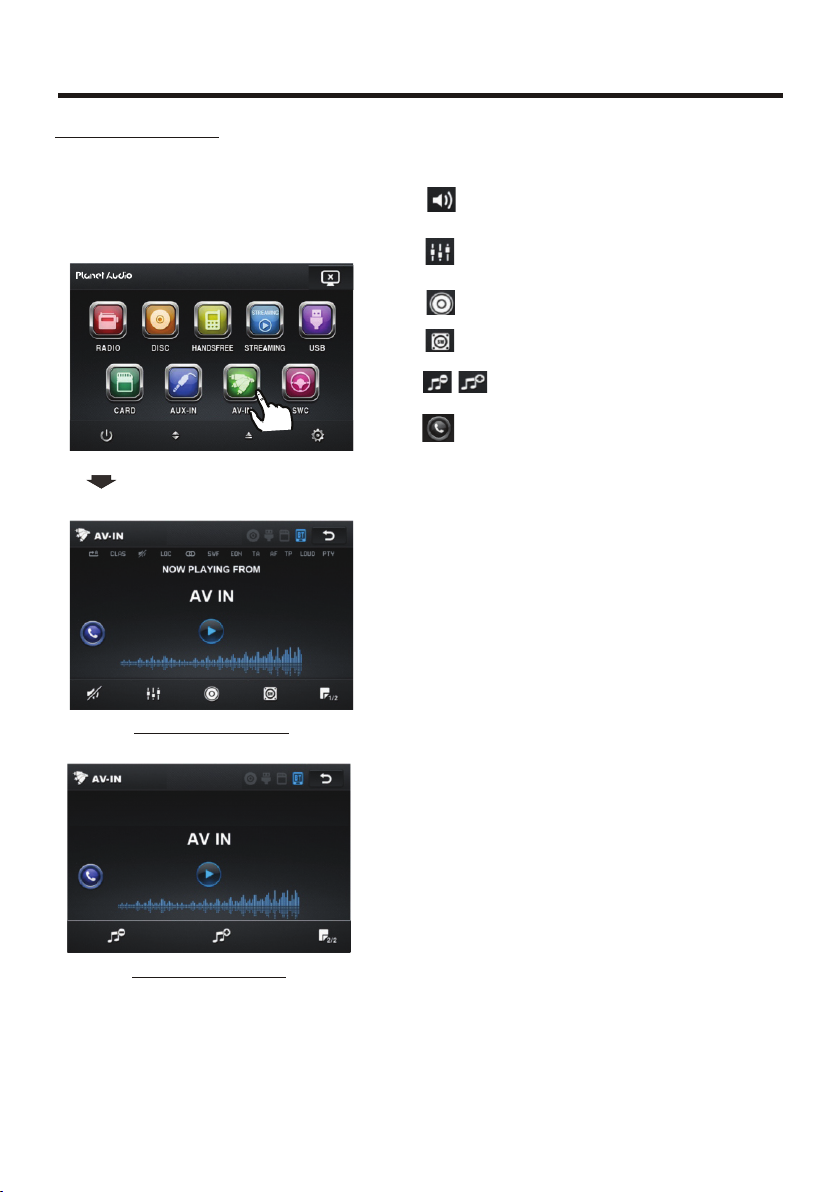

AV Operation..................................
15

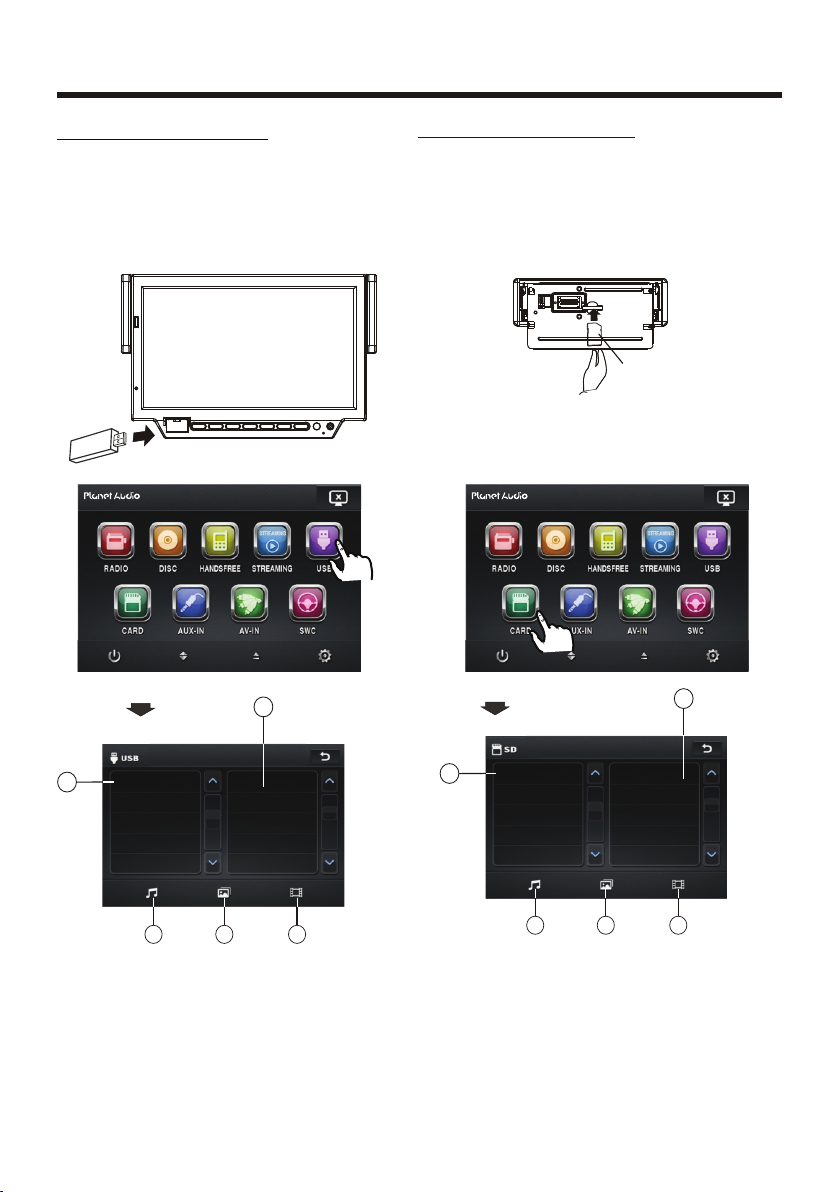

USB Operation ...............................
15
Card Operation ..............................
15
SWC Operation..............................
15
SParental Control...........................
15
Region Code..................................
15
Specification .................................
15
Troubleshooting.............................
16
16
18
18
18
19
20
21
21
22
24
24
24
24
24
25
28
29
30
30
31
32
33
34
35
-1-
Page 3
Precaution
THANK YOU FOR PURCHASING PLAYER .
Before operating the unit, read this manual thoroughly and keep it handy
for future reference .
To avoid injury or accident , read the following precautions before
installing and operating the unit .
ON INSTALLATION
DO NOT install any receiver in locations where;
- it may obstruct the steering wheel and gearshift lever operations, as this
may result in a traffic accident.
- it may obstruct the operation of safety devices such as air bags, as this
may result in a fatal accident.
- it may obstruct visibility.
DO NOT operate any receiver while manipulating the steering wheel, as
this may result in a traffic accident.
The driver must not watch the monitor while driving.
IF THE DRIVER watches the monitor while driving, it may lead to
carelessness and cause an accident.
IF YOU NEED to operate the receive while driving, be sure to look ahead
carefully or you may be involved in a traffic accident.
IF THE PARK ING BRAKE is not engaged.“ ParkingBrake” flashes on the
monitor, and no playback picture will be shown.
- This warning appears only when the parking brake wire is connected to
the parking brake system built in the car ( refer to the electric connection)
A PLANET AUDIO MULTIMEDIA
ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL
Do not press on the LCD panel on the unit as doing so can distort the
picture or cause a malfunction . The picture may become unclear , or the
LCD panel may be damaged .
NOTES ON CLEANING
-Clean the LCD panel with a slightly damp soft cloth.
-Do not use solvents such as benzine, thinner, commercially available
cleaners or antistatic spray .
- Do not use alcohol to clean the screen .
If your car was parked in a cold or hot place, the picture may not be clear .
The monitor is not damaged . The picture will become clear the temper ature in your car becomes normal .
-2-
Page 4
Safety Information
CAUTION:
THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER
THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM
WHICH COULD CAUSE .
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners.Use of this
copyright protection technology must be authorized by
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
IS INTENDED FOR CONTINUOUS OPERATION.
Macro vision Corporation,
REGION MANAGEMENT INFORMATION:
This Digital Video Player is designed and manufactured to respond to the Region
Management Information that is recorded on a Digital Video disc. If the Region
number described on the Digital Vid eo disc does not correspond to the Region
number of this
Digital Video Player, this Digital Video Player cannot play this disc.
-3-
Page 5
Disc Note
Disc formats supported by this
player
CD
Audio and Video
Disc size 12 cm
Audio and Video
Disc size 12 cm
Audio
Disc size 12 cm
Audio
Disc size 12 cm
Digital
Video
VCD
CD
MP3
Digital
Video
VCD
MP3
Discs which cannot be played
with this player
Digital Video-RAM
CDV
CDG
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
A disc should always be kept in its
case when not in use to prevent from
damaging.
not place discs in the following
Do
places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
Label side
up
Do not touch
the
underside
of the disc
Do not
bend
Wipe the disc from
center
toward the outside
edge
Preparing New Discs with Rough
Spots
A new disc may have rough edges on
its inside and outside edges. If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc. Therefore,
remove the rough edges in advance
by using a ball point pen or pencil
shown on the right. To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
Rough spots
on
outside edge
Ball point pen
or pencil
Rough spots
on inside
edge
-4-
as
Page 6
Installation
NOTES:
1. Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
2. Before finally installing the unit, connect the wiring temporarily and make sure
it is all connected up properly and the unit and the system work properly.
3. Use only the parts included
of unauthorized parts can cause malfunctions.
4. Consult with your nearest dealer if installation requires the drilling of holes or
other modifications of the vehicle.
5. Install the unit where it does not get in the driver s way and cannot injure
passenger if there is a sudden stop, like an emergency stop.
6
. Avoid installing the unit where it would be subject to high temperature, such
as from direct sunlight, or from hot air, from the heater, or where it would be
subject to dust, dirt or excessive vibration.
7. If installation
optimum performance.
angle exceeds 30 from horizontal, the unit might not give its
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from "Front"(conventional DIN
Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded
screw holes at the sides of the unit chassis). For details, refer to the following
illustrated installation methods.
with the unit to ensure proper installation. The use
'
30
the
Removing the unit
1. Press the REL button to release the front panel .
2. Remove the control panel .
-5-
Page 7
Installation
Installation the unit
3. Remove the PLASTIC COVER of the both sides away
PLASTIC COVER
4. Insert the two KEY PLAT into the grooves at both sides
of the unit as shown in figure until they click .
KEY PLATE
5. Pulling the levers makes it possible to remove
the unit from the dashboard .
SPRING WASHER
PLAIN WA SHER
TAP PI NG SCREW
DASH BOARD
HEX NUT
METAL MOUNTING
STRAP
CONSOLE
SLIDE BRACKET
HOUSING
HEX BOLT
-6-
Page 8
Installation
How To Remove And Install The Front Panel
When detaching or attaching the control panel, be careful not to damage the
connectors on the back of the control panel and on the panel holder.
Detaching Control Panel
Before detaching the control panel, be sure to turn off the power.
1). Press the “REL” release button and the left hand side of front panel will release.
RELEASE BUTTON
2). Pull-off the front panel and keep the front panel into the case .
PROTECTIVE CASE
Attaching Control Panel
1). First insert the right hand side of the front panel into the hollow of the unit .
(NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)
2). Gently push the left hand side of the front panel until you feel a
Hollow
Bulge
-7-
“ Click” .
Page 9
Installation
CHANGING THE CONTROL PANEL ANGLE
When you want to change the viewing angle of the operating unit to play,
you can touch the section on touch screen (or press the button
on the front panel) repeatedly to select the desired angle as follows:
ANGLE 1 - ANGLE 2 - ANGLE 3 - ANGLE 4 - ANGLE 1 .
ANGLE 1 ANGLE 2
ANGLE 3ANGLE 4
Caution:
Do not insert your finger behind the control panel.
-8-
Page 10
Electric Connection
WIRING CONNECTION
RCH IN RED
VIDEO OUT(2) YELLOW
AUX 2 VIDEO IN YELLOW
LCH IN WHITE
RCH RED
LCH WHITE
RADIO ANTENNA JACK
IGNITION SWITCH(B+)
MEMORY BACK-UP(B+)
GROUND(B-)
AUTO ANTENNA
FRONT
LCH SPK.
AUX2
REAR OUTPUT CABLE
FUSE
RED
YELLOW
BLACK
BLUE
WHITE
WHITE/BLACK
FRONT RCA OUTPUT
CABLE
FUSE
VIOLET/WHITE
LIGHT GREEN
GREY
GREY/BLACK
SUBWOOFER GREY
REAR CAMERA INPUT YELLOW
FRONT RCA RED R
VIDEO OUT
YELLOW
FRONT RCA WHITE L
KEY GROUND(BLACK)
KEY 1(BROWN)
KEY 2(WHITE)
(B+)12V
REAR CAMERA SWITCH
(B-)PARKING BRAKE
FRONT
RCH SPK.
REAR
LCH SPK.
GREEN
GREEN/BLACK
VIOLET
VIOLET/BLACK
REAR
RCH SPK.
Note:
the ground connection cable (parking brake B-) must be connected in order for
pictures to be played back to the monitor. If the cable has not been correctly
connected, the message “PARKING BRAKE” appears on the monitor.
-9-
Page 11
Remote Control
Ref #
1
2
3
4
5
6
Button
CLOCK
Redial/
STOP
SETUP
MO/ST
LOCAL/
DISTANT
15
7
2
22
14
18
10
17
19
13
6
24
11
4
3
20
21
9
27
25
16
5
1
23
12
26
8
Function
Press it briefly to view the clock time , Press again to return to
normal display mode .
Press it to use the Bluetooth function , refer to bluetooth operation
Press once to pause playback. Press PLAY/PAUSE to resume
playback. Please note: if you press STOP twice, playback will
start at the beginning of the disc.
Press this button to open the SETUP menu.
In Radio mode, press this button to change between Mono and
Stereo reception modes (when a station is weak, sometimes
switching to Mono will improve sound quality).
In Radio mode, press this button to change the radio reception
sensitivity in stations are near or far.
7
PAIR/
8
GOTO
Press it to use the Bluetooth function , refer to bluetooth operation
Press it button to begin playback at a moment in the program you
designate. Use number buttons to enter the data that is needed.
In Bluetooth menu, it serves as the asterisk button on your mobile
handset.
-10-
Page 12
Remote Control
Ref #
9
10
11
12
13
14
15
(POWER)
16
17
Button
/
BASS, TRE, BAL, FADE, COLOR, BRIGHT,
CONTR, TINT , BT, LOUD, SWF, EQ, LO/DX(in radio mode),
SEL
VOL+/-
ST/MO(in radio mode), TIME 24H/12H,SET CLOCK, BEEP,
FRE AREA,
press VOL+/VOL- buttons to set it.
///
Menu
SubWoofer
BAND
(OSD)
PLAY/
PAUSE
MUTE
Function
Press these buttons to skip ahead or back one track.
To switch between
ANIMATION.
After switching on the desired mode above, rotate VOL knob or
Use these controls to adjust the volume level.
Press to navigate the various menus present in the product.
Press this button briefly to display the root level directory of a
digital video disc. Press and hold this button to turn on or off the
SUBWOOFER output.
In Radio mode, press this button repeatedly to switch between
the five radio bands: FM1 > FM2 > FM3 > AM1 > AM2.
In Disc Playback modes, Press this button to see information
about the disc currently in play.
Press this button to turn the unit ON , press and hold to turn the
unit OFF.
In Disc Playback mode, press to pause playback. Press again to
start where playback stopped.
Press this button to turn off the audio. Press again to restore the
sound to its
prior volume level.
18
19
20
21
22
TITLE/
PBC(A/P)
ZOOM/
ANGLE
EQ
LOUD
When playing a Digital Video, pressing this button will open the
TITLE menu which is recorded on the media. When playing a VCD
disc, press this button to create a PBC (Playback Control) menu
for the disc to assist in making playback selections. In Radio mode,
press and hold this
which the tuner will scan for all strong stations and assign them
to the radio preset buttons.
button to start the Auto-Program mode, during
Press this button to adjust the screen viewing angle .
For Digital Video discs which have alternate viewing angles
encoded, when you see the "angle mark" symbol advising you
that these angles are available, longer press this button to see
them. Shortly press to increase the picture in size .
Press repeatedly to cycle through the different equalizer curve
presets you may wish to use for enhanced listening;
Press to switch the LOUDNESS function ON and OFF .
In Disc Playback mode, press to start forward rapidly .
-11-
Page 13
Remote Control
Ref #
23
24
25
26
27
Button
ENTER
0-9
+10/
1-6
This button is used to confirm selections and settings within
many of the menus in the OSD system.
In DISC mode, press it to reverse rapidly
Use to input numerical values during programming, with the GOTO
button, or to directly select a track to play .
This button is used with the other number buttons for use with
two-digit number entries. In Bluetooth menu, it serves as the hash
button on your mobile handset.
Six numbered preset buttons store and recall stations for each band
Function
Preparing the Remote Control
Inserting the Battery
1.First push to inside as the direction indicated by the arrow (See )And then
Remove the battery holder as the direction indicated by the arrow (See ).
2.Replace the battery Set a new battery property with (+)side up as illustrated
(See
3.Insert the battery holder. Push in the holder to the original position(See ).
).
3
1
2
4
Using the Remote Control
Face the remote control towards the player front face IR mark (remote control signal
receiver).
Operation angle: About 30 degree in each the direction of the front of the IR mark.
Note :
The lithium cell in the battery compartment of remote control has been secured for
transport with a plastic . Before initial use please remove this plastic so that the remote
control is ready for operation .
-12-
Page 14
Basic Operation
10:00 AM

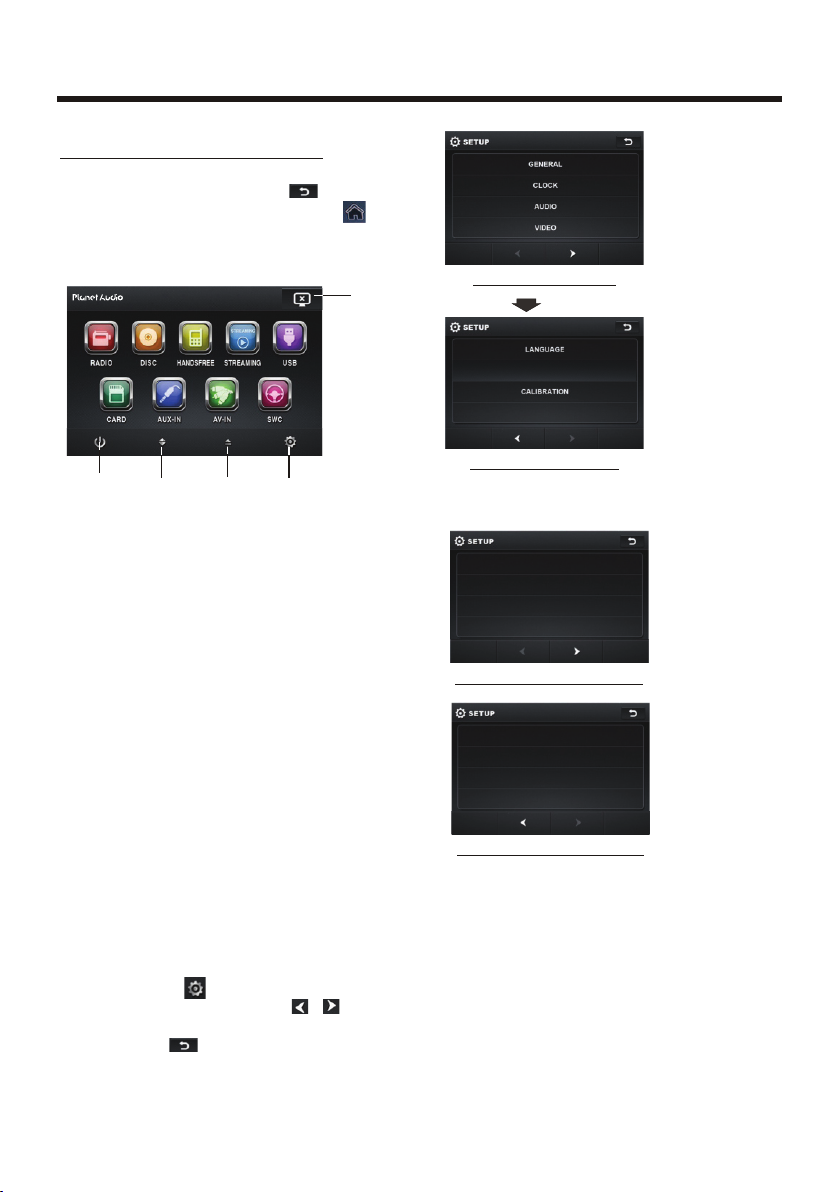

Main Menu Operation
In many modes, touch the icon
or In DVD/VCD mode , touch the
range to enter the main menu,
the message like following as below.
10:00 AM
(3)(1) (2) (5)
1. POWER icon
In any modes, touch the POWER icon
to switch the unit off . The monitor will
draw in automatically .
2. UP/DOWN icon
Touch this icon to adjust the angle
the monitor upward or downward
until your desired angle .
3. EJECT icon
Touch to allow for inserting or ejecting
disc.
(4)
of
Setup interface 1
ILLUMINATION COLOR
Setup interface 2
ADJUSTABLE ITEMS:
GENERAL
ANIMATION 2 MINUTE
KEY BEEP ON
DISC
RADIO
General setup interface1
BLUETOOTH ON
WALLPAPER ...
...
ABOUT
...DISC ...
...
GENERAL
4. When the unit is power on, tap to turn
off the display and the unit still work,
tap anywhere of the display to turn on
the display again.
5. SETUP icon
Touch to enter the SETTING mode,
the message
Touch the “ ” section on the
setting menu, touch the “ / ”
will display as follow :
ranges to select the adjustment item,
Touch the “ ” icon to return to the
previous playback .
General setup interface2
ANIMATION
In RADIO mode, you can change the
playing time of animation among of
“OFF, 10S, 30S, 1M,90S, 2M, 3M and 4M ”.
Note:
Please set the playing time of the
animation to “ 10S ” for the first, when
you turn the unit on .
KEY BEEP : ON or OFF.
-13-
Page 15
Basic Operation
Disc setup as follow:
FORMAT NTSC
TV TYPE 4:3PS
RATING ADULT
FORMAT
This player is capable of playing discs
recorded in either PAL or NTSC formats.
Make the selection
you are connecting the unit to a PA L TV
or an NTSC TV. You can also set the unit
to AUTO (auto select). The disadvantage
to autoselect is that each time you turn
the unit on it checks to see what kind of
monitor is connected, which
small delay and some flickering of the
display image which you may find
unpleasant.
TV TYPE
DISC
16:9
4:3 Pan Scan
based on whether
causes a
4:3 Letter Box
changes to the Parental Control
menu below .)
Key in “0000” and then turn to rating
then you can setting as follow:
KID SAFE -> G -> PG -> PG-13
-> PG R -> R ->NC-17 -> ADULT
RADIO
DUAL: touch to select stereo or mono.
LOCAL: touch to select
local or distant.
REGION: touch to select radio frequency
as USA or EUROPE.
BLUETOOTH
Touch to select BT function on or off.
WALLPAPER
Touch to select wallpaper .
ABOUT
Touch to show the version information.
CLOCK SETUP
Touch the CLOCK to adjust the time and
time format.
This is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected TV set.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the
left and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in LETTER BOX
style.
(If connected to wide-screen TV, black
bands appear at top and bottom of the
screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is
connected.
RATING
Select to turn Parental Control on or off.
The factory default password is 0000.
(The password must be used to make
clock setup interface
AUDIO SETUP
Touch the audio to turn to audio quality
adjustment.
audio setup interface2audio setup interface1
-14-
Page 16
Basic Operation
TREBLE: -7 to +7
Adjust treble level .
BASS: -7 to +7
Adjust bass level .
SUBWOOFER: touch to adjust subwoofer
volume and frequency.
EQ: touch to select audio mode as follow:
USER -> JAZZ -> CLASSIC -> POP -> ROCK
LOUDNESS: touch to select loudness
effect as :OFF -> LOW -> MID -> HIGH
FADER/BALANCE:
BALANCE: R 0-10 to L 0-10
Adjust sound balance between left
and right speakers .
FADE: F 0-10 to R 0-10
Adjust sound balance between front
and rear speakers .
VIDEO SETUP
LANGUAGE
Touch to select OSD language.
ILLUMINATION COLOR
Touch to select the backlight for all
buttons. Tap auto icon the backlight
change automatically.
CALIBRATION
Touch the arrow as show to calibration
the display.
Reset Factory Settings
RESET button is placed on the housing
and must be activated with either a
ballpoint pen or thin metal object.
The RESET button is to be activated for
the following reasons:
A. Initial installation of the unit when
all wiring is completed.
B. All the function buttons do not operate.
C.
Error symbol on the display.

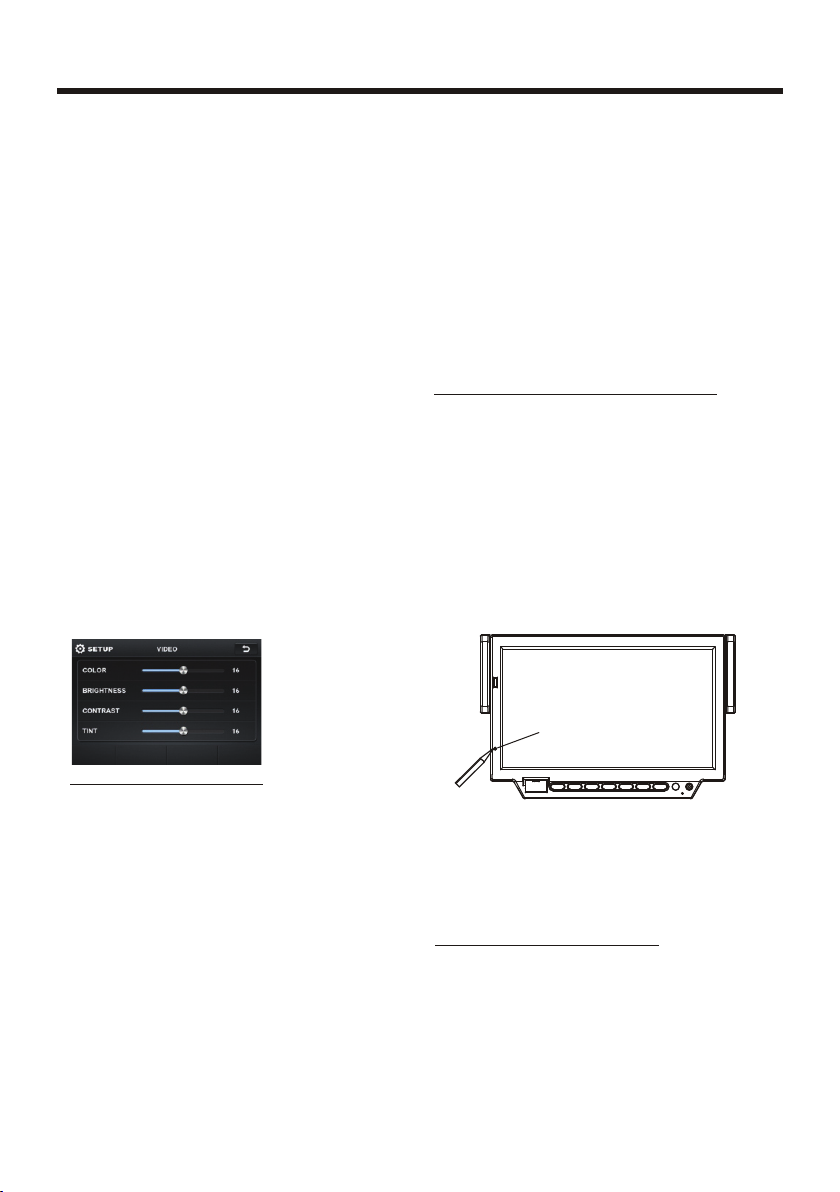

Video setup interface
COLOR: 0 to 32
Adjust the color for
or darker.
BRIGHTNESS: 0 to 32
Adjust if the picture is too bright or
too dark.
CONTRAST: 0 to 32
Adjust the contrast of the bright and
dark portion.
TINT: 0 to 32
Adjust the tint if the human skin color
is unnatural.
-Adjustable when “NTSC “ is selected
for “NTSC/PAL
the picture-lighter
“ .
RESET
NOTE:
If RESET is selected, all memory data
will deleted, please re-adjust .
Rear View Camera
When connecting the rear view camera
the mirror image of the rear view is automatically displayed on the monitor
when you change the gear to the back
position.
(Note: additional monitor can not display
the image.)
-15-
Page 17
Control Panel
UNIT KEYS
11
12
1
410
Sliding Plate diagram after removing Control Panel
57689
Control Panel
13
2143
1. AUXILIARY INPUT JACK
Insert an external device to this AUX jack in order to have audio output of the
device through the unit.
2. IR sensor
3&4. VOL+/ VOL- BUTTON
In normal mode, these two buttons are used to increase or decrease the volume.
And also used as an UP/DOWN knob when audio or video settings are being
adjusted when accessed using the SELECT button.
-16-
Page 18
Control Panel
5. /SRC BUTTON
In power off mode, press it to turn on the unit.
In power on mode, short press it repeatedly to select one mode of the RADIO,
DISC, USB, CARD, BT,AUX and AV; long pto turn off the unit.ress it
6/7. >>| and |<< BUTTONS
In radio mode,
or up for an available station beginning from the current frequency; Briefly
pressing |<< or >>| button can manually search down or up for a your desired
station beginning from the
In media mode, pressing |<< or >>| button can play the previous or next track;
continuously and long pressing |<< or >>| button can fast backwards or
forwards at the following multiple of normal speed: x2, x4, x8, x20.
. MUTE BUTTON
8
Press it button to switch of the loudspeakers for a short period. The word MUTE
flashes in the display. Press it again to cancel the mute function. This function
can also be cancelled by rotating the VOL multifunction button.
9. OPEN BUTTON
To slide the monitor out and stand it up or into the monitor slot, press this button,
10. USB PORT
For information about connecting a USB device, please see USB operation.
long pressing |<< or >>| button can automatically search down
current frequency.
11. REL BUTTON
Press it to detachable the front panel.
12.
RESET BUTTON
Press this button to return to factory settings.
13.
SD CARD SLOT
14. MICROPHONE
-17-
Page 19
Touch Screen Operation
10:00 AM
10:00 AM
10:00 AM

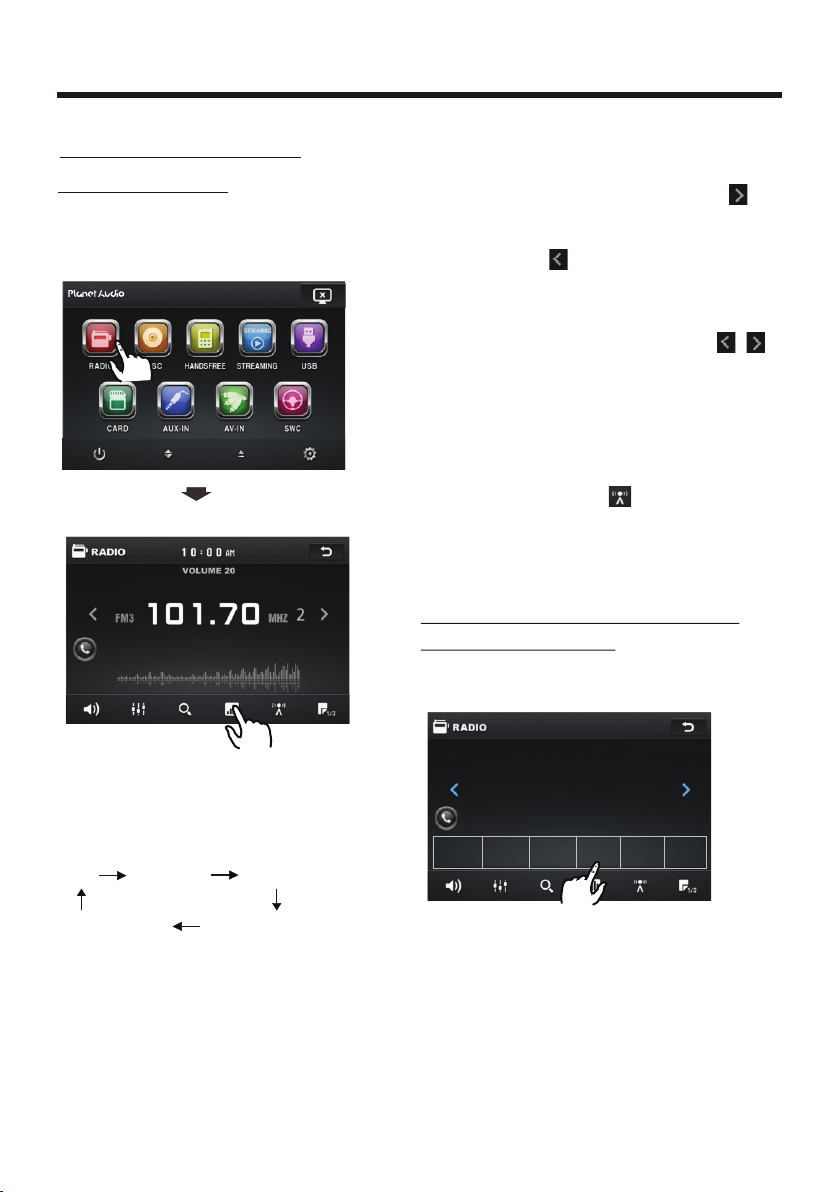

RADIO OPERATION
Listening to Radio
Touch the RADIO ICON in home menu
to enter the RADIO mode:
10:00 AM
10:00 AM
Start Searching For a Station
Manual Search
During Radio mode, briefly touch “ ”
to increase frequency by one step of
channel spacing.
Briefly touch “ ” to decrease frequency
by one step of channel spacing.
Automatic Search
During Radio mode, touch and hold
(for more than 2 seconds ) either “
/ ”
ICONS to start search for a radio station
automatically.
To tune in strong-signal FM
Station only (LO/DX function)
In radio mode, LOC
remote control to select
select LOC/DX
Long-distance traffic news.
Press button on the
or tap icon
mode of Local and
Storing and Listening to a
Memory Station
Setting Memory
Selecting The Frequency Band
Touch the screen of “ BAND ” section
repeatedly to select the band , the
message will show in turn :
FM1 FM2 FM3
AM2(MW2)
AM1(MW1)
When an FM stereo broadcast
is hard to receive
Press ST/MO button on the remote
control to select the MONO or
STEREO mode . (When Stereo
mode is activated, the ST symbol
will appear . )
10:00 AM
FM1 87.50 MHz 4
87.50 90.10 98.10
87.50
107.9 100.8
With this system, a total of 30 stations
can be stored in the memory of six
buttons. Each band stores up to six
preset stations. The stations might be
FM1, FM2, FM3, AM1(MW1), and
AM2(MW2) band.
The operation is as below :
-18-
Page 20
Touch Screen Operation
10:00 AM
- Store in Memory
>Select the frequency band
> Select the station
>Press and the station until it show
the frequency band your select.
- Retrieve a preset station
Touch the 1-6 ranges briefly to retrieve
a station which had been stored in the
memory
is shown on display .
Automatic Memory Storing &
Program Scanning
in advance the chose number
10:00 AM
Automatic Preset Setup
In Radio Mode, touch and keep (for more
than 2 ’ S) the screen of “ ” range to
active automatic station storage.
The radio searches within the current
frequency band, e.g. Fm , for the
stronger signal level until the search cycle
has finished . The six strongest
are then allocated to the corresponding
storage locations .
Then the station of the first storage
location is set .
3
stations
Scan Function
In Radio mode, briefly touch the “ ”
section on the touch screen , the radio
briefly plays all the preset stations of the
frequency band .
-19-
Page 21
Touch Screen Operation

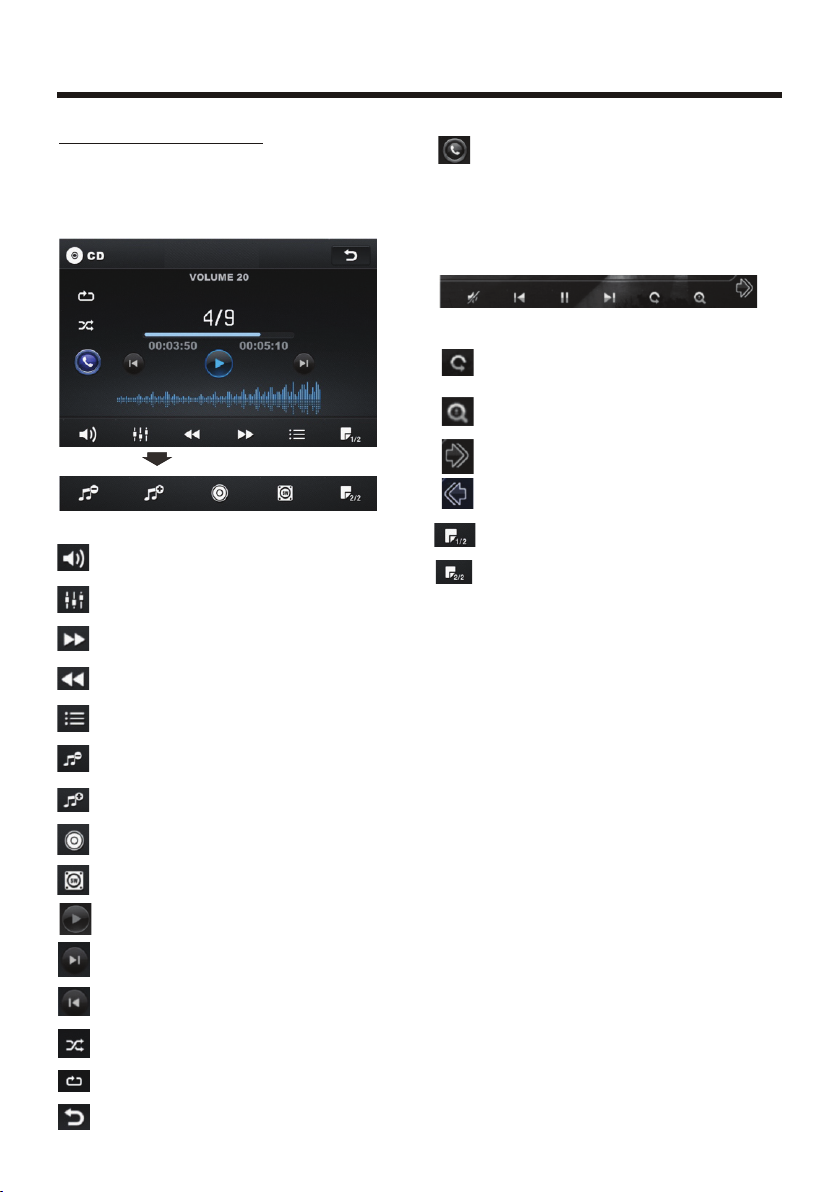

Media Operation
In audio play mode, the message will
display as below :
(When Parking Brake is applied .)
10:00AM10:00AM

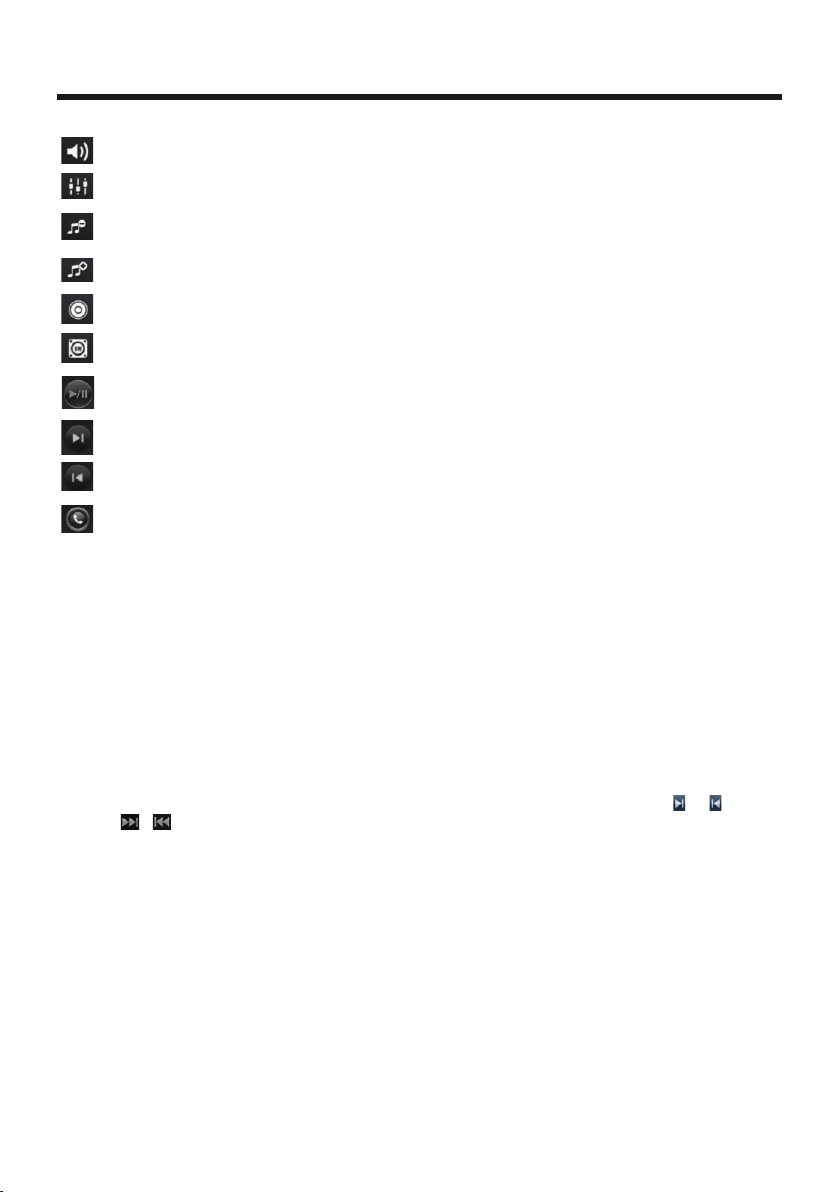

Mute function
To select the Equalizer mode
Fast forward
Fast backward
Tap to turn to BT PHONE mode.
(after pairing and connecting a
mobile phone with bluetooth function).
The icons for other mode
(The same icon have the same function
in each mode)
In PHOTO playing ,tap to change
the photo direction.
ZOOM IN and OUT.
For page turning.
For page turning.
For page turning.
For page turning.
Intro Function
To decrease the volume level
To increase the volume level
Loudness Function
Subwoofer Function
Play/Pause the playing
To skip the next track
To skip the previous track
Repeat Function
Random Function
Previous menu
-20-
Page 22
Touch Screen Operation
BASIC OPERATION
Stopping Play
Touch the screen the range to
stop the unit playback. touch the
range to start play.
Pause (still picture)
Touch the “ ” section on touch
screen during playback will stop
play temporary, touch it again to
return the normal playback .
Rapid Forward/Rapid Reverse
During DISC playback, touch the
screen of “ / ” range the
speed of rapid forward/reverse
changes according to the disc as
follow:
Digital Video/VCD/CD/MP3:
Normal Playback 2x 4x 8x 20x
Skipping Track
During DISC playback, Touch the
/ section on the touch screen
to skip to next/back one track.
Note :
For some VCD2.0 disc (PBC-playback
control), above these buttons may be
unavailable .
Note:
when the JPEG disc playback, in normal
mode, you can use the cursor buttons to
rotate the picture .
Press UP to invert an image .
Press DOWN to mirror an image .
Press LEFT to rotate an image to left .
Press RIGHT to rotate an image to right .
SELECTING PLAY MODES
During the Disc playback, select the
“RPT, RDM, INT ” to select your favour
play mode.
1). REPEAT FUNCTION
FOR Digital Video :
Tap the icon or press the RPT button
on the remote control to select REPEAT
mode as follows :
CHAPTER REPEAT ON TI TLE REPEAT ON
REPEAT OFF
FOR
VCD/CD :
Tap the icon or press the RPT button
on the remote control to select REPEAT
mode as follows :
REPEAT ONE REPEAT ALL
FOR MP3 :
Tap the icon or press the RPT button
on the remote control) to select REPEAT
mode as follows :
REPEAT ONE REPEAT FOLD ER (or DIR)
REPEAT OFF
REPEAT ALL
REPEAT OFF
REPEAT ALL
Zoom Function
Touch the button repeatedly,
the displayshow as “
zoom 3, zoom 4 , zoom ½,
zoom 1/3, zoom 1/4 , zoom off
Use the direction keys ( / / / on
remote control to move the enlarged
picture .
zoom 2,
2). INTRO FUNCTION
FOR
CD :
Tap the icon or press the INT button
on the remote control to play the previous
. ”
10 seconds part of each track/chapter
on disc.
(Touch it again to cancel this mode)
-21-
Page 23
Touch Screen Operation
FOR VCD :
Press the INT button on the remote
control. It display will following
menu as below :
SEQ PLAY IN TRO 1
Note: when select the INTRO Mode,
this player to start to play the previous
15 seconds part of each track/chapter
on disc. (Touch it again to cancel
this mode .)
FOR Digital Video/MP3 :
For Digital Video/MP3 , press the INT
button is not available .
3). RDM(RANDOM) FUNCTION
During DISC playback, touch screen
of “ ” section ( press the
RDM button on the remote control to
play in random. Each play mode the
order is different . (Depend on the
disc used for VCD).
Touch it again to cancel this function .
Note : in random mode, the button
is not available .

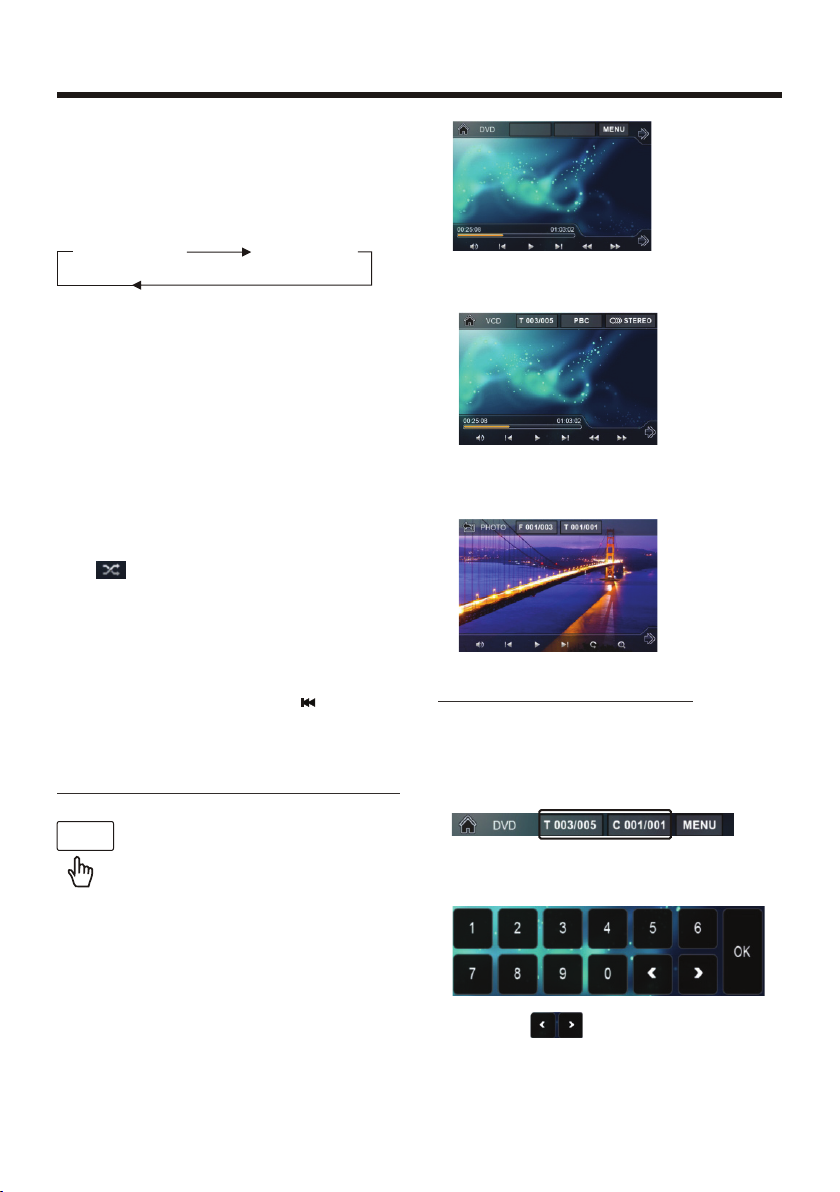

ON-SCREEN DISPLAY FUNCTION
2. Example for VCD/SVCD, when it is on,
it will display the information such as:
3. Example for Movie or PHOTO .
When it is on, it will display the
information such as:
DISC Search (GOTO)
FOR Digital Video :
Touch the screen as show or press the
GOTO button on remote control;
T 001/004
C 001/00 1
OSD
screen or press the OSD on the
remote control, it will display
Note: touch the screen or press the OSD
on the remote control again to cancel
the OSD information.
1. Digital Video , when it is on, it will
display the information such as:
During playback, touch the
the following as below :
the screen will display the following
message :
Touch the to select the your
adjustment item, then select the item
your favour by touching the numberic
buttons , then touch
to confirm .
-22-
the OK button
Page 24
Touch Screen Operation
FOR VCD (With PBC OFF) :
Touch the screen as show or press the
GOTO button on remote control;
the screen will display the following
message :
Touch the to select the your
adjustment item, then select the item
your favour by touching the numberic
buttons , then touch the OK button
to confirm .
For Movie/Photo:
Touch the screen as show or press the
GOTO
button on remote control;
the screen will display the following
message :
Touch the to select the your
adjustment item, then select the item
your favour by touching the numberic
buttons , then touch the OK button
to confirm .
-23-
Page 25
Touch Screen Operation
Digital Video Special Function
1. Multi-subtitle Language
Function (for Digital Video Only)
During Digital
Touch the icon on touch
screen(or press the SUBT on
the remote) .
Each time the button is pressed or touch,
number of the subtitle language changes
in sequential order.
Notes:
- The language number is different
according to the disc.
- Some discs only contain one subtitle
language.
- When no different subtitle language
are recorded, “ INVALID KEY ” will be
displayed at screen left top corner.
Video playback.
2. Multi-Audio Language Function
For Digital Video:
During Digital Video playback ,
touch the icon on touch
screen (or press the LANG
on the remote .) Each time the button is
pressed or touch , number of the audio
soundtrack language changes on
sequential order.
Notes:
- The language number
according to the disc.
- Some disc only contain one language
soundtrack
- When no different language soundtra ck are recorded will be
display at screen left top corner.
For VCD/CD:
during playback, touch the AUDIO
section of the touch screen or Press
AUDIO on the remote . It is possible to
switch the sound between monaural
and stereo sound.
MONO LEFT MONO RIGHT
STEREO
is different
“ INVALID KEY ”
MIX-MONO
3. Multi-Angle Function
(for Digital Video Only)
During Digital Video playback, touch the
icon on the touch screen .
Each time the button is pressed , the
number of the angel changes in
tial order .
Notes:
- The angle number is different
according to the disc.
- The function only work for disc having
scenes recorded at different angles.
- When no different angle are recorded,
will be displayed at
“ INVALID KEY ”
screen left top corner.
sequen-
4. Titl e Menu Function
For Digital Video:
If the Digital Video has multiple titles
recorded on the disc. It can select
preferred title from the title menu to start
playback.
- During Digital Vide o playback, press
TITLE button on the remote .The title
menu is display.
- Select preferred title by the
button and confirmed by press the
ENTER button .
For VCD:
Press TITLE/PBC button on the remote
control while the disc is playing, you can
switch between "PBC ON"and "PBC off"
mode.
cursor
-24-
Page 26
Touch Screen Operation
Bluetooth Operation
1. Pairing and Connecting
Prior to using the bluetooth device named Planet Audio as a handfree system for
a bluetooth-enabled mobile phone for the first time, you must
them
Press the bluetooth handsfree icon or
press the pair button
control to turn to bluetooth standby mode
as right:
* Prior to pairing and connecting, when displaying No Video interface of radio, CD,
AUX IN or bluetooth music, the logo BT flashes in the touch screen.
as follows:
on the remote
pair and connect
* During using the
a bluetooth- enabled mobile phone, place the bluetooth-enabled mobile phone
in 3 meters from the Car A/V System;
Switch on the bluetooth mode of your mobile phone; then s
bluetooth device
system, the name will be displayed
show an interface that asks you to input a password, input 8888 and enter it; then
t will pair and connect
i with the bluetooth device Planet Audio of the car A/V
system, Confirm
When connect , the audio of the mobile phone transfers
* finishing pairing and ing
to the car audio system whenever a call is made or received
or the mobile phone
plays music
2. BLUETOOTH PHONE
1) Make a call
(1) Dial with mobile phone directly;
(2)Dial with the controls on BT PHONE
panel;
a. Touch the HAMDSFREE icon in home menu or touch the icon during playing
to turn to BT PHONE interface as follows:
bluetooth device named Planet Audio as a handfree system for
elect the item to find a
and enter it; device car
Planet Audio , select it and enter it; then it will
it, then the frame of the BT logo will light all the time.
.
When it finds the bluetooth of the A/V
interface or on remote control or on control
: Same as MUTE button.
& : Same as VOL+ and VOL- or
VOL knob.
-25-
: Ta p to do disconnection.
Page 27
Touch Screen Operation
USER SWF
BT
M USIC
b. Use the number icons or buttons to input your desired phone number;
* When inputting a wrong digit, use icon or < button to delete it.
c. After finishing inputting, touch icon or press button on control
panel
to dial out.
2) Redial last dialed phone number
Touch icon or long press redial button on remote control to dial out the last
dialed phone number.
3) Answer a call
During an incoming call,
the incoming telephone number displays in the the BT
PHONE interface. If you want to receive it, touch icon or press button
on remote control; if you want to reject it, touch icon or press
button
on remote control.
4) Ending a call
When ending a call, touch icon or use button.
5) Switch the audio between the unit and your device
During phone bluetooth hand free system of the
talking using the
car A/V system,
touch icon or press button on remote control to switch the audio
between the unit and your device.
Adjusting the volume during a call
6)
talking, use VOL knob or VOL+ and VOL-
During phone + and - icon or
buttons to adjust volume level .
;
use icon or MUTE button to mute sound
* * / # icons and buttons
they perform as * / # buttons on mobile phone.
.

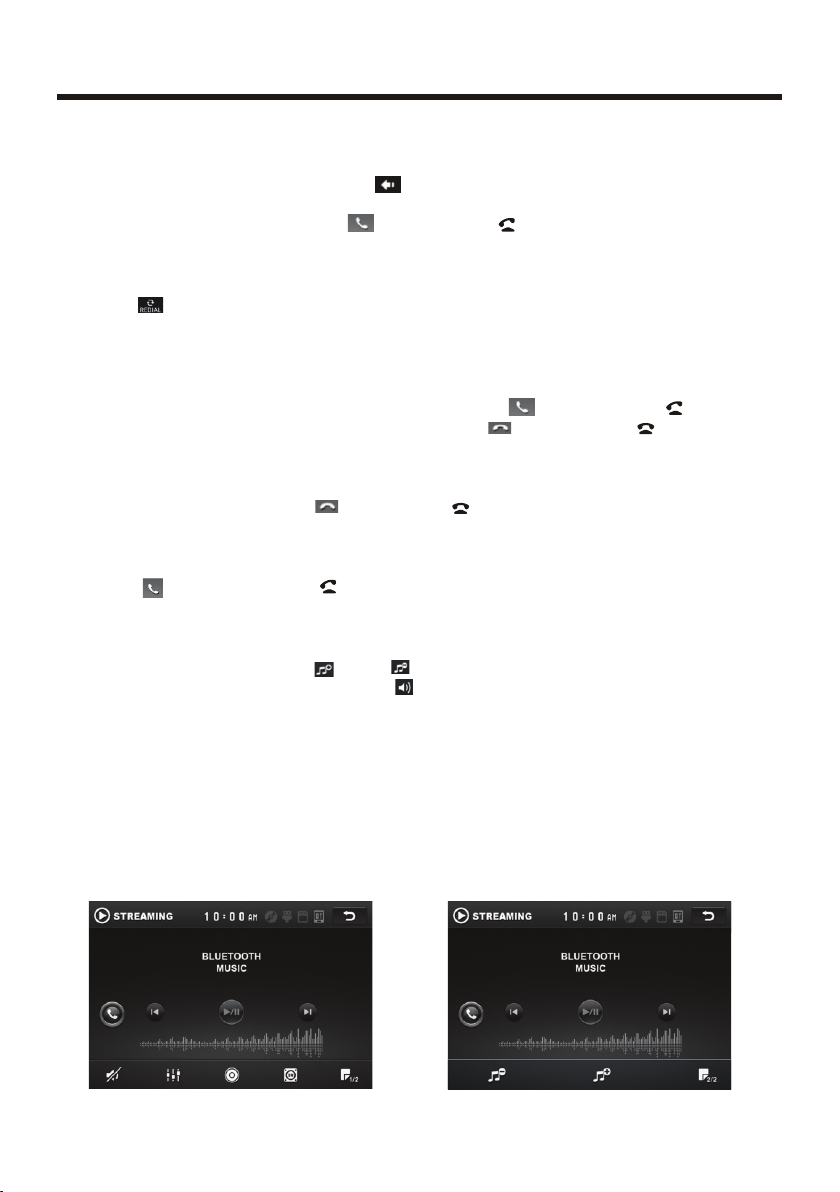

3 BLUETOOTH MUSIC
)
1 Touch STREAMING in home menu or pressing SOURCE button can pop up BT
MUSIC
interface as follows:
USER SWF
BT
MUSIC
-26-
Page 28
Touch Screen Operation
Mute function
To select the Equalizer mode
To decrease the volume level
To increase the volume level
Loudness Function
Subwoofer Function
Play/Pause the playing
To skip the next track
To skip the previous track
Ta p to turn to BT PHONE mode.
with bluetooth function).
2 When the play ,
) using your mobile phone with bluetooth function to audio/video
is paired and connected to the unit,
if it the audio of the mobile phone will change
into .
ThePlanet Audio supports A2DP, which enables the user to stream audio
from their device.
3he bluetooth device of supports AVRC P,
the BT Music interface except BT Music and their buttons on control
panel or on remote control are available for audio/video playback of your mobile
phone during playback. But n for /
and / buttons, and the function of resume playback after pausing or stopping
is available only for some mobile phone
* If you don’t want to use the bluetooth function of the car A/V system , long press
SEL button then use VOL knob or VOL+ and VOL- buttons switch
off .
the car A/V
) T the car A/V system
BLUETOOTH
system
to display BT, to
(after pairing and connecting a mobile phone
so these icons on
corresponding
o fast forward/backward functions
.
icon
-27-
Page 29
Touch Screen Operation
10:00 AM

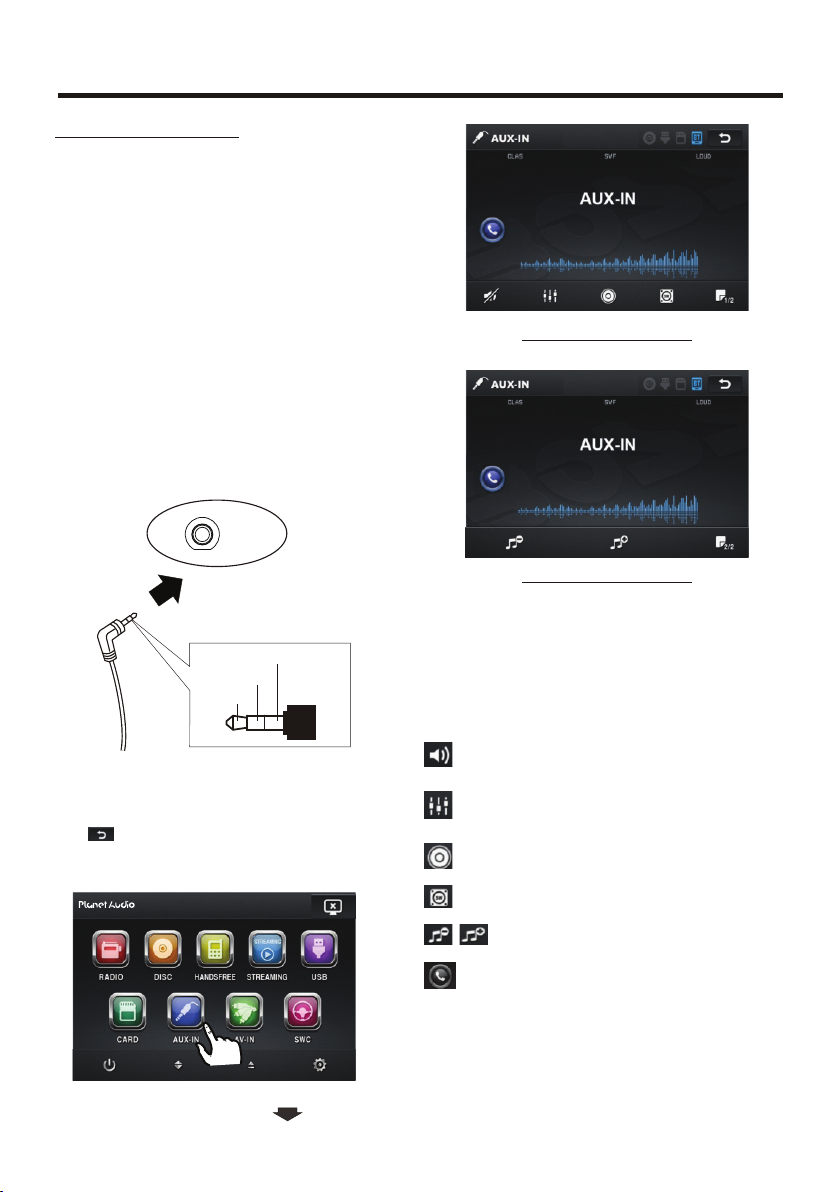

AUX Operation
On the front panel of this unit, there is an
AUX IN jack, follow the diagram below to
connect analogue replay devices(only
for the Audio connect, if you want to
connect the Video, please plug the RCA
<Video input > on the back of the unit .) .
Use this jack to
replay equipment such as Digital Video
players, computers, etc. Via the loudspeakers.
1). Please connect the external device
with stereo jack (3.5mm)plug the Aux in
socket .
AUX IN JACK FRONT PANEL
replay sound of other
AUX IN
AUX IN
Ground
Right
Left
10:00AM
AUX INTERFACE 1
10:00AM
AUX INTERFACE 2
3). You now hear the sound from the
external device played back through
the loudspeakers .
The function of the icons as follow:
2). In radio mode, touch the screen
of “ ” ICON to enter the main menu,
touch the “ AUX ” ICON to enter the
AUX IN mode .
10:00 AM
Tap to mute the sound.
Tap to select EQ as the same on the
remote control.
Tap to turn LOUD on or off.
Tap to select subwoofer frequency.
Ta p to adjust audio volume.
Ta p to turn to BT PHONE mode.
(after pairing and connecting a mobile
phone with bluetooth function).
-28-
Page 30
Touch Screen Operation
10:00 AM
AV Operation
Please plug the RCA <Video input >
on the back of the unit .
Touch the AV IN icon to enter the AV IN
mode.
10:00 AM
10:00AM
The function of the icons as follow:
Tap to mute the sound.
Tap to select EQ as the same on the
remote control.
Tap to turn LOUD on
or off.
Tap to select subwoofer frequency.
Ta p to adjust audio volume.
Tap to turn to BT PHONE mode.
(after pairing and connecting a mobile
phone with bluetooth function).
Note: To ensure safety while driving and
to comply with lows, drivers should
not watch video or operate the
video device while driving.
AV INTERFACE 1
10:00AM
AV INTERFACE 2
Now you can watch the video from your
External video equipment such as
Digital Video players, computers, etc.
-29-
Page 31
Touch Screen Operation
10:00 AM
10:00 AM
10:00 AM
USB OPERATION
Following the diagram below, connect
your USB device to the front panel
USB port . If it is properly connected,
the device will be mounted and start
playing automatically.
UBS
10:00 AM
10:00 AM
5
Card OPERATION
The unit can support playback MP3/WMA/
JPEG/MP4 and Divx format which are
stored on SD memory cards .
Please read the following instructions
before you start using a memory card .
Inserting the card as follow:
Label side
facing upward
Insert a card, push in till heard
a “CLICK”, then attach the
control panel again to play.
10:00 AM
5
10:00AM
SONG
1
2 3 4
001
002002
003
004
005
1 Current type (highlighted bar) .
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .
10:00AM
WEDDING MOV03247.MPG
1
CIMG3080.MOV
2 3 4
1 Current type (highlighted bar) .
2 Audio play
mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .
-30-
Page 32
Touch Screen Operation
10:00 AM

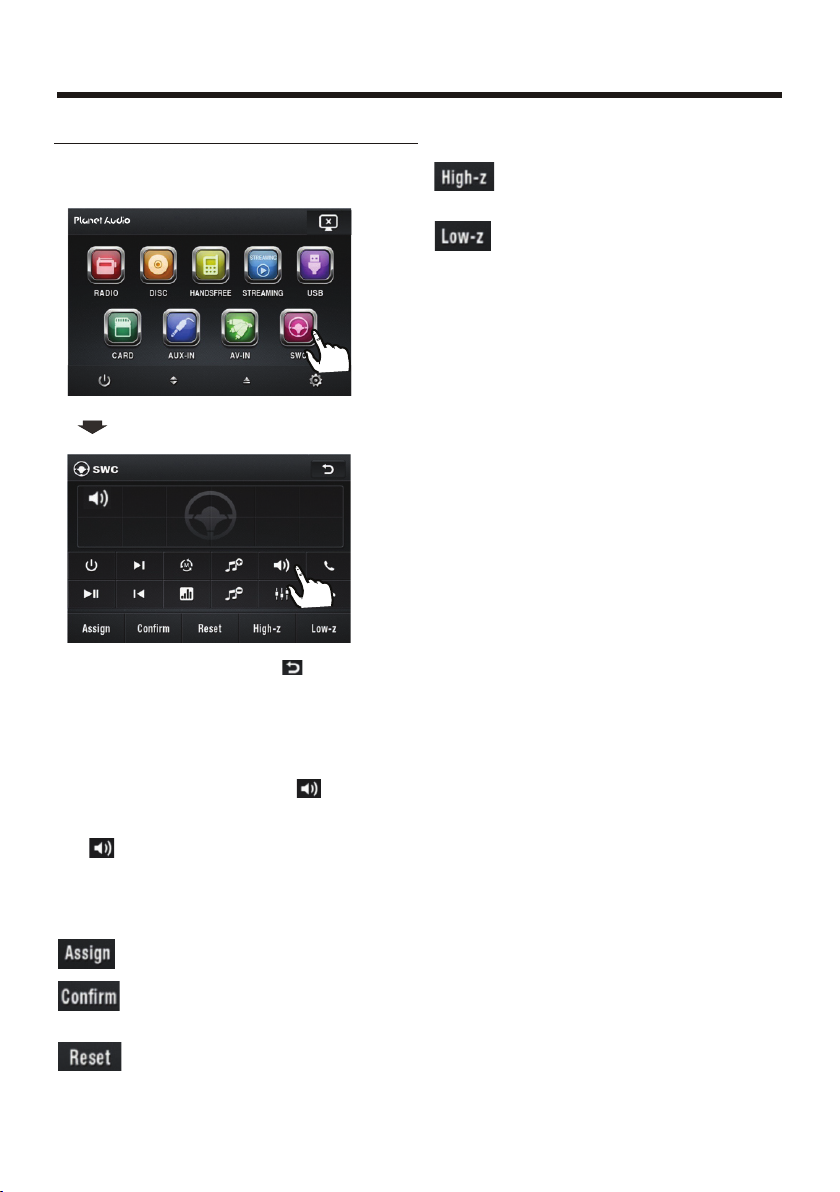

STEERING WHEEL CONTROL
Touch the SWC icon as follow to turn to
steering wheel control .
10:00 AM
When electric resistance is too
low, touch this icon to increase.
When electric resistance is too
high, touch this icon to reduce.
During setting, touch the icon to
turn to home menu.
There are 2 KEY for total 12 buttons to
save, first, tap Assign to open function
save, then select button 1 in KEY 1 on
steering
icon show in button 1 position then touch
Confirm, final turn the unit on again,
the function will save in button 1 of
KEY 1.
The function of the icons as follow:
After selection touch to confirm
operation.
Touch this icon to cancel the
input and resume load.
wheel and tap the icon, the
Touch to begin function save.
-31-
Page 33
Parental Control
* Parental Control
Q: After inserting a Digital Video disc into the disc slot,
and asks you to input a password, what should you do
?
A: The playing disc is locked by a rating level of parental control. If the current
rating level of parental control of the Digital Vi deo
of current disc, you must input the correct password of parental control to
unlock the parental control and enter a rating level one
of the current disc in order to play the disc.
* For factory preset password of parental control of Digital
see the .
part of Media Setup Menu
Appendix: Parental Control
Parental Control function of a Digital Video player can control playback of
movie ratings on a disc. You can set the Digital Vi de o player to be a certain
rating level of parental control using the Media Setup Menu. If the rating level
of parental control of a disc is higher than the one of the Digital Video player,
the Digital Vi de o player cannot play the disc.
The Digital Vi deo movie can be designed so that the Digital Vi deo player can
play different versions of content of a particular movie according to the different
rating levels of parental control. Depending on igital Video , the
scenes
scenes automatically.
that are not suitable for children will be cleared or replaced by suitable
if a dialogue box pops up
player is lower than the one
equal to or higher than
Vi deo player,
the D features
please
The rating levels of Parental Control are as follows:
Unlock
1 Kid Safe
2 G
3 PG
4 PG 13
5 PG R
6 R
7 NC 17
8 Adult
-32-
Page 34
Region Code for DVD
* Region Code
If you insert a disc into the disc slot and REGION ERROR is displayed, the car
multi-media system can not play the disc. The reason is that the region codes
of the car multi-media system and the used disc do not match each other.
Appendix: Region code of D
Motion Picture Association of America (MPAA) divided the world into 6 regions, and
gave every region a region code for locking and unlocking D playback.
Basically, a coded D player can play only the discs if its region code is the
same D player. Otherwise, it cannot play the disc.
as the code of the igital Video
Please
Video igital Video -
The problems caused by area code inconsistency production of
unlocked version D players and recodable
Region codes and the countries or areas represented by region codes are as follows:
Region 1: America, Canada, East-Pacific Inlands;
Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East;
Thailand, indonesia, etc.;
Region 4: Australia, New Zealand, Central South America, South Pacific Inlands;
Region 5: Russia, Mongolia, Indian Peninsula, Middle Asia, East Europe, North
Korea, North Africa, North-west Asia etc.;
Region 6: China mainland.
The 8 biggest film making companies of America are as follows:
note that only the D discs and D players produced by
the 8 biggest film-making companies of America The D
discs and D players not
companies of America are not restricted by the rule of region code. Generally, they
are called Free Region Code or Full Region Code.
Region 3: Taiwan, Hong Kong, South Korea,
South-east Asian countries include
igital Video
igital Video igital Video
-
igital Video
igital Video
igital Video igital Video
impose this restriction. igital
produced by the 8 biggest film making
has motivated the
D players .
1. WarnerBros;
2. Columbia;
3. 20thCenturyFOX;
4. Paramount;
5. Universal;
6. UA(UnitedArtist);
7. MGM(MetroDogwynMayer);
8. WaltDisney
-33-
Page 35
Specification
General :
Supply Voltage: 12V DC (11V-15V)
Current Consumption: Less than10 A
Signal System: Compositive video 1.0Vp-p 75
Discs Played:
5"(12 cm) single-sided, single-layer
(2)Compact Disc (CD-DA, VIDEO CD)
Audio Signal Output: 2ch&4ch line out
Characteristics:
(2)S/N Ratio
(3)Wow and Flutter Below measurable limits
RADIO Section:
For 2 Bands For
(Europe) (U.S.A.)
Frequency Coverage: 87.5 to108 MHz
IF: 10. 7 MHz 10.7
Sensitivity (S/N = 30 dB): 15 dBu 15dBu
Frequency Coverage: 522 to1620 KHz 530 to1710 KHz
IF:
Sensitivity (S/N = 20 dB): 40 dBu
5"(12cm) disc
(1)Frequency Response 20 Hz - 20 KHz
FM FM
450 KHz 450 KHz
(1)DIGITAL-VIDEO Disc
5"(12 cm) single-sided, double-layer
90 dB (JIS)
2 Bands
87.5 to107.9 Mhz
MHz
MW AM
40 dBu
TFT Monitor:
Monitor Screen Size: 7 Inch Wide
Color System: NTSC/PAL
BLUETOOTH:
Bluetooth specification: V1.2 Class 2
Bluetooth profile supported: Headset, Handsfree and A2DP & AVRC P profiles
Range of frequency: 2.4GHz Spectrum
NOTE:
Specifications and design are subject to modification, without notice, due to
improvements in technology.
-34-
Page 36
Troubleshooting
Before going through the check list, check wiring connection. If any of the problems
persist after check list has been made, consult your nearest service dealer.
SYMPTOM CAUSE SOLUTION
If the power supply is properly
connected to the car accessory
terminal,switch the ignition key
to "ACC"
Replace the fuse
Remove the
then put a new one
Insert the compact disc with
the label facing upward
Clean the disc or try to play a
new one
Cool off or until the ambient
temperature return to normal
Please switch to correct color
system from menu
Make proper connection
according to wire connection
For safety reasons no video/
images are displayed while the
vehicle is moving.
Engaging the parking brake will
cause images to be displayed.
Please choose a proper color
system.
Change the disc
Change the disc Record JPEG
files using a compliant
application
Press the RESET button.
Front panel is not properly fixed
into its place
Insert the antenna cable firmly
Select a station manually
disc in the player,
“”
No power
Disc can not be
loaded or ejected
Video/image
appears
black-white
No video/image
appears
No color in picture
JPEG disc can
not be played
back
The operation keys
do not work
The radio does not
work
The car ignition switch is
not on
The fuse is blown
Presence of disc inside the
player.
Inserting the disc in reverse
direction
The disc is extremely dirty
or defective
Temperature inside the car
is too high
The color system is
set incorrectly
The unit is not connected
to the parking brake
detection switch
The parking brake is not
engaged
The disc format is not
according to the TV-set
used (PAL/NTSC)
No JPEG files are recorded
on the disc.
JPEG files are not recorded
in a compliant format
The built-in microcomputer
is
not operating properly
due to noise
The antenna cable is not
connected
The signals are too weak
Made in China
88-J9732-00
-35-
Loading...
