Planet Audio P265IU Users Manual

CONTENTS LIST

PAGE CONTENTS

2 NOTE OF DISCS

3 ACCESSORY INCLUDED

4 INSTALLATION

6 DETACHABLE CONTROL PANEL

7 WIRING DIAGRAM

8 CONTROL PANEL FUNCTION

9 BASIC OPERATIONS

10 MENU OPERATION

12 AUDIO OPERATION

13 TUNER OPERATION

14 RDS OPERATION

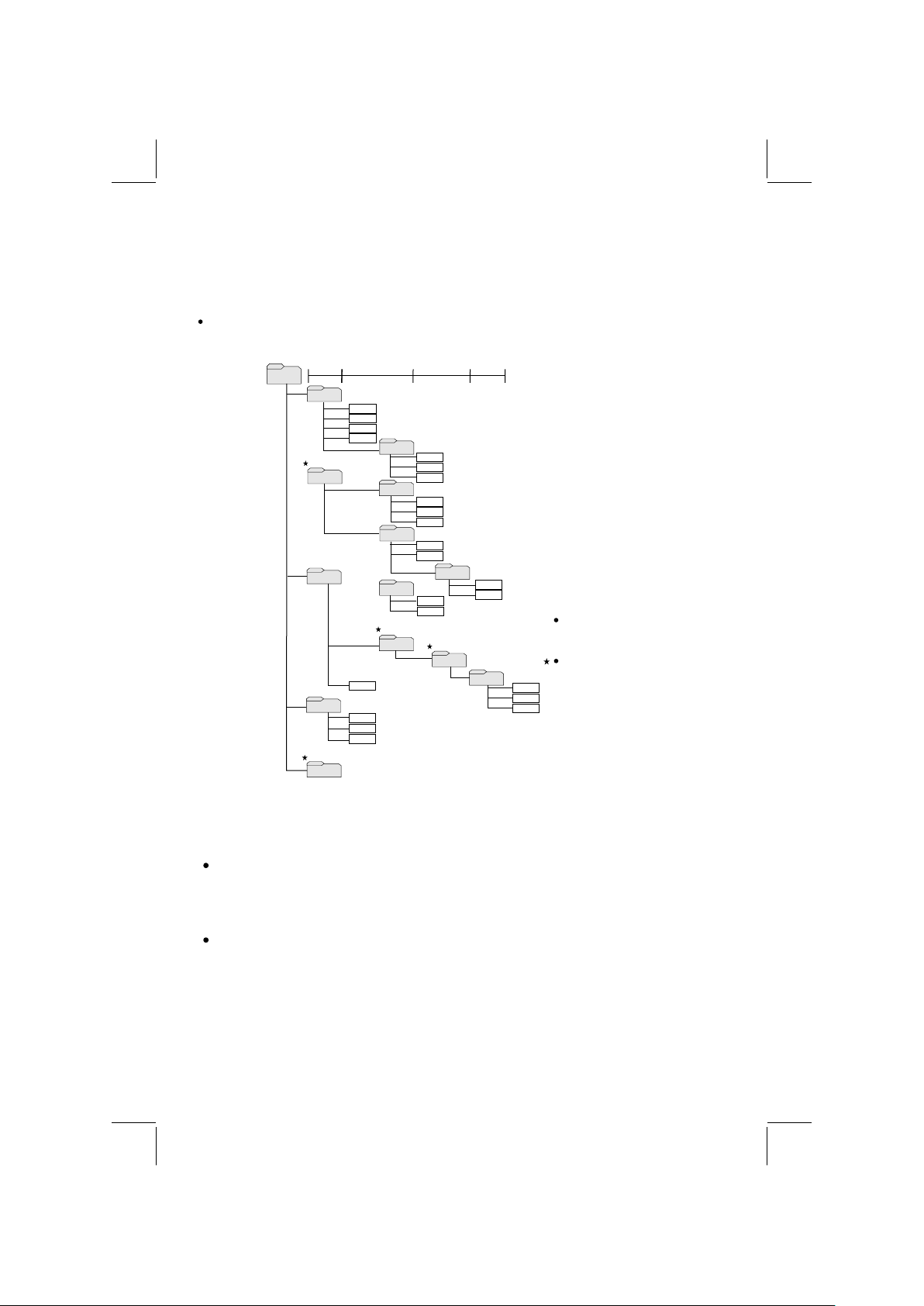

15 CD /MP3/WMA OPERATION

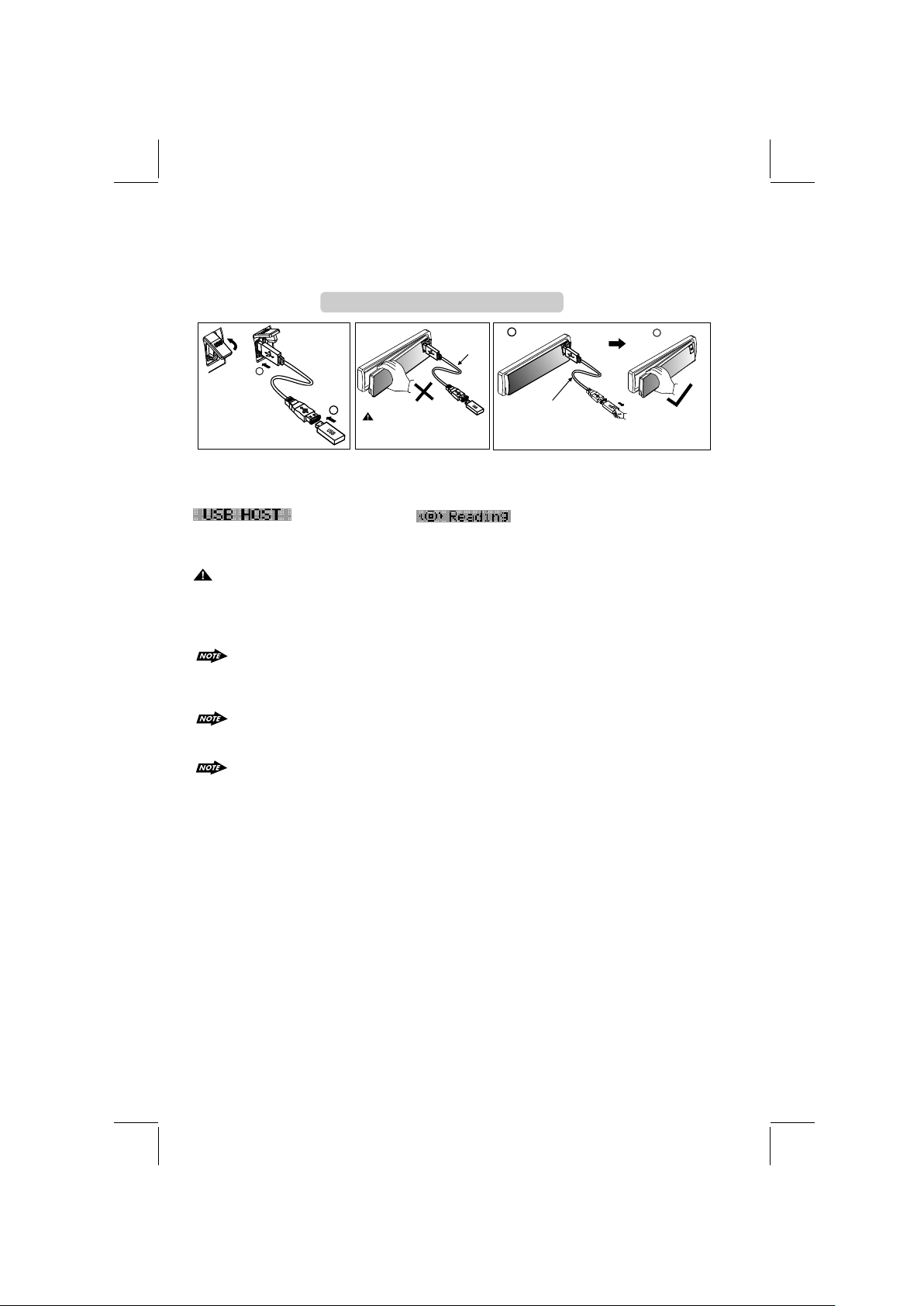

19 USB OPERATION

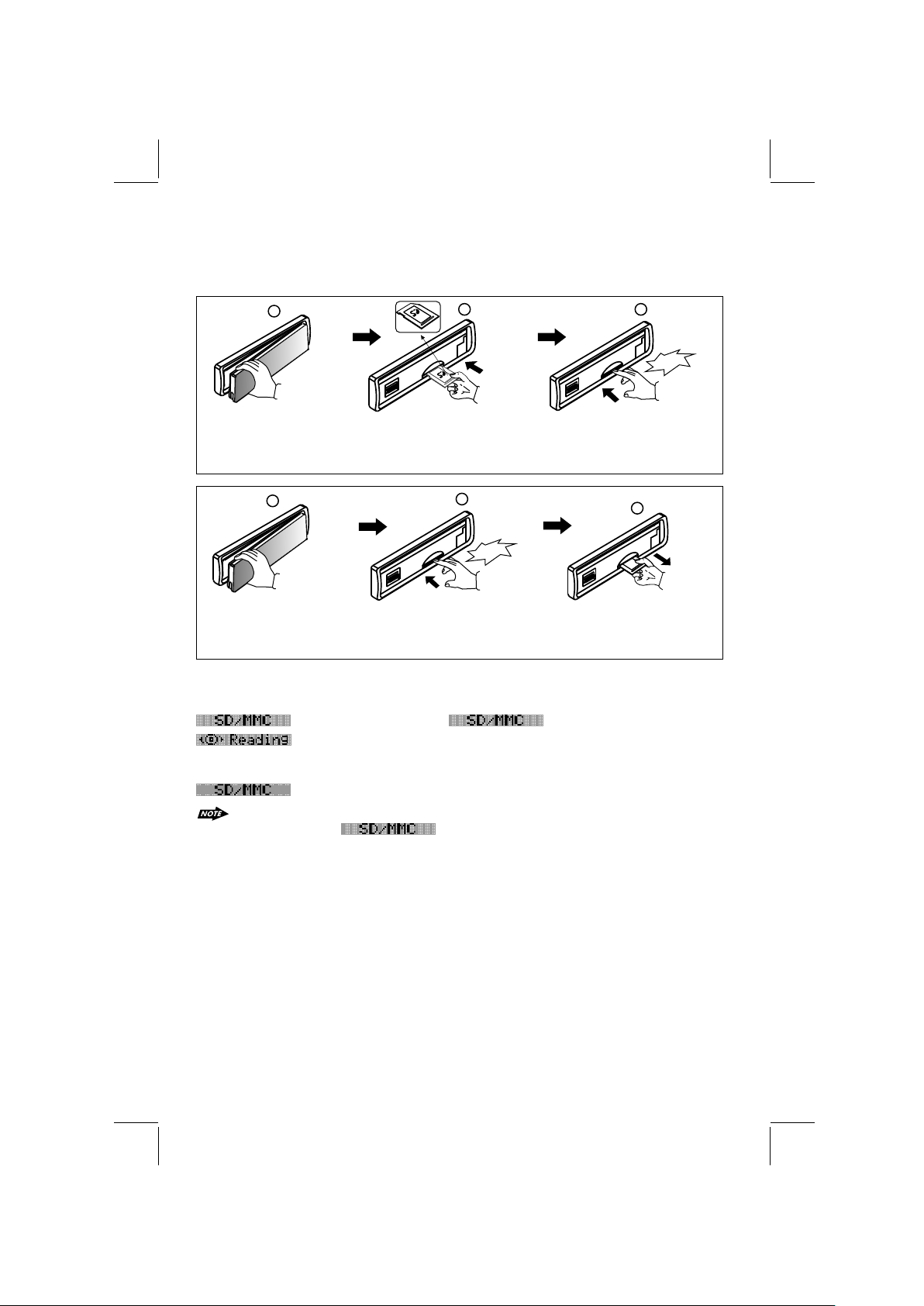

20 MEMORY CARD OPERATION

21 RECORDING OPERATION

24 MUSIC FILES TRANSFERRING

26 MUSIC FILES ERASING

28 FILES MANAGER

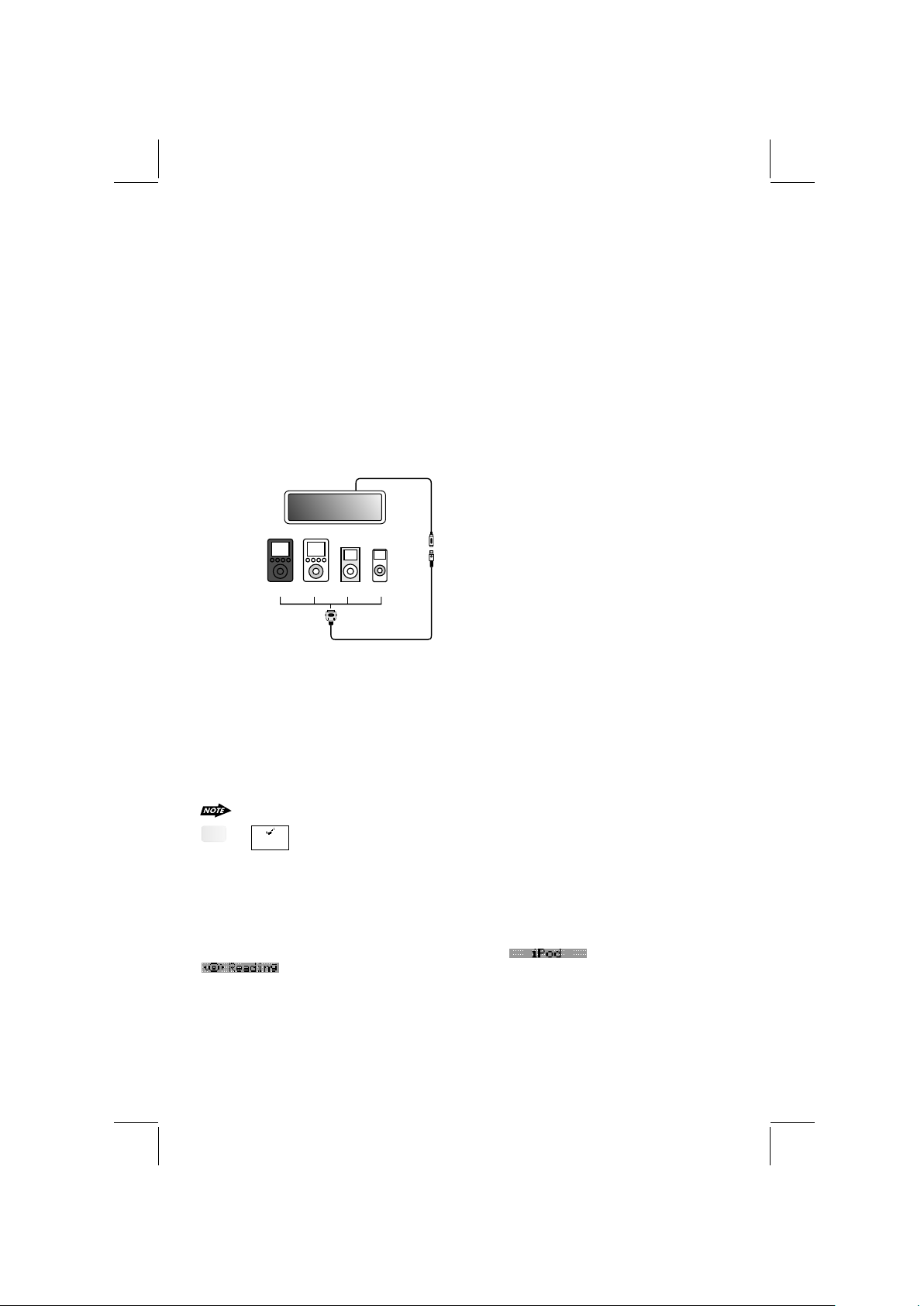

29 iPod OPERATION

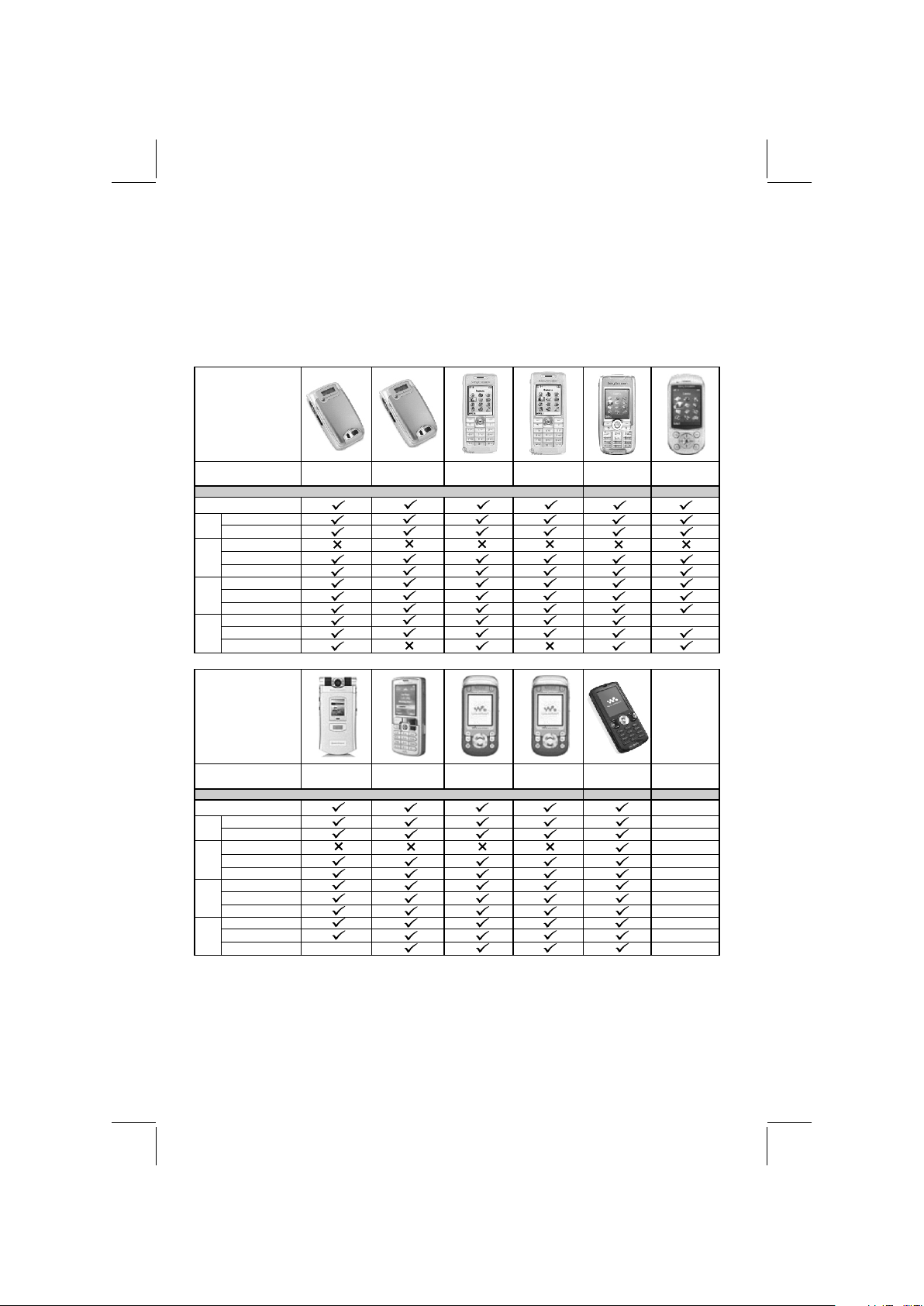

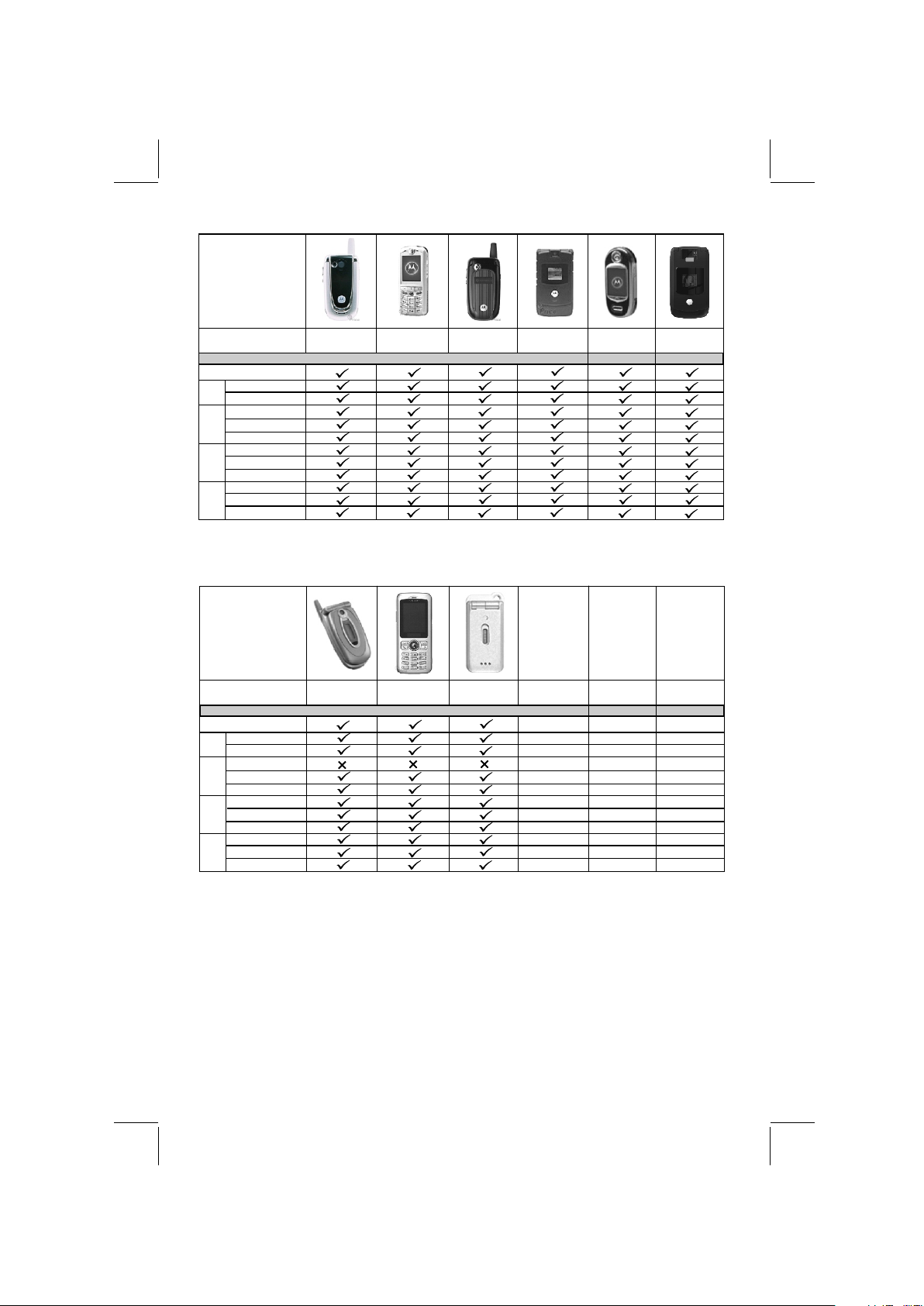

31 BLUETOOTH HAND FREE OPERATION

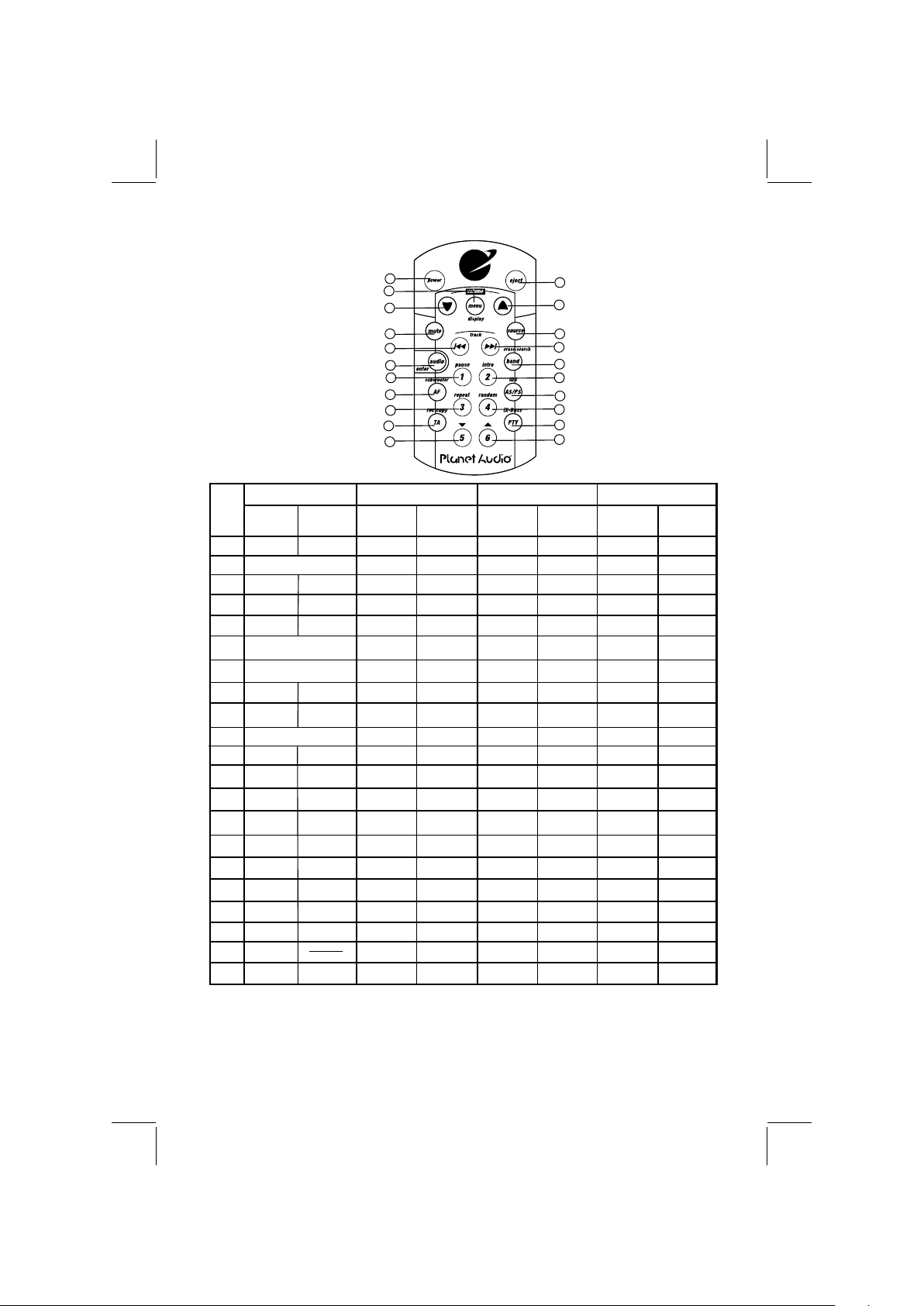

42 REMOTE FUNCTION

43 SPECIFICATIONS

44 TROUBLE SHOOTING

1. NOTE OF DISCS

MOISTURE CONDENSATION

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

NOTES ON CDs

A dirty or defective disc may cause sound dropouts while playing. To enjoy optimum sound, handle the disc as follows. Handle the disc by its edge. To keep the disc clean, do not touch the surface (P.1).

P. 1

Do not stick paper or tape on the disc (P.2).

P. 2

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave them in a car parked in direct sunlight where there can be a consider able rise in temperature inside the car (P.3).

Before playing, clean the discs with an optional cleaning cloth. Wipe each disc from the centre out (P.4).

P. 3

NOTES ON DISCS

If you use the discs explained below, the sticky residue can cause the CD to stop spinning and may cause malfunction or ruin your discs.

Do not use second-hand or rental CDs that have a sticky residue on the surface (for example, from peeled-off stickers or from ink, or glue leaking from under the stickers).

There are paste residue. Ink is sticky (P.5).

P. 5

Do not use rental CDs with old labels that are beginning to peel off.

Stickers that are beginning to peel away, leaving a sticky residue (P.6).

P. 6

Do not use your CDs with labels or stickers attached.

Labels are attached (P.7).

Do Not Use Special Shape CDs

P. 7

Be sure to use round shape CDs only for this unit and do not use any special shape CDs. Use of special shape CDs may cause the unit to malfunction.(P.8).

*******

****

**************

*******

P. 4

Do not use solvents such as benzene,

thinner,commercially available cleaners, or antistatic spray intended for analog discs.

CDE VERSION

Be sure to use CDs with disc mark

P. 8

RECORDABLE

REWRITABLE

TEXT

Only for this unit. CD-Rs and CD-RWs which have not

undergone finalization processing cannot be played. (For more information on finalization processing, refer to the manual for your CD-R/CD-RW writing software or CD-R/CD-RW recorder.) Additionally, depending on the recording status, it may prove impossible to play certain CDs record on CD-R or CD-RW.

2. ACCESSORY INCLUDED

When first unpacking your new full detachable DVD head unit, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the player.

Owner’s Manual

Warranty Card

’

ard

Remote control

Lithium Battery

Half Sheeve

Insert Key

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4X12mm)

5. Screw

6. Support Strap

7. Plain washer

3. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop. If installation angle exceeds 30 from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive vibration. Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

182

1. Dashboard

2. Holder After inserting the half sleeve into the

dashboard, select the appropriate tab according to the thickness of the dashboard material and bend them inwards to secure the holder in place.

3. Screw

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4x12mm)

5. Screw

6. Support Strap Be sure to use the support strap to secure

the back of the unit in place. The strap can be bent by hand to the desired angle.

7. Plain washer

Removing the unit

a. Frame b. Insert fingers into the groove in the

front of frame and pull out to remove the frame. (When re-attaching the

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted. You must do this before you install the front panel, otherwise it can't be attached.

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket.

frame, point the side with a groove down wards and attach it.)

c. Insert the levers supplied with the

unit into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard.

1. Select a position where the screw holes of the bracket and the screw holes of the main unit become aligned (are fitted) and tighten the screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring, and half-sleeve are not used for method B installation.

4. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

PANEL RELEASE BUTTON

Attaching the DCP

3. Remove the D.C.P.

1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P. (As shown on the diagram).

2. Then press the left side of D.C.P. onto the main

unit until a “click” sound is heard.

CAUTION

DO NOT insert the D.C.P from the left side. Doing so may damage it. The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To prevent damage to the D.C.P, always store it in a protective case after detaching it. The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the

Socket

back of the D.C.P.

RESETTING THE UNIT:

After releasing the front panel, use a pencil or any non-metalic object to press & hold the reset button for five seconds to reset the unit.

5. WIRING DIAGRAM (20 PIN + ISO PLUG)

ANTENNA

JACK

ANTENNA

EXTENDER

CABLE

PIN(B8) GREEN/BLACK

PIN(B7) GREEN

CONNECTOR B

Figure 2

ISO CONNECTOR 4PIN+8PIN

FEMALE WITH MALE TERMINAL

ISO CONNECTOR WIRING CHART

WIRE COLOR

YELLOW

BLUE

RED

BLACK

VIOLET

VIOLET/BLACK

GREY

GREY/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

FUSE

PIN(B4) GREY/BLACK

PIN(B5) WHITE

PIN(B6) WHITE/BLACK

CONNECTOR A

8877

55 66

33 44

11 22

CONTANT 12 VOLTS (+)

POWER ANTENNA

IGNITION(ACC)

GROUND

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER (-)

RIGHT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER (-)

LEFT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (-)

LEFT REAR SPEAKER (+)

LEFT REAR SPEAKER (-)

PIN(B2) VIOLET/BLACK

PIN(B3) GREY

FUNCTION/LABEL

REAR LINE OUT

FRONT LINE OUT

PIN(B1) VIOLET

PIN(A8) BLACK

CONNECTOR

(See Figure 2)

20-PIN

AUDIO/POWER

HARNESS

(See Figure 1)

GREY

BLACK

PIN(A7) RED

PIN(A5) BLUE

ISO

PIN(A4) YELLOW

BLUE

SUB WOOFER

WHITE

L-CH

RED

R-CH

WHITE

L-CH

RED

R-CH

GREY/BLACK

GREY

VIOLET

VIOLET/BLACK

GREEN

GREEN/BLACK

RED

BLACK

RED

WHITE

WHITE/BLACK

BLUE

YELLOW

BLACK

WHITE

RED

BLACK

WHITE

RCA-TO-RCA CABLES

WIRE COLOR

WHITE

iPod ready cable

RCA-TO-RCA CABLES

(not supplied)

RIGHT FRONT SPEAKER (-)

RIGHT FRONT SPEAKER (+)

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER (-)

LEFT REAR SPEAKER (+)

LEFT REAR SPEAKER (-)

IGNITION(ACC)

REAR PRE-AMP LINE OUT COMMON

RIGHT REAR PRE-AMP LINE OUT

LEFT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (-)

POWER ANTENNA

CONTANT 12 VOLTS (+)

CHASSIS GROUND

LEFT FRONT PRE-AMP LINE OUT

RIGHT FRONT PRE-AMP LINE OUT

FRONT PRE-AMP LINE OUT COMMON

LEFT REAR PRE-AMP LINE OUT

YELLOW

RED

WHITE

SUB

WOOFER

AMP

FUNCTION/LABEL

R-CH

AUX LINE IN

L-CH

iPod

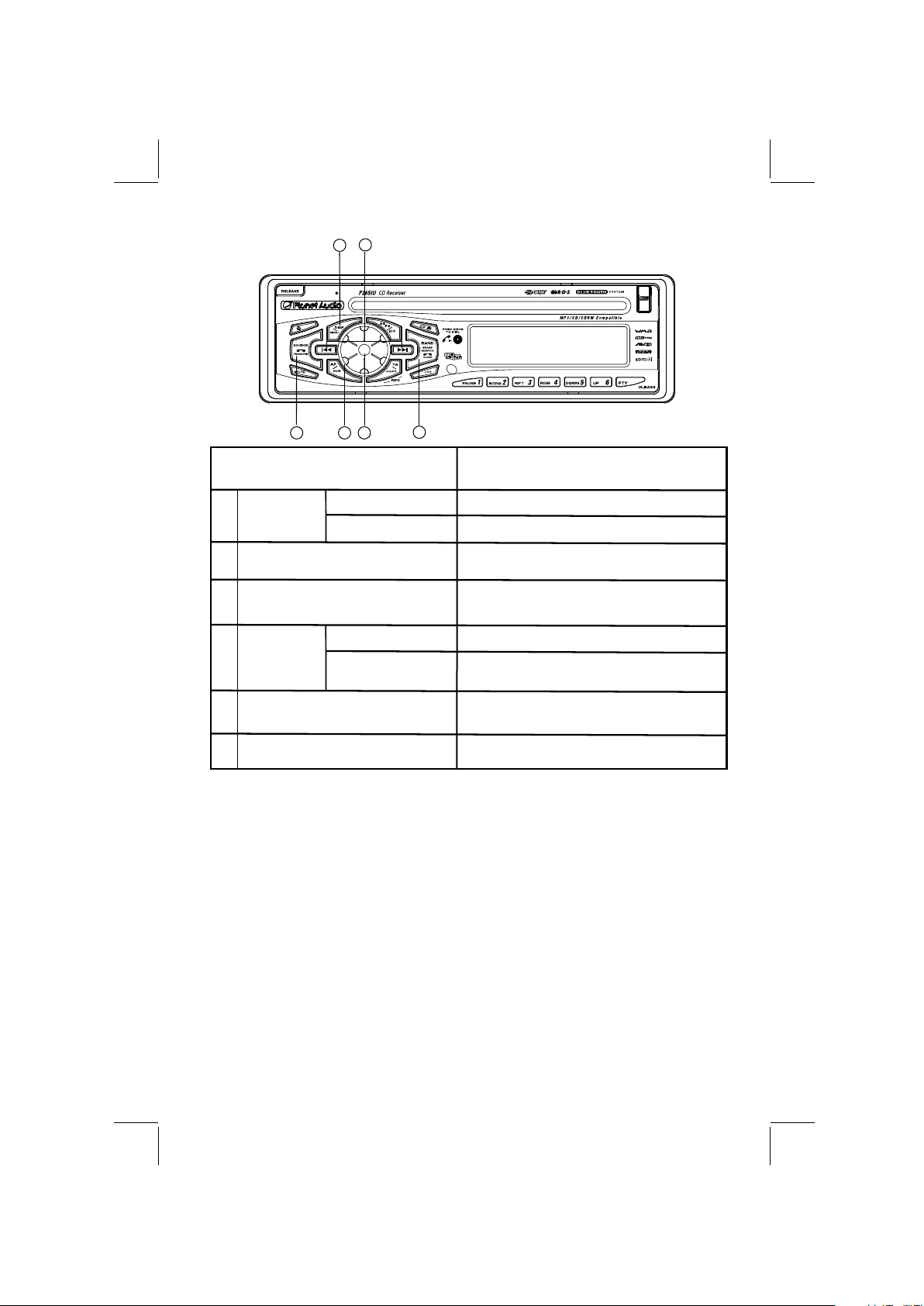

6. CONTROL PANEL FUNCTION(RDS+BLUETOOTH+iPOD)

371

OPERATIONS:

SYST EM TUNE R C D/MP3 /W MA

KEY

Sho rt Pre ss

Pow er

Sou rce

Enc oder Vol ume

Dis play

Mut e

22 23

Lon g

Pre ss

Aud io Men u

Sub- W AF

Rec ord

Copy

ix- Bass

Sho rt Pre ss

Band

PTY

PS AS

See k Up

See k Down

LO/ DX

Lon g Pre ss

Sho rt Pre ss

Eje ct

Panel r el ea se b ut to n

Ent er

Fil e/Fol der

Sea rch

Mem ory 1

Mem ory 2

Mem ory 3

Mem ory 4

Mem ory 5

Mem ory 6

Pau se

/Pl ay

Int ro

Rep eat

Ran dom

Fol der

Dow n

Fol der

USB Cover / Socket

Trac k/Fil e

Tune U p

Tune

Trac k/Fil e

Dow n

ID3

12 13

Lon g

Pre ss

Fil e

Era se

Fol der

Int ro

Fol der

Rep eat

Fol der

Rando m

Fas t

For ward

Fas t

Bac kward

14 15 16 17

BLUE TO OT H

Pho ne

Dia l

Cle ar

Lon g

Pre ss

Cal l

Trans fer

Sho rt Pre ss

Ans wer Dia l

iPod

Sho rt

Pre ss

Ent er

iPo d

Sea rch

iPod inf ormati on

Pau se

/Pl ay

Rep eat

Shu ffle

Fil e Up

Fil e Down

Lon g

Pre ss

Alb um

Rep eat

Alb um Shu ffle

Fas t

For ward

Fas t

Bac kward

7. BASIC OPERATIONS

3) PANEL RELEASE BUTTON (REL)

Pr ess this but t on to remov e th e co ntro l pa n el.

1) POWER ON/OFF BUTTON ( )

Press POWER button or any other button on the front of the radio to turn the unit on. Press

PO W E R b u tt o n a g a in t o t u r n t h e u n i t o f f .

22) MUTE BUTTON (MUTE)

Press the mute button momentarily to mute the audio volume, and "Mute" will flash in the display. Press the mute button again to restore volume to the previous setting.

8) SUB-WOOFER (SUB-W) Long press the SUB-W button to activate the Subwoofer function On, and “Subwoofer” will

appear on the LCD display for 3 seconds. press the SUB-W button again to turn off the Subwoofer function.

10) iX-BASS BUTTON (iX-Bass ) Long press the iX-Bass button to turn on the function, and “iX-Bass” will appear in

the LCD display for 3 seconds. Press the iX-Bass button again to turn off the function

5) MODE BUTTON (MODE)

Press MODE button to select a different mode of operation as indicated on the display panel. Available modes include Tuner, CDP, USB Host, SD/MMC, iPod and Aux Line In .

AUX INPUT

Connect the external signal to the RCA line in jack located at the rear of the press Mode button to select Aux mode. Press Mode Button again to cancel Aux Mode and return to previous mode.

6) ENCODER VOLUME BUTTON

To increase the volume, rotate the volume control decrease the volume, rotate the volume control counter clockwise.When volume is adjusted, the volume level will be shown on the display panel as a number ranging from 0 (lowest) to 46 (highest).

iX-Bass

unit, then

clockwise. To

8. MENU OPERATION

18) MENU FUNCTION LIST (DISPLAY/MENU)

Press DISPLAY/ MENU for more than 3 seconds to access the menu. will appear in the display momentarily. Navigate the menu by pressing DISPLAY/ MENU momentarily to move forward to the next option. The menu can also be navigated by using the Tuning Up or Tuning Down Button to move to the next or previous option. Once the desired option appears in the display, adjust that option by rotating the volume control within 5 seconds. The following options are adjusted through this menu feature.

Paring

This feature is used to pairing the unit's Blue tooth system to your mobile phone or other device. Under the MENU “Pairing” mode then press Audio button to start activating the Pairing.

Tips

Pls refer to HAND FREE Operation regarding the details operation of “PAIRING”.

Re-connection/Dis-connection

This feature is allows to Re-connect or Dis-connect to the paired mobile phone or device by manually. Under the Menu- “RE-CONN”mode, Rotate the encoder to navigate thru “RE-CONN” (re-connection) and “DIS-CONN”(Dis-connection). After selected the mode for connection then press Audio button to start activating the connection mode.

Incoming call ringing volume (PHONE VOL)

The unit can preset the Ringing volume level for any incoming call. The default RINGING VOLUME LEVEL VALUE is “20”. Rotate the encoder knob to adjust from Min 00 to Max 38.

Auto Answer (A ANSWER)

The unit is default of “off' mode. If “On” is selected.. The unit is automatically answer any incoming call without pressing PHONE button if ON is selected..

Contrast

The contrast level of the display is set at "CONTRAST 05" by default. Rotate the volume control To adjust the contrast level from 00 to 10.

Clock Format

This option allows selection of a 12 hour or 24 hour clock format. "CLK FORMAT 12H" is the Default setting. Rotate the volume control to change to the 24 hour clock format.

Time Set

The time on the clock will be set to 12:00 as the default. Program the current time by rotating the volume control clockwise to adjust the minutes and counterclockwise to adjust the hours.

BLUETOOTH

Bluetooth

AREA (TUNER FREQUENCY SPACING)

This option allows the selection of the frequency spacing appropriate for your area. "AREA U.S.A." is the default setting. Rotate the volume control to select the U.S.A. Latin America, Europe or Oirt options.

IMPORTANT NOTE ON THE EUROPEAN / RDS TUNER SETTING

This unit the “Tuner Area” setting is default at “U.S.A” frequency. If user is using this unit in European or ORIT Area with RDS radio System. Please go to the “Menu - Tuner Set” and change Tuner setting to “Europe” or “ORIT”. Once selected “Europe” or “ORIT” tuner setting, the radio system will change from U.S.A to European RDS or ORIT RDS System.

1) For details operation of the Menu-Tuner Setting, please refer to page “Menu Operation”.

2) For details operaion of the RDS system, please refer to page “RDS Operation”.

Regional On/Off (Region)

REGIONAL “OFF” will be displayed by default. The user now has 5 seconds to adjust by using volume up/down button from “off” to “On” . If “on” is selected when the AF search or PI seek, it will implement to station which have all the PI codes which are the same as current station.. If “off” is selected, when AF search or PI seek the regional code in the format PI code will be ignored. A regional station is possible to be received.

The Regional function On/Off Setting is valid when the “AF” function is “on”

Programmable Turn-on Volume (VOL PGM)

This option allows selection of the volume level the radio will automatically assume when first turned on. "VOL PGM 12 " is the default setting, which will turn the radio on at the volume level selected when the unit was last turned off.

To program a specific volume level for the radio to turn on at, rotate the volume control to select "VOLUME LEVEL”. Within 5 seconds.

Beep Tone

The beep tone feature allows the selection of an audible beep tone to be heard each time a button is pressed on the face of the radio. "BEEP TONE On" is the default display. Rotate the volume control to select the "BEEP TONE Off" option.

Illumination Color (COLOR)

This option allows selection between two colors for the LCD display backlight illumination of the unit. "COLOR 1" is the default display and will illuminate the unit in blue backlight. Rotate the volume button to select "COLOR will illuminate the display or illumination in red backlight.

Record Quality (REC MODE)

This feature allows the selection of the Recording Quality for FM, The default mode is “Std“ (Standard mode) Rotate the volume control to select the "High" (High Quality Mode) option.

Tips

Please refer to RECORD Operation regarding the details specification of the Std / High

Quality mode Under Recording is progressing, the “REC MODE” will not appear in the Menu list.

2”, which

AUX Line in.

9. AUDIO OPERATION

Audio Menu

Press “AUDIO” button to access the Audio Menu. User can navigate thru the Audio Menu items by pressing the / “AUDIO” button repeatedly, or by pressing the Tuning Up or Tuning Down Button. Once the desired menu item appears on the display, adjust that option by using the Volume Up or Down button within 5 seconds. The following menu items can be adjusted as described above. The unit will automatically exit the Audio Menu after five seconds of inactivity.

VOLUME (Volume Level)

User has 5 seconds to use the Volume button to adjust the desire volume level, the volume level will be shown on the LCD display ranging from 00 (lowest) to 46 (highest).

BASS (Bass Level)

User has 5 seconds to use the Volume Up or Down button to adjust the desired Bass level range from -6 to +6.

TREBLE (Treble Level)

User has 5 seconds to use the Volume Up or Down button to adjust the desired Treble level range from -6 to +6.

BALANCE

User has 5 seconds to use the Volume Up or Down button to adjust the Balance between the right and left speakers from R12 (full right) to L12 (full left). “C00” represents an equal balance between the right and left speakers.

FADER

User has 5 seconds to use Volume Up or Down button to adjust the Fader between the front and rear speakers from R12 (full rear) to F12 (full front). “C00” represents an equal balance between the front and rear speakers.

10. TUNER OPERATION

7) BAND BUTTON (BAND/SEARCH)

Press BAND to change between FM bands and AM(MW) bands.

20-21) TUNING UP/DOWN BUTTON ( )

Manual Tuning Press the Up Tuning or Down Tuning button for more than 3 seconds to move the radio frequency number up or down one step.

Auto Seek Tuning Press the Up Tuning or Down Tuning button for less than 3 seconds to move to next station automatically.

12-17) PRESET STATIONS BUTTONS

Six numbered preset buttons store and recall stations for each band.

Store a Station

Select a band (if needed), then select a station. Hold a preset button for 3 seconds. The preset number will appear in the display.

Recall a Station

Select a band (if needed). Press a preset button to select the corresponding stored station.

11) AUTOMATICALLY STORE / PRESET SCAN (AS/PS) Automatically Store

Automatically select 6 strong stations and store them in the current band. Select a band (if needed). Press AS/PS button for more than three seconds. The new stations replace stations already stored in that band.

Preset Scan

Scan stations stored in the current band. Select a band (if needed). Press AS/PS button for less than 3 seconds. The unit will pause for ten seconds at each preset station. Press AS/PS button again to stop scanning when the desired station is reached.

STEREO

The unit will automatically pick up a stereo signal, when available. When in stereo mode, the ST icon appears in the display. When no stereo signal is available, the unit will automatically revert to mono operation, and no icon will be displayed.

23) LOCAL / DISTANCE SELECTOR

Short press the LO/DX button to select between Local or Distant model. This feature is used to designate the strength of the signals at which the radio will stop during automatic tuning. "Distance" is the default, allowing the radio to stop at a broader range of signals. To set the unit to select only strong local stations during automatic tuning, press this button until "Local" appears in the display.

IMPORTANT NOTE ON THE EUROPEAN / RDS TUNER SETTING

1) For details operation of the Menu-Tuner Setting, please refer to page “Menu Operation”.

2) For details operaion of the RDS system, please refer to page “RDS Operation”.

+ 32 hidden pages

Planet Audio P265IU Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
