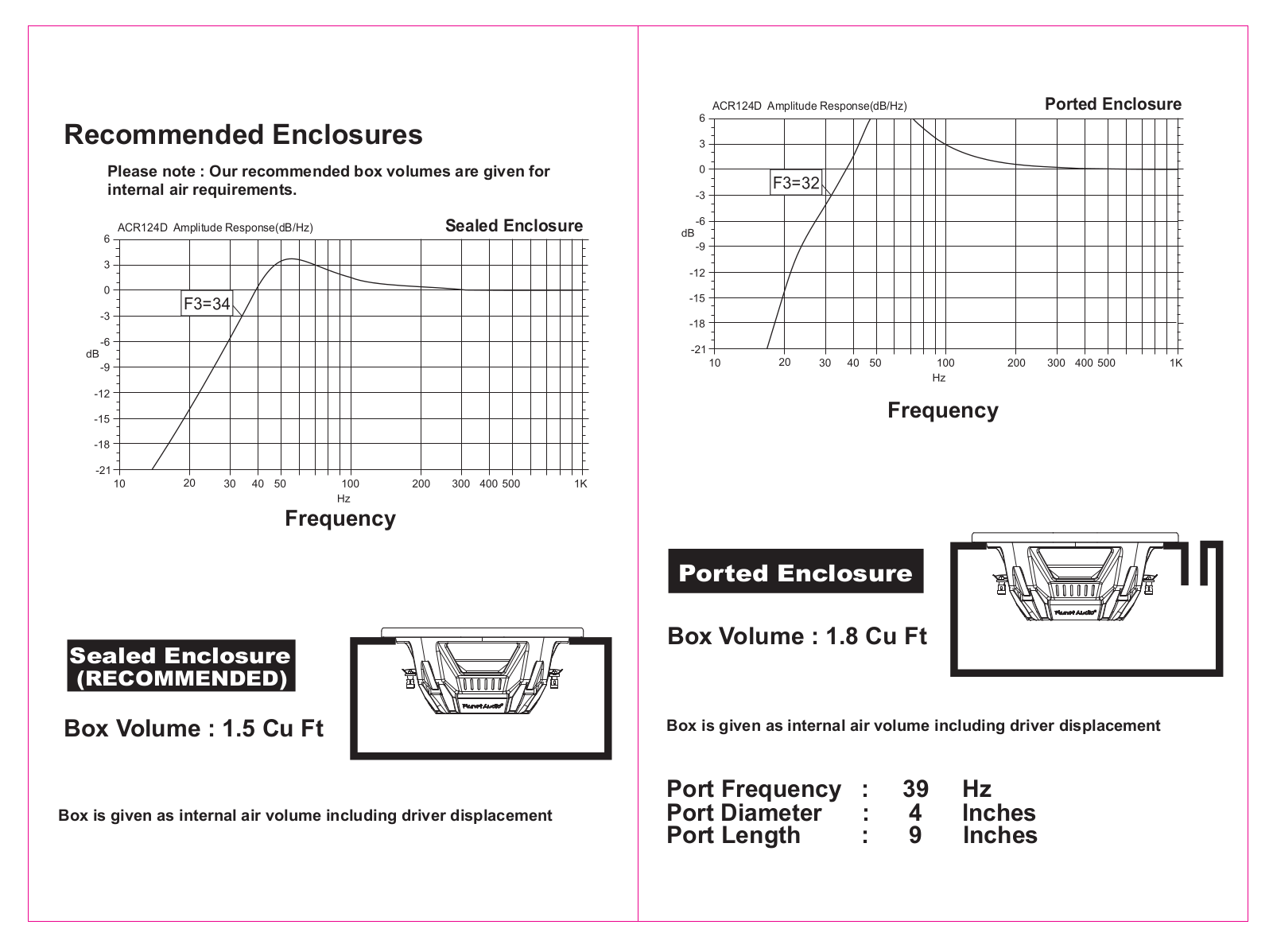

Recommended Enclosures

Please note : Our recommended box volumes are given for
internal air requirements.

ACR124D Amplitude Response(dB/Hz)

Ported Enclosure

ACR124D Amplitude Response(dB/Hz)

Frequency

Sealed Enclosure

(RECOMMENDED)

Sealed Enclosure

Frequency

Ported Enclosure

Box Volume : 1.8 Cu Ft

Box Volume : 1.5 Cu Ft

Box is given as internal air volume including driver displacement

Box is given as internal air volume including driver displacement

Port Frequency : 39 Hz
Port Diameter : 4 lnches

Port Length : 9 lnches

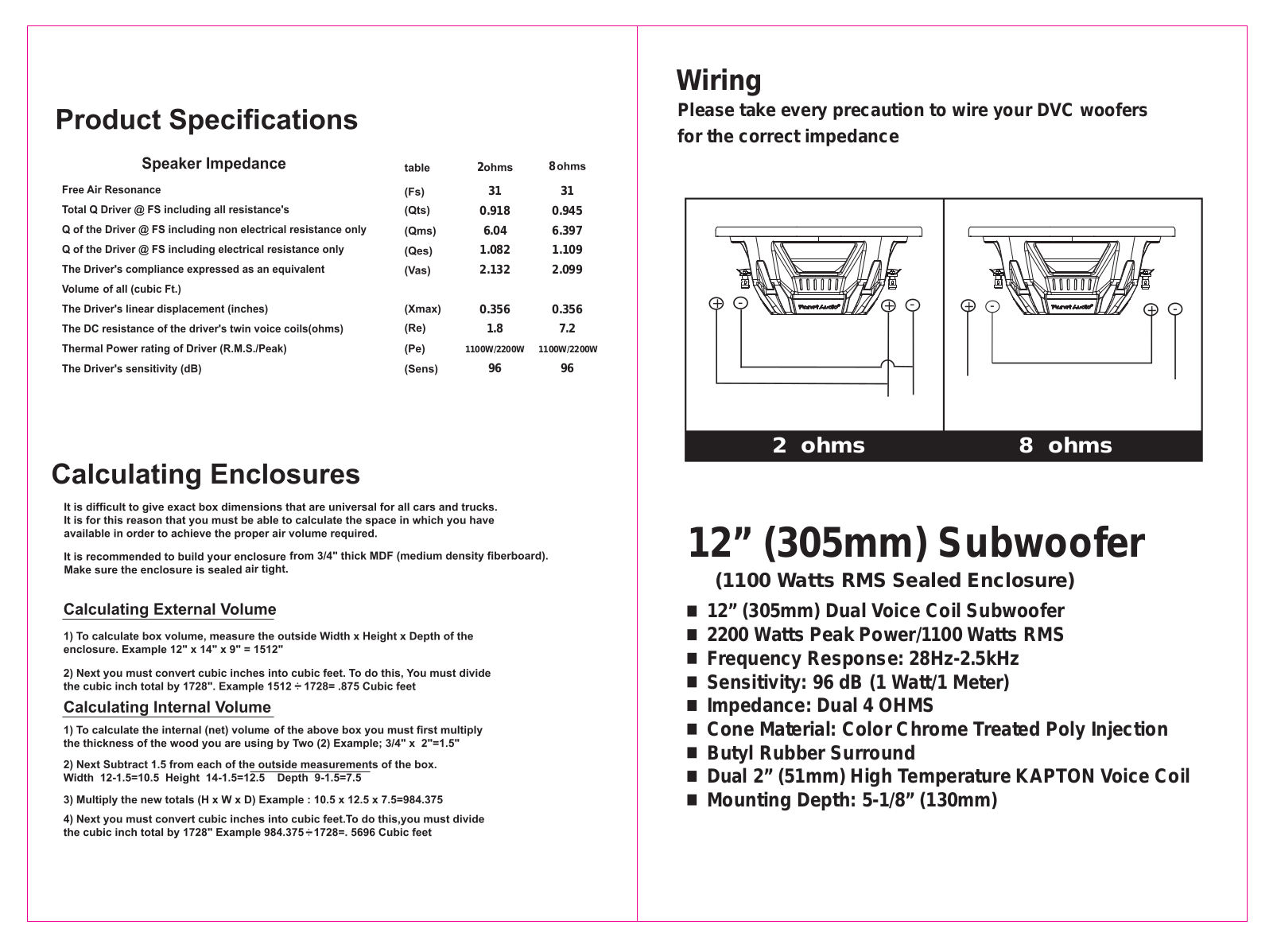

Wiring

Please take every precaution to wire your DVC woofers
for the correct impedance

2

31

0.918

6.04

1.082

2.132

0.356

1.8

1100W/2200W

96

8

31

0.945

6.397

1.109

2.099

0.356

7.2

1100W/2200W

96

-

+

-

+

-

+

2 ohms 8 ohms

12” (305mm) Subwoofer

(1100 Watts RMS Sealed Enclosure)

-

+

12” (305mm) Dual Voice Coil Subwoofer
2200 Watts Peak Power/1100 Watts RMS
Frequency Response: 28Hz-2.5kHz
Sensitivity: 96 dB (1 Watt/1 Meter)
Impedance: Dual 4 OHMS
Cone Material: Color Chrome Treated Poly Injection
Butyl Rubber Surround
Dual 2” (51mm) High Temperature KAPTON Voice Coil
Mounting Depth: 5-1/8” (130mm)
