PLANET XGS3-24042 User Manual
XGS3-2SFP+
XGS3-2SFP+
1 2
1 2
Note
2-Port 10G SFP+ Optic Module
Quick Installation Guide

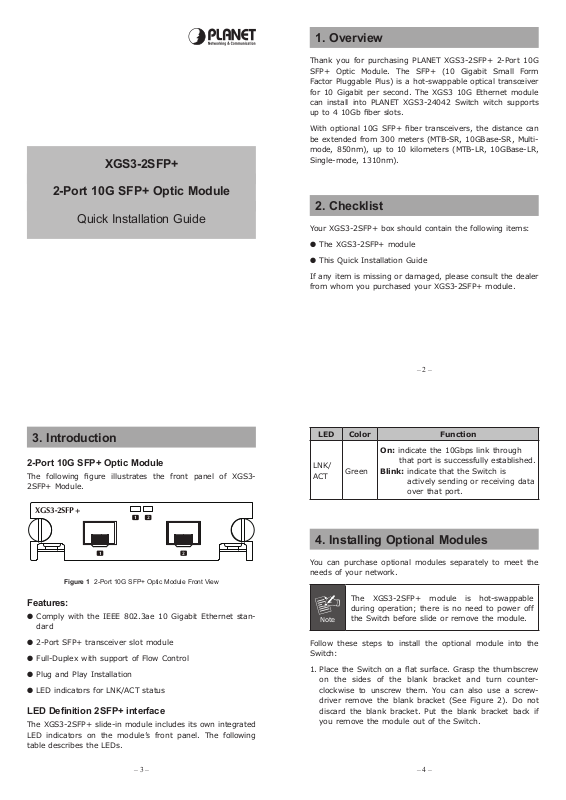

1. Overview
Thank you for purchasing PLANET XGS3-2SFP+ 2-Port 10G
SFP+ Optic Module. The SFP+ (10 Gigabit Small Form
Factor Pluggable Plus) is a hot-swappable optical transceiver
for 10 Gigabit per second. The XGS3 10G Ethernet module
can install into PLANET XGS3-24042 Switch witch supports
up to 4 10Gb ber slots.
With optional 10G SFP+ ber transceivers, the distance can
be extended from 300 meters (MTB-SR, 10GBase-SR, Multimode, 850nm), up to 10 kilometers (MTB-LR, 10GBase-LR,
Single-mode, 1310nm).
2. Checklist
Your XGS3-2SFP+ box should contain the following items:
● The XGS3-2SFP+ module
● This Quick Installation Guide
If any item is missing or damaged, please consult the dealer
from whom you purchased your XGS3-2SFP+ module.
3. Introduction
2-Port 10G SFP+ Optic Module
The following gure illustrates the front panel of XGS3-
2SFP+ Module.
Figure 1 2-Port 10G SFP+ Optic Module Front View
Features:
● Comply with the IEEE 802.3ae 10 Gigabit Ethernet stan-
dard
● 2-Port SFP+ transceiver slot module
● Full-Duplex with support of Flow Control
● Plug and Play Installation
● LED indicators for LNK/ACT status
LED Denition 2SFP+ interface
The XGS3-2SFP+ slide-in module includes its own integrated
LED indicators on the module’s front panel. The following
table describes the LEDs.
– 3 – – 4 –
– 2 –
LED Color Function
On: indicate the 10Gbps link through
LNK/
ACT
Green
that port is successfully established.
Blink: indicate that the Switch is
actively sending or receiving data
over that port.
4. Installing Optional Modules
You can purchase optional modules separately to meet the
needs of your network.
The XGS3-2SFP+ module is hot-swappable
during operation; there is no need to power off
the Switch before slide or remove the module.
Follow these steps to install the optional module into the
Switch:
1. Place the Switch on a at surface. Grasp the thumbscrew
on the sides of the blank bracket and turn counterclockwise to unscrew them. You can also use a screwdriver remove the blank bracket (See Figure 2). Do not
discard the blank bracket. Put the blank bracket back if
you remove the module out of the Switch.
Figure 2 Remove the blank bracket
AC 100V~240V 2A
DS PS
-48V ~-60V 2.5A
GND -48V 0V
M1
M2
XGS3-2SFP+
AC 100V~240V 2A
DS PS
-48V ~-60V 2.5A
GND -48V 0V
M1
M2
XGS3-2SFP+
Note
2. Install the XGS3-2SFP+ module by inserting it into the
rails and sliding it in until it stops (See Figure 3). Press
it rmly until you feel the module snap into place. Never
force, twist or bend the optional module.
3. Gently push the thumbscrews and turn clockwise to
tighten. Do not over tighten the thumbscrews.
4. Power the Switch and it will automatically detect the new
module.
5. SFP+ Transceiver Installation
The XGS3-2SFP+ has two vacant 10Gb ber transceiver
slots. The procedure of installing the SFP+ 10Gb ber
transceiver is as below:
Installing the SFP+ transceiver
1. Put on an ESD wrist strap (or antistatic gloves)
2. Insert the SFP+ transceiver to the guide rail inside the
XGS3-2SFP+ module. Do not to put the SFP+ transceiver
up-side-down.
3. Push the SFP+ transceiver along the guide rail gently
until it comes into contact with the front panel of the
XGS3-2SFP+ module.
Figure 3 Insert the XGS3-2SFP+ modules
5. Check the LED on the module’s front panel to verify that
if there is a link and a proper connection at the port.
Please refer to the Switch’s user’s manual for more about
Switch or module’s management.
– 5 – – 6 –
Caution!
Do not stare directly at the 2 ber bore in the SFP+
transceiver when the Switch is in operation, otherwise the
laser may hurt your eyes.
Connect the ber cable
1. Make sure both side of the SFP+ transceiver are with the
same media type, for example: 10GBase-SR to 10GBaseSR, 10GBase-LR to 10GBase-LR.
2. Check the ber-optic cable type match the SFP+ trans-
ceiver model.
3. Attach the duplex LC connector on the network cable into
the SFP+ transceiver.
4. Connect the other end of the cable to a device – switches
with XFP or SFP+ installed, ber NIC on a workstation or
a Media Converter.
5. Check the LNK/ACT LED of the XGS3-2SFP+ module.
Ensure that the SFP+ transceiver is operating correctly.
Figure 4 Plug-in the SFP+ transceiver
The SFP+ 10Gb transceiver is hot-swappable.
Appendix A
Fiber Optical Cable Connection Parameters
The wiring details are as below:
Fiber Optical patch Cables:
Standard Wavelength Fiber Type
10GBase-SR 850nm Multi-mode 50/125μm
10GBase-LR 1310nm Single mode 9/125μm
Cable
Specication
– 7 – – 8 –
