Wireless Display TV Adapter
WTV-3000
Table of Contents
Chapter 1. Product Introduction..................................................................................... 5
1.1 Package Contents............................................................................................. 5
1.2 Overview............................................................................................................. 5
1.3 Features.............................................................................................................. 5
1.4 Product Specifications.......................................................................................6
Chapter 2. Hardware Interface....................................................................................... 8
2.1 Physical Descriptions........................................................................................ 8
2.2 System Requirements..................................................................................... 10
2.3 Hardware Installation...................................................................................... 10
Chapter 3. AirFun Mode................................................................................................ 12
3.1 Basic Usage of AirFun Utility (Android)........................................................ 12
3.2 Basic Usage of iMEDIASHARE Utility (iOS)............................................... 13
Chapter 4. Miracast Mode ............................................................................................ 17
4.1 Switch WTV-3000 to Miracast Mode ............................................................ 17
4.2 Basic Usage of Miracast................................................................................. 17
Chapter 5. ScreenShare Mode.................................................................................... 24
5.1 Switch WTV-3000 to ScreenShare Mode.................................................... 24
5.2 Using Application Software for Windows..................................................... 24
5.3 Launching ScreenShare................................................................................. 26
5.4 User Interface of ScreenShare...................................................................... 29
Chapter 6. Web-based Management.......................................................................... 30
6.1 Network Setting ............................................................................................... 31
6.2 Audio Setting.................................................................................................... 33
6.3 Video Setting.................................................................................................... 34
6.4 System Setting................................................................................................. 34
Appendix A: Support resolution.................................................................................. 35
Appendix B: Support Media Format........................................................................... 37
Appendix C: Miracast Support List............................................................................. 38
Appendix D: Troubleshooting & Frequently Asked Questions............................... 39
4
Wireless Display TV Adapter
WTV-3000
Chapter 1. Product Introduction
1.1 Package Contents
The package should contain the following items:
z WTV-3000 x 1
z Power Adapter x 1
z User’s Manual CD x 1
z Quick Installation Guide x 1
z USB Cable x 1
1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in the TV adapter packet
may cause damage and void the warranty on this product.
1.2 Overview
Wirelessly Mirroring Whatever on Your TV
PLANET WTV-3000 is a Wireless Display TV Adapter adopting IEEE 802.11n technology to
provide 300Mbps high speed wireless transmission. With a laptop/smart phone/tablet and
PLANET WTV-3000 Wireless Display TV Adapter, you can sit back and experience your
favorite movies, videos, photos, online shows and more in Full HD on your TV with great image
clarity and sound, without having to connect your laptop/tablet/smart phone to the TV using
HDMI or A/V cables.
Supporting Miracast, ScreenShare and Airfun Mode
PLANET WTV-3000 supports the Wi-Fi-certified Miracast and Intel WiDi standard that simplify
discovery and setup to enable you to easily mirror any content from a laptop/smart
phone/tablet on your TV.
2.4G and 5G Dual-Band Wi-Fi Transmission
Since there are more and more wireless applications and electric devices using the radio
frequency of 2.4GHz, the wireless channel of 2.4GHz has been already too crowded for clients
to enjoy the high-speed wireless connection. In order to avoid the wireless interference
between each other, PLANET WTV-3000 provides users with the radio frequency of 5GHz for
watching HD videos or playing online games additionally. At the same time, it enables other
users to surf the Internet via the original radio frequency of 2.4 GHz.
Convenient nano-design blends in nicely with any surrounding
With a dimension of 85 x 65 x 16mm only, the WTV-3000 features a super compact and sleek
design that blends in nicely with any surrounding in your home or office.
1.3 Features
¾ Hardware
2.4G / 5G dual-band to get smooth wireless transmission
HDMI output up to 1920 x 1080 resolution
External USB storage port for video / music / picture playback
Pocket size for easy placement and portability
¾ Network and Configuration
Near real-time 30 fps network screen projection
Play on-line games and watch internet video on your TV
5
Wireless Display TV Adapter
WTV-3000
Enjoy the Blu-ray™ movies and internet video up to 10
80p Full HD resolution on big
screen TV
Easily conne
ct a PC to HDTV with Intel WiDi® technology
Supports screen mirroring from your PC, smartphone, or tablet with Wi-Fi Miracast
techno
Easily share music, picture, or video from your PC, smartphone, or tabl
logy
et to TV with AirFun
mode
Compatible with Windows XP / Vista
/ Win7 / Win8, Mac and Linux
.4 Product Specifications
1
Product
Hard are Platform w
Wi-Fi
Buttons
LAN Interface
USB Interface
Video Interface
Power Interface
Wireless interface
Standard
Antenna
Operation Mode
Frequency Band
Data Rate
Channel
Channel Width
RF Transmission Power
Receive Sensitivity
WTV-3000
2.4G / 5G Dual Band
1 x Power button
1 x Reset button
1 x Switch button (AirFun / Miracast / ScreenShare)
1 x 10/100 Mbps Ethernet port
1 x USB2.0 port for external storage
1 x HDMI output up to
1 x Audio/Video output
1 x Micro USB input
IEEE 802.11n
Gain: 3dBi Dual Antenna (2T2R)
Ad hoc, Infrastructure
2.4G: 2.412-2.4835GHz
5G: 5.15-5.850GHz
802.11a: 6/9/12/24/36/48/54Mbps
802.11b: 1/2/5.5/11Mbps
802.11g:
802.11n: up to 150Mbps
2.4GHz
America / FCC: 2.412~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
5GHz
5.180-5.240GHz, 5.745-5.825GHz (Up to 19
The actual
regulat
20 / 40MHz
2.4GHz
802.11b: 17±1dBm
802.11g: 15.5±1.5dBm
802.11n: 14.5±1.5dBm
5GHz
802.11
802.11n: 13±1.0dBm
2.4GHz
802.11b (11Mbps): -91dBm
802.11g (54Mbps): -77dBm
802.11n 20M (MCS7): -70dBm
802.11n 40M (MCS7): -69dBm
5GHz
802.11a (54Mbps): -77dBm
6/9/12/24/36/48/54Mbps
channels in application will vary depending on the
ion in different regions and countries.
a: 13±1.0dBm
1080p
with IEEE 802.1Backward compatible 1a/b/g
channels)
6
Wireless Display TV Adapter
WTV-3000
802.11n 20M (MCS7): -70dBm
802.11n 40M (MCS7): -67dBm
WEP (64/128-bit)
Security
WPA-PSK (TKIP) / WPA2-PSK (AES)
WPA (TKIP) / WPA2 (AES)
Transmission Distance
Video & Audio Decoding
Video
Audio
Network and Configuration
Network Standard
System Requirements
Environment
Power Requirements
Operating Temperature
Operating Humidity
Weight
Dimensions (W x D x H)
Emission
Up to 180 meters in open space
AVI / MPEG / 3GP / MOV / WMV / DVR-MS
MP3 / MP4 / LPCM / WMA / WAV / AAV / OGG
P / PNG GIP / JPG / BM
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (2T2R, up to 30
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
Miracast mo
Intel WiDi m
5V DC, 1A
10 ~ 90% (non-condensing)
325g
85 x 65 x 16 mm
CE, FCC
de: Android 4.2+
ode: Win7/8
egrees C 0 ~ 50 d
0Mbps)
7
Wireless Display TV Adapter
WTV-3000
Chapter 2. Hardware Interface
2.1 Physical Descriptions
Dimensions 85 x 65 x 16 mm
Weight 325g (gross weight)
¾ Front Panel
Interface Description
LAN(10/100M)
DC-in(Micro USB)
Audio/Video
HDMI (Full HD)
Power On/Off
The LAN socket is a RJ-45 connector for connections to
10Base-T Ethernet or 100Base-TX Fast Ethernet cabling.
This port connects the TV adapter to local PC.
The input power is 5VDC.
Use the power adapter that comes with the
package. Otherwise, the improper power adapter
Audio/Video-out Jack allows this device to output audio and
video signal. This port connects the TV adapter to TV or
projector.
Video resolution up to 1920 x 1080. This port connects the TV
adapter to a TV or projector.
When the DC power adapter is attached and connected to a
power source, the power button must be depressed to power
on the unit.
may damage the unit and result in danger.
8
Wireless Display TV Adapter
WTV-3000
¾ Bottom Panel
¾ Side Panel
Interface Description
USB Port (Type A)
Mode Button
This port is for upgrading firmware and media playback.
Press the button to switch between Miracast, ScreenShare and
Airfun modes.
9
Wireless Display TV Adapter
WTV-3000
2.2 System Requirements
The WTV-3000 supports PC/smartphone Miracast, ScreenShare and Airfun functions.
Airfun Mode:
The WTV-3000 is designed to be able to stream video/music/photo contents from PC (Windows 7
based), smartphone, and tablet-PC to your TV through this device.
Model Description
CPU: 1.6 GHz or better
PC or Notebook
Smartphone
Tablet-PC
Memory: 1.0 GB or better
Network: 802.11g/n Wi-Fi and/or 100/1000 Mbps Ethernet
CPU: 800 MHz or better
Memory: 256 MB or better
Network: 802.11g/n Wi-Fi or better
CPU: 600 MHz or better
Memory: 256 MB or better
Network: 802.11g/n Wi-Fi or better
Recommended
Software
ScreenShare Mode:
The WTV-3000 is designed to be able to stream screen captured from PC (Windows 7 /Window 8
only) and Mac (over 10.6) to your TV through this device.
PC: Windows Media Player, AirFun
Android OS: AirFun
iOS: iMediashare
Model Description
CPU: Core 2 Duo 2.0 GHz or better
PC or Notebook
Memory: 2.0 GB or better
Network: 802.11g/n Wi-Fi and/or 100/1000 Mbps Ethernet
Miracast Mode:
Streaming screen captured from Wi-Fi Miracast compatible device (such as smartphone/tablet/NB)
to TV.
2.3 Hardware Installation
Before installing the TV adapter, make sure your PC, smartphone or tablet-PC is successfully
connected to the Internet through a broadband service. If there are any problems, contact your
ISP to resolve them first.
10
Wireless Display TV Adapter
WTV-3000
Step 1.
Plug in the power cord.
Step 2.
Connect the HDMI cable to the HDMI output of the WTV-3000 and to the HDMI input of
your TV/Monitor.
Step 3. Push the power button to turn on the WTV-3000.
Step 4. Follow the on-screen instructions to set up the WTV-3000. The system default mode is
AirFun mode, which means it is ready to receive videos, music, and photos from your
PC, laptop, smartphone or tablet.
Step 5. You can switch between ScreenShare mode and Miracast mode by pushing the button
on the side of WTV-3000 (next to the USB port) twice; just follow the display on the
monitor.
11
Wireless Display TV Adapter
WTV-3000
Chapter 3. AirFun Mode
3.1 Basic Usage of AirFun Utility (Android)
To install the AirFun software for Windows 7, Windows XP, or Windows Vista, follow these
steps:
Step 1. Double click the AIRFUN icon from your desktop.
Step 2. The AirFun starts to search the AIRFUN device. If there is no AirFun device, it will
show “No device found”.
Step 3. You should be able to see the AirFun icon your PC screen on the TV now.
Step 4. You can drag the video/photo/music file to AirFun main menu directly. For video files, please drag
files to the right folder.
12
Wireless Display TV Adapter
WTV-3000
Step 5. For photo/music files, please drag files to the left folder.
3.2 Basic Usage of iMEDIASHARE Utility (iOS)
To install the iMediaShare app for an iPad or iPhone, follow these steps:
Step 1. Go to App Store from the iPad desktop
13
Wireless Display TV Adapter
WTV-3000

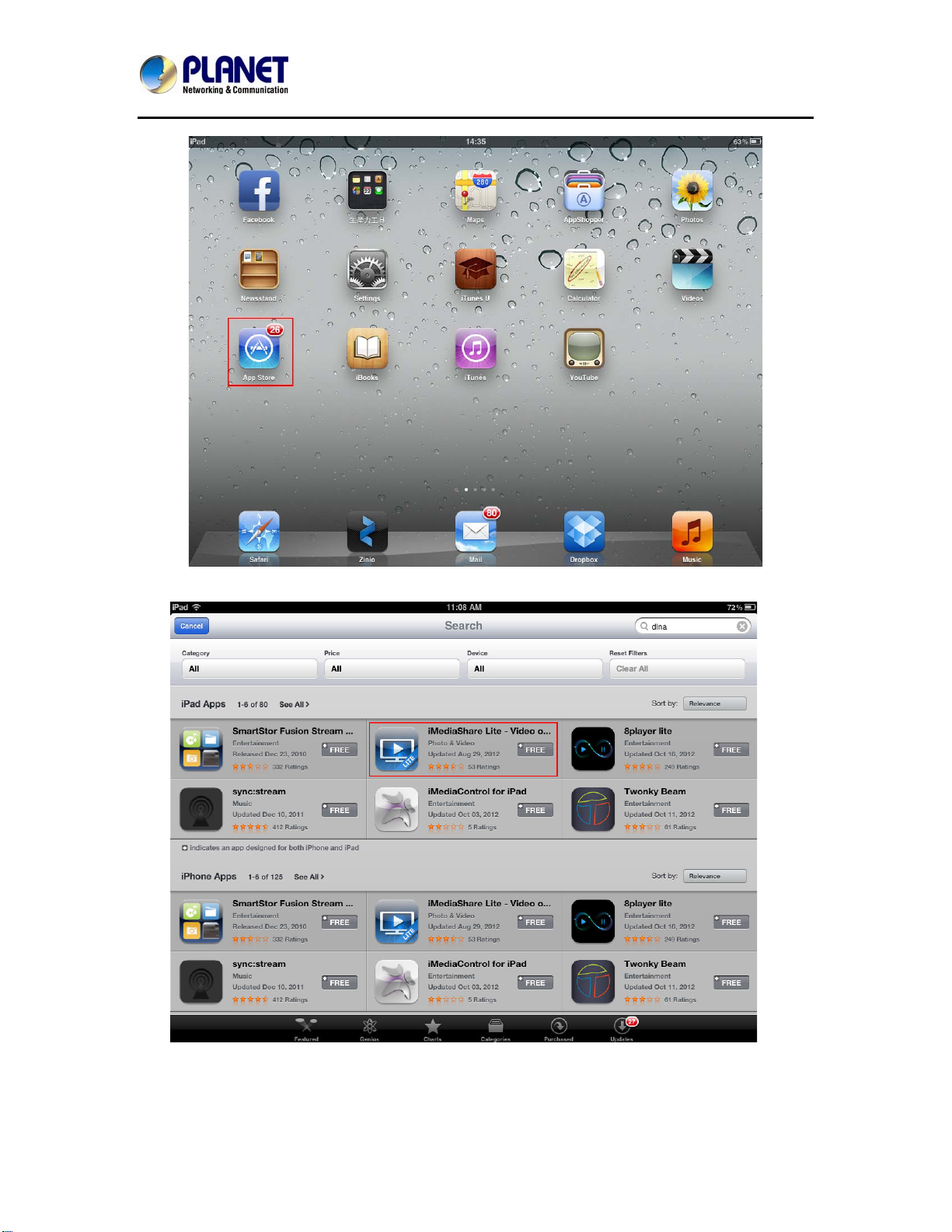

Step 2. Search DLNA software app and then select “iMediaShare Lite”.
Step 3. Click “Install App” and wait for the software installation procedure to complete.
14
Wireless Display TV Adapter
WTV-3000
Step 4. The iMediaShare app will display on the desktop when installation is complete.
Step 5. Launch iMediaShare app and start to share your photos, music and videos.
15
Wireless Display TV Adapter
WTV-3000
16
Wireless Display TV Adapter
WTV-3000
Chapter 4. Miracast Mode
4.1 Switching WTV-3000 to Miracast Mode
Push mode selection button on the WTV-3000 till you see the screen below. The box is ready for
Miracast mode connection.
To connect the WTV-3000 with WiFi Miracast mode, your smartphone or tablet device must be
WiFi Miracast certified.
4.2 Basic Usage of Miracast
HTC (New One)
Step 1. “Settings” -> “Media Output
17
Wireless Display TV Adapter
WTV-3000
Step 2. The phone will automatically scan the streaming box, and show the IP address.
Step 3. Choose the IP address which you find on TV, and your phone will connect to the box
automatically.
Step 4. Mirroring will begin while your phone connects to streaming box successfully.
18
Wireless Display TV Adapter
WTV-3000
Samsung (S3 & Note2)
Step 1. “Settings” -> “More settings”
Step 2.
“AllShare Cast”
Step 3. Turn “on” AllShare Cast . Your phone will scan the streaming box, and it will show the IP address
of the box.
19
Wireless Display TV Adapter
WTV-3000
Step 4. Choose the IP address which you find on the TV, and your phone will connect to the box
automatically.
Step 5. Mirroring will begin while your phone connects to streaming box successfully.
20
Wireless Display TV Adapter
WTV-3000
SONY (Xperia TX)
Step 1. “Settings” -> “Xperia”
Step 2. “Screen mirroring”
21
Wireless Display TV Adapter
WTV-3000

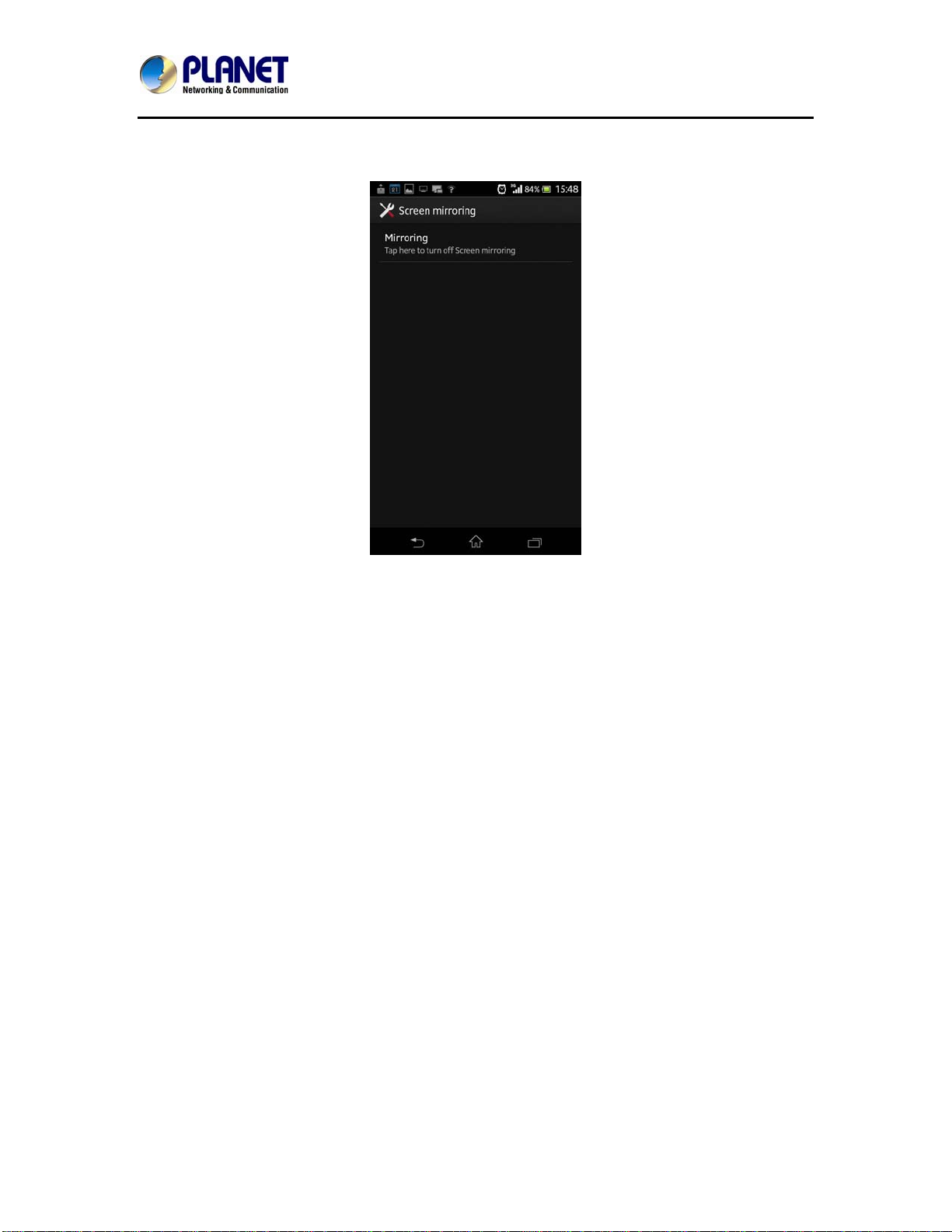

Step 3. “Turn on Screen mirroring”
Step 4. Your phone will scan the streaming box, and it will show the IP address of the box.
22
Wireless Display TV Adapter
WTV-3000
Step 5. Choose the IP address; mirroring will begin while your phone connects to streaming box
successfully.
23
Wireless Display TV Adapter
WTV-3000
Chapter 5. ScreenShare mode
5.1 Switching WTV-3000 to ScreenShare mode
Push mode selection button on the WTV-3000 till you see the screen below. The box is ready for
ScreenShare mode connection.
The MAC cannot support ScreenShare mode that is future feature.
5.2 Using application software for Windows
You can install ScreenShare application in the CD ROM.
Step 1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once
completed, a welcome menu screen will appear.
24
Wireless Display TV Adapter
WTV-3000
Step 2. Please click “Next” to install with original settings, or you may click “Change…” button to
modify the install folder and then press “Next” to continue.
25
Wireless Display TV Adapter
WTV-3000
Step 3. Please click “Install” to start the installation.
Step 4. Please click “Finish” to complete the installation and launch program immediately.
5.3 Launching ScreenShare
Step 1. You can switch to ScreenShare mode by pushing the button twice on the side of the box
(next to USB connector).
26
Wireless Display TV Adapter
WTV-3000
Step 2. Search and find the device’s SSID in Wi-Fi list on your notebook.
27
Wireless Display TV Adapter
WTV-3000
Step 3. Connect to this device SSID.
Step 4. Double click the ScreenShare icon from your desktop.
Step 5. ScreenShare will auto detect ‘Server IP’. Please input login code as shown on instruction page.
Step 6. If login code is correct, application software will appear.
28
Wireless Display TV Adapter
WTV-3000
5.4 User Interface of ScreenShare
No Interface Description
Start / pause presentation. When pausing a progressing
1 Play
2 Minimize/Close
presentation, the displaying image will freeze; press play
button again to resume.
Minimize and close the Application Software window.
3 Information
4 Menu
5 Mute
6 Stop
7 Volume up/down
Show the application information.
Access menu list.
Mute.
Stop a progressing presentation and go back to instruction page.
Volume up/down.
29
Wireless Display TV Adapter
WTV-3000
Chapter 6. Web-based Management
Please type the address on the TV screen with a web browser of PC / NB/ Smartphone / tablet
connected to the WTV-3000 to enter the virtual remote page.
The virtual remote page is shown below.
You can click the “Setup” to enter the setup page.
On the setup page, you can use the virtual remote controller to change the setting.
30
Wireless Display TV Adapter
WTV-3000
- Select “left/right=> OK” to enter the setting page for Network / Audio / Video / System.
- Select “Return” to go to the previous page or standby screen.
6.1 Network Setting
Wired Connection
Item Description
Obtain an IP address
Automatically
The WTV-3000 will obtain an IP address from DHCP server
automatically.
Set WTV-3000 IP
address manually
DNS Server
Device Name
Set the WTV-3000 IP address manually. Fill out the fields below to
set up IP address.
Please input the IP address of the DNS (Domain Name Service)
server.
31
Wireless Display TV Adapter
WTV-3000
Item Description
Device Name
(SSID)
Input the Device Name of presentation gateway here. Default is
WTV-3000.
WiFi Connection
Click WiFi connection button. Then the Wireless AP list will be shown on the screen.
Please choose the AP you want to connect. The function is to bridge to Internet via another Wireless AP.
Virtual AP Setup
Item Description
Radio Band
Security
Save Change
Virtual AP Bridge
Item Description
Virtual AP only
Set the Radio band to 2.4GHz or 5GHz. Please confirm your
PC/NB supports 5GHz before you set the radio band to 5GHz.
Encryption: Disabled
Disables wireless encryption.
Encryption: WEP + WPA + WPA2
Enable WEP + WPA + WPA2 encryption. Wireless clients must
support WPA encryption and know the encryption passphrase you
set here.
Save the configuration.
Ad-hoc mode
32
Wireless Display TV Adapter
WTV-3000
Bridge to Wireless
Bridge to Ethernet
Bridge to Wireless/ Wireless connection
Step 1. Change Virtual AP Bridge to “Bridge to Wireless” and click Apply.
Step 2. Click Wireless connection button. Then the Wireless AP list willl be shown on the screen.
Please choose the AP you want to connect.
Bridge to Ethernet/ Wired Connection
Step1. Connect LAN to the AP router
Step2. Change Virtual AP Bridge to “Bridge to Ethernet” and click “Apply”. Then you can bridge the
WTV-3000 to Internet.
Connect to Internet via Wireless AP router
Connect to Internet via Wired AP router
The WTV-3000 must be connected to AP router and can’t be connected to WAN directly.
6.2 Audio Setting
You can adjust the advanced audio setting such as Night mode, HDMI Audio output format, SPDIF
output format, Surround sound setting and Lip Sync setting on this page.
33
Wireless Display TV Adapter
WTV-3000
6.3 Video Setting
You can adjust Aspect Ratio, TV out video format, and other video setting on the video
setup page.
6.4 System Setting
You can set the OSD language, reset to Factory default, check the firmware version, and do the firmware
upgrade on the system setup page.
34
Wireless Display TV Adapter
WTV-3000
Appendix A: Support resolution
Interface Output Resolution
HDMI
NTSC, PAL, 480p, 576p, 720p 50Hz, 720p 60Hz, 1080i 50Hz, 1080i 60hz,
1080p 50Hz, 1080p 60Hz
35
Wireless Display TV Adapter
WTV-3000
Appendix B: Supporting Media Format
Video Format
Format File extension
avi
mpg, mpeg
mpg, mpeg
m2t, tts
3gp, 3gpp
3g2, 3gpp2
mov
wmv
dvr, dvr-ms
mp3
pcm, wav, l16
wma
wav
mp4
aac
ogg, oga, ogv
gif
jpg, jpeg
bmp
png
Audio Format
Photo Format
AVI
MPEG-1
MPEG-2
MPEG-TS
MPEG-4
mp4, mp4v, mpeg4, m4v
3GP
3GP2
MOV
WMV
DVR-MS
Format File extension
MP3
LPCM
WMA
WAV
MP4
AAC
OGG
Format File extension
GIF
JPG
BMP
PNG
3
6
Wireless Display TV Adapter
WTV-3000
Appendix C: Miracast Support List
Module
Google Nexus 4
HTC New One
LG Optimus G
Samsung Galaxy S3
Samsung Galaxy S4
Samsung Galaxy Note2
Sony Xperia TX
Sony Xperia T
Sony Xperia V
Sony Xperia Z
Sharp SH-09D
Sharp SH-10D
3
7
Wireless Display TV Adapter
WTV-3000
Appendix D: Troubleshooting & Frequently Asked Questions
My TV/Projector does not have
an HDMI Input. Can I still use the
WTV-3000?
The HDTV cannot show the
menu of the WTV-3000.
Does my device have Intel WiDi?
I connect the WTV-3000 in
Miracast mode by smartphone.
Can I connect the internet?
Can I extend my Windows
desktop to the HDTV or
Projector?
Hardware
Yes, The WTV-3000 can be connected to display devices which
have A/V output connections.
Connect the WTV-3000 to the TV using the HDMI cord provided.
Make sure the HDTV is turned on and set to display the input from
the correct HDMI port. Wait for the "Ready to connect" screen to
appear before attempting to connect with laptop/device.
Network and Configuration
In Windows 7 or Windows 8 desktop, find the Intel WiDi icon OR
search for "Intel WiDi" program using Windows Search.
Yes, you can connect the internet via router or 3G and connect the
WTV-3000 in Miracast mode at the same time.
Yes. After the connection to the WTV-3000 is established, you can
switch the ScreenShare mode that should see the laptop screen
mirrored to the HDTV or Projector.
Can I connect to the Wi-Fi router
and the WTV-3000
simultaneously with my Wi-Fi
Miracast device?
Can I connect to the Wi-Fi router
and the WTV-3000
simultaneously with my Intel
WiDi laptop?
My device has Android 4.2. Does
it have Miracast?
What is Wi-Fi Miracast?
Some Wi-Fi Miracast devices cannot connect to both Wi-Fi router
and the WTV-3000 at the same time. Refer to your
device manufacturer's or carrier's user manual for more information.
Yes. We recommend to connect the laptop to an available Wi-Fi
router first, and then connect to the WTV-3000. You can then view
online contents and display them on the TV.
Make sure your device has one of the following Miracast
applications:
● Wireless display
● Wireless mirroring
● Screen mirroring
● AllShareCast (Samsung's only)
Visit the WTV-3000 compatibility page for the recommended
Miracast devices.
Wi-Fi CERTIFIED Miracast™ is a groundbreaking solution for
3
8
Wireless Display TV Adapter
WTV-3000
seamlessly displaying video between devices, without cables or a
network connection. Users can do things like view pictures from a
smartphone on a big screen television, share a laptop screen with
the conference room projector in real-time, and watch live programs
from a home cable box on a tablet. Miracast connections are formed
using Wi-Fi CERTIFIED Wi-Fi Direct™, so access to a Wi-Fi®
network is not needed – the ability to connect is inside
Miracast-certified devices.
Can I push media to the
WTV-3000 using DLNA?
Does WTV-3000 work with Apple
iPhone, iPad, or iPod?
Can I connect to multiple
WTV-3000s simultaneously?
Do I need an existing wireless
network in order to use the
WTV-3000?
Why do I play game or video that
can lag via wireless?
Yes. You can push media to the WTV-3000 by AirFun (DLNA)
mode.
Yes. You can switch to the AirFun mode and install the
iMEDIASHARE with Apple iPhone, iPad, or iPod.
No. You can only connect to one WTV-3000 at a time.
Since the WTV-3000 connects directly with your Intel WiDi or
Miracast-enabled device, no wireless network is needed.
However, your device needs to be connected to Internet router or
data network to view online contents.
You can switch to 5GHz at Radio Band that can get high-speed
wireless connection
39
Wireless Display TV Adapter
WTV-3000
EC Declaration of Conformity
English Hereby, PLANET Technology Corporation,
declares that this Wireless Display TV Adapter is in
compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Česky Společnost PLANET Technology Corporation,
tímto prohlašuje, že tato Wireless Display TV
Adapter splňuje základní požadavky a další
příslušná ustanovení směrnice 1999/5/EC.
Dansk PLANET Technology Corporation, erklærer
herved, at følgende udstyr Wireless Display TV
Adapter overholder de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/EF
Hiermit erklärt PLANET Technology Corporation,
Deutsch
Eesti keeles Käesolevaga kinnitab PLANET Technology
Ελληνικά ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ , PLANET Technology
dass sich dieses Gerät Wireless Display TV
Adapter in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet".
(BMWi)
Corporation, et see Wireless Display TV
Adapter vastab Euroopa Nõukogu direktiivi
1999/5/EC põhinõuetele ja muudele olulistele
tingimustele.
Corporation, ΔΗΛΩΝΕΙ ΟΤΙ ΑΥΤΟ Wireless
Display TV AdapterΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ
Lietuviškai Šiuo PLANET Technology Corporation,, skelbia,
kad Wireless Display TV Adapter tenkina visus
svarbiausius 1999/5/EC direktyvos reikalavimus ir
kitas svarbias nuostatas.
Magyar A gyártó PLANET Technology Corporation,
kijelenti, hogy ez a Wireless Display TV Adapter
megfelel az 1999/5/EK irányelv
alapkövetelményeinek és a kapcsolódó
rendelkezéseknek.
Malti Hawnhekk, PLANET Technology Corporation,
jiddikjara li dan Wireless Display TV Adapter
jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC
Nederlands Hierbij verklaart , PLANET Technology orporation,
dat Wireless Display TV Adapter in
overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG
Polski Niniejszym firma PLANET Technology
Corporation, oświadcza, że Wireless Display TV
Adapter spełnia wszystkie istotne wymogi i klauzule
zawarte w dokumencie „Directive 1999/5/EC”.
Português PLANET Technology Corporation, declara que
este Wireless Display TV Adapter está conforme
com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Español Por medio de la presente, PLANET Technology
Corporation, declara que Wireless Display TV
Adapter cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o
exigibles de
la Directiva 1999/5/CE
Français Par la présente, PLANET Technology Corporation,
déclare que les appareils du Wireless Display TV
Adapter sont conformes aux exigences essentielles
et aux autres dispositions pertinentes de la directive
1999/5/CE
Italiano Con la presente , PLANET Technology
Corporation, dichiara che questo Wireless
Display TV Adapter è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite
dalla direttiva. 1999/5/CE.
Latviski Ar šo PLANET Technology Corporation, apliecina,
ka šī Wireless Display TV Adapter atbilst
Direktīvas 1999/5/EK pamatprasībām un citiem
atbilstošiem noteikumiem.
40
Slovensky Výrobca PLANET Technology Corporation, týmto
deklaruje, že táto Wireless Display TV Adapter je
v súlade so základnými požiadavkami a ďalšími
relevantnými predpismi smernice 1999/5/EC.
Slovensko PLANET Technology Corporation, s tem potrjuje,
da je ta Wireless Display TV Adapter skladen/a z
osnovnimi zahtevami in ustreznimi določili Direktive
1999/5/EC.
Suomi PLANET Technology Corporation, vakuuttaa täten
että Wireless Display TV Adapter tyyppinen laite
on direktiivin 1999/5/EY oleellisten vaatimusten ja
sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska Härmed intygar, PLANET Technology Corporation,
att denna Wireless Display TV Adapter står i
överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser
som framgår av direktiv 1999/5/EG.
Loading...
