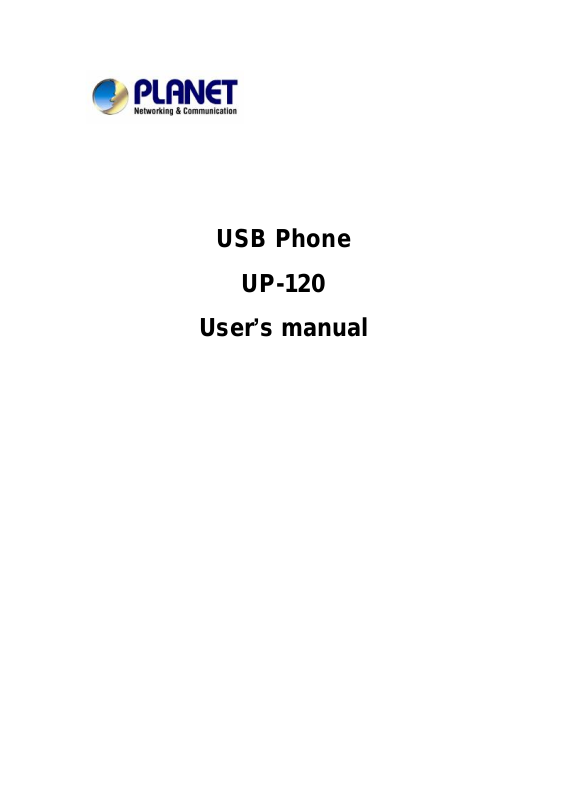

USB Phone
UP-120
User’s manual
Copyright
Copyright (C) 2005 PLANET Technology Corp. All rights reserved.
The products and programs described in this User’s Manual are licensed products of PLANET
Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s
Manual and all accompanying hardware, software, and documentation are copyrighted.
No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine-readable form by any means by electronic or mechanical. Including
photocopying, recording, or information storage and retrieval systems, for any purpose other than the
purchaser's personal use, and without the prior express written permission of PLANET Technology.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and
applications, and makes no warranty and representation, either implied or expressed, with respect to the
quality, performance, merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability
for any inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a
commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be
contained in this User’s Manual. PLANET makes no commitment to update or keep current the
information in this User’s Manual, and reserves the right to make improvements to this User’s Manual
and/or to the products described in this User’s Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate
your comments and suggestions.
CE mark Warning
The is a class B device, In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to
collect such WEEE separately.
Trademarks
The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous
hardware and software products by their trade names. In most, if not all cases, their respective
companies claim these designations as trademarks or registered trademarks.
Revision
User’s Manual for PLANET USB Phone
Model: UP-120
Rev: 1.1 (December 2005)
Part No. EM-UP120v1.1
Product Brief Introduction.....................................................................................4
Products appearance.......................................................................................................4
Features..........................................................................................................................4
Hardware........................................................................................................................4
Operation system............................................................................................................5
Certificate.......................................................................................................................5
Operating environment...................................................................................................5
Size ……………………………………………………………………………………….5
Packing list.....................................................................................................................5
Installation...............................................................................................................6
Key Features............................................................................................................9
Calling Mode and Description of LCD Mode......................................................10
F1 Button Function—Contacts/Dial/Call List Menu......................................................11
F2 Button Function--Friends/Missed Calls/Dialled/Received/Balance Menu.................12
Appendix Frequently Ask Question......................................................................13
Q1. How to distinguish the Skype voice and operational system voice by USB phone?13
Q2. How to change the ring tones of USB phone?.......................................................14
Q3. When USB phone rings, why I can hear 2 rings- - both USB phone ring and skype
ring. how to deal with this?...........................................................................................14
1． Product Brief Introduction
Products appearance
Features
Hardware
Ø “USB sound card + speaker cabinet” under hands free mode.
Ø Mute, hands free function
Ø Built-in ring, user may change the rings.
Ø Friend list display, on-line friends display
Ø Missed call/received calls/dialed calls display
Ø Statistic of not answered calls
Ø Caller ID display
Ø Dial back function
Ø Volume adjustable during a call
Ø Full authority to operate Skype using phone
Ø Skypeout balance display
Ø MCU: 4MHz
Ø Standard USB1.1 connector
Ø Built-in 16 bit sound card
Ø Dual channel sound effect controller, available to connect external stereo
earphone + MIC.
Ø Built-in 20KHz bandwidth loudspeaker
Ø LCD backlight and four row display
Operation system
Ø Windows 2000/XP/ME/SE
Certificate
Ø FCC, CE
Operating environment
Ø Operation temperature: 0 to 40° C (32° to 104° F)
Ø Storage temperature: -30° to 65° C (-22° to 149° F)
Ø Humidity: 10 to 90% no dew
Size
Ø 130mm x 47mm x 20mm
Packing list
Ø USB phone x 1
Ø CD x 1
Ø Quick Guide x 1
2． Installation
Ø Plug USB phone to the USB port of the computer
Ø Double click the UP-120 USB phone.exe to begin the installation
Ø Click FINISH to complete installation.
Ø Run Planet UP-120 USB Phone in the start menu
Ø Choose “Allow this program to use Skype” to enable UP-120 to control Skype.
You will see the PLANET colorful logo running status of the USB phone in the below tool bar.
“Connected” status means USB phone and Skype are connected. UP-120 can be used to
operate Skype.
“Disconnected” status (gray PLANET logo) means that Skype doesn’t connect with Internet
or USB phone doesn’t connect with computer. Please connect Skype on the Internet or plug in
USB phone.
Setting ring volume
You can adjust the ringing volume through
windows system volume panel
Setting voice volume
Right click the UP-120 logo icon and
choose “volume control”, a window
will pop up, then you can adjust the
output and input volume in this
window. Speaker indicate the output
volume and mic is input volume.
You can also change the output volume by “Up” and “Down” key of
UP-120 USB phone during calls.
Skype’s TAB key, you can turn pages in the Skype’s “Contacts/Dial/Call
Choose between friends list/dialed number/received calls/missed
3． Key Features
Key Descriptions
F1
list”
F2
calls/balance in the menu of the USB phone
Call Dial or pick up calls
Hand up Hang up and exit the menu and return to waiting status
Up/Down Choose menu option / control the volume in calls
Backspace Backspace/clear numbers
Ring Change the ring tone
0-9/*, # Number keys (Note: press 0 for a long time means “+”)
Mute Mute function in calls
Speaker Handy free in calls
4． Calling Mode and Description of LCD Mode
Figure 1. LCD shows USB phone does not connect to utility or Skype. Please execute USB
phone utility and login to Skype.
Figure 2. LCD shows the numbers of missing calls when connecting successfully
Figure 3. LCD shows the Invalid User
Figure 4. LCD shows the ID when making a Skype call.
Figure 5. LCD shows USB phone is in use.
Figure 6: LCD shows the caller ID when there is a call.
Idle Mode
Under Idle Mode, press CALL button to check the dialed numbers, pressing UP/DOWN to
select the number, then press CALL button to make a call.
Under Idle Mode, press any digital numbers (0~9, *, #) to dial the Speed-Dial number or
Skypeout number
F1 Button Function—Contacts/Dial/Call List Menu
Under Idle Mode, press F1 to tab over to the Contacts/Dial/Call List page.
Ø Make a call in the Contacts Menu, as Figure 7,
Press F1 to Contacts, pressing Up/Down button to select a contact, then press CALL
button to make a call.
Ø Make a call in the Dial Menu, as Figure 8
Press F1 to tab over to the Dial page, using the number keypad of USB phone to input
Skype Speed-Dial number or Skypeout number, then press CALL button to make a call.
Ø Make a call in the Call List Menu, as Figure 9,
Press F1 to tab over to the Call List page, pressing Up/Down button to select the Call List,
then press CALL button to make a call.
Figure 7 Figure 8 Figure 9
F2 Button Function--Friends/Missed Calls/Dialled/Received/Balance Menu
Under Idle Mode, press F2 into the USB phone menu, pressing Up/Down button to select
Friends/Missed calls/Dialed/Received/Balance menu, then press F2 again to confirm the menu.
Press Hand up button to exit the current menu.
Ø Friends Menu
LCD shows the online and offline contact lists, pressing Up/Down button to select the
friend, then press Call button to make a call
Ø Missed Calls Menu
LCD shows the missing calls, pressing Up/Down button to select the missed calls, then
press Call button to call back.
Ø Dialled Menu
LCD shows the dialed number, pressing Up/Down button to select the dialed number,
and then press Call button to make a call.
Ø Received Menu
LCD shows the received calls, pressing Up/Down button to select the received call, then
press Call button to call back.
Ø Balance Menu
LCD shows the Skypeout balance.
Appendix Frequently Ask Question
Q1. How to distinguish the Skype voice and operational system voice
by USB phone?
A1： You can set Skype and operational system to use different sound device
Please set the operational system audio input/output in “Start”à“Control panel”à“Sounds
and audio device”
Please Set the Skype audio input/output in Skype àTool à OptionsàSound Devices,
select “USB Audio Device”
Q2. How to change the ring tones of USB phone?
A2： Current USB Driver supports four different ring tones. User can edit his favorite ring to
replace the default ring. Ring files are saved at “C:\Program Files\PLANET UP-120”. The
default four ring files are: music1.wav, music2.wav, music3.wav and music4.wav. User should
replace the original ring file when user wants to change the ring or edit a new ring file, the file
should be in .wav format.
For example, you can rename your own ring file my_ring.wav to music1.wav and place this file
in C:\Program Files\PLANET UP-120, now the ring1 is your favorite ring tone.
Q3. When USB phone rings, why I can hear 2 rings- - both USB phone
ring and Skype ring. How to deal with this?
A3： If you want to hear only the USB phone ring, please set as below:
SkypeàToolàOptionàSound Altersàuncheck “play sound when somebody is calling
me”
Uncheck this
If you want to hear only Skype ring, please use a silent ring file to replace the USBphone
ring file. And select “play sound when somebody is calling me” We provide a silent ring file
(silent.wav) in our CD; you can use this file to replace the ring file. Please refer to Q1 for
the detail operation.
Q4. Why sometimes the LCD display flashing when USB phone
ringing?
A4： If your USB power supply is lower than the USB phone power supply, the LCD display
panel may flash in ringing even your computer restart. In this case, you can set the USB phone
ring volume to a lower value (refer to ring_volume) to reduce the USB phone ringing power
requirement.
Q5. How to deal with if USB phone occupy 99% CPU memory?
A5： When several programs use the skype at the same time, this symptom may happen.
You can exit the skype and the related programs, and then run the skype and USB phone
again.
Q6. Why does USB phone LCD show nothing or characters missing
when use in some computers?
A6： If your USB port can’t supply enough power to the USB phone,(for example, using a PCI
USB cardbus.), the following may happen: power surge indication in PC; no LCD display in
USB phone or some characters missing. Please change the USB port in this case.
Q7. How to solve if the other party hears echo?
A7： When you use the hand free function to talk to your friend and set the MIC input volume
to a high value, then your friend may hear echo in his/her side. You can right click the USB
phone icon in the task menu and reduce the MIC value in the volume control setting to cancel
the echo.
Q8. How to solve if some voices miss out when using hand free?
A8： When using hands free function, USB phone work in half d uplex status, in this status, if
the MIC input volume higher than the other party voice, USB phone will automatically reduce
the speaker output volume to reduce the echo. So if the caller and callee talk at the same time,
the one with the lower voice will be listened with some words missing. Avoid speak at the same
time can avoid this happen.
