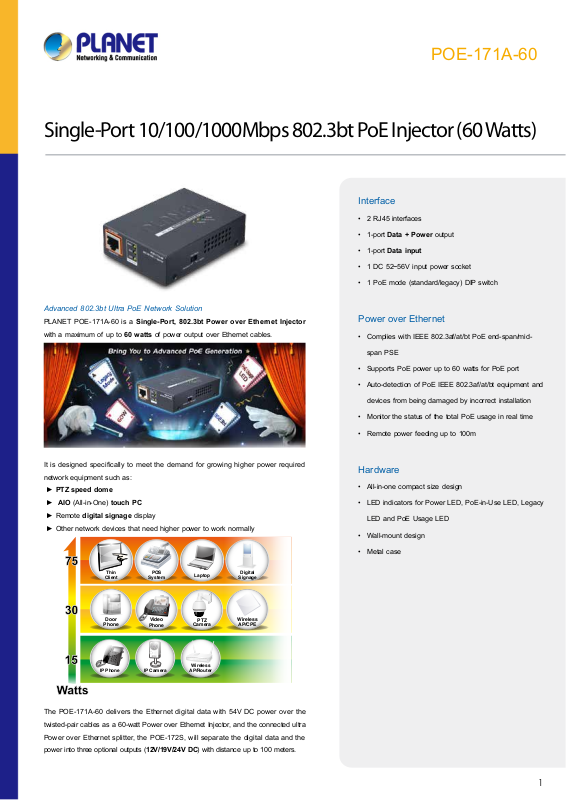

POE-171A-60

Single-Port 10/100/1000Mbps 802.3bt PoE Injector (60 Watts)

Interface

• 2 RJ45 interfaces

• 1-port Data + Power output

• 1-port Data input

• 1 DC 52~56V input power socket

• 1 PoE mode (standard/legacy) DIP switch

Advanced 802.3bt Ultra PoE Network Solution

PLANET POE-171A-60 is a Single-Port, 802.3bt Power over Ethernet Injector

with a maximum of up to 60 watts of power output over Ethernet cables.

Power over Ethernet

• Complies with IEEE 802.3af/at/bt PoE end-span/mid-

It is designed specifically to meet the demand for growing higher power required

network equipment such as:

► PTZ speed dome

► AIO (All-in-One) touch PC

► Remote digital signage display

► Other network devices that need higher power to work normally

Thin

Client

Door

Phone

POS

System

Video

Phone

Laptop

PTZ

Camera

Digital

Signage

Wireless

AP/CPE

span PSE

• Supports PoE power up to 60 watts for PoE port

• Auto-detection of PoE IEEE 802.3af/at/bt equipment and

devices from being damaged by incorrect installation

• Monitor the status of the total PoE usage in real time

• Remote power feeding up to 100m

Hardware

• All-in-one compact size design

• LED indicators for Power LED, PoE-in-Use LED, Legacy

LED and PoE Usage LED

• Wall-mount design

• Metal case

IP Phone

IP Camera

Wireless

AP/Router

The POE-171A-60 delivers the Ethernet digital data with 54V DC power over the

twisted-pair cables as a 60-watt Power over Ethernet Injector, and the connected ultra

Power over Ethernet splitter, the POE-172S, will separate the digital data and the

power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.

POE-171A-60

Intelligent LED Indicator for PoE Mode and Real-time PoE Usage

The POE-171A-60 was built in Legacy mode to provide the power to those PD devices that do not fully follow the IEEE 802.3af/at/bt standard. Moreover,

the POE-171A-60 helps users to monitor the current status of PoE power usage easily and efciently via its advanced LED indication. “PoE Power Usage”

displayed on the front panel of the POE-171A-60 has three LED indicators of different power usages. Via the power usage LED, the POE-171A-60 enables

the administrator to monitor the status of the power usage of the connected PDs in real time.

60 watts of Power over 4-pair UTP

The POE-171A-60 and POE-172S Ultra PoE solutions use the same cabling standard such as IEEE 802.3af/at PoE. Instead of delivering power over 2-pair

twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all

the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the

spare pairs.

End-span

POE-171A-60

Mid-span

Cat 5E: 4-pair UTP

Power over Ethernet

60W

Injector

PWR

PoE-in-Use

Legacy

(802.3at Type 2)

IEEE 802.3at

PoE Standard

Ultra PoE Splitter

10/100/1000Mbps Data

12V/19V/24V

IEEE 802.3af

(802.3at Type 1)

Power over Ethernet

802.3bt

Ultra PoE Injector

Maximum Power delivered by PSE 15.4 watts 30 watts 60 watts

Power Available at PD 12.9 5 watts 25.5 watts 50 watts

Voltage Range 48V 50~57 V 50~57V

Twisted-pair Used 2-pair 4-pair

Supported Modes End-span or Mid-span End-span + Mid-span

Suppor ted Cabling Cat. 3/5/5e/6 Cat. 5e/6

10/100/1000Mbps Data

Power

IEEE 802.3bt

(POE-171A-60)

POE-171A-60

10/100/1000Mbps Ethernet Switch

All-in-One and Compact Size Design

It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it.

Besides, the POE-171A-60 comes in compact housing, and provides one 52~56V DC input power jacket, one power LED, PoE-in-use LED and legacy LED.

Two RJ45 ports -- Ethernet port and Ethernet + DC port – are on the side panel. Simply plug in the Ethernet cables and DC power cord, and the POE-171A-60

is ready to provide high-speed network communication and the 802.3bt PoE injector functions simultaneously with no need of software conguration.

Quick and Easy Cabling Installation for PoE Network Deployment

Backward compatible with both 802.3af/at PoE standards, the POE-171A-60 allows users to flexibly deploy standard and high powered devices to transfer

data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-171A-60 frees the security IP camera and wireless AP

deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the

wall, ceiling or any unreachable place, and most of all, it reduces installation time.

Powered Device

PoE IP Camera

PoE Wireless AP

Ultra PoE Splitter

60W

Data

RJ45 UTP Cable

Power

802.3bt

Power over Ethernet

Injector

PWR

PoE-in-Use

Legacy

Data

Power

POE-171A-60

Applications

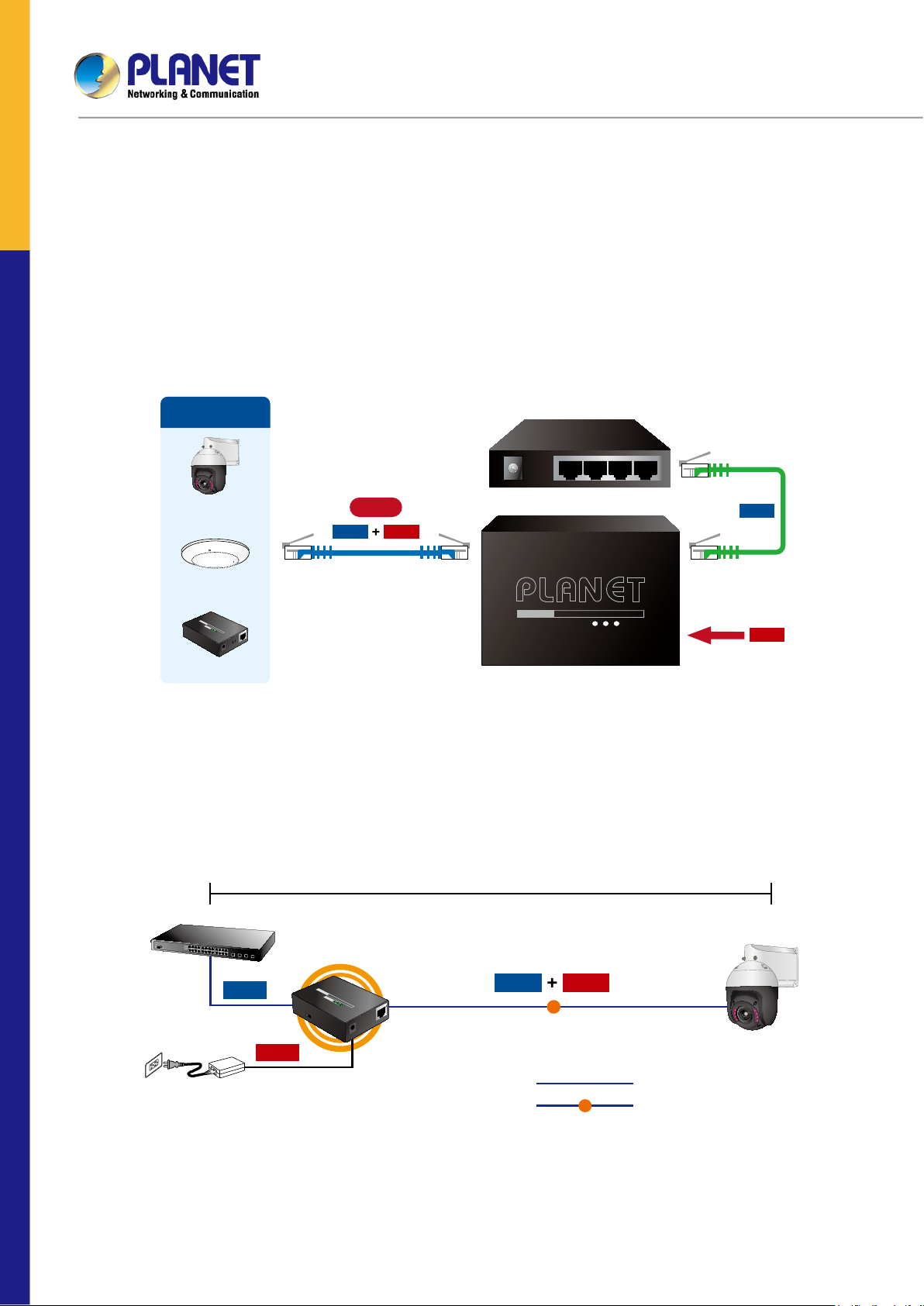

Installation of 802.3bt PoE Injector

Due to the backward capability of IEEE 802.3af/at PoE standard, the POE-171A-60 can directly connect with any IEEE 802.3af/at end-nodes, such as PTZ

(Pan, Tilt & Zoom) speed dome network cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.

100 meters

Switch

Data

110-240V AC

AC-to-DC Adapter

Power

POE-171A-60

802.3bt PoE Injector

Data

PoE

Power

PoE

PoE PTZ

IP Camera

1000BASE-T UTP

1000BASE-T UTP with PoE

POE-171A-60

Installation of 802.3bt PoE Injector and Splitter

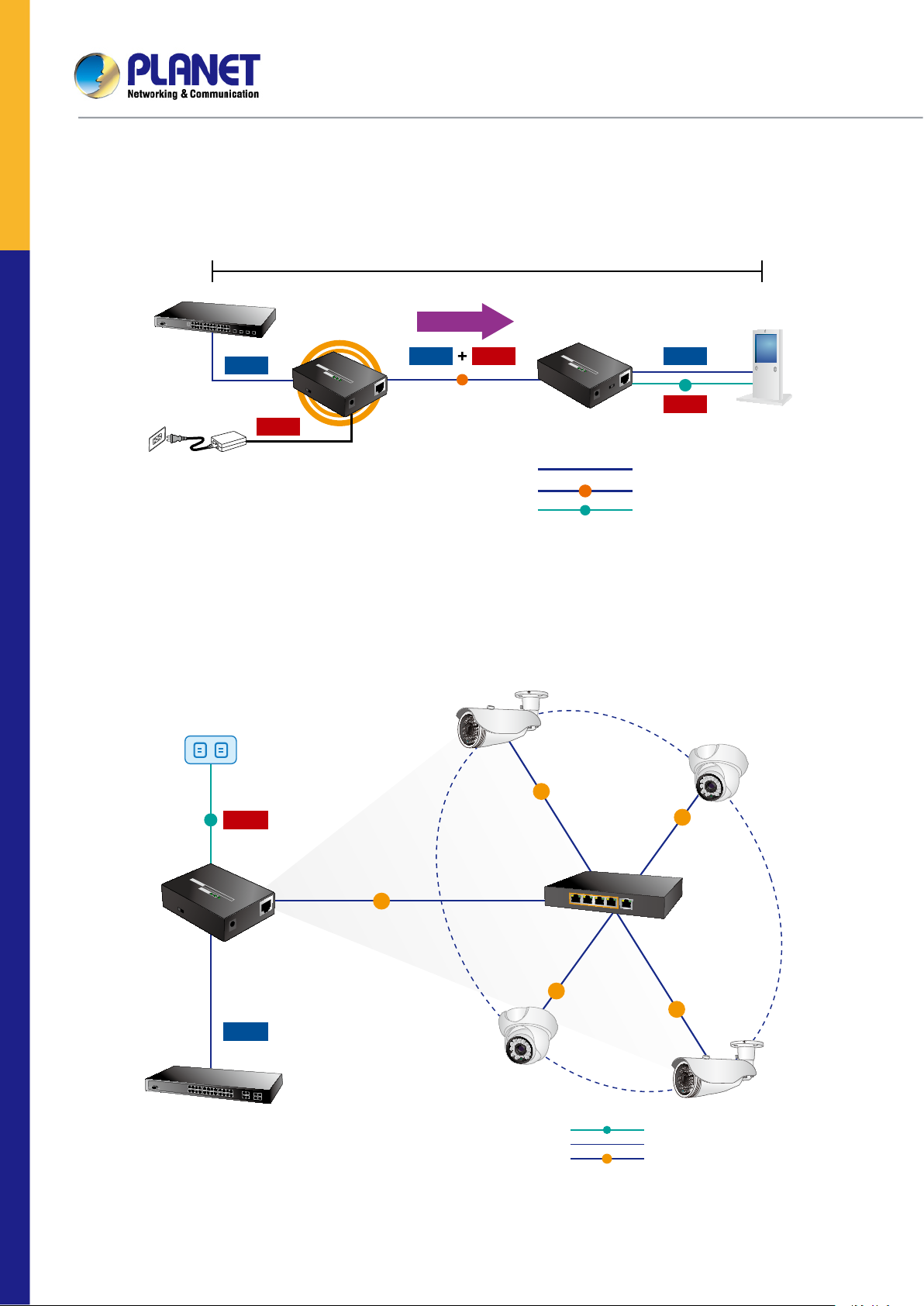

For a place which is hard to find the power inlet, the POE-171A-60 and POE-172S operate as a pair to provide the easiest way to power your Ethernet

devices which need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP)

telephones, and multi-channel wireless LAN access points installed on the top of the building or used in enterprise ofce or home.

100 meters

Switch

60 watts

Data

Power

PoE

Data

Power

110-240V AC

AC-to-DC Adapter

Power

POE-171A-60

802.3bt PoE Injector

POE-172S

Ultra PoE Splitter

PoE

12V/19V/24V

1000BASE-T UTP

1000BASE-T UTP with PoE

Power Line (DC)

Digital

Signage

Extended Installation of IEEE 802.3bt Injector and PoE Network

Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benets of IP surveillance and

also the long-distance IP camera distribution, the POE-171A-60 and PLANET PoE Extender, POE-E304, can be a quick and cost-effective option. In the

simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the POE-171A-60. The POE-171A-60 delivers

PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE

power to the remote PoE IP cameras.

PoE

100 meters

PoE

100 meters

Power

POE-171A-60

Data

Ethernet Switch

Ultra PoE 60W

PoE

100 meters

PoE

100 meters

Gigabit PoE Extender

PoE

100 meters

PoE

Power Line (AC)

1000BASE-T UTP

1000BASE-T UTP with PoE

Specications

POE-171A-60

Product

Hardware Specications

Input Por t

Interface

Network Cable

LED Indicator

Data Rate 10/100 /1000 Mbps

Dimensions (W x D x H) 94 x 70.3 x 26.2 mm

Weight 200g

Unit Output Voltage DC 5 4V

Power Requirements

Power Consumption 72 watts max.

No. of devices that can be powered 1

Power over Ethernet

PoE Standard IEEE 802.3af/at/bt Ultra PoE PSE

PoE Power Output Budget

PoE Power Supply Type End-span + Mid-span

Power Pin Assignment

Standards Conformance

Standards Compliance

Regulatory Compliance FCC Part 15 Class A, CE

Environment

Operating Temperature 0 ~ 50 degrees C

Storage Temperature -10 ~ 70 degrees C

Operating Humidity 5 ~ 90%, Relative Humidity, non-condensing

Storage Humidity 5 ~ 90%, Relative Humidity, non-condensing

Standard Accessories

Package Contents

Output Port

DC Socket 1 x 52~56V DC input socket

POE-171A-60

1 x RJ45 STP

Data In

1 x RJ45 STP

PoE (Data + Power) Out

Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat3, 4, 5, 5e, 6 100BASE-TX: 4-pair UTP Cat5, 5e, 6 1000BASE-T: 4-pair UTP Cat5e, 6

System: Power x 1 (Green) PoE Port: PoE in-Use x 1 (Orange) Legacy mode: Legacy x 1 (Orange) PoE Usage: PoE Usage x 3 (Orange)

External AC-to- DC adapter 100-24 0V AC, 50/60Hz, 1.5A

DC 54V / 60 -watt PoE via 4-pair DC 54V / 30 -watt PoE via 2-pair

Pair 1 End- span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-)

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bt 4-pair Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet

● PO E-171A -6 0

● User's Manual

● AC-to -DC power adaptor

● AC power cord

Ordering Information

POE-171A- 60 Single-Port 10/100/1000Mbps 802.3bt PoE Injector
