Planet POE-164 User Manual
IEEE 802.3at High Power over Ethernet Injector
(Mid-span)
Interface
• 2-port RJ45 interfaces
–1-port Data + Power output
–1-port Data input
• 1 AC 100-240V input power socket
Power over Ethernet
• 1-port High Power over Ethernet Mid-span PSE
• IEEE 802.3at Power over Ethernet Plus compliant
PoE with High Power, Security, Stability and Easy Installation Features
As the applications of Power over Ethernet have expanded to home users from the
IT industry, PLANET has developed a new Single-Port PoE+ Injector which meets the
requirements of both the IT industry and home users for high wattage output and easy
installation, respectively.
The POE-164 is a wall-mountable, single-port 802.3at PoE+ injector with internal power
supply in compact housing. Carrying both Ethernet data and power simultaneously, the
POE-164 helps users to utilize just one Ethernet cable to easily install and deploy IP
camera, wireless AP or VoIP phone networking in environments where power outlet is
hard to nd.
• Backward compatible with IEEE 802.3af Power over
Ethernet
• Supports PoE Power up to 30 watts for PoE port
• Up to 1 IEEE 802.3at device powered
• Provides DC 53V power over RJ45 Ethernet cable to
device with Ethernet port
• Auto-detection of PoE IEEE 802.3at/af equipment and
devices that could be damaged by incorrect installation
• Remote power feeding up to 100m
POE-164
System Integrator /SMB
IEEE 802.3at / 802.3af Power over Ethernet Plus Compliant
Reduced installation costs
30-watt Power Output
10/100/1000Mbps Data Rate
Extends distance with PoE Extender
It offers an affordable, safe and reliable power solution for cost-conscious business and
home users deploying Power over Ethernet networks.
30-watt Power over Ethernet Capability
The PoE in-line power following the IEEE 802.3at/af Power over Ethernet Plus
standard makes the POE-164 able to deliver Ethernet data and up to 30 watts of
power to remote PoE compliant powered devices (PDs) over one Cat.5E/6 Ethernet
cable. The POE-164 provides more exibility in power requirement for all kinds of PDs
at affordable installation costs. Designed especially for higher power required network
equipment such as PTZ (Pan, Tilt & Zoom) speed-dome camera, high power outdoor
AP can be powered and work normally just through a single UTP cable with PoE
power injector, the POE-164.
Home and SOHO Users
Compact size, internal power supply
Plug and Play, easy installation
Hardware
• All-in-one design with internal power supply
• Compact-size plastic case
• LED indicators for Power LED and Active LED (PoE
ready-in-use)
Data Sheet
1
1
POE-164
All-in-One and Compact-size Design
With concepts of "Easy to install”, “Plug and Play” and "Simple troubleshooting" for business and home users, the POE-164 is an all-in-one, single-port PoE+
injector with internal power supply. In the compact-size housing, the POE-164 provides one 100-240V AC input socket on its front panel, two LEDs (System
POWER and PoE ACTIVE ) on the top side and two RJ45 ports (POE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power
cord, and the POE-164 is ready to provide high-speed network communication and high power PoE+ injector functions simultaneously with no need of
software conguration.
Power Side LAN Connector Side
Top Side LED

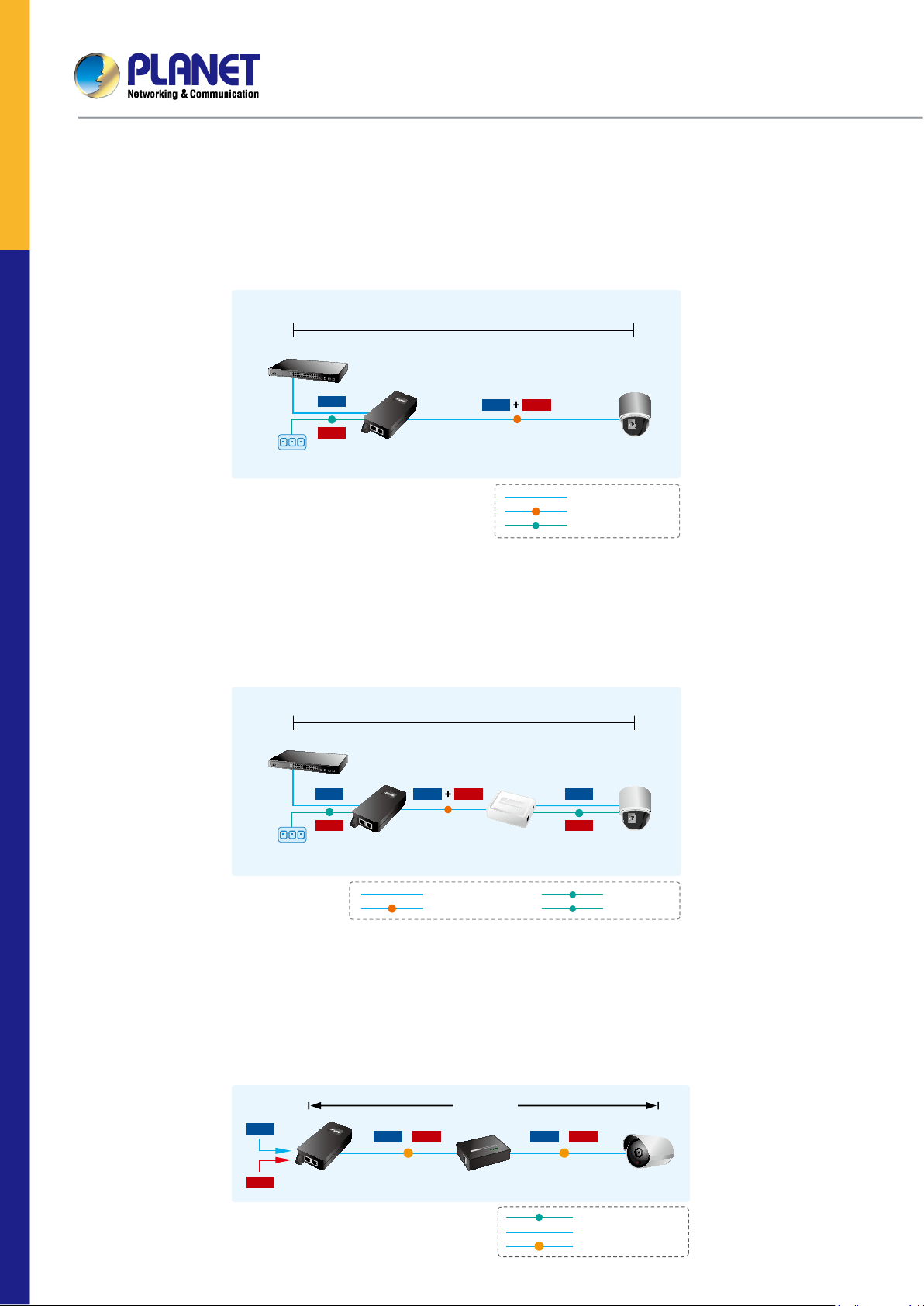

Quick and Easy Cabling Installation for PoE Network Deployment
Complying with both 802.3af and 802.3at PoE+ standards, the POE-164 allows users to exibly deploy standard and high powered devices to transfer data
and power simultaneously through one Ethernet cable for up to 100 meters. The POE-164 frees the security IP camera and wireless AP deployment from
restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or
any unreachable place, and most of all, it reduces installation time.
100~240V AC
Power
POE-164
10/100Mbps Ethernet Switch
Data
RJ45 UTP Cable
Data
Powered Device
Power
PoE IP Camera
PoE Wireless AP
Data
Power
PoE Splitter
2
