5 Mega-pixel PoE / Wireless Fish-Eye IP Camera
ICA-8500/ICA-W8500
5 Mega-pixel PoE / Wireless
Fish-Eye IP Camera
ICA-8500 / ICA-W8500
5 Mega-pixel PoE / Wireless Fish-Eye IP Camera
ICA-8500/ICA-W8500
Copyright
Copyright © 2014 by PLANET Technology Corp. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect
to the contents hereof and specifically disclaims any warranties, merchantability or fitness for
any particular purpose. Any software described in this manual is sold or licensed "as is".
Should the programs prove defective following their purchase, the buyer (and not PLANET,
its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and
any incidental or consequential damages resulting from any defect in the software. Further,
PLANET reserves the right to revise this publication and to make changes from time to time
in the contents hereof without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or
registered trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance, for example, use only shielded interface cables when
connecting to computer or peripheral devices. Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches)
during normal operation.
2
5 Mega-pixel PoE / Wireless Fish-Eye IP Camera
ICA-8500/ICA-W8500
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity
when working with electrical equipment. All guidelines of this and of the computer
manufacture must therefore be allowed at all times to ensure the safe use of the equipment
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of
the presence of hazardous substances in electrical and electronic equipment, end
users of electrical and electronic equipment should understand the meaning of
the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted
municipal waste; they should be collected separately.
Revision
.
User’s Manual for PLANET PoE / Wireless Fish-Eye IP Camera
Model: ICA-8500 / ICA-W8500
Rev: 1.00 (February.2014)
Part No. EM-ICA-8500_W8500
3
5 Mega-pixel PoE / Wireless Fish-Eye IP Camera
ICA-8500/ICA-W8500
Table of Contents
Chapter 1. Product Introduction ..................................................................................... 6
1.1 Package Contents ............................................................................................. 6
1.2 Overview ............................................................................................................. 6
1.3 Features .............................................................................................................. 9
1.4 Product Specifications..................................................................................... 10
Chapter 2. Hardware Interface..................................................................................... 12
2.1 Physical Descriptions...................................................................................... 12
2.2 Hardware Installation ...................................................................................... 14
2.3 Initial Utility Installation ................................................................................... 16
2.4 Preparation ....................................................................................................... 18
2.4.1 Configuring Network by PLANET IPInstaller.................................... 18
2.4.2 Opening the Web-based UI of Select Camera ................................ 19
2.5 Using UPnP of Windows XP or 7.................................................................. 20
2.5.1 Windows XP.......................................................................................... 20
2.5.2 Windows 7 ............................................................................................. 24
2.6 Setup ActiveX to use the Internet Camera .................................................. 25
2.6.1 Internet Explorer 6 for Windows XP .................................................. 26
2.6.2 Internet Explorer 7 for Windows XP .................................................. 26
2.6.3 Internet Explorer 7 for Windows Vista............................................... 27
Chapter 3. Web-based Management.......................................................................... 29
3.1 Introduction ....................................................................................................... 29
3.2 Connecting to Internet Camera ..................................................................... 29
3.3 Live View........................................................................................................... 31
3.4 System Configuration...................................................................................... 34
3.4.1 Information Tab ..................................................................................... 34
3.4.2 Time Tab ................................................................................................ 35
3.4.3 Security Tab........................................................................................... 36
3.4.4 Maintenance Tab .................................................................................. 37
3.4.5 System Log ........................................................................................... 38
3.5 Network Setup Execution .............................................................................. 39
3.5.1 General Tab........................................................................................... 39
3.5.2 Wireless Tab (ICA-W8500 only)......................................................... 41
3.5.3 DDNS Tab.............................................................................................. 42
3.5.4 Multicast Tab ......................................................................................... 43
3.5.5 IP Filter Tab ........................................................................................... 43
3.6 Video & Audio Setup Execution .................................................................... 44
3.6.1 Stream Tab ............................................................................................ 44
3.6.2 Video Tab............................................................................................... 47
3.6.3 Audio Tab ............................................................................................... 48
3.6.4 Privacy Mask Tab ................................................................................. 50
3.7 Event Setup Execution................................................................................... 51
3.7.1 Motion Tab ............................................................................................. 51
3.7.2 Video Tab............................................................................................... 52
3.7.3 Snapshot Tab ........................................................................................ 54
3.8 Local Storage Setup Execution..................................................................... 58
3.8.1 Local Storage Tab................................................................................. 58
3.8.2 Playback Tab......................................................................................... 58
3.9 Remote storage ............................................................................................... 59
4
5 Mega-pixel PoE / Wireless Fish-Eye IP Camera
ICA-8500/ICA-W8500
Appendix A: PING IP Address ............................................................................ 60
Appendix B: DDNS Application........................................................................... 61
Appendix C: Configuring Port Forwarding Manually ....................................... 62
Appendix D: Troubleshooting & Frequently Asked Questions ....................... 69
5
5 Mega-pixel PoE / Wireless Fish-Eye IP Camera
ICA-8500/ICA-W8500
Chapter 1. Product Introduction
1.1 Package Contents
The package should contain the following items:
z IP Camera Unit x 1
z Power Adapter x 1
z Quick Installation Guide x 1
z User’s Manual CD x 1
z Wall Mount Kit x 1
z Mounting Label x 1
z GPIO Connector x 1
1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in the Internet Camera
packet will cause damage and void the warranty for this product.
1.2 Overview
Compact Panoramic Camera for Wide View Surveillance
PLANET ICA-8500/ICA-W8500 5 mega-pixel PoE/Wireless Fish-Eye IP Camera supports
H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in up to
1920 x 1920 pixels at 15 frames per second (fps). Incorporating the professional 5
MP-resolution sensor, the ICA-8500/ICA-W8500 provides high quality images and panorama
function with quad view to enable images of monitoring and recording from four different
angles to be displayed simultaneously. It offers 180° panoramic view by wall mount installation
and 360° surround view in deployment of ceiling mount. Therefore, users do not need to install
multiple IP cameras and hence save tremendous installation and maintenance costs.
Moreover, the unique design makes it the ideal solution to surveillance applications in
boutiques, stores, restaurants, indoor public areas, etc.
6
5 Mega-pixel PoE / Wireless Fish-Eye IP Camera
ICA-8500/ICA-W8500

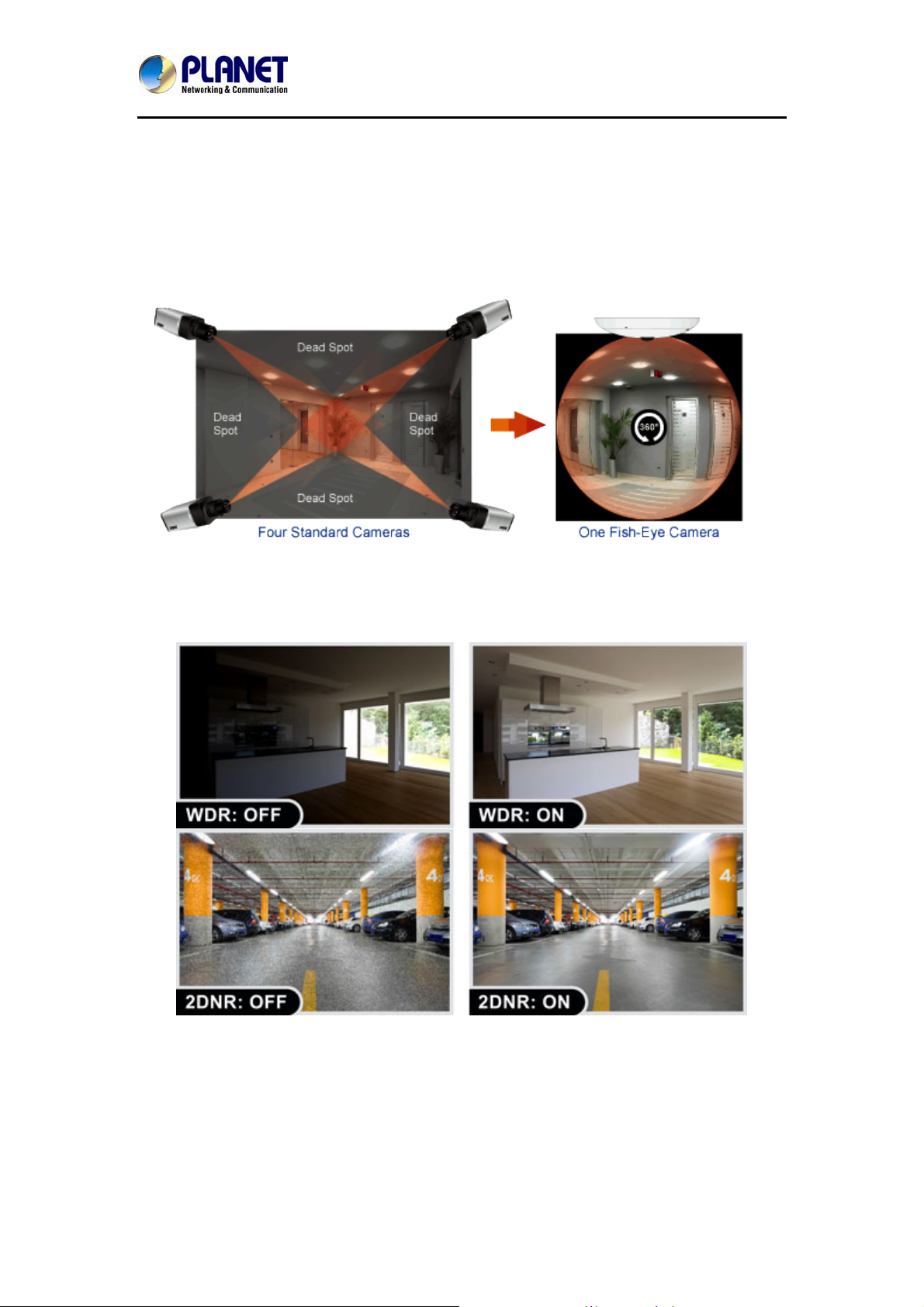

Full Surveillance with 360º Surround View
Furthermore, the ICA-8500/W8500 is a fish-eye camera that allows you to monitor all angles of
a location using just one camera and thus save lots of the traditional mechanical Pan/Tilt
maintenance cost. The distorted hemispherical image of the fish-eye camera will be converted
into the conventional rectilinear projection. Without installing any software, you can watch live
view and utilize functions such as motion detection and camera tampering through the Web
interface using a web browser. Distortion correction feature of the ICA-8500/W8500 can fix the
camera video so you can use e-PTZ to zoom in, zoom out, and pan across your camera’s
video to survey a large area easily.
Exceptional Image Quality
Together with powerful image processing attributes like Wide Dynamic Range and Dimension
Noise Reduction technology, the ICA-8500/W8500 is able to filter the intense backlight
surrounding a subject and remove noises from video signal. Thus, the ICA-8500/W8500 offers
an extremely sharp and clear image quality even under any challenging lighting conditions.
Day & Night Surveillance
The ICA-8500/W8500 features an automatic, removable infrared-cut filter, which enables the
camera to provide color video when there is sufficient light, and black and white video in dark
conditions. The camera is able to maintain clear images 24 hours a day.
7
