PLANET ICA-2250VT User Manual

Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
1
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Copyright © 2013 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, i n any form or by any mean s, electroni c, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchant ability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the entire cost of all necessary s ervicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.
Federal Communication Commission Interference St atement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates , uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance, for example, use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this device must accept any interference received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.
2
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Safety
This equipment is designed with the utmost care for the safety of those who in stall and u se it. However, sp ecial attentio n must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, en d users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste; they should be collected separately.
Revision
.
User’s Manual for PLANET Industrial PoE Plus Outdoor IR IP Camera Model: ICA-2250VT Rev: 1.00 (December. 2013) Part No. EM-ICA2250VT
3
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Table of Contents
Chapter 1. Product Introduction......................................................................... 6
1.1. Package Contents...................................................................................6
1.2 Overview..................................................................................................6
1.3 Features...................................................................................................8
1.4. Product Specifications.............................................................................9
Chapter 2. Hardware Interface......................................................................... 11
2.1 Physical Descriptions.............................................................................11
2.2 Hardware Installation.............................................................................14
2.3 Initial Utility Installation...........................................................................19
2.4 Preparation............................................................................................21
2.4.1 Search and View by PLANET IP Wizard II....................................... 21
2.4.2 Configure Network by PLANET IP Wizard II.................................... 23
2.5 Using UPnP of Windows XP or 7...........................................................25
2.5.1 Windows XP.......................................................................................... 25
2.5.2 Windows 7............................................................................................. 29
2.6 Setup ActiveX to use the Internet Camera.............................................30
2.6.1 Internet Explorer 6 for Windows XP.................................................. 31
2.6.2 Internet Explorer 7 for Windows XP.................................................. 31
2.6.3 Internet Explorer 7 for Windows Vista............................................... 32
Chapter 3. Web-based Management.............................................................. 33
3.1. Introduction...........................................................................................33
3.2. Connecting to Internet Camera.............................................................33
3.3 Live View ...............................................................................................35
3.4 ActiveX Control ...................................................................................... 37
3.4.1 Digital Zoom.......................................................................................... 38
3.4.2 Snapshot................................................................................................ 38
3.4.3 Record.................................................................................................... 38
3.4.4 Volume................................................................................................... 39
3.4.5 Statistics................................................................................................. 40
3.4.6 About...................................................................................................... 40
3.5 Network..................................................................................................40
3.5.1 Network.................................................................................................. 40
3.5.2 IPv6......................................................................................................... 43
3.5.3 HTTPS ................................................................................................... 43
3.5.4 DDNS server......................................................................................... 44
3.5.5 PPPoE.................................................................................................... 45
3.5.6 Streaming............................................................................................... 46
3.5.7 UPnP...................................................................................................... 47
3.5.8 Bonjour................................................................................................... 48
3.5.9 IP Filter ................................................................................................... 49
3.6 Camera..................................................................................................50
3.6.1 Picture.................................................................................................... 50
3.6.2 Privacy Mask......................................................................................... 53
3.6.3 PTZ Setting ........................................................................................... 54
3.6.4 Preset Setting ....................................................................................... 55
3.6.5 Tour Setting........................................................................................... 55
3.7 System...................................................................................................56
3.7.1 System................................................................................................... 56
4
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
3.7.2 Date & Time........................................................................................... 57
3.7.3 Maintenance.......................................................................................... 58
3.8Video.....................................................................................................60
3.8.1 Common................................................................................................ 60
3.8.2 Overlay Image....................................................................................... 61
3.8.3 Video Profile.......................................................................................... 62
3.8.4 ONVIF Profile........................................................................................ 63
3.8.5 ROI ......................................................................................................... 64
3.8.6 AOI.......................................................................................................... 65
3.9Audio.....................................................................................................66
3.10User Privilege Access.........................................................................66
3.11Protocol...............................................................................................67
3.11.1 ONVIF.................................................................................................. 67
3.11.2 SNMP................................................................................................... 68
3.12Mail.....................................................................................................69
3.13Event Detection ..................................................................................71
3.13.1 Motion Detection................................................................................ 71
3.13.2 Camera Tampering ............................................................................ 72
3.13.3 Audio Detection .................................................................................. 72
3.14Storage............................................................................................... 73
3.14.1 SD Card............................................................................................... 73
3.14.2 SAMBA Server.................................................................................... 74
3.15Continuous Recording ........................................................................75
3.16Recording List.....................................................................................75
3.17Event Server.......................................................................................76
3.17.1 FTP Server.......................................................................................... 76
3.17.2 TCP Server.......................................................................................... 77
3.17.3 HTTP Server....................................................................................... 78
3.17.4 SAMBA Server.................................................................................... 79
3.18Event Schedule...................................................................................80
3.18.1 Setting.................................................................................................. 80
3.18.2 Record ................................................................................................. 84
3.18.3 Port Status........................................................................................... 84
Appendix A: PING IP Address............................................................................ 85
Appendix B: 3GPP Access.................................................................................. 86
Appendix C: Bandwidth and Video Size Estimation........................................ 87
Appendix D: DDNS Application........................................................................... 88
Appendix E: Configuring Port Forwarding Manually ....................................... 89
Appendix F: Power Line Frequency................................................................... 91
Appendix G: Troubleshooting & Frequently Asked Questions....................... 92
5
Industrial PoE Plus Outdoor IR IP Camera

Chapter 1. Product Introduction

1.1. Package Contents

The package should contain the following items:
z Camera Unit x 1 z User’s Manual CD x 1 z Quick Installation Guide x 1 z Wall Mounting Kit x 1 z Wall Mounter x 1
1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in the Internet Camera packet will cause damage and void the warranty for this product.

1.2 Overview

Superb, Outdoor Full HD Professional Surveillance
ICA-2250VT
PLANET ICA-2250VT is a Full HD camera for a wide range of video surveillances over IP networks. It supports H.264, MPEG-4, and M-JPEG compression formats to deliver excellent picture quality in 1080P resolutions at 30 frames per second (fps). Incorporating the new Exmor™ CMOS image sensor from Sony, which is specially designed for surveillance applications, this camera provides high quality images under all lighting conditions. Superb 1080P video quality is provided with progressive scan in multiple individual streams, 16:9 aspect ratio and frame rate. The ICA-2250VT offers high-performing video surveillance in almost any difficult environment. Its IP66 and -40 to 75 degrees C operating temperature features help to protect the camera body against rain and dust, and ensures operation under extreme weather conditions, which make it an ideal solution for outdoor applications, e.g. surveillance of buildings, roads, parking areas, garag es, railway stations and airports.
Day & Night Surveillance
The ICA-2250VT features an automatic, removable infrared-cut filter to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA- 2250VT is able to maintain clear images 24 hours a day.
6
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Extraordinary Image quality
Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3-Dimension Noise Reduction (3DNR) technology, the ICA-2250VT is able to filter the intense backlight surrounding a subject and remove noises from video signal. Thus, an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.
Advanced Event Management
The ICA-2250VT supports a number of advanced features that enhance the camera flexibility and capabilities. The Auto-Iris function improves the image quality and avoid over exposure. The AV output enables 2-way audio communication. The embedded micro SD/SDHC card slot facilitates the image storage locally. It also provides the RS-485 interface for an optional pan/tilt enclosure connection to effectively perform p an/tilt management. The input/output interface of the ICA-2250VT can connect to external devices such as door sensors and relays to activate light or close doors automatically.
Flexible Installation and Power Functionality
The ICA-2250VT incorporates 802.3at Power over Ethernet standard so it can be powered via the network cable, eliminating the need for power cables and reduci ng installation costs. The ICA-2250VT is ONVIF compliant and therefore is interoperabl e with other brands in the market. It also includes the 64 channel central management software for effici ent surveillance monitoring. The ICA-2250VT is indisputably the top choice for reliable and high performance surveillance.
Composite Outdoor-ready and Camera
The ICA-2250VT is an out-of-the-box, full HD IP camera that is designed to sustain severe weather conditions. It is a unique and competitive camera in the I P CCTV market, with features such as IP66 housing for rain/dust protection and -40 to 75°C operation.It comes with a built-in heater and blower in the box. It's ideal for cost efficient 24/7 area or perimeter surveillance of all security applications such as roads, tunnels and airports.
7
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT

1.3 Features

¾ Camera
1 / 2.9” 2MP Sony Exmor Image Sensor 3.1~8 mm Vari-focal, Auto-iris Lens 0.5 lux Minimum Illumination at F1.4 Maximum resolution 1920 x 1080 Removable IR-cut Filter for Day & Night Function CS or C-mount Adjustment Ring for Flexible Lens Installation
¾ Video / Audio
H.264 / MPEG-4 and M-JPEG video compression simultaneously Simultaneous multi-stream support H.264 high profile, main profile and baseline Max. resolution 1080P at 30fps 3DNR to improve picture quality at low Lux WDR Enhancement to enhance visibility under extremely bright or dark environments 2-way audio support with enhanced audio quality
¾ Network and Configuration
Compliant with IEEE 802.3at PoE interface for flexible deployment Auto MDI/MDI-X supported Supports IPv6 protocol in addition to the standard IP protocol version 4 (IPv4) RTSP / UPnP / 3GPP / HTTPS protocols selectable
¾Easy Installation & Management
ONVIF compliant Built-in Samba client for NAS SD Card Local Video Recording Supported 3GPP for 3G mobile remote applications RS-485 interface for P/T scanner control Digital Input / Output for integration with sensors and alarms Cam Viewer 3 central management soft ware supported Fan and heater with fully automatic intelligent control Industrial design with -40 to 75 degrees C operating temperature IP66 outdoor classifications with cable management bracket for rigorous environment
8

1.4. Product Specifications

Model
Camera
Image Device
Lens
Min Illumination Effective Pixels IR LED
Video Compression
Video Resolution
Frame Rate
Image Setting
Streaming
Audio
Audio Streaming Audio Compression Microphone
Audio Output
Network and Configuration
Standard
Protocol
Security Users
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
ICA-2250VT
2 Mega-pixel Sony Exmor image sensor
Vari-focal 3.1~8mm, F1.4 DC Auto-iris, CS mount Mechanical IR Cut Filter Angle of view (horizontal field): 79.3 x 29.8 degrees
0.5 lux @ F1.4 1920 x 1080 pixels 24 pcs / distance up to 35 meters
H.264 / MPEG-4 / M-JPEG
1080P mode
H.264: 1080P / 1280 x 720 / 640 x 360 / 320 x 180 M-JPEG: 1080P / 1280 x 720 / 640 x 360 / 320 x 180 MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
720P mode
H.264: 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 80 M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 80 MPEG4: 640 x 360 / 320 x 180 / 160 x 80
Up to 30fps for all resolutions AE, AWB
3D Noise reduction Digital WDR WDR Color, brightness, sharpness, contrast Mirror / Flip 7 Privacy Masks Text, time and date overlay Overlay image on video
Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (MPEG4 / H.264) ROI
2-way Audio RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR External microphone input
Adjustable audio output gain
IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3at Power over Ethernet
IPv4, IPv6, TCP/IP, UDP, HTTP, HTT PS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
20 clients on-line monitoring at the same time
9
System Integration
Application Programming Interface Alarm Triggers
Alarm Events
General
Power Requirements Fan / Heater Control Temperature Power Consumption
Protection Class Operating Temperature Operating Humidity Weight (include LENS) Dimensions (W x D x H) Emission
Connectors
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Open API for software integration ONVIF Compliant
Intelligent video motion detection and external input File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP External output activation Audio alerting output Pre and post-alarm buffering
IEEE 802.3at Class 4 Heater: On: 15 / Off: 25 degrees C
Fan: On: 35 / Off:25 degrees C
19.8W max. IP-66 classification with weatherproof feature
-40 ~ 75 degrees C 20 ~ 80% (non-condensing)
2.89kg 145 x 406 x 109 mm CE, FCC 10/100/1000Mbps Ethernet, RJ-45
DC power jack Terminal block for 1 alarm input and 1 output RS-485 interface for pan/tilt scanners control External Mic input Audio output BNC video output Micro SD/SDHC card (Max 32GB, Class 6) Factory default reset
10
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT

Chapter 2. Hardware Interface

2.1 Physical Descriptions

Inside View of ICA-2250VT
11
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Rear View
Interface Description
The input power is DC 12V, 1A.
DC Power
(Power Jack)
LAN
(RJ-45 socket )
Audio Out
(Audio Output)
Mic In
(Microphone Input)
Micro SD
(Micro SD Card Slot)
BNC Connector
(Video Output)
Connect to PC or Switch.(For connection to 10Base-T / 100Base-TX and 1000 Base-T Ethernet cabling) This Ethernet port built auto-negotiation protocol can detect or negotiate the transmission speed of the network automatically . Please use CAT-5 cable to connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub. Power LED (orange color) This LED is used to indicate whether DC power is on or not. LAN LED (green color) This LED will be flashing while network accessing via Ethernet
Connect a loud speaker to the IP Camera. This is for voice alerting and two-way audio.
Connect a microphone to the IP Camera. User can insert a micro SD card into this slot for recording.
The Network Camera also provides composite video output. The video output function is only for easy installation to check view angle and focus. Furthermore, only “720p Mode” supports this function.
The power supply from 802.3at PoE module.
12
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
RST
(Factory Default)
DI/DO, RS-485
This button is used to restore all the factory default settings. The 6-pin terminal block includes 1 input ports and 1 output
ports, and RS-485 D+ and D-.
The Camera provides a terminal block with 6 pins of connectors for DI, DO, and RS485. Please refer below for more information.
Name Number Function
12VDC 1 DC 12V (50mA maximum) DI 2 Digital signal input GND 3 GND DO 4 Digital signal output 485+ 5 RS485 data + 485- 6 RS485 data -
13
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT

2.2 Hardware Installation

2.2.1 Use the wrench from the wall mounting kit to counterclockwise release the screw and
protective cap.
Counterclockwise release screw
2.2.2 Slide an RJ-45 cable without its plug through the stand and th e protective cap. Then fix the
RJ-45 plug and connect it to the connector of the PoE module. Please note that the whole RJ-45 cable (with the plug) cannot go through the protective cap. When the setup is completed, user can use PoE tester to test PoE module to check whether the LED works or not.
Counterclockwise release protective cap
14
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Poe Module
Protective cap
Stand
2.2.3 Use the wrench from the wall mounting kit to clockwise tighten the screw and protective cap.
Clockwise tighten screw
Clockwise tighten protective cap
Two screws of shield will effects camera’s waterproof. Please notice it.
15
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
2.2.4 Use the wrench to tighten the four screws.
2.2.5 After the above steps have been done, place the ICA-2 250VT on the wall with the four
screws tightened.
16
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
2.2.6. Network Installation
1. Connect an Ethernet cable
Connect the LAN cable on the camera to the network device (hub or switch).
If there is an IEEE802.3at PoE switch in your network, you can connect the camera LAN cable to this PoE switch to obtain power. The power adapter is unnecessary when Internet camera is connected to a PoE switch.
2. Attach the power supply
Plug in power adapter and connect to power source. After power on, the camera will start to operate.
1. Only use the power adapter supplied with Internet camera; otherwise, the product
may be damaged.
2. The power adapter is unnecessary when Internet camera is connected to a PoE
switch. Otherwise, the product may be damaged when Internet camera is connected to a POE switch and power adapter simultaneously.
3. Atta ch BNC connector
Connect the video BNC connector to a monitor set, if necessary, to check camera viewing angle and focus.
4. Attach Speaker to camera (optional)
If user needs both video stream and audio stream, then the speaker should be attached to camera.
5. PoE (Power over Ethernet)
Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP phone or a network camera, using the same cable as that used for network connection. It eliminates the need for power outlets at the camera locations and enables easier application of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days a week operation. The IP Camera requires a connectivity to IEEE802.3at Power over Ethernet Switch (PSE) or
802.3at Injector for the system includes camera itself, infrared LEDs, internal blower, and heater.
17
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
18
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT

2.3 Initial Utility Installation

This chapter shows how to quickly set up your H.264 camera. The camera is with the default settings. However to help you find the networked camera quickly the windows utility PLANET IP Wizard II can search the cameras in the network that can help you to configure some basic setting before you start advanced management and monitoring.
1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once completed, a welcome menu screen will appear.
2. Click the “IP Wizard II” hyperlink; you will see the dialog box as below.
If the welcome screen does not appear, click “Start” at the taskbar. Then, select “Run” and type “D:\Utility\IPWizard II\setup.exe”, assume D is your CD-ROM drive.
3. The “Welcome to the Install Shield Wizard for PLANET IP Wizard II” prompt will display on the screen and click “Next” to continue.
19
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
4. Please click “Next” to install with original settings, or you may click “Change…” button to modify the install folder and then press “Next” to continue.
5. Please click “Install” to start the installation.
20
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
6. Please click “Finish” to complete the installation and launch program immediately.

2.4 Preparation

When you install the Internet Camera on a LAN environment, you may execute PLANET IP Wizard II to discover camera’s IP address and set up related parameters in the camera.

2.4.1 Search and View by PLANET IP Wizard II

When you install the Internet Camera on a LAN environment, you have two easy ways to search your cameras by PLANET IP Wizard II or UPnP discovery. Here is the way to execute PLANET IP Wizard II to discover camera’s IP address and set up related parameter in a camera.
21
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Search
When launching the Planet IP Wizard II, a search window will pop up. Planet IP Wizard II is starting to search Internet Cameras on the LAN. The existing devices will be listed below.
22
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
View
If Planet IP Wizard II finds Internet Camera, View button will be available. Please select the camera you want to view and click the View button. Then you can see the Video from camera directly. Furthermore, you can double-click the left button of mouse to link to the Internet Camera by browser.

2.4.2 Configuring Network by PLANET IP Wizard II

In case you want to change the IP related parameters of wired interface, please select the Internet Camera you want to configure and click the LAN button. Relative settings will be carried out as shown below.
23
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
In case, you do not want to change user name and/or password, then just click “Submit” button to perform your setting accordingly. Click “<<” button will go back to the previous page. If you like to change user name and/or password of the device, just click the check button. Then, the related fields will show up as follows.
24
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
After keying in the new user name and password, click “Submit” button to perform your setting accordingly. Click “<<” button to go back to the previous page.

2.5 Using UPnP of Windows XP or 7

2.5.1 Windows XP

UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled device. If the operating system, Windows XP, of your PC is UPnP enabled, the device will be very easy to configure. Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP.
Please note that Windows 2000 does not support UPnP feature.
Go to Start > Settings, and Click Control Panel.
The “Control Panel” will display on the screen and double click “Add or Remove Programs” to continue.
The “Add or Remove Programs” will display on the screen and click Add/Remove Widows Components to continue.
25
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
In case, you do not want to change user name and/or password, then just click “Submit” button to perform your setting accordingly. Click “<<” button will go back to the previous page. If you like to change user name and/or password of the device, just click the check button. Then, the related fields will show up as follows.
26
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
When “Networking Services” displays on the screen, select “Universal Plug and Play” and click “OK” to continue.
Please click “Next” to continue.
The program will start installing the UPnP automatically. You will see the below pop-up screen. Please wait while Setup configures the components.
27
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT
Please click “Finish” to complete the UPnP installation
Double-click “My Network Places” on the desktop. When “My Network Places” displays on the screen, double-click the UPnP icon with Internet Camera to view your device in an Internet browser.
28
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT

2.5.2 Windows 7

Go to Start > Control Panel > Network and Internet > Network and Sharing Center, if network discovery is off; click the arrow button Click Turn on network disco very, and then click Apply.
password or confirmation, type the password or provide confirmation.
to expand the section.
If you are prompted for an administrator
29
Industrial PoE Plus Outdoor IR IP Camera
ICA-2250VT

2.6 Setting Up ActiveX to Use the Internet Camera

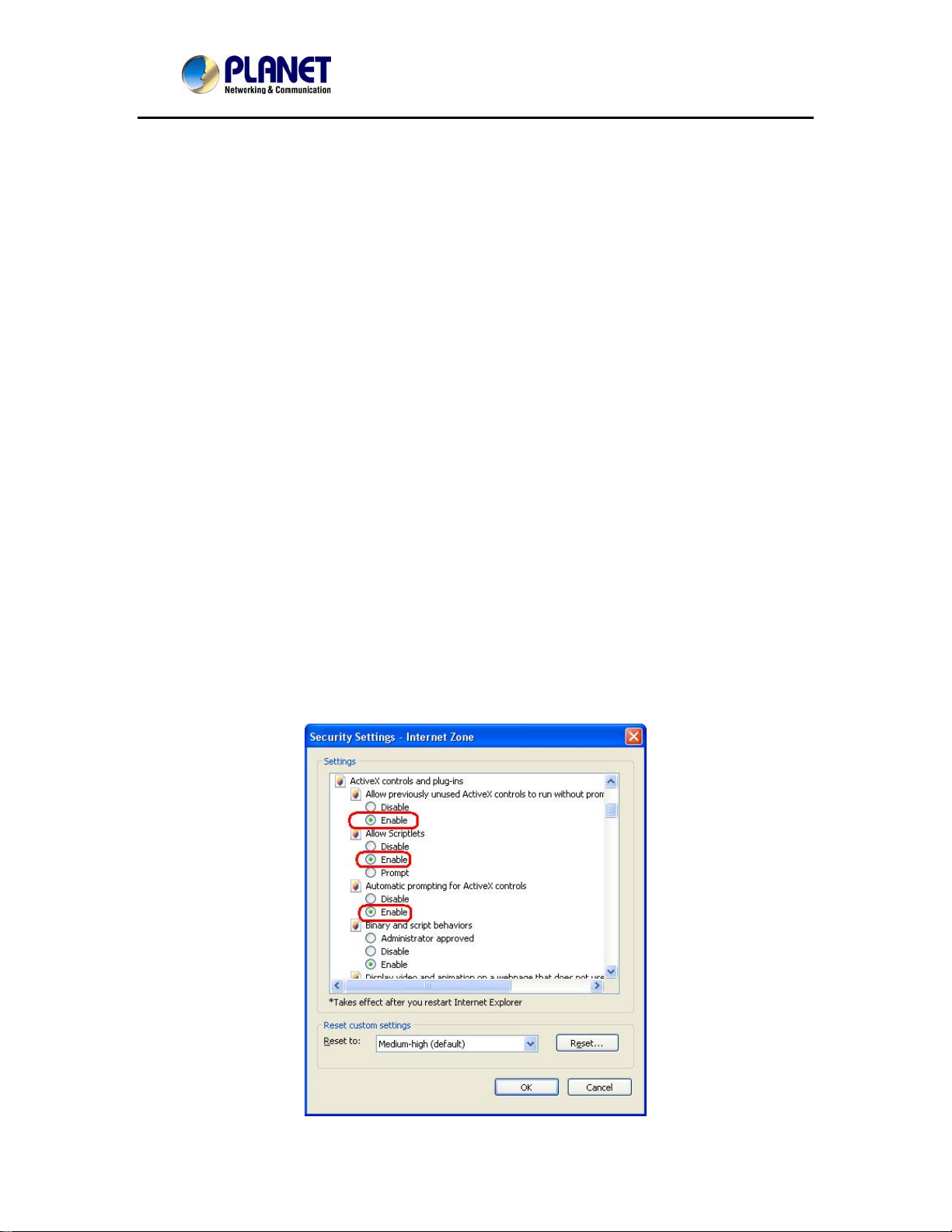

The Internet Camera web pages communicate with the Internet Camera using an ActiveX control. The ActiveX control must be downloaded from the Internet Camera and installed on your PC. Your Internet Explorer security settings must allow for the web page to work correctly. To use the Internet Camera, user must set up his IE browser as follows:
30
Loading...
+ 67 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
