1.1. Package Contents
The following items should be contained in the package:
ICA-2200 / Full HD PoE Box IP Camera x 1
Power Adapter x 1
Camera Mount Kit x 1
User’s Manual CD x 1
Quick Installation Guide x 1
Screw Packet x 1
A/V cable x 1
Chapter 1. Product
Introduction
NOTE:
1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in Internet Camera package
will cause damage and void the warranty for this product.
1.2. Product Description
Superb Full HD Quality for Professional Surveillance
The PLANET ICA-2200 (or “Internet Camera” in the following section) is a Full HD camera for a
wide range of video surve illance over I P networks. It suppo rts H.264, MPEG-4, and M-JP EG
compression formats to d eliver excellent picture quality in 1080 P resolutions at 30 frame s per
second (fps). Superb 1080P video quality is provided with progressive scan in multiple individual
streams, 16:9 aspect ratio and frame rate. The ICA-2200 offers high-performing video surveillance
in both indoor and outdoor applications. It is perfect for securing locations such as buildings, roads,
parking areas, garages, railway stations, airports and more.
1
User’s Manual of ICA-2200
Day & Night Surveillance
The ICA-2200 features an automatic, removable infrared-cut filter to p rovide color video when
there is sufficient light, and black/white video in dark conditions. The ICA-2200 is able to maintain
clear images 24 hours a day.
2
User’s Manual of ICA-2200
Extraordinary Image quality
Together with powerful image processing attr ibutes like Wid e Dynamic Range (WDR) and
3-Dimension Noise Reduction (3DNR) technology, the ICA-22 00 is able to filter the intense
backlight surrounding a subject and remove noises from video signal. Thus, an extremely clear
and exquisite picture quality can be produced even under any challenging lighting conditions.
3
User’s Manual of ICA-2200
Advanced event management
The ICA-2200 supports a number of advanced features that enhance the camera flexibility and
capabilities. The Auto-Iris function improves the image quality and avoid over exposure. The AV
output enables 2-Way audio communication. The embedded micro SD/SDHC card slot
facilitates the image storage locally. It also provides the RS-485 interface for an optional pan/tilt
enclosure connection to effectively perform pan/tilt management. The inputs/outputs interface
in the ICA-22 00 can connect to external devices such as door sensors and relays to activ ate
light or close doors automatically.
Flexible installation and Power functionality
The ICA-2200 incorporates 802.3af Power over Et hernet standard so it can b e powered via the
network cable, eliminating the need for powe r cables and redu cing installation costs. The
ICA-2200 is ONVIF com pliant and therefore is inte roperable with other bran ds in the marke t. It
also includes the 64 chan nel central management software for efficient surveillance monitoring.
The ICA-2200 is indisputably the top choice for reliable and high performance surveillance.
4
User’s Manual of ICA-2200
1.3. Product Features
¾ Camera
1 / 2.7” Progressive 2MP CMOS sensor
3.3~12 mm Vari-focal, Auto-iris Lens
0.5 lux Minimum Illumination at F1.4
Maximum resolution 1920 x 1080
Removable IR-cut Filter for Day & Night Function
CS- or C-mount Adjustment Ring for Flexible Lens Installation
¾ Video / Audio
H.264 / MPEG-4 and M-JPEG video compression simultaneously
Simultaneous multi-stream support
H.264 high profile, main profile and baseline
Max. Resolution 1080P at 30fps
3DNR to improve picture quality at low Lux
WDR Enhancement for enhance visibility under extremely bright or dark environments
Two-way audio support with enhanced audio quality
¾ Network and Configuration
Compliant with IEEE 802.3af PoE interface for flexible deployment
Auto MDI/MDI-X supported
Support for IPv6 in addition to the standard IP protocol version 4
RTSP / UPnP / 3GPP / HTTPS protocols selectable
¾ Easy Installation & Management
ONVIF compliant for interoperability
Built-in Samba client for NAS
3GPP for 3G mobile remote applications
RS485 interface for P/T scanner control
Digital Input/Outputs for integration with sensors and alarm
Cam Viewer 3 Central management software supported
5
User’s Manual of ICA-2200
1.4. Product Specification
Model
Camera
Image device
Lens
Minimal Illumination
Effective Pixels
Video Compression
Video Resolution
Frame Rate
Image Setting
Streaming
Audio
Audio Streaming
Audio Compression
Microphone
Audio Output
Network and Configuration
Standard
ICA-2200
1/2.7" progressive scan CMOS sensor
Vari-Focal 3.3~12mm, F1.4 DC Auto-Iris, CS mount
Mechanical IR Cut Filter
Angle of view (horizontal Field): 79.3°x 29.8°
0.5 lux @ F1.4
1920 x 1080 pixels
H.264 / MPEG-4 / M-JPEG
1080P mode
H.264: 1080P / 640 x 360 / 320 x 180 / 160 x 90
M-JPEG: 1080P / 640 x 360 / 320 x 180 / 160 x 90
MPEG4: 640 x 360 / 320 x 180 / 160 x 90
720P mode
H.264: 1280 x 720 / 640 x 360 / 160 x 90
M-JPEG: 1280 x 720 / 640 x 360 / 160 x 90
MPEG-4: 640 x 360 / 160 x 90
Up to 30fps for all resolutions
AE, AWB
3D Noise reduction
WDR
Color, brightness, sharpness, contrast
Mirror / Flip
8 Privacy Masks
Text, time and date overlay
Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
ROI
2-Way Audio
RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR
External microphone input
Adjustable audio output gain
IEEE 802.3 10Base-T
6
User’s Manual of ICA-2200
Protocol
Security
Users
System Integration
Application Programming Interface
Alarm Triggers
Alarm Events
General
Power Requirement
Power Consumption
Operating Temperature
Operating Humidity
Weight (include LENS)
Dimension (W x D x H)
Emission
Connectors
IEEE 802.3u 100Base-TX
IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS,
DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP,
PPPoE, 3GPP, ICMP, Samba
Password protection, IP address filtering, HTTPS encrypted data
transmission, user access log
20 clients on-line monitoring at the same time
Open API for software integration
ONVIF Compliant
Intelligent video motion detection and external input
File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output
Pre and post-alarm buffering
12V DC, 1A
IEEE 802.3af Class 3
6W max.
0 ~ 50 Degree C
20 ~ 80% (non-condensing)
392g
58 x 125 x 62 mm
CE, FCC
10/100Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
RS-485 interface for pan/tilt scanners control
External MIC input
Audio output
Composite video output
Micro SD/SDHC card (Max 32GB, Class 6)
Factory default reset
7
2.1. Front View
User’s Manual of ICA-2200
Chapter 2. Hardware Interface
1
Lens
Internal
2
Microphone
3 Back Focus Ring
User could adjust the focus to get the best picture quality.
The Camera has built-in an in ternal microphone. This
microphone is hidden in the pinhole located on the front panel.
Adjust this ring to adapt focus of C/CS mount lens
8
2.2. Rear View
User’s Manual of ICA-2200
1. MIC In Connect an external microphone to the network camera.
Audio
2.
Output
3. DC Power
Micro SD
4
Card Slot
LAN
5
Socket
Connect a loud spe aker to the network cam era. This function is for alerting
sound and two-way audio.
The input power is 12VDC.
Note that supply the power to the Camera with the powe r adapter included in
package. Otherwise, the improper power adapter may damage the unit and
result in danger.
User can insert a micro SD card into this slot for event recording.
The LAN socket is a RJ-45 connector for connections to 10Base-T Ethernet or
100Base-TX Fast Ethernet cabling. This Ethernet port supports
Auto-Negotiation can detect or negotiate the transmission speed of the network
automatically. Please use Category 5 cable to connect the Network Camera to a
100Mbps Fast Ethernet network switch or hub.
The LAN port also supports IEEE802.3af class 3 Power over Ethernet capability
that can direct connect wi th standard IEEE802.3af mid-span / end-sp an PSE
(Power Sourcing Equipment) device. No DC power required if the ICA-2200 is
connected with 802.3af PSE.
9
Factory
Default
6
Reset
DI/DO
7
Connector
Video Out
8
User’s Manual of ICA-2200
In the LAN socket, there are two LEDs embedded:
Power LED (orange color)
This LED is used to indicate whether DC power is on or not.
LAN LED (green color)
This LED will be flashing while network accessing via Ethernet.
Sometimes restarting the device will m ake the system back to a normal state.
However, if the system still got problems af ter restart, user can restore the
factory default settings and install it again.
Restore the device:
1. Make sure the Camera is ready first. Insert the p aper clip o r other
suitable tool to press and hold the button down continuously.
2. Hold it lea st 5 se conds and release the tool. Then the device h as
been restored to default settings and reboot again.
Note: Restoring the factory default set ting will lose the all previous settings
included IP address forever. User needs to run the IPWiza rd II program to
search the device and configure it to let the device work properly again.
The Internet Camera provides a terminal block with 6 pins of connectors for DI,
DO, and RS485. Please refer to the Appendix A in this manu al for more
information.
Cable for I/O connectors:
Name Number Function
12VDC 1 DC 12V (50mA maximum)
DI 2 Digital signal input
GND 3 GND
DO 4 Digital signal output
485+ 5 RS485 data +
485- 6 RS485 data The Internet Camera also provides composite video output. Th e video o utput
function is only for easy installation to check view angle and focus. The output is
not a Mega-pixel resolution. Furthermore, the video output is off by default. To
turn on video, please refer to Setting\Camera\Picture chapter.
9
DC Iris
The Internet Camera supports DC-Iris control.
10
User’s Manual of ICA-2200
2.3. Hardware Installation
1. Fix the included stand to desired location
2. Attach the Camera to the stand
3. Plug an Ethernet cable into the Camera
Connect an Ethernet cable to the LAN socket located on the camera ’s rear and attach it
to the network.
4. Connect the external power supply to Camera
Connect the included power adapter to the DC power jack of the camera.
Use the power adapter, 12VDC, incl uded in the p ackage and connect it to wall outlet
NOTE:
for AC power. If the ICA-2200 is connected with IEEE802.3af Power over Ethernet
device such as PoE injector or PoE Switch, DC power is not required. Either power
the ICA-2200 from local DC power or PoE unless for purpose.
5. Done
Once you have installed the camera well and powered it on, the Power LED (orange) will
turn on late r. Once the Power LED turned o n, it means the syste m is bootin g up
successfully. Furthermore, if you ha ve a proper network co nnection, and access to the
camera, the LAN LED will flash green.
11
User’s Manual of ICA-2200
Chapter 3. Initial Utility Installation
This chapter shows how to quick set up your Inte rnet camera. The Internet camera is with the
default settings for the first time power on.
Default IP: DHCP Client OR 192.168.0.20 (if NO DHCP server existed in the network)
Username: admin
Password: admin
However, if you are not fa miliar with ne twork setting and to help you find the networke d Internet
camera quickly, the windows utility PLANET IP Wizard II can search the cam eras in the network
that shall help you to configure some basic setting before you started advanced management and
monitoring.
1. Insert the bundle d CD into the CD-ROM driv e to launch the auto-run p rogram. Once
completed, a welcome menu screen will appear.
2. Click the “IP Wizard II” hyperlink; you will see the dialog box as below.
NOTE:
3. The “Welcome to the InstallShield Wizard for PLANET IP Wizard II” prompt will display on the
screen and click “Next” to continue.
If the welcome screen does not appear , click “S tart” at the taskbar . Then, select “Run”
and type “D:\Utility\IPWizard II\setup.exe”, assume D is your CD-ROM drive.
12
User’s Manual of ICA-2200
4. Please click “Next” to inst all with origin al settings, o r you may click “ Change…” button to
modify the install folder then press “Next” to continue.
13
User’s Manual of ICA-2200
5. Please click “Install” to start the installation.
6. Please click “Finish” to complete the installation and launch program immediately.
14
User’s Manual of ICA-2200
3.1. Preparation
When you in stalled the In ternet Camera on a LAN environment, you may execute PLA NET IP
Wizard II to discover camera’s IP address and set up related parameters in the camera.
3.1.1. Search and View by PLANET IP Wizard II
When you installed the Internet Camera on a LAN environment, you have two easy ways to search
your cameras by PLANET IP Wizard II or UPnP discovery. Here is the way to execute PLANET IP
Wizard II to discover camera’s IP address and set up related parameter in a camera.
9 Search
15
User’s Manual of ICA-2200
When launch the Planet IP Wizard II, a searching windows will pop up. Planet IP Wizard II is
starting to search Internet Cameras on the LAN. The existed devices will be listed as below.
16
User’s Manual of ICA-2200
9 View
If Planet IP Wizard II finds Internet Camera, View button will be available. Please select the
camera you want to view, key in the user name, password, i.e. “admin” by default and click the
View button. Then you could see the Video from camera directly. Furthermore you could double
click the left button of mouse to link to the Internet Camera by browser.
In case you want to change the IP related parameters of wired interface, please select the Internet
Camera you want to configure and click the LAN button. Relative settings will be carried out as
below.
17
User’s Manual of ICA-2200
In case, you do not want to change username and/or password, then just click “Submit” button to
perform your setting accordingly. Click “<<” button will go back to previous page.
If you like to change username and/or password of the device, just click the check button. Then,
the related fields will show up as below.
After keying in new username and p assword, click “Submit” button to perform your se tting
accordingly. Click “<<” button will go back to previous page.
18
User’s Manual of ICA-2200
3.2. Using UPnP of Windows XP or Vista or Win7
UPnP™ is short for Universal Plug a nd Play, whi ch is a n etworking architecture that p rovides
compatibility among network ing equipment, software, and perip herals. This device is an UPnP
enabled device. If the operating system, Windows XP, of your PC is UPnP enabled, the device will
be very easy to configure. Use the following step s to enable UPnP settings only if your operating
system of PC is running Windows XP.
NOTE: Please notice that MS Windows 2000 does not support UPnP feature.
To discover your device, go to your Computer and click Network.
Click the targeted Device. Then Internet Explorer will connect to this IP Camera automatically.
19
User’s Manual of ICA-2200
Chapter 4. Installation Guide
4.1. System Requirements
The Internet Camera can be monitoring on all of Windows operating system that sugg est with
system requirment below in order to got better video performance.
Network Interface 10/100Base-TX Ethernet
Monitoring System Recommended for Internet Explorer 8.0 or later
System Hardware · CPU: Intel® Core™ i3 Processor or faster
· Memory Size : 2GB or more
· VGA card resolution : 1920 x 1080 or higher
· VGA card memory : 1GB or above
NOTE: 1. The listed information is minimum system requirements only. Actual requirement
will vary depending on the nature of your environment.
2. The ICA-2200 series can be managed by PLANET IP Wizard II if you want to
configure more detail information and settings of PLANET IP Wizard II software
please refer to the CD-ROM folder “D:\Utility\IPWizardII\setup.exe”, assume D is
your CD-ROM drive.
20
User’s Manual of ICA-2200
4.2. Before Y ou Begin
The Internet Camera can be configured with you r Web Browser. Before configure, please make
sure your PC is under the same IP segment with Internet Camera.
4.2.1. Connecting to Internet Camera
z Use the following procedure to establish a connection from your PC to the Internet Camera.
z Once connected, you can add the camera to your Browser’s Favorites or Bookmarks.
Start the web browser on the computer and type the IP address of the camera.
The Default IP: “http://192.168.0.20
If your network is with DHCP server, by default, your DHCP server will provide an
IP address for ICA-2200. Please check the DHCP server’s status page for the real
NOTE:
IP address of the ICA-2200. Or through the IP Wizard II to get the IP information.
The ICA-2200 will use IP address 192.168.0.20 only if there is no DHCP server
existed in the connected network.
“
The login window of Internet Camera will appear,
Default login username/password is: admin / admin
NOTE:
If the User name and Password have been changed with PLANET IP Wizard II,
please enter the new User name and Password here.
21
User’s Manual of ICA-2200
After logged on, you should see the following messages at the top of Internet Explorer:
Click on the message, and click Run Add-on
When you see this message, click Run’ to install required ActiveX control
After the ActiveX control was installed and run, the first image will be displayed.
You should be able to see the images captured from the Internet Camera in the web page now. For
advanced functions, please refer to instructions given in follows chapters.
NOTE:
If you log in the camera as an ordinary user, setting function will be not available. If
you log in the camera as the administrator, you can perform all the settings
provided within the device.
22
User’s Manual of ICA-2200
A
Chapter 5. Web Configuration
for Live View
5.1. Live View
Start-up screen will be as follow no matter an ordinary users or an administrator.
Video Profile
Language
Setting Menu
Client Menu
2-Way Audio Full Screen
Monitor Image
Section
The image shot by the camera is shown here. The date and time are
displayed at the top of the window.
Streaming Protocol
ctiveX Control
Monitor Image Section
Video Information
Video Profile The camera support multi-profile for three compressions H264,
MEPG-4 and M-JPEG si multaneously. User can ch ose the prop er
and/or preferred profile here.
Full Screen Click this button to display the image in full-screen mode (uses every
available space to display the image captured by this camera).
2-Way Audio The Internet Camera supports 2-way audio function. User can chose
to enable or disable this function by toggling the icon below
23
User’s Manual of ICA-2200
: Disable audio uploading function.
: Enable audio uploading function.
ActiveX Control The plug-in ActiveX control supports a lot of functions by clicking the
left mouse button. Note that this feature only supports on the ActiveX
control within Microsoft® Internet Explorer.
Setting Menu
This function is d etail setting for th e camera that only available fo r
user logged into camera as administrator.
Item Action
Network
Configure Network settings such as IPv6, ONVIF,
DHCP, DDNS, 3GPP, PPPoE and UPnP.
Camera Adjust camera parameters.
System
Video
Configure system information, date & time,
maintenance, and view system log file.
Configure bit rate and frame rate of video
profiles.
Audio Configure audio parameters.
User Setup user name, password and login privilege.
E-Mail Setup E-Mail configuration.
Object Detection Setup Object detection.
Storage
Continuous
Recording
Status and configuration of SD card a nd Samba
server.
Files list inside the SD Card and Samba server.
Recording List Files list inside the SD Card.
Event Server Setup FTP/TCP/HTTP/Samba server for event
Event Schedule Configure the schedule while event triggered.
Streaming Protocol User can select proper streaming protocol according to networking
environment.
Language The device could provide multiple lan guages to m eet customer’s
requirement.
24
User’s Manual of ICA-2200
Client Setting: Click this button to displ ay the client e xtra control panel for 2-way
Audio and Full Screen.
Video Information Display video information inclu ding video format, resolution, fram e
rate and bit rate.
5.2. ActiveX Control
The plug-in ActiveX control supports a lot of functions by clicking the left mouse button. Note that
this feature only supports on the ActiveX control within Microsoft® Internet Explorer.

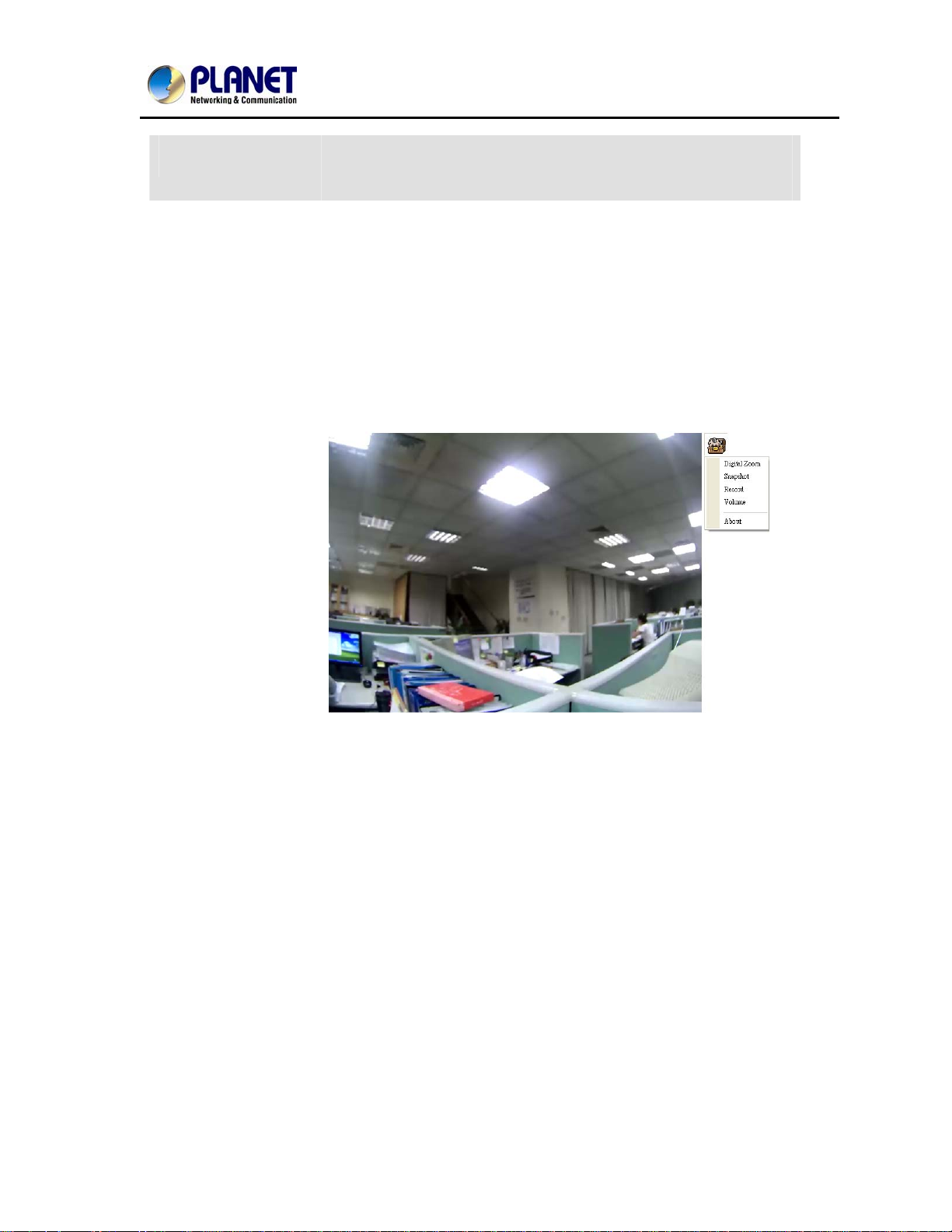

On the ActiveX control icon, click the Left Mouse Button, then a menu pop-up. This menu provides
features that are unique to the ActiveX control. These features include:
• Digital Zoom,
• Snapshot,
• Record,
• Volume,
• About
5.2.1. Digital Zoom
Click Digital Zoom to active this function as above. User can drag or scale the box over the video
to adjust zoom ratio and position.
25
User’s Manual of ICA-2200
5.2.2. Snapshot
Click Snapshot to activate this function. Press Snapshot button to take a picture. The image file is
saved as JPEG format into your local PC. Select Browser, the pop-up window to select the save
path and file name prefix, select OK to continue.
If you like to retrieve the saved image, select the file to display the saved image by using any one
of graph editing tools.
5.2.3. Record
Click Record to ac tivate this function. Press Record button to st art recording. The video file is
saved as ASF format into your local PC. While you want to stop it, press Stop to stop record ing.
Select Browser, the po p-up window to select the save path and file name p refix, select OK to
continue.
After stop recording, list the files, this file is named as Video_yyyymmddhhmmss.asf
The ASF files can be display by the standard Windows Media Player, but it needs the DixectX 9.0
26
User’s Manual of ICA-2200
or later version to be installed.
27
User’s Manual of ICA-2200
5.2.4. Volume
Click Volume to activate this function. These have two co ntrol bars for speaker and microphone
volume. Scroll this control bar to adjust the audio attribute. Check the volume mute will mute the
speaker output.
5.2.5. About
Click About to show the ActiveX information
28
User’s Manual of ICA-2200
Chapter 6. Configuration &
Operation
6.1. Network Configuration
6.1.1. Network
This section provides the menu of connecting the device through Ethernet cable.
MAC address Display the Ethernet MAC address of the device. Note that user cannot
change it.
Obtain an IP address
automatically (DHCP)
Enable this checked box when a DHCP server is inst alled on the
network to i ssue IP address assignment. With t his setting, the IP
address is assigned automatically. If this d evice cannot get an IP
address within limited tries, the device will assign a default IP address
for 192.168.0.20.
If you do not select “O btain an IP address autom atically”, then you
need to enter these network parameters by yourself.
29
User’s Manual of ICA-2200
IP Address This address is a unique n umbers that identifies a computer or device
on the WAN or LAN. T hese numbers are u sually shown in groups
separated by periods, for example: 192.168.0.200
Subnet Mask Subnets allow network traffic between hosts to be separated based on
the network's configuration. In IP networking, traffic takes the form of
packets. IP subnets advance network se curity and perf ormance to
some level by organizing hosts into logical g roups. Subnet masks
contain four bytes and usually appear in the sa me "dotted decimal"
data. For e xample, a very comm on subnet ma sk in it s binary
demonstration 11111111 11111111 11111111 00000000 will usually be
shown in the corresponding, more readable form as 255.255.255.0.
Gateway A gateway is a piece of so ftware or hardware that passes information
between networks. You'll see this term most often when you either log
in to an Inte rnet site or when you're transient email between different
servers.
Obtain DNS from
DHCP
Enable this checked box when a DHCP server is inst alled on the
network and provide DNS service.
Primary DNS When you send email or position a browser to an Internet domain such
as xxxxx.com, the domain name system translates the names into IP
addresses. The term refers to two things: the conventions for naming
hosts and the way the names are control across the Internet.
Secondary DNS The same function as DNS1. It is option not necessary
HTTP Port The device suppo rts two HTTP port s. The first one is default port 80
and this po rt is fixed. This port is very useful for Intranet usage. The
second HTTP port is changeable. Users could assign the second port
number of ht tp protocol, and the WAN users should follow th e port
number to lo gin. If the http port i s not assigned as 80, users have to
add the po rt number i n back of IP addre ss. For example:
http://192.168.0.20:8080.
Therefore, the user can access the device by either
http://xx.xx.xx.xx/, or
http://xx.xx.xx.xx:xxxx/ to access the device.
If multiple de vices are installed on the LAN an d also required to be
accessed from the WAN, then the HTTP Port can be assigned as the
30
User’s Manual of ICA-2200
virtual server port mapping to support multiple devices.
NOTE When the configuration is finish, please click “OK” to save and enable
the setting.
6.1.2. IPv6 function
Internet Protocol version 6 (IPv6) is called the “IP Next Generation” (IPng), which is designed to fix
the shortcomings of IPv4, su ch as data security and maximum n umber of use r addresses. It is
backward compatible and thus expected to slowly replace IPv4, with the two existing side by side
for many years.
IPv6 To enable or disable the IPv6 function here.
6.1.3. HTTPS
HTTPS: Stands for Hypertext Transfer Protocol Secure
HTTPS is a combination of the Hypertext Transfer Protocol with the SSL/TLS protocol to prov ide
encrypted communication and secure identification of a network web server. HTTPS connections
are often used for sensitive transactions in corporate information systems. The main i dea of
HTTPS is to create a secure channel over an insecu re network. This en sures reasonable
protection from eavesdroppers and man-in-the-middle attacks, provided that adeq uate cipher
suites are used and that the server certificate is verified and trusted.
31
User’s Manual of ICA-2200
HTTPS To enable or disable the HTTPS service here. Note that the HTTPS
function of thi s device is n ot only encrypted the web content but also
audio/video data.
Port Choose the HTTPS port. The default value is 443.
6.1.4. DDNS server
Stands for Dynamic Domain Name Server
The device supports DDNS If your device is co nnected to xDSL directly, you might need this
feature. However, if your device is behind a NAT router, you will not need to enable this fea ture.
Because DDNS allows the device to use an easier way to remember naming format rather than an
IP address. The name of the domain i s like the name of a person, and the IP addre ss is like his
phone number. On the Internet we h ave IP numbers for each host (computer, server, router, and
so on), and we replace these IP numbers to easy remember names, which are organized into the
domain name. As to xDSL environment, most of the users will use dynamic IP addresses. If users
want to set up a web or a FTP serve r, then the Dynamic Domain Name Server is necessary. For
more DDNS configuration, please consult your dealer.
Your Internet Service Pro vider (ISP) p rovides you at least one IP address which you u se to
connect to the Internet. The address you get may be static, meaning it never changes, or dynamic,
meaning it’s likely to chan ge periodically. Just how often it changes, dep ends on your ISP. A
dynamic IP address complicates remote access since you may not know what your current WA N
IP address is when you want to access your network over the Internet. The solution to the dynamic
IP address problem comes in the form of a dynamic DNS service.
The Internet uses DNS servers to lookup domain names and translates them into IP addre sses.
Domain names are just easy to remember aliases for IP addresses. A dynamic DNS se rvice is
unique because it provide s a means of updating your IP address so that your l isting will remain
current when your IP address ch anges. There are several excellent DDNS services available on
the Internet and best of all they’re free to use. One such service you can use is www.DynDNS.org.
You’ll need to register with the service and set up the domain name of your choice to begin using it.
Please refer to the hom e page of the service for detailed instructions or refer to Appendix E for
32
more information.
User’s Manual of ICA-2200
DDNS To enable or disable the DDNS service here.
Server name Choose the built-in DDNS server.
DDNS Host The domain name is applied of this device.
User Name The user name is used to log into DDNS.
Password The password is used to log into DDNS.
6.1.5. PPPoE
PPPoE: Stands for Point to Point Protocol over Ethernet
A standard builds on Eth ernet and Point-to-Point network protocol. It allows Internet Ca mera
connect to Internet with xDSL or cable conne ction; it can dial up your ISP and get a dynamic IP
address. For more PPPoE and Internet configuration, please consult your ISP.
It can directly connect to the xDSL, however, it should be setup on a LAN environment to program
the PPPoE information first, and then connect to the xDSL modem. Power on again, then the
device will dial on to the ISP connect to the WAN through the xDSL modem.
The procedures are
• Connect to a LAN by DHCP or Fixed IP
• Access the device, enter Setting Î Network Î PPPoE as below
33
User’s Manual of ICA-2200
PPPoE To enable or disable the PPPoE service here.
User Name Type the user name for the PPPoE service which is provided by ISP.
Password Type the password for the PPPoE service which is provided by ISP.
IP Address / Subnet
Shows the IP information got from PPPoE server site.
Mask / Gateway
Status Shows the Status of PPPoE connection.
6.1.6. Streaming
RTSP is a streaming control protocol, and a starting point for negotiating transports such as RTP,
multicast and Unicast, and for negotiating codecs. RTSP can be considered a "remote control" for
controlling the media stream delivered by a media server. RTSP servers typically use RTP as the
protocol for the actual transport of audio/video data.
34
User’s Manual of ICA-2200
RTSP Port Choose the RTSP port. The RTSP pro tocol allows a connecting client to
start a video stream. Enter the RTSP port number to use. The default value
is 554.
RTP Port Specify the range of transmission port number of video stream. The default
range is 500 00 to 50999. User can sp ecify a numb er between 1024 and
65535.
NOTE To use the 3GPP function, in addition to previous section, you might need
more information or configuration to make this function work.
The camera must be set as Multi-pro file mode, not Mega-pixe l mode.
Otherwise this device cannot serve 3GPP stream.
To use the 3GPP function, it strongly recommends installing the Networked
Device with a public and fixed IP address without any firewall protection.
Port 554 is the default for RTSP serv ice. However, sometimes, some
service providers change this port number for some reasons. If so, use r
needs to change this port accordingly.
Dialing
procedure
1.Choose a verified player (Packe tVideo, Quicktime or Realplaye r
currently)
2. Use the following URL to access: rtsp://host/mpeg4/media.3gp
Where host is the host name or IP address of the camera.
Compatible
3G mobile
phone
Please contact your deal er to get the approve d list of compat ible 3G
phone.
35
User’s Manual of ICA-2200
6.1.7. UPnP
UPnP is short for Universal Plug and Play, which is a networking a rchitecture that p rovides
compatibility among network ing equipment, software, and perip herals. This device is an UPnP
enabled Internet Camera. If your operating system is UPnP enabled, the device will automatically
be detected and a new icon will be ad ded to “My Network Places.” If you do not want to use the
UPnP functionality, it can be disabled
In addition, this device also provide s UPnP IGD function for NAT traversal easily. Use NAT
traversal when your device is located on an intranet (LAN) and you wish to make it available from
the other (WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to
an external HTTP port in the NAT router will be forwarded to the device.
UPnP To enable or disable the UPnP service here.
Friendly Name Shows the friendly name of this device here.
UPnP NAT Traversal When enabled, the device will attempt to configure port mapping in
a NAT router on your network, us ing UPnP™. Not e that UPnP™
must be enabled in the NAT router first.
Port Range The port range will open in NAT router.
External IP address Show the IP address and port for WAN access through Internet. If
NAT traversal is config ured successfully, user ca n use this I P
address and port to access this device.
36
User’s Manual of ICA-2200
6.1.8. Bonjour
The Bonjour service allows IP camera can be discovered with Apple Safari browser applied, once
the option enable the IP camera will be show the Friendly Name in the Bonjour bookmarks menu
of Safari browser.
Bonjour To enable or disable the Bonjour service here.
Friendly Name Shows the friendly name of this device here.
6.1.9. ONVIF
ONVIF is a global and open industry forum with the goal to facilitate the development and use of a
global open standard for the interface of physical IP-based security products. Or in other words, to
create a standard for how IP products within video surveillance and other physical security areas
can communicate with each other.
ONVIF To enable or disable the ONVIF interface here.
Version Currently, the V1.0 or V1.01/1.02/V2.0/V2.1.1 is available.
37
User’s Manual of ICA-2200
6.1.10. IP Filter
You can enter different user’s IP address which are allowing enter or denying by the device.
IP Filter To enable or disable the IP filter function here.
IP Filter Policy Choose the filter policy where is denying or allowing.
38
User’s Manual of ICA-2200
6.1.11. IP Notification
In case the I P address is changed, system is abl e to send out an email to al ert someone if the
function is enabled.
SMTP Notification (e-mail)
Send To
Subject Type the subject/title of the E-mail.
TCP Notification
TCP Server Type the server name or the IP address of the TCP server.
TCP Port Set port number of TCP server.
Message The message will be sent to FTP server.
HTTP Notification If enable this function, then the fields below need to be filled.
If enable this function, then the “Send to“ and “Subject” field
need to be filled.
Type the receiver’s e-mail address. This address is used for
reply mail.
If enable this function, then the “ TCP Server“, “TCP Port”,
and “Message” fields need to be filled.
URL Type the server name or the IP address of the HTTP server
HTTP Login name Type the user name for the HTTP server.
39
User’s Manual of ICA-2200
HTTP Login Password Type the password for the HTTP server.
Proxy Address Type the server name or the IP address of the HTTP Proxy.
Proxy Port Set port number of Proxy.
Proxy Login name Type the user name for the HTTP Proxy.
Proxy Login Password Type the password for the HTTP Proxy.
Custom parameter User can set specific parameters to HTTP server.
Message The message will be sent to HTTP server.
40
User’s Manual of ICA-2200
6.2. Adjust Camera Configuration
Use this menu to set the function of the camera of Internet Camera
6.2.1. Picture
Rotation Turn the “Mirror” and “Vertical Flip” On or OFF. The
image will be overturned as below.
41
User’s Manual of ICA-2200
White Balance
Auto: will adjust the white balance automatically.
Hold: will hold the white balance.
Iris/Exposure
Control
Maximum Exposure
Time
This Camera is built-in a DC-Iris lens. User can choose the
Iris control mode from “Auto” or “Off”. In case, the “Auto”
mode is selected, th e Camera will control DC Iris
automatically. On the h and, if the “Off” mode is selected,
the Camera will open the lens Iris to maximize.
Sometimes, the Auto Iris may work abnormally under some
environments. In this case, user can click “Calibrate” button
to adjust Auto Iris function again.
User can limit the ma ximum exposure time of the image
sensor. The larger value means longer exposure time
possibly.
Power Frequency Frequency of power line: 50 or 60Hz.
Color Level Large value will be colorful.
Hue Change the value will result to color tuning.
Brightness Large value will brighten camera.
Contrast Large value will contrast camera heavily.
Sharpness Large value will sharpen camera.
3D De-Noise 3D De-Noise can remove or lower unwanted noise and
preserve fine details and edges.
ICR Use built-in photo sensor or manual to control ICR.
In case use r selects manual mode, there are 4 modes:
Night (On), Day (Off), Auto or Schedule to control built-in IR
LEDs. This function is very useful under low illumination
environment even 0 Lux.
In case the Auto mode is selected, user needs to specify 3
parameters in advance:
Night Mode Threshold (0~10000): this valu e set the
threshold to turn on IR LED. It should be lower or equal to
Day Mode Threshold.
Day Mode Threshold (0~10000): this value set the
threshold to turn off IR LED. It should be higher or equal to
42
User’s Manual of ICA-2200
Night Mode Threshold.
Delay Time: The delay time between LED ON/OFF
switching.
Note: that Curre nt Value is the current lumina nce from the
captured video. It’s a u seful reference to set LED ON/OF F
Threshold.
Noise Reduction This function is to reduce noise of input image.
WDR This function is to provi de clear images even under back
light circumstances. Th e higher “Strength” level will adjust
contrast compensation stronger.
Default Settings Restore to factory image settings.
43
User’s Manual of ICA-2200
6.2.2. Privacy Mask
Use this page to specify privacy mask window 1 to window 8 and set the name and gray level for
selected window.
Add and Delete To add or delete the privacy mask windows, user can specify up to 7
windows to mask the video ca ptured by this device. By dragging
mouse on th e image, you can change the positio n and size of the
selected window accordingly.
Name Name of the specified privacy window
Level To define the gray level of mask block. The smaller value will be
darker.
44
User’s Manual of ICA-2200
6.2.3. PTZ Setting
This page allow user to modify the RS-485 interface according to the P/T scanner.
Camera Protocol
Camera Address
Baud rate
NOTE
This device can connect to a PTZ camera or speed dome camera and
controls them thru RS-485 interface.
This is the camera ID set in PTZ camera or speed dome camera.
Note that please DO NOT changes the default value if unnecessary.
If so, user needs to check and set value properly for both sides.
This is the communication speed between network module and P/T
scanner.
If need to ch ange these parameters, user n eeds to check and set
value properly for both, network module and P/T scanner.
45
User’s Manual of ICA-2200
6.2.4. Preset Setting
This page provides the edit tool to modify or delete the “Preset Setting” item by item.
6.2.5. Tour Setting
Up to 64 p ositions can be preset, and the camera can be programming to mo ve to the pre set
position sequentially.
46
User’s Manual of ICA-2200
Tour Name
The group name of the sequence of camera tour. The maximum number of
camera tour is 16.
Running Enable or disable this camera tour.
Preset
Wait Time
NOTE
Set the se quence of the t our. Maximum 16 p oints can be assigned. The
selected preset position is added in the Sequence list from 1 to 16.
Type a period of time during which the camera is to stay at each preset point,
between 0 to 36000 seconds.
To use the camera tour functio n, user must preset some came ra positions
first. The maximum number of preset points is 64.
6.3. System
Use this menu to perform the principal settings of Internet Camera.
47
6.3.1. System
User’s Manual of ICA-2200
Device title You can enter the name of this unit here. It’s very useful to identify the
specific device from multiple units.
Software version This information shows the software version in the device.
Network LED Switch the LED light of th is Internet Camera on or off, that Network
LEDs will stop working; in case you don’t want other people know the
camera is transferring data.
Power LED Switch the LED light of this Internet Camera on or off.
Log User can check the system log information of the device, including the
Main Info, Appended Info, Operator IP, and so on …
Reload Click this button; user can refresh the log information of the device.
6.3.2. Date & Time
User can setup the time setting of Internet Camera, make it synchronized with PC or remote NTP
server. Also, you may select the correct time zone of your country.
48
User’s Manual of ICA-2200
Server Date & Time Displays the date and time of the device
PC Time Displays the date and time of the connected PC
Adjust
Synchronize
with PC:
Manual setting: Click this option to set time and date manually
Synchronize
with NTP:
Click this o ption to enabl e time synch ronization
with PC time
Click this o ption if you wa nt to synch ronize the
device’s date and time with those of time serve r
called NTP server (Network Time Protocol)
NTP server name Type the ho st name or I P address or domain na me of the NTP
server.
NTP sync. Interval Select an i nterval between 1 an d 23 hours at which you want to
adjust the device’s time referring to NTP server
Time zone Set the time differen ce from Green wich Mean Time in the area
where the device is installed.
Daylight saving Check this item to enable daylight saving adjustment.
Daylight Saving
Sets up the date and time of daylight saving start time.
Start Time
Daylight Saving
Stop Time
Sets up the date and time of daylight saving stop time.
49
User’s Manual of ICA-2200
Daylight Saving
Offset
6.3.3. Maintenance
Sets up the date of daylight saving offset.
Default Settings
(Include the network
setting)
Default Settings
(Except the network
setting)
Recall the d evice hard factory default settings. Note that click
this button will reset all device’s parameters to the factory
settings (including the IP address).
The unit is restarte d and most cu rrent settings a re reset to
factory default val ues. This action will not reset the network
setting.
Backup Setting To take a ba ckup of all of the par ameters, click this button. If
necessary, it will then be possible to return to the previou s
settings, if settings are cha nged and there is u nexpected
behavior.
Restore Setting Click the “Browse” button to loc ate the s aved backup file and
then click the “Restore Setting” b utton. The settings will be
restored to the previous configuration.
Firmware upgrade The device supports new firmware upgrade.
1. Close all oth er application programs which are not necessary for firmware
update.
2. Make sure that only you access this device at this moment
50
User’s Manual of ICA-2200
3. Disable Motion Detection function.
4. Select “Firmware name”
5. Select the Firmware binary file.
Note :
That it must make sure that the Firmware only applies to this device, once
update, it will be burned into FLASH ROM of system.
6. Once the firmware file was selected, select “Upgrade”.
7. The upgrade progress information will be displayed on the screen.
8. A message will be shown while the firmware upgraded. Once the upgrading
process completed, the device will reboot the system automatically.
9. Please wait for 80 seconds, and then you can use PLANET IP Wizard II to
search the device again.
Warning!!!
The download firmware procedure cannot be interrupted. If the power and/or network
connection are broken during the download procedure, it might possibly cause
serious damage to the device.
Please be aware that you should not turn off the power during updating the firmware
and wait for finish message.
Furthermore, do not try to upgrade new firmware if it’s not necessary.
System Restart The device is restarted without changing any of the settings.
51
User’s Manual of ICA-2200
6.4. Video
This device provides 2 modes of video profile. The first one is 720P mode which supports
video resolution up to H D (1920x720). The second one is 2MP mode which supports
video resolution up to Full HD (192 0x1080). User only can select either 720P or 2MP
modes to operate the camera. Switching between 720P and 2MP mode, the device will
take time to reboot system.
6.4.1. Common
Video Profile User can only choose either 720P or 2MP modes. 720P mode can
serve streams up to 192 0x720 resolutions maximum. On the other
hand, 2MP mode, it can streams up to 1920x10 80 resolutions
maximum.
Text Overlay Setting There are some impo rtant information can be e mbedded into
image, including date, time, and/or text.
52
User’s Manual of ICA-2200
6.4.2. Video Profile
User can modify the detail parameter for each video profiles in this page.
Name To assign a name to the selected profile.
Video Type Video codec of the selected profile.
Resolution Resolution of the selected profile.
ROI Assign the selected profile as a ROI stream or not. (Only avail able
for the profiles with max resolution)
Rate Control Defines the rate control method of this p rofile. There are four
options: Constant Bit Rate (CBR), Variable Bit Rate (VBR),
Enhanced Constant Bit Rate (ECB R), and Enhanced Variable Bit
Rate (EVBR).
For CBR, the video bit rate is between low to high bandwidth based
on different resolutions. User can set the desired bit rate to match
the limitation of bandwidth.
For VBR, user should choose the quality level to set the video quality
rather than b it rate. The quality level is betwe en 1 and 100. The
higher value can reach the better qua lity but of course will consum e
53
User’s Manual of ICA-2200
higher bandwidth.
For ECBR, the video bitrates is b ased on norm al CBR mode.
However, the target bitrates can be increased to max target bitrates
while lots of motion in vid eo. The m ax target bitrates will keep a
pre-defined time period and then back to normal CBR bitrates.
For EVBR, the video bit rates is based on norm al VBR mode.
However, the target bitrates can be increased to max target bitrates
while lots of motion in vid eo. The m ax target bitrates will keep a
pre-defined time period and then back to normal VBR mode.
Max Frame Rate Defines the targeted frame rate of this profile. For example, set the
frame rate to 15 fps, then the image will be update d for 15 fram es
per second. User can set the de sired max frame rate versus vid eo
quality under the limited bandwidth.
GOP Control Defines the Intra/Inter-frame (I/P) ra tio of this profile. For examp le,
set the GOP to 30, then th e video stream will have one Intra-fram e
every 30 frames.
Multicast Enable or disable the multicast function.
Multicast Video IP address and port for multica st video strea ming of the selected
profile.
Multicast Audio IP address and port for multicast audio streaming of the sele cted
profile
Always Enable
Multicast streaming is always enabled or by request
Multicast
Warning!!!
To enable the multicast streaming, you should make sure your Intranet does support
multicast function. Otherwise, your Intranet may encounter network storm seriously
due to the video/audio broadcast.
54
User’s Manual of ICA-2200
6.4.3. ROI
ROI means Region of Interest. Use this page to specify loca tion of ROI windows. Only the
maximum resolution profiles can be defined as ROI. In this model, the default ROI win dows are
profile 4 and 5.
6.5. Audio Configuration
55
User’s Manual of ICA-2200
Audio To enable or disable audio function.
Audio type To select G711 or G726 for audio coding.
Audio Mode To select Simplex or Full duplex (2-way audio) mode.
Input Gain To adjust gain of input audio.
Output Gain To adjust gain of output audio.
6.6. User Privilege Access Configuration
Use this menu to set the user names and password of the Administrator and up to 10 users, and
access right of each user.
Viewer Login Select “Anonymous” to allow any one viewing the video once
connected. Otherwise, only users in database can view the
video after login.
Access Right
Administrator can access every fun ction in thi s device.
However, Viewers only can view the video and acce ss
limited function.
PTZ Control
Add, Modify, and Delete of
Authorize this user to control PTZ function or not.
Manage the user’s account of viewer user.
Users account
56
User’s Manual of ICA-2200
6.7. E-Mail Configuration
You may set up SMTP mail param eters for further operation of Event Schedul e. That’s, if users
want to send the alarm m essage out, it will need to configure parameters here and also add at
least one event schedule to enable event triggering.
SMTP Server Type the SMTP server name or the IP address of the SMTP server.
Test Send a test mail to mail server to check this account is available or
not.
SMTP Port Set port number of SMTP service.
SSL Enable SSL function or not.
Select the authentication required when you send an e-mail.
SMTP Authentication
Authentication User
Name
Authentication Password Type the password for the SMTP server if Authentication is Enable.
E-mail From
Type the sen der’s E-mail address. This address is use d for repl y
Disable: If no authentication is required when an e-mail is send.
Enable: If authentication is required when an e-mail is sent.
Type the user name for the SMTP server if Authentication is Enable.
e-mails.
E-mail To Type the receiver’s e-mail address.
E-mail Subject Type the subject/title of the e-mail.
57
User’s Manual of ICA-2200
6.8. Object Detection
Use this m enu to spe cify motion dete ction window 1 to win dow 4 a nd set the co nditions for
detection while observing a captured image.
Add and Delete To add or delete the motion windo ws. User can specify up to 4
Included and/or Excluded windows to monitor the video ca ptured by
this device. By draggin g mouse on the image, you can change the
position and size of the selected motion window accordingly.
Included or Excluded
Window
Name Name of the specified motion window.
Object Size Defines the object size of motion detection. The higher object size will
Sensitivity Defines the sensitivity value of motion detection. The higher value will
These windows can be specified as Included or Excluded type.
Included:
Windows target specific areas within the whole video image
Excluded:
Windows define areas within an In clude window that should be
ignored (areas outside Include windows are automatically ignored)
only larger objects trigger motion detection. The lower object size will
even small objects trigger motion detection too. Generally speaking,
the smaller size will be easier to trigger event.
be more sensitivity.
58
User’s Manual of ICA-2200
6.9. Storage Configuration
This page shows the stat us of attache d SD ca rd and Samba server. You m ay setup rela ted
parameters to manage the attached SD card or Samba server also.

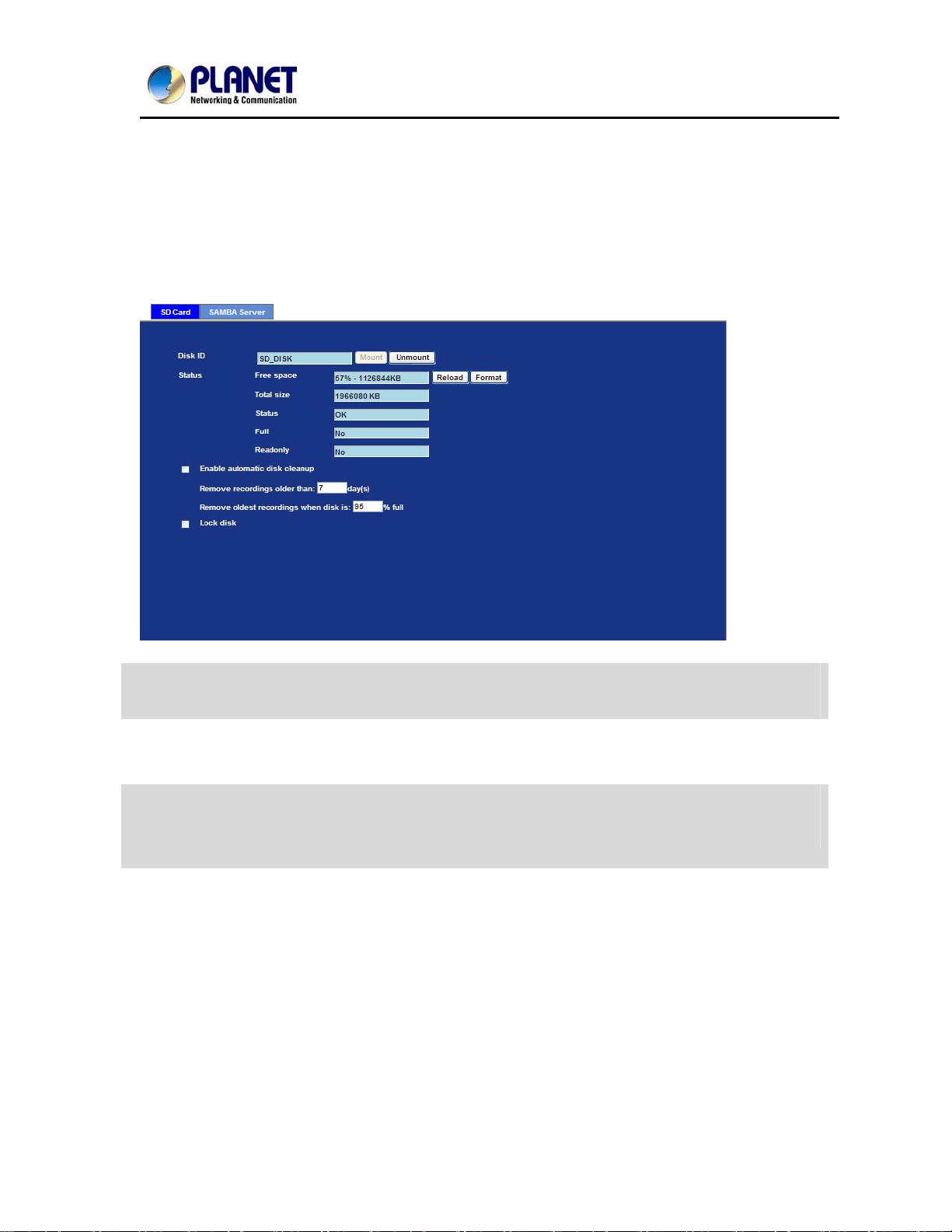

6.9.1. SD Card
Enable automatic disk cleanup Delete old recorded files while the con ditions are reached as
below.
Remove recordings order than Delete old files by days.
Remove oldest recordings when
disk is
Delete old files by left capacity.
Lock disk Lock the SD card. Once SD card is locked, all files can’t be
deleted.
59
User’s Manual of ICA-2200
6.9.2. SAMBA Server
This page shows the st atus of SAM BA server. You may setup related parameters to
manage the remote SAMBA server.
Host Type the SAMBA server domain name or the IP address of the
SMTP server.
Share Type the sh are folder of remote SAMBA server which the
camera will upload files to this space.
User name Delete old files by left capacity.
Password
Type the password for the remote SAMBA server.
60
User’s Manual of ICA-2200
6.10. Continuous Recording
The camera can continu ously record video stream into files and save them to attache d
SD card or remote SAMBA server.
Continuous Recording
Enable or disable this function.
Record File Type
DISK
Path
Restart
Choose a video profile to record.
Save recorded files to SD card or remote SAMBA server.
Define the folder path for the recorded files.
Be careful, click this button will delete all continuous files
recorded in SD card or remote SAMBA server.
6.11. Recording List
6.11.1. Recording List
This page only shows the event recording files which stored in SD card. User may play or
delete the selected file.
61
User’s Manual of ICA-2200
6.11.2. Continuous Recording List
This page only shows the continuous recording files which stored in SD card or re mote
SAMBA server. User may play or delete the selected file.
62
User’s Manual of ICA-2200
6.12. Event Server Configuration
6.12.1. FTP Server
You may setup FTP para meters for further ope ration of Event Schedule. That’s, if users want to
send the alarm message to an FTP server, it will need to configure parameters here and also add
at least one event schedule to enable event triggering as SMTP.
Name User can specify multiple FTP paths as wish. Therefore, user
needs to specify a name for each FTP setting.
FTP Server Type the server name or the IP address of the FTP server.
Test Check the FTP server whether this account is available or not.
FTP Login name Type the user name for the FTP server.
FTP Login Password Type the password for the FTP server.
FTP Port Set port number of FTP service.
FTP Path Set working directory path of FTP server.
FTP Passive Mode Select passive or active mode connecting to FTP server.
63
User’s Manual of ICA-2200
6.12.2. TCP Server
In addition to send video file to FTP server, the device also can send event message to specified
TCP server.
Name User can specify multiple TCP servers as wish. Therefore, user
needs to specify a name for each TCP server setting.
TCP Server Type the server name or the IP address of the TCP server.
TCP Port Set port number of TCP server.
64
User’s Manual of ICA-2200
6.12.3. HTTP Server
The device also can send event message to specified HTTP server.
Name User can specify multiple HTTP servers as wish. Therefore, user
needs to specify a name for each HTTP server setting.
URL Type the server name or the IP address of the HTTP server.
Test Check the HTTP server whether it is available or not.
HTTP Login name Type the user name for the HTTP server.
HTTP Login Password Type the password for the HTTP server.
Proxy Address Type the server name or the IP address of the HTTP Proxy.
Proxy Login name Type the user name for the HTTP Proxy.
Proxy Login Password Type the password for the HTTP Proxy.
Proxy Port Set port number of Proxy.
65
User’s Manual of ICA-2200
6.12.4. SAMBA Server
The device also can send video stream to specified SAMBA server. Most of the time, the SAMBA
server will be another PC or NAS server.
Name User can specify multiple HTTP servers as wish. Therefore, user
needs to specify a name for each HTTP server setting.
SAMBA Server Type the server name or the IP address of the SAMBA server.
Test Check the SAMBA server whether this account is available or not.
SAMBA Login name Type the user name for the SAMBA server.
SAMBA Login Password Type the password for the SAMBA server.
SAMBA Path Set working directory path of SAMBA server.
66
User’s Manual of ICA-2200
6.13. Event Schedule Configuration
This menu is used to specify the schedule of Event or Schedule Trigger and activate the
some actions provided by this device. W here the Schedule Trigger will be act ivated by
user-define interval without event happened.
Name Name of the Event or Schedule.
Enable Enable or disable this Event or Schedule.
Type Schedule start with Event trigger or Schedule trigger.
Enable Time Define the feasible time slot.
Trigger by Select the triggered sources with event trigger.
Record File
Prefix
Action Define the actions once event triggered.
Define the prefix of recorded filename
67
User’s Manual of ICA-2200
Example1.
Send file to FTP server by motion triggered always:
Step 1 Select event trigger
Step 2 Enable time: start from 00:00 to 24:00 every day
Step 3 Trigger by: Motion Area (Added in Object Detection page)
Step 4 Action: Send FTP (Add in Event Server -> FTP Server page)
68
User’s Manual of ICA-2200
Example2.
Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00
Step 1 Select event trigger.
Step 2 Enable time: start from Friday 18:00 and keep work in 12 hours, so it will stop on Saturday
06:00.
Step 3 Trigger by: Motion Area (Added in Object Detection page)
Step 4 Action: Send e-mail (Add in E-Mail page)
i. To email address: You need to input the receiver email address.
ii. Subject: You could specify the email subject.
iii. Message: You could specify the email content.
69
User’s Manual of ICA-2200
Example3.
Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday.
Step 1 Type: Select schedule trigger and interval is 10-minute.
Step 2 Enable Time: Select Monday to Friday, and set start time from 18:00 and keep work in 6
hours.
Step 3 Trigger by: You do not need to choose it, because this will be triggered every minute.
Step 4 Action: Voice Alert.
70
User’s Manual of ICA-2200
6.14. Record Configuration
User can choose the type of record file for event or schedule application.
Record File Type Choose AVI or JPEG file format for record file.
Record File Prefix Define the prefix of recorded filename.
Pre-Trigger Duration Define the maximum duration of pre-alarm.
Best Effort Duration Define the best effort duration of post-alarm.
Max File Size Define the maximum buffer size of record file.
71
User’s Manual of ICA-2200
6.15. Port Status
User can check the status of digital input and output (DIDO).
Input Status Show either inactive or active.
Output Status Show either inactive or active.
72
User’s Manual of ICA-2200
Chapter 7. PLANET DDNS
Application
1. Configure PLANET DDNS steps:
Step 1 Enable DDNS option through accessing web page of ICA-2200.
Step 2 Select on DDNS server provide, and register an account if you do not use yet.
Let’s take dyndns.org as an example. Register an account in http://planetddns.com
73
User’s Manual of ICA-2200
Chapter 8. Alarm I/O
Connector
Some features of the Camera ca n be activated by an external senso r that sense s physical
changes in the area device is monitoring. These changes can include intrusion detection or certain
physical change in the monitored area. For examples, the external sensor can be a door switch or
an infrared motion detector. These devices are customer provided, and are available from dealers
who carry surveillance and securi ty products. Electrically, they must be able to provide a
momentary contact closure.
This device provides a general I/O terminal block with one digital input and one output for device
control. Pin 2 and 3 can be connected to an external sensor. The input voltage will be monitored
from the initial state ‘LOW’. If the external sensor need 12VDC power, then it can connect to Pin1
(50mA maximum). The Alarm Output of pin 3 and 4 can be used to turn on or off the ext ernal
device. The pin5 and 6 are connected to RS485 interface.
I/O Connector
Pin Function
1 12VDC power supply (50mA maximum)
2 Digital Input
3 GND
4 Alarm Output
5 RS485 data +
6 RS485 data -
User can refer to the schematic below to make a proper connection between I/O connector and
external sensor and output device.
74
User’s Manual of ICA-2200
Explanation of External I/O Circuit Diagram:
CAUTION!
• THE LOW VOLTAGE/CURRENT CIRCUI TS AND HIGH VOLTAGE/ CURRENT
CIRCUITS ARE IN THE NE TWORK CAMERA CIRCUIT. THE QUALIFIED
ELECTRICIAN SHOULD DO THE WIRING NOT BY YOURSELF. INCORRECT WIRING
COULD DAMAGE NWTWORK CAMERA. YOU COULD RECEIVE THE F ATAL
ELECTRIC SHOCK.
• THE EXTERNAL I/O IS NOT CAPABLE OF CONNECTING DIRECTLY TO DEVICES
THAT REQUIRE L ARGE AMOUNTS OF CURRENT. I N SOME CASES, A CUSTOM
INTERFACE CIRCUIT (CUSTOMER PROVIDED) MAY HAVE TO BE USED. SERIOUS
DAMAGE TO NETWORK CAMERA MAY RESULT IF A DEVICE IS CONNECTED TO
THE EXTERNAL I/O THAT EXCEEDS ITS ELECTRICAL CAPABILITY.
75
User’s Manual of ICA-2200
Chapter 9. PING IP Address
The PING (stands for Packet Internet Groper) command i s used to d etect whether a
specific IP address is accessible by sending a packet to the specific address and waiting
for a reply. I t’s also a very useful tool to confirm the device installed or if the IP address
conflicts with any other devices over the network.
If you want to make sure the IP address of the device, utilize the PING comman d as
follows:
z Launch a Command Prompt.
z Type ping x.x.x.x, where x.x.x.x is the IP address of the device. For example,
ping 192.168.0.20
The replies, as illustrated below, will provide an explanation to the problem.
If you want to detect any other devices conflicts with the IP address of Network Camera,
also can utilize the PING command but you must disconnect the Camera from the
network first.
76
User’s Manual of ICA-2200
Chapter 10. Bandwidth
Estimation
The frame rate of video transmitted from the device depends on connection band width
between client and server, video resolution, codec type, and quality setting of server.
Here is a guideline to help you roughly estimate the bandwidth requirements for your
device.
The required bandwidth depends on content of video source. The slow motion video will
produce smaller bit rate generally and fast motion will produce higher bit rate vice versa.
Actual results generated by the device may be varying.
Resolution
160 x 80
320 x 176
640 x 352 20 ~ 50K byte per
1920 x 1080 200 ~ 500k byte per
Note: Audio streaming also takes bandwidth around 32kbps. Some
xDSL/Cable modem upl oad speeds could not even reach up to 128 kbps.
Thus, you may not be able to receive good quality video while also streaming
audio on a 128 kbps or lower connection. Even though the upload sp eed is
more than 128kbps, for optimal video performance, disabling audio streaming
will get better video performance.
Average range of
data sizes for JPEG
mode
3 ~ 6k byte per
frame
8 ~ 20k byte per
frame
frame
frame
Average bit rate for
MPEG4 mode
64kbps~256kbps
@ 30fps
256kbps~768kbps
@ 30fps
512kbps~3072kbps @
30fps
- 1536kbps~10000kbps
Average bit rate for
H.264 mode
32kbps~192kbps
@ 30fps
192kbps~512kbps
@ 30fps
384kbps~1536kbps
@ 30fps
@ 25fps
77
User’s Manual of ICA-2200
Chapter 11. Configure Port
Forwarding Manually
The device can be used with a router. If the device wants to be accessed from the WAN, its IP
address needs to be setup as fixed IP address, also the port forwarding or Virtual Server function
of router needs to be setu p. This device supports UPnP traversal function. Therefore, user could
use this feature to configure port forwarding of NAT router first. However, if use r needs to
configure port forwarding manually, please follow the steps as below:
Manually installing the device with a router on your network is an easy 3–step procedure as
following:
1. Assign a local/fixed IP address to your device
2. Access the Router with Your Web browser
3. Open/Configure Virtual Server Ports of Your Router
1. Assign a local/fixed IP address to your device
The device must be assigned a local and fixed IP Address that allows it to be reco gnized by the
router. Manually setup the device with a fixed IP address, for example, 192.168.0.100.
2. Access the Router with Your Web browser
The following steps g enerally apply to any rout er that you have on your net work. The PLANET
WNRT-620 is used as an example to clarify the configuration process. Configure the initial settings
of the router by following the steps outlined in the router’s Quick Installation Guide.
If you have cable or DSL service, you will most likely have a dynamically assigned WAN IP
Address. ‘Dynamic’ means that your router’s WAN IP address can change from time to time
depending on your ISP. A dynamic WAN IP Address identifies your router on the public network
and allows it to access the Internet. To find out what your router’s WAN IP Address is, go to the
Status screen on your router and locate the WAN information for your router. As shown on the
following page the WAN IP Address will be listed. This will be the address that you will need to
type in your web browser to view your camera over the Internet. Be sure to uncheck the Reset IP
address at next boot button at the top of the screen after modifying the IP address. Failure to do
so will reset the IP address when you restart your computer.
78
User’s Manual of ICA-2200
Your WAN IP Address will be listed here.
3. Open/set Virtual Server Ports to enable remote image viewing
The firewall security features built into the rout er and most routers prevent users from accessing
the video from the device over the Internet. The rou ter connects to the Internet over a serie s of
numbered ports. The ports normally used by the device are blocked from access over the Internet.
Therefore, these ports need to be made accessible over the Internet. This is accomplished using
the Virtual Server function on the router. The Virtual Serv er ports used by the came ra must be
opened through the router for remote access to your camera.
Follow these steps to configure your router’s Virtual Server settings
z Click Enabled.
z Enter a unique name for each entry.
z Select Both under Protocol Type (TCP and UDP)
z Enter your camera’s local IP Address (e.g., 192.168.0.100, for example) in the Private
IP field.
z If you are using the def ault camera port settings, enter 80 into the Public and
Private Port section, click Add.
A check mark appearing before the entry name will indicate that the ports are enabled.
79
User’s Manual of ICA-2200
NOTE Some ISPs block access to port 80. Be sure to check with your ISP so that you can
open the appropriate ports accordingly. If your ISP does not pass traffic on port 80, you
will need to change the port the camera uses from 80 to something else, such as 8080.
Not all routers are the same, so refer to your user manual for specific instructions on
how to open ports.
Enter valid ports in the Virtual Server section of your router. Please make sure to check the box
on this line to enable settings. Then the device can be access from WAN by the router’s WAN IP
Address.
By now, you have finished your entire PC configuration for this device.
80
User’s Manual of ICA-2200
COUNTRY VOLTAGE FREQUENCY COMMENTS
Argentina 220V 50 Hz
Chapter 12. Power Line
Frequency
*Neutral and line wires are reversed from that used in
Australia and elsewhere.
*Outlets typically controlled by adjacent switch.
Australia 230V* 50 Hz
Austria 230V 50 Hz
Brazil 110/220V* 60 Hz
Canada 120V 60 Hz
China, People's Republic of 220V 50 Hz
Finland 230V 50 Hz
France 230V 50 Hz
Germany 230V 50 Hz
Hong Kong 220V* 50 Hz
Though nominal voltage has been officially changed to 230V,
240V is within tolerances and commonly found.
*127V found in states of Bahia, Paran?(including Curitiba),
Rio de Janeiro, S緌 Paulo and Minas Gerais (though 220V
may be found in some hotels). Other areas are 220V only,
with the exception of Fortaleza (240V).
India 230V 50 Hz
Italy 230V 50 Hz
Japan 100V 50/60 Hz*
81
*Eastern Japan 50 Hz (Tokyo, Kawasaki, Sapporo,
Yokohoma, and Sendai); Western Japan 60 Hz (Osaka,
Kyoto, Nagoya, Hiroshima)
User’s Manual of ICA-2200
Malaysia 240V 50 Hz
Netherlands 230V 50 Hz
Portugal 230V 50 Hz
Spain 230V 50 Hz
Sweden 230V 50 Hz
Switzerland 230V 50 Hz
Ta iw a n 110V 60 Hz
Thailand 220V 50 Hz
United Kingdom 230V* 50 Hz
United States of America 120V 60 Hz
*Outlets typically controlled by adjacent switch.
Though nominal voltage has been officially changed to 230V,
240V is within tolerances and commonly found.
82
User’s Manual of ICA-2200
Chapter 13. 3GPP
To use the 3GPP fun ction, in ad dition to previous section, you might need more
information or configuration to make this function work.
Note: that to use the 3GPP function, it strongly recommends to install the
Networked Device with a public and fixed IP address without any firewall
protection.
RTSP Port:
Port 554 is the default for RTSP service. Howe ver, sometimes, some service providers
change this port number for some reasons. If so, u ser needs to change this port
accordingly.
Dialing procedure:
1. Choose a verified player (PacketVideo or Realplayer currently)
2. Use the following URL to access:
rtsp://host/mpeg4/media.3gp
Where host is the host name or IP address of the camera.
Compatible 3G mobile phone:
Please contact your dealer to get the approved list of compatible 3G phone.
83
User’s Manual of ICA-2200
Chapter 14. Troubleshooting
& Frequently Asked Questions
Question Answer or Resolution
Features
The video and audio
codec is ad opted in th e
device.
The maximum number of
users accesses the
device simultaneously.
The device can be used
outdoors or not.
The device utilizes H.264, MPEG4 and JPEG triple
compression to providing high quality images. Where H.264
and MPEG4 are standards for video compression and JPEG
is a standard for image compression.
The audio codec is defined as G.711/G.726 for RTSP
streaming.
The maximum number of users is limited to 20. However, it
also depends on the total bandwidth accessed to this device
from clients. The maximum data throughput of the device is
around 100~200Mbps for UDP mode and 50Mbps for HTTP
mode. Therefore, the actual number of connected clients is
varying by streaming mode, settings of resolution, codec type,
frame rate and bandwidth. Obviously, the performance of the
each connected client will slow down when many users are
logged on.
The device is weatherproof.
Status LED does not
light up.
The network cabling is
required for the device.
The device will be
installed and work if a
firewall exists on the
Install this device
• Check and confirm that the DC power adaptor, included in
packaged, is used. Secure the power connector and re-power
it on again.
• If the problem is not solved, the device might be faulty.
Contact your dealer for further help.
The device uses Category 5 or better UTP cable allowing 10
Base-T, 100 Base-TX, or 1000 Base-T networking.
If a firewall exists on the network, port 80 is open for ordinary
data communication. The HTTP port and RTSP port need to
be opened on the firewall or NAT router.
84
network.
User’s Manual of ICA-2200
The username and
password for the fir st
time or a fter factory
default reset
Forgot the username
and password
Forgot the IP address of
the device.
PLANET IPWizard II
program cannot find the
device.
Username = admin and Password = admin.
Note that it’s all case sensitivity.
Follow the steps below.
1. Restore the factory default setting by pressing and holding
down more than 5 seconds on the device.
2. Reconfigure the device.
Check IP address of device by using the PLANET IPWizard II
program or by UPnP discovery.
• Re-power the device if cannot find the unit within 1 minutes.
• Do not connect device over a router. IPWizard II program
cannot detect device over a router.
• If IP address is not assigned to the PC which running
IPWizard II program, then IPWizard II program cannot find
device. Make sure that IP address is assigned to the PC
properly.
Internet Explorer does
not seem to work well
with the device
PLANET IPWizard II
program fails to save the
network parameters.
Cannot work with NAT
router
• Antivirus software on the PC might interfere with the setup
program. Disable the firewall of the antivirus software during
setting up this device.
• Check the firewall setting of your PC or Notebook.
Make sure that your Internet Explorer is version 6.0 or later. If
you are experiencing problems, try upgrading to the latest
version of Microsoft’s Internet Explorer from the Microsoft
webpage.
• Network may have trouble. Confirm the parameters and
connections of the device.
UPnP NAT Traversal
• Maybe NAT router does not support UPnP function. Please
check user’s manual of router and turn on UPnP function.
• Maybe UPnP function of NAT router is not compatible to the
IP camera. Please contact your dealer to get the approval
85
User’s Manual of ICA-2200
routers list.
Some IP cameras are
working but others are
failed
Cannot access the login
page and other web
pages of the Network
Camera from Internet
Explorer
• Maybe too many IP cameras have been installed on the
LAN, and then NAT router is out of resource to support more
cameras. You could turn off and on NAT router to clear out of
date information inside router.
Access this device
• Maybe the IP Address of the Network Camera is already
being used by another device or computer. To confirm this
possible problem, disconnect the Network Camera from the
network first, and then run the PING utility to check it out.
• May be due to the network cable. Try correcting your
network cable and configuration. Test the network interface by
connecting a local computer to the Network Camera via a
crossover cable.
• Make sure the Internet connection and setting is ok.
• Make sure enter the IP address of Internet Explorer is
correct. If the Network Camera has a dynamic address, it may
have changed since you last checked it.
• Network congestion may prevent the web page appearing
quickly. Wait for a while.
The IP address and Subnet Mask of the PC and Network
Camera must be in the same class of the private IP address
on the LAN.
• Make sure the http port used by the Network Camera,
default=80, is forward to the Network Camera’s private IP
address.
• The port number assigned in your Network Camera might
not be available via Internet. Check your ISP for available
port.
• The proxy server may prevent you from connecting directly
to the Network Camera, set up not to use the proxy server.
• Confirm that Default Gateway address is correct.
• The router needs Port Forwarding feature. Refer to your
router's manual for details.
• Packet Filtering of the router may prohibit access from an
86
User’s Manual of ICA-2200
external network. Refer to your router's manual for details.
• Access the Network Camera from the Internet with the global
IP address of the router and port number of Network Camera.
• Some routers reject the global IP address to access the
Network Camera on the same LAN. Access with the private IP
address and correct port number of Network Camera.
• When you use DDNS, you need to set Default Gateway and
DNS server address.
• If it’s not working after above procedure, reset Network
Camera to default setting and installed it again.
• If the problem is not solved, the Network Camera might be
faulty. Contact your dealer for further help.
Image or video does not
appear in the main page.
Check the device’s
ActiveX is installed on
your computer
Internet Explorer
• The first time the PC connects to Network Camera, a pop-up
Security Warning window will appear to download ActiveX
Controls. When using Windows XP, or Vista, log on with an
appropriate account that is authorized to install applications.
• Network congestion may prevent the Image screen from
appearing quickly. You may choose lower resolution to reduce
the required bandwidth.
Go to C:\Windows\Downloaded Program Files and check to
see if there is an entry for the file “IPCamera Control”. The
status column should show “Installed”. If the file is not listed,
make sure your Security Settings in Internet Explorer are
configured properly and then try reloading the device’s home
page. Most likely, the ActiveX control did not download and
install correctly. Check your Internet Explorer security settings
and then close and restart Internet Explorer. Try to browse
and log in again.
Setup the IE security settings or configure the individual
displays the following
message: “Your current
settings to allow downloading and scripting of ActiveX
controls.
security settings prohibit
downloading ActiveX
controls”.
The device work locally • Might be caused from the firewall protection. Check the
87
User’s Manual of ICA-2200
but not externally. Internet firewall with your system or network administrator.
The firewall may need to have some settings changed in order
for the device to be accessible outside your LAN.
• Make sure that the device isn’t conflicting with any other web
server running on your LAN.
• Check the configuration of the router settings allow the
device to be accessed outside your local LAN.
• Check the bandwidth of Internet connection. If the Internet
bandwidth is lower than target bit rate, the video streaming will
The unreadable
characters are
displayed.
Frame rate is slower
than the setting.
Blank screen or very
slow video when audio is
enabled.
not work correctly.
Use the operating system of the selected language. Set the
Encoding or the Character Set of the selected language on
the Internet Explorer.
• The traffic of the network and the object of the image affect
the frame rate. The network congestion causes frame rate
slower than the setting.
• Check the bandwidth of Internet connection. If the Internet
bandwidth is lower than target bit rate, the video streaming will
not work correctly.
• Ethernet switching hub can smooth the frame rate.
• Your connection to the device does not have enough
bandwidth to support a higher frame rate for the streamed
image size. Try reducing the video streaming size to 160x120
or 320x240 and/or disabling audio.
• Audio will consume 32 kbps. Disable audio to improve video.
Your Internet connection may not have enough bandwidth to
Image Transfer on e-mail
or FTP does not work.
Pan/Tilt does not work.
(including Click to Center
and Preset Positioning)
support streaming audio from the device.
• Default Gateway and DNS server address should be set up
correctly.
• If FTP does not work properly, ask your ISP or network
administrator about the transferring mode of FTP server.
• Click [Refresh] on the Internet Explorer when the
communication stops with the device. The image will refresh.
• Other clients may be operating Pan/Tilt.
88
User’s Manual of ICA-2200
• Pan/Tilt operation has reached the end of corner.
Pan/Tilt does not work
smoothly.
There may be a slight delay when you are using the Pan/Tilt
feature in conjunction with streaming audio and video. If you
find that there is a significant delay while panning or tilting the
camera, try disabling the audio streaming and/or reducing the
video streaming size.
Video quality of the device
The focus on the
Camera is bad.
The color of the image is
poor or strange.
Image flickers. • Wrong power line frequency makes images flicker. Make
• The lens is dirty or dust is attached. Fingerprints, dust, stain,
etc. on the lens can degrade the image quality.
• Adjust White Balance.
• To insure the images you are viewing are the best they can
be, set the Display property setting (color quality) to 16bit at
least and 24 bit or higher if possible within your computer.
•The configuration on the device image display is incorrect.
You need to adjust the image related parameters such as
brightness, contrast, hue and sharpness properly.
Noisy images occur.
Cannot play the
recorded ASF file
sure the 50 or 60Hz format of your device.
• If the object is dark, the image will flicker. Make the condition
around the Camera brighter.
The video images might be noisy if the device is located in a
very low light environment. Make the condition around the
camera brighter or turn the IR LED on.
Miscellaneous
Have installed Microsoft’s DirectX 9.0 or later and use the
Windows Media Player 11.0 or later to play the AVI filed
recorded by the Device.
89
Loading...
